Professional AV Mounts and Solutions - peerless
Professional AV Mounts and Solutions
Professional AV Mounts and Solutions - peerless
Peerless-AV has been honoured with a Queen’s Award for Enterprise 2020 for
   International Trade, recognising its excellence in the area of overseas sales.
To be acknowledged with this prestigious accolade demonstrates the significant
  steps the company has taken in recent years. Peerless-AV is now represented
 in most EU countries, with recent expansion into new markets, including several
exciting territories across the Middle East and new opportunities in Africa. This has
   seen the overall percentage of goods exported rising to exceptional levels.

   “We are obviously delighted to receive this prestigious Royal accolade, as it
  recognises the hard work and commitment, we have invested to develop our
international business. I am confident that this respected award, and its globally
recognised symbol, will drive our export business and the worldwide standing of
 Peerless-AV to new heights” - Keith Dutch, Managing Director EMEA, Peerless-AV
Professional AV Mounts and Solutions - peerless
INDEX:                                                                  FLAT PANEL WALL MOUNTS

                                                         Ultra Slim™                                         44-45

                                                         SmartMount®                                         46-47
              XTREME™ OUTDOOR DISPLAYS                   Paramount™                                          48-49

XtremeTM Overview & Standards                    12-13
                                                                        SPECIALITY WALL MOUNTS
         TM
Xtreme        Features                             14
                                                         Lockable Wall Mounts                                  50
XtremeTM Specifications                            15
                                                         Speciality Wall Mounts                                51
              ULTRAVIEW™ UHD OUTDOOR TV                  In-Wall Boxes and Mounts                              52

UltraView™ Features                                16
                                                                               ACCESSORIES
UltraView™ Specifications                          17
                                                         Adaptor Plates and AV Accessories                     53
         OUTDOOR KIOSKS & ENCLOSURES

Outdoor Universal Digital Signage Boards           18                      TROLLEYS & STANDS

Outdoor Xtreme™ Smart City Kiosk                   19    Mobile Trolley for Samsung Flip 2                     54
Outdoor Enclosures and Wall Mounts               20-21   Mobile Trolley for the Microsoft® SurfaceTM Hub 2     55

                                                         Flat Panel Trolleys                                   56
                         KIOSK RANGE
                                                         Floor Stands and Accessories                          57
Portrait Totem Kiosks                            22-23

Landscape & Wall Kiosks                          24-25                      MODULAR SERIES
Custom Finish Options                              25
                                                         Twin Pole Modular Series Overview                   58-59

              dvLED MOUNTING SOLUTIONS                   Twin Pole - Single Unit Applications                60-61

                                                         Twin Pole - Video Wall Applications                 62-63
SEAMLESS Overview                                  26
                                                         Single Pole Modular Series                          64-65
Virtual dvLED Mount Configurator                   27

SEAMLESS Kitted Series                           28-31                    PROJECTOR MOUNTS
Universal Trim Kit                                 32
                                                         Single Pole Modular Kits                            66-67
SEAMLESS Bespoke Series                            33
                                                         Heavy Duty Projector Mounts                           68

                DIGITAL SIGNAGE MOUNTS                   Projector Mounts                                      69

Video Wall Mount Features & Benefits               34                  MONITOR & TABLET MOUNTS

Supreme Video Wall Mount                           35
                                                         Freestanding Desktop Stand                            70
Full Service & Quick Release Video Wall Mounts     36
                                                         Desktop, Wall and Tablet Mounts                       71
Large Format & Ultra-Slim Video Wall Mounts        37

Flat Video Wall Mounts                             38                  FLAT PANEL CEILING MOUNTS

Video Wall Trolleys & Stands                       39    Ceiling Mounts for Multiple Displays                  72
Menu Board Mounts                                  40    Ceiling Mounts for LCD screens                        73
Retail Display Mounts                              41
                                                                           PRO CEILING KITS
Column and I-Beam Mounts                           42

Media Player Holders                               43    Ceiling Mount Projector & Flat Panel System           74
Professional AV Mounts and Solutions - peerless
IN-HOUSE EXPERTISE
 Whether a full-scale global deployment or custom project,

 Peerless-AV partners with a network of resellers, integrators,

 consultants, specifiers and distributors across a range of

 territories in EMEA to deliver safe and successful installations.

 Long established relationships with all the leading OEMs,

 has enabled the company to stay at the forefront of market

 changes and the co-development of innovative new products

 that integrate seamlessly with the latest technology.

 The incorporation of specialist business development staff

 in the team has assisted with the growth of the Emerging

 Technology product division, progressing areas such as

 outdoor, kiosk and LED with innovative, high quality, safety

 tested products and exceptional customer service.
                                                                                               dvLED MOUNTING SOLUTIONS
                                                                                               Peerless-AV is at the forefront of the LED market with
                                                                                               Connect, Kitted and Bespoke dvLED Mounting Systems for
                                                     DEFINE                                    indoor and outdoor. Not only are these systems quick and
                                                                                               easy to install, but they are quality assured, modular for
                                                                                               easy transportation and damage prevention, and precision
                                        DE OY

                                                                               DESIGN
                                          PL

                                                360°
                                                C
                                                    US                     N
                                                                                               engineered with display specific adaptors and mounting
                                                                                               patterns, tight tolerances, wall plate spacers and X, Y, and Z
                                                         T O M I S ATI O                       axis adjustment.
                                                DE
                                                          VELOP

                                                                                                                                             See page 26 for more details

PEERLESS-AV COMPANY HISTORY & PRODUCT MILESTONES

                                Designed and                                                                          Plasma, LCD,
                                                                                                                      and projector                          Launched
                                developed the                                                                                                                Video wall
                                first known CRT                                                                        mounts are
                                                                       Mexico plant expansion                         introduced                             mounts
                                TV wall mount
                                                                      of 38,000 sq. ft. completed

             1941                                          1978                                     1999                              2009                                2012

                                1965                                                    1995                         2003                             2010

                    Peerless
                    opens its                                                                         Jumbo 2000                        Opened                            Develo
                                         Product line expanded to                                                                       EMEA office                         of Portr
                    doors for          include mounting hardware                                      product line
                    business                                                                          launched                          & warehouse                       Landsca

 4                         For more information and full technical product specifications visit www.peerless-av.com
Professional AV Mounts and Solutions - peerless
KIOSK RANGE                                                                     OUTDOOR DISPLAYS
         Choose from a versatile array of sleek, slim and attractive                     Our all-weather outdoor displays have proved themselves
         standard kiosk enclosures or create a completely unique                         in highly successful, exemplary installations across EMEA
         kiosk solution fit for any application and market - corporate,                  in museums, visitor attractions, corporate offices, ski
         education, quick serve restaurants, hospitality, stadiums,                      resorts, electric vehicle charging stations, custom outdoor
         retail and more. Our kiosks are customisable in every way                       wayfinding kiosks and more. The new High Bright range
         - from the size and specifications to custom paint and vinyl                    provide 2500nits of light output, with an IP66, NEMA 6 and
         wraps. If you can envision it, we can make it happen.                           IK10 rating, and the widest operating temperature range
                                                                                         to perform beyond customer expectations, all year round,
                                                                                         opening new and exciting opportunities for Digital Signage.

                                                    See page 22 for more details                                                 See page 12 for more details

               Released                                                               Launched                        Released 86”
               fully sealed                       Opened                                                              UltraView
                                                  Middle East                         Seamless
               outdoor                                                                LED                             UHD
               displays                           Warehouse                                                           Outdoor TV
                                                                                      Program

                              2014                               2017                            2019                                2021

              2013                               2015                          2018                                 2020

                                  Introduced                                                            Opened                         Peerless-AV
oped range                       Quick Release                     L
                                                                   Launched  LED
                                                                                                        European                       EMEA hosted
 rait &                            video wall                        mounting
                                                                                                        Warehouse                      first trade
 ape kiosks                         mounts                           solutions
                                                                                                                                       show

                                     For more information and full technical product specifications visit www.peerless-av.com                          5
Professional AV Mounts and Solutions - peerless
Peerless-AV’s Events
                                                                        A New AV Experience
 In September 2021 Peerless-AV ran it's first trade show at Lord's Cricket Ground in London. It was a fantastic few days of
face to face networking and technology showcases, with great feedback on new technology products, quality of visitors, in
          an iconic setting. Peerless-AV is proud to have the support of the AV industry in running this event - a first for us.

                                              SHOWCASE + NETWORKING : 16 & 17 SEPTEMBER 2021

 After over a year of virtual meetings and collaboration, A New AV Experience Showcase & Networking Event,
 organised and hosted by Peerless-AV, gave partners the opportunity to showcase their latest innovations and
technology at a convenient, central location, to an audience keen to find out what’s new in the world of AV and
  Digital Signage. The event attracted a mix of consultant, end user and reseller visitors from across the UK.

   In-person                2-days,           Iconic sports venue           Evening networking           Aligned industry
showcase for the         21 showcase          where England won           event, tours and cricket      association events
 UK AV industry            partners             2019 World Cup                 experiences              running alongside
Professional AV Mounts and Solutions - peerless
Peerless-AV Case Studies
      Projects Around The Globe
      View and download all of our in-depth Case Studies via the website (www.peerless-av.com) to learn more about
      Peerless-AV installations in a number of different market sectors and a variety of locations.

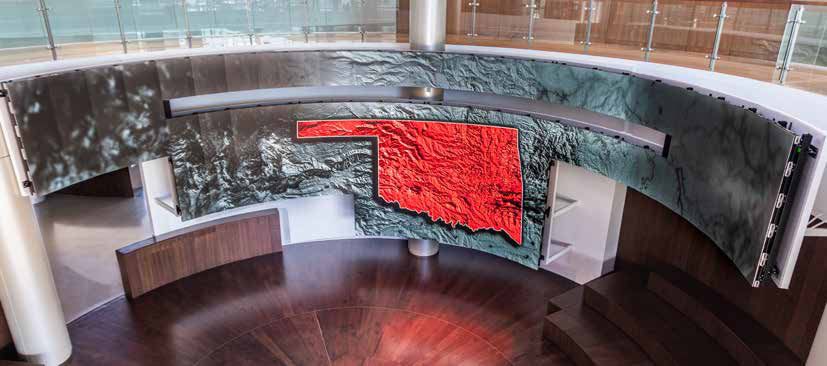

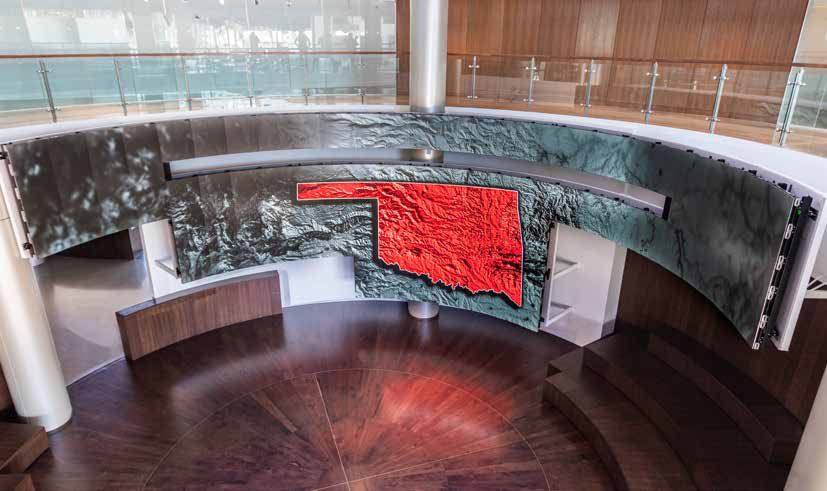

                              FIRST AMERICANS MUSEUM
                                   OKLAHOMA, AMERICA
  First Americans Museum Oklahoma Takes Guests on an Immersive
     Storytelling Experience with Massive dvLED Video Wall System.

  Initial discussions started in 2018 surrounding the construction of a
 giant, suspended, and curved direct view LED video wall designed to
 wrap around the center of the museum. The objective was to create
a gathering space for live music and performances that mimicked the
     center of a tribal village and allowed for “The Exchange of Ideas.”

 Peerless-AV was selected based on its flexibility, cost effectiveness,
  innovative engineering capabilities, and superior customer service.
     The Peerless-AV SEAMLESS Bespoke dvLED mounting system,
custom designed specifically for this project, offers compatibility and
  exclusive support for the 192 Absen Acclaim 2.5mm dvLED panels.

                                                                             SWISS MUNICIPALITY OF BUSSIGNY
                                                                              BUSSIGNY, SWITZERLAND
                                                                             Swiss Municipality of Bussigny Installs Outdoor Kiosks
                                                                             to Communicate with Citizens. Two KOF555 with 55"
                                                                             Xtreme’s were installed at Bussigny’s main train station, a
                                                                             third in the centre of the city and a fourth in the North.

                                                                             "Peerless-AV were a great support on this project,
                                                                             providing a successful outdoor solution, and technical
                                                                             advice and consultancy throughout, Bussigny town
                                                                             authority is looking at installing further outdoor kiosks
                                                                             this year and we will certainly look to partner on further
                                                                             projects together with Peerless-AV in the future"
                                                                             - Grégoire Galland, CEO, SOLMANI SA

                             IMPERIAL COLLEGE LONDON
                                     LONDON, ENGLAND
     Imperial College London, one of the world’s leading universities,
            has completed a new installation for its Business School.

     Peerless-AV’s SmartMount® Full Service Video Wall Mounts with
       Quick Release (DSVW765-LQR) were chosen as the mounting
       solution for the 32 panels for their timesaving features such as
         easy installation and precise adjustability. The video walls are
          recessed in wooden frames and so, using the mount’s quick-
   release functionality, users can articulate the display from the wall
     for servicing and maintenance by gently pressing on the front of
                                                              the display.
Professional AV Mounts and Solutions - peerless
WORLD CLASS, MULTI-LINGUAL
                                    CUSTOMER SERVICE
                                    At Peerless-AV, our first priority is our customers. That’s why
CUSTOM SOLUTIONS CUSTOMER SUPPORT
                                    our award-winning Customer Solutions Support Team strives
                                    to positively impact your business every day. Equipped with full
                                    product and technical expertise of the Peerless-AV portfolio,
                                    our one-call resolution service is available 8 a.m. to 6 p.m. UK
                                    time, Monday – Friday to assist with all of your audio visual needs.         CONTACT OUR
                                                                                                                 PEERLESS-AV
                                    WORLD CLASS TRAINING                                                         CUSTOMER
                                    Our unparalleled commitment to comprehensive and ongoing
                                    training provides you with the best customer service experience
                                                                                                                 SUPPORT TEAM
                                    in the industry. In addition to completing a rigorous six-week
                                    training program, our entire Customer Solutions Support Team                  UK: +44 (0) 1923 200100
                                    attends weekly technology trainings to ensure we are up-to-date               FR: +33 (0) 1 57 32 92 00
                                                                                                                  DE: +49 69170776611
                                    with the latest industry trends.
                                                                                                                  UAE: +8000-4449022

                                    LIFETIME WARRANTY
                                                                                                                  E-MAIL:
                                    Peerless-AV® has a long history of designing and manufacturing
                                                                                                                  info@peerless-av.eu.com
                                    only the highest quality products for over 80 years. Our solutions
                                    are trusted and relied upon by installers and integrators across              ONLINE:
                                    the globe in a wide variety of applications. To demonstrate                   www.peerless-av.com
                                    support for these customers, our unrivalled commitment to
                                    safety and to illustrate the complete confidence we have in our
                                    products, Peerless-AV is proud to offer a lifetime warranty for
                                    indoor mounts.
                                    Please visit the website (www.peerless-av.com) for full terms & conditions

                                    CUSTOM PROJECT MANAGERS
                                    The Peerless-AV Custom Solutions Team provides a single point
                                    of contact who oversees the project every step of the way,
                                    ensuring an ideal solution and timely delivery of your custom
                                    project.

                                    DEDICATED ENGINEERS
                                    Peerless-AV employs one of the industry’s largest and most
                                    experienced custom engineering and support staff. Our team
                                    features diverse skill sets and backgrounds creating a unique
                                    think-tank style atmosphere.

                                    STATE-OF-THE-ART DESIGN
                                    AND PRODUCTION
                                    The Peerless-AV Custom Solutions Team maintains its own high-
                                    tech engineering and manufacturing equipment so you never
                                    have to ‘wait your turn’ as you do with companies that outsource
                                    production. Utilising FEA Simulation software for predictive
                                    modelling allows our engineering team to virtually test design
                                    performance before prototypes are produced.

                                    Laser CNC machining equipment offers rapid turnaround design
                                    prototypes, and faster finished products, making it easy for you
                                    to get a custom solution, even on a tough deadline.
Professional AV Mounts and Solutions - peerless
peerless-av.com

                A BETTER EXPERIENCE FOR YOU!
We’re excited to announce the launch of the new and improved Peerless-AV website, offering you a
more elegant user experience with quick and intuitive access to our extensive product assortment
   and award-winning services. Check it out yourself - you’re going to love it as much as we do.

CONNECT WITH PEERLESS-AV                                              TWITTER
ON SOCIAL MEDIA                                                 twitter.com/PeerlessAVEU
                                                                @PeerlessAVEU

Social media has played an important part in                          FACEBOOK
                                                                facebook.com/PeerlessAV EMEA
helping build Peerless-AV’s relationships online.
We believe our social networks give us a platform                     LINKEDIN
to show not only what we sell, but to express                    linkedin.com/company/
                                                                 peerless-av EMEA
who we are as a company. That’s why you’ll see
                                                                      INSTAGRAM
pictures of our employees having fun in the office
                                                                 http://instagram.com/peerlessaveu
posted alongside our latest product releases. We
                                                                      VIMEO
are real and authentic with our followers because
                                                                 https://vimeo.com/
we want you interested, engaged and connected                    peerlessavemea
with us at all times.
                                                                      BLOG
                                                                 https://peerlessav.blogspot.co.uk/
Professional AV Mounts and Solutions - peerless
KEY PROFESSIONAL MARKETS

Digital Signage
                                                                                                                                           PRODUCT
                                                                                                                                          SPOTLIGHT

                                                                               DS-VW775-QR
                                                                               Supreme Full Service
                                                                               Video Wall Mount
                                                                               with Quick Release
                                                                               Peerless-AV’s Supreme Full
                                                                               Service Video Wall Mount
                                                                               raises the bar of excellence
                                                                               with an enhanced feature
                                                                               set centred on ease
                                                                               of install and display
                                                                               alignment.

Digital signage makes an impact on nearly every vertical market,
whether it be used to communicate to guests, customers, employees,
students, or others. While assessing the need for digital signage is usually
                                                                                    SCREEN SIZE              MAX LOAD                     VESA®
the first step, evaluating the solutions, which will best serve your goals            46” - 60”             57kg (125lb)             400 x 400mm
                                                                                                                                   up to 600 x 400mm
and how to implement successfully, are equally as important.

Peerless-AV are experts in Digital Signage best practise, with thousands
of installations across the globe; in hotels, hospitality venues, retail
stores, shopping centres, stadia, museums, corporate offices, universities,
control rooms, airports, train stations and more.                                   Quick Push to            8 Point Micro-          Landscape or
                                                                                 Release Mechanism            Adjustment           Portrait Orientation
From standard products to speciality designed wall mounts, to full-
service video wall mounts, to outdoor rated mounts, Peerless-AV leads                                            See page 35 for more information
the way with a full range of high-quality solutions to suit any environment.

Education & Training                                                                                                                       PRODUCT
                                                                                                                                          SPOTLIGHT

                                                                               SR560-FLIP2
                                                                               Mobile Trolley
                                                                               with Rotational
                                                                               Interface
                                                                               Peerless-AV’s Mobile
                                                                               Trolley has been
                                                                               designed to support the
                                                                               features and functionality
                                                                               of the 55" and 65"
                                                                               Samsung Flip 2 display.

Peerless-AV’s manufacturing capabilities, combined with close
cooperation with the leading display OEMs and a keen eye on future
technology trends, has enabled the company to stay at the forefront of
new product development, especially in the Education and Corporate
markets.                                                                             SCREEN SIZE               MAX LOAD                   VESA®
                                                                                   Designed for the            32kg (70lb)         Up to 400 x 400mm
                                                                                Samsung 55” & 65" Flip 2
Many Peerless-AV mounts, trolleys and stands for monitors, projectors,
interactive white boards and the new digital e-boards are installed in
learning, training and collaboration facilities, helping users benefit from
enhanced ergonomics, safety, mobility and ultimate viewing flexibility.
                                                                                   Easily rotates from       0° or 4.5° negative    Flexible Display
The various wall mounted or mobile solutions are designed with the                   Landscape to              tilt provides an        Positioning
                                                                                         Portrait           ergonomic platform     * at time of install
user in mind, whilst also perfectly matching the aesthetics of the
product they are supporting for a professional look and finish.                                                  See page 55 for more information

 Peerless-AV has a wide range of ‘market specific’ mounting solutions. Shown above and throughout this brochure are the range highlights.
  Contact Peerless-AV to request a dedicated catalogue on any specific market sector or visit www.peerless-av.com for more information.

10                       For more information and full technical product specifications visit www.peerless-av.com
KEY PROFESSIONAL MARKETS

Corporate & Office                                                                                                                      PRODUCT
                                                                                                                                       SPOTLIGHT

                                                                               SR560-HUB2
                                                                               Interactive
                                                                               Display Trolley
                                                                               Stylish, mobile
                                                                               solution to safely
                                                                               mount, move and
                                                                               store the 50.5"
                                                                               Microsoft® Surface™
                                                                               Hub 2S/2X

Peerless-AV manufactures a range of mounts and solutions to facilitate
the integration of new virtual meeting and presentation habits, and to
support the evolving communication needs of the boardroom, meeting
room, office and team collaboration environments.
                                                                                  SCREEN SIZE              MAX LOAD                  VESA®
Large format displays are increasingly required in single or multiple          Microsoft® Surface™        65lb (29.5kg)           350 x 350mm
                                                                                   Hub 2S/2X
configurations so more people can be seen on screen during Video
Conferences or presentation data can be shown alongside.

Peerless-AV’s ultra-slim flat panel mounts are ideal for supporting the
latest super-slim or super-size displays, and our single- or double-sided                                0° or 4.5° negative
                                                                                    Cable                                       Adjustable Display
VC trolleys are perfect mobile solutions for multiple room usage. Easy to         Management               tilt provides an            Height
                                                                                                        ergonomic platform      * at time of install
install with sleek, flexible designs to fit in any professional environment,
the Peerless-AV range of screen mounting products also incorporate                                             See page 54 for more information
cable management and accommodate the latest VC equipment.

Retail & Commercial
                                                                                                                                        PRODUCT
                                                                                                                                       SPOTLIGHT

                                                                                                            KIPC2555-EUK
                                                                                                            Indoor Portrait Kiosk
                                                                                                            Experience the elegance of
                                                                                                            Peerless-AV’s Portrait Kiosk,
                                                                                                            designed to support the latest LED
                                                                                                            displays and touchscreen panels
                                                                                                            up to 4" deep. From entertaining
                                                                                                            to wayfinding, this kiosk is an
                                                                                                            ideal solution for various indoor
                                                                                                            application settings, including
                                                                                                            corporate, retail and hospitality.
Retailers are having to evolve to new challenges to stay competitive in
the current business climate. Many want to install once and prolong
the investment as long as possible, so they are opting for stand out AV
technologies that not only attract and drive traffic into stores, but that
deliver the highest reliability and longevity.
                                                                                                              SCREEN SIZE           MAX LOAD
Peerless-AV products help retailers and commercial businesses to                                           from 40” up to 65”      125lb (56kg)
meet their digital communication strategies, be that wayfinding
or information gathering via touch screen kiosks, or wow factor
merchandise promotion via large format portrait displays.

Our range of indoor kiosks can be personalised in a bespoke colour
                                                                                      Internal Micro-    Made in UK, reducing    Custom Colour
finish or vinyl wrap to suit the end application, and our mounting                     Adjustments           lead times             Options
systems for LCD and LED videowalls offer the highest level of quality
with unmatched time-saving features such as precision adjustment
and serviceability.                                                                                            See page 23 for more information

Peerless-AV has a wide range of ‘market specific’ mounting solutions. Shown above and throughout this brochure are the range highlights.
Contact Peerless-AV to request a dedicated catalogue on any specific market sector or visit www.peerless-av.com for more information.

                          For more information and full technical product specifications visit www.peerless-av.com                                     11
XtremeTM Performs Beyond Expectations
                                     There has never been an outdoor daylight
                                     readable display built to withstand
                                     the harsh outdoor elements like the
                                     Peerless-AV® Xtreme™ High Bright Outdoor Displays.
                                     With unmatched capabilities, Xtreme High Bright
                                     Outdoor Displays are the perfect digital signage or
                                     entertainment solution for any professional application.
                                     Offering top-of-the-line outdoor video quality, along
                                     with the durability & longevity backed by a two-year
                                     warranty,

                                     Peerless-AV's award winning Xtreme™ High Bright
                                     Outdoor Displays will take your business to the next
                                     level.

                               IK10 Rated, Anti-Reflective & Fully Tempered Cover Glass

                               Optical Bonding Element

                               High TNI Commercial Grade Panel, Aluminium Outdoor Powder
                               Coated Encasement & Thermal Management System

                                                  Defining Elements of an Outdoor Commercial Display

                       -35°C                                     60°C

                        Without an extended heat rating for
                        the LCD panel itself, the probability of
                        having an isotropic blackout is likely. To
                        avoid panel blackouts, a high TNI panel
                        must be used if and when a display is
                             ever to live in direct sunlight.

12      For more information and full technical product specifications visit www.peerless-av.com
XTREME™ OUTDOOR DISPLAYS

                                            Optical Bonding Technology
                 Optical bonding is the process of laminating cover glass to the LCD cell

REFRACTION
A display with an air gap that does not
incorporate optical bonding has the ability
for the light produced from the LCD module
itself to be reflected back at the LCD, causing
refraction and compromising the perceived
contrast ratio. With optical bonding, the viewer
has the perception of a greater contrast ratio,
allowing dark images to remain dark and not
appear washed out.

REFLECTION
When utilising a pane of glass in front of a display
you have 3 points of reflection: Front of Cover
Glass, Back of Cover Glass and Front of LCD
module. Optical bonding eliminates two out of
three points of reflection, which reduces parallax
issues, increasing the range of viewing angles and
in turn makes the message on the display much
less eye fatiguing than screens that do not employ
this technology.

AIR GAPPED UNITS

Optical bonding protects the display from
condensation in humid environments. By
filling the void between the cover glass and
the interior panel, there is no longer an air
gap that can promote the ability to gather
condensation.

                                                IK10 Rated Cover Glass
The robustness of the display goes another step further, in that the cover glass is fully tempered,
anti-reflective and is IK10 rated*. The IK10 rating states that it will survive 20J of impact energy,
                                 making perfect for public spaces.
                                                  *4x stronger than previous models

                      For more information and full technical product specifications visit www.peerless-av.com   13
XTREME™ OUTDOOR DISPLAYS

                                                                                                                              NEW

                                                    Technical Specifications
               Part No.                                                         Screen
             XHB553-EUK                                         55” XtremeTM High Bright Outdoor Display
             XHB652-EUK                                         65” XtremeTM High Bright Outdoor Display

     All Xtreme™ High Bright Outdoor Displays are compatible with XACE Outdoor Media Cabinet – See page 20 for more details

        WEATHERPROOF                                   BEST-IN-INDUSTRY                               RESILIENT IK10 RATED
         TECHNOLOGY                                  TEMPERATURE RANGE                                   SAFETY GLASS

 With an IP66 Rating & a patented            With an operating temperature range                 The XtremeTM High Bright Display’s
    thermal exhaust system, the               of -35°C to 60°C, the XtremeTM High                 robust IK10 Rated, anti-reflective,
  XtremeTM High Bright Display is             Bright Display is designed to thrive                  impact resistant safety glass
 fully-sealed, low maintenance &               outside year-round, without worry                  fully protects the screen against
     fully protects against water,                   of extreme hot or cold                               vandalism & debris
       dust, moisture & insects                       temperature waves

         TRULY SUNLIGHT                              MANAGED SERVICES                                      HIGH BRIGHT
            READABLE                                   COMPATIBLE                                            OUTPUT

The XtremeTM High Bright Display is                Remote & local monitoring is                  The XtremeTM High Bright line of
optically bonded which increases                supported via IP Addressable user               commercial displays offer 2500nits
the perceived contrast ratio & cuts           interface, allowing network operation               of light output to combat high
down on glare, providing amazing                centers the ability to view real-time            ambient lighting conditions. The
   picture quality, even indirect                diagnostics & measure proof of                Ambient Light Sensor automatically
             sunlight                                performance of XtremeTM                   adjusts brightness, which optimises
                                                       High Bright Displays                    the display’s power consumption &
                                                                                                enhances the viewing experience

14                    For more information and full technical product specifications visit www.peerless-av.com
XTREME™ OUTDOOR DISPLAYS

LCD Display                                                  Display Features                                                    Input/Output Connections
SCREEN SIZE               XHB553-EUK: 1386mm Diagonal                                                                            HDMI INPUT                   HDMI (x3) (x2 for XHB553),
                          XHB652-EUK: 1638mm Diagonal           XHB553-EUK: Ambient Light Sensing, Display Monitoring                                         480i, 480p, 720p, 1080i ,
                                                                 with Alerts (Temperature, Humidity, Power Draw), IP                                          1080p
PIXEL PITCH               XHB553-EUK: .63 X .63mm
                          XHB652-EUK: .74 x .74mm               Control, Auto Source Switching (Fail-Over), Pixel Shift,         CVBS INPUT                   3.5mm (x1)
                                                                  Power Scheduling, Weekly Logging of Parameters
ASPECT RATIO              16:9                                                                                                   DISPLAYPORT                  DP (x1)

RESOLUTION                1920 x 1080                          XHB652-EUK: Ambient Light Sensing, Display Monitoring             ANALOG AUDIO OUTPUT          3.5mm Headphone Jack (x1)

COLOUR DEPTH              10Bit (1.07 Billion Colours)            with Alerts (Temperature, Humidity, Power Draw),               DIGITAL AUDIO OUTPUT         Optical (x1)
                                                                                      IP Control
BRIGHTNESS                2,500cd/m2                                                                                             USB DATA INPUT               USB 2.0 A (x1)
                                                                                                                                                              [Audio. Video, Text & Photo]
BACKLIGHT ADJUSTMENT      Automatic (Ambient Light Sensor)
                                                                                                                                 RS232 INPUT                  3.5mm TRS Jack
CONTRAST RATIO            4000:1                             Mechanical
                                                                                                                                 12VDC 2.5A OUTPUT            2.5mm (x1)
VIEWING ANGLE             178° Vertical/Horizontal           SIZE (W X H X D)           XHB553-EUK: 1272 x 743 x 101mm
                                                                                        XHB652-EUK: 1491 x 866 x 131mm           USB POWER 5VDC 2.4A OUTPUT   USB 2.0 A (x1)
RESPONSE TIME             8ms (Grey to Grey)
                                                             COLOUR                     Black                                    IR EXTENDER                  3.5mm (x1)
REFRESH RATE              60Hz
                                                             GLASS                      IK10 Rated, Tempered & Anti-reflective   AMBIENT LIGHT
                                                                                                                                 SENSOR EXTENDER              3.5mm (x1)
Environmental                                                VESA® PATTERN              600 x 400mm, 600 x 600mm
                                                                                                                                 LAN INPUT                    RJ-45 (x1)
                                                             NET WEIGHT                 XHB553-EUK: 44.9kg
OPERATING TEMPERATURE     -35°C - 60°C (-31°F - 140°F)                                  XHB652-EUK: 69.8kg
OPERATING USAGE HOURS     24/7                               INPUT COMPARTMENT          XHB553-EUK: 377 x 122 X 30mm             Power
                                                             (W X H X D)                XHB652-EUK: 306 x 127 x 56mm
IP RATING                 IP66                                                                                                   AC INPUT               100 VAC to 240 VAC, 50 to 60 Hz
REGULATORY                FCC Class A, cULus, CE, UKCA
                                                                                                                                 POWER CONSUMPTION      XHB553-EUK: 364W / 325W
                                                                                                                                 (MAX / TYPICAL)        XHB652-EUK: 335W / 298W

Warranty
WARRANTY COVER          2 Years

                                   For more information and full technical product specifications visit www.peerless-av.com                                                            15
86" UltraView™ UHD Outdoor TV
                                                                             The UltraView™ UHD Outdoor TV is the ideal solution for outdoor
                                                                             entertainment and living. This outdoor TV is all weather rated and
                                                                             has an operating temperature range of -30°C to 50°C. Providing
                                                                             4K resolution, with a brightness that is 3x the average of indoor
                                                                             TVs, the UV862-EUK provides an exceptional viewing experience
                                                                             for outdoor entertainment. The TV is also equipped with a High TNI
                                                                             panel, which allows for direct sunlight readability without the risk
                                                                             of isotropic blackout.

                                                                             Whether it’s an outdoor sports bar, throughout a stadium
                                                                             concourse, or in your backyard, quality outdoor entertainment is
                                                                             now a reality with UltraView.

     HIGH TNI PANEL
     allows for direct
 sunlight readability
   without the risk of
  isotropic blackout                                                                                                    AMBIENT LIGHT SENSOR
                                                                                                                        Automatically adjusts
                                                                                                                        brightness to best match the
                                                                                                                        lighting conditions, which
                                                                                                                        optimises the display’s power
                                                                                                                        consumption and enhances
                                                                                                                        the viewing experience
                                                                                                                        (optional ALS extender
INTERNAL SPEAKERS                                                                                                       accessory available)
   provide excellent
      sound without
 detracting from the
      TV’s aesthetics

                                                                                                                        RUGGED EXTERIOR
                                                                                                                        Aluminium construction
                                                                                                                        materials provide the
                                                                                                                        ultimate defense against
                                                                                                                        weather and discolouration
                    IPS PANEL
          allows for accurate
        colour representation
        when viewing off axis

                                                                       Waterproof                     Sealed cable entry helps prevent water
                                                                     Universal Remote                     and debris from getting inside

                                                            Technical Specifications
                                                  Operating
      Part No.             Screen Size                                  Brightness         Resolution             IP Rating           Audio Output
                                              Temperature Range

                             86" Class
     UV862-EUK                                    -30°C to 50°C         900cd/m2          3840 x 2160                IP55                 5W + 5W
                         (85.6" Diagonal)

16                           For more information and full technical product specifications visit www.peerless-av.com
ULTRAVIEW™ OUTDOOR DISPLAY

                                  UltraViewTM UHD Outdoor TV
      The UltraView™ UHD Outdoor TV is an all-season solution that makes the ultimate outdoor
entertainment experience a reality for light commercial applications. It’s the perfect weather-resistant,
               maintenance-free* addition to any pool deck, bar or stadium concourse.

    All Weather Rated                Operating Temperature                 Sunlight                Superior Off-Angle
         Solution                     Range -30°C to 50°C                  Readable                     Viewing

 Easy to Install &          Internal Speakers          Waterproof Universal           All-Season Cover            2-Year
 Low Maintenance                 Included               Remote Included                    Included              Warranty

                 For more information and full technical product specifications visit www.peerless-av.com                   17
Outdoor Solutions
                                                                               If you’re looking to install worry-free outdoor digital signage,
                                                                               Peerless-AV is your complete source for kiosks, digital menu boards
                                                                               and mounts that can withstand extreme, all-weather conditions
                                                                               for reliable 24/7 performance in a wide range of unattended
                                                                               applications.

                                                                               Our Smart City Kiosks and Outdoor Digital Menu Boards provide a
                                                                               rugged solution that helps businesses – whether in the QSR, Local
                                                                               Government, Corporate, Transportation or Attractions space –
                                                                               connect and communicate with their audience in a more effective
                                                                               and efficient way. Trust the experts to ensure a safe, successful
                                                                               installation with minimal maintenance and operating expenditure
                                                                               since messaging can be changed and updated remotely in just a
                                                                               few clicks. Our mounts are tested to UL2442 safety standards and
                                                                               are e-coated to protect against the elements for a trusted, long term
                                                                               display support solution in any outdoor environment.

Outdoor Universal Digital Signage Boards                                                                                                                   NEW
Increase drive-thru sales and promote
order efficiency with Peerless-AV’s                    KOF555-3-EUK                                                                      Site Security
universal Outdoor Digital Menu Boards,                                                                                                   Captive security fasteners
                                                                                                                                         prevent unauthorized
designed to support leading 55" outdoor                                                                                                  access and vandalism
display brands. These all-weather rated,
outdoor units offer a low operating cost,
modular design, and an easy, two-man                                                                                                     Ultra Slim Design
installation process. By making the switch                                                                                               Sleek and stylish, yet
                                                                                                                                         rugged enough to be
to digital, with Peerless-AV’s Outdoor                                                                                                   installed in any outdoor
Digital Menu Boards, you will no longer                                                                                                  application for 24/7 use
need to manually update static menu
content throughout the day. Instead, the
digital content can be updated remotely                                                                                                  Modular Design
and in real-time, creating a seamless                                                                                                    Displays can be installed
                                                                                                                                         from the front, without
drive-thru experience for customers and
                                                                                                                                         disturbing the adjacent
a more efficient restaurant.                                                                                                             units

• Elegant, minimalistic design protects displays and internal
  equipment, while enhancing the drive-thru aesthetics                                                  Pedestal base
                                                                                                        Allows for mounting to existing footing, thus
• Designed for common 8" baseplate mounting pattern, with 30°                                           eliminating the need for pouring new concrete*
  of rotational positioning to select the best viewing angle for
                                                                                                        *As long as it meets the requirements for various wind
  your customers
                                                                                                        load specifications
• UL 48 Certified
• Pedestal enclosure designed and tested to IP54

 Create a fully integrated drive-thru solution                       Universal design supports leading 55"                Peerless-AV® Outdoor Digital Menu Boards
                                                                    outdoor digital signage displays to offer                  also support one or two displays
 with a variety of options:
                                                                     maximum flexibility at the best value:
 • Speaker/Microphone Kit (KOF-OPT-SPK)
 Contact sales for further info
 • Media Storage Fan (KOF-OPT-FAN-EUK)
 • Internal Media Player Shelf (KOF-OPT-SHELF)
 • Mount Brackets for Peerless-AV® XHB553
 (KOF-OPT-553BRKTS) Provided with orders of XHB553

                                                                   Technical Specifications

        Model                            Screen Size                  Number of displays                 Ext. size (w x h x d)                 Product Weight

     KOF555-1-EUK             55" - XHB553, OH55F, OH55A,55XE4F             Single                      721 x 1922 x 321mm                          60kg

     KOF555-2-EUK             55" - XHB553, OH55F, OH55A, 55XE4F           Double                      1452 x 1922 x 321mm                          74kg

     KOF555-3-EUK             55" - XHB553, OH55F, OH55A, 55XE4F            Triple                     2184 x 1922 x 321mm                          88kg

18                          For more information and full technical product specifications visit www.peerless-av.com
OUTDOOR SOLUTIONS

Smart City Kiosk
Replace static signage with Peerless-AV’s
award-winning Smart City Kiosk for greater
public engagement and seamless updates
of digital content whenever, wherever. With
a focus on functionality and aesthetics, the
Smart City Kiosk is designed to be modern,
approachable, practical, and endure the
rigors of everyday use.

              Display’s Operating
              Temperature Range:
                 -35°C to 60°C
                    (-31°F - 140°F)

                                                                                                              IP66 Rated Display
             Exceptional Readability                                                                          Fully sealed design prevents the ingress
  No additional layer of glass needed                                                                         of foreign materials, such as water, dust,
      between the display and kiosk,                                                                          moisture and insects from entering the
       reducing reflections and glare                                                                         display

                                                                                                              Ultra Slim Design
                  Media Storage Area                                                                          Elegant, minimalistic design protects and
      Protects electronic components                                                                          ventilates display, whilst being rugged
         rated to 10°C above local air                                                                        enough to be installed in any application
   temperature with filters and cooling
            fans (tested to IP54 rating)                                                                      Strong & Sturdy
                                                                                                              Bolt down design tested to withstand
                                                                                                              winds of up to 140mph

• Includes Peerless-AV® 55" (XHB553) XtremeTM High Bright Outdoor Display
• Elegant, minimalistic design covers, protects and ventilates displays and equipment                                       For more information on
• No additional layer of glass needed between display and enclosure, eliminating glare
                                                                                                                            our Xtreme™ High Bright
• Wind tested up to 140 mph
                                                                                                                            Outdoor Displays Range,
• Ambient Light Sensor automatically adjusts brightness to best match the lighting conditions
• Sleek and stylish, yet rugged enough to be installed in any application                                                      please see page 12
• Media storage area. Protects electronic components rated to 10°C above local air temperature
  with filters and cooling fans (tested to IP54 rating)

                                                                Technical Specifications

           Model                        Screen                   Ext. size (w x h x d)                   Display Window              Product Weight

    KOP2555(-S)-XHB-EUK               55” XHB553                899 x 2091 x 216mm                       738 x 1272 mm                160kg (352lb)

Outdoor Smart City Kiosk for
• Samsung OHF Display not included
• Supports Samsung 55" (OH55F & OH55A) displays to offer maximum flexibility
• Elegant, minimalistic design covers, protects and ventilates displays and equipment
• No additional layer of glass needed between display and enclosure, eliminating glare
• Wind tested up to 140 mph
• Easily add-on additional technology components for enhanced functionality, such as IR touch
  overlays, cameras, routers, antennas and more
• Media storage area. Protects electronic components rated to 10°C above local air temperature with
  filters and cooling fans (tested to IP54 rating)

                                            Technical Specifications

           Model                      Compatible Samsung Screen                             Dimensions

     KOP2555-OHF-EUK                     55" (OH55F & OH55A)                             899 x 2091 x 216mm

                          For more information and full technical product specifications visit www.peerless-av.com                                     19
OUTDOOR
                                                                    OUTDOOR
                                                                   OUTDOORSOLUTIONS
                                                                            SOLUTIONS
                                                                           SOLUTIONS

XtremeTM Active Climate Control Enclosure
• Protects electronic components against
  outdoor elements
• 2 Internal Electrical Outlets
• Supports electronic devices up to 14.95"
  x 10.00" x 3.42" (380 x 253 x 87mm)
• Completely sealed design. With an IP66
  rating, devices are safe from liquid and
  particulate ingress
• Removable, internal mounting tray for
  easy, neat and clean integration
• Thermal electric system automatically
  regulates internal temperature to keep
  devices safe in extreme environments:
  Unit Cooling Activation @ 29°C
  Unit Heating Activation @ 1.7°C

                                                   Technical Specifications
             Part No.                       Supports devices up to                    Mounting pattern

                                               380 x 253 x 87mm
        XACE-02-EUK                                                                  VESA® 100 x 100mm
                                            (14.95" x 10.00" x 3.42")

Outdoor flat wall mount                                                             Corrosion resistant flat & tilt portrait mount
• Designed specifically for outdoor use and                                         • Designed specifically for outdoor use and
  constructed from weatherproof materials                                             constructed from weatherproof materials
• Up to 7.4" (189mm) of horizontal                                                  • Open wall plate design allows for total wall
  positioning                                                                         access, increasing electrical and cable
                                                                                      management options
• Open wall plate allows total wall
  access, increasing electrical and cable                                           • Universal mount fits displays with mounting
  management options                                                                  patterns up to 450 x 745mm (17.73"W x
                                                                                      29.31"H) and up to 400 x 600mm VESA®
• Hinged adaptors ease installation of                                                compliant
  hardware to the rear of the display
                                                                                    • Universal display adapters easily hook onto
• Hook-and-Hang™ Installation means                                                   the wall plate for fast installation
  display is easily installed by a single person
                                                                                    • Safety latch ensures display is securely
• Included with the XHB652 and UV862.                                                 attached to wall plate
  Mount the UV862 in landscape, or the
  XHB652 either landscape or portrait                                               • Low-profile design holds display only 1.77"
  orientation                                                                         (45mm) from the wall for a clean
                                                                                      application
                                                                                                                                         WEATHER
                                                                                                                                         RESISTANT

         WEATHER
         RESISTANT
                                                                                                                 Technical Specifications
                              Technical Specifications
                                                                                        Part No.            Screen Size      Max. weight             Mounting pattern
  Part No.      Screen Size         Max. weight             Mounting pattern
                                                                                     ESF655P (Flat)            42-80”       68kg (150lbs)            Up to 400 x 600mm
  ESF686             65-86"         91kg (200lb)         VESA® up to 700 x 600mm
                                                                                     EST655P (Tilt)            42-80”       68kg (150lbs)            Up to 400 x 600mm

Corrosion resistant tilt wall mount                                                 Corrosion resistant tilt wall mount
• Made of corrosion resistant materials                                             • For Indoor/Outdoor use where
  for weather resistance                                                              corrosion protection and weather
• One-TouchTM tilt allows                                                             resistance needed
  adjustment of +15/-5° with                                                        • Adjustable +15° forward and -5°
  optional tilt lock in 5° increments                                                 backward tilt for optimal viewing
• Horizontal display adjustment up                                                    angle
  to 8" (203mm) for better display                                                  • Low profile design holds display on
  placement                                                                           53mm from the wall for a discreet
• 2.64" (67mm) from the wall                                                          installation

• Double stud mounting with 16",                                                    • Mounts to wood stud, concrete,
  20" & 24" stud placements                                                           cinder or breeze block

• Tamper-resistant hardware                                                         • Includes all necessary wall and
  is standard and also has                                                            display attachment hardware
  accommodations for optional
  padlocks
• Wood, concrete or cinder block
  mounting hardware included                                            WEATHER              WEATHER
                                                                        RESISTANT            RESISTANT

                              Technical Specifications                                                           Technical Specifications
     Part No.          Screen Size       Max. weight           Mounting pattern       Part No.           Screen Size      Max. weight                Mounting pattern

     EPT650               32-75”         79kg (175lbs)        Up to 600 x 400mm        EPT630              22-40”         36kg (80lbs)                VESA® 100mm

20                                 For more information and full technical product specifications visit www.peerless-av.com
OUTDOOR
                                                                       OUTDOORSOLUTIONS
                                                                                SOLUTIONS

 Outdoor articulating wall mount                                                      Corrosion resistant articulating mount

 • Made of corrosion-resistant                                                        • Made of corrosion-resistant
   materials for weather resistance                                                     materials for weather resistance
 • Universal model extends                                                            • Dual arm construction for added
   from 4.50" (114mm) to 22.72"                                                         strength and smooth motion on
   (577mm) from the wall                                                                larger displays
 • Open wall plate design for                                                         • Universal model extends
   increased wall access and                                                            from 4.44" (113mm) to 27.94"
   improved aesthetic                                                                   (710mm) from the wall
 • Universal mounting pattern                                                         • Minimalistic wall plate footprint
   accommodates a variety of                                                            for increased wall access and
   display mounting patterns                                                            improved aesthetic
 • IncreLokTM tilt allows adjustment of +15°/-5°                                      • Integrated cable management provides ample
 • Includes all necessary wall and display                                WEATHER       area to run cables to complete a professional                           WEATHER
                                                                          RESISTANT                                                                             RESISTANT
   attachment hardware                                                                  and discrete installation
                                                                                      • IncreLokTM tilt allows adjustment of +15°/-5°

                             Technical Specifications                                                             Technical Specifications
    Part No.     Screen Size      Colour      Max. weight        Mounting pattern       Part No.     Screen Size      Colour       Max. weight          Mounting pattern

   EPA762PU         42-75”         Black      68kg (150lbs)      Up to 600 x 400mm     ESA763PU         32-86”         Black       91kg (200lbs)        Up to 600 x 400mm

                                                                                                                      Outdoor Flat Wall Mounts
                               Outdoor Tilt Wall Mounts
• Designed specifically for outdoor use and
  constructed from weatherproof materials                                             • Designed specifically for outdoor use and
                                                                                        constructed from weatherproof materials
• Adaptors hook onto the wall plate,
  simplifying the install                                                             • Adaptors hook onto the wall plate,
                                                                                        simplifying the install
• Clean profile design hides cables and
  hardware within enclosed wall plate for a                                           • Clean profile design hides cables and
  clutter-free installation                                                             hardware within enclosed wall plate for a
                                                                                        clutter-free installation
• Air baffles help separate exhaust from
  intake air                                                                          • Air baffles help separate exhaust from
                                                                                        intake air
• Security hardware deters tampering and
  theft                                                                               • Security hardware deters tampering and
                                                                                        theft
• Tilts 0° to 10° Landscape, 0° to 4° Portrait

                             Technical Specifications

      Model           Compatible Screen            Orientation          Flat / Tilt

    EWL-OH46F             OH46F (46")              Landscape               Tilt                                      Technical Specifications

    EWP-OH46F             OH46F (46")                Portrait              Tilt              Model            Compatible Screen           Orientation            Flat / Tilt

    EWL-OH55F             OH55F (55")              Landscape               Tilt            EWL-OH85F              OH85F (85")             Landscape                Flat

    EWP-OH55F             OH55F (55")                Portrait              Tilt            EWP-OH85F              OH85F (85")                Portrait              Flat

                    Outdoor Tilt Wall Mounts                                             Wind rated tilt wall mount

• Designed specifically for outdoor use and                                            • Constructed from weather proof
  constructed from weatherproof materials                                                materials, with special e-coating
                                                                                         (as used in the automobile industry) to
• Adaptors hook onto the wall plate,
                                                                                         protect against corrosion
  simplifying the install
                                                                                       • Mount is wind rated up to 110mph
• IncreLokTM tilt locks the display at 0°, 2° or
                                                                                         when fixed tilt mechanism is
  4°
                                                                                         engaged
• Clean profile design hides cables and
                                                                                       • Easy fixed tilt settings of 0°, 2°, 5°,
  hardware within enclosed wall plate for a
                                                                                         10° and 15° enable the perfect
  clutter-free installation
                                                                                         viewing angle when positioned at
• Security hardware deters tampering and                                                 any height
  theft
                                                                                       • Hook-and-hang design makes
• Air baffles help separate exhaust from                                                 installation quick and easy in any
  intake air                                                                             setting
                                                                                       • Universal mounting pattern up to
                                                                                         VESA® 600 x 400mm
                              Technical Specifications
                                                                                                                                                                    WEATHER
                                                                                                                                                                    RESISTANT

           Model                  Compatible LG Screen                Orientation
        EWL-49XE4F                      49XE4F (49")                  Landscape                                  Technical Specifications
        EWP-49XE4F                      49XE4F (49")                    Portrait         Part No.       Screen Size       Max. weight              Mounting pattern
        EWL-55XE4F                      55XE4F (55")                  Landscape
                                                                                          EWMU             32-65”         91kg (200lbs)            Up to 720 x 449mm
        EWP-55XE4F                      55XE4F (55")                    Portrait

                                For more information and full technical product specifications visit www.peerless-av.com                                                    21
Indoor Information & Wayfinding Kiosks
                                                                     With new interactive technologies such as touch, gesture,
                                                                     dynamic media and mobile devices replacing traditional static
                                                                     information points in so many different vertical markets, it’s no
                                                                     wonder that relevant mounting solutions have been required to
                                                                     expand to cater for this opportunity. Introducing Peerless-AV’s
                                                                     sleek digital signage kiosk range, designed to best support the
                                                                     latest ultra-thin LED displays and touchscreen panels from 40” to
                                                                     65”.

                                                                     Choose from a versatile array of sleek, slim and attractive kiosk
                                                                     enclosures that are sure to make an impact with your audience.
                                                                     Whether it’s advertising, a digital directory or wayfinding, these
                                                                     solutions are an ideal fit for corporate, public transport, hospitality,
                                                                     education, hospital, retail store, shopping centre and many more
                                                                     applications.

                                                                     This complete range includes solutions for single and back-to-
                                                                     back displays in portrait or landscape orientation. This is further
                                                                     complemented by a comprehensive selection of discreet on-wall
                                                                     and in-wall kiosks for 40” to 55” ultra-thin displays up to 57mm in
                                                                     depth.

                                                                     Products are supplied in silver finish as standard. However, custom
                                                                     paint colours and vinyl wraps can be an option to complement
                                                                     existing aesthetics or to satisfy client branding requirements.

  Customise any kiosk with bespoke colouring to perfectly
                                                                       Contact us on +44 (0) 1923 200 100 or sales@peerless-av.co.uk
 match brand guidelines or create an appearance that works
            with the aesthetics of the location.                           for more information or to discuss custom quotations

                                                                                                           COOLING FANS
                  LOCKABLE FRONT                                                                           help maintain an ideal
                      & REAR DOOR                                                                          operating temperature
                allows convenient
                  access for quick
           installation and simple
                      maintenance

                 TOOL-LESS MICRO
                       ADJUSTMENT
       at 8-points for flush display                                                                       UNIVERSAL WINDOW SIZE
       alignment in kiosk window                                                                           to accommodate all standard
                                                                                                           40”, 42”, 43”, 46”, 47”, 48”, 49”,
                                                                                                           50” 55” or 65” panels

           UNIVERSAL MOUNTING
                         PATTERN
      scalable compatibility from
          VESA® 200 x 200mm up
                 to 800 x 400mm

                                                                                                           POWDER COATED & CURED
                                                                                                           for a durable and long
                                                                                                           lasting finish ideal for high
                HEAVY DUTY BASE                                                                            traffic public areas
        with cable management
       cut-outs can be bolted to
         floor for added security

                                                                                                           MEDIA PLAYER STORAGE
                                                                                                           area included within body of
                                                                                                           the kiosk

22                     For more information and full technical product specifications visit www.peerless-av.com
KIOSK RANGE

Universal Indoor Floorstanding Portrait Kiosk
                                                        •     Designed to accommodate displays up to 101mm deep (4”)

                                                        •     Lift off bi-level doors allowing access to parts requiring maintenance

                                                        •     Internal micro-adjustments allow for quick positioning of display within
                                                              the kiosk window for flush alignment

                                                        •     Two whisper quiet thermostatically controlled cooling fans to exhaust
                                                              heat generated from the display and components

                                                        •     Keyed locks prevent theft and tampering with display and
                                                              components

                                                        •     Internal component tray to store media player and keep cables
                                                              hidden for a professional looking finish
   Made in
    the UK                                              •     Flat base can be free standing or bolted to the ground and allows for
                                                              electrical and data cable access

                                                        •     Supports a wide range of aesthetic options, including multiple colours
                                                              and vinyl wraps, to match any branding strategy

                                                                                              Technical Specifications
                                                                                                        Kiosk              Height to         Display
   Custom                                                       Model         Screen Size
                                                                                                     Dimensions          Screen centre       Window
   Colour                                                    KIPC2540-EUK            40”         711 x 1835 x 457mm        1278mm         500 x 888mm
                                                             KIPC2542-EUK            42”         711 x 1835 x 457mm        1267mm         525 x 933mm
                                                             KIPC2543-EUK            43”         711 x 1835 x 457mm        1262mm         537 x 955mm
                                                             KIPC2546-EUK            46”         787 x 1835 x 457mm        1212mm        574 x 1021mm
                                                             KIPC2547-EUK            47”         787 x 1835 x 457mm        1207mm        587 x 1043mm
                                                             KIPC2548-EUK            48”         787 x 1835 x 457mm        1201mm        599 x 1065mm
                                                             KIPC2549-EUK            49”         864 x 1987 x 483mm        1311mm        613 x 1087mm
                                                             KIPC2550-EUK            50”         864 x 1987 x 483mm        1306mm        626 x 1109mm
                                                             KIPC2555-EUK            55”         864 x 1987 x 483mm        1275mm        686 x 1220mm
                                                             KIPC2565-EUK            65”         1016 x 2194 x 533mm       1654mm        813 x 1441mm

Universal Indoor Floorstanding Portrait Back-To-Back Kiosk
                                                   •        Accommodates ultra-thin or deeper commercial displays up to 46mm*
                                                            thick, while accentuating the slim, curvature kiosk design

                                                   •        Designed with architectural steel and a 3/8” steel base plate that
                                                            provides stability, strength and corrosion resistance

                                                   •        Two whisper quiet thermostatically controlled cooling fans to exhaust
                                                            heat generated from the display and components

                                                   •        Internal micro-adjustments allow for quick positioning of display within
   Made in                                                  the kiosk window for flush alignment
    the UK
                                                   •        Secured doors allow convenient access to the display, media player
                                                            and other internal components for easy installation and maintenance

                                                   •        Supports a wide range of aesthetic options, including multiple colours
                                                            and vinyl wraps, to match any branding strategy

                                                   *Deeper models also available (KIPC25%%B-3-EUK) to accommodate
   Custom                                          displays up to 76mm thick
   Colour
                                                                                             Technical Specifications
                                                                            Screen               Kiosk
                                                            Model                                                 Display Window          Colour
                                                                             Size             Dimensions
                                                       KIPC2540B-EUK         40”           711 x 1835 x 457mm      500 x 888mm     Silver, Black or Custom
                                                       KIPC2542B-EUK         42”           711 x 1835 x 457mm      525 x 933mm     Silver, Black or Custom
                                                       KIPC2543B-EUK         43”           711 x 1835 x 457mm      537 x 955mm     Silver, Black or Custom
 Back-to-Back
  Mounting                                             KIPC2546B-EUK         46”           787 x 1835 x 457mm     574 x 1021mm     Silver, Black or Custom
                                                       KIPC2547B-EUK         47”           787 x 1835 x 457mm     587 x 1043mm     Silver, Black or Custom
                                                       KIPC2548B-EUK         48”           787 x 1835 x 457mm     599 x 1066mm     Silver, Black or Custom
                                                       KIPC2549B-EUK         49”           864 x 1987 x 483mm     613 x 1087mm     Silver, Black or Custom
                                                       KIPC2550B-EUK         50”           864 x 1987 x 483mm     626 x 1109mm     Silver, Black or Custom
                                                       KIPC2555B-EUK         55”           864 x 1987 x 483mm     686 x 1220mm     Silver, Black or Custom
                                                       KIPC2565B-EUK         65"       1016 x 2194 x 533mm        813 x 1441mm     Silver, Black or Custom

                For more information and full technical product specifications visit www.peerless-av.com                                               23
KIOSK RANGE

Hourglass Landscape Kiosk
• Designed to accommodate latest touch screen and digital signage displays (up to 89mm depth) in a stylish
  floor standing kiosk
• Modern hourglass body design with a curved, corner pull-out display cover
                                                                                                                                         Made in              Custom
                                                                                                                                          the UK              Colour
• Display lies flush with the kiosk window for a clean integrated appearance
• Unobtrusive, stylish flat base panel can be free standing or bolted to floor for increased safety and security
• Internal component tray to store media player and cables neatly for a professional finish (internal size 215 x 317
  x 101mm)

• High-performance, premium powder coat finish protects the unit and extends the product lifespan for years
• Available in black or silver finish as standard this unit can support a wide range of aesthetic options
  including multiple colours, vinyl wraps, etc. to best match the environment or promote brand strategy

• For theft protection, the kiosk features hex pin screw locks

                                                Technical Specifications
        Model                  Screen Size                     Max Weight                 Ext. size (w x h x d)
      KILH540-EUK                  40”                         34kg (75lb)               1063 x 1362 x 470mm
      KILH542-EUK                  42”                         34kg (75lb)               1063 x 1362 x 470mm
      KILH543-EUK                  43”                         34kg (75lb)               1063 x 1362 x 470mm
      KILH546-EUK                  46”                         34kg (75lb)               1174 x 1389 x 470mm
      KILH547-EUK                  47”                         34kg (75lb)               1174 x 1389 x 470mm
      KILH548-EUK                  48”                         34kg (75lb)               1174 x 1389 x 470mm
      KILH549-EUK                  49”                         34kg (75lb)               1221 x 1398 x 470mm
      KILH550-EUK                  50”                         34kg (75lb)               1221 x 1398 x 470mm
      KILH555-EUK                  55”                         34kg (75lb)               1332 x 1426 x 470mm

Wall Kiosk                                                                              In-Wall Kiosk
• Eight-way tool-less adjustment to                                                     • Eight-way tool-less adjustment to
  quickly position display in kiosk                                                       quickly position display in kiosk window
  window for flush alignment                                                              for flush alignment
• Accommodates ultra-thin                                                               • Accommodates displays 78mm (3.10”)
  displays up to 50mm (2”) thick to                                                       thick while still fitting within standard
  accentuate slim kiosk design                                                            wood stud walls
• Low profile design extends 101mm                                                      • Removable front cover and pull-out
  (4”) away from the wall                                                                 mount offers easy access to display
• Hinged top frame offers                                                                 and internal components for easy
  easy access to display and                                                              maintenance
  internal components for easy                                                          • Low profile design extends 25mm (1")
  maintenance                                                                             away from the wall
                                                KIL647-EUK
• Thermostat controlled circulation                                                     • Pre-assembled to simplify installation of
                                             (custom colour)
  fans ensure proper airflow within                                                       the entire solution
  the kiosk                                                                             • Supports wide range of aesthetic
• Pre-assembled to simplify installation of the entire                                    options including multiple colours, vinyl
                                                                       Custom             wraps, etc. to best match environment
  solution
                                                                       Colour             or promote brand strategy
• Custom sizes available for smaller and larger displays                                                                               KIL746-S-EUK
                                                                                        • Custom sizes available for smaller and
• Supports wide range of aesthetic options including                                      larger displays
  multiple colours, vinyl wraps, etc. to best match
  environment or promote brand strategy                                                                                                                     Custom
                                                                                                                                                            Colour

                            Technical Specifications                                                                Technical Specifications
   Model      Screen Size   Max Weight        Ext. size (w x h x d)          VESA   ®    Model        Screen Size   Max Weight    Ext. size (w x h x d)     VESA®
 KIP640-EUK     40” Port                     688 x 1124 x 100mm                         KIP740-EUK      40” Port                  749 x 1140 x 128mm
 KIP642-EUK     42” Port                     688 x 1124 x 100mm                         KIP742-EUK      42” Port                  749 x 1140 x 128mm
 KIP643-EUK     43" Port                     688 x 1124 x 100mm                         KIP743-EUK      43" Port                  749 x 1140 x 128mm
                                                                        200 x 200
                                                                                        KIP746-EUK      46” Port                  825 x 1261 x 128mm        200 x 200
 KIP646-EUK     46” Port                     739 x 1223x 100mm            up to
                            34kg (75lb)                                                                             34kg (75lb)                               up to
 KIP647-EUK     47” Port                     739 x 1223x 100mm        400 x 600mm       KIP747-EUK      47” Port                  825 x 1261 x 128mm      400 x 600mm
 KIP648-EUK     48” Port                     739 x 1223x 100mm                          KIP748-EUK      48” Port                  825 x 1261 x 128mm
 KIP649-EUK     49" Port                     851 x 1399 x 100mm                         KIP749-EUK      49" Port                  912 x 1452 x 128mm
 KIP655-EUK     55” Port                     851 x 1399 x 100mm                         KIP755-EUK      55” Port                  912 x 1452 x 128mm

 KIL640-EUK     40” Land                     1105 x 686 x 101mm                         KIL740-EUK     40” Land                   1153 x 734 x 131mm
 KIL642-EUK     42” Land                     1105 x 686 x 101mm                         KIL742-EUK     42” Land                   1153 x 734 x 131mm
 KIL643-EUK     43" Land                     1105 x 686 x 101mm                         KIL743-EUK     43" Land                   1153 x 734 x 131mm
                                                                        200 x 200                                                                           200 x 200
 KIL646-EUK     46” Land                     1219 x 737 x 101mm           up to         KIL746-EUK     46” Land                   1280 x 809 x 131mm          up to
                            34kg (75lb)                                                                             34kg (75lb)
 KIL647-EUK     47” Land                     1219 x 737 x 101mm       600 x 400mm       KIL747-EUK     47” Land                   1280 x 809 x 131mm      600 x 400mm
 KIL648-EUK     48” Land                     1219 x 737 x 101mm                         KIL748-EUK     48” Land                   1280 x 809 x 131mm
 KIL649-EUK     49" Land                     1422 x 866 x 101mm                         KIL749-EUK     49" Land                   1471 x 898 x 131mm
 KIL655-EUK     55” Land                     1422 x 866 x 101mm                         KIL755-EUK     55” Land                   1471 x 898 x 131mm

24                            For more information and full technical product specifications visit www.peerless-av.com
KIOSK RANGE

Landscape/Portrait Kiosk                                                                                NEW
• Fits most 15", 22", or 32" Displays
• Stand-alone or fully integrated with display, audio components, media player and input
  components
• A wide range of custom aesthetic options also available; options include custom color
  finishes, vinyl logos, wraps, etc

• Mount the display in landscape or portrait orientation to fit your digital signage needs

• Stylish kiosk body. Allows for the ultimate placement flexibility

• High-performance, premium powder coat finish. Protects the unit and extends the product
  lifespan for years

• Tested to UL safety standards

• Internal storage. Safely store media players, routers and other components

• Internal cable management. Creates an aesthetically pleasing appearance

• Secured rear doors. Deters theft and allows
  convenient access to the display and other
  internal components for easy maintenance

• Flat rectangular base. Unobtrusive, stylish design
  can be free-standing or bolted to the floor for                     Landscape             Custom
  increased safety and security                                        or Portrait          Colour

                                        Technical Specifications
         Model                 Screen Size             Max Weight               Ext. size (w x h x d)
      KIP522-EUK              15" 22" or 32"         22.6kg (50lb)             333 x 1357 x 406mm

Customise Your Kiosk
With many public and private spaces becoming ever more congested with digital signage content, it is important to clients that their
message stands out in the crowd. Whether a kiosk branded with the client logo or in their corporate colours, or a solution where the kiosk
graphics carry through the marketing theme. To support this requirement, Peerless-AV offers the ability to personalise any of the kiosk range
with a choice of three different client branding options.

  Custom Colour Finish                                        Vinyl Logo / Graphic                            Full Vinyl Wrap

                                                                                                              To create a
                                                                                                              branding
                                                                                                              statement without
                                                                                                              compromise,
                                                                                                              a complete
                                                                                                              vinyl wrap is the
                                                                                                              ultimate canvas
                                                                                                              on which to deliver
   This delivers a kiosk that is finished in                   Kiosk models are available in either           your message.
   a bespoke colour to perfectly match                         a Black or Silver (-S) powder coated           Creating a
   client brand guidelines or to create                        finish as standard, to which it is possible    stunning, seamless
   an appearance that works with the                           to add a vinyl graphic. This could             appearance in full
   aesthetics and decor of the location.                       be anything from a company logo,               colour. The only limit
   Components are powder coated in the                         marketing message or a product                 to the designs that
   same way as a standard Peerless-AV                          image for a semi-permanent static              can be achieved is
   kiosk and are delivered fully assembled.                    brand statement.                               your imagination.

Peerless-AV also offer add-on additional technology components for boosted functionality

  Speakers                                                   Camera                                           Wheel Base

   Add speakers to boost end user                             Add a camera to capture real-time               Add a wheeled base for ease of
   communication.                                             video and enhance interactivity.                movement.

                                For more information and full technical product specifications visit www.peerless-av.com                       25
You can also read
