RCI Electronic Access Controls Product Catalogue
What's new.qxp_Layout 1 2020-07-17 2:16 PM Page 1
What’s new
Changed Products
0563 ½” Electric Strikes Now discontinued; replaced by 0163
BXES2 Weldable Box Now discontinued; no replacement
3520 Electronic Latches Now discontinued; consider 3525 or contact your regional sales
manager for other options
6451 Exit Sensor Bars Now discontinued; consider 120, 1200 or 1300 or contact your
regional sales manager for other options
947 Dual Vestibule Push Plate Now discontinued; consider touchless 946T; 950T; 910TC
or consider 941 mullion push plate
9BOLL Bollard/Mounting Post Now discontinued, no replacement
R10-1, R10-1-FPD, R10-3, R10-3-FPD, Now discontinued; replaced by DKPS 2A; DKPS 4A; DKPS 6A
R10-4, R10-4-FPD (Power Supplies)
PDD-FT power distribution board Now discontinued; consider PDM-4; PDM-8; PDM-8S
New Products
DKPS 2A power supply New power supply series; replaces R10 series.
DKPS 4A power supply
DKPS 6A power supply
910TC-HC & 910TC-SS (stainless steel) Touchless Switch - new face plate options
YG80 - Heavy duty electronic lock New heavy-duty electronic lock; ideal for garage doors; shipping
containers and more.
IL06 - Barrier free controller New barrier-free controller ideal for washroom automatic
door openers.
WPDT - Wireless power and data transfer Ideal for transferring power and data between a door and frame.
Keyscan LUNA 1-6 door access control system Comprehensive access control kit solution for securing 1-6 doors
RB-DPDT 8A New 8 Amp relay board
9310RB New 10 Amp relay board
Table of Contents
What's New 6
Electromagnetic Locks 8310 MultiMag® 8
8320 MultiMag® 8
8310-IQ IntelliMag ®
9
8320-IQ IntelliMag ®
9
DE8310 Delayed Egress 10
171HD Magnetic Lock 11
8360 Mortise MiniMag ®
12
8365 Mortise MicroMag® 12
8371 Surface MiniMag ®
13
8372 Surface MiniMag ®
13
8375 Surface MicroMag ®
14
8380 GateMag® 14
Accessories 15-17
Building Code Signs 18
Electric Strikes Cross Reference 20
0161 3/4" Semi-Mortise Rim Strikes 21
0162 3/4" Surface Mount Rim Strikes 22
0163 1/2" Surface Mount Rim Strikes 23
F1114 Centerline Strikes 24
F1119 Centerline Strikes 24
F2164/2364 All-In-One Strikes 25
4 Series Centerline Strikes 26
6 Series Centerline Strikes 27
7 Series Centerline Strikes 28
12C Compact Strike 29
VR165 Vertical Rod Strike 29
VR166 Vertical Rod Strike 30
Modular Strike Inserts 31
Modular Strike Faceplates 32
Accessories 33-35
Frame & Lock Type Reference Guide 35
Keypads & Readers 5355R Proximity Reader & Keypad Combo 37
5395R Proximity Reader 37
6005R Mullion Proximity Reader 37
125kHz Proximity Cards & Fobs 38
9325 Keypads 39
9212 Keypads 40
9321 Reader + Controller 41
9322 Reader + Controller 42
9323 Reader + Controller 42
2 RCI Product Catalogue 2020
Switches 906 Handicap Pushbutton 44
908 Exit Pushbutton 44
916 Tamper‑Resistant Handicap Pushbutton 45
918 Tamper‑Resistant Exit Pushbutton 45
990 Oversized Tamper‑Resistant Pushbutton 46
991 Pneumatic Time Delay Pushbutton 47
919 Rotary Release Pushbutton 48
920 Emergency Release Keyswitch/Pushbutton 48
917 Easy Touch Pushbutton 49
972 All-In-One Illuminated Pushbutton 49
970 Illuminated Exit Pushbutton 50
975 Illuminated Exit Pushbutton 50
980 Economy Pushbutton 51
903 Audible Alert 51
960 Tamper‑Resistant Keyswitch 52
904P Emergency Pull Station 53
913 Microwave Motion switch 53
909 Rocker Switch 53
914 Sounder 53
915 Passive Infrared 54
915AFI Active Focused Infrared 54
946 Square Push Plate 55
950 Round Push Plate 55
946T Short range Touchless Activator 56
950T Short range Touchless Activator 56
IL06 Barrier-Free Controller 57
910TC Touchless Switch 58
940 Rectangular Push Plate 59
941 Mullion Push Plate 60
9LP36 Low Profile Push Plate 61
9RCT433 Transmitters 61
9DRCR433 Receivers 61
9500/9501 Mortise Pin Transfers 62
9507/9509 Flex Loops 62
9503 Ball Transfer 62
9520 Series Electrified Hinges 62
9512/9513 Bridge Cables 63
9530 Balanced Magnetic Contact DPS 63
9540 Recessed Magnetic Contact DPS 63
Accessories 64
RCI Product Catalogue 2020 3
Locksets C800 Series Cylindrical Locksets 66-68
Specialty Locks YG80 Electronic Heavy-Duty Lock 70
3590 Lock ‘N’ Prox 71
3510LM Electromechanical Cabinet Lock 72
3513 Electromechanical Cabinet Lock 72
3525 Electromechanical Rack Handle Lock 73
MEM4400 Compact Electromechanical Lock 74
S2500A Mini Electromagnetic Lock 74
EM-MAG1500 Compact Electromechanical Lock 75
MEM2400 Compact Electromechanical Lock 75
Exit Devices 120 Series Exit Bar 77
1200 Series Mechanical Rim Exit Bar 78
1300 Series Electrified Rim Exit Bar 79
Exterior Trims 80
Power Supplies DKPS-2A Power Supply 82
DKPS-4A Power Supply 82
DKPS-6A Power Supply 83
DKPS-TSW Tamper Switches 83
WPDT - Wireless Power Data Transfer 84
Accessories 85-86
Door Controller and Peripherals Keyscan LUNA SDACSKT 87
K-SMART3 87
K-SECURE Credentials 10-pack 87
K-SECURE Credential (single) 87
K-SF-1K Fob 88
SDRA Antenna 88
PS1225 Plug In Transformer 88
Terms & Conditions 89
4 RCI Product Catalogue 2020
Some call it
KEYSCAN LUNA™ access control.
A giant leap We call it Trust.
for small business
access control.
E-Plex® 7900
shown with Keyscan
Mobile Access
Credential
Keyscan LUNA™ is a cost-effective access Trust dormakaba for solutions that provide the perfect
blend of form, flexibility and function.
control system specifically designed for Our comprehensive line of networked access systems,
installations of 1 to 6 doors. electronic access controls, wireless and stand-alone
electronic locks are designed for all commercial building
The combination of Single Door Access Control units (SDAC) applications with a single goal in mind– making access
and comprehensive software, together with low computer in life smart and secure.
overhead, helps make access control affordable for small
businesses. Security, accountability, user management and E-Plex, Simplex and
Keyscan networked RCI electronic Powerplex stand-alone
reporting is now available at a fraction of the cost of access control access controls and wireless access controls
comparable systems.
RCI Product Catalogue 2020 5
Whats New
YG80 Electronic

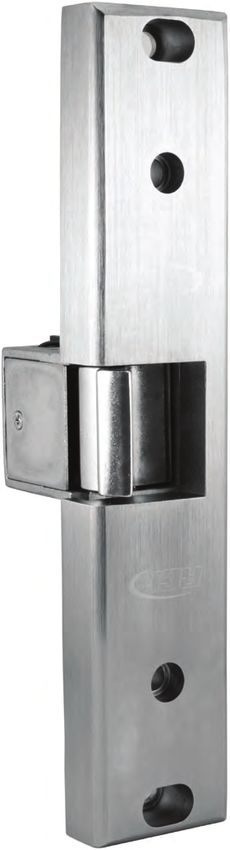

heavy-duty door lock VR166 Vertical Rod Strike
Simple locking solution for surface vertical rod exit devices
High-strength lock designed for securing gates, roll-up doors,
having a Pullman style latch. Page 30
shipping containers, and other large doors or entryways. Offers the
ability to integrate into an access control system. Fully monitored,
weatherproof, and user configurable, the YG80 is the perfect indoor
and outdoor locking solution. Page 70
IL06 Barrier Free Keyscan LUNA™
Washroom Controller SDACSKT Smart Kit
The combination of AC unit, one reader, 10 credentials, power
Recent building code changes require several enhancements to meet
supply and comprehensive software, brings affordable access
Barrier Free Washroom requirements, with emphasis on emergen-
control security, accountability, and reporting to small
cy assistance. RCI's new ILO6 controller meets and exceeds these
businesses for a fraction of the cost of other comparable
requirements. Page 57
systems. Page 87
910TC Touchless
Switch
The new RCI 910TC touchless switch operates 0163 1/2" Rim
Solenoid Electric
automatic doors with just a wave of the hand.
Hands-free operation is ideal for any workplace
Strike
environment where the spread of infectious
disease through surface contact is a concern.
The 910TC features remote control, manual
override in the event of power loss, and adjustable This solenoid rim strike is a surface-mounted
activation zone. Page 58 electric strike designed to work with Pullman
style rim exit device latches. Recommended
replacement for 0563 1/2" RIM Strike now dis-
continued Page 23
WPDT Wireless
Power & Data
Transfer
Transfers low voltage power and data signals
without the use of hard wires. WPDT offers an
innovative and less intrusive way of wirelessly
transferring low voltage power and data sig-
nals between a door and frame. Page 84
6 RCI Product Catalogue 2020
Electromagnetic Locks
RCI Electromagnetic Locks
8310 MultiMag® 8320 MultiMag®
For single outswinging interior or perimeter doors. For double outswinging interior or perimeter doors.
10-1/2"W x 2-7/8"H x 1-5/8"D (268mm x 73mm x 41mm) – 21-1/8"W x 2-7/8"H x 1-5/8"D (536mm x 73mm x 41mm) –
Includes 1/4" (6mm) mounting bracket Includes 1/4" (6mm) mounting bracket
Armature Plate: 7-7/16"W x 2-3/8"H x 5/8"D Armature Plate: 7-7/16"W x 2-3/8"H x 5/8"D
(190mm x 61mm x 16mm) (190mm x 61mm x 16mm) each
Energy Strength
Warranty
230mA1 Up to 1,200lbf Holding Force
Lifetime Limited Warranty
Auto-Sensing 12-24VDC (each electromagnet)
Fire-Rated Monitoring
Mode
CAN/ULC S104 Optional Door Status Sensor (DSS)/
Fail-Safe
UL 10C 1-1/2-Hours Security Condition Sensor (SCS) Available
1
Max at 12VDC for 8310, 460mA for 8320
• Keyhole mounting for ease of installation Options
• Built-in time delay (instant release with adjustable relock,
programmable from 0-35 seconds) SCS – Security Condition Sensor
• Convenient plug-in wiring terminals Electronic field presence sensor for remote
• Easy-access wiring cavity and local LED indication of lock status (locked
• Stabilizing 4-bolt “drop stop” mounting or unlocked), reduced holding force caused
• Surge protection by materials between magnet and plate and
• Designed to overcome residual magnetism unlocked device due to voltage drop. LED Indicator
• Self-drilling Teks® fasteners
• Includes 5/8" (16mm) armature plate, optional 3/8" DSS – Door Status Sensor
(9.5mm) available Magnet-reed type sensor for remote
• Available in Brushed Anodized Aluminum (28) or Brushed indication of door status (opened or closed)
Anodized Dark Bronze (40) finish independent of local power. Magnet
• UL 294 Special Locking Arrangement Component (6th Edition) embedded in armature for tamper resistance;
• CAN/ULC S104 Auxiliary Locks Listed for fire doors rated up reed switch inside electronic housing cavity Magnetic Door
to 1-1/2-hours for easy access. Contact
• UL 10C Auxiliary Locks Listed for fire doors rated up Armature Plate: 9-7/8”W x 2-3/8”H x 5/8”D
to 1-1/2-hours (252mm x 61mm x 16mm)
• California State Fire Marshal Listed (CSFM: 3774-2275:0500)
dormakaba Canada Inc.
65 Struck Court,
Cambridge, ON
N1R 8L2, Canada
How To Order
LISTED MultiMag® Finish
Single –Brushed
– Anodized
3774-2275:0500
10 28
Magnet Aluminum2
Double –Brushed
– Anodized Dark
20 40
Magnet Bronze
83 x
SCS–Security
– Condition Sensor
DSS–Door
– Status Sensor
DSS/
–Door
– Status Sensor and Security
SCS Condition Sensor
Options
Example: 8310 SCS x 28
2
Standard
8 RCI Product Catalogue 2020
Electromagnetic
Locks
RCI Electromagnetic Locks
Electric Strikes
8310-IQ IntelliMag® 8320-IQ IntelliMag®
Keypads & Readers
For single outswinging interior or perimeter doors. For double outswinging interior or perimeter doors.
10-1/2”W x 2-7/8”H x 1-5/8”D (268mm x 73mm x 41mm) – 21-1/8”W x 2-7/8”H x 1-5/8”D (536mm x 73mm x 41mm) –
Includes 1/4” (6mm) mounting bracket Includes 1/4” (6mm) mounting bracket
Armature Plate: 7-7/16”W x 2-3/8”H x 5/8”D Armature Plate: 7-7/16”W x 2-3/8”H x 5/8”D
(190mm x 61mm x 16mm) (190mm x 61mm x 16mm) each
Energy Strength
Warranty
590mA1 Up to 1,200lbf Holding Force
Lifetime Limited Warranty
Field-Selectable 12/24VDC (Each Electromagnet)
Switches
Fire-Rated
Mode Monitoring
CAN/ULC S104
Fail-Safe Individually Encoded Armature Plate
UL 10C 1-Hour
1
Max at 12VDC for 8310-IQ, 1.18A for 8320-IQ
• Designed for high security applications, this • Stabilizing 4-bolt “drop stop” mounting
intelligent magnet recognizes its own armature plate, • Surge protection
• Built-in time delay (instant release with adjustable relock,
Locksets
preventing anyone from “tricking” the magnet with a programmable from 0-90 seconds)
separate plate – each encoded armature plate is individually • Includes 5/8" (16mm) armature plate
registered to match its own electromagnetic lock
• Available in Brushed Anodized Aluminum (28) or Brushed
• Two independent relay outputs allow for lock status and alarm
status for local and/or remote indication Anodized Dark Bronze (40) finish
• Illegal armature plate alarm • CAN/ULC S104 Auxiliary Locks Listed for fire doors rated up
• Alarm time setting to 1-hour
• Keyhole mounting for ease of installation • UL 10C Auxiliary Locks Listed for fire doors rated up to 1-hour
• Easy-access wiring cavity
• California State Fire Marshal Listed (CSFM: 3774-2275:0500)
Specialty Locks
dormakaba Canada Inc.
65 Struck Court,
Cambridge, ON
N1R 8L2, Canada
LISTED 3774-2275:0500
How To Order
IntelliMag®
Exit Devices
–Single
–
10
Magnet
–Double
–
20
Magnet
83 -IQ x
–Brushed
– Anodized
28
Aluminum2
–Brushed
– Anodized
40
Dark Bronze
Finish
Power Supplies
Example: 8320-IQ x 40
2
Standard
RCI Product Catalogue 2020 9RCI Electromagnetic Locks
*Shown: DE8310S
DE8310 Delayed Egress
For single outswinging perimeter door.
DE8310: 10-13/16”W x 2-7/8”H x 2-1/8”D (275mm x 73mm x 54mm) – Includes 1/4” (6mm) mounting bracket
DE8310S: 11-3/4”W x 2-7/8”H x 2-1/8”D (299mm x 73mm x 54mm) – Includes 1/4” (6mm) mounting bracket
Armature Plate: 7-7/16”W x 2-3/8”H x 5/8”D (190mm x 61mm x 16mm)
Energy
Strength Warranty
490mA1
Up to 1,200lbf Holding Force 5 Year Limited Warranty
Auto-Sensing 12-24VDC
Fire-Rated Monitoring
Mode
CAN/ULC S104 Local & Remote Relay Outputs & Optional
Fail-Safe
UL 10C 1-1/2-Hour Built-In Sounder
1
Base unit, max at 12VDC
• Built-in sensor detects when pressure is applied to outward • CAN/ULC S533 Special Locking Arrangements Components
swinging doors – no need to replace existing door hardware (4th Edition)
• Field-selectable 15 or 30 second release delay with field- • CAN/ULC S104 Auxiliary Locks Listed for fire doors rated up
selectable 0 to 3 second nuisance delay to 1-1/2-hour
• Provision for IBC, SBC, NFPA101, UBC, BOCA or NBC of • UL 10C Auxiliary Locks Listed for fire doors rated up to 1-1/2-hour
Canada compliance • Patent #’s: US 8,292,337 Canada 2,632,243
• Unique highly visible red/green light panel indicates status
of door (local) Options
• Available with built-in sounder
• Includes 960 Keyswitch for reset and override, Building Code S - Built-In Sounder
Sign and base unit (DE8310) includes a 914 External Sounder Built-in sounder pulses slowly during the short
• Dry contact SPDT relays provided for local and/or nuisance delay and sounds steady through
remote monitoring the release delay and will continue until reset.
• Keyhole mounting for ease of installation If forced open before the set release delay
• Convenient plug-in wiring harnesses has lapsed, the sounder cannot be turned off Built-in Sounder
• Easy-access wiring cavity without switching the system power off.
• Stabilizing 4-bolt “drop stop” mounting
• Surge protection How To Order
• Designed to overcome residual magnetism
• Includes self-drilling Teks® fasteners DE8310 x 28
• DE8310 top jamb bracket kit (TJDE108) now available S–Built-In
– Sounder
• Includes 5/8” (16mm) armature plate Options
• Brushed Anodized Aluminum (28) finish Example: DE8310 S x 28
• Ability to synchronize up to 4 doors (with or without mullion)
using a converter. Please request further details2
• UL 294 Special Locking Arrangements Component (6th Edition)
Custom applications that require synchronization of 3 or 4 doors will require special
2
AHJ approval
10 RCI Product Catalogue 2020Electromagnetic
Locks
RCI Electromagnetic Locks
Electric Strikes
171HD Magnetic Lock
Keypads & Readers
for Hazardous Locations
14”W x 1-3/4”H x 2”D (355mm x 45mm x 51mm)
Armature Plate: 10-3/4”W x 1-3/4”H x 5-8”D (273mm x 45mm x 16mm)
Energy Strength
260 mA1 Up to 1,200lbf
24VDC Holding Force
Switches
Warranty
Mode
1 Year Limited
Fail-Safe
Warranty
1 Monitoring
12VDC available upon request
Door Position
Status Sensor
Locksets
• Magnetic lock that meets the requirements for Class I,
Division 2 applications.
• Offers continuous monitoring capability for open/close status or
attempted unauthorized entry.
• Ability to securely lock fire exit doors and power down when
signaled to do so by an appropriate door control unit.
• Low projections from header accommodates most door conditions
without the need for filler plate or special bracket.
Specialty Locks
• Door position switch (DPS) standard feature.
• Built-in surge protection.
• Easy installation and maintenance.
• No pins, latches or moving parts to avoid failure that could impede
safe egress in an emergency situation.
• Includes 5/8” (16 mm) armature plate.
• Brushed Anodized Aluminum (28) finish.
• Hazardous Locations Door Holders:
• Category – FDGF. Class I, Division 2 compliant.
Tested to UL228 - Door closers-holders with/without
Exit Devices
integral smoke detectors
• File Number – E146590
• Releasing Devices:
• Category – SZNT
• Tested to ANSI/UL864 - control units and accessories
for fire alarm systems
• File Number – S5020
Also available
RCI ZB171HD for single in-swinging doors, pull side mount.
Power Supplies
Includes “Z” bracket inswing assembly kit.
RCI Product Catalogue 2020 11RCI Electromagnetic Locks
8360 Mortise MiniMag® 8365 Mortise MicroMag®
For sliding doors. For small enclosures.
9”W x 1-1/2”H x 1-1/6”D (229mm x 38mm x 27mm) – 7-15/16”W x 1-11/32”H x 13/16”D (202mm x 34mm x 21mm) – In-
Includes 3/4” (19mm) mounting tabs cludes 11/16” (17.5mm) mounting tabs
Armature Plate: 7-1/4”W x 1-1/2”H x 1/2”D Armature Plate: 5-1/8”W x 1-1/4”H x 21/64”D
(185mm x 38mm x 13mm) (130mm x 32mm x 8.5mm)
Energy
Energy Strength Strength
400mA1
500mA1 Up to 750lbf Up to 300lbf
Field-Selectable
Field-Selectable 12/24VDC Holding Force Holding Force
12/24VDC
Warranty
Warranty Mode Mode
Lifetime Limited
Lifetime Limited Warranty Fail-Safe Fail-Safe
Warranty
1
Max at 12VDC
Monitoring
Built-In Remote Lock Status
Sensor
• Low-profile design ideal for sliding doors,
1
Max at 12VDC cabinets and small enclosures
• Brushed Anodized Aluminum (28) finish
• Low-profile design ideal for sliding doors
• Brushed Anodized Aluminum (28) finish How To Order
How To Order 8365 x 28
8360 x 28
12 RCI Product Catalogue 2020Electromagnetic
Locks
RCI Electromagnetic Locks
Electric Strikes
8371 Surface MiniMag® 8372 Surface MiniMag®
Keypads & Readers
For single outswinging interior or perimeter doors. For double outswinging interior or perimeter doors without mullions.
9-3/8”W x 1-7/8”H x 1”D (238mm x 48mm x 25mm) – 18-3/4”W x 1-7/8”H x 1”D (476mm x 48mm x 25mm) –
Includes 3/16” (5mm) mounting bracket Includes 3/16” (5mm) mounting bracket
Armature Plate: 7-1/4”W x 1-1/2”H x 1/2”D Armature Plate: 7-1/4”W x 1-1/2”H x 1/2”D
(185mm x 38mm x 13mm) (185mm x 38mm x 13mm) each
Energy Strength
Warranty
520mA1 Up to 750lbf Holding Force
Lifetime Limited Warranty
Field-Selectable 12/24VDC (each electromagnet)
Switches
Monitoring
Fire-Rated
Mode Optional Door Status Sensor (DSS)/
CAN/ULC S104
Fail-Safe Security Condition Sensor (SCS)
UL 10C 1-Hour
Available
1
Max at 12VDC for 8371, 1.04A for 8372
• Stabilizing 4 bolt “drop stop” mounting SCS – Security Condition Sensor
• Keyhole mounting for ease of installation Electronic field presence sensor for remote
and local LED indication of lock status
Locksets
• Surge protection
(locked or unlocked), reduced holding force
• Designed to overcome residual magnetism caused by materials between magnet and
• Easy-access wiring cavity plate and unlocked device due to voltage LED Indicator
• Includes 3/8” (9.5mm) armature plate drop.
• Available in Brushed Anodized Aluminum (28) or Brushed
Anodized Dark Bronze (40) finish DSS – Door Status Sensor
• UL 294 Special Locking Arrangement Component (6th Edition) Magnet-reed type sensor for remote
• UL 10C Auxiliary Locks Listed for fire doors rated up to 1-hour indication of door status (opened or closed)
Specialty Locks
• CAN/ULC S104 Auxiliary Locks Listed for fire doors rated up independent of local power. Magnet
to 1-hour embedded in armature for tamper resistance; Magnetic Door
• California State Fire Marshal Listed (CSFM: 3774-2275:0500) reed switch inside electronic housing cavity for Contact
easy access.
Options
dormakaba Canada Inc.
65 Struck Court,
Cambridge, ON
N1R 8L2, Canada
LISTED
How To Order
3774-2275:0500
MiniMag® Finish
Exit Devices
Single –Brushed
– Anodized
71 28
Magnet Aluminum2
Double –Brushed
– Anodized
72 40
Magnet Dark Bronze
83 x
SCS –Security
– Condition Sensor
DSS –Door
– Status Sensor
DSS/ –Door
– Status Sensor And
SCS Security Condition Sensor
Options
Power Supplies
Example: 8371 SCS x 28
2
Standard
RCI Product Catalogue 2020 13RCI Electromagnetic Locks
8375 Surface MicroMag® 8380 GateMag®
For swinging doors on small enclosures. For interior or exterior perimeter gates.
6-17/32”W x 1-1/2”H x 13/16”D (166mm x 38mm x 21mm) – 8-7/8”W x 2-1/2”H x 1-3/4”D (225mm x 63mm x 45mm)
Includes 1/8” (3mm) mounting bracket Armature Plate: 7-7/16”W x 2-3/8”H x 5/8”D (190mm x 61mm x 16mm)
Armature Plate: 5-1/8”W x 1-1/4”H x 21/64”D
(130mm x 32mm x 8.5mm)
Energy
Strength
480mA1
Up to 1,200lbf
Field-Selectable
Energy Strength Holding Force
12/24VDC
360mA1 Up to 300lbf
Field-Selectable 12/24VDC Holding Force
Warranty
Mode
Lifetime Limited
Fail-Safe
Warranty
Warranty Mode
Lifetime Limited Warranty Fail-Safe
Fire-Rated Environment
CAN/ULC S104 Rugged Weather-
1
Max at 12VDC UL 10C 1-1/2-Hour Resistant Design
1
Max at 12VDC
• Low-profile compact design
• Easy-access wiring cavity
• Surge protection • Rugged, stainless steel housing
• Designed to overcome residual magnetism • Weather-resistant
• Self-drilling Teks® fasteners • Built-in remote lock status (RLS) indicated whether the
• Includes 21/64” (8.5mm) armature plate magnet is locked or unlocked
• Brushed Anodized Aluminum (28) finish • Versatile face or bottom through-bolt mounting
• Built-in conduit fitting and extra-long wire cable allowing
easy wire access to an electrical box
• Surge protection
• Designed to overcome residual magnetism
How To Order • Includes 5/8” (16mm) armature plate, optional 3/8” (9.5mm)
available
8375 x 28 • Brushed Stainless Steel (32D) finish
• UL 10C Auxiliary Locks Listed for fire doors rated up to
1-1/2-hours
• CAN/ULC S104 Auxiliary Locks Listed for fire doors rated
up to 1-1/2-hours
• California State Fire Marshal Listed
(CSFM: 3774-2275:0500)
How To Order
dormakaba Canada Inc.
65 Struck Court,
Cambridge, ON
N1R 8L2, Canada
LISTED 3774-2275:0500 8380 x 32D
14 RCI Product Catalogue 2020Electromagnetic
Locks
RCI Electromagnetic Locks Accessories
Electric Strikes
Angle Brackets Armature Plates
For narrow aluminum frames or center-hung single-acting doors, Model Dimensions Finish Compatible with
when inadequate space is left for mounting. AP01 3/8” (9.5mm) Steel 8310, 8320, 8380
• Available in Brushed Anodized Aluminum (28) or Brushed AP02 5/8” (16mm) Steel 8310, 8320, 8380
Anodized Dark Bronze (40). Please specify when ordering.
AP03 3/8” (9.5mm) Steel 8360, 8371, 8372
Keypads & Readers
AP04 5/16” (8mm) Steel 8365, 8375
Compatible AP20 3/8” (9.5mm) Steel 8310xDSS, 8320xDSS
Model Dimensions Finish
with
AP21 5/8” (16mm) Steel 8310xDSS, 8320xDSS
AB-01 1"H x 1"W x 10-1/2"L 28/40 8310
AP03D 3/8” (9.5mm) Steel 8371xDSS, 8372xDSS
AB-02 1-1/2"H x 1"W x 10-1/2"L 28/40 8310
AB-03 1-1/2"H x 1-1/4"W x 10-1/2"L28/40 8310
AB-20 1"H x 1"W x 21"L 28/40 8320
AB-21 1-1/2"H x 1"W x 21"L 28/40 8320
AB-22 1-1/2"H x 1-1/4"W x 21"L 28/40 8320
AB-710 1"H x 1"W x 9-3/8"L 28/40 8371
AB-711 1-1/2"H x 1"W x 9-3/8"L 28/40 8371
Switches
AB-712 1-1/2"H x 1-1/2"W x 9-3/8"L 28/40 8371
AB-713 1-1/2"H x 2"W x 9-3/8"L 28/40 8371
AB-720
AB-721
1"H x 1"W x 18-3/4"L
1-1/2"H x 1"W x 18-3/4"L
28/40
28/40
8372
8372 DSS Retrofit Kits
AB-722 1-1/2"H x 1-1/2"W x 18-3/4"L28/40 8372 If a door status sensor is desired after magnet has been installed,
AB-723 1-1/2"H x 2"W x 18-3/4"L 28/40 8372 it can easily be added on site.
1-1/2"H x 2-5/8"Wx 14"L • Kit includes both Brushed Anodized Aluminum (28) and Brushed
AB179NR-258 For door with No Reveal - 28 171HD Anodized Dark Bronze (40) cover plate screws.
Single - Angle Bracket
Locksets
1"H x 1"W x 14"L For 1-1/8" Model Description Finish Compatible with
AB179R-118-158 to 1-5/8"Reveal - 28 171HD
DSR01 3/8” (9.5mm) Steel 8310
Single - Angle Bracket
DSR02 5/8” (16mm) Standard Steel 8310
1-1/2"H x 2"W x 14"L For DSR03 3/8” (9.5mm) Steel 8320
AB179R-58-1 5/8" to 1" Reveal - 28 171HD DSR04 5/8”(16mm) Standard Steel 8320
Single - Angle Bracket
Specialty Locks
Armature Bolts
Model Dimensions Description
Armature Plate Holders
• Available in Brushed Anodized Aluminum (28) or Brushed
Compatible with: 8310, 8310-IQ, DE8310, EW8310, 8371, 8380
Anodized Dark Bronze (40). Please specify when ordering.
ARMB155 2-1/8” (55mm) For doors 1-3/4”-2-1/4” (44-57mm) thick
Exit Devices
ARMB170 2-3/4” (70mm) For doors 2-1/4”-2-3/4” (57-70mm) thick
Model Description Finish Compatible with
ARMB180 3-1/8” (80mm) For doors 2-1/2”-3” (70-76mm) thick
AH10 8310 armature plate holder 28/40 8310
Compatible with: 8320, 8320-IQ, 8372
AH15 8310xDSS armature plate holder 28/40 8310xDSS
ARMB255 2-1/8” (55mm) For doors 1-3/4”-2-1/4” (44-57mm) thick
AH20 8320 armature plate holder 28/40 8320
ARMB270 2-3/4” (70mm) For doors 2-1/4”-2-3/4” (57-70mm) thick
AH25 8320xDSS armature plate holder 28/40 8320xDSS
ARMB280 3-1/8” (80mm) For doors 2-1/2”-3” (70-76mm) thick
AH71 8371 armature plate holder 28/40 8371
AH72 8372 armature plate holder 28/40 8372
AH75 8375 armature plate holder 28/40 8375
Power Supplies
NOTE: Accessories may impact holding force.
RCI Product Catalogue 2020 15RCI Electromagnetic Locks Accessories
Conduit Mounting Bracket
Used anywhere surface-mounted conduit is required to run wires
to the face of the magnetic lock.
Model Dimensions Finish Compatible with Glass Door Brackets
CMB108 1”D x 2-11/64”H x 10-9/16”L 28 8310 Required for glass doors without mounting rails.
Model Dimensions Finish Compatible with
GB8112 1/2” (13mm) 32D 8310
Filler Bars/Filler Plates GB8134
GB8212
3/4” (19mm)
1/2” (13mm)
32D
32D
8310
8320
For frame stops narrower than 2” (51mm). GB8234 3/4” (19mm) 32D 8320
• Available in Brushed Anodized Aluminum (28) or Brushed GB7112 1/2” (13mm) 32D 8371
Anodized Dark Bronze (40). Please specify when ordering. GB7134 3/4” (19mm) 32D 8371
GB7212 1/2” (13mm) 32D 8372
Model Dimensions Finish Compatible with GB7234 3/4” (19mm) 32D 8372
GB7512 1/2” (13mm) 32D 8375
FB-01 1/4”H x 3/4”W x 10-1/2”L 28/40 8310
GB7534 3/4” (19mm) 32D 8375
FB-02 3/8”H x 3/4”W x 10-1/2”L 28/40 8310
FB-03 1/2”H x 3/4”W x 10-1/2”L 28/40 8310
FB-04 5/8”H x 3/4”W x 10-1/2”L 28/40 8310
FB-05 1/2”H x 5/8”W x 10-1/2”L 28/40 8310
FB-20 1/4”H x 3/4”W x 21”L 28/40 8320
FB-21 3/8”H x 3/4”W x 21”L 28/40 8320
FB-22 1/2”H x 3/4”W x 21”L 28/40 8320
FB-23 5/8”H x 3/4”W x 21”L 28/40 8320
FB-24 1/2”H x 5/8”W x 21”L 28/40 8320
FB-710 1/4”H x 3/4”W x 9-3/8”L 28/40 8371
FB-711 3/8”H x 3/4”W x 9-3/8”L 28/40 8371
L Brackets
FB-712 1/2”H x 3/4”W x 9-3/8”L 28/40 8371
FB-713 5/8”H x 3/4”W x 9-3/8”L 28/40 8371
FB-720 1/4”H x 3/4”W x 18-3/4”L 28/40 8372
FB-721 3/8”H x 3/4”W x 18-3/4”L 28/40 8372 Required when there is no space on the header to mount the
FB-722 1/2”H x 3/4”W x 18-3/4”L 28/40 8372 magnetic lock.
Magnet mounts on bracket and bracket mounts on vertical
FB-723 5/8”H x 3/4”W x 18-3/4”L 28/40 8372
face of frame.
1/2"H x 1-1/4"W x 14"L
FP178-12 28 171HD • Available in Brushed Anodized Aluminum (28) or Brushed
Single Filler Plate
Anodized Dark Bronze (40). Please specify when ordering.
5/8"H x 1-1/4"W x 14"L
FP178-58 28 171HD
Single Filler Plate
Model Dimensions Finish Compatible with
LB-10 2-1/2”H x 2”W x 10-1/2”L 28/40 8310
LB-20 2-1/2”H x 2”W x 21”L 28/40 8320
Post Bracket
Used to mount armature plate to sliding gate.
Model Dimensions Finish Compatible with
PB-80 3-1/2”H x 2-1/2”W x 8-7/8”L 28 8380
16 RCI Product Catalogue 2020Electromagnetic
Locks
RCI Electromagnetic Locks Accessories
Electric Strikes
Spacers
For aluminum blade stop frames. Used to lower the magnet to
align with armature plate.
• Available in Brushed Anodized Aluminum (28) or Brushed Top Jamb “Z” Bracket
Keypads & Readers
Anodized Dark Bronze (40). Please specify when ordering.
Allows for horizontal adjustment of armature plate. Mounted
on pull side of the door.
Compatible
Model Dimensions Finish • Available in Brushed Anodized Aluminum (28) or Brushed
with
Anodized Dark Bronze (40). Please specify when ordering.
SP-01 1/4”H x 1-1/2”W x 10-1/2”L 28/40 8310
SP-02 3/8”H x 1-1/2”W x 10-1/2”L 28/40 8310
Model Description Finish Compatible with
SP-03 1/2”H x 1-1/2”W x 10-1/2”L 28/40 8310
SP-04 5/8”H x 1-1/2”W x 10-1/2”L 28/40 8310 TJ10 8310 Z bracket kit 28/40 8310
SP-20 1/4”H x 1-1/2”W x 21”L 28/40 8320 TJ20 8320 Z bracket kit 28/40 8320
SP-21 3/8”H x 1-1/2”W x 21”L 28/40 8320 TJ71 8371 Z bracket kit 28/40 8371
SP-22 1/2”H x 1-1/2”W x 21”L 28/40 8320 TJ72 8372 Z bracket kit 28/40 8372
Switches
SP-23 5/8”H x 1-1/2”W x 21”L 28/40 8320 TJ75 8375 Z bracket kit 28/40 8375
SP-710 1/4”H x 1”W x 9-3/8”L 28/40 8371 TJ80 8380 Z bracket kit 28/40 8380
SP-711 3/8”H x 1”W x 9-3/8”L 28/40 8371 DE8310 bracket kit
TJDE108 28 DE8310
SP-712 1/2”H x 1”W x 9-3/8”L 28/40 8371 For inswing applications.
SP-713 5/8”H x 1”W x 9-3/8”L 28/40 8371
SP-720 1/4”H x 1”W x 18-3/4”L 28/40 8372
SP-721 3/8”H x 1”W x 18-3/4”L 28/40 8372
SP-722 1/2”H x 1”W x 18-3/4”L 28/40 8372
SP-723 5/8”H x 1”W x 18-3/4”L 28/40 8372
Locksets
SP-75 1/4”H x 13/16”W x 6-9/16”L 28/40 8375
Hardware Packs
Model Description Compatible with
Specialty Locks
Split Armature Plates Includes: Allen wrench, metal
sleeve, armature bolt, sexnut,
8310, 8320 (Buy 2
bolt, steel washers, rubber
Allow use of single magnet lock with pair of doors. HK8310 to make one 8320
washers, flat head screws,
Hardware kit)
pan head screws, plugs,
Model Dimensions Finish Compatible with TEK screws.
SA138 3/8” (9.5mm) Steel 8310 Includes: Allen wrench, metal
SA158 5/8” (16mm) Steel 8310 sleeve, armature bolt, sexnut,
bolt, steel washers, rubber
SA75 5/16” (8mm) Steel 8375 HK8371 8371
washers, flat head screws,
Exit Devices
pan head screws, plugs,
TEK screws.
Includes Allen wrench, armature
bolt, steel washers, rubber
HK8375 8375
washers, TEK screws, round
head screws, button head sexnut.
Power Supplies
RCI Product Catalogue 2020 17RCI Electromagnetic Locks Building Code Signs
BC1 Series BCDE Series
Building Code Signs Building Code Signs
11”W x 10”H (28cm x 25cm) 11”W x 10”H (28cm x 25cm)
• Available in English, French and Spanish. Please specify • Available in English, French and Spanish. Please specify
when ordering. when ordering.
Model Description Model Description
BC1P 15 Seconds, printed on clear Plexiglass BCDEP 15 Seconds, printed on clear Plexiglass
BC1M 15 Seconds, printed on clear Mylar BCDEM 15 Seconds, printed on clear Mylar
BC1MW 15 Seconds, printed on white Mylar BCDEMW 15 Seconds, printed on white Mylar
BC1T 15 Seconds, red vinyl transfer letters BCDET 15 Seconds, red vinyl transfer letters
BC1M-30 30 Seconds, printed on clear Mylar BCDEM-30 30 Seconds, printed on clear Mylar
BC2 Series
Building Code Signs
BC3 Series
13”W x 4”H (33cm x 10cm)
• Available in English, French and Spanish. Please specify
Building Code Signs
when ordering.
Model Description 14”W x 12”H (36cm x 30.5cm)
BC2P Printed on clear Plexiglass • Available in English, French and Spanish. Please specify
BC2M Printed on clear Mylar when ordering.
BC2MW Printed on white Mylar
BC2T Red vinyl transfer letters Model Description
BC3P Printed on clear Plexiglass
BC3M Printed on clear Mylar
BC3MW Printed on white Mylar
BC3T Red vinyl transfer letters
18 RCI Product Catalogue 2020RCI title pages.qxp_Layout 1 2020-06-17 2:27 PM Page 2
Electric StrikesRCI Electric Strikes
Strike Cross Reference
RCI HES Allegion/Von Duprin Folger Adam Adams Rite Trine
0161 - 6112 310-4 - EN800
0 Series 0162 9600 - - - 4800
Rim Strikes F0162 9500 6300 - - 4800F
0163 9400 - - - 4850
F1 Series 712, 732,
F1114 7501 6211 - EN400
Fire-Rated 712-75, 732-75
Centerline Strikes F1119 - 6215 310-2 - EN950
2 Series 1006
F2164/2364 6400 742-75 - 4100
All-In-One Strikes 1006CLB
4104/4304 5200-501A 5100 - - 2012RD/RS
4105/4305 - - - - -
4107/4307 5200-503 - - - -
4 Series 4108/4308 5200-502 - - - -
Centerline Strikes 4114/4314 5200-501 4211 - 7170 -
4119/4319 - 6200 - - -
F4104 4500 - - - -
F4114 4500 - - 7270 -
5000-501A 7101, 7160
S/L6504 5100 - -
5200-501A 7300, 7440
S/L6505 - - - - -
5000-503
6 Series S/L6507 - - 7130, 7430 -
5200-503
Centerline Strikes 5000-502 7110, 7310
S/L6508 5100 - -
5200-502 7410
5200-501
S/L6514 5100, 4200 - - 2012
5000-501
S/L65U - 5100 - - -
5000-501A
7104/7304 5100 - 7100 2012RD
5200-501A
7105/7305 - - - - -
7 Series 7107/7307 5000-503 - - - 2678
Centerline Strikes
7107/7108 5200-503 5100 - 7110 -
7114/7314 5200-501 5100 - 7140 2012
7119/7319 - 6200 - - -
Compact Strikes 12C - - - - 323478LC
20 RCI Product Catalogue 2020Electromagnetic
Locks
RCI Electric Strikes
0 Series
0161 3/4” Semi-Mortise
Electric Strikes
Rim Strikes
Semi-mortise rim strike designed for use with Pullman latch
rim exit devices.
1-3/4”W x 9”H x1-5/8”D (45mm x 229mm x 41mm)
Keypads & Readers
Energy
Strength
200mA1
1,500lbf Static
12VAC/VDC Or
70ft-lb Dynamic
24VAC/VDC
Warranty Mode
3 Year Limited Warranty Fail-Secure
Endurance
500,000 Cycles
Switches
1
Max at 12VDC
• Semi-mortise rim strike designed for use with Pullman latch rim
exit devices
• Accommodates 1/2” to 3/4” (13mm–19mm) latch projection
• Ensures proper latch alignment with horizontal adjustment
• Stainless steel ensures superior strength and creates a sleek
aesthetic design
• Lockdown holes for secure mount
• Non-handed
• Brushed Stainless Steel (32D) finish
Locksets
• UL 1034 burglary-resistant Listed
How To Order
Specialty Locks
0161 - x 32D
05 –12VAC/VDC
–
08 –24VAC/VDC
–
Voltage
Example: 0161 - 05 x 32D
Accessories
Model Description
Exit Devices
0161DDH Double door housing, SPC2 finish
NOTE: UL 1034 Burglary-resistant listing does not apply with use of 0161DDH.
2
SPC=Silver Powder Coat
Power Supplies
RCI Product Catalogue 2020 21RCI Electric Strikes
0 Series
0162 3/4” Rim Strikes
Completely surface-mounted rim strike designed for use with
Pullman latch rim exit devices.
1-3/4”W x 9”H x 3/4”D (45mm x 229mm x 20mm)
Energy
Strength
500mA1
1,500lbf Static
Field-Selectable
70ft-lb Dynamic
12/24VDC & 12-24VAC
Warranty Mode
5 Year Limited Warranty Fail-Secure
Endurance Fire-Rated
500,000 Cycles Optional 3-Hour
(standard) Model Available2
Latch Monitor
Optional Latch Monitor
Model Available
1
Max at 12VDC
2
Fire-rated (F) model only
• Completely surface-mounted – no frame cutting required
• Accommodates 1/2” to 3/4” (13mm–19mm) latch projection
• Stainless steel ensures superior strength and creates
a sleek aesthetic design
• Horizontal adjustment ensure proper latch positioning to
compensate for door misalignment – up to 1/4” (6.4mm)
• Conventional keeper design (one moving part)- promotes even
load distribution
• Plug-in wire connectors
• Lockdown holes for secure mount
• HEX socket head cap screws for added support
• Installation tool included (HEX key)
• Non-handed (featuring horizontal solenoid design)
• 1/16” (1.5mm) mounting spacers for additional latch
engagement included
• Brushed Stainless Steel (32D) finish
Conventional Keeper Lockdown Holes Latch Monitor
• Factory tested to over 4-million cycles of operation
(One Moving Part) For Secure Mount (0162LM Model)
• Certified to ANSI/BHMA standard A156.31, Grade 1,
endurance 500,000 cycles (R01629 & RF01629)
How To Order • UL 294 Listed for Access Control Unit Accessory (6th Edition)
• UL 1034 burglary-resistant Listed
Options • UL 10C, 3-hour fire-rating Listed2
–Fire-
– • CAN/ULC S104, 3-hour fire-rating Listed2
F
Rated • California State Fire Marshal Listed (CSFM: 3776-2275:0501)2
0162 x 32D • Patent #: US 7,722,097
LM –Latch
– Monitor • Patent #: Canadian 2,597,916
Options
Example: F0162LM x 32D dormakaba Canada Inc.
65 Struck Court,
Cambridge, ON
N1R 8L2, Canada
Accessories LISTED 3776-2275:0501
Model Description
0162DDH Double door housing, SPC3 finish Options
0162MSK 1/16” (1.5mm) mounting spacers • LM – Latch monitor
NOTE: UL 1034 Burglary-resistant listing and fire-rating do not apply
• F – 3-hour fire-rating Listed
with use of 0162DDH. 3
SPC=Silver Powder Coat
22 RCI Product Catalogue 2020Electromagnetic
Locks
RCI Electric Strikes
0 Series
0163 1/2” Rim Strikes
Electric Strikes
Slim, adjustable design ideal for tight-fitting installations.
Designed for use with Pullman latch rim exit devices.
1-3/4”W x 9”H x 1/2”D (45mm x 229mm x 13mm)
Keypads & Readers
Energy
270mA1 Strength
11-16VAC 1,500lbf Static
12VAC/VDC 70ft-lb Dynamic
Or 24VAC/VDC
Warranty
Mode
5 Year Limited
Fail-Secure
Warranty
Latch Monitor
Endurance
Optional Latch Monitor
500,000 Cycles
Model Available
Switches
1
Max at 12VDC
• Designed to fit in tight situations where the exit device is mounted
very close to the door frame, e.g. aluminum storefront applications.
• For maximum latch engagement, the strike keeper has been designed
to pivot out of the strike body versus rolling out of the strike.
• Accommodates 1/2“ to 3/4“ (13 mm–19 mm) latch projection.
• Horizontal adjustment ensures proper latch positioning to
compensate for door misalignment – up to 1/4“ (6.4 mm).
• Solenoid technology.
Locksets
• Shim may be added to the strike cavity to engage with
misaligned deadlatch.
• Lockdown holes for secure mount.
• Cooler operation – runs cool to the touch; no suppressor kit needed.
• High-grade stainless steel ensures superior strength and creates a
sleek aesthetic.
• 1/16" (1.5mm) mounting spacer included
• Non-handed.
• Plug-in wire connectors.
Specialty Locks
• Certified to ANSI/BHMA standard A156.31, Grade 1, endurance
500,000 cycles (0163 & 0163LM)
• UL294 Listed for Access Control Unit Accessory (6th Edition).
• UL1034 burglary-resistant Listed.
• Patents pending.
How To Order
0163 x 32D
LM –Latch
– Monitor
Example: 0163LM x 32D
Exit Devices
Options
• LM – Latch monitor
Accessories
Model Description
0162DDH Double door housing, SPC2 finish
Power Supplies
NOTE: UL 1034 Burglary-resistant listing does not apply with use of 0162DDH.
2
SPC=Silver Powder Coat
RCI Product Catalogue 2020 23RCI Electric Strikes
F1 Series F1 Series
F1114 Centerline Strikes F1119 Centerline Strikes
Features stainless steel faceplate with square corners ideal Features stainless steel faceplate with square corners ideal
for hollow metal frames. for aluminum and wood frames.
Faceplate: 1-1/4”W x 4-7/8”H (32mm x 124mm) Faceplate: 1-3/8”W x 9”H (34mm x 229mm)
Insert Depth: 1-3/4” (45mm) Insert Depth: 1-3/4”D (45mm)
Energy
200mA1 Strength
Warranty
11-16VAC, 1,500lbf Static
5 Year Limited Warranty
12VAC/VDC 70ft-lb Dynamic
Or 24VAC/VDC
Fire-Rated
Mode Endurance
CAN/ULC S104
Fail-Secure 500,000 Cycles
UL 10C 1-1/2-Hour
1
Max at 12VDC
• Stainless steel faceplate with square corners How To Order
• Accommodates 1/2” (12.7mm), 5/8” (16mm) or 3/4” (19mm)
latch projection Faceplate
• Up to 1/4” (6.4mm) horizontal adjustment, relieves side-load –1-1/4"W
– x 4-7/8"H (32mm x 124mm),
14
pressure, ensuring proper latch alignment ANSI Square Corner
• Saddle-mount housing design for enhanced strength and durability –1-3/8"W
– x 9"H (34mm x 229mm), Square
19
Corner
• Tamper-resistant pry-guard concealed inside the frame
F1 1 - x 32D
• Energy efficient coil design
• Mounting tabs, shims and fasteners included 01 –11-16VAC
–
• Non-handed
–12VAC/
–
• Brushed Stainless Steel (32D) finish 05
VDC
• UL 1034 burglary-resistant Listed –24VAC/
–
• UL 10C, 1-1/2 hour fire-rating Listed 08
VDC
• CAN/ULC S104, 1-1/2 hour fire-rating Listed
Voltage
• Certified to ANSI/BHMA standard A156.31, Grade 1, endurance
500,000 cycles Example: F1119-01 x 32D
LISTED
24 RCI Product Catalogue 2020Electromagnetic
Locks
RCI Electric Strikes
2 Series
F2164/2364
Electric Strikes
All-In-One Strikes
Versatile design features adjustable deadbolt keeper and
deadlatch ramp allowing it to work with most locks.
Faceplate: 1-1/4”W x 4-7/8”H (32mm x 124mm) Saw-Tooth
Insert Depth: 1-3/4”D (45mm) Adjustment Locator ‡
Keypads & Readers
Energy
Strength
375mA1
1,500lbf Static
Field-Selectable
70ft-lb Dynamic
12/24VDC, 12-24VAC2
Warranty
Mode
5 Year Limited
Fail-Secure & Fail-Safe
Warranty
Latch Monitor
Endurance
Plug-In Latch Monitor
Deadbolt Plug
500,000 Cycles
Accessory Available
Switches
Fire-Rated
Optional 3-Hour
Model Available3
1
Max at 12VDC
2
12-24VAC not available with 2364 model
3
Fire-rated (F) model only, 3-hour for single swing, 90-minutes for standard pair of doors
• Versatile strike designed to work with most locks Accessories
• Accommodates 1/2” (12.7mm) to 3/4” (19mm) latch projection
• Adjustable deadbolt keeper and deadlatch ramp Model Description
Locksets
• Accommodates up to 1” deadbolt (night-latch function only, F2LM Latch monitor plug-in kit (2A @ 24VDC)
bolt will not release) Filler plate (for use when replacing discontinued 2
• Plug-in wire connectors 2FP
Series models)
• Runs cool – solenoid design prevents keeper from heating up Centerline faceplate, 1-3/8”W x 9”H (35mm x 229mm),
• Trim plate included to cover up irregular frame cut-out F2-19
32D finish
• Stainless steel ensures superior strength and creates a Offset faceplate, 1-3/8”W x 9”H (35mm x 229mm),
sleek aesthetic F2-29
32D finish
• Includes two keeper shims – 1/16” (1.5mm) and 1/8” (3mm) –
SMT-01 Strike marking template kit
Specialty Locks
for horizontal adjustment for misaligned frames
940-LG High profile latch guard, 32D finish
(unique sliding design)
• Non-handed
• Factory tested to over 2-million cycles of operation
Options
• Brushed Stainless Steel (32D) finish
• F – 3-hour fire-rating Listed
• UL 294 Listed for Access Control Unit Accessory (6th Edition)
• UL 1034 burglary-resistant Listed
• UL 10C, 3-hour fire-rating Listed3
How To Order
• CAN/ULC S104, 3-hour fire-rating Listed3
• California State Fire Marshal Listed (CSFM: 3776-2275:0502)3 Options
• Certified to ANSI/BHMA standard A156.31, Grade 1, endurance –Fire-
–
Exit Devices
500,000 cycles F
Rated4
• Patent #: US 9,580,935 2 64 x 32D
• Patent #: Canadian 2,850,072 –Fail-
–
1
Secure
3 –Fail-Safe
–
dormakaba Canada Inc.
65 Struck Court,
Cambridge, ON
N1R 8L2, Canada
Mode
3776-2275:0502
Example: F2164 x 32D
4
Available in fail-secure mode only.
Power Supplies
RCI Product Catalogue 2020 25RCI Electric Strikes
4 Series
Centerline Strikes
Accommodates 3/4” (19mm) latch projection. Various faceplate
options available to accommodate most frame types.
Insert Depth: 1-1/2”D (38mm)
Energy
Strength
200mA1
1,500lbf Static2
(see How to Order
70ft-lb Dynamic
chart below)
Warranty Mode
3 Year Limited Fail-Secure &
Warranty Fail-Safe
4104 4105 4107 4108
Fire-Rated
4304 4305 4307 4308 Endurance
Optional 1-1/2-Hour
500,000 Cycles 3
Models Available 4
1
At 12VDC
2
1,500lbf Static for fire-rated models, 1,000lbf for non-fire-rated 04 & 14 faceplates,
500lbf for 05, 07, 08 & 19 faceplates.
3
Fire-rated (F) models only, 250,000 for other models
4
Fire-rated (F) models only available in fail-secure mode with 04 & 14 faceplates.
• Accommodates 3/4” (19mm) latch projection
• 1-1/2” (38mm) cut-out depth accommodates most door
frame material types
• Use with wide range of door thicknesses, 1-3/8” to 2-3/8”
(35mm-60mm)
• Standard mounting tabs and fasteners included
• Non-handed
• Trim plate included to cover up irregular frame cutout
• Brushed Stainless Steel (32D) finish
• UL 1034 burglary-resistant Listed
4114 4119 • UL 10C, 1-1/2-hour fire-rating Listed 4
4314 4319 F4104 F4114 • CAN/ULC S104, 1-1/2-hour fire-rating Listed 4
• Certified to ANSI/BHMA standard A156.31, Grade 1,
endurance 500,000 cycles 3 (F4 models only)
How To Order
Voltage
11-16VAC‒ 01 LISTED
Secure
Fail-
12VAC/VDC‒ 05
24VAC/VDC‒ 08 Options
• F – 1-1/2-hour fire-rating Listed
Options 12VDC‒ 06
Safe
Fail-
Fire-
F 24VDC 09 Accessories
Rated4
4 - x 32D Model Description
Fail- –1-1/4"W
– x 4-7/8"H (32mm x 124mm),
1 04 4/7JIG Standard profile frame prep jig, aluminum
Secure ANSI Radius Corner
Fail- –1-1/8"W
– x 5-7/8"H (29mm x 150mm), LEK01 1” lip extension kit for retrofit applications, black finish
3 05
Safe Radius Corner LEK02 2” lip extension kit for retrofit applications, black finish
–1-1/4"W
– x 6-7/8"H (32mm x 175mm), 3” lip extension kit for retrofit applications, black finish
Mode 07 LEK03
Radius Corner (not available for F4
–1-7/16"W
– x 7-15/16"(37mm x 202mm),
08 SMT-01 Strike marketing template kit, aluminum
Radius Corner
–1-1/4"W
– x 4-7/8"H (32mm x 124mm), TP-47-5PK Trim plates, 5 pack, black finish
14 930-LG Standard profile latch guard, 32D finish
ANSI Square Corners
–1-3/8"W
– x 9"H (34mm x 228mm),
19
Square Corners
Faceplate
Example: F41 04-05 x 32D
26 RCI Product Catalogue 2020Electromagnetic
Locks
RCI Electric Strikes
6 Series
Centerline Strikes
Electric Strikes
Two profiles available to accommodate different latch projections.
Various faceplate options available to accommodate most frame types.
Standard Insert Depth: 1-3/16"D (30mm)
Low Profile Insert Depth: 1-1/16" (27mm)
Energy
Strength
375mA1
1,500lbf Static2
Field-Selectable
Keypads & Readers
70ft-lb Dynamic
12/24VDC, 12-24VAC
Warranty Mode
3 Year Limited Field-Selectable
Warranty Fail-Secure & Fail-Safe
Monitoring S/L6504 S/L6505 S/L6507 S/L6508
Endurance
Optional Latch & Keeper
500,000 Cycles2
Monitor Models Available
1
At 12VDC
2
Grade 1, 04 & 14 faceplates only. Grade 2, 1,000lbf static for 05, 07 & 08 faceplates.
Switches
• Standard profile accommodates 3/4" (19mm) and Low-profile
accommodates 1/2" (12.7mm) or 5/8" (16mm) latch projections
• 1/4" (6.4mm) horizontal adjustment
• Plug-in wire connectors
• Trim plate included to cover up irregular frame cut-out
• Non-handed
• Brushed Stainless Steel (32D) S/L6514 S/L65U
• Factory tested to over 1-million cycles of operation
• UL 294 Listed for Access Control Unit Accessory (6th Edition) Accessories
Locksets
• UL 1034 burglary-resistant Listed
• Certified to ANSI/BHMA standard A156.31, Grade 1, endurance Model Description
500,000 cycles2 Standard profile frame prep jig, aluminum (for S6504 and
S6JIG
• Patent #: US 6,874,830 and 7,144,053 S6514)
• Patent #: Canadian 2,405,642 Low profile frame prep jig, aluminum (for L6504
L6JIG
and L6514)
1" lip extension kit for retrofit applications, black finish (for
LEKS601
Standard profile)
2" lip extension kit for retrofit applications, black finish (for
Specialty Locks
Options LEKS602
Standard profile)
• LMKM – Latch and keeper monitor
3" lip extension kit for retrofit applications, black finish (for
LEKS603
Standard profile)
How To Order
1" lip extension kit for retrofit applications, black finish (for
LEKL601
Options Low profile)
Latch And Keeper Monitor‒ LMKM 2" lip extension kit for retrofit applications, black finish (for
65 x 32D LEKL602
Low profile)
–1-1/4"W
– x 4-7/8"H (32mm x 124mm),
Standard‒ S 04 3" lip extension kit for retrofit applications, black finish (for
ANSI Radius Corners LEKL603
–1-1/8"W
– x 5-7/8"H (29mm x Low profile)
Exit Devices
Low Profile‒ L 05
150mm), Radius Corners
Lip bracket and radius faceplate for aluminum double
–1-1/4"W
– x 6-7/8"H (32mm x 175mm), S/L6504DD
Profile 07 doors with flat astragal (for S/L6504)
Radius Corners
–1-7/16"W
– x 7-15/16"(37mm x Lip bracket and radius faceplate for aluminum double
08 S/L6507DD
202mm), Radius Corners doors with flat astragal (for S/L6507)
–1-1/4"W
– x 4-7/8"H (32mm x 124mm),
14
ANSI Square Corners SMT-01 Strike marketing template kit, aluminum
–Universal,
– Includes 3 Faceplates (04,
U TP-S6-5PK Trim plates, 5 pack, black finish (for Standard profile)
08 & 14)
Faceplate
TP-L6-5PK Trim plates, 5 pack, black finish (for Low profile)
Example: L6507 LMKM x 32D
Power Supplies
940-LG High profile latch guard, 32D finish
RCI Product Catalogue 2020 27RCI Electric Strikes
7 Series
Centerline Strikes
Accommodates 5/8" (16mm) latch projection. Various faceplate
options available to accommodate most frame types.
Insert Depth: 1-1/2"D (38mm)
Energy
Strength
280mA1
500lbf Static
(see How to Order
70ft-lb Dynamic
chart below)
Warranty Mode
3 Year Limited Fail-Secure &
Warranty Fail-Safe
Endurance
7104 7105 7107 7108 250,000 Cycles
7304 7305 7307 7308
At 12VDC
1
Voltage for fail safe 240mA (73) models: 12VDC (06); 24VDC (09)
• Accommodates 5/8" (16mm) latch projection
• 1/8" (3.2mm) horizontal adjustment
• 1-1/2" (38mm) cut-out depth
• Use with wide range of door thicknesses 1-3/8" to 2-3/8"
(35mm-60mm)
• Mounting tabs, fasteners and trim plate included
• Non-handed
• Trim plate included to cover up irregular frame cutout
• Brushed Stainless Steel (32D) finish
• UL 1034 burglary-resistant Listed
7114 7119
7314 7319 Accessories
Model Description
How To Order
4/7JIG Standard profile frame prep jig, aluminum
Voltage LEK01 1” lip extension kit for retrofit applications, black finish
11-16VAC‒ 01
LEK02 2” lip extension kit for retrofit applications, black finish
12VDC‒ 05D
Safe Secure
Fail-
24VAC‒ 07 LEK03 3” lip extension kit for retrofit applications, black finish
24VDC‒ 08D SMT-01 Strike marketing template kit, aluminum
12VDC‒ 06 TP-47-5PK Trim plates, 5 pack, black finish
Fail-
24VDC‒ 09 930-LG Standard profile latch guard, 32D finish
7 - x 32D
–1-1/4"W
– x 4-7/8"H (32mm x 124mm), ANSI
Fail-Secure‒ 1 04
radius corners
–1-1/8"W
– x 5-7/8"H (29mm x 150mm),
Fail-Safe‒ 3 05
radius corners
–1-1/4"W
– x 6-7/8"H (32mm x 175mm),
Mode 07
radius corners
–1-7/16"W
– x 7-15/16"(37mm x 202mm),
08
radius corners
–1-1/4"W
– x 4-7/8"H (32mm x 124mm), ANSI
14
square corners
–1-3/8"W
– x 9"H (34mm x 229mm),
19
square corners
Faceplate
Example: 71 04-05D x 32D
28 RCI Product Catalogue 2020Electromagnetic
Locks
RCI Electric Strikes
Electric Strikes
Keypads & Readers
Switches
12C Compact Strike VR165 Vertical Rod Strike
A versatile strike suitable for all types of door frames. Accommodates 5/8" (16mm) roller latch. Designed for use
1-13/16"W x 2-3/4"H x 1-1/8"D (46mm x 70mm x 28mm) with vertical rod exit devices with roller latch.
Energy
Energy Strength1 Strength
450mA1
90mA 1,100lbf Static 1,500lbf Static
Field-Selectable
12VDC 44ft-lb Dynamic 70 Dynamic ft-lb
12/24VDC & 12-24VAC
Locksets
Warranty Mode Warranty Mode
1 Year Limited Warranty Fail-Secure 5 Year Limited Warranty Fail-Secure
1
Internal testing
Endurance
250,000 Cycles
• Quick and easy to install
• Ideal for wooden, steel & aluminum frames
Specialty Locks
1
Max at 12VDC
• Non-handed
• Versatile, compact design • Accommodates 5/8" (16mm) roller latch
• Replaces standard, non-electrified T-strikes • Heavy-duty, surface mounted strike
• Maintains integrity and strength of the door frame • High grade stainless steel ensures superior keeper strength
• Brushed Chrome (26D) • Ensure proper latch alignment – up to 1/4" (6.4mm) adjustment
to compensate for door and frame misalignments
• Door stop adjustment for different rail thicknesses
How To Order • Horizontal solenoid prevents manipulation from vibration
• Conventional keeper design (one moving part) - promotes even
12C x 26D
load distribution
• Lockdown tabs for secure mount
Exit Devices
• Non-handed
• HEX socket head cap screws for added support and
tamper-resistance
• Plug-in wire connector How To Order
• Installation tool included (HEX key)
• Brushed Stainless Steel (32D) finish VR165 x 32D
• UL 1034 burglary-resistant Listed
• UL 294 Listed for access Control Example: VR165 x 32D
Unit Accessory (6th Edition)
Power Supplies
• Patent #: US 7,722,097
• Patent #: Canadian 2,597,916
RCI Product Catalogue 2020 29You can also read
