Steyr Tractors.
Your Partner to rely on.
Your partner to rely on.
because you don’t
have office hours, you need
a tractor which is always
available.
03
Perfect design to
the smallest detail
straightforward
functionality and highest
manufacturing quality
Most efficient
engine technology
looking to the future
Kompakt S
Kompakt
the Steyr tractors - an overview
01.
Steyr tractors
are unmistakable
Its impressive looks, its spirit of innovation and its unequivocal reliability: a real Steyr tractor is unmistakably Austrian
through and through. Enter the cab and feel in control. Start up and feel the power within. Drive away and know that
you have made the right decision. Because from compact entry-level all-rounders through to multifunctional machines
packed with power, every Steyr tractor delivers exactly what you expect of it.
Multi
Profi CLASSIC
Profi & PROFI CVT
CVT
05

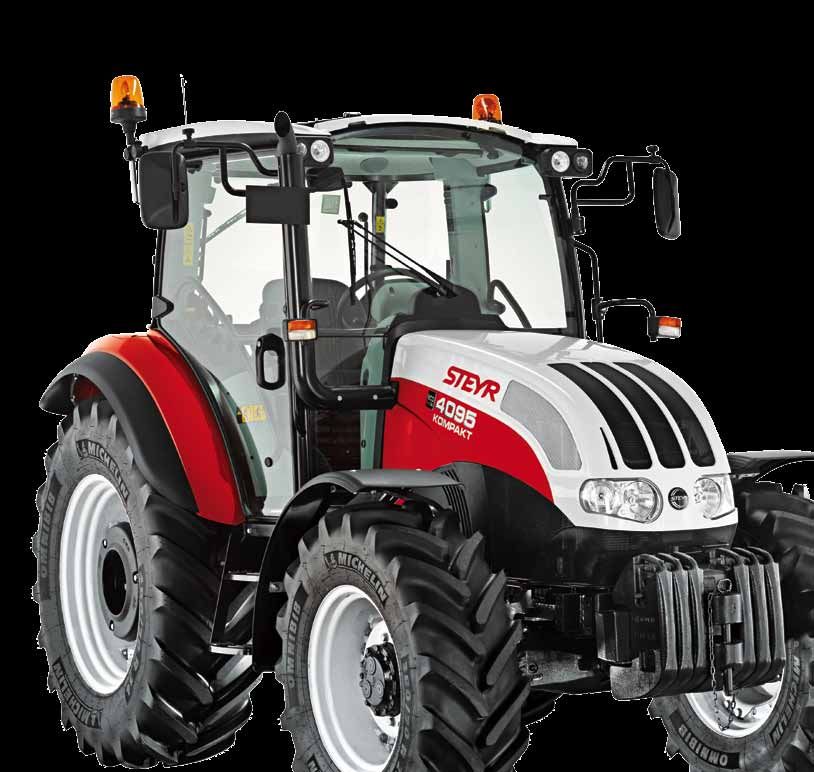

Kompakt & Kompakt S series
02. The all-rounder
Especially user-friendly, easy to manoeuvre and delivering plenty of power: the Steyr entry-level class with the
new compact models covers every requirement. With the latest, economical common rail ecotech engines
in the Steyr Kompakt models and proven turbo-diesel engines in the Steyr Kompakt S class, they are always
environmentally friendly in operation and totally at home anywhere a compact helper is needed: around the
yard, in the field, on steep slopes, arable farming, livestock farming, in vineyards and orchards, as well as in
parks and botanic gardens. Regardless of where you use your Steyr Kompakt or which model you choose –
4085, 4095, 4105 Kompakt or 4055 and 4065 Kompakt S – you have a tractor you can rely on.
FUNCTIONAL
DETAILS
MAKE WORK
EASIER EVERY DAY
MINIMUM COSTS AT
MAXIMUM APPLICATION SPECTRUM
More satisfaction with more lifting force. With the Steyr
Kompakt & Kompakt S you have plenty of power available at all times. The
Steyr Kompakt S models have a maximum lift capacity of 2,800 kg, while
the more powerful Steyr Kompakt models lift up to 3,900 kg, both with an
additional external hydraulic ram.
Always the right transmission. Wherever you want to put your
Steyr Kompakt or Kompakt S to work, you can configure the transmission to
your specifications. From the entry level mechanical 12 x 12 transmission
AN IMPRESSIVE on the Steyr Kompakt S, also available with creeper gears and shuttle,
CONTROL CONCEPT through to the 2-stage Powershift (24 x 24), Powershuttle and creeper
gearbox (optional) on the Steyr Kompakt.
Better visibility all the time. The generous all-round glazing and
roof window offer the best view of your whole work area. So that you can
also continue working in the dark, adjustable work lights turn night into
day.
Plenty of space inside. The wide doors make it easy to enter the
ergonomically designed cab. The perfect sound insulation provides a
comfortable environment, along with the flat floor, comfortable folding
passenger seat and air conditioning (optional).
07
03. Universal
Powerful, flexible and in every respect ‘Made in Austria’: the new Premium models in the Steyr
Multi series look forward to facing your challenges. Their high torque, economical engines and
the new transmission make our Steyr Multi models genuine all-rounders. They are powerful
enough for tough loader and mower jobs as well as working with heavy mounted equipment,
while at the same time they feature a low centre of gravity and excellent manoeuvrability in every
terrain. A Steyr Multi proves how compact and yet how versatile a tractor can be.
MULTI series
Front PTO
and hydraulics
for the highest
productivity
FUNCTIONAL hi-tech
control centre with
intuitive control layout
Dedicated to the job. So that heavy work can also be handled
efficiently, the new Steyr Multi models feature as standard a 32 x 32
transmission with 4-stage Powershift and 40 kph at a reduced engine
speed of 1,750 rpm and Powershuttle. This guarantees a perfect match
between engine revs and travelling speed. Naturally the Steyr Multi
is also equipped with switchable 4WD (incl. EDS) and a 4-speed PTO
(540/540E/1000/1000E).
Lift capacity to handle everything. The new Steyr Multi models
are the ideal hauling machines for every implement thanks to the standard
rear hydraulics control system and a total of 6 remotes (4 at rear, 2 mid-
mounted). Two external hydraulic rams deliver extra power for lifting loads
of up to 5,600 kg.
Perfect control. With the Multicontroller you have all the Steyr
Multi’s functions in perfect control. It is easy to operate the transmission, Versatile and powerful
shuttle, Powershuttle, rear hitch or remotes literally with just one hand. day after day
Everything always in view. So that you maintain an overview of
your work, the Steyr Multi is fitted with almost uninterrupted glass around
the cab. In addition, the roof window provides a perfect view of the front
loader, making the Multi the leader in its class.
09
PROFI Classic series
Efficient
engine technology for
the highest performance
Flexible in all areas
of modern agriculture
The finest transmission technology. The classic for the Steyr
Profi Classic: 2-stage Powershift transmission with Powershuttle and
24 x 24 gears in 3 groups (creeper gearbox optional) is the perfect basis
for every job. Or you can choose the 4-stage Powershift with 40 kph
(16/16 gears, optional as Eco with reduced engine speed) or a top speed
of 50 kph (17/16 gears).
Extra power on demand. Intelligent technology tweaks even more out
of an extremely powerful engine: when the highest possible performance is
required of the Steyr Profi Classic the engine power management system
will make an additional 26 hp available on demand.
Full lift capacity at work. The hydraulic system with Electronic
Powerful hydraulics for
Hitch Regulation (EHR) demonstrates why a Steyr Profi Classic makes a
the heaviest loads
difference: it is capable of lifting up to 7,864 kg. It also makes it quick and
easy to change implements.
Professionals appreciate comfort. Spacious with perfect
all-round visibility: the comfort of the new Steyr Profi Classic is simply
incomparable in its class. Wide opening doors, and ergonomic control
panel, smooth cab suspension and front axle suspension are also welcome
features. You will also appreciate its low roof with high visibility window as
standard.
Ideal visibility at night. Turn night into day with the all-round
lighting on the Steyr Profi Classic. Integrated floodlights and adjustable
lights illuminate the way as well as the whole work area in front and behind
the tractor. Optional add-on lights permit road transport even with front-
mounted implements. The control panel is also well illuminated so that
you still maintain a clear overview inside the cab as well.04. Efficient
If you are looking for the highest productivity and profitability, look no further than the Steyr Profi Classic.
This is the economical way to reach Profi class. This functional, straightforward tractor offers a choice
of impressive engines (from 110 to 140 hp), perfect cab comfort and professional user-friendliness.
Moreover, every Steyr Profi Classic is equipped with electronic control modules, an advanced fuel
injection system and the latest SCR technology. As a result, it not only fulfils emissions standard IIIB,
it also guarantees you maximum power at all times regardless of the operating conditions. You only
experience what efficiency really feels like if you drive a Steyr Profi.
11PROFI & PROFI CVT series
EQUIPPED FOR ALL TASKS
EFFICIENCY X 3
MORE POWERFUL,
MORE ECONOMICAL,
MORE ENVIRONMENTALLY FRIENDLY
The PROFI CVT Hi-tech
command centre
The Steyr Profi with POWERSHIFT. The classic fully-synchronous Steyr
4-stage powershift with electronic transmission management is ideal if you are
looking for smooth, efficient and automatic gear shifting.
The Steyr Profi with CVT transmission. Smooth driving experience and
maximum efficiency: you will be impressed by the outstanding characteristics
of the CVT transmission on the Steyr Profi CVT. Integrated Automatic Productivity
Management (APM) optimises fuel consumption by automatic adjustment of the
engine speed based on demand.
Clear visibility guaranteed. Regardless of which direction you look: the
Steyr Profi cab offers a perfect panoramic view. Thanks to a glazed area of 5.87 m2
and the high visibility roof window, you have unrestricted visibility in all directions.
Best comfort every day. More luxury and driving comfort thanks to cab and
front axle suspension: options that are ideal for everyday endurance jobs as well as
for more sensitive people from a health point of view. Two additional bins provide
more stowage space and tinted glass provides protection against direct sunlight.
Perfect work made easy. The Multicontroller puts the Steyr Profi top of the
league. Perfect, well thought-out, ergonomic controls makes it easier for you to
operate the tractor effectively. Thanks to its perfect lighting this is also the case when
working at night.
Professional overview included. The Multicontroller armrest includes an
integrated Steyr S-Tech 700 monitor screen. Now you always have a perfect overview
of all the tractor’s key functions as well as ISOBUS-compatible machinery.05. Superior technology
To deliver the best performance you have to keep moving. That is what we have done by implementing
innovations in the Steyr Profi series - our bestseller for professionals - with a completely revised cab layout
and the latest intelligent design of the popular Multicontroller. If you need power and efficiency in their
highest form, the Steyr Profi is also available with proven CVT transmissions onboard the 4110 Profi CVT,
4120 Profi CVT and 4130 Profi CVT.
1306. Powerful
If you need a tractor that can really go to the limits:
the Steyr CVT is totally at home wherever highest performance is required. Whether working
on your own farm or performing contract work, you will be impressed by its extra productivity
and cost effectiveness. That this workhorse is also so comfortable to use is what makes it so

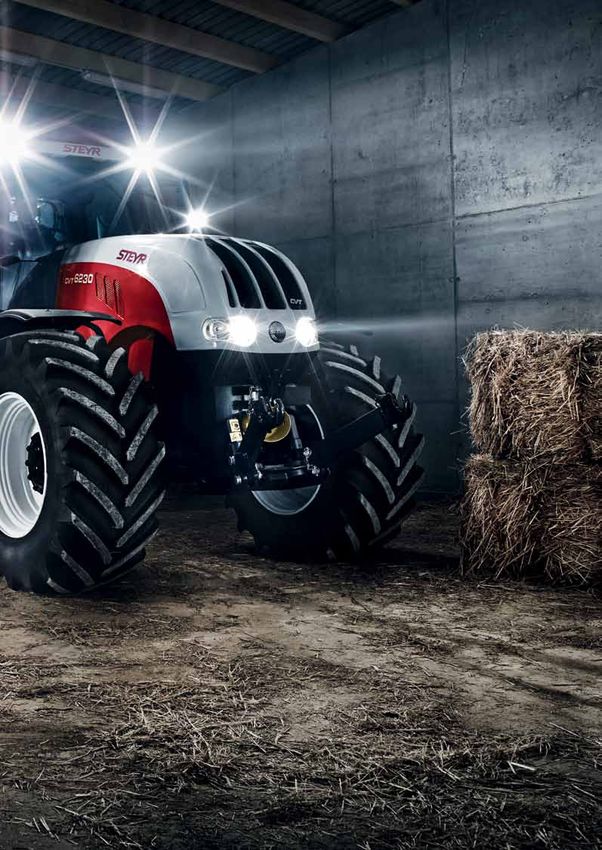

indispensable when in continuous operation.CVT series
A TOTALLY IMPRESSIVE
CONTROL CONCEPT
The engine with extra power. The eight models in the Steyr CVT
series are all equipped with powerful four-valve common rail engines (from
131 to 269 hp). With 6.75 litre capacity, turbocharger and intercooling,
they output their maximum torque at the low engine speed of 1,400 rpm.
Thanks to integrated power management they can deliver up to 29 hp
more when working in challenging conditions.
More efficiency with intelligence. Keep calm and concentrate
on your work: Automatic Productivity Management (APM) will ensure the
smoothest and most efficient performance. That is because it always uses
the lowest possible engine speed to achieve the lowest fuel consumption
while delivering maximum productivity. As a result the Steyr CVT saves on
transport costs, for example, by reaching 50 kph at just 1,500 rpm.
Hydraulic brawn with brains. In terms of power it is best in
its class: infinitely-variable adjustment of the flow rate for up to nine
individual remotes ensures that precisely the right oil flow is available to
the right consumer at the right time. With a maximum lifting capacity of
up to 10,460 kg, the Steyr CVT easily handles any mounted implement.
PURE POWER
PRECISION APPLIED
Programmed deployment. Your Steyr CVT has everything under
control with the very latest technology: each model is equipped with a
Multicontroller armrest, to which a Steyr S-Tech 700 monitor can be fitted
as well. Then you can program all settings and functions at any time. It is
EVERYTHING UNDER CONTROL also ISOBUS-compatible for even more precision and productivity.
WITH THE S-TECH 700 MONITOR
Fatigue-free work. Drivers remain concentrated and focussed even
after a long working day thanks to the low noise level of 69 dB(A). The
height-adjustable tilting steering column, horizontal and vertical seat
adjustment, personal seat suspension and lumbar support settings also
contribute here.
15Municipal, forestry, ground care & industry
07. The experts
An ideal tractor for every task: the Steyr experts always live up to this statement in municipal service, forestry
work, ground care and industry. From our models in the Steyr product range you can have your tractor
configured to precisely meet your specifications. Regardless of which you choose, you can rely on each of
our expert tractors for its reliability, comfort and the very latest technology.GET THE BEST OUT OF FRONT-MOUNTED
EQUIPMENT - WITH THE STEYR COMBO FRAME.
STEYR FORESTRY Best equipped for
PROTECTION EQUIPMENT everyday tasks
- FOR OPTIMUM SAFETY
Tailor-made all-round solutions. The experts at Steyr always
have the best equipment ready for you to be factory-fitted. Such as the
integrated combo frame, for example, which features a quick-change plate
to minimise re-tooling times when swapping implements. Or specially-
configured protection equipment for even more safety during heavy-duty
forestry operations. Of course all tractors are supplied with precisely the
right tyres so they are ideal for operating in the terrain to which they are
deployed.
Cost-effectiveness at its best. If you want to work effectively you
need to keep an eye on the environment as well as your operating costs.
That is why we have implemented the ecotech system, to significantly
increase productivity while at the same time reducing fuel consumption
and pollutant emissions.
More comfort for professional work. The right working
environment increases the productivity of your employees. That is why
each of our Steyr tractors features an enhanced level of comfort. This
starts with being able to enter and exit the cab conveniently, perfect all-
round visibility, ergonomic control layout and comfortable seat for fatigue-
free operation.
VERSATILE AND
COST-EFFECTIVE
1708. Always on-track Only if you work with future-safe machinery will you be able to enjoy success in the future. That is why we at Steyr are developing professional tractors with advanced forward-looking technology. With Steyr S-Tech we have managed one of the most significant advancements since the beginning of agricultural mechanisation. This intelligent control system meets all your operational requirements to guarantee the highest efficiency and precision while farming your fields.
S-tech farming WITH precision
HIGHEST ACCURACY
FOR MAXIMUM YIELD
Precise. Productive. Profitable.
The Steyr S-Tech concept. The technology to increase profit:
the Steyr S-Tech system reduces operating costs and takes the
pressure off the driver. That is because it automatically follows the
programmed route – thanks to precision steering and positioning
using GPS and GLONASS.
Advanced vehicle control. The Steyr S-Tech 700 touch-
screen monitor is at your disposal for setting up and controlling your
tractor interactively. Now you can monitor yield, fuel consumption
and performance, connect up external cameras, record job data
and control ISOBUS-compatible equipment. Steyr S-Tech touch-
screen monitors can be fully adapted to your work interactively.
ISOBUS compatibility. Using the Steyr S-Tech 700 monitor you
can control ISOBUS-compatible equipment. Now you have an
overview of all the machinery and data that you need. The ISOBUS
task controller is also available as an option. This helps you work
more efficiently and more in-tune with the environment by enabling
automatic half-width switching of spray booms and variable
spreading rates.
Perfect guidance. Whichever guidance system you have in
mind: Steyr S-Tech offers the full range from straightforward plug-
and-play light bar solutions through to fully-automatic integrated
systems. The level of precision depends on your requirements: the
RangePoint correction signal offers a reliable 15 cm pass-on-pass
accuracy with free GLONASS support for the highest level of
reliability even in shadow-susceptible areas such as next to
woodland. With a pass-on-pass accuracy of 4 cm, Center Point RTX
provides and enhanced level of precision. Maximum precision of
just 2 cm overlap is provided by Steyr RTK solutions.
Farm Management software. Understanding what happens
and why: modern agriculture is based on the exact management of
many variable parameters. Using our Farm Management software
package you can see the work performed in each field, the results
achieved, fuel consumption, and most importantly, your profit.
Now you can plan your deployment more easily and even more
efficiently in future.
With the S-Tech-700
Support Centre 0800 080056 monitor you are always
in the picture
Your direct line to the Steyr S-Tech specialists
For any queries concerning use, settings or areas of
application.
1909. Steyr tractors
from their
best side
If you choose a Steyr tractor, you can rely on the highest quality.
This applies not only to the tractor itself: our dealers provide you with professional advice and customer
care. They will assist you in making the right choice of tractor and finance so that together you find the
best solution for your business. From handover to servicing, you will be impressed again and again by
our dealer’s reliability and expertise.Models ENGINE POWER TRANSMISSION LIFT CAPACITY DISPLACEMENT RATING
Pump max.
Nominal engine power ECE R1201) Standard (with creeper gears) continuous
Standard / Optional
@ 2,300 rpm [kW/hp] Option (with creeper gears) at 610 mm [kg]
[l/min]
4055 Kompakt S 41 / 56 Synchronous transmission with 2,100 48 / -
shuttle gear 12 x 12 (20 x 20)
Synchronous transmission with
4065 Kompakt S 48 / 65 Powershuttle 12 x 12 (20 x 20) 2,100 48 / -
4085 Kompakt 63 / 86
Synchronous transmission with
3,200 48 / 64
shuttle gear 12 x 12 (20 x 20)
2-stage Powershift
4095 Kompakt 73 / 99
with Powershuttle 24 x 24
3,200 48 / 64
Synchronous transmission with
Powershuttle 12 x 12 (20 x 20)
4105 Kompakt 79 / 107 3,200 48 / 64
Models ENGINE POWER TRANSMISSION LIFT CAPACITY DISPLACEMENT RATING
Pump max.
Nominal engine power ECE R1201) Standard (with creeper gears) continuous
Standard / Optional
@ 2,300 rpm [kW/hp] Option (with creeper gears) at 610 mm with CCLS [kg]
[l/min]
4095 Multi 73 / 99 4,700 60 OCLS / 100 CCLS
4-stage load shifting
4105 Multi 79 / 107 with Powershuttle and 4,700 60 OCLS / 100 CCLS
40 kph Eco 32 x 32
4115 Multi 84 / 114 4,700 60 OCLS / 100 CCLS
Models ENGINE POWER TRANSMISSION LIFT CAPACITY DISPLACEMENT RATING
Pump max.
Nominal engine power ECE R1201) Standard (with creeper gears) continuous at 610 mm
Standard / Optional
@ 2,200 rpm [kW/hp] Option (with creeper gears) with 113 l displacement rating [kg]
[l/min]
2-stage Powershift transmission
4110 Profi Classic 81 / 110 with Powershuttle 24 x 24 (48 x 48) 7,864 80 OCLS / 113 CCLS
4-stage Powershift transmission
with Powershuttle 16 x 16 (32 x 32)
4-stage Powershift with
6125 Profi Classic 92 / 125 Powershuttle 17 x 16 7,864 80 OCLS / 113 CCLS
40 kph Economy or 50 kph
4-stage Powershift transmission
with Powershuttle 16 x 16 (32 x 32)
6140 Profi Classic 103 / 140 4-stage Powershift with 7,864 80 OCLS / 113 CCLS
Powershuttle 17 x 16
40 kph Economy or 50 kph
21Models ENGINE POWER TRANSMISSION LIFT CAPACITY DISPLACEMENT RATING
Pump max.
Nominal engine power ECE R1201) Standard (with creeper gears) max. [kg]
Standard / Optional
@ 2,200 rpm [kW/hp] Option (with creeper gears) 610 mm
[l/min]
4110 Profi 81 / 110 7,864 113 CCLS / -
4120 Profi 89 / 121
4-stage Powershift
7,864 113 CCLS / -
with Powershuttle
16 x 16 (32 x 32)
4130 Profi 96 / 131 7,864 113 CCLS / -
4-stage Powershift
with Powershuttle
17 x 16
6125 Profi 92 / 125 7,864 113 CCLS / -
6140 Profi 103 / 140 7,864 113 CCLS / -
4110 Profi CVT 81 / 110 7,867 125 CCLS / -
Continuously variable transmission
0 – 40 kph ECO
4120 Profi CVT 89 / 121 at 1,600 rpm engine speed or 7,867 125 CCLS / -
0 – 50* kph
at 1,750 rpm engine speed
4130 Profi CVT 96 / 131 7,867 125 CCLS / -
Models ENGINE POWER TRANSMISSION LIFT CAPACITY DISPLACEMENT RATING
Pump max.
Nominal engine power ECE R1201) Standard (with creeper gears) max.
Standard / Optional
@ 2,200 rpm [kW/hp] Option (with creeper gears) [kg]
[l/min]
6130 CVT 96 / 131 8,257 125 / 140 CCLS
6145 CVT 107 / 146 8,257 125 / 140 CCLS
6160 CVT 118 / 160 8,257 125 / 140 CCLS
6170 CVT 123 / 167 10,460 150 / 170 CCLS
Continuously variable transmission
0 – 40 or 50* kph
with Powershuttle
6185 CVT 136 / 185 10,460 150 / 170 CCLS
6205 CVT 147 / 200 10,460 150 / 170 CCLS
Not available in Austria
6215 CVT 158 / 215 10,460 150 / 170 CCLS
6230 CVT 167 / 228 10,460 150 / 170 CCLS
1)
ECE R120 complies with ISO 14396 and EG 97/68
*) Depending on country-specific legislation and specificationsService & Finance
Uncomplicated 00800 7839
Always 7000 we you need us. Reliable operation, no
there
service, mechanical 00800 STEYR
downtime: no 000
problem with the Steyr Max Service. Here you receive
BETTER TRACTORS.
or electronic expert assistance round the clock, seven days a week. Our 24-
hour emergency service provides you with professional support,
technicians, products and spare parts and can be contacted
free-of-charge via your dealer or directly using our hotline
00800 7839 7000.
Everything available any time. Our Steyr tractors are designed
to handle thousands of hours of hard work and are especially easy
to service and maintain. You can obtain all the necessary spares and
components from your dealer, who can also offer you a full range of
servicing and warranty deals. Their experienced service technicians,
who have been trained at our plant, make sure that your tractor always
delivers optimum performance.
CNH Industrial Capital – Financed by professionals. A
Steyr tractor should be the perfect investment right from the beginning.
A competent finance partner is indispensable, which is why we
recommend CNH Industrial Capital. As experienced experts in the
financing of agricultural and construction machinery they can offer
you a wide range of services that are focussed on your business: from
tailor-made loans, leasing or rental agreements to credit cards and the
finance of consumables and charters.
More reliability and consultation. Increasing your
commercial efficiency is our most important objective: that is why
CHN Industrial Capital always strives to find the best financial solution
for your new investment to precisely meet the specifications of your
business and its financial scope. With proven CNH Industrial Capital
insurance to cover breakdowns and the costs of repairing machinery
you can not only minimise your investment risk, but also plan business
investments more reliably.
Rapid supply Steyr Fanshop. The home of the red-
of spare parts white-red cult: from work and leisure
apparel through to accessories, models
and toys, here you will find everything to
warm the heart of true Steyr tractor fans.A partner company of
STEYR-traktoren.com
facebook.com/STEYRTraktoren
Safety first. Before using the equipment please read the operating instructions and ensure that all controls function correctly. Pay special Whilst every effort is made to ensure that the specifications, descriptions and illustrations in this brochure are correct
attention to the signs and notices and use the safety appliances fitted for your personal safety. This brochure has been published for inter- at the time of going to press, these are also subject to change without prior notice. Illustrations may show optional
national circulation. The availability of individual models and standard/optional equipment may vary from one country to the next. STEYR equipment or may not show all standard equipment.
reserves the right to undertake modifications without prior notice to the design and technical equipment at all times without this resulting in
any obligation whatsoever to make such modifications to units already sold. TP01/SM/02.14/Printed in Austria – Cod. n. 13S8003/COM – www.steyr-traktoren.comYou can also read
