The complete product range.

                              Edition 2019
The complete product range - Edition 2019 - belimo.eu
Small devices, big impact.

      Belimo is global market leader in the development,      specifically designed for fire and smoke dampers.
      production and marketing of actuator solutions for      Furthermore, a complete range of fail-safe and fast
      controlling heating, ventilation and air conditioning   running actuators increases safety by preventing
      systems. Actuators, control valves and sensors          hazardous situations.
      make up the company's core business.
                                                              Experience installation ease.
      Innovations redefining comfort.                         Ease of installation and fast commissioning save
      Belimo's devices provide a precision controlled,        time. The unique tool-free protective housings of
      comfortable room environment that is essential for      sensors or devices that allow paperless smartphone
      the wellbeing and productivity of people. Belimo        commissioning are two examples that have a
      sensors, variable air volume (VAV) technology           big impact on reducing installation time. Belimo
      and pressure-independent characterised control          offers the most comprehensive product ranges,
      valves are three examples that have a big impact        including retrofit applications, with fast delivery
      on room comfort.                                        to the desired location.

      Energy efficiency delivered.                            Lasting performance, backed by
      The smart control of heating, cooling and ventilation   world class support.
      loads has a big impact on the energy efficiency         Low maintenance and good customer service
      of buildings. Belimo sets the standard for energy       have a big impact on building operations. Belimo's
      efficient solutions such as low power consumption       devices are famous for their long lifetime and 5-year
      actuators, the Belimo Energy Valve™, and ball valve     warranty. To achieve optimal building performance,
      technology that ensures air bubble-tight closing.       Belimo's innovative solutions (IoT range) can
                                                              provide real time monitoring and transparency.
      Uncompromised safety.
      Belimo damper actuators save lives and help
      to minimise damage to buildings and tangible
      assets. They are highly reliable and have been
The complete product range - Edition 2019 - belimo.eu
Everything under one roof.
                                          3
                                                                   8        13
                                                                                                                              13

                                                                                                                10                 13
                                                                                                         8
                                      6

                               13                                                                                                                        10
                                                                                                    12
                               10                                                                                                                        11
                                                                                                                         11             6
                                                        4                                         4
          3
                                                                                                                     2
                         13                        13                                          13
                                      2

           8                                                                  5                     10
                                                                       11

                                                                                                  4
                                              4
                                                   13                                          13
                                                    7

                                                                   5
                                                                   4
                 13

                                                                                                                              7

                                                                                                  5

                                                                       10             10

                                                                                             14
                                                                   9              9
                 8
                                                                                             10

       Illustration example

Air                                           Water                                                                      Sensors
1 Air damper actuators                        5 Zone valves                                                              10 Temperature sensors
2 Fire protection actuators                   6 Pressure-independent characterised control valves                        11 Humidity sensors
3 Smoke control actuators                     7 Characterised control valves                                             12 Air quality sensors
4 VAV-Compact / VAV-Universal                 8 Globe valves                                                             13 Pressure sensors
                                              9 Open-close and change-over butterfly valves                              14 Flow sensors

 Fan       Air heater    Air cooler       Boiler            Pump       Variable speed        Heat            Chiller / heat             Cold water   Transfer
                                                                            pump           exchanger            pump                     reservoir    station
The complete product range - Edition 2019 - belimo.eu
Actuator, valve and sensor solutions.

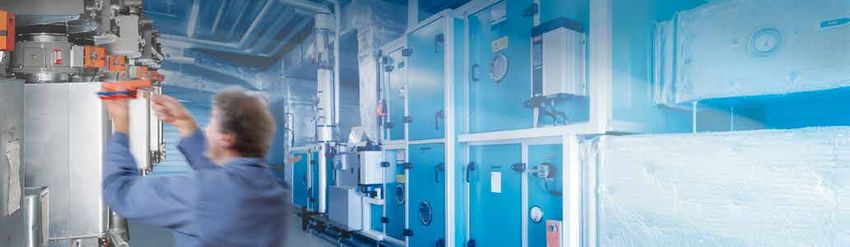

                        General air solutions
                        Air treatment, distribution, control and feedback
                        The world's most comprehensive range of actuator solutions for air dampers
                        of up to 8 m2 includes rotary and linear actuators with a wide range of
                        motorisation levels and actuating times. The actuators cover almost all
                        motorisation requirements for the control of air flows in air-conditioning
                        plants, from treatment and distribution to feedback and retreatment. The
                        product range also includes special actuators for indoor and outdoor use in
                        extreme conditions. As a perfect complement to the actuators, Belimo offers
                        a comprehensive range of sensors for measurements of air temperature and
                        humidity as well as air quality. Differential pressure sensors guarantee an
                        accurate filter monitoring to optimally plan the service intervals.

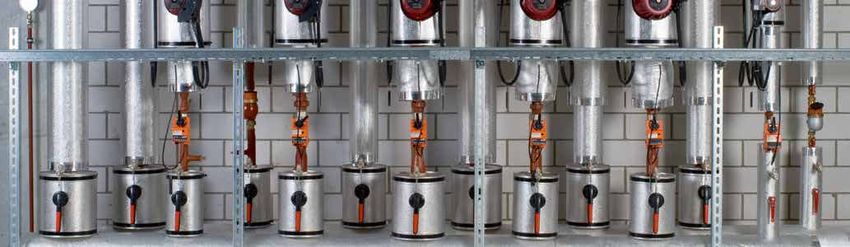

                        Water solutions
                        Efficient operation of heating and cooling circuits
                        In addition to motorised butterfly valves and globe valves, Belimo supplies
                        unique, air bubble-tight characterised control valves for the precise control
                        of heating and cooling circuits without energy loss. Thanks to permanent
                        dynamic balancing, pressure-independent characterised control valves ensure
                        the correct amount of water at all times; even in the case of changes in
                        differential pressure and during partial load operation. The forward-looking
                        multifunctional Belimo Energy Valve™ with integrated logic allows energy
                        flows to be monitored and optimised. The integrated Delta-T manager
                        ensures that the differential temperature does not fall below defined values
                        and that the heat exchanger is always run in the energy-efficient range.
                        In limited-space installation situations, the zero-leaking valves from the
                        Belimo ZoneTight™ product family are the ideal solution for energy-saving,
                        smooth room and zone control.

                        Retrofit applications
                        Giving new verve to old systems
                        For renovations in existing construction and replacements for older
                        actuators on air dampers, globe valves and rotary valves, Belimo supplies
                        a comprehensive product range of special Retrofit motorisation solutions.
                        Their parameters can be set precisely on site to the prevailing requirements.
                        The Retrofit globe valve and rotary actuators can be mounted on practically
                        all conventional types of valve in just a few steps. Handy VAV Retrofit kits
                        with controllers or actuators, pick-up devices and sensors are available for
                        replacing defective or pneumatic VAV devices. In order to determine the right
To the Retrofit tool:   replacement actuators with ease, Belimo has developed a Retrofit tool, which
                        determines the right actuator on the basis of a wide range of parameters. The
                        tool can be used anywhere – on site or in the office.
The complete product range - Edition 2019 - belimo.eu
For every field of application.
              Safety solutions
              Protecting life and material assets from fire and smoke
              Fires represent the greatest potential threat to people and tangible assets
              in buildings. Efficient fire protection saves lives in case of emergency, helps
              minimise property damage and secures the continued operation of compa-
              nies. The best protection against the spread of fire and smoke through the air
              ducts is provided by the motorised fire dampers to form fire compartments.
              Mechanical smoke extraction systems with motorised smoke control dampers
              ensure low smoke levels in escape and rescue routes.

              System protection
              Avoiding damage in the event of interruptions to operation
              Actuators with an emergency control function protect the systems from
              damage caused by ice, water and steam. In mechanical emergency control
              actuators, the integrated spring package is triggered automatically and
              the damper closed in the event of electricity interruption. The SuperCap
              actuators with electrical emergency control function can bridge short
              voltage failures lasting up to 10 seconds and the emergency control positions
              can be defined individually. Unnecessary downtimes and inconvenience are
              thereby avoided.

              Bus and system integration
              Monitoring and controlling systems from a central location
              Belimo actuators can be easily integrated into intelligent building manage-
              ment systems. Actuators with an integrated BACnet, Modbus and KNX
              interface are available for direct connections. MP actuators can be used
              to combine up to eight different final controlling elements into one MP-Bus
              section and connect to virtually any supervisory system with greatly reduced
              wiring costs. Various adjustment and service tools as well as the Belimo
              Cloud simplify the installation, monitoring and optimisation.

              Room and system solutions
              Ensuring individual comfort and saving energy
              Used in offices, public buildings, production halls, commercial premises
              or sensitive operating areas, volumetric flow controllers, actuators and
              sensors ensure an optimum room climate while consuming minimal levels
              of energy. They can be used as VAV-Compact or VAV-Universal devices.
              Special, compact VAV control units are available for distribution boxes used
              in controlled residential ventilation. Eu.bac-certified room and residential
              controllers improve comfort levels and reduce energy consumption.
The complete product range - Edition 2019 - belimo.eu
General air solutions
Rotary actuators without emergency control function
Product range            Types / performance classes         Specifications                          Applications

                         Standard actuators:                 • With integrated auxiliary switch      Motorisation of air dampers
                         • TMC (2 Nm)                          or potentiometer                      without emergency control function
                         • LM (5 Nm)                         • Identical accessories for all types   up to 8 m2
                         • NM (10 Nm)                        • Connection: Cable (IP54) or
                         • SM (20 Nm)                          terminals (IP20 or IP54)
                         • GM (40 Nm)

                         Compact actuators:                  • Mechanical angle of rotation          Motorisation of air dampers
                         • CM (2 Nm)                           limitation 0...287.5°                 without emergency control function
                         • CM..G (2 Nm, IP66)                • Rotation without limits               up to 0.4 m2 in residential
                                                             • Magnetic gearing disengagement        ventilation systems, underfloor air
                                                                                                     handling units, decentralised sill
                                                                                                     ventilation units, etc.

                         Compact actuator with integrated    • Damper diameter 100, 125, 150         Motorisation of round air dampers
                         damper blade:                         and 160 mm                            without emergency control function
                         • CM..D (2 Nm)                      • Air tight in accordance with          up to DN 160 in residential
                                                               DIN EN 1751, Classes 3 and 2          ventilation systems, air distribution
                                                             • Sound power level ≤ 35 dB(A)          systems, after-flows, facade units,
                                                             • Useable up to 1000 Pa max.            etc.
                                                             • Running time 58 s / 70°

                         Rotary actuator with high torque:   •   IP66/67, NEMA 4X                    Motorisation of air and special
                         • PMCA (160 Nm)                     •   Variable running time 30...120 s    dampers, tunnel dampers, closing
                                                             •   Integrated auxiliary switches       dampers with high-density,
                                                             •   Connection: terminals               industry applications

Linear actuators without emergency control function
Product range            Types / performance classes         Specifications                          Applications

                         Standard actuators:                 • Gear rod lengths 60, 100, 200         Motorisation of final controlling
                         • LH (150 N)                          and 300 mm                            elements with linear movements
                         • SH (450 N)                        • Mechanical stroke limitation          up to 300 mm for swirl outlets,
                                                               every 20 mm                           long-range nozzles, mixing units,
                                                                                                     cabin units, VAV units, etc.

                         Compact actuator:                   • Gear rod lengths                      Motorisation of air dampers
                         • CH (125 N)                          60 and 100 mm                         without emergency control function
                                                             • Mechanical stroke limitation          up to 0.8 m2 in residential
                                                               every 20 mm                           ventilation systems, swirl
                                                             • Direction of stroke can be            outlets, long-range nozzles, mixing
                                                               selected                              units etc.
                                                             • Gearbox can be rotated by 90°

Very fast running actuators without emergency control function
Product range            Types / performance classes         Specifications                          Applications

                         Rotary actuators:                   • Identical accessories for all types   Motorisation of air dampers
                         • LMQ (4 Nm)                        • Very fast running times starting      without emergency control function
                         • NMQ (8 Nm)                          from 2.5 s / 90°                      up to 3.2 m2 for industrial suction
                         • SMQ (16 Nm)                                                               plants, laboratories, painting and
                                                                                                     welding plants, etc.
                         • NMD (8 Nm)
                         • SMD (16 Nm)

                         Linear actuators:                   • Gear rod length 100 mm                Motorisation of final controlling
                         • LHQ (100 N)                       • Mechanical stroke limitation          elements and slide valves with
                         • SHQ (200 N)                         every 20 mm                           linear movement up to 100 mm for
                                                             • Running times starting from           wood boilers, mixing units, tilt
                                                               3.5 s /100 mm                         windows, etc.
The complete product range - Edition 2019 - belimo.eu
RobustLine rotary actuators with and without emergency control function for extreme conditions (IP66/67)
Product range              Types / performance classes           Specifications                           Applications

                           • NM..P (10 Nm)                       • IP66/67, UV protection,                Motorisation of air dampers with
                           • SM..P (20 Nm)                         corrosion-resistant                    and without emergency control
                           • NKQ..P (6 Nm,                       • Integrated auxiliary switch or         function up to 4 m2 in particularly
                             running time 4 s)                     potentiometer                          exposed positions:
                                                                                                          • Protection against aggressive
                                                                 Optional for ambient temperatures          gases, moisture, humidity, high
                                                                 down to -40 °C:                            dust and contamination levels
                                                                 • Heating with humidistat                • General outdoor applications,
                                                                 • Heating with thermostat                  kiln drying plants, agriculture,
                                                                                                            swimming pool installations,
                                                                                                            greenhouses, etc.

Rotary actuators with and without emergency control function for outdoor applications (IP66/NEMA4)
Product range              Types / performance classes           Specifications                           Applications

                           • GM..G (40 Nm)                       • IP66/NEMA4, UV protection              Motorisation of air dampers with
                           • SMQ..G (16 Nm,                      • Integrated auxiliary switch or         and without emergency control
                             running time 7 s)                     potentiometer                          function up to 8 m2:
                           • NF..G (10 Nm)*                                                               • Protection against moisture,
                           • SF..G (20 Nm)*                      Optional for ambient temperatures          humidity, high dust and
                           • GK..G (40 Nm)**                     down to -40 °C:                            contamination levels
                                                                 • Heating with humidistat                • General outdoor applications,
                           Emergency control function:           • Heating with thermostat                  greenhouses, etc.
                           * mechanical                                                                   • Rooftop ventilation plant rooms
                           ** electrical

                                                            System protection
Rotary actuators with mechanical emergency control function (Spring assembly)
Product range                Types / performance classes           Specifications                           Applications

                             •   TF (2 Nm)                         • Automatic closing function in          Motorisation of air dampers with
                             •   LF (4 Nm)                           < 20 s in the event of electricity     emergency control function up
                             •   NF (10 Nm)*                         interruption                           to 6 m2
                             •   SF (20 Nm)*                       • Manual override
                             •   EF (30 Nm)*

                             * optional with 2 integrated
                               auxiliary switches

Rotary and linear actuators with controlled electrical emergency control function (SuperCap)
Product range                Types / performance classes           Specifications                           Applications

                             Rotary actuators:                     • Integrated energy storage;             Motorisation of air dampers with
                             • NKQ (6 Nm, running time 4 s)          actuator moves into predefined         emergency control function up
                             • GK (40 Nm, running time150 s)         emergency setting position in          to 8 m2
                                                                     < 35 s (NKQ; 4 s) in the event of
                             Linear actuators:                       electricity interruption POP
                             • LHK (150 N, 100 mm stroke,            (Power Off Position)
                               running time 120 s)                 • Bridging of electricity
                             • SHK (450 N, 100 mm stroke,            interruptions of up to 10 s
                               running time 120 s)                 • Emergency setting position
                                                                     adjustable between 0…100%

                             Compact actuators:                    • Energy storage module:                 Motorisation of air dampers
                             • CM24K (2 Nm)                          moves 2 CM actuators into              up to 0.4 m2. Particularly suitable
                             • SKM230A (energy storage               emergency setting position in          in decentralised air handling
                               module)                               < 15 s in the event of electricity     units, residential ventilation
                                                                     interruption                           systems and with extremely
                                                                                                            limited space conditions.

                             Rotary actuator with high torque:     • IP66/67, NEMA 4X                       Motorisation of air and special
                             • PKCA (160 Nm)                       • Variable running time 30...120 s       dampers, tunnel dampers,
                                                                   • Running time emergency setting         closing dampers with high-
                                                                     position 30 s                          density, industry applications
                                                                   • Connection: terminals
The complete product range - Edition 2019 - belimo.eu
Water solutions
Belimo ZoneTight™
     Product range                      Valves                                Actuators                              Applications

                                        Internal thread (QCV):                • Rotary actuators:                    Cold and hot water:
                                        • C2..Q-. (2-way, characterised         CQ24A (-SR/-MPL/-BAC)                • Nominal diameter DN
                                           control valve)                       CQ230A                                 15 / 20 / (25)
                                        • C3..Q-. (3-way, change-over         • With emergency control               • Permissible pressure 1600 kPa
                                           ball valve)                          function:                            • Fan coils
                                                                                CQK24A (-SR)                         • Cooling ceilings
                                        External thread (QCV):                                                       • Zone air heaters  / air coolers
                                        • C4..Q-. (2-way, characterised                                              • Floor heaters
                                          control valve)                                                             • Radiators
                                        • C5..Q-. (3-way, change-over
                                          ball valve)

                                        Internal thread (PIQCV):
                                        • C2..QP(T)-.. (2-way, pressure-
                                           independent zone valve)

                                        Internal thread (PIFLV):              • Open-close rotary actuator:          Cold water:
                                        • C2..QFL-.. / R225FL-..                CQ series1)                          • Chilled ceilings
                                           (2-way, limiting valve)                                                   • Fan coils

                                        Internal thread:                      • Rotary actuators:                    Cold and hot water:
                                        • R30..-..-..-B.. (6-way,               LR24A-SR                             • Nominal diameters DN
                                           characterised control valve)         LR24A-MP                               15 / 20 / (25)
                                                                                                                     • Permissible pressure 1600 kPa
                                        Internal thread (6-way EPIV):         • Integrated actuator                  • Modulating control of combined
                                        • EP..R-R6+BAC                        • Electronic flow measurement            heating/cooling elements
                                                                              • Permanent hydronic balancing

Pressure-independent characterised control valves
     Product range                      Valves                                Actuators                              Applications

                                        Internal thread (Belimo Energy        • Actuator with monitoring and         Balancing, measuring, controlling,
                                        Valve™, 2-way, DN 15...50):             recording function integrated        shutting and energy monitoring:
                                        • EV..R+BAC                           • Electronic flow measurement          • Flow V·max 0.11...45 l/s
                                        • EV..R+KBAC                          • Permanent hydronic balancing         • Nominal diameters DN15...150
                                                                              • Delta-T manager                      • Permissible pressure 1600 kPa
                                                                              • Power control
                                        Flange (Belimo Energy Valve™,         • With electrical emergency control
                                        2-way, DN 65...150):2)                  function: KBAC
                                        • P6..W..EV-BAC / EV..F+BAC           • With glycol monitoring: BAC1
                                        • P6..W..EV-KBAC / EV..F+KBAC         • Connection to Belimo Cloud

                                        Internal thread (EPIV, 2-way,         •   Integrated actuator                Balancing, measuring, controlling
                                        DN 15...50):                          •   Electronic flow measurement        and shutting with a single valve
                                        • EP..R+MP                            •   Permanent hydronic balancing       unit:
                                        • EP..R+KMP                           •   With electrical emergency          • Flow V·max 0.11...45 l/s
                                        • EP..R+MOD                               control function: KMP              • Nominal diameters DN15...150
                                                                                                                     • Permissible pressure 1600 kPa

                                        Flange (EPIV, 2-way,
                                        DN 65…150):3)
                                        • P6..W..E-MP / EP..F+MP
                                        • P6..W..E-KMP / EP..F+KMP
                                        • P6..W..E-MOD / EP..F+MOD

1)
   R225FL-.. is motorised with LR..A (only open-close permissible).
2)
    Price on request. The P6..W..EV-(K)BAC types will be replaced during the course of 2019 by the EV..F+(K)BAC types.
    If you have any questions, please get in touch with your local Belimo contact person.
   Price on request. The P6..W..E-(K)MP/MOD types will be replaced during the course of 2019 by the EP..F+(K)MP/MOD types.
3)

   If you have any questions, please get in touch with your local Belimo contact person.
The complete product range - Edition 2019 - belimo.eu
Characterised control valves
Product range            Valves                          Actuators                            Applications

                         Internal thread:                • Rotary actuators:                  Cold and hot water:
                         • R2..-S.. (2-way)                TR, LR, NR, SR series              • Nominal diameters DN 15...50
                         • R3..-S.. (3-way)              • With emergency control             • Permissible pressure 1600 kPa
                                                           function:
                                                           TRF, LRF, NRF(D), SRF series
                                                         • Fast runners:
                                                           TRC, LRC, NRC, SRC series
                         External thread:                                                     Cold and hot water:
                                                         • Very fast running actuators:
                         • R4.. (2-way)                                                       • Nominal diameters DN15...50
                                                           LRQ, NRQ, SRQ series
                         • R5.. (3-way)                                                       • Permissible pressure 1600 kPa
                                                         • KR.. up to DN 20

                         External thread (high                                                District heating, cold and hot
                         temperatures):                                                       water:
                         • R4..D (2-way)                                                      • Nominal diameters DN 10...20
                                                                                              • Permissible pressure 1600 kPa

                         Flange:                         • Rotary actuators:                  Cold and hot water:
                         • R6..W..-S8 (2-way, PN16)        SR-5, GR-5 series                  • Nominal diameters DN 65...150
                                                         • With emergency control             • Permissible pressure 1600 kPa
                                                           function:
                                                           SRF-5, GRK-5 series
                                                         • Fast runners:
                                                           SRC-5, GRC-5 series

Control, shut-off and change-over valves for outdoor applications
Product range            Valves                          Actuators                            Applications

                         Internal thread:                • Rotary actuators:                  Cold and hot water, applications
                         • R2.. (2-way)                    SR..P series IP66/67               in IP66 / 67 environment:
                         • R3.. (3-way)                                                       • Nominal diameters DN 15...50
                                                                                              • Permissible pressure 1600 kPa

                         External thread:
                         • R4.. (2-way)
                         • R5.. (3-way)

Shut-off and change-over valves
Product range            Valves                          Actuators                            Applications

                         Internal thread:                • Rotary actuators:                  Cold and hot water, shut-off and
                         • R2.. (2-way)                    TR, LR, NR, SR series              changeover function:
                         • R3..(BL) (3-way)              • With emergency control             • Nominal diameters DN 15...50
                                                           function:                          • Permissible pressure 1600 kPa
                                                           TRF, LRF, NRF(D), SRF series
                         External thread:                                                     Shutting cold and hot water:
                         • R4.. (2-way)                                                       • Nominal diameters DN 15...50
                         • R5.. (3-way)                                                       • Permissible pressure 1600 kPa

Potable water valves
Product range            Valves                          Actuators                            Applications

                         • EXT-R2..-B..-PW (2-way)       • Rotary actuators:                  Potable water:
                         • DVGW-, ACS-, WRAS certified     NR, SR, GR series                  • Nominal diameters DN 15...50
                                                         • With emergency control             • Permissible pressure 1000 kPa
                                                           functions:
                                                           NRF, SRF, GRK series

Butterfly valves
Product range            Valves                          Actuators                            Applications

                         Flange PN6/10/16:               • Rotary actuators:                  Isolation, change-over and
                         • D6..N (2-way)                   SR-5, SR..P-5, GR-5, DR-5,         control of cold and warm water:
                         • D6..NL (2-way)                  DR-7, PR, SY series                • Nominal diameters DN
                         • D6..W (2-way)                 • With emergency control function:     25…700 (2-way)
                         • D6..WL (2-way)                  SRF-5, GRK-5, DRK, PRK series      • Nominal diameters DN
                         • D7... (3-way)                                                        150…300 (3-way)
                                                         Optional:
                                                         • Heating with humidistat/
                                                           thermostat
                                                         • Integrated auxiliary switch or
                                                           potentiometer
The complete product range - Edition 2019 - belimo.eu
Water solutions
Globe valves
Product range   Valves                              Actuators                           Applications

                Internal thread:                    • Standard globe valve actuators:   Cold and hot water:
                • H20..X-S (2-way)                    LV..A (15 mm)                     • Nominal diameters DN 15...50
                • H30..X-S (3-way)                    NV..A, SV..A (20 mm)              • Permissible pressure 1600 kPa
                                                      EV..A, RV..A (40 mm)              • Permissible pressure 2500 kPa
                External thread:                    • Globe valve actuators with          (H20 / H30)
                                                      emergency control function:
                • H4..B (2-way)
                                                      NVK..A, SVK..A (20 mm)
                • H5..B (3-way)
                                                      AVK..A (32 mm)
                                                      NVFT (20 mm, TÜV certification)
                Flange:                             • Fast runners:                     Cold and hot water:
                • H6..N / H7..N (2-way and            LVC..A (15 mm)                    • Nominal diameters DN 15...250
                  3-way / PN16)                       NVC..A, SVC..A (20 mm)            • Permissible pressure 1600 kPa
                • H6..S(P) / H7..S (2-way and         EVC..A (40 mm)
                  3-way / PN16) for hot water       • Long stroke actuators:
                  and steam                           GV (65 mm)
                • H6..W.. / H7..W.. (2-way and
                  3-way / PN16), DN 200 / 250

                Additional flange versions:                                             Cold and hot water:
                • H..R (2-way and 3-way / PN6)                                          • Nominal diameters DN 15...100
                • H..X.. (2-way and 3-way / PN25)                                       • Permissible pressure 600 kPa
                                                                                        • Permissible pressure 2500 kPa

                                                    Sensor solutions
Temperature
Product range   Types                               Specifications                      Applications

                Outside:                                                                • Outside temperature sensor
                • 01UT                              • -35…+50 °C                        • Room temperature sensor with
                • 22UT                              • -50…+50 °C                          NEMA 4X / IP65 protection

                Duct / Immersion:                                                       • Duct temperature sensor
                • 01DT                              • Sensor dependent                  • Immersion sensor;
                • 22DT                              • 0…+160 °C                           01DT/22DT compression fitting
                • 01PT                              • Sensor dependent                    or thermowell required

                Duct averaging:                                                         Duct averaging temperature
                • 01MT                              • -35…+70 °C                        sensor for air handling units or
                • 22MT                              • -20…+80 °C                        larger ducts with stratification
Strap-on:                                                Strap-on temperature sensors for
                • 01ST              • -35…+100 °C                        heating systems and solar
                • 01HT              • -35…+90 °C                         collectors, passive (ST, without
                • 22HT              • 0…+100 °C                          housing) and passive or active
                                                                         (HT, with housing)

                Cable:                                                   Cable temperature sensor
                • 01CT              • -35…+100 °C                        passive (without housing) and
                • 22CT              • 0…+160 °C                          active (with housing)

                Frost protection:                                        Frost protection thermostat for
                • 01DTS             • -10…+12 °C                         the protection of heat exchangers
                                                                         and registers in air handling units
                                                                         with automatic or manual reset

Humidity
Product range   Types               Specifications                       Applications

                Outdoor:                                                 • Outdoor sensor
                • 22UTH             • 0...100% rH / -20…+80 °C             humidity / temperature
                                                                         • Room sensor
                                                                           humidity / temperature with
                                                                           NEMA 4X / IP65 protection
                                                                         • Option: weather protection

                Duct:                                                    Duct sensor
                • 22DTH             • 0...100% rH / -20…+80 °C           humidity / temperature

                Condensation:                                            Condensation sensor
                • 22HH                                                   • Option: external sensor

Air Quality
Product range   Types               Specifications                       Applications

                Duct:                                                    Duct sensor for the measurement
                • 22DC              • CO2: 0…2000 ppm                    of air quality
                • 22DTC             • CO2: 0…2000 ppm,
                                      Temp.: 0…+50 °C
                • 22DTM             • CO2: 0…2000 ppm,
                                      rH: 0…100%, Temp.: 0…+50 °C
                • 22DCV             • CO2: 0…2000 ppm,
                                      VOC: 0…100%
                • 22DCM             • CO2: 0…2000 ppm, VOC:
                                      0…100%, Temp.: 0…+50 °C
                • 22DCK             • CO2: 0…2000 ppm, VOC:
                                      0…100%, Temp.: 0…+50 °C

Pressure
Product range   Types               Specifications                       Applications

                Duct:                                                    Differential pressure sensor air
                • 22ADP             • 250 Pa
                                    • 2500 Pa
                                    • 7000 Pa

                Duct:                                                    Duct differential pressure switch
                • 01APS             •   20…300 Pa                        air
                                    •   50…500 Pa
                                    •   200…1000 Pa
                                    •   500…2500 Pa

                Pipe:                                                    Pipe pressure and differential
                • 22WP              • 4, 6, 10, 16 bar                   pressure sensor water and
                • 22WDP             • 1, 2.5, 4, 6 bar                   refrigerants

Flow rate
Product range   Types               Specifications                       Applications

                Pipe:                                                    Flow sensor
                • FM                • 25, 46, 83, 130, 180, 345 l /min
Safety solutions
Motorisation solutions for fire and smoke protection dampers
     Product range                          Types                                  Specifications                    Applications

                                            Actuators 1):                          • Steel gearbox with Safety       Motorisation of fire and smoke
                                            • BFL (4 / 3 Nm)                         Position Lock™ function         protection dampers
                                            • BFN (9 / 7 Nm)                       • Form fit
                                            • BF (18 / 12 Nm)                      • 2 auxiliary switches
                                                                                   • Halogen-free cables
                                                                                   • Low current consumption
                                                                                     in stand-by
                                                                                   • Thermoelectric tripping
                                                                                     device (function-protected)
                                                                                   • Fulfils specific requirements
                                                                                     from EN 15650

                                            Communication and power                • Sockets for actuator            Control and monitoring of various
                                            supply units:                          • Status LED                      protocols:
                                            • BKN230-24                            • Connection for additional       • 2-wire bus line
                                            • BKN230-24-C-MP                         smoke detector                  • Belimo MP bus
                                            • BKN230-24-MOD                        • Watchdog function               • Modbus
                                                                                                                     • BACnet

                                            Gateways:                              • Up to 8 dampers per             • Interface to BACnet MS/TP or to
                                            • UK24MOD                                gateway                           Modbus RTU
                                            • UK24BAC                              • Fault message

                                            Communication and control units:       • Permanent monitoring of         Connection of 1 and up to 9
                                            • BKS24-1B                               power supply and damper         dampers:
                                            • BKS24-9A                               position                        • Star-shaped wiring
                                                                                   • Status LEDs                     • 2-wire bus line
                                                                                     – Open                          • Interface to building management
                                                                                     – Closed                          system
                                                                                     – Fault                         • Function test of fire protection
                                                                                                                       actuators

Motorisation solutions for smoke control dampers
     Product range                          Types                                  Specifications                    Applications

                                            Actuators :1)
                                                                                   • Steel gearbox, form fit         Motorisation of smoke control
                                            • BLE (15 Nm)                          • 2 auxiliary switches            dampers
                                            • BEN (15 Nm)                          • Halogen-free cables             in mechanical smoke control systems
                                            • BEE (25 Nm)                          • Low current consumption
                                            • BE (40 Nm)                             in stand-by
                                                                                   • 1-wire and 2-wire control
                                                                                   • High holding torque
                                                                                   • Fulfils specific requirements
                                                                                     from EN 12101-8

                                            Communication and power                • Sockets for actuator            Control and monitoring:
                                            supply unit:                           • Status LED                      • 2-wire bus line
                                            • BKNE230-24                           • Command memory                  • Local power supply AC 230 V

                                            Communication and control unit:        • Permanent monitoring of         Connection of up to 6 dampers:
                                            • BKSE24-6                               the power supply and            • Star-shaped wiring
                                                                                     damper positions                • 2-wire bus line
                                                                                   • Status LEDs                     • Interface to building management
                                                                                     – Open                            system and fire alarm system
                                                                                     – Closed                        • Function test of the smoke control
                                                                                     – Fault                           actuators
1)
     The fire damper actuators and smoke control actuators are supplied exclusively to damper manufacturers.
Room and system solutions
VAV-Compact controllers 1)
     Product range                     Types / performance classes               Specifications                          Applications

                                       Rotary actuators:                         • Compact unit with sensor,             Control of VAV and CAV units for
                                       • LMV (5 Nm)                                controller and actuator               volumetric flow systems in
                                       • NMV (10 Nm)                             • On-site operation with ZTH EU or      buildings
                                       • SMV (20 Nm)                               smart phone
                                                                                 • Commissioning by means of
                                       Linear actuator:                            PC-Tool, including trend function
                                       • LHV (150 N)                             • Integration in MP-Bus, BACnet,
                                                                                   Modbus or KNX networks

CMV system for living space solutions 2)
     Product range                     Types / nominal diameters                 Specifications                          Applications

                                       •   CMV-100-MP (DN 100)                   • Compact unit with sensor,             Only for use in the controlled
                                       •   CMV-125-MP (DN 125)                     controller, actuator and damper       residential ventilation applications
                                       •   CMV-150-MP (DN 150)                     blade
                                       •   CMV-160-MP (DN 160)                   • On-site operation with ZTH EU or
                                                                                   PC-Tool
                                                                                 • Integration in MP-Bus networks

VAV-Universal solutions1)
     Product range                     Types / performance classes               Specifications                          Applications

                                       VAV-Universal controller:                 • Plug connections between sensor,      • Control of VAV and CAV units in
                                       • VRD3 with integrated sensor               controller and actuator                 buildings
                                       • VRP with external sensor                • Wide array of periphery devices       • VAV laboratory applications
                                       • VRP-M with external sensor              • Integration in MP-Bus networks        • Pressure or volumetric flow

                                       Pressure sensor:                          • Plug connection                       • For severely contaminated air or
                                       • VFP (static 0...500 Pa)                                                           aggressive gases
                                       • VFD3 (dynamic 0...500 Pa)                                                       • Indoor air and comfort
                                                                                                                           applications

                                       Actuators:                                • Plug connection                       Use with VAV-Universal controller
                                       • LM / NM / SM (5...20 Nm)                • Running times starting from 2.5 s
                                       • LMQ / NMQ (rapid-running 4 / 8
                                         Nm)
                                       • LF / SF (spring-return 4 / 20 Nm)

Room controller system solutions
     Product range                     Types / performance classes               Specifications                          Applications

                                       Controllers:                              • Complete solution                     • Individual room controls in comfort
                                       • CR24 (room controller)                  • Energy-efficient (eu.bac-certified)     zone
                                       • CRA24 (residential controller)          • Tool plug on the unit                 • Setpoint specification
                                       • CRK24 (controller for 6-way
                                         characterised control valve)
                                       Positioners:
                                       • CRP24

1)
     Deliveries exclusively to manufacturers of volumetric flow units (except for communication and control units).
2)
     Deliveries exclusively to manufacturers of apparatus in residential ventilation.
Bus and system integration
Belimo MP-Bus
Product range                                                           Applications

                                                                        • Master-slave system, specially developed by Belimo for
                                                                          HVAC actuators and sensors
    t     t     t       ∆p            t
                                                                        • Up to 8 different controlling elements can be combined
                                                                          and together connected to a supervisory field bus
                                                                          system (BACnet, Modbus, KNX, etc.)
                                                                        • One sensor can be connected per actuator
                                                                        • Either the Belimo gateways (UK24BAC, UK24MOD,
                                                                          UK24EIB) or gateways and DDC controllers from other
                                                                          manufacturers can be used as the MP master
                                                        MP partner
                                                         solution

BACnet, Modbus and KNX
Product range                                                           Applications

                                                                        BACnet/Modbus actuators
                                                                        • Actuators with RS485 interface can be connected
                                                                          directly to BACnet MS/TP or Modbus RTU
   t      t         t            ∆p                t
                                                                        • Actuators with Ethernet interface can be connected
                                                                          directly to BACnet IP or Modbus TCP. At the same
                                                                          time a connection with the Belimo Cloud is possible
                                                                        • The analogue control can be monitored and overridden
                                                                          via bus in hybrid operation
                                                                        • Up to two sensors can be connected for each actuator

                                                                        KNX actuators
                                                                        • Actuators can be directly connected to KNX (S-mode)
                                                                        • One sensor can be connected per actuator

IoT, Belimo Cloud
Product range                                                           Applications

                                                                        • Actuators with Ethernet interface can optionally
                                                                          exchange operating and setting data with Belimo
                                                                          Cloud
                                                                        • The monitoring and optimisation of the devices is made
                                                                          through a central access point
                                                                        • Open Client-API for the connection to specific cloud
                                                                          solutions

Setting and service tools
for parametrisable and communicative actuators and volumetric flow controllers
Type                         Type                      Type                             Specifications

PC-Tool MFT-P                Service tool ZTH EU       Smartphone App                   • The right tool for every job
                                                                                        • PC-Tool for comfortable
                                                                                          parameterisation, commissioning and
                                                                                          maintenance of actuators and bus
                                                                                          networks
                                                                                        • Efficient setting of parameters with
                                                                                          service tool ZTH EU
                                                                                        • Parametrisation of actuators with
                                                                                          smartphone app, even when
                                                                                          deenergised
Retrofit applications
Retrofit general air solutions: actuators without emergency control function
Product range              Types / performance classes       Specifications                          Applications

                           •   LM24A-MP-TP (5 Nm)            • Freely parameterisable and            Replacement of the
                           •   NM24A-MP-TP (10 Nm)             optimally adjustable for matching     motorisation of air dampers
                           •   SM24A-MP-TP (20 Nm)             the application                       and slide valves without
                           •   GM24A-MP-TP (40 Nm)           • Identical accessories such as         emergency control function up
                                                               auxiliary switches and                to 8 m2
                           •   SM24A-R9 (20 Nm, 0...135 Ω)
                                                               potentiometers for all rotary
                           •   SM24A-PC (20 Nm, 0...20 V
                                                               actuators
                               phase-cut signal)
                                                             • Identical accessories such as
                           •   SM24A-MA (20 Nm, 4...20 mA)
                                                               rotary support and coupling pieces
                           •   LH24A-MP60-TP
                                                               for all linear actuators
                           •   LH24A-MP100-TP
                                                             • TP (terminal protected) connection:
                           •   LH24A-MP200-TP                  terminals IP54
                           •   LH24A-MP300-TP

Retrofit water applications: globe valve actuators
Product range              Valves                            Actuators                               Applications

                           For globe valves from various     Globe valve actuators with universal    Motorisation of globe valves
                           manufacturers                     valve adapter:                          with nominal diameters
                                                             • LV..A..-RE (500 N, 20 mm)             DN 15...250
                                                             • NV..A..-RE (1000 N, 20 mm)
                                                             • SV..A..-RE (1500 N, 20 mm)
                                                             • SVL..A..-RE (1500 N, 50 mm)
                                                             • AVK..A..-RE (2000 N, 32 mm)
                                                             • EV..A..-RE (2500 N, 50 mm)
                                                             • RV..A..-RE (4500 N, 50 mm)
                                                             Short stroke actuators with adapter
                                                             for Siemens or Cazzaniga short
                                                             stroke globe valves:
                                                             • NRDVX.. (500 N, 5.5 mm)

Retrofit water applications: rotary valve actuators
Product range              Valves                            Actuators                               Applications

                           For rotary valves from various    • Rotary actuators HT.., SR..-R,        Motorisation of mixing
                           manufacturers:                      GR..-R, DR..-R, PR (up to             valves and valves with:
                           • Ball valves                       160 Nm) with adapter (square, flat    • Interface ISO 5211:
                           • Butterfly valves                  head, wedge etc.)                       F03/F04/F05/F07 or F10
                           • Mixing valves                   • With emergency control function:      • 12 mm round spindle
                                                               SRF-R, GRK-R, PRK (up to
                           A check of the required torque      160 Nm) with adapter (square, flat    Up to nominal diameter DN 700
                           must be made                        head, wedge)                          and other designs on request
                                                             • SY rotary actuator with adapter:
                                                               400...3500 Nm

Retrofit VAV
Product range              Types                             Specifications                          Applications

                           • Set with VAV-Compact            Set solution for round VAV units with   Replacement of VAV actuator
                           • Set with VAV-Universal          differential pressure sensor and        and control components with
                                                             complete installation set               small and medium conversions
All-inclusive.

     5-year                   On site around          Complete                  Tested            Short delivery          Comprehensive
     warranty                 the globe               product range             quality           times                   Support

Headquarters                           Subsidiaries, Representatives and Agencies

                                                                                                                                          EN – 93001–01150 – 01.19 – 0.8M – Subject to technical changes
BELIMO Automation AG                   Albania                Canada                      Japan                    Saudi Arabia
Swiss Sales                            Algeria                Central America, South      Jordan                   Serbia
Brunnenbachstrasse 1                   Argentina              America & The Caribbean     Kazakhstan               Singapore
CH-8340 Hinwil, Switzerland            Australia              Chile                       Korea                    Slovakia
Tel. +41 43 843 62 12                  Austria                China                       Kuwait                   Slovenia
Fax +41 43 843 62 66                   Azerbaijan             Croatia                     Latvia                   South Africa
verkauf@belimo.ch                      Bahrain                Cyprus                      Lebanon                  Spain
www.belimo.ch                          Belarus                Czech Republic              Lithuania                Sri Lanka
                                       Belgium                Denmark                     Luxemburg                Sweden
                                       Bosnia                 Egypt                       Macedonia                Switzerland
                                       Brazil                 Estonia                     Malaysia                 Taiwan
                                       Bulgaria               Finland                     Mexico                   Thailand
                                                              France                      Moldova                  Tunisia
                                                              Georgia                     Montenegro               Turkey
                                                              Germany                     Morocco                  Ukraine
                                                              Great Britain               Netherlands              United Arab Emirates
                                                              Greece                      New Zealand              USA
                                                              Hong Kong                   Norway                   Vietnam
                                                              Hungary                     Oman
                                                              Iceland                     Pakistan
                                                              India                       Philippines
                                                              Indonesia                   Poland
                                                              Ireland                     Portugal
                                                              Israel                      Qatar
                                                              Italy                       Romania
                                                                                          Russia

Belimo worldwide: www.belimo.com
You can also read
NEXT SLIDES ... Cancel
