Refrigeration Catalogue
Leaders in Multi Drawer and Large Capacity Refrigerators
NEW
rele as e
New Zealand’s Best-Selling Multi Drawer Range Since 2004.
Mitsubishi Electric Refrigeration – the Ultimate in Technology and Style Since 1954 the engineers at Mitsubishi Electric have This brochure covers our three key ranges - Multi Drawer, become experts at developing reliable, design-orientated, French Door, and Classic Two Door Refrigerators. With a functional refrigerators. 64 years later, we are pleased range of unique colours, finishes and layouts to choose to introduce our latest range with a refrigerator to suit from, we are confident you will find the perfect refrigerator any kitchen and lifestyle. Designed and engineered in for your space. the pursuit of excellence, our refrigerators have been developed with superior food storage in mind and have been tested with uncompromising precision. When creating this range our engineers adopted a ‘form follows function’ design philosophy. This has resulted in a range of feature-driven refrigerators that are specifically designed to keep food fresh as nature intended.
The Mitsubishi Electric Refrigeration Range
Four Drawer Inverter Range
MR-WX743Y MR-EX655W MR-EX574X
743 Litres 655 Litres 574 Litres
PAGE 4 PAGE 6 PAGE 6
French Door Inverter Range
MR-LX630EM MR-L710EG
630 Litres 710 Litres
PAGE 12 PAGE 20
Two Drawer Inverter Range Two Drawer Standard Range
MR-CX370EJ MR-C375G
370 Litres 375 Litres
MR-CX402EJ MR-C405G
402 Litres 405 Litres
PAGE 16 PAGE 18
Single Drawer Bottom Mount Range
MR-BF390C MR-BF325C MR-BF290C
390 Litres 325 Litres 290 Litres
PAGE 24 PAGE 24 PAGE 24
Top Mount Inverter Range Top Mount Standard Range Upright Freezer
MR-420EK MR-385E MR-260G MF-U160C
420 Litres 385 Litres 260 Litres 160 Litres
PAGE 25 PAGE 26 PAGE 26 PAGE 27
1
The Multi Drawer Difference Mitsubishi Electric offers a range of sophisticated Multi Drawer Refrigerators designed specifically for those who care about preserving the quality and freshness of all kinds of food. Sleek aesthetics and advanced food storage technology will appeal to entertainers and food lovers alike. 2
Advanced Inverter Technology with Unrivalled for Quietness
Neuro Fuzzy Logic Our engineers understand that with
The use of super-efficient Inverter open plan living becoming more
Technology combined with multiple prevalent, the kitchen has truly become
monitored temperature sensors the heart of the home. When it comes
installed throughout these refrigerators to kitchen design and appliance
makes our Multi Drawer Inverter Series choice, quiet operation is becoming
one of the most energy efficient fridge more and more important. Starting
ranges in New Zealand. These Large from an incredible 15dBA (WX/EX), our
Capacity Fridges are able to accurately Inverter Multi Drawer Range features
control the temperature of each drawer some of New Zealand’s quietest
to ensure optimal customisation and fridges available in their class.
minimal temperature fluctuations. By
utilising Neuro Fuzzy Logic, these
fridges learn from and adapt to
your lifestyle; optimising output for
unparalleled energy efficiency.
Ergonomic User-Friendly Layout 15dBA
that Improves Energy Efficiency Quietest
Research into fridge usage has in its Class!*
influenced the layout and design of
*WX/EX Models
all Mitsubishi Electric Multi Drawer
Refrigerators. With an ergonomic
layout that positions the most
commonly used compartments at
waist level or higher, the amount of
bending required is reduced. For easy
organisation and clear visibility of food,
Mitsubishi Electric Fridges utilise a
drawer style design; for a convenient
top-down view in the Humidity and
Freezer Compartments. This ultimately
improves energy efficiency by
minimising the loss of cooled air.
Wide Range of Colours and Styles
to Suit Any Home
Mitsubishi Electric is committed to
developing refrigerators that not only
offer superior food storage, but also
complement any kitchen. We offer a
wide range of fridge designs and sizes
in a variety of colours and finishes,
from Bold Red and Onyx Black to
timeless Stainless Steel and White.
Whether you prefer a glossy, glass or
matte finish, Mitsubishi Electric has a
fridge to suit.
3

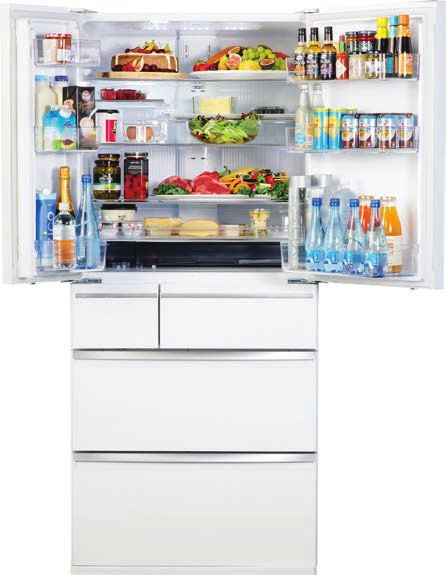

WX 743L Glass Panel
Four Drawer Inverter Range
With its stunning glass flat
panel design, touch panel
controls and advanced
energy efficiency, the WX
Multi Drawer Series sets a
new standard in refrigeration.
Its five separate temperature
controlled zones maximise
energy efficiency and ensure
all kinds of food stay fresher
for longer.
White Diamond Rich Mahogany
MR-WX743Y
800W x 748D x 1821H mm
743 Litres Advanced Inverter Technology with Neuro Fuzzy Logic
The use of super-efficient Inverter Technology combined with eight monitored
temperature sensors installed throughout the refrigerator makes the WX Series
one of the most efficient in New Zealand. The WX is able to accurately control the
temperature of each drawer to ensure optimal customisation and minimal temperature
fluctuations. With Neuro Fuzzy Logic Technology, the WX learns from and adapts to
your lifestyle, optimising output for unparalleled energy efficiency.
Glass Panel Finish
Designed to make a statement, the WX Series in Rich Mahogany and White Diamond
feature stunning glass flat panel doors, presenting a striking finish. The toughened
glass panels not only look great, they are easy to clean and are dent resistant!
Our Unique Slimline Design Maximises Internal Space
The WX Series features its most advanced insulation yet; specifically designed to
maximise food storage while maintaining a slim, sleek external profile. The ‘Vacuum
Insulation Panels’, or ‘VIP’ are thinner and 10x more efficient than conventional
insulation. The result is a larger internal capacity for maximum food storage space
while maintaining smaller external dimensions for a slimmer, more compact design.
15dBA
Quietest Whisper Quiet – Ideal for Open Plan Living
in its Class!*
The WX Series is truly whisper quiet, rated at only 15dBA. In fact, no other refrigerator
*700L Capacity Four Drawer Refrigerator in its class is quieter.
• Inverter Technology • Vitalight Humidity Drawer
MR-WX 743 • Neuro Fuzzy Logic • Non-Plumbed Automatic Ice Maker
• 3.5 Star Energy Rating • Versa Freezer Drawer
KEY FEATURES • Whisper Quiet 15dBA • Double Sliding Chilled Case
4 • VIP Insulation
Key Features
3 Non-Plumbed Automatic Ice Maker
The WX Series features
the Non-Plumbed
Automatic Ice Maker
to ensure you always
have fresh, clean ice.
As there is no separate
plumbing connection
required, this cost-effective approach to ice making
1
means the fridge can be placed anywhere in the kitchen,
not just near existing pipe work. Simply fill the removable
Water Tank and the Ice Maker is ready to go!
3 2
4 Freezer Drawer
4
5
A convenient sliding top tray is ideal for large flat pack or
1 Multipurpose Double Sliding Chilled Case
frequently accessed items, and is easily pushed back to
With a set temperature range between 0°C to 3°C, the top reveal the large bin for bulky items. The useful top-down
case is ideal for storing deli items such as meats, cheeses view ensures that your food is easy to organise. The bin
and dips. In Supercool Chilling Mode, the bottom case is can also be completely removed for easy cleaning.
perfect for storing fresh meats and fish for up to 7 days
without freezing as it drops down to -3°C. This also serves 5 Humidity Drawer with Vitalight
as additional chilling space for beverages.
The unique Vitalight Amber LED Lighting System is
2 Multifunctional Versa Freezer Drawer designed to slow down the wilting process of leafy
greens, maintaining their original vitamin and antioxidant
The Versa Freezer Drawer preserves food quality while
levels for longer.
maintaining texture and taste; making storage more
convenient and preparation a breeze. It offers advanced
freezing options such as Soft Freezing, Hot Freezing 1 Week of Storage
and Supercool Freezing for ultimate convenience and
versatility.
Soft Freezing
Vitalight System Conventional Model
Vegetables and fruit stored in the specially designed
Humidity Drawer with its integrated Vitalight Amber LED
Cut Divide Scoop System will last significantly longer in comparison to
conventional vegetable crisper bins.
• Freezer Drawer • Super Bright Interior LED Lights • Door and Drawer Alarm
• LED Touch Panel • Glass Shelves
• Multi Temperature Zone Control • Removable Internal Drawer Bins
• Advanced Surround Multi Airflow • Softclosing Doors
5

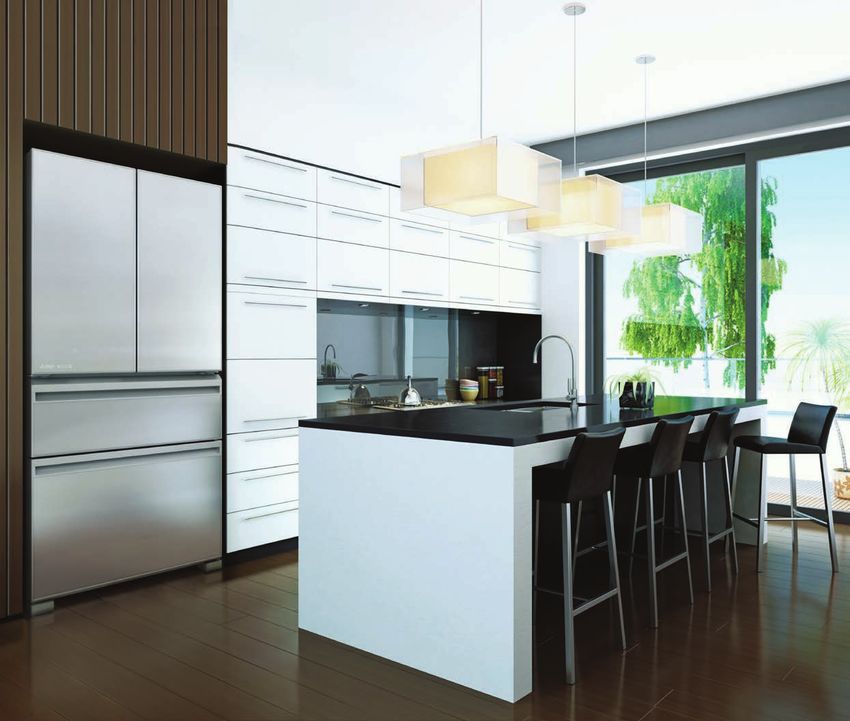

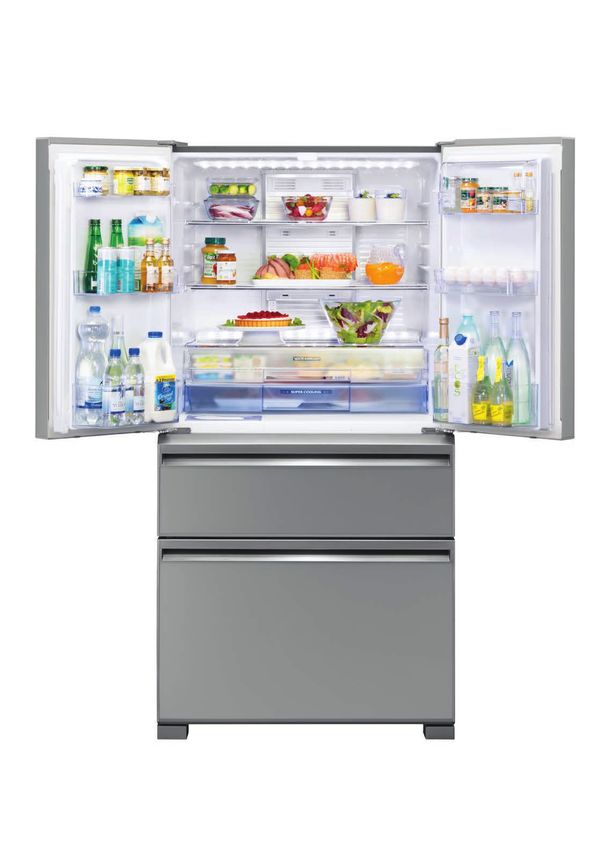

EX 574L & 655L Brushed Steel
Four Drawer Inverter Range
Our EX574/655 Multi
Drawer Refrigerators feature
separate temperature zones
that allow for optimum
temperature control and
customisation, so food is
kept fresher for longer. With
a timeless brushed steel
finish, touch panel controls
and a large 574L or 655L
capacity, the EX will be a
focal point in your kitchen MR-EX655W MR-EX574X
for years to come. Advanced Inverter Technology with Neuro Fuzzy Logic
The use of super-efficient Inverter Technology combined with nine monitored
temperature sensors installed throughout the refrigerator makes the EX Series one
MR-EX655W of the most efficient fridge ranges in New Zealand. The EX is able to accurately
745W x 735D x 1821H mm control the temperature of each drawer to ensure optimal customisation and minimal
temperature fluctuations. With Neuro Fuzzy Logic Technology, the EX learns from and
655 Litres adapts to your lifestyle, optimising output for unparalleled energy efficiency.
French Door Design
MR-EX574X* Every time you open the refrigerator you’re letting cold air out. This leads to a
685W x 735D x 1696H mm
significant increase in energy consumption as your refrigerator works to return to the
574 Litres right temperature once you shut the door. The French Door design lets you open only
half of the Refrigerator Compartment at a time; resulting in less cold air escaping and
* Available at selected retailers only, increased energy savings. Furthermore, narrower doors that swing open in opposite
directions also save on valuable kitchen space.
Our Unique Slimline Design Maximises Internal Space
The EX Series features its most advanced insulation yet; specifically designed to
maximise food storage while maintaining a slim, sleek external profile. The ‘Vacuum
Insulation Panels’, or ‘VIP’ are thinner and 10x more efficient than conventional
insulation. The result is a larger internal capacity for maximum food storage space
while maintaining smaller external dimensions for a slimmer, more compact design.
15dBA
Quietest Whisper Quiet - Ideal for Open Plan Living
in its Class!*
The EX Series is truly whisper quiet, rated at only 15dBA. In fact, no other refrigerator
*In 500 and 600L Capacity Four Drawer Refrigerator in its class is quieter!
• Inverter Technology • Vitalight Technology (EX655)
MR-EX574/655 • Neuro Fuzzy Logic • Humidity Drawer
• 3.5 Star Energy Rating • Non-Plumbed Automatic Ice Maker
KEY FEATURES • Whisper Quiet 15dBA • Versa Freezer Drawer
6 • VIP Insulation
Key Features
3 Non-Plumbed Automatic Ice Maker
The EX Series features
the Non-Plumbed
Automatic Ice Maker
to ensure you always
have fresh, clean ice.
As there is no separate
plumbing connection
required, this cost-effective approach to ice making
means the fridge can be placed anywhere in the kitchen,
1 not just near existing pipe work. Simply fill the removable
Water Tank and the Ice Maker is ready to go!
3 2 4 Freezer Drawer
4
5
A convenient sliding top tray is ideal for large flat pack or
frequently accessed items, and is easily pushed back to
reveal the large bin for bulky items. The useful top-down
1 Multipurpose Double Sliding Chilled Case
view ensures that your food is easy to organise. The bin
With a set temperature range between -3°C to 3°C, the can also be completely removed for easy cleaning.
Sliding Chilled Case is ideal for storing deli items such as
meats, cheeses and dips. This also serves as additional 5 Humidity Drawer with Vitalight (EX655)
chilling space for beverages.
The unique Vitalight Amber LED Lighting System is
2 Multifunctional Versa Freezer Drawer designed to slow down the wilting process of leafy
greens, maintaining their original vitamin and antioxidant
The Versa Freezer Drawer preserves food quality while
levels for longer.
maintaining texture and taste; making storage more
convenient and preparation a breeze. It offers advanced
1 Week of Storage
freezing options such as Soft Freezing, Hot Freezing
and Supercool Freezing for ultimate convenience and
versatility.
Soft Freezing
Vitalight System Conventional Model
Vegetables and fruit stored in the specially designed
Humidity Drawer with its integrated Vitalight Amber LED
Cut Divide Scoop System will last significantly longer in comparison to
conventional vegetable crisper bins.
• Sliding Chilled Case • Advanced Surround Multi Airflow • Door and Drawer Alarm
• Freezer Drawer • Elevating Shelf
• LED Touch Panel • Super Bright Interior LED Lights
• Multi Temperature Zone Control • Removable Internal Drawer Bins
7
Non-Plumbed Automatic Ice Maker
Our Non-Plumbed Automatic Ice Maker ensures you’ll always have fresh, clean ice.
As there is no separate plumbing connection required, this cost-effective approach to
ice making means the fridge can be placed anywhere in the kitchen, not just near
existing pipe work. Simply fill the removable Water Tank and the Ice Maker is ready to go!
Removable Water Tank
The Water Tank located at the base of the Refrigeration Compartment saves
significantly more space than in-door ice makers which compromise on available
depth. The Water Tank is easily removed, cleaned and refilled at the kitchen sink
without the hassle and additional cost of plumbing the refrigerator into the water
supply.
Easy Clean System
The entire water supply system is easy to clean; removable Water Tank components
just need to be flushed periodically with water to maintain optimum performance and
Key Features - MR-WX743 / MR-EX574 & 655
prevent the build up of grime.
Water Purification
Most automatic ice makers require filters to be replaced every 3-6 months which can
be a costly and difficult exercise. With our Non-Plumbed Automatic Ice Maker, water
in the Refrigerator Tank is purified through a filter which removes impurities to ensure
fresh, clean ice for up to 10 years without needing to replace the filter.
The Ice Drawer
The separate Ice Drawer in the WX/EX Models ensures ice cubes remain odour-free,
preventing absorption of lingering food odours that may be present.
EX Model EX Model
Freezer Drawer
The Freezer Drawer is divided by a sliding tray at the top that can be pushed back to
reveal the rest of the Freezer Drawer. The Freezer Drawer is roomy enough to fit bulky
items such as ice cream tubs, loaves of bread and frozen vegetables. The top tray is
ideal for storage and organisation of flat pack items such as meat packs. The bin can
also be completely removed for easy cleaning.
EX Model
8Humidity Drawer
The Humidity Drawer is designed to maximise the freshness of produce. This drawer
provides the ideal storage environment for fruit and vegetables by maintaining higher
humidity than the main Refrigerator Compartment, so fruit and vegetables stay crisper
and fresher for longer.
Customisable Temperature Control
Providing true versatility, the temperature of the Humidity Drawer (EX/WX) can be
customised from around 3°C to 9°C. As different foods require different temperatures
to stay fresher for longer, this drawer can be adjusted to maintain the freshness of the
foods you like to eat.
Sliding Top Tray
The Humidity Drawer is divided by a sliding tray at the top that can be pushed back
to reveal the rest of the drawer. The top tray is ideal for storage and organisation of
smaller, easily damaged items such as spinach.
Key Features - MR-WX743 / MR-EX574 & 655
Vitalight Amber LED System (EX655/WX Series)
The unique Vitalight Amber LED Lighting System is designed to slow down the wilting
process of leafy greens, maintaining their original vitamin and antioxidant levels for
longer. Vegetables and fruit stored in the specially designed Humidity Drawer with its
integrated Vitalight Amber LED System will last significantly longer in comparison to
conventional vegetable crisper bins.
1 Week of Storage
Vitalight System Conventional Model
EX Model
Maintain Moisture Function
Perfect for leafy vegetables, this function lowers the cooling airflow of the Humidity
Drawer to reduce dryness and maintain the moisture levels of your produce, keeping it
fresher for longer.
Supercool Chilling Case
The Supercool Chilling Case, in our WX Range, is ideal for storing fresh cuts of
meat and fish for up to 7 days without freezing. The standard set temperature is
between 0°C to 3°C however the drawer can also drop to between -3°C to 0°C in
Supercool Chilling Mode.
WX Model
9Versa Freezer Drawer
The Versa Freezer Drawer preserves food quality while maintaining original moisture
and taste for longer; making storage more convenient and preparation a breeze. The
Versa Freezer Drawer has three main modes: Hot Freezing, Soft Freezing and Supercool
Freezing. When additional storage capacity is required, the Versa Freezer Drawer can
also be utilised for standard freezing.
Customisable Temperature Control
The Versa Freezer Drawer is truly versatile with the ability to adjust the temperature to
suit the foods you like to eat and preserve. In Soft Freeze Mode the temperature can
be adjusted between -5°C and -9°C. In Standard Freeze Mode the temperature range
can be adjusted between -12°C and -18°C.
Hot Freezing
Hot food (up to 80°C) can now be placed
straight into the freezer due to an advanced
LED sensor which automatically detects hot
Key Features - MR-WX743 / MR-EX574 & 655
food and adjusts the cold airflow directly
towards it. Hot food is cooled quickly via a
separate air outlet for added convenience,
time savings and to preserve the quality and
freshness of the food.
Soft Freezing
Soft Freezing allows food to be frozen for up to three weeks in a semi-frozen state.
This means food can be easily cut without thawing, sauces can be stored frozen but
kept soft enough to scoop out in portions, and it is also ideal for left over dips and
baby foods.
Soft Freezing is great for:
• Easy portioning of meat and fish cuts.
• Raw meat such as beef for carpaccio.
• Soft frozen desserts, sorbets and smoothies.
• Sauces, dips and baby food.
WX Model
• Frozen foods to be used within two to three weeks.
Cut Scoop Divide
10Supercool Freezing
Specifically designed to maximise taste and maintain food texture and quality,
Supercool Freezing ensures food is frozen evenly, locking in moisture and
minimising cell destruction. Once the Supercool Freezing Process is complete the
Versa Drawer will default to Soft Freezing Mode. For long term storage, the food
can be moved to the standard Freezer Drawer.
Supercool Freezing Process Conventional Freezing Process
Key Features - MR-WX743 / MR-EX574 & 655
1 2 3 1 2 3
1. The temperature drops below 1. When the freezing point is reached
freezing point without freezing the food slowly freezes from the outside
food. in.
2. With a quick blast of cool air, ice 2. Moisture in the food forces large
particles form instantly ensuring needle-like crystals to form.
food is frozen evenly. 3. Taste and texture is affected as
3. Microscopic ice crystals develop needle-like crystals destroy the food
evenly, locking in freshness, taste structure.
and texture.
LED Touch Panel
The EX and WX Refrigerators feature an intuitive LED Touch Panel that allows you to
use the advanced functions with ease. Each function can be activated with the push of
a few buttons.
Rapid Cool Bulk Shopping Energy Saving Mode
Rapid Ice Mode Stop Making Ice
Hot Freezing Soft Freezing
Supercool Freezing Maintain Moisture
Supercool Chilling
Power Save Mode
(WX Series Only)
Cool Drinks Quickly
EX Model (EX Series Only)
11• Inverter Technology • VIP Insulation
MR-LX630 • Neuro Fuzzy Logic • Vitalight Humidity Drawer
KEY FEATURES • 4 Star Energy Rating • Non-Plumbed Automatic Ice Maker
• Whisper Quiet 19dBA
12LX 630L Glass Panel
French Door Inverter Range
The LX French Door NEW
rele as e
Designer Series is a true
style statement. Featuring
a stunning glass flat panel
design, large capacity with a
slimline exterior, touch panel
controls and advanced
whisper quiet energy
efficiency, the LX French
Door Designer Series truly
sets a new standard in
refrigeration.
MR-LX630EM
900W x 735D x 1798H mm Glass Silver Glass Black
630 Litres
Advanced Inverter Technology with Neuro Fuzzy Logic
Boasting a 4 Star Energy Rating, the use of super efficient Inverter Technology
combined with nine monitored temperature sensors throughout the refrigerator makes
the LX Series one of the most energy efficient French Door Multi Drawer Refrigerators
in New Zealand.
French Door Design
Every time you open the refrigerator you’re letting cold air out. This leads to a
significant increase in energy consumption as your refrigerator works to return to
the right temperature once you shut the door. The LX Series french door design lets
you open only half of the Refrigerator Compartment at a time; resulting in less cold
air escaping and increased energy savings. The sleek french doors also save you
valuable kitchen space, with narrower doors that swing open in opposite directions,
rather than one wide-swinging door.
Unrivalled for Quietness
19dBA The new LX French Door Designer Series Refrigerators have been designed for
Quietest open plan living. At only 19dBA the LX Series is a style statement you can see
in its Class!* but won’t hear!
*Traditional French Door Two Drawer Category
• Supercool Chilling Case • Frost Free • Removable Internal Drawer Bins
• Freezer Drawer • Tempered Glass Shelves • Door Alarm
• LED Touch Panel • Super Bright Interior LED Lights
131
3
2 4
5
7
6
19dBA
Quietest
in its Class!*
*Traditional French Door Two Drawer Category
14Key Features
1 Glass Door Panels 5 Vitalight Humidity Drawer
The unique Vitalight LED Amber Lighting System is
Toughened Glass
designed to slow down the wilting process of leafy
greens, maintaining their original vitamin and antioxidant
Colour Design Panels
levels for longer.
The LX Series features stunning glass flat panel doors,
presenting a striking finish in either silver or black. The
toughened glass panels not only look great, they are also
durable, easy to clean and dent resistant!
Designed to be the perfect family fridge, the glass panels
can also act as a whiteboard. Whether it’s your grocery Fruit and vegetables stored in the specially designed
list or simply a canvas for the kids’ art, use a whiteboard Humidity Drawer with its integrated Vitalight Amber LED
marker to make your own statement. System will last significantly longer in comparison to
conventional vegetable crisper bins.
2 Unique LED Touch Panel
The LX Series is equipped 1 Week of Storage
with an LED Touch Panel
subtly incorporated into the
glass door finish. The LED
display illuminates at the
touch of a finger, allowing
Vitalight System Conventional Model
you to easily customise the
temperature of individual
compartments. Ice making 6 Freezer Drawer
operation and additional energy saving modes can also
The Freezer Drawer is
be accessed. The LED Touch Panel gives you total control
divided by a sliding tray
and customisation of your refrigerator as well as tools for
at the top that can be
greater energy savings.
pushed back to reveal
the rest of the drawer.
3 Wide Chilled Cooling Case
The Freezer Drawer
The Wide Chilled Cooling Case can be conveniently used is roomy enough to fit
to store both dairy and processed meats, or quickly chill bulky items such as ice cream tubs, loaves of bread and
canned and bottled beverages when unexpected guests frozen vegetables. The top tray is ideal for storage and
arrive. organisation of flat pack items such as meat packs. The
bin also can be completely removed for easy cleaning.
4 Supercool Chilling Case
Set between -3°C and 0°C, the Supercool Chilling Case 7 Non-Plumbed Automatic Ice Maker
is ideal for storing fresh cuts of meat for up to 7 days, and The LX French Door Designer Series features the Non-
fish for up to 5 days, without freezing. Plumbed Automatic Ice Maker to ensure you always
have fresh, clean ice. As there is no separate plumbing
connection required, this cost-effective approach to ice
making means the
fridge can be placed
anywhere in the kitchen,
not just near existing
pipe work. Simply fill the
removable Water Tank
and the Ice Maker is
ready to go!
15CX Designer 370L & 402L
Two Drawer Inverter Range
Our Designer Series CX
Multi Drawer Refrigerators
are perfect for those that
have limited kitchen space
with a big focus on style.
With a stunning flat panel
design, Inverter Technology
and advanced functionality,
the CX Range is the ultimate
White Stainless Steel Onyx Black Red
fridge for small to medium
sized households. Inverter Technology Achieves 32% More Power Savings†
The use of super energy efficient Inverter LOW POWER USAGE
Technology means the CX Range is 32% more
MR-CX370EJ efficient in comparison to the G Series. Utilising
600W x 660D x 1698H mm multiple temperature sensors and Neuro Fuzzy
Left Hand Available in White & Stainless only.
Logic, the CX memorises your usage patterns
370 Litres and seamlessly adapts its power levels to
minimise temperature fluctuations whilst
maximising energy efficiency.
MR-CX402EJ
600W x 660D x 1820H mm Ergonomic User-Friendly Design
Left Hand Available in White & Stainless only. Designed with frequency of use in mind, the Refrigerator Compartment is located
at the top, the fruit and vegetable Humidity Drawer is in the middle and the Freezer
402 Litres
Drawer is at the bottom. The drawer design makes it easier than ever before to find
what you are looking for while the sliding top tray in the Freezer Drawer will help keep
your food well organised.
Multi Airflow Cooling System
Cold air is distributed from the back to both sides and the
front; cooling each compartment quickly and uniformly.
Even door pockets are quickly cooled, with air circulating
through the gaps in the bottom of each door pocket.
Whisper Quiet - Ideal for Open Plan Living
17dBA The CX Series is truly whisper quiet, rated at only 17dBA.
In fact, no other refrigerator in its class is quieter!
Quietest
in its Class!*
*300 and 400L Multi Drawer Category †
Compared to G-Series Non-Inverter Model
• Inverter Technology • Vitalight Humidity Drawer
MR-CX370/402 • Neuro Fuzzy Logic • Non-Plumbed Automatic Ice Maker
KEY FEATURES • 3.5 Star Energy Rating • Double Sliding Chilled Case
• Whisper Quiet 17dBA
16Key Features
3 Vitalight Humidity Drawer
The unique Vitalight Amber LED Lighting System is
designed to slow down the wilting process of leafy
greens, maintaining their original vitamin and antioxidant
levels for longer.
1 1 Week of Storage
2
3 Vitalight System Conventional Model
Vegetables and fruit stored in the specially designed
4 Humidity Drawer with its integrated Vitalight Amber LED
Lighting System will last significantly longer in comparison
5 to conventional vegetable crisper bins.
4 Non-Plumbed Automatic Ice Maker
The CX Series features the Non-Plumbed Automatic Ice
Maker to ensure you always have fresh, clean ice. As there
1 Two-Way Glass Flexi Shelf is no separate plumbing connection required, this cost-
The Two-Way Glass Flexi Shelf enables you to maximise effective approach to ice making means the fridge can be
your storage options by creating additional space when placed anywhere in the kitchen, not just near existing pipe
you need it. Move the front half of the shelf to the level work. Simply fill the removable Water Tank and the Ice
below to store taller items or remove the shelf completely Maker is ready to go!
to create one large space.
5 Freezer Drawer
2 Multipurpose Double Sliding Chilled Case
With a set temperature of around 0°C the top case is ideal
for storing deli items such as meats, cheeses and dips.
The bottom case is perfect for storing fresh meats and
fish for up to 7 days without freezing. This also serves as
additional chilling space for beverages.
The Freezer Drawer is divided by a sliding tray at the
top that can be pushed back to reveal the rest of the
drawer. The Freezer Drawer is roomy enough to fit bulky
items such as ice cream tubs, loaves of bread and
frozen vegetables. The top tray is ideal for storage and
organisation of flat pack items such as meat packs. The
bin also can be completely removed for easy cleaning.
• Freezer Drawer • Multi Airflow • Removable Internal Drawer Bins
• Frost Free • Super Bright Interior LED Lights • Door Alarm
• Adjustable Tempered Glass Shelves • Two-Way Flexi Shelf
17G Series 375L & 405L
Two Drawer Standard Range
Our G Series Multi Drawer
Refrigerators are available
in two classic colours to suit
your kitchen. Featuring our
celebrated Humidity Drawer,
a Non-Plumbed Automatic
Ice Maker and convenient
Freezer Drawer, these
fridges are both stylish and
functional.
White Stainless Steel
MR-C375G
600W x 666D x 1678H mm
Ergonomic User-Friendly Layout
375 Litres
Designed with frequency of use in
mind, the Refrigerator Compartment
MR-C405G is located at the top, the fruit and
vegetable Humidity Drawer is in the
600W x 666D x 1798H mm
middle and the Freezer Drawer is at the
405 Litres bottom. The drawer design makes it
easier than ever before to find what you
are looking for while the sliding top tray
in the Freezer Drawer will help keep
your food well organised.
Multi Airflow Cooling System
Cold air is distributed from the back to
both sides and the front; cooling each
compartment quickly and uniformly.
Even door pockets are quickly cooled,
with air circulating through the gaps in
the bottom of each door pocket.
• Multi Airflow • Non-Plumbed Automatic Ice Maker
MR-C375/405 • Humidity Drawer • Removable Internal Drawer Bins
KEY FEATURES • Freezer Drawer • Sliding Chilled Case
18Key Features
3 Humidity Drawer
The Humidity Drawer is designed to maximise the
freshness of produce. The drawer features a higher
humidity than the main Refrigerator Compartment and is
ideal for storing and keeping fruit and vegetables crisper
2 and fresher for longer.
1
3
4
5 The Humidity Drawer also features a tray at the top for
storage and organisation of smaller items such as fruit.
4 Non-Plumbed Automatic Ice Maker
The G Series features the Non-Plumbed Automatic Ice
Maker to ensure you always have fresh, clean ice. As there
is no separate plumbing connection required, this cost-
1 Multipurpose Sliding Chilled Case effective approach to ice making means the fridge can be
placed anywhere in the kitchen, not just near existing pipe
With a set temperature range around 0°C, the
work. Simply fill the removable Water Tank and the Ice
multipurpose Sliding Chilled Case is ideal for storing deli
Maker is ready to go!
items such as meats, cheeses and dips. This case is
perfect for storing fresh meats and fish for up to 7 days 5 Freezer Drawer
without freezing and serves as additional chilling space
for beverages.
2 Three-Way Flexi Shelf
The Three-Way Flexi Shelf enables you to maximise your
storage options by creating additional space when you
need it without having to remove a shelf. Slide the shelf
halfway back to store taller items in front or fold right back
to create one large space ideal for storing bulky groceries.
The Freezer Drawer is divided by a sliding tray at the
top that can be pushed back to reveal the rest of the
drawer. The Freezer Drawer is roomy enough to fit bulky
items such as ice cream tubs, loaves of bread and
frozen vegetables. The top tray is ideal for storage and
organisation of flat pack items such as meat packs. The
bin can also be completely removed for easy cleaning.
• Adjustable Tempered Glass Shelves • Deodoriser with Minus Ion • Frost Free
• Three-Way Flexi Shelf • Door Alarm
• Multipurpose Door Pockets • Super Bright Interior LED Lights
19• Inverter Technology • Sliding Humidity Case
MR-L710 • Neuro Fuzzy Logic • Vitalight Technology
KEY FEATURES • 3.5 Star Energy Rating • Sliding Freezer Cases
• Very Quiet 26dBA
20L4 Grande
French Door Inverter Range
The L4 Grande Range is
designed for larger living.
With an internal width of
800mm, this refrigerator
provides you with maximum
storage capacity for even
the bulkiest groceries
ensuring you will never be
caught short of space.
MR-L710EG
950W x 764D x 1820H mm
Total depth including handles – 805mm.
710 Litres
Stainless Steel Diamond Black
Advanced Inverter Technology with
Neuro Fuzzy Logic LOW POWER USAGE
The use of Inverter Technology means this
fridge is 16% more efficient* in comparison
to the previous E Series, for greater energy
savings. Utilising Neuro Fuzzy Logic, the L4
Grande Range seamlessly memorises your
usage patterns and adapts its power levels
for unparalleled energy efficiency.
French Door Design
Every time you open the refrigerator you’re letting cold air out. This leads to a
significant increase in energy consumption as your fridge works to return to the right
temperature once you shut the door. The L4 Grande french door design lets you open
only half of the Refrigerator Compartment at a time; resulting in less cold air escaping
and increased energy savings. The sleek french doors also save you valuable kitchen
space, with narrower doors that swing open in opposite directions, rather than one
wide-swinging door.
26dBA Whisper Quiet – Ideal for Open Plan Living
Very Quiet
The L4 Grande Series is truly quiet, rated at only 26dBA.
*Compared to previous Non-Inverter Model MR-L710E
• Frost Free • Anti-Mould Gasket • Adjustable Door Pockets
• Twin Fan Multi Airflow •*Compared
Deodoriser Filter
to E-Series non inverter model.
• Revolving Ice Trays
• LED Control Panel • Tempered Glass Shelves • Door Alarm
2111
1
2
3
4
5
6
7 8
9
10
12
26dBA
Very Quiet
22Key Features
1 Capsule Case 7 Sliding Untility Cases
For convenient and secure storage of The Utility Case is perfect for
smaller items. separating dairy products, fresh
fish or meat and chilling drinks.
2 Adjustable Pockets 8 Large Bottle Pockets
Storage is simple with adjustable The L4 Grande features large bottle
door pockets, which can change in pockets for convenient storage of
height to suit the item you’re storing. drinks and condiments.
3 Tempered Glass Shelves 9 Three Revolving Ice Trays
Heat resistant, easy to clean and Three revolving trays release
adjustable to allow for customisation, ice cubes into the ice box with a
these shelves are built to withstand simple twist.
up to 100 kilograms of weight.
4 LED Lighting 10 Sliding Freezer Cases
The energy efficient LED lighting The L4 Grande features a large,
will illuminate your refrigerator up medium and two smaller storage
to 50 times longer than an average compartments for frozen foods.
refrigerator light bulb. This ensures you have an easy to
use, well organised freezer.
5 Sliding Humidity Case 11 Ergonomic Design
Adjustable humidity control allows Stylish aluminium handles provide
customisation of the compartment space for a comfortable grip.
to create the ideal environment for
fruit and vegetables ensuring longer
lasting freshness.
6 Vitalight Technology 12 Twin Fan Multi Airflow
The unique Vitalight Amber LED Twin ventilator fans blow and
Lighting System is designed to slow circulate air at various levels
down the wilting process of leafy throughout the Refrigerator and
greens, maintaining their original Freezer Compartments. This allows
vitamin and antioxidant levels longer. for even cooling distribution and
keeps food fresher for longer.
23290L, 325L & 390L
Single Drawer Bottom Mount Range
Designed with frequency
of use in mind, this range
features the Refrigerator
Compartment on top and
a generously sized Freezer
Drawer at the bottom.
MR-BF290C
600W x 666D x 1359H mm
290 Litres
MR-BF325C
600W x 666D x 1479H mm
325 Litres BF390L Stainless Steel
BF390L White
MR-BF390C Convenient and Energy Efficient Drawer Design
600W x 666D x 1720H mm
The Freezer Drawer features a top tray that slides back to reveal more storage and
390 Litres ultimately improves energy efficiency by minimising the amount of time spent with the
drawer open. The drawer design makes it easier than ever before to find what you are
looking for.
Adjustable Glass Shelves
The Tempered Glass Shelves are built to withstand up to 100kg of weight. This range
also features a Two-Way Glass Flexi Shelf which enables you to maximise your
storage options. Move the front half of the shelf to the level below to store taller items
or remove the shelf completely to create one large space.
Hygienic Environment
Antibacterial food liners and a Minus Ion Deodoriser create a hygienic environment for
your food by reducing odours and bacteria.
• Fruit and Vegetable Crisper Bin • Antibacterial Food Liner
• Freezer Drawer • Multipurpose Door Pockets
MR-BF290/325/390 • Three-Way Airflow • Large Bottle Pocket
KEY FEATURES • Adjustable Tempered Glass Shelves • Frost Free
• Two-Way Glass Flexi Shelf • Revolving Ice Tray
• Minus Ion Deodoriser • Door Alarm
24420L Inverter
Top Mount Range
Our 420L Inverter Top
Mount is ideal for medium
to large households.
Combining functionality,
energy efficiency and style,
it is available in a White or
Stainless Steel finish.
MR-420EK
686W x 706D x 1691H mm
420 Litres
White Stainless Steel
Inverter Technology Achieves 34% More Power Savings*
The use of super efficient Inverter Technology LOW POWER USAGE
means the MR-420EK is 34% more efficient in
comparison to the previous Non-Inverter Model,
for greater energy savings. Equipped with an
advanced Inverter Compressor, the EK Series
achieves an impressive 4 Star Energy
Rating, allowing you to reduce both your
power bill and environmental footprint.
Surround Cooling System
Mitsubishi Electric’s innovative Surround Cooling System distributes a constant stream
of chilled air to each shelf, ensuring every corner of the refrigerator is cooled evenly.
All areas inside the refrigerator, even the fridge door pockets, quickly regain optimum
cooling temperatures after opening.
Tempered Glass Shelves
The Tempered Glass Shelves are built to withstand up to 100 kilograms of weight.
*Compared to E-Series Non-Inverter Model.
• Inverter Technology • Antibacterial Food Liners
• Neuro Fuzzy Logic • Adjustable Door Pockets
• 4 Star Energy Rating • Large Bottle Pockets
• Fruit and Vegetable Crisper Bin • Jumbo Sliding Chilled Case
MR-420
• Surround Cooling System • Frost Free KEY FEATURES
• Three Tempered Glass Shelves • Revolving Ice Tray
• Deodoriser Filter • Egg Shelf with Two Egg Racks
25260L & 385L
Top Mount Range
This Classic Top Mount
design is packed with high-
end features including
Tempered Glass Shelves, a
convenient Sliding Chilled
Case and a dedicated Fruit
and Vege Crisper Bin. Ideal
for small to medium sized
households.
MR-260G
555W x 636D x 1577H mm
260 Litres
MR-385E White MR-260G Stainless Steel
MR-385E
686W x 709D x 1589H mm Sliding Chilled Case
385 Litres
Equipped with a smooth-sliding roller, the Sliding Chilled Case allows for easy access.
Great for storing dairy products, fresh fish, meat and chilling drinks. Food is stored
around 0°C, ensuring longer lasting freshness.
Tempered Glass Shelves
The Tempered Glass Shelves are built to withstand up to 100 kilograms of weight.
Antibacterial Food Liners
Antibacterial food liners and a Deodoriser Filter create a hygienic environment for your
food.
• Fruit and Vegetable Crisper Bin • Large Bottle Pockets
• Sliding Chilled Case • Adjustable Door Pockets
MR-260/385 • Tempered Glass Shelves • Deodoriser Filter
KEY FEATURES • Antibacterial Food Liners • Frost Free
• Egg Rack • Revolving Ice Tray
26160L Upright
Frost Free Freezer
Our top selling Frost Free
Upright Freezer features five
internal transparent drawers
providing a generous
160 litres of organised
convenience! It is the perfect
solution for those looking for
dedicated freezer space.
MF-U160C
480W x 586D x 1291H mm
160 Litres
White
Energy Efficient Design
• The External Temperature Control Panel allows adjustments to be made easily
without losing cool air.
• The Transparent Drawers keep the freezer at the optimum temperature by
minimising the loss of cool air.
• The Aluminium Tray speeds up freezing time, and is especially effective for quickly
freezing large bulky items when using Rapid Freeze Mode.
Frost Free Freezer
Say goodbye to manually defrosting your freezer. The Mitsubishi Electric Frost Free
Freezer automatically prevents ice build up.
Rapid Freeze Mode
To freeze items quickly, simply press the “Rapid Freeze” button to activate the special
fast-freeze cycle, locking in freshness.
• Fan Cooling System • Rapid Freeze Mode
• Frost Free • Door Pocket MF-U160
• External Temperature Control • Aluminium Tray KEY FEATURES
• Five Internal Freezer Drawers • Ice Tray
27Two and Four Drawer Models
MODEL MR-CX370EJ MR-CX402EJ MR-C375G MR-C405G MR-EX574X-N MR-EX655W-N MR-WX743Y
Net 55 55 55 55 59 78 81
Freezer Drawer
Gross 104 104 103 103 118 131 151
Refrigerator Net 167 196 179 209 228 296 337
Compartment Gross 189 221 197 227 252 327 377
Net 44 44 42 42 71 72 93
Vegetable Drawer
Capacity Gross 77 77 75 75 129 116 134
(Litre) Net - - - - 4 5 4
Ice Drawer
Gross - - - - 27 26 25
Versa Drawer Net - - - - 17 23 28
Gross - - - - 48 55 56
Total Net 266 295 276 306 379 474 543
Gross 370 402 375 405 574 655 743
Width 600 600 600 600 685 804 800
Dimensions
Height 1698 1820 1678 1798 1696 1895 1821
(mm)
Depth 660 660 666 666 735 789 748
Weight Net 65 68 69 73 167 125 139
(kg) Gross 72 76 75 80 114 134 149
Behind 50 50 50 50 - - -
Clearance
Dimensions Above 100 100 100 100 25 100 100
(mm)
Side (Each) 20 20 20 20 5 20 20
Castors 4 4 4 4 4 4 4
Adjustable Feet 2 2 2 2 2 2 2
PERFORMANCE
Specifications
Non-CFC Cooling System (Refrigerant) R600a R600a R600a R600a R600a
Neuro Inverter Technology - -
Neuro Fuzzy Logic - -
Energy Star Rating 3.5 3.5 2 2 3.5 3.5 3.5
kWh Per Year 337 351 500 515 410 425 450
VIP (Vacuum Insulated Panels) - - - -
Monitored Temperature Sensors 5 5 - - 8 8 8
Eco Mode - - - -
Eco Guide - - - -
Power Save Mode - - - -
Rapid Cool - - - -
Door and Drawer Alarms
Antibacterial Deodoriser
REFRIGERATOR COMPARTMENT
Forced Air
Cooling System Multi Airflow Multi Airflow Multi Airflow
Convectiion
Centre Split French Door - - - -
Auto Closer - - - -
Elevating Shelf - - - - 1 1 -
Two-Way Flexi Shelf 1 1 - - 1 2 1
Three-Way Flexi Shelf - - 1 1 - - -
Adjustable Shelf 1 2 2 3 - - 2
Sliding Chilled Case 2 2 1 1 1 1 1
Supercool Sliding Chilled Case - - - - - - 1
Egg Tray 1 1 1 1 - - 1
Egg Drawer - - - - 1 1 -
Small Item Case - - - - 2 2 -
Large Bottle Pocket 1 1 1 1 1 1 1
Small Bottle Pocket - 1 - 1 1 1 1
Adjustable Door Pocket 2 2 - - 4 4 4
Multi Use Door Pocket - - 2 2 - - -
LED Compartment Light
Multi Temperature Setting - - - -
28Two and Four Drawer Models
MODEL MR-CX370EJ MR-CX402EJ MR-C375G MR-C405G MR-EX574X-N MR-EX655W-N MR-WX743Y
VERSA FREEZER DRAWER
Soft Freezing Function - - - -
Supercool Freezing Function - - - -
Hot Freezing Function - - - -
Standard Freezing Function - - - -
Aluminium Tray - - - - 1 1 1
Multi Temperature Setting - - - -
NON-PLUMBED AUTOMATIC ICE MAKER
Frost Free
Rapid Ice Mode - - - -
Standard Ice Mode
Removable Water Tank
Water Supply Purifying System
Removable Easy Clean
Water Tank Components
Removable Easy Clean Ice Tray - - -
Ice Tray and Scoop
Separate Ice Drawer - - - -
HUMIDITY DRAWER
Vitalight LED System - - -
Top Tray - -- --
Sliding Top Tray - - - -
Removable Vegetable Case
Specifications
Multi Temperature Setting - - - -
Keep Vegetables Moist Setting - - - -
FREEZER DRAWER
Frost Free
Standard Freezing Function
Sliding Top Tray
Multi Temperature Setting - - - -
OTHERS
LED Touch Panel - - - -
White - - -
Stainless Steel - - -
Onyx Black - - - - -
Colour Red - - - - -
Brushed Steel - - - - -
White Diamond - - - - - -
Rich Mahogany - - - - - -
White - - - - -
Left Hand
Stainless Steel - - - - -
Sound Rating* 17dBA 17dBA 27dBA 27dBA 15dBA 15dBA 15dBA
WARRANTY TYPE
Inverter Model - -
Non-Inverter Model - - - - -
Non-Inverter Model – Every Mitsubishi Electric Non-Inverter Refrigerator is backed by a 2 Year Parts and Labour Warranty and a 5 Year Compressor Warranty.
Inverter Model – Every Mitsubishi Electric Inverter Refrigerator is backed by a 2 Year Parts and Labour Warranty and a 10 Year Compressor Part Warranty.
*Sound Rating – Published sound ratings have been tested against the JIS Sound Standard.
29Two Drawer French Door Model Classic French Door Models
MODEL MR-LX630EM MODEL MR-L710EG
Net 94 Freezer Net 121
Freezer Drawer
Gross 180 Drawer Gross 232
Net 295
Refrigerator Compartment Capacity Refrigerator Net 429
Gross 333 (Litre) Compartment
Capacity (Litre) Gross 478
Net 67
Vegetable Drawer Net 550
Gross 117 Total
Gross 710
Net 456
Total Width 950
Gross 630
Width 900 Dimensions Height 1820
Dimensions (mm) Depth 764
Height 1798
(mm)
Depth 735 Depth Including Handles 805
Net 110 Net 118
Weight (kg) Weight
Gross 123 (kg) Gross 131
Clearance Behind 50
Behind 60
Dimensions Above 100 Clearance
(mm) Dimensions Above 100
Side (Each) 30 (mm)
Side (Each) 30
Castors 4
Castors 4
Adjustable Feet 2
PERFORMANCE Adjustable Feet 2
Cooling System 3 Way Airflow PERFORMANCE
Non-CFC Cooling System (Refrigerant) R-600a Cooling System Twin Fan Multi Airflow
Neuro Inverter Technology Non-CFC Cooling System (Refrigerant) R600a
Neuro Fuzzy Logic Neuro Inverter Technology
Energy Star Rating 4 Neuro Fuzzy Logic
kWh Per Year 390
Energy Star Rating 3
Eco Mode
Specifications
kWh Per Year 540
Rapid Cooling
Eco Mode
Deodoriser
Rapid Cooling
Door Alarm
FREEZER COMPARTMENT Fresh Air Filter
Frost Free Deodoriser Titanium Filter
Standard Freezing Function Door Alarm
Sliding Top Tray FREEZER COMPARTMENT
Multi Temperature Setting Frost Free
NON-PLUMBED AUTOMATIC ICE MAKER Ice Box
Frost Free
Revolving Ice Tray 3
Standard Ice Mode
Small 2
Removable Water Tank
Freezing Case Medium 1
Water Supply Purifying System
Large 1
Removable Easy Clean Water Tank Components
Removable Easy Clean Ice Tray REFRIGERATOR COMPARTMENT
Ice Tray and Scoop Tempered Glass Shelf 4
Separate Ice Drawer Utility Case 2
REFRIGERATOR COMPARTMENT Egg Case 1
Tempered Glass Shelf 3 Humidity Case with Vitalight
Egg Case 1
Bottle Pocket 2
Bottle Pocket 2
Door Pocket 4
Door Pocket 3
Capsule Door Pocket 1
Capsule Door Pocket 1
Light LED
Multi Temperature Setting
Light OTHERS
LED
HUMIDITY DRAWER External Control Panel
Vitalight LED System Stainless Steel
Colour
Top Tray Diamond Black
Removable Vegetable Case Sound Rating* 26dBA
OTHERS WARRANTY TYPE
External Control Panel
Inverter Model
Silver
Colour Inverter Model – Every Mitsubishi Electric Inverter Refrigerator is backed by a
Black
2 Year Parts and Labour Warranty and a 10 Year Compressor Part Warranty.
Sound Rating* 19dBA
WARRANTY TYPE
Inverter Model
*Sound Rating – Published sound ratings have been tested against the JIS
Sound Standard.
30Freezer, Top and Bottom Mount Models
MODEL MF-U160C MR-260G MR-385E MR-420EK MR-BF290C MR-BF325C MR-BF390C
Refrigerator Type Freezer Top Mount Refrigerator Bottom Mount Refrigerator
Freezer Net 144 56 101 105 54 54 54
Compartment Gross 160 75 130 130 105 105 105
Capacity Refrigerator Net - 167 235 274 171 203 266
(Litre) Compartment Gross - 185 255 290 185 220 285
Net 144 223 336 379 225 257 320
Total
Gross 160 260 385 420 290 325 390
Width 480 555 686 686 600 600 600
Dimensions
Height 1291 1577 1589 1691 1359 1479 1720
(mm)
Depth 586 636 709 706 666 666 666
Weight Net 38 50 68 69 60 64 70
(kg) Gross 41 54 74 78 67 70 77
Behind 100 100 50 50 50 50 50
Clearance
Dimensions Above 100 100 100 100 100 100 100
(mm)
Side (Each) 20 20 20 20 20 20 20
Castors - - 4 4 4 4 4
Adjustable Feet 1 1 2 2 2 2 2
PERFORMANCE
Cooling System Fan Cooling Front Cooling Surround Cooling Multi Airflow
Neuro Inverter Technology - - - - - -
Energy Star Rating 1 2 2.5 4 2 2 2
kWh Per Year 436 425 460 326 455 480 520
Antibacterial Food Liner -
Specifications
Deodoriser Filter -
Minus Ion - - - -
Door Alarm - - - -
FREEZER COMPARTMENT
Frost Free
Sliding Top Tray - - - -
Ice Box -
Revolving Ice Tray - 2 2 2 2 2 2
Ice Tray 1 - - - - - -
Freezer Case 5 - - - - - -
Pocket 1 2 2 2 - - -
Crystal Shelf - 2 1 1 - - -
Rapid Freeze Mode - - - - - -
REFRIGERATOR COMPARTMENT
Two-Way Flexi Shelf - - - - 1 1 1
Tempered Glass Shelf - 4 3 3 2 3 4
Sliding Chilled Case - 1 1 1 - - -
Egg Rack - 1 2 2 1 1 1
Vegetable and Fruit Crisper -
Free Pocket - 1 1 1 2 3 3
Adjustable Pocket - 2 2 2 - - -
Bottle Pocket - 2 2 2 1 1 2
Bottle Stopper - - 1 1 1 1 1
Light - LED Large Tower Light LED Large Tower Light
OTHERS
External Temperature Control - - - - - -
White
Colour
Stainless Steel -
Sound Rating* 26dBA 26dBA 30dBA 23dBA** 27dBA 27dBA 27dBA
WARRANTY TYPE
Inverter Model - - - - - -
Non-Inverter Model -
Non-Inverter Model – Every Mitsubishi Electric Non-Inverter Refrigerator is backed by a 2 Year Parts and Labour Warranty and a 5 Year Compressor Warranty.
Inverter Model – Every Mitsubishi Electric Inverter Refrigerator is backed by a 2 Year Parts and Labour Warranty and a 10 Year Compressor Part Warranty.
*Sound Rating – Published sound ratings have been tested against the JIS Sound Standard. 31
** MR-420EK tested against the 1503744:1994 Sound Standard.Dimensions
Four Drawer WX743Y Four Drawer EX655W Four Drawer EX574W
800 745 685
20 20
30
20 20 20 20
100
100
1087
977
991
1216
977
1147
1691
1821
1821
192 352 200 321 200 278
748 800W x 748D x 1821H 735 745W x 735D x 1821H 735 685W x 735D x 1691H
French Door Two Drawer LX630 Classic French Door 710EG Two Drawer CX402
784 824 710
900 950 600
30 30
100
30 30 20 20
100
100
1180
1160
1315
1820
1221
1798
1820
310 410
266 266
735 764 391
50 900W x 735D x 1798H 60 950W x 764D x 1820H 600W x 660D x 1820H
660 50
805D including handles
Two Drawer CX370 Two Drawer 405G Two Drawer 375G
710 716 716
600 600 600
20 20 20 20 20 20
100
100
100
Specifications
1221
1248
1248
1698
1678
1798
391 381 381
660 50 600W x 660D x 1698H 666 50 600W x 666D x 1798H 666 50 600W x 666D x 1678H
Bottom Drawer 390C Bottom Drawer 290C Bottom Drawer 325C
716 716 716
600 600
100
100
600
100
20 20 20 20
20 20
1248
1248
1248
1720
1479
1359
381 381
666 50 381 666 50 666 50
600W x 666D x 1720H 600W x 666D x 1359H 600W x 666D x 1479H
Top Mount 420EK Top Mount 385E
What size is right for you?
756 759
20 686 20 20 686 20 Visit our Online Refrigerator
100
100
50
Selector at:
www.mitsubishi-electric.co.nz/
1337
1384
1691
1589
refrigeration/selector
454 454
706 50 709 50
686W x 706D x 1691H 686W x 709D x 1589H
Top Mount 260G Upright Freezer 160C
736
100
555 629
20 20 20 480 20
100
100
1577
1291
1190
1064
1007
636
100 441
586 100
555W x 636D x 1577H 480W x 586D x 1291H
All dimensions are in mm.
32This is New Zealand’s Best-Selling
Multi Drawer Range Since 2004.
MR-CX370 MR-WX743
MR-EX655 MR-LX630
In 2004, Mitsubishi Electric revolutionised the way New Boasting a 4 Star Energy Rating, advanced Inverter
Zealanders kept their food fresher for longer by introducing Technology, stunning glass flat panel design, large capacity
a range of Multi Drawer Fridges featuring an ergonomic with a slimline exterior and touch panel controls. Available
drawer layout, with a dedicated Humidity Drawer and a Non- in Silver or Black - the LX French Door Designer Series truly
Plumbed Automatic Ice Maker. sets a new standard in refrigeration.
We are proud to introduce the latest addition – the LX French Visit www.mitsubishi-electric.co.nz/refrigeration
Door Designer Series – to New Zealand’s best-selling Multi
Drawer Refrigeration Range.
33New Zealand’s Best-Selling
Multi Drawer Range Since 2004.
In 2004, Mitsubishi Electric revolutionised the way New Zealanders kept
their food fresher for longer by introducing a range of Multi Drawer Fridges
featuring an ergonomic drawer layout, with a dedicated Humidity Drawer
and a Non-Plumbed Automatic Ice Maker.
We are proud to introduce the latest addition – the LX French Door Designer
Series – to New Zealand’s best-selling Multi Drawer Refrigeration Range.
Boasting a 4 star Energy Rating, advanced Inverter Technology, stunning
glass flat panel design, large capacity with a slimline exterior and touch
panel controls. Available in Silver or Black – the LX French Door Designer
Series truly sets a new standard in refrigeration.
WELLINGTON AUCKLAND CHRISTCHURCH
HEAD OFFICE BRANCH BRANCH
1 Parliament Street Unit 1, 4 Walls Road 44 Halwyn Drive
www.mitsubishi-electric.co.nz
PO Box 30772 PO Box 12726 PO Box 16904
Lower Hutt 5040 Penrose, Auckland 1642 Hornby, Christchurch 8441
Black Diamond Technologies Phone (04) 560 9147 Phone (09) 526 9347 Phone (03) 341 2837
Exclusive distributor of Mitsubishi Electric Fax (04) 560 9133 Fax (09) 526 9369 Fax (03) 341 2838
products in New Zealand.
For more information on Mitsubishi Electric Refrigeration, please call our Customer Service Team on 0800 784 382
Be sure to ask for Mitsubishi Electric. Other brands share the 3-diamond logo, however they are separate to the Mitsubishi Electric brand and cannot supply the models, features or
guarantees outlined in this brochure. All models, features and specifications are subject to change and amendment at anytime. Printed February 2018.You can also read
