Top products for top professionals
Buy once - use forever
AUDIO - VIDEO - MULTIMEDIA - DATA - FIBER OPTIC - SIGNAL DISTRIBUTION - FRONT & DESIGN PANELS
2011 page 1 SCH
2011 page 2 SCH
Oslo Helsinki
Stockholm Moscow
London Berlin
Paris Wien
/Switzerland
Madrid Milano
Boston Seoul
Lisboa
Teheran Tokyo
Tel Aviv
Middle East Hong Kong
Mumbai Hanoi
Singapore
Johannesburg
Sydney
Ghielmetti Official Distributors
2011 page 3 SCH
Founded by Franz Ghielmetti, 1912 at Bern, Switzerland
Headquarter: Biberist, Switzerland
Worldwide Distribution Network
Engineering, Development, Manufacturing and Sales
Customised engineering, design and development of
electronic equipment for audio, video
and data communication
2011 page 4 SCH
Фирма GHIELMETTI является одним из крупнейших и солидных производителей профессиональных систем аудио- и видеораспределителей (матрицы) сигналов и штекерных (штепсельных) полей. Фирма располагается под г. Солотурн близ границы между немецко- и франкоговорящими частями Швейцарии. 2011 page 5 SCH
Ghielmetti Industrial Building Biberist, Switzerland 2011 page 6 SCH
Ghielmetti Customers and Partners 2011 page 7 SCH
Routing Switcher for professional Audio and Video
Digital and analog Cabling Management Equipment
High Performance Matrix Boards and Patch Bays
Enhanced Solutions for Audio, Video and Broadcast
Design - Engineering - Installation - Training - Support
2011 page 8 SCH
Фирма GHIELMETTI предоставляет решения вопросов, связанных со звуковыми и видеосигналами, а также сигналами данных (информационными сигналами). 2011 page 9 SCH
Routing Equipment for Audio and Video Broadcast 2011 page 10 SCH
Product Range
Standard products
for mechanical and electronical routing, switching
and signal distributing in analog and digital communication
networks
Custom made Solutions
Electronic routing an switching units
Measurement, Test and Monitoring Systems
Integrated Solutions
Switchgear, control panels and electronic control units
for Multimedia Networks and Industrial Automation
Design - Engineering - Construction - Installation - Training - Support
2011 page 11 SCHTest, Monitoring, Routing and Measuring 2011 page 12 SCH

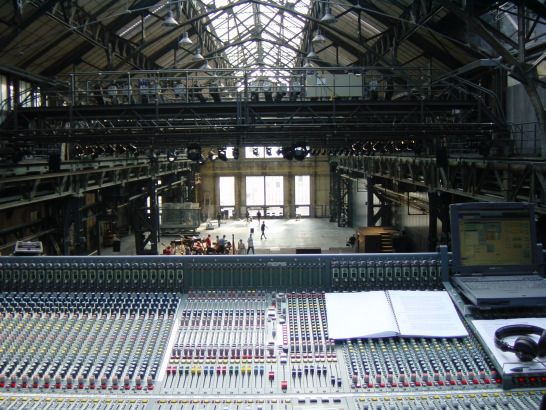

Theatre, Playhouse,
Main Control Technics
Century Hall Bochum, Germany
2011 page 13 SCHRoyal Opera London, sound distribution 2011 page 14 SCH
If it really depends on: The most ambitious voices of the world will be routed by Ghielmetti Connecting Patch Panels. 2011 page 15 SCH
„KKL – Luzern“ - The Culture and Congress Hall in Luzern, Switzerland Audio Routing and Patching 2011 page 16 SCH
Ghielmetti Matrix Operation System GMOS 2000 2011 page 17 SCH
Фирма GHIELMETTI представляет новый электронный распределитель звукового сигнала и коммутационную матрицу, наиболее широко применяющиеся в малых и средних системах. Эти системы управляются от компьютера и с помощью программы GMOS2000 от центральной станции могут обслуживаться различные приборы в сети. 2011 page 18 SCH
Audio Routing System 8x8, fully transparent, DC to 13 MHz, 19“/ 1U 2011 page 19 SCH
Audio Routing System 8x8 to 256x256 Channels - Analog Audio and AES/EBU Video Routing System 8x8 to 256x256 Channels - analog, Multiformat HDTV and SDI 2011 page 20 SCH
Electronic Signal Routing System
Controlled by
Software over
USB interface
Control Signal Router 25x25
max. switching current control signals: 0.3 A @ 125 VAC, 1.0 A @ 30 VDC
max. switching current power-way: 5 A @ 250 VAC, 5 A @ 30 VDC
Signal Router 30x25
max. switching current signal-way: 0.3 A @ 125 VAC, 1.0 A @ 30 VDC

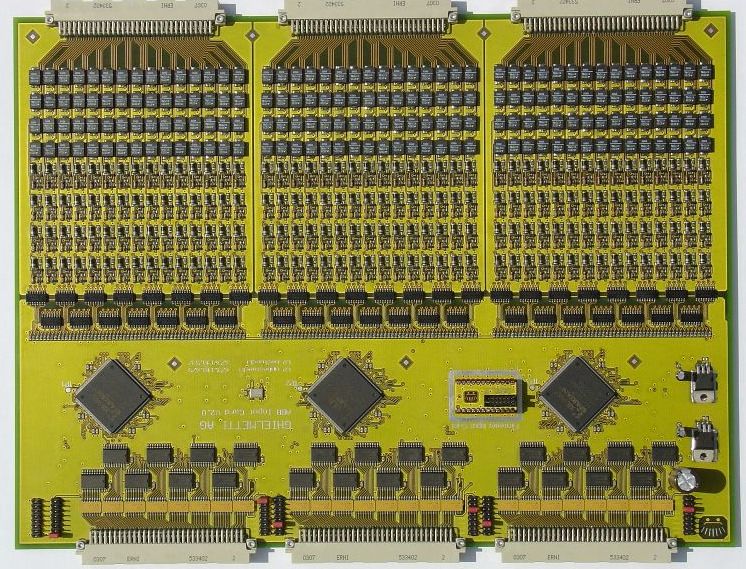

2011 page 21 SCHRouter Interface Card based on FPGA Technology 2011 page 22 SCH
Multi Channel Router
Control unit
Electronic Router GKVE 12 x 28 R7/10 K
12 multi-channel input (7 balanced audio signals and 10 data signals each)
28 multi-channel input (7 balanced audio signals and 10 data signals each)
Power module
RS485 interface
Cross point card

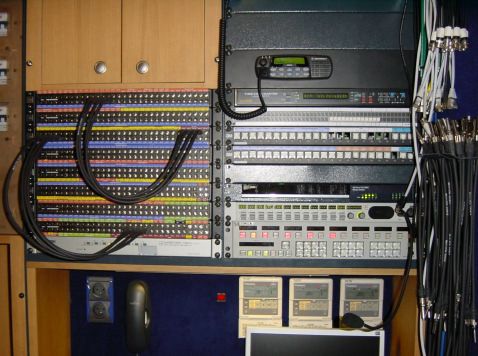

2011 page 23 SCHTV – OB – Van france 3 2011 page 24 SCH
OB Van france 3 2011 page 25 SCH
Outside Broadcast HDTV Technology 2011 page 26 SCH
Также новинками фирмы GHIELMETTI
являются "light"-версии аудио- и
видеораспределителей сигналов с подсветкой
с обратной стороны. Эти системы особенно
широко используются в передвижных
звукозаписывающих станциях (ПЗС) и
отдельных студийных системах.

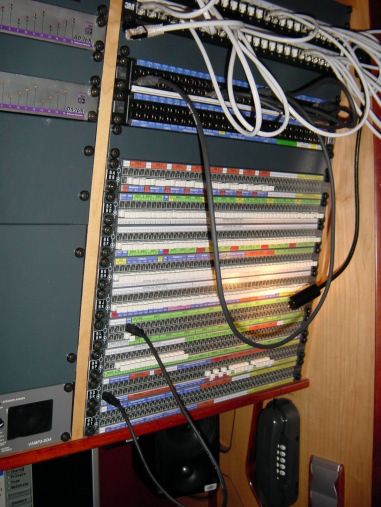

2011 page 27 SCHBack Lighted Audio and Video Patch Bays 2011 page 28 SCH
Main Control Digital Images GmbH 2011 page 29 SCH
Monitor Router ATK 32x1
Digital/Analog
Monitoring System,
GMS 1100 DA
Master Control Deutsche Welle, Bonn
2011 page 30 SCHAudio Connecting
Patch Bays
AES/EBU
Routing Switch,
High Performance,
20 Mb/s, AES/EBU
HDTV Connecting Patch Bays, SDI, Embedded, 3 Gb/s
2011 page 31 SCHHighest sophisticated interconnecting facilities 2011 page 32 SCH
G3P: The Ghielmetti 3-pole Connecting and Patching System 2011 page 33 SCH
Ghielmetti Customers and Partners
in industrial automation and power plant equipment
2011 page 34 SCHThe Modular Multimedia Connecting System 2011 page 35 SCH
MODULINE:
The high flexibel interconnecting system
for signals from DC to 3 GHz and fiber optic
2011 Seite 36 SCHMICROLINE:
Multimedia Connectors DC to 3 Gb/s and Fiber Optics

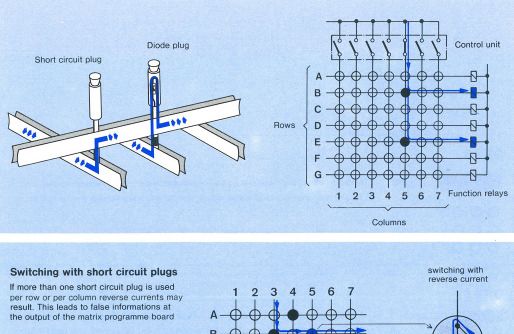

2011 page 37 SCHMatrix Boards
standard and
application specific
Custom made
... for routing, programming and controlling ...
2011 page 38 SCHCustom made Tripping Matrix Boards
Switching and routing facilities
2011 page 39 SCHHigh Tech from Ghielmetti for High Tech in Power Stations
Outstation in Khulais, KSA, Annunciation and Monitoring System Installation of the
designed by ABB Saudi Arabia in the power plant outstation in Saudi Arabia Annuciation System
in 6 cabinets
Tripping Matrix
to Generator protection unit
GKV 26x32 621 SK R K
26 source to 32 designation
signals
2011 page 40 SCHInstallations of Ghielmetti technology in power plants Control room in NPP Gösgen, Switzerland - Generator Protection: GKV 26x32 621 SK R K Annunciation System Interface for 13.8 kV Under Frequency Load Shedding Tripping Matrix power plant monitoring GKV 4x20 621 LA K 2011 page 41 SCH
Annunciation and Monitoring System for 3500 surveillance signals in a 220/33 kV Power Substation 2011 page 42 SCH
Alarm- and annunciation system of power plants, power stations and grids
The Annunciation System
The annunciation system is split into 9 different line types. Each line type contains some line groups and
every group has up to 100 lines. All lines have a 110 V signal and are based on a common ground. If any of
these signals is triggering, the system must react and must latch the incoming signal. In logic network this
380-110V Section signal will be processed for driving some output relays and output common relays. The number of output
relays equals the number of lines of a group at every line type, the number of common relays equals the
number of groups at a line type. So it will be realized a matrix with outputs (as rows) and common outputs
(as columns). At every cross point of these matrices there are some lamps for displaying the triggered
input.
In one line type you have up to 24 line groups. Each group has up to 100 points for annunciation. For
example, we choose 60 input lines for each group. If any one of these 60 inputs is triggered, a digital
register is set and the corresponding output relay will be prepared for operating. These relays can only be
Transformer Section
reset by the reset signal from the “Reset” pushbutton on the main control panel. After the reset, if any one
of the inputs is still active, the register will be set again and the output relay will be prepared again.
If any of the output relays is activated, the illuminated “Feeder Faulty” pushbutton of the corresponding
group will flash. At the same time the buzzer will also sound. The operator has to press the “Silence”
pushbutton to mute the buzzer.
The operator will press the flashing “Feeder Faulty” pushbutton. Its light will hold on. During pressing the
33 kV Section
button the activated output relays and the common output relay will be enabled. They switch on the lamps
in the corresponding annunciation window. They will stay displayed as long as the “Feeder Faulty”
pushbutton is pressed. Once you release the pushbutton, the annunciation window will become blank.
Now the “Reset” pushbutton can be pressed to erase the registers and the output relays and also the lamp
in the “Feeder Faulty” pushbutton.
13,8 kV Section Also if more than one group announces a failure, the above procedure is valid. The only difference is that
the “Reset” pushbutton must not be pressed before all annunciation information of all the feeders, which
have trip or abnormal indications, has confirmed with the “Feeder Faulty” pushbutton.
If a second trigger occurs after the faulty button was pressed once (lamp in the button is steady) and the
registers are not cleared yet the button lamps starts re-flashing and also the buzzer will sound once more.
During pressing the “Lamp Test” pushbutton all lamps of the whole annunciation window will light.
Bus Bar, General Alarms, Spare Parts
All input signals are 0 V in inactive condition and 110 VDC in active condition. The minimum time, where an
input signal stays on 110 VDC is around 10 ms. All signals are decoupled with opto couplers. So the
common line of the input signals can be different to the common of the announcing electronics.
All outputs for Buzzers, lamps and pushbutton light are realized with relays.
The flashing of the button lamps will be realized with an internally placed oscillator.
The whole system is supplied from ± 57.5 VDC in relation to ground potential.
Station Auxiliary, Bus Coupler, Bus Section, Spare Parts
2011 page 43 SCHTripping Matrix for Power Generator Protection System 2011 page 44 SCH
.
Ghielmetti Quality
SPECIFICATIONS
Customer Supplier
too expensive
Demands Result 100 %
Not acceptable
Demands
Quality = = 1,0
Result
Quality => satisfied customers => successfully company
2011 page 45 SCHJIT/STL - Manufacturing
Manufacturing Manager
Manufacturing End-Assembly / Final Test
Warenannahme Mechanik Bestückung Vormontage Endmontage Test Spedition
Vertrauen ist gut Kontrolle ist notwendig
Prüfzeichen auf angelieferter Ware – quality sign on incomming goods
Arbeitsanweisungen/OP-Plan/Prüfplan – handling and working instructions
Kontrolle der ausgeführten Arbeit gemäss Prüfanweisung – inline quality checks
Bestätigung der durchgeführten Kontrollen mit Prüfzeichen, Datum und Visum
Confirmation of quality check with date and signature
2011 page 46 SCH2011 page 47 SCH
