WAT E R H E AT E R C ATA L O G U E
The Group
International Headquarters
Net Zero Energy Building spread over 48,000 sq. mtrs.
Global Headquarters
Net Zero Energy Building spread over 48,000 sq. mtrs.
A tribute to the fine traditions of exquisite craftsmanship and precision where
design, technology and talent combine to deliver a masterpiece. Artize products
are crafted for luxurious bath spaces. Perfect harmony is the very essence of
Artize-together as coordinates or even as individual pieces. Artize’s exquisite
craftsmanship is so stunning that it can inspire the design principles of not just
your bath spaces but of your entire Iiving spaces.
Conceived back in 1960, the Jaquar
Group has been built on the platform of
the highest quality standards,
aesthetics and the intent of providing
world-class products. Today, the
Jaquar Group caters to premium and A leading global super brand known for its excellence in innovation and
luxury bathroom segments with Jaquar technology. The highest build standards combine with the most beautifully
and Artize brands respectively, for designed aesthetics to provide world-class products for tough conditions. With
residential and commercial sectors a superb blend of ergonomic shapes, contemporary styles and meticulous
across the globe as a one stop finish, Jaquar continues to enthrall millions of hearts across the world with its
destination for all bathroom products. wide range of concepts and products.
Elena (Manual) 6
Contents
Elena (Digital) 8
Elena (Horizontal) 10
Versa (Vertical) 12
Versa (Horizontal) 14
Versa (Digital) 16
Versa (E) Horizontal 18
Versa (E) Vertical 20
Alexa Plus / Alexa 22
Verna 24
Insta Gas 26
Selection Guide 28

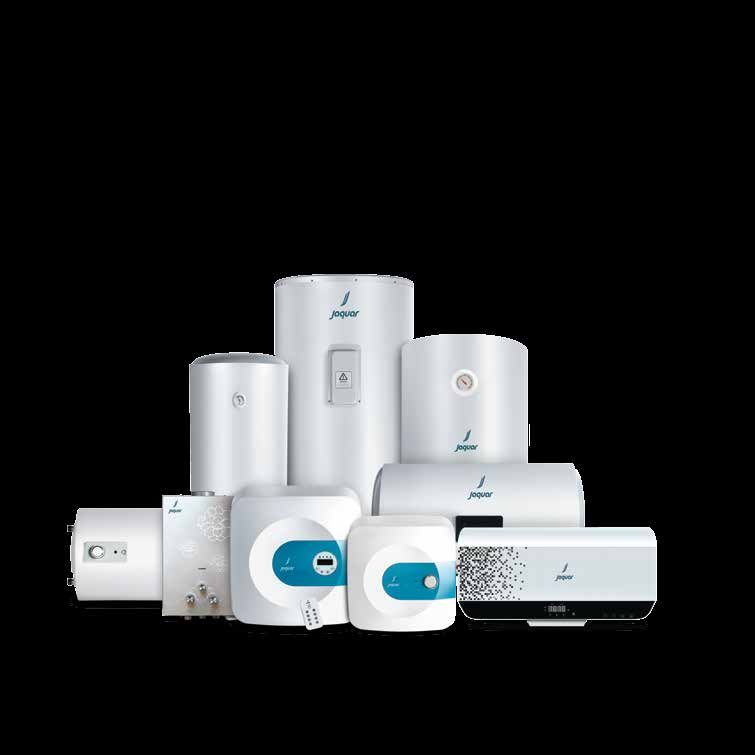

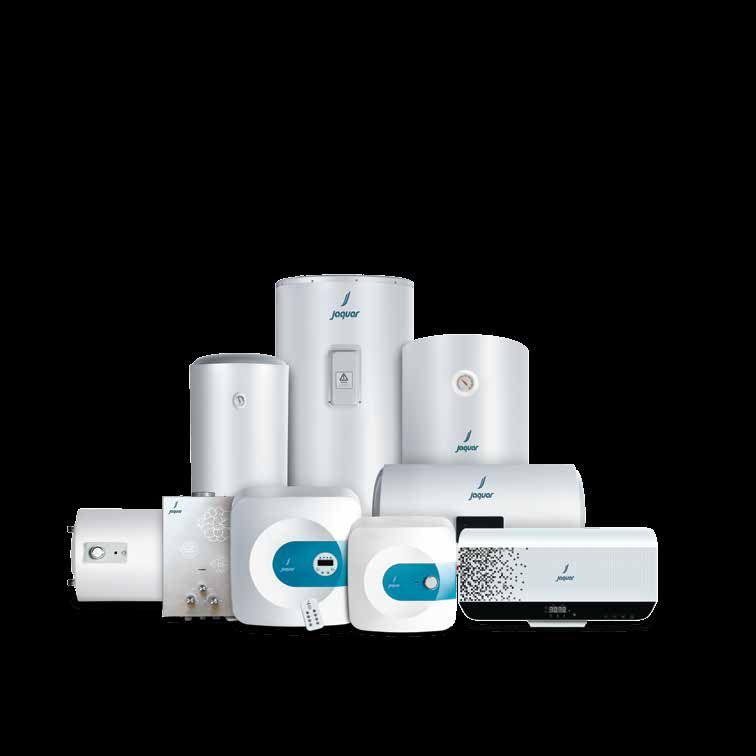

Water heaters that give you more.
To ensure that they are worthy of the trust that is placed by customers in every Jaquar
in to these water heaters:
MORE SAFETY
•
• Multi-function Safety Valve – discharges water and acts as a non-return valve if
pressure or temperature exceed preset limit
Multi Function Double Safety Earth Leakage
Safety Valve Thermostat Circuit Breaker
MORE LIFE
• Superior Quality Glass-lined Inner Tank – prevents rust, corrosion and prolongs the life
of the inner tank
• Single/Dual Glass-coated Incoloy Heating Elements – made of high quality steel for
quicker heating and to prevent scale formation
High Quality
Glass Lined
Heating
Element
4
MORE SAVINGS
• High Density Insulation – CFC-free PUF insulation, more thick than normal to minimise
heatloss and maximise energy savings
•
electrochemical reactions during water heating
Energy Saving Cathodic
High Density Protection
PUF Insulation
MORE FEATURES*
• Cordless Remote
• Full Digital Display
•
• Clock Temperature Setting
Digital Controls
and Display
*Available in Alexa Plus 20L, Alexa 30L,
Elena (Digital) 15/25L, Versa Digital 40L-100L
5
ELENA
6/ 10 / 15/ 25 litres
The perfect storage water heater
for small families
6
W D
H
Details Elena Vertical (Manual)
Volume (L) 6/ 10/ 15/ 25
Rated Wattage 2 Kw
Voltage / Frequency (V/Hz) 230V~ / 50Hz
Temperature Range 25ºC to 75ºC
Working Pressure (Mpa) 0.8
Inlet / Outlet Connection (Inch) 1/2
Product Dimensions (in mm) W H D
6 Litres 288 288 260
10 Litres 328 328 295
15 Litres 385 385 305
25 Litres 448 448 345
Recommended for: Kitchens / Bucket Baths / Overhead Showers
7

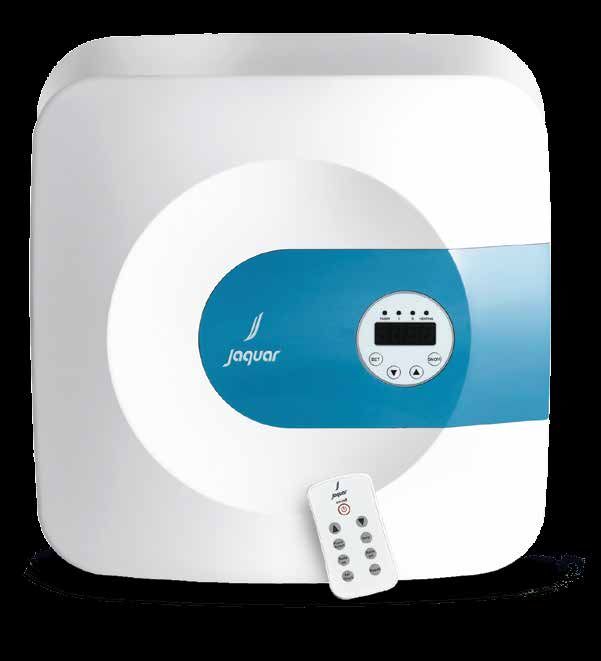

ELENA (Digital)
15/ 25 litres
The perfect storage water heater
for small families
8W D
TIMER HEATING
H SET ON/OFF
Details Elena (Digital)
Volume (L) 15/ 25
Rated Wattage (Dual Elements) 1Kw / 2Kw / 3 Kw
Voltage / Frequency (V/Hz) 230V~ / 50Hz
Temperature Range 25ºC to 75ºC
Working Pressure (Mpa) 0.8
Inlet / Outlet Connection (Inch) 1/2
Product Dimensions (in mm) W H D
15 Litres 385 385 305
25 Litres 448 448 345
Recommended for: Bucket Baths / Overhead Showers
9ELENA
15/ 25 litres
The perfect storage water heater
for small families
10W
H
Details Elena Horizontal (Manual)
Volume (L) 15/ 25
Rated Wattage 2 Kw
Voltage / Frequency (V/Hz) 230V~ / 50Hz
Temperature Range 25ºC to 70ºC
Working Pressure (Mpa) 0.8
Inlet / Outlet Connection (Inch) 1/2
Product Dimensions (in mm) H W
15 Litres 320 495
25 Litres 320 747
Available with Inlet / outlet on left hand side (LHS) and right hand side (RHS)
Ideal for installation above false ceilings
11VERSA
40/ 60 / 80/ 100 litres
For use with shower panels
or bathtubs
12H
W
Details Versa Vertical (Manual)
Volume (L) 40/ 60/ 80/ 100
Rated Wattage 40 / 60 L - 2 Kw
80 / 100 L - 3 Kw
Voltage / Frequency (V/Hz) 230V~ / 50Hz
Temperature Range 35ºC to 75ºC
Working Pressure (Mpa) 0.8
Inlet / Outlet Connection (Inch) 1/2
Product Dimensions (in mm) W H
40 Litres 400 675
60 Litres 400 900
80 Litres 470 905
100 Litres 470 1095
Recommended for: Overhead Showers / Shower Panels / Bathtubs
13VERSA
40/ 60 / 80/ 100 litres
For use with shower panels
or bathtubs
14W
H
Details Versa Horizontal (Manual)
Volume (L) 40/ 60/ 80/ 100
Rated Wattage 40 / 60 L - 2 Kw
80 / 100 L - 3 Kw
Voltage / Frequency (V/Hz) 230V~ / 50Hz
Temperature Range 35ºC to 75ºC
Working Pressure (Mpa) 0.8
Inlet / Outlet Connection (Inch) 1/2
Product Dimensions (in mm) H W
40 Litres 400 685
60 Litres 400 925
80 Litres 470 895
100 Litres 470 1065
Recommended for: Overhead Showers / Shower Panels / Bathtubs

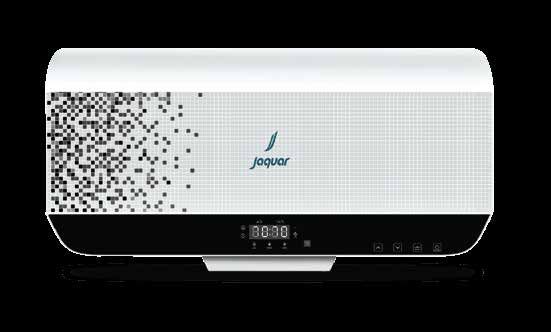

15VERSA (Digital)
40/ 60 / 80/ 100 litres
For use with shower panels
or bathtubs
16W
H
Details Versa Horizontal (Digital with Cordless Remote)
Volume (L) 40/ 60/ 80/ 100
Rated Wattage 1 Kw / 2 Kw / 3Kw
Voltage / Frequency (V/Hz) 230V~ / 50Hz
Temperature Range 35ºC to 75ºC
Working Pressure (Mpa) 0.8
Inlet / Outlet Connection (Inch) 1/2
Product Dimensions (in mm) H W
40 Litres 400 685
60 Litres 400 925
80 Litres 470 895
100 Litres 470 1065
Recommended for: Overhead Showers / Shower Panels / Bathtubs
17VERSA(E) Horizontal
30/ 50 / 80/ 100 litres
For use with shower panels
or bathtubs
18W
H
Details Versa Horizontal (Manual)
Volume (L) 30/ 50/ 80/ 100
Rated Wattage 1.5 Kw
Voltage / Frequency (V/Hz) 2 30V~ / 50Hz
Temperature Range 30ºC to 75ºC
Working Pressure (Mpa) 0.8
Inlet / Outlet Connection (Inch) 1/2
Product Dimensions (in mm) H W
30 Litres 350 625
50 Litres 390 772.5
80 Litres 460 846
100 Litres 460 996
Recommended for: Overhead Showers / Shower Panels / Bathtubs
19VERSA(E) Vertical
30/ 50 / 80/ 100 litres
For use with shower panels
or bathtubs
20H
W
Details Versa Vertical (Manual)
Volume (L) 30/ 50/ 80/ 100
Rated Wattage 1.5 Kw
Voltage / Frequency (V/Hz) 2 30V~ / 50Hz
Temperature Range 30ºC to 75ºC
Working Pressure (Mpa) 0.8
Inlet / Outlet Connection (Inch) 1/2
Product Dimensions (in mm) W H
30 Litres 350 575
50 Litres 390 721
80 Litres 460 749
100 Litres 460 889
Recommended for: Overhead Showers / Shower Panels / Bathtubs
21ALEXA PLUS / ALEXA
20 / 30 litres
The perfect storage water heater
for small families
22Alexa Plus
W D
H
Alexa
W D
H
Details Alexa Plus / Alexa
Volume (L) 20 / 30
Rated Wattage 2 Kw / 3Kw / 5Kw
Voltage / Frequency (V/Hz) 230V~ / 50Hz
Temperature Range 25ºC to 75ºC
Working Pressure (Mpa) 0.8
Inlet / Outlet Connection (Inch) ½“
Product Dimensions (in mm) W H D
20 Litres 610 340 320
30 Litres 718 365 344
Recommended for Bucket Baths / Overhead Showers
23VERNA
140/ 220 / 340/ 425 litres
Ideal for large families
and multiple bathrooms
with bathtubs and whirlpools
24W
H
Details Verna Floor Mounting (Manual)
Volume (L) 140/ 220/ 340/ 425
140/220 - 4.8Kw
Rated Wattage
340/425 - 4.8Kw X 2
Voltage / Frequency (V/Hz) 230V~ / 50Hz
Temperature Range 35ºC to 75ºC
Working Pressure (Mpa) 1.0
Inlet / Outlet Connection (Inch) 3/4
Product Dimensions (in mm) H W
140 Litres 1242 515
220 Litres 1822 515
340 Litres 1762 625
425 Litres 1820 685
Recommended as the Centralised Heating Solution for Multiple Bathrooms / Applications

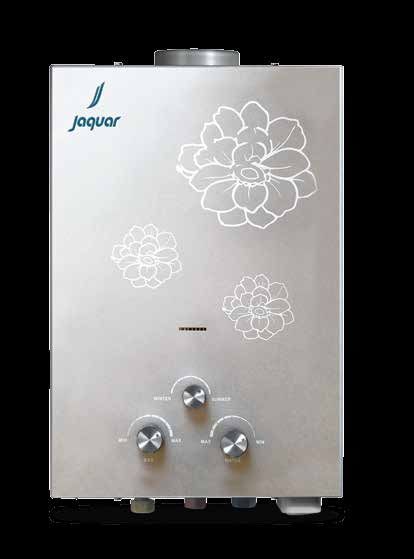

25INSTA - GAS
06 / 10 litres
The perfect instant gas water heater
for small families
26W D
H
Details Instant Gas Water Heater
Volume (L) 06 / 10
Rated Gas Supply Pressure (Pa) NG - 2000
LPG - 2800
Working Pressure (Mpa) 0.01-1
Thermal Load (Heat Input-Kw) 12/20kW
Product Dimensions (in mm) H W D
06 Litres 440 300 120
10 Litres 590 350 145
27Choose the right water heater for your needs:
ELENA
MODEL INSTA ELENA (Horizontal Model) ALEXA PLUS / ALEXA
MODEL INSTA
[LITRES] 1&3 6 & 10 15 & 25 15 25 [LITRES]
20 130
&3 6 & 10
40
BUCKET BATH/ BUCKET BATH/ BUCKET BATH/ BUCKET BATH/
KITCHEN KITCHEN KITCHEN KITCHEN
WITH WITH
28ERSA ELENA VERNA VERSA VERNA
ntal Model)
(Horizontal Model) ALEXA
(Floor PLUS / ALEXA
Mounted) (Horizontal Model / Vertical Model) (Floor Mounted)
15 80 25100 140,
20 220 30 40 60 80 100 140, 220
340 & 425 340 & 425
WITH WITH
*Conditions apply. Features available on select models. *Conditions apply. Features available on select models.
The colours of the actual product may differ from the
images shown in the cataloguejaquar.com CRESCENT/04/17
