Xero Twin P/L
Manual 2021
play it smart
Finish
Galvanised finishes Wood (for Qubo 25 P/L and Omnio P/L)
chrome silk Oak, natural Oak, black-brown
Suitable for merchandise supports and structural systems.
Not suitable for large surfaces or for system parts in aluminium.
* on request
Anodised finishes for aluminium Premium white Maple, champagne
natural anodised aluminium black anodised aluminium Glass
Only for aluminium system parts, such as profiles, uprights and frames.
Standard colours (powder-coated)
Glass, clear Glass, satin finish
black steel duro* bright silver duro*
Glass, satin finish, black underside Glass, satin finish, white underside
traffic white duro* bright silver mistral**
* Duro powder-coated surfaces are suitable for all systems, as well as for
merchandise supports subject to heavy abrasion.
**Light silver mistral is the standard colour of the Label products and is not used for
any other systems.
Special colours (powder-coated)
dark bronce forest green
night blue highland green
champagne gold rose bronce
sterling silver duro*
Suitable for all systems – less so for merchandise supports subject
to abrasion.
ISO 9001 / ISO 14001 All dimensions are given in millimetres.
The safety of Visplay products is continuously monitored by external Ito = Length to order
testing institutes, Intertek Germany and UL (Underwriters Laboratories hto = Height to order
Inc.). cto = Colour to order
For electrified systems, the CE marking confirms conformity with the L = Length
relevant directives. A = Axis
H = Height
All processes in our company are subject to a comprehensive T = Depth
management system which corresponds with the ISO 9001 quality
Quick delivery program
standard and the ISO 14001 environment standard.
The following symbols which appear on the left-hand side near the
part number indicate the delivery time for each individual item:
= Delivery time: up to 5 working days ex works Weil am Rhein,
Copyright ©
Germany
= Delivery time: up to 10 working days ex works Weil am Rhein,
All products by Visplay and their names are protected by intellectual Germany
property rights. This protection is valid for the basic system along with All other items on request.
the merchandise supports and accessories. Longer delivery times may occur in the event of exceptionally strong
demand.
In the event of infringement, Visplay reserves the right
to take legal steps. Air freight
Items which are to be dispatched by air must not exceed a total length
• Our general conditions of delivery and sale are valid for all orders. of 3 metres.
• We reserve the right to make technical and formal alterations.
Drawings of wooden and glass shelves
Production drawings of shelves with the 6 digit part number are
available for download in the product area and in the download
centre at www.visplay.com or can be received on request.
Assembly and operating instructions
Special assembly and operating instructions exist for all products by
Visplay in order to guarantee the functions and safety. These
instructions contain important information e.g. maximum weight loads,
assembly dimensions or information on the correct assembly and use.
The respective assembly and operating instructions are included in the
delivery of our systems. A general catalogue is also available on
request for planning purposes. The assembly and operating
instructions are available for download in the product area and in the
download centre at www.visplay.com.
Visplay always tries to respect the rights of third parties. Should it not be stated in individual cases, this is an oversight and will be corrected accordingly.
Xero Twin P/L Vertical 118 5/2021 (EN)
Xero Twin P/L
Vertical

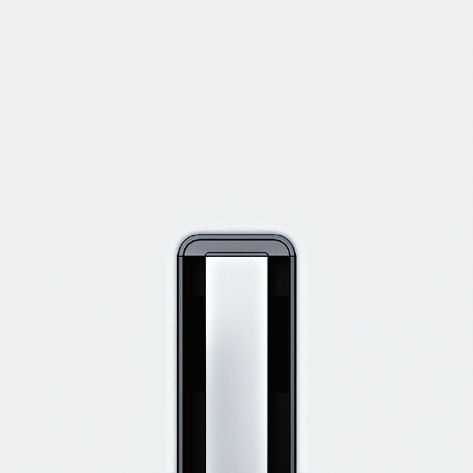

Xero Twin P/L profile 24 V distributor, 8-way Extension cable 24 V
electrified, without converter with switch input
Dimensions
1200
2400
3000
hto
L 800 mm
L 2500 mm
2x
3 mm
2000 ø 7.7 mm
Characteristics For powering up to 8 profiles with
Please observe max. weight loads of max. 2 90 W transformers.
merchandise supports.
No alterations may be made to Check the power consumption of
the Xero Twin P/L profile for safety electrical appliances!
reasons, with the exception of
A switch input enables use of a power
shortening the profile from the top.
switch.
Only Xero Twin P/L merchandise
supports and accessories may be Nominal current max. 9.5 A (225 W)
used. Do not use any other parts!
Nominal voltage = 24 V DC
Electrical load max. 7 A
Max. weight load = 100 kg per
1000 mm
Observe the assembly and
operating instruction
Order number Profile: black anodised aluminium white black
Cover: natural anodised aluminium 138-995.19 800 mm 332-203.18
1200 mm 349-052.05 2500 mm 138-984.18
2400 mm 349-053.05
3000 mm 349-451.05
hto 250–3000 mm 349-452.05
Profile: black anodised aluminium
Cover: black anodised aluminium
1200 mm 349-052.06
2400 mm 349-053.06
3000 mm 349-451.06
hto 250–3000 mm 349-452.06
Length measurements refer to the
profile incl. infeed and end cap.
Incl. 1 flat end cap.
5/2021 (EN) 119
Xero Twin P/L
Vertical
Converter 90 W Mains cable 220–240 V Xero Twin P/L profile End cap set
without mains cable L = 1800 mm without electrical power for a round profile end
EU
ø 7.7 mm
UK
1200
100–240 V
2400
L = 200 mm
3000
NV (24 V) hto
L = 200 mm
220–240 V
L = 1800 mm
3 mm
The total power used by the Is screwed to the top of the profile
Please observe max. weight loads of and to the bottom of the power
connected appliances may merchandise supports.
not exceed the converter’s max. supply.
capacity. For installation of Xero Twin P/L profile
No alterations may be made to
the Xero Twin P/L profile for safety in a milled wooden panel.
Connection 220–240 V AC 50–60 Hz
reasons, with the exception of
Nominal voltage = 24 V / DC SELV
shortening the profile from the top.
Up to two 90 W converters can be Only Xero Twin P/L merchandise
switched in parallel when connected supports and accessories may be
with the 8-way distributor. used. Do not use any other parts!
Max. weight load = 100 kg per
1000 mm
Observe the assembly and
operating instruction
black white Profile: black anodised aluminium black
90 W 704-361.18 EU 138-979.19 Cover: natural anodised aluminium 349-057.06
UK 138-980.19 1200 mm 349-167.05
2400 mm 349-168.05
3000 mm 349-245.05
hto 250–3000 mm 349-246.05
Profile: black anodised aluminium
Cover: black anodised aluminium
1200 mm 349-167.06
2400 mm 349-168.06
3000 mm 349-245.06
hto 250–3000 mm 349-246.06
Length measurements refer to the
profile incl. end cap.
Incl. 1 flat end cap.
120 5/2021 (EN)Xero Twin P/L
Vertical
Panel fixing brackets Glass shelf with LED lighting Glass shelf Glass shelf with LED lighting
for wooden panels Fashion Fashion Health & Beauty
A 617.5
A 992.5
A 792.5
A 1242.5 A 617.5
A 992.5
170 A 992.5
A 1242.5
420 255
420
Is screwed to back of wooden Safety glass 6 mm. Safety glass 6 mm. Safety glass 6 mm.
panel and fitted in Xero 4, Xero 8 or
Xero Twin P/L profile. To be inserted into electrical profile. Max. weight load = 25 kg To be inserted into electrical profile.
Observe the assembly and The glass in the area closest to the Max. display depth = 395 mm The glass in the area closest to the
operating instruction LED profile is 3°C warmer than the LED profile is 3°C warmer than the
ambient temperature. ambient temperature.
Nominal voltage = 24 V DC Nominal voltage = 24 V DC
- lighting 6 W for axis 617.5 mm - lighting 7 W for axis 792.5 mm
- lighting 10 W for axis 992.5 mm - lighting 10 W for axis 992.5 mm
- lighting 12 W for axis 1242.5 mm Colour temperature: 4000 K SDCM3
Colour temperature: 3000 K SDCM3 Colour rendering index: 92
Colour rendering index: 92 Luminous flux: 1000 lm/m with opal
Luminous flux: 1000 lm/m with opal diffuser
diffuser
Max. weight load = 25 kg
Max. weight load = 25 kg
Max. display depth = 200 mm
Max. display depth = 365 mm
zinc coated lighting: natural anodised aluminium safety glass, clear lighting: natural anodised aluminium
929-226.21 console: bright silver duro console: bright silver duro console: bright silver duro
safety glass, clear for axis 617.5 mm 318-147.42 safety glass, clear
Set of 2 pcs. for axis 617.5 mm 318-141.42 for axis 992.5 mm 318-484.42 for axis 792.5 mm 318-139.42
for axis 992.5 mm 318-483.42 for axis 1242.5 mm 318-148.42 for axis 992.5 mm 318-140.42
for axis 1242.5 mm 318-142.42 safety glass, satinato safety glass, satinato
safety glass, satinato console: bright silver duro for axis 792.5 mm 318-139.45
for axis 617.5 mm 318-141.45 for axis 617.5 mm 318-147.45 for axis 992.5 mm 318-140.45
for axis 992.5 mm 318-483.45 for axis 992.5 mm 318-484.45 lighting: black anodised aluminium
for axis 1242.5 mm 318-142.45 for axis 1242.5 mm 318-148.45 console: black steel duro
lighting: black anodised aluminium safety glass, clear
console: black steel duro for axis 792.5 mm 318-139.52
safety glass, clear for axis 992.5 mm 318-140.52
for axis 617.5 mm 318-141.52 safety glass, satinato
for axis 992.5 mm 318-483.52 for axis 792.5 mm 318-139.55
for axis 1242.5 mm 318-142.52 for axis 992.5 mm 318-140.55
safety glass, satinato
for axis 617.5 mm 318-141.55
for axis 992.5 mm 318-483.55
for axis 1242.5 mm 318-142.55
5/2021 (EN) 121Xero Twin P/L
Vertical

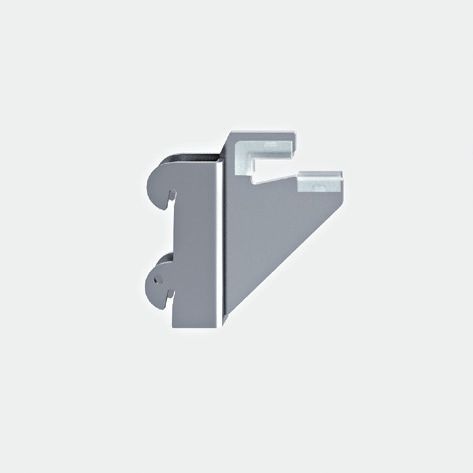

Glass shelf Brackets with single power LED lighting fixture with cable Brackets
Health & Beauty adapter 24 V connection for wooden shelf
for wooden shelf for wooden shelf
A 792.5
A 992.5
580
890
1140
406 406
255
Safety glass 6 mm. Brackets in pairs, with single power Cabel outlet sidewards. Max. weight load = 25 kg
adapter on the right Nominal voltage = 24 V DC
Max. weight load = 25 kg Electric power: 6 W / 10 W / 13 W Max. display depth = 380 mm
To be inserted into the electrical Colour temperature: 3000 K / 4000 K
Max. display depth = 225 mm profile. The single power adapter Drawing no.
SDCM3 252-821 Wooden shelf 30 mm
must only be connected by authorised Colour rendering index: 92
qualified personnel. Brightness: 1000 lm/m with opal
Nominal voltage = 24 V DC diffuser
Nominal current max. 4 A LED board with reverse polarity
protection
Max. weight load = 25 kg
Drawing no.
Max. display depth = 380 mm 229-120 Wooden shelf 30 mm
Drawing no. Observe the assembly and
229-120 Wooden shelf 30 mm operating instruction
safety glass, clear bright silver duro lighting: natural anodised aluminium bright silver duro
console: bright silver duro 349-065.12 3000 Kelvin 349-182.12
for axis 792.5 mm 318-145.42 black steel duro 580 mm (6 W) 332-420.05 black steel duro
for axis 992.5 mm 318-146.42 349-065.26 890 mm (10 W) 332-421.05 349-182.26
safety glass, satinato 1140 mm (13 W) 332-422.05
console: bright silver duro Set of 2 pcs. 4000 Kelvin Set of 2 pcs.
for axis 792.5 mm 318-145.45 580 mm (6 W) 332-436.05
for axis 992.5 mm 318-146.45 LED lighting fixture to be ordered 890 mm (10 W) 332-437.05
separately. 1140 mm (13 W) 332-438.05
lighting: black anodised aluminium
When selecting ‘black steel duro’, it 3000 Kelvin
is possible to order the single power 580 mm (6 W) 332-420.06
adapter in silver or black. 890 mm (10 W) 332-421.06
1140 mm (13 W) 332-422.06
4000 Kelvin
580 mm (6 W) 332-436.06
890 mm (10 W) 332-437.06
1140 mm (13 W) 332-438.06
Incl. supply cable l = 1000 mm (halo-
gen-free cable).
122 5/2021 (EN)Xero Twin P/L
Vertical
Glass shelf with LED lighting Glass shelf Support bracket with single LED lighting fixture with cable
with single bracket with single bracket power adapter 24 V connection
Fashion Fashion for wooden shelf for wooden shelf
620
330
620
580
414
356
418
Safety glass 6 mm. Safety glass 6 mm. To be inserted into electrical profile. Cabel outlet sidewards.
Nominal voltage = 24 V DC
To be inserted into electrical profile. To be inserted into electrical profile. Nominal voltage = 24 V DC Electric power: 6 W
Nominal current max. 4 A Colour temperature: 3000 K / 4000 K
The glass in the area closest to the Max. weight load = 25 kg
Max. weight load = 25 kg SDCM3
LED profile is 3°C warmer than the Colour rendering index: 92
Max. display depth = 365 mm
ambient temperature. Luminous flux: 1000 lm/m with opal
Max. display depth = 380 mm
diffuser
Nominal voltage = 24 V DC Drawing no. LED board with reverse polarity
Electric power: 6 W 247-841 Wooden shelf 25–30 mm protection
Colour temperature: 3000 K SDCM3
Colour rendering index: 92 Drawing no.
Luminous flux: 1000 lm/m with opal Wooden shelf for LED lighting
diffuser 247-841
Max. weight load = 25 kg Observe the assembly and
operating instruction
Max. display depth = 365 mm
lighting: natural anodised aluminium safety glass, clear bright silver duro lighting: natural anodised aluminium
console: bright silver duro console: bright silver duro 349-078.12 3000 Kelvin
safety glass, clear 318-151.42 black steel duro 580 mm (6 W) 332-420.05
318-149.42 safety glass, satinato 349-078.26 4000 Kelvin
safety glass, satinato console: bright silver duro 580 mm (6 W) 332-436.05
318-149.45 318-151.45 LED-lighting fixture 349-560.05 must lighting: black anodised aluminium
lighting: black anodised aluminium be ordered separately. 3000 Kelvin
console: black steel duro 580 mm (6 W) 332-420.06
safety glass, clear 4000 Kelvin
318-149.52 580 mm (6 W) 332-436.06
safety glass, satinato
318-149.55 Incl. supply cable l = 1000 mm (halo-
gen-free cable).
5/2021 (EN) 123Xero Twin P/L
Vertical
Single power adapter 24 V Single power adapter 24 V Support bracket Fixing set
for bracket for various appliances for wooden shelf for Xero Twin P/L profile
330
356
L = 500 mm
L = 500 mm
To be inserted into the electrical To be inserted into the electrical Max. weight load = 25 kg To be screwed to the back of wooden
profile. The single power adapter profile. The single power adapter panels.
must only be connected by authorised must only be connected by authorised Max. display depth = 380 mm
qualified personnel. qualified personnel. Max. weight load = 20 kg
Drawing no.
252-820 Wooden shelf 30 mm
The single power adapter may In addition to the connection of
only be used with the Xero L P/L lighting fixtures, it is also possible
and the Xero Twin P/L profiles. to connect other types of electrical
equipment whose overall power
Nominal voltage = 24 V DC consumption does not exceed 4 A.
Nominal current max. 4 A
The single power adapter may
Drawing no. only be used with the Xero L P/L
091-254 Bracket contour and the Xero Twin P/L profiles.
Observe the assembly and Nominal voltage = 24 V DC
operating instruction Nominal current max. 4 A
Observe the assembly and
operating instruction
silver silver bright silver duro raw chromed
349-060.19 349-061.19 349-183.12 395-650.41
black black black steel duro
349-060.06 349-061.06 349-183.26 Consisting of adapter and suspension
black steel duro lug.
Incl. supply cable for electrical appli- Incl. supply cable for electrical appli- 349-183.26
ances L = 500 mm. ances L = 500 mm.
124 5/2021 (EN)Xero Twin P/L
Vertical
Front arm, straight 30 x 15 mm Hanging rail 30 x 15 mm, 600 mm Support bracket 25 x 4 m Bracket 30 x 5 mm
T-arm for wooden or glass shelf for hanging rail 30 x 15 mm
372
300
25 x 4
30 x 15
30 x 15 300
292
30 x 5
35 x 20
350 30 x 15 600
Max. weight load = 25 kg Max. weight load = 25 kg Max. weight load = 25 kg Coat-hangers can slide along the
entire length of the hanging rail.
Max. display depth = 380 mm
Max. weight load = 25 kg per bracket
Drawing no.:
978-388 Glass shelf 8 mm
Drawing no.:
375-895 Wooden shelf 19 mm
chrome chrome chrome chrome
362-245.01 362-246.01 362-247.01 395-699.01
silk silk silk silk
362-245.30 362-246.30 362-247.30 395-699.30
black steel duro black steel duro black steel duro black steel duro
362-245.26 362-246.26 362-247.26 395-699.26
At least 2 brackets are required per
hanging rail.
5/2021 (EN) 125Xero Twin P/L
Vertical
Hanging rail 30 x 15 mm Bracket 30 x 5 mm Clamping bracket Scliss
rectangular tube for wooden or glass shelf for glass shelf
100 x
275 60
30 x 15
1245 30 x 5
R 20.5
lto
To be inserted into brackets for Max. weight load = 25 kg per bracket Max. weight load = 15 kg per bracket Prevents scratches on hanging rails
hanging rail. and front arms in silk or stainless steel.
Max. display depth = 380 mm Max. display depth = 380 mm
To clip into coat hanger hook
Drawing no.: Drawing no. (Ø 3.4–3.8 mm).
286-620 Glass shelf 8 mm 286-620 Glass shelf 8 mm
Drawing no.:
980-299 Wooden shelf 19 mm
chrome chrome chrome transparent
lto 620–2445 mm 315-758.01 395-697.01 395-644.01 929-449.02
silk silk silk
lto 620–2445 mm 315-758.30 395-697.30 395-644.30 Set of 100 pcs.
black steel duro black steel duro black steel duro
lto 620–2445 mm 315-758.26 395-697.26 395-644.26
620–1245 mm => 2 brackets At least 2 brackets are required per At least 2 brackets are required per
1246–1870 mm => 3 brackets hanging rail. shelf.
1871–2445 mm => 4 brackets
126 5/2021 (EN)Xero Twin P/L
Vertical
Sign holder Sign holder Universal magnetic holder
For vertical presentation. For horizontal presentation. For positioning and securing the sign.
chrome chrome silver
DIN A5 308-825.01 DIN A5 308-836.01 981-939.05
DIN A4 308-856.01 DIN A4 308-848.01
bright silver mistral bright silver mistral
DIN A5 308-825.66 DIN A5 308-836.66
DIN A4 308-856.66 DIN A4 308-848.66
black steel duro black steel duro
DIN A5 308-825.26 DIN A5 308-836.26
DIN A4 308-856.26 DIN A4 308-848.26
5/2021 (EN) 127You can get in touch with us by email or by phone.
Contact details for our offices can be found here:
www.visplay.com/contact
www.visplay.com info@visplay.comYou can also read
