Refrigerator
Eco-technologies ensure energy-saving and eliminate harmful materials while new
high-performance features enhance everyday life!
Super Energ y Saving
Combining the two highly energy efficient technologies of the inverter compressor controlling the cooling power and Dual Fan Cooling
controlling how much and to which compartment chilled air is delivered, this new cooling system assures even more efficient operation
with no wasted energy. As a result, it has acquired top class energy saving ratings worldwide.
Powerful Cooling Stabili
High power from the inverter compressor generates a large volume Even without a special stabili
of chilled air, and Dual Fan Cooling delivers all of this to the refrigerators can operate und
compartments for powerful cooling. So even if the ambient ranging from as low as 130V
temperature reaches as high as 60˚C, every corner inside the
refrigerator is still thoroughly cooled. High
Cools under wide
Cools even at voltage fluctuations
Low
60˚C 130v-300v
*2 *3
*2 Tested by Hitachi. Test conditions: Ambient
1 temperature of 60°C and stable interior conditions Temperature
without opening or closing the door.
Image of temperature distribution
Inverter×Dual Fan Cooling –
the Hitachi Solution for Powerful Refrigeration
Plus Exceptional Energy Saving.
Side by Side Side by Side
Luxury Series Mirror / Glass Series
Energy
Consumption 48% *1 Energy
Consumption 42%*1
Per Year (kWh) Energy Per Year (kWh) Energy
Saving Saving
Non-Inverter Non-Inverter
model model
R-M700GMS R-M700GMS
Net 584L Net 584L
Inverter
Inverter model
model
R-M700GP2MSX
R-M700AGP4MX Net 584L
Net 584L
Big French French Bottom Freezer
Energy
Consumption
Per Year (kWh)
35%*1 Energy
Consumption
Per Year (kWh)
25%*1
Energy Energy
Saving Saving
Non-Inverter Non-Inverter
model model
R-W691FMSX R-Z481EMSX
Net 550L Net 395L
Inverter
Inverter model
model
R-WB480P2MS
R-W720FPMSX Net 405L
Net 582L
Lower energy consumption even when compared Lower energy consumption even when compared
to the smaller capacity model. to the smaller capacity model.
Super Big2 Big2 New Stylish Line
Energy
Consumption
Per Year (kWh)
31%*1 Energy
Consumption
Per Year (kWh)
38%*1 Energy
Consumption
Per Year (kWh)
22%*1
Energy Energy Energy
Saving Saving Saving
Non-Inverter Non-Inverter Non-Inverter
model model model
R-Z693EMSX R-Z693EMSX R-ZG481EMS
Net 550L Net 550L Net 395L Inverter
Inverter Inverter model
model model R-VG481P3MS
R-V720PMSX R-VG690P3MS Net 395L
Net 600L Net 550L
Lower energy consumption even when compared
to the smaller capacity model.
*1Based on ISO 15502(2005) Household refrigerating appliances
zer Free 300V
Long Cool Keeper
zer, Hitachi’s inverter In the event of a power cut,
er wide voltage fluctuations the temperature in the freezer
to as high as 300V. compartment is maintained to
220V
keep food fresh for 12hours.
Cooling Retention
*3Tested by Hitachi. Operating
12Hours
Even during power cut
*4
condition may differ depending on
130V Image 2
situations. *4Tested by Hitachi.
Image of voltage fluctuations
How Hitachi’s Inverter and Dual Fan C
In Hitachi’s cooling system, the inverter compressor adjusts cooling power over
a wide range, changing the amount of chilled air generated inside as required.
The two dedicated fans of Dual Fan Cooling then deliver the chilled air to each
of the compartments. In this way, Hitachi’s cooling system provides optimum
cooling at all times.

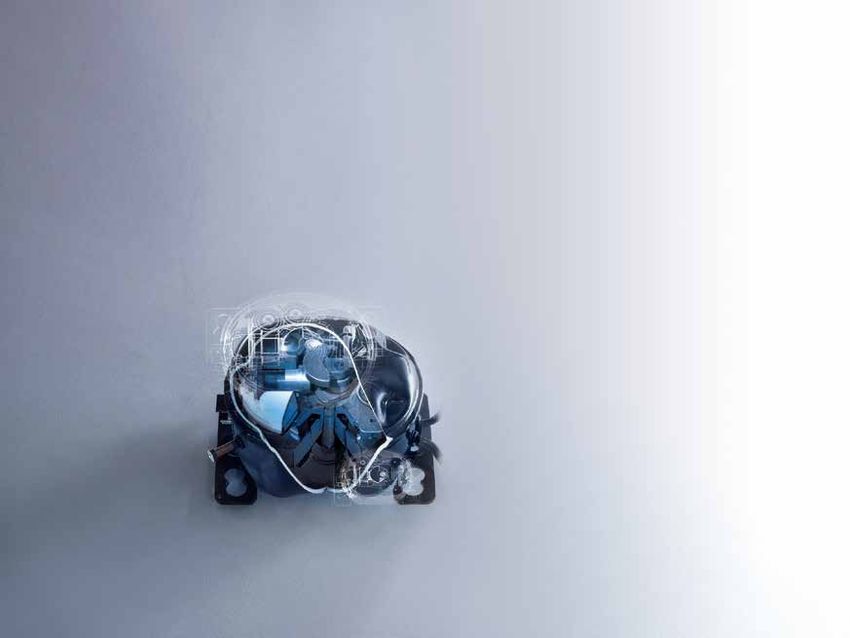

Compact but High Power
Inverter Compressor
The high-precision, high-durability inverter compressor finely adjusts cooling power over a wide
range from high to low. Unlike a conventional compressor that cools only by switching a fixed
power on or off, the inverter compressor is capable of providing exceptionally powerful cooling
by generating a large volume of chilled air, while also providing efficient low power cooling.
Depending on conditions inside and outside the refrigerator detected by the Eco Thermo
Sensor and with microcomputer control, it provides optimum cooling power at all times.
Quiet Operation R-600a Eco-Friendly Refrigerant
Heat radiated
Heat into space
absorbed
by the Earth
Trapped
heat
Incoming
solar energy
Rise in
temperature
CO2 and
greenhouse
gases
Mechanism of Global Warming
Why Hitachi’s Inverter?
Currently used in high-speed railway systems and the latest hybrid cars, Hitachi’s
inverter technology has always contributed to the development of society and
provided a comfortable living environment. By automatically controlling the motor,
this inverter technology enables optimum operation with little wasted energy,
so it’s also expected to play a vital role in reducing environmental impact.
3
ooling Work Together
Dual Fan Cooling
Dedicated Fans for Each of the Compartments
Two dedicated fans, one for the refrigerator compartment, the other for the freezer, independently cool each of
the compartments. So according to conditions, chilled air can be delivered only to the refrigerator compartment,
only to the freezer, or to both, which is impossible with conventional refrigerators that have only one fan.
What’s more, the fans adjust airflow to provide even more powerful and efficient cooling when required.
Freezer
Fan Front Air Flow
Refrigerator
Fan
Inverter
Compressor
Cools freezer Cools refrigerator *Except New Stylish Line
compartment compartment
Cools freezer and
refrigerator compartments
Big French Big2
Super Big2 New Stylish Line
A Range of Models
There are various types of refrigerators but they all provide intelligent cooling to each compartment with two separate fans.
Freezer
Fan
Refrigerator
Side by Side Fan
Inverter
Compressor
Cools freezer Cools refrigerator
compartment compartment
Cools freezer and
refrigerator compartments
French Bottom Refrigerator
Fan
Freezer Freezer
Fan
Inverter
Compressor
Cools freezer Cools refrigerator
Cools freezer and compartment compartment
refrigerator compartments
Why Hitachi’s Dual Fan Cooling ?
Hitachi’s Dual Fan Cooling enables independent cooling of the freezer and refrigerator
compartments, something a single fan can’t do. Using two fans, Dual Fan Cooling
also quickly and effectively circulates the cold air provided by powerful inverter
operation. Making the most of the inverter’s capabilities, Dual Fan Cooling is the ideal
cooling system.
4
Side by Side ( 584L )
Luxury
Freezer
Inverter×Dual Fan Cooling – Fan
Refrigerator
the Hitachi Solution for Fan
Inverter
Powerful Refrigeration Compressor
Plus Exceptional Energy Saving.
In Hitachi’s cooling system, the inverter compressor adjusts cooling power over a wide range, changing the amount of chilled air generated inside
as required. The two dedicated fans of Dual Fan Cooling then deliver the chilled air to each of the compartments.
In this way, Hitachi’s cooling system provides optimum cooling at all times.
Powerful Cooling Stabilizer Free Long Cool Keeper
300V
Cools under wide Cooling Retention
Cools even at voltage fluctuations
60˚C 15Hours*3
130v-300v *2
*1
220V
Even during power cut
High The highest heat insulation
*1 Tested by Hitachi. Test *2 Tested by Hitachi.
conditions: Ambient temperature Operating condition may performance of all Hitachi
of 60˚C and stable interior differ depending on refrigerator line*4 thanks to VIP.
conditions without opening or Low situations.
Temperature 130V Image
closing the door. *3 Tested by Hitachi. Applies to the freezer compartment.
5 Image of temperature distribution Image of voltage fluctuations *4 Compared to the 12hours cooling retention of other models.
A Breakthrough in Energy Saving
with Hitachi’s Advanced Technology
The new, cutting edge technolog y of VIP, together with Hitachi’s other original features,
provides world-leading energ y saving performance to support your everyday life.
VIP-Vacuum Insulation Panel
VIP is an energy saving technology next in line after “Inverter” to achieve even higher energy efficiency. In Hitachi’s new luxury series refrigerator,
the new vacuum insulation panels in side walls improved heat insulation performance and achieved further energy saving.
Highest Level Heat Insulation
Outer Bag
VIP is a thin panel with extremely high heat insulation
Inner Bag
performance. Its performance is much higher than Urethane,
a conventional insulation material for refrigerators.
VIP is manufactured in a vacuum environment in which
the atmospheric pressure is kept at a level similar to
Glass Wool
outer space, where no substances such as air exist,
Glass Fiber about 4µm so the inside of VIP is also in a vacuum state.
VIP
Air transfers heat, but not in the vacuum state.
A vacuum layer of VIP between the ambient air and
refrigerator can prevent heat loss and keep the inside
temperature low for a long time.
It also ensures longer cool keeper of 15hours*5 in the freezer
compartment even during power cut, longer than any of our
other models.*6
*5 Tested by Hitachi.
*6 Compared to the 12hours cooling retention of other models.
Image Image
How VIP Saves Energy in a Refrigerator?
The key to energy saving performance in refrigerator is to keep the inside temperature low for a long time. When it rises due to external heat entering
inside or cold air escaping from refrigerator, a compressor operates to lower the inside temperature and starts consuming more energy.
VIP prevents external heat from entering or internal cold air from escaping, achieving a new level of energy saving performance.
Auto Energ y Saving by Eco Monitoring Sensor
Eco Monitoring Sensor is a new function that senses When the Energy Saving mode is turned on,
if a person is near the refrigerator and automatically the “Energy Saving” LED on the controller is lit.
switches on/off the Energy Saving mode.
*The Energy Saving mode will not turn on when the power load on the refrigerator increases -
when the doors are opened and closed frequently or when the quick freezing is in progress,
or when something is placed in front of the sensor.
When nobody is near the refrigerator, Auto Display by Eco Monitoring Sensor
the Energy Saving mode is turned on and power The controller section is
consumption is reduced by slowly cooling displayed automatically
the inside. This is useful when you travel or leave only when somebody
your home for an extended period. approaches and provides
guidance in a user-friendly
manner. When it is not
When somebody approaches the refrigerator, turned on, the refrigerator
the Energy Saving mode is automatically turned has a neat appearance
off and the refrigerator operates normally. which blends in nicely
with other furniture of your
6
home.
Hitachi Technology for a Supreme Refr
Our original and highly advanced Auto Door technolog y provides a delightfully
adding more convenience to the uniquely advanced refrigerator.
Auto Door
The more items that are stored in the refrigerator and freezer,
the more the doors get opened, and yet, the heavier they get.
With Hitachi’s technology, even if the refrigerator and freezer
compartments are fully packed, the heavy doors can be opened
automatically in two ways for convenient access.
Touch open The door will automatically open when the open button is touched.
You can open each door with a single touch.
Touch the open button to
open the corresponding door.
Slide open
Touch the open button and slide
your finger to open both doors.
The door whose open button
was touched first will open and
the other door will follow.
You can open the door even while holding a pot or bag by touching
the open button with your hands.
*The open button cannot be operated through clothes.
This function is provided to help reduce the burden of opening the door but to only partly
open it. The angle that the doors open depends on the placement condition of the refrigerator.
The auto door function can be turned off to always open the doors manually.
The auto door function of refrigerator door does not operate when the vegetable
compartment door is open.
Touch Screen Controller Elegant Bottle and
Innovative technology is also Wine Shelf
elegantly incorporated in the door. This elegant shelf enables proper
Flat glass panel controls let you storage of bottles to prevent them
change settings with a simple from rolling. It also holds bottles at
touch. And the surface has been the optimum angle for storing
tempered, so a wipe is all it takes premium wines.
to clean it.
Extra Storage Space
The ice bank on the door enables
storage of items right up to the top
of the freezer compartment. Now
you can enjoy a large 18L of extra
Bright, Energ y Saving storage space.
LED Light
All compartments feature LED Nano Titanium
lighting that lasts a long time and Nano Titanium is a cutting edge technology that
consumes much less energy than uses a TiO2 catalyst to provide a powerful
7
conventional lamp. antibacterial, anti-mold and deodorizing effect. It’s
also maintenance-free and requires no extra energy.
igerator Experience
easy door opening experience like never before,
Tank Type Ice and Water Dispenser Makes
Clean Ice from Bottle Water
Enjoy Clean Ice and Water Anytime
from a Tank Water Supply System
Just pour mineral or other purified water into the
tank and ice is automatically made for you.
The large capacity tank holds a big 4L of cold
water, and you can remove it for easy cleaning.
No Plumbing Required
eed
No n
Because the unit does not need to be connected to
a tap, no troublesome plumbing is required, and you
can install it virtually anywhere.
Separate Compartment with
Clean Technology for Fresh Vegetables
Perfect approx.*1
Humidity % 90 *1Tested by Hitachi.
Differs depending on the amount
and type of vegetables.
Efficient, indirect cooling in each of the covered cases
maintains perfect humidity at the optimum level of approx.
90% to assure long-lasting freshness.
Clean Air and No Odor Transfer
The completely separate compartment is always full of clean
air that has passed through a Nano Titanium filter. Of course,
there’s also no transfer of odors from other compartments.
Luxury Series Refrigerator Compartment Dimensions (mm)
50 50
Water Tank with Filter
Bottle and Wine Shelf
720 50
50
R-M700AGP4MSX Net 584L Tempered Glass Shelves
1,215
1,100
LED Light Dairy Pocket
1,845
1,795
Vegetable Compartment
approx. approx.
Separate Veg. Compartment 270 920 370
Perfect Moist Drawers LED Light Space required for ventilation.
Freezer Compartment
Automatic Ice Maker
Tempered Glass Shelves LED Light 3 Door
Refrigerator
General Features Compartment
VIP (Vacuum Insulation Panel) Freezer
Auto Door Compartment
Eco Monitoring Sensor Vegetable
Compartment
Inverter Control Dual Fan Cooling
Tank Type Ice and Water Dispenser
Diamond Mirror Eco Thermo Sensor
(DIA) (MIR)
Touch Screen Controller
Nano Titanium Filter 8
Moldproof Door Gasket
No Frost CFC-Free HFC-Free
Side by Side ( 584L / 589L / 600L / 605L )
Mirror / Glass
Freezer
Dual Fan Cooling with Fan
Refrigerator
Fan
Two Dedicated Fans Inverter
Compressor
Super Energ y Saving Combining the two highly energy efficient technologies of the inverter compressor and
Dual Fan Cooling, this new cooling system assures even more efficient operation with no wasted
energy. As a result, it has acquired top class energy saving ratings worldwide.
Powerful Cooling Stabilizer Free
300V
Long Cool Keeper
Cooling Retention
High Cools under wide
220V 12Hours*3
Cools even at voltage fluctuations Even during power cut
60˚C *1
Low
Temperature
130v-300v *2
130V
*3 Tested by Hitachi.
Applies to freezer
compartment.
*1Tested by Hitachi. Image of temperature distribution *2Tested by Hitachi. Image of voltage fluctuations
Tank Type Ice and Water Dispenser Separate Compartment with Clean
Makes Clean Ice from Bottle Water Technology for Fresh Vegetables
Enjoy Clean Ice and Water approx.
Perfect
Anytime from a Tank Water
Supply System Humidity 90% *4
*4Tested by Hitachi. Differs depending on the amount and type of vegetables.
Just pour mineral or other purified water
into the tank and ice is automatically made
for you. The large capacity tank holds a big Clean Air and No Odor
4L of cold water, and you can remove it for Transfer
easy cleaning. The completely separate compartment is always
full of clean air that has passed through a Nano
9 No Plumbing No need Titanium filter. Of course, there’s also no transfer
Required of odors from other compartments.Outstanding Convenience
Touch Screen Controller Elegant Bottle and
Innovative technology is also elegantly Wine Shelf *5
incorporated in the door. Flat glass
This elegant shelf enables proper storage of
panel controls let you change settings
bottles to prevent them from rolling. It also
with a simple touch. And the surface
holds bottles at the optimum angle for storing
has been tempered, so a wipe is all it
premium wines.
takes to clean it.
*5 Applies to R-M700GPG2X
Extra Storage Space
The ice bank on the door enables storage of
items right up to the top of the freezer
Bright, Energy Saving compartment. Now you can enjoy a large 18L
LED Light of extra storage space.
All compartments feature LED lighting
that lasts a long time and consumes Nano Titanium
much less energy than conventional Nano Titanium is a cutting edge technology that uses a TiO2 catalyst
lamp. to provide a powerful antibacterial, anti-mold and deodorizing effect.
It’s also maintenance-free and requires no extra energy.
Mirror Series Dimensions (mm)
50 50
R-M700GPG2X Net 584L
720 50
50
1,215
1,100
1,825
1,775
approx. approx.
270 920 370
Space required for ventilation.
3 Door
Refrigerator
Compartment
Mirror Brown Mirror
Freezer
(MBW) (MIR) Compartment
Vegetable
Vegetable Compartment General Features Compartment
Separate Veg. Compartment Inverter Control Dual Fan Cooling
Perfect Moist Drawers LED Light Tank Type Ice and Water Dispenser
Refrigerator Compartment Freezer Compartment Eco Thermo Sensor
Touch Screen Controller
Water Tank with Filter Automatic Ice Maker Nano Titanium Filter 2 Door
Bottle and Wine Shelf Tempered Glass Shelves Moldproof Door Gasket Refrigerator
Tempered Glass Shelves LED Light No Frost CFC-Free HFC-Free Compartment
LED Light Dairy Pocket Freezer
Compartment
Vegetable
Compartment
Glass Series
R-S700GPG2 Net 589L R-M700GPG2 Net 584L
Refrigerator Compartment
Water Tank with Filter *6
Tempered Glass Shelves
LED Light Dairy Pocket
Glass Black Glass Silver Glass Black Glass Silver
(GBK) (GS) (GBK) (GS) Vegetable Compartment
Separate Veg. Compartment *7
Perfect Moist Drawers LED Light*7
R-S700PG2 Net 605L R-M700PG2 Net 600L Freezer Compartment
Automatic Ice Maker *6
Tempered Glass Shelves LED Light
General Features
Inverter Control Dual Fan Cooling
Tank Type Ice and Water Dispenser *6
Eco Thermo Sensor
Touch Screen Controller
Nano Titanium Filter
Glass Black Glass Silver Glass Black Glass Silver Moldproof Door Gasket
(GBK) (GS) (GBK) (GS) 10
No Frost CFC-Free HFC-Free
*6 Applies to R-M700GPG2 / R-S700GPG2 *7 Applies to R-M700GPG2 / R-M700PG2Big French ( 582L / 540L )
Freezer
Fan
Dual Fan Cooling with Refrigerator
Fan
Inverter
Two Dedicated Fans Compressor
Super Ener
Energ y Saving
Powerful Cooling Stabilizer Free
300V
220V
High Cools under wide
Cools even at voltage fluctuations
60˚C *1
Low
Temperature
130v-300v *2
130V
*1Tested by Hitachi. Image of temperature distribution *2Tested by Hitachi. Image of voltage fluctuations
Long Cool Keeper Cooling Retention
In the event of a power cut, the temperature in the freezer 12Hours *3
compartment is maintained to keep food fresh for 12hours. Even during power cut
*3Tested by Hitachi.
Applies to freezer compartment. Image
Smart, One-Touch Operation
with the LED Digital Control Panel
A quick push of the LED digital control panel lets you instantly activate microcomputer-controlled operating
modes. And you can adjust the inside temperature without opening the door.
Quick Freezing Energy Saving Child Lock
A strong flow of icy air quickly This mode saves energy when not For preventing children from
makes ice and freezes fresh meat using the refrigerator for a long playing with the control panel.
or fish. This mode prevents food time, such as when you’re away
from losing nutrients and flavor on vacation.
due to dripping.
Automatic Ice Maker Bright, Energy Saving LED Light Center-Divided French Doors
Ice cubes can be Both compartments Half-door opening
made automatically feature LED lighting lets you use more
and continuously that lasts a long time space and prevent
simply by filling the and consumes much chilled air escaping.
tank with water. less energy than
conventional lamp.
11Super Spacious, Wider 78cm Interior *4
for Unprecedented Storage Capacity
A Wider
78cm *4
*4 Applies to the 582 model.
Selectable Mode Compartment Big, Moisture-Guard Vegetable
Located on both sides, the select levers let you
separately adjust the temperature in each side
Compartment
of the compartment by switching between the The vegetable compartment also offers
Vegetable and Dairy/Meat modes. Layout ultra large storage capacity.
flexibility offers even more convenience. And the Moisture-Guard on the top
ensures indirect cooling to maintain the
Vegetable Mode Dairy/Meat Mode optimum moisture level, so vegetables
retain their freshness.
Tempered Glass Shelves Moldproof Door Gasket
As well as offering an elegant appearance,
these shelves are scratch-proof, Thanks to Hitachi’s moldproofing
heat-resistant and they prevent spills. treatment, the door gasket can be
What’s more, each one of them can cleaned easily.
hold up to 100kg.*5
*5 Weight resistance of Tempered Glass.
Nano Titanium
Nano Titanium is a cutting edge technology that uses a TiO2 catalyst to provide a powerful antibacterial, anti-mold and deodorizing
effect. It’s also maintenance-free and requires no extra energy.
Deluxe Series
R-W720FPG1X Net 582L / R-W660FPG3X Net 540L
Refrigerator Compartment General Features
Freezer
Selectable Mode Compartment Inverter Control Compartment
Big, Moisture-Guard Dual Fan Cooling
Vegetable Compartment Eco Thermo Sensor
Refrigerator
Front Air Flow LED Light LED Control Panel Compartment
Power Cool Pocket Blue Digital Display
Tempered Glass Shelves (Deluxe Series)
Cool Power Display Vegetable
Freezer Compartment Nano Titanium Filter Compartment
Automatic Ice Maker Moldproof Door Gasket
(Deluxe Series) No Frost CFC-Free
Glass Black Glass Brown Movable Twist Ice Tray HFC-Free
(GBK) (GBW)
(Standard Series)
LED Light Quick Freezing
Tempered Glass Shelf
Standard Series
R-W910PG4 Net 700L R-W720PG1 Net 582L / R-W660PG3 Net 540L R-W610PG4 Net 509L
Inox Glass Black Glass Black Glass Brown Stainless Steel Inox Glass Black
(INX) (GBK) (GBK) (GBW) (STS) (INX) (GBK)
Dimensions (mm)
50 50 50 50 50 50 50 50
300
300
300
807 100
727 100
727 100
300
727 100
12
1,225
1,205
1,095
1,195
2,135
1,835
2,135
1,835
2,135
2,060
1760
1,835
approx. approx. approx. approx. approx. approx. approx. approx.
319 910 319 319 910 319 300 855 300 300 855 300 Space required for ventilation.
Net 700L Net 582L Net 540L Net 509LFrench Bottom Freezer ( 455L / 405L )
Refrigerator
Fan
Dual Fan Cooling with Freezer
Fan
Two Dedicated Fans Inverter
Compressor
Super Ener
Energ y Saving
Powerful Cooling Stabilizer Free
300V
220V
High Cools under wide
Cools even at voltage fluctuations
60˚C *1
Low
Temperature
130v-300v *2
130V
*1Tested by Hitachi. Image of temperature distribution *2Tested by Hitachi. Image of voltage fluctuations
Long Cool Keeper Cooling Retention
In the event of a power cut, the temperature in the freezer 12Hours *3
compartment is maintained to keep food fresh for 12hours. Even during power cut
*3Tested by Hitachi.
Applies to freezer compartment. Image
Refrigerator Compartment
Bright, Energy Saving LED Light
Features LED lighting that lasts a long time and consumes
much less energy than conventional lamp.
Tempered Glass Shelves
As well as offering an elegant appearance, these shelves
are scratch-proof, heat-resistant and they prevent spills.
What’s more, each one of them can hold up to 100kg.*4
*4 Weight resistance of Tempered Glass.
Jumbo Door Pockets
Just the right size, these pockets are wide enough to hold
2L bottles.
Touch Screen Controller
Innovative technology is also elegantly incorporated in
the door. Flat glass panel controls let you change
settings with a simple touch. And the surface has been
tempered, so a wipe is all it takes to clean it.
Nano Titanium
13 Nano Titanium is a cutting edge technology that uses a TiO2 catalyst to provide a powerful antibacterial,
anti-mold and deodorizing effect. It’s also maintenance-free and requires no extra energy.Smart, Extendable Vegetable Compartment
The new vegetable compartment features a drawer-type construction that
enables quick, easy access to everything stored inside. It also provides large
storage space for plenty of items and extra convenience.
Smart, Smooth Opening
For easy pulling out, the drawer features a sturdy
frame with glass. It can hold and support heavy
items but it’s easy to open and close with minimal
effort. And you can take out the case for easy
cleaning.
Deep, Extendable Compartment Large Capacity
The case can be significantly extended, This unique structure
which enables easy arrangement of items and provides large storage
storage of large vegetables whole. And because you capacity ready to hold plenty
can see right to the back, you’re less likely to of fruits and vegetables.
overlook and forget about items stored there.
Convenient, Easy-to-See Layout Keeps Vegetables Crisp and Fresh
The refrigerator compartment is located at the top at a To prevent loss of moisture, the vegetable case has a cover
height that makes it easier to use. Open the door and that maintains the optimum humidity level. This helps
you can see and access everything stored in it, which preserve the freshness of stored fruits and vegetables.
is a real convenience when thinking about mealtime
menus.
Selectable Mode Compartment
Layout Flexibility for Even More Convenience
The Select Lever provides an easy way to switch between the Vegetable and Dairy/Meat modes.
This lets you customize the layout as desired to match your lifestyle and needs.
Vegetable Mode Dairy / Meat Mode
For storage of more fruits and For storage of dairy products
vegetables Keeps meat and fish fresh
Enables organization of items by size Thaws frozen meals
For storage of easily damaged Rapidly cools drinks
soft fruits and vegetables
Freezer Compartment Movable Twist Ice Tray
This also features a double-deck construction for easier You can move the ice tray for more
organization of items. convenient and efficient use of storage
space.
R-WB550PG2 Net 455L
R-WB480PG2 Net 405L
Freezer Compartment
Double-Deck Drawer
Movable Twist Ice Tray Refrigerator
Compartment
Refrigerator Compartment General Features
Smart-Open Vege Compartment Inverter Control Vegetable
Dual Fan Cooling Compartment
Selectable Mode Compartment
LED Light Eco Thermo Sensor
Freezer
Tempered Glass Shelves Touch Screen Controller Compartment
Nano Titanium Filter
Moldproof Door Gasket
No Frost CFC-Free HFC-Free
Dimensions(mm)
10 10 10 10
50
50
760 50
760 50
1,106
1,142
Glass Black Glass Gray Glass Brown Glass Silver
1,830
1,830
(GBK) (GGR) (GBW) (GS)
1,780
1,780
14
608
608
approx. approx. approx. approx.
304 750 304 277 680 277
760 760
1,190 1,190
Space required
Net 455L Net 405L for ventilation.Super Big2 ( 700L / 600L )
Freezer
Fan
Dual Fan Cooling with
Refrigerator
Fan
Inverter
Two Dedicated Fans
Compressor
Super Ener
Energ y Saving
Powerful Cooling Stabilizer Free
300V
220V
High Cools under wide
Cools even at voltage fluctuations
60˚C *1
Low
Temperature
130v-300v *2
130V
*1 Tested by Hitachi. Image of temperature distribution *2 Tested by Hitachi. Image of voltage fluctuations
Long Cool Keeper Cooling Retention
In the event of a power cut, the temperature in the freezer 12Hours *3
compartment is maintained to keep food fresh for 12hours. Even during power cut
*3 Tested by Hitachi.
Applies to freezer compartment. Image
Selectable Mode Compartment
Layout Flexibility for Even More Convenience
The Select Levers located on both
sides provide an easy way to switch Vegetable Mode
between the Vegetable and For storage of more fruits and vegetables
Dairy/Meat modes by adjusting the Enables organization of items by size
For storage of easily damaged soft fruits
temperature in each side of the
and vegetables
compartment. And you can move the
separator to change the size of the Dairy/Meat Mode
left/right areas for extra layout For storage of dairy products
flexibility. Keeps meat and fish fresh
Thaws frozen meals
Rapidly cools drinks
Big, Moisture-Guard Vegetable Compartment
The vegetable compartment also offers ultra large storage capacity. It’s wide, deep and goes back a long way,
ready for even big fruits and vegetables. And the movable separator enables easy, neat storage.
Optimum Perfect Humidity with the Moisture Guard Perfect
The Moisture Guard on the top of the vegetable compartment ensures Humidity
approx.
indirect cooling to maintain the optimum moisture level. This prevents
moisture escaping from vegetables so they retain their freshness.
90% *4
*4 Tested by Hitachi.
Differs depending on the
Double -Deck Vegetable Storage amount and type of vegetables.
Select the Vegetable mode of the selectable mode compartment, and it becomes a second storage area for vegetables,
15
adding an extra 31L of space. This is ideal when you have a lot of fruits and vegetables and want to store items by size.Mega-Size Refrigerator
LED Control Panel
Bright, Energy Saving
LED Light
Nano Titanium
Nano Titanium is a cutting edge technology that uses a TiO2 catalyst to provide a powerful
antibacterial, anti-mold and deodorizing effect. It’s also maintenance-free and requires no extra energy.
Standard Series
R-V910PG1X Net 700L R-V910PG1 Net 700L Dimensions (mm)
R-V720PG1X Net 600L R-V720PG1 Net 600L
50 50
300
745 (600L) 100
825 (700L)
1,681(600L)
1,761(700L)
1,835
2,135
approx.
910 610
Space required for ventilation.
Freezer
Compartment
Inox Stainless Steel Silver
(INX) (STS) (SLS) Refrigerator
Compartment
Vegetable
Compartment
Refrigerator Compartment Freezer Compartment General Features
16
Selectable Mode Compartment Movable Twist Ice Tray LED Light Inverter Control Dual Fan Cooling
Big, Moisture-Guard Vegetable Compartment Tempered Glass Shelf Eco Thermo Sensor LED Control Panel
Front Air Flow LED Light Cool Power Display Nano Titanium Filter
Power Cool Pocket Tempered Glass Shelves Moldproof Door Gasket
No Frost CFC-Free HFC-FreeBig2 ( 550L / 510L / 450L )
Freezer
Fan
Dual Fan Cooling with Refrigerator
Fan
Inverter
Two Dedicated Fans Compressor
Super Ener
Energ y Saving
Powerful Cooling Stabilizer Free
300V
220V
High Cools under wide
Cools even at voltage fluctuations
60˚C *1
Low
Temperature
130v-300v *2
130V
*1 Tested by Hitachi. Image of temperature distribution *2 Tested by Hitachi. Image of voltage fluctuations
Long Cool Keeper Cooling Retention
In the event of a power cut, the temperature in the freezer 12Hours *3
compartment is maintained to keep food fresh for 12hours. Even during power cut
*3 Tested by Hitachi.
Applies to freezer compartment. Image
Touch Screen Controller
Innovative technology is also elegantly incorporated in the door.
Flat glass panel controls let you change settings with a simple
touch. And the surface has been tempered, so a wipe is all it
takes to clean it.
Selectable Mode Compartment
Layout Flexibility for Even More Convenience
The Select Lever provides an easy way to switch between the
Vegetable and Dairy / Meat modes. This lets you customize the layout
as desired to match your lifestyle and needs.
Vegetable Mode
For storage of more fruits and vegetables
Enables organization of items by size
For storage of easily damaged soft fruits
and vegetables
Dairy/ Meat Mode
For storage of dairy products
Keeps meat and fish fresh
17 Thaws frozen meals
Rapidly cools drinksBig, Moisture-Guard Vegetable Compartment
The vegetable compartment also offers ultra large storage capacity. It’s wide, deep and goes back a long way,
ready for even big fruits and vegetables. And the movable separator enables easy, neat storage.
Optimum Perfect Humidity with
the Moisture Guard Perfect
The Moisture Guard on the top of the vegetable Humidity
approx.
compartment ensures indirect cooling to maintain
the optimum moisture level. This prevents moisture
escaping from vegetables so they retain their freshness.
90% *4
*4 Tested by Hitachi.
Differs depending on
the amount and type
of vegetables.
Doubl
Double-Deck Vegetable Storage
Select the Vegetable mode of the selectable mode compartment, and it becomes a second
storage area for vegetables, adding an extra space. This is ideal when you have a lot of fruits
and vegetables and want to store items by size.
Adjustable Pockets Nano Titanium
You can adjust the height of the pockets in two Nano Titanium is a cutting edge technology
steps to match the items being stored, and that uses a TiO2 catalyst to provide a powerful
there’s enough room to store 2L bottles. antibacterial, anti-mold and deodorizing
*The photo shows 550L door pockets. effect. It’s also maintenance-free and requires
no extra energy.
Movable Twist Bright, Energy Saving Tempered Glass Moldproof Door
Ice Tray LED Light Shelves Gasket
Glass Door Series
R-VG660PG3 Net 550L R-VG610PG3 Net 510L
Glass Black Glass Gray Glass Black Glass Gray
(GBK) (GGR) (GBK) (GGR)
R-VG540PG3 Net 450L
18
Glass Black Glass Gray
(GBK) (GGR)Stylish Door Series
R-V660PG3X Net 550L R-V610PG3X Net 510L
Stainless Steel Inox Stainless Steel Inox
(STS) (INX) (STS) (INX)
R-V540PG3X Net 450L R-V660PG3 Net 550L
Stainless Steel Inox Silver Pure White Textured
(STS) (INX) (SLS) (PWH) White (TWH)
R-V610PG3 Net 510L
Dimensions (mm)
50 50
745(Stylish Series) 100
300
740(Glass Series)
1,625
2,135
1,835
855
approx.
Net 550L 570
Silver Pure White Textured
50 50
(SLS) (PWH) White (TWH)
745(Stylish Series) 100
300
740(Glass Series)
2,060
1,625
1,760
855
R-V540PG3 Net 450L
approx.
Net 510L 570
50 50
745(Stylish Series) 100
300
740(Glass Series)
2,135
1,485
1,835
715
approx.
Net 450L 480
Space required for ventilation.
Silver Pure White Textured
(SLS) (PWH) White (TWH)
Refrigerator Compartment Freezer Compartment General Features
Selectable Mode Compartment Movable Twist Ice Tray Inverter Control Freezer
Big, Moisture-Guard LED Light Dual Fan Cooling Compartment
Vegetable Compartment Tempered Glass Shelf Touch Screen Controller
Front Air Flow Eco Thermo Sensor Refrigerator
Compartment
19 LED Light Nano Titanium Filter
Adjustable Pockets Moldproof Door Gasket
Power Cool Pocket No Frost CFC-Free Vegetable
Compartment
Tempered Glass Shelves HFC-FreeNew Stylish Line ( 395L / 365L / 335L )
Freezer
Fan
Dual Fan Cooling with
Refrigerator
Fan
Inverter
Two Dedicated Fans
Compressor
Super Ener
Energ y Saving
Powerful Cooling Stabilizer Free
300V
220V
High Cools under wide
Cools even at voltage fluctuations
60˚C *1
Low 130v-300v *2
Temperature 130V
*1 Tested by Hitachi. Image of temperature distribution *2 Tested by Hitachi. Image of voltage fluctuations
Long Cool Keeper Cooling Retention
In the event of a power cut, the temperature in the freezer 12Hours *3
compartment is maintained to keep food fresh for 12hours. Even during power cut
*3 Tested by Hitachi.
Applies to freezer compartment. Image
Compact but High Power Inverter Compressor
The high-precision, high-durability inverter compressor finely adjusts cooling power over a wide range from high to
low. Unlike a conventional compressor that cools only by switching a fixed power on or off, the inverter compressor
is capable of providing exceptionally powerful cooling by generating a large volume of chilled air, while also
providing efficient low power cooling.
Depending on conditions inside and outside the refrigerator detected by the Eco Thermo Sensor and with
microcomputer control, it provides optimum cooling power at all times.
Dual Fan Cooling Dedicated Fans
for Each of the Compartments
Two dedicated fans, one for the refrigerator compartment, the other for the freezer,
independently cool each of the compartments. So according to conditions, chilled air can be
delivered only to the refrigerator compartment, only to the freezer, or to both, which is
impossible with conventional refrigerators that have only one fan. What’s more, the fans
adjust airflow to provide even more powerful and efficient cooling when required.
Eco Thermo Sensor Control
Hitachi’s Eco Thermo Sensor detects temperature changes inside the refrigerator, and then the
microcomputer provides optimum cooling for efficient operation at all times.
Microcomputer
20Smart Vegetable Slide Out Chilled Case
Compartment This case is chilled to a temperature
of -1°C to preserve the freshness of
The framed container enables easy
meat, fish and cheese. It can also
opening and closing even when a lot
be used to cool drinks.
of items are stored.
*4 Indirect cooling to maintain the
Perfect Humidity approx. 90 % optimum moisture level.
*4 Tested by Hitachi. Differs depending on the amount and type of vegetables.
Movable Bright, Energy Tempered Glass Moldproof Nano Titanium
Twist Ice Tray Saving LED Light Shelves Door Gasket
Nano Titanium is a
cutting edge technology
that uses a TiO2 catalyst to
You can move the ice tray Refrigerator compartment As well as offering an elegant Thanks to Hitachi’s provide a powerful
for more convenient and features LED lighting that appearance, these shelves are moldproofing treatment, antibacterial, anti-mold
efficient use of storage lasts a long time and scratch-proof, heat-resistant the door gasket can be and deodorizing effect. It’s
space. consumes much less and they prevent spills. What’s cleaned easily. also maintenance-free and
energy than conventional more, each one of them can requires no extra energy.
lamp. hold up to 100kg.*5
*5 Weight resistance of Tempered Glass.
Glass Series
R-VG470PG3 / R-VG470PUN3 Net 395L
Refrigerator Compartment
R-VG440PG3 / R-VG440PUN3 Net 365L LED Light
R-VG400PG3 / R-VG400PUN3 Net 335L Tempered Glass Shelves
Slide Out Chilled Case
Jumbo Door Pocket
Freezer Compartment
Movable Twist Ice Tray
Tempered Glass Shelf
General Features
Inverter Control
Dual Fan Cooling
Eco Thermo Sensor
Nano Titanium Filter Freezer
Moldproof Door Gasket Compartment
No Frost CFC-Free
HFC-Free Refrigerator
Compartment
Glass Black Glass Brown Glass Gray Lock and Key
(GBK) (GBW) (GGR) (R-V470PUK3K / R-V440PUK3K / R-V400PUK3K)
Water Dispenser Vegetable
(R-V470PG3D / R-V440PG3D / R-V400PG3D)
Compartment
Stylish Series
R-V470PG3D Net 395L R-V470PUK3K Net 395L R-V470PG3 Net 395L
R-V440PG3D Net 365L R-V440PUK3K Net 365L R-V440PG3 Net 365L
R-V400PG3D Net 335L R-V400PUK3K Net 335L R-V400PG3 Net 335L
Silver Silver Inox Silver Inox
(SLS) (SLS) (INX) (SLS) (INX)
Dimensions (mm)
50 50 50 50 50 50
300
720 100
720 100
720 100
300
300
753*
753*
753*
2,051
1,435
1,405
1,405
1,886
1,976
1,605
1,770
1,695
21
Space required for
approx. approx. approx. ventilation.
Net 395L 680 450 Net 365L 650 425 Net 335L 650 425 *Water DispenserNew Stylish Line ( 290L / 260L / 230L / 203L )
Super Energ y Saving
Inverter Control for World Top Class
Energy Saving Operation
A refrigerator operates nonstop every day. Ready to satisfy all of your daily needs,
an inverter refrigerator adjusts cooling power as required to provide intelligent
cooling and energy saving.
Powerful Cooling Stabilizer Free
300V
220V
High Cools under wide
Cools even at voltage fluctuations
60ºC *1
Low
Temperature
130v-300v *2
130V
*1 Tested by Hitachi. Image of temperature distribution *2 Tested by Hitachi. Image of voltage fluctuations
Long Cool Keeper Cooling Retention
In the event of a power cut, the temperature in the freezer 12Hours *3
compartment is maintained to keep food fresh for 12hours. Even during power cut
*3 Tested by Hitachi.
Applies to freezer compartment. Image
Compact but High Power Inverter Compressor
The high-precision, high-durability inverter compressor finely adjusts cooling power over a wide range from high to
low. Unlike a conventional compressor that cools only by switching a fixed power on or off, the inverter compressor
is capable of providing exceptionally powerful cooling by generating a large volume of chilled air, while also
providing efficient low power cooling.
Depending on conditions inside and outside the refrigerator detected by the Eco Thermo Sensor and with
microcomputer control, it provides optimum cooling power at all times.
Eco Thermo Sensor Control with Electric Damper
How Does the Eco Thermo Sensor and Electric Damper Work?
Hitachi’s Eco Thermo Sensor is a system featuring multiple sensors that Factors that change the temperature
constantly detect even the slightest temperature changes inside the refrigerator, inside the refrigerator (Schematic diagram)
providing the microcomputer with the information required for optimum operation.
The microcomputer operates the compressor, fan motor, and electric damper Amount of
efficiently, realizing quick temperature recovery at the time of inside temperature food stored
The Microcomputer for changes. Frequency
The electric damper further assures optimal control of inside temperature. of opening/
Hitachi’s Eco Thermo closing of
Sensor provides It accomplishes automatic temperature control without the need of manually door
optimum cooling for adjusting a temperature setting dial inside, so users only need to set the dial when Ambient
efficient energy saving they want a particular temperature. The electric damper also enables independent temperature 22
operation at all times. operation of the freezer compartment, providing more efficient cooling. changesBig Vegetable Compartment Extra 15L *4
with the Convertible
This big vegetable compartment provides plenty of space for storage of a lot of large fruits Compartment
and vegetables. With the Convertible Compartment used in the Vegetable mode, you can
enjoy double-deck vegetable storage for even more storage space. Better still, each
compartment has a different depth, so you can organize items by size and type for extra 26L*4
convenience.
Big
total 41L *4
Hitachi’s Original Convertible *4 Applies to the 290L and 260L models
Compartment Lets You Select the Temperature
Hitachi’s innovative Convertible Compartment lets you switch between the Vegetable and Dairy/Meat modes cooling depending on where you locate the
compartment in the refrigerator. So you can customize your refrigerator as desired to match your lifestyle and needs. And it’s easy to move and set in place.
Vegetable Mode Dairy / Meat Mode
With the case located at the lower position With the case located at the upper position
For storage of more fruits and vegetables For storage of dairy products
Enables organization of items by size Keeps meat and fish fresh
For storage of easily damaged soft Thaws frozen meals
fruits and vegetables Rapidly cools drinks
Movable Bright, Energy Tempered Glass Moldproof Nano
Twist Ice Tray Saving LED Light Shelves Door Gasket Titanium
Nano Titanium is a cutting edge
technology that uses a TiO2
catalyst to provide a powerful
antibacterial, anti-mold and
deodorizing effect.
It’s also maintenance-free and
requires no extra energy.
Stylish Series
R-H350PG4 Net 290L R-H310PG4 Net 260L
Inox Silver Pure White Pure Black Inox Silver Pure White Pure Black
(INX) (SLS) (PWH) (PBK) (INX) (SLS) (PWH) (PBK)
R-H230PG4 Net 230L R-H200PG4 Net 203L
23 Silver Pure White Pure Black Silver Pure White Pure Black
(SLS) (PWH) (PBK) (SLS) (PWH) (PBK)R-H380PUN4K Net 290L
Inox Silver Pure White Pure Black
(INX) (SLS) (PWH) (PBK)
R-H360PUN4K Net 260L
Refrigerator Compartment
Convertible Compartment
Big Vegetable Compartment
Wide Open Veg. Compartment
Beverage Pockets
Tempered Glass Shelves
LED Light
Inox Silver Pure White Pure Black
(INX) (SLS) (PWH) (PBK) Freezer Compartment
Movable Twist Ice Tray
Tempered Glass Shelf
R-H330PUN4K Net 230L
General Features
Inverter Control Eco Thermo Sensor
Electronic Control
Rear Temp. Control Dial Air Jet Flow
Nano Titanium Filter
Moldproof Door Gasket
No Frost CFC-Free
Lock and Key (R-H380PUN4K
/ R-H360PUN4K / R-H330PUN4K
/ R-H290PUN4K)
Silver Pure White Pure Black
(SLS) (PWH) (PBK)
R-H290PUN4K Net 203L
Silver Pure White Pure Black
(SLS) (PWH) (PBK)
Space required
for ventilation.
R-T17EG4 Net 168L Refrigerator Compartment General Features
Slide Out Chilled Case Air Jet Flow
2-way Humidity Controller Nano Titanium Filter
Wide Lamp Moldproof Door Gasket
No Frost CFC Free
Freezer Compartment Eco Thermo Sensor
Ice Tray Electronic Control
Space required
for ventilation.
Silver
(SLS) 24Solfege ( 365L / 305L )
Super Energ y Saving Stabilizer Free
Cools under wide
voltage fluctuations
130v-300v *1
*1 Tested by Hitachi.
300V
Inverter Control for World Top Class Energy Saving Operation
220V
A refrigerator operates nonstop every day. Ready to satisfy all of your daily needs, an inverter refrigerator
adjusts cooling power as required to provide intelligent cooling and energy saving. 130V
Image of voltage fluctuations
Compact but High Power Inverter Compressor
The high-precision, high-durability inverter compressor Image of Inverter Operation
finely adjusts cooling power over a wide range from Freezer Temperature is high Cool enough
Temp.
high to low. Unlike a conventional compressor that
cools only by switching on or off of a fixed power, -19°C
the inverter compressor is capable of providing High Power
exceptionally powerful cooling by generating a large Compressor
Power
volume of chilled air, while also providing efficient low
power cooling. Depending on conditions inside and Low Power
Inverter
outside the refrigerator detected by Eco Thermo
Sensor and with microcomputer control, it provides Compressor Fixed Power Fixed Power
Power
optimum cooling power at all times. Non
Inverter
Quiet Operation
R-600a Eco-Friendly Operation switching to a lower setting and minimal
Refrigerant Heat
absorbed
Heat radiated
into space compressor on/off switching let you enjoy a quiet,
Hitachi’s inverter compressor uses the by the Earth peaceful living environment.
refrigerant R-600a. It’s free of CFCs, so it has Trapped The compressor’s high
heat
an ozone depletion potential of zero, and free of precision further ensures
Incoming smooth on/off switching
HFCs, so it also has an extremely low global solar energy
warming potential 1/400 that of conventional Rise in with reduced noise.
temperature
refrigerants. The other good news is that as well CO2 and
as being eco-friendly, it provides high cooling greenhouse
gases
efficiency and helps to save energy.
Mechanism of Global Warming
25Independent Vegetable Compartment
Located in the middle where it’s easy to see and pull out.
The double-deck construction also enables easy organization of items.
Ideal for storing large quantities of fruits and vegetables.
High-Moisture Cooling
Optimum humidity is maintained inside the
compartment to keep vegetables fresh.
Refrigerator Compartment
Refr
Bright, Ener
Energy Saving LED Light LED Control Panel
Features LED lighting that lasts Positioned right above the
a long time and consumes much less handle, the LED control panel is
energy than conventional lamp. easy to see and enables simple
one-touch operation.
3-Way Flexible Shelf
Foldable shelf for items of various sizes.
Nano Titanium
Nano Titanium is a cutting edge
technology that uses a TiO2 catalyst
to provide a powerful antibacterial,
anti-mold and deodorizing effect. It’s
Pre-set shelf for Folded for storage of tall Folded and stored at the back also maintenance-free and requires
regular storage items such as bottles. for storage of large items such
as pots and bowls. no extra energy.
Freezer Compartment
This also features a Automatic Ice Maker
double-deck construction for Fill the tank in the refrigerator with water
easier organization of items. and ice cubes are automatically made
for you in a convenient position.
R-SG37BPG Net 365L Dimensions (mm)
10 10
50
Refrigerator Compartment
3-Way Flexible Shelf
630 50
1,866
1,816
Tempered Glass Shelves
1,225
Slide Out Fresh Room
894
Jumbo Door Pocket
LED Light 630 590 approx.
970 375
Vegetable Compartment Net 365L
Slide Type Double-Deck Drawer
10 10
50
High-Moisture Cooling
Bottle Corner
630 50
1,785
1,735
Freezer Compartment
1,175
Inox Glass Silver Glass Brown Glass Black
894
(INX) (GS) (GBW) (GBK) Slide Type Double-Deck Drawer
Automatic Ice Maker
R-SG31BPG Net 305L Quick Freezing 630 540 approx.
340
970
General Features Net 305L
Inverter Control Space required for ventilation.
Eco Thermo Sensor
LED Control Panel
Nano Titanium Filter
Moldproof Door Gasket
No Frost CFC-Free Refrigerator
HFC-Free Compartment
Vegetable
Compartment
26
Freezer
Compartment
Inox Glass Silver Glass Brown Glass Black
(INX) (GS) (GBW) (GBK)SPECIFICATIONS
Luxury Series Mirror Series Glass Series
Side by Side 3 Door 2 Door
Model R-M700AGPG4X R-M700GPG2X R-M700GPG2 R-M700PG2 R-S700GPG2 R-S700PG2
Net Capacity (L) Total 584 584 584 600 589 605
Freezer 212 212 212 228 212 228
Refrigerator Compartment Water Tank with Filter • • • - • -
Bottle & Wine Shelf • • - - - -
Tempered Glass Shelves 4 4 4 4 5 5
Dairy Pocket • • • • • •
LED Light • • • • • •
Vegetable Compartment Perfect Moisture Drawers 3 3 3 3 2 2
LED Light • • • • - -
Freezer Compartment Automatic Ice Maker • • • - • -
Tempered Glass Shelves 4 4 4 5 5 5
Drawers 3 3 3 2 2 2
LED Light • • • • • •
General Features Ice & Water Dispenser • • • - • -
Inverter Control • • • • • •
VIP (Vacuum Insulation Panel) • - - - - -
Auto Door • - - - - -
Eco Monitoring Sensor • - - - - -
Eco Thermo Sensor • • • • • •
Touch Screen Controller • • • • • •
Door Alarm • • • • • •
Nano Titanium • • • • • •
CFC Free • • • • • •
HFC Free • • • • • •
Refrigerant R-600a R-600a R-600a R-600a R-600a R-600a
Power Supply (V, Hz) 220-240, 50 220-240, 50 220-240, 50 220-240, 50 220-240, 50 220-240, 50
Plug VDE 2PIN VDE 2PIN VDE 2PIN VDE 2PIN VDE 2PIN VDE 2PIN
Dimensions (mm) Width 920 920 920 920 920 920
Height 1,795 1,775 1,775 1,775 1,775 1,775
Depth (Without Handle) 720 720 720 720 720 720
Color Mirror (MIR) Mirror (MIR) Glass Silver (GS) Glass Silver (GS) Glass Silver (GS) Glass Silver (GS)
Diamond (DIA) Mirror Brown (MBW) Glass Black (GBK) Glass Black (GBK) Glass Black (GBK) Glass Black (GBK)
Deluxe Standard
Big French 4 Door
Model R-W720FPG1X R-W660FPG3X R-W910PG4 R-W720PG1 R-W660PG3 R-W610PG4
Net Capacity (L) Total 582 540 700 582 540 510
Freezer 156 144 184 156 144 144
Refrigerator 426 396 496 426 396 365
Refrigerator Compartment Selectable Mode Compartment • • • • • •
Tempered Glass Shelves 3 3 3 3 3 3
Front Air Flow • • • • • •
Power Cool Pocket • • • • • •
Water Tank • • • • • •
LED Light • • • • • •
Vegetable Compartment Big Moisture Guard • • • • • •
Freezer Compartment Automatic Ice Maker • • - - - -
Movable Twist Ice Tray - - • • • •
Quick Freezing • • • • • •
Tempered Glass Shelf • • • • • •
LED Light • • • • • •
General Features Inverter Control • • • • • •
Electronic Control • • • • • •
Eco Thermo Sensor • • • • • •
Dual Fan Cooling • • • • • •
Blue Digital Display • • - - - -
LED Control Panel • • • • • •
Cool Power Display • • • • • •
Door Alarm • • • • • •
Water Dispenser • • - • • -
Nano Titanium • • • • • •
CFC Free • • • • • •
HFC Free • • • • • •
Refrigerant R-600a R-600a R-600a R-600a R-600a R-600a
Power Supply (V, Hz) 220-240, 50 220-240, 50 220-240, 50 220-240, 50 220-240, 50 220-240, 50
Plug VDE 2PIN VDE 2PIN VDE 2PIN VDE 2PIN VDE 2PIN VDE 2PIN
Dimensions (mm) Width 910 855 910 910 855 855
Height 1,835 1,835 1,835 1,835 1,835 1,760
Depth (Without Handle) 727 727 807 727 727 727
Color Glass Black (GBK) Glass Black (GBK) Inox (INX) Stainless Steel (STS) Stainless Steel (STS) Glass Black (GBK)
Glass Brown (GBW) Glass Brown (GBW) Glass Black (GBK) Inox (INX) Inox (INX)
Glass Gray (GGR) Glass Gray (GGR) Glass Black (GBK) Glass Black (GBK)
27SPECIFICATIONS
French Bottom Freezer 3 Door
Model R-WB550PG2 R-WB480PG2
Net Capacity (L) Total 455 405
Freezer 120 107
Refrigerator 335 298
Refrigerator Compartment Selectable Mode Compartment • •
Tempered Glass Shelves 3 3
LED Light • •
Vegetable Compartment Smart-Open Vege Compartment • •
Freezer Compartment Movable Twist Ice Tray • •
Quick Freezing • •
Slide Type Double-deck Drawer • •
General Features Inverter Control • •
Electronic Control • •
Eco Thermo Sensor • •
Dual Fan Cooling • •
Blue Digital Display • •
Cool Power Display • •
Door Alarm • •
Nano Titanium • •
CFC Free • •
HFC Free • •
Refrigerant R-600a R-600a
Power Supply (V, Hz) 220-240, 50 220-240, 50
Plug VDE 2PIN VDE 2PIN
Dimensions Width 750 680
(mm)
Height 1,780 1,780
Depth (Without Handle) 760 760
Color Glass Black (GBK) Glass Black (GBK)
Glass Brown (GBW) Glass Brown (GBW)
Glass Gray (GGR) Glass Gray (GGR)
Glass Silver (GS) Glass Silver (GS)
Super Big2 2 Door
Model R-V910PG1X R-V910PG1 R-V720PG1X R-V720PG1
Net Capacity (L) Total 700 700 600 600
Freezer 186 186 156 156
Refrigerator 514 514 444 444
Refrigerator Compartment Selectable Mode Compartment • • • •
Tempered Glass Shelves 3 3 3 3
Front Air Flow • • • •
Power Cool Pocket • • • •
LED Light • • • •
Vegetable Compartment Big, Moisture Guard • • • •
Freezer Compartment Movable Twist Ice Tray • • • •
Quick Freezing • • • •
Tempered Glass Shelf • • • •
LED Light • • • •
General Features Inverter Control • • • •
Electronic Control • • • •
Eco Thermo Sensor • • • •
Dual Fan Cooling • • • •
LED Control Panel • • • •
Cool Power Display • • • •
Door Alarm • • • •
Nano Titanium • • • •
CFC Free • • • •
HFC Free • • • •
Refrigerant R-600a R-600a R-600a R-600a
Power Supply (V, Hz) 220-240, 50 220-240, 50 220-240, 50 220-240, 50
Plug VDE 2PIN VDE 2PIN VDE 2PIN VDE 2PIN
Dimensions (mm) Width 910 910 910 910
Height 1,835 1,835 1,835 1,835
Depth (Without Handle) 825 825 745 745
Color Stainless Steel (STS) Silver (SLS) Stainless Steel (STS) Silver (SLS)
Inox (INX) Inox (INX)
28SPECIFICATIONS
Glass Series Stylish Series
Big2 2 Door
Model R-VG660PG3 R-VG610PG3 R-VG540PG3 R-V660PG3X R-V660PG3 R-V610PG3X R-V610PG3 R-V540PG3X R-V540PG3
Net Total 550 510 450 550 550 510 510 450 450
Capacity (L) Freezer 145 145 117 145 145 145 145 117 117
Refrigerator 405 365 333 405 405 365 365 333 333
Refrigerator
Compartment
Selectable Mode Compartment • • • • • • • • •
Tempered Glass Shelves 3 2 3 3 3 2 2 3 3
Front Air Flow • • • • • • • • •
Power Cool Pocket • • • • • • • • •
LED Light • • • • • • • • •
Vegetable
Compartment
Big, Moisture Guard • • • • • • • • •
Freezer
Compartment
Movable Twist Ice Tray • • • • • • • • •
Quick Freezing • • • - - - - - -
Tempered Glass Shelf • • • • • • • • •
LED Light • • • • • • • • •
General
Features
Inverter Control • • • • • • • • •
Electronic Control • • • • • • • • •
Eco Thermo Sensor • • • • • • • • •
Dual Fan Cooling • • • • • • • • •
Touch Screen Controller • • • • • • • • •
Nano Titanium • • • • • • • • •
Door Alarm • • • • • • • • •
CFC Free • • • • • • • • •
HFC Free • • • • • • • • •
Refrigerant R-600a R-600a R-600a R-600a R-600a R-600a R-600a R-600a R-600a
Power Supply (V, Hz) 220-240, 50 220-240, 50 220-240, 50 220-240, 50 220-240, 50 220-240, 50 220-240, 50 220-240, 50 220-240, 50
Plug VDE 2PIN VDE 2PIN VDE 2PIN VDE 2PIN VDE 2PIN VDE 2PIN VDE 2PIN VDE 2PIN VDE 2PIN
Dimensions Width 855 855 715 855 855 855 855 715 715
(mm) Height 1,835 1,760 1,835 1,835 1,835 1,760 1,760 1,835 1,835
Depth (Without Handle) 740 740 740 745 745 745 745 745 745
Color Glass Black (GBK) Glass Black (GBK) Glass Black (GBK) Stainless Steel (STS) Silver (SLS) Stainless Steel (STS) Silver (SLS) Stainless Steel (STS) Silver (SLS)
Glass Gray (GGR) Glass Gray (GGR) Glass Gray (GGR) Inox (INX) Pure White (PWH Inox (INX) Pure White (PWH) Inox (INX) Pure White (PWH)
Texture White (TWH) Texture White (TWH) Texture White (TWH)
Glass Series Stylish Series
New Stylish Line 2 Door
Model R-VG470PG3 R-VG470PUN3 R-V470PG3D R-V470PG3 R-V470PUN3K R-H350PG4 R-H380PUN4K R-T17EG4
R-VG440PG3 R-VG440PUN3 R-V440PG3D R-V440PG3 R-V440PUN3K R-H310PG4 R-H360PUN4K
R-VG400PG3 R-VG400PUN3 R-V400PG3D R-V400PG3 R-V400PUN3K R-H230PG4 R-H330PUN4K
R-H200PG4 R-H290PUN4K
Net Total 395 / 365 / 335 395 / 365 / 335 395 / 365 / 335 395 / 365 / 335 395 / 365 / 335 290 / 260 / 230 / 203 290 / 260 / 230 / 203 168
Capacity (L) Freezer 109 / 101 / 101 109 / 101 / 101 109 / 101 / 101 109 / 101 / 101 109 / 101 / 101 70 / 70 / 54 / 51 70 / 70 / 54 / 51 42
Refrigerator 286 / 264 / 234 286 / 264 / 234 286 / 264 / 234 286 / 264 / 234 286 / 264 / 234 220 / 190 / 176 / 152 220 / 190 / 176 / 152 126
Refrigerator Convertible Compartment
Compartment Slide Out Chilled Case
- - - - - • • -
• • • • • - - •
Tempered Glass Shelves 2 2 2 2 2 3/2/3/2 2 2
LED Light • • • • • • • -
Vegetable Frame Container
Compartment Big Vege Case
• • • • • - - -
- - - - - •/•/-/- •/•/-/- -
2-Way Humidity Controller - - - - - - - •
Freezer Movable Twist Ice Tray
Compartment Ice Tray / Ice Maker
• • • • • • • -
- - - - - - - Tray
Tempered Glass Shelf • • • • • • • Crystal
General
Features
Inverter Control • • • • • • • -
Electronic Control • • • • • • • •
Eco Thermo Sensor • • • • • • • •
Dual Fan Cooling • • • • • - - -
Air Jet Flow - - - - - • • •
Nano Titanium • • • • • • • •
Front Temp Control Dial • (2 dial) • (2 dial) • (2 dial) • (2 dial) • (2 dial) - - -
Rear Temp Control Dial - - - - - • (2 dial) • (2 dial) • (1 dial)
Water Dispenser - - • (Lock) - - - - -
Lock and Key - - - - • - • -
CFC Free • • • • • • • •
HFC Free • • • • • • • -
Refrigerant R-600a R-600a R-600a R-600a R-600a R-600a R-600a R-134a
Power Supply (V, Hz) 220-240, 50 220-240, 50 220-240, 50 220-240, 50 220-240, 50 220-240, 50 220-240, 50 220-240, 50
Plug VDE 2PIN BS 3PIN VDE 2PIN VDE 2PIN VDE 2PIN VDE 2PIN BS 3PIN VDE 2PIN
Dimensions Width 680 / 650 / 650 680 / 650 / 650 680 / 650 / 650 680 / 650 / 650 680 / 650 / 650 600 / 600 / 540 / 540 600 / 600 / 540 / 540 540
(mm) Height 1,770 / 1,695 / 1,605 1,770 / 1,695 / 1,605 1,770 / 1,695 / 1,605 1,770 / 1,695 / 1,605 1,770 / 1,695 / 1,605 1,672 / 1,552 / 1,585 1,672 / 1,552 / 1,585 1,286
/ 1,460 / 1,460
Depth (Without Handle) 720 / 720 / 720 720 / 720 / 720 755 / 755 / 755 720 / 720 / 720 720 / 720 / 720 663 / 663 / 650 / 650 663 / 663 / 650 / 650 605
Color Glass Black (GBK) Glass Black (GBK) Silver (SLS) Inox (INX) Inox (INX) Inox (INX)* Inox (INX)** Silver (SLS)
Glass Brown (GBW) Glass Brown (GBW) Silver (SLS) Silver (SLS) Silver (SLS) Silver (SLS)
Glass Gray (GGR) Glass Gray (GGR) Pure White (PWH) Pure White (PWH)
29 Pure Black (PBK) Pure Black (PBK)
*(R-H350PG4 / R-H310PG4) ** (R-H380PUN4K / R-H360PUN4K)You can also read
