2020 NEW PRODUCTS FIRST EDITION
Introducing FOX3 Systems
4K/60 4:4:4 Video, Audio, USB, and Control over Fiber

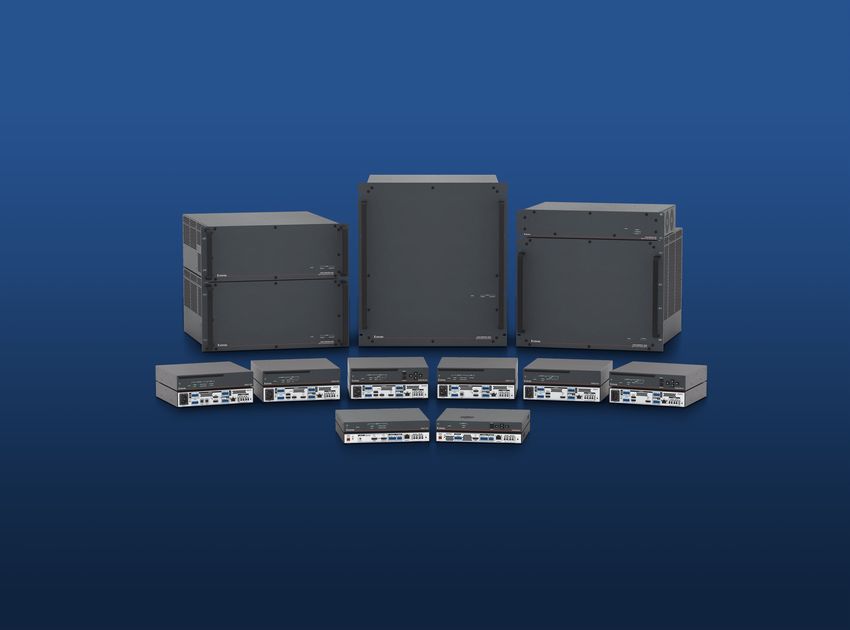

Introducing FOX3 Systems, the industry-leading high-performance family of fiber optic extenders and matrix switchers for end-to-
end distribution of 4K video, audio, control, USB, and 3D sync. FOX3 extenders feature built-in USB for KVM applications while
Extron-exclusive Vector™ 4K scaling technology ensures best-in-class image quality. Delivering exceptional reliability and advanced
capabilities such as audio breakaway, audio embedding/de‑embedding, DMP expansion, and Dante® integration, the FOX3 Series
meets the demands of any mission-critical environment.
• Supports mathematically lossless 4K/60 4:4:4 video over one • Supported HDMI 2.0 specifications include data rates up
fiber or uncompressed 4K/60 4:4:4 video over two fibers to 18 Gbps, Deep Color up to 12-bit, and 3D
• Scaling receiver models available with Extron-exclusive • Integrates DMP expansion, local analog audio insertion
Vector 4K scaling technology for design flexibility and easy and extraction, and Dante with AES67 support
integration • Advanced 24/7 system monitoring
• HDCP 2.2 compliant
JITC
CERTIFIED
Setting the New Standard in
4K Fiber Optic Distribution
Uncompromised Image Quality Designed for Full Audio System Integration
Supporting data rates up to 18 Gbps, the FOX3 series FOX3 Matrix Switchers provide leading-edge audio
extenders are designed to send uncompressed video images functionality, including audio switching and breakaway, stereo
up to 4096x2160 at 60 Hz with 4:4:4 chroma sampling over audio embedding and de-embedding, a DMP expansion port,
two fibers or mathematically lossless video images over one two Dante® ports, and local analog audio inputs and outputs.
fiber, making FOX3 ideal for mission-critical applications or any The matrix switcher can embed any selected analog input
environment that requires pristine transmission of very high- audio signals onto any output, and any two-channel PCM
resolution imagery. audio signal can be extracted and independently routed.
USB Signal Switching and Extension Centralized Enterprise Level Control
Select FOX3 extenders offer USB extension to streamline FOX3 Matrix Switchers enable the insertion and extraction of
system integration in KVM – keyboard, video, and mouse RS-232 control data from the Ethernet port to the transmitters
applications. USB device class filtering and HID-only ports and receivers over the fiber optic cable. This allows complete
allow for tailor-made solutions in high security deployments. centralized control of endpoints and attached devices without
USB Host and Peripheral Emulation offer increased system needing additional cabling.
reliability in KVM applications.
To learn more, visit extron.com/FOX3
NEW PRODUCTS

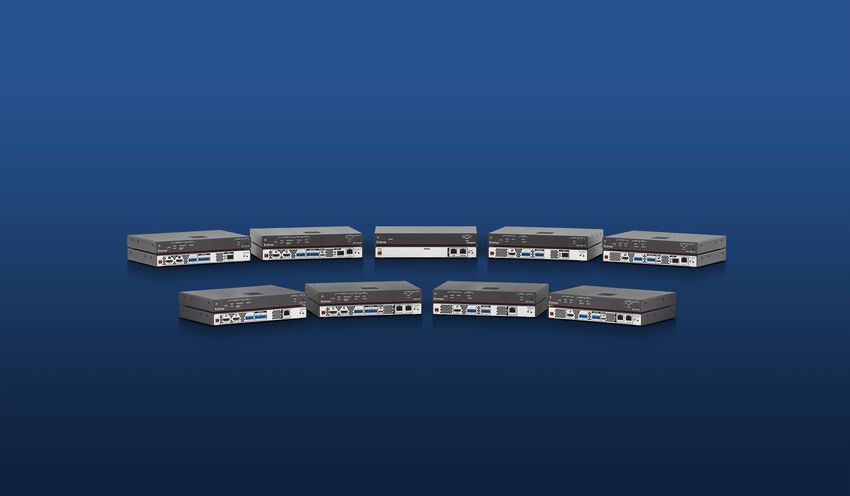

FOX3 Fiber Optic Transmitters & Receivers
Extron FOX3 Series fiber optic extenders provide long haul transmission of HDCP-compliant HDMI video, USB, audio, control,
and 3D sync signals over fiber optic cable. Engineered for exceptional high-resolution image performance, they use Extron
all‑digital technology to deliver perfect pixel-for-pixel, uncompressed transmission of images up to 4K/60 @ 4:4:4 over two fibers
or mathematically lossless 4K/60 @ 4:4:4 video over one fiber. Designed specifically for AV and KVM systems, FOX3 extenders
also include many integrator-friendly features such as Key Minder®, EDID Minder®, audio embedding and de-embedding, Ethernet
monitoring and control, audio gain and attenuation, and real-time system monitoring.
Key Features
• Extend HDMI video, USB, stereo audio, RS-232 control, • Transmitters feature a buffered HDMI input loop-through
IR control, and 3D sync signals over fiber optic cabling for a local display
• Supports mathematically lossless 4K video up to • Audio embedding converts analog audio to digital HDMI
4096x2160 at 60 Hz with 4:4:4 chroma sampling over audio at the transmitter
one fiber • HDMI audio de-embedding with analog stereo outputs at
• Supports uncompressed 4K video up to 4096x2160 at the receiver
60 Hz with 4:4:4 chroma sampling over two fibers • Ethernet insertion of control signals at the matrix and
• HDCP 2.2 compliant control signal extension to remote endpoints provides a
complete enterprise-level control infrastructure
• Key Minder continuously verifies HDCP compliance for
quick, reliable switching
2
USA West USA East www.extron.com
+1.714.491.1500 / +800.633.9876 +1.919.850.1000 / +800.633.9876 © 2020 Extron Electronics. All rights reserved.
+1.714.491.1517 FAX +1.919.850.1001 FAX Prices and specifications subject to change without notice.
NEW PRODUCTS
FIBER OPTICS
FOX3 T 301
Fiber Optic Transmitter for HDMI, USB, Audio, Control, and 3D Sync
UNIQUE FEATURES
• Transmits HDMI video, USB, stereo audio, RS-232 • Supports USB 2.0 to 1.0 devices and USB 3.0
control, IR control, and 3D sync signals over fiber devices that can operate at USB 2.0 data rates of up
optic cabling to 480 Mbps FOX3 T 301 MM
• Supported HDMI 2.0 specification features include • Device class filtering on USB HID port restricts the
data rates up to 18 Gbps, Deep Color up to 12-bit, range of device types to HID and smart card readers
and 3D
Model Version Description Part Number
FOX3 T 301 MM Lossless 4K/60 Transmitter - Multimode. . . . . . . . . . . . . . . . . . . . 60-1522-11
FOX3 T 301 SM Lossless 4K/60 Transmitter - Singlemode. . . . . . . . . . . . . . . . . . . 60-1522-12
FOX3 T 301 MM Uncompressed 4K/60 Transmitter - Multimode.. . . . . . . . . . . . . 60-1522-13
FOX3 T 301 SM Uncompressed 4K/60 Transmitter - Singlemode. . . . . . . . . . . . 60-1522-14
FOX3 R 301
Fiber Optic Receiver for HDMI, USB, Audio, Control, and 3D Sync
UNIQUE FEATURES
• Receives HDMI video, USB, stereo audio, RS-232 • Supports USB 2.0 to 1.0 devices and USB 3.0
control, IR control, and 3D sync signals over fiber devices that can operate at USB 2.0 data rates of up
optic cabling to 480 Mbps FOX3 R 301 MM
• Supported HDMI 2.0 specification features include • Device class filtering on USB HID port restricts the
data rates up to 18 Gbps, Deep Color up to 12-bit, range of device types to HID and smart card readers
and 3D
Model Version Description Part Number
FOX3 R 301 MM Lossless 4K/60 Receiver - Multimode.. . . . . . . . . . . . . . . . . . . . . . 60-1522-21
FOX3 R 301 SM Lossless 4K/60 Receiver - Singlemode. . . . . . . . . . . . . . . . . . . . . 60-1522-22
FOX3 R 301 MM Uncompressed 4K/60 Receiver - Multimode. . . . . . . . . . . . . . . . 60-1522-23
FOX3 R 301 SM Uncompressed 4K/60 Receiver - Singlemode. . . . . . . . . . . . . . . 60-1522-24
FOX3 SR 301
Fiber Optic Scaling Receiver for HDMI, USB, Audio, Control,
and 3D Sync
UNIQUE FEATURES
• Receives fiber optic signals from FOX3 Series • Supported HDMI 2.0 specification features include
transmitters and provides scaled HDMI video, USB, data rates up to 18 Gbps, Deep Color up to 12-bit, FOX3 SR 301 MM
stereo audio, RS-232 control, IR control, and 3D and 3D
sync signals • Supports USB 2.0 to 1.0 devices and USB 3.0
• High-performance scaler provides selectable output devices that can operate at USB 2.0 data rates of up
resolutions up to 4096x2160 at 60 Hz with 4:4:4 to 480 Mbps
chroma sampling
Model Version Description Part Number
FOX3 SR 301 MM Lossless 4K/60 Scaling Receiver - Multimode.. . . . . . . . . . . . . . 60-1749-21
FOX3 SR 301 SM Lossless 4K/60 Scaling Receiver - Singlemode. . . . . . . . . . . . . 60-1749-22
FOX3 SR 301 MM Uncompressed 4K/60 Scaling Receiver - Multimode. . . . . . . . 60-1749-23
FOX3 SR 301 SM Uncompressed 4K/60 Scaling Receiver - Singlemode. . . . . . . 60-1749-24
For updated product availability, go to www.extron.com
3
Europe Middle East Asia China Japan
+31.33.453.4040 / +800.3987.6673 +971.4.299.1800 +65.6383.4400 / +800.7339.8766 +86.21.3760.1568 / +4000.398766 +81.3.3511.7655
+31.33.453.4050 FAX +971.4.299.1880 FAX +65.6383.4664 FAX +86.21.3760.1566 FAX +81.3.3511.7656 FAX
NEW PRODUCTS
FIBER OPTICS
FOX3 T 311
Fiber Optic Transmitter for HDMI, USB HID, Audio, Control,
and 3D Sync
UNIQUE FEATURES
• Transmits HDMI video, USB HID, stereo audio, • Supported HDMI 2.0 specification features include
RS-232 control, IR control, and 3D sync signals data rates up to 18 Gbps, Deep Color up to 12-bit,
FOX3 T 311 MM
over fiber optic cabling and 3D
• Device class filtering on USB HID port restricts the
range of device types to HID and smart card readers
Model Version Description Part Number
FOX3 T 311 MM Lossless 4K/60 Transmitter - Multimode. . . . . . . . . . . . . . . . . . . . 60-1523-11
FOX3 T 311 SM Lossless 4K/60 Transmitter - Singlemode. . . . . . . . . . . . . . . . . . . 60-1523-12
FOX3 T 311 MM Uncompressed 4K/60 Transmitter - Multimode.. . . . . . . . . . . . . 60-1523-13
FOX3 T 311 SM Uncompressed 4K/60 Transmitter - Singlemode. . . . . . . . . . . . 60-1523-14
FOX3 R 311
Fiber Optic Receiver for HDMI, USB HID, Audio, Control, and 3D Sync
UNIQUE FEATURES
• Receives HDMI video, USB HID, stereo audio, • Supported HDMI 2.0 specification features include
RS-232 control, IR control, and 3D sync signals data rates up to 18 Gbps, Deep Color up to 12-bit,
over fiber optic cabling and 3D FOX3 R 311 MM
• Device class filtering on USB HID port restricts the
range of device types to HID and smart card readers
Model Version Description Part Number
FOX3 R 311 MM Lossless 4K/60 Receiver - Multimode.. . . . . . . . . . . . . . . . . . . . . . 60-1523-21
FOX3 R 311 SM Lossless 4K/60 Receiver - Singlemode. . . . . . . . . . . . . . . . . . . . . 60-1523-22
FOX3 R 311 MM Uncompressed 4K/60 Receiver - Multimode. . . . . . . . . . . . . . . . 60-1523-23
FOX3 R 311 SM Uncompressed 4K/60 Receiver - Singlemode. . . . . . . . . . . . . . . 60-1523-24
FOX3 SR 311
Fiber Optic Scaling Receiver for HDMI, USB HID, Audio,
Control, and 3D Sync
UNIQUE FEATURES
• Receives fiber optic signals from FOX3 Series • Supported HDMI 2.0 specification features include
transmitters and provides scaled HDMI video, USB data rates up to 18 Gbps, Deep Color up to 12-bit,
HID, stereo audio, RS-232 control, IR control, and and 3D FOX3 SR 311 MM
3D sync signals • Device class filtering on USB HID port restricts the
• High-performance scaler provides selectable output range of device types to HID and smart card readers
resolutions up to 4096x2160 at 60 Hz with 4:4:4
chroma sampling
Model Version Description Part Number
FOX3 SR 311 MM Lossless 4K/60 Scaling Receiver - Multimode.. . . . . . . . . . . . . . 60-1732-21
FOX3 SR 311 SM Lossless 4K/60 Scaling Receiver - Singlemode. . . . . . . . . . . . . 60-1732-22
FOX3 SR 311 MM Uncompressed 4K/60 Scaling Receiver - Multimode. . . . . . . . 60-1732-23
FOX3 SR 311 SM Uncompressed 4K/60 Scaling Receiver - Singlemode. . . . . . . 60-1732-24
4
USA West USA East www.extron.com
+1.714.491.1500 / +800.633.9876 +1.919.850.1000 / +800.633.9876 © 2020 Extron Electronics. All rights reserved.
+1.714.491.1517 FAX +1.919.850.1001 FAX Prices and specifications subject to change without notice.
NEW PRODUCTS
FIBER OPTICS
FOX3 T 201
Fiber Optic Transmitter for HDMI, Audio, and Control
UNIQUE FEATURES
• Transmits HDMI video, stereo audio, RS-232 • Supports PoE+
control, and IR control signals over fiber optic • Low-profile unit fits under a table or behind FOX3 T 201 MM
cabling a display
• Supported HDMI 2.0 specification features include
data rates up to 18 Gbps and Deep Color up to
12-bit
Model Version Description Part Number
FOX3 T 201 MM Lossless 4K/60 Transmitter - Multimode. . . . . . . . . . . . . . . . . . . . 60-1600-11
FOX3 T 201 SM Lossless 4K/60 Transmitter - Singlemode. . . . . . . . . . . . . . . . . . . 60-1600-12
FOX3 T 201 MM Uncompressed 4K/60 Transmitter - Multimode.. . . . . . . . . . . . . 60-1600-13
FOX3 T 201 SM Uncompressed 4K/60 Transmitter - Singlemode. . . . . . . . . . . . 60-1600-14
FOX3 SR 201
Fiber Optic Scaling Receiver for HDMI, Audio, and Control
UNIQUE FEATURES
• Receives fiber optic signals from FOX3 Series • Supported HDMI 2.0 specification features include
transmitters and provides scaled HDMI video, stereo data rates up to 18 Gbps and Deep Color up to
FOX3 SR 201 MM
audio, RS-232 control, and IR control signals 12-bit
• High-performance scaler provides selectable output • Key Minder continuously verifies HDCP compliance
resolutions up to 4096x2160 at 60 Hz with 4:4:4 for quick, reliable switching
chroma sampling • HDCP Visual Confirmation
• Supports PoE+
• Low-profile unit fits under a table or behind
a display
Model Version Description Part Number
FOX3 SR 201 MM Lossless 4K/60 Scaling Receiver - Multimode.. . . . . . . . . . . . . . 60-1600-21
FOX3 SR 201 SM Lossless 4K/60 Scaling Receiver - Singlemode. . . . . . . . . . . . . 60-1600-22
FOX3 SR 201 MM Uncompressed 4K/60 Scaling Receiver - Multimode. . . . . . . . 60-1600-23
FOX3 SR 201 SM Uncompressed 4K/60 Scaling Receiver - Singlemode. . . . . . . 60-1600-24
FOX3 Transmitters
HDMI, Audio HDMI Input Audio Vector 4K
USB USB HID 3D Sync PoE+
& Control Loop-Through Embedding Scaling
FOX3 T 201 • • • •
FOX3 T 301 • • • • • •
FOX3 T 311 • • • • •
FOX3 Receivers
FOX3 SR 201 • • •
FOX3 R 301 • • • •
FOX3 SR 301 • • • • •
FOX3 R 311 • • •
FOX3 SR 311 • • • •
For updated product availability, go to www.extron.com
5
Europe Middle East Asia China Japan
+31.33.453.4040 / +800.3987.6673 +971.4.299.1800 +65.6383.4400 / +800.7339.8766 +86.21.3760.1568 / +4000.398766 +81.3.3511.7655
+31.33.453.4050 FAX +971.4.299.1880 FAX +65.6383.4664 FAX +86.21.3760.1566 FAX +81.3.3511.7656 FAX
NEW PRODUCTS

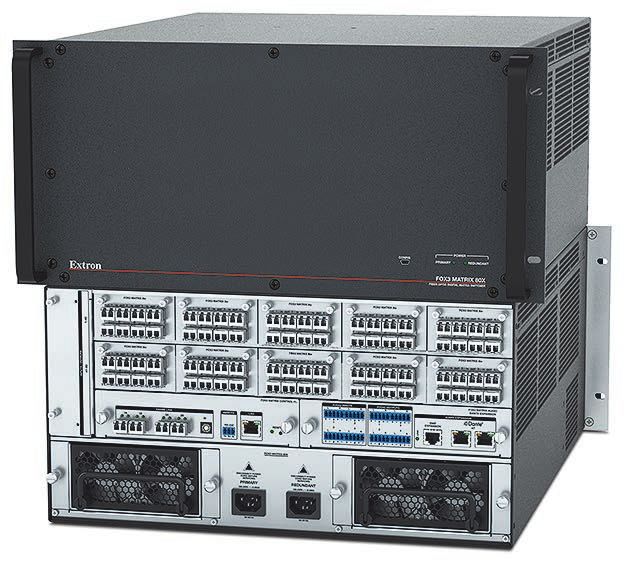

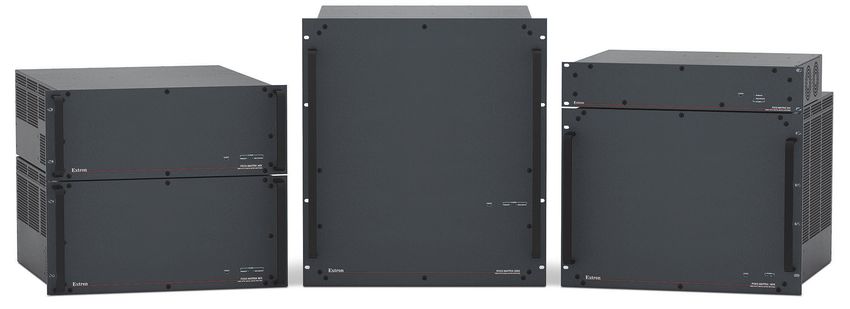

FOX3 Fiber Optic Matrix Switchers
Extron FOX3 Matrix Switchers provide high-performance switching of 4K/60 video, audio, USB, control, and 3D sync over fiber
optic cable. Expandable from 8x8 up to 320x320, these modular matrix switchers also feature RS-232 insertion from the Ethernet
port, extending bidirectional control to any FOX3 endpoint. The Ethernet port supports SSH protocol, ensuring communication
between the control system and the matrix is encrypted. Dante, DMP Expansion, and analog audio I/O ports enable audio
embedding and de-embedding. Equipped with many additional integrator-friendly features, such as redundant hot-swappable
power supplies and system monitoring, FOX3 Matrix Switchers deliver highly reliable, enterprise-wide switching of fiber optic AV,
USB, and control for mission-critical environments.
Key Features
• I/O sizes from 8x8 to 320x320 • Dante® audio network interface, DMP expansion port, and
analog audio inputs and outputs
• Switches 4K/60 video, audio, USB, control, and 3D sync over
fiber optic cable • Secure partitioning segregates sources and destinations in a
secure environment
• Compatible with all Extron FOX3 Series transmitters and
receivers for an enterprise-wide fiber optic distribution system • Priority switching prevents unauthorized access to sensitive
data in a secure environment
• Supports mathematically lossless 4K video up to 4096x2160
at 60 Hz with 4:4:4 chroma sampling over one fiber • Dual redundant and hot-swappable power supplies
• Supports uncompressed 4K video up to 4096x2160 at 60 Hz • JITC Certified
with 4:4:4 chroma sampling over two fibers • Ethernet insertion of control signals at the matrix and control
• Analog audio insertion and extraction signal extension to remote endpoints provides a complete
enterprise-level control infrastructure
• Digital audio expansion port provides a connection to an
Extron DMP 128 Plus processor for audio system scalability
6
USA West USA East www.extron.com
+1.714.491.1500 / +800.633.9876 +1.919.850.1000 / +800.633.9876 © 2020 Extron Electronics. All rights reserved.
+1.714.491.1517 FAX +1.919.850.1001 FAX Prices and specifications subject to change without notice.
NEW PRODUCTS
FIBER OPTICS
FOX3 Matrix 24x
Modular Fiber Optic Matrix Switcher from 8x8 to 24x24
UNIQUE FEATURES
• I/O sizes from 8x8 to 24x24 • Dante® audio network interface, DMP expansion
• Switches 4K/60 video, audio, USB, control, and port, and analog audio inputs and outputs
3D sync over fiber optic cable • RS-232 insertion from the Ethernet control port FOX3 Matrix 24x no FPC 24io SM
• Compatible with all Extron FOX3 Series transmitters • Multimode and Singlemode I/O boards available
and receivers
Model Version Description Part Number
FOX3 Matrix 24x no FPC 8io MM Configured Matrix - 8x8 Multimode. . . . . . . . . . . . . . . . . . 60-1716-04
FOX3 Matrix 24x no FPC 8io SM Configured Matrix - 8x8 Singlemode. . . . . . . . . . . . . . . . . 60-1716-14
FOX3 Matrix 24x no FPC 16io MM Configured Matrix - 16x16 Multimode.. . . . . . . . . . . . . . . 60-1716-05
FOX3 Matrix 24x no FPC 16io SM Configured Matrix - 16x16 Singlemode. . . . . . . . . . . . . . 60-1716-15
FOX3 Matrix 24x no FPC 24io MM Configured Matrix - 24x24 Multimode.. . . . . . . . . . . . . . . 60-1716-06
FOX3 Matrix 24x no FPC 24io SM Configured Matrix - 24x24 Singlemode. . . . . . . . . . . . . . 60-1716-16
FOX3 Matrix 40x
Modular Fiber Optic Matrix Switcher from 8x8 to 40x40
UNIQUE FEATURES
• I/O sizes from 8x8 to 40x40 • Dante® audio network interface, DMP expansion
• Switches 4K/60 video, audio, USB, control, and port, and analog audio inputs and outputs
3D sync over fiber optic cable • RS-232 insertion from the Ethernet control port
• Compatible with all Extron FOX3 Series transmitters • Multimode and Singlemode I/O boards available
and receivers
Model Version Description Part Number FOX3 Matrix 40x no FPC
FOX3 Matrix 40x no FPC FOX3 Matrix 40x Frame no FPC.. . . . . . . . . . . . . . . . . . . . . 60-1576-02
FOX3 I/O 88 MM 8x8 I/O Board - Multimode.. . . . . . . . . . . . . . . . . . . . . . . . . . 70-1107-01
FOX3 I/O 88 SM 8x8 I/O Board - Singlemode. . . . . . . . . . . . . . . . . . . . . . . . . 70-1107-02
FOX3 Matrix 80x
Modular Fiber Optic Matrix Switcher from 8x8 to 80x80
UNIQUE FEATURES
• I/O sizes from 8x8 to 80x80 • Dante® audio network interface, DMP expansion
• Switches 4K/60 video, audio, USB, control, and port, and analog audio inputs and outputs
3D sync over fiber optic cable • RS-232 insertion from the Ethernet control port
• Compatible with all Extron FOX3 Series transmitters • Multimode and Singlemode I/O boards available
and receivers
Model Version Description Part Number
FOX3 Matrix 80x no FPC FOX3 Matrix 80x Frame no FPC.. . . . . . . . . . . . . . . . . . . . . 60-1553-02
FOX3 Matrix 80x no FPC
FOX3 I/O 88 MM 8x8 I/O Board - Multimode.. . . . . . . . . . . . . . . . . . . . . . . . . . 70-1107-01
FOX3 I/O 88 SM 8x8 I/O Board - Singlemode. . . . . . . . . . . . . . . . . . . . . . . . . 70-1107-02
For updated product availability, go to www.extron.com
7
Europe Middle East Asia China Japan
+31.33.453.4040 / +800.3987.6673 +971.4.299.1800 +65.6383.4400 / +800.7339.8766 +86.21.3760.1568 / +4000.398766 +81.3.3511.7655
+31.33.453.4050 FAX +971.4.299.1880 FAX +65.6383.4664 FAX +86.21.3760.1566 FAX +81.3.3511.7656 FAX
NEW PRODUCTS
FIBER OPTICS
FOX3 Matrix 160x
Modular Fiber Optic Matrix Switcher from 8x8 to 160x160
UNIQUE FEATURES
• I/O sizes from 8x8 to 160x160 • Dante® audio network interface, DMP expansion
• Switches 4K/60 video, audio, USB, control, and port, and analog audio inputs and outputs
3D sync over fiber optic cable • RS-232 insertion from the Ethernet control port
• Compatible with all Extron FOX3 Series transmitters • Multimode and Singlemode I/O boards available
FOX3 Matrix 160x no FPC
and receivers
Model Version Description Part Number
FOX3 Matrix 160x no FPC FOX3 Matrix 160x Frame no FPC.. . . . . . . . . . . . . . . . . . . . . . . 60-1577-02
FOX3 I/O 88 MM 8x8 I/O Board - Multimode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70-1107-01
FOX3 I/O 88 SM 8x8 I/O Board - Singlemode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70-1107-02
FOX3 Matrix 320x
Modular Fiber Optic Matrix Switcher from 8x8 to 320x320
UNIQUE FEATURES
• I/O sizes from 8x8 to 320x320 • Dante® audio network interface, DMP expansion
• Switches 4K/60 video, audio, USB, control, and port, and analog audio inputs and outputs
3D sync over fiber optic cable • RS-232 insertion from the Ethernet control port
• Compatible with all Extron FOX3 Series transmitters • Multimode and Singlemode I/O boards available
and receivers
FOX3 Matrix 320x no FPC
Model Version Description Part Number
FOX3 Matrix 320x no FPC FOX3 Matrix 320x Frame no FPC.. . . . . . . . . . . . . . . . . . . . . . . 60-1578-02
FOX3 I/O 88 MM 8x8 I/O Board - Multimode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70-1107-01
FOX3 I/O 88 SM 8x8 I/O Board - Singlemode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70-1107-02
8
USA West USA East www.extron.com
+1.714.491.1500 / +800.633.9876 +1.919.850.1000 / +800.633.9876 © 2020 Extron Electronics. All rights reserved.
+1.714.491.1517 FAX +1.919.850.1001 FAX Prices and specifications subject to change without notice.• Pixel-Perfect Video • Ultra-Low Latency • Low Bitrates
NAV Pro AV over IP
The Only Solution Designed for the Enterprise Network
NAV™ is the only no-compromise Pro AV over IP solution for distribution and switching of ultra-low latency, visually lossless
video, audio, and USB 2.0 signals over Ethernet networks. Utilizing Extron’s patented PURE3® codec, it delivers groundbreaking
performance with visually lossless video over IP at resolutions up to 4K @ 60 Hz with 4:4:4 chroma sampling. PURE3’s Intelligent
Selective Streaming - ISS - leverages low motion content to achieve extremely low bitrates while maintaining visually lossless
performance. The NAV Series is the only solution that offers both 1 Gbps and 10 Gbps encoders and decoders with compatibility
across both systems.
Features
• PURE3 Intelligent Selective Streaming achieves low bit rates • Supports the AES67 audio over IP standard, providing
with low motion content while maintaining visually lossless compatibility with Extron and third-party audio DSP
performance processors
• Streams video and audio over standard Ethernet networks • Enhanced security with SRTP - Secure Real Time Transport
for flexible system design and distribution Protocol
• Supports HDMI 2.0 at resolutions up to 4K/60 @ 4:4:4 • 802.1X port-based Network Access Control for device
• Ultra-low latency with visually lossless compression using authentication
the patented Extron PURE3® codec • Microsoft® Active Directory integration for user management
• Interoperable across 1 Gbps and 10 Gbps endpoints • Multiple encoders and decoders can be deployed as an
IP-based video and audio matrix
To learn more, visit extron.com/NAVNEW PRODUCTS
NAV PRO AV OVER IP
NAV 10E 101
10G Pro AV over IP Encoder - HDMI
The NAV 10E 101 is a Pro AV over IP encoder that FEATURES
streams ultra-low latency, visually lossless video • Encodes and streams video and audio over
and audio signals over 10 Gbps Ethernet networks at 10 Gbps Ethernet networks NAV 10E 101 - Singlemode
efficient bit rates. Adjustable bitrate settings facilitate • Supports HDMI 2.0 at resolutions up to
transmission over 10 Gbps networks and compatibility 4K/60 @ 4:4:4
with NAV™ 1 Gbps endpoints, increasing scalability • PURE3 ® Codec
for large deployments. The NAV 10E 101 is ideal for • PURE3 Intelligent Selective Streaming
simulation, command and control, medical diagnostics • Interoperable with 1 Gbps NAV™ endpoints
applications, or any installation where reliable, visually • Ultra-low latency with visually lossless compression
lossless AV over IP video distribution is desired. • AES67 audio support
• Industry-standard LC connectors for fiber optic
connectivity provide robust, reliable transmission
with inherent immunity to outside interference
Model Version Description Part Number
NAV 10E 101 10G HDMI Encoder - Multimode. . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1572-15
NAV 10E 101 10G HDMI Encoder - Singlemode. . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1572-16
NAV 10E 501
10G Pro AV over IP Encoder - HDMI, Ethernet, and USB
The NAV 10E 501 is a Pro AV over IP encoder that FEATURES
streams ultra-low latency, visually lossless video, • Encodes and streams video, audio, Ethernet, and
audio, Ethernet, and USB 2.0 signals over 10 Gbps USB signals over 10 Gbps Ethernet networks NAV 10E 501 - Multimode
Ethernet networks at efficient bit rates. Adjustable • Supports HDMI 2.0 at resolutions up to
bitrate settings facilitate compatibility with NAV™ 4K/60 @ 4:4:4
1 Gbps endpoints, increasing scalability for large • PURE3 ® Codec
deployments. With built-in USB 2.0 extension, the • PURE3 Intelligent Selective Streaming
NAV 10E 501 can remotely connect to peripheral • Interoperable with 1 Gbps NAV™ endpoints
USB-enabled devices. The 1 Gbps Ethernet expansion • Ultra-low latency with visually lossless compression
port facilitates remote LAN connectivity and control of • AES67 audio support
attached IP-enabled Ethernet-enabled devices. • Industry-standard LC connectors for fiber optic
connectivity provide robust, reliable transmission
with inherent immunity to outside interference
Model Version Description Part Number
NAV 10E 501 10G HDMI, Ethernet, USB Encoder - Multimode. . . . . . . . . . . . . 60-1572-01
NAV 10E 501 10G HDMI, Ethernet, USB Encoder - Singlemode. . . . . . . . . . . . 60-1572-02
10
USA West USA East www.extron.com
+1.714.491.1500 / +800.633.9876 +1.919.850.1000 / +800.633.9876 © 2020 Extron Electronics. All rights reserved.
+1.714.491.1517 FAX +1.919.850.1001 FAX Prices and specifications subject to change without notice.NEW PRODUCTS
NAV PRO AV OVER IP
NAV E 101
1G Pro AV over IP Encoder - HDMI
The NAV E 101 is a Pro AV over IP encoder that streams FEATURES
ultra-low latency, high quality video and audio signals • Encodes and streams video and audio over
over 1 Gbps Ethernet networks at extremely low 1 Gbps Ethernet networks
bit rates. It is fully compatible with NAV™ 10 Gbps • Supports HDMI 2.0 at resolutions up to
endpoints, increasing scalability for large deployments. 4K/60 @ 4:4:4
Using a standard 1000Base-T 1 Gbps copper Ethernet • PURE3 ® Codec
infrastructure, the NAV E 101 facilitates flexible • PURE3 Intelligent Selective Streaming
system design and cost-effective streaming over large • Interoperable with 10 Gbps NAV™ endpoints
distances, and PoE+ powering eliminates the need for • Ultra-low latency with high quality video
external power supplies. • AES67 audio support
• PoE+ compatibility eliminates the need for a local
power supply
Model Version Description Part Number
NAV E 101 1G HDMI Encoder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1525-12
NAV E 501
1G Pro AV over IP Encoder - HDMI, Ethernet, and USB
The NAV E 501 is a Pro AV over IP encoder that streams FEATURES
ultra-low latency, high quality video, audio, Ethernet, • Encodes and streams video, audio, Ethernet, and
and USB 2.0 signals over 1 Gbps Ethernet networks USB signals over 1 Gbps Ethernet networks
at extremely low bit rates. It is fully compatible with • Supports HDMI 2.0 at resolutions up to
NAV™ 10 Gbps endpoints, increasing scalability for 4K/60 @ 4:4:4
large deployments. With built-in USB 2.0 extension, the • PURE3 ® Codec
NAV E 501 can remotely connect to peripheral USB- • PURE3 Intelligent Selective Streaming
enabled devices. The 100 Mbps Ethernet expansion • Interoperable with 10 Gbps NAV™ endpoints
port facilitates remote LAN connectivity and control • Ultra-low latency with high quality video
of attached IP-enabled Ethernet-enabled devices. • AES67 audio support
Using standard 1000Base-T 1 Gbps copper Ethernet • PoE+ compatibility eliminates the need for a local
infrastructure, the NAV E 501 facilitates flexible power supply
system design and cost-effective streaming over large
distances. PoE+ powering eliminates the need for
external power supplies.
Model Version Description Part Number
NAV E 501 1G HDMI, Ethernet, USB Encoder. . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1525-01
For updated product availability, go to www.extron.com
11
Europe Middle East Asia China Japan
+31.33.453.4040 / +800.3987.6673 +971.4.299.1800 +65.6383.4400 / +800.7339.8766 +86.21.3760.1568 / +4000.398766 +81.3.3511.7655
+31.33.453.4050 FAX +971.4.299.1880 FAX +65.6383.4664 FAX +86.21.3760.1566 FAX +81.3.3511.7656 FAXNEW PRODUCTS
NAV PRO AV OVER IP
NAV 10SD 101
10G Pro AV over IP Scaling Decoder - HDMI
The NAV 10SD 101 is a Pro AV over IP scaling decoder FEATURES
that decodes and scales ultra-low latency, visually • Decodes video and audio from 10 Gbps Ethernet
lossless video and audio signals over 10 Gbps Ethernet networks NAV 10SD 501 - Multimode
networks at efficient bit rates. It is fully compatible with • Supports HDMI 2.0 at resolutions up to
NAV™ 1 Gbps endpoints, increasing scalability for large 4K/60 @ 4:4:4
deployments. With its integrated Extron Vector™ 4K • PURE3 ® Codec
scaling technology, the NAV 10SD 101 delivers best- • PURE3 Intelligent Selective Streaming
in-class image upscaling and downscaling using • Interoperable with 1 Gbps NAV™ endpoints
Extron’s exclusive, high-precision processing • Ultra-low latency with visually lossless compression
algorithms for exceptional scaling performance. • Advanced Extron Vector™ 4K scaling technology
• AES67 audio support
• Industry-standard LC connectors for fiber optic
connectivity provide robust, reliable transmission
with inherent immunity to outside interference
Model Version Description Part Number
NAV 10SD 101 10G HDMI Scaling Decoder - Multimode. . . . . . . . . . . . . . . . . . . . 60-1572-19
NAV 10SD 101 10G HDMI Scaling Decoder - Singlemode.. . . . . . . . . . . . . . . . . . 60-1572-20
NAV 10SD 501
10G Pro AV over IP Scaling Decoder - HDMI, Ethernet, and USB
The NAV 10SD 501 is a Pro AV over IP scaling decoder FEATURES
that decodes and scales ultra-low latency, visually • Decodes video, audio, Ethernet, and USB signals
lossless video, audio, Ethernet, and USB 2.0 signals from 10 Gbps Ethernet networks NAV 10SD 501 - Multimode
over 10 Gbps Ethernet networks at efficient bit rates. • Supports HDMI 2.0 at resolutions up to
It is fully compatible with NAV 1 Gbps endpoints, 4K/60 @ 4:4:4
increasing scalability for large deployments. With • PURE3 ® Codec
built-in USB 2.0 extension, the NAV™ 10SD 501 can • PURE3 Intelligent Selective Streaming
remotely connect to peripheral USB-enabled devices. • Interoperable with 1 Gbps NAV™ endpoints
The 1 Gbps Ethernet expansion port facilitates remote • Ultra-low latency with visually lossless compression
LAN connectivity and control of attached IP-enabled • Advanced Extron Vector™ 4K scaling technology
Ethernet-enabled devices. With its integrated Extron • AES67 audio support
Vector 4K scaling technology, the NAV 10SD 501 • Industry-standard LC connectors for fiber optic
delivers best-in-class image upscaling and downscaling connectivity provide robust, reliable transmission
using Extron’s exclusive, high-precision processing with inherent immunity to outside interference
algorithms for exceptional scaling performance.
Model Version Description Part Number
NAV 10SD 501 10G HDMI, Ethernet, USB Scaling Decoder-Multimode. . . . . . 60-1572-07
NAV 10SD 501 10G HDMI, Ethernet, USB Scaling Decoder-Singlemode. . . . . 60-1572-08
12
USA West USA East www.extron.com
+1.714.491.1500 / +800.633.9876 +1.919.850.1000 / +800.633.9876 © 2020 Extron Electronics. All rights reserved.
+1.714.491.1517 FAX +1.919.850.1001 FAX Prices and specifications subject to change without notice.NEW PRODUCTS
NAV PRO AV OVER IP
NAV SD 101
1G Pro AV over IP Scaling Decoder - HDMI
The NAV SD 101 is a Pro AV over IP scaling FEATURES
decoder that decodes and scales ultra-low latency, • Decodes video and audio from 1 Gbps Ethernet
high quality video and audio signals over 1 Gbps networks
Ethernet networks at extremely low bit rates. It is • Supports HDMI 2.0 at resolutions up to
fully compatible with NAV™ 10 Gbps endpoints, 4K/60 @ 4:4:4
increasing scalability for large deployments. With its • PURE3 ® Codec
integrated Extron Vector™ 4K scaling technology, the • PURE3 Intelligent Selective Streaming
NAV SD 101 delivers best-in-class image upscaling • Interoperable with 10 Gbps NAV™ endpoints
and downscaling using Extron’s exclusive, high- • Ultra-low latency with high quality video
precision processing algorithms for exceptional scaling • Advanced Extron Vector™ 4K scaling technology
performance. Using a standard 1000Base-T 1 Gbps • AES67 audio support
copper Ethernet infrastructure, the NAV SD 101 • PoE+ compatibility eliminates the need for a local
facilitates flexible system design and cost-effective power supply
streaming over large distances, and PoE+ powering
eliminates the need for external power supplies.
Model Version Description Part Number
NAV SD 101 1G HDMI Scaling Decoder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1525-14
NAV SD 501
1G Pro AV over IP Scaling Decoder - HDMI, Ethernet, and USB
The NAV SD 501 is a Pro AV over IP scaling decoder FEATURES
that decodes and scales ultra-low latency, high quality • Decodes video, audio, Ethernet, and USB signals
video, audio, Ethernet, and USB 2.0 signals over from 1 Gbps Ethernet networks
1 Gbps Ethernet networks at extremely low bit rates. • Supports HDMI 2.0 at resolutions up to
It is fully compatible with NAV 10 Gbps endpoints, 4K/60 @ 4:4:4
increasing scalability for large deployments. With • PURE3 ® Codec
built-in USB 2.0 extension, the NAV 10 SD 501 can • PURE3 Intelligent Selective Streaming
remotely connect to peripheral USB-enabled devices. • Interoperable with 10 Gbps NAV™ endpoints
The 100 Mbps Ethernet expansion port facilitates • Ultra-low latency with high quality video
remote LAN connectivity and control of attached • Advanced Extron Vector™ 4K scaling technology
IP-enabled Ethernet-enabled devices. With its • AES67 audio support
integrated Extron Vector 4K scaling technology, the • PoE+ compatibility eliminates the need for a local
NAV SD 501 delivers best-in-class image upscaling power supply
and downscaling using Extron’s exclusive, high-
precision processing algorithms for exceptional scaling
performance. Using a standard 1000Base-T 1 Gbps
copper Ethernet infrastructure, the NAV SD 101
facilitates flexible system design and cost-effective
streaming over large distances, and PoE+ powering
eliminates the need for external power supplies.
Model Version Description Part Number
NAV SD 501 1G HDMI, Ethernet, USB Scaling Decoder. . . . . . . . . . . . . . . . . . . 60-1525-03
For updated product availability, go to www.extron.com
13
Europe Middle East Asia China Japan
+31.33.453.4040 / +800.3987.6673 +971.4.299.1800 +65.6383.4400 / +800.7339.8766 +86.21.3760.1568 / +4000.398766 +81.3.3511.7655
+31.33.453.4050 FAX +971.4.299.1880 FAX +65.6383.4664 FAX +86.21.3760.1566 FAX +81.3.3511.7656 FAXNEW PRODUCTS
NAV PRO AV OVER IP
NAVigator
Pro AV over IP System Manager
NAVigator is a hardware appliance for secure FEATURES
management, configuration, and control of NAV™ Pro • Securely manages, configures, and controls
AV over IP systems. Use the user-friendly web-based NAV™ Pro AV over IP systems
NAVigator
NAV System Manager to configure, monitor and • Each unit supports up to 240 NAV endpoints
control, backup and restore, run diagnostics, and • Intuitive, web-based user interface for ease of use
troubleshoot. An entry level NAVigator system supports • Manages simultaneous configuration of multiple
16 endpoints and can expand with LinkLicense to NAV devices
support 48, 96, or 240 devices. Multiple NAVigator • Secure encrypted communication between all
units working together can support thousands of endpoints
endpoints. Two isolated, independent LAN ports • Power over Ethernet, or PoE, eliminates the need for
facilitate control from a secondary network, enabling a local power supply
flexible design with enhanced security, and eliminating
AV traffic on the corporate network. With Extron
Pro Series control integration, the NAVigator acts
as a centralized communication bridge for secure
control of all attached devices. The NAVigator System
Manager can be PoE powered over the network.
Model Version Description Part Number
NAVigator Entry Level Version for 16 Endpoints. . . . . . . . . . . . . . . . . . . . . . . . 60-1534-01
LinkLicense NAVigator 48 Endpoints Upgrade. . . . . . . . . . . . . . . . . . . . . . . . . . . 79-2551-02
LinkLicense NAVigator 96 Endpoints Upgrade. . . . . . . . . . . . . . . . . . . . . . . . . . . 79-2551-03
LinkLicense NAVigator 240 Endpoints Upgrade. . . . . . . . . . . . . . . . . . . . . . . . . . 79-2551-04
COLLABORATION

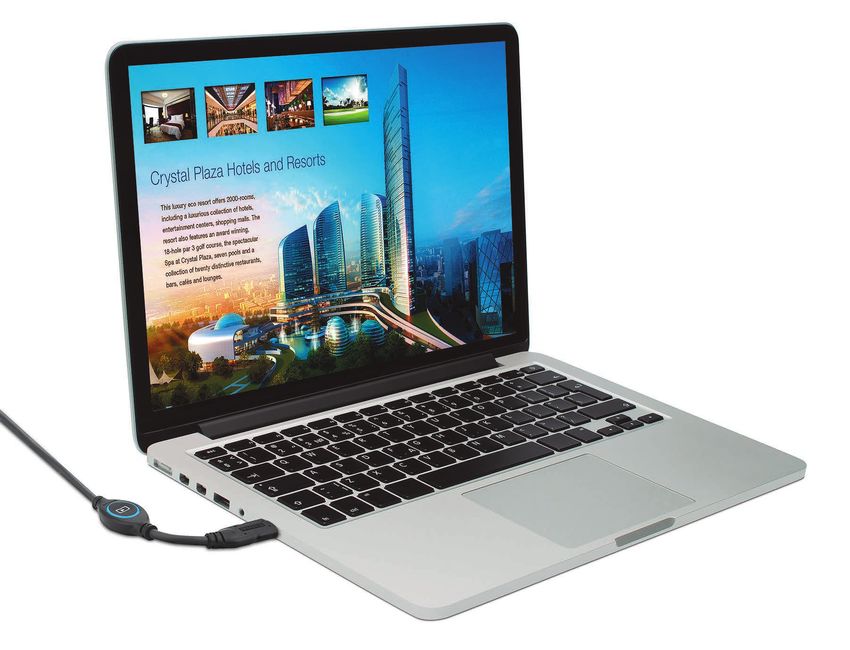

SM Series USBC SM
Show Me Cable for TeamWork Collaboration Systems
The Extron SM Series Show Me® cables provide the FEATURES
user interface for HDMI, DisplayPort, Mini DisplayPort, • Provides the user interface for digital or analog
USB-C, or VGA sources in an Extron TeamWork® signals in a TeamWork® collaboration system
Collaboration System. Operation is simple and • ∏ Now supports USB-C sources along with
convenient: Connect the Show Me cable to your HDMI, DisplayPort, Mini DisplayPort, and VGA
source device and press the Share button to share source connections
your content on the main presentation display. The • Supports computer and video signals up to
cable meets Section 508 accessibility standards and 4096x2160 @ 60 Hz
is certified for use with AVEdgeTM and Cable Cubby® • Share button lights as it switches the connected
enclosures for discreet, convenient access. source to the main presentation display
• Available in 6' (1.8 m) and 12' (3.6 m) lengths
• 24" (60 cm) control/tally pigtail for ease of
installation
• Certified for use with AVEdge and Cable Cubby
enclosures
Model Version Description Part Number
USBC-HDMI SM USB-C to HDMI SM Cable, 6' (1.8m). . . . . . . . . . . . . . . . . . . . . . . . 26-733-06
USBC-HDMI SM USB-C to HDMI SM Cable, 12' (3.6m).. . . . . . . . . . . . . . . . . . . . . . 26-733-12
USBC-DP SM USB-C to DP SM Cable, 6' (1.8m).. . . . . . . . . . . . . . . . . . . . . . . . . . 26-734-06
USBC-DP SM USB-C to DP SM Cable, 12' (3.6m). . . . . . . . . . . . . . . . . . . . . . . . . 26-734-12
14
USA West USA East www.extron.com
+1.714.491.1500 / +800.633.9876 +1.919.850.1000 / +800.633.9876 © 2020 Extron Electronics. All rights reserved.
+1.714.491.1517 FAX +1.919.850.1001 FAX Prices and specifications subject to change without notice.NEW PRODUCTS
WIRELESS
ShareLink Pro 500
Wired and Wireless Presentation Gateway
The ShareLink® Pro 500 is a Wired and Wireless FEATURES
Presentation Gateway that enables anyone to present • Wirelessly share content from mobile devices
content from computers, tablets, or smartphones • Provides full screen mirroring for all devices
on a display for easy cost-effective collaboration. • Wired and wireless sources can collaborate
It features advanced technology that supports simultaneously
simultaneous display of up to four devices, including • Supports Mac® and Windows ® computers as well as
an HDMI-connected device. The HDMI input supports Apple® and Android™ tablets and smartphones
wired devices such as a signage player or another • Dedicated app provides consistent user experience
AV source. The ShareLink Pro 500 has collaboration across platforms
and moderator modes that facilitate both open and • View up to four pieces of content simultaneously
controlled collaboration environments. When used from any connected user
with Extron GVE - GlobalViewer Enterprise software,
multiple units can be managed across an enterprise
or campus. ShareLink Pro’s professional capabilities
provide easy cost-effective integration of AV and mobile
devices into huddle, meeting, and collaboration spaces.
Model Version Description Part Number
ShareLink Pro 500 Wired and Wireless Presentation Gateway. . . . . . . . . . . . . . . . . . 60-1877-01
ShareLink Pro 1000
Wired and Wireless Presentation System
The ShareLink® Pro 1000 is a 4K Wired and Wireless FEATURES
Presentation System that enables anyone to present • Wirelessly share content from mobile devices
content from computers, tablets, or smartphones on a • Provides full screen mirroring for all devices
display for easy collaboration. It supports simultaneous • Wired and wireless sources can collaborate
display of up to four devices including an HDMI- simultaneously
connected device. The HDMI input supports wired • Supports Mac® and Windows ® computers as well as
devices, including TeamWork Show Me cables for Apple® and Android™ tablets and smartphones
easy source selection. The ShareLink Pro 1000 has • ∏Extron ShareLink Pro macOS app
collaboration and moderator modes that facilitate both • HDMI output supports computer and video
open and controlled collaboration environments, as well resolutions up to 4K
as dual Ethernet ports for more secure environments. • View up to four pieces of content simultaneously
When used with Extron GVE - GlobalViewer Enterprise from any connected user
software, multiple units can be managed across an • Dual Ethernet ports segment guest and private
enterprise or campus. ShareLink Pro’s professional users for secure collaboration
capabilities provide easy integration of AV and mobile
devices into huddle, meeting and collaboration spaces.
Model Version Description Part Number
ShareLink Pro 1000 Wired and Wireless Presentation System.. . . . . . . . . . . . . . . . . . . 60-1679-01
ShareLink Pro Feature Comparison
ShareLink Pro 1000 ShareLink Pro 500
Max Output Resolution* 4K 1080p
Ethernet Ports Dual Single
Display Control Options RS-232/CEC CEC
TeamWork Show Me Support •
Contact/Tally Control •
*When sharing content via software app
For updated product availability, go to www.extron.com
15
Europe Middle East Asia China Japan
+31.33.453.4040 / +800.3987.6673 +971.4.299.1800 +65.6383.4400 / +800.7339.8766 +86.21.3760.1568 / +4000.398766 +81.3.3511.7655
+31.33.453.4050 FAX +971.4.299.1880 FAX +65.6383.4664 FAX +86.21.3760.1566 FAX +81.3.3511.7656 FAXIPCP Pro xi Series
Our Most Powerful AV Control Processors
As AV systems grow in size and complexity, control systems must meet every demand with fast, dependable performance. At the
core of these control systems, our new IPCP Pro xi Series control processors deliver the most powerful and versatile performance
standards to date. With up to four times more memory and significantly-enhanced processing power for increased deployment
speeds and improved runtime functionality, this new series is designed to excel in even the most demanding AV applications. In
addition to increases in performance, these new processors feature advanced security standards and Gigabit Ethernet, which
ensures compatibility with multiple TouchLink Pro touchpanels and Network Button Panels using a standard network infrastructure.
The new IPCP Pro xi Series control processors are an ideal choice for controlling multiple devices and control signal types within
today’s most challenging control system designs.
What’s new: SERIES COMMON FEATURES
The IPCP Pro Q xi Series control processors are multi-network • Supports TouchLink Pro touchpanels, eBUS® button panels,
models and feature: and Network Button Panels
• Quad core processors • Supports secure industry standard communications protocols
• Four times more memory with 2 GB of RAM and • Supports LinkLicense® for User Interfaces
8 GB of Flash • Supports popular BMS – Building Management System
• USB-C port for local setup and troubleshooting protocols, such as BACnet, KNX, and DALI
- IPCP Pro 555Q xi only • Multi-level password protection
The IPCP Pro xi Series control processors are • Fully customizable using Extron control system software
single network models and feature:
• An extensive library of Global Configurator device drivers
• Upgraded single core processors and Global Scripter modules support devices from a broad
• Two times more memory with 1 GB of RAM and range of manufacturers, streamlining configuration and
8 GB of Flash programming
To learn more, visit extron.com/ipcpproxiNEW PRODUCTS
IP LINK PRO
IPCP Pro 555Q xi
IP Link Pro Quad Core Control Processor
UNIQUE FEATURES
• ∏ Quad Core processor and four times more • Eight IR/Serial ports for one-way control of external
memory for increased upload speeds, faster runtime devices
performance, and more sophisticated projects • Four Flex I/O ports
• ∏ USB-C port for local setup and • Eight relays for controlling room functions
troubleshooting • Four independently switched 12 VDC outputs
• AV LAN port allows AV devices to be isolated from • DHCP server for AV LAN
the corporate network • The LAN port will permit discovery, setup and
• Six bidirectional RS-232 serial ports with software firmware updates for Extron devices connected to
handshaking the AV LAN port
• Two bidirectional RS-232/RS-422/RS-485 serial • Integrated IR Learning capability
ports with hardware and software handshaking • 1U, half rack width metal enclosure
Model Version Description Part Number
IPCP Pro 555Q xi IP Link Pro Control Processor. . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1917-01
IPCP Pro 555Q xi IP Link Pro Control Proc., LL UI Upgrade.. . . . . . . . . . . . . . . . . . 60-1917-01A
IPCP Pro 360Q xi
IP Link Pro Quad Core Control Processor
UNIQUE FEATURES
• ∏ Quad Core processor and four times more • Two IR/Serial ports for one-way control of external
memory for increased upload speeds, faster runtime devices
performance, and more sophisticated projects • Four Digital I/O ports
• Three AV LAN ports allow AV devices to be isolated • Four relays for controlling room functions
from the corporate network • DHCP server for AV LAN
• AV LAN ports provide PoE+ to external devices • The LAN port will permit discovery, setup and
• Two bidirectional RS-232 serial ports with software firmware updates for Extron devices connected to
handshaking the AV LAN port
• One bidirectional RS-232/RS-422/RS-485 serial • Extron Pro Series control devices
port with hardware and software handshaking • Integrated IR learning capability
• 1U, half rack width metal enclosure
Model Version Description Part Number
IPCP Pro 360Q xi IP Link Pro Control Processor. . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1916-01
IPCP Pro 360Q xi IP Link Pro Control Proc., LL UI Upgrade.. . . . . . . . . . . . . . . . . . 60-1916-01A
IPCP Pro 255Q xi
IP Link Pro Quad Core Control Processor
UNIQUE FEATURES
• ∏ Quad Core processor and four times more • One IR/Serial port for one-way control of external
memory for increased upload speeds, faster runtime devices
performance, and more sophisticated projects • Four Digital I/O ports
• AV LAN port allows AV devices to be isolated from • Two relays for controlling room functions
the corporate network • Remote volume control port for the Extron MPA
• One bidirectional RS-232 serial port with software Series and select XTRA™ Series amplifiers
handshaking • DHCP server for AV LAN
• One bidirectional RS-232/RS-422/RS-485 serial • The LAN port will permit discovery, setup and
port with hardware and software handshaking firmware updates for Extron devices connected to
the AV LAN port
• Integrated IR Learning capability
• 1U, quarter rack width metal enclosure
Model Version Description Part Number
IPCP Pro 255Q xi IP Link Pro Control Processor. . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1914-01
IPCP Pro 255Q xi IP Link Pro Control Proc., LL UI Upgrade.. . . . . . . . . . . . . . . . . . 60-1914-01A
For updated product availability, go to www.extron.com
17
Europe Middle East Asia China Japan
+31.33.453.4040 / +800.3987.6673 +971.4.299.1800 +65.6383.4400 / +800.7339.8766 +86.21.3760.1568 / +4000.398766 +81.3.3511.7655
+31.33.453.4050 FAX +971.4.299.1880 FAX +65.6383.4664 FAX +86.21.3760.1566 FAX +81.3.3511.7656 FAXNEW PRODUCTS
IP LINK PRO
IPCP Pro 355DRQ xi
IP Link Pro Quad Core Control Processor - DIN Rail
UNIQUE FEATURES
• ∏ Quad Core processor and four times more • One bidirectional RS-232/RS-422/RS-485 serial
memory for increased upload speeds, faster runtime port with hardware and software handshaking
performance, and more sophisticated projects • Two IR/Serial ports for one-way control of external
• Securely mounts to an industry-standard DIN devices
rail commonly used by third party automation • Four digital I/O ports
equipment in racks and cabinets • Four relays for controlling room functions
• AV LAN port allows AV devices to be isolated from • DHCP server for AV LAN
the corporate network • The LAN port will permit discovery, setup and
• Two bidirectional RS-232 serial ports with software firmware updates for Extron devices connected to
handshaking the AV LAN port
Model Version Description Part Number
IPCP Pro 355DRQ xi IP Link Pro Control Processor, DIN Rail. . . . . . . . . . . . . . . . . . . . 60-1915-01
IPCP Pro 355DRQ xi IP Link Pro Control Proc., DIN Rail, LL UI Upgrade. . . . . . . . . . 60-1915-01A
IPCP Pro 550 xi
IP Link Pro Control Processor
UNIQUE FEATURES
• ∏ Single Core processor and two times more • Eight IR/Serial ports for one-way control of external
memory for increased project upload speeds, devices
faster runtime performance and more sophisticated • Four Flex I/O ports
projects • Eight relays for controlling room functions
• Six bidirectional RS-232 serial ports with software • Four independently switched 12 VDC outputs
handshaking • Integrated IR Learning capability
• Two bidirectional RS-232/RS-422/RS-485 serial • 1U, half rack width metal enclosure
ports with hardware and software handshaking
Model Version Description Part Number
IPCP Pro 550 xi IP Link Pro Control Processor. . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1913-01
IPCP Pro 550 xi IP Link Pro Control Proc., LL UI Upgrade.. . . . . . . . . . . . . . . . . . 60-1913-01A
IPCP Pro 350 xi
IP Link Pro Control Processor
UNIQUE FEATURES
• ∏ Single Core processor and two times more • Two IR/Serial ports for one-way control of external
memory for increased project upload speeds, devices
faster runtime performance and more sophisticated • Four Digital I/O ports
projects • Four relays for controlling room functions
• Two bidirectional RS-232 serial ports with software • Integrated three port network switch
handshaking • Integrated IR Learning capability
• One bidirectional RS-232/RS-422/RS-485 serial • 1U, half rack width metal enclosure
port with hardware and software handshaking
Model Version Description Part Number
IPCP Pro 350 xi IP Link Pro Control Processor. . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1912-01
IPCP Pro 350 xi IP Link Pro Control Proc., LL UI Upgrade.. . . . . . . . . . . . . . . . . . 60-1912-01A
18
USA West USA East www.extron.com
+1.714.491.1500 / +800.633.9876 +1.919.850.1000 / +800.633.9876 © 2020 Extron Electronics. All rights reserved.
+1.714.491.1517 FAX +1.919.850.1001 FAX Prices and specifications subject to change without notice.NEW PRODUCTS
IP LINK PRO
IPCP Pro 250 xi
IP Link Pro Control Processor
UNIQUE FEATURES
• ∏ Single Core processor and two times more • One IR/Serial port for one-way control of external
memory for increased project upload speeds, devices
faster runtime performance and more sophisticated • Four Digital I/O ports
projects • Two relays for controlling room functions
• One bidirectional RS-232 serial port with software • Remote volume control port for the Extron MPA
handshaking Series and select XTRA™ Series amplifiers
• One bidirectional RS-232/RS-422/RS-485 serial • Integrated IR Learning capability
port with hardware and software handshaking • 1U, quarter rack width metal enclosure
Model Version Description Part Number
IPCP Pro 250 xi IP Link Pro Control Processor. . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1911-01
IPCP Pro 250 xi IP Link Pro Control Proc., LL UI Upgrade.. . . . . . . . . . . . . . . . . . 60-1911-01A
IPCP Pro PCS1 xi
IP Link Pro Power and Device Control Processor
UNIQUE FEATURES
• ∏ Single Core processor and two times more • Easily-accessible, front panel circuit breaker adds
memory for increased project upload speeds, over-current protection for remotely controlled
faster runtime performance and more sophisticated connected devices
projects • One bidirectional RS-232 serial port with software
• Intelligent current sensing with alarm handshaking
• Outlet status retention during power loss • One IR/Serial port for one-way control of external
• One male AC input and one female AC output - both devices
using IEC connections • Three digital I/O ports
• Supports control system synchronization
• 1U, quarter rack width metal enclosure
Model Version Description Part Number
IPCP Pro PCS1 xi IP Link Pro Control Processor. . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1910-01
IPCP Pro PCS1 xi IP Link Pro Control Proc., LL UI Upgrade.. . . . . . . . . . . . . . . . . . 60-1910-01A
For updated product availability, go to www.extron.com
19
Europe Middle East Asia China Japan
+31.33.453.4040 / +800.3987.6673 +971.4.299.1800 +65.6383.4400 / +800.7339.8766 +86.21.3760.1568 / +4000.398766 +81.3.3511.7655
+31.33.453.4050 FAX +971.4.299.1880 FAX +65.6383.4664 FAX +86.21.3760.1566 FAX +81.3.3511.7656 FAXTLC Pro Series
TouchLink Pro Touchpanels
with Built-in Control Processors
TouchLink Pro Control Systems are complete solutions that combine a TouchLink Pro touchpanel with an integrated IP Link Pro
control processor. This all-in-one approach streamlines system designs by consolidating essential control system components,
freeing up space, and simplifying integration. The included port expansion adapter makes it easy to add traditional control ports
when needed, directly at the touchpanel. All TLC Pro control systems maintain the same stylish appearance and high performance
of our TouchLink Pro touchpanels and are ideal for any environment requiring a customizable, all-in-one touchpanel control system.
Key Features
• TouchLink Pro touchpanel with a built-in IP Link Pro
control processor
• 5", 7", and 10" ultra-tough Gorilla Glass touchscreens
• All-in-one design saves space, simplifies system designs
• Control multiple devices directly from the Ethernet port
• Port expansion adapter provides convenient control directly
from the touchpanel: two bidirectional RS-232 ports, one
contact closure port, one IR port, and two relays
• Customizable mounting options
Port expansion adapter conveniently adds a variety of control ports
• PoE compatible directly to the back of the touchpanel.
• Convenient onboard digital input
To learn more, visit extron.com/TLCNEW PRODUCTS
TOUCHLINK PRO CONTROL SYSTEMS
TLC Pro 526M
5" Wall Mount TouchLink Pro Control System
UNIQUE FEATURES
• 5" capacitive touchscreen with 800x480 resolution • Can be mounted in a one-gang junction box, or on a
and 24-bit color depth wall, lectern, or any flat surface
Model Version Description Part Number
TLC Pro 526M Black - Wall Mount. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1853-02
TLC Pro 526M White - Wall Mount. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1853-03
TLC Pro 526M NC Black - Wall Mount, No Camera. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1853-12
TLC Pro 526M NC White - Wall Mount, No Camera.. . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1853-13
TLC Pro 726M
7" Wall Mount TouchLink Pro Control System
UNIQUE FEATURES
• 7" capacitive touchscreen with 1024x600 resolution • Can be mounted in a two-gang junction box, or on a
and 24-bit color depth wall, lectern, or any flat surface
Model Version Description Part Number
TLC Pro 726M Black - Wall Mount. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1854-02
TLC Pro 726M White - Wall Mount. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1854-03
TLC Pro 726M NC Black - Wall Mount, No Camera. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1854-12
TLC Pro 726M NC White - Wall Mount, No Camera.. . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1854-13
TLC Pro 1026M
10" Wall Mount TouchLink Pro Control System
UNIQUE FEATURES
• 10" capacitive touchscreen with 1280x800 • Can be mounted in a two-gang junction box, or on a
resolution and 24-bit color depth wall, lectern, or any flat surface
Model Version Description Part Number
TLC Pro 1026M Black - Wall Mount. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1855-02
TLC Pro 1026M White - Wall Mount. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1855-03
TLC Pro 1026M NC Black - Wall Mount, No Camera. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1855-12
TLC Pro 1026M NC White - Wall Mount, No Camera.. . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1855-13
For updated product availability, go to www.extron.com
21
Europe Middle East Asia China Japan
+31.33.453.4040 / +800.3987.6673 +971.4.299.1800 +65.6383.4400 / +800.7339.8766 +86.21.3760.1568 / +4000.398766 +81.3.3511.7655
+31.33.453.4050 FAX +971.4.299.1880 FAX +65.6383.4664 FAX +86.21.3760.1566 FAX +81.3.3511.7656 FAXYou can also read
