CARDIO BROCHURE // 2015
4 MATRIX FITNESS
An Exercise in Passion
Innovation
Total Solutions Promise
mPower Integrated Technology Solutions
7xi Console Technology
CONTENTS
Console Overview
25 TREADMILLS
Product Details
Products
35 ASCENTS &
ELLIPTICALS 63 CYCLES
Product Details
Products
Product Details
Products
51 CLIMBMILLS
STEPPERS
&
77 GROUP TRAINING
Rower
Krankcycle
Product Details Indoor Cycles
Products Myride VX Console
// 3
AN EXERCISE
IN PASSION + STRONG. SMART. BEAUTIFUL.
Matrix is among the world’s premier – and fastest-growing
– commercial fitness brands. While our rise has been quick,
We redefined industry standards not only in industrial design,
but also through a series of industry firsts. We introduced new
it has not been accidental. Our culture piques innovative fitness modalities with the Hybrid Cycle and Ascent Trainer®
thinking, applauds fresh ideas and values creative problem products; raised the bar for user experience with our ClimbMill
solving. As a result, we have reestablished the design standard models; and took care of the details with our user-friendly
for which others now strive, and we’ve breathed new life into bikes. We’ve motivated and inspired group training with the
an industry where customers were offered the same tired Krankcycle® and Matrix powered by ICG® lineup.
products, year after year, by meeting customer needs like no
one else can. Matrix continues to deliver with the 7xi, our most connected
console, and our Workout Tracking Network, which blends
Leading clubs and fitness facilities around the world choose to expansive entertainment with integrated fitness tracking
partner with us because Matrix delivers. We show our strength functionality. These innovations bolster retention – and build
in our top-notch quality: our belts last longer, our motors run your brand – by connecting your members to the communities
more smoothly, and we deliver a total cost of ownership that’s and content that inspire them.
among the lowest in the industry. Smart is about interfaces that
are optimized for fitness environments and incredible attention
to detail on every touch point. Beautiful? That’s a story in itself.
// 4
About Matrix Fitness Matrix is a brand of Johnson Health Tech, Ltd. (JHT). Johnson Health Tech has been producing premium fitness equipment since 1975 and is among the fastest-growing manufacturers of fitness equipment in the world. It has earned both ISO 9002 and 9001 certifications. A truly global company with 20 subsidiaries worldwide, JHT has the intellectual resources necessary to produce the most technologically advanced equipment on the market and the economies of scale needed to deliver the best value possible.
BRAILLE
INTEGRATED TOGGLES
At Matrix, Believe in Better is more than our philosophy. It’s a
CARDIO CONTACT
promise. To you and your customers. A promise that we’ll keep
pushing the boundaries in fitness. That we’ll always listen and
take your concerns to heart. You’ve trusted us to dream up elegant
solutions in the past, and we’ve delivered. Time and again.
+ +
IDENTIFY CREATE
BREAKTHROUGHS BEGIN BY LISTENING A FOUNDATION FOR INNOVATION
Our ongoing record of industry firsts doesn’t happen by accident. Then, our exceptional development team builds from there,
We utilize a proven methodology that starts at the very root of setting problem priorities and creating a formal problem
a problem. First, we take the time to understand the situation statement, which provides the foundation on which we build.
from every audience’s viewpoint, collecting feedback from many Comprehensive research guides our creative direction towards
different sources: facility owners, service technicians, fitness concepts to be tested and analyzed by key stakeholders.
trainers and users, of course.
// 6
+
+
REDEFINE IMPACT
EFFICIENCY IN ACTION THE PROOF IS IN THE PRODUCT
Refined concepts are delivered into an efficient production Believe in Better summarizes our mission of producing
strategy designed to limit delays and restarts. The result takes equipment that stands out, rises above and sets new industry
us beyond bells and whistles to true solutions, higher-quality standards. We don’t just want to be the biggest; we want to be
products and inspiring fitness experiences. the best. To get there, we’re reshaping the fitness industry, one
innovation at a time. And never stopping at “good enough.”
// 7
OUR “TOTAL SOLUTIONS” PROMISE:
Matrix Fitness is your Total Solutions Partner. We offer integrated solutions to make it easier
to own, service and maintain our products so that you get a greater return on your investment.
The sale is not the start of a relationship and it certainly isn’t the end. It is just a point in a
service-driven process designed to deliver the best experience for you, your trainers, your
service technicians and your customers.
FACILITY PLANNING FINANCING/LEASING
It starts with your goals and ends with a space that fits your We offer competitive financing options to give you more control
budget, meets all relevant regulations and requirements, and over what you buy and how you pay.
exceeds your expectations.
CERTIFIED INSTALLATIONS/SERVICE KITS INDUSTRY-LEADING CUSTOMER SUPPORT
Highly trained installation and service technicians expedite We are here whenever you need us. We have an unprecedented
set-up and maximize uptime to optimize your investment, while 93% first-time fix rate and a 48-hour service response window.
support materials (including service kits in some markets) give We also own our console technology and can provide diagnostic
you the tools you need to get and stay operational. services remotely or on site.
INDUSTRY-LEADING WARRANTIES EDUCATION
We stand behind our equipment with industry-leading warranties Make the most of your investment. Find service materials and
that offer the protection you need to choose confidently. general equipment information geared toward owners, service
technicians, trainers and members. We provide maintenance
info, quick service hints, videos and more. We continually add
resources to make our library more meaningful to you. Our goal
is to make Matrix machines easy to use, own and maintain.
DEDICATED SALES & SUPPORT
Dedicated sales and internal support teams work in concert
to fully understand and meet your business needs.
// 8

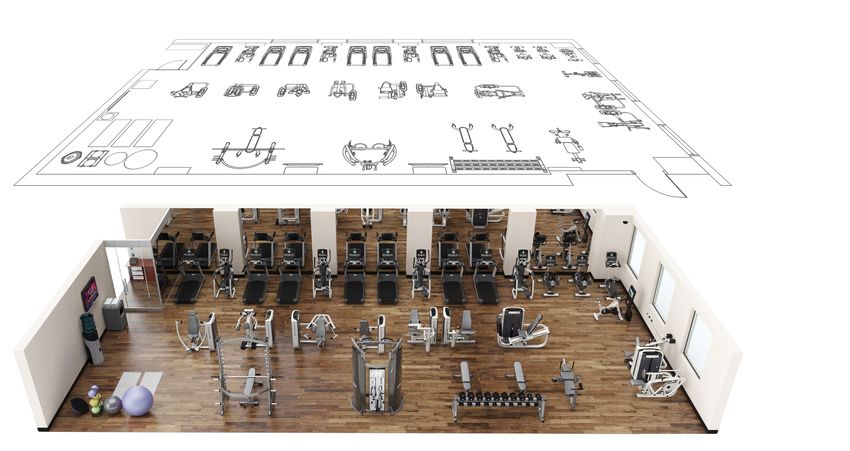

2D LINE DRAWING
3D
RENDERING
// 9
BETTER, BROUGHT TO LIFE.
mPower is about giving you, your employees and your customers the ability
to improve the fitness environment in a way that is meaningful – empowering
everyone to transform their time in your facility into an experience like no other.
Most visibly, mPower is about connecting users to the people and content they care
about. Because there’s nothing more valuable and engaging to users. And keeping
them motivated and providing tools to help them reach their goals is your livelihood.
Since you’re running a business, you also need powerful management tools that
you can access anywhere, anytime. mPower provides those tools, uniting all of our
cardio solutions, including the industry-leading Matrix Asset Management system.
// 10users to engaging content through
Improve retention by connecting
+ VIRTUAL ACTIVE™ WORKOUTS
Our Virtual Active™ workouts include HD video and ambient sounds from
exotic destinations plus incline and/or resistance changes for a truly
a controlled interface.
immersive experience.
MOTIVATE
+ ENTERTAINMENT
Offer users a rich entertainment experience, including live TV,
thousands of on-demand music videos and personalized workout data.
+ CONNECTIVITY
From WiFi and Internet access to wireless receivers, we can link users
to everything from social media sites to basic remote audio.
+ PERSONAL TRAINER PORTAL
guidance to help users reach their
Trainers can augment client relationships by monitoring member activity
Provide proven, useful tools and
THE PARADIGM HAS SHIFTED. and delivering assignments, feedback and other communication via
equipment consoles, mobile devices and the web.
mPower Integrated Technology Solutions are an assortment of
fitness equipment, hardware, software and connectivity options.
+ VIRTUAL COACHING
goals, at their pace.
They form the foundation of our new solution-centric approach to
A virtual coaching component is bundled with Virtual Active, and it offers
MENTOR
fitness. That means we focus on the three core solutions that lead users tips to help them reach their fitness goals while training individually.
to a better fitness experience for your customers and for you:
Motivate, Mentor and Maintain. + WORKOUT TRACKING NETWORK
Your users can connect to their apps and tap the support of social networks
to monitor their progress and find motivation.
+ MATRIX ASSET MANAGEMENT™ SYSTEM
Decrease downtime, improve ROI and extract your equipment usage
data with our industry-leading asset management solution and its
with our system that will help improve
comprehensive insight into your equipment.
Keep your center running smoothly
+ ONLINE SERVICE PORTAL
This password-protected website delivers better communication
and greater accountability between you, Matrix and your service provider.
uptime and your ROI.
MAINTAIN
+ FACILITY COMMUNICATION & CUSTOMIZATION TOOLS
Communicate with users about upcoming events and specials,
plus customize equipment home screens with your logo using our
additional capabilities.MOTIVATE THEM WITH OUR EXCLUSIVE WORKOUTS.
Everyone who enters your doors has a lofty goal they want to achieve. Running that first half-marathon. Taking first place in their
triathlon age group. Or simply keeping up with kids who have boundless energy.
But no matter how strong their desire, they all need motivation. A little push to get them over the hump. On a bad day. Or every day.
Some may need a change of scenery to spice up the everyday routine. For others, only the swift tempo of their favorite songs can
propel them through their workouts toward new personal bests. Or maybe they just want to be distracted by the latest viral kitten
video. Whatever works.
Though they may not say it, your customers head to your facility for motivation as much as for the machines. You can turn to Matrix
for both. We offer a fusion of technology, entertainment and connectivity and deliver it at your members’ fingertips.
VIRTUAL ACTIVE EXPERIENCE – SPEED, TERRAIN INTERACTIVE
The beautiful HD footage speeds up or slows down to match your pace,
and your resistance or incline rises and lowers to match the terrain. It’s
the most immersive workout available.
SPRINT 8® WORKOUT – SCIENCE-BASED EFFICIENCY
Matrix is the only commercial cardio equipment that features the Sprint 8
High Intensity Interval Training (HIIT) workout that burns more fat, builds
more muscle and develops greater fitness with just three twenty-minute
workouts per week.
MOTIVATECONNECTED
VIA INTERNET
INTERNET CONNECTIVITY
WiFi-enabled 7xi consoles open up a world of opportunities for
your customers. With access to the most popular social media
apps, users will stay engaged and their workouts will fly by
while they enjoy their favorite content and connect with friends
and family.
TV
Keep users motivated and help them achieve their fitness goals
with the Matrix 41-cm / 16-inch attachable viewing screen. Our
FITCONNEXION™ bracket fully integrates console controls and
wiring for power and cable.
HIGH-QUALITY REMOTE AUDIO
If your facility utilizes several large, mounted televisions, we
can enhance users’ listening experience with our wireless
receivers, which deliver excellent sound to ensure a
synchronized audio-visual experience for your customers.
IPTV
Hotels can sync their entertainment slates so customers
experience the same lineups on their cardio equipment as they
do in their guest rooms, the lounge or the sports bar. IPTV
creates a seamless entertainment experience for guests and
affords properties the most control of their offerings.
// 13WORKOUT TRACKING NETWORK
A MATRIX SOLUTION, YOUR BRAND AND EXPERIENCE
Your members already have an abundance of tools to capture their gym workouts, trail
runs, yoga classes and circuit training. What they really need is a single solution that brings
everything together. That’s the Matrix Workout Tracking Network.
Matrix partners with the best tracking apps and devices to ensure that your members’ fitness
data reaches your branded platform no matter where they exercise. Members can also create
personalized goals, participate in challenges and applaud their peers through the social feed.
It all starts with the xID, the login that gives members access to all of their data and syncs with
their favorite apps and devices. This is the same xID that works with all Matrix 7xi consoles.
By using the xID as the main point of member connection, you can forge deep and lasting
relationships with your members.
Best of all? The Workout Tracking Network is a Matrix solution that you customize and present
under your brand so that your members realize that your facility makes it possible to bring their
fitness data and entertainment together in one place.
THE APP
The Workout Tracking app makes it easy for members to collect and retrieve their exercise data.
The xCapture feature allows members to record workouts by taking a photo of the console.
THE ENTERTAINMENT
Your members get more than tracking functionality. They also get access to on-demand TV
programming along with thousands of song titles that they can use to create playlists to enjoy
while they exercise.
// 14
MENTOR1 1
2 3
1
VIRTUAL COACHING 3
PERSONAL TRAINER PORTAL
Matrix Virtual Active workouts include a Guided Workout option Personal trainers and client members can augment their training
in which a trainer appears in the upper left corner, providing relationships with the Personal Trainer Portal. This technology
instruction and encouragement for more effective workouts. solution gives trainers access to client exercise data, enables
Myride® products also contain several virtual coaching options, them to assign workout plans electronically and facilitates
including the ability to run classes anytime with a virtual instructor. communication between training sessions. Members can access
feedback and training regimens on compatible consoles, wireless
2
NIKE + FOR THE GYM devices or desktop computers. This platform helps trainers
Nike+ is one of the largest online fitness communities in the world, connect more efficiently and directly with clients, who will see
tracking users’ running, cardio and other activities. Cardio products better results.
with 7xe consoles are equipped to sync with users’ iPod® devices,
allowing exercisers to upload workout data to nikeplus.com. They
can then take full advantage of the website’s tools and features,
including challenges with other runners, walkers and cardio users.
// 15PUT POWERFUL TOOLS IN THE
PALM OF YOUR HAND.
As a facility owner, you have a lot to manage. Trust Matrix Asset To help promote your services and communicate with users,
Management to lighten the load when it comes to equipment. we’ve also added the ability to create events on a facility
Already the most comprehensive asset management solution on calendar viewable on the 7xi consoles. That way you can
the market, our robust platform offers a 360° view of your total communicate with customers about upcoming specials or
equipment status anytime. On just about any device*. events. You can customize the product home screen, too. Add
your logo, use it as an electronic “bulletin board” to keep your
The latest version of our Asset Management solution includes customers informed, or employ scrolling messages for updates
an extremely useful, secure portal that facilitates communication and cross-promotion.
between Matrix, you and your service provider to streamline the
repair process and limit downtime. You don’t have to be on the Finally, we have created a truly open API platform that works
cardio floor to know that a treadmill is out of service, and you with all compatible software and WiFi-enabled equipment. This
don’t even have to be in the same city to launch the process that also gives you unfettered access to the data your members
gets it up and running again. generate. You can manage it through Asset Management, or you
can export the usage, service and maintenance information and
Our system isn’t just reactive, though. At its core, Matrix Asset flow it into your own systems for reporting or tracking facility
Management is about providing objective data so you can make assets and operations. The data is yours. How you leverage
optimal decisions in the future. That’s why we provide you a it is entirely up to you.
personalized portal with graphical displays of equipment use
– by product type, by hour, over the last month, etc. – that help * Device must be able to connect to the Internet
you align your inventory with usage patterns in your facility and
better manage products over their life cycles. Other proactive
features include a preventive maintenance schedule that you can
customize and automated software updates for your equipment,
which guarantee you’ll always have the latest and greatest
software Matrix has to offer.
// 16
MAINTAIN3
2 6
4
1 5
1
EASILY VIEW YOUR 2
ACCESS MACHINE- 3
CUSTOMIZE 4
UNDERSTAND 5
MANAGE 6
MULTIPLE VIEWS
PRODUCT INFORMATION SPECIFIC DATA EQUIPMENT NAMES USAGE PATTERNS MULTIPLE FACILITIES OF FACILITY DATA
Easy indicator icons on the Quickly gauge individual Not only can you name your At a glance, the system Ideal for organizations A variety of data views are
product page signal whether machine use with summary facility or center, but you can automatically summarizes large and small, the system possible for your facility.
a product is functioning statistics and graphs of the also configure the system the most popular machines provides easy access to Examples shown on this page
properly (green dot). Plus, product’s use over time. so that equipment names that were used at every time equipment data from multiple are Average Workouts per
you can quickly access This invaluable data can follow facility policy for easy of day. Greater insight into facilities in a single portal Hour, Top Usage in the Past
equipment information help you better manage identification by staff and usage patterns allows you to accessible by just about any 30 Days and Average Use
like product manuals or your inventory. service providers. better maximize product life. device that can connect to by Type.
service documentation. the Internet.
// 17EXPERIENCE//BETTER THE 7XI. IT’S NOT JUST A CONSOLE. IT’S AN EXPERIENCE. The 7xi changes the way you connect and communicate with your members. It revolutionizes the way you manage your equipment, your facility and your data. That expands your ability to attract new and retain existing members. The 7xi only looks like a console. It begins with a brilliant display and an intuitive tablet-style app interface. The 7xi then connects your members to stunning entertainment, social media favorites and brand-building communication. It provides access to invaluable machine data that can help you monitor equipment and expedite maintenance and service. Plus, it delivers that data over an open platform so you can leverage it to improve operations and build member loyalty. // 18
BETTER SELECTION
The 7xi includes fitness-optimized apps for popular
features, social media and more. You can expect your
options to grow as new favorites emerge.
Facebook Virtual Active
CONTENT ON DEMAND
We built our exclusive app interface to deliver a refined experience tailored
to the fitness environment. It’s easy to use on the fly so your members
don’t have to break their rhythm to access entertainment, social media and Twitter Virtual Coaching
facility communication.
This innovative console truly puts content at members’ fingertips. They can
tune into must-see television shows. They can keep up with social media feeds.
They can race through mountain trails while birds chirp from the treetops and
Calendar Asset Management
the gravel crunches beneath their feet. Plus, all of this on-demand content is
displayed on the brightest screen with the sharpest picture available.
The 7xi keeps your members connected to their favorites and lets them explore
exciting new experiences while they exercise. This is the console that makes a
great workout look even better. iPod / Multimedia Weather
YouTube MyFitnessPal
On-demand Music On-demand TVINSIDE THE 7XI The xID is the key to the 7xi. Your members access their own content, data and favorites with this single-point user login that allows them to link social media accounts, create playlists and manage their profiles. User registration is simple, and then their preferences load automatically whenever they log in. The xID also works with our Workout Tracking Network solution, making it easy to promote participation. With the xID, everything is linked and synced. As personal data becomes more critical to members, the 7xi becomes more critical to your member acquisition and retention efforts. The 7xi delivers more to them, and that means more to you. IT’S YOUR 7XI You can customize your 7xi home screen so the console reflects your brand, delivers your messages and engages your members. Incorporate a facility calendar to cross-promote classes, contests, special events and services. Plus, the social media integration is another powerful way to build brand awareness. Members have the option to post workouts to popular social media and communities. This exposes their networks to your brand every time they step off a 7xi elliptical, Ascent Trainer, ClimbMill, treadmill or bike. The connected 7xi console magnifies your messaging and vastly expands your reach. // 20
COMPATIBLE//PRODUCTS
Experience the 7xi difference on the following products:
T7xi Treadmill C7xi ClimbMill S7xi Stepper
A7xi Ascent Trainer ALB7xi Lower Body E7xi Suspension Elliptical
Ascent Trainer
H7xi Hybrid Cycle R7xi Recumbent Cycle U7xi Upright CycleENJOY THE VIEW
INNOVATION NEVER LOOKED THIS BEAUTIFUL
Sophisticated yet intuitive, Matrix cardio consoles continue to deliver exciting new experiences,
motivating workout feedback and engaging entertainment. Our selection of consoles provides you
more choice in what you put on your floor, and it gives your members more control over the data
they collect, the content they enjoy and the results they achieve.
FEATURE REFERENCE GUIDE
To help you better differentiate between products, we’ve created this feature key.
Simply look for these icons on each cardio product page.
Virtual Active by Matrix iPod® Connectivity Asset Management Self-powered
CONSOLE
OVERVIEW
+ 7xi console + 7xe console + 5x console
Treadmill series consoles are pictured above. Excludes T3xh console. Other series consoles may differ.
// 22+ 3xe console + 3x console + 1xe console + 1x console
// 23TREADMILLS
Strong, smart and beautiful do not just happen.
Neither do belts that last longer. Or motors that run more
smoothly. Or designs that look better. Striking the perfect
balance of engineering and aesthetics, our treadmills
attract more attention and require less maintenance
than anything you put next to them.
+TREADMILLS THE BEST CHOICE IN THE LONG RUN
Durably built to withstand rigorous use by walkers and runners, our treadmills offer the optimal mix of
support and cushioning. Our special responsive drive system and large running belt are added features
that offer maximum performance and comfort.
+ + +
Ultimate Deck™ System Dynamic Response Drive System™ Low Step-on Height
Our impact absorption system provides the ultimate feel for all Our exclusive drive system is coupled with controller technology All Matrix 1 and 3 series treadmills feature a low, 19 cm /
users, and it offers over 40,000 kilometers / 25,000 miles of that continuously monitors and adjusts to user footfall to ensure 7.5˝ step-on height for easy accessibility. The 5 and 7 series
maintenance-free performance. a perfect stride. treadmills are 24 cm / 9.5˝.
Cast-aluminum End Caps Spacious Running Surface
For lasting durability, the Matrix 5 and 7 series treadmills are The Matrix 5 and 7 series treadmills feature a 56 cm / 22˝ wide
equipped with cast-aluminum end caps. belt, providing an added sense of security and freedom.
+ +
// 26T7xi
Treadmill
+
integrated 48 cm / 19˝ capacitive touchscreen with
FitTouch™ Technology for intuitive performance
optimized app interface designed specifically for fitness offers users
easy access to social media and web content
WiFi connectivity for use with app interface and integrated
Matrix Asset Management system, Workout Tracking Network
and Personal Trainer Portal
custom interface configuration for personalized communication with users
featuring xID, the single-point user sign-in
for a seamless personal experience
integrated 3-speed personal fan
Vista Clear™ Television Technology – the most vibrant
integrated with immersive Virtual Active programming
picture quality in the industry
crossbar speed and incline adjustments keep
compatible with most smartphone and tablet devices for video and audio
controls easily within reach
playback, charging and on-screen playlist selection
compatible with IPTV
integrated with Sprint 8 High Intensity Interval Training program
// 27T7xe
Treadmill
+
integrated 38 cm / 15˝ touchscreen
display with FitTouch Technology for
intuitive performance
Vista Clear™ Television Technology – the most
vibrant picture quality in the industry
compatible with iPod® devices for video and audio
playback, charging and on-screen playlist selection
compatible with Nike + iPod® for the
Gym for simple workout tracking
crossbar speed and incline adjustments
keep controls within easy reach
integrated 3-speed personal fan
compatible with immersive Virtual Active programming
WiFi enabled for use with Matrix Asset Management system
// 28T5x
Treadmill
T3xe
Treadmill
intuitive LED console display integrated 41 cm / 16˝ touchscreen
display with FitTouch Technology for
compatible with iPod® for charging intuitive performance
integrated 3-speed personal fan Vista Clear Television Technology –
the most vibrant picture quality
WiFi enabled for use with in the industry
Matrix Asset Management system
compatible with immersive
crossbar speed and Virtual Active programming
incline adjustments keep
controls within easy reach
// 29T3x
Treadmill
T3xh
Treadmill
LED console display is easily navigated by integrated 41 cm / 16” touchscreen display
users of all experience levels with Simplified Display Mode for therapeutic,
rehabilitation and active-aging settings
Vista Clear Television Technology – the most
vibrant picture quality in the industry
compatible with immersive
Virtual Active programming
extended handrails with
neutral-position, angled grips
ensure secure entry and exit
reverse operation for
expanded care options
// 30T1xe
Treadmill
T1x
Treadmill
integrated 41 cm / 16˝ touchscreen large LED display provides easy viewing and
display with FitTouch Technology for simple controls
intuitive performance
Vista Clear Television Technology – the most
vibrant picture quality in the industry
compatible with immersive
Virtual Active programming
// 31Treadmill Specifications Images and specifications subject to change.
FEATURES T7xi Treadmill T7xe Treadmill T5x Treadmill T3xe Treadmill
Deck Ultimate hard-wax reversible 1˝ deck Ultimate hard-wax reversible 1˝ deck Ultimate hard-wax reversible 1˝ deck Ultimate hard-wax reversible 1˝ deck
Belt Habasit, 2-ply commercial grade Habasit, 2-ply commercial grade Habasit, 2-ply commercial grade Habasit, 2-ply commercial grade
Running Area 152 x 56 cm / 60˝ x 22˝ 152 x 56 cm / 60˝ x 22˝ 152 x 56 cm / 60˝ x 22˝ 152 x 51 cm / 60˝ x 20˝
Step-on Height 24 cm / 9.5˝ 24 cm / 9.5˝ 24 cm / 9.5˝ 19 cm / 7.5˝
Cushioning Ultimate Deck™ cushioning system Ultimate Deck cushioning system Ultimate Deck cushioning system Ultimate Deck cushioning system
Incline Range 0–15% (590-kg / 1,300-lb. thrust elevation motor) 0–15% (590-kg / 1,300-lb. thrust elevation motor) 0–15% (590-kg / 1,300-lb. thrust elevation motor) 0–15% (590-kg / 1,300-lb. thrust elevation motor)
Speed Range 0.8 – 24.1 km/h / 0.5 – 15 mph** 0.8 – 24.1 km/h / 0.5 – 15 mph** 0.8 – 24.1 km/h / 0.5 – 15 mph** 0.8 – 20 km/h / 0.5 – 12 mph
Contact & Telemetric HR Yes Yes Yes Yes
Crossbar Controls Go, stop, cool down, speed and incline Go, stop, cool down, speed and incline Go, stop, cool down, speed and incline No
Tread Sense Yes Yes Yes No
CONSOLE
Display 48 cm / 19˝ class projective capacitive touchscreen LCD 38 cm / 15˝ touchscreen LCD Dot-matrix LED with profile display 41 cm / 16˝ class touchscreen LCD
Time, Distance (Kilometers or Miles), Calories, Calories per Hour, Speed, Incline, Time, Distance (Kilometers or Miles), Calories, Calories per Hour, Speed, Incline, Time, Distance (Kilometers or Miles), Calories, Calories per Hour, Speed, Incline, Time, Distance (Kilometers or Miles), Calories, Calories per Hour, Speed, Incline,
Display Feedback
Pace, Heart Rate, METs, Watts, HD Dynamic Profile Display Pace, Heart Rate, METs, Watts, Dynamic Profile Display, Static Profile Display Pace, Average Pace, Heart Rate, METs, Watts, Workout Profile Pace, Heart Rate, METs, Watts, Dynamic Profile Display, Static Profile Display
Secondary Data Display Yes Yes No No
English, German, French, Italian, Spanish, Dutch, Portuguese, Chinese (s),
English, German, French, Italian, Spanish, Dutch, Portuguese, Chinese (s), English, German, French, Italian, Spanish, Dutch, Portuguese, Japanese, Swedish, English, German, French, Italian, Spanish, Dutch, Portuguese, Chinese (s),
User-defined Multi-language Display Chinese (t), Japanese, Korean, Swedish, Finnish, Russian, Arabic, Welsh,
Chinese (t), Japanese, Korean, Swedish, Finnish, Russian, Arabic, Turkish, Polish Finnish, Turkish, Polish Chinese (t), Japanese, Korean, Swedish, Finnish, Russian, Arabic, Turkish, Polish
Turkish, Polish
Manual, Rolling Hills, Fat Burn, Sprint 8, Target HR (speed), Target HR (incline), Manual, Rolling Hills, Fat Burn, 5k, Target HR, Gerkin Protocol, Army PFT,
Manual, Rolling Hills, Fat Burn, 5k, Target HR, Gerkin Protocol, Army PFT, Manual, Rolling Hills, Fat Burn, 5k, Target HR, Gerkin Protocol, Army PFT,
Workouts Gerkin Protocol, Calorie Goal, Distance Goal, Time Goal, Army PFT, Navy PRT, Navy PRT, Marine PFT, Air Force PRT, Physical Efficiency Battery (PEB),
Navy PRT, Marine PFT, Air Force PRT, Physical Efficiency Battery (PEB) Navy PRT, Marine PFT, Air Force PRT, Physical Efficiency Battery (PEB)
Marine PFT, Air Force PRT, Physical Efficiency Battery (PEB), Virtual Active WFI Protocol
CSAFE Ready-FitLinxx™ Certified Yes Yes Yes Yes
Netpulse Compatible Included No Yes No
IPTV Compatible Yes No No No
FitTouch™ Technology Yes Yes No Yes
One-button Start Yes Yes Yes Yes
On-the-fly Program Change Yes Yes Yes Yes
Integrated Vista Clear™ Television Technology Yes Yes No Yes
FITCONNEXION™ Ready No No Yes No
WiFi Enabled Yes Optional Optional No
iPod® / iPhone® Compatible Made for iPod® and Made for iPhone® Made for iPod® Charging only No
Multimedia Playback Compatible with most tablet and smartphone systems using Android OS No No No
Nike + iPod® Compatible No Yes No No
Personal Fan Yes Yes Yes No
USB Port Yes Yes Yes Yes
Virtual Active™ Compatible Included Yes No Yes
Asset Management Compatible Included Yes Yes No
Workout Tracking Network Compatible Yes No No No
Personal Trainer Portal Compatible Yes No No No
Web Connectivity Custom app interface in addition to web browser No No No
Facility Communication Portal/Calendar Programmed through Asset Management No No No
RFID Compatible Yes No No No
Pause Function Yes Yes Yes Yes
Reading Rack No No No No
DRIVE SYSTEM
Drive System Matrix 5.0 hp AC Dynamic Response Drive System™ Matrix 5.0 hp AC Dynamic Response Drive System Matrix 5.0 hp AC Dynamic Response Drive System Matrix 4.2 hp AC Dynamic Response Drive System
TECH SPECS
Power Requirements 20-amp dedicated circuit required, non-looped grounded 20-amp dedicated circuit required, non-looped grounded 20-amp dedicated circuit required, non-looped grounded 20-amp dedicated circuit required, non-looped grounded
Electrical Receptacle & Plug NEMA 5-20R 120v NEMA 5-20R 120v NEMA 5-20R 120v NEMA 5-20R 120v
Assembled Dimensions 215 x 93 x 161 cm / 84.6˝ x 36.5˝ x 63.5˝ 215 x 93 x 161 cm / 84.6˝ x 36.5˝ x 63.5˝ 215 x 93 x 161 cm / 84.6˝ x 36.5˝ x 63.5˝ 215 x 85 x 142 cm / 84.6˝ x 33.5˝ x 56˝
Max User Weight 182 kg / 400 lbs. 182 kg / 400 lbs. 182 kg / 400 lbs. 182 kg / 400 lbs.
Assembled Weight 181 kg / 399 lbs. 181 kg / 399 lbs. 179 kg / 394 lbs. 173 kg / 380 lbs.
Shipping Weight 200 kg / 440 lbs. 200 kg / 440 lbs. 197 kg / 433 lbs. 186 kg / 409 lbs.
WARRANTY
Frame 7 years 7 years 7 years 7 years
Drive System Lifetime Lifetime Lifetime 7 years
Parts & Labor 3 years 3 years 3 years 3 years
Wear Items (iPod® Cable, USB Port,
90 days parts 90 days parts 90 days parts 90 days parts
Headphone Jack, Battery)
** 24.1 km/h / 15 mph rating good for users up to 159 kg / 350 lbs.
// 32Treadmill Specifications Images and specifications subject to change.
FEATURES T3x Treadmill T3xh Treadmill T1xe Treadmill T1x Treadmill
Deck Ultimate hard-wax reversible 1˝ deck Ultimate hard-wax reversible 1˝ deck Ultimate hard-wax reversible 1˝ deck Ultimate hard-wax reversible 1˝ deck
Belt Habasit, 2-ply commercial grade Habasit, 2-ply commercial grade Habasit, 2-ply commercial grade Habasit, 2-ply commercial grade
Running Area 152 x 51 cm / 60˝ x 20˝ 152 x 51 cm / 60˝ x 20˝ 152 x 51 cm / 60˝ x 20˝ 152 x 51 cm / 60˝ x 20˝
Step-on Height 19 cm / 7.5˝ 19 cm / 7.5˝ 19 cm / 7.5˝ 19 cm / 7.5˝
Cushion System Ultimate Deck™ cushioning system Ultimate Deck cushioning system Ultimate Deck cushioning system Ultimate Deck cushioning system
Incline Range 0–15% (590-kg / 1,300-lb. thrust elevation motor) 0–15% (590-kg / 1,300-lb. thrust elevation motor) 0%–15% (318-kg / 700-lb. elevation motor) 0%–15% (318-kg / 700-lb. elevation motor)
Forward: 0.16 – 19.3 km/h / 0.1 – 12 mph
Speed Range 0.8 – 20 km/h / 0.5 – 12 mph 0.8 – 20 km/h / 0.5 – 12 mph 0.8 – 20 km/h / 0.5 – 12 mph
Reverse: 0.16 – 6.4 km/h/ 0.1 – 4 mph
Contact & Telemetric HR Yes Yes Yes Yes
Crossbar Controls No No No No
Tread Sense No Yes. Engages above 0.5 mph / 0.8 kph No No
CONSOLE
Display Dot-matrix LED with profile display 41 cm / 16˝ class touchscreen LCD 41 cm / 16˝ class touchscreen LCD Alphanumeric LED
Time, Distance (Kilometers or Miles), Calories, Calories per Hour, Speed, Incline,
Time, Distance (Kilometers or Miles), Calories, Calories per Hour, Speed, Incline, Time, Distance (Kilometers or Miles), Calories, Calories per Hour, Speed, Incline, Elapsed Time, Time Remaining, Distance, Calories, Speed, Incline,
Display Feedback Pace, Heart Rate, METs, Watts, Dynamic Profile Display, Static Profile Display,
Pace, Average Pace, Heart Rate, METs, Watts, Workout Profile Pace, Heart Rate, METs, Watts, Dynamic Profile Display, Static Profile Display Pace, Heart Rate
Simplified Display Mode
Secondary Data Display No No No No
Accessible only through manager menu: English, German, French, Italian, English, German, French, Italian, Spanish, Dutch, Portuguese, Chinese (s), English, German, French, Italian, Spanish, Dutch, Portuguese, Chinese (s), Accessible only through manager menu: English, German, French, Italian,
User-defined Multi-language Display
Spanish, Dutch, Portuguese, Japanese, Swedish, Finnish, Turkish, Polish Chinese (t), Japanese, Korean, Swedish, Finnish, Russian, Arabic, Turkish, Polish Chinese (t), Japanese, Korean, Swedish, Finnish, Russian, Arabic, Turkish, Polish Spanish, Dutch, Portuguese, Swedish, Finnish, Turkish, Polish
Manual, Rolling Hills, Fat Burn, 5k, Target HR, Gerkin Protocol, Army PFT,
Manual, Rolling Hills, Fat Burn, 5k, Target HR, Gerkin Protocol, Army PFT, Manual, Rolling Hills, Fat Burn, 5k, Target HR, Gerkin Protocol, Army PFT,
Workouts Navy PRT, Marine PFT, Air Force PRT, Physical Efficiency Battery (PEB), Manual, Rolling Hills, Fat Burn, 5k, Target HR, Gerkin Protocol
Navy PRT, Marine PFT, Air Force PRT, Physical Efficiency Battery (PEB) Navy PRT, Marine PFT, Air Force PRT, Physical Efficiency Battery (PEB)
WFI Protocol
CSAFE Ready-FitLinxx™ Certified Yes Yes Yes No
Netpulse Compatible Yes No No No
IPTV Compatible No No No No
FitTouch™ Technology No Yes Yes No
One-button Start Yes Yes Yes Yes
On-the-fly Program Change Yes Yes Yes Yes
Integrated Vista Clear™ Television Technology No Yes Yes No
FITCONNEXION™ Ready Yes No No Yes
WiFi Enabled No No No No
iPod® / iPhone® Compatible No No No No
Multimedia Playback No No No No
Nike + iPod® Compatible No No No No
Personal Fan No No No No
USB Port Yes Yes Yes Yes
Virtual Active™ Compatible No Yes Yes No
Asset Management™ Compatible No No No No
Workout Tracking Network Compatible No No No No
Personal Trainer Portal Compatible No No No No
Web Connectivity No No No No
Facility Communication Portal/Calendar No No No No
RFID Compatible No No No No
Pause Function Yes Yes Yes Yes
Reading Rack No No No No
DRIVE SYSTEM
Matrix 4.2 hp AC Dynamic Response Drive System with .5mA current leakage
Drive System Matrix 4.2 hp AC Dynamic Response Drive System™ Matrix 3.0 hp AC Dynamic Response Drive System Matrix 3.0 hp AC Dynamic Response Drive System
and forward & reverse control
TECH SPECS
Power Requirements 20-amp dedicated circuit required, non-looped grounded 20-amp dedicated circuit required, non-looped grounded 20-amp dedicated circuit required, non-looped grounded 20-amp dedicated circuit required, non-looped grounded
Electrical Receptacle & Plug NEMA 5-20R 120v NEMA 5-20R 120v NEMA 5-20R 120v NEMA 5-20R 120v
Assembled Dimensions 215 x 85 x 142 cm / 84.6˝ x 33.5˝ x 56˝ 215 x 85 x 142 cm / 84.6˝ x 33.5˝ x 56˝ 215 x 85 x 142 cm / 84.6” x 33.5” x 56” 215 x 85 x 142 cm / 84.6˝ x 33.5˝ x 56˝
Max User Weight 182 kg / 400 lbs. 182 kg / 400 lbs. 158.8 kg / 350 lbs. 158.8 kg / 350 lbs.
Assembled Weight 172 kg / 378 lbs. 173 kg / 380 lbs. 153.8 kg / 338 lbs. 152.8 kg / 336 lbs.
Shipping Weight 185 kg / 408 lbs. 186 kg / 409 lbs. 172.3 kg / 379 lbs. 171.5 kg / 377 lbs.
WARRANTY
Frame 7 years 7 years 7 years 7 years
Drive System 7 years 7 years 3 years 3 years
Parts & Labor 3 years 3 years 3 years* 3 years*
Wear Items (iPod® Cable, USB Port,
90 days parts 90 days parts 90 days parts 90 days parts
Headphone Jack, Battery)
* Warranty limited to 6 hours of use or less per day. Full commercial warranty not available on T1 series.
// 33ASCENTS &
ELLIPTICALS
+ There are far too many cardio machines out
there demanding that users adapt to their
specific movements. Matrix equipment is
different. And better. We listened – to you
and your service techs. We watched your
customers work out. And with painstaking
attention to detail, we delivered machines
that, quite simply, outperform the rest.ASCENTS & DESIGNED TO MATCH YOUR MOTION
With a variety of features to ensure smooth movement, comfort and proper fit, our Ascent Trainers and
ELLIPTICALS ellipticals provide a superior total-body workout. And because all but the 7xi models use self-powered
systems, they provide energy savings and can be placed wherever you like within your facility.
+ + +
Contralateral Motion Low Step-on Height Constant Rate of Acceleration
Contralateral action with tapered, dual-action handlebars mimics Pedals are positioned close to the ground (24 cm / 9.5˝), Constant Rate of Acceleration and our patented suspension
the body’s true movement. for easy entry and exit. design – free of wheels and tracks – deliver a perpetually
smooth motion.
Ergo Form™ Grips Variable Incline Removable Disk
Ergo Form grips with integrated controls enhance comfort and Responsive incline adjustment and variable stride length make The removable quick-access disk makes Matrix Ascent Trainers
accessibility to key functions. (A7xi shown) workouts on the Ascent more dynamic and motivational. and Suspension Elliptical® trainers easy to service.
+ + +
// 36A7xi
Ascent Trainer®
+
integrated 41 cm / 16” capacitive touchscreen
with FitTouch Technology for intuitive performance
optimized app interface designed specifically for fitness offers
users easy access to social media and web content
WiFi connectivity for use with app interface and integrated
Matrix Asset Management system, Workout Tracking Network
and Personal Trainer Portal
custom interface configuration for personalized communication with users
featuring xID, the single-point user sign-in for
a seamless personal experience
Vista Clear Television Technology – the most vibrant
integrated 3-speed personal fan
picture quality in the industry
integrated with immersive Virtual Active programming
compatible with most smartphone and tablet devices for video and audio
playback, charging and on-screen playlist selection integrated with Sprint 8 High Intensity Interval Training program
contralateral motion with tapered, dual-action handlebars compatible with IPTV
mimics the body’s true movement
// 37A7xe
Ascent Trainer
+
integrated 38 cm / 15˝ touchscreen
display with FitTouch Technology
for intuitive performance
Vista Clear Television Technology – the most
vibrant picture quality in the industry
compatible with Nike + iPod® for the Gym for
simple workout tracking
compatible with iPod® for video and audio playback,
charging and on-screen playlist selection
contralateral motion with tapered, dual-action handlebars
mimics the body’s true movement
integrated 3-speed personal fan
compatible with immersive Virtual Active programming (requires power)
WiFi enabled for use with Matrix Asset Management system
// 38A5x
Ascent Trainer
A3x
Ascent Trainer
intuitive LED console display LED console display is easily navigated
by users of all experience levels
compatible with iPod® for charging
contralateral motion with tapered,
contralateral motion with tapered, dual-action handlebars mimics the
dual-action handlebars mimics the body’s true movement
body’s true movement
integrated 3-speed personal fan
WiFi enabled for use with
Matrix Asset Management system
// 39ALB7xi
Lower Body Ascent Trainer
+
integrated 41 cm / 16˝ capacitive touchscreen
with FitTouch Technology for intuitive performance
optimized app interface designed specifically
for fitness offers users easy access to social media
and web content
WiFi connectivity for use with app interface and integrated
Matrix Asset Management system, Workout Tracking Network
and Personal Trainer Portal
custom interface configuration for personalized
communication with users
featuring xID, the single-point user sign-in for
a seamless personal experience
integrated 3-speed personal fan
Vista Clear Television Technology – the most vibrant picture
quality in the industry integrated with immersive Virtual Active programming
compatible with most smartphone and tablet devices for video integrated with Sprint 8 High Intensity Interval Training program
and audio playback, charging and on-screen playlist selection
compatible with IPTV
// 40ALB7xe
Lower Body Ascent Trainer
+
integrated 38 cm / 15˝ touchscreen
display with FitTouch Technology
for intuitive performance
Vista Clear Television Technology – the most
vibrant picture quality in the industry
compatible with Nike + iPod® for the Gym for
simple workout tracking
compatible with iPod® for video and audio playback,
charging and on-screen playlist selection
integrated 3-speed personal fan
compatible with immersive Virtual Active programming (requires power)
WiFi enabled for use with Matrix Asset Management system
// 41ALB5x
Lower Body Ascent Trainer
ALB3x
Lower Body Ascent Trainer
intuitive LED console display LED console display is easily navigated by
users of all experience levels
compatible with iPod® for charging
integrated 3-speed personal fan
WiFi enabled for use with
Matrix Asset Management system
// 42E7xi
Suspension Elliptical®
+
integrated 41 cm / 16˝ capacitive touchscreen
with FitTouch Technology for intuitive performance
optimized app interface designed specifically
for fitness offers users easy access to social media
and web content
WiFi connectivity for use with app interface and integrated
Matrix Asset Management system, Workout Tracking Network
and Personal Trainer Portal
custom interface configuration for personalized
communication with users
featuring xID, the single-point user sign-in for
a seamless personal experience
integrated 3-speed personal fan
Vista Clear Television Technology – the most vibrant picture
quality in the industry integrated with immersive Virtual Active programming
compatible with most smartphone and tablet devices for video integrated with Sprint 8 High Intensity Interval Training program
and audio playback, charging and on-screen playlist selection
compatible with IPTV
// 43E7xe
Suspension Elliptical
®
E5x
Suspension Elliptical®
integrated 38 cm / 15˝ touchscreen display with intuitive LED console display
FitTouch Technology for intuitive performance
compatible with iPod® for charging
Vista Clear Television Technology – the most
vibrant picture quality in the industry integrated 3-speed personal fan
compatible with Nike + iPod® for the WiFi enabled for use with
Gym for simple workout tracking Matrix Asset Management system
compatible with iPod® for video and
audio playback, charging and on-screen
playlist selection
integrated 3-speed personal fan
compatible with immersive Virtual Active
programming (requires power)
WiFi enabled for use with Matrix
Asset Management system
// 44E3x
Suspension Elliptical
®
E1x
Elliptical
LED console display is easily navigated by 18 cm / 7˝ blue backlit LCD console display
users of all experience levels provides constant feedback
// 45Ascent Trainer Specifications Images and specifications subject to change.
FEATURES A7xi Ascent Trainer A7xe Ascent Trainer A5x Ascent Trainer A3x Ascent Trainer
Stride Length 51 – 61 cm / 20 – 24˝ 51 – 61 cm / 20 – 24˝ 51 – 61 cm / 20 – 24˝ 51 – 61 cm / 20 – 24˝
Incline Range 24 – 54% (15° range) 24 – 54% (15° range) 24 – 54% (15° range) 24 – 54% (15° range)
Step-on Height 24 cm / 9.5˝ 24 cm / 9.5˝ 24 cm / 9.5˝ 24 cm / 9.5˝
Contact & Telemetric HR Yes Yes Yes Yes
Footpad Insert Premium Premium Premium None
Pedal Spacing 6.4 cm / 2.5˝ 6.4 cm / 2.5˝ 6.4 cm / 2.5˝ 6.4 cm / 2.5˝
Handlebar Design Multi-position dual-action / premium ergo-bend stationary Multi-position dual-action / premium ergo-bend stationary Multi-position dual-action / premium ergo-bend stationary Multi-position dual-action / custom ergo-bend stationary
Remote Buttons Yes Yes Yes Yes
CONSOLE
Display 41 cm / 16˝ class projective capacitive touchscreen LCD 38 cm / 15˝ touchscreen LCD Dot-matrix LED with profile display 14-seg. alphanumeric, 8x16 LED graphic display
Time Elapsed, Time Remaining, Time of Day, Total Program Time,
Time, Distance (Kilometers or Miles), Calories, Calories per Hour, Speed, Incline, Time, Distance (Kilometers or Miles), Calories, Calories per Hour, Speed, Incline, Time, Distance (Kilometers or Miles), Calories, Calories per Hour, Level, Speed,
Display Feedback Distance (Kilometers or Miles), Calories, Speed, Level, Incline, RPM, Heart Rate,
RPM, Heart Rate, METs, Watts, Dynamic Profile Display, Static Profile Display RPM, Heart Rate, METs, Watts, Dynamic Profile Display, Static Profile Display RPM, Incline, Heart Rate, METs, Watts, Profile
METs, Watts, Workout Profile
Secondary Data Display Yes Yes No No
English, German, French, Italian, Spanish, Dutch, Portuguese, Chinese (s), English, German, French, Italian, Spanish, Dutch, Portuguese, Chinese (s),
English, German, French, Italian, Spanish, Dutch, Portuguese, Japanese, Swedish, Accessible only through Manager Menu: English, German, French, Italian, Spanish,
User-defined Multi-language Display Chinese (t) Japanese, Korean, Swedish, Finnish, Russian, Arabic, Chinese (t) Japanese, Korean, Swedish, Finnish, Russian, Arabic, Welsh,
Finnish, Turkish, Polish Dutch, Portuguese, Swedish, Finnish, Turkish, Polish
Turkish, Polish Turkish, Polish
Resistance Range 1–25 1–25 1–25 1–25
Manual, Rolling Hills, Target HR, Interval Training, Constant Watts, Fat Burn,
Manual, Rolling Hills, Target HR, Interval Training, Constant Watts, Fat Burn, Manual, Rolling Hills, Target HR, Interval Training, Constant Watts, Fat Burn, Manual, Rolling Hills, Target HR, Interval Training, Fat Burn, Fitness Test, Random,
Workouts Fitness Test, Glute Training, Random, Calorie Goal, Distance Goal, Time Goal,
Fitness Test, Glute Training Fitness Test, Glute Training Constant Watts
Sprint 8, Virtual Active
CSAFE Ready-FitLinxx™ Certified Yes Yes Yes Yes
Netpulse Compatible Included No Yes Yes
IPTV Compatible Yes No No No
FitTouch™ Technology Yes Yes No No
Instant On Technology N/A: Powered Yes Yes Yes
One-button Start Yes Yes Yes Yes
On-the-fly Program Change Yes Yes Yes Yes
Integrated Vista Clear Television™ Technology Yes Yes No No
FITCONNEXION™ Ready No No Yes Yes
WiFi Enabled Yes Optional Optional No
iPod / iPhone Compatible
® ®
Made for iPod and Made for iPhone
® ®
Made for iPod ®
Charging only No
Multimedia Playback Compatible with most tablet and smartphone systems using android OS No No No
Nike + iPod Compatible
®
No Yes No No
Personal Fan Yes Yes Yes No
USB Port Yes Yes Yes Yes
Virtual Active™ Compatible Included Yes No No
Asset Management Compatible Included Yes Yes No
Workout Tracking Network Compatible Yes No No No
Personal Trainer Portal Compatible Yes No No No
Web Connectivity Custom app interface in addition to web browser No No No
Facility Communication Portal/Calendar Programmed through Asset Management No No No
RFID Compatible Yes No No No
Pause Function Yes Yes Yes Yes
Reading Rack Yes No No Yes
RESISTANCE SYSTEM
Resistance System Brushless generator Brushless generator Brushless generator Brushless generator
TECH SPECS
Power Requirements 100v-240v – 50/60Hz AC Self-powered / powered 100v-240v – 50/60Hz AC Self-powered / powered 100v-240v – 50/60Hz AC Self-powered / powered 100v-240v – 50/60Hz AC
Minimum Watts 4 powered 4 powered / 57 self-powered 24 powered / 24 self-powered 8 powered / 24 self-powered
Minimum RPM 10 powered 10 powered / 25 self-powered 25 powered / 24 self-powered 15 powered / 25 self-powered
Assembled Dimensions 178 x 74 x 174 cm / 70˝ x 29.2˝ x 68.5˝ 178 x 74 x 174 cm / 70˝ x 29.2˝ x 68.5˝ 178 x 74 x 174 cm / 70˝ x 29.2˝ x 68.5˝ 178 x 74 x 174 cm / 70˝ x 29.2˝ x 68.5˝
Max User Weight 182 kg / 400 lbs. 182 kg / 400 lbs. 182 kg / 400 lbs. 182 kg / 400 lbs.
Assembled Weight 202.7 kg / 445 lbs. 202.7 kg / 445 lbs. 201 kg / 442 lbs. 201 kg / 442 lbs.
Shipping Weight 216.5 kg / 476 lbs. 216.5 kg / 476 lbs. 214.6 kg / 472 lbs. 214.6 kg / 472 lbs.
WARRANTY
Frame 7 years 7 years 7 years 7 years
Generator 5 years 5 years 5 years 5 years
Parts & Labor 3 years 3 years 3 years 3 years
Wear Items (iPod® Cable, USB Port,
90 days parts 90 days parts 90 days parts 90 days parts
Headphone Jack, Battery)
// 47Lower Body Ascent Trainer Specifications Images and specifications subject to change.
FEATURES ALB7xi Lower Body Ascent Trainer ALB7xe Lower Body Ascent Trainer ALB5x Lower Body Ascent Trainer ALB3x Lower Body Ascent Trainer
Stride Length 51 – 61 cm / 20 - 24˝ 51 – 61 cm / 20 - 24˝ 51 – 61 cm / 20 – 24˝ 51 – 61 cm / 20 – 24˝
Incline Range 24 – 54% (15° range) 24 – 54% (15° range) 24 — 54% (15° range) 24 – 54% (15° range)
Step-on Height 24 cm / 9.5˝ 24 cm / 9.5˝ 24 cm / 9.5˝ 24 cm / 9.5˝
Contact & Telemetric HR Yes Yes Yes Yes
Footpad Insert Premium Premium Premium None
Pedal Spacing 6.4 cm / 2.5˝ 6.4 cm / 2.5˝ 6.4 cm / 2.5˝ 6.4 cm / 2.5˝
Handlebar Design Multi-position ergo-bend stationary Multi-position ergo-bend stationary Multi-position ergo-bend stationary Multi-position ergo-bend stationary
Remote Buttons Yes Yes Yes Yes
CONSOLE
Display 41 cm / 16˝ class projective capacitive touchscreen LCD 38 cm / 15˝ touchscreen LCD Dot-matrix LED with profile display 14-seg. alphanumeric, 8 x 16 LED graphic display
Time Elapsed, Time Remaining, Time of Day, Total Program Time,
Time, Distance (Kilometers or Miles), Calories, Calories per Hour, Speed, Incline, Time, Distance (Kilometers or Miles), Calories, Calories per Hour, Speed, Incline, Time, Distance (Kilometers or Miles), Calories, Calories per Hour, Level, Speed,
Display Feedback Distance (Kilometers or Miles), Calories, Speed, Level, Incline, RPM, Heart Rate,
RPM, Heart Rate, METs, Watts, Dynamic Profile Display, Static Profile Display RPM, Heart Rate, METs, Watts, Dynamic Profile Display, Static Profile Display RPM, Incline, Heart Rate, METs, Watts, Profile
METs, Watts, Workout Profile
Secondary Data Display Yes Yes No No
English, German, French, Italian, Spanish, Dutch, Portuguese, Chinese (s), English, German, French, Italian, Spanish, Dutch, Portuguese, Chinese (s),
English, German, French, Italian, Spanish, Dutch, Portuguese, Japanese, Swedish, Accessible only through Manager Menu: English, German, French, Italian, Spanish,
User-defined Multi-language Display Chinese (t) Japanese, Korean, Swedish, Finnish, Russian, Arabic, Chinese (t) Japanese, Korean, Swedish, Finnish, Russian, Arabic, Welsh,
Finnish, Turkish, Polish Dutch, Portuguese, Swedish, Finnish, Turkish, Polish
Turkish, Polish Turkish, Polish
Resistance Range 1–25 1–25 1–25 1-25
Manual, Rolling Hills, Target HR, Interval Training, Constant Watts, Fat Burn,
Manual, Rolling Hills, Target HR, Interval Training, Constant Watts, Fat Burn, Manual, Rolling Hills, Target HR, Interval Training, Constant Watts, Fat Burn, Manual, Rolling Hills, Target HR, Interval Training, Fat Burn, Fitness Test, Random,
Workouts Fitness Test, Glute Training, Random, Calorie Goal, Distance Goal, Time Goal,
Fitness Test, Glute Training Fitness Test, Glute Training Constant Watts
Sprint 8, Virtual Active
CSAFE Ready-FitLinxx™ Certified Yes Yes Yes Yes
Netpulse Compatible Included No Yes Yes
IPTV Compatible Yes No No No
FitTouch™ Technology Yes Yes No No
Instant On Technology N/A – powered Yes Yes Yes
One-button Start Yes Yes Yes Yes
On-the-fly Program Change Yes Yes Yes Yes
Integrated Vista Clear™ Television Technology Yes Yes No No
FITCONNEXION™ Ready No No Yes Yes
WiFi Enabled Yes Optional Optional No
iPod / iPhone Compatible
® ®
Made for iPod and Made for iPhone
® ®
Made for iPod ®
Charging only No
Multimedia Playback Compatible with most tablet and smartphone systems using Android OS No No No
Nike + iPod Compatible
®
No Yes No No
Personal Fan Yes Yes Yes No
USB Port Yes Yes Yes Yes
Virtual Active™ Compatible Included Yes No No
Asset Management Compatible Included Yes Yes No
Workout Tracking Network Compatible Yes No No No
Personal Trainer Portal Compatible Yes No No No
Web Connectivity Custom app interface in addition to web browser No No No
Facility Communication Portal/Calendar Programmed through Asset Management No No No
RFID Compatible Yes No No No
Pause Function Yes Yes Yes Yes
Reading Rack Yes No No Yes
RESISTANCE SYSTEM
Resistance System Brushless generator Brushless generator Brushless generator Brushless generator
TECH SPECS
Power Requirements 100v-240v - 50/60Hz AC Self-powered / powered 100v-240v - 50/60Hz AC Self-powered / powered 100v-240v - 50/60Hz AC Self-powered / powered 100v-240v - 50/60Hz AC
Minimum Watts 4 powered 4 powered / 57 self-powered 24 powered / 24 self-powered 8 powered / 24 self-powered
Minimum RPM 10 powered 10 powered / 25 self-powered 25 powered / 24 self-powered 15 powered / 25 self-powered
Assembled Dimensions 178 x 74 x 174 cm / 70˝ x 29.2˝ x 68.5˝ 178 x 74 x 174 cm / 70˝ x 29.2˝ x 68.5˝ 178 x 74 x 174 cm / 70˝ x 29.2˝ x 68.5˝ 178 x 74 x 174 cm / 70˝ x 29.2˝ x 68.5˝
Max User Weight 182 kg / 400 lbs. 182 kg / 400 lbs. 182 kg / 400 lbs. 182 kg / 400 lbs.
Assembled Weight 197.2 kg / 435 lbs. 196.5 kg / 434 lbs. 195.9 kg / 432 lbs. 194.4 kg / 429 lbs.
Shipping Weight 220.6 kg / 487 lbs. 219.6 kg / 485 lbs. 219.2 kg / 484 lbs. 217.3 kg / 479 lbs.
WARRANTY
Frame 7 years 7 years 7 years 7 years
Generator 5 years 5 years 5 years 5 years
Parts & Labor 3 years 3 years 3 years 3 years
Wear Items (iPod® Cable, USB Port,
90 days parts 90 days parts 90 days parts 90 days parts
Headphone Jack, Battery)
// 48You can also read
