               A Layered Grammar of Graphics
                                       Hadley W ICKHAM
           A grammar of graphics is a tool that enables us to concisely describe the components
       of a graphic. Such a grammar allows us to move beyond named graphics (e.g., the “scat-
       terplot”) and gain insight into the deep structure that underlies statistical graphics. This
       article builds on Wilkinson, Anand, and Grossman (2005), describing extensions and
       refinements developed while building an open source implementation of the grammar
       of graphics for R, ggplot2.
           The topics in this article include an introduction to the grammar by working through
       the process of creating a plot, and discussing the components that we need. The gram-
       mar is then presented formally and compared to Wilkinson’s grammar, highlighting the
       hierarchy of defaults, and the implications of embedding a graphical grammar into a
       programming language. The power of the grammar is illustrated with a selection of
       examples that explore different components and their interactions, in more detail. The
       article concludes by discussing some perceptual issues, and thinking about how we can
       build on the grammar to learn how to create graphical “poems.”
           Supplemental materials are available online.

       Key Words: Grammar of graphics; Statistical graphics.

                                    1. INTRODUCTION

   What is a graphic? How can we succinctly describe a graphic? And how can we create
the graphic that we have described? These are important questions for the field of statistical
graphics.
   One way to answer these questions is to develop a grammar: “the fundamental principles
or rules of an art or science” (OED Online 1989). A good grammar will allow us to gain
insight into the composition of complicated graphics, and reveal unexpected connections
between seemingly different graphics (Cox 1978). A grammar provides a strong foundation
for understanding a diverse range of graphics. A grammar may also help guide us on what
a well-formed or correct graphic looks like, but there will still be many grammatically
correct but nonsensical graphics. This is easy to see by analogy to the English language:
good grammar is just the first step in creating a good sentence.

Hadley Wickham is Assistant Professor of Statistics, Rice University, Houston, TX 77030 (E-mail:
h.wicham@gmail.com).

© 2010    American Statistical Association, Institute of Mathematical Statistics,
          and Interface Foundation of North America
Journal of Computational and Graphical Statistics, Volume 19, Number 1, Pages 3–28
DOI: 10.1198/jcgs.2009.07098
                                                    3
A Layered Grammar of Graphics - Hadley WICKHAM
4                                       H. W ICKHAM

    The most important modern work in graphical grammars is “The Grammar of Graph-
ics” by Wilkinson, Anand, and Grossman (2005). This work built on earlier work by Bertin
(1983) and proposed a grammar that can be used to describe and construct a wide range of
statistical graphics. This article proposes an alternative parameterization of the grammar,
based around the idea of building up a graphic from multiple layers of data. The gram-
mar differs from Wilkinson’s in its arrangement of the components, the development of
a hierarchy of defaults, and in that it is embedded inside another programming language.
These three aspects form the core of the article, comparing and contrasting the layered
grammar to Wilkinson’s grammar. These sections are followed by a discussion of some of
the implications of the grammar, how we might use it to build higher level tools for data
analysis.
    The ideas presented in this article have been implemented in the open-source R package,
ggplot2, available from CRAN. More details about the grammar and implementation,
including a comprehensive set of examples, can be found on the package website http:
// had.co.nz/ ggplot2. The code used to produce the figures in this article is available online
in the supplemental materials.

                           2. HOW TO BUILD A PLOT

   When creating a plot we start with data. For this example, to focus on the essence of
drawing a graphic, without getting distracted by more complicated manipulations of the
data, we will use the trivial dataset shown in Table 1. It has four variables, A, B, C, and
D, and four observations.

2.1   A BASIC P LOT

   Let us draw a scatterplot of A versus C. What exactly is a scatterplot? One way to
describe it is that we are going to draw a point for each observation, and we will position
the point horizontally according to the value of A, and vertically according to C. For this
example, we will also map categorical variable D to the shape of the points.
   The first step in making this plot is to create a new dataset that reflects the mapping
of x-position to A, y-position to C, and shape to D. x-position, y-position, and shape are
examples of aesthetics, things that we can perceive on the graphic. We will also remove all
other variables that do not appear in the plot. This is shown in Table 2.

                                    Table 1.    Simple dataset.

                                    A      B         C      D

                                    2       3        4       a
                                    1       2        1       a
                                    4       5       15       b
                                    9      10       80       b
A Layered Grammar of Graphics - Hadley WICKHAM
A L AYERED G RAMMAR          OF   G RAPHICS                          5

          Table 2. Simple dataset with variables named according to the aesthetic that they use.

                                          x      y       Shape

                                          2       4         a
                                          1       1         a
                                          4      15         b
                                          9      80         b

   We can create many different types of plots using this same basic specification. For
example, if we were to draw lines instead of points, we would get a line plot. If we used
bars, we would get a bar plot. Bars, lines, and points are all examples of geometric objects.
   The next thing we need to do is to convert these numbers measured in data units to
numbers measured in physical units, things that the computer can display. To do that we
need to know that we are going to use linear scales and a Cartesian coordinate system. We
can then convert the data units to aesthetic units, which have meaning to the underlying
drawing system. For example, to convert from a continuous data value to a horizontal pixel
coordinate, we need a function like the following:

                                  x − min(x)
                           floor                ∗ screen width .
                                    range(x)
In this example, we will scale the x-position to [0, 200] and the y-position to [0, 300]. The
procedure is similar for other aesthetics, such as shape: here we map “a” to a circle, and
“b” to a square. The results of these scalings are shown in Table 3. These transformations
are the responsibility of scales, described in detail in Section 3.2.
   In general, there is another step that we have skipped in this simple example: a statistical
transformation. Here we are using the identity transformation, but there are many others
that are useful, such as binning or aggregating. Statistical transformations, or stats, are
described in detail in Section 3.1.2.
   Finally, we need to render these data to create the graphical objects that are displayed
on screen or paper. To create a complete plot we need to combine graphical objects from
three sources: the data, represented by the point geom; the scales and coordinate system,
which generates axes and legends so that we can read values from the graph; and the
plot annotations, such as the background and plot title. These components are shown in
Figure 1. Combining and displaying these graphical objects produces the final plot, as
in Figure 2.

                  Table 3.   Simple dataset with variables mapped into aesthetic space.

                                          x       y      Shape

                                           25     11      circle
                                            0      0      circle
                                           75     53     square
                                          200    300     square
A Layered Grammar of Graphics - Hadley WICKHAM
6                                              H. W ICKHAM

Figure 1. Graphics objects produced by (from left to right): geometric objects, scales and coordinate system,
plot annotations.

                 Figure 2.   The final graphic, produced by combining the pieces in Figure 1.

2.2   A M ORE C OMPLICATED P LOT
   Now that you are acquainted with drawing a simple plot, we will create a more com-
plicated plot that uses faceting. Faceting is a more general case of the techniques known
as conditioning, trellising, and latticing, and produces small multiples showing different
subsets of the data. If we facet the previous plot by D we will get a plot that looks like
Figure 3, where each value of D is displayed in a different panel.
   Faceting splits the original dataset into a dataset for each subset, so the data that underlie
Figure 3 look like Table 4.
   The first steps of plot creation proceed as before, but new steps are necessary when
we get to the scales. Scaling actually occurs in three parts: transforming, training, and
mapping.
    • Scale transformation occurs before statistical transformation so that statistics are
      computed on the scale-transformed data. This ensures that a plot of log(x) versus
      log(y) on linear scales looks the same as x versus y on log scales. See Section 6.3
      for more details. Transformation is only necessary for nonlinear scales, because all
      statistics are location-scale invariant.
A Layered Grammar of Graphics - Hadley WICKHAM
A L AYERED G RAMMAR               OF   G RAPHICS                            7

Figure 3. A more complicated plot, faceted by variable D. Here the faceting uses the same variable that is
mapped to shape so that there is some redundancy in our visual representation. This allows us to easily see how
the data have been broken into panels.

                                 Table 4.   Simple dataset faceted into subsets.

                                                     x    y       Shape

                                                a    2    4       circle
                                                a    1    1       circle
                                                b    4    15      square
                                                b    9    80      square

   • After the statistics are computed, each scale is trained on every faceted dataset (a plot
     can contain multiple datasets, e.g., raw data and predictions from a model). The train-
     ing operation combines the ranges of the individual datasets to get the range of the
     complete data. If scales were applied locally, comparisons would only be meaningful
     within a facet. This is shown in Table 5.
   • Finally the scales map the data values into aesthetic values. This gives Table 6, which
     is essentially identical to Table 2 apart from the structure of the datasets. Given that
     we end up with an essentially identical structure, you might wonder why we do not
     simply split up the final result. There are several reasons for this. It makes writing

Table 5.   Local scaling, where data are scaled independently within each facet. Note that each facet occupies
           the full range of positions, and only uses one shape. Comparisons across facets are not necessarily
           meaningful.

                                                    x         y    Shape

                                            a       200   300       circle
                                            a         0     0       circle
                                            b         0     0       circle
                                            b       200   300       circle
A Layered Grammar of Graphics - Hadley WICKHAM
8                                              H. W ICKHAM

            Table 6.   Faceted data correctly mapped to aesthetics. Note the similarity to Table 3.

                                                x       y     Shape

                                          a     25      11     circle
                                          a      0       0     circle
                                          b     75      53    square
                                          b    200     300    square

      statistical transformation functions easier, as they only need to operate on a single
      facet of data, and some need to operate on a single subset, for example, calculating
      a percentage. Also, in practice we may have a more complicated training scheme for
      the position scales so that different columns or rows can have different x and y scales.

           3. COMPONENTS OF THE LAYERED GRAMMAR

    In the examples above, we have seen some of the components that make up a plot:
    • data and aesthetic mappings,
    • geometric objects,
    • scales, and
    • facet specification.
We have also touched on two other components:
    • statistical transformations, and
    • the coordinate system.
Together, the data, mappings, statistical transformation, and geometric object form a layer.
A plot may have multiple layers, for example, when we overlay a scatterplot with a
smoothed line.
  To be precise, the layered grammar defines the components of a plot as:
    • a default dataset and set of mappings from variables to aesthetics,
    • one or more layers, with each layer having one geometric object, one statistical trans-
      formation, one position adjustment, and optionally, one dataset and set of aesthetic
      mappings,
    • one scale for each aesthetic mapping used,
    • a coordinate system,
    • the facet specification.
   These high-level components are quite similar to those of Wilkinson’s grammar, as
shown in Figure 4. In both grammars, the components are independent, meaning that we
A L AYERED G RAMMAR        OF   G RAPHICS                               9

Figure 4. Mapping between components of Wilkinson’s grammar (left) and the layered grammar (right). TRANS
has no correspondence in ggplot2: its role is played by built-in R features.

can generally change a single component in isolation. There are more differences within
the individual components, which are described in the details that follow.
    The layer component is particularly important as it determines the physical represen-
tation of the data, with the combination of stat and geom defining many familiar named
graphics: the scatterplot, histogram, contourplot, and so on. In practice, many plots have
(at least) three layers: the data, context for the data, and a statistical summary of the data.
For example, to visualize a spatial point process, we might display the points themselves, a
map giving some spatial context, and the contours of a two-dimensional density estimate.
    This grammar is useful for both the user and the developer of statistical graphics. For
the user, it makes it easier to iteratively update a plot, changing a single feature at a time.
The grammar is also useful because it suggests the high-level aspects of a plot that can be
changed, giving us a framework to think about graphics, and hopefully shortening the dis-
tance from mind to paper. It also encourages the use of graphics customized to a particular
problem rather than relying on generic named graphics.
    For the developer, it makes it much easier to create new capabilities. You only need to
add the one component that you need, and you can continue to use all the other existing
components. For example, you can add a new statistical transformation, and continue to
use the existing scales and geoms. It is also useful for discovering new types of graphics,
as the grammar defines the parameter space of statistical graphics.

3.1   L AYERS

  Layers are responsible for creating the objects that we perceive on the plot. A layer is
composed of four parts:

   • data and aesthetic mapping,
10                                            H. W ICKHAM

            line(position(smooth.linear(x * y)), color(z))
            layer(aes(x = x, y = y, color = z), geom="line",
              stat="smooth")

             Figure 5.   Difference between GPL (top) and ggplot2 (bottom) parameterizations.

     • a statistical transformation (stat),
     • a geometric object (geom), and
     • a position adjustment.
These parts are described in detail below.
    Usually all the layers on a plot have something in common, typically that they are
different views of the same data, for example, a scatterplot with overlaid smoother.
    A layer is the equivalent of Wilkinson’s ELEMENT, although the parameterization is
rather different. In Wilkinson’s grammar, all the parts of an element are intertwined,
whereas in the layered grammar they are separate, as illustrated by Figure 5. This makes
it possible to omit parts from the specification and rely on defaults: if the stat is omitted,
the geom will supply a default; if the geom is omitted, the stat will supply a default; if the
mapping is omitted, the plot default will be used. These defaults are discussed further in
Section 4. In Wilkinson’s grammar, the dataset is implied by the variable names, whereas
in the layered grammar it can be specified separately.

3.1.1 Data and Mapping
   Data are obviously a critical part of the plot, but it is important to remember that they
are independent from the other components: we can construct a graphic that can be applied
to multiple datasets. Data are what turns an abstract graphic into a concrete graphic.
   Along with the data, we need a specification of which variables are mapped to which
aesthetics. For example, we might map weight to x position, height to y position, and age
to size. The details of the mapping are described by the scales; see Section 3.2. Choosing
a good mapping is crucial for generating a useful graphic, as described in Section 7.

3.1.2 Statistical Transformation
   A statistical transformation, or stat, transforms the data, typically by summarizing them
in some manner. For example, a useful stat is the smoother, which calculates the mean of
y, conditional on x, subject to some restriction that ensures smoothness. Table 7 lists some
of the stats available in ggplot2. To make sense in a graphical context a stat must be
location-scale invariant: f (x + a) = f (x) + a and f (b · x) = b · f (x). This ensures that the
transformation is invariant under translation and scaling, common operations on a graphic.
   A stat takes a dataset as input and returns a dataset as output, and so a stat can add new
variables to the original dataset. It is possible to map aesthetics to these new variables. For
A L AYERED G RAMMAR         OF   G RAPHICS                                11

Table 7.   Some statistical transformations provided by ggplot2. The user is able to supplement this list in a
           straightforward manner.

           Name                Description

           bin                 Divide continuous range into bins, and count number of points in each
           boxplot             Compute statistics necessary for boxplot
           contour             Calculate contour lines
           density             Compute 1d density estimate
           identity            Identity transformation, f (x) = x
           jitter              Jitter values by adding small random value
           qq                  Calculate values for quantile-quantile plot
           quantile            Quantile regression
           smooth              Smoothed conditional mean of y given x
           summary             Aggregate values of y for given x
           unique              Remove duplicated observations

example, one way to describe a histogram is as a binning of a continuous variable, plotted
with bars whose height is proportional to the number of points in each bin, as described in
Section 6.1. Another useful example is mapping the size (or color, or texture) of the lines
in a contour plot to the height of the contour.
   The statistical method used by a stat should be conditional on the coordinate system.
For example, a smoother in polar coordinates should use circular regression, and in three
dimensions should return a two-dimensional surface rather than a one-dimensional curve.
However, many statistical operations have not been derived for non-Cartesian coordinates
and so we use Cartesian coordinates for calculation, which, while not strictly correct, will
normally be a fairly close approximation. This issue is not discussed in Wilkinson’s gram-
mar.

3.1.3 Geometric Object

   Geometric objects, or geoms for short, control the type of plot that you create. For
example, using a point geom will create a scatterplot, whereas using a line geom will
create a line plot. We can classify geoms by their dimensionality:

   • 0d: point, text,

   • 1d: path, line (ordered path),

   • 2d: polygon, interval.

   Geometric objects are an abstract component and can be rendered in different ways.
Figure 6 illustrates four possible renderings of the interval geom.
   Geoms are mostly general purpose, but do require certain outputs from a statistic. For
example, the boxplot geom requires the position of the upper and lower fences, upper and
lower hinges, the middle bar, and the outliers. Any statistic used with the boxplot needs to
provide these values.
12                                                H. W ICKHAM

Figure 6. Four representations of an interval geom. From left to right: as a bar, as a line, as an error bar, and (for
continuous x) as a ribbon.

   Every geom has a default statistic, and every statistic a default geom. For example,
the bin statistic defaults to using the bar geom to produce a histogram. Overriding these
defaults will still produce a valid plot, but it may violate graphical conventions.
   Each geom can only display certain aesthetics. For example, a point geom has position,
color, shape, and size aesthetics. A bar geom has position, height, width, and fill color. Dif-
ferent parameterizations may be useful. For example, instead of location and dimension, we
could parameterize the bar with locations representing the four corners. Parameterizations
that involve dimension (e.g., height and width) only make sense for Cartesian coordinate
systems. For example, height of a bar geom in polar coordinates corresponds to radius of a
segment. For this reason location-based parameterizations are used internally.

3.1.4    Position Adjustment
   Sometimes we need to tweak the position of the geometric elements on the plot, when
otherwise they would obscure each other. This is most common in bar plots, where we
stack or dodge (place side-by-side) the bars to avoid overlaps. In scatterplots with few
unique x and y values, we sometimes randomly jitter (Chambers et al. 1983) the points to
reduce overplotting. Wilkinson called these collision modifiers.

3.2     S CALES
    A scale controls the mapping from data to aesthetic attributes, and so we need one scale
for each aesthetic property used in a layer. Scales are common across layers to ensure a
consistent mapping from data to aesthetics. The legends associated with some scales are
illustrated in Figure 7.
    A scale is a function, and its inverse, along with a set of parameters. For example, the
color gradient scale maps a segment of the real line to a path through a color space. The

Figure 7. Examples of legends from four different scales. From left to right: continuous variable mapped to size
and color, discrete variable mapped to shape and color. The legend automatically responds to the geoms used in
the plot, from left to right: points, tiles, points, points and lines.
A L AYERED G RAMMAR      OF   G RAPHICS                          13

parameters of the function define whether the path is linear or curved, which color space
to use (e.g., LUV or RGB), and the start and end colors.
   The inverse function is used to draw a guide so that you can read values from the graph.
Guides are either axes (for position scales) or legends (for everything else). Most mappings
have a unique inverse (i.e., the mapping function is one-to-one), but many do not. A unique
inverse makes it possible to recover the original data, but this is not always desirable if we
want to focus attention on a single aspect.
   Scales typically map from a single variable to a single aesthetic, but there are exceptions.
For example, we can map one variable to hue and another to saturation, to create a single
aesthetic, color. We can also create redundant mappings, mapping the same variable to
multiple aesthetics. This is particularly useful when producing a graphic that works in both
color and black and white.
   The scale of the layered grammar is equivalent to the SCALE and GUIDE of Wilkinson’s
grammar. There are two types of guides: scale guides and annotation guides. In the lay-
ered grammar, the scale guides (axes and legends) are largely drawn automatically based
on options supplied to the relative scales. Annotation guides, used to highlight important
data points, are not needed because they can be constructed with creative use of geoms
if data dependent, or if not, the underlying drawing system can be used directly. Scales
are also computed somewhat differently as it is possible to map a variable produced by a
statistic to an aesthetic. This requires two passes of scaling, before and after the statistical
transformation.

3.3   C OORDINATE S YSTEM
   A coordinate system, coord for short, maps the position of objects onto the plane of
the plot. Position is often specified by two coordinates (x, y), but could be any number
of coordinates. The Cartesian coordinate system is the most common coordinate system
for two dimensions, whereas polar coordinates and various map projections are used less
frequently. For higher dimensions, we have parallel coordinates (a projective geometry),
mosaic plots (a hierarchical coordinate system), and linear projections onto the plane.
   Coordinate systems affect all position variables simultaneously and differ from scales
in that they also change the appearance of the geometric objects. For example, in polar
coordinates, bar geoms look like segments of a circle. Additionally, scaling is performed
before statistical transformation, whereas coordinate transformations occur afterward. The
consequences of this are shown in Section 6.3.
   Coordinate systems control how the axes and grid lines are drawn. Figure 8 illustrates
three different types of coordinate systems. Very little advice is available for drawing these
for non-Cartesian coordinate systems, so a lot of work needs to be done to produce polished
output.

3.4   FACETING
   There is also another graphical tool that turns out to be sufficiently useful that we should
include it in our general framework: faceting (a more general case of the plots known as
conditioned or trellis plots). Faceting makes it easy to create small multiples of different
14                                              H. W ICKHAM

Figure 8. Examples of axes and grid lines for three coordinate systems: Cartesian, semi-log, and polar. The
polar coordinate system illustrates the difficulties associated with non-Cartesian coordinates: it is hard to draw
the axes well.

                  COORD: rect(dim(3), dim(1,2))
                  ELEMENT: point(position(x * y * z))
                  geom_point(aes(x, y)) + facet_grid(. ˜ z)

Figure 9. Difference between GPL (top) and ggplot2 (bottom) parameterizations. Note that z is included in
the position specification for the GPL element.

subsets of an entire dataset. This is a powerful tool when investigating whether patterns
are the same or different across conditions. The faceting specification describes which
variables should be used to split up the data, and how they should be arranged.
   In Wilkinson’s grammar, faceting is an aspect of the coordinate system, with a somewhat
complicated parameterization: the faceting variable is specified within the ELEMENT and
a separate COORD specifies that the coordinate system should be faceted by this variable.
This is less complicated in the layered grammar as the faceting is independent of the layer
and within-facet coordinate system. This is less flexible, as the layout of the facets always
occurs in a Cartesian coordinate system, but in practice is not limiting. Figure 9 illustrates
the specification.

                           4. A HIERARCHY OF DEFAULTS

   The five major components of the layered grammar allow us to completely and ex-
plicitly describe a wide range of graphics. However, having to describe every component,
every time, quickly becomes tiresome. This section describes the hierarchy of defaults that
simplify the work of making a plot. There are defaults present in GPL, but they are not
described in the Grammar of Graphics (Wilkinson 2005). This section will also serve to
demonstrate the syntax of the ggplot2 package.
   To illustrate how the defaults work, I will show how to create the two graphics of Fig-
ure 10. These plots show the relationship between the price and weight (in carats) of 1000
diamonds.
A L AYERED G RAMMAR           OF   G RAPHICS                                  15

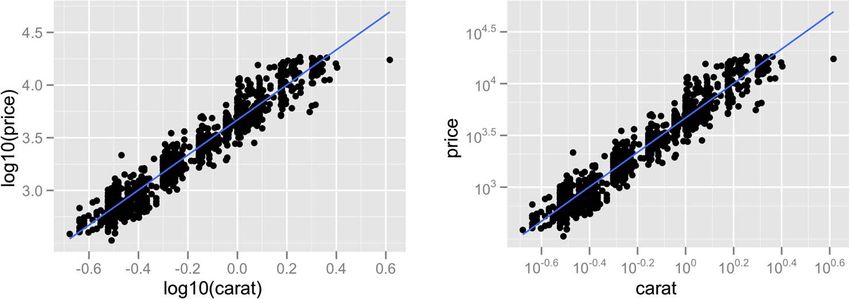

Figure 10. (Left) Scatterplot of price versus carat. (Right) Scatterplot of price versus carat, with log-transformed
scales, and a linear smooth laid on top.

   The full ggplot2 specification of the scatterplot of price versus weight is:

ggplot() +
  layer(
    data = diamonds, mapping = aes(x = carat, y = price),
    geom = "point", stat = "identity", position = "identity"
  ) +
  scale_y_continuous() +
  scale_x_continuous() +
  coord_cartesian()

   We start with ggplot() to create a new plot object, and then add the other compo-
nents: a single layer, specifying the data, mapping, geom, and stat, the two continuous
position scales, and a Cartesian coordinate system. The layer is the most complicated and
specifies that we want to:
   • use the diamonds dataset,
   • map carat to horizontal (x) position, and price to vertical (y) position, and
   • display the raw data (the identity transformation) with points.
Intelligent defaults allow us to simplify this specification in a number of ways. First, we
only need specify one of geom and stat, as each geom has a default stat (and vice versa).
Second, the Cartesian coordinate system is used by default, so does not need to be specified.
Third, default scales will be added according to the aesthetic and type of variable. For
position, continuous values are transformed with a linear scaling, and categorical values
are mapped to the integers; for color, continuous variables are mapped to a smooth path
in the HCL color space, and discrete variables to evenly spaced hues with equal luminance
and chroma. The choice of a good default scale is difficult.
    This leads us to the following specification:

ggplot() +
  layer(
16                                      H. W ICKHAM

         data = diamonds, mapping = aes(x = carat, y = price),
         geom = "point"
     )

   Typically, we will specify a default dataset and mapping in the ggplot call, use
position-based matching in aes, and use a shorthand for the layer:

ggplot(diamonds, aes(carat, price)) +
  geom_point()

   Any aesthetics specified in the layer will override the defaults. Similarly, if a dataset
is specified in the layer, it will override the plot default. To get to the second plot of
Figure 10 we need to add another layer, and override the default linear-transforms with
log-transformations:

ggplot(diamonds, aes(carat, price)) +
  geom_point() +
  stat_smooth(method = lm) +
  scale_x_log10() +
  scale_y_log10()

which is shorthand for:

ggplot() +
  layer(
    data = diamonds, mapping = aes(x = carat, y = price),
    geom = "point", stat = "identity", position = "identity"
  ) +
  layer(
    data = diamonds, mapping = aes(x = carat, y = price),
    geom = "smooth", position = "identity",
    stat = "smooth", method = lm
  ) +
  scale_y_log10() +
  scale_x_log10() +
  coord_cartesian()

   Even with these many defaults, the explicit grammar syntax is rather verbose, and usu-
ally spans multiple lines. This makes it difficult to rapidly experiment with different plots,
very important when searching for revealing graphics. For this reason the verbose gram-
mar is supplemented with qplot, short for quick plot, which makes strong assumptions
to reduce the amount of typing needed. It also mimics the syntax of the plot function,
making ggplot2 easier to use for people already familiar with base R graphics.
A L AYERED G RAMMAR         OF   G RAPHICS                               17

   The qplot function assumes that multiple layers will use the same data and aesthetic
mappings, and defaults to creating a scatterplot. This allows us to recreate the first plot
with this concise code:

qplot(carat, price, data = diamonds)

   The second plot is not much longer:

qplot(carat, price, data = diamonds,
  geom = c("point", "smooth"),
  method = "lm", log = "xy"
)

   Note the use of the log argument, which mimics the plot function in base graphics
and specifies which axes should be log-transformed. The geom argument can take a vector
of geoms, which are added sequentially to the plot. Everything else is taken to be a layer
parameter. The limitations to this approach are obvious: to which layer does the method
argument apply?

                           5. AN EMBEDDED GRAMMAR
   The previous section hints at an important point: the specification of the layered gram-
mar is tightly embedded within an existing programming language, R. This section dis-
cusses some consequences of such an approach. The discussion is centered around R, but
many of the issues apply regardless of language. To make these issues concrete, we will
attempt to reproduce the top part of Minard’s famous depiction of Napoleon’s march on
Russia, as shown in Figure 11. This graphic can be thought of as a compound graphic: the

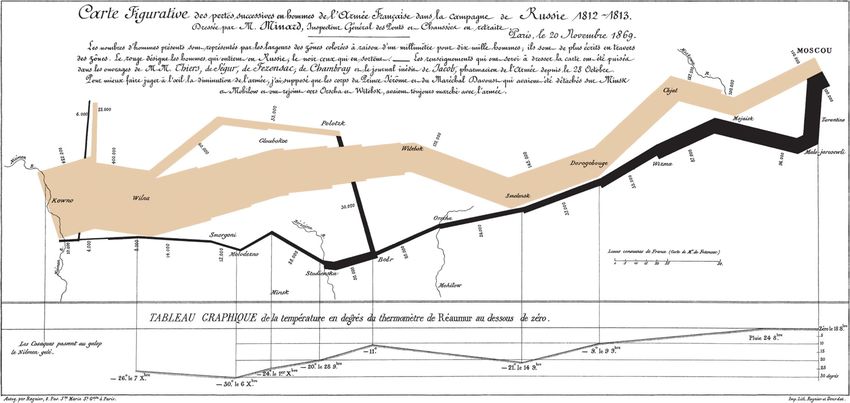

Figure 11. “Carte figurative des pertes successives en hommes de l’Armee Français dans la campagne de Russe
1812–1813” by Charles Joseph Minard. Public domain image from http://en.wikipedia.org/wiki/File:Minard.png.
18                                     H. W ICKHAM

top part displays the number of troops during the advance and retreat and the bottom part
shows the temperature during the advance.
    For this example, we will focus on the top part of the graphic. Close study reveals that
this part displays two datasets: cities and troops. Each city has a position (a latitude and
longitude) and a name, and each troop observation has a position, a direction (advance
or retreat), and number of survivors. An additional variable that is not obvious from the
graphic is a group variable which separates the “arms” of the advance and retreat. These
data are described more fully, and made available in digital form, in Wilkinson (2005,
table 20.1, p. 624) and in the supplementary material.
    How would we create this graphic with the layered grammar? The following code shows
one way. We start with the essence of the graphic: a path plot of the troops data, map-
ping direction to color and number of survivors to size. We then take the position of the
cities as an additional layer, and then polish the plot by carefully tweaking the default
scales:

plot_troops
A L AYERED G RAMMAR                           OF   G RAPHICS                                                       19

                                                                                                                                                  survivors
                                                                                                                                                            50000
  55.5
                                                                                                                                                           100000
                                                                                                                                                           150000

  55.0                                                                                                                                                     200000
lat

                                                                                                                                                           250000
                                                                                                                                                           300000
  54.5
                                                                                                                                                  direction
                                                                                                                                                       A

           24               26               28                   30                32                   34              36                            R
                                                                         long

                                                                                                                                         Moscou   survivors
                                                                                                                                                            50000
  55.5                                              Polotzk                                                   Chjat   Mojaisk
                                                                                                                                                           100000
                                                                  Witebsk                                                  Tarantino
                                     Gloubokoe                                                            Wixma                                            150000
  55.0    Kowno                                                                                                        Malo−Jarosewii                      200000
                                                                                           Dorogobouge
                                                                                Smolensk
lat

                   Wilna                                                                                                                                   250000
  54.5                                                                Orscha                                                                               300000
                            Smorgoni                      Bobr
                              Moiodexno          Studienska
                                                                                                                                                  direction
  54.0
                                         Minsk                        Mohilow                                                                          A

           24               26               28                   30                32                   34              36                            R
                                                                         long

                                                                                                                                         Moscou
                                                                                                                                                  survivors
55.5                                               Polotzk                                                    Chjat   Mojaisk
                                                                                                                                                      100,000
                                                                 Witebsk                                                     Tarantino
                                    Gloubokoe                                                            Wixma                                        200,000
55.0     Kowno                                                                                                        Malo−Jarosewii
                                                                                           Dorogobouge
                                                                                Smolensk                                                              300,000
                  Wilna
54.5                                                               Orscha
                           Smorgoni                   Bobr                                                                                        direction
                             Moiodexno       Studienska
                                                                                                                                                      A
54.0                                                                                                                                                  R
                                     Minsk                        Mohilow
          24               26               28                   30                32                    34             36

Figure 12. Iteratively reproducing the depiction of Napoleon’s March by Minard. (Top) Displaying the key
troop movement data. (Center) Adding town locations as reference points. (Bottom) Tweaking scales to produce
polished plot.

have at least rudimentary tools for importing, restructuring, transforming, and aggregating
data. By relying on other tools in R, ggplot2 does not need three elements of Wilkinson’s
grammar: DATA, TRANS, and the algebra.
   DATA is no longer needed because data are stored as R data frames; they do not need
to be described as part of the graphic. T RANS can be dropped because variable transfor-
mations are already so easy in R; they do not need to be part of the grammar. The algebra
describes how to reshape data for display and, in R, can be replaced by the reshape
package (Wickham 2005). Separating data manipulation from visualization allows you to
check the data, and the same restructuring can be used in multiple plots. Additionally, the
algebra cannot easily perform aggregation or subsetting, but reshape can.
   The disadvantages of embedding the grammar are somewhat more subtle, and center
around the grammatical restrictions applied by the host language. One of the most im-
portant features of the grammar is its declarative nature. To preserve this nature in R,
ggplot2 uses + to create a plot by adding pieces of the definition together. The ggplot
function creates a base object, to which everything else is added. This base object is not
necessary in a stand-alone grammar.
20                                            H. W ICKHAM

           6. IMPLICATIONS OF THE LAYERED GRAMMAR

   What are some of the implications of defining a graphic as described above? What is
now easy that previously was hard? This section discusses three interesting aspects of the
grammar:

     • the histogram, which maps bar height to a variable not in the original dataset, and
       raises questions of parameterization and defaults,

     • polar coordinates, which generate pie charts from bar charts,

     • variable transformations, and the three places in which they can occur.

6.1    H ISTOGRAMS

    One of the most useful plots for looking at one-dimensional distributions is the his-
togram, as shown in Figure 13. The histogram is rather special as it maps an aesthetic (bar
height) to a variable created by the statistic (bin count), and raises some issues regarding
parameterization and choice of defaults.
    The histogram is a combination of a binning stat and a bar geom, and could be written
as:

ggplot(data = diamonds, mapping = aes(price)) +
  layer(geom = "bar", stat = "bin",
     mapping = aes(y = ..count..))

   One interesting thing about this definition is that it does not contain the word histogram:
a histogram is not elemental, but is a combination of bars and binning. However, we do
want to create histograms, without having to specify their composition every time, and
so we add the histogram geom as an alias of the bar geom, with a default bin stat, and a
default mapping of bar-height to bin count. This lets us produce the same plot in either of

Figure 13. Two histograms of diamond price produced by the histogram geom. (Left) Default bin width, 30 bins.
(Right) Custom $50 bin width reveals missing data.
A L AYERED G RAMMAR         OF   G RAPHICS                                 21

the following two more succinct ways:

ggplot(diamonds, aes(x = price)) + geom_histogram()
qplot(price, data = diamonds, geom = "histogram")

    The choice of bins is very important for histograms. Figure 13 illustrates the difference
changing bin widths can make. In ggplot2, a very simple heuristic is used for the default
number of bins: it uses 30, regardless of the data. This is perverse, and ignores all of the
research on selecting good bin sizes automatically, but sends a clear message to the user
that he or she needs to think about, and experiment with, the bin width. This message is
reinforced with a warning that reminds the user to manually adjust the bin width.
    The histogram geom facilitates this experimentation by being parameterized by bin
width (as opposed to number of bins, as is common elsewhere in R). This is preferable
as it is directly interpretable on the graph. If you need more control you can use an alter-
native specification: the breaks argument specifies exactly where bin breaks should occur.
    The separation of statistic and geom enforced by the grammar allows us to produce
variations on the histogram, as shown in Figure 14. Using a ribbon instead of bars produces
a frequency polygon, and using points produces a graphic that does not have its own name.
    The histogram is interesting for another reason: one of the aesthetics, the y-position,
is not present in the original data, but is the count computed from the binning statis-
tic. In the ggplot2 this is specified as aes(y = ..count..). The two dots are
a visual indicator highlighting that variable is not present in the original data, but has
been computed by the statistic. There are other variables produced by the binning sta-
tistic that we might want to use instead, for example, aes(y = ..density..) or
aes(y = ..density../sum(..density..)). A less common mapping is
aes(y = ..count.. / max(..count..)), which creates a histogram with a
vertical range of [0, 1], useful for faceted and interactive graphics.
    The histogram also knows how to use the weight aesthetic. This aesthetic does not
directly affect the display of the data, but will affect the stat: instead of counting the number
of observations in each bin, it will sum the weights in each bar.

Figure 14. Variations on the histogram. Using a ribbon (left) to produce a frequency polygon, or points (right)
to produce an unnamed graphic.
22                                                H. W ICKHAM

6.2    P OLAR C OORDINATES
   In ggplot2, the user is offered the choice of a number of coordinate systems. One
coordinate system used very commonly in business graphics is the polar coordinate system,
used to produce pie charts and radar plots. The polar coordinate system parameterizes the
two-dimensional plane in terms of angle, θ , and distance from the origin, or radius, r. We
can convert to regular Cartesian coordinates using the following equations:

                                                 x = r · cos(θ ),
                                                 y = r · sin(θ ).

   As with regular Cartesian coordinates, we can choose which variable is mapped to an-
gle and which to radius. It can also be useful to tweak the range of the radius: having
a minimum radius that is greater than zero can be useful because it avoids some of the
compression effects around the origin.
   The angle component is particularly useful for cyclical data because the starting and
ending points of a single cycle are adjacent. Common cyclical variables are components of
dates, like days of the year or hours of the day, and angles, like wind direction. When not
plotted on polar coordinates, particular care needs to be taken with cyclical data to ensure
that we do not miss patterns occurring across the arbitrary start and end points.
   In the grammar, a pie chart is a stacked bar geom drawn in a polar coordinate
system. Figure 15 shows this, as well as a bullseye plot, which arises when we
map the height to radius instead of angle. The pie chart was created with
ggplot(diamonds,aes(x = "", fill=clarity)) + geom_bar(width =
1) + coord_polar (theta="y"), and the only change for the bullseye chart was
to map angle to the x-axis: coord_polar(theta="x").
   A regular bar chart converted into polar coordinates produces another type of graphic:
the Coxcomb plot, popularized by Florence Nightingale (Nightingale 1857b). A compar-
ison between a bar chart and a Coxcomb chart is shown in Figure 16. The code for these
plots corresponds to the code above, but the x-axis is mapped to clarity instead of a con-
stant.

Figure 15. Pie chart (left) and bullseye chart (right) showing the distribution of diamonds across clarity ( I 1 is
worst, IF is best). A bullseye chart is the polar equivalent of the spineplot: in the pie chart, categories have equal
radius and variable angle; in the radial chart, categories have equal angle and variable radius.
A L AYERED G RAMMAR           OF   G RAPHICS                                  23

Figure 16. Bar chart (left) and equivalent Coxcomb plot (right) of clarity distribution. The Coxcomb plot is a
bar chart in polar coordinates. Note that the categories abut in the Coxcomb, but are separated in the bar chart:
this is an example of a graphical convention that differs in different coordinate systems.

6.3    T RANSFORMATIONS
   There are three ways to transform values in ggplot2: by transforming the data, by
transforming the scales, or by transforming the coordinate system. Transforming the data or
the scales produces graphs that look very similar, but the axes (and grid lines) are different:
everything else remains the same. This is because statistics operate on data that has been
transformed by the scale. Figure 17 shows an example of this using a scatterplot with a
smoothed fit.
   Transforming the coordinate system does something quite different, as shown in Fig-
ure 18. The coordinate transformation occurs at the very end of the plotting process, and
alters the appearance of geoms. Here, the smooth is performed on the raw data, producing
a straight line, but is then stretched into the new logarithmic coordinate system.
   We can also use the scales and coordinate system together to display a smooth calculated
on the logged data and then back-transform it to the original scale. This is shown in Fig-
ure 19. This is equivalent to fitting the model log(y) ∼ log(x) and then back-transforming
predicted values.

Figure 17. Transforming the data (left) versus transforming the scale (right). From a distance the plots look
identical. Close inspection is required to see that the scales and minor grid lines are different. Transforming the
scale is to be preferred as the axes are labeled according to the original data, and so are easier to interpret. The
presentation of the labels still requires work.
24                                                H. W ICKHAM

Figure 18. Transforming the scales (left) versus transforming the coordinate system (right). Coordinate system
transformations are the final step in drawing the graphic, and affect the shape of geometric objects. Here a straight
line becomes a curve, and demonstrates why fitting a linear model to the untransformed data is such a bad idea.

Figure 19. Linear model fit to raw data (left) versus linear model fit to logged data, then back-transformed to
original scale (right).

   Currently the placement of the tick marks is suboptimal, as raw versus transformation
plus back-transformation generate different tick positions when arguably they should be
the same. This would mean that the scales in Figure 18 should be the same. This has
the drawback of concealing whether the transformation was applied to the scale or the
coordinate system. The nature of the transformation would need to be indicated in some
other way, either in the caption of the graphic or elsewhere on the plot. This raises an
interesting philosophical question: should we be able to uniquely identify the specification
of a graphic from its rendering?

                               7. A POETRY OF GRAPHICS?

   The grammar tells us what words make up our graphical “sentences,” but offers no
advice on how to write well. How can we build on top of the grammar to help data analysts
build compelling, revealing graphics? What would a poetry of graphics look like? The
ideas in this section draw inspiration from the tools that word processors provide to try and
help us write better.
A L AYERED G RAMMAR     OF   G RAPHICS                        25

   With ggplot2, we already have the equivalent of a spellchecker: the plot simply
will not work unless the components have been correctly specified. How about a gram-
mar checker? This tool would identify common mistakes and warn the user. This is
a helpful first step: a grammar checker ensures that you have not made any obvious
mistakes, but will not significantly improve your prose, and sometimes the warnings
may be incorrect. For graphics, some readily detected problems and possible solutions
are:

   • Too many variables. It is hard to see the relationship between more than three vari-
     ables in a single panel: two position and one other. We should warn the user when too
     many aesthetics are used, and suggest alternatives, such as faceting.

   • Overplotting. It is easy to draw incorrect conclusions about the distribution of points
     in the presence of overplotting. There are many possible solutions. We could sup-
     plement the plot with the contours of a two-dimensional density estimate, or color
     each point by the local density (Unwin et al. 1996). Other solutions are suggested
     in Cleveland and McGill (1984), Carr et al. (1987), Huang, McDonald, and Stuetzle
     (1997).

   • Alphabetical ordering. Categorical variables are often displayed in alphabetical or-
     dering. Wainer (2004) called this mistake “Alabama first!” due to the propensity for
     states to be listed in alphabetical order. Ordering by some property of the data (e.g.,
     mean or median) often makes the plot more useful (Becker, Cleveland, and Shyu
     1996; Friendly and Kwan 2003).

   • Polar coordinates. We know that humans are better at judging length than angle or
     area (Cleveland and McGill 1987), and polar coordinates have a singularity at the
     origin that makes it difficult to judge angle for objects with small radius. Should we
     always warn users when they choose to use this coordinate system?

   We can also provide tools to help the analyst get started; instead of a blank page, we
could start with a template, containing some potentially useful views. One approach is to
calculate a measure of interest for a wide number of possible plots and then show the most
interesting. This is the basic idea behind scagnostics (Wilkinson, Anand, and Grossman
2005) and projection pursuit (Friedman 1987; Cook et al. 2008), which explore the space
of scatterplots generated by projection. We can also explore other parameter spaces, as the
aspect ratio of the plot, as in Heer and Agrawala (2006), which create multiple plots each
banking a different component to 45◦ (as recommended by Cleveland (1993)). Similarly,
instead of displaying the histogram with the optimal bin width, we could display the five
or ten most revealing.
   Beyond that, it seems difficult to see how to do much more algorithmically, and we
need to turn to education and training. The grammar provides a good foundation for teach-
ing, as it helps students to see the deeper themes underlying different graphics, as well as
providing a tool for describing and drawing graphics.
26                                      H. W ICKHAM

                                 8. CONCLUSIONS

    The aim of the grammar is to “bring together in a coherent way things that previously
appeared unrelated and which also will provide a basis for dealing systematically with new
situations” (Cox 1978). How well have we succeeded?
    With the histogram, we saw how a familiar graphic can be broken into its compo-
nent parts, and then those parts changed independently to get variations on an old friend.
In the polar coordinates examples, we saw the deep similarities that underlie the bar
chart, pie chart, and Coxcomb chart. We also accidentally created an unusual chart, the
bullseye plot, and saw how it is like the polar equivalent of the spineplot. The trans-
formation examples showed the usefulness of multiple transformation stages, and how
we can mimic the common statistical practice of back-transformation using graphics
alone.
    One area where this grammar is not so strong is area plots: bar charts, spineplots, his-
tograms, mosaic plots, etc. (Hartigan and Kleiner 1981; Hofmann 2003). Whereas they can
be constructed with the grammar, it gives no great insight into their underlying structure, or
how we can create new, useful, variations. This suggests that it may be fruitful to describe
“subgrammars” for particular families of plots.
    The layered grammar does not include user interaction with the plot; all plots are static
and separate. Clearly there is huge scope for adding interaction to this grammar. Some
types of interaction will be easier to add than others, for example, connecting a slider
to the bin width of a histogram. Here we connect some user interface element to some
specification of the plot. This type of interaction includes zooming and panning (changing
scale limits), but not linked brushing. Linked brushing is an example of interaction with the
underlying data, and incorporating this type of interaction into the grammar will require
deeper thought. Speed is also a challenge; to be seamlessly perceived an interactive graphic
must be updated multiple times a second, whereas many ggplot2 graphics take over a
second to draw.
    The grammar gives no insight into how to display objects other than data frames.
How can we visualize mixed effects models, MANOVAs, clusterings, or classifications?
One can use the default visualization provided by many R packages, but these meth-
ods generally offer little flexibility, only allowing you to produce the single plot that
the package author thought would be most useful. Alternatively, you can create a cus-
tom visualization by piecing together the necessary data and using ggplot2, but this
quickly grows tiresome. Some thoughts on how to achieve a happy medium between
these two extremes are included in Wickham (2009), but there is much work yet to be
done.
    The grammar is powerful and useful, but not all encompassing. As well as specializing
the grammar for particular families of graphics, we also need to support the creation of
interesting and revealing plots. The ideas outlined in the last section suggest ways to build
on top of the grammar to support graphical data analysis and exploration. ggplot2 is
available from http:// had.co.nz/ ggplot2.
A L AYERED G RAMMAR           OF   G RAPHICS                                  27

                              SUPPLEMENTAL MATERIALS

R code and data: R code to reproduce “Napoleon’s march” (minard.r), location of cities
   in “Napoleon’s March” by Minard (minard-cities.txt), troop movement data (minard-
   troops.txt), and R code to reproduce all figures in this article (layered-grammar.r). (Sup-
   plements.zip)

                                     ACKNOWLEDGMENT
   This material is based upon work supported by the National Science Foundation under grant 0706949, and
appears in chapter 2 of Wickham (2008).

                                  [Received August 2007. Revised April 2009.]

                                             REFERENCES
Becker, R. A., Cleveland, W. S., and Shyu, M.-J. (1996), “The Visual Design and Control of Trellis Display,”
   Journal of Computational and Graphical Statistics, 5 (2), 123–155. [25]
Bertin, J. (1983), Semiology of Graphics, Madison, WI: University of Wisconsin Press. [4]
Carr, D. B., Littlefield, R. J., Nicholson, W. L., and Littlefield, J. S. (1987), “Scatterplot Matrix Techniques for
    Large N,” Journal of the American Statistical Association, 82 (398), 424–436. [25]
Chambers, J., Cleveland, W., Kleiner, B., and Tukey, P. (1983), Graphical Methods for Data Analysis, New York:
   Chapman and Hall. [12]
Cleveland, W. (1993), “A Model for Studying Display Methods of Statistical Graphics,” Journal of Computational
    and Graphical Statistics, 2, 323–364; available at http:// stat.bell-labs.com/ doc/ 93.4.ps. [25]
Cleveland, W. S., and McGill, R. (1984), “Graphical Perception: Theory, Experimentation and Application to the
    Development of Graphical Methods,” Journal of the American Statistical Association, 79 (387), 531–554.
    [25]
        (1987), “Graphical Perception: The Visual Decoding of Quantitative Information on Graphical Displays
    of Data,” Journal of the Royal Statistical Society, Ser. A, 150 (3), 192–229. [25]
Cook, D., Lee, E.-K., Buja, A., and Wickham, H. (2008), “Grand Tours, Projection Pursuit Guided Tours and
   Manual Controls,” in Handbook of Data Visualization. Springer Handbooks of Computational Statistics, eds.
   C. Chen, W. Härdle, and A. Unwin, Heidelberg: Springer, chapter III.2, pp. 295–314. [25]
Cox, D. R. (1978), “Some Remarks on the Role in Statistics of Graphical Methods,” Applied Statistics, 27 (1),
   4–9. [3,26]
Friedman, J. H. (1987), “Exploratory Projection Pursuit,” Journal of American Statistical Association, 82, 249–
    266. [25]
Friendly, M., and Kwan, E. (2003), “Effect Ordering for Data Displays,” Computational Statistics & Data Analy-
    sis, 43 (4), 509–539, doi: http:// dx.doi.org/ 10.1016/ S0167-9473(02)00290-6. [25]
Hartigan, J. A., and Kleiner, B. (1981), “Mosaics for Contingency Tables,” in Computer Science and Statistics:
    Proceedings of the 13th Symposium on the Interface, Fairfax Station, VA: Interface Foundation of North
    America, pp. 268–273. [26]
Heer, J., and Agrawala, M. (2006), “Multi-Scale Banking to 45 Degrees,” IEEE Transactions on Visualization
    and Computer Graphics, 12 (5), available at http:// vis.berkeley.edu/ papers/ banking/ . [25]
Hofmann, H. (2003), “Constructing and Reading Mosaicplots,” Computational Statistics and Data Analysis, 43
   (4), 565–580. [26]
28                                               H. W ICKHAM

Huang, C., McDonald, J. A., and Stuetzle, W. (1997), “Variable Resolution Bivariate Plots,” Journal of Compu-
   tational and Graphical Statistics, 6, 383–396. [25]
Nightingale, F. (1857), Notes on Matters Affecting the Health, Efficiency and Hospital Administration of the
    British Army, London: Private publication. [22]
OED Online (1989), The Oxford English Dictionary (2nd ed.), Oxford University Press. Available at http://
   dictionary.oed.com/ cgi/ entry/ 50097652. [3]
Unwin, A. R., Hawkins, G., Hofmann, H., and Siegl, B. (1996), “Interactive Graphics for Data Sets With Missing
   Values—MANET,” Journal of Computational and Graphical Statistics, 5 (2), 113–122. [25]
Wainer, H. (2004), Graphic Discovery: A Trout in the Milk and Other Visual Adventures, Princeton University
   Press. [25]
Wickham, H. (2005), “reshape: Flexibly Reshape Data,” R package version 0.7.1, available at http:// had.co.nz/
   reshape/ . [19]
           (2008), “Practical Tools for Exploring Data and Models,” Ph.D. thesis, Iowa State University, available
     at http:// had.co.nz/ thesis. [27]
         (2009), ggplot2: Elegant Graphics for Data Analysis: Use R, Springer. [26]
Wilkinson, L. (2005), The Grammar of Graphics (2nd ed.). Statistics and Computing, New York: Springer. [14,18]
Wilkinson, L., Anand, A., and Grossman, R. (2005), “Graph-Theoretic Scagnostics,” in IEEE Symposium on
    Information Visualization, pp. 157–164. [4,25]
You can also read
