AER Product Catalogue 2019


AER Product Catalogue 2019
AER Product Catalogue 2019
AER Product Catalogue 2019
Join the acoustic family:

Sound-Solutions for nearly every instrument.
Mouth Harp, Clarinette, Saxophone, Acoustic Guitar,
Trombone, Violin, Double Bass, Electric Bass, Electric
Guitar, Harmonica, Percussion, Keyboard, Voice,
Mandoline, Ukulele, Marimbaphone, Xylophone, Trumpet,

                            2
AER Product Catalogue 2019
Oud, Harpischord, Harp, Lute, Cister, Bouzuki, Tzouras,
Saz, Kemence, Banjo, Dulcimer, Sitar, ErHu, BanHu, Cello,
Electric Violine, Horn, Fagot, German Flute, Bassoon,

and much more.

                            3         For more information, please refer to: www.aer-music.de
AER Product Catalogue 2019
Alpha

   The Alpha defines the starting point of professional                    Open sounding and quick in response, this amp
   acoustic amplification at AER. Based on the success                     masters different ranges and is thus not afraid of
   and the experience with the Compact 60 we develo-                       bigger instruments.
   ped an even smaller lightweight model that has no
   difficulties living up to the rigors of the road.

   Input one            combined XLR/6.3 mm (1/4”)                         Effects                digital reverb
                        input jack socket as high-quality
                                                                           Power amp             40W / 4 ohms, dynamic control
                        line- or balanced microphone
                        input stage, 48 V phantom power,                   Speaker system 8” (200 mm) twin cone speaker
                        gain control                                       Features              headphones, line out, DI-out,
   Input two           6.3 mm (1/4”) input jack socket as                                        external effect loop via send and
                       high impedance line input stage                                           return, footswitch
                       with pad (high/low attenuation)                                           (internal/external effect on/off )
                       9 V phantom power and gain control                  Dimensions            260 mm x 265 mm x 235 mm
   Equalizer           three band tone controls                                                  (10.24“ x 10.43“ x 9.25“) HxWxD
   Colour               ‘mid-cut-treble-boost’-filter                      Weight                6,2 kg (13.7 lbs)

                    input       line   gain      input   high   gain           colour   bass   middle    treble      efx level           master
                                mic                      low                clip                                                 power

                                       input 1                         input 2                                           alpha
IF_Alpha_20110621

                                                                       4                         For more information, please refer to: www.aer-music.de
AER Product Catalogue 2019
Alpha Plus

            The Alpha Plus is a complement to our Alpha, still                        40 Watts poweramplifier, 8“-twin-cone speaker-
            as professional and versatile as the Alpha itself, but                    system, 3-band equalization and reverb, the Alpha
            provided with a bigger cabinet.                                           Plus is applicable for the enhancement of a wide
            With one channel but two independant input stages                         variety of instruments just as well as vocals.
            (line and microphone/line), a dynamically controlled

            Input one              combined XLR/6.3 mm (1/4”)                             Effects            digital reverb
                                   input jack socket as high-quality                      Power amp         40W / 4 ohms, dynamic control
                                   line- or balanced microphone input
                                                                                          Speaker system 8” (200 mm) twin cone speaker
                                   stage, 48 V phantom power,
                                   gain control                                           Features          headphones, line out, DI-out,
                                                                                                            external effect loop via send and
            Input two              6.3 mm (1/4”) input jack socket as
                                                                                                            return, footswitch
                                   high impedance line input stage
                                   with pad (high/low attenuation)                                          (internal/external effect on/off )
                                   9 V phantom power and                                  Dimensions        260 mm x 325 mm x 235 mm
                                   gain control                                                             (10.20“ x 12.80“ x 9.25“) HxWxD
            Equalizer              three band tone controls                               Weight            7,0 kg (15.4 lbs)
            Colour                 ‘mid-cut-treble-boost’-filter

                           input       line   gain      input      high   gain        colour       bass   middle      treble       efx level           master
                                       mic                         low             clip                                                        power

                                              input 1                            input 2                                               alpha plus
IF_AlphaPlus_111217

            Emil Ernebro                                                                  5                        For more information, please refer to: www.aer-music.de
AER Product Catalogue 2019

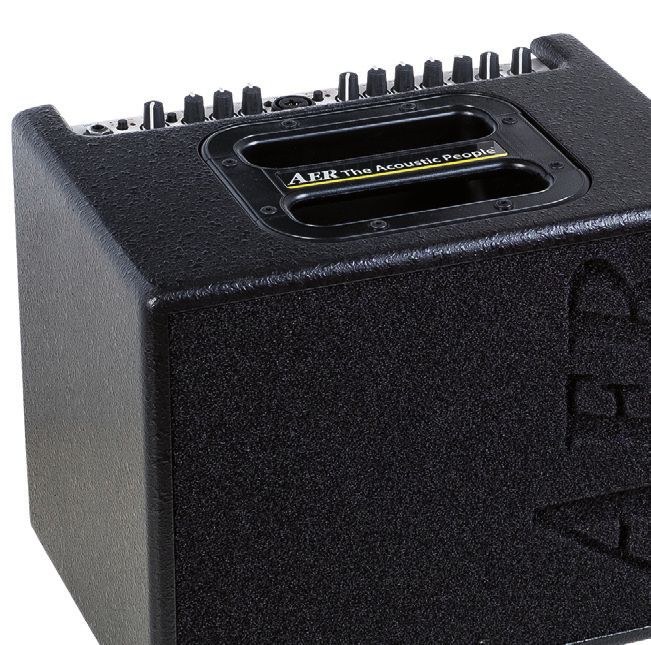

Compact 604

The Compact 604 is a professional, compact and po-                songwriter who requires outstanding reproduction of
werful amplifier system. Especially developed for the             his/her instrument and vocals yet needs a handy unit
enhancement of acoustic instruments it is nonetheless             with gigbag which is easily portable (even via public
suitable for other instruments, even electrical ones.             transport).
Our design concept was focused on the singer-/

Channel 1        6.3 mm (1/4”) input jack socket                  Digital effect processor with 4 presets:
                  as high impedance line                                           2 x reverb, delay, chorus
                 input stage with pad (high/low                   Power amp        60W / 4 ohms, dynamic control
                 attenuation) 9 V phantom                         Speaker system 8” (200 mm) twin cone speaker
                 power (switchable) and gain control
                                                                  Features         headphones, line out, pre/post effect
Channel 2        combined XLR/6.3 mm (1/4”) input                                  switchable DI-out,
                 jack socket as high quality line or                               external effect loop via send and
                 balanced microphone                                               return, footswitch
                 input stage 48 V, gain control                                    (internal/external effect on/off ),
Equalizer        three band tone controls                                          3,5 mm aux in jack socket
                 for channel 1 and                                Dimensions       260 mm x 325 mm x 235 mm
                 two band tone controls for channel 2                              (10.20“ x 12.80“ x 9.25“), HxWxD
Colour           ‘mid-cut-treble-boost’-filter                    Weight           7,1 kg (15.6 lbs)

                                                                                                               Compact 604

Tommy Emmanuel                        Photo: Simone Cecchetti 6                     For more information, please refer to: www.aer-music.de
AER Product Catalogue 2019
Compact 604 Slope

Full functionality of the Compact 604 in                       • 8“ twin cone speaker system
a wedge design cabinet.                                        • twin channel, 3 and 2 band EQ
• monitor-plus design                                          • digital effect processor with 4 presets
• 60 watts, dynamic control                                    • 7,2 kg (15.9 lbs)

Channel 1        6.3 mm (1/4”) input jack socket               Digital effect processor with 4 presets:
                  as high impedance line                                        2 x reverb, delay, chorus
                 input stage with pad (high/low                Power amp        60W / 4 ohms, dynamic control
                 attenuation) 9 V phantom‘                     Speaker system 8” (200 mm) twin cone speaker
                 power (switchable) and gain control
                                                               Features         headphones, line out, pre/post, effect
Channel 2        combined XLR/6.3 mm (1/4”) input                               switchable DI-out,
                 jack socket as high                                            external effect loop via send and
                 quality line or balanced microphone                            return, footswitch
                 input stage 48 V, gain control                                 (internal/external effect on/off ),
Equalizer        three band tone controls                                       3,5 mm aux in jack socket
                 for channel 1 and                             Dimensions       259 mm x 311 mm x 137/235 mm
                 two band tone controls for channel 2                           (10.19“ x 13.03“ x 5.39“ x 12.84“)
Colour           ‘mid-cut-treble-boost’-filter                                  HxWxD
                                                               Weight           7,2 kg (15.9 lbs)

                                                                                                           Compact 604

Christina Lux                        Photo: Sebastian Niehoff   7                     For more information, please refer to: www.aer-music.de
AER Product Catalogue 2019
Compact Mobile 2

Musicians often asked us for a system for acoustic          play without the mains for three to four hours, the
instruments that provides AER sound and quality             intelligent power control gives a warning and saves
everywhere … independent from the mains.                    you from lack of power during performance.
This is exactly what the Compact Mobile has been            Moreover it prevents the batteries from being comple-
developed for. Based on the Compact 60, thus iden-          tely discharged.
tical in sound, but with adapted technology, you can

Channel 1        6.3 mm (1/4”) input jack socket as         Power amp      60W / 4 ohms, dynamic control
                 high impedance line input stage            Analog signal  subsonic filter, low distortion
                 with pad (high/low attenuation) 9 V        processing     RMS limiter
                 phantom power and gain control             Battery type   two high–power sealed–acid
Channel 2        combined XLR/6.3 mm (1/4”) input                          batteries 6 V, 12 Ah for 3 – 4 hours of
                 jack socket as high-quality line- or                      independant performance, battery
                 balanced microphone input stage                           power control
                 with switchable 48 V phantom power,        Speaker system 8” (200 mm) twin cone speaker
                 gain control                               Features       adj. aux-in, headphones, line out, DI-
Equalizer        three band tone controls for                              out, external effect loop via send
                 channel 1 and                                             and return, footswitch (internal/
                 two band tone controls for channel 2                      external effect on/off )
Colour           ‘mid-cut-treble-boost’-filter              Dimensions     320 mm x 326 mm x 282 mm
Effects           digital effect processor with                              (12.60“ x 12.90“ x 11.10“)HxWxD
                 4 presets: 2 x reverb, delay, chorus       Weight         13,0 kg (29.0 lbs)

Shaun Hopper                                            8                     For more information, please refer to: www.aer-music.de
AER Product Catalogue 2019
Compact Classic pro

The Compact Classic pro is aimed at classical players                                         All the features combine perfectly for the finer tonal
and their instruments. Compared to the Compact 60,                                            texture of a classical instrument throughout the full
the Compact Classic pro benefits from an improved                                             audio band. It enhances the low frequency response
2-way speaker system, a more complex three band EQ                                            without increasing feedback risk and creates beautiful
with parametric bass and digital effect processor with                                         ambiences that enrich the tone.
carefully designed presets for classical instruments.

Input 1                     combined XLR/6.3 mm (1/4”) input                                  Analog signal                     subsonic filter, low distortion
                            jack socket to access an input mat-                               processing                        RMS limiter
                            rix with six different presets for the
                            pre-amp section (e.g. sources with                                Speaker system 2-way speaker system, 8” (200 mm)
                            microphone-, line-, piezo- or piezo/                                             twin cone speaker plus tweeter.
                            electret-level), switchable 9 or 48 V                             Features                          adjustable aux in, headphones,
                            phantom power and gain control
                                                                                                                                tuner out, insert, line out, left/right
Input 2                     6.3 mm (1/4”) input jack socket as
                            high impedance line input or AER-                                                                   out, send/return, footswitch (switch
                            piezo input stage, gain control                                                                     internal to external effect and mute
Equalizer                   three band tone controls with bass                                                                  channels), adjustable DI-out (pre/post
                            parametric and bandwidth-switch                                                                     effect switchable), presence control
                            (Q-factor).
                                                                                              Dimensions                        260 mm x 325mm x 235 mm
Effects                      digital effect processor with
                            16 presets.                                                                                         (10.20“ x 12.80“ x 9.25“), HxWxD
Power amp                   60W / 4 ohms, dynamic control                                     Weight                            7,7 kg (16.9 lbs)

      input 1        clip       gain   mute   input 2   clip   gain   mode      mute   bass       freq.        band-   middle    treble     pan      level        program               power   master
                                                                                                               width

                                                                                                                                                                       16   1   2
                                                                                                                                                               15                   3
                                                                                                                                                             14                         4

                                                                         piezo                                                                               13                         5
                                                                                                                                                             12                         6
                                                                         line
                                                                                              60 Hz   400 Hz                                                      11                7
                48          9                                                                                                                                          10       8
                                                                                                                                                                            9

                                                                                 Classic professional
                L           M                                                                                                   equalizer                                   effect
                P           P/M
                                                                Compact

Katona Twins                                                                                  9                                      For more information, please refer to: www.aer-music.de
AER Product Catalogue 2019
Compact XL

Still a part of the Compact family. A discrete power        A beautiful sounding powerhouse for those who need
amp design for additional dynamic headroom.                 more volume, a more defined tone and yet the loved
A speaker configuration for additional tonal range          straightforwardness of the Compact 60.
and the continuation of the well proven features and
functionality of the Compact 60.

Channel 1       6.3 mm (1/4”) input jack socket as          Power amp      200 W / 8 ohms, dynamic control
                high impedance line input stage             Analog signal subsonic filter, low distortion
                with pad (high/low attenuation) and         processing     RMS limiter
                switchable 9 V phantom power, gain          Speaker system 2-way speaker system, 8” (200 mm)
                control                                                    polypropylen low-midrange +
Channel 2       combined XLR/6.3 mm (1/4”) input                           1” dome tweeter, light-weight
                jack socket as high-quality line or                        neodymium alloy magnets
                balanced microphone input stage             Features       ground lift, switchable 9 V phantom
                48 V phantom power, gain control                           power, adjustable aux in, footswitch
Equalizer       three band tone controls for                               (effects on/off ), tuner, line out,
                channel 1 and                                              adjustable DI-out, external effect loop
                two band tone controls for channel 2                       via send/return, headphones
Colour          ‘mid-cut-treble-boost’-filter               Dimensions    320 mm x 326 mm x 282 mm
Effects          digital effect processor with                              12.60“ x 12.90“ x 11.10“), HxWxD
                4 presets: 2 x reverb, delay, chorus        Weight        9,8 kg (22.6 lbs)

Eric Johnson                                           10                   For more information, please refer to: www.aer-music.de
Domino 2A

The Domino started out as multi-channel acoustic                                                                   we decided to multiply the soundsystems. Thus the
solution for bigger stages. It allows 4 signals at the                                                             Domino is equipped with two 8“ twin-cone speakers
same time and is fully equipped to work as an or-                                                                  plus dome tweeter and two combined 60 watt amps
chestersystem for small and medium sized venues                                                                    working as a power unit (limited to 100 watts). This
especially in combination with the active extensions                                                               gives him the accuracy in the midrange and the attack
AS 281. To maintain almost the same sound quality                                                                  for a realistic and vivid sound.

Input 1 and 4                   6.3 mm (1/4”) input jack socket as                                                 Analog signal                                subsonic filter, low distortion
                                high impedance line input stage with                                               processing                                   RMS limiter
                                pad (high/low attenuation)
Input 2 and 3                   combined XLR/6.3 mm (1/4”) input                                                   Speaker system 2 x 8“ twin cone speaker system
                                jack socket as high-quality line- or                                                                                            plus dome tweeter
                                balanced microphone input stage
                                                                                                                   Features                                     rec out, aux in, headphones, tuner,
                                48 V phantom power, gain control
Equalizer                       three band tone controls                                                                                                        L/R out, insert, line out, DI-out, send,
Colour                          ‘mid-cut-treble-boost’-filter                                                                                                   return, footswitch (internal/external
Effects                          digital effect processor with                                                                                                    effect on/off, mute channels)
                                16 presets, individual effect sends                                                 Dimensions                                   360 mm x 410 mm x 290 mm
                                per channel
                                                                                                                                                                (14.20“ x 16.20“ x 11.40“), HxWxD
Power amp                       2 x 60 W / 4 ohms (limited to 100 W),
                                dynamic control                                                                    Weight                                       13,2 kg (29.1 lbs)

                                       input   mute   attn.   clip   gain   colour   bass   middle        treble        eff. send         input                 mute       line/mic clip             gain       colour   bass     middle     treble            eff. send

 Domino 2.A
                                                                                                              channel one                                                                                                                        channel two

      input   mute   line/mic   gain   input   mute   attn.   clip   gain   colour   bass   middle        treble        eff. send   48V           stereo sim.                   select                 return             aux     effect 2    pre     power    master
                                                                                                                                                                                                                         return    return    master
                                                                                                                                                                           16     1      2
                                                                                                                                                                      15                     3
                                                                                                                                                                 14                              4

                                                                                                                                                                 13                              5

                                                                                                                                                                 12                              6
                                                                                                                                                                      11                     7

                                                                                                     channel three + four                                                  10     9   8
                                                                                                                                                                                                     effect                                                   master

John Goldie                                                                                                        11                                                            For more information, please refer to: www.aer-music.de
Domino 3

What was supposed to be an update turned into a                  amps. Two independent effect units, with 16 presets
different class – Domino 3. Now partial* stereo, with             each, separately address pairs of the four equally
two twin cone speakers and high performance power                equipped channels (1, 2 and 3, 4).

Channel 1 – 4   combined XLR/6.3 mm (1/4”) input                 processing     RMS limiter
                jack socket switchable for instru-               Speaker system 2 x 8“ twin-cone speaker system
                ments, line-level or phantom
                powered sources (e.g. microphones)               Features       switchable phantom power, ground
                                                                                lift, rec out, aux in, return, send, head-
Equalizer       three band tone controls
                for each channel                                                phones, tuner, footswitch (internal/
Colour          ‘mid-cut-treble-boost’-filter                                   external effect on/off ), adjustable
                                                                                DI-out, 4 channel mute
Effects          digital effect processor with
                16 presets                                       Dimensions     365 mm x 420 mm x 300 mm
Power amp       2 x 100 W / 4 ohms, dynamic control                             (14.4“ x 16.6“ x 11.8“), HxWxD
Analog signal   subsonic filter, low distortion                  Weight         15,5 kg (34.2 lbs)

                                                                                                                   16   1   2
                                                                                                              15                3
                                                                                                         14                         4

                                                                                                        13                          5

                                                                                                         12                         6

                                                                                                              11                7
                                                                                                                   10   9   8

                                                                                                                   16   1   2
                                                                                                              15                3
                                                                                                         14                         4

                                                                                                        13                          5

                                                                                                         12                         6

                                                                                                              11                7
                                                                                                                   10   9   8

Lionel Loueke                           Photo: Jimmy Katz   12                   For more information, please refer to: www.aer-music.de
AcoustiCube 3

This is where it all started and it is undoubtedly         response and much lighter, more sparkling reproduc-
regarded the reference system for acoustic instru-         tion of the complete range up to finest texture.
ments and the best that we can do in a small box like      Cube 3 is a full two channel version now allowing
this – the ultimate solution for a soloist. In its 3rd     identical features on both channels. It needed a face-
generation now we have implemented advanced                lift for more operational clarity and to allow additional
dynamic control technology and extended the                important controls on the front panel.
dynamic range substantially.                               In essence we have combined all the suggestions of
The new 2-way speaker system is an incredible impro-       Cube enthusiasts over the years with all our know-
vement too! It allows a much clearer and defined bass      ledge and experience– without compromise –
                                                           and we are more than pleased.

Input 1, 2       6.3 mm (1/4”) multi-purpose input          Speaker system 2-way speaker system with
                 jack socket with mode select (piezo,                      8“- diecast neodymium, kevlar® cone
                 line, mic, E/P mode)                                      bass and neodymium tweeter
Equalizer        three band tone controls for               Features         tuner, headphones, sub, line out, L/R-
                 both channels                                               out, record, master insert, adjustable
Colour           ‘mid-cut-treble-boost’-filter                               aux in, presence, adjustable DI-out,
Effects           32 bit AER digital effect processor                          send, return, ser/par. effect loop, mic
                 with 100 presets                                            input, effects-software
Power amp        120 W / 8 ohms, dynamic control            Dimensions       330 mm x 330 mm x 265 mm
Analog signal    subsonic filter, low distortion                             (13.00“ x 13.00“ x 10.40“), HxWxD
processing       RMS limiter                                Weight           13,0 kg (28.7 lbs)

Lee Oskar                        Photo: Michael Weintrob   13                   For more information, please refer to: www.aer-music.de
MM200 Monte Montgomery Signature

Monte‘s playing is more than powerful, loud and                       reproduction that blends the
dynamic. He is making use of a lot of effect pedals -                  directness and attack with a
a rather electric/acoustic than acoustic/electric                     mild and melodic character.
sound – Monte’s sound!
                                                                      A live amp, made for the
The volume, as well as the percussiveness and the                     stage (sic!) that works for
almost physical attack of the instrument within his style             Monte as a soloist, as well as
needs a relaxed amp, with lots of headroom, effec-                     with the band, that supports him with
tive but “understated” dynamic control and a sound                    punch and intelligibility.

Channel 1          6.3 mm (1/4”) input jack socket as               Power amp       2x 100 W / 4 ohms, dynamic control
                   high impedance line input stage
                   with pad (high/low attenuation) and              Analog signal   subsonic filter, low distortion
                   switchable 9 V phantom power, gain               processing      RMS limiter
                   control
                                                                    Speaker system 2 x 8” (200 mm) extended range
Channel 2          combined XLR/6.3 mm (1/4”) input
                                                                    Features        adjustable aux in, tuner, line out,
                   jack socket as high-quality line or
                                                                                    adjustable DI-out, external effect loop
                   balanced microphone input stage                                  via send/return, headphones
                   48 V phantom power, gain control                                 footswitch for effects,
Equalizer          three band tone controls for                                     footswitch for mute
                   channel 1 and two band tone                      Dimensions      Height: 420 mm (16.5”)
                   controls for channel 2                                           Width: 360 mm (14.2”)
Effects             digital effect processor with                                     Depth: 300 mm (11.8”)
                   4 presets: 2 x reverb, delay, chorus             Weight          15 kg (33.1 lbs)

Monte Montgomery                        Photo: Andreas Falke   14                   For more information, please refer to: www.aer-music.de
Compact 604 Tommy Emmanuel Signature

If you ever heard Tommy‘s playing, you will              The sound Tommy produces on-stage has to be sent
recognize that his sound is much more than loud          exactly to the front-of-house PA system. A switchable
and dynamic. He does not use effect pedals - his          pre/post efx DI provides the tone on and off the stage.
sound is a marriage between his fingers, his guitars
and his amplifier.
We are proud to create an amplifier exactly to
Tommy‘s needs. To reproduce the typical ‚initiation
tone‘ the on-board delay must be slightly changed.

Channel 1         6.3 mm (1/4”) input jack socket         Digital effect processor with 4 presets:
                   as high impedance line                                  2 x reverb, delay, chorus
                  input stage with pad (high/low          Power amp        60W / 4 ohms, dynamic control
                  attenuation) 9 V phantom
                                                          Speaker system 8” (200 mm) twin cone speaker
                  power (switchable) and gain control
Channel 2         combined XLR/6.3 mm (1/4”) input        Features         headphones, line out, pre/post effect
                  jack socket as high quality line or                      switchable DI-out,
                  balanced microphone                                      external effect loop via send and
                  input stage 48 V, gain control                           return, footswitch
Equalizer         three band tone controls                                 (internal/external effect on/off ),
                  for channel 1 and                                        3,5 mm aux in jack socket
                  two band tone controls for channel 2    Dimensions       260 mm x 325 mm x 235 mm
Colour            ‘mid-cut-treble-boost’-filter                            (10.20“ x 12.80“ x 9.25“), HxWxD
                                                          Weight           7,1 kg (15.6 lbs)

Tommy Emmanuel                                           15                   For more information, please refer to: www.aer-music.de
Specials

 Compact 604, white matte                 Compact 604, signal red, high gloss                       Compact 604, black, high gloss

 Compact 604, white spattered             Compact 604, british racing green                         Compact 604, chocolate brown

 Compact 604, light grey                  Compact 604, solid oak-wood                               Compact 604, solid oak, mahogany stained

                                                                                                AER custom amplifiers:
                                                                                                (available only on request)
                                                                                                • solid wood
                                                                                                • special colours
                                                                                                • signature amplifier

 Compact 604, plywood, mahogany stained         AER Alpha, solid oak, mahogany stained
                                                             16                          For more information, please refer to: www.aer-music.de
Basic Performer 2

The Basic Performer 2 is a solution for bass and instru-   with definition. High-end preamps, proper filters and
ments of the lower registers, based on the experience      additional professional sound design make
of multiplying well proven AER acoustic systems.           the Basic Performer 2 a multitalented all-round soluti-
Small twin-cone speakers are fast, provide a superior      on. The sound characteristics are full range thus open
coverage for the critical mid-range and have enough        and light yet breathing as well as grumbling and sur-
substance in the low end.                                  prisingly appropriate for far more instruments
The AER band-pass/bass-reflex cabinet design sup-          than the bass-related instruments, e. g. harp, cello,
ports the reproduction of even the lowest frequencies      accordion…

Channel 1         6.3 mm (1/4”) jack socket as high         Analog signal subsonic filter, low distortion
                  impedance line input with                 processing     RMS limiter
                  switchable 9 V phantom power and          Speaker system 2 x 8” (200 mm) dual cone full-range
                  high/low attenuator)                                     speakers (front side) 2 x 8” (200 mm)
Channel 2         combo socket XLR + 6.3 mm (1/4”)                         woofers (inside)
                  jack as high-impedance line- or balan-                   dual-chamber bass reflex cabinet
                  ced microphone input with switchab-       Features       tape in, headphones, tuner, insert, line
                  le phantom power                                         out, DI-out, send, return, footswitches
Equalizer         three band tone controls for both                        (effect on/off,
                  channels                                                 solo/ensemble, mute channels)
Colour            ‘mid-cut-treble-boost’-filter             Dimensions     490 mm x 360 mm x 405 mm
Effects            compressor, notch filter                                 (19.30“ x 14.2 “ x 15.90“), HxWxD
Power amp         2 x 100 W / 8 ohms, dynamic control       Weight         23,3 kg (51.4 lbs)

Franck Bedez                                               17                   For more information, please refer to: www.aer-music.de
Amp one

It seems like we have done it again …                         Based on a superb 10“ in a bass reflex enclosure, in com-
Over many years you have asked us for something small         bination with a serious 200 watt power amp, more than
for electric bass – simple, powerful and with a perfor-       sufficient power-supply and extended dynamic head-
mance hard to believe …                                       room - not to forget Paul’s* helping hands and ears –
And there it is: the AER Amp one.                             it is finally done.         * Paul Sipps from www.Bassmatters.nl

 Input                6.3 mm (1/4”) input jack socket as          Analog signal     subsonic filter, low distortion
                      high impedance line input stage with        processing        RMS limiter
                      pad (high/low attenution).
                                                                  Speaker system 10“ woofer neodymium magnet
 Equalizer            three band tone controls with
                                                                  Features          ground lift, headphones, line out, sub
                      middle parametric
                                                                                    out, footswitch (muting and effect
 Colour               ‘mid-cut-treble-boost’-filter
                                                                                    loop), send, return, insert pre/post EQ,
 Tone balance         the tone balance enables the bass-
                                                                                    aux in, adjustable DI-out
                      or treble emphasis or a combination
                      of both                                     Dimensions        325mm x 375 mm x 295 mm
 Effect                compressor with ratio and threshold                           (12.80“ x 14.80“ x 11.60“), HxWxD
 Power amp            200 W / 8 ohms, dynamic control             Weight            13,3 kg (29.2 lbs)

Tom Launhardt Bass Headstock                                 18                      For more information, please refer to: www.aer-music.de
Amp two

 Amp two is the second member of the Bottom Line                funk to pop and rock to jazz.
 combo bass amps. In line with Amp one, but with a              As further difference to the Amp one the signal path is
 more defined speakersystem and more power. A 12“               lead trough adjustable compression pre EQ to provide
 neodymium woofer for quick and full bass response              even more dynamic headroom.
 combined with a 4“ mid-high direct radiating speaker
 for gentle trebles allows a wider range of sounds from

Input                   6.3 mm (1/4”) input jack socket as     Speaker system 12“ (300 mm) woofer neodymium alloy
                        high impedance line input stage with                  magnet 4“ (100 mm) mid-high direct-
                        pad (high/low attenution).                            radiating 2-way speaker system
Equalizer               three band tone controls with          Features          headphones, line out pre/post master
                        middle parametric
                                                                                 switchable, sub out, footswitch (mu-
Colour                  ‘mid-cut-treble-boost’-filter
                                                                                 ting and effect on/off ), send, return,
Bass boost              +10 dB / 55 Hz                                           insert pre/post EQ, adjustable aux in,
Tone balance            the tone balance enables the bass-                       tuner, adjustable hf level, adjustable
                        or treble emphasis or a combination
                                                                                 pre/post EQ DI-out, ground lift
                        of both
Effect                   compressor with ratio and threshold    Dimensions        500mm x 420 mm x 350 mm
                                                                                 (19.70“ x 16.60“ x 13.80“), HxWxD
Power amp               240 W / 8 ohms, dynamic control
Analog signal           subsonic filter, low distortion        Weight            24,2 kg (53.35 lbs)
processing              RMS limiter

     Ø1            10
    2            x9

Tom Launhardt Fretless Bass                                    19                   For more information, please refer to: www.aer-music.de

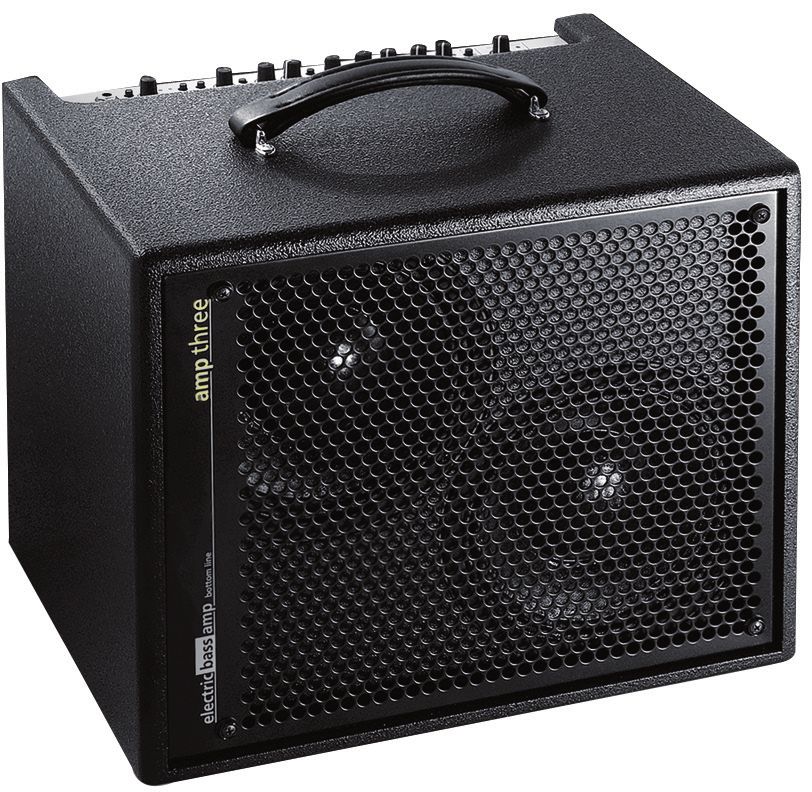

Amp three

Amp three follows the concept of Amp one, being           Equipped with 2 x 8“ heavy duty bass-speakers, it
small, rich and powerful based on a one way speaker-      enhances the low mids and offers a more open, trans-
system. It also offers a superb mix between size and       parent tone with the neccessary strength and focus to
power and features for professional use.                  cut through.

 Input         6.3 mm (1/4”) input jack socket as high        Power amp      200 W / 8 ohms, dynamic control
               impedance line input stage with pad            Analog signal subsonic filter, low distortion
               (high/low attenution)                          processing    RMS limiter
 Equalizer     three band tone controls with                  Speaker system 2 x 8“ heavy-duty bass-speakers
               middle parametric                              Features       ground lift, headphone outputs, line
 Colour        ‘mid-cut-treble-boost’-filter                                 out, sub out, footswitch (muting and
 Bass boost    +10 dB / 55 Hz                                                effect loop), send, return, insert pre/
 Tone balance the tone balance enables the bass-                             post EQ, aux in, adjustable DI-out
              or treble emphasis or a combination             Dimensions     365 mm x 420 mm x 300 mm
              of both                                                        (14.40“ x 16.60“ x 11.80“), HxWxD
 Effect         compressor with ratio and threshold            Weight         15,8 kg (34.38 lbs)

Bassbridge                                               20                     For more information, please refer to: www.aer-music.de
AG 83

The AG 83 Active Monitor is a professional, compact, and                              which make it also usable as a stand-alone amplifier
powerful active monitor loudspeaker.                                                  system.
Thanks to its slanted cabinet shape and the 35 mm                                     All AER systems employ dynamic range control, which
(1.375“) tripod stand adapter it can be set up variably.                              ensures reliability and low distortion even at high volu-
Besides a balanced line input it offers mixable aux and                                me despite strikingly small size and light weight.
microphone inputs (also with 48 V phantom power),

Inputs                   Balanced or unbalanced line input                            Speaker system 8” (200 mm) full-range speaker in
                         Combo socket, XLR + jack ¼“ (6.35                                           bass reflex cabinet
                         mm), balanced microphone input                               Features                insert pre/post EQ, ground lift,
                         Combo socket, XLR + jack ¼“ (6.35
                                                                                                              adjustable line, mic and Aux
                         mm), auxiliary stereo input, e.g. for
                         CD, 3.5 mm stereo jack socket                                Dimensions              269 mm x 335 mm x 260 mm
Equalizer                two band tone controls                                                               (10.59“ x 13.19“ x 10.24“), HxWxD
Power amp                60W / 4 ohms, dynamic control                                Weight                  7,8 kg (17.1 lbs)
Analog signal            Subsonic filter, adaptive peak limiter,
processor                speaker eq with harmonics exciter

                                                                                               Push                                             Push

                                                      master   treble   bass   mic                      aux            line
                                       power

           ground lift
                                               clip

                                                                                             mic in
                            line out                                                        XLR = P48                             link          line in
                                                                                                              aux in
                            pre out

                                                                                                                         power
                                                                                                                         on

                                                                                                                         off

                                                                                      Made in Germany

                                                                                     21                           For more information, please refer to: www.aer-music.de
AS 2814

AS 2814 is a small full range 2 way active system                                                       vers 100 watts at 8 ohm with substantial power reser-
in D’Appolito construction, based on 2x8“ low mid                                                       ve due to oversized power supply.
speakers with polypropylen cone embracing a bi-                                                         It is a stand alone system for general reinforcement/
radial horn (LM-H-LM). The main advantage of the                                                        installation purposes or any monitor application. It is
D‘Appolito-concept is constant directivity especially                                                   perfectly matched to complement AER products as
in the ‘hang over’ range of the speakers. It is equipped                                                the AcoustiCube 3 or the Dominos 2/3 into full stereo
with a high-quality hybrid power amplifier that deli-                                                   systems. In combination with Combi SUB 12/15 it

                                                                                  Inputs          electronically balan-    Speaker system 2 x 8“ polypropylene
                                                                         aux in                   ced, 10 kOhm XLR-                               low-midrange spea-
                                                                aux in
                                                                                                  connector
                                                               level
                                                                                                                                                  ker, biradial horn
                                                                         input    Frequency       frequency response (1                           tweeter
                                                                                                  watt @1m):
                                                                                                  -6dB: 65 Hz -20 kHz      Features               speaker out, link,
                                                                         link
                                                                                                  axial sensivity: 97 dB                          ground lift, dynamic
                                                              parallel
                                                              link
                                                                                                  SPL, 1 watt @ 1m                                bass boost
                                                                                  Crossover       passive, 5 kHz, 18 dB/
                                                    -6
                                               -8        -4

                                                                                                                           Dimensions             560 x 260 (front) x 135
                                     -10                      -3

                                    -14                        -2        gain
                                     -20

                                               ∞
                                                              -1

                                                                                                  Oct.
                                                                                                                                                  (back) x 285 mm
                                           -              0

                                                     clip
                                                                   bass boost
                                                                                  Power amp       100 W / 8 ohms, dyna-
                                                                    GND-lift                                                                      trapezoid angle 50°
                                                                                                  mic control
                                                                                                                                                  (22.0“ x 10.2“ x 5.31“ x
                                                                                  Analog signal subsonic filter, low
                                                                                                                                                  11.22“)
                                                                                  distortion
                                                                                  processing    RMS limiter                Weight                 15,0 kg (33.1 lbs)

       AS 2814
           ATTENTION
            CAUTION
      RISK OF ELECTRICAL SHOCK
                DO NOT OPEN
     RISQUE DE CHOC ELECTRIQUE
               NE PAS OUVRIR

              power on           mains                   mains
                                 OUT                      IN

                   fuse

                                                                                                       22                  For more information, please refer to: www.aer-music.de
Combi SUB

Long-awaited, often asked for – here it is:                                                                                                              It offers a wide range of features to enhance low-end
The Combi SUB 12“ and 15“ – a subwoofer as bass-ex-                                                                                                      and avoid feedback: ground-lift, adjustable crossover,
tension to a whole range of AER amps: Domino2.A/3,                                                                                                       notch-filter and phase-inversion. Its power-amp with
AcoustiCube3, Compact XL, BassCube2, Basic Perfor-                                                                                                       200 W (250 W) and 8 Ohms delivers more than enough
mer, Amp one, Amp three … just try it out and let it                                                                                                     pressure in nearly all stage-situations and may then
convince you.                                                                                                                                            again even turn your AER amp into a standalone PA for
                                                                                                                                                         small up to medium-sized events.

Input                              combo socket, XLR female                                                                                              Power amp        Combi SUB 12: 200 W / 8 ohms,
                                   and 6.3 mm (1/4”) jack                                                                                                                 Combi SUB 15: 250 W / 8 ohms
Link                               XLR male socket                                                                                                       Analog signal    subsonic filter, low distortion
Features                           gnd. lift on-/off-switch,                                                                                              processing       RMS limiter
                                   ground loop prevention
                                                                                                                                                         Speaker          Combi SUB 12: 12“ (300 mm) woofer
Crossover                          determination of ‚ƒcrossover-
                                                                                                                                                                          Combi SUB 15: 15“ (380 mm) woofer
                                   frequency between 70Hz and 200Hz
                                                                                                                                                         Dimensions       Combi SUB 12:
Notch filter                       on-/off-switch plus frequency
                                   control, narrow band frequency re-                                                                                                     430 x 490 x 350 mm
                                   duction between 50Hz and 300Hz                                                                                                         (16.9“ x 19.3“ x 13.8“), HxWxD
Phase inversion on-/off-switch                                                                                                                                             Combi SUB 15:
                                                                                                                                                                          490 x 560 x 440 mm
                    input   link

                                           level      cross                  notch
                                                                                                                                             power on
                                                                                                                                                                          (19.29“ x 22.05“ x 17.32“), HxWxD
                                                      over                    freq.
        gnd. lift                   clip                         notch                     phase
         off/on                                                  off/on                  norm./inv.

                                                                                                                                                         Weight           Combi SUB 12: 19,5 kg (41.1 lbs)
                                                                                                      power

                                                   100Hz 300Hz            50Hz   300Hz

                                                                                                                                                                          Combi SUB 15: 31,3 kg (69.0 lbs)
                                               combi
                                               SUB
                                                         12“
                                                                                                                  C AU T I O N

                                                         15“
                                                                                                                    RISK OF ELECTRIC SHOCK
                                                                                                                         DO NOT OPEN

                                                                                                               AT T E N T I O N
                                                                                                              RISQUE DE CHOC ELECTRIQUE
                                                                                                                    NE PAS OUVRIR

                                                                                                              Made in Germany by B

                                                                                                                                                        23                  For more information, please refer to: www.aer-music.de
Pocket tools

are professional audio tools, designed and manufactu-          of natural acoustic sound. A lifetime spent listening
red to the highest pro audio technical specifications;         to and working with acoustic instruments helps us to
capable of shaping, maximizing and delivering the to-          create and refine the very best devices available; to
nal character of your instrument. At AER our complete          enable you to craft your own unique acoustic identity.
focus, some say obsession, is on the ‘true’ reproduction       Make your instrument the very best it can be ...

                                                                                                       The dual mix is a high-quality „two-
 Dual mix 2                                                                                            channel“ preamplifier for instrument/line
                                                                                                       or microphone signals. The unit offers
                                                                                                       simple, efficient features just like a small
                                                                                                       mixing console.

                                                                                 24V phantom power            line out          DI
                                                                                                               ch. 1            1 = gnd
                                                                                                                          out   2 = pos
                                                                                                                                3 = neg
                                                                                     ch. 2    ch. 1
                                                                                                                                      level
                                                                                     dc 24V       mute

                                                                                                fs ch. 1/2     ch. 2

 Colourizer 2
                                                                                                             The AER Colourizer is a preamplifier for in-
                                                                                                             strument or microphone (vocal or instru-
                                                                                                             ment microphone). You insert it into the
                                                                                                             signal chain between source a nd next
                                                                                                             point in the audio path (e.g. amplifier or
                                                                                                             mixing desk) to produce sound improve-
                                                                                                             ment – your signal will be stronger, richer
                                              bypass
                                                                                                             and more stable.

                               colourizer 2            Made in Germany by AER
                                                                                dc 24 V

 Dual para eq                                                                                                The dual para eq is a compact, parame-
                                                                                                             tric 2-band-equalizer, which you can
                                                                                                             apply to a signal chain to lift or lower
                                                                                                             certain frequencies. Parametric means
                                                                                                             not only lifting or lowering, but also
                                                                                                             adjusting separately position and width
                                                                                                             of frequency bands.
                                                            line out
                                 dc 24 V

                                                                                   input
                                                                                                                                power

                                                           24                                         For more information, please refer to: www.aer-music.de
AER AK15 plus

The AK15 plus is a two source system, piezo crystal            It has been a developing goal to come up with an easy
plus electret condenser microphone integrated in the           to use, versatile pickup system that captures the true
endpin pickup. The two levels are adjustable at the            sound of the instrument with a maximum of dynamic
preamp and controlled with the soundhole control               range – even if it exceeds the dynamic range of the
(SHC, volume plus added microphone).                           instrument.

                                                               The AK15 plus is a very powerful system, that combines
                                                               a strong piezo signal with an additional microphone si-
                                                               gnal. Designed to blend the microphone to the pickup
                                                               for overtones and more liveliness. The AK15 plus sys-
                                                               tem is not made for “microphone only“ performance!
                                                               You will find a surprisingly warm yet strong and clear
                                                               tone from the piezo due to a suitable electronic envi-
                                                               ronment. The microphone will add definition, vitality
                                                               and authenticity as well as an „acoustic ambience“, that
                                                               make the sound more natural.

 The AK 15 plus packaging.                                     AK 15 plus
 Contains endpin preamp with built-in microphone,              Endpin Preamp with built-in microphone, under-
 under-saddle-piezo, soundhole control, battery bag            saddle-piezo and soundhole control
 (for 9V batteries, included) and mounting material.
 (Also available for classical guitars)

 AK 15 plus SHC
 The soundhole control with Master Volume and low
 battery indicator, the Mic wheel allows you to add the
 microphone signal to the tone.                                AK 15 plus
                                                               Endpin Preamp with built-in microphone.
                                                               You can choose the microphone position for treble or
                                                               bass-side. (Dreadnought, Jumbo or smallbody guitars)

                                                          25                       For more information, please refer to: www.aer-music.de
Needful things

AER Bags

 Padded Dustcover
 Domino, BassCube,
 Amp two, Slope,
 Basic Performer,
 Sub 12/15, …
                                           Shoulderbag
                                           Alpha, Alpha plus,
                                           Compact 60, TE, Classic,…

                                           Bags for
                                           Compact XL, Mobile, …

                                                                           Zipperbag
                                                                           Amp one, Amp three, …

    AER Tilt system
   The Gigbag compatible ampstand
   (Slippery safe rubberfeet)
   and skidproof rubberpad for your amp.
   Foldable with Velcro®

                                                           26          For more information, please refer to: www.aer-music.de
27   For more information, please refer to: www.aer-music.de
Address & service
Service & support
Phone: +49 (0) 2051 60721 –41
From Mo. til Fr. 07:00 - 15:00 Uhr UTC (GMT)

E-Mail: service@aer-music.de

Sales                                          Sales
Europe                                         Africa, America, Asia, Oceania

aer music gmbh                                 aer amplifier gmbh

Haberstrasse 46                                Haberstrasse 46
D-42551 Velbert                                D-42551 Velbert
Phone: +49 (0) 20 51 60721 –13                 Phone: +49 (0) 20 51 60721 – 40
Fax:   +49 (0) 20 51 60721 –78                 Fax:   +49 (0) 20 51 60721 – 78
E-Mail: info@aer-music.de                      E-Mail: info@aer-amplifier.com
www.aer-music.de                               www.aer-music.de

Imprint
aer music gmbh
Haberstrasse 46
D-42551 Velbert
Phone: +49 (0) 20 51 607 21 –36
Fax:     +49 (0) 20 51 607 21 –78
E-Mail: info@aer-music.de

                                                            28                   For more information, please refer to: www.aer-music.de
You can also read
NEXT SLIDES ... Cancel
