QUICK GUIDE TO THE CATALOGUE

ABOUT THIS CATALOGUE                                                                     PRODUCT NAME
This catalogue provides an overview of Imagine Optic’s lines of products and
services as well as general information on each of them.
It is an interactive catalogue with links to more detailed content:
                                                                                                            CLICK ANY
>> Underlined text will take you to another page of this catalogue;                                      UNDERLINED TEXT
>> Full Specification Sheet buttons will draw a PDF from our website;                                   TO GO TO ANOTHER
>> B
    uy Online buttons will take you to the Software and Accessories pages                                PRODUCT PAGE
   in our Webstore.

ABOUT IMAGINE OPTIC
                                                                                                            MAIN
Imagine Optic is a company comprising over 60 people and specializing in                                CHARACTERISTICS
wavefront expertise. It has a strong engineering and R&D culture and a 25-year
track record in providing ultra-precise wavefront sensors and adaptive optics
solutions.
Our clients are leading tech corporations and public research institutions in a
wide range of sectors, including astronomy, air & space, eyewear, ultra-intense
                                                                                  MORE INFO or
lasers, microscopy, transportation and many more. They are as wide and varied     BUY ONLINE
as the uses and applications of optics and photonics.

Photos and illustrations ©Imagine Optic 2020
Photos : cover, p3, p19 / P Cheenne – p14 / G Beaugrand,
3D images : L Nicolas.

                                                                                                           CATALOGUE      2021   2
Catalogue SPRING 2021 - ioweb.store
METROLOGY
The Big Lift                     p.4   HASO4 BroadBand & HASO4 126 VIS     p.10
HASO Lift 272 & HASO Lift 680    p.5   HASO4 First & HASO4 Fast            p.11
HASO4 & HASO WaveFront Sensors   p.6   HASO EUV & HASO HXR                 p.12
Optics & Optical Systems               Metrology Software                  p.13
Characterization in the SWIR     p.7   Wavekit SDK / Full Edition
HASO SWIR & HASO4 SWIR 1550      p.8   SMLS Laser Diodes                   p.14
Optics & Optical Systems               Custom Metrology                    p.15
Characterization in the VIS      p.9

                                                               CATALOGUE   2021   3
Catalogue SPRING 2021 - ioweb.store
THE BIG LIFT

                                                                                                                                                                                   HASO LIFT

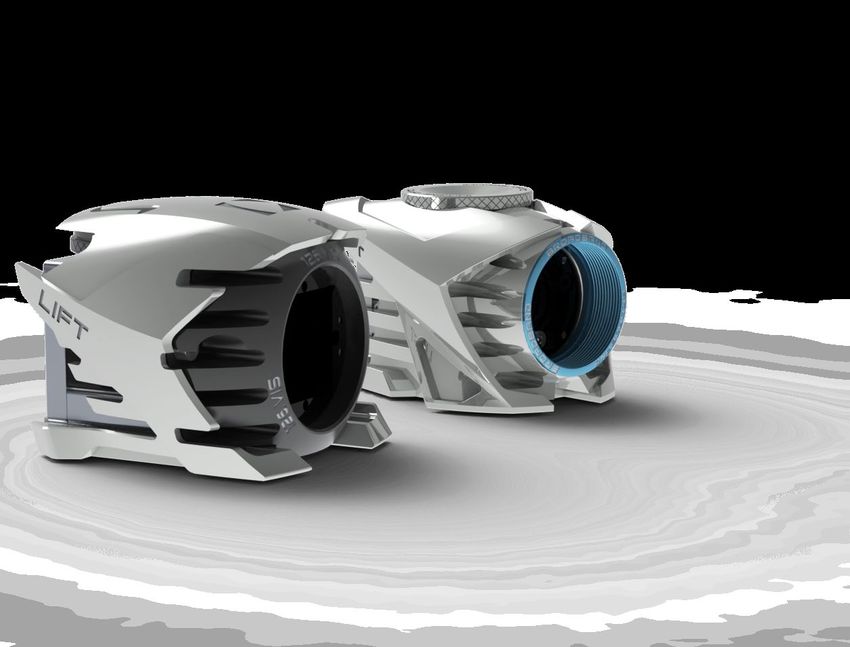

SHACK-HARTMANN SENSING, WITH A LIFT                                                  A NEW SPECIES OF WAVEFRONT SENSORS
Coming this spring is a very special gift for Imagine Optic’s 25th birthday:         Just a few months after the debut of the “Swiss Army Knife of Optics” in the visible
the HASO gets a 16-fold phase-point resolution enhancement by combining              and SWIR wavelengths, another series of truly versatile tools demonstrates
Shack-Hartmann technology with a phase retrieval algorithm applied at                Imagine Optic’s commitment to providing the optical scientist or engineer with
microlens scale.                                                                     cutting-edge yet user-friendly instruments.
Developed from the designs of our HASO4 Broadband and HASO4 126 VIS, the             On top of combining a high-resolution mode with all the benefits that
HASO LIFT 272 and LIFT 680 will perform on par with their counterparts in every      make Shack-Hartmann one of the most relied-upon technologies in optical
aspect, and they will also be able to reach 272 x 200 and 680 x 504 phase-point      metrology, our HASO LIFT series embeds a fully revamped Waveview4, including
resolution, respectively.                                                            the absolute tilt measurement SpotTracker technology and numerous other
Applications that will benefit from these new sensors range from complex             options.
optical systems to freeforms and metasurfaces, but not only these; the               All our other HASO4 wavefront sensors will be available with a LIFT option in the

                                                                                                                                                                                     ADAPTIVE OPTICS
sensors’ versatility means that many optical scientists and engineers will be able   coming months.
to take advantage of their superb accuracy.

                                                                                     Wavefronts measured from the same
                                                                                     phase-hologram sent to an SLM
     STANDARD SH                    HASO LIFT

                                                                                                                                                           CATALOGUE        2021     4
Catalogue SPRING 2021 - ioweb.store

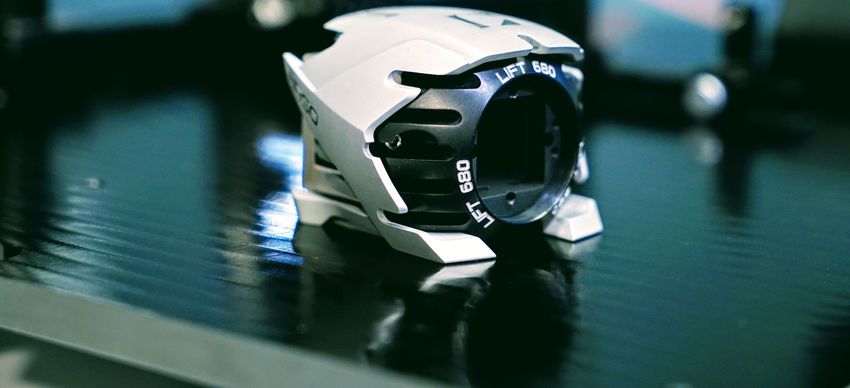

HASO LIFT 272                                                                                             HASO LIFT 680
The only 400 - 800 nm High-Resolution Alignment-Free Wavefront Sensor                                     The only 680x504 Phase-Points Resolution Alignment-Free Wavefront Sensor

                                                                                                                                                                                                                           HASO LIFT
  The HASO LIFT 272 is the HR                                                                               The HASO LIFT 680 combines
  version (x16 resolution) of our                                                                           the highest resolution in Shack-
  most versatile wavefront sensor.                                                                          Hartman technology and a very
  It features a 272x200 phase-                                                                              large dynamic range.
  points resolution as well as the                                                                          It features the new SpotTracker
  new SpotTracker technology,                                                                               technology, providing absolute
  providing absolute wavefront and                                                                          wavefront and tilt information and
  tilt information and eliminating                                                                          eliminating alignment requirement.                                                      SpotTracker
  alignment requirement.                                                                SpotTracker                                                                                                    inside
                                                                                           inside

BEST FOR VERSATILITY                         SOFTWARE                                                     BEST FOR                                      SOFTWARE

                                                                                                                                                                                                                             ADAPTIVE OPTICS
nA
   great choice for lab or industrial       nW
                                               AVEVIEW metrology software with 150 functions included   CHALLENGING                                   nW
                                                                                                                                                          AVEVIEW metrology software with 150 functions included
 application                                  + Extensions for PSF, MTF and Strehl ratio                  APPLICATIONS                                   + Extensions for PSF, MTF and Strehl ratio
nS
  uccessfully used in the most               + Optional SDK for interfacing with any custom system                                                      + Optional SDK for interfacing with any custom system
                                                                                                          n High  spatial sampling frequency
 demanding of applications in optical
 metrology, microscopy and laser                                                                          n Very large dynamic range
                                             nW
                                               AVETUNE  Adaptive Optics software                                                                       nW
                                                                                                                                                          AVETUNE  Adaptive Optics software
 diagnostics.                                 + Extensions for AO applications                            n Freeform optics characterization             + Extensions for AO applications
nO
  ptimize the alignment of complex           + Optional SDK for interfacing with any custom system       nA spheric optics characterization            + Optional SDK for interfacing with any custom system
 systems                                                                                                  nH igh spatial frequency aberrations
nO
  n and off-axis 3D MTF                     nW
                                               indows10    compatible                                                                                  nW
                                                                                                                                                          indows10      compatible

  ABSOLUTE                        PHASE-                                                                    ABSOLUTE                        PHASE-
               REPEATABILITY                   PUPIL SIZE   MAX. FRAME    WAVELENGTH                                     REPEATABILITY                    PUPIL SIZE      MAX. FRAME   WAVELENGTH
  ACCURACY                        POINTS                                                    INTERFACE       ACCURACY                        POINTS                                                      INTERFACE
                   (RMS)                         (mm2)       RATE (Hz)       (nm)                                            (RMS)                          (mm2)          RATE (Hz)      (nm)
    (RMS)                       RESOLUTION                                                                    (RMS)                       RESOLUTION

     λ/100          λ/200        272 x 200      5.2 x 7.0        20         400 - 800        USB 3.0          λ/100           λ/200         680 x 504    10.21 x 13.78        30        400 - 800        USB 3.0

                                                                                                                                                                                                CATALOGUE           2021     5
Catalogue SPRING 2021 - ioweb.store
SHACK-HARTMANN AND HARTMANN

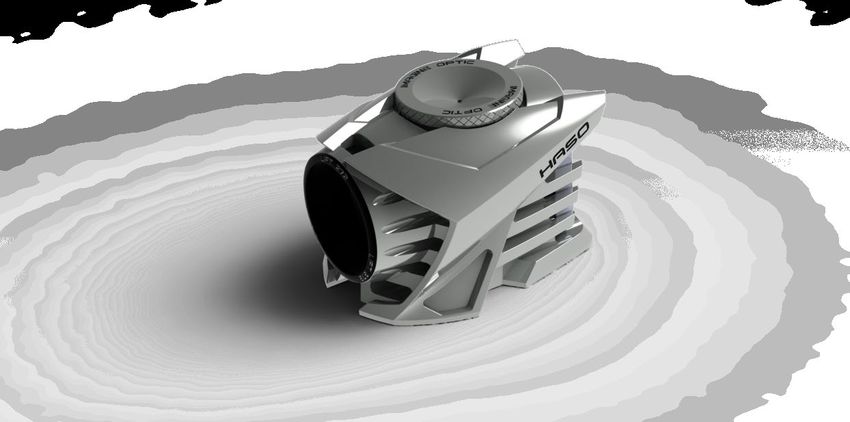

HASO4 & HASO WAVEFRONT SENSORS

                                                                                                                                                                                                                                                                                   METROLOGY
10 REASONS WHY                                                                     PRODUCT
                                                                                    NAME
                                                                                                      ABSOLUTE
                                                                                                      ACCURACY
                                                                                                                         REPEATABILITY
                                                                                                                             (RMS)
                                                                                                                                                MICROLENS
                                                                                                                                                 NUMBER
                                                                                                                                                                    PUPIL SIZE
                                                                                                                                                                      (mm2)
                                                                                                                                                                                      MAX. FRAME
                                                                                                                                                                                       RATE (Hz)
                                                                                                                                                                                                          WAVELENGTH
                                                                                                                                                                                                             (nm)
                                                                                                                                                                                                                                INTERFACE
                                                                                                                                                                                                                                                       SPOTTRACKER
                                                                                                                                                                                                                                                          INSIDE
                                                                                                        (RMS)
over 1500 HASOs are at work for
                                                                                HASO LIFT 272            λ/100                 λ/200               50 x 68            5.2 x 7.0             20               400 - 800            USB 3.0                  X
scientists and industry specialists
worldwide.                                                                      HASO LIFT 680            λ/100                 λ/200              126 x 170        10.21 x 13.78            30               400 - 800            USB 3.0                  X

1.     Real-time measurement                                                     HASO4 SWIR              λ/100                λ/200                32 x 40          7.44 x 9.30             150             900 - 1700            USB 3.0                  X

2.     Achromatic                                                                HASO4 SWIR
                                                                                    1550
                                                                                                         λ/35                  λ/70                32 x 40           3.60 x 4.5             99              1500 - 1600           USB 3.0

3.     Typical absolute measurement                                                 HASO4                                                                                                                                         USB 3.0
                                                                                                        λ/100(1)              λ/200                50 x 68            5.2 x 7.0             20              350 - 1100                                     X
                                                                                  Broadband                                                                                                                                       or GigE
       accuracy of l/100 RMS
4.                                                                              HASO4 126 VIS            λ/100                λ/200               126 x 170         10.21 x 13.7            30               400 - 800            USB 3.0                  X

                                                                                                                                                                                                                                                                                     ADAPTIVE OPTICS
       Linearity > 99.9%
5.     Huge dynamic range > 1000 λ                                               HASO4 FIRST             λ/100                λ/200                32 x 40            3.6 x 4.6          99/165(2)          400 - 1100(3)         USB 3.0

6.     Wavefront measurement uncorrelated                                        HASO4 FAST              λ/100                λ/200                16 x 16          1.19 x 1.19            1000              400 - 900            USB 3.0
       with beam intensity profile
                                                                                   HASO EUV              λ/50                 λ/200                72 x 72            13 x 13                1                 4 - 40             USB 2.0
7.     Simple and robust technology
                                                                                                                                                                                                             0.05 - 0.25
                                                                                  HASO HXR               λ/10                  λ/30               150 x 150             3x3                 10                                    USB 3.0
8.     Insensitive to vibrations                                                                                                                                                                             (5-25keV)

9.     Light-sensitive detector, less than
                                                                               HASO wavefront sensors are delivered with a certificate of calibration that features all the required
       100 picoJoules required
                                                                               specifications, such as absolute and relative accuracy, tilt, and curvature sensitivities.
10. Suitable for any beam profiles,
       user mask not mandatory

(1) : < 6nm for wavelengths between 400 and 600 nm. The absolute accuracy may decrease slightly for wavelengths longer than 800 nm. For wavelengths above 950 nm, accuracy is ensured for source with coherence length smaller than 3 mm.
(2) : 160 Hz available in partial scan mode
(3) : R
       ange of wavelengths for wavefront sensor calibration. The indicated absolute accuracy is valid in the calibration wavelength +/-50 nm. One or two calibration wavelengths can be chosen in the 400-1100 nm range. In case of two calibration
      wavelengths, the longer wavelength must not exceed two times the shorter one.

                                                                                                                                                                                                                                                                CATALOGUE   2021     6
Catalogue SPRING 2021 - ioweb.store
OPTICS & OPTICAL SYSTEMS CHARACTERIZATION IN THE SWIR

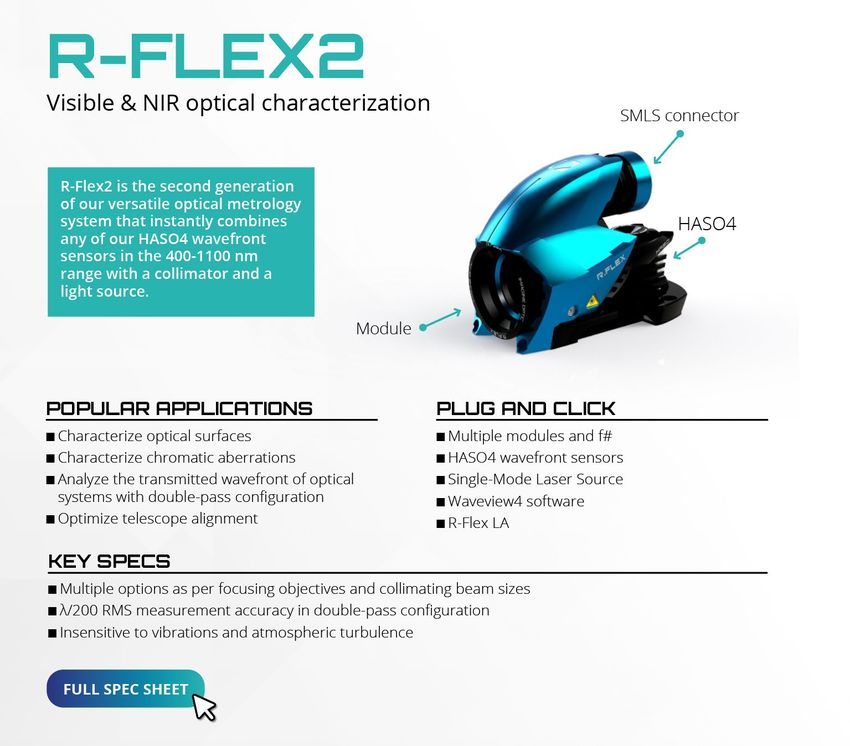

R-FLEX2 SWIR                                                                                                         R-FLEX LA SWIR

                                                                                                                                                                                                                           METROLOGY
SWIR optical characterization                                                     SMLS connector                     30-75-100-150 mm                                                                     R-FLEX2 SWIR

  The R-FLEX2 SWIR is the second                                                                                        The R-FLEX LA is the collimating
  generation of our versatile optical                                                                                   platform that extends the capabilities
  metrology system in the 1000-1700                                                         HASO4 SWIR                  of the HASO R-FLEX2 SWIR to large
  nm range that instantly combines                                                                                      optics and optical surfaces. The
  our HASO4 SWIR or HAS04 SWIR                                                                                          output collimated beam size ranges
  1550 wavefront sensors with a                                                                                         from 30 to 150 mm.
  collimator and a light source.

                                                  Module

                                                                                                                                                                                                                             ADAPTIVE OPTICS
POPULAR APPLICATIONS                                       PLUG AND CLICK                                            KEY FEATURES                                        KEY SPECS
n Characterize  optical surfaces                           n Standard or Custom adaptable F# modules                 Extends the capabilities of R-FLEX2 SWIR for        n 1000 – 1700 nm wavelength
n Characterize chromatic aberrations                       nH ASO4 SWIR and HASO4 SWIR 1550                         analyzing large optics and optical surfaces         n Insensitive to vibration
                                                             compatible                                              such as filters, dichroic beam splitters, head-up
nA nalyze the transmitted wavefront of optical                                                                                                                          n Beam 30-150 mm ф
                                                                                                                     displays, eyewear, optical windows, flat mirrors,
  systems with double-pass configuration                   n R-FLEX LA SWIR compatible                                                                                   n Up to 1280 sampling points
                                                                                                                     polarization scramblers.
n Optimize the alignment of complex systems                n Standard or Custom Single Mode Laser Source                                                                 n Up to 150 Hz acquisition frequency
n On and off-axis 3D MTF                                   n Waveview4 software

                                                                                                                        FULL SPEC SHEET
KEY SPECS
n Multiple options as per focusing objectives and collimating beam sizes
n λ/200 rms measurement accuracy in double-pass configuration
n Insensitive to vibrations and atmospheric turbulence

                                                                                                         HASO4 SWIR          HASO4 SWIR 1550
  FULL SPEC SHEET
                                                                                 Measurement Points        Up to 1280           Up to 1280

                                                                                 Max acquisition freq.      150 Hz                99 Hz

                                                                                                                                                                                                    CATALOGUE       2021     7
HASO4 SWIR                                                                                               HASO4 SWIR 1550

                                                                                                                                                                                                                      METROLOGY
900-1700 nm Alignment-Free Wavefront Sensor                                                              For Telecommunications and SWIR Lasers
                                                                                    SpotTracker
                                                                                       inside

  The HASO4 SWIR is based on an                                                                            The HASO4 SWIR 1550 is the
  InGaAs camera, offering high                                                                             ideal tool for fiber coupling and,
  accuracy, large dynamic range and                                                                        more generally, for aligning and
  high-speed acquisition frequency.                                                                        characterizing optical systems
  It features the new SpotTracker                                                                          at 1550 nm (afocal, collimators,
  technology, providing absolute                                                                           lenses, zoom, etc.).
  wavefront and tilt information and
  eliminating alignment requirements.

BEST FOR                                    SOFTWARE                                                     BEST FOR                                    SOFTWARE

                                                                                                                                                                                                                        ADAPTIVE OPTICS
n Optical metrology                         nW
                                              AVEVIEW metrology software with 150 functions included   n Telecommunications                        nW
                                                                                                                                                       AVEVIEW metrology software with 150 functions included
nA
  daptive optics applications such          + Extensions for PSF, MTF and Strehl ratio                  n IRLasers                                   + Extensions for PSF, MTF and Strehl ratio
 as long-range communication                 + Optional SDK for interfacing with any custom system       n SWIR lasers
                                                                                                                                                      + Optional SDK for interfacing with any custom system
nO
  ptimizing the alignment of                                                                            n Optical systems in the SWIR
 complex systems                            nW
                                              AVETUNE  Adaptive Optics software                                                                     nW
                                                                                                                                                       AVETUNE  Adaptive Optics software
                                                                                                         n LIDAR application
nL
  ight-source characterization              + Extensions for AO applications                                                                         + Extensions for AO applications
                                             + Optional SDK for interfacing with any custom system                                                    + Optional SDK for interfacing with any custom system
                                                                                                            APPLICATION NOTE
  FULL SPEC SHEET                           nW
                                              indows10     compatible                                                                               nW
                                                                                                                                                       indows10    compatible

  ABSOLUTE                                                                                                 ABSOLUTE
               REPEATABILITY    MICROLENS     PUPIL SIZE    MAX. FRAME   WAVELENGTH                                     REPEATABILITY    MICROLENS     PUPIL SIZE    MAX. FRAME    WAVELENGTH
  ACCURACY                                                                               INTERFACE         ACCURACY                                                                                INTERFACE
                   (RMS)         NUMBER         (mm2)        RATE (Hz)      (nm)                                            (RMS)         NUMBER         (mm2)        RATE (Hz)       (nm)
    (RMS)                                                                                                    (RMS)

    λ/100           λ/200         32 x 40     7.44 x 9.30       150        900 - 1700      USB 3.0              λ/35         λ/70          32 x 40      3.6 x 4.5        99         1500 - 1600      USB 3.0

                                                                                                                                                                                             CATALOGUE         2021     8
OPTICS & OPTICAL SYSTEMS CHARACTERIZATION

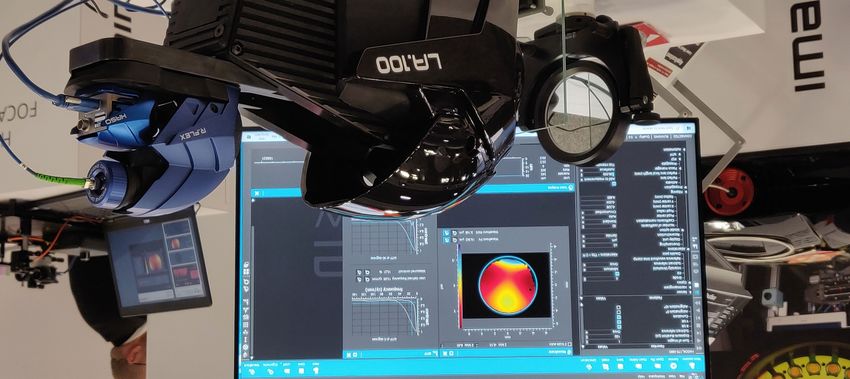

R-FLEX2                                                                                                               R-FLEX LA

                                                                                                                                                                                                                           METROLOGY
Visible & NIR optical characterization                                               SMLS connector                   30-75-100-150 mm                                                                    HASO R-FLEX2

  R-FLEX2 is the second generation                                                                                        The R-FLEX LA is the collimating
  of our versatile optical metrology                                                                                      platform that extends the
  system that instantly combines                                                            HASO4                         capabilities of the HASO R-FLEX2 to
  any of our HASO4 wavefront                                                                                              large optics and optical surfaces. The
  sensors in the 400-1100 nm                                                                                              output collimated beam size ranges
  range with a collimator and a                                                                                           from 30 to 150 mm.
  light source.

                                                  Module

                                                                                                                                                                                                                             ADAPTIVE OPTICS
POPULAR APPLICATIONS                                       PLUG AND CLICK                                             KEY FEATURES                                        KEY SPECS
n Characterize  optical surfaces                           n Standard or Custom adaptable F# modules                  Extends the capabilities of R-FLEX2 for             n 400 – 1100 nm wavelength
n Characterize chromatic aberrations                       n R-FLEX LA compatible                                     analyzing large optics and optical surfaces         n Insensitive to vibration
                                                                                                                      such as filters, dichroic beam splitters, head-up
nA nalyze the transmitted wavefront of optical            n Standard or Custom Single Mode Laser Source                                                                  n Beam 30-150 mm ф
                                                                                                                      displays, eyewear, optical windows, flat mirrors,
  systems with double-pass configuration                   n Waveview4 software                                                                                           n Up to 21,000 sampling points
                                                                                                                      polarization scramblers.
n Optimize the alignment of complex systems                                                                                                                               n Up to 1 kHz acquisition frequency
n On and off-axis 3D MTF

                                                                                                                          FULL SPEC SHEET
KEY SPECS
n Multiple   options as per focusing objectives and collimating beam sizes
nλ  /200 RMS measurement accuracy in double-pass configuration
n I nsensitive to vibrations and atmospheric turbulence

                                                                                         HASO4             HASO4 126               HASO4             HASO4
                                                                                       BROADBAND              VIS                   FAST             FIRST
  FULL SPEC SHEET
                                                                     Measurement
                                                                                        Up to 3400         Up to 21,420           Up to 256        Up to 1280
                                                                        Points

                                                                     Max Frequency        30 Hz               30 Hz               1000 Hz            99 Hz

                                                                                                                                                                                                      CATALOGUE     2021     9
HASO4 BROADBAND HASO4 126 VIS

                                                                                                                                                                                                                          METROLOGY
350-1100 nm Alignment-Free Wavefront Sensor                                                              High Spatial Sampling

  The HASO4 BroadBand is our most                                                                          The HASO4 126 VIS is the perfect
  versatile wavefront sensor. This                                                                         wavefront sensor for applications
  newly released second edition                                                                            that require high sampling density
  features the new SpotTracker                                                                             or a very large dynamic range.
  technology. Providing absolute                                                                           It features the new SpotTracker
  wavefront and tilt information                                                                           system, providing absolute
  and eliminating alignment                                                                                wavefront and tilt information and
  requirements.                                                                                            eliminating alignment requirement.
                                                                                   SpotTracker                                                                                                     SpotTracker
                                                                                      inside                                                                                                          inside

BEST FOR VERSATILITY                        SOFTWARE                                                     BEST FOR                                      SOFTWARE

                                                                                                                                                                                                                            ADAPTIVE OPTICS
nA
   great choice for lab or industrial      nW
                                              AVEVIEW metrology software with 150 functions included   CHALLENGING                                   nW
                                                                                                                                                         AVEVIEW metrology software with 150 functions included
 application                                 + Extensions for PSF, MTF and Strehl ratio                  APPLICATIONS                                   + Extensions for PSF, MTF and Strehl ratio
nS
  uccessfully used in the most              + Optional SDK for interfacing with any custom system                                                      + Optional SDK for interfacing with any custom system
                                                                                                         n High  spatial sampling frequency
 demanding of applications in optical
 metrology, microscopy and laser                                                                         n Very large dynamic range
                                            nW
                                              AVETUNE  Adaptive Optics software                                                                       nW
                                                                                                                                                         AVETUNE  Adaptive Optics software
 diagnostics.                                + Extensions for AO applications                            n Freeform optics characterization             + Extensions for AO applications
nO
  ptimize the alignment of complex          + Optional SDK for interfacing with any custom system       nP arabolic mirrors characterization          + Optional SDK for interfacing with any custom system
 systems                                                                                                 nH igh spatial frequency aberrations
nO
  n and off-axis 3D MTF                    nW
                                              indows10    compatible                                                                                  nW
                                                                                                                                                         indows10      compatible

  FULL SPEC SHEET

  ABSOLUTE                                                                                                 ABSOLUTE
               REPEATABILITY    MICROLENS     PUPIL SIZE   MAX. FRAME    WAVELENGTH                                     REPEATABILITY     MICROLENS      PUPIL SIZE      MAX. FRAME   WAVELENGTH
  ACCURACY                                                                                INTERFACE        ACCURACY                                                                                    INTERFACE
                   (RMS)         NUMBER         (mm2)       RATE (Hz)       (nm)                                            (RMS)          NUMBER          (mm2)          RATE (Hz)      (nm)
    (RMS)                                                                                                    (RMS)

                                                                                           USB 3.0
     λ/100          λ/200         50 x 68      5.2 x 7.0        20        350 - 1100(3)                      λ/100           λ/200         126 x 170    10.21 x 13.78        30        400 - 800        USB 3.0
                                                                                           or GigE

                                                                                                                                                                                               CATALOGUE           2021    10
HASO4 FIRST                                                                                                    HASO4 FAST

                                                                                                                                                                                                                         METROLOGY
Quality Wavefront Sensing in the 400-1100 nm Spectrum                                                          1 kHz Wavefront Sensor

 The HASO4 First is based on a                                                                                  The HASO4 Fast combines a
 camera on par with the best                                                                                    state-of-the-art CMOS camera
 industrial standards in term                                                                                   with the core signature features
 of reliability, and it offers                                                                                  of HASOs: absolute measurement,
 high wavefront measurement                                                                                     unequaled accuracy, high linearity
 performance, factory calibration                                                                               and insensitivity to vibration.
 and advanced software capabilities.

BEST FOR                                       SOFTWARE                                                        BEST FOR                                 SOFTWARE

                                                                                                                                                                                                                           ADAPTIVE OPTICS
nA
  daptive Optics applications for             nW
                                                 AVEVIEW metrology software with 150 functions included      nL
                                                                                                                 oops   compensating for               nW
                                                                                                                                                          AVEVIEW metrology software with 150 functions included
 microscopy or UHIL                             + Extensions for PSF, MTF and Strehl ratio                       atmospheric turbulence                  + Extensions for PSF, MTF and Strehl ratio
nO
  EM applications in optical                   + Optional SDK for interfacing with any custom system          nL aser beam optimization                + Optional SDK for interfacing with any custom system
 metrology and beam diagnostics                                                                                n Freespace communications
nA
  O for high-power laser                      nW
                                                 AVETUNE  Adaptive Optics software                                                                     nW
                                                                                                                                                          AVETUNE  Adaptive Optics software
 optimization                                   + Extensions for AO applications                                                                         + Extensions for AO applications
                                                + Optional SDK for interfacing with any custom system                                                    + Optional SDK for interfacing with any custom system
  FULL SPEC SHEET                              nW
                                                 indows10    compatible                                         FULL SPEC SHEET                        nW
                                                                                                                                                          indows10     compatible

  ABSOLUTE                                                                                                      ABSOLUTE
               REPEATABILITY    MICROLENS        PUPIL SIZE   MAX. FRAME         WAVELENGTH                                 REPEATABILITY   MICROLENS     PUPIL SIZE     MAX. FRAME   WAVELENGTH
  ACCURACY                                                                                         INTERFACE    ACCURACY                                                                              INTERFACE
                   (RMS)         NUMBER            (mm2)       RATE (Hz)            (nm)                                        (RMS)        NUMBER         (mm2)         RATE (Hz)      (nm)
    (RMS)                                                                                                         (RMS)

                                                                 99/165(2)       400 - 1100(3)                     λ /30        λ/200         16 x 16     1.19 x 1.19       1000        400 - 900       USB 3.0
    λ/100          λ/200             32 x 40      3.6 x 4.6                                         USB 3.0
                                                               (2) see page 10   (3) see page 10

                                                                                                                                                                                                CATALOGUE         2021     11
HASO EUV                                                                                                HASO HXR

                                                                                                                                                                                                                          METROLOGY
HHG, synchrotron, EUV-FEL, new generation lithography                                                   Broadband Hard X-Ray Wavefront Sensor

 The HASO EUV offers unsurpassed                                                                         The HASO HXR offers live, single-
 quality, precision and ease of use                                                                      shot wavefront measurement
 for ultra-short wavelength beam                                                                         with high resolution, dynamic
 characterization, adjustment and                                                                        range and accuracy for beamline
 alignment.                                                                                              characterization and alignment.
                                                                                                         A perfect tool for synchrotron or
                                                                                                         X-FEL beamline scientists.

BEST FOR                                   SOFTWARE                                                     BEST FOR                                         SOFTWARE

                                                                                                                                                                                                                            ADAPTIVE OPTICS
nH
  HG,   synchrotron and EUV-FEL beam      nW
                                             AVEVIEW metrology software with 150 functions included   n Source  characterization                       nW
                                                                                                                                                           AVEVIEW metrology software with 150 functions included
  alignment and characterization            + Extensions for PSF, MTF and Strehl ratio                  nR
                                                                                                          eal-time alignment of optical                  + Extensions for PSF, MTF and Strehl ratio
nM irror alignment in beamlines,           + Optional SDK for interfacing with any custom system        systems, e.g. KB, toroidal, etc.                 + Optional SDK for interfacing with any custom system
  Bender optimization                                                                                   nP
                                                                                                          hase imaging of biological
n Stability characterization               nW
                                             AVETUNE  Adaptive Optics software                          material, nanoparticles,                        nW
                                                                                                                                                           AVETUNE  Adaptive Optics software
nS chwarzschild telescope alignment        + Extensions for AO applications                             archeological artifacts                          + Extensions for AO applications
  and characterization                      + Optional SDK for interfacing with any custom system       nP
                                                                                                          recise driving of X-Ray active                 + Optional SDK for interfacing with any custom system
nZ oneplate characterization                                                                            optics
nP lasma science                          nW
                                             indows10    compatible                                                                                     nW
                                                                                                                                                           indows10    compatible

  FULL SPEC SHEET                                                                                         FULL SPEC SHEET

 ABSOLUTE                                                                                                 ABSOLUTE
              REPEATABILITY   MICROHOLES     PUPIL SIZE   MAX. FRAME    WAVELENGTH                                      REPEATABILITY       MICROLENS      PUPIL SIZE    MAX. FRAME   WAVELENGTH
 ACCURACY                                                                                INTERFACE        ACCURACY                                                                                     INTERFACE
                  (RMS)        NUMBER          (mm2)       RATE (Hz)       (nm)                                             (RMS)            NUMBER          (mm2)        RATE (Hz)      (nm)
   (RMS)                                                                                                    (RMS)

                                                                             4 - 40                                                                                                     0.05 - 0.25
    λ/50          λ/200         72 x 72       13 x 13          1                          USB 2.0            λ/10            λ/30            150 x 150        3x3            10                          USB 3.0
                                                                         (30 - 300 eV)                                                                                                  (5 - 25 keV)

                                                                                                                                                                                                  CATALOGUE        2021    12
METROLOGY SOFTWARE
WAVEVIEW4                                                                                        EXTENSIONS

                                                                                                                                                                                                                     METROLOGY
New generation metrology software                                                                Propagation advanced analysis

 As the latest version of our acclaimed                                                           Make the most of your HASO wavefront sensor with the PSF & Strehl Ratio or MTF extensions.
 optical metrology software for HASO                                                              Use our Software Development Kit to integrate our wavefront sensors into external and
 wavefront sensors and the HASO                                                                   proprietary applications.
 R-FLEX2 metrology system, it features
 our new SpotTracker technology. It
 provides absolute wavefront and tilt                                                            PSF (Point Spread Function) &                             MTF (MODULATION TRANSFER
 information, eliminating alignment
 requirements.                                                                                   STREHL RATIO EXTENSION                                    FUNCTION) EXTENSION
                                                                                                 The PSF is calculated by combining the phase              MTF is calculated for all directions at the same
                                                                                                 and intensity measurements on the sensor’s                time. The MTF module also lets you compare
                                                                                                 surface. The PSF module also provides the Strehl          your measurements to those of a perfect
                                                                                                 ratio, avoiding any need for a beam profiler.             system.

                                                                                                                                                                                                                       ADAPTIVE OPTICS
KEY SPECS                                            OPTIMIZED INTERFACE
nZ
  onal  and modal wavefront reconstruction;         n 1-click access to main functions

                                                                                                 WAVEKIT SDK /
 Real-time wavefront and intensity map               n Same-type actions in same location
nF
  ull-pupil wavefront reconstruction even with      n Context-based menus
 random obstructions
                                                     nM ulti-instance panel display to easily

                                                                                                 METROLOGY EDITION
nT
  ilt and focus monitoring                            compare wavefronts
nZ
  ero latency                                       nC
                                                       ustom dashboards

SpotTracker: Auto-detect & auto-correct
angle deviation                                                                                  WAVEKIT SDK METROLOGY EDITION
                                                                                                 n Modal    Wavefront Analysis + Intensity Analysis
                                                                                                 n I ntegrate using either C/C++, PYTHON or Labview SDK
  FULL SPEC SHEET
                                                                                                 n Several hundred available functions
                                                                                                 n Dozens of examples

                      Order Waveview4 or update/upgrade older
  BUY ONLINE                                                                                                          Order Waveview Extensions and our SDK
                      Waveview versions from our webstore.                                         BUY ONLINE
                                                                                                                      WaveKit Metrology Edition from our webstore.

                                                                                                                                                                                        CATALOGUE             2021    13
WAVEKIT SDK /                                                                                SMLS LASER DIODES

                                                                                                                                                                                                    METROLOGY
FULL EDITION                                                                                 Reliable Optical Metrology Sources

 WaveKit is intended for optical metrology scientists with programming skills who wish to      Our single-mode fibered laser light
 develop their own application based on or integrating Imagine Optic systems.                  sources provide a stable output
                                                                                               for optical metrology applications.
 The SDK user should be familiar with at least one of the API language (C / C++ / Python /     The compact, multi-function laser
 Labview), and have a basic mastering of software development principles and practice.         driver box is an ideal source for
                                                                                               our HASO R-FLEX2 metrology
                                                                                               system.

                EDITION                  METROLOGY     AO             FULL

WaveView Features
 - Data acquisition (local or distant)       x          x              x                     IN THE BOX
 - Wavefront slopes computation              x          x              x                     n2
                                                                                               m-long fiber patch cable

                                                                                                                                                                                                      ADAPTIVE OPTICS
 - Wavefront slopes processing               x          x              x
                                                                                             n1
                                                                                               2V power adapter
WaveTune Features
 - Data acquisition (local or distant)                  x              x                     nU
                                                                                               SB 2.0 interface for remote control
 - Wavefront slopes computation                         x              x
 - Wavefront slopes processing                          x              x
 - Wavefront corrector control                          x              x
 - Adaptative optics loop                               x              x                                     WAVELENGTH       MAX. OUTPUTPOWER    LASER CLASS

Options
                                                                                               SMLS 520-S       520 nm                4.5 mW           3R
 - PSF
                                                                       x
 - MTF
                                                                       x                       SMLS 635-S       635 nm                4.5 mW           3R          R-FLEX2 compatible
                                                                                               SMLS 785-S       785 nm                4.5 mW           3R

                                                                                              SMLS 1064-S       1064 nm               4.5 mW           3R
 BUY ONLINE                                                                                                                                                        R-FLEX2 SWIR compatible
                                                                                              SMLS 1550-S       1550 nm               4.5 mW           3R

                                                                                             Custom wavelengths SMLS are also available.

                                                                                               BUY ONLINE         Order any of these SMLS Laser Diodes from our webstore.

                                                                                                                                                                            CATALOGUE        2021    14
CUSTOM METROLOGY

                                                                                                                                                                                                   METROLOGY
We understand that every component or system to be wavefront                                         Our wavefront sensors, solutions, and expertise have been an integral part of
characterized is a project on its own. We have the resources and the expertise to                    several prestigious scientific projects and have won the trust of numerous companies
provide you with solutions tailored to your needs. Whether we’re talking about a simple              operating in semi-conductors, consumer electronics, defense and space industries.
one-off lens/beam testing or an automatized machine on the production floor, we will
analyze your situation and provide you with a technical solution that meets your exact               Our areas of expertise include several engineering specializations: optical
requirements.                                                                                        metrology, opto-mechanical design, automatization and software.

EXAMPLES OF CUSTOM METROLOGY SYSTEMS

                                                                                3. Opthalmic progressive

                                                                                                                                                                                                     ADAPTIVE OPTICS
                                                                                      lens characterization
                                                                                      (in reflection).
  1. High-throughput automatic
      lens characterization systems.

                                                                                                                                                  Photo: in line syst
                                                                                                                                                                     em

                                              Photo: full system                                                              4. Fully automatic system for variable
                                                                                                                                   liquid lens characterization

                                             2. Wafer characterization              Photo: sys
                                                                                              tem detail

                                                      in reflection.

                                                                                                                                                                          CATALOGUE         2021    15
ADAPTIVE OPTICS
Adaptive Optics for Ultra-High Intensity Lasers   p.17 & 18
Microscopy & BIO imaging                          p.19 & 20

                                                              CATALOGUE   2021   16
ADAPTIVE OPTICS FOR ULTRA-HIGH INTENSITY LASERS
ILAO STAR

                                                                                                                                                                                                                                   METROLOGY
                                                                                                              FOCAL SPOT
ELI-NP’s choice to reach 10PW
                                                                                                              DIAGNOSTIC
  ILAO Star is the first stepper-motor
  deformable mirror dedicated to                                                                                The first in-vaccum system dedicated
  ultra-intense lasers that can perform                                                                         to both wavefront measurement and
  wavefront correction during full-power                                                                        focal spot optimization for Ultra High
  operation.                                                                                                    Intensity Lasers
  Its customizable design will perfectly fit
  any laser caracteristics.
                                                                                                              n Fullydesigned for high-vacuum environment
                                                                                                              n Both wavefront and focal spot measurement
                                                                                                              nC an be coupled with DM for focal spot optimization

                                                                                                                                                                                                                               ADAPTIVE OPTICS
                                                                                                                with PharAO.

BEST FOR                                        KEY FEATURES
n Correcting   aberrations in full power mode   nM
                                                  irror  shape maintained even without

                                                                                                              AO IN VACUUM
n Focal spot correction                           electrical power
n Wavefront precompensation                     nE xcellent optical quality with active flat better
                                                  than 10 nm RMS and minimal print-through
nP articles acceleration
                                                  effect
n High harmonics generation
                                                nP erfectly adapted to a beam diameter from                  BEST FOR                                                 KEY FEATURES
                                                  20 mm to 500 mm
                                                                                                              n Final spatial optimization of the focal spot           n High-vacuum   compatibility: up to 10-6 mbar
KEY SPECS                                       n Dielectric, metallic, or hybrid coating available
                                                                                                              n PetaWatt-class compressed beams                        n Low outgassing
n Optical quality enabling Strehl Ratio > 0.9   nC ompatible with WaveTune software and every
                                                                                                                                                                       n Can accomodate very large beams >200 mm
n Close-loop processing frequency ≥ 10Hz          HASO wavefront sensors
                                                                                                                                                                       nL arge range of specific coatings for short
n Very low hysteresis (
ADAPTIVE OPTICS FOR ULTRA-HIGH INTENSITY LASERS
WAVETUNE                                                                                                      PHARAO EXTENSION

                                                                                                                                                                                                                          METROLOGY
Perfect loop control for imperfect wavefronts                                                                 Focal spot optimization

  WaveTune is a unique application                                                                             Phase Retrieval algorithm
  that seamlessly combines wavefront                                                                           PhaRAO is an optional extension
  measurement and correction                                                                                   of WaveTune. With the help of a
  features with extensive instrument                                                                           simple far field camera, PharAO
  diagnostics. It is perfectly adapted to                                                                      enables users to control and
  our HASO wavefront sensors, ILAO                                                                             optimize the focal spot directly in
  Star, and mirAO deformable, and to                                                                           the interaction chamber.
  a wide range of active components
  from other manufacturers.

                                                                                                                                                                                                                      ADAPTIVE OPTICS
RECOMMENDED APPLICATIONS                                 KEY FEATURES

                                                                                                              WAVEKIT SDK
n Free-space   communication                             nW
                                                           avefront analyzer hardware control including
n Astronomy                                               integration time, trigger mode, averaging
n Microscopy                                             nW
                                                           avefront measurement

n Ophthalmology
n Ultra-intense   lasers
                                                         nT
                                                           arget wavefront formation - set tilt, curve and
                                                          high-frequency aberrations; open- and closed-
                                                          loop wavefront correction                           AO EDITION
                                                         nU
                                                           nique security feature for UHIL allowing safe     Fully customize open- or closed-loop Adaptive Optics set-ups
                                                          closed loop at full power

                                                                                                              KEY FEATURES
COMPATIBLE WAVEFRONT CORRECTORS
                                                                                                              nM
                                                                                                                odal    Wavefront Analysis + Intensity Analysis
A wide range of SLMs are compatible – please contact us for more details.
                                                                                                              nW  avefront Correction Diagnosis + Influence Matrix Analysis + AO Control System
Sample list of tested Deformable Mirrors:                                                                     n I ntegrate using either C/C++, Python or Labview SDK
n ILAO / ILAO STAR series   n Alpao
                                  DM series           n Meadowlark               n Hamamatsu
                                                                                          SLM                 nS  everal hundred available functions
n Mirao 52 series           n BMM Mini & Multi DM     n CILAS BIM, MONO, SAM n Thorlabs DM                    nT  ens of examples

  BUY ONLINE                                                                                                    FULL SPEC SHEET

                                                                                                                                                                                                   CATALOGUE   2021    18
MICROSCOPY & BIO-IMAGING

                                                                                                                                                                                       METROLOGY
MIRAO 52E                                                                            MIRAO 52ES
Optimized for closed-loop operations                                                 For long-term wavefront stability

 Mirao 52e deformable mirror offers                                                   The exceptional feature of Mirao
 an exceptionally large stroke and                                                    52es deformable mirror is its
 high optical quality combined                                                        long-term stability in an open-loop
 with low power consumption. It                                                       mode, with typical drift of less than
 incorporates 52 electromagnetic                                                      10 nm RMS after 12 hours and up to
 actuators and provides an                                                            3 days.
 exceptional 50 μm PV deformation
 amplitude.

                                                                                                                                                                                   ADAPTIVE OPTICS
BEST FOR                               SOFTWARE                                      KEY SPECS                                SOFTWARE
n Bio-imaging                          nW
                                         AVEVIEW   metrology software with 150     n ±50  µm stroke (tilt p/v)              nW
                                                                                                                                AVEVIEW  metrology software with
n Ophthalmology                         functions included                           n 15 mm pupil with 52 actuators           150 functions included
n Microscopy
                                        + Extensions for PSF, MTF and Strehl ratio   nE xceptional surface quality
                                                                                                                               + Extensions for PSF, MTF and Strehl ratio
                                        + Optional SDK for interfacing with any        (
MICROSCOPY & BIO-IMAGING

                                                                                                                                                                                                              METROLOGY
MICAO 3DSR                                                                                              AO KIT BIO
High Resolution 3D for SMLM                                                                             Build any AO system for microscopy

  MicAO 3DSR is the first plug & click adaptive                                                          AOKit Bio is a set of adaptive
  optics device dedicated to 3D single molecule                                                          optics components, composed
  localization microscopy techniques. By                                                                 of a wavefront sensor, HASO4
  correcting aberrations, MicAO 3DSR restores                                                            First or HASO4 SWIR, a
  near-diffraction-limited resolution and axial                                                          deformable mirror or phase
  symmetry of the PSF.                                                                                   modulator and WaveTune
                                                                                                         adaptive optics software.
  As a result, the number of detected photons
  is increased, which in turn improves the
  localization precision in all three dimensions.

                                                                                                                                                                                                          ADAPTIVE OPTICS
BEST FOR                                             PLUG-AND-CLICK                                     RECOMMENDED FOR                              KEY FEATURES
n Photoactivation   localization microscopy (PALM)   nM
                                                       icAO  3DSR has been developed for easy          n Wide  field                                n HASO4   First or HASO4 SWIR
nS tochastic optical reconstruction microscopy       implementation on any inverted-frame              n Confocal                                   n MicAO soft
  (STORM)                                             microscope. The device is simply inserted
                                                                                                        n Multiphoton                                n Wavekit SDK
                                                      between the microscope side port and the
n Single particle tracking (SPT)                                                                        n Light sheet                                nM irAO 52e / 52es or any compatible DM or
                                                      imaging camera, and it functions as an image
                                                      relay, also allowing for the use of additional    nS TED and SIM microscopy, as well as FCS     phase modulator
KEY FEATURES                                          modules such as dual color view devices and         or optical tweezers
                                                      microscope port splitters.
nC
  orrects  aberrations and restores diffraction-
  limited PSF                                                                                             FULL SPEC SHEET
nD elivers best 2D and 3D localization precision    SOFTWARE
  for PALM/STORM imaging                             nM
                                                       icAO 3DSR is delivered with user-friendly
nD oubles the amount of detected photons and         software which contains all the necessary tools
  improve localization precision                      for detection and correction of aberrations in
n High temporal stability of the correction           biological samples.

  FULL SPEC SHEET

                                                                                                                                                                                CATALOGUE          2021   20
SERVICES             P.22
IMAGINE DIGITAL      P.23
WORLDWIDE PRESENCE   P.24

                      CATALOGUE   2021   21
SERVICES

ALL OUR HARDWARE EQUIPMENT COMES WITH THE NECESSARY SOFTWARE                      IMAGINE OPTIC ALSO PROVIDES ON-DEMAND SERVICES:
AND RELEVANT DOCUMENTATION, AS WELL AS COMPLIMENTARY SERVICES:
                                                                                         Recalibration of HASO wavefront sensors.
       Installation assistance by our technicians and engineers.

                                                                                         Equipment rental.
       Training on both software and hardware.

       Support through our Zendesk-powered interface featuring FAQs,                     Characterization of optical components.
       troubleshooting and other useful resources, as well as a customer login
       and assistance system with a >90% satisfaction rating.
                                                                                          ull customization of optical metrology and adaptive optics
                                                                                         F
                                                                                         benches and systems (see Custom Metrology for a few references).

                                                               FEEL FREE TO REACH OUT TO US WITH
                                                             ANY QUESTIONS OR SPECIFIC REQUESTS AT
                                                                  CONTACT@IMAGINE-OPTIC.COM

                                                                                                                                                CATALOGUE   2021   22
IMAGINE DIGITAL

>> Our Support Helpdesk, powered by                                                                                            >> Ioweb.store, to shop for software
Zendesk, for tutorials, FAQs and more.                                                                                              upgrades and options, as well as
                                                  >> Our Corporate Website features comprehensive information                   accessories and replacement cables.
                                                  about our products and activities, including a News & Blog section
                                                     as well major scientific Publications and Application Notes.

                                  3 GREAT WAYS TO ACCESS INFORMATION AND RESOURCES OR ORDER ONLINE
                                                   FROM YOUR DESKTOP OR MOBILE PHONE
                        Finally, connect to our Youtube Channel to watch (and rewatch) our Imagine Webinars and Imagine Microscopy series.

                                                                                                                                                      CATALOGUE        2021   23
WORLDWIDE PRESENCE
OFFICES & DISTRIBUTORS
                         UK

                              FRANCE
                                                                 CHINA
                               CZECH REPUBLIC

                                                                  KOREA
   USA & CANADA

                                                                JAPAN

                                                          CHINA

                                                         TAÏWAN

                                                            THAILAND
                                            INDIA
                                                                SINGAPORE
                    SPAIN
                                   ISRAËL

                                                    AUSTRALIA

                                                                            CATALOGUE   2021   24
Contact us
Headquarters address        Tel: +33 (0)1 64 86 15 60
18, rue Charles de Gaulle   Fax: +33 (0)1 64 86 15 61
91400 Orsay France
                            contact@imagine-optic.com

www.imagine-optic.com                 www.ioweb.store   Follow us
You can also read
