COMPARING PERCEPTION OF ANIMATED IMPOSTERS AND 3D MODELS - OLIVER ERIKSSON WILLIAM LINDBLOM - DIVA PORTAL
DEGREE PROJECT IN TECHNOLOGY,
FIRST CYCLE, 15 CREDITS
STOCKHOLM, SWEDEN 2020

Comparing Perception of
Animated Imposters and 3D
Models
OLIVER ERIKSSON

WILLIAM LINDBLOM

KTH ROYAL INSTITUTE OF TECHNOLOGY
SCHOOL OF ARCHITECTURE AND THE BUILT ENVIRONMENT
COMPARING PERCEPTION OF ANIMATED IMPOSTERS AND 3D MODELS - OLIVER ERIKSSON WILLIAM LINDBLOM - DIVA PORTAL
Comparing Perception of
Animated Imposters and 3D
Models

OLIVER ERIKSSON, WILLIAM LINDBLOM

Bachelor in Computer Science
Date: June 23, 2020
Supervisor: Christopher Peters
Examiner: Pawel Herman
School of Electrical Engineering and Computer Science
Swedish title: Jämförelse av uppfattningsförmåga mellan
animerade imposters och 3D modeller
Abstract

In modern 3D games and movies, large character crowds are commonly
rendered which can be expensive with regard to rendering times. As
character complexity increases, so does the need for optimizations.
Level of Detail (LOD) techniques are used to optimize rendering by
reducing geometric complexity in a scene. One such technique is
reducing a complex character to a textured flat plane, a so called
imposter.
Previous research has shown that imposters are a good way of
optimizing 3D-rendering, and can be done without decreasing visual
fidelity compared to 3D-models if rendered statically up to a one-
to-one pixel to texel ratio. In this report we look further into using
imposers as an LOD technique by investigating how animation, in
particular rotation, of imposters at different distances affects human
perception when observing character crowds.
The results, with regards to static non rotating characters, goes in line
with previous research showing that imposters are indistinguishable
from 3D-models when standing still. When introducing rotation, slow
rotation speed is shown to be a dominant factor compared to distance
which reveals crowds of imposters. On the other hand, the results
suggest that fast movements could be used as a means for hiding flaws
in pre-rendered imposters, even at near distances, where non moving
imposters otherwise could be distinguishable.

                                                                       1
Keywords
Imposters, Rendering, Crowd rendering, Perception

                                                    2
Abstract

I moderna 3D-spel och filmer är rendering av stora mängder karaktärer
vanligt förekommande, vilket kan vara kostsamt med avseende på
renderingstider. Allt eftersom karaktärernas komplexitet ökar så ökar
behovet av optimeringar. Level of Detail (LOD) tekniker används för
att optimera rendering genom att reducera geometrisk komplexitet i en
scen. En sådan teknik bygger på att reducera en komplex karaktär till
ett texturtäckt plan, en så kallad imposter.
Tidigare forskning har visat att imposters är ett bra sätt att optimera
3D-rendering, och kan användas utan att minska visuell trohet jämfört
med 3D-modeller om de renderas statiskt upp till ett förhållande av
en-till-en pixel per texel. I den här rapporten tittar vi vidare på
imposters som en LOD teknik genom att undersöka hur animering, i
synnerhet rotation, av imposters vid olika avstånd påverkar mänsklig
iaktagelseförmåga när folkmassor av karaktärer observeras.
Resultaten, med hänsyn till statiska icke-roterande karaktärer, går i
linje med tidigare forskning och visar att imposters inte är urskiljbara
från 3D-modeller när de står stilla. När rotation introduceras visar det
sig att långsam rotation är en dominerande faktor jämfört med avstånd
som avslöjar folkmassor av imposters. Å andra sidan tyder resultaten
på att snabba rörelser skulle kunna användas för att dölja brister
hos förrenderade imposters, även vid små avstånd, där stillastående
imposters annars kan vara urskiljbara.

Nyckelord
Imposters,      Rendering,         Rendering        av     folkmassor,
Iaktagelseförmåga

                                                                      3
Acronyms

LOD   Level of Detail
PBR   physically based rendering
FPS   frames per second
RPM   rounds per minute

                                   4
Contents

1 Introduction                                                                                                   1
  1.1 Background . . . . . . . . .          .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   .    1
  1.2 Purpose . . . . . . . . . . .         .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   .    2
      1.2.1 Goal . . . . . . . . .          .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   .    3
  1.3 Problem . . . . . . . . . . .         .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   .    3
      1.3.1 Hypothesis . . . . .            .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   .    4
      1.3.2 Research questions              .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   .    4
  1.4 Methodology . . . . . . . .           .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   .    5
  1.5 Delimitations . . . . . . . .         .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   .    6

2 Theoretical Background                                                                                         7
  2.1 Polygon meshes . . . . . . .              .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   .    7
      2.1.1 Level of Detail (LOD)               .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   .    7
      2.1.2 Lighting . . . . . . . .            .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   .    8
  2.2 Imposters . . . . . . . . . . .           .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   10
      2.2.1 Imposter lighting . . .             .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   10
      2.2.2 Texture resolution . .              .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   11
      2.2.3 Viewing angles . . . .              .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   12
      2.2.4 Visual popping . . . .              .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   12

3 Method                                                                                                        14
  3.1 Implementation . . . .    .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   14
      3.1.1 Object loading      .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   15
      3.1.2 Viewpoints . .      .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   16
      3.1.3 Level manager       .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   19
  3.2 User study . . . . . .    .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   .   21

4 Evaluation                                                                                                    23
  4.1 Results . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
      4.1.1 Distance . . . . . . . . . . . . . . . . . . . . . . . 23
      4.1.2 Rotation speed . . . . . . . . . . . . . . . . . . . . 24

                                                                                                                 5
CONTENTS

      4.1.3 Participants self evaluation        .   .   .   .   .   .   .   .   .   .   .   .   .   25
  4.2 Discussion . . . . . . . . . . . . .      .   .   .   .   .   .   .   .   .   .   .   .   .   27
      4.2.1 Conclusion . . . . . . . . .        .   .   .   .   .   .   .   .   .   .   .   .   .   28
      4.2.2 Future Work . . . . . . . .         .   .   .   .   .   .   .   .   .   .   .   .   .   29

References                                                                                          30

A User study                                                                                        32
  A.1 Video     . . . . . . . . . . . . . . . . . .     .   .   .   .   .   .   .   .   .   .   .   32
  A.2 Form .    . . . . . . . . . . . . . . . . . .     .   .   .   .   .   .   .   .   .   .   .   32
      A.2.1    Instructions . . . . . . . . . . .       .   .   .   .   .   .   .   .   .   .   .   33
      A.2.2    Questionaire - For each scene            .   .   .   .   .   .   .   .   .   .   .   34
      A.2.3    Questionaire - Self evaluation           .   .   .   .   .   .   .   .   .   .   .   34
      A.2.4    Answers . . . . . . . . . . . .          .   .   .   .   .   .   .   .   .   .   .   35

                                                                                                     6
Chapter 1

Introduction

Games,         movies       and      general  crowd      simulations
are constantly improving in quality and there is high competition in
these fields. Movies, games and simulations have to look and behave
realistically and be visually appealing.
To render a realistic large scene of complex characters is on the other
hand a difficult problem, as it requires a lot of computational power
to preserve character details. Characters, or meshes, rendered at a
distance may sometimes be more complex and detailed than what
can be rendered onto the screen. Depending on the screen resolution
and the size/complexity of the mesh, it can be wasteful to render and
process a full character mesh when only parts of it can be rasterized
onto the limited number of pixels on the screen. It is therefore
interesting and sometimes also necessary to apply LOD techniques, to
reduce the complexity of characters without losing overall quality in
the rendered scene. One such LOD technique is imposters, which is
the technique this study will apply, following a comparison of fidelity
with more detailed character models.

1.1    Background
A mesh is constructed by triangles, squares or general polygons, and
is a discrete representation of an object. The amount of polygons in a

                                                                      1
CHAPTER 1. INTRODUCTION

high detail mesh in a modern real-time rendered game may be more
than 100,000, and rendering crowds of characters of such complexity
may be hard on consumer hardware while keeping high and consistent
frame-rates.
In contrast, when observing large crowds at a distance, an observer
cannot always perceive all of the details of the rendered crowd. This
problem is both due to the human perception, which cannot perceive
too much information at one time, and computer hardware. Screens
have a limited number of pixels and a limited refresh rate, which
causes complex characters when drawn small to be minified and
approximated onto the limited number of pixels.
Rendering optimization is interesting since it affects both science and
entertainment. In scientific simulations we may want to be able
to display as much detail as possible in relevant areas, and leave
redundant information out to keep complexity low in less relevant
parts. When it comes to entertainment, we often want to be able to
render many high detail characters with high fidelity while still being
able to have reasonable render times in both movies and games. To
enable this, we can try to reduce complexity of meshes as long as it
does not affect the general appearance of the game/movie.
The problem of rendering complex characters can be reduced to
rendering imposters, which in practice are textured quadrilaterals,
more commonly refered to as textured quads. Imposters are used
to replace complex models by rendering a texture representation of
the model onto a flat plane, something that reduces the vertex count
of the model, which in turn can improve performance. A problem
with imposters is that characters are likely to be observed from any
angle, and a texture is only a 2D representation of one single angle of
an object. To be able to visualize a continuous representation of the
object from any angle, an infinite amount of textures would in theory
be required.

1.2 Purpose
This report presents work within the domain of computer graphics, in
particular crowd rendering and imposter fidelity. The purpose is to

                                                                     2
CHAPTER 1. INTRODUCTION

address imposter fidelity from a user’s perspective in contrast to the
more commonly analyzed optimization point of view. There is no doubt
according to previous research that imposters can be used to reduce
polygon count in a scene, and therefore speed up rendering times [2].
In reality though, we often want the scene not only to render fast, but
also to look appealing as a whole. It is therefore necessary to study
the effect of replacing high LOD models with lower LOD models with
regard to the character’s fidelity based on a user’s perception.

1.2.1 Goal
In the best case scenario with respect to pure performance, all
characters in a scene should be replaced with imposters, as that would
reduce the polygon count by a great amount. Though in reality,
imposters are just textured quads which makes shading of imposters
hard. The quality and look of an imposter can therefore, depending
on the implementation, be different compared to a 3D model when
exposed to dynamic lighting, animations and movements.
Given the fundamental differences between 3D models and imposters,
the goal of the study is to get an understanding of how noticable
rotating/moving imposters actually are from 3D models. The end goal
of such research is to be able to tell when and how imposters can be
used as a non noticable mean of optimizing crowd rendering.

1.3     Problem
With a constant amount of pre-generated textures representing one
character from different angles, fidelity is being evaluated of the
simplified character compared to a full 3D model in a simple scene. The
investigated problem is therefore whether a user is able to differentiate
vertically rotating characters in form of imposters from rotating 3D
models at different distances in a scene.
Imposter fidelity and differentiability has been investigated before by
JHamill et al [3]. In that study, animated virtual humans and buildings
represented as imposters and higher LOD models, are compared
with respect to imposter effectiveness in real-time rendering. The

                                                                       3
CHAPTER 1. INTRODUCTION

study performed was done by comparing user perception using a
psychophysical evaluation method. What was done was to evaluate
at what distance the users noticed changes between imposters and
geometric models when displayed statically without any movement or
animation involved.

1.3.1 Hypothesis
Due to the loss of detail for any character, both imposter and 3D-
model, at increasing distances, we believe that as the distance between
characters and the camera increases, the 3D-models will be harder to
differentiate from the imposters. The results should therefore show a
decrease of participants able to differentiate the crowds as the distance
increases. It is also believed that rotation speed will affect the fidelity of
imposters at a closer distance due to visual popping and lack of viewing
angles. At a longer distance such effects may be harder to notice and
thus the speed will not be as relevant at larger distances.

1.3.2 Research questions
With regard to the problem of differentiating imposters from
3D models, the question to be answered is how distance and
rotation/animation speed affects user perception of pre-rendered
imposters versus 3D-models. To answer the question, the following
sub-questions need to be answered:
   1. How much does the distance to the models contribute to
      differences in perception between crowds of 3D models and
      imposters?
  2. How much does the rotation/animation speed contribute to
     differences in perception between crowds of 3D models and
     imposters?
  3. What are the most common factors that make a user able to notice
     imposters in a scene?
Previous research has shown that imposters’ distance to the camera,
which in fact is the pixel to texel ratio of the imposter in the scene, does
matter for static image imposters [3]. Preserving a 1:1 pixel to texel

                                                                            4
CHAPTER 1. INTRODUCTION

ratio should yield a satisfactory result in terms of imposter fidelity.
On the other hand, little has been said regarding how animation
affects perception of imposters, and whether a 1:1 pixel to texel ratio
is necessary to preserve fidelity if the characters are moving. This
makes the research question particularly interesting since pre rendered
imposters could benefit, saving for example texture memory, from not
having to preserve a 1:1 pixel to texel ratio in all possible scenarios. By
introducing animations, there is a possibility that imposter blurriness
and lack of detail could be hidden by applying animations.
Moreover, it is interesting to observe whether rotation has any
significant impact in differentiating imposters from 3D models. If
introducing animation does not cause any significant differences,
imposters could possibly be used in games and movies for other
purposes than background elements, which is how they are often used
today [4], to create a more living environment at a low performance
cost.

1.4     Methodology
To compare 3D-models and imposters, a game engine in which the
scene occurs, and an evalution method of the result is needed. The
game engine can either be developed from the ground up, or an already
existing application can be used. By developing the environment
from the ground up, it guarantees full controll of all parameters
in the scene in which the study is performed. Hence parameters
such as lightning, shadows, and background can easily manually be
tweaked for the experiment, and only the bare necessities have to be
implemented.
In contrast, an existing game engine already has many built in features.
Therefore using an existing game engine makes it easier and and less
time consuming to set up the enviroment for the scene. With an
existing game engine, there is no need to implement necessities such as
an event system, shader compilation, object loading and data to GPU-
submissions. The scene enviroment in this paper was implemented
using Unity 3D.
To evaluate within what distance from the camera most users notice

                                                                         5
CHAPTER 1. INTRODUCTION

differences between rotating imposters and rotating 3D models, a
quantitative study from the perspective of the pixel to texel ratio can
be performed. The result with that evaluation strategy would answer
where the critical point, for replacing 3D models with imposters, is in
theory. In this report however, the question is where the user cannot
notice the difference between imposters and 3D-models. Hence a user
study is a suitable evaluation method.

1.5 Delimitations
In the study, character animation is limited to rotation around the
vertical character axis. The study does therefore not compare any
sophisticated movement, such as animations of individual body parts,
between the imposters and 3D-models. The scene also takes place in a
single colored lanscape without level differences in the ground plane.
Moreover, no other objects than the compared character crowds are be
visible in the scene.
When talking about imposters in the study, if nothing else is
mentioned, it is referred to pre-rendered imposters. That is, an
imposter whose texture was rendered before the application was run.
There exists imposter techniques where the textures are rendered to an
off-screen buffer at run time, but no such system was implemented and
tested during this study.
All light is limited to one single static light source. The one light source
in the scene is positioned behind the camera pointing in the face of
the characters when they are looking into the camera, making the
characters never appearing to be in shadow. Moreover, no shadow-
casting is done on characters appearing behind others.

                                                                          6
Chapter 2

Theoretical Background

This chapter will present essential background information and
concepts to understand the study and interpret the results. The
basics of mesh structures will be explained including mesh lighting.
Moreover, imposters as an LOD concept is explained and defined.

2.1     Polygon meshes
A common way to represent a 3-dimensional graphical object in a
computer is by using a polygon mesh. A polygon mesh consists of a
set of vertices, edges and faces which when combined define the shape
of a 3-dimensional graphical object. The more vertices an object has,
the more complex and detailed the object is. High detail meshes may
seem desireable in a real-time applications, but they come with the
cost of being memory expensive and slower to render than characters
with lower LOD. Reducing polygon count is a way to reduce memory
requirements and optimize rendering times in an application, but may
result in the overall scene being perceived as less detailed.

2.1.1 Level of Detail (LOD)
In 3D rendering of crowds, different levels of detail are used to optimize
rendering times to be able to render more characters each frame

                                                                        7
CHAPTER 2. THEORETICAL BACKGROUND

and maintain a steady frame rate. What LOD means in practice is
that models of different quality and structure are used in different
scenarios. It may not always be necessary to render the highest LOD
models, so lower LOD models can be used and still have the characters
being perceived equally by the observer of the character or crowd.
Selecting an LOD of a model can be done based on different criterions
such as model distance to camera and model movement/animation
speed/complexity. For example, it may not be necessary to render a
high detailed model far in the distance, as all details may not be visible
anyway on the limited amount of pixels on the screen. Moreover, if
the character is moving very fast, the user may not be able to detect all
details in a high detailed mesh, so a lower LOD mesh could be used
instead while maintaining the same overall perceived quality of the
character [4].

2.1.2 Lighting
When rendering images, lighting is crucial to achieve a realistic look of
the rendered objects. Both reflections, refractions and shadows exist
due to light travelling and interacting with objects before reaching the
human eye. More advanced and physically based rendering (PBR)
calculations, such as reflections and refractions, require ray tracing to
be performed, which is nothing we will touch in this report. On the
other hand, when rendering with rasterization, one can still achieve
specular, diffuse and ambient lighting effects using Phong shading
[6][1].

Ambient lighting
Ambient lighting is a mean to achieve global illumination. What this
kind of lighting does is to give all objects that are not in direct lighting
a slight color other than pitch black. In other words, ambient lighting
mimics light being reflected on other objects in the scene so that
nothing is not pitch black just because it is not directly hit by a light
source.
In computer graphics, ambient lighting can be done in different
sophisticated ways, but the simplest form of ambient lighting can be

                                                                          8
CHAPTER 2. THEORETICAL BACKGROUND

done by simply adding a small amount of color to each pixel when
rendering, usually some tint of gray.

Specular lighting
Specular lighting, or specular highlight, is a highlighting effect that
causes an object to be perceived as shiny. Specular lighting is
basically a reflection of the incoming light on the object surface,
which in computer graphics is calculated using the surface normal,
the light position, the camera/eye position and the light and material
colors.

             lspecular = lsource ∗ cmaterial ∗ (v̂ · r̂)p   where
                                  v = peye − psurf ace
                                 l = psurf ace − plight
                               r = l − 2 ∗ (l · n̂) ∗ n̂

where lspecular is the specular light vector calculated by component
wise multiplication between the source light and the material color
multiplied by the dot product between the reflection vector r and the
view vector v.

Diffuse lighting
Diffuse lighting is caused by surface roughness, and looks like the light
is being smoothly spread out when reflected on the object surface.
Diffuse lighting is the effect that occurs when light hits fabric or any
non shiny surface, where shadows and light smoothly blends on the
surface of the rough material. In computer graphics, diffuse light is
calculated using the surface normal and the direction of the incoming
light. Basically, the diffuse light is how intensely a surface is exposed
to a certain light source.

                                                                       9
CHAPTER 2. THEORETICAL BACKGROUND

                 ldif f use = lsource ∗ cmaterial ∗ (n̂ · −ˆl)

where ldif f use is the diffuse light vector calculated by component
wise multiplication between the source light and the material color
multiplied by the dot product between the normalized normal vector n̂
of the surface and the inverse of the normalized light direction ˆl.

2.2 Imposters
Imposter rendering is an LOD technique where geometric detail is
replaced with image detail to reduce complexity and polygon count of
a character in a scene. An imposter is basically an image texture of
a character from a certain angle rendered onto a flat polygon, often a
simple quad of four vertices [4].
The texture of the imposter can either be pre-rendered, or rendered
at run-time, but in this study we will only focus on pre-rendered
textures as real-time rendering textures requires a more sophisticated
system/application.

2.2.1 Imposter lighting
An imposter can simply reduce a mesh from having more than 100
000 polygons, down to four simple vertices, which can increase frame
rate in a real-time application significantly. Though a significant speed
up, imposters come with the cost of just being a 2D-representation
of an object, making light calculations such as specular- 2.1.2 and
diffuse lighting 2.1.2 not possible. Light calculations depend on surface
normals, and a quad has only one surface normal and at most four
unique vertex-normals, which cannot be used to correctly calculate
specular or diffuse effects of an individual pixel on a pre-rendered
imposter texture. With that said, there exists techniques to add lighting
effects to pre-rendered imposters, but it is hard to get the lighting as
accurate as that on the corresponding 3D-model.
Due to this, the study performed will try to minimize the effect of light,

                                                                       10
CHAPTER 2. THEORETICAL BACKGROUND

as lighting is rather tricky to get equal when comparing imposters to
3D-models. It would not be possible to completely remove light from
the scene when using shaders that calculate diffuse lighting, as that
would make the objects completely black. When rendering 3D-models
in the scene of the study, the same light angle and intensity will be
used as when pre-rendering the textures for the imposters, to make
sure they are preceived as close to equal as possible while still keeping
some effects of diffuse lighting.
An alternative would be to use flat color shading, which means that
only the color of the texture/model is used, and no light color, when
rendering. On the other hand, that sets up a more unlikely scenario
as most scenes and applications do use light sources and apply diffuse
and specular lighting to objects. Moreover, the characters will under
flat color shading look rather flat, which itself could have an effect on
the user’s perception of the characters.

2.2.2 Texture resolution
Another factor that affects perception of imposters is texture
resolution. The lower the resolution of the imposter texture, the harder
it is to perceive the character and detect character details [9]. This in
turn makes it easier to detect differences between a lower resolution
texture and a 3D-model where the texture is uv-mapped to the surface
and the color between vertices is interpolated smoothly.
A lower resolution imposter would have to be place further away from
the camera to be perceived equally as a 3D equivalent, which also
makes camera distance a relevant factor for perception when using
imposters as an LOD technique [9].

Texture filtering
When an imposter is drawn at different distances into the scene, the
texture has to be scaled to fit the size of the character. In an optimal
scenario, the dimention of the texture and the size of the imposter is
equal, so each color unit/texel on the texture can be mapped to exactly
one pixel on the screen. Though this is not always the case, and the
imposter or target where the texture should be rendered may be either
smaller or larger than the size of the texture.

                                                                      11
CHAPTER 2. THEORETICAL BACKGROUND

To solve this problem, texture filtering is used to filter the texture
and approximate the color of a pixel given the surrounding texels
in the area. A maginifiaction filter is used when the texture has to
be stretched to fit the larger geometry, and a minification filter is
used when the texture has to be shrinked to fit the smaller geometry
[7]. The filtering method used for magnification or minification is
essential to how the result will look, and common such methods are
nearest-neighbor interpolation, bilinear filtering, trilinear filtering and
anisotropic filtering.

2.2.3 Viewing angles
As imposters are 2D representations of a single object using an image
texture, it is also only a representation of an object from a single angle
and in a single position. When rendering imposters one therefore has
to capture several images from different angles of the object, to be able
to display a more continuous and complete representation of the object
as a whole. The more angles the object is captured from, the more
character variety can be illustrated with the imposter when the object
for example is being rotated.
When pre-generating imposters, the number of viewing angles is
directly proportional to the number of pre-generated textures of the
object. On the other hand, one can also dynamically generate imposters
at run time. This means that the imposter texture is rendered to
an offscreen buffer from whatever angle is needed for that specific
imposter at a given frame. Using this method, there is no need to
pre-determine which angles of the object that should be visible. When
rendering new imposters each frame, K. R. Chrisiansen states that no
difference between imposters and 3D models can be seen, though it can
affect performance rendering new imposters each frame [2].

2.2.4 Visual popping
Visual popping is what may occur when the LOD of an object is
changed. If the visual difference is too big between two distinct levels of
detail, the jump between those levels may cause the user to notice the
loss or gain in detail. In turn, this can steal focus from more important
details or objects in the scene. When working with LOD the purpose is

                                                                        12
CHAPTER 2. THEORETICAL BACKGROUND

to optimize render times without reducing the perceived quality of the
scene noticably. That is, we want to avoid visual popping as much as
possible while still gaining a valuable increase in performance.
Visual popping may also occur when changing the viewing angle of
an imposter. The rotation or animation of an imposter caused by
switching between two similar, but not equal, positions of a character
on a texture, may cause visual popping if the difference in position is too
big. Thus increasing the number of viewing angles may reduce visual
popping.
Dynamically generated imposters, which can represent any view
angle or animation of an object, can also cause visual popping due
to imposters not being re-generated each frame. One approach
for rendering dynamically generated imposters is to have a change
threshold in for example view angle, to determine when to generate
the imposter again [2]. If this threshold is too big, so the change in
movement of the impostor is too big, visual popping may occur.

                                                                        13
Chapter 3

Method

The experiment was divided into two parts, implementing the
enviroment where the scene took place and perform a user study
to evaluate the research question. To render the image textures to
the impostors, the modelling application Blender was used. The
rendered textures were then imported to Unity 3D where the scene
was implemented. The user study was evaluated by asking questions
regarding the character fidelity in the scene, where the users answered
whether they could spot differences between imposters and 3D-models
in different scenarios.

3.1 Implementation
First of all, the Unity documentation was used to get an understanding
of how create applications in the Unity Game Engine [8]. This section
will describe how the scene was created using Unity and what design
decisions we made with regard to the scene layout.
To answer the research questions, a set of features were required by the
scene, including:
   • Simulating a crowd mixed of impostors and 3D-models.
   • The characters should be able to rotate at different speed.

                                                                     14
CHAPTER 3. METHOD

   • A user should be able to view the characters from different
     positions.

3.1.1 Object loading
A few C# scripts were written to be able to load a 3D-model into Unity
from a .blend file and render the character in the scene. The loaded
mesh resource, or so called prefab, was used to instantiate multiple
characters into the scene at different positions.
To render the imposter, a unit square mesh was created with side length
one. Onto the mesh, UV-coordinates were mapped to each corner of the
square to be able to map a corresponding texture to the square. As all
textures were pre-rendered, any of them could be loaded and added to
the square to finish off the imposter and render it into the scene.
To match the imposter with the 3D model in size, the 3D model was
scaled to unit height based on its bounding box dimensions. Also, as
the 3D-model had its feet on the origin, the model had to be translated
to be centered around the origin like the imposter’s unit square. Last,
when transforming a prefab in Unity the whole asset is transformed, so
to make sure the asset was not rescaled each time the asset was loaded,
a simple check was made to see if the object had already been scaled
down to unit length.

                                                                    15
CHAPTER 3. METHOD

  float max = prefab.GetComponent()
                  .bounds.max.y;
  float min = prefab.GetComponent()
                  .bounds.min.y;
  float scale = max - min;
  if (scale > 1)
  {
       p.transform.localScale /= (scale * 1.1f);
       //Transform to correct position
       p.transform.position = new Vector3(0f,
             -1 / (scale * 1.1f), 0f);
  }

When selecting the character for the study, we selected a model that
had human features such as head, arms, legs and feet, but on the other
hand we did not mind that the character did not have a very detailed
face. As long as the user would be able to recognize its features and
somewhat relate to the object they are observing.
The most important thing from a technical point of view was that the
mesh was large enough, and had enough detail/vertices, so that making
imposters out of it would actually make sense in a real application. In
reality if the mesh is small enough, creating imposters of the character
may not result in a noticable performance boost, which only creates an
unnecessary overhead and code complexity.

3.1.2 Viewpoints
To generate the image textures for the pre-rendered impostors the 3D-
model was imported to Blender. In Blender a virtual camera was placed
to capture images from different angles of the model. The camera
was placed to capture a full length portrait of the model and was then
rotated 15 degrees horizontally at each step around the model. This
resulted in 24 viewpoints of every 15 degree angle of the model. The
number of 24 viewpoints was chosen mainly for simplicity reasons, as
Blender’s built in camera rotation rotates 15 degrees. At the same time,

                                                                     16
CHAPTER 3. METHOD

24 is a reasonably large number of textures. Previously 32 viewpoints
have been tested, but in that scenario the models did not rotate and
the models were only viewed two side by side, and not in crowds.
Therefore, we estimated that we could have fewer viewpoints while still
maintaining imposter fidelity at a high level [9]. The 24 textures were
stored as png and had an image resolution of 1920x1920.
In the application, one of the 24 character viewpoints is selected based
on the angle the character is viewed from. To animate a rotation, the
24 textures are simply cycled through in a linear way, and one texture
at a time is selected based on how many degrees the character model is
rotated at a certain point in time.

                                                                     17
CHAPTER 3. METHOD

  private const int NUM_TEXTURES = 24;
  private const float MAX_ANGLE =
       (360f / NUM_TEXTURES) / 2;
  private const float MIN_ANGLE = -MAX_ANGLE;

  public override void RotateCharacters(float deg)
  {
       for (int i = 0; i < m_Characters.Length; i++)
       {
             m_Rotations[i] += deg;
             if (m_Rotations[i] > MAX_ANGLE)
             {
                  m_Rotations[i] = MIN_ANGLE +
                        (m_Rotations[i] - MAX_ANGLE);
                  m_CharTexIndices[i] += NUM_TEXTURES-1;
                  m_CharTexIndices[i] %= NUM_TEXTURES;
             }
             m_Characters[i].GetComponent()
                  .material.mainTexture =
                        m_Textures[m_CharTexIndices[i]];
       }
  }

Rotating all characters is done each frame, which for the 3D-models
implies incrementing it’s rotation around the y-axis. For the impostors
it means selecting the appropriate texture based on how much the
character is rotated. Using 24 textures, we implemented the texture
selection so that for example texture 0 is visible when the character is
rotated between -7.5 and 7.5 degrees, texture 1 between 7.5 and 22,5,
etc.

                                                                     18
CHAPTER 3. METHOD

3.1.3 Level manager
To set up the scene, a level manager was necessary to be able to manage
different levels of distance to the characters and rotation speeds. A
level therefore consists of two integers, representing the number of
imposters and the number of 3D-models, a floating point value storing
the speed of rotation and a floating point value representing the
distance from the camera where the characters should spawn.
Given a set distance of the camera along the z-axis, the characters were
spread out in x-direction randomly within a fixed number of units.
To prevent characters from spawning on the exact same position, the
characters were also randomly positioned in z-direction ±1 unit from
the fixed z-position.
Last, every other character is chosen to rotate either left or right, to
make the crowd appear more random. This is based on the result of
Odhner et al (2019) that it may be easier to spot differences between
two crowds given they are equal. Therefore, making the crowd more
random may make the imposters harder to spot [5].

Setup
In the application, four different levels of distance and four different
levels of rotation speed were selected, creating 16 unique scenes. The
rotation speeds were 0, 4, 8 and 16, representing the number of degrees
the character is being rotated each frame. Running the application on
an Nvidia GTX1070, we were able to run the application at 75 frames
per second (FPS). Using speeds 4, 8 and 16 degrees of rotation per
frame corresponding to 90, 45 and 22.5 frames per lap, the different
speeds at 75 FPS correspond to 50, 100 and 200 rounds per minute
(RPM) respectively.
Regarding the distance, the camera in the scene was placed at a base z-
position of -5. The characters in the scene were then positioned around
z-positions 0, 4, 6 and 12, in different levels. As the imposters were
pre-rendered, the perspective of the imposters was equal no matter
the distance, which is not true for a 3D-model, whose perspective/view
angle changes depending on the distance to the camera.
As can be seen in the image 3.1.1a, though subtle as the characters

                                                                     19
CHAPTER 3. METHOD

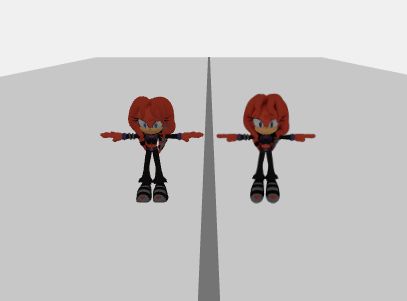

                       (a) Furthest position with flat
                                perspective

(b) Furthest position with perspective     (c) Closest position with flat
             from above.                            perspective

may appear very small, when the 3D-model on the left is rendered
at a distance one cannot fully see the top of the character’s feet. On
the imposter on the other hand, the top of the feet are slightly visible
and the toes are appearing to point down slightly, because of the
perspective the image was captured from. To solve this, we decided to
move the camera in y-direction based on how far away the characters
were rendered, to compensate for the skewed perspective on the flat
imposter. We found a camera.y = character.z/2 to be a good estimate
to make the two sides appear as equal as possible. In 3.1.1b, the camera
is therefore positioned at z = −5, y = 6 as character position is 12 in
that level.
One can notice a difference between the right imposter and the left
3D-model in 3.1.1c looking at the feet, though at this distance we
found them to be similar enough perspective-wise so no camera-
repositioning was done when the characters’ position was 0.
Due to the camera positioning, the actual distance from camera to the

                                                                            20
CHAPTER 3. METHOD

              √
characters is (5 + character.z)2 + (character.z/2)2 , where character.z
is either 0, 4, 6 or 12. The result is the characters being positioned
at approximate distances 5, 9.2, 11,4 and 18.0 from the camera. For
simplicity reasons, when presenting and discussing the rotation speeds
and character positions in the evaluation, we will still label them
using 0, 4, 8 and 16 for rotating speeds and 0, 4, 6 and 12 for the
distances.

3.2    User study
To evaluate fidelity in terms of similarity and distinguishability
between pre-rendered imposters and 3D-models, a user study was
conducted based on the created crowd simulation tool. To answer the
research questions proposed in 1.3, the levels in the application were
set up to test the effect of different rotation speeds and distances.
The user study then consisted of watching 16 scenes and one
introduction scene in form of video clips. The introduction scene was
made up to make the difference between a 3D model and an imposter
clear, and in connection to that the users were asked whether they
could perceive differences between the displayed characters, which
they were expected to do. Moreover, they were asked which one of the
two characters they prefered from an esthetic point of view, and what
key features they perceived different between the imposter and the 3D
model.
Each scene including the introdiction was displayed for 10 seconds
after which a 5 second break was made for the user to pause the video
and answer three questions. The following three questions were asked
to the users in connection to each level:
   • Which character crowd did you perceive to be of lower quality
     (imposters)? (Left/Right/The crowds appeared equal)
   • Which character crowd did you prefer from an esthetic point of
     view? (Left/Right/Neither)
   • If you noticed something special in the scene that made one
     side stand out particularly, please write a short comment. (Text
     answer)

                                                                    21
CHAPTER 3. METHOD

When all scenes had been watched, the users were asked general
questions about how hard or easy they found it to be to differentiate
the imposters from the 3D-models, what made them see the difference
when they saw it. Moreover, they were asked whether there were any
particular distances or movement speeds they found to be particularily
revealing and whether their perception of what differs imposters from
3D-models changed after watching the movie compared to after just
having watched the introduction.
In the user study, there were 21 participants in total where all were
in the age group 20-35. The full user study is found in appendix A
(4.2.2).

                                                                   22
Chapter 4

Evaluation

In this chapter the results are presented with respect to character
position and speed together with the participants self evaluation. The
results aim to point out which factors are contributing to participants
being able to differentiate imposters from 3D-models. As part of the
evaluation, the results are then also discussed and validated.

4.1    Results
Given the 16 different scenes shown in the user study, data was
summarized and averaged based on the characters’ positions and
rotation speed respectively to get an understanding of how each of the
two factors were contributing individually.

4.1.1 Distance
The results from the user study with respect to distance can first of
all be stated to not completely fall in line with the hypothesis. In
contrary to what was believed, users were more likely to spot imposters
at larger distances than when the characters were closer to the camera.
An average of 50.6% correct answers at character positions 0 and 4
compared to an average of 59.5% correct answers at positions 6 and
12.

                                                                    23
CHAPTER 4. EVALUATION

    (a) User answers, averaged by
                                       (b) Users’ self evaluation of which
 position, of whether imposters were
                                      distances they thought the imposters
  perceived correctly, incorrectly or
                                              were easiest to spot
                equal.

The users themselves on the other hand perceived it to be far easier to
spot imposters at closer distance. The user self evaluation diagram in
4.1.1b states that 19.05% and 14.29% of the users found it hard to spot
imposters at positions 6 and 12, which goes in line with the hypothesis
that users would find it hard to spot imposters at a distance. The
actual data on the other hand shows particularly that users were very
good to spot imposters at distance 6, where 72.6% correctly spotted the
imposters, 22.6% perceived imposters and 3D-models to be equal and
4.8% incorrectly thought the 3D-models were of lower quality.
On the other hand, looking at positions 0 and 4 isolated, they pretty
well line up with the users’ self evaluation at 1 (Near) matching position
0 and 2 matching position 4, around 60% and 40% respectively, which
could imply that something in the scene happens around position 6
making the imposters stand out particularly. One can also observe
a significant drop again in the number of correct answers from
position 6 to position 12, which is expected. At position 12, 46,4%
spotted the imposters correctly, 47.6% thought they appeared equal
and 5.95% answered incorrectly. At position 6 on the other hand,
72,62% answered correct, 22,62% perceived equal and 4,76% answered
incorrectly.

4.1.2 Rotation speed
At speed 0, when the characters were standing still, 29.76% correctly
spotted the imposters, 17.86% incorrectly thought they spotted the

                                                                       24
CHAPTER 4. EVALUATION

   (a) User answers, averaged by
                                       (b) Users’ self evaluation of which
   movement speeds, of whether
                                       movement speeds they thought the
 imposters were perceived correctly,
                                         imposters were easiest to spot
        incorrectly or equal.

imposter and 52.38% perceived the crowds to be equal. At speed 4,
when the characters were rotating at 50 RPM, 91.67% correctly spotted
the imposters, 2.38% incorrectly spotted the imposter and 5.95% stated
the imposters and 3D-models appeared to be equal. At speed 8, when
the characters were rotating at 100 RPM, 75% correctly spotted the
imposters, 2.38% incorrectly thought they spotted the imposter and
22.62% percieved the imposters and 3D-models to be equal. At speed
12, when the characters were rotating at 200 RPM, 23.81% correctly
spotted the imposters, 14.29% incorrectly spotted the imposters and
61.9% percieved the imposters and 3D-models to be equal.
Compared to the user self evaluation on distance, the users rather
accurately perceived how hard or easy different rotation speeds were to
differentiate compared to the distribution of correct answers. The two
graphs 4.1.2a and 4.1.2b both show that users find imposters standing
still hard to differentiate from 3D models. From there, which also goes
in line with our own hypothesis, users will find it harder to differentiate
imposters and 3D models the faster they rotate, up to a point where
they are perceived equal by a majority of the users.

4.1.3 Participants self evaluation
At the end of the user study, the participants commented on what
factors they found made the imposters and 3D-models differ. The
comments overall could be divided into two groups. One group, the
majority of the participants, perceived the rotation speed and the

                                                                        25
CHAPTER 4. EVALUATION

difference in rotation smoothness between the imposters and 3D-
models to be most significant. The other group of the participants
perceived the quality of the imposters in general to differ from
the 3D-models, which was more revealing. In these comments
lighting, smoothness and shininess was mentioned to differentiate the
imposters from the 3D-models. One participant stated that it was
harder to diffentiate the quality between the crowds when the distance
was larger. Another participant stated that as the distance increased,
the rotation speed became a more significant factor.

                                                                   26
CHAPTER 4. EVALUATION

4.2     Discussion
In contrary to our hypothesis the result did not show that an increase
in distance made it harder for the participants to differentiate the
imposters from the 3D-models. As shown in the result there is
an anomaly in the otherwise expected falling trend, at position 6
where almost 73% spotted the imposters. Why the difference between
the crowds is so apparent at that distance is hard to tell. But we
believe other factors than distance played a major roll here. Since
the imposters were pre rendered, the resolution of each image was
constant independent of the character position. At a larger distance
it is likely that texture magnification and minification together with
aliasing are contributing factors to the results. When the imposters
are rendered at a distance, texture minification has to be applied,
and depending on the aliasing and minification algorithms used the
results may differ compared to the result of rasterizing the detailed
3D mesh. To minimize these consequences, mipmapping techniques
could be applied to the imposter textures to make the quality better at
minification.
Looking at the study from a broader perspective, the participants in
the user study was a fairly homogeneous group. A vast majority of the
21 participants consisted of other computer science students, many of
which having an interest in playing video games. Whether or not the
results are affected by this is hard to tell, but the participants in general
may have been more sensitive to quality changes in the scenes than the
average man or woman.
As a consequence of the on going covid-19 pandemia, the user study
had to done remotely by the participants watching the video on their
own computer. Therefore the result might have been affected by the
differences in hardware used by the participants, together with us not
being able to control that all participants downloaded the video and
watched it on the highest resolution in full screen, instead of watching
it in the web browser in lower quality.
What can be said about the results is that there is still strong evidence
that static imposters if implemented properly is a good way of reducing
geometric complexity without losing fidelity in a scene. Even though
the results based on distance did not match the hypothesis, as users
were more likely to spot imposters at a distance, one can still see that

                                                                          27
CHAPTER 4. EVALUATION

no matter the distance imposters are generally hard to spot when not
moving at all.
If animation should be implemented as part of a pre-rendered imposter
system, it is necessary that the difference in movement between two key
frames is small enough or the time between two following key frames
is short enough, so that the visual difference between two key frames
is not causing any flickering. Our results show that for a rotation in 15
degrees per key frame of the imposters, a time of 16 degrees of rotation
per frame was necessary for imposters to be equal to 3D-models in
terms of animation. This is likely due to that for each frame, the 3D-
model rotates about the same amount as the imposter does between
two keyframes.
To answer the research question, distance seems to affect perception of
imposters in some extent. To say the least, users themselves thought
they had a harder time spotting imposters at a distance, even though
the results said they were more accurate when the imposters were
further away. The reason for this may be that a user could be more
likely to try hard if the the characters are smaller and the difference
between the characters is smaller. On the other hand we are aware
that the imposters used, which were pre-rendered and exported from
Blender, had major flaws and did not look equal to the 3D-models if
you observed them for long enough. One major problem was shading,
as light calculations may be done differently in our Unity application
versus in Blender, and it was hard to match the settings in the two
programs. Another problem is perspective, as pre-rendered imposters
are captured at a fixed distance, the perspective of the imposter is not
changed as the imposter moves further away, which would be the case
of a 3D-model.

4.2.1 Conclusion
Rotation speeds slower than 1:1 keyframe per frame seem in the end
to be the most contributing factor to differentiate imposters from 3D
models when compared against distance. 3D models rotating slower is
theoretically equal to imposters having more viewpoints, which cannot
be added if imposters are pre-generated. This will lead to visual
differences when crowds of imposters and 3D-models are rotating at
RPM. In a scenario using real-time rendered imposters on the other

                                                                      28
CHAPTER 4. EVALUATION

hand, animation speed should not contribute as much to perception
differences, as any position of the 3D-model can be projected at any
time, at a small cost of performance [2]. On the other hand, the results
show that even for pre-rendered imposters, a fast enough rotation
speed can be used to hide visible flaws.
As users are more likely to perceive imposters and 3D-models to be
equal when moving fast than standing still, while static imposters
already are proven to be a good LOD technique [3] in a 1 1 pixel to texel
ratio, pre rendered fast moving imposters could very well be used in
movies and games. As long as imposters move fast enough in relation
to the visual difference between two animation key frames, the visual
fidelity of imposters is comparable to that of 3D-models.

4.2.2 Future Work
As no effort was put into creating realistic shading for the imposter,
future work could involve improving quality of the imposter by
applying more sophisticated shading techniques and normal maps.
Something that would be interesting to look at is whether there could
be found any threshold where improvements to pre-generated textures
closes up on imposters rendered to textures in real time with respect to
perception, while still being better performance wise.
Moreover, it could be interesting to see if results would be similar when
applying animations of individual body parts, instead of just applying
rotations to the characters. As this study only tests animations in terms
of rotations, an extension to including rigid body animations would be
useful for future work in the field of imposters.

                                                                      29
Bibliography

[1] Basic                                                    Lighting.
      https://learnopengl.com/Lighting/Basic-Lighting, May 2020.

[2] Christiansen, K. R. The use of Imposters in Interactive 3D
      Graphics Systems. Tech. rep. Department of Mathematics and
      Computing Science Rijksuniversiteit Groningen, 2005.

[3] Hamill, J., McDonnell, R., Dobbyn, S., and O’Sullivan, C.
      Perceptual Evaluation of Impostor Representations for Virtual
      Humans and Buildings. Tech. rep. Image Synthesis Group,
      Computer Science Department, Trinity College Dublin, Ireland,
      2005.

[4] Luebke, D., Cohen, J. D., Watson, B., Reddy, M., Varshney, A.,
      and Huebner, R. Level of Detail for 3D Graphics. Elsevier Inc,
      2003.

[5]   Odhner, N. Lindberg and Freme, C. J. “Impact of Crowd Density
      and Camera Perspective on User Sensitivity Towards Impostor
      Resolution Degradation in Crowd Simulators”. B.S. Thesis. KTH
      ROYAL INSTITUTE OF TECHNOLOGY, June 2019.

[6] Phong, B. T. Illumination for Computer Generated Pictures.
      Tech. rep. Communications of the ACM, 1975.

                                                                   30
BIBLIOGRAPHY

[7]   Texture                                           mapping.
      http://www.glprogramming.com/red/chapter09.html,         May
      2020.

[8]   Unity      User        Manual.     Unity      Technologies.
      https://docs.unity3d.com/Manual/index.html, Mar. 2020.

[9] von Eckermann, J. “How users differentiate imposters from real
      models”.   B.S.   Thesis.   KTH   ROYAL    INSTITUTE     OF
      TECHNOLOGY, June 2018.

                                                                31
Appendix A

User study

Following section lists all content related to the user study. Both form
instrutions handed to the test users, the video used for the study and
the answer spreadsheet compiled from the users’ answers.

A.1 Video
The video used to perform the user study. The content was pre-
rendered from Unity and downloaded by the participants.
https://drive.google.com/open?id=16l6emf_
idSKk7XhiFhAGbLoPFoRQC-Kx

A.2 Form
The form for the user study was created using Google Forms.
https:
//docs.google.com/forms/d/e/1FAIpQLSf67UXa-V6jTq-e_
rvxuJPxiODMZsvtnjMsmdlft4XX-Zd10g/viewform?usp=sf_
link

                                                                     32
APPENDIX A. USER STUDY

A.2.1 Instructions
In video games and movies it is often necessary to display crowds of
complex characters in a scene. Examples could be battles in action
movies with many fighting people, or a background filled with trees
in a 3D game.
When rendering many characters at the same time, some characters
can be replaced with lower detailed characters to increase performance.
One such technique is imposter rendering. An imposter is, in
contrary to a 3D-model, only a simple square plane with an image
representation of an object pasted onto it.
In this experiment, we are testing how perception of imposters,
opposed to 3D-models, is affected by distance and movement speed.
The purpose is to get an understanding of how imposters are perceived
in crowds compared to 3D models.
You will watch a 4 minute pre recorded movie in full screen with 17
different scenes including a preview/introduction scene.
The video is found here:
https://drive.google.com/open?id=16l6emf_
idSKk7XhiFhAGbLoPFoRQC-Kx Download the video and run from
your computer. Do NOT watch it in the browser as it will be shown in
lower resolution. Also remember to watch the video in full screen, for
whatever screen you have.
Each scene is displayed for 10 seconds, and after that there is a 5 second
pause until the next scene appears. You should pause the video during
the 5 second break where the scene has no characters, to answer the
questions in your own pace. In each scene, you will see two crowds.
One crowd consisting of 3D-models, and the other of lower quality
imposters. Your task is to tell if there is a difference between the two
crowds, and which you prefer esthetically.
Do not rewatch a scene twice, even if you felt you did not have enough
time to look carefully. We are evaluating the fidelity of the characters in
the scenes, and not your individual ability to spot differences between
the crowds.
You may respond to the questions in either Swedish or English.

                                                                        33
APPENDIX A. USER STUDY

A.2.2 Questionaire - For each scene
Which character crowd did you perceive to be of lower
quality (imposters)?
   • Left
   • Right
   • The crowds appeared equal
Which character crowd did you prefer from an esthetic point
of view?
   • Left
   • Right
   • Neither
If you noticed something special in the scene that made
one side stand out particularly, please write a short
comment.

A.2.3 Questionaire - Self evaluation
In general, how hard was it to spot differences between the
left and right crowds?
   • 1 (Very easy)
   • Easy
   • Medium
   • Hard
   • Very hard
What part of the character do you think was the most
revealing that it was of lower/higher quality? E.g feet, arms,
face, the character as a whole, or whatever made you notice
the difference.

Do you perceive distance or movement speed to be the
dominant factor of whether imposters are perceived as lower

                                                           34
APPENDIX A. USER STUDY

quality?
   • Distance
   • Movement speed
   • Neither
If neither: What do you think differs imposters from 3D-
models the most?

Were              there            any             distances
where the imposters were particularly easy to spot? Select
all alternatives where you could spot the difference most of
the time.
   • 1 (Near)
   • 2
   • 3
   • 4 (Far)
   • No, all distances were hard
Were there any movement speeds where the imposters were
particularly easy to spot? Select all alternatives where you
could spot the difference most of the time.
   • 0 (Standing still)
   • 1 (Slow)
   • 2 (Intermediate)
   • 3 (Fast)
   • No, all movement speeds were hard

A.2.4 Answers
All participants’ answer data was compiled and processed in a Google
spreadsheet.

                                                                 35
You can also read
