Avid Maestro | Virtual Set - Setup Guide Version 2018.6.1
Avid® Maestro | Virtual Set
                    Setup Guide
                 Version 2018.6.1
Avid Maestro | Virtual Set - Setup Guide Version 2018.6.1
Legal Notices
Product specifications are subject to change without notice and do not represent a commitment on the part of Avid Technology, Inc.

This product is subject to the terms and conditions of a software license agreement provided with the software. The product may only be used in
accordance with the license agreement.

This product may be protected by one or more U.S. and non-U.S patents. Details are available at www.avid.com/patents.

This document is protected under copyright law. An authorized licensee of may reproduce this publication for the licensee’s own use in learning how to
use the software. This document may not be reproduced or distributed, in whole or in part, for commercial purposes, such as selling copies of this
document or providing support or educational services to others. This document is supplied as a guide for . Reasonable care has been taken in preparing
the information it contains. However, this document may contain omissions, technical inaccuracies, or typographical errors. Avid Technology, Inc. does
not accept responsibility of any kind for customers’ losses due to the use of this document. Product specifications are subject to change without notice.

Copyright © 2018 Avid Technology, Inc. and its licensors. All rights reserved.

The following disclaimer is required by Epic Games, Inc.:
Unreal® is a trademark or registered trademark of Epic Games, Inc. in the United States of America and elsewhere.

Unreal® Engine, Copyright 1998 - 2018 Epic Games, Inc. All rights reserved."

The following disclaimer is required by Apple Computer, Inc.:
APPLE COMPUTER, INC. MAKES NO WARRANTIES WHATSOEVER, EITHER EXPRESS OR IMPLIED, REGARDING THIS PRODUCT,
INCLUDING WARRANTIES WITH RESPECT TO ITS MERCHANTABILITY OR ITS FITNESS FOR ANY PARTICULAR PURPOSE. THE
EXCLUSION OF IMPLIED WARRANTIES IS NOT PERMITTED BY SOME STATES. THE ABOVE EXCLUSION MAY NOT APPLY TO YOU.
THIS WARRANTY PROVIDES YOU WITH SPECIFIC LEGAL RIGHTS. THERE MAY BE OTHER RIGHTS THAT YOU MAY HAVE WHICH
VARY FROM STATE TO STATE.

The following disclaimer is required by Sam Leffler and Silicon Graphics, Inc. for the use of their TIFF library:
Copyright © 1988–1997 Sam Leffler 
Copyright © 1991–1997 Silicon Graphics, Inc.

Permission to use, copy, modify, distribute, and sell this software [i.e., the TIFF library] and its documentation for any purpose is hereby granted
without fee, provided that (i) the above copyright notices and this permission notice appear in all copies of the software and related documentation, and
(ii) the names of Sam Leffler and Silicon Graphics may not be used in any advertising or publicity relating to the software without the specific, prior
written permission of Sam Leffler and Silicon Graphics.

THE SOFTWARE IS PROVIDED “AS-IS” AND WITHOUT WARRANTY OF ANY KIND, EXPRESS, IMPLIED OR OTHERWISE, INCLUDING
WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

IN NO EVENT SHALL SAM LEFFLER OR SILICON GRAPHICS BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT OR
CONSEQUENTIAL DAMAGES OF ANY KIND, OR ANY DAMAGES WHATSOEVER RESULTING FROM LOSS OF USE, DATA OR
PROFITS, WHETHER OR NOT ADVISED OF THE POSSIBILITY OF DAMAGE, AND ON ANY THEORY OF LIABILITY, ARISING OUT OF
OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THIS SOFTWARE.

The following disclaimer is required by the Independent JPEG Group:
This software is based in part on the work of the Independent JPEG Group.

This Software may contain components licensed under the following conditions:
Copyright (c) 1989 The Regents of the University of California. All rights reserved.

Redistribution and use in source and binary forms are permitted provided that the above copyright notice and this paragraph are duplicated in all such
forms and that any documentation, advertising materials, and other materials related to such distribution and use acknowledge that the software was
developed by the University of California, Berkeley. The name of the University may not be used to endorse or promote products derived from this
software without specific prior written permission. THIS SOFTWARE IS PROVIDED ``AS IS'' AND WITHOUT ANY EXPRESS OR IMPLIED
WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE.

Copyright (C) 1989, 1991 by Jef Poskanzer.

Permission to use, copy, modify, and distribute this software and its documentation for any purpose and without fee is hereby granted, provided that the
above copyright notice appear in all copies and that both that copyright notice and this permission notice appear in supporting documentation. This
software is provided "as is" without express or implied warranty.

Copyright 1995, Trinity College Computing Center. Written by David Chappell.

Permission to use, copy, modify, and distribute this software and its documentation for any purpose and without fee is hereby granted, provided that the
above copyright notice appear in all copies and that both that copyright notice and this permission notice appear in supporting documentation. This
software is provided "as is" without express or implied warranty.

Copyright 1996 Daniel Dardailler.

Permission to use, copy, modify, distribute, and sell this software for any purpose is hereby granted without fee, provided that the above copyright
notice appear in all copies and that both that copyright notice and this permission notice appear in supporting documentation, and that the name of
Daniel Dardailler not be used in advertising or publicity pertaining to distribution of the software without specific, written prior permission. Daniel
Dardailler makes no representations about the suitability of this software for any purpose. It is provided "as is" without express or implied warranty.

Modifications Copyright 1999 Matt Koss, under the same license as above.

                                                                          2
Avid Maestro | Virtual Set - Setup Guide Version 2018.6.1
Copyright (c) 1991 by AT&T.

Permission to use, copy, modify, and distribute this software for any purpose without fee is hereby granted, provided that this entire notice is included in
all copies of any software which is or includes a copy or modification of this software and in all copies of the supporting documentation for such
software.

THIS SOFTWARE IS BEING PROVIDED "AS IS", WITHOUT ANY EXPRESS OR IMPLIED WARRANTY. IN PARTICULAR, NEITHER THE
AUTHOR NOR AT&T MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND CONCERNING THE MERCHANTABILITY OF
THIS SOFTWARE OR ITS FITNESS FOR ANY PARTICULAR PURPOSE.

This product includes software developed by the University of California, Berkeley and its contributors.

The following disclaimer is required by Nexidia Inc.:
© 2010 Nexidia Inc. All rights reserved, worldwide. Nexidia and the Nexidia logo are trademarks of Nexidia Inc. All other trademarks are the property
of their respective owners. All Nexidia materials regardless of form, including without limitation, software applications, documentation and any other
information relating to Nexidia Inc., and its products and services are the exclusive property of Nexidia Inc. or its licensors. The Nexidia products and
services described in these materials may be covered by Nexidia's United States patents: 7,231,351; 7,263,484; 7,313,521; 7,324,939; 7,406,415,
7,475,065; 7,487,086 and/or other patents pending and may be manufactured under license from the Georgia Tech Research Corporation USA.

The following disclaimer is required by Paradigm Matrix:
Portions of this software licensed from Paradigm Matrix.

The following disclaimer is required by Ray Sauers Associates, Inc.:
“Install-It” is licensed from Ray Sauers Associates, Inc. End-User is prohibited from taking any action to derive a source code equivalent of “Install-It,”
including by reverse assembly or reverse compilation, Ray Sauers Associates, Inc. shall in no event be liable for any damages resulting from reseller’s
failure to perform reseller’s obligation; or any damages arising from use or operation of reseller’s products or the software; or any other damages,
including but not limited to, incidental, direct, indirect, special or consequential Damages including lost profits, or damages resulting from loss of use or
inability to use reseller’s products or the software for any reason including copyright or patent infringement, or lost data, even if Ray Sauers Associates
has been advised, knew or should have known of the possibility of such damages.

The following disclaimer is required by Videomedia, Inc.:
“Videomedia, Inc. makes no warranties whatsoever, either express or implied, regarding this product, including warranties with respect to its
merchantability or its fitness for any particular purpose.”

“This software contains V-LAN ver. 3.0 Command Protocols which communicate with V-LAN ver. 3.0 products developed by Videomedia, Inc. and V-
LAN ver. 3.0 compatible products developed by third parties under license from Videomedia, Inc. Use of this software will allow “frame accurate”
editing control of applicable videotape recorder decks, videodisc recorders/players and the like.”

The following disclaimer is required by Altura Software, Inc. for the use of its Mac2Win software and Sample Source Code:
©1993–1998 Altura Software, Inc.

The following disclaimer is required by Ultimatte Corporation:
Certain real-time compositing capabilities are provided under a license of such technology from Ultimatte Corporation and are subject to copyright
protection.

The following disclaimer is required by 3Prong.com Inc.:
Certain waveform and vector monitoring capabilities are provided under a license from 3Prong.com Inc.

The following disclaimer is required by Interplay Entertainment Corp.:
The “Interplay” name is used with the permission of Interplay Entertainment Corp., which bears no responsibility for Avid products.

This product includes portions of the Alloy Look & Feel software from Incors GmbH.

This product includes software developed by the Apache Software Foundation (http://www.apache.org/).

© DevelopMentor

This product may include the JCifs library, for which the following notice applies:
JCifs © Copyright 2004, The JCIFS Project, is licensed under LGPL (http://jcifs.samba.org/). See the LGPL.txt file in the Third Party Software
directory on the installation CD.

Avid Interplay contains components licensed from LavanTech. These components may only be used as part of and in connection with Avid Interplay.

This product includes the Warlib library, for which the following notice applies:
Copyright Jarle (jgaa) Aase 2000 - 2009

COPYRIGHT file which is included in the distribution:

warlib is copyright Jarle (jgaa) Aase 2000 - 2009

The warlib C++ Library is free software; you can redistribute it and/or modify it under the terms of the GNU Lesser General Public License as
published by the Free Software Foundation; either version 3.0 of the License, or (at your option) any later version.

The warlib C++ Library is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of
MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU Lesser General Public License for more details.

Portions copyright © 2012 Avid Technology, Inc.

                                                                            3
Avid Maestro | Virtual Set - Setup Guide Version 2018.6.1
Attn. Government User(s). Restricted Rights Legend
U.S. GOVERNMENT RESTRICTED RIGHTS. This Software and its documentation are “commercial computer software” or “commercial computer
software documentation.” In the event that such Software or documentation is acquired by or on behalf of a unit or agency of the U.S. Government, all
rights with respect to this Software and documentation are subject to the terms of the License Agreement, pursuant to FAR §12.212(a) and/or DFARS
§227.7202-1(a), as applicable.

Trademarks
003, 192 Digital I/O, 192 I/O, 96 I/O, 96i I/O, Adrenaline, AirSpeed, ALEX, Alienbrain, AME, AniMatte, Archive, Archive II, Assistant Station,
AudioPages, AudioStation, AutoLoop, AutoSync, Avid, Avid Active, Avid Advanced Response, Avid DNA, Avid DNxcel, Avid DNxHD, Avid DS
Assist Station, Avid Ignite, Avid Liquid, Avid Media Engine, Avid Media Processor, Avid MEDIArray, Avid Mojo, Avid Remote Response, Avid Unity,
Avid Unity ISIS, Avid VideoRAID, AvidRAID, AvidShare, AVIDstripe, AVX, Beat Detective, Beauty Without The Bandwidth, Beyond Reality, BF
Essentials, Bomb Factory, Bruno, C|24, CaptureManager, ChromaCurve, ChromaWheel, Cineractive Engine, Cineractive Player, Cineractive Viewer,
Color Conductor, Command|24, Command|8, Control|24, Cosmonaut Voice, CountDown, d2, d3, DAE, D-Command, D-Control, Deko, DekoCast, D-
Fi, D-fx, Digi 002, Digi 003, DigiBase, Digidesign, Digidesign Audio Engine, Digidesign Development Partners, Digidesign Intelligent Noise
Reduction, Digidesign TDM Bus, DigiLink, DigiMeter, DigiPanner, DigiProNet, DigiRack, DigiSerial, DigiSnake, DigiSystem, Digital Choreography,
Digital Nonlinear Accelerator, DigiTest, DigiTranslator, DigiWear, DINR, DNxchange, Do More, DPP-1, D-Show, DSP Manager, DS-StorageCalc, DV
Toolkit, DVD Complete, D-Verb, Eleven, EM, Euphonix, EUCON, EveryPhase, Expander, ExpertRender, Fader Pack, Fairchild, FastBreak, Fast Track,
Film Cutter, FilmScribe, Flexevent, FluidMotion, Frame Chase, FXDeko, HD Core, HD Process, HDpack, Home-to-Hollywood, HYBRID,
HyperSPACE, HyperSPACE HDCAM, iKnowledge, Image Independence, Impact, Improv, iNEWS, iNEWS Assign, iNEWS ControlAir, InGame,
Instantwrite, Instinct, Intelligent Content Management, Intelligent Digital Actor Technology, IntelliRender, Intelli-Sat, Intelli-sat Broadcasting
Recording Manager, InterFX, Interplay, inTONE, Intraframe, iS Expander, iS9, iS18, iS23, iS36, ISIS, IsoSync, LaunchPad, LeaderPlus, LFX,
Lightning, Link & Sync, ListSync, LKT-200, Lo-Fi, MachineControl, Magic Mask, Make Anything Hollywood, make manage move | media, Marquee,
MassivePack, Massive Pack Pro, Maxim, Mbox, Media Composer, MediaFlow, MediaLog, MediaMix, Media Reader, Media Recorder, MEDIArray,
MediaServer, MediaShare, MetaFuze, MetaSync, MIDI I/O, Mix Rack, Moviestar, MultiShell, NaturalMatch, NewsCutter, NewsView, NewsVision,
Nitris, NL3D, NLP, NSDOS, NSWIN, OMF, OMF Interchange, OMM, OnDVD, Open Media Framework, Open Media Management, Painterly
Effects, Palladium, Personal Q, PET, Podcast Factory, PowerSwap, PRE, ProControl, ProEncode, Profiler, Pro Tools, Pro Tools|HD, Pro Tools LE, Pro
Tools M-Powered, Pro Transfer, QuickPunch, QuietDrive, Realtime Motion Synthesis, Recti-Fi, Reel Tape Delay, Reel Tape Flanger, Reel Tape
Saturation, Reprise, Res Rocket Surfer, Reso, RetroLoop, Reverb One, ReVibe, Revolution, rS9, rS18, RTAS, Salesview, Sci-Fi, Scorch, ScriptSync,
SecureProductionEnvironment, Serv|GT, Serv|LT, Shape-to-Shape, ShuttleCase, Sibelius, SimulPlay, SimulRecord, Slightly Rude Compressor,
Smack!, Soft SampleCell, Soft-Clip Limiter, SoundReplacer, SPACE, SPACEShift, SpectraGraph, SpectraMatte, SteadyGlide, Streamfactory,
Streamgenie, StreamRAID, SubCap, Sundance, Sundance Digital, SurroundScope, Symphony, SYNC HD, SYNC I/O, Synchronic, SynchroScope,
Syntax, TDM FlexCable, TechFlix, Tel-Ray, Thunder, TimeLiner, Titansync, Titan, TL Aggro, TL AutoPan, TL Drum Rehab, TL Everyphase, TL
Fauxlder, TL In Tune, TL MasterMeter, TL Metro, TL Space, TL Utilities, tools for storytellers, Transit, TransJammer, Trillium Lane Labs, TruTouch,
UnityRAID, Vari-Fi, Video the Web Way, VideoRAID, VideoSPACE, VTEM, Work-N-Play, Xdeck, X-Form, Xmon and XPAND! are either registered
trademarks or trademarks of Avid Technology, Inc. in the United States and/or other countries.

Footage
Arizona Images — KNTV Production — Courtesy of Granite Broadcasting, Inc., 
Editor/Producer Bryan Foote.
Canyonlands — Courtesy of the National Park Service/Department of the Interior.
Ice Island — Courtesy of Kurtis Productions, Ltd.
Tornados + Belle Isle footage — Courtesy of KWTV News 9.
WCAU Fire Story — Courtesy of NBC-10, Philadelphia, PA.
Women in Sports – Paragliding — Courtesy of Legendary Entertainment, Inc.

News material provided by WFTV Television Inc.

Avid Maestro | Virtual Set Setup Guide v2018.6.1 • Created 8/8/18 • This document is distributed by Avid in online (electronic) form
only, and is not available for purchase in printed form.

                                                                        4
Avid Maestro | Virtual Set - Setup Guide Version 2018.6.1
Contents

            Symbols and Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Chapter 1   Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
            What is Maestro | Virtual Set? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
            Maestro | Virtual Set Workflow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Chapter 2   Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
            Linux Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
            Windows Environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
            Current Versions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Chapter 3   Installation and Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
            Solution Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
            Pre-installation checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
            Installing Avid Maestro | Virtual Set on Linux . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
                  Installing the Linux Environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
                  Installing Render Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
                  Installing Unreal Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
                         Configuration of Lens Distortion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
                  Tracking with the Xync System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
            Installing Avid Maestro | Virtual Set on Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
                  Installing Maestro | Virtual Set. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
            Post-installation Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Chapter 4   Starting the Avid Maestro | Virtual Set System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
            Render Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
            Unreal Engine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
            Controlling Maestro | Virtual Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
                  Controlling with PuTTy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
                         ReTalk3 Commands: load/activate scene, set export, play animation, deactivate scene, unload
                           scene . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
                  Controlling with Maestro | Live . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Chapter 5   Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
            List of Useful Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
                  Unreal Engine Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
            Installation Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
            Configuration Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
            Frequently Asked Questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

                                                                                 5
Avid Maestro | Virtual Set - Setup Guide Version 2018.6.1
Using This Guide

Symbols and Conventions
     Avid documentation uses the following symbols and conventions:

     Symbol or Convention       Meaning or Action

     n                          A note provides important related information, reminders,
                                recommendations, and strong suggestions.

     c                          A caution means that a specific action you take could cause harm to
                                your computer or cause you to lose data.

     w
                                A warning describes an action that could cause you physical harm.
                                Follow the guidelines in this document or on the unit itself when
                                handling electrical equipment.

     >                          This symbol indicates menu commands (and subcommands) in the
                                order you select them. For example, File > Import means to open the
                                File menu and then select the Import command.

                                This symbol indicates a single-step procedure. Multiple arrows in a list
                                indicate that you perform one of the actions listed.

     (Windows), (Windows        This text indicates that the information applies only to the specified
     only), (Macintosh), or     operating system, either Windows or Macintosh OS X.
     (Macintosh only)

     Bold font                  Bold font is primarily used in task instructions to identify user interface
                                items and keyboard sequences.

     Italic font                Italic font is used to emphasize certain words and to indicate variables.

     Courier Bold font          Courier Bold font identifies text that you type.

     Ctrl+key or mouse action   Press and hold the first key while you press the last key or perform the
                                mouse action. For example, Command+Option+C or Ctrl+drag.

     | (pipe character)         The pipe character is used in some Avid product names, such as
                                Interplay | Production. In this document, the pipe is used in product
                                names when they are in headings or at their first use in text.
Avid Maestro | Virtual Set - Setup Guide Version 2018.6.1
1 Introduction

     In this section:
     •   What is Maestro | Virtual Set?
     •   Maestro | Virtual Set Workflow

What is Maestro | Virtual Set?
     A full Avid Maestro | Virtual Set system is made up of 3 software modules:
     •   Maestro | Virtual Set Authoring - set of plugins and templates for the Unreal™ Editor tool.
     •   Control Application - control Maestro | Virtual Set Engine and broadcast the graphics created
         with Maestro | Virtual Set Authoring, with applications such as Maestro | News or Maestro |
         Live.
     •   Maestro | Virtual Set Engine - real-time application for rendering the graphics to a video output
         using powerful Unreal Engine on dedicated Render Device.

     The Maestro | Virtual Set Authoring modules together with Unreal Editor address all requirements
     for integrating your OAG applications into an automated studio. First, 3D graphic scenes are created
     in the Unreal Editor, where you can define animated sequences and using additional plugins
     determine what can be changed in real time by “exporting” functions to the Control module.
     Reporters can then insert or import current data into the templates using a Controller, which can be
     run from a remote station.

     Maestro | Virtual Set Authoring takes the advantage of Unreal Editor and addresses it's power into
     Virtual Studio creation tool.
Avid Maestro | Virtual Set - Setup Guide Version 2018.6.1
Maestro | Virtual Set Workflow
     The following workflow contains the main tasks performed when creating a scene in Maestro |
     Virtual Set.

                    Unreal Editor - New project from template

                                               Scene            Define           Define            Define
         Create assets   Import assets
                                             composition        Exports        Animations       interactions

                              Unreal Editor – Prepared scene

                         Validate scene                                   Deploy to Runtime Machine

           Unreal Engine Runtime – Controlled by Maestro|Live

           Load/Unload           Activate/                                   Control
                                                    Set Export values                        Camera Tracking
              scene           Deactivate scene                              Animations

                         Maestro|VirtualSet Studio Production

                                                           8
Avid Maestro | Virtual Set - Setup Guide Version 2018.6.1
2 Requirements

     In this section:
     •   Linux Environment
     •   Windows Environment
     •   Current Versions

Linux Environment
     The following machines can be used in a Maestro | Virtual Set Linux environment:
     •   HDVG4 with 2x 3DVG boards and 2x Nvidia GTX 1080 or
     •   MaestroEngine4K with 4x UHD2 boards (410 FPGA) and 2x Nvidia GTX 1080,

     The following list of installers is required for the Linux configuration:

     Component Name                                      Installer

     - CentOS 7                                          CentOS-7-x86_64-DVD-1708-Avid_*

     - Kernel                                            kernel-3.10.0-693.5.2.el7.Avid.x86_64.rpm

     - Libraries and Tools supporting Video I/O          libdvg-813.1-*.el7.centos.x86_64.rpm

     - Nvidia driver                                     nvidia-384.59-Centos7-do-not-distribute.tgz

     - FW for UHD2 board                                 gfx_sdi_410_39_5.bin

     - Avid Render Engine for Linux                      RenderEngine4Linux64_2018.6.

     - Maestro | Virtual Set Engine                      MaestroVirtualSetEngine_2018.6.*.exe, which
                                                         contains:
                                                         •   SceneLoader_2018.6-*_linux.tg
                                                         •   VideoOutput-2018.6.*-Linux.rpm
                                                         •   xerces-c-3.1.1-8.el7_2.x86_64.rpm
                                                         •   oradAuthoId-2.2.21-101.x64.rpm

Windows Environment
     Scene Mastering

     The following components are required for Maestro | Virtual Set scene mastering:
Avid Maestro | Virtual Set - Setup Guide Version 2018.6.1
Component Name                                    Installer

     - Unreal Engine Installer                         Unreal Engine 4.19.2

     - Maestro | Virtual Set Authoring Installer       MaestroVirtualSetAuthoring_2018.6.*.exe, which
                                                       contains:
                                                       •   v11_clang-5.0.0-centos7.zip
                                                       •   TP_AvidBaseBP_2018.6-*.7z (scene template)
                                                       •   AvidCamera_2018.6-*.7z (plugin)
                                                       •   AvidControl_2018.6-*.7z (plugin)
                                                       •   AvidMaestroVirtualSetEditor_2018.6-*.7z
                                                           (deploy and checker)

     - Sample Scene Template                           Sample2018_6_***PROJECT.zip

     Controlling

     The following controllers can be used in a Maestro | Virtual Set environment:
     •   PuTTy (Telnet client)
     •   Avid Maestro | Live 2018.6 Client

Current Versions
     The following component versions are tested and approved for the Maestro | Virtual Set 2018.6
     release:

     Component Name                                    Installer

     - CentOS 7                                        CentOS-7-x86_64-DVD-1708-Avid_v1.4.2.iso
                                                       (centos-release-7-4.1708.el7.centos.x86_64)

     - Nvidia                                          nvidia-384.59-Centos7-do-not-distribute.tgz

     - Kernel                                          kernel-3.10.0-693.5.2.el7.Avid.x86_64.rpm (3.10.0-
                                                       693.5.2.el7.Avid.x86_64 #1 SMP Thu Nov 23
                                                       11:16:51 IST 2017 x86_64 x86_64 x86_64 GNU/
                                                       Linux)

     - Libraries and Tools supporting Video I/O        libdvg-813.1-7.el7.centos.x86_64.rpm

                                                       c The version libdvg-813.1-7 needs to have manually
                                                         updated screen format database file from
                                                             scrfmts_unreal_59_50hz.tgz package. The original
                                                             file (/usr/dvg/scrfmts) needs to be replaced.

                                                       c Original file md5:
                                                         02f85957c0cd087212c46339253afb5e

                                                       c Correct file md5:
                                                         abd64114dd1a330f0c070761169edded

     - Maestro | Virtual Set Authoring                 MaestroVirtualSetAuthoring_2018.6.120

     - Maestro | Virtual Set Engine                    MaestroVirtualSetEngine_2018.6.120.3

                                                     10
Component Name          Installer

- Licensing Tools       oradAuthoId-2.2.21-101.x64

- Maestro | Tracker     MaestroTracker_2018.6.25.3

- Unreal Engine         Unreal Engine 4.19.2

- Render Engine         RenderEngine_Linux_2018.6.0.8525

- Maestro | Designer    MaestroDesigner_2018.6.0.2748

- Maestro | Live        Maestro|Live 2018.6.0.61

                       11
3 Installation and Configuration

     In this section:
     •   Solution Overview
     •   Installing Avid Maestro | Virtual Set on Linux
     •   Installing Avid Maestro | Virtual Set on Windows

Solution Overview

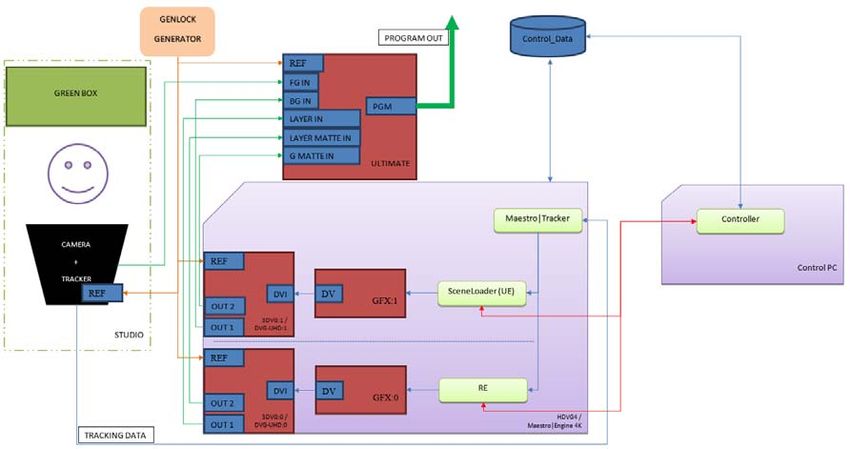

     The illustrations below present an overview of the entire Maestro | Virtual Set solution.

     Using Mixing Between Engines

     The following hardware components are used in the above Maestro | Virtual Set solution:
     •   Render Machine - HDVG4 or Maestro | Engine 4K
     •   External Chroma Key Device - ULTIMATE
     •   Camera + Tracker
     •   Genlock Generator
     •   Control_Data Server
     •   Control PC
HDVG4 render machine provides two renderers, separated by domains. Unreal Engine is only
responsible for background rendering. Its output is going into mixing source for Render Engine,
which adds the Augmented Reality objects, insertions, Garbage Matte etc. The output of the HDVG4
machine is mixed with the Background, the Foreground and Background Matte (also known as an
Alpha channel).

The output of the Render Machine (fill + key) is connected to an external ChromaKey which is
responsible for final mixing between Virtual Studio Background, Augmented Reality Foreground
and Camera Feed.

Independent engines - BG only from Unreal

The following hardware components are used in the above Maestro | Virtual Set solution:
•   Render Machine - HDVG4 or Maestro | Engine 4K
•   External Chroma Key Device - ULTIMATE
•   Camera + Tracker
•   Genlock Generator
•   Control_Data Server
•   Control PC

HDVG4 render machine provides two renderers separated by domains. The UE is only responsible
for background rendering. Its output is going directly to the Ultimate Chroma Key device as the
Background input (BG IN). The RE is adding Augmented Reality objects (LAYER IN), alpha
channels for them (LAYER MATTE IN) and dedicated Garbage Matte (G MATTE IN).

The output of the Render Machine is connected to the external ChromaKey which is responsible for
final mixing between the Virtual Studio Background, Augmented Reality Foreground and Camera
Feed.

                                               13
Independent engines - Garbage and AR from Unreal

The following hardware components are used in the above Maestro | Virtual Set solution:
•   Render Machine - HDVG4 or Maestro | Engine 4K
•   External Chroma Key Device - ULTIMATE
•   Camera + Tracker
•   Genlock Generator
•   Control_Data Server
•   Control PC

                                               14
The HDVG4 render machine provides two renderers separated by domains. The UE is responsible
       for the background, garbage and non opaque AR elements. Its outputs is going directly to the
       Ultimate Chroma Key device as the Background input (BG IN) and dedicated Garbage Matte (G
       MATTE IN). The RE is adding Augmented Reality objects (LAYER IN), and alpha channels for
       them (LAYER MATTE IN).

       The output of the Render Machine is connected to the external ChromaKey which is responsible for
       final mixing between Virtual Studio Background, Augmented Reality Foreground and Camera Feed.

Pre-installation checklist
       Before installing the Maestro | Virtual Set system, check Hardware and Software requirements listed
       in the Requirements chapter.

Installing Avid Maestro | Virtual Set on Linux
       This topic contains information on how to prepare a complete Maestro | Virtual Set Linux system.

Installing the Linux Environment
       This topic contains information on how to install the Linux environment for a Maestro | Virtual Set
       solution.

       To prepare the Linux environment:
        1. If you are working with a Maestro | Engine 4K machine, make sure the following BIOS version
           is installed: PHAEV083. If not, you need to upgrade BIOS:
           a.   Create a bootable USB flash drive.
           b. Download and unpack PHAEV083.zip\PHAEV083\DOS\ directory into [USBFlashDrive]/
              LOCATE/ directory.

           c.   Connect the USB flash drive to Maestro | Engine 4K machine and boot from the USB.

                                                       15
d. FreeDOS should be loaded. Go to LOCALE > cd LOCALE and execute flash.bat.

c   Do not remove the USB drive or unplug the power supply during the BIOS update!

        e.   Wait until the BIOS update is complete, disconnect the USB flash drive and restart the
             machine.
     2. Install CentOS 7.4 and configure it.
     3. Upgrade screen formats database file for libdvg-813.1-7.el7.centos.x86_64.
        a.   Copy scrfmts_unreal_59_50hz.tgz to /data/public/.
        b. Unpack the contents.
             cd /usr/dvg
             mv scrfmts scrfmts_old
             tar xfzv /data/public/scrfmts_unreal_59_50hz.tgz
        c.   Verify the md5 sum.
             md5sum scrfmts
             You should receive the following response:
             abd64114dd1a330f0c070761169edded             scrfmts
        d. Reboot the machine.
     4. If you don't have RAID yet, then create RAID10 for 4x 3.5'' HDDs for Clips.
        Use scripts create_raid_10_ver1_6.sh and remove_raid_ver1_4.sh for an automated creation
        of RAID-10.

n   After executing the creation script, the Clips share should be available through the samba share.

     5. Mount Control_Data.
     6. Make sure you have the following licenses: RE, VideoInputs, VideoMixer, VideoOutputs.
     7. If you are working with a Maestro | Engine 4K machine, check on which PCI slots the uhd
        boards are currently configured:
        lspci | grep -i orad
        03:00.0 Bridge: Orad Hi-Tec Systems Device 1980 (rev 0e)
        04:00.0 Bridge: Orad Hi-Tec Systems Device 1980 (rev 0e)
        85:00.0 Bridge: Orad Hi-Tec Systems Device 1980 (rev 0e)
        86:00.0 Bridge: Orad Hi-Tec Systems Device 1980 (rev 0e)
        Also, check the graphics cards:
        lspci | grep -i "gtx 1080"
        02:00.0 VGA compatible controller: NVIDIA Corporation GP104 [GeForce GTX
        1080] (rev a1)
        87:00.0 VGA compatible controller: NVIDIA Corporation GP104 [GeForce GTX
        1080] (rev a1)

                                                    16
8. If you are working with a Maestro | Engine 4K machine, edit the /etc/modprobe.d/
        modprobe.conf file and add:
       alias char-major-121 dvgg
       options dvgg major=121

       alias char-major-122 dvgh
       options dvgh major=122 only_busses=0x03,0x04

       alias char-major-123 dvgi
       options dvgi major=123 only_bus=0x85

n   Dvgh is used for domain 0 (RE > 0x03Main + 0x04Aux). Dvgi is used for domain 1 (UnrealEngine
    > 0x85Main)

     9. If you are working with a HDVG4 machine, check on which PCI slots the 3dvg boards are
        currently configured:
       lspci | grep -i orad
       03:00.0 Bridge: Orad Hi-Tec Systems Device 1979 (rev 12)
       82:00.0 Bridge: Orad Hi-Tec Systems Device 1979 (rev 12)
       Also, modify the modprobe.conf file and add the following line to improve the performance of
       the machine:
       options nvidia nv_pbo_cached=1
    10. Reboot the Maestro | Engine 4K or HDVG4 machine.

                                                 17
Installing Render Engine
       This topic contains information on how to install and configure Avid Render Engine on Linux.

  n    To the last input of main card of domain=0 (RE) you should put first output from domain=1 (UE) for
       the mixing purposes.

  c    Remove all RenderEngine_Linux instances from the Control PC before installing a new
       version.

       To install Render Engine on Linux:
        1. Install RenderEngine_Linux_2018.6.0.****.exe on the Linux machine.
        2. During the RenderEngine_Linux installation a new desktop icon for
           RenderEngineLinux_InstallationManagaer has been added. Double-click on the icon to open the
           Installation Manager.
        3. In the Installation Manager window, add a new host where Render Engine is to be installed.

        4. Select the required host and click on Install.

       To edit the start.sh file:
        1. Edit the start.sh file and add the following variables:
           setenv DVG_USE_XINIT
           setenv DVG_UNIFIED_OUTPUT_CLOCKING

                                                         18
2. Go to the set gfx_busses line and change it to your GFX buses (lspci | grep -i "gtx 1080"):
           set gfx_busses=( 2 87 )

    To edit the RE.xml file:
        1. Edit the RE.xml file and set the RE Layout to HDWithAlpha:
            HDVG4 Main):
    •      1080i@50Hz (SMPTE274_25I) or 59Hz,
    •      Add HDVG4 Main card + HDVG4 Grabber as aux card (AUX grabber only if you working with
           Maestro | Engine 4K),
    •      gfx optimized + pipeline, dual-link: 0, fill-only: 4 on main and 4 on aux,
    •      1 render channel, genlock analog, fields rendering + alpha,
    •      mixing activated, single mixer source checked, video processing enable ALL,
    •      HD Color Input: 8 (4 if HDVG4)
    •      outputs compositing

                                                          19
Installing Unreal Engine
       First, install the Maestro | Virtual Set Engine (MaestroVirtualSetEngine_2018.6.*.exe). Make sure
       you have the required license in place.

       To install Maestro | Virtual Set Engine for Linux:
        1. Select the “Complete” installation for the Maestro | Virtual Set Engine. This will install our
           Installation Manager for Linux machines on your Control PC.

        2. Run the Maestro VirtualSet Engine Installation Manager, add hosts where you want to install the
           Engine and click Install.

                                                            20
3. Generate license named MaestroVirtualSetEngine 2018.6 (usr/local/orad/license.dat).

   n     Without a valid license you will not be able to load any project to SceneLoader.

Configuration of Lens Distortion

         Then, configure the lens distortion as described below.

         Configuration of Lens Distortion

         There are two type of distortions implemented: Mode1(default) and Mode2. To change the used type
         of distortion, edit the Game.ini file.

         [/Script/AvidCamera.TrackedPawn]

         DistortionsType=Mode1

   n     Possible values: None, Mode1, Mode2.

                                                         21
When Mode 2 is selected, additional parameters need to be set:
•     EnlargeView: true or false
•     TexelsInCorner: true or false
•     TextureSize: integer value (power of two), default 32

Controlling of Lens Distortion

If you need to control lens distortions to match Render Engine, then you need to create an export in
the scene.

To control lens distortion:
    1. Go to the Blueprint Editor.
    2. Create an export.
    3. Add a TrackedPawn node.
    4. Grab “Set Polite Scale of Field of View” node from the Tracked Pawn.

    5. Create export.

    6. If in the RE.xml file you have the following info:

                                                   22
Then, using a controller send to this export value “1.12”.

Tracking with the Xync System
       This topic describes how to configure the Xync tracking for the Maestro | Virtual Set solution.

       To configure Xync tracking:
        1. Configure Xync by means of the Xync WebSettings with single tracking channel per target. For
           more information, see the Xync 2.0 User Guide.
        2. Inject channels in /data/WebSettings/modules/modXync/data/
           TrackingSet_.cfg/ on the Xync HDVG.

           Where:
           CHANNEL 1 is for Render Engine and should be configured the same in RE.xml file.
           CHANNEL 2 is for Unreal Engime and requires  (UE
           uses unicast connection for Tracking Data).
        3. Allow for proper multicast routing on Xync HDVG:
           route add -net 224.0.0.0 netmask 240.0.0.0 eth0

                                                       23
Installing Avid Maestro | Virtual Set on Windows
        This topic discusses the steps required to setup a complete Maestro | Virtual Set Windows
        environment.

Installing Maestro | Virtual Set
        This topic contains information on how to install the Maestro | Virtual Set components on Windows.

        To install Maestro | Virtual Set on Windows:
         1. Make sure you have the latest NVIDIA/AMD driver installed on system to run Unreal Engine.
         2. Make sure you have latest updates for the Microsoft Windows system.
         3. Register your account on https://www.unrealengine.com/.
         4. Download the Epic Launcher and Unreal Engine 4.19.2.
         5. Perform first run of Unreal Engine and close it.
         6. Download MaestroVirtualSetAuthoring_2018.6.*.exe and run the installer.

   n    Before installing a new MaestroVirtualSetAuthoring version, please uninstall all previous builds.

         7. Make sure you have the necessary license for MaestroVirtualSetPlugin 2018.6.

                                                        24
Post-installation Checklist
      Use the table below as a checklist for the configuration steps you have to perform after you have
      installed Maestro | Virtual Set.

b   Authoring         Licensing                        Plugins are correctly licensed by HASP

                      Create a project from Avid_Base Export:
                      template
                                                      • Export button creates a function for Export present in
                                                         cooked scene
                                                       •    Create RenderText object and link text to export
                                                            function
                                                       •    Check with 'Check' button if the export was
                                                            recognized
                                                       Animation:
                                                       •    Create a single object (e.g. Cone) and animate
                                                            position, e.g. with Matinee
                                                       •    Check with 'Check' button if the animation was
                                                            recognized

                      Cooking                          Deploying project (after save) compiles and copies
                                                       cooked scene to:
                                                       /Control_Data/Projecs/
                                                       - /
                                                       --
                                                       --- Scene/
                                                       --- scene_data.xml
                                                       -- .pak
                                                       -- .lst

b   Runtime           Licensing                        SceneLoader licensed by nodelock

                      Starting SceneLoader             •    SceneLoader starts and the log file was created in /
                                                            data/SceneLoader/SceneLoader/Saved/Logs/
                                                            SceneLoader.log and it shows it was started
                                                            successfully
                                                       •    SDI output becomes synced and black image appears

                      Scene load                       ReTalk3 command Scene.Load and
                                                       Viewport.ActivateScene make the scene visible on the
                                                       SDI output

                      Export control                   ReTalk3 command Export.Set on export prepared earlier
                                                       is updating the text value at runtime

                      Animation control                ReTalk3 command Animation.Play on animation
                                                       prepared earlier is playing the expected animation at
                                                       runtime

                                                       25
Tracking                 The rendered viewport is following the tracking data
                                           delivered by Maestro | Tracker

                  Scene unload             ReTalk3 command Viewport.DeactivateScene and
                                           Scene.Unload make the scene invisible on SDI output

                  Performance              No frames are lost; FPS is ~X where X is the frequency of
                                           the Video format
                                           •    either by console (needs keyboard)
                                           •    or by dedicated export (has to be created for a scene)

b   Controlling   Render Unit creation     Possible to create a Render Unit of Unreal type

                  Render Unit connection   Render Unit becomes green after connecting to
                                           SceneLoader

                  Scene load               ReTalk3 command Scene.Load and
                                           Viewport.ActivateScene make the scene visible on the
                                           SDI output

                  Export control           ReTalk3 command Export.Set on export prepared earlier
                                           is updating the text value at runtime

                  Animation control        ReTalk3 command Animation.Play on animation
                                           prepared earlier is playing the expected animation at
                                           runtime

                  Scene unload             ReTalk3 command Viewport.DeactivateScene and
                                           Scene.Unload make the scene invisible on SDI output

                  Render Unit reconnect    After disconnectin/reconnecting Render Units the
                                           behavior is unchanged

                                           26
4 Starting the Avid Maestro | Virtual Set System

      In this section:
      •      Render Engine
      •      Unreal Engine
      •      Controlling Maestro | Virtual Set

Render Engine
      Render Engine should be run on domain=0.

      To run Render Engine:
      t      Type the following command:
             cd /data/RE/bin;
             ./start.sh domain=0

  n   Render Engine will now generate an RE0.log instead of RE.log.

Unreal Engine
      Unreal Engine should be run on domain=1.

      To run Unreal Engine:
          1. Prepare the desktop. It will set the boardset format to the one which is saved in the
             HdvgCpProfile.xml generated from the Control Panel.
             cd /data/SceneLoader
             ./mstart.sh
There is visible mouse cursor after starting the SceneLoader. To remove it from the view, start
  the system with the -nocursor option:
  -   remove /usr/bin/X
  -   create text file /usr/bin/X:
  #!/bin/sh
  Xorg -nocursor $*
  -   add an executable flag to the file:
  chmod a+x /usr/bin/X
2. Update the configuration of SceneLoader:
  updateConfig.sh

                                              28
This commands updates the configuration file(s) stored in the default location (/data/
          SceneLoader/SceneLoader/) and uses the HdvgCpProfile.xml file from the default location (/
          Control_data/config/HdvgCpProfile.xml).
        3. Run SceneLoader with the following command:
          cd /data/SceneLoader/
          ./mstart.sh

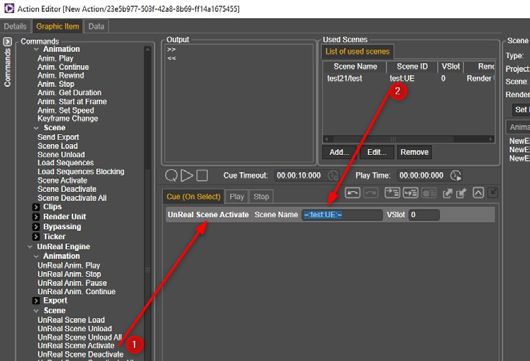

Controlling Maestro | Virtual Set
Controlling with PuTTy
       Open PuTTy, and Connect to UE/SceneLoader (HDVG machine):

                                                    29
Field                                              Value

         Host Name (or IP address)

         Port                                               8890

         Connection Type                                    Raw

ReTalk3 Commands: load/activate scene, set export, play animation, deactivate scene, unload scene

         Load Scene

         [1] Scene.Load(PathName="\Control_Data\Projects\Sample2018_6\Sample2018_6");

         Activate Scene

         [2] Viewport.ActivateScene(Canvas="Canvas1", Channel=1,
         Scene="\Control_Data\Projects\Sample2018_6\Sample2018_6");

         Set export

         [3] Export.Set(Scene="\Control_Data\Projects\Sample2018_6\Sample2018_6",
         Export="Cube_X", Value="0");

         In this example, the Set export command changes the visibility (true/false) of an object.

         Set export

         [4] Export.Set(Scene="\Control_Data\Projects\Sample2018_6\Sample2018_6",
         Export="Sphere_Scale", Value="5");

         In this example, the Set export command it moves the top-right object to an X,Y,Z position (vector).

         Run animation

         [5] Animation.Play(Scene="\Control_Data\Projects\Sample2018_6\Sample2018_6",
         Animation="MatineeActor_0");

                                                          30
Run animation

       [6] Animation.Play(Scene="\Control_Data\Projects\Sample2018_6\Sample2018_6",
       Animation="Anim_seq")

       Deactivate Scene

       [7] Viewport.DeactivateScene(Canvas="Canvas1", Channel=1);

       Deactivate Scene

       [8] Scene.Unload(PathName="\Control_Data\Projects\Sample2018_6\Sample2018_6");

Controlling with Maestro | Live
       You can control Maestro | Virtual Set scenes using the Avid Maestro | Live Controller.

       To work with Maestro | Live:
        1. Start the Maestro | Live Server.

        2. Go to: Devices > Render Unit Manager.

        3. Add an Unreal Engine device:
           a.   Enter a name and an UID for the device
           b. Enter the IP address of your HDVG machine.
           c.   Select Render Unit / Unreal as the device type.
           d. Set the Port number to 8890.
           e.   Enter the Canvas ID (Canvas1)

                                                       31
4. Close the Add device window and add three new actions to the Panel.

  In the Action Editor, attach the created actions to the Unreal Engine device you have created in
  Step 3 in the Details tab.

  In the Graphic Item tab, select the proper device and scene:

                                              32
5. Add UnReal Scene Activate to the Cue tab, add the scene to the “Scene Name” edit box in the
   Scene Activation action.

6. Add the appropriate actions to the Cue, Play and Stop tabs in all controls.

   Load/Activate/Unload: Cue: UnReal Scene Load; Play: UnReal Scene Activate; Stop: UnReal
   Scene Unload
   Animation Cube: Cue: -; Play: UnReal Anim. Play; Stop: UnReal Anim. Pause
   Animation Sphere:Cue: -; Play: UnReal Anim. Play; Stop: UnReal Anim. Pause
   Cube X Position: Cue: -; Play: UnReal Export Set; Stop: -
   Sphere 3D X,Y,Z Scale: Cue: -; Play: UnReal Export Set; Stop: -
7. The Unreal Device appears at the Devices bar at the bottom of the Maestro | Live Client window.
   Click to connect to the device. Once the connection is established, the device icon changes to
   green.
8. Load the graphics - the scene will be loaded within seconds.
9. Change the Maestro | Live mode to On Air so that you can control your Unreal Engine scene.

                                               33
5 Troubleshooting

      In this section:
      •   List of Useful Commands
      •   Installation Problems
      •   Configuration Problems
      •   Frequently Asked Questions

List of Useful Commands
      List All Users

      cut -d: -f1 /etc/passwd

      Remove a User

      userdel -r username

      Enable All Screen Messages

      ENABLEALLSCREENMESSAGES

      Disable All Screen Messages

      DISABLEALLSCREENMESSAGES

      Check the CentOS Version

      rpm --query centos-release

Unreal Engine Commands
      •   ENABLEALLSCREENMESSAGES
      •   DISABLEALLSCREENMESSAGES
      •   stat FPS
      •   stat UnitGraph
Installation Problems
     Problems Accessing the Network Location path_to_unreal

      1. Check Registry entries:
        -    Open the Registry Editor:

        -    Go to: HKEY_LOCAL_MACHINE\SOFTWARE\EpicGames\Unreal Engine\4.18

                                                 35
-   Make sure that the InstalledDirectoryy is pointing to a real, accessible location (even an
            empty folder).

    Problems with locating the version of installed Unreal Engine

    The MaestroVirtualSetAuthoring 2018.6 application requires UnrealEngine v4.19. If the version is
    already installed on the PC but not registered properly in the system (missing entries in Windows
    Registry):

    HKEY_LOCAL_MACHINE\SOFTWARE\EpicGames\Unreal Engine\4.19\InstalledDirectory

    uninstall it from the Epic Games Launcher and install it once again.

    Problems with installing MaestroVirtualEngine on Linux machines

c   The procedure described here applies only to the MaestroVirtualSetEngine_2018.6.120.exe
    version!

    The installer listed above may have problems with installing/updating packages on desired render
    machines.
    •   If you have installed this version on render machine A and you want to install it again on render
        machine B, then the installer automatically wants to remove packages from render machine A.
    •   Other problems may occur when you want to install this version on other render machines and
        one of the already set up render machines is unreachable in the network - the installer wants to
        remove it, but if it encounters connection problems then it fails and stops the installation.
    •   If you are going to install a new version of the application, the installer will try to first uninstall
        the previous version on all of the already installed render machines.

    To avoid these problems you need to edit windows registry key
    HKEY_LOCAL_MACHINE\SOFTWARE\Avid\MaestroVirtualSetLinux\HDVG and/or edit or
    remove the IP address.

                                                       36
Configuration Problems
     Used format is different than what is defined in the HDVGControlPanel

     When the host name is set to default instead of the actual HDVG host name, problems can occur.

     To successfully save the proper host name in the HDVGControlPanel, press Next after entering the
     correct host name and then press Save (two or more times).

                                                   37
Frequently Asked Questions
     My output is blinking! What can I do?

     Change genlock to DIGITAL instead of ANALOG.

     I cannot uninstall Maestro | Virtual Set from Linux! How to delete it completely?

     Go to /data/public/MaestroVirtualSet/2018.6.xxx/ and run the ./uninstall.sh script.

     Tracking is not matching between UE and RE and the camera feed. What can I do?

     This problem can be caused by a number of factors:
      1. Performance issues.
      2. Distortions settings
      3. Screen formats database in libdvg
      4. Floor level in Unreal

     To find solutions for problems listed above, see the Maestro | Virtual Set User Guide.
