LPN IoT Device Catalogue Low Power Network – LoRaWAN August 2021
Introduction The aim of this catalogue is to assist you with locating the right device for your specific IoT use case. Quality is important which is why the following catalogue is limited to devices that are Swisscom IoT qualified or pre-qualified. Note that the listed devices have been tested with regard to their radio compliance and not their end-to-end reliability. Swisscom does not endorse or take responsibility for the devices listed therein. The information displayed was provided by the respective device manufacturer. Devices that are not mentioned in this catalogue but comply with the LoRaWAN standard will still work with our Swisscom LPN LoRaWAN network though they may not have been tested thoroughly. If you are unable to find the right device for your use case in this catalogue or need support realizing your IoT project please contact us under Support.LPN@swisscom.com
Classification of a Device
Swisscom IoT Qualification Swisscom IoT Pre-Qualification
• Represents the highest recognition of quality in this • Represents a necessary requirement to be featured in
document regarding radio compliance and this catalogue.
performance. • Swisscom IoT Pre-Qualification provides end-users
• Part of the Europe wide Collective LoRaWAN® Device with confidence that the device is compliant with the
Qualification Program. Swisscom LPN.
• Obtained by successfully completing the LPN • Obtained by successfully completing the LPN
Interoperability tests, undergoing radio performance Interoperability tests.
tests and by using a LoRaWAN® CertifiedCM radio
module.
LoRa Alliance Certification
• Represents the completion of the certification
provided by the LoRa Alliance®.
• LoRa Alliance Certified devices provide end-users with
confidence that the communication module is
compliant with the LoRaWAN® specification.
• For more Info please visit the LoRaWAN website.
Devices Use Case Page Swisscom 5 Track & Trace 7 Environment Quality 20 Room Sensors 28 Level Sensor 34 Parking Sensors 38 Button 42 Door Sensor 46 Metering 48 Smart City 51 GPIO 54 Modules 58
Swisscom
LPN Multisense
Functionality
All functionalities can be configured in the cloud and sent to the device
using LoRaWAN transmissions. Each functionality can be activated or
deactivated seperately depending on the use-case:
Service button | Desk occupancy | Temperature & humidity | Movement & shock detection |
Reed / magnet / door sensor
Description
• Available Sensors/Actuators:
− Button
− Accelerometer
− Temperature & humidity (SHT31)
− Reed contact (magnet sensor)
• Dimensions: 80x35x13mm
• Weight: 50g
• IP Code: IP20
• Battery Type: Li-MnO2, 1200mAh
Supplier • Expected battery life*: 10 years
• Name: Swisscom (Schweiz) AG • Public payload: Yes
• Origin: Bern, Switzerland • Communication Module: CMWX1ZZABZ, Murata Manufacturing
• Provide Hardware only: Yes • LoRaWAN Spec. Version and Class: LoRaWAN® 1.0.3, Class A
• Provide own Application (Dashboard): No, but Data as a Service is available • Antenna Type: Ceramic on-chip antenna
(Device + Connectivity + Device Management) • Emitted Radiated Power (ERP): 12.9 dBm
• Qualified version: HW Rev02 / FW v02.00.0000
• Additional Info: Can be purchased from Swisscom including
5 Request Information Order from Swisscom
connectivity and device management services or as hardware-only.
*Expected battery life: lifetime with 1h uplink interval at SF7 according to supplier
Swisscom
Field Test Device
Functionality
Measures network reception parameters (RSSI, SNR) and displays them
on the LCD screen, to evaluate the network coverage. Default: Sends a
confirmed uplink every ten minutes and when button is pressed.
Description
• Available Sensors/Actuators:
− Temperature sensor
− Accelerometer
− GPS module
− LCD Display
• Dimensions: 180 x 72 x 21 mm
• Weight: 140 g
• IP Code: IP40
• Battery Type: Rechargeable Lithium 3.7 V, 2000 mAh
• Expected battery life*: 3 days
Supplier • Public payload: Yes
• Name: Adeunis • Communication Module: Proprietary, using the Semtech SX1272
• Origin: Crolles, France • LoRaWAN Spec. Version and Class: LoRaWAN® 1.0.1, Class A
• Local distribution: Swisscom, ShopOfThings.ch • Antenna Type: external antenna
• Provide Hardware only: Yes • Emitted Radiated Power (ERP): 14 dBm
• Provide own Application (Dashboard): No • Qualified version: RTU:1.4.0/APP:1.1.2
• Additional Info: Used to evaluate coverage quality. Can be
purchased directly from Swisscom here including connectivity for
6 Request Information Order from Swisscom
250 CHF.
*Expected battery life: lifetime with 1h uplink interval at SF7 according to supplier
Track & Trace
LPN Tracker
Functionality
Ideal for mounting onto construction machinery and containers of all
sorts. The LPN Tracker is very robust, protected as per the IP67-standard
and has a function time of over three years.
Description
• Available Sensors/Actuators:
− Accelerometer
− GPS module
− Sound sensor
• Dimensions: 16 x 9 x 3.8 cm
• Weight: 270g
• IP Code: IP67
• Battery Type: Li-MnO2, 7400 mAh
• Expected battery life*: 3-6 years
• Public payload: No
Supplier
• Communication Module: CMWX1ZZABZ, Murata Manufacturing
• Name: Tracker.ch
• LoRaWAN Spec. Version and Class: LoRaWAN® 1.0.2 revB, Class A
• Origin: Switzerland
• Antenna Type: SMD antenna
• Local distribution: Tracker.ch
• Qualified version: HW REV03.00 / FW V01.04.0001
• Provide Hardware only: On request
• Emitted Radiated Power (ERP): 13.05 dBm
• Provide own Application (Dashboard): Yes
7 Request Information
*Expected battery life: Calculated with 2-6 trips per day and SF7, according to supplier
Track & Trace
fflyTrack Myria
Functionality
Configurable via downlink. Firmware is customized upon purchase
based on the use case.
Description
• Available Sensors/Actuators:
− Temperature sensor
− Hall effect sensor
− Accelerometer
− BLE, WiFi, NFC modules
− GPS module
• Dimensions: 144 x 45.5 x 35.3 mm
• Weight: 150 g
• IP Code: IP69
• Battery Type: 2x AA Lithium 3.6 V, 5200 mAh
• Expected battery life*: 5 to 6 years
Supplier • Public payload: n/a
• Name: ffly4u • Communication Module: Proprietary, using the Semtech SX1272
• Origin: Toulouse, France • LoRaWAN Spec. Version and Class: LoRaWAN® 1.0.2 revB, Class A
• Local distribution: ffly4u • Antenna Type: Helicoidal antenna
• Provide Hardware only: No • Emitted Radiated Power (ERP): 14.12 dBm
• Provide own Application (Dashboard): Yes, including API • Qualified version: HW 18A020_V3_2 / FW 19A130200004
• Additional Info: Uses EDGE Artificial Intelligence
8 Request Information
*Expected battery life: lifetime depends on GPS usage according to supplier
Track & Trace
Micro Tracker
Functionality
Provides Low-power multi-technology geolocation enabling a wide
variety of LPWAN applications such as personal tracking with help
button, tracking and monitoring assets, Contact back-tracking,
proximity detection…
Description
• Available Sensors/Actuators:
− Accelerometer
− Atmospheric pressure (optional)
− Multitechnology geolocalisation (BLE/WIFI/GPS)
− Buzzer, LED, button
• Dimensions: 59 x 34 x 13 mm
• Weight: 21g
• IP Code: IP65
• Battery Type: Lithium-Polymer 450 mAh
• Expected battery life*: 1/4/6 months (GPS/LPGPS/WiFi)
Supplier • Public payload: Yes
• Name: Abeeway • Communication Module: Proprietary using Semtech SX1262
• Origin: France • LoRaWAN Spec. Version and Class: LoRaWAN® 1.0.2 revB, Class A
• Local distribution: Naegele Capaul, ShopOfThings.ch • Antenna Type: PCB antenna
• Provide Hardware only: Yes • Emitted Radiated Power (ERP): n/a
• Provide own Application (Dashboard): Abeeway Device Manager • Qualified version: FW 2.x & 3.x (BLE) / HW v3
• Additional info: Also available as smart badge and ATEX2
9 Request Information
*Expected battery life: lifetime with 5 positions +24 heartbeats per day according to supplier
Track & Trace
Compact Tracker
Functionality
Highly versatile multi-mode tracker with embedded sensors combining
GPS, Low-power GPS, Wi-Fi Sniffer, BLE and LoRaWANTM TDoA
geolocation technologies, supporting accurate outdoor & indoor
geolocation.
Description
• Available Sensors/Actuators:
− Accelerometer
− Atmospheric pressure (optional)
− Multitechnology geolocalisation (BLE/WIFI/GPS)
− Buzzer, button, reed switch
• Dimensions: 112 x 66 x 33 mm
• Weight: 190g
• IP Code: IP68, IK08
• Battery Type: 3x AA/3.6V Li-SOCl2 8100 mAh
• Expected battery life*: 3/8/10 years (GPS/LPGPS/WiFi)
Supplier • Public payload: Yes
• Name: Abeeway • Communication Module: Proprietary using Semtech SX1262
• Origin: France • LoRaWAN Spec. Version and Class: LoRaWAN® 1.0.2 revB, Class A
• Local distribution: ShopOfThings.ch • Antenna Type: Ceramic antenna
• Provide Hardware only: Yes • Emitted Radiated Power (ERP): n/a
• Provide own Application (Dashboard): Abeeway Device Manager • Qualified version: FW 2.x / HW v2
• Additional info: Also available as industrial tracker and ATEX2
10 Request Information
*Expected battery life: lifetime with 5 positions +24 heartbeats per day according to supplierTrack & Trace
Oyster
Functionality
Configurable via downlinks. Default: obtain a GPS position and
unconfirmed uplink every 12 hours when not moving. Once moving, get
a position and send an uplink every 10 min.
Description
• Available Sensors/Actuators:
− Accelerometer
− GPS module
• Dimensions: 108 x 86 x 31 mm
• Weight: 188 g
• IP Code: IP67
• Battery Type: 3x AA Lithium 1.5 V, 3400 mAh
• Expected battery life*: 1.5 years
• Public payload: Yes
• Communication Module: CMWX1ZZABZ, Murata Manufacturing
Supplier
• LoRaWAN Spec. Version and Class: LoRaWAN® 1.0.2 revB, Class A
• Name: Digital Matter
• Antenna Type: Tuned PCB antenna
• Origin: Bryanston, South Africa
• Emitted Radiated Power (ERP): 12.99 dBm
• Local distribution: None
• Qualified version: HW 1 / FW 2.3
• Provide Hardware only: Yes
• Provide own Application (Dashboard): Yes, including API
11 Request Information *Expected battery life: lifetime with 1h uplink interval at SF12, 18 s GPS TTFF, according to supplierTrack & Trace
Yabby
Functionality
Configurable via downlinks. Default: obtain a GPS position and
unconfirmed uplink every 12 hours when not moving. Once moving, get
a position and send an uplink every 10 min.
Description
• Available Sensors/Actuators:
− Accelerometer
− GPS module
• Dimensions: 85 x 63 x 24 mm
• Weight: 97 g
• IP Code: IP67
• Battery Type: 3x AA Lithium 1.5 V, 1200 mAh
• Expected battery life*: 1.5 years
• Public payload: Yes
• Communication Module: CMWX1ZZABZ, Murata Manufacturing
Supplier
• LoRaWAN Spec. Version and Class: LoRaWAN® 1.0.2 revB, Class A
• Name: Digital Matter
• Antenna Type: Tuned PCB antenna
• Origin: Bryanston, South Africa
• Emitted Radiated Power (ERP): n/a
• Local distribution: None
• Qualified version: HW 1 / FW 2.0
• Provide Hardware only: Yes
• Provide own Application (Dashboard): Yes, including API
12 Request Information *Expected battery life: lifetime with 6h uplink interval at SF12, 36 s GPS TTFF, according to supplierTrack & Trace
G62
Functionality
Configurable via downlinks. With GPIO connectors in addition to the
Yabby and Oyster GPS functionalities, can monitor run hours based on
the ignition input or accelerometer. External power supply 8-36V DC.
Description
• Available Sensors/Actuators:
− Accelerometer
− GPS module
− 1x Analog input, 1x Ignition input
− 2x Digital input, 1x Ditigal output
• Dimensions: 125 x 80 x 25 mm
• Weight: 171 g
• IP Code: IP67
• Battery Type: 1100mAh LiPo internal backup battery pack
• Expected battery life*: Few days (only backup)
Supplier
• Public payload: Yes
• Name: Digital Matter
• Communication Module: CMWX1ZZABZ, Murata Manufacturing
• Origin: Bryanston, South Africa
• LoRaWAN Spec. Version and Class: LoRaWAN® 1.0.2 revB, Class A
• Local distribution: None
• Antenna Type: Tuned PCB antenna
• Provide Hardware only: Yes
• Emitted Radiated Power (ERP): n/a
• Provide own Application (Dashboard): Yes, including API
• Qualified version: HW 1 / FW 2.4
13 Request Information *Expected battery life: lifetime with 6h uplink interval at SF12, 36 s GPS TTFF, according to supplierTrack & Trace
OmniTRACK
Functionality
Configurable via downlink. Predefined behavior by request. Default:
Alive message; Motion/Steady triggered notifications with separately
configurable LoRaWAN behavior; Rotation counting function for
tracking cable drum quantity.
Description
• Available Sensors/Actuators:
• Accelerometer
• Gyroscope
• Temperature sensor
• GPS module
• Dimensions: 128 x 50 x 53 mm
• Weight: 640 g
• IP Code: IP67
• Battery Type: 1x LiMnO2, 12600 mAh
• Expected battery life*: up to 10 years
Supplier • Public payload: Yes
• Name: Omniimpex GmbH • Communication Module: Proprietary, using the Semtech SX127x
• Origin: Luzern, Switzerland • LoRaWAN Spec. Version and Class: LoRaWAN® 1.0.1 revB, Class A
• OEM: eSenseLab LTD, Bulgaria • Antenna Type: Stamped meander line antenna
• Local distribution: Omniimpex GmbH • Emitted Radiated Power (ERP): n/a
• Provide Hardware only: Yes • Qualified Version: HW1.60 / SW1.01
• Provide own Application (Dashboard): no
14 Request Information *Expected battery life: lifetime with 1h uplink interval at SF7 according to supplierTrack & Trace
GPS Tracker
Functionality
Equipped with a motion sensor, the tracker provides its location every 4
hours when standing still and at a configurable frequency while moving.
The location data is made available on a mobile application, a dedicated
dashboard or through a private API.
Description
• Available Sensors/Actuators:
− WiFi module
− BLE module
− Button
− Accelerometer
− Buzzer
• Dimensions: 105 x 27 x 9.5 mm
• Weight: 30 g
• IP Code: IP33
• Battery Type: Rechargeable Lithium 3.7 V, 300mAh
Supplier • Expected battery life*: 1 to 8 months
• Public payload: No
• Name: INVOXIA
• Communication Module: Proprietary, using the Semtech SX1272
• Origin: Issy-les-Moulineaux, France
• LoRaWAN Spec. Version and Class: LoRaWAN® 1.0.2 revB, Class A
• Local distribution: BRACK.CH, Digitec Galaxus
• Antenna Type: Ceramic chip antenna
• Provide Hardware only: No
• Emitted Radiated Power (ERP): n/a
• Provide own Application (Dashboard): Yes, mobile app
• Qualified version: HW 3 / FW 2.1
• Additional Info: Location tracking (GPS, WiFi, Bluetooth based),
15 Request Information geofencing capabilities, movement alerts.
*Expected battery life: lifetime depends on GPS usage according to supplierTrack & Trace
miro Nomad
Functionality
Universal LoRaWAN GPS tracking device with solar harvester for almost
unlimited lifetime. Its small size and ultra-low weight including
accelerometer, gyroscope, magnetometer, pressure and magnet sensor
make it ideal for wildlife, livestock tracking and monitoring applications.
Description
• Available Sensors/Actuators:
− GPS
− Accelerometer, gyroscope
− Magnetometer, magnet sensor
− Pressure
• Dimensions: 28 x 21 x 18 mm
• Weight: 12g/4g with optimized housing & battery
• IP Code: IP67
• Battery Type: LiPo 3.7V 50mAh
• Expected battery life*: unlimited
Supplier • Public payload: Yes
• Communication Module: Semtech SX1262
• Name: Miromico AG
• LoRaWAN Spec. Version and Class: LoRaWAN 1.0.3 Class A
• Origin: Zürich, Switzerland
• Antenna Type: Whip
• Local distribution: Miromico AG
• Emitted Radiated Power (ERP): n/a
• Provide Hardware only: Yes
• Qualified version: FW 5.6.2 / HW 2.0
• Provide own Application (Dashboard): Optional
16 Request Information
*Expected battery life: lifetime with 48 messages/day on SF12, regular sunlight, according to supplierTrack & Trace
miro Cargo
Functionality
Powerful and flexible LoRaWAN GPS tracking device combining an
accelerometer, temperature, humidity, pressure and magnet sensor into
one compact device. The IP67-rated industrial housing with mounting
options allows the device to be operated in a harsh environment.
Description
• Available Sensors/Actuators:
− GPS
− Accelerometer
− Temperature, humidity, pressure
− Magnetic sensor
• Dimensions: 89 x 79 x 33 mm
• Weight: 130g
• IP Code: IP67
• Battery Type: 2 x 1.5V AA Battery
• Expected battery life*: 6 months
Supplier • Public payload: Yes
• Name: Miromico AG • Communication Module: FMLR-72-U-STL0Z-4M
• Origin: Zürich, Switzerland • LoRaWAN Spec. Version and Class: LoRaWAN 1.0.3 Class A
• Local distribution: Miromico AG • Antenna Type: Copper spring
• Provide Hardware only: Yes • Emitted Radiated Power (ERP): n/a
• Provide own Application (Dashboard): Optional • Qualified version: FW 5.6.2 / HW 2.1
17 Request Information
*Expected battery life: lifetime with 48 messages/day on SF12, according to supplierTrack & Trace
ioTracker 3
Functionality
Sends by default, when moving an uplink every 10 min with sensordata,
including detected WiFi SSIDS and BLE UUIDS and 30 min in non-moving
situations. Location is determined on the application layer using
(Google) geolocation API. GPS can be activated on demand.
Description
• Available Sensors/Actuators:
− Accelerometer with optional g-shock detection
− Temperature sensor, light sensor
− Air pressure, humidity sensor (optional)
− Button, Buzzer, full color LED
− GPS, WiFi & BLE modules
• Dimensions: 57 X 33 X 18 mm
• Weight: 39 g incl. battery
• IP Code: IP68
• Battery Type: ½ AA, 1200 mAh
• Expected battery life*: 5 years
Supplier
• Public payload: Yes
• Name: IoThings • Communication Module: Proprietary, using the Semtech SX1261
• Origin: Hegelsom, Netherlands • LoRaWAN Spec. Version and Class: LoRaWAN® 1.0.3, Class A
• Local distribution: None • Antenna Type: PCB antenna
• Provide Hardware only: Yes • Emitted Radiated Power (ERP): 8.5 dBm
• Provide own Application (Dashboard): Yes, including API • Additional Info: Configurable via LoRa downlink and BLE (App), can
be used for indoor and outdoor tracking.
18 Request Information
*Expected battery life: lifetime with 1h uplink interval at SF7 according to supplierTrack & Trace
Pet Tracker
Functionality
The tracker provides its location every 4 hours when standing still and at
a configurable frequency while moving. The product allows for pet's
activity detection (such as sleep, distance, food intake). The relevant
data is made available on a companion mobile application.
Description
• Available Sensors/Actuators:
− WiFi, BLE modules
− Button
− Accelerometer
− Buzzer
• Dimensions: 42 X 24 X 17 mm
• Weight: 15 g
• IP Code: IP67
• Battery Type: Rechargeable Lithium, 250 mAh
• Expected battery life*: 1 to 3 months
Supplier
• Public payload: No
• Name: INVOXIA • Communication Module: Proprietary, using the Semtech SX1272
• Origin: Issy-les-Moulineaux, France • LoRaWAN Spec. Version and Class: LoRaWAN® 1.0.2 revB, Class A
• Local distribution: BRACK.CH, Digitec Galaxus • Antenna Type: Ceramic chip antenna
• Provide Hardware only: No • Emitted Radiated Power (ERP): n/a
• Provide own Application (Dashboard): Yes, mobile app • Qualified version: HW 1 / FW 4.22.1
• Additional Info: Location tracking (GPS, Wifi, Bluetooth based),
activity tracking, geofencing capabilities, movement alerts.
19 Request Information
*Expected battery life: lifetime depends on GPS usage according to supplierEnvironment
Quality

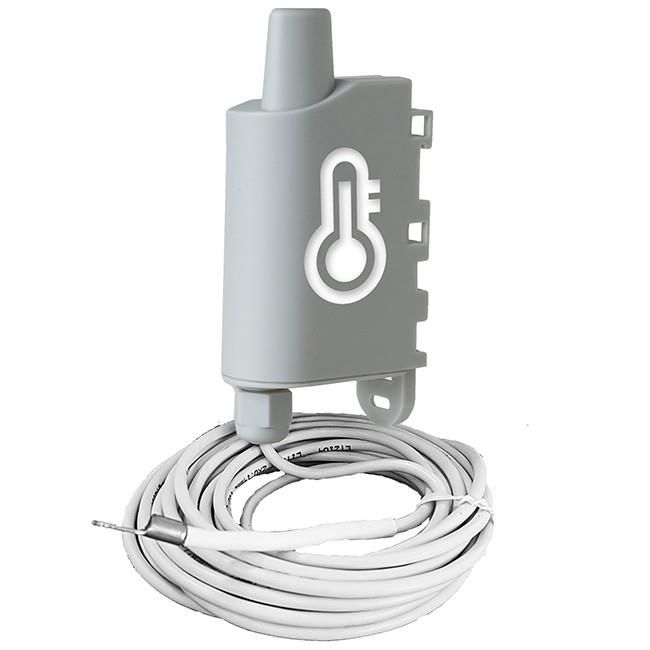

TEMP 3
Functionality
Configurable via AT commands, downlink or smartphone/PC via USB
and the application -IoT Configurator. Default: Sends an unconfirmed
uplink every hour including both ambient and external temperatures.
Description
• Available Sensors/Actuators:
− 2x External temperature sensor (ambient or contact)
• Dimensions: 105 x 50 x 27 mm
• Weight: 130 g
• IP Code: IP67
• Battery Type: AA Li-SOCl2, 2600 mAh
• Expected battery life*: 10 years
• Public payload: Yes
• Communication Module: Proprietary, using the Semtech SX1272
• LoRaWAN Spec. Version and Class: LoRaWAN® 1.0.2 revB, Class A
Supplier
• Antenna Type: PCB antenna
• Name: Adeunis
• Emitted Radiated Power (ERP): 14 dBm
• Origin: Crolles, France
• Qualified version: RTU 1.7.3 / APP 1.3.9
• Local distribution: ShopOfThings.ch
• Additional Info: Available in a double external sensor version
• Provide Hardware only: Yes
• Provide own Application (Dashboard): No
20 Request Information
*Expected battery life: lifetime with 1h uplink interval at SF7 according to supplierEnvironment
Quality
LoRa SPY
Functionality
Configurable via proprietary dongle. Default: Sends an unconfirmed
uplink every 15 min.
Description
• Available Sensors/Actuators:
• Temperature sensor
• Relative humidity sensor
• Ambient light sensor
• Button, LCD display
• Dimensions: 87 X 64 X 25 mm
• Weight: 100 g
• IP Code: IP68
• Battery Type: 1x AA Li-SOCl2 3.6 V, 2600 mAh
• Expected battery life*: 4 years
Supplier • Public payload: No
• Name: JRI • Communication Module: Proprietary, using the Semtech SX1272
• Origin: Fesches le Châtel, France • LoRaWAN Spec. Version and Class: LoRaWAN® 1.0.2 revB, Class A
• Local distribution: IGZ Instruments AG • Antenna Type: Printed antenna
• Provide Hardware only: No • Emitted Radiated Power (ERP): n/a
• Provide own Application (Dashboard): Yes, including API • Qualified version: HW E / FW 1.24
• Additional Info: External probe version available
21 Request Information *Expected battery life: lifetime with 1h uplink interval at SF7 according to supplierEnvironment
Quality
PRiOT Filter Monitoring (FiMo)
Functionality
Every 30 minutes the device sends an unconfirmed uplink containing all
the measurement data, which provides information about the degree of
pollution of the air filter as well as the indoor climate.
Description
• Available Sensors/Actuators:
− Temperature
− Humidity
− Differential pressure
• Dimensions: 8.4 x 5.3 x 3.8 cm
• Weight: 120g
• IP Code: IP30
• Battery Type: LR6 / AA 2500 mAh
• Expected battery life*: > 8 years
• Public payload: No
Supplier
• Communication Module: CMWX1ZZABZ, Murata
• Name: PRiOT AG • LoRaWAN Spec. Version and Class: LoRaWAN® 1.0.2 revB, Class A
• Origin: Burgdorf, Schweiz • Antenna Type: Tuned PCB antenna
• Local distribution: PRiOT AG • Emitted Radiated Power (ERP): 12.1 dBm
• Provide Hardware only: No • Qualified version: FW 1.3 / HW 1.0.8
• Provide own Application (Dashboard): Yes
22 Request Information
*Expected battery life: lifetime with 1h uplink interval at SF7 according to supplierEnvironment
Quality
DL-LP8P
Functionality
Device is configurable via downlink and command line interface, sends
data with published, compact payload format. Measurements are taken
every 10 s, an unconfirmed uplink containing the mean value of the
measurements is sent every 10 minutes.
Description
• Available Sensors/Actuators:
• CO2 sensor
• Temperature sensor
• Relative humidity sensor
• Barometer
• Dimensions: 122 X 81 X 67 mm
• Weight: 376 g
• IP Code: IP20
• Battery Type: 2x C (LR14) Alkaline, 8000 mAh
• Expected battery life*: 12.5 years
Supplier • Public payload: Yes
• Name: Decentlab GmbH • Communication Module: RN2483A, Microchip Technology Inc.
• Origin: Zürich, Switzerland • LoRaWAN Spec. Version and Class: LoRaWAN® 1.0.2 revB, Class A
• Local distribution: Decentlab GmbH, ShopOfThings.ch • Antenna Type: PCB antenna
• Provide Hardware only: Yes • Emitted Radiated Power (ERP): 13.9 dBm
• Provide own Application (Dashboard): Yes, including API • Qualified version: FW 1.4.5 / HW DLR.2.0.0
23 Request Information *Expected battery life: lifetime with 1h uplink interval at SF7 according to supplierEnvironment
Quality
Surface Temperature Sensor
Functionality
Device is configurable via downlink and command line interface, sends
data with published, compact payload format. Measurements are taken
every 10 minutes, an unconfirmed uplink containing the mean value of
the measurements is sent every 10 minutes.
Description
• Available Sensors/Actuators:
• Infrared pyrometer
• Dimensions: 122 X 81 X 67 mm
• Weight: 446 g
• IP Code: IP67, sensor probe IP63
• Battery Type: 2x C (LR14) Alkaline, 8000 mAh
• Expected battery life*: 15.3 years
• Public payload: Yes
• Communication Module: RN2483A, Microchip Technology Inc.
• LoRaWAN Spec. Version and Class: LoRaWAN® 1.0.2 revB, Class A
Supplier
• Antenna Type: PCB antenna
• Name: Decentlab GmbH
• Emitted Radiated Power (ERP): 13.9 dBm
• Origin: Zürich, Switzerland
• Qualified version: FW 1.4.5 / HW DLR.2.0.0
• Local distribution: Decentlab GmbH, ShopOfThings.ch
• Provide Hardware only: Yes
• Provide own Application (Dashboard): Yes, including API
24 Request Information *Expected battery life: lifetime with 1h uplink interval at SF7 according to supplierEnvironment
Quality
DL-TRS12
Functionality
Device is configurable via downlink and command line interface, sends
data with published, compact payload format. Measurements are taken
every 10 minutes, an unconfirmed uplink containing the mean value of
the measurements is sent every 10 minutes.
Description
• Available Sensors/Actuators:
• Volumetric water content sensor
• Temperature sensor
• Bulk electrical conductivity sensor
• Dimensions: 135 X 81 X 70 mm
• Weight: 446 g
• IP Code: IP67, sensor probe IP67
• Battery Type: 2x C (LR14) Alkaline, 8000 mAh
• Expected battery life*: 15.3 years
• Public payload: Yes
Supplier
• Communication Module: RN2483A, Microchip Technology Inc.
• Name: Decentlab GmbH • LoRaWAN Spec. Version and Class: LoRaWAN® 1.0.2 revB, Class A
• Origin: Zürich, Switzerland • Antenna Type: PCB antenna
• Local distribution: Decentlab GmbH, ShopOfThings.ch • Emitted Radiated Power (ERP): 13.9 dBm
• Provide Hardware only: Yes • Qualified version: FW 1.4.5 / HW DLR.2.0.0
• Provide own Application (Dashboard): Yes, including API
25 Request Information *Expected battery life: lifetime with 1h uplink interval at SF7 according to supplierEnvironment
Quality
LPN CM-3
Functionality
Temperature sensor for various condition monitoring applications.
Measurement settings and sending intervals can be configured in many
ways. With IP65 case to withstand rough environmental conditions.
Description
• Available Sensors/Actuators:
− Temperature (external probe)
• Dimensions: 9 x 8 x 5 cm
• Weight: 152g
• IP Code: IP65
• Battery Type: 1x AA LiMnO2
• Expected battery life*: 10 years
• Public payload: Yes
• Communication Module: CMWX1ZZABZ, Murata Manufacturing
• LoRaWAN Spec. Version and Class: LoRaWAN® 1.0.2 revB, Class A
Supplier
• Antenna Type: SMD antenna
• Name: comtac
• Emitted Radiated Power (ERP): n/a
• Origin: Switzerland
• Qualified version: FW V00.02.0000 / HW REV02
• Local distribution: comtac
• Provide Hardware only: Yes
• Provide own Application (Dashboard): No
26 Request Information
*Expected battery life: lifetime with 1h uplink interval at SF7 according to supplierEnvironment
Quality
WISE-2410
Communication Behavior
WISE-2410 uses a 3-axis composite measurement to collect 8 different
vibration values, including the velocity and displacement with ISO10816
for immediately diagnosis on industrial machines.
Description
• Available Sensors/Actuators:
− Vibration sensor (3-Axis Accelerometer)
− Temperature sensor
• Dimensions: 84.7 x 48.3 x 40.2 mm
• Weight: 480 g
• IP Code: IP66
• Battery Type: Primary battery (3.7V, AA)
• Expected battery life*: 2.11 years
• Public payload: Yes
• Communication Module: Proprietary, using the Semtech SX1276
Supplier
• LoRaWAN Spec. Version and Class: LoRaWAN® 1.0.2revB, Class A
• Name: Advantech • Antenna Type: external antenna
• Origin: Taiwan • Emitted Radiated Power (ERP): n/a
• Local distribution: Trigon AG • Qualified version: FW A1.10 B02/ HW 19A3DE1001-01
• Provide Hardware only: Yes
• Provide own Application (Dashboard): Yes
27 Request Information *Expected battery life: lifetime with 1 uplink per hour at SF7 according to supplierRoom Sensors
Elsys ERS
Functionality
Configurable via NFC or downlink. Default: Samples sensor data every
hour and sends an unconfirmed uplink.
Description
• Available Sensors/Actuators:
− Temperature & humidity sensor
− Motion sensor (PIR)
− CO2 sensor
− Directed Occupancy
− Microphone (peak and average)
• Dimensions: 86 x 86 x 26 mm
• Weight: 60 g
• IP Code: IP30
• Battery Type: 2 x AA Lithium 3.6 V, 5400 mAh
Supplier • Expected battery life*: 10 years
• Name: Elsys • Public payload: Yes
• Origin: Umeå, Sweden • Communication Module: Proprietary, using the Semtech SX1272
LoRaWAN Spec. Version and Class: LoRaWAN® 1.0.3, Class A
• Local distribution: 1Swiss1, HOOC, Rotiot, ShopOfThings.ch
• Antenna Type: PCB antenna
• Provide Hardware only: Yes
• Emitted Radiated Power (ERP): 10.75 dBm
• Provide own Application (Dashboard): No
• Qualified version: FW 2 / HW rev F
28 Request Information *Expected battery life: lifetime with 1h uplink interval at SF7 according to supplierRoom Sensors
miro Insight
Functionality
The battery-powered miro Insight features configurable multi-sensor
measurements of temperature, humidity, CO2 for many indoor use
cases. Besides having a small and straightforward design that will fit in
various places, the device has a long battery life and easy maintenance.
Description
• Available Sensors/Actuators:
− Temperature
− Humidity
− CO2
• Dimensions: 80x70x17.2mm
• Weight: 40g
• IP Code: IP50
• Battery Type: 2 x 1.5V AA Battery
• Expected battery life*: 10 years
• Public payload: Yes
Supplier • Communication Module: FMLR-72-P-STL0Z-4M
• Name: Miromico AG • LoRaWAN Spec. Version and Class: LoRaWAN 1.0.3 Class A
• Origin: Zürich, Switzerland • Antenna Type: Copper spring
• Local distribution: Avnet Silica, Computer Controls, Glyn • Emitted Radiated Power (ERP): 13.9 dBm
• Provide Hardware only: Yes • Qualified version: FW 1.3/ HW 7
• Provide own Application (Dashboard): No
29 Request Information
*Expected battery life: lifetime with 96 messages/day on SF7, according to supplierRoom Sensors
EASYPROTECT Radio
Functionality
The EASY PROTECT smoke detector is specially developed for use in
remote reading systems and offers optimum protection. The remote
inspection possibility saves time and money for on-site device
inspection.
Description
• Available Sensors/Actuators:
− Remote monitoring only
• Dimensions: Ø 130 mm x 40mm
• Weight: 200g
• IP Code: IP41
• Battery Type: 3V Lithium, 2400 mAh
• Expected battery life*: 10 years
• Public payload: Yes
• Communication Module: Proprietary, using Semtech SX1276
• LoRaWAN Spec. Version and Class: LoRaWAN® 1.0.2 revB, Class A
Supplier
• Antenna Type: Internal antenna (wire)
• Name: ZENNER International GmbH & Co. KG
• Emitted Radiated Power (ERP): 10.5 dBm
• Origin: Germany
• Qualified version: FW 2.0 / HW 2.2
• Local distribution: ZENNER International GmbH & Co. KG
• Additional Info: DIN EN 14604 approved
• Provide Hardware only: Yes
• Provide own Application (Dashboard): No
30 Request Information
*Expected battery life: lifetime with 1-day uplink interval at SF12 according to supplierRoom Sensors
OY 1110
Functionality
Measures temperature and humidity, with a maintenance free lifetime
of 10 years at a 5-minute measurement interval. Easy to use,
configurable over the air and stylish in design to fit into indoor spaces.
Description
• Available Sensors/Actuators:
• Temperature sensor
• Relative humidity sensor
• Dimensions: 65 x 75 x 28 mm
• Weight: 75 grams
• IP Code: IP30
• Battery Type: Li-SoCl2 3.6 Ah
• Expected battery life*: 10 years
• Public payload: Yes
• Communication Module: Proprietary, using the Semtech SX1272
Supplier
• LoRaWAN Spec. Version and Class: LoRaWAN® 1.0.2 revB, Class A
• Name: Talkpool • Antenna Type: PCB antenna
• Origin: Kungsbacka, Sweden • Emitted Radiated Power (ERP): n/a
• Local distribution: Talkpool • Qualified version: FW d0981d+d71c218 / HW R2.1
• Provide Hardware only: Yes
• Provide own Application (Dashboard): optional
31 Request Information *Expected battery life: lifetime with 5 min uplink interval at SF7 according to supplierRoom Sensors
Indoor Ambience Monitor
Functionality
Device is configurable via downlink and command line interface, sends
data with published, compact payload format. Measurements are taken
every 10 s, an unconfirmed uplink containing the mean value of the
measurements and counted PIR values are sent every 10 minutes.
Description
• Available Sensors/Actuators:
• CO2 sensor, TVOC sensor
• Temperature sensor
• Relative humidity sensor
• Barometer
• Ambient light sensor
• Motion sensor (PIR)
• Dimensions: 120 X 80 X 27 mm
• Weight: 144 g
• IP Code: IP20
Supplier • Battery Type: 2x AA Alkaline, 3000 mAh
• Name: Decentlab GmbH • Expected battery life*: 1.5 years, 2.7 if TVOC disabled
• Origin: Zürich, Switzerland • Public payload: Yes
• Local distribution: Decentlab GmbH, ShopOfThings.ch • Communication Module: RN2483A, Microchip Technology Inc.
• Provide Hardware only: Yes • LoRaWAN Spec. Version and Class: LoRaWAN® 1.02 revB, Class A
• Provide own Application (Dashboard): Yes, including API • Antenna Type: PCB antenna
• Emitted Radiated Power (ERP): 13.9 dBm
• Qualified version: FW 1.5.0 / HW DLR.3.1
32 Request Information
*Expected battery life: lifetime with 1h uplink interval at SF7 according to supplierRoom Sensors
IOTSU L3 AQ05
Functionality
IOTSU ® AQ05 is a wireless indoor device that measures air quality,
assessed as a combination of temperature, humidity and the
concentration of carbon dioxide (CO2).
Description
• Available Sensors/Actuators:
− Temperature
− Humidity
− CO2
• Dimensions: 63 x 114 x 30 mm
• Weight: 117g
• IP Code: IP30
• Battery Type: Size C battery 5500 mAh
• Expected battery life*: 9.7 years
• Public payload: Yes
Supplier
• Communication Module: Murata CMWX1ZZABZ
• Name: Small Data Garden Ltd • LoRaWAN Spec. Version and Class: LoRaWAN® 1.0.3, Class A
• Origin: Finland • Antenna Type: PCB antenna
• Local distribution: none • Emitted Radiated Power (ERP): n/a
• Provide Hardware only: Yes • Qualified version: FW 1.3.0 / HW 1.2
• Provide own Application (Dashboard): no
33 Request Information
*Expected battery life: lifetime with 2h uplink interval at SF12 according to supplierLevel Sensor
Syren II
Functionality
Configurable via downlink. Default: Sends an unconfirmed uplink every
4 hours. Ultrasonic measurements are taken every hour.
Description
• Available Sensors/Actuators:
− Ultrasonic sensor
− Temperature sensor
− Accelerometer
• Dimensions: 133 x 112 x 46 mm
• Weight: 430 g
• IP Code: IP69K
• Battery Type: 1x C Li-SOCl2 3.6 V, 7700 mAh
• Expected battery life*: 12 years;
• Public payload: Yes, after NDA signature
Supplier
• Communication Module: Proprietary, using the Semtech SX1272
• Name: BH Technologies • LoRaWAN Spec. Version and Class: LoRaWAN® 1.0.2 revB, Class A
• Origin: Grenoble, France • Antenna Type: PCB antenna
• Local distribution: BH Technologies • Emitted Radiated Power (ERP): 12.5 dBm
• Provide Hardware only: No • Qualified version: FW 2.3.2 / HW F
• Provide own Application (Dashboard): Yes, including API
34 Request Information *Expected battery life: lifetime with 1h uplink interval at SF7 according to supplierLevel Sensor
ADT1-Tube & ADT1-Box
Functionality
The ADT1 is a maintenance-free, battery operated, waterproof,
autonomous IoT pressure gauge. The device is configurable via downlink
or USB interface. The device sends unconfirmed measurement uplinks
every 10 minutes.
Description
• Available Sensors/Actuators:
− External pressure / level sensor
− Temperature sensor, water conductivity (optional)
− Barometer, temperature, humidity (integrated)
• Dimensions: Tube: Ø 38 x 165 mm / Box: 162 x 82x 55 mm
• Weight: Tube: 600 g / Box: 350 g
• IP Code: IP 67
• Battery Type: 3 x AA Energizer L91 Ultimate Lithium, 3300 mAh
• Expected battery life*: > 5 years
• Public payload: Yes
Supplier
• Communication Module: Murata CMWX1ZZABZ-093
• Name: KELLER AG für Druckmesstechnik • LoRaWAN Spec. Version and Class:
• Origin: Winterthur, Switzerland • Antenna Type: External antenna connector (SMA)
• Local distribution: KELLER AG für Druckmesstechnik • Emitted Radiated Power (ERP): 12.25 dBm
• Provide Hardware only: Yes • Qualified version: FW 20.10 / HW 1.0
• Provide own Application (Dashboard): Yes
35 Request Information
*Expected battery life: lifetime with 144 uplinks per day at SF7 according to supplierLevel Sensor
Ultrasonic Distance/Level Sensor
Functionality
Device is configurable via downlink and command line interface, sends
data with published, compact payload format. Measurements are taken
every 10 minutes, an unconfirmed uplink containing the mean value of
the measurements is sent every 10 minutes.
Description
• Available Sensors/Actuators:
• Ultrasonic sensor
• Dimensions: 170 X 81 X 70 mm
• Weight: 448 g
• IP Code: IP67
• Battery Type: 2x C (LR14) Alkaline, 8000 mAh
• Expected battery life*: 12.5 years
• Public payload: Yes
• Communication Module: RN2483A, Microchip Technology Inc.
• LoRaWAN Spec. Version and Class: LoRaWAN® 1.0.2 revB, Class A
Supplier
• Antenna Type: PCB antenna
• Name: Decentlab GmbH
• Emitted Radiated Power (ERP): 13.9 dBm
• Origin: Zürich, Switzerland
• Qualified version: FW 1.4.5 / HW DLR.2.0.0
• Local distribution: Decentlab GmbH, ShopOfThings.ch
• Provide Hardware only: Yes
• Provide own Application (Dashboard): Yes, including API
36 Request Information *Expected battery life: lifetime with 1h uplink interval at SF7 according to supplierLevel Sensor
Liquid Level and Temperature Sensor
Functionality
Device is configurable via downlink and command line interface, sends
data with published, compact payload format. Measurements are taken
every 10 minutes, an unconfirmed uplink containing the mean value of
the measurements is sent every 10 minutes.
Description
• Available Sensors/Actuators:
• Pressure sensor
• Temperature sensor
• Dimensions: 122 X 81 X 67 mm
• Weight: 840 g
• IP Code: IP67
• Battery Type: 2x C (LR14) Alkaline, 8000 mAh
• Expected battery life*: 15.3 years
• Public payload: Yes
• Communication Module: RN2483A, Microchip Technology Inc.
Supplier
• LoRaWAN Spec. Version and Class: LoRaWAN® 1.0.2 revB, Class A
• Name: Decentlab GmbH • Antenna Type: PCB antenna
• Origin: Zürich, Switzerland • Emitted Radiated Power (ERP): 13.9 dBm
• Local distribution: Decentlab GmbH, ShopOfThings.ch • Qualified version: FW 1.4.5 / HW DLR.2.0.0
• Provide Hardware only: Yes
• Provide own Application (Dashboard): Yes, including API
37 Request Information *Expected battery life: lifetime with 1h uplink interval at SF7 according to supplierSmart Parking
Parking Lot Sensor (PLS)
Communication Behavior
The Bosch Parking Lot Sensor detects and reports parking space
occupancy with highest reliability. Its self-learning algorithm allows the
sensor to work autonomously without the need for any human
interaction after simply gluing it on the ground.
Description
• Available Sensors/Actuators:
• Magnetometer
• Radar
• Temperature
• Dimensions: 14,4 x 3,05 cm
• Weight: 191g
• IP Code: IP67 / IPx9K
• Battery Type: Li-SOCl2 + Super Pulse Capacitor
• Expected battery life*: 3.5 - 5 years
• Public payload: Yes
Supplier
• Communication Module: Proprietary Implementation with SX1272
• Name: Bosch Connected Solutions • LoRaWAN Spec. Version and Class: LoRaWAN® 1.0.2 revB, Class A
• Origin: Reutlingen, Germany • Antenna Type: Ceramic
• Local distribution: ShopOfThings.ch • Emitted Radiated Power (ERP): 11 dBm
• Provide Hardware only: Yes • Qualified version: FW 0.29.2 / HW R6
• Provide own Application (Dashboard): No
38 Request Information
*Expected battery life: 48 Events, 1 reset, 1 join, 1 heartbeat / day @ SF10 according to supplierParking Sensor
PlacePod
Functionality
Configurable via BLE. Sends unconfirmed keep alive uplink every hour
when vacant. Unconfirmed uplink event triggered by change in status,
vacant or occupied.
Description
• Available Sensors/Actuators:
• Magnetometer
• BLE module
• Dimensions:
• In-Ground: 109.2 mm diameter; 30 mm hight
• Surface-Mount: 228.6 mm diameter; 30 mm hight
• Weight:
• In-Ground: 188.5 g
• Surface-Mount: 482.1 g
• IP Code: IP67
Supplier
• Battery Type: 3x AA Li-SOCl2, 8100 mAh
• Name: PNI Sensor • Expected battery life*: 9 years
• Origin: California, USA • Public payload: Yes
• Local distribution: Unitronic AG, Germany • Communication Module: X-dot, Multitech
• Provide Hardware only: Yes • LoRaWAN Spec. Version and Class: LoRaWAN® 1.0.2 revB, Class A
• Provide own Application (Dashboard): Yes, including API • Antenna Type: Chip antenna
• Emitted Radiated Power (ERP): 4.5 dBm
39 Request Information • Qualified version: FW R05 / HW 2.0
*Expected battery life: lifetime with 1h uplink interval at SF7 according to supplierParking Sensor
NPS-3.10-SM
Functionality
The sensor is designed to detect parked vehicles with an accuracy of
99.7%. Having Bluetooth Low Energy on board also provides secure
firmware updates, configuration and the advanced functionality such as
Secure Driver Identification.
Description
• Available Sensors/Actuators:
− Parked vehicle occupancy
− Vehicle counting
− Road temperature
• Dimensions: d=156mm, h=20mm
• Weight: 420g
• IP Code: IP68
• Battery Type: 4 AA lithium batteries (installed)
• Expected battery life*: 10 years
• Public payload: Yes
Supplier
• Communication Module: STM32WLE5
• Name: Nwave Technologies • LoRaWAN Spec. Version and Class: LoRaWAN® 1.0.3, Class A
• Origin: USA • Mounting: In ground or on surface
• Local distribution: none • Antenna Type: Printed antenna (PCB antenna)
• Provide Hardware only: Yes • Emitted Radiated Power (ERP): n/a
• Provide own Application (Dashboard): Yes, including APIs • Qualified version: FW 0.4.2 / HW 3.10.1
• Additional Info: ATEX version available. Available as surface-
mounted and flush mount version.
40 Request Information
*Expected battery life: lifetime with 20 uplinks per day at SF11 according to supplierParking Sensor
FastPrk Duo
Functionality
Configurable via RFID. Sends unconfirmed keep alive uplink every 7
hours when vacant. Unconfirmed uplink event triggered by change in
status, vacant or occupied.
Description
• Available Sensors/Actuators:
− Magnetometer
− Infrared
• Dimensions: 120 x 71mm (outer case)
• Weight: 435 g
• IP Code: IP67
• Battery Type: 2x Lithium, 34000 mAh
• Expected battery life*: 8 years
• Public payload: No
• Communication Module: Proprietary, using the Semtech SX1276
Supplier
• LoRaWAN Spec. Version and Class: LoRaWAN® 1.0.2 revB, Class A
• Name: Urbiotica • Mounting: In ground
• Origin: Barcelona, Spain • Antenna Type: Chip antenna
• Local distribution: none • Emitted Radiated Power (ERP): n/a
• Provide Hardware only: No • Qualified version: FW 7.10L / HW 0403
• Provide own Application (Dashboard): Yes, including API
41 Request Information
*Expected battery life: expected lifetime at normal usage using SF11 according to supplierButton
miro Click
Functionality
Multiple (4), distinguishable buttons which can be pressed together or
alone. Example use cases: Wireless notification, Industrial and home
automation, Facility management services, Emergency notification,
Service-on-demand applications
Description
• Available Sensors/Actuators:
− 4 buttons
− Optional for high volume: Pressure, humidity, accelerometer,
secure element/authentication chip
• Dimensions: 80 x 60 x 16 mm
• Weight: 40g
• IP Code: IP50
• Battery Type: 2 x 1.5V AAA Battery
• Expected battery life*: 10 years
• Public payload: Yes
Supplier • Communication Module: FMLR-72-P-STL0Z-4M
• Name: Miromico AG • LoRaWAN Spec. Version and Class: LoRaWAN 1.0.3 Class A
• Origin: Zürich, Switzerland • Antenna Type: Copper spring
• Local distribution: Avnet Silica • Emitted Radiated Power (ERP): n/a
• Provide Hardware only: Yes • Qualified version: FW 2.1.2 / HW 6.1
• Provide own Application (Dashboard): No
42 Request Information
*Expected battery life: lifetime with 8 button presses/day on SF7, according to supplierButton
R312A
Functionality
Configurable via downlink. Default: Send an unconfirmed uplink every
24 h. Unconfirmed Uplink also event triggered by pressing button.
Description
• Available Sensors/Actuators:
− Button
• Dimensions: 57 x 35 x 15 mm
• Weight: 45 g
• IP Code: IP20
• Battery Type: 2x CR2450 3 V, 1220 mAh
• Expected battery life*: 9.6 years
• Public payload: Yes
• Communication Module: R100H, Netvox
• LoRaWAN Spec. Version and Class: LoRaWAN® 1.02 revB, Class A
Supplier
• Antenna Type: Helical antenna
• Name: Netvox
• Emitted Radiated Power (ERP): 4.54 dBm
• Origin: Tainan City, Taiwan
• Qualified version: HW 1.1 / FW 4.4
• Local distribution: None
• Provide Hardware only: Yes
• Provide own Application (Dashboard): No
43 Request Information
*Expected battery life: lifetime with 1h uplink interval at SF7 according to supplierButton
Oxobutton Q
Functionality
Configurable and updateable via BLE. Default: After pressing any
button, an unconfirmed uplink including the ID of the selected image is
sent. Customized firmware available from Oxon AG.
Description
• Available Sensors/Actuators:
− 4 x Button, 4x LED (green & red)
− Accelerometer
− Temperature sensor
− 1.6" E-Paper display
− Buzzer
− BLE module
• Dimensions: 48 x 48 x 10 mm
• Weight: 24 g
• IP Code: IP42
• Battery Type: 1x CR2032 3 V, 230 mAh
Supplier
• Expected battery life*: 1.5 years
• Name: OXON • Public payload: Yes
• Origin: Liebefeld, Switzerland • Communication Module: Proprietary, using the Semtech SX1276.
• Local distribution: OXON • LoRaWAN Spec. Version and Class: LoRaWAN® 1.0.2 revB, Class A
• Provide Hardware only: Yes • Antenna Type: Chip antenna
• Provide own Application (Dashboard): No • Emitted Radiated Power (ERP): n/a
• Additional Info: Memory to store up to 100 images
44 Request Information
*Expected battery life: lifetime with 1h uplink interval at SF7 according to supplierButton
Oxobutton T
Functionality
Configurable and updateable via BLE. Default: After pressing any
button, an unconfirmed uplink including the ID of the selected image is
sent. Customized firmware available from Oxon AG.
Description
• Available Sensors/Actuators:
− 2 x Button, 2x LED (green & red)
− Accelerometer
− Temperature sensor
− 1.6" E-Paper display
− Buzzer
− BLE module
• Dimensions: 64 x 39 x 9 mm
• Weight: 28 g
• IP Code: IP32
• Battery Type: 1x CR2430 3 V, 300 mAh
Supplier
• Expected battery life*: 2 years
• Name: OXON • Public payload: Yes
• Origin: Liebefeld, Switzerland • Communication Module: Proprietary, using the Semtech SX1276.
• Local distribution: OXON • LoRaWAN Spec. Version and Class: LoRaWAN® 1.0.2 revB, Class A
• Provide Hardware only: Yes • Antenna Type: Chip antenna
• Provide own Application (Dashboard): No • Emitted Radiated Power (ERP): n/a
• Additional Info: Memory to store up to 100 images
45 Request Information
*Expected battery life: lifetime with 1h uplink interval at SF7 according to supplierDoor Sensor
Cycle Counter
Functionality
PortaNet’s CycleCounter is a LoRaWANTM based sensor for status and
usage data of moving real estate elements like windows and doors.
Description
• Available Sensors/Actuators:
− Reed contact
− Temperature and humidity
− Accelerometer (tilt and shock)
• Dimensions: 210 x 15 x 3 mm
• Weight: 13.63g
• IP Code: IP40
• Battery Type: 3V Lithium Battery (450mAh)
• Expected battery life*: up to 10 years
• Public payload: No
Supplier
• Communication Module: Miromico FMLORA-U-32L1
• Name: PortaNet AG • LoRaWAN Spec. Version and Class: LoRaWAN® 1.0.3, Class A
• Origin: Emmen, Switzerland • Antenna Type: PCB internal
• Local distribution: Peterhans Handwerkcenter AG • Emitted Radiated Power (ERP): 13.1 dBm
• Provide Hardware only: No, myPortanet platform mandatory • Qualified version: FW 8 / HW 5
• Provide own Application (Dashboard): Yes, including API
46 Request Information
*Expected battery life: lifetime with 14-day status update and weekly alarm, according to supplierDoor Sensor
R311A
Functionality
Configurable via downlink. Default: Send an unconfirmed uplink every
24 h. Unconfirmed Uplink also event triggered by opening/closing door.
Description
• Available Sensors/Actuators:
− Magnetometer
• Dimensions: 57 x 35 x 15 mm
• Weight: 43.8 g
• IP Code: IP20
• Battery Type: 2x CR2450 3 V, 1220 mAh
• Expected battery life*: 6.89 years
• Public payload: Yes
• Communication Module: R100H, Netvox
• LoRaWAN Spec. Version and Class: LoRaWAN® 1.0.2 revB, Class A
Supplier
• Antenna Type: Helical antenna
• Name: Netvox
• Emitted Radiated Power (ERP): 4.54 dBm
• Origin: Tainan City, Taiwan
• Qualified version: HW 1.1 / FW 4.4
• Local distribution: None
• Provide Hardware only: Yes
• Provide own Application (Dashboard): No
47 Request Information
*Expected battery life: lifetime with 1h uplink interval at SF7 according to supplierSmart Meters
RCM-LRW10
Functionality
Easy and fast on-site installation to the water- or gas meter with
GWFcoder® Interface. IP68-standard and automatic startup behaviour
without the need of any programming – plug & play.
Description
• Available Sensors/Actuators:
− Gas/Water meter with GWFcoder® Interface (domestic and bulk)
− Meter reading transmission
− Leakage-, backflow-, burst pipe- and no-usage detection
− Different payload-content available (to comply with GDPR
requirements)
• Dimensions: 10 x 10 x 3.2 cm
• Weight: 210g
• IP Code: IP68
• Battery Type: LiSOCl2 5400 mAh
Supplier • Expected battery life*: 15 years
• Name: GWF MessSysteme AG • Public payload: Yes
• Origin: Switzerland • Communication Module: Murata CMWX1ZZABZ-078
• Local distribution: GWF MessSysteme AG • LoRaWAN Spec. Version and Class: LoRaWAN® 1.0.1, Class A
• Provide Hardware only: Yes • Antenna Type: PCB antenna
• Provide own Application (Dashboard): No • Emitted Radiated Power (ERP): 11.9 dBm
• Qualified version: FW 1.5.0 / HW21
• Additional Info: Clock synchronization with DevTimeReq (LW 1.0.3)
48 Request Information
*Expected battery life: lifetime with 15 min uplink interval at SF7 according to supplierSmart Meters
LoRaWAN® Module for CALEC® ST II
Functionality
Communication module for multifunctional thermal energy calculator
for district heating and building technology
Description
• Available Sensors/Actuators:
− Heating, cooling
− Cumulated energy
− Consumption,
− Flow, volume
• Dimensions: 120x163x58mm
(installed inside CALEC® ST II Calculator)
• Weight: 500g
• IP Code: IP54
• Battery Type: External power supply
Supplier • Public payload: Yes
• Name: INTEGRA Metering • Communication Module: Proprietary, using the Semtech SX1276.
• Origin: Switzerland • LoRaWAN Spec. Version and Class: LoRaWAN® 1.0.1, Class A
• Local distribution: Aquametro • Antenna Type: External antenna connector (UF-L or SMA)
• Provide Hardware only: Yes • Emitted Radiated Power (ERP): n/a
• Provide own Application (Dashboard): No • Qualified version: FW 1.10.451 / HW 1.0
49 Request InformationGPIO
PULSE 3
Functionality
Configurable via AT commands, downlink or smartphone/PC via USB
and the application -IoT Configurator. Default: Sends an unconfirmed
uplink every day including counted pulses.
Description
• Available Sensors/Actuators:
− 2x Pulse input
− 2x Tamper & leak detection
• Dimensions: 105 x 50 x 27 mm
• Weight: 70 g
• IP Code: IP67
• Battery Type: AA Li-SOCl2, 2600 mAh
• Expected battery life*: 10 years
• Public payload: Yes
• Communication Module: Proprietary, using the Semtech SX1272
Supplier
• LoRaWAN Spec. Version and Class: LoRaWAN® 1.0.2 revB, Class A
• Name: Adeunis • Antenna Type: PCB antenna
• Origin: Crolles, France • Emitted Radiated Power (ERP): 14 dBm
• Local distribution: ShopOfThings.ch • Qualified version: RTU:1.7.3 / APP:1.2.9
• Provide Hardware only: Yes • Additional Info: ATEX version available
• Provide own Application (Dashboard): No
50 Request Information
*Expected battery life: lifetime with 1h uplink interval at SF7 according to supplierYou can also read
