WAT E R M A N AGE M E N T
MEADRAIN S
PROFESSIONAL
ALL-ROUND TALENT
MADE OF POLYMERE CONCRETE
D R A I N A G E S Y S T E M M A D E O F H I G H - Q U A L I T Y P O LY M E R C O N C R E T E
P R O F E S S I O N A L D R A IN A G E S O L U T I O N S U P T O L O A D IN G C L A S S E 6 0 0
ME A D R A IN S V / S V F / S E / S E F / S G
ME A D R A IN S V S / S E S / S G S
MEADRAIN S UNIVERSAL RAIN WATER DRAINAGE SYSTEM
MEADRAIN SYSTEMÜBERSICHSYSTEMÜBERSICHT MEADRAIN S DRAINAGE SOLUTION 03
MEADRAIN SYSTEMÜBERSICHSYSTEMÜBERSICHT MEADRAIN S SYSTEM OVERVIEW 05
MEADRAIN SV/SE
SYSTEM OVERVIEW
Clear width: 100 mm Drainage channel body for
Total width: 133 mm linear fall (0.5%), stepped fall with transition piece
Total heights: from and without fall
MEADRAIN SV/SE 1000 150 up to 305 mm Also with integrated drain connection
Loading classes A 15 to E 600**
Edge made of glavanised steel (SV) or stainless steel (SE)
Clear width: 150 mm Drainage channel body for linear fall (0.5%), stepped fall
Total width: 183 mm with transition piece and without fall
Total heights: from Also with integrated drain connection
220 up to 320 mm Loading classes A 15 to E 600**
MEADRAIN SV/SE 1500
Edge made of glavanised steel (SV) or stainless steel (SE)
Clear width: 200 mm Drainage channel body for linear fall (0.5%),
Total width: 233 mm stepped fall with transition piece and without fall
Total heights: from Also with integrated drain connection
280 up to380 mm Loading classes A 15 to E 600**
MEADRAIN SV/SE 2000 Edge made of glavanised steel (SV) or stainless steel (SE)
Clear width: 300 mm Drainage channel body without fall
Total width: 333 mm Also with integrated drain connection
Total height: 300 mm Loading classes A 15 to E 600**
Edge made of glavanised steel (SV) or stainless steel (SE)
MEADRAIN SV/SE 3000
** From loading class D 400 not suitable for cross drainage of high speed roads and motorways.
MEADRAIN SG
SYSTEM OVERVIEW
Clear width: 100 mm Drainage channel body for linear fall (0.5%),
Total width: 133 mm stepped fall with transition piece and without fall
Total heights: from Also with integrated drain connection
150 up to 305 mm Loading classes A 15 to E 600**
MEADRAIN SG 1000 Edge made of ductile iron
Clear width: 150 mm Drainage channel body for linear fall (0.5%),
Total width: 183 mm stepped fall with transition piece and without fall
Total heights: from Also with integrated drain connection
MEADRAIN SG 1500 220 up to 320 mm Loading classes A 15 to E 600**
Edge made of ductile iron
Clear width: 200 mm Drainage channel body without fall
Total width: 233 mm Also with integrated drain connection
Total heights: from Loading classes A 15 to E 600**
280 up to 380 mm Edge made of ductile iron
MEADRAIN SG 2000
Clear width: 300 mm Drainage channel body without fall
Total width: 333 mm Also with integrated drain connection
Total height: 300 mm Loading classes A 15 to E 600**
Edge made of ductile iron
MEADRAIN SG 3000 ** From loading class D 400 not suitable for cross drainage of high speed roads and motorways.
MEADRAIN S SYSTEM OVERVIEW 07
MEADRAIN FLAT CHANNELS
SVF/SEF
SYSTEM OVERVIEW
Clear width: 100 mm Drainage channel body without fall
Total width: 133 mm Also with integrated drain connection
Total height: 80 mm Loading classes A 15 to E 600**
MEADRAIN SVF/SEF 1000 Edge made of glavanised steel (SV) or
stainless steel (SE)
Clear width:150 mm Drainage channel body without fall
Total width: 183 mm Also with integrated drain connection
Total height: 120 mm Loading classes A 15 to E 600**
MEADRAIN SVF/SEF 1500 Edge made of glavanised steel (SV) or
stainless steel (SE)
Clear width: 200 mm Drainage channel body without fall
Total width: 233 mm Also with integrated drain connection
Total height: 100 mm Loading classes A 15 to E 600**
MEADRAIN SVF/SEF 2000 Edge made of glavanised steel (SV) or
stainless steel (SE)
** From loading class D 400 not suitable for cross drainage of high speed roads and motorways.
MEADRAIN S DRAINAGE SOLUTION 09
MEADRAIN S
UNIVERSAL DRAINAGE SYSTEMS
MEA Water Management is one of the market leaders in The MEADRAIN S drainage channels are available with
the field of rain water harvesting (collecting, retaining, edges made of gavanised and stainless steel as well as of
treating and reusing rainwater), providing solid and intel- ductile iron, providing a solution for every typ of project.
ligent solutions for all possible fields of applications. The system is available in 4 differents widths (100, 150,
200 and 300 mm) and various heights (from flat to high
Our MEADRAIN S channel product portfolio has been de- capacity channels).
signed to provide a maximum of flexibility in using rain
water drainage channel for loading classes up to The package is completed with a large choice of gratings
E 600. Our "universal" drainage channel made of poly- in different designs and materials.
mer concrete cover all possible application fields, from
landscaping to industrial areas with maximum traffic and MEADRAIN SV/SVF/SE/SEF/SG and MEADRAIN SVS/SES/
charges. SGS: Our drainage channel system for all applications
** From loading class D 400 not suitable for cross drainage of high speed roads and motorways.
MEADRAIN S
The universal drainage system made of
polymer concrete
Loading classes A 15 to E 600**
Integrated edge protection made
of 4 mm thick galvanised steel, Channel covers with CLIPFIX
stainless steel or ductile iron made of stainless steel or
ductile iron up to loading class
E 600**
Flat channels with
edge protection made
of galvanised steel or
stainless steel
High-strength and
environmentally
friendly polymer Clear widths: 100, 150
concrete Also available as flat and 200 mm
channels, clear widths: 100,
150 and 200 mm
Without fall Linear fall Stepped fall
MEADRAIN SV/SE/SG
AND SVF/SEF
FOR MAXIMUM FLEXIBILITY
The MEADRAIN SV/SE/SG and SVF/SEF drainage channels made of ADA die-cast gratings for a handicapped accessible
polymer concrete are the perfect allrounder of the MEA product construction
portfolio: Die-cast grating heelguard for a safe access
Made for: with high heels
Landscaping High-quality die-cast grating
Cities, roads and parking areas Mesh and slotted gratings with a longitudinal
Industrial and logistic areas shift protection
Slotted grating made of galvanised steel or PAG
The MEADRAIN SV/SE/SG, SVF/SGF/SEF drainage channels with Longitudinal bar grating
4 mm edges made of galvanised steel, stainless steel and
ductile iron have been designed for maximum stability and easy
installation. Loading class up to E 600**.
** From loading class D 400 not suitable for cross drainage of high speed roads and motorways.MEADRAIN S DRAINAGE SOLUTION 11
COMPLETE SYSTEM
WITH SMART ACCESSORIES
The innovative CLIPFIX grate protection
system speeds up the installation and
maintenance. This saves time and money.
The channel body is also available
as flat channel, with 4 mm edge
protection made of galvanized or
stainless steel.
E 600MEADRAIN S DRAINAGE SYSTEM 13

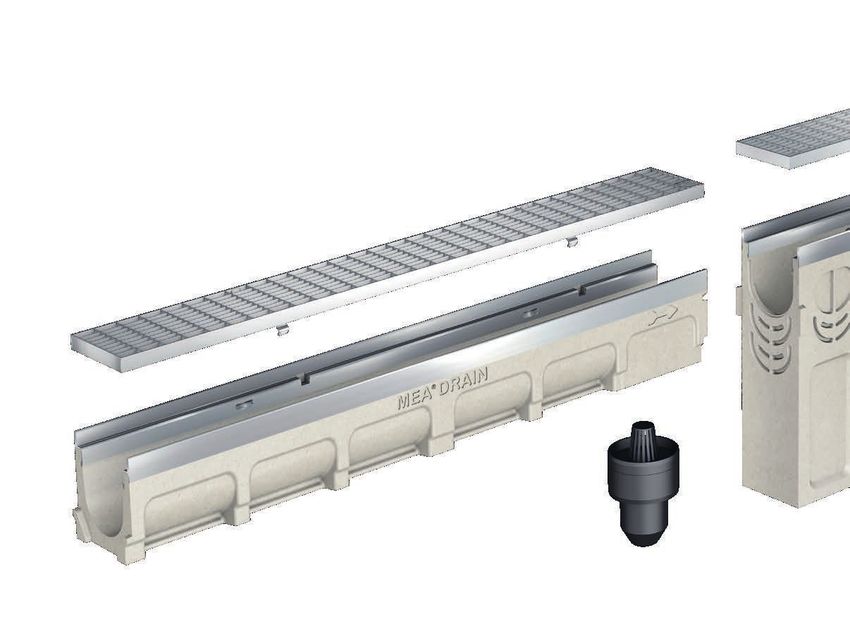

MEADRAIN S SYSTEM
Certified compliant to EN 1433 and CE
The complete system is equipped with the
CLIPFIX locking mechanism
Fitting gratings with longitudinal shift protection
The MEADRAIN S drainage channels
are available with 4 mm edge pro-
tections made of galvanized steel,
stainless steel, or ductile iron
Wide and low-placed anchoring
bays guarantee a permanently
secure hold in the concrete bed
The drainage channels made of
high-quality polymer concrete
offer best value for money, are
extremely sturdy and easy to
installSlotted grating made of galvanised steel Ductile iron grating WAVE
Mesh grating made of stainless steel Ductile iron grating BAVARIA
Longitudinal bar grating Ductile iron grating CATHEDRAL
Plastic slotted grating Ductile iron grating HONEYCOMB
Ductile iron slotted grating Ductile iron grating BACKGAMMON
UNIVERSAL CLIPFIX
CHANNEL COVERS
MEA offers a wide range of covers for MEARIN channels Longitudinal bar gratings:
systems that are not just functional, but also especially The aesthetic solution made of galvanised steel,
set accents in the field of product design. stainless steel or ductile iron
Loading classes from A 15 up to E 600
From efficient mesh grates to classic slotted grates, MEA
stands for quality, innovation and creativity. Ductile iron slotted gratings
Especially suitable for extreme loads and heavily
Slotted grating made of galvanised steel or PAG: frequented areas.
The intelligent slot/grating design is a visual Loading classes C 250 to E 600
alternative to mesh grates. Particularly stable
and weather resistant Ductile Iron design gratings:
Loading classes A 15 to C 250 Visually appealing gratings
Loading class up to D 400
Mesh gratings:
Gratings made of galavanised or stainless steel
Loading classes A 15 to D 400CLIPFIX UNIVERSAL GRATING FIXING MECHANISM 15
CLIPFIX UNIVERSAL GRATING
FIXING MECHANISM
The MEADRAIN S channels have been designed and optimi- Thanks to the CLIPFIX system, the channel and the gra-
sed for our universal CLIPFIX grating fixing mechanism with ting offer an aestheticly pleasing solution when mounted,
longitudinal shift protection. The advantage: a large choice because no locking devices or screws are appearant on the
of gratings and an easy to understand product program. outside.
Longitudinal shift protection
system for maximum security
Universal CLIPFIX grating fixing system:
easy to install, aesthetic, sturdyExpansion joint stones in the still wet mortar
bed, and pour in flow mortar.
INSTALLATION INSTRUCTIONS
Y min. = channel height -80 mm
Lanes of roadways (also pedestrian roads),
Floor channel area, untraveled road shoulders and
shoulders of roads and parking areas approved for
similar. (Test force 250 kN)
all types of road vehicles. (Test force 400 kN)
** No
of exp
False joint False joint
Lay the first 3 rows of paving
Pry bar stones in the still wet mortar
Pry bar
Expansion joint ** NotExpansion joint
suitable for the cross
bed, drainage
and pour in flow mortar.
of express roads and motorways
False joint Handstone or low side
Pry bar Void-free & resin-bonded
Expansion joint
joint grouting
Y min. = channel height -50 mm Y min. = channel height -50 mm
Y min. = channel height -50 mm
Base course according Pavement base
E 600 to RstO Bituminous base cover
Areas that are driven upon by high wheel loads, e.g. Concrete coating Binder layer
harbours and dock facilities. (Test force 600 kN) Grown soil Bituminous base layer
False joint
Pavement 10 Mortar bed
Ha
Expansion joint Pry bar
False joint ***Drainage of highly dynamically loaded surfaces, e.g.
cross drainage of highways, motorways and railway cros-
Handstone or low side
sings, exclusively when installing our DM drainage chan-
Expansion joint Pry bar Void-free & resin-bonded
nel systems and joint
aftergrouting
consultation with our application
technology. Inspection parts and inlet boxes must always
be positioned outside dynamically loaded surfaces.
Settlement-free, frost-resistant base layers must be laid in ac-
cordance with RStO.
****Cross drainage of pedestrian streets, entrances to parking
areas and comparably paved areas.
Settlement-free, frost-resistant base layers must be laid in
accordance with RStO.
The adjacent covering must be designed in such a way that no horizontal forces act on the channel elements. After the in-
stallation, the drainage channel bodies must be fitted with covers to achieve the stiffening.
False joint
Expansion joint Pry bar
False joint
Expansion joint Pry barTECHNICAL DETAILS 17
TECHNICAL DETAILS
133
100 1000 1000 133
100
80 150
100 Ø110
100 80
Ø 110 010712600
MEADRAIN SVFM1000.0
EADRAIA/80
8)
N SVF1000.0 A/80 MEADRAIN SV 1000.0 channel 4)
500
133
100
150
100 Ø110
010712604
MEADRAIN SV 1000.0/A channel with MEADRAIN SV 1000.1 channel 4) 14)
vertical outlet Ø 110 mm 8)
500 133
10
528
600
> REMARK 4)Connection option for the vertical discharge Ø 110 mm; End cap
Ø110 133 95
with connector or gully
010712658 8)With tight formed-in drain socket Ø 110 mm
MEADRAIN SV 1000.EK 110 silt box 14)Connection possibility for corner, T- and crossing element
FOUNDATIONS
Loading classes according to EN 1433 A 15 kN B 125 kN C 250 kN D 400 kN E 600 kN
Foundation dimension X (mm) > 80 > 100 > 150 > 200 > 200
Foundation dimension Z (mm) > 80 > 100 > 150 > 200 > 200
Reinforcement of the concrete casing (3) as specified by the responsible no no no yes yes
planner
Concrete quality DIN EN 206-1/DIN 1045-2 for road concrete (1) ≥ C 30/37 ≥ C 12/15 ≥ C 20/25 ≥ C 20/25 ≥ C 25/30 ≥ C 25/30
with reinforcement
The adjacent covering must be designed in such a way that no horizontal forces act on the channel elements. After the in-
stallation, the drainage channel bodies must be fitted with covers to achieve the stiffening.POLYMER CONCRETE
THE QUALITY MATERIAL
MEA POLYMER CONCRETE MATERIAL CHARACTERISTICS
The special polymer concrete from MEA is remark- Compressive strength > 90 N/mm2
able for its outstanding physical and chemical Flexural tensile strength > 22 N/mm2
properties. These make it an extremely reliable and Water adsorption Below 0.05%
versatile material in even the toughest conditions. Modulus of elasticity 25-35 kN/mm2
Density 2.1 - 2.3 kg/dm2
MEA polymer concrete channels are particularly Water ingression depth 0 mm
eco-friendly. Mostly made out of minerals, polymer Material structure Capillary-free – ideal for
concrete channels are easy to recycle. Because of the rapid discharge of water
the quality material channels have a particularly long and dirt particles
lifetime, saving future investments and unnecessary Channel body weight Significantly lighter than
new building sites. Polymer concrete channels are conventional concrete
the more extremely resistant to liquid chemicals and channels
acids, making them the perfect protection devices Workability Suitable for grinding disks,
for the environment and ground waters. rock drills and chisels
Environmental compatibility Eco-friendly building
Last but not least, polymer concrete channels are material with mineral
significantly lighter than comparable concrete chan- admixtures
nels, making them considerably easier to install. Ageing resistance Entirely frost proof,
wear-resilient, and
maintenance-free.
Highly resistant to liquid
chemicals (pH range 3 to 9)MEA PRODUCT RANGE 19
THE ADDITIONAL
PRODUCT PORTFOLIO OF
MEA WATER MANAGEMENT
MEARIN PG EVO
Drainage system for
multi-storey car parks
MEATEC
Professional drainage system for
façades and terraces
MEARIN
Professional lightweight
drainage system made of GRP
MEADRAIN TRAFFIC
Professional drainage systems
for high speed roads and motorways010264144 | GB | 04.2021
MEA Bautechnik GmbH Sudetenstraße 1 D-86551 Aichach www.mea-group.com
Business unit MEA Water ManagementYou can also read
