Metro Fires Product range
A warm welcome from Metro fires Keeping warm during winter is a basic need we all share, and the natural warmth, comfort and ambience from a flickering fire is the nicest way to keep your home warm, dry and healthy. Metro Fires are a family owned and operated New Zealand company with a long family history and we value our unique ‘family-based’ culture. We support local industry and New Zealand’s future by designing and manufacturing our products right here in New Zealand. Our commitment to deliver the best heating solutions and keep New Zealand homes warm and dry has seen our range grow from a single model to New Zealand’s most extensive range of wood fires and complementary heating products. We know you’ll love the warmth, comfort and quality of a New Zealand made Metro fire. PROUD TO BE PREMIUM FIREBOX 25 YR GENUINE NZ MADE WARRANTIES PARTS SUPPLY
Proudly New Zealand made
Supporting our people and our country
SOL ID COOK TOP S QUAL I T Y COAT INGS
Firebox tops, single or twin All coatings are high temperature
layers of 6mm, 8mm or 10mm metallic black paint or NZ applied
quality NZ made steel vitreous enamel
SINGL E & T WIN BAFFL E S
6mm thick NZ made steel
baffle plates
OU T ER PANEL S Baffle linings of quality
Fabricated from engineered high temperature
quality NZ made steel calcium silicate board
FIREBOX E S
Fireboxes are fabricated
from quality NZ made
6mm steel plate
DOOR GL A SS
Large 5mm Robax
German made ceramic
glass window provides FIRE BRICK S
enhanced flame view
25mm thick masonry
refractory composite Metro
side wall fire bricks
L EG , PEDE S TAL AND
WOODS TACKER OP T IONS
ROBOT IC WEL DING
Key models are offered in
three configurations with the Firebox and outer panels welded
remainder of the range featuring using the latest robotic techniques to
either legs or pedestal base stringent quality control standards
M E T R O F I R E S .CO. N Z 2020 W O O D F I R E R A N G E 1
Choosing a fire
Where to start?
The three key factors to consider when
choosing a wood fire are the installation
options, correct model selection and
achieving a safe, compliant installation.
The right size Metro fire for your home
and heating requirements with correct
operation and good dry fuel will provide
many years of warmth and reliable heating.
INSTALLATION OPTIONS
Decide on the type of installation you need and confirm if your
home is located within a clean air zone or specified airshed.
This will determine the type of Metro model you can install.
Your Metro retailer or local council can advise of any specific
emission requirements for your area.
MODEL SELECTION
Select the right size Metro fire and flue system with the
heating accessories you will need. Your retailer or installer
can guide you in choosing the best model and most suitable
location for installation to ensure optimum heat delivery is
achieved. They can also help manage the council consent
process through to completed installation.
SAFETY AND COMPLIANCE
We recommend you have your new Metro fire installed by a
NZHHA registered or suitably qualified installer. It is critical
that the specified clearances, flue system and floor protector
requirements are correct for a safe and compliant installation.
2 2020 W O O D F I R E R A N G E M E T R O F I R E S .CO. N Z
INS TAL L AT ION OP T IONS
FREESTANDING INSERT BUILT-IN
Freestanding models are installed Insert models are ‘inserted’ into Built-In models are ‘built’ into a
against a wall or into a corner an existing masonry chimney and timber framed cavity and installed
situation with the ECO flue kit. installed with the ECO Insert flue kit. with the ECO Built-In flue kit.
MODEL OP T IONS
LTD
CLEAN ULTRA
RURAL
AIR 2HA+ LOW
CLEAN AIR APPROVED LTD RURAL (2Ha+) ULTRA LOW EMISSION
These models are suitable for any LTD models are specifically ULEB is an acronym for ‘Ultra Low
size property and can be installed designed for lifestyle and rural Emission Burner’. Put simply, they
into a clean air zone anywhere properties and can only be are some of the cleanest solid
in New Zealand, unless more installed on a property with a land fuel burners on the market with
stringent regional rules apply. area of two hectares or greater. incredibly low emissions.
Clean air models comply with the The main benefit of an LTD model Tested using the real-life operating
Ministry for the Environment (MfE) is the responsive control of burn test conditions of Canterbury
National Environmental Standards rate allowing overnight burning Method (CM1), Metro Ultra Fires
(NES). NES require less than 1.5gms capabilities with correct operation. meet the Environment Canterbury
of particles for each kilogram of dry emission and efficiency standards
The unique firebox design delivers
wood burned (g/kg) and a minimum as well as the MfE National
longer burn times and all models
thermal efficiency of 65%. Environmental Standards.
can be fitted with either a 3kW
The majority of the Metro clean or 4kW wetback ensuring winter Approved to install anywhere in New
air approved models are also NES warmth, cooking and water Zealand including the Canterbury,
compliant with a wetback fitted. heating are all dominant features. Nelson and Rotorua regions.
M E T R O F I R E S .CO. N Z 2020 W O O D F I R E R A N G E 3
Product overview
Clean air approved models
Heat Heating Wetback Page Heat Heating Wetback Page
output area option no. output area option no.
T IN Y PED X T REME R A D WOODY
11kW 120m2 ✓ 8 20kW 220m2 ✓ 13
T IN Y R A D X T REME PED
11kW 120m2 ✓ 8 20kW 220m2 ✓ 13
T IN Y R A D WOODY A MBIE ONE
11kW 120m2 ✓ 8 15kW 150m2
* 15
WEE R A D BA SE A MBIE PLUS
15kW 150m2 ✓ 11 20kW 220m2 ✓ 15
WEE R A D L EG CL A SSIC R A D
15kW 150m2 ✓ 11 17kW 170m2 ✓ 16
WEE R A D WOODY MEG A R A D
15kW 150m2 ✓ 11 24kW 280m2 ✓ 17
WEE PED T REND INSER T
15kW 150m2 ✓ 11 15kW 150m2
* 22
X T REME R A D BA SE SM A R T INSER T
20kW 220m2 ✓ 13 15kW 150m2 ✓ 23
X T REME R A D L EG MEG A SM A R T BUILT-IN
20kW 220m2 ✓ 13 20kW 220m2 ✓ 25
4 2020 W O O D F I R E R A N G E M E T R O F I R E S .CO. N Z
* Wetback options are only available for properties with a land size of 2Ha or greater.
LTD rural models (2Ha+) Ultra low emission models
Heat Heating Wetback Page Heat Heating Wetback Page
output area option no. output area option no.
LT D WEE R A D BA SE ULT R A WEE R A D
15kW 150m2 ✓ 18 15kW 150m2 11
LT D WEE R A D L EG ULT R A X T REME R A D
15kW 150m2 ✓ 18 20kW 220m2 13
LT D WEE R A D WOODY ULT R A INSER T
15kW 150m2 ✓ 18 15kW 150m2 24
LT D X T REME R A D BA SE OU T DOOR FIRE S
20kW 220m2 ✓ 18 26
LT D X T REME R A D L EG ECO FLUE S YS T EMS
20kW 220m2 ✓ 18 28
LT D X T REME R A D WOODY FLOOR PROT EC TOR S
20kW 220m2 ✓ 18 32
LT D MEG A R A D HE AT T R A NSFER S YS T EMS
24kW 280m2 ✓ 19 36
LT D T REND INSER T INSER T/BUILT-IN SPEC S
15kW 150m2 ✓ 22 38
LT D SM A R T INSER T FREE S TA NDING SPEC S
15kW 150m2 ✓ 23 40
M E T R O F I R E S .CO. N Z 2020 W O O D F I R E R A N G E 5
Metro Ultra Fires
Ultra low emission
WHAT IS A UL EB?
ULEB is an acronym for ‘Ultra Low Emission
Burner’. Put simply, they are some of the
cleanest solid fuel burners in the world
with incredibly low emissions.
MFE APPROVED
Metro Ultra Fires meet the MFE NES
compliance and can be installed anywhere
in New Zealand including the Canterbury,
Nelson, and Rotorua regions.
EC AN APPROVED
ULEBs are tested using the real-life operating
test conditions of Canterbury Method (CM1)
and must meet the Environment Canterbury
emission and efficiency standards.
ULT R A WEE R AD ULT R A X T REME R AD ULT R A INSER T
15kW peak heat output 20kW peak heat output 15kW peak heat output
Convection fan for added efficiency Convection fan for added efficiency Convection fan for added efficiency
Metallic black paint finish Metallic black paint finish Metallic black paint or
615W x 515D x 691H 710W x 582D x 722H Gloss black enamel finish
6 2020 W O O D F I R E R A N G E M E T R O F I R E S .CO. N Z
Metro Package Deals
Hot favourites for winter
Our cost effective package deals include everything you need to be cosy and warm
this winter. Package up and save on these hot deals designed to suit all budgets.
Wee Ped Xtreme Ped Smart Insert
15K W PACK AGE 20K W PACK AGE 15K W PACK AGE
✓ Wee Ped HT wood fire ✓ Xtreme Ped HT wood fire ✓ Smart Insert firebox
✓ Standard freestanding flue kit ✓ Standard freestanding flue kit ✓ Smart Insert HT fascia
✓ Pioneer double flue shield ✓ Pioneer double flue shield ✓ Standard insert flue kit
✓ 10 year firebox warranty ✓ 10 year firebox warranty ✓ 10 year firebox warranty
FIRE $1749 FIRE $2549 FIREBOX $1791
S T D FLUE KI T $749 S T D FLUE KI T $749 H T FA SCIA $957
FLUE SHIEL D $125 FLUE SHIEL D $125 S T D INSER T KI T $499
TOTAL RRP $2623 TOTAL RRP $3423 TOTAL RRP $3247
PACK AGE DE AL PACK AGE DE AL PACK AGE DE AL
$
2199 $
3099 $
2749
WEE PED H T X T REME PED H T SMAR T INSER T H T
Clean air approved model Clean air approved model Clean air approved model
15kW peak heat output 20kW peak heat output 15kW peak heat output
Heat up to 150m2 (3 bdrm home) Heat up to 220m2 (4 bdrm home) Heat up to 150m2 (3 bdrm home)
Metallic black paint finish Metallic black paint finish Metallic black paint finish fascia
The Smart package is suitable for masonry chimney installations only. Prices shown above are for the
listed package contents only and are correct at time of printing. Pricing may be subject to change, please
confirm pricing with your Metro retailer. Installation and council consent costs are not included. M E T R O F I R E S .CO. N Z 2020 W O O D F I R E R A N G E 7
Tiny series 11kW HE AT UP TO 120 m 2
(2-3 BEDROOM HOME )
Designed for heating smaller homes and open areas. The Tiny series models feature surprisingly large
volume fireboxes for compact sized fires and punch well above their weight with a peak heat output of 11kW.
The Tiny Ped requires the smallest installation footprint with minimal corner and wall clearances of only
25mm and 60mm respectively.
Cook your favourite soup or boil the kettle on the flat cooktop of the radiant models. All Tiny series models
can also be fitted with a wetback to assist with water heating requirements. Small versatile fires that will
provide many years of warmth and comfort.
T IN Y PED T IN Y R AD T IN Y R AD WOODY
Clean air approved model Clean air approved model Clean air approved model
Metallic black paint finish Metallic black paint finish Metallic black paint finish
Optional 2kW wetback Optional 2kW wetback Optional Side wetback
496W x 492D x 659H 505W x 508D x 667H 515W x 498D x 758H
8 2020 W O O D F I R E R A N G E M E T R O F I R E S .CO. N ZT I N Y R A D W O O DY / S L I M L I N E S M A L L WA L L F L O O R P R O T EC T O R
M E T R O F I R E S .CO. N Z 2020 W O O D F I R E R A N G E 9W E E R A D B A S E / S L I M L I N E M E D I U M WA L L F L O O R P R O T EC T O R 10 2020 W O O D F I R E R A N G E M E T R O F I R E S .CO. N Z
Wee series 15kW HE AT UP TO 15 0 m 2
(3 BEDROOM HOME )
Wee series models are MfE clean air approved with a choice of pedestal base, leg and wood stacker
configurations. The Wee Rad models feature flat radiant cooktops with ample space for cooking. The Wee Ped
convection model is available in both metallic black paint and gloss black enamel finish.
The clean burning design delivers an impressive peak output of 15kW to heat your home with the generous door
glass providing the perfect flame view to enjoy on cold winter nights. All models (excluding the Ultra) can be
fitted with a Side wetback to assist with water heating requirements.
WEE R AD BA SE WEE R AD L EG WEE R AD WOODY
Clean air approved model Clean air approved model Clean air approved model
Metallic black paint finish Metallic black paint finish Metallic black paint finish
Optional Side wetback Optional Side wetback Optional Side wetback
615W x 501D x 691H 615W x 501D x 688H 615W x 501D x 758H
WEE PED H T WEE PED VE ULT R A WEE R AD
Clean air approved model Clean air approved model Ultra low emission model
Metallic black paint finish Gloss black enamel finish Metallic black paint finish
Optional Side wetback Optional Side wetback Convection fan for added efficiency
602W x 503D x 665H 602W x 503D x 665H 615W x 515D x 691H
M E T R O F I R E S .CO. N Z 2020 W O O D F I R E R A N G E 11X T R E M E R A D L EG 12 2020 W O O D F I R E R A N G E M E T R O F I R E S .CO. N Z
Xtreme series 20kW HE AT UP TO 220 m 2
(4 BEDROOM HOME )
Xtreme series models are MfE clean air approved with a choice of pedestal base, leg and wood stacker
configurations. The Xtreme Rad models feature large flat radiant cooktops with ample space for both pots and
kettles. The Xtreme Ped convection model is available in both metallic black paint and gloss black enamel finish.
The clean burning design delivers an impressive peak output of 20kW to heat your home with a large landscape
door glass providing the perfect flame view to enjoy on cold winter nights. All models (excluding the Ultra) can be
fitted with a 3kW wetback to assist with water heating requirements.
X T REME R AD BA SE X T REME R AD L EG X T REME R AD WOODY
Clean air approved model Clean air approved model Clean air approved model
Metallic black paint finish Metallic black paint finish Metallic black paint finish
Optional 3kW wetback Optional 3kW wetback Optional 3kW wetback
740W x 554D x 743H 740W x 554D x 743H 740W x 554D x 813H
X T REME PED H T X T REME PED VE ULT R A X T REME R AD
Clean air approved model Clean air approved model Ultra low emission model
Metallic black paint finish Gloss black enamel finish Convection fan for added efficiency
Optional 3kW wetback Optional 3kW wetback Metallic black paint finish
688W x 554D x 707H 688W x 554D x 707H 710W x 582D x 722H
M E T R O F I R E S .CO. N Z 2020 W O O D F I R E R A N G E 13A M B I E P L U S / A L L OY M E D I U M WA L L F L O O R P R O T EC T O R

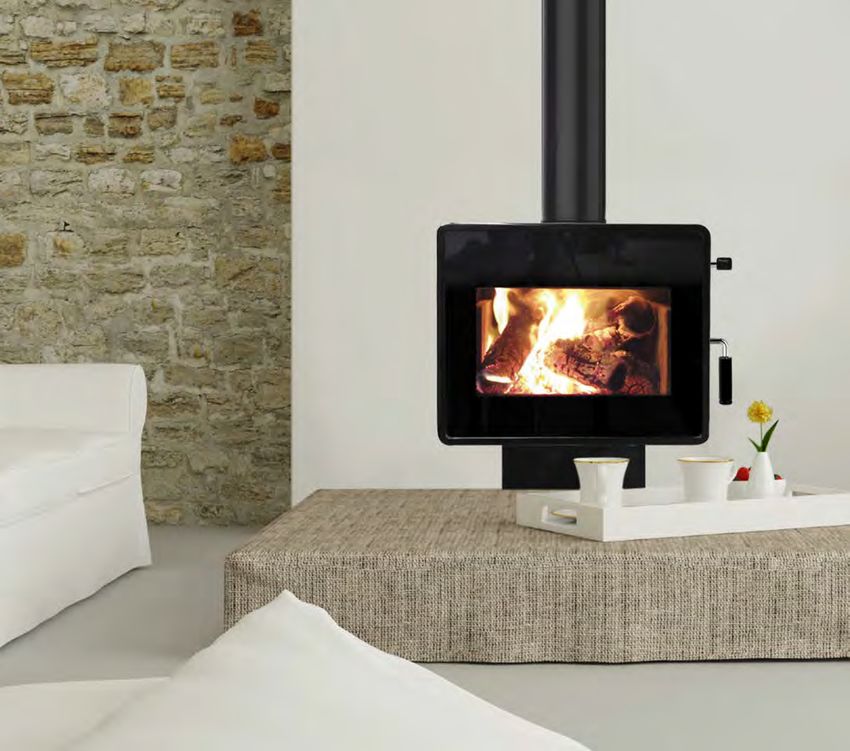

Ambience series 15 & 20kW
From the initial spark to the final embers slowly burning out, the Ambience series is
the embodiment of minimalist design and smooth styling. Award winning design with
exceptional performance and style, strikingly finished in gloss black vitreous enamel.
Get the best of both radiant and convection heat from these convection fires that
also generate impressive radiant heat through the one piece glass front. The clean BE S T DE SIGN AWARDS
burning firebox design will deliver warmth and comfort all winter long. DOUBL E WINNER
14 2020 W O O D F I R E R A N G E M E T R O F I R E S .CO. N ZAMBIE ONE
AMBIE ONE AMBIE PLUS
Clean air approved model Clean air approved model
15kW peak heat output 20kW peak heat output
Heat up to 150m2 (3 bdrm home) Heat up to 220m2 (4 bdrm home)
Optional 3kW wetback1 Optional 3kW wetback
577W x 464D x 720H 671W x 550D x 762H
1 Wetback options are only available for properties with a land size of 2Ha or greater. M E T R O F I R E S .CO. N Z 2020 W O O D F I R E R A N G E 15C L A S S I C R A D / R I M U D E E P WA L L F L O O R P R O T EC T O R

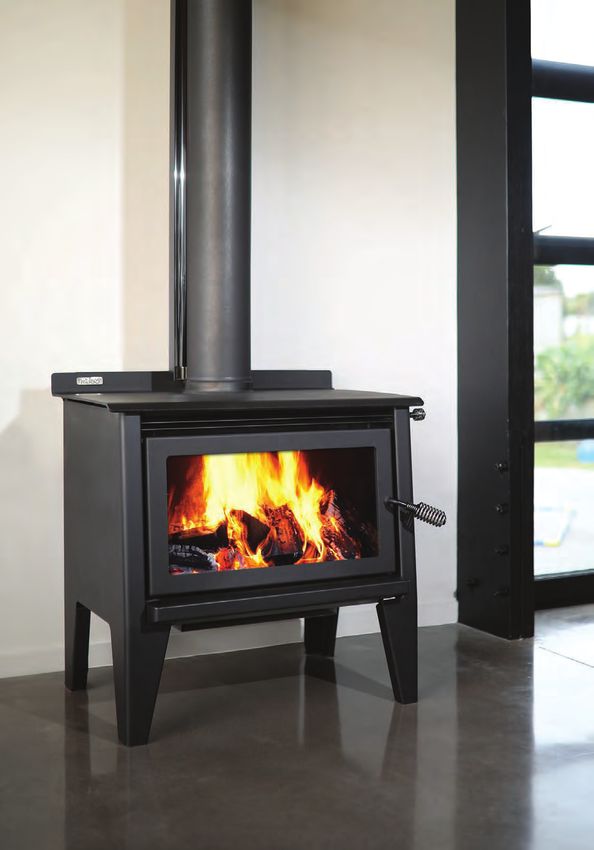

Classic Rad 17kW HE AT UP TO 170 m 2
(3 BEDROOM HOME )
CL A SSIC R AD
Clean air approved model
The Classic Rad features a very deep North/South firebox design which can
Metallic black paint finish
accommodate firewood up to 540mm long. The firebox design provides increased
8mm steel radiant cooktop
heating capacity with a peak output of 17kW and the large flat 8mm steel cooktop
Optional Side wetback
provides a generous space for pots and boiling the kettle.
530W x 708D x 680H
16 2020 W O O D F I R E R A N G E M E T R O F I R E S .CO. N ZMega Rad 24kW HE AT UP TO 28 0 m 2
(4-5 BEDROOM HOME )
MEG A R AD
Clean air approved model
The largest clean air approved Metro, and the biggest fire in the range. The Mega
Metallic black paint finish
Rad features a huge firebox with a solid 10mm steel cooktop to match. This
10mm steel radiant cooktop
firebox handles hefty firewood with ease and is capable of providing up to 24kW’s
Optional 3kW wetback
of peak heat to keep the largest of homes warm and comfortable all winter long.
840W x 659D x 744H
M E T R O F I R E S .CO. N Z 2020 W O O D F I R E R A N G E 17LTD series 15-24kW
Metro LTD models are specifically designed for lifestyle and rural properties with a land area of two hectares or
greater. Choose from seven freestanding models with pedestal base, leg and wood stacker configurations. Peak
heat outputs range from the 15kW LTD Wee models to the impressive 24kW output of the LTD Mega Rad.
All LTD freestanding models feature large flat radiant cooktops with ample space for both pots and kettles. The
unique firebox design delivers long burn times and all models can be fitted with either a 3kW or 4kW wetback
ensuring winter warmth, cooking and water heating are all dominant features.

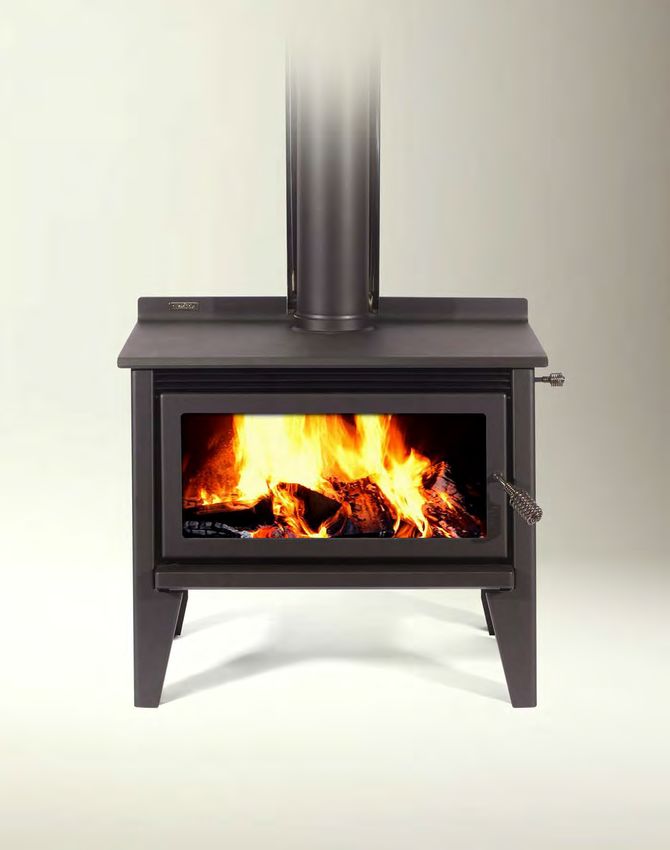

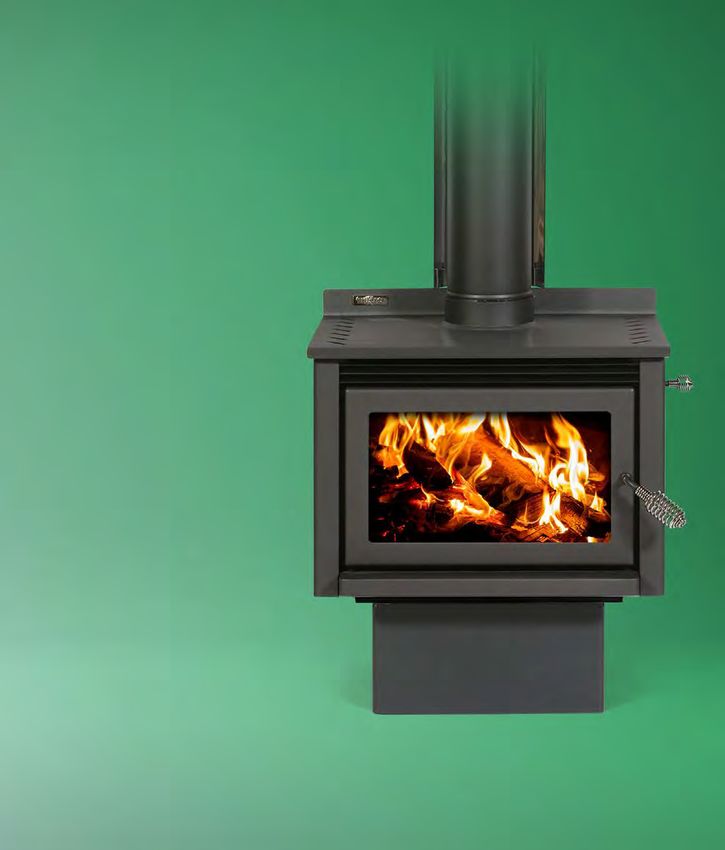

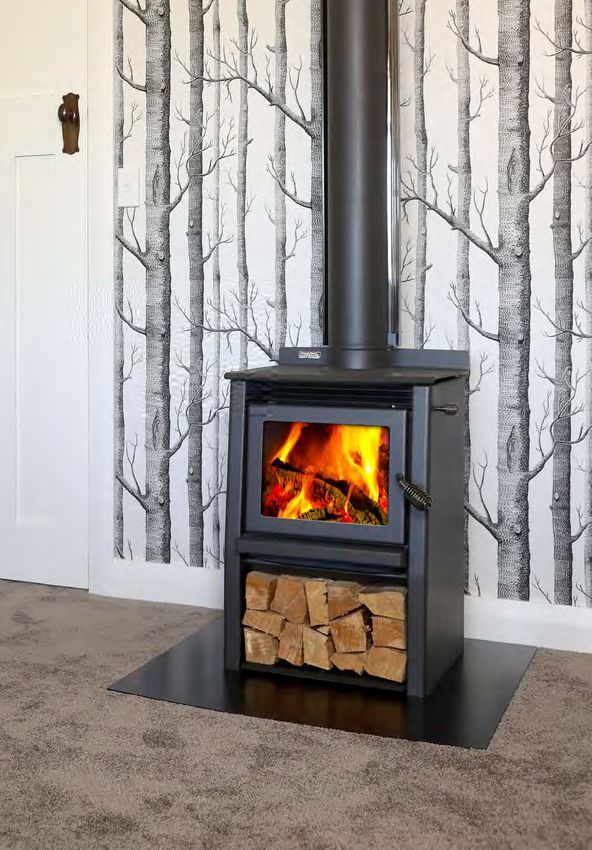

LT D WEE R AD BA SE LT D WEE R AD L EG LT D WEE R AD WOODY
15kW peak heat output 15kW peak heat output 15kW peak heat output
Heat up to 150m2 (3 bdrm home) Heat up to 150m2 (3 bdrm home) Heat up to 150m2 (3 bdrm home)
Optional 3kW or 4kW wetback Optional 3kW or 4kW wetback Optional 3kW or 4kW wetback
615W x 501D x 691H 615W x 501D x 688H 615W x 501D x 758H
LT D X T REME R AD BA SE LT D X T REME R AD L EG LT D X T REME R AD WOODY
20kW peak heat output 20kW peak heat output 20kW peak heat output
Heat up to 220m (4 bdrm home)
2
Heat up to 220m (4 bdrm home)
2
Heat up to 220m2 (4 bdrm home)
Optional 3kW or 4kW wetback Optional 3kW or 4kW wetback Optional 3kW or 4kW wetback
740W x 554D x 743H 740W x 554D x 743H 740W x 554D x 813H
18 2020 W O O D F I R E R A N G E M E T R O F I R E S .CO. N ZLTD Mega Rad 24kW LT D MEG A R AD
24kW peak heat output
The largest LTD rural Metro, and the biggest fire in the range. The LTD Mega Rad
Heat up to 280m2 (4-5 bdrm home)
features a huge firebox with a solid 10mm steel cooktop to match. This firebox
10mm steel radiant cooktop
handles hefty firewood with ease and is capable of providing up to 24kW’s of peak
Optional 3kW or 4kW wetback
heat to keep the largest of homes warm and comfortable all winter long.
840W x 659D x 744H
M E T R O F I R E S .CO. N Z 2020 W O O D F I R E R A N G E 19Insert and
Built-In series
The easy way to distinguish between
an Insert or Built-In installation is an
Insert fire is ‘inserted’ into an existing
masonry chimney, where a Built-In fire
requires a purpose ‘built’ timber framed
cavity (false chimey) for installation.
INSERT INSTALLATION (MASONRY / BRICK CHIMNEY)
An Insert model is the perfect fit for replacing an
inefficient open fireplace or older style insert fire. An
Insert installation is into an existing masonry chimney
with a Metro ECO Insert flue kit.
BUILT-IN INSTALLATION (TIMBER FRAMED CAVITY)
The benefit of a ‘Built-In’ installation is that any wall
surface in your home can be turned into a purpose built
cavity to accommodate a wood fire. Built-In fires can also
be elevated for modern styling and convenience.
You can install an Insert model into a timber framed cavity
by installing the Insert firebox into a special ‘Vented Zero
Clearance Cabinet’ (VZCC). All Metro Insert models have an
appliance specific VZCC to achieve a ‘Built-In’ installation.
The Mega Smart Built-In is a dedicated built-in model and
comes standard with a VZCC pre-fitted to its firebox.
All ‘built-in’ installations require the ECO Built-In flue kit.
The ECO Built-In flue kit is designed to shield the fluepipe
from all combustible materials within the timber cavity
and incorporates the Metro ECO cowl for improved draw
and performance.
20 2020 W O O D F I R E R A N G E M E T R O F I R E S .CO. N ZINSER T MODEL S BUILT-IN MODEL S
MA SONRY / BRICK CHIMNE Y T IMBER FR AMED C AVI T Y
Smart Insert models Smart Insert models + Smart VZCC
Trend Insert models Trend Insert models + Trend VZCC
Ultra Insert Ultra Insert + Ultra VZCC
Mega Smart Built-In (pre-fitted VZCC)
BUILT-IN INS TAL L AT ION
T IMBER FR AMED C AVI T Y
S T EP 1 S T EP 2 S T EP 3
Preparation and construction Installation of the Insert Fit front wall lining to cavity
of the timber cavity. Installation firebox into the Vented Zero and complete construction
of the Vented Zero Clearance Clearance Cabinet. Assembly of the floor protector. Fit
Cabinet and flue liner spigot and installation of the Metro side wall linings and install
ECO Built-In flue kit fascia to the firebox
M E T R O F I R E S .CO. N Z 2020 W O O D F I R E R A N G E 21TREND INSERT
Trend Insert
15kW HE AT UP TO 15 0 m 2
(3 BEDROOM HOME )
T REND INSER T
Clean air approved model
LT D T REND INSER T
LTD model (2Ha+ land size)
300mm minimal hearth projection Longer burn times
Traditional styling with a gentle sloping front and rolled ashlip.
Thermo fan for urban installations Optional 3kW or 4kW wetback
Choose the clean air approved model for urban installations or the
Optional 3kW or 4kW wetback 2 Gloss black enamel finish
LTD rural model for properties with a land area of 2Ha or greater.
Gloss black enamel finish
Suitable for installation into an existing masonry chimney or timber
framed cavity1 (false chimney) using the Trend Insert VZCC.
1 Installation into a timber framed cavity (false chimney) requires the Trend Insert
Vented Zero Clearance Cabinet (VZCC) and ECO Built-In flue kit.
22 2020 W O O D F I R E R A N G E M E T R O F I R E S .CO. N Z 2 Wetback options are only available for properties with a land size of 2Ha or greater.S M A R T I N S E R T V E / B U I LT- I N I N S TA L L AT I O N W I T H FA S C I A B A S E R A I L
Smart Insert
15kW HE AT UP TO 15 0 m 2
(3 BEDROOM HOME )
SMAR T INSER T
Clean air approved model
LT D SMAR T INSER T
LTD model (2Ha+ land size)
312mm minimal hearth projection Longer burn times
Minimal detailing and clean lines place the Smart well in any home.
Optional Smart Booster Optional Smart Booster
Choose the clean air approved model for urban installations or the
Metallic black paint or Metallic black paint or
LTD rural model for properties with a land area of 2Ha or greater.
Gloss black enamel finish Gloss black enamel finish
Suitable for installation into an existing masonry chimney or
timber framed cavity1 (false chimney) using the Smart Insert VZCC.
1 Installation into a timber framed cavity (false chimney) requires the Smart Insert
Vented Zero Clearance Cabinet (VZCC) and ECO Built-In flue kit. M E T R O F I R E S .CO. N Z 2020 W O O D F I R E R A N G E 23U LT R A I N S E R T H T
Ultra Insert 15kW HE AT UP TO 15 0 m 2
(3 BEDROOM HOME )
ULT R A INSER T
The Ultra Insert is the first New Zealand made and approved single chamber ULEB
Insert. The unique firebox design delivers an ultra clean burn with incredibly low Ultra low emission model
emissions. A whisper quiet convection fan enhances heat distribution for maximum 15kW peak heat output
efficiency. Suitable for installation into an existing masonry chimney or timber Convection fan for heat distribution
framed cavity (false chimney) using the Ultra Insert VZCC and ECO Built-In flue kit. Metallic black paint or
Gloss black enamel finish
24 2020 W O O D F I R E R A N G E M E T R O F I R E S .CO. N ZMega Smart 20kW HE AT UP TO 220 m 2
(4 BEDROOM HOME )
MEG A SMAR T BUILT-IN
The perfect blend of functionality and smart contemporary styling. The Mega
Smart is a dedicated ‘Built-in’ appliance with a Zero Clearance Cabinet ‘pre-fitted’ Clean air approved model
to the firebox for installation into a timber framed cavity. With an outstanding Dedicated Built-In including VZCC
peak output of 20kW and wetback capable, the Mega Smart is designed for 20kW peak heat output
heating large open areas and will drive out the cold all winter long. Optional Mega Smart Booster
Gloss black enamel finish
M E T R O F I R E S .CO. N Z 2020 W O O D F I R E R A N G E 25Outdoor fires Heat & cook
New Zealander’s love their outdoor living and a well designed outdoor space allows you to enjoy the outdoors all
year round. Metro’s versatile outdoor fires deliver warmth, ambience and cooking capabilities for you to enjoy
the full flavour of a flame grilled steak and the delicious taste of wood fired pizza. Sear food to perfection on the
cooking grill, slide in the pizza stone and watch the mozzarella melt, or simply sit back and relax in the warmth.
Designed and manufactured from corrosion resistant Corten and stainless steel, the closed firebox design
delivers impressive radiant heat while the landscape door glass provides panoramic fireside views, safety during
operation and prevents wind blown ash and smoke nuisance often found with open outdoor fires.
Choose from six different configurations with both freestanding and roof penetration flue options available.
OU T DOOR 850B OU T DOOR 850P OU T DOOR 850T
Quality Corten steel firebox Quality Corten steel firebox Quality Corten steel firebox
Stainless steel levelling feet Corten steel pedestal base Stainless steel trolley base
Internal cooking grill & pizza stone Internal cooking grill & pizza stone Internal cooking grill & pizza stone
Freestanding flue system Freestanding flue system Freestanding flue system
Cooking tool kit includes: Cooking tool kit includes: Cooking tool kit includes:
Pizza peel, fire rake, grill lifter for Pizza peel, fire rake, grill lifter for Pizza peel, fire rake, grill lifter for
installing the grill when cooking installing the grill when cooking installing the grill when cooking
and a wall mounted bracket for and a wall mounted bracket for and a wall mounted bracket for
hanging the cooking tools hanging the cooking tools hanging the cooking tools
26 2020 W O O D F I R E R A N G E M E T R O F I R E S .CO. N ZO U T D O O R 8 5 0 B / C U S T O M CO N C R E T E P L I N T H & R O O F P E N E T R AT I O N F L U E S Y S T E M
M E T R O F I R E S .CO. N Z 2020 W O O D F I R E R A N G E 27Metro ECO
flue systems
An ECO flue kit is an efficient way to get
the optimum performance from your
wood fire – heating your home sooner
and consuming less firewood.
ECO FLUE KIT
The ECO flue kit differs from a standard flue system due to
the much higher efficiency it operates at. All flue systems
need moving air between the liners to ensure the outer flue
liners remain cool. The ECO flue kits cooling air comes from
either the ceiling cavity or from outside the home.
With a Metro ECO flue kit your home will be heated sooner
and more efficiently. Once your home is heated to your
desired temperature the fire can be turned to a lower
setting consuming less firewood, saving you money.
Another performance benefit is the enhanced draw of the
ECO cowl. The rocket shaped ECO cowl creates an upward
vortex inducing updraft to the flue gases which increases
the draw within the flue pipe improving the performance
and heat output of your wood fire.
STANDARD FLUE KIT
A Standard flue kit is very inefficient as much of the heat
generated by the wood fire is drawn into the flue liners and
vented outside. The flue liners are also open to the outside
environment which can be noisy during high winds.
Lab testing of a Standard flue kit resulted in the heated air
generated by the wood fire being drawn from the home at
an astounding rate of 450 litres per minute. Even worse,
this lost heat is replaced by cold air drawn into the room
from outside at the same rate causing a constant incoming
draught. This requires the fire to be operated at a higher
burn rate to heat the constant incoming cold air.
Standard flue kits are not only less efficient, but they will
heat your home slower using more firewood costing you
both heat and money.
28 2020 W O O D F I R E R A N G E M E T R O F I R E S .CO. N ZSuperior performance
INCRE A SED INCRE A SED REDUCED
EFFICIENC Y EFFICIENC Y EFFICIENC Y AND
WI T H A ME T RO WI T H A ME T RO HE AT LOSS WI T H A
ECO FLUE KI T ECO FLUE KI T S TANDARD FLUE KI T
ECO FLUE KI T ECO FLUE + OP T ION KI T S TANDARD FLUE KI T
The ECO flue kit is suitable for all The ECO option kit is an Ventilation for a Standard flue
freestanding wood fires installed additional kit installed with the kit is drawn into the flue liners
into a home with a vented ceiling ECO flue kit for homes without from the room being heated by
cavity. Ventilation is drawn into a vented ceiling cavity or homes the wood fire. This lost heat is
the flue liners from the homes that feature a sloping ceiling. then replaced by cold air drawn
ceiling cavity allowing all the heat Ventilation for the ECO flue kit is into the room from outside at
generated by the wood fire to drawn into the flue liners from the same rate causing a constant
remain inside the home. outside the home. incoming draught.
M E T R O F I R E S .CO. N Z 2020 W O O D F I R E R A N G E 29Flue kit components Stainless steel outer casing options are
available with these ECO flue systems.
ECO FLUE KIT ECO OPTION KIT
Suitable for freestanding wood fires A An additional kit installed with the ECO L
installed into a home with a vented ceiling flue kit for homes without a vented ceiling
B
cavity. Ventilation for the flue system is cavity or for homes featuring a sloping
drawn from the homes ceiling cavity. ceiling. Ventilation for the flue system is
C drawn from outside the home.
M
A 1 x stainless steel weather butterfly
L External intake flashing cone N
B 1 x stainless steel ECO Cowl top D
1 x 780mm x 300mm diameter
1 x 420mm x 240mm diameter M O
C E galvanised outer casing
stainless steel ECO Cowl housing
N Dropbox infill panel
1 x 480mm long stainless steel flue
D
pipe extension with flashing cone O Dropbox edge covers
F P
1 x 1200mm x 150mm diameter P Ceiling plate mounted heat shield
E
stainless steel flue pipe
1 x 1200mm x 250mm diameter
ECO EXTENSION KIT
F galvanised outer casing with G
750mm long slip section Suitable for extending all Metro flue
1 x 800mm x 200mm diameter systems within the roof space and outside
G the home. Includes 1200mm lengths of E
galvanised inner casing
150mm flue pipe, 200mm inner liner and
1 x galvanised mounting plate H
250mm outer liner.
H with brackets and 300mm long x
300mm diameter casing attached I F
I 1 x insulation gasket J 1 x 1200mm x 150mm diameter
E
stainless steel flue pipe
J 1 x black clip-on ceiling plate K
1 x 1200mm x 250mm diameter G
2 x 1200mm lengths of 150mm F
galvanised outer casing
K diameter stainless steel flue pipe
painted metallic black 1 x 1200mm x 200mm diameter
G
galvanised inner casing
+ 1 x bag of assembly bolts
SINGL E S TORE Y
INS TAL L AT ION
Shown (right) are the most
common installation methods
for installing the Metro ECO Flue
system in a single storey home.
To ensure safe and efficient
installation, this flue system must
be installed as detailed by either
a registered installer, or someone FLAT CEILING/CAVITY SLOPING CEILING FLAT CEILING/ROOF
competent in the installation of Requires the ECO flue kit as Requires both the ECO flue kit and Requires both the ECO flue kit and
solid fuel appliances. air is drawn into the flue system ECO option kit to enable air to be ECO option kit as per sloping ceiling
directly from the homes vented drawn into the flue system from unless a vented ceiling cavity
ceiling cavity. outside the home.
to scale
to scale
to scale exists.
30 2020 W O O D F I R E R A N G E M E T R O F I R E S .CO. N ZECO INSERT KIT ECO BUILT-IN KIT
Suitable for the Smart and Trend Insert A Required with all Metro Built-In fires and A
models installed into a masonry chimney. Metro Insert fires with a Vented Zero
B B
Clearance Cabinet (VZCC) installed into a
timber framed cavity (false chimney).
ULTRA INSERT KIT
C The ECO Built-In kit contains 3 x C
Required with the Ultra Insert model
ECO extension kits and an ECO Cowl.
installed into a masonry chimney.
Suitable for the following models:
D D
• Smart Insert models + Smart VZCC
A 1 x stainless steel weather butterfly • Trend Insert models + Trend VZCC
E E
B 1 x stainless steel ECO Cowl top • Ultra Insert + Ultra VZCC
• Mega Smart Built-In
C
1 x 420mm x 240mm diameter F
stainless steel ECO Cowl housing
F
1 x 480mm long stainless steel flue A 1 x stainless steel weather butterfly
D
pipe extension with flashing cone
B 1 x stainless steel ECO Cowl top
(ECO INSERT KIT ONLY)
1 x 420mm x 240mm diameter G
E 3 x 1200mm x 150mm diameter C
stainless steel ECO Cowl housing
stainless steel flue pipe
1 x 480mm long stainless steel flue
(ULTRA INSERT KIT ONLY) D
G pipe extension with flashing cone
E 2 x 1200mm x 150mm diameter
stainless steel flue pipe 3 x 1200mm x 150mm diameter
E
stainless steel flue pipe
1 x 600mm x 250mm diameter
F
galvanised outer casing 3 x 1200mm x 250mm diameter
F
galvanised outer casing
(ULTRA INSERT KIT ONLY)
G 1 x 1300mm x 150mm diameter 3 x 1200mm x 200mm diameter
G
stainless steel flue pipe and liner galvanised inner casing
to scale to scale
T WO S TORE Y 2ND FLOOR 2ND FLOOR
INS TAL L AT ION EXPOSED FLUE PIPE ENCLOSED FLUE PIPE
Shown (right) are the most Requires the ECO flue kit Requires the ECO flue kit
with additional lengths of with additional lengths of
common installation methods 150mm flue pipe. 150mm flue pipe.
for installing the Metro ECO Flue
Additional components below Additional components below
system in a two storey home. are not supplied by Metrofires are not supplied by Metrofires
To ensure safe and efficient but are also required for this but are also required for this
installation in accordance with installation in accordance with
installation, this flue system must AS/NZS 2918:2001 AS/NZS 2918:2001
be installed as detailed by either
• A floor penetration kit • 200mm and 250mm inner/
a registered installer, or someone outer combination liners
• 1 x 1200mm long
competent in the installation of
mesh/screen • 2nd floor vent cover and
solid fuel appliances. additional ceiling plate with
a 250mm diameter hole
M E T R O F I R E S .CO. N Z 2020 W O O D F I R E R A N G E 31Floor protectors
Wall and Insert
DEPTH
All Metro freestanding wood fires only require an ash
SLIMLINE WALL
hearth floor protector to comply with the minimum floor WIDTH
protector requirements of AS/NZS 2918:2001. Match
a floor protector to your fire when installing either a
freestanding model against a wall or an insert model.
Floor protectors can be laid directly on top of existing
flooring (carpet, timber etc) for quick and easy installation.
SLIMLINE WALL
DEPTH
Lightweight aluminium sheet finished in textured black
powder coat with a low profile 4mm thickness. Available in
two wall sizes.
ALLOY WALL WIDTH
ALLOY WALL
Finished with anodised black extruded aluminium trim and
black tiles. Available in four wall sizes.
PINE WALL & INSERT
Available in two wall sizes and an Insert size in a range of
tile colours. Finished with a natural stain and oiled, waxed
DEPTH
and polished to bring out the timber grain and lustre.
RIMU WALL
PINE WALL WIDTH X
Available in two wall sizes in a range of tile colours.
Finished with a natural stain and oiled, waxed and
polished to bring out the timber grain and lustre.
Slimline and Alloy wall floor protectors DEPTH
The overall dimensions constitute an ‘ash hearth floor
PINE INSERT
protector’ as the Slimline and Alloy trim are both non
WIDTH X
combustible materials.
Pine and Pacific Rimu wall floor protectors
When calculating the floor protector your heating
appliance requires, the ash hearth floor protector is the
tiled area only. Timber trim measurement ‘X’ does not
form part of the ‘ash hearth floor protector’ and must be
deducted from your calculations.
DEPTH
RIMU WALL WIDTH X
Pine and rimu wall floor
protectors are available
TILE in a range of tile colours.
O P T I O NS
See instore for samples.
32 2020 W O O D F I R E R A N G E M E T R O F I R E S .CO. N ZAlloy Alloy Alloy Alloy Slimline Slimline Pine Pine Pine Rimu Rimu
FLOOR PROTECTORS Tiny Small Medium Deep Small Medium Medium Deep Insert Medium Deep
WIDTH 650 855 1042 1042 855 1042 955 955 1255 980 980
DEPTH 830 840 1015 1148 840 1015 935 1085 360 945 1100
X DIMENSION (trim) - - - - - - 23 23 23 35 35
THICKNESS 30 30 30 30 4 4 25 25 43 40 40
CLEAN AIR MODELS
TINY PED ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
TINY RAD ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
TINY RAD - WOODY ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
WEE RAD - BASE ✓ ✓ ✓ ✓ ✓ ✓ ✓
WEE RAD - LEG ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
WEE RAD - WOODY ✓ ✓ ✓ ✓ ✓ ✓ ✓
ULTRA WEE RAD ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
WEE PED ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
AMBIE ONE ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
AMBIE PLUS ✓ ✓ ✓ ✓ ✓
CLASSIC RAD ✓ ✓ ✓
XTREME RAD - BASE ✓ ✓ ✓ ✓ ✓ ✓ ✓
XTREME RAD - LEG ✓ ✓ ✓ ✓ ✓ ✓ ✓
XTREME RAD - WOODY ✓ ✓ ✓ ✓ ✓ ✓ ✓
ULTRA XTREME RAD ✓ ✓ ✓ ✓ ✓ ✓ ✓
XTREME PED ✓ ✓ ✓ ✓ ✓ ✓ ✓
MEGA RAD ✓ ✓ ✓
TREND & SMART INSERT ✓
ULTRA INSERT ✓
LTD MODELS
LTD WEE RAD - BASE ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
LTD WEE RAD - LEG ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
LTD WEE RAD - WOODY ✓ ✓ ✓ ✓ ✓ ✓ ✓
LTD XTREME RAD - BASE ✓ ✓ ✓ ✓ ✓ ✓ ✓
LTD XTREME RAD - LEG ✓ ✓ ✓ ✓ ✓ ✓ ✓
LTD XTREME RAD - WOODY ✓ ✓ ✓ ✓ ✓ ✓ ✓
LTD MEGA RAD ✓ ✓ ✓
LTD TREND & SMART INSERT ✓
All measurements detailed are in millimetres (mm). The dimensions shown are nominal only. All suitable floor protector indications are inclusive of a 10mm minimum skirting board allowance.
M E T R O F I R E S .CO. N Z 2020 W O O D F I R E R A N G E 33Floor protectors
Corner Y
Z
All Metro freestanding wood fires only require an ash
WIDTH
D
EP
hearth floor protector to comply with the minimum floor
TH
protector requirements of AS/NZS 2918:2001. Match
Y
a suitable floor protector to your fire when installing a
SLIMLINE CORNER
freestanding model into a corner situation. WIDTH
Floor protectors can be laid directly on top of existing
flooring (carpet, timber etc) for quick and easy installation.
Y
SLIMLINE CORNER
Lightweight aluminium sheet finished in textured black
Z
powder coat with a low profile 4mm thickness. Available in
two corner sizes.
WIDTH
D
EP
TH
ALLOY CORNER
Y
Finished with anodised black extruded aluminium trim and
ALLOY CORNER
black tiles. Available in three corner sizes. WIDTH
PINE CORNER
Available in two corner sizes in a range of tile colours.
Finished with a natural stain and oiled, waxed and Y X
polished to bring out the timber grain and lustre.
Z
RIMU CORNER
WIDTH
Available in three corner sizes in a range of tile colours.
D
Finished with a natural stain and oiled, waxed and EP
TH
Y
polished to bring out the timber grain and lustre.
PINE CORNER WIDTH
Slimline and Alloy corner floor protectors
The overall dimensions constitute an ‘ash hearth floor
protector’ as the Slimline and Alloy trim are both non
combustible materials.
Y X
Pine and Pacific Rimu corner floor protectors
When calculating the floor protector your heating
Z
appliance requires, the ash hearth floor protector is the
tiled area only. Timber trim measurement ‘X’ does not
WIDTH
D
EP
form part of the ‘ash hearth floor protector’ and must be
TH
deducted from your calculations.
Y
RIMU CORNER WIDTH
Pine and rimu corner floor
protectors are available
TILE in a range of tile colours.
O P T I O NS
See instore for samples.
34 2020 W O O D F I R E R A N G E M E T R O F I R E S .CO. N ZAlloy Alloy Alloy Slimline Slimline Pine Pine Rimu Rimu Rimu
FLOOR PROTECTORS 1000 1150 1300 1000 1150 1000 1150 1000 1150 1300
WIDTH 1000 1150 1300 1000 1150 1000 1150 1000 1150 1300
DEPTH 1180 1310 1493 1180 1310 1180 1310 1180 1310 1525
X DIMENSION (trim) - - - - - 23 23 35 35 35
Y DIMENSION 670 700 814 670 700 670 700 670 700 863
Z DIMENSION 465 640 689 465 640 465 640 465 640 619
THICKNESS 30 30 30 4 4 25 25 40 40 40
CLEAN AIR MODELS
TINY PED ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
TINY RAD ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
TINY RAD - WOODY ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
WEE RAD - BASE ✓ ✓ ✓ ✓ ✓ ✓
WEE RAD - LEG ✓1 ✓ ✓ ✓1 ✓ ✓ ✓ ✓
WEE RAD - WOODY ✓ ✓ ✓ ✓ ✓
ULTRA WEE RAD ✓ ✓ ✓ ✓ ✓ ✓
WEE PED ✓2 ✓ ✓ ✓2 ✓ ✓ ✓ ✓
AMBIE ONE ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
AMBIE PLUS ✓ ✓
CLASSIC RAD ✓ ✓
XTREME RAD - BASE ✓ ✓ ✓ ✓ ✓ ✓
XTREME RAD - LEG ✓ ✓ ✓ ✓ ✓ ✓
XTREME RAD - WOODY ✓ ✓ ✓ ✓
ULTRA XTREME RAD ✓ ✓ ✓ ✓ ✓ ✓
XTREME PED ✓ ✓ ✓ ✓ ✓ ✓
MEGA RAD ✓ ✓
LTD MODELS
LTD WEE RAD - BASE ✓ ✓ ✓ ✓ ✓ ✓
LTD WEE RAD - LEG ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
LTD WEE RAD - WOODY ✓ ✓ ✓ ✓ ✓
LTD XTREME RAD - BASE ✓ ✓ ✓ ✓ ✓
LTD XTREME RAD - LEG ✓ ✓ ✓ ✓ ✓
LTD XTREME RAD - WOODY ✓ ✓ ✓ ✓
LTD MEGA RAD ✓ ✓
All measurements detailed are in millimetres (mm). The dimensions shown are nominal only. All suitable floor protector indications are inclusive of a 10mm minimum skirting board allowance.
1 This model must have the Pioneer corner wing shields fitted to be able to be installed onto this size floor protector.
2 This model must have the Pioneer flue shield side extensions fitted to be able to be installed onto this size floor protector.
M E T R O F I R E S .CO. N Z 2020 W O O D F I R E R A N G E 35Heat transfer
systems
Create a dry, healthy environment and
reduce condensation and dampness in
your home at the same time.
Metro heat transfer systems perfectly partner your
Metro fire by distributing the excess heat generated by
your fire via an insulated ducting system to warm other
rooms in your home. This warm air then circulates back
to the room with the wood fire to keep a continual cycle
of warm air moving throughout your home.
The excess heat trapped at ceiling level can reach
temperatures of up to 350C so it makes good sense to
spread this warmth throughout your home.
1 ROOM HEAT TRANSFER SYSTEM
Ideal for smaller homes or if you are only requiring one
additional room to be heated. Featuring an inline fan
capable of moving 320m3 of warm air per hour.
3 ROOM HEAT TRANSFER SYSTEM
Designed to distribute an even heat throughout your
home featuring a 3 speed LCD controller and european
designed 3 speed mixed-flow fan with a maximum
airflow of 910m3 of warm air per hour. Additional room
outlets can be easily added to extend the system.
FRESH AIR SYSTEM
Add the fresh air system to your 3 room heat transfer
system and keep your home cooler over summer
providing a dry and healthy environment for your family.
The fresh air system utilises the components of the
3 room heat transfer system and adds extra ducts,
dampers and high grade filter.
36 2020 W O O D F I R E R A N G E M E T R O F I R E S .CO. N ZTransfer heat from your
living room to 1 other
room in your home
1 ROOM HEAT TRANSFER COMPONENTS
• 1 x 150mm diameter intake • 1 x thermostat • 2 x 3m lengths of 150mm diameter insulated duct • 1 x 150mm diameter inline fan
• 1 x 150mm diameter adjustable cone outlet diffuser • 2 x rolls of ducting tape
Transfer heat from your
living room to 3 or more
rooms in your home
3 ROOM HEAT TRANSFER COMPONENTS
• 1 x 200mm diameter intake • 1 x LCD thermostat / 3 speed fan controller • 2 x 3m lengths of 200mm diameter insulated acoustic duct
• 1 x 200mm diameter 3 speed fan module • 1 x 3 way splitter • 3 x 3m lengths of 150mm diameter insulated duct
• 3 x 150mm diameter adjustable cone outlet diffusers • 4 x rolls of ducting tape
Provide a cool, dry healthy
environment for your family
during summer
FRESH AIR SYSTEM COMPONENTS
• 1 x 200mm diameter intake • 1 x fresh air/heat switch • 1 x 6m length of 200mm diameter Unilok ducting
• 1 x 200mm in-line filter • 1 x Y damper 200/200/200mm • 1 x Y branch 150/150/150mm • 2 x 3m lengths of 150mm insulated ducting
• 1 x 150mm in-line barrel damper • 1 x Y branch 200/200/150mm • 1 x large roll of ducting tape
M E T R O F I R E S .CO. N Z 2020 W O O D F I R E R A N G E 37SPECIFIC AT IONS
Insert and
Built-In models
Mantel
Metro Insert and Built-In models are tested to comply with
AS/NZS 2918:2001 incorporating Appendix ‘E’ when L
E
installed in accordance with the manufacturers Installation
and Operation manuals and the applicable Vented Zero
Clearance Cabinet installation manuals.
MANTEL CLEARANCE
A timber or combustible mantel above the fireplace opening
must be a minimum distance (L) above the top of the Metro’s
A
fascia as detailed in the table opposite. If the clearance
H
is less than the minimum specified, a heat shield will be
required to be fitted under the mantel or to the top of the
fascia using the relevant detail in AS/NZS 2918:2001.
SMART INSERT MODELS TREND INSERT MODELS
HEARTH / FLOOR PROTECTOR REQUIREMENTS
B F B
The floor protector for Insert and Built-In models must F D D
project from behind the fascia the distance specified in the
table opposite, and must extend a minimum of 200mm from
Height adjustable panel
Height adjustable panel
595mm maximum
595mm maximum
each side of the door opening. The minimum projection is the
C G C G
distance from the front of the wall lining (behind the fascia)
to the front non combustible point of the floor protector.
J K J K
WETBACK INSTALLATION
I I
Smart Insert models (Smart Insert Booster) Refer table opposite Refer table opposite
Fits to either left or right hand side of the firebox externally.
Trend Insert (3kW or 4kW wetback)
The Trend Insert can only be fitted with a wetback on ULTRA INSERT MEGA SMART BUILT-IN
properties of 2Ha or greater. Fits to either left or right hand
side of the firebox internally. F B B
D F D
LTD Trend Insert (3kW or 4kW wetback)
Fits to either left or right hand side of the firebox internally.
Height adjustable panel
595mm maximum
Mega Smart Built-In (Mega Smart Booster) C G C G
Fits to either left or right hand side of the firebox externally.
Ultra Insert J K
This model cannot be fitted with a wetback.
I I
Refer table opposite Refer table opposite
38 2020 W O O D F I R E R A N G E M E T R O F I R E S .CO. N ZLTD TREND BUILT-IN
LTD TREND INSERT
LTD SMART INSERT
SMART MODELS
TREND BUILT-IN
ULTRA BUILT-IN
SMART INSERT
TREND INSERT
ULTRA INSERT
MEGA SMART
(BUILT-IN)
BUILT-IN
A FIREBOX WIDTH 560 560 693 1 560 693 1 560 693 1 860 580 690 1
B FIREBOX DEPTH 495 495 566 1 500 625 1 500 625 1 631 530 623 1
C FIREBOX HEIGHT 550 550 695 1 550 695 1 550 695 1 814 550 704 1
D FLUE CENTRE 405 405 405 405 405 405 405 445 405 405
E FASCIA WIDTH 890 890 890 810 810 810 810 1057 810 810
F FASCIA DEPTH 30 30 30 185 185 185 185 30 120 120
G FASCIA HEIGHT 672 672 672 650 650 650 650 822 654 654
H MIN. HEARTH WIDTH 890 890 890 825 825 825 825 1057 825 825
I MIN. HEARTH PROJECTION 312 312 460 300 300 350 350 505 300 440
J WETBACK INLET 130 130 175 170 2 215 2 170 215 212 - -
K WETBACK OUTLET 325 325 370 360 2
405 2
360 405 402 - -
L MANTEL CLEARANCE 475 475 460 340 340 460 460 500 500 450
FLOOR PROT EC TOR HEIGH T S & PROJEC T ION (I)
0 FLOOR LEVEL 395 395 455 402
10 mm ABOVE FLOOR LEVEL 371 371 455 378
15 mm ABOVE FLOOR LEVEL 371 371 460 300 300 445 350 505 - 440
MINIMUM MINIMUM MINIMUM MINIMUM MINIMUM MINIMUM
20 mm ABOVE FLOOR LEVEL 353 353 PROJECTION PROJECTION PROJECTION 436 PROJECTION PROJECTION 360 PROJECTION
REQUIRED REQUIRED REQUIRED REQUIRED REQUIRED REQUIRED
25 mm ABOVE FLOOR LEVEL 353 353 424 -
Irrespective Irrespective Irrespective Irrespective Irrespective Irrespective
30 mm ABOVE FLOOR LEVEL 332 332 of the height of the height of the height 408 of the height of the height 339 of the height
of the floor of the floor of the floor of the floor of the floor of the floor
35 mm ABOVE FLOOR LEVEL 332 332 protector protector protector 396 protector protector - protector
above floor above floor above floor above floor above floor above floor
4 0 mm ABOVE FLOOR LEVEL 312 312 level level level 366 level level 320 level
41 mm ABOVE FLOOR LEVEL 312 312 350 -
5 0 mm ABOVE FLOOR LEVEL - - - 300
FLOOR PROT EC TOR T Y PE & CONS T RUC T ION
INSERT (ALL FLOOR TYPES) INSULATED INSULATED - ASH - INSULATED - - INSULATED -
BUILT-IN (COMBUSTIBLE FLOOR) - - INSULATED - INSULATED - INSULATED INSULATED - INSULATED
BUILT-IN (NON COMBUSTIBLE FLOOR) - - ASH - ASH - ASH ASH - ASH
INSULATED - Recommended construction of tiles on 26mm thick Eterpan LD board or equivalent / ASH - Recommended construction of tiles on 6mm thick non-combustible board
Please note: All measurements detailed above are in millimetres (mm). Insert model measurements exclude the 13mm insulating blanket.
1 These dimensions are for the Vented Zero Clearance Cabinet and include the spacer blocks fitted. Flue spigot liner assembly is not included in the dimensions.
2 Wetback options are only available for the Trend Insert when installed onto properties of 2Ha or greater.
M E T R O F I R E S .CO. N Z 2020 W O O D F I R E R A N G E 39SPECIFIC AT IONS
Freestanding models
Metro freestanding wood fires comply with AS/NZS 2918:2001. All clearances are measured from the following reference points as
illustrated in the diagrams opposite.
Minimum installation clearances are in millimetres (mm) with a
Pioneer double flue shield fitted to the appliance / flue pipe. • The nearest combustible wall or surface (A, B, D, E, G, H)
AS/NZS 2918:2001 allows for a reduction in minimum clearances as • The Metro’s flue centre (A, B, C, D)
detailed in Tables 3.1 and 3.2 of the Standard. Selected Metro models • The Metro’s cabinet / heatshield outermost point (E, F, G, H)
have undergone additional testing for reduced installation clearances. • The edge of the ash floor protectors non-combustible
The footnotes below the table apply to these selected models. surface (C, F, I, J, K, L, M).
XTREME RAD
XTREME RAD
XTREME RAD
XTREME RAD
TINY RAD
TINY RAD
WEE RAD
WEE RAD
WEE RAD
WEE RAD
TINY PED
WEE PED
WOODY
WOODY
WOODY
ULTRA
ULTRA
BASE
BASE
LEG
LEG
A 211 230 251 271 251 271 268 263 251 251 251 277
B 433 553 568 678 568 708 658 651 650 650 680 635
C 580 585 580 580 580 580 580 580 630 630 630 632
D 290 419 382 486 456 1 506 497 2 473 3 458 458 478 450
E 25 150 110 180 150 1
200 190 2
170 3
100 100 120 100
F 235 232 232 232 232 232 232 230 227 227 227 227
G 185 300 310 370 260 400 350 350 280 280 310 280
H 60 75 100 120 100 120 100 110 100 100 100 100
I 791 815 831 851 831 851 848 843 881 881 881 909
J 650 650 650 825 825 825 825 825 907 907 907 907
K 990 1180 1120 1270 1225 1 1295 1285 2 1250 3 1280 1280 1306 1267
L 780 910 870 1048 1016 1 1066 1059 2 1034 3 1084 1084 1103 1075
M 250 250 250 425 425 425 425 425 507 507 507 507
N 280 280 365 295 295 365 - 295 312 312 382 -
O 470 470 555 485 485 555 - 485 502 502 572 -
WIDTH 496 505 515 615 615 615 615 602 740 740 740 710
DEPTH 492 508 498 501 501 501 515 503 554 554 554 582
HEIGHT 659 667 758 691 688 758 691 665 743 743 813 722
1 Wee Rad (LEG) corner clearance (E) can be reduced to 120mm with Wee Rad corner wing shields fitted. This also reduces clearances (D) to 426mm, (K) to 1185mm and (L) to 987mm.
The Wee Rad (LEG) model must be installed to a corner clearance (E) of 120mm. The corner wing shields are then fitted which gives a wall to shield corner clearance of 100mm.
2 Ultra Wee Rad corner clearance (E) can be reduced to 165mm with Wee Rad corner wing shields fitted. This also reduces clearances (D) to 471mm, (K) to 1245mm and (L) to 1031mm.
The Ultra Wee Rad must be installed to a corner clearance (E) of 165mm. The corner wing shields are then fitted which gives a wall to shield corner clearance of 130mm.
3 Wee Ped corner clearance (E) can be reduced to 115mm if side extensions are fitted to the flue shield. This also reduces clearances (D) to 418mm, (K) to 1170mm and (L) to 978mm.
4 Classic Rad corner clearance (E) can be reduced to 180mm if side extensions are fitted to the flue shield. This also reduces clearances (D) to 460mm, (K) to 1435mm and (L) to 1131mm.
40 2020 W O O D F I R E R A N G E M E T R O F I R E S .CO. N ZWetback connection dimensions (N & O) are in millimetres (mm) WALL CLEARANCES CORNER CLEARANCES
and are taken facing the Metro wood fire / wall.
• Tiny Ped and Tiny Rad are 92mm left of the flue centre
• Tiny Rad Woody and Classic Rad are 184mm left of the flue centre
• Wee Series clean air models are 226mm left of the flue centre
• All other wetback capables models including all LTD freestanding
models are 140mm left of the flue centre.
LTD XTREME RAD
LTD XTREME RAD
LTD XTREME RAD
LTD MEGA RAD
LTD WEE RAD
LTD WEE RAD
LTD WEE RAD
XTREME PED
CLASSIC RAD
AMBIE PLUS
AMBIE ONE
MEGA RAD
WOODY
WOODY
BASE
BASE
LEG
LEG
A 251 250 267 257 285 251 251 271 251 251 251 285
B 624 539 686 695 720 658 548 708 650 650 680 720
C 630 589 658 780 728 580 580 580 630 630 630 728
D 442 392 462 500 4 497 486 426 506 458 458 478 497
E 110 100 125 220 4
100 180 120 200 100 100 120 100
F 226 275 275 229 224 232 232 232 227 227 227 224
G 280 250 350 430 300 350 240 400 280 280 310 300
H 100 100 100 100 130 100 100 120 100 100 100 130
I 881 839 925 1037 1013 831 831 851 881 881 881 1013
J 907 825 906 728 1006 825 825 825 907 907 907 1006
K 1260 1142 1315 1490 4 1435 1270 1185 1295 1280 1280 1306 1435
L 1070 960 1109 1170 4 1229 1048 989 1066 1084 1084 1103 1229
M 507 427 506 328 606 425 425 425 507 507 507 606
N 312 350 360 393 300 300 295 365 350 350 420 300
O 502 540 550 583 490 490 485 555 540 540 610 490
WIDTH 688 577 671 530 840 615 615 615 740 740 740 840
DEPTH 554 464 550 708 659 501 501 501 554 554 554 659
HEIGHT 707 720 762 680 744 691 688 758 743 743 813 744
All specifications are correct and current at time of printing, but may alter and those detailed should be used as a guide only. Specifications are subject to change without notification;
If in doubt please consult your local Metro Fires agency or visit metrofires.co.nz.
M E T R O F I R E S .CO. N Z 2020 W O O D F I R E R A N G E 41Your Metro retailer details
Visit www.metrofires.co.nz | Email info@metrofires.co.nz
©PIONEER MANUFACTURING LTD FEB2020
To donate to Starship please visit:
https://www.starship.org.nzYou can also read
