Mirror and
Camera Monitor Systems for Buses

www.mekra.de
www.mekratronics.de
Mirror and Camera Monitor Systems for Buses - www.mekra.de www.mekratronics.de
CONTENT

Directives                 Coaches                City Buses                 Motorhomes                  Components               Camera Monitor Systems      Accessories         Service

04 MEKRA Lang              10 Product Portfolio   24 Product Portfolio for   36 Product Portfolio for    44 Overview              58 Product Portfolio for    68 Overview         74 Overview
   Production and              for Coaches           City Buses and             Motorhomes and                                       Camera Monitor Systems
   Development Expertise                             Long-distance Coaches      Universal Applications   46 Tubular Bracket                                   70 Wedge Mounts     76 Installation Information
                           12 Mirror System 291                                                             System 270            60 Overview
06 Vehicle Classes and                            26 Mirror System 277       38 Mirror System 1018                                                            71 Adapters /       77 Glass Replacement
   Fields of Vision        17 Mirror System 274                                                          48 Main Mirrors          62 CMOS Color Camera1301       Rubber Bellows
                                                  29 Mirror System 278                                                                                                            78 General Terms and
08 European Regulations    20 Mirror System 271                                                          51 Wide-angle Mirrors    65 LED-TFT Color Monitor    72 Cables              Conditions
   and Directives for                             31 Mirror System 276                                                               MCM 5029
   Buses                                                                                                 53 Interior Mirrors                                  73 Switches
                                                  34 Mirror System 273
                                                                                                         57 Special Application                               73 Other
                                                                                                            Mirrors
Mirror and Camera Monitor Systems for Buses - www.mekra.de www.mekratronics.de
Directives
    MEKRA Lang Production and Development Expertise

                                                                                                    Quality at the Highest Level
    Trailblaser for All-Around-Visibility Systems                                                   With decades of experience as a supplier of mirror systems, three-dimensional field-of-vision analyses and in-house development
                                                                                                    expertise, MEKRA Lang has firmly established itself as a global market leader.
    For three generations MEKRA Lang has been a major innovator and driving force in the field of
    all-around visibility systems for buses and commercial vehicles. Building on its exceptional    While ensuring compliance with all of the applicable rules and regulations in the automotive sector, MEKRA Lang develops tailored
    expertise and professionalism, the family-owned enterprise has become a global player with      solutions for the entire range of vision and safety requirements.
    operations in 20 locations.                                                                     In close cooperation with our customers, we turn ideas into products that perform in the real world. Offering services from product
                                                                                                    design and development, in-house mirror glass production and coating, tool making, rod mounting and plastics technology all the
                                                                                                    way through comprehensive project management, we are at our customer’s side every step of the way lending our experience and
                                                                                                    expertise to create a first-rate product.

                                                                                                    Based on our own field-of-vision research, we provide the most effective visibility solutions to address any given vehicle’s blind
                                                                                                    spots while at the same time enabling the best and most economical solution for each individual area of application.
                                                                                                    Using our experience and expertise for the ultimate benefit of our customers – that is what solutions by MEKRA Lang are all about.

4                                                                                                                                                                                                                                         5
Mirror and Camera Monitor Systems for Buses - www.mekra.de www.mekratronics.de
Directives
         Vehicle Categories and Fields of Vision

                   Interior mirror                                                       Exterior mirror
    Vehicle
    Category       Interior mirror                                                       Main mirror (large)                                               Main mirror (small)                           Wide-angle mirror                         Close-proximity mirror                      Front mirror
                   Class I                                                               Class II                                                          Class III                                     Class IV                                  Class V                                     Class VI
    M1             Compulsory                                                            Optional                                                          Compulsory                                    Optional                                  Optional                                    Optional
    up to 8        Unless in the field of vision                                                                                                           1 on the driver’s side and 1                  1 on the driver’s side and/or             1 on the driver’s side and                  (must be installed at least 2 m
    persons        required according to para.                                                                                                             on the passenger’s side                       1 on the passenger’s side                 1 on the passenger’s side                   above the ground)
                   15.2.4.1, the vehicle is equipped                                                                                                       Alternatively, class II mirrors                                                         (must both be installed at least 2 m
                   with something other than safety                                                                                                        may be installed.                                                                       above the ground)
                   glazing material.

    M2             Optional                                                              Compulsory                                                        Not permitted                                 Optional                                  Optional                                    Optional
    > 8            (no field-of-vision                                                   1 on the driver’s side and                                                                                      1 on the driver’s side and/or             1 on the driver’s side and                  (must be installed at least 2 m
    persons        requirements)                                                         1 on the passenger’s side                                                                                       1 on the passenger’s side                 1 on the passenger’s side                   above the ground)
    up to 5                                                                                                                                                                                                                                        (must both be installed at least 2 m
    tons                                                                                                                                                                                                                                           above the ground)

    M3             Optional                                                              Compulsory                                                        Not permitted                                 Optional                                  Optional                                    Optional
    >8             (no field-of-vision                                                   1 on the driver’s side and                                                                                      1 on the driver’s side and/or             1 on the driver’s side and                  (must be installed at least 2 m
    persons        requirements)                                                         1 on the passenger’s side                                                                                       1 on the passenger’s side                 1 on the passenger’s side                   above the ground)
    > 5 tons                                                                                                                                                                                                                                       (must both be installed at least 2 m
                                                                                                                                                                                                                                                   above the ground)

    European Directive for Trucks (2003/97/EC) ECE R46/02
                       HS           = Main mirror                        ≙ Class II                             NBS                    = Close-proximity mirror           ≙ Class V
    Legend             WWS          = Wide-angle mirror                  ≙ Class IV                             FS                     = Front mirror                     ≙ Class VI
                                                            European Directive for Trucks (2003/97/EG) ECE R46/02
                                                                                                       25m
                                                                                                                                                                                                                                 Regulations and Directives Specifically Applicable to Buses
    nn
                                                                                               10m
         Main mirror Class II
    nn   Wide-angle mirror Class IV                                                                                                                                                                                              Overview
    nn   Close-proximity mirror Class V                                                                    Class IV
                                                                                                                                                                                                   15m
    nn   Front mirror Class VI                                                                               30m
                                                                                                                                                                                                                                                                                   Page 8         Legally Required Field of Vision
                                                                                  1. 5m
                                                           R 2m    2m
                                                                               1m1.75m                                                                                                        5m
                                                                                                                                                                                                                                                                                   Page 8         German School Bus Regulation
                                                                                                                                                                                       4.5m
                                                                               Class V
                                                                                          4m
                                                                                                                                            Class II
                                                                                                                                                                             1m
                                                                                                                                                                                  2m                                                                                               Page 9         Belgian Regulation
                                                                    Class VI

                                                                                                                                                                           Line = Center of Vehicle
                                                                               Eyepoint
                                                                                                                                                                                                                                                                                   Page 9         Spanish School Bus Regulation
                                                                                                                                            Class II

                                                                                                           Class IV

                      Ideal-typical representation. Depending
                                                      HS   = Mainon   vehicle≙ Class
                                                                  mirror       size,II shape, and
                                                                                               NBS mounting      location,
                                                                                                    = Close-proximity           theV fields of vision shown may vary.
                                                                                                                      mirror ≙ Class
                                                          WWS     = Wide-angle mirror ≙ Class IV           FS         = Front mirror          ≙ Class VI
6                                                                                                                                                                                                                                                                                                                                    7
Mirror and Camera Monitor Systems for Buses - www.mekra.de www.mekratronics.de
Directives
                     European Regulations and Directives for Buses
    ECE        Gesetzlich gefordertes Sichtfeld für Busse                                                                                                                                                       Belgische Verordnung
                                                                                                                                                                                                                                                                    25m
                                                                                                                                                                                                                                                10m

                                                                                                                                                                                                                                                                        Class IV
                                                                                                                                                                                                                                                                                                                                                                          15m
                                                                    30m                                                                                                                                                                                                   30m
                                                                                                                                                                                                                                1,5m

                                  4m                                                                                                                        5m                                                                                                                                                                                                       5m
                                                                                                                                                                                                                                                                                                                                                              4,5m
                                                                                                 Class II                                                                                                                                                                                                Class II
                                                                                                                                                                                                                                       4m                                                                                                          1m
                                                                                                                                              1m
                                                                                                                                           Line = vehicle center                                                                                                                                                                                 Line = vehicle center

                           Eye Point                                                                                                                                                                                         Eye Point
                                                                                                 Class II                                                                                                                                                                                                Class II

                                   Ideal-typical representation. Depending on vehicle size, shape, and mounting location, the fields of vision shown may vary.                                                                           Ideal-typical representation. Depending on vehicle size, shape, and mounting location, the fields of vision shown may vary.

               Deutsche Verordnung                                                                                                                                                                              Spanische Verordnung
                                   Legally Required Field of Vision for Buses                                                                                 ECE                                                                        Belgian Regulation

                                       nn Main mirror Class II on both sides                                                                                                                                                        nn Main mirror Class II on both sides
                                       nn Wide-angle mirror permitted – not compulsory                                                                                                                                              nn Wide-angle mirror Class IV on the passenger’s side
          HS        = Hauptspiegel          ≙ Klasse II                                                                                                                                                    HS        = Hauptspiegel nn Wide-angle
                                                                                                                                                                                                                                       ≙ Klasse II mirror Class IV on left side permitted – not compulsory
                                                                                                                                                                                                           WWS       = Weitwinkelspiegel         ≙ Klasse IV

                                                                    30m                                                                                                                                                                                                   30m

                           1m     4m                                                                                                                        5m                                                               1m1,75m                                                                                                                                 5m

                                                                                                                                                                                                                      0,9m
                      1m

                                                                                                 Class II                                                                                                                    Class V                               2m                                    Class II
                                                                                                                                                                                                                                       4m                                                                                                                2m
                                BFS                                                                                                           1m                                                                                                                                                                                                    1m
                                                                                                                                           Line = vehicle center                                                                                                                                                                                 Line = vehicle center
                           Eye Point                                                                                                                                                                                         Eye Point
                                                                                                 Class II                                                                                                                                                                                                Class II

                         0,3m                                                                                                                                                                                             0,3m

                  1,2m                                                                                                                                                                                             1,2m

                                   Ideal-typical representation. Depending on vehicle size, shape, and mounting location, the fields of vision shown may vary.                                                                      Ideal-typical representation. Depending on vehicle size, shape, and mounting location, the fields of vision shown may vary.

                                   German School Bus Regulation                                                                                                                                                                          Spanish School Bus Regulation
          HS        = Hauptspiegel          ≙ Klasse II                                                                                                                                                    HS        = Hauptspiegel              ≙ Klasse II            NBS        = Nahbereichspiegel   ≙ Klasse V          HKS/RFK     = Heckspiegel / Rückfahrkamera
          BFS       = Beifahrerseite
                                       nn Main  mirror Class
                                           ≙ einsehbares,         II on
                                                          gesetzlich     both sides
                                                                     gefordertes Sichtfeld               Messlatte Frontsicht
                                                                                                                                                                                                                                         nn Main mirror Class II on both sides                               Messlatte Frontsicht
                                       nn Passenger’s side (BFS) with mirror, camera/monitor system optional                                                                                                                             nn Close-proximity mirror Class V right side, camera/monitor system optional
                                       nn Direct front view of measuring stick or front mirror, camera/monitor system optional                                                                                                           nn Direct front view of measuring stick or front mirror Class VI, camera/monitor system optional
                                                                                                                                                                                                                                         nn Close-proximity mirror Class V on right side not required, if the field of vision is ensured
                                                                                                                                                                                                                                            by a combination of wide-angle mirror Class IV and front mirror Class VI
                                                                                                                                                                                                                                         nn Rear camera, rear mirror optional

                                                          HS       = Main mirror HS           ≙Main
                                                                                              = Classmirror
                                                                                                     II                   Class II = Close-proximity
                                                                                                                        ≙ NBS                    NBSmirror=≙Close-proximity
                                                                                                                                                              Class V       mirror ≙BFS
                                                                                                                                                                                    Class V = Passenger’sBFS
                                                                                                                                                                                                          side         ≙=visible,
                                                                                                                                                                                                                          Passenger’s
                                                                                                                                                                                                                                  legallyside
                                                                                                                                                                                                                                          required
                                                                                                                                                                                                                                                 ≙ field
                                                                                                                                                                                                                                                    visible,
                                                                                                                                                                                                                                                         of vision
                                                                                                                                                                                                                                                             legally required field of vision
                                                                                                                                                                                                                                                                                           Measuring rod front viewMeasuring rod front view
8                 Legend                                  WWS                   WWS
                                                                   = Wide-angle mirror        =
                                                                                              ≙Wide-angle
                                                                                                Class IV mirror           Class IV = Front mirror FS
                                                                                                                        ≙ FS                                       =≙Front
                                                                                                                                                                       Class
                                                                                                                                                                           mirror
                                                                                                                                                                             VI     ≙HKS/RFK
                                                                                                                                                                                     Class VI = Rear mirror HKS/RFK
                                                                                                                                                                                                            / rear-view=camera
                                                                                                                                                                                                                         Rear mirror / rear-view camera                                                                                                                         9
Mirror and Camera Monitor Systems for Buses - www.mekra.de www.mekratronics.de
Coaches

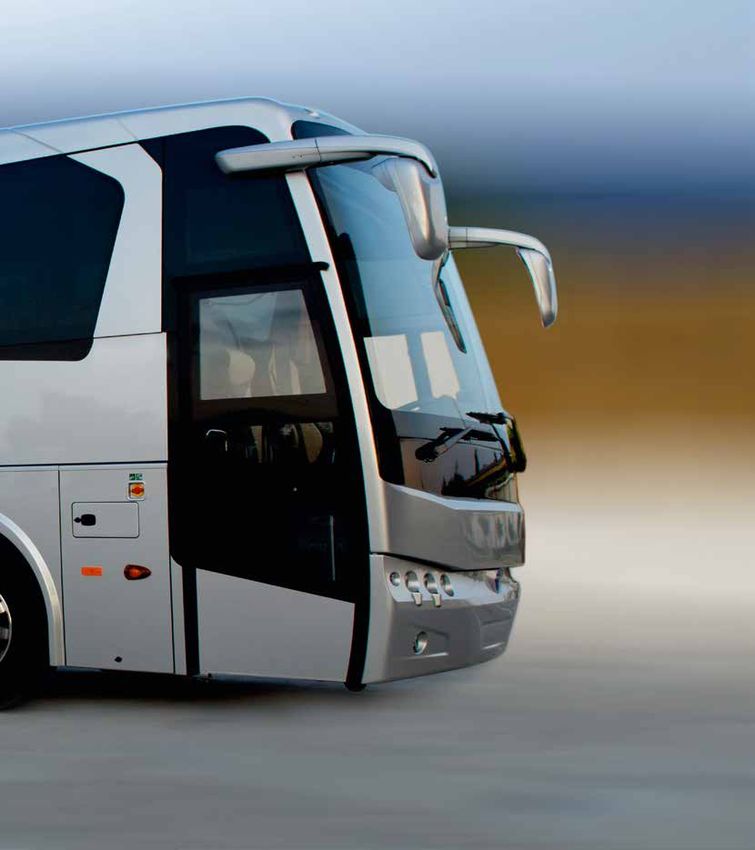

     Product Portfolio for Coaches

                                                                                                   Mirror System                     ECE

     All-around Visibility on the Open Road                                                        291
     MEKRA Lang’s mirror systems for coaches combine optimum visibility and safety with
     attractive design features and top-of-the-line functionality.

                                                                                                                   Page 12   Left side / right side

                                                                                                   Mirror System                                        ECE

                                                                                                   274

     Offering a multitude of possible combinations, extended configurations, and optional
     features, these systems can be optimized for a wide variety of vehicles and meet a host of
     requirements and country-specific standards. Extended configurations featuring electronic                     Page 17   Left side / right side
     components such as cameras, entry lights, in-mirror park assist displays, and power folding
     mirror arms ensure unmatched ergonomics for the driver as well as maximum safety and
     comfort for the passengers.

                                                                                                   Mirror System                                  ECE

                                                                                                   271

                                                                                                                   Page 20   Left side / right side
                                                                                                                             With direct contact connection 271
                                                                                                                             With cable connection 248

10                                                                                                                                                                11
Mirror and Camera Monitor Systems for Buses - www.mekra.de www.mekratronics.de
Coaches

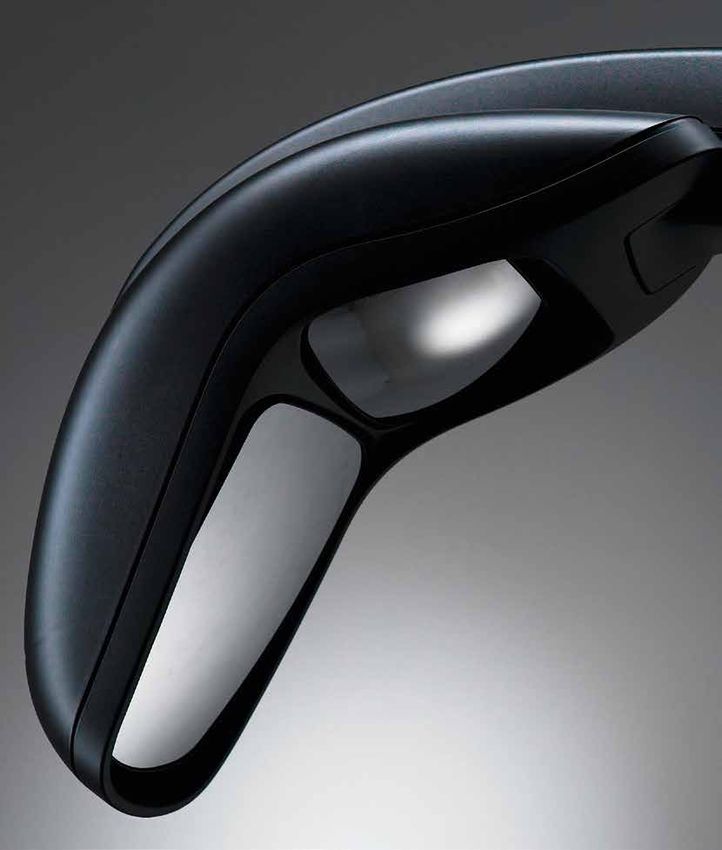

                 Mirror System 291

                 Mirror System                                                                           ECE   Mirror configurations

                 291                                                                                                 HS
                                                                                                                     Main mirror II
                                                                                                                                                            WWS
                                                                                                                                                            Wide-angle mirror IV
                                                                                                                                                                                           BS   BS
                                                                                                                                                                                                Front crossview mirror

                                                                                                                     R 1200 (II E1 021203)                  R 300 (IV E1 021207)                R 200
                                                                                                                     Heated, 24 V                           Heated, 24 V                        Heated, 24 V
                                                                                                                     Electrically adjustable                Manually adjustable                 Manually adjustable

                                                                                                                                               HS and WWS                          HS and BS

                             nn ECE R46/02-compliant main (R 1200) and wide-angle mirrors (R 300)
                             nn Modular system
                             nn Variable mounting lengths and angles
                             nn Manual or power folding mirrors
                             nn Manually or electrically adjustable mirror glasses, heated
                             nn Optional configuration with wide-angle or front crossview mirror                                   Fold-in mechanism (manual or powered operation)         Camera
                             nn Paintable plastic (ABS) trim options with fine-grain texture
                             nn LED entry light can be integrated
                             nn Camera can be integrated
                             nn Ultra-robust mounting arm construction, vibration-resistant
                             nn Optional configurations for country-specific field-of-view regulations
                             nn Ample supply of spare parts                                                                                                                                Entry light
      Features

                             nn Left-hand and right-hand drive options
                             nn Easy to disassemble
                             nn Tool-free glass replacement (snap-and-slide locking)
                             nn Various 12 V versions

12   Technical specifications subject to change!                                                                                                                                                                         13
Mirror and Camera Monitor Systems for Buses - www.mekra.de www.mekratronics.de
Coaches
                          Mirror System 291

                                                                                                       Mounting arm
                                                                                                       available in three mounting
                             Mirror with HS and WWS

                                                                                                       dimensions

                                                                                                             262

                                                                                                                                                  Mirror with HS and WWS            Mirror with HS and BS         Mirror with HS, WWS and ZS         Mirror with HS, WWS and NBS
                                                                                                                                 Short

                                                                                                                                               Manual folding mirrors

                                                                                                               312                             Left-hand drive
                                                                                                                                            59.2910.001.001                Left-hand mount          HS      WWS                                ECE

                                                                       or                                                                   59.2910.002.001                Right-hand mount         HS      WWS                                ECE
                                                                                                                                                                                                                    BS
                                                                                                                                            59.2910.003.001                Left-hand mount          HS                   BS                    ECE
                                                                                                                                 Medium
                                                                                                                                                                                                                    BS
                                                                                                                                            59.2910.004.001                Right-hand mount         HS                   BS                    ECE

                                                                                                                                            59.2910.011.001                Left-hand mount          HS      WWS                Camera          ECE
                             Mirror with HS and BS

                                                                                                                   412                      59.2910.012.001                Right-hand mount         HS      WWS                Camera          ECE
                                                      BS
                                                                                                                                                                                                                    ZS
                                                                                                                                            59.2910.013.001                Left-hand mount          HS      WWS          ZS    559             ECE

                                                                                                                                            59.2910.014.001                Right-hand mount         HS      WWS          NBS   558             ECE

                                                                                                                                 Long          Right-hand drive
                                                                                                                                            59.2910.009.001                Left-hand mount          HS      WWS                                ECE

                                                                                                                                            59.2910.010.001                Right-hand mount         HS      WWS                                ECE
                                                                                                                                                                                                                    BS
                                                                                                                                            59.2910.017.001                Left-hand mount          HS                   BS                    ECE
                                                                                                                                                                                                                    BS
                                                                                                                                            59.2910.018.001                Right-hand mount         HS                   BS                    ECE

                                                                                                                                               Power folding mirrors
                                                                                                                                               Left-hand drive
                                                           264                       1196
                                                                                                                                            59.2910.005.001                Left-hand mount          HS      WWS                                ECE

                                                                                                                                            59.2910.006.001                Right-hand mount         HS      WWS                                ECE
                                                                                                                                                                                                                    BS
                                                                                                                                            59.2910.007.001                Left-hand mount          HS                   BS                    ECE
      System Variations

                                                                                                                                                                                                                    BS
                                                                                                                                            59.2910.008.001                Right-hand mount         HS                   BS                    ECE

                                                                                                                                            59.2910.015.001                Left-hand mount          HS      WWS                Camera          ECE
                                                                 696

                                                                                                                                            59.2910.016.001                Right-hand mount         HS      WWS                Camera          ECE
                                                                            Mounting dimensions approx.: L x H x D   1196 x 696 x 264 mm    Additional versions upon request
                                                                            Fold-in angle                            60° manual operation

                                                                                                                                             Item Numbers

14   Technical specifications subject to change!                                                                                                                                                                                                                           15
Mirror and Camera Monitor Systems for Buses - www.mekra.de www.mekratronics.de
Coaches
              Mirror System 291                                                                                                                 Mirror System 274

              262                                                  312                                      412                                 Mirror System                                                                   ECE   ECE

                              Short                                               Medium                                      Long
                                                                                                                                                274
      Mounting arm
      61.2910.001.001            291-1             Left side      Short        Covers
      61.2910.002.001            291-1             Right side     Short        Covers
      61.2910.003.001            291-2             Left side      Medium       Covers
      61.2910.004.001            291-2             Right side     Medium       Covers
      61.2910.005.001            291-3             Left side      Long         Covers
      61.2910.006.001            291-3             Right side     Long         Covers
      61.2910.007.001            291-4             Left side      Medium       Covers      Entry light
      61.2910.008.001            291-4             Right side     Medium       Covers      Entry light
      Additional versions upon request

      Accessories
      Vehicle connecting cable
      09.2910.002.099            for HS and WWS                                                                          6.00 m
      09.2910.003.099            2-lead for entry light or folding feature                                               6.00 m
      Mirror adjustment switch                                                                                                                            nn ECE R46/02
      08.3200.233                for dual mirror operation                                                                                                nn Main mirror, heated, electrically adjustable
      Other                                                                                                                                               nn Usage below 2 m permitted, mirror head folds forward or backward
      08.3950.001.099            Controller for power folding mechanism                                                                                      in case of collision
      08.2910.001.002            Power LED entry light 18 - 32 V incl. mounting clips                                                                     nn Folds in onto windshield, manual operation
                                                                                                                                                          nn Direct contact connection 271 / hidden wiring
                                                                                                                                                          nn Various mounting adapters for vehicle installation
                                                                                                         retrofittable
                                                                                                                                                          nn Paintable surfaces
                                                                                                                                                          nn Tool-free glass replacement (snap-and-slide locking)
                                                                                                                                                          nn Easy to disassemble / remove
                                                                                                                                     Features

                                                                                                                                                          nn Single design supports both right and left side installation
                                                                                                                                                          nn Variable mounting lengths and angles
                                                                                                                                                          nn 12 V and 24 V versions available
       Item Numbers

16   Technical specifications subject to change!                                                                                                                                                                                            17
Mirror and Camera Monitor Systems for Buses - www.mekra.de www.mekratronics.de
Coaches
             Mirror System 274

                                                                                                                                                                                                      620                                 720

                                  Mirror configurations

                                                                                                                                                                      224
                                          HS                                ZS   ZS
                                          Main mirror II                         Auxiliary mirror

                                                                                                                                                             594
                                          R 1800 oder R 1200,                    R 300

                                                                                                            810

                                                                                                                                            230,4
                                          (II E1 020910)                                                                                                                                Mounting dimensions approx.: L x H x D        620 x 810 x 224 mm
                                          Heated, 24 V / 12 V                                                                                                                                                                         720 x 810 x 224 mm
                                          Electrically adjustable

                                                                                                                                                    2 m above-ground limit

                                                                                                                  Left-hand / right-hand mount              Heated       OO   Electrically adjustable (Class II)
                                                                                                             With joint cover
                                                                                                                                                                                            ZS
                                                                                                             59.2743.002.001               HS        1200   R 1200            12 V               ZS     300   R 300   671 x 810 mm                     ECE

                                                                                                             59.2743.322                   HS               R 1800            12 V                                                                     ECE
                             HS                                     HS and ZS
                                                                                                             59.2743.332                   HS               R 1800            12 V                                    Total length + 100 mm            ECE

                                                                                                             59.2743.323                   HS               R 1800            24 V                                                                     ECE

                                  Mirror head with folding mechanism                                         59.2743.333                   HS               R 1800            24 V                                    Total length + 100 mm            ECE

                                                                                                             Without joint cover
                                                                                                                                                                                            ZS
                                                                                                             59.2743.001.001               HS        1200   R 1200            12 V               ZS     300   R 300   654 x 778 mm                     ECE

                                                                                                                                                     Adapter with rubber bellows

                                                                                                             Accessories
                                                                                                             Wedge mounts             see Accessories - Wedge mounts – Direct contact connection 271– page 70
                                                                                                             Adapters                 see Accessories – Adapters – page 71
                                                                                                             Rubber bellows           see Accessories – Rubber bellows – page 71
                                                                                                             08.3200.233              Mirror adjustment switch for dual mirror operation

                                                                                   2 m above-ground limit
                                                                                                              Item Numbers

18   Technical specifications subject to change!                                                                                                                                                                                                             19
Coaches
                 Mirror System 271

                 Mirror System                                                                          ECE           Mirror configurations

                 271                                                                                                        HS
                                                                                                                            Main mirror II
                                                                                                                                                                 ZS    ZS 1
                                                                                                                                                                       Auxiliary mirror 1
                                                                                                                                                                       Door area
                                                                                                                                                                                             ZS   ZS 2
                                                                                                                                                                                                  Auxiliary mirror 2
                                                                                                                                                                                                  Front area

                                                                                                                            R 1800 (II E1 020923)                      R 200                      R 200
                                                                                                                            Heated, 24 V                               Heated, 24 V               Heated, 24 V
                                                                                                                            Electrically adjustable                    Manually adjustable        Manually adjustable

                                                                                                                                                               Auxiliary mirror 2                                       Adapters
                                                                                                                                                               Front area

                             nn ECE R46/02
                                                                                                                                                                                                                Wedge mount
                             nn Main mirror, heated, electrically adjustable                                                                      Auxiliary mirror 1
                                                                                         Left side, left-hand drive
                             nn Two auxiliary mirrors (right side) for compliance                                                                 Door area
                                with the field-of-vision requirements within the                                                                                                                  Rubber bellows
                                door and front area, heated, manually adjustable
                             nn One auxiliary mirror (left side) for the lateral area
                                                                                                                                             Main mirror
                             nn Hard foam mirror arm on steel tubular bracket
                             nn Folds in onto windshield, manual operation
                             nn Hidden wiring in mounting tube
                             nn Various mounting adapters for vehicle installation
                             nn Paintable surfaces
                             nn Tool-free glass replacement (snap-and-slide locking)
                             nn Easy to disassemble / remove
      Features

                             nn Left-hand and right-hand drive options
                             nn Variable mounting lengths and angles
                             nn Various 12 V versions
                                                                                        Right side, left-hand drive

20   Technical specifications subject to change!                                                                                                                                                                                   21
Coaches
             Mirror System 271

                                                                                                                                                                        Cable connection 248

                                                                                      701
                                                                703

                                                                                                                                                For wedge mount cable connection 248          Heated, 24 V                               OO    Electrically adjustable (Class II)
                                                                                                                                                59.2710.401                Left-hand mount            Left-hand drive                                                               ECE
                           Left side                                                                                    Right side
                                                                                                                                                59.2710.402                Right-hand mount           Left-hand drive                                                               ECE
                                                                                                                                                59.2710.454                Left-hand mount            Right-hand drive                                                              ECE

                                                                                                                                                59.2710.406                Right-hand mount           Left-hand drive/right-hand drive        Total length + (x) 100 mm             ECE
                                                                212

                                                                                      218

                                         783 + x                                                             642 + x

                                                                                                                                                Accessories
                                                                                                                                                Wedge mounts          see Accessories – Wedge mounts – page 70
                                                                             Mounting dimensions           left side 783 (+x) x 703 x 212 mm    Adapters              see Accessories – Adapters – page 71
                                                                             approx.: L x H x D            right side 642 (+x) x 701 x 218 mm   Rubber bellows        see Accessories – Rubber bellows – page 71
                                                                             Fold-in angle                 60° manual operation                 08.3200.233           Mirror adjustment switch for dual mirror operation

                                Direct contact connection 271

      For wedge mount direct contact connection 271         Heated, 24 V         OO    Electrically adjustable (Class II)
      59.2710.411                      Left-hand mount     Left-hand drive                                                           ECE
      59.2710.412                      Right-hand mount    Left-hand drive                                                           ECE

       Item Numbers                                                                                                                              Item Numbers

22   Technical specifications subject to change!                                                                                                                                                                                                                                          23
City Buses
     Product Portfolio for City Buses and Long-distance Coaches

                                                                                                          Mirror System                                  ECE

     All-around Visibility for City Driving                                                               277
     Customized mirror systems for short-range public transport vehicles, ranging from straight-
     forward, configurable tubular bracket solutions to sleek and sophisticated multifunctional
     systems, ensure maximum safety for pedestrians and passengers as well as ergonomic
     comfort for the driver.                                                                                              Page 26   Right side

                                                                                                          Mirror System                                  ECE

                                                                                                          278

                                                                                                                          Page 29   Left side / right side

                                                                                                          Mirror System                                        ECE

                                                                                                          276

                                                                                                                          Page 31   Left side / right side

     We are dedicated to ensure compliance with international guidelines and directives, particularly
     when it comes to the safe transportation of school children.                                         Mirror System                                 ECE

     Easily detachable mounting bracket systems provide connection options via direct contact spring
     clips or cables; spring-loaded design securely folds in for wash position. In addition, the ultra-   273
     robust mirror arm construction prevents the mirror from vibrating, even under the roughest city
     road conditions.

                                                                                                                          Page 34   Left side / right side
                                                                                                                                    With direct contact connection 271

24                                                                                                                                                                       25
City Buses
                 Mirror System 277

                 Mirror System                                                                 ECE                                 Mirror configurations

                 277                                                                                                                      HS
                                                                                                                                          Main mirror II
                                                                                                                                                                          ZS   ZS
                                                                                                                                                                               Auxiliary mirror

                                                                                                                                          R 1200 (II E1 02 0915)               R 200
                                                                                                                                          Heated, 24 V                         Heated, 24 V
                                                                                                                                          Electrically adjustable              Manual or electrically adjustable

                                                                                                                                                                                                   HS and ZS

                                                                                                     Entry light

                             nn ECE R46/02-compliant main mirror (R 1200)
                             nn Auxiliary mirror complies with German School Bus
                                Regulation (Deutsche Schulbusverordnung)
                             nn Usage below 2 m permitted, folding mirror head
                             nn Manually or electrically adjustable mirror glasses, heated           Mirror head with folding mechanism                    Fold-in mechanism manual or powered operation
                             nn Manual or power folding mirror arm
                             nn Paintable plastic (ABS) trim options with fine-grain texture
                             nn Tool-free glass replacement (snap-and-slide locking)
                             nn Easy to disassemble
                             nn Ample supply of spare parts
                             nn Ultra-robust mounting arm construction, vibration-resistant
      Features

                             nn Camera mounting option
                             nn LED entry light can be integrated
                             nn Various control cables

26   Technical specifications subject to change!                                                                                                                                                                   27
City Buses
              Mirror System 277                                                                                                                            Mirror System 278

                                            1001

                                                                                                                                                           Mirror System                                                                    ECE

                                                                                                                                                           278

                                                                                         254
      720

                                                                                     Mounting dimensions
                                                                                                                    1001 x 720 x 254 mm
                                                                                     approx.: L x H x D
                                                                                                                    60° manual operation
                                                                                     Fold-in angle                  60° power operation
                                      190

                                               2 m above-ground limit                                               24 V with safety shut-off

                                                                                                                                                                                                                         Overhang version

            Right-hand mount            Heated, 24 V
            Manual folding mirrors
                                                                                    ZS
      59.2770.211.099                   HS         Electrically adjustable               ZS     Electrically adjustable                   ECE
                                                                                    ZS
      59.2770.210.099                   HS         Electrically adjustable               ZS     Manually adjustable                       ECE
                                                                                    ZS
      59.2770.110                       HS         Manually adjustable                   ZS     Manually adjustable                       ECE

            Power folding mirrors
                                                                                    ZS
      59.2771.210                       HS         Electrically adjustable               ZS     Manually adjustable                       ECE

      Accessories
      Connecting cables
      09.2770.211 + 09.2770.210                    for 59.2770.211.099                                                    6.00 m                                    nn ECE R46/02-compliant main (R 1200)
      09.2770.210                                  for 59.2770.210.099                                                    6.00 m                                       and wide-angle mirrors (R 300)
      09.2770.230                                  for 59.2771.210                                                        6.00 m                                    nn Integrated wide-angle mirror
      09.2770.220                                  for 59.2770.110                                                        6.00 m                                    nn Manual folding mirror
      09.2910.003.099                              2-lead for entry light or folding feature                              6.00 m                                    nn Manually or electrically adjustable main mirror, heated
                                                                                                                                                                    nn Manually adjustable wide-angle mirror, heated                              Upright version
      Mirror switch
      08.2770.001.000               Switch for triple mirror operation                                                                                              nn Upright and overhang versions
      Entry light / Other                                                                                                                                           nn Paintable plastic (ABS) trim options with fine-grain texture
      08.3990.100 E                 Halogen entry light 24 V / 10 W                                                                                                 nn Ultra-robust mounting arm construction, vibration-resistant
      08.2910.001.002               Power LED entry light 18 - 32 V, incl. mounting clips                                                                           nn Ample supply of spare parts
                                                                                                                                                Features

      08.3950.001.099               Controller for power folding mechanism                                                                                          nn Easily detachable, direct contact connection (spring clips)
                                                                                                                                                                    nn Tool-free glass replacement (snap-and-slide locking)
                                                                                                                                                                    nn Usage below 2 m permitted
       Item Numbers

28   Technical specifications subject to change!                                                                                                                                                                                                                    29
City Buses
             Mirror System 278                                                                                                                                         Mirror System 276

                                                                                                         247                174

                                                                                                                                         Overhang version
         Mirror configurations                                                                                                                                         Mirror System                                                                      ECE

                  HS
                  Main mirror II
                                                               WWS
                                                               Wide-angle mirror                                                                                       276

                                                                                                684
                  R 1200 (II E1 020951)                        R 300 (IV E1 020952)
                  Heated, 24 V                                 Heated, 24 V
                  Electrically adjustable                      Manually adjustable

                                                                                                       247                   174

                                                                                                                                         Upright version
                                                                                                                                                                                                             Overhang version

                                                               HS and WWS
                                                                                                684

                          Mounting dimensions approx.: L x W x D      684 x 247 x 174 mm

      Overhang version with direct contact connection 271        WWS         Manually adjustable
      59.2780.130                    Left-hand mount             HS          Electrically adjustable         Heated, 12 V          ECE
                                                                                                                                                                                                                                                Upright version
      59.2780.230                    Right-hand mount            HS          Electrically adjustable         Heated, 12 V          ECE

      59.2782.120                    Left-hand mount             HS          Electrically adjustable         Heated, 24 V          ECE

      59.2781.120                    Right-hand mount            HS          Electrically adjustable         Heated, 24 V          ECE

      Upright version with direct contact connection 271         WWS         Manually adjustable                                                                                 nn ECE R46/02
      only in combination with wedge mount 278, item number 20.2780.630, and mirror adjustment switch, item number 08.2770.001.000                                               nn Heated, manually oder electrically adjustable main mirror
      59.2780.150.001                Left-hand mount             HS          Electrically adjustable         Heated, 24 V          ECE                                           nn Manual folding feature
      59.2780.160.001                Right-hand mount            HS          Electrically adjustable         Heated, 24 V          ECE                                           nn Hidden wiring, direct contact connection
                                                                                                                                                                                 nn Paintable surfaces
      Accessories                                                                                                                                                                nn Tool-free glass replacement (snap-and-slide locking)
      Wedge mounts              see Accessories - Wedge mounts – Direct contact connection 271 page 70                                                                           nn Easy to disassemble / remove
                                                                                                                                                            Features

      08.2300.233               Mirror adjustment switch for dual mirror operation                                                                                               nn Overhang and upright versions
                                                                                                                                                                                 nn 12 V and 24 V versions available
                                                                                                                                                                                 nn Usage below 2 m permitted
       Item Numbers

30   Technical specifications subject to change!                                                                                                                                                                                                                  31
City Buses
              Mirror System 276

                                                                                                                                          Overhang version with direct contact connection 271        R 1800
                                                                        Mirror configurations
                                                                                                                                              Manually adjustable
                                                                              HS                                                          59.2760.112                          Left-hand mount       Left-hand drive     no wedge mount         Unheated       ECE
                                                                              Main mirror II                                              59.2760.212                          Right-hand mount      Left-hand drive     no wedge mount         Unheated       ECE

                                                                              R 1800 / R 1200 (II E1 020923)                                  Electrically adjustable
                                                                              Heated, 24 V                                                59.2761.112                          Left-hand mount       Left-hand drive     no wedge mount         Heated, 12 V   ECE
                                                                              Manual or electrically adjustable
                                                                                                                                          59.2761.212                          Right-hand mount      Left-hand drive     no wedge mount         Heated, 12 V   ECE

                                                                                                                                          59.2762.102                          Left-hand mount       Left-hand drive     with wedge mount 271   Heated, 24 V   ECE
                                                                                                                                          59.2762.201                          Right-hand mount      Right-hand drive with wedge mount 271      Heated, 24 V   ECE

                                                                                                                                          59.2762.101                          Left-hand mount       Left-hand drive     with wedge mount 271   Heated, 24 V   ECE

                                                                                                                                          Upright version with direct contact connection 271
                                                                                                      HS                                      Manually adjustable              R 1800
                                                                                                                                          59.2760.302                          Left-hand mount       Left-hand drive     no wedge mount         Unheated       ECE
                                                                                                                                          59.2760.402                          Right-hand mount      Left-hand drive     no wedge mount         Unheated       ECE

                                         Overhang version                                                              Upright version
                                                                                                                                              Electrically adjustable          R 1800
                                                                                                                                          59.2761.302                          Left-hand mount       Left-hand drive     no wedge mount         Heated, 12 V   ECE
                                                                                                                                          59.2761.402                          Right-hand mount      Left-hand drive     no wedge mount         Heated, 12 V   ECE

                                                                                                                                              Electrically adjustable   1200   R 1200
                                                                                                                                          59.2762.302                          Left-hand mount       Left-hand drive     no wedge mount         Heated, 24 V   ECE
                                                                                593
        590

                                                                                                                                          59.2762.402                          Right-hand mount      Left-hand drive     no wedge mount         Heated, 24 V   ECE

                                                                                                                                          Accessories
                                                                                                                                          Wedge mounts              see Accessories – Wedge mounts – Direct contact connection 271 page 70
                                                                                                                                          08.3200.233               Mirror adjustment switch for dual mirror operation
                         265                          158                                       232                          202

      Mounting dimensions approx.: L x W x D       590 x 265 x 158 mm       Mounting dimensions approx.: L x W x D   593 x 232 x 202 mm

                                                                                                                                           Item Numbers

32   Technical specifications subject to change!                                                                                                                                                                                                                     33
City Buses
                 Mirror System 273

                 Mirror System                                                                       ECE     Mirror configurations

                 273                                                                                                 HS
                                                                                                                     Main mirror II
                                                                                                                                                               BS    BS
                                                                                                                                                                     Front crossview mirror

                                                                                                                     R 2000 (II E1 020923)                           R 240                               BS
                                                                                                                     Heated, 24 V                                    Heated, 24 V
                                                                                                                     Electrically adjustable                         Manually adjustable                 HS

                                                                      Right side , left-hand drive

                                                                                                                                                                    622
                                                                                                                                                         560
                                                                                                                     Left side
                                                                                                                                                                                                        Right side

                                                                                                                                                         170

                                                                                                                                                                    242
                                                   Left side , left-hand drive
                                                                                                                                              300
                                                                                                                                                                                            736

                                                                                                                                                                                      Mounting dimensions                  left side 300 x 560 x 170 mm

                                                                                                                                  Direct contact connection 271                       approx.: L x H x D                   right side 736 x 622 x 242 mm
                             nn Main mirror, heated, electrically adjustable
                                                                                                           For wedge mount direct contact connection 271            Heated, 24 V                  OO   Electrically adjustable (Class II)
                             nn Front crossview mirror (right side) for regulatory compliance
                                in door and front area, heated, manually adjustable                        59.2730.401           Left-hand mount                          Left-hand drive                                                     ECE

                             nn No folding mechanism                                                       59.2730.402           Right-hand mount                         Left-hand drive    with wedge only         20.2710.001.001 ZINK     ECE

                             nn Direct contact connection 271 / hidden wiring
                             nn Paintable surfaces                                                         Accessories
      Features

                             nn Light-weight construction                                                  Wedge mounts          see Accessories – Wedge mounts – page 70

                             nn Tool-free glass replacement (snap-and-slide locking)                       08.3200.233           Mirror adjustment switch for dual mirror operation

                             nn Easy to disassemble
                                                                                                            Item Numbers

34   Technical specifications subject to change!                                                                                                                                                                                                           35
Motorhomes
     Product Portfolio for Motorhomes and Universal Applications

                                                                                                        Mirror System                                      ECE

     The Journey is the Destination                                                                     1018
     MEKRA Lang’s mirror systems for motorhomes and universal applications combine
     optimum visibility and safety with attractive design features and top-of-the-line
     functionality.

     The cutting-edge integrated main and wide-angle mirror design is complemented by a wide
     variety of add-on solutions and optional features. In addition to the readily available standard
     versions, the mirror systems are highly customizable to provide optimum usability and comfort
     for various vehicle types.
     Due to the mirror head‘s innovative folding mechanism, the EU Directive requirements pertaining
     to mounting heights below 2 meters are met.
     This folding mechanism also serves as collision protection and is ideally suited for carwash and
     parking positions.

                                                                                                                        Page 38   Left side / right side

36                                                                                                                                                               37
Motorhomes
                 Mirror System 1018

                 Mirror System                                                                             ECE      Mirror configurations

                 1018                                                                                                       HS
                                                                                                                            Main mirror II
                                                                                                                                                                   WWS
                                                                                                                                                                   Wide-angle mirror IV

                                                                                                                            R 1200 (II E1 021281)                  R 300 (IV E1 021282)
                                                                                                                            Heated, 12 V                           Heated, 12 V
                                                                                                                            Electrically adjustable                Manually adjustable
                                                                   Overhang version

                                                                                                                                             HS and WWS

                           nn ECE R46/02-compliant main (R 1200) and wide-angle mirrors (R 300)                     Mirror head with folding mechanism manual
                           nn Modular system
                           nn Variable mounting lengths and angles
                                                                                                  Upright version
                           nn Highly adaptable to customer needs (e. g. vehicle interface)
                           nn Folding mirror head ideally suited for use under 2 m to provide
                              collision protection and parking position
                           nn Manually or electrically adjustable main mirror glasses, heated
                           nn Manually adjustable wide-angle mirror glasses, heated
                           nn Paintable plastic (ABS) trim options with fine-grain texture
                           nn Ultra-robust mounting arm construction, vibration-resistant
                           nn Ample supply of spare parts
                           nn Left-hand and right-hand drive options
      Features

                           nn Optional integrated film antenna
                           nn Easy to disassemble
                           nn Tool-free glass replacement (snap-and-slide locking)
                                                                                                                    For use under 2 meters, collision protection, parking

38   Technical specifications subject to change!                                                                                                                                          39
Motorhomes
                          Mirror System 1018

                                                               480.4
                                                                 288.8                             Mounting arm
                                                                                                   available in three lengths
                             Overhang long

                                               727

                                                                                                                                                                 213.7                                        288.8
                                                                                                             132.7

                                                                                                                                     Short                                         Medium                                            Long

                                                          406.2
                                                             213.7                                 Mounting hole layout for                          Mounting hole layout for                      Mounting hole layout for
                                                                                                   overhang configuration                            overhang configuration                        upright configuration
                             Overhang medium

                                                                                                   with wedge mount                                  no wedge mount                                no wedge mount
                                               699

                                                                                                                        100

                                                                                                                                                            24                                                40
                                                                                                        48      4x M8

                                                                                                                                                                              89
                                                                                                                                                                                                                   21
                                                                                                                          21

                                                                                                                                                                                                                                 89
                                                                                                                                                                                                                                  81
                                                                                                                                                                 4x M8                                                  4x M8
                                                                                                                                   58

                                                                                                                                                                                                             89
                                                                                                                                                          81 9
                                                                                                                                                                         21

                                                                                                                                                            8
                                                                                                                     19                                                       40
                                                         326.6                                                                                                                                                                  24
                                                           132.7
                                                                                                                 197,8
                             Overhang short

                                               673

                                                                                                   Standard factory-supplied configuration                                              Add-on: Paintable covers

                                                                                                                               Lower mounting arm case, adapter plate,                 Mounting base cover       Mirror head cover
                                                                                                                               mirror head attached to mounting arm:
                                                                                                                               - no mounting base cover
                                                       189.1                               244.1                               - no upper mounting arm case
                                                                                                                               - no mirror head cover
      System Variations

                                                                                                                                                                                       Upper mounting arm case
                                                                                   662.2
                                               664.3
                             Overhang

                                                                         Upright

40   Technical specifications subject to change!                                                                                                                                                                                            41
Motorhomes
              Mirror System 1018

                480.4                       406.2
                  288.8                                              326.6                         189.1                   244.1
                                                                                                                                         Paintable covers included in standard factory-supplied configuration
                                               213.7
                                                                       132.7
                                                                                                                                         12.1018.004.000               Left-hand / right-hand mount                          Lower mounting arm case 1018, short radius
                                                                                                                                         12.1018.006.000               Left-hand / right-hand mount                          Lower mounting arm case 1018, medium radius
     727

                                   699

                                                                                         664.3

                                                                                                                   662.2
                                                               673
                                                                                                                                         12.1018.008.000               Left-hand / right-hand mount                          Lower mounting arm case 1018, long radius

                      Long                   Medium                     Short                Overhang                       Upright      Add-on: Paintable covers for standard factory-supplied configuration, see page 41
                                                                                                                                         12.1018.001.000               Left-hand mount                                       Mirror head cover 1018 left side

       Standard factory-supplied configuration, see page 41                                                                              12.1018.002.000               Right-hand mount                                      Mirror head cover 1018 right side

            Left-hand drive                                                                                                              12.1018.012.001               Right-hand mount                                      Mirror head cover 1018 right side with antenna

       59.1018.001.001                Left-hand mount         HS        WWS                      Overhang long                     ECE   12.1018.003.000               Left-hand / right-hand mount                          Upper mounting arm case 1018, short radius

       59.1018.002.001                Right-hand mount        HS        WWS                      Overhang long                     ECE   12.1018.005.000               Left-hand / right-hand mount                          Upper mounting arm case 1018, medium radius

       59.1018.003.001                Left-hand mount         HS        WWS                      Overhang short                    ECE   12.1018.007.000               Left-hand / right-hand mount                          Upper mounting arm case 1018, long radius

       59.1018.004.001                Right-hand mount        HS        WWS                      Overhang short                    ECE   12.1018.009.001               Left-hand mount                                       Mouting base cover 1018 left side

       59.1018.005.001                Left-hand mount         HS        WWS                      Upright                           ECE   12.1018.010.001               Right-hand mount                                      Mounting base cover 1018 right side

       59.1018.006.001                Right-hand mount        HS        WWS                      Upright                           ECE   (Not included in standard factory-supplied configuration)
       59.1018.007.001                Left-hand mount         HS        WWS                      Overhang medium                   ECE

       59.1018.008.001                Right-hand mount        HS        WWS                      Overhang medium                   ECE

       59.1018.015.001                Left-hand mount         HS        WWS                      Overhang                          ECE   Accessories
       59.1018.016.001                Right-hand mount        HS        WWS                      Overhang                          ECE   Connecting cable to vehicle
       59.1018.019.001                Right-hand mount        HS        WWS       Antenna Overhang medium                          ECE   09.2910.004.099            for HS and WWS                                                                                 2.70 m
            Right-hand drive                                                                                                             09.2910.005.099            for HS and WWS                                                                                 3.50 m
       59.1018.017.001                Left-hand mount         HS        WWS                      Overhang medium                   ECE   09.2910.002.099            for HS and WWS                                                                                 6.00 m
       59.1018.018.001                Right-hand mount        HS        WWS                      Overhang medium                   ECE   09.1018.004.001            for film antenna                                                                               4.50 m
       59.1018.020.001                Right-hand mount        HS        WWS       Antenna Overhang medium                          ECE   Mirror adjustment switch
       24 V versions upon request, additional right-hand drive versions in standard lengths upon request                                 08.3200.233                for dual mirror operation

           Item Numbers                                                                                                                   Item Numbers

42   Technical specifications subject to change!                                                                                                                                                                                                                              43
Components
     Overview

                                                                                                  Tubular Bracket System

     Components for Added Safety                                                                  270
     MEKRA Lang provides a variety of mirror, tubular mounting, and other bracket systems for                                   Page 46   Tubular Bracket System 270, left side
     individually customized configurations or single application solutions.                                                    Page 47   Tubular Bracket System 270, right side
     Additionally, thanks to MEKRA Lang’s proprietary design and manufacturing capabilities the
     system layout can be adapted to meet a wide range of customer specifications and vehicle
     requirements.                                                                                Main Mirrors
     Upon request we can also perform a field-of-vision test first.
                                                                                                  340 / 341 | 363 | 373 | 375 | 378 | 385
                                                                                                                                Page 48   Main Mirrors 340 / 341 | 363
                                                                                                                                Page 49   Main Mirrors 373 | 375
                                                                                                                                Page 50   Main Mirrors 378 | 385

                                                                                                  Wide-angle Mirrors

                                                                                                  266 | 377 | 386 | 906
                                                                                                                                Page 51   Wide-angle Mirrors 266 | 377
                                                                                                                                Page 52   Wide-angle Mirrors 386 | 906

                                                                                                  Interior Mirrors

                                                                                                  203 | 208 |246 P | 256 | 300 | 364
                                                                                                                                Page 53   Interior Mirrors 203 | 208
                                                                                                                                Page 54   Interior Mirrors 208 | 246 P
                                                                                                                                Page 55   Interior Mirrors 256 | 300
                                                                                                                                Page 56   Interior Mirrors 364
                                                                                                                                Page 56   Universal Mounting Bracket

                                                                                                  Special Application Mirrors

                                                                                                  1009 | 1010
                                                                                                                                Page 57   Special Application Mirrors 1009 | 1010

44                                                                                                                                                                                  45
Components
                                             Tubular Bracket System 270

                                                                                                                                                               Tubular Bracket System       Tubular Bracket System

                                             Slip-on mounting bracket system for city buses, coaches (low-cost version)                                      270 left side                  270 right side                                 Slip-on mounting bracket system for city buses, coaches (low-cost version)

                                                                                                                        nn Suitable for main mirrors 373/363 or additional main          nn Suitable for main mirrors 373/363 or additional main mirrors
                                                                                                                           mirrors                                                       nn Foldable mounting base for carwash, angular position can be
                                                 Overhang mount                                                         nn Foldable mounting base, angular position can be factory          factory set between 0° and 180°, field-adjustable by +/- 8°               Rigid version
                                                                                                                           set between 0° and 180°, field-adjustable by +/- 8°

                                                                                                                                                                                                                                                                                                                                                                         r 375
                                                                                                                                                                                         nn Wiring (heating or control cable) in tubular bracket
                                                                                   e. g. main mirror 373

                                                                                                                                                                                                                                                                                                                                                         e. g. main mirro
                                                                                                                        nn Wiring (heating or control cable) in tubular bracket          nn Pluggable connection via connecting cable 248 with female
                                                                                                                        nn Pluggable connection via connecting cable 248 with               socket or via direct contact connection 271 (no plug),
                                                                                                                           female socket or via direct contact connection 271               see page 70
 e. g. main mirror 373

                                                                                                                           (no plug), see page 70                                        nn Tubular bracket can be mounted in overhang configuration,
                                                                                                                        nn Tubular bracket system provides overhang and upright             if mounted below 2 m; folding hinge can be included                                                       Brace
                                                                                                                           mounting options and can be installed below 2 m,                 (folding rod)

                                                                                                                                                                                                                                                                                                                                                or 375
                                                   Upright mount                                                           depending on angular position                                 nn Dimensions - rigid version: 732 x 327 x Ø 28 mm

                                                                                                                                                                                                                                                                                                                                 e. g. main mirr
                                                                                                                        nn Dimensions: 500 x 160 x Ø 28 mm                                                                                                    Folding version
                                                                                                                                                                                         nn Dimensions - folding version: 668 x 350 x Ø 28 mm

                                                                                                                                                                                                                                                                                                         e. g. main mirror 375
                                                                                                                                                                                                                                                              with/without brace
                                                     The mirror heads are represented schematically only.               nn Additional configurations on request                          nn Additional configurations on request

                                                     Tubular bracket system 270                            Left side                                                                     Tubular bracket system 270           Right side
                                                     Overhang                                                                                                                            Rigid version
                                                     58.2704.071            Tubular bracket with heating cable                      Cable connection 248              wedge included     58.2704.070 Tubular bracket with heating cable                          Cable connection 248         wedge included
                                                     58.2704.059            Tubular bracket with heating and control cables Cable connection 248                      wedge included     58.2704.086 Tubular bracket with heating and control cables             Cable connection 248         wedge included
                                                     58.2704.090            Tubular bracket with heating and control cables Direct contact connection 271             20.2710.620 *      58.2704.093 Tubular bracket with heating and control cables             Direct contact connection 271 20.2710.630 *
                                                     Upright                                                                                                                             Folding version
                                                     58.2704.088            Tubular bracket with control cable                      Direct contact connection 271     20.2710.620 *      58.2705.001 Tubular bracket with brace, heating and control cables      Cable connection 248         wedge included
                                                                                                                                                                                         58.2705.003 Tubular bracket with brace, heating cable                   Cable connection 248         wedge included
                                                   * additional wedges, see Accessories – page 70
                                                                                                                                                                                         58.2705.002 Tubular bracket without brace, heating and control cables   Cable connection 248         wedge included
                                                                                                                                                                                         58.2705.008 Tubular bracket without brace, heating cable                Cable connection 248         wedge included

                                                                                                                                                                                        * additional wedges, see Accessories – page 70
                                90°
                                      180°
                         0°

                                                                                                                       Definition: Angular position of mirror arms
                         180°

                                      0°
                                90°

46                       Technical specifications subject to change!                                                                                                                                                                                                                                                                                         47
Components
             Main Mirrors

                                                                                                                                           Main Mirror         Main Mirror

                                                                                                   ( II E1 020048) 340 / 341                                   373 ( II E1 020923)

                              nn Plastic mirror housing with profile ring                                  nn Housing:      377 x 189 x 100 mm               nn Plastic mirror housing (ABS)                                      nn Housing:        384 x 205 x 120 mm
                                                                                                           nn Glass:        360 x 175 x 3 mm                 nn Detachable and paintable back panel                               nn Glass unit:     368 x 189 x 40 mm
                                                                                                           nn 24 V                                           nn Clamp Ø 22 to 28 mm                                               nn 24 V

                              Mirror head 341      Clamp Ø 20 - 30 mm                                                                                        Mirror head
                              51.3410.140               Left side / right side                                           Heated, 24 V               R 1800   51.3731.324           Left side                                              Heated, 24 V             R 1800
                              Mirror head 340      Clamp Ø 20 - 30 mm                                                                                        51.3732.324           Right side                                             Heated, 24 V             R 1800
                              51.3400.140               Left side / right side         Electrically adjustable           Heated, 24 V               R 1800   51.3731.326           Left side               Electrically adjustable        Heated, 24 V             R 1800
                                                                                                                                                             51.3732.326           Right side              Electrically adjustable        Heated, 24 V             R 1800
                              Spare parts
                              40.3640.422          Replacement glass                                                     Heated, 24 V               R 1800   Spare parts
                                                                                                                                                             15.3731.470      Glass unit                                                    Heated, 24 V           R 1800
                                                                                                                                                             11.3730.210      Cover

                                                                                                                                           Main Mirror

                                                                                                                     ( II E1 020923) 363
                                                                                                                                                               Main Mirror

                                 nn Plastic mirror housing (ABS)                                           nn Housing:      384 x 205 x 120 mm                 375 ( II E1 020941)
                                 nn Detachable and paintable back panel                                    nn Glass unit:   368 x 189 x 40 mm
                                 nn Clamp Ø 22 to 28 mm                                                    nn 24 V                                           nn Plastic mirror housing (ABS)                                      nn Housing:        380 x 170 x 68 mm
                                                                                                                                                             nn Complete mirror assembly only available                           nn Glass unit:     380 x 170 x 15 mm
                              Mirror head                                                                                                                       with three components                                             nn 24 V
                              51.3635.204               Left side                                                 Heated, 24 V          1200   R 1200        nn Clamp Ø 28 mm
                              51.3636.204               Right side                                                Heated, 24 V          1200   R 1200
                              51.3635.206               Left side                Electrically adjustable          Heated, 24 V          1200   R 1200        Components               Left side / right side Please order mirror head, glass assembly, retainer separately
                              51.3636.206               Right side               Electrically adjustable          Heated, 24 V          1200   R 1200        61.3752.147H     Mirror head                                                   Heated, 24 V without glass unit
                                                                                                                                                             61.3752.167H     Mirror head                   Electrically adjustable         Heated, 24 V without glass unit
                               Spare parts                                                                                                                   15.3752.470      Glass unit                                                    Heated, 24 V           R 1800
                               15.3802.840F        Glass unit                                                     Heated, 24 V          1200   R 1200        61.3780.100      Mounting element including cover
                               11. 3730.210        Cover

48   Technical specifications subject to change!                                                                                                                                                                                                                              49
Components
             Main Mirrors                                                                                                                                   Wide-angle Mirrors

                                                                                                                                        Main Mirror         Wide-angle Mirror

                                                                                                                (II e1 03*0018)             378             266 (IV / V E1 0111008)

                              nn Plastic mirror housing (ABS)                                          nn Housing:        433 x 188 x 85 mm               nn Plastic mirror housing with profile ring                       nn Housing:        215 x 165 x 55 mm
                              nn Complete mirror assembly only available                               nn Glass unit: 433 x 188 x 15 mm                                                                                     nn Glass:          200 x 150 x 3 mm
                                 with three components                                                 nn 24 V                                                                                                              nn 24 V
                              nn Clamp Ø 28 mm
                                                                                                                                                          with Clamp Ø 14 - 20 mm
                              Components                Left side / right side Please order mirror head, glass assembly, retainer separately              56.2660.147            Left side / right side                               Heated, 24 V       400   R 400
                              61.3782.147H         Mirror head                                                  Heated, 24 V         without glass unit   with Clamp Ø 20 - 30 mm
                              61.3782.167H         Mirror head                   Electrically adjustable        Heated, 24 V         without glass unit   56.2664.147            Left side / right side                               Heated, 24 V       400   R 400
                              15.3784.470H         Glass unit                                                   Heated, 24 V             R 1800
                              61.3780.100          Mounting element including cover                                                                       Spare parts
                                                                                                                                                          40.2660.404       Replacement glass                                         Heated, 24 V       400   R 400
                                                                                                                                                          09.2000.301       Heating cable, 2-lead, 2 m
                                                                                                                                        Main Mirror

                                                                                                                 (II E1 021138)             385

                              nn Plastic mirror housing with profile ring                              nn Housing:        314 x 228 x 65 mm
                                                                                                                                                            Wide-angle Mirror
                              nn Clamp Ø 20 to 30 mm                                                   nn Glass:          300 x 214 x 3 mm
                                                                                                       nn 24 V                                              377 ( IV e1 03*0019)

                               Mirror head                                                                                                                nn Plastic mirror housing (ABS)                                   nn Housing:         200 x 200 x 68 mm
                               51.3850.247              Left side / right side                                        Heated, 24 V         R 1800         nn Complete mirror assembly only available                        nn Glass unit:     200 x 200 x 15 mm
                               51.3850.267              Left side / right side        Electrically adjustable         Heated, 24 V         R 1800            with three components                                          nn 24 V
                                                                                                                                                          nn Clamp Ø 28 mm
                               Spare parts
                               40.2890.422H        Replacement glass                                                  Heated, 24 V         R 1800         Components             Left side / right side Please order mirror head, glass assembly, retainer separately
                                                                                                                                                          56.3772.127       Mirror head                                              Heated, 24 V        without glass unit
                                                                                                                                                          15.3774.410       Glass unit                                               Heated, 24 V        400   R 400
                                                                                                                                                          15.3771.174       Glass unit                                               Heated, 24 V        300   R 300
                                                                                                                                                          61.3780.100       Mounting element including cover

50   Technical specifications subject to change!                                                                                                                                                                                                                              51
Components
             Wide-angle Mirrors                                                                                                                   Interior Mirrors

                                                                                                                            Wide-angle Mirror     Interior Mirror

                                                                                                            (IV E1 021248)             386        203

                              nn Plastic mirror housing                                               nn Housing:                               nn Plastic coated sheet steel mirror housing                      nn Housing:                            1
                                                                                                                       219 x 170 x 120 mm                                                                                            265 x 160 mm
                              nn Detachable and paintable back panel                                  nn Glass unit: 203 x 154 x 36 mm          nn Steel mounting bracket                                         nn Glass:          260 x 150 mm
                              nn Clamp Ø 22 to 28 mm                                                  nn 24 V
                                                                                                                                                Mirror head 1 with mounting bracket     3-hole mounting plate, plastic
                               Mirror head                                                                                                      55.2030.177         Mirror head                                           Unheated               Flat
                               56.3860.214              Left side / right side                              Heated, 24 V       400   R 400
                               61.3865.124H             Left side / right side                              Heated, 24 V       300   R 300      Spare parts
                               Spare parts                                                                                                      40.1520.700F        Replacement glass                                     Unheated               Flat
                               15.3861.114H        Glass unit                                               Heated, 24 V       400   R 400
                               11.3860.500         Cover 386                                                                                    nn Plastic mirror housing                                         nn Housing:        263 x 150 mm
                                                                                                                                                                                                                                                         2
                               09.2000.301         Heating cable , 2-lead, 2 m                                                                  nn Steel mounting bracket                                         nn Glass:          250 x 140 mm
                               15.3862.174H        Glass unit                                               Heated, 24 V       300   R 300
                                                                                                                                                Mirror head 2 with mounting bracket     universal metal 2-hole mounting plate
                                                                                                                                                55.2031.121         Mirror head                                          Unheated          800   R 800
                                                                                                                            Wide-angle Mirror

                                                                                                            (IV E1 020906)             906      Spare parts
                                                                                                                                                40.1521.108         Replacement glass                                    Unheated          800   R 800
                              nn Plastic mirror housing                                           nn Housing:          209 x 218 x 136 mm
                              nn Detachable and paintable back panel                              nn Glass unit:       204 x 195 x 58 mm
                                                                                                                                                  Interior Mirror

                              Mirror head               Left side / right side                                                                    208
                                   Heated, 24 V                                                                                                                                                                                                              1
                              56.9065.130          Mirror head                   Clamp Ø 20 - 28 mm         Female socket      300   R 300      nn Steel mirror housing and mounting bracket                      nn Housing:        Ø 218 mm
                              56.9065.110          Mirror head                   Clamp Ø 28 mm              Female socket      300   R 300                                                                        nn Glass:          Ø 208 mm
                              56.9065.124          Mirror head                   Clamp Ø 28 mm              Heating cable      300   R 300
                                   Unheated                                                                                                     Mirror head 1 with mounting bracket     3-hole mounting plate
                              56.9065.132          Mirror head                   Clamp Ø 20 - 28 mm                            300   R 300      55.2082.178         Mirror head                                          Unheated                Flat
                              56.9065.112          Mirror head                   Clamp Ø 28 mm                                 300   R 300
                               Spare parts                                                                                                      Spare parts
                               15.9060.870H        Glass unit                                               Heated, 24 V       300   R 300      40.2085.700F        Replacement glass                                    Unheated                Flat
                               15.9060.670F        Glass unit                                               Unheated           300   R 300
                               11.9060.100         Cover 906

52   Technical specifications subject to change!                                                                                                                                                                                                                 53
Components
             Interior Mirrors

                                                                                                                        Interior Mirror     Interior Mirror

                                                                                                                                208         256

                              nn Steel mirror housing and mounting bracket                     nn Housing:       Ø 218 mm                 nn Plastic mirror housing                                    nn R 1200 glass unit:           324 x 201 x 17 mm
       2                                                                                       nn Glass:         Ø 208 mm                 nn Housing:         545 x 219 x 227 mm                       nn Flat glass unit:		           199 x 195 x 17 mm

                                                                                                                                                                                                                                                                                          Flat
                              Mirror head 2 with mounting bracket      2-hole mounting plate                                              Mirror head          1200   R 1200               Flat
                                                                                                                                                                                                                                                                     R 1200
                              55.2082.127          Mirror head                                        Unheated         1400   R 1400      55.2561.110.002 Mirror head                  Electrically adjustable            MAN logic
                                                                                                                                          55.2561.010          Mirror head             Manually adjustable
                              Spare parts                                                                                                 55.2561.111.001 Mirror head                  Electrically adjustable            MEKRA logic
                              40.2085.214F         Replacement glass                                  Unheated         1400   R 1400      Accessories - Connecting Cables
                                                                                                                                          09.2560.200          Control line 256 exterior                                     7.00 m

                                                                                                                                          Spare parts                                                                                                                   Ø 30 mm
                                                                                                                        Interior Mirror
                                                                                                                                          15.2561.600          Glass unit                                               Unheated                  Flat
                                                                                                                              246 P       15.2561.640          Glass unit                                               Unheated           1200   R 1200

                              nn Plastic-coated galvanized sheet steel                 nn Housing:     420 x 220 mm
                                 mirror housing                                        nn Glass:       410 x 210 mm
                                                                                                                                            Interior Mirror

                              Mirror head          4-hole mounting plate                                                                    300
                              55.2461.113          Mirror head                                       Unheated         1400    R 1400
                                                                                                                                          nn Mirror housing with profile ring                                    nn Housing:          Ø 305 mm
                              Spare parts                                                                                                                                                                        nn Glass:            Ø 300 mm
                              40.2460.214H         Replacement glass                                 Unheated         1400    R 1400
                                                                                                                                          Mirror head
                                                                                                                                                               Mirror head for tubular bracket Ø 30 mm                  Unheated                  R 1800
                                                                                                                                                                                                                                                                                   Ø 18 mm
                                                                                                                                          55.3000.117
                                                                                                                                          55.3000.108          Mirror head for tubular bracket Ø 30 mm                  Unheated            800   R 800

                                                                                                                                                                                                                                                             Ø 30 mm
                                                                                                                                          Spare parts                                                                                                      Representation schematically only.

                                                                                                                                          40.3005.222          Replacement glass                                        Unheated                  R 1800
                                                                                                                                          11.3001.100          Mounting bracket Ø 18 mm for tubular bracket Ø 30 mm

54   Technical specifications subject to change!                                                                                                                                                                                                                                         55
Components
             Interior Mirrors                                                                                                                 Special Application Mirrors

                                                                                                                          Interior Mirror     Special Application Mirror

                                                                                                                                364           1009

                              nn Plastic mirror housing                                           nn Housing:       376 x 187 mm            nn Plastic mirror housing (ABS), black                           nn Main mirror glass (HS):                255 x 286 mm
                                                                                                  nn Glass:         264 x 175 mm            nn Clamp Ø 18 to 22 mm                                           nn Close-proximity mirror glass (NBS): 180 x 85 mm

                              Mirror head                                                                                                   Main Mirror                                     1200   R 1200                     Housing 232 x 219 x 122 mm
                              51.3640.127          Mirror head for tubular bracket Ø 14 - 20 mm          Unheated            R 1800         51.1009.000.001        Left side / right side          Manually adjustable        Unheated
                                                                                                                                            51.1009.081.001        Left side / right side          Manually adjustable        Heated, 12 V          Female socket 2-lead
                              Spare parts                                                                                                   On request             Left side / right side          Manually adjustable        Heated, 24 V          Female socket 2-lead
                              40.3640.222H         Replacement glass                                     Unheated            R 1800         51.1009.113.001        Left side / right side          Electrically adjustable    Heated, 12 V          Female socket 6-lead         HS
                                                                                                                                            51.1009.009.001        Left side / right side          Electrically adjustable    Heated, 24 V          Female socket 6-lead
                                                                                                                                                                                                                                                                           NBS
                                                                                                                                            Combined HS and NBS                             1200   R 1200       300   R 300   Housing 232 x 382 x 122 mm
                                                                                                                                            51.1009.017.001        Left side / right side          Manually adjustable        Unheated
                                                                                                                          Interior Mirror
                                                                                                                                            51.1009.049.001        Left side / right side          Manually adjustable        Heated, 12 V          Female socket 2-lead
                                                                                       Universal Mounting Bracket                           On request             Left side / right side          Manually adjustable        Heated, 24 V          Female socket 2-lead
                                                                                                                                            51.1009.097.001        Left side / right side          Electrically adjustable    Heated, 12 V          Female socket 6-lead
                              nn Powder coated tubular steel mirror mounting bracket
                                                                                                                                            51.1009.025.001        Left side / right side          Electrically adjustable    Heated, 24 V          Female socket 6-lead
                              nn Clamp Ø 14 to 20 mm

                                                                                                                                              Special Application Mirror
                              Mounting bracket
                              11.1523.212          Universal mounting bracket, black                                                          1010

                                                                                                                                            nn Plastic mirror housing (ABS), black                          nn Housing:                  176 x 284 mm
                                                                                                                                            nn Clamp Ø 14 to 20 mm / Ø 18 to 22 mm                          nn Glass:                    145 x 277 mm (aspherical)

                                                                                                                                            Main mirror for 14 - 20 mm tubular diameter
                                                                                                                                            51.1010.000.001        Left side / right side          Manually adjustable        Unheated       1200   R 1200
                                                                                                                                            Main mirror for 18 - 22 mm tubular diameter
                                                                                                                                            51.1010.001.001        Left side / right side          Manually adjustable        Unheated       1200   R 1200
                                                                                                                                            51.1010.003.001        Left side / right side          Manually adjustable        Unheated       1200   R 1200
                                                                                                                                            51.1010.005.001        Left side / right side          Manually adjustable        Unheated       1200   R 1200
                                                                                                                                            51.1010.007.001        Left side / right side          Manually adjustable        Unheated       1200   R 1200

56   Technical specifications subject to change!                                                                                                                                                                                                                                      57
Camera Monitor Systems
     Product Portfolio for Camera Monitor Systems

                                                                                                                       Overview

     Safe Navigation Through Narrow City Streets                                                                       Camera Monitor Systems
     Travelling safely, even in unfamiliar places. The rear view camera facilitates driving in reverse. The interior
     and entry camera keeps the driver informed about passenger behaviour and helps keep people safe as
     they enter and exit the passenger compartment. The front view camera image is displayed at speeds
     under 30 km/h and eliminates the blind spot in front - and depending on aperture angle and mounting
     position – also to the side of the driver‘s cab when approaching an object or taking a turn.                                              Page 60

                                                                                                                       CMOS Color Camera

                                                                                                                       1301

                                                                                                                                               Page 62

                                                                                                                       LED-TFT Color Monitor

                                                                                                                       MCM 5029

                                                                                                                                               Page 65

58                                                                                                                                                       59
Camera Monitor Systems
                                                                 Overview

                                                                                               To complement its line of mirror systems in a meaningful way, MEKRA Lang also develops and ma-
                                                                                               nufactures high-quality camera systems. These are especially useful when visibility of select areas is                 Sample Application
                                                                                               obstructed due to specific vehicle shapes or when drivers need to see larger areas around the vehicle at
                                                                                               a glance.

                                                                                               Camera development at MEKRA Lang is shaped by our decades of experience in the field of mirror
                                                                                               production. Our cameras offer various aperture angles for optimized field-of-vision expansion and, in                       Front/panoramic camera 6+7              Door 2-camera 6+7       Rear view camera     5+7
                                                                                               specific cases, even qualify as replacements for legally required mirrors.

                                                                                               MEKRA camera systems represent a particularly high level of technological innovation. Rather than
                                                                                               employing traditional CCD sensors which are often plagued by blooming and smearing effects, MEKRA                           2
                                                                                                                                                                                                                  1
                                                                                               Lang cameras are equipped with high-quality CMOS sensors, which due to their optimized configuration
                                                                                               offer the same light sensitivity as traditional CCD cameras while consuming less energy.
                                                                                                                                                                                                                                                             3                         4
                                                                                               MEKRA Lang offers a wide range of monitors for a variety of applications.
                                                                     Camera Systems

                                                                                               In addition, MEKRA cameras can be incorporated into any information system. Our comprehensive
      Construction and Components of a MEKRA CMOS Color Camera

                                                                                               product portfolio offers a variety of possible adapters for this purpose.

                                                                                               As part of our core competencies, MEKRA Lang is able to generate individual solutions based on specific                No. Item
                                                                                               customer requirements.
                                                                                                                                                                                                                       1        MCM-5029       LED-TFT Color Monitor 7“
                                                                                                                                                                                                                       2        MAC-5052       Connecting Cable                                        5.00 m
                                                                                                                                                                                                                       3        MAC-5054       Connecting Cable                                       16.00 m
                                                                                                 Heating system                              Seal provides                                       Enables
                                                                                                 keeps protective                            ingress protection                             low-distortion             4        MAC-5055       Connecting Cable                                       21.00 m
                                                                                                 glass plate from                            against dust, dirt,                           image display               5        MCC-5017
                                                                                                 fogging or icing up                         and moisture                                                                                      Color Camera 100°
                                                                                                                                                                                                                                MCC-5018
                                                                                                                                                                                                                       6        MCC-5019
                                                                                                                                                                                                                                               Color Camera 120°
                                                                                                                                                                                                                                MCC-5020
                                                                                                                                                                                                                       7        MCB-3001       Design Camera Bracket (3x)
                                                                                                                                                                                                                       8        MCC-5045       Color Front View Camera 52°
                                                                     MEKRA CMOS Color Camera

                                                                                                 Camera electronics         Rugged connection cable            Aluminum die-cast housing   Glass cover protects
                                                                                                 including image sensor     designed to withstand kinks        protects electronic com-    lens against damage
                                                                                                 and micro controller can   and pinching                       ponents from mechanical
                                                                                                 be directly connected to                                      stresses
                                                                                                 12 V and 24 V on-board
                                                                                                 power supply systems

60   Technical specifications subject to change!                                                                                                                                                                                                                                                                      61
Camera Monitor Systems
                 CMOS Color Camera 1301

                 Camera System                                                         Specifications

                 1301                                                                 CMOS Color Camera                                 In rectangular housing
                                                                                                                                                                                       Compliant
                                                                                                                                                                                       2002/95/EG

                                                                                       Sensor type:                                     1/4“ CMOS
                                                                                       Operating temperature:                           - 40 °C to + 85 °C
                                                                                       Storage temperature:                             - 40 °C to + 90 °C
                                                                                       Shock resistance:                                50 G
                                                                                       Operating voltage:                               9 V to 36 V
                                                                                       Power consumption                                app. 4 W
                                                                                       Minimum illumination:                            < 0.5 lux
                                                                                       Protective glass cover                           Heated and extra hardened
                                                                                       Weight, excluding mounting bracket:              app. 180 g
                                                                                       Outside dimensions, excluding mounting bracket: 65 x 59 x 50 mm (W x H x D)
                                                                                       Image display:                                   NTSC 720 x 486 pixels (W x H)
                                                                                                                                        PAL 720 x 576 pixels (W x H)
                                                                                       Video output:                                    FBAS 1 Vpp at 75 Ω
                                                                                       Cable:                                           ADR tested, oil and gasoline resistant, 0.5m
                                                                                       Connector:                                       MEKRA, Ø < 18 mm ADR tested, (IP 69K)

                                                                               Standard Camera Bracket MCB-3000                            Design Camera Bracket MCB-3001

                                                                               Camera Mounting Bracket MCB-5002                            Camera Mounting Bracket MCB-5004
                             nn Low distortion
                             nn Brilliant image
      Features

                             nn Extremely high light sensitivity
                             nn Resistant to high-pressure cleaning (IP 69K)
                             nn Extremely rugged design

62   Technical specifications subject to change!                                                                                                                                                    63
Camera Monitor Systems
             CMOS Color Camera 1301                                                                                          LED-TFT Color Monitor MCM 5029

      Cameras
                                                                                                                             Monitor System
      in rectangular housing with connecting cable/connector 0.5 m
      28.1301.001.099
      28.1301.002.099
                                 MCC-5017 NTSC 100G
                                 MCC-5018 PAL 100G                                                                           MCM 5029
      28.1301.003.099            MCC-5019 NTSC 120G
      28.1301.004.099            MCC-5020 PAL 120G
      28.1301.005.099            MCC-5021 NTSC 100G VZA
      28.1301.006.099            MCC-5022 PAL 100G VZA
      28.1301.007.099            MCC-5023 NTSC 70G
      28.1301.008.099            MCC-5024 PAL 70G
      28.1301.020.099            MCC-5043 PAL 28G
      28.1301.019.099            MCC-5044 NTSC 28G
      28.1301.022.004            MCC-5045 PAL 50G

      Accessories
      Housing/bracket for rectangular camera
      20.5630.400                MCB-3000 Standard bracket complete
      20.5631.400                MCB-3001 Design bracket complete
      11.1200.501.099            MCB-5002 Mounting bracket
      11.1200.502.099            MCB-5004 Roofed mounting bracket
      20.5640.101                MCB-3003 Magnetic base for MCBS      Magnetic base for standard camera bracket

                                                                                                                                        nn Split-screen function (4x)
                                                                                                                  Features

                                                                                                                                        nn Splashproof display (IP 65)
                                                                                                                                        nn Shock and vibration tested

       Item Numbers                                                                                                                     nn Picture-in-picture (PiP) feature

64   Technical specifications subject to change!                                                                                                                              65
Camera Monitor Systems
                 LED-TFT Color Monitor MCM 5029                                                                                                    Cables

         Specifications

         LED-TFT Color Monitor                                                        OSD Control
                                                                                                                                              Multi Cable MEKRA/MEKRA Connector (Extension Cable)
                                                                        Compliant     emein:               Helligkeit, Kontrast, Farbe
                                                                        2002/95/EG
                                                                                                                                              09.5610.111             MMC-0005 male-female                                             5.00 m
         Screen:                           16:9 - 7“ diagonal                         Split-screen         Concurrent display of up to four
                                                                                      function:            camera images                      09.5610.121             MMC-0011 male-female                                            11.00 m
         Resolution:                       800 x 480 pixels (W x H)
                                                                                                           Size and configuration can be      09.5610.131             MMC-0016 male-female                                            16.00 m
         Video system:                     NTSC, PAL standard signal
                                                                                                           factory set
                                           (automatic detection)                                                                              09.5610.141             MMC-0021 male-female                                            21.00 m
                                                                                                           2x, 3x, 4x split and
         Brightness:                       400 cd/m²                                                       picture-in-picture
         Contrast:                         500 : 1                                    Usable vehicle       4 user-configurable trigger
         Power consumption:                10 W max (monitor only)                    signals:             inputs,
                                           25 W max (with 4 cameras)                                       one for speed detection,
                                                                                                           automatic trailer detection
         Angle of vision:                  50° / 50° (up / down)
                                           60° / 60° (left / right)                   Graphics overlay: Lane assist system
         Automatic brightness control Day / night sensor                              Item No.:             24.1301.002.099
                                                                                                           (monitor only: MCM 5029)
         Power supply:                     Terminal strip
                                                                                      Item No.::           24.1301.501.099                    Direct Connecting Cable MEKRA/MQS (Monitor Kit 5047)
         Background illumination:          LED
                                                                                                           (Kit MCM 5047:
         Housing:                          Heat-resistant plastic                                          - monitor                          09.1301.003.099         MAC-5052 female-MQS female for camera on MCM 5047                5.00 m
         Dimensions:                       188 x 120 x 45 mm (W x H x D)                                   - incl. sun visor                  09.1301.004.099         MAC-5053 female-MQS female for camera on MCM 5047               11.00 m
         Weight:                           app. 620 g                                                      - incl. standard bracket
                                                                                                                                              09.1301.005.099         MAC-5054 female-MQS female for camera on MCM 5047               16.00 m
                                                                                                           - incl. full wiring)
         Operating temperature:            - 30 °C to + 85 °C                                                                                 09.1301.006.099         MAC-5055 female-MQS female for camera on MCM 5047               21.00 m
         Storage temperature:              - 40 °C to + 85 °C
         Ambient conditions:               Splashproof (IP 65)
                                           Shock and vibration tested
         LED-TFT Monitor

         Compliant
         2002/95/EG                                                                                                                           Adapter Cables

      Monitor                                                                                                                                 09.5610.360             MAC-3305 female-MQS female for camera on MCM 5047               0.5 m

      24.1301.501.099            MCM-5047 StandAloneQuad MMB MMS AD Cable                              LED-TFT Monitor (Kit)                  09.5610.050             MKR-1001 male-5 open connecting cable MEKRA m - open end        0.5 m

      24.1301.002.099            MCM-5029 (monitor only)                                                                                      09.5610.051             MKR-1002 female-5 open connecting cable MEKRA f - open end      0.5 m

      Accessories                                                                                                                             11.1301.006.099         MMS-5034 sun visor for MCM

      Monitor Bracket                                                                                                                         61.1301.002.099         Kit MSC-5033 f. MCM stand alone connecting cable for MCM 5029

      20.5610.400                MMB-2070                                 Standard monitor bracket for MCM 5029

       Item Numbers                                                                                                                           Item Numbers

66   Technical specifications subject to change!                                                                                                                                                                                                67
Accessories
     Overview

                                                                                                        Wedge Mounts

     Customization                                                                                      248 | 271
     Thanks to our large portfolio of accessories, such as mounting adapters, wedge mounts, cables,
     and switches, we can offer the high degree of customization required to adapt our mirror systems                               Page 70   Cable Connection 248
     to a great variety of vehicle types.                                                                                           Page 70   Direct Contact Connection 271

                                                                                                        Adapters / Rubber Bellows

                                                                                                        271 | 272 | Rubber Bellows

                                                                                                                                    Page 71   Adapter 271
                                                                                                                                    Page 71   Adapter 272
                                                                                                                                    Page 71   Rubber Bellows

                                                                                                        Cabels / Switches

                                                                                                        Cabels | Mirror Switches

                                                                                                                                    Page 72   Heating cable with Plug
                                                                                                                                    Page 72   Control Cable
                                                                                                                                    Page 72   Supply Line
                                                                                                                                    Page 73   Mirror Switches

                                                                                                        Other

                                                                                                        Entry Lights | Controller | Park Assist

                                                                                                                                    Page 73   Power LED Entry Light
                                                                                                                                    Page 73   Halogen Entry Light / Controller
                                                                                                                                    Page 73   Park Assist

68                                                                                                                                                                               69
Accessories
             Wedge Mounts                                                                                                          Adapter | Rubber Bellows

                                                                                                                   Wedge Mount     Adapter

                                                                                            Cable Connection           248         271
                                                    108                                                                                                                                                                           1
                                                                                                                                 nn Accepts wedge mounts cable connection 248 or direct contact connection 271 and can be moun-
                                                         78          10
                             Ø 8,5                                                                                                  ted to the bus in various mounting and tilt angles

                                                                          28                                                     nn Aluminum die-cast with plastic cover
                                                                          50

                                                                                                                                 Version 1
                                                                                                                                 Item No.            Configuration                   Mount                      Tilt Angle
                              Item No.             Configuration               Length         Blade Receptacle                   20.2710.111              Left side Full             Straight, with lid         3.4° / straight
                              20.2480.210          Without cable                                                                 20.2710.121              Right side Full            Straight, with lid         3.4° / straight
                              20.2480.211          With heating cable          2.50 m                                                                                                                                             2
                              20.2480.216          With control cable          2.00 m         5.0 x 6.3 mm                       Version 2
                              20.2480.217          With control cable          5.00 m         5.0 x 6.3 mm                       Item No.            Configuration                   Mount                      Tilt Angle
                              20.2480.218          With control cable          9.00 m         5.0 x 6.3 mm                       20.2710.132 D            Left side Full             At an angle, with lid      3.4° / 12°
                              20.2480.219          With control cable          6.00 m         5.0 x 6.3 mm                       20.2710.142 D            Right side Full            At an angle, with lid      3.4° / 12°
                              20.2480.221          With control cable          2.50 m         5.0 x 6.3 mm
                              20.2480.222          With control cable          4.00 m         5.0 x 6.3 mm
                              20.2480.223          With control cable          0.15 m         Plug housing                         Adapter
                              09.5000.300          Cable with plug             5.00 m         Receptacle housing
                                                                                                                                   272

                                                                                                                   Wedge Mount   nn Accepts wedge mounts cable connection 248 or direct contact connection 271
                                                                                                                                    and can be mounted to the bus in various mounting and tilt angles
                                                                                    Direct Contact Connection          271
                                                                                                                                 nn Aluminum die-cast
                                                   124
                                                                                              Cable pinout
                                            23           78    15
                                                                                                                                 Item No.            Configuration                   Mount                      Tilt Angle
                                Ø 8,5
                                                                                                                                 20.2720.011              Left side                  At an angle, without lid
                                                                                                                                 20.2720.021              Right side                 At an angle, without lid
                                                                          59
                                                                          28

                                                                                                                                   Adapter / Rubber Bellows
                              Item No.             Configuration               Length         Connection
                              20.2710.610          Without cable                                                                   Rubber Bellows
                              20.2710.620          With control cable          0.50 m
                              20.2710.630          With control cable          2.50 m                                            Item No.            Configuration
                              20.2710.001.001      With control cable, ZINK    2.50 m                                            20. 2710.200             Left side / right side   Black
                              20.2710.650          With control cable          3.50 m
                              20.2710.640          With control cable          0.15 m         Plug housing
                              09.5000.300          Cable with plug             5.00 m         Receptacle housing

70   Technical specifications subject to change!                                                                                                                                                                                      71
You can also read
