INTRODUCTION

      ESX has a wealth of experience with vehicle-specific head units.

                        The operation of the ESX Vision goes quickly and smoothly
                        via hardkeys and touchscreen.

          In practice, we like the short boot times of the ESX, because who wants
          to wait minutes before his radio turns on?

                      And in practice, the ESX device delivers
                      a very good sound and radio reception.
        The ESX offers a full spectrum of media equipment. With, for example, E-Link and
        Virtual Disk, it also has some exceptional features to offer.

                                                           Guido Randerath, chief editor Car & Hifi

With the VISION Naviceivers ESX presents sophisticated infotainment devices with touch screen,
which harmonize perfectly with the vehicle`s interior design. Enjoy the advantages of stunningly good
radio reception, perfect DVD/CD playback and an excellent manufacturing quality in your car. The
advanced iGo Primo Navi software with TMC and TTS will guide you safely on all roads in Europe (in-
cluding Turkey).

The state of the art operating comfort of the device is particularly defined by steering wheel control
(depending on model) and fast Bluetooth™ hands free and iPod/iPhone™ connectivity. External me-
dia storage devices such as USB sticks or hard drives can be connected easily. All major audio and
video formats are supported.

The VISION VN Naviceivers can easily and perfectly be integrated into the vehicle, without much effort
or additional adapters. They support besides the new device features almost all functions, which the
original radio did before.

Vehicle specific as a trademark. The ESX VISION Naviceivers are easy to install and can be fully inte-
grated into the center console. Design and adaptation are based on the original look.
You can personalize your device by customizing the boot logo, wallpaper and the surface skin.

ESX also offers a comprehensive range of accessories for your vehicle. In addition to the optionally
available DAB+ module (VNA-TM-DAB) for digital radio reception, a large number of front / rear view
cameras and installation accessories are also available.

2
Navigation mobile entertainment - CAR PC & PHONE - ESX Naviceiver
FUNCTION OVERVIEW

 3D building view                                             Route guidance with signs

 25 TTS Pro announcement and program languages                Comprehensive and POI special destination search

                The iGo Primo navigation software from NNG provides excellent operating comfort and
                lots of useful additional features that go far beyond the usual functionality of conventional
                navigation applications. The software was especially designed for ESX devices and im-
                presses with excellent GPS reception and precise route guidance.

With the iGo TTS Pro feature (text-to-speech) the real street names are included into the voice an-
nouncement of the route guidance. The clear presentation helps with the quick orientation on your
route. On multi-lane roads, the detailed routing with signs helps you to find the desired exit.

Additional features such as the POI (over 3 Million) and special destination search, enables to explore
the area to find attractions and other interesting places off your route. By entering the vehicle data,
the route is also adapted to the dimensions of your vehicle.

iGo Primo is equipped with detailed maps for Europe (plus Turkey) and can be updated at any time via
the internet service portal „naviextras.com“.

After the software activation on the ESX Naviceiver, you can also download the latest maps for free for
a specific period of time * (Latest Map Guarantee).

                                                                                               * Features according to iGO versions.

                                                                                                                               3
Navigation mobile entertainment - CAR PC & PHONE - ESX Naviceiver
UNIVERSAL DOUBLE-DIN

          EXTERNAL

           TUNER
          OPTIONAL

       Applications         USB Quick Charge Function   Virtual Disk Converting Function         Multimedia Player        Voice Control

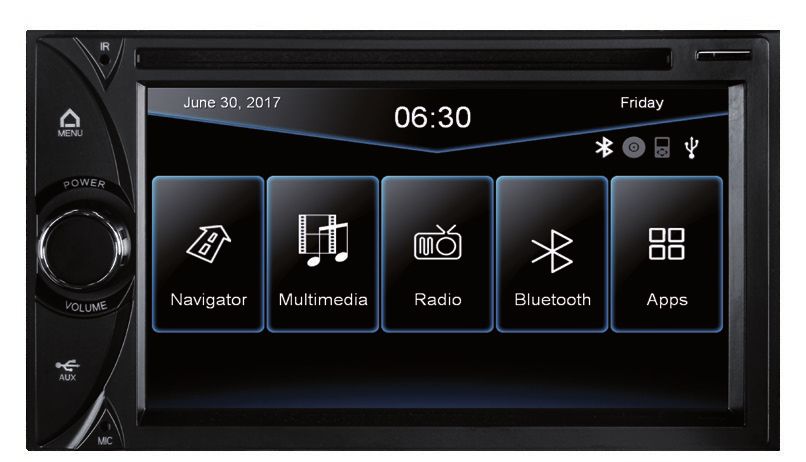

VN630W                        VNC630W with iGo Camper & Truck navigation software (not shown)
                              VN630WS navigation software optional (not shown)

Highlights:
• High-resolution 15.7 cm (6.2“) touchscreen display
• Advanced i30 operating system based on Microsoft Windows CE 6
• iGo navigation software (46 countries incl. TMC), not for VN630WS
• Integrated TMC receiver for avoiding traffic disabilities, TMC Pro is supported
• Digital DAB+ radio reception (Optional with external VNA-TM-DAB module)
• AM/FM Radio with RDS function
• Integrated CD/DVD drive                                                                  Specials:
• Pre-amplifier outputs for Front/Rear/Subwoofer                                           The VN630W Naviceiver allows you to adjust the
• Quick-Boot & ACC Logic                                                                   LED key illumination color.

• Bluetooth™ handsfree incl. audio streaming
• External and internal microphone
• iPod/iPhone™ connection via USB
• Virtual Disk to convert audio CDs into MP3 format
• E-LINK mirror function with compatible Android smartphones
• 2 x USB port (rear), one with Quick Charge function up to
  2.1A charge current
• Voice control (except navigation)
• 3 x Audio/Video inputs
• 2 x Audio/Video outputs
• Front and rear view camera connection
• Further specifications and details can be found on page 40

4
Navigation mobile entertainment - CAR PC & PHONE - ESX Naviceiver
UNIVERSAL DOUBLE-DIN

                                                                                                                           EXTERNAL

                                                                                                                            TUNER
                                                                                                                           OPTIONAL

 Individual Menu Assignment    DAB+ Radio (optional)     E-Link mirror function for Android           AV/TV menu        A2DP Audio Streaming via BT

VN630D                        VNC630D with iGo Camper & Truck navigation software (not shown)
                              VN630DS navigation software optional (not shown)

Highlights:
• High-resolution 15.7 cm (6.2“) touchscreen display
• Advanced i30 operating system based on Microsoft Windows CE 6
• iGo navigation software (46 countries incl. TMC), not for VN630DS
• Integrated TMC receiver for avoiding traffic disabilities, TMC Pro is supported
• Digital DAB+ radio reception (Optional with external VNA-TM-DAB module)
• AM/FM Radio with RDS function
• Integrated CD/DVD drive
                                                                                              Specials:
• Pre-amplifier outputs for Front/Rear/Subwoofer
                                                                                              The VN630D Naviceiver allows you to adjust the
• Quick-Boot (ca. 10 seconds)                                                                 LED key illumination color.
• Support ACC Logic: The device can be operated up to
  30 minutes without ignition
• Bluetooth™ Handsfree incl. audio streaming
• External and internal microphone
• iPod/iPhone™ connection via USB
• Virtual Disk to convert audio CDs into MP3 format
• E-LINK mirror function with compatible Android smartphones
• 1 x USB port (front), 1 x front AUX (3,5 mm jack)
• 1 x USB port (rear) with Quick Charge function
• Voice control (except navigation)
• 3 x Audio/Video inputs
• 2 x Audio/Video outputs
• Front and rear view camera connection
• Further specifications and details can be found on page 40

                                                                                                                                                5
Navigation mobile entertainment - CAR PC & PHONE - ESX Naviceiver
UNIVERSAL DOUBLE-DIN ANDROID®

          NEW

                                                                                                          10.1”
                                                                                                            TOUCHSCREEN

       Radio menu                Audio menu              Wallpaper menu        DAB+ menu (optional)         Applications

VN1015-MA-DAB
Highlights:                                                               Specials:
• High-resolution 25,6 cm (10.1”) multi angle touchscreen                 The large 10.1-inch touchscreen is adjustable in
                                                                          height and in the viewing angle.
  (adjustable in height and viewing angle)
• Advanced i15 Android® operating system
• Navigation via Google Maps (online and offline)
• Mobile internet connection via wlan hotspot possible
• Digital DAB+ radio
• Radio AM/FM with RDS function
• Bluetooth™ Handsfree incl. Audio-Streaming
• Internal microphone & connection for optional external microphone
• iPhone™ or Android® Smartphone connection via USB
• Voice control via connect Smartphone
• Pre-amplifier outputs for Front/Rear/Subwoofer/Center
• 1 x Camera input (incl. adjustable guidelines)
• 1 x AUX Video input
• 2 x Audio/Video output
• 1 x AUX Audio input
                                                                          The device can be installed in every vehicles with
• 3 x USB connection                                                      a double DIN slot. Depending on the vehicle and
• 1 x MicroSD card slot                                                   equipment, vehicle-specific adapters or mounting
                                                                          frames are required, which can be purchased from
• Own bootlogos & wallpaper configurable                                  dealers.
• Further specifications and details can be found on page 40

6
Navigation mobile entertainment - CAR PC & PHONE - ESX Naviceiver
VOLKSWAGEN / SEAT / ŠKODA MULTIFIT ANDROID®

             NEW

                                                                                                                                                           8”
                                                                                                                                                      TOUCHSCREEN

         Main menu                           Audio player                Navigation (via Google Maps)                  Equalizer                         Phone menu

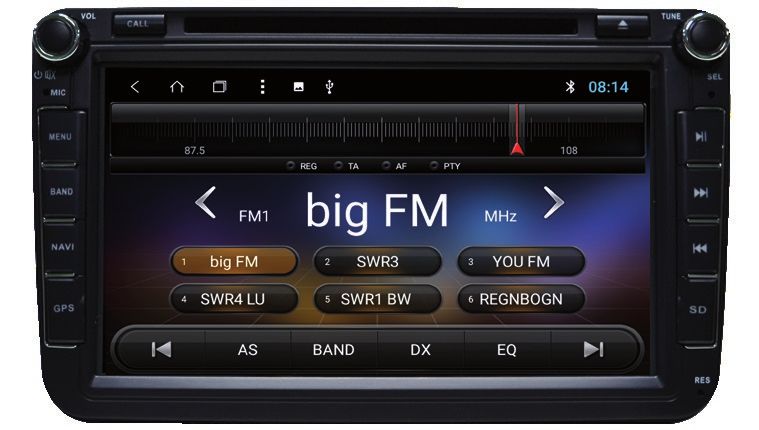

VN815-VO-U1-DAB
Fits:
Volkswagen Golf V (2003-2008), Golf plus (2005-2014), Golf VI (2008-2012), Eos (2006-2011), Eos Facelift (2011-2015), Polo V (2009-2014), Passat B6 (2005-2010),
Passat B7 (2010-2014), Passat CC (2008-2012), Passat CC Facelift (2012-2016), Jetta V (2005 - 2010), Jetta VI (2010 >), Caddy III 2K Facelift (2010-2015), Tiguan (2007-2011),
Tiguan Facelift (2011-2015), Scirocco III (2008 >), Beetle (2011 >), Touran (2003-2006), Touran GP (2006-2010), Touran GP II (2010-2015), Sharan II (2010 >), Amarok (2010 >),
T5 GP (2009-2015), Seat Altea (2004-2015), Leon 1P (2005-2012), Alhambra II (2010 >), Skoda Octavia II (2004-2009), Octavia II Facelift (2009-2013),
Superb II (2008-2015), Yeti (2009 >), Fabia II (2007-2014)

Highlights:                                                                                             Specials:
• High-resolution 20,3 cm (8”) touchscreen display                                                      Perfect and individual - with CD / DVD drive and
                                                                                                        two easily accessible buttons.
• Advanced i15 Android® operating system
• Navigation via Google Maps (online and offline)
• Mobile internet connection via wlan hotspot possible
• Integrated CD/DVD drive
• Digital DAB+ radio
• Radio AM/FM with RDS function
• Bluetooth™ Handsfree incl. Audio-Streaming
• Internal microphone & connection for optional external microphone
• iPhone™ or Android® Smartphone connection via USB
• Voice control via connect Smartphone
• Pre-amplifier outputs for Front/Rear/Subwoofer/Center
• 1 x Camera input (incl. adjustable guidelines)
• 1 x AUX Video input, 2 x Audio/Video output, 1 x AUX Audio input
• 3 x USB connection (Adapter for factory USB connection is included)
• 2 x MicroSD card slot
• Own bootlogos & wallpaper configurable
• Further specifications and details can be found on page 40

                                                                                                                                                                           7
Navigation mobile entertainment - CAR PC & PHONE - ESX Naviceiver
VOLKSWAGEN / SEAT / ŠKODA MULTIFIT

                  NEW                                                                                                                            EXTERNAL

                                                                                                                                                  TUNER
                                                                                                                                                 OPTIONAL

    A/C Information Display*         MFA Direction Arrow Display*             Bluetooth™ Handsfree                    RDS Radio                  Parking Sensor Display (OPS)

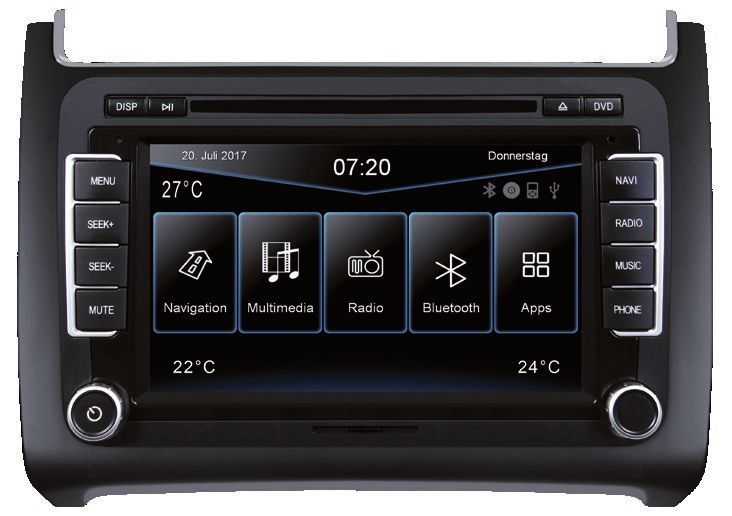

VN735 VO-U1                                                         VNC735 VO-U1 with iGo Camper & Truck navigation software (not shown)
                                                                    VNS735 VO-U1 navigation software optional (not shown)

Fits:
Volkswagen Golf V (2003-2008), Golf plus (2005-2014), Golf VI (2008-2012), Eos (2006-2011), Eos Facelift (2011-2015), Polo V (2009-2014), Passat B6 (2005-2010),
Passat B7 (2010-2014), Passat CC (2008-2012), Passat CC Facelift (2012-2016), Jetta V (2005 - 2010), Jetta VI (2010 >), Caddy III 2K Facelift (2010-2015), Tiguan (2007-2011),
Tiguan Facelift (2011-2015), Scirocco III (2008 >), Beetle (2011 >), Touran (2003-2006), Touran GP (2006-2010), Touran GP II (2010-2015), Sharan II (2010 >), Amarok (2010 >),
T5 GP (2009-2015), Seat Altea (2004-2015), Leon 1P (2005-2012), Alhambra II (2010 >), Skoda Octavia II** (2004-2009), Octavia II Facelift*** (2009-2013),
Superb II (2008-2015), Yeti*** (2009 >), Fabia II (2007-2014) Note: Not compatible with vehicles that are equipped with the original MIB radio (since 2014).

Highlights:                                                                                             Specials:
• High-resolution 17,8 cm (7“) touchscreen display                                                      The VN735 VO-U1 Naviceiver allows you to adjust
• Advanced i20 operating system based on Microsoft Windows CE 6                                         the LED key illumination color.
• iGo navigation software (46 countries incl. TMC)
• Easy installation with QUADLOCK connectors
• Pre-amplifier outputs for Front/Rear/Subwoofer/Center
• Digital DAB+ radio (Optional with external VNA-TM-DAB module)
• AM/FM Radio with RDS function
• Bluetooth™ Handsfree incl. audio streaming
• External and internal microphone
• Quick-Boot, Quick Charge & ACC Logic
• iPod/iPhone™ connection via USB
• Virtual Disk to convert audio CDs into MP3 format
• E-LINK mirror function with compatible Android® smartphones
• Voice control (except navigation)
• 2 x Audio/Video inputs, 3 x Audio/Video outputs
• Front and rear view camera connection
• Supports OEM rear view camera (only with VNA-RCAM-HI or VNA-
  RCAM-LO adaptors), additional parking guidelines display
• Supports multi-function-display (depending on vehicle)
• Further specifications and details can be found on page 40

8                                                                                                                                                          * depending on vehicle
Navigation mobile entertainment - CAR PC & PHONE - ESX Naviceiver
VOLKSWAGEN MULTIFIT

                                                                                                                                             EXTERNAL

                                                                                                                                              TUNER
                                                                                                                                             OPTIONAL

  Individual Menu Assignment            DAB+ Radio (optional)         E-Link mirror function for Android             AV/TV menu                  A2DP Audio Streaming via BT

VN720 VO-M2                                                      VNC720 VO-M2 with iGo Camper & Truck navigation software (not shown)

Fits:
Volkswagen Caddy III 2K (06/2015 >), Beetle Facelift Typ 5C (02/2016 >), Golf Cabrio VI (2015-2016), Touran II Typ 5T (05/2015 >), T6 (07/2015 >), Sharan II (05/2015 >)

Highlights:                                                                                                Specials:
• High-resolution 17,8 cm (7“) touchscreen display                                                         The VN720 VO-M2 Naviceiver allows you to adjust
                                                                                                           the LED key illumination color.
• Advanced i20 operating system based on Microsoft Windows CE 6
• iGo navigation software (46 countries incl. TMC)
• Easy installation with QUADLOCK connectors
• Pre-amplifier outputs for Front/Rear/Subwoofer/Center
• Digital DAB+ radio (Optional with external VNA-TM-DAB module)
• AM/FM Radio with RDS function
• Bluetooth™ Handsfree incl. audio streaming
• External and internal microphone
• Quick-Boot & ACC Logic
• iPod/iPhone™ connection via USB
• Virtual Disk to convert audio CDs into MP3 format
• E-LINK mirror function with compatible Android smartphones
• USB Quick Charge function up to 2.1A charge current
• Voice control (except navigation)
• Front and rear view camera connection
• Supports original rear view cam via plug & play (no adaptors                                                                                  The VN720 VO-M2
  required)                                                                                                                                     Naviceiver is only
                                                                                                                                                compatible with the
• Supports multi-function-display including direction arrows
                                                                                                                                                new VW QUADLOCK-
• Further specifications and details can be found on page 40                                                                                    Connector of the
                                                                                                                                                MIB2PQ Plattform.

* depending on vehicle                                                                                                                                                     9
Navigation mobile entertainment - CAR PC & PHONE - ESX Naviceiver
VOLKSWAGEN POLO 6C

              EXTERNAL

               TUNER
              OPTIONAL

        Applications               USB Quick Charge Function       Virtual Disk Converting Function         Multimedia Player             Car-Info

VN720 VO-P6C                                                     in three different frame colors

Fits:
Volkswagen Polo 6C (04/2014 >) with „Composition Touch“ or „Composition Color“
Not compatible with original radio „Composition Media“ and „Discover Media“

Highlights:                                                                                           Specials:
• High-resolution 17,8 cm (7“) touchscreen display                                                    With the VN720 VO-P6C Naviceiver you have the
• Advanced i20 operating system based on Microsoft Windows CE 6                                       option to choose between three different frame
                                                                                                      colors according to your interior design:
• iGo navigation software (46 countries incl. TMC)
                                                                                                                                  matt-silver
• Easy installation with QUADLOCK connectors
• Pre-amplifier outputs for Front/Rear/Subwoofer/Center
• Digital DAB+ radio (Optional with external VNA-TM-DAB module)
• AM/FM Radio with RDS function
• Bluetooth™ Handsfree incl. audio streaming
                                                                                                                                                     matt grey
• External and internal microphone as well as support of the original
  microphone from factory
• Quick-Boot, Quick Charge & ACC Logic
• iPod/iPhone™ connection via USB
• Multicolor LED key illumination
                                                                                                                                 glossy black
• Virtual Disk & E-LINK mirror function
• Voice control (except navigation)
• Front and rear view camera connection
• Supports original rear view cam via plug & play (no adaptors
  required)
• Supports multi-function-display including direction arrows*
• Vehicle settings such as illumination, A/C profile, central lock,
  wipers, park assistant, tire pressure control can be adjusted
  or controlled by the device.
• Further specifications and details can be found on page 40

10                                                                                                                                       * depending on vehicle
VOLKSWAGEN GOLF VII

                                                                                                                                                                                               INTEGRATED

                                                                                                                                                                                                  TUNER
                                                                                                                                                                                                 OPTIONAL

                                                               Frame in Dark Rhodium (optionally also available in Black and Dark Rhodium Brushed)

           Audio Player                          Auxiliary Heater Settings*                         Vehicle Setting *                           A/C Profile Settings *                               Car-Info*

VN810 VW-G7
                                                                                     VNS810 VW-G7 navigation software optional (not shown)
                                                                                     VNS810 VW-G7-DAB with internal DAB+ Tuner, navigation software optional (not shown)
                                                                                     VN810 VW-G7-DAB with iGo car navigation software and internal DAB+ Tuner (not shown)

Fits:
Volkswagen Golf VII (11/2012 - 02/2017)
Note: Not compatible with the DYNAUDIO active system (optical fiber technology), for the installation of the external DVD drive a holder in the glove compartment is necessary. If your vehicle does not have this DVD drive
holder, this must be ordered from VW. In certain vehicle-specific special equipment editions, the compatibility of some functions can not be guaranteed.

Highlights:                                                                                                                                        Specials:

• High-resolution 20,3 cm (8“) touchscreen display
                                                                                                                                                                      The frame is optionally also available
• iGo navigation software (46 countries incl. TMC)
                                                                                                                                                                      in Black and Dark Rhodium Brushed)
• Easy installation with QUADLOCK connectors
• AM/FM Radio with RDS function
• External DVD drive for the glove compartment
• Bluetooth™ Handsfree incl. audio streaming
• iPod/iPhone™ connection via USB
• Audio/video/photo playback via USB, MicroSD or internal flash drive (4GB)
• Rear Media Dual Zone with audio outputs
• Including connectors for optional rear view camera
• Personalization made easy: various skins, custom boot logos and wallpapers
• Factory features* such as illumination, climate profile, central locking, wipers,                                                                The device supports factory features*
  parking assist, tire pressure monitoring system can be set or controlled by                                                                      such as the illustration of the multi-
  the device                                                                                                                                       function display at the speedometer,
                                                                                                                                                   steering wheel control as well as the
• NEW: Supports the original auxiliary heater **
                                                                                                                                                   mapping of the parking sensors and
• NEW: Supports the lateral parking sensors **                                                                                                     the A/C display on the monitor. Via the
                                                                                                                                                   „Vehicle settings“ or „Car-Info“ menu
• NEW: Supports the arrow display in the MFA (only if original navigation
                                                                                                                                                   you can set vehicle-specific functions,
  system „Discover Media“ and „Discover Pro“ was factory installed)**
                                                                                                                                                   such as lighting, central locking, parking
• Further specifications and details can be found on page 41                                                                                       assist etc.

* depending on vehicle ** software update may be required                                                                                                                                                             11
ŠKODA OCTAVIA III
           EXTERNAL

            TUNER
           OPTIONAL

         Board computer*                                  Main menu                               A/C Profile Settings *                              Applications                               Vehicle settings*

VN830 SK-OC3
Fits:
Skoda Octavia III (from 2013-2016)
Note: Not compatible with vehicles that are equipped with the original active sound system. Other accessories may be necessary for original 6.5” radios or restrictions. In certain vehicle-specific special equipment editions,
the compatibility of some functions can not be guaranteed.

Highlights:                                                                                                                          Specials:
• High-resolution 20.3 cm (8“) touchscreen display                                                                                   The device supports factory features* such as the
                                                                                                                                     steering wheel control as well as the mapping of
• Advanced i30 operating system (Microsoft Windows CE 6)
                                                                                                                                     the parking sensors and the A/C display on the
• iGo navigation software (46 countries incl. TMC)                                                                                   monitor. Via the „Vehicle settings“ or „Car-Info“
• Integrated TMC receiver for avoiding traffic disabilities, TMC Pro                                                                 menu you can set vehicle-specific functions, such
  is supported                                                                                                                       as lighting, central locking, parking assist etc.

• Easy installation with QUADLOCK connectors
• Pre-amplifier outputs for Front/Rear/Subwoofer/Center
• Digital DAB+ radio (Optional with external VNA-TM-DAB module)
• AM/FM Radio with RDS function
• Bluetooth™ Handsfree incl. audio streaming
• External and internal microphone as well as support of the
  original microphone from factory
• Quick-Boot, Quick Charge & ACC Logic
• iPod/iPhone™ connection via USB
• E-LINK mirror function with compatible Android® smartphones
• Voice control (except navigation)
• Supports multi-function-display including direction arrows*
• Factory features* such as illumination, climate profile, central
  locking, wipers, parking assist, tire pressure monitoring system
  can be set or controlled by the device
• Further specifications and details can be found on page 41

12                                                                                                                                                                                                    * depending on vehicle
FIAT DUCATO / CITROËN JUMPER / PEUGEOT BOXER

                                                                                                                                                                EXTERNAL

                                                                                                                                                                 TUNER
                                                                                                                                                                OPTIONAL

          Trip Manager                 Steering Wheel Learning Function              USB Quick Charge Function               Individual Menu Assignment              DAB+ Radio (optional)

VNC730 FI-DUCATO                                                                                       VN730 FI-DUCATO with iGo car navigation software (not shown)
                                                                                                       VNS730 FI-DUCATO navigation software optional (not shown)

Fits:
Fiat Ducato III*/** (Type 250, from 2006), Ducato IV*/**/*** (Type 290, from 2015)
Citroën Jumper II*/** (Type 250, from 2006), Jumper III*/**/*** (Type 290, from 2015)
Peugeot Boxer II */** (Type 250, from 2006), Boxer III*/**/*** (Type 290, from 2015)

Highlights:                                                                                                            Specials:
• High-resolution 17,8 cm (7“) touchscreen display
• Advanced i30 operating system based on Microsoft Windows CE 6
• iGo navigation software (46 countries, incl. TMC) with camping POI,
  editable vehicle parameters, and vehicle management (only VNC730
  FI-DUCATO)
• Integrated TMC receiver for avoiding traffic disabilities, TMC Pro is
  supported
• Pre-amplifier outputs for Front/Rear/Subwoofer/Center
• Digital DAB+ radio (Optional with external VNA-TM-DAB module)
• AM/FM Radio with RDS function
• Bluetooth™ Handsfree incl. audio streaming
• Quick-Boot & ACC Logic, iPod/iPhone™ connection via USB
• Virtual Disk to convert audio CDs into MP3 format
• E-LINK mirror function with compatible Android® smartphones
• USB Quick Charge function up to 2.1A charge current
• Voice control (except navigation)                                                                                    The VNC730 FI-DUCATO Naviceiver supports the
                                                                                                                       CANBUS functions, the multi-function-display and
• 3 x Audio/Video inputs, 2 x Audio/Video outputs
                                                                                                                       the steering wheel remote control of the Type 290
• Front and rear view camera connection                                                                                model (depending on vehicle).
• Supports CANBUS functions of model Type 290
• Supports analog steering wheel remote control
• Supports multi-function-display of model Type 290
• Further specifications and details can be found on page 42

* „plug and play“ installation at all Type 250/290 models with radio preparation.
** at models with CANBUS or OEM radio, increased installation efforts and materials as well as a original Fiat radio frame (Art.Nr.: 735535319) are required.
                                                                                                                                                                                        13
*** for Type 290 with OEM radio the ESX VNA-DUC-CAN-SET is required.
FIAT DUCATO / CITROËN JUMPER / PEUGEOT BOXER

                     NEW

                                                                                                                                                                    10.2”
                                                                                                                                                                       TOUCHSCREEN

         Main Menu                       iPod/iPhone™ compatible                       Data management                                Phone menu                                 Audio menu

VNC1045-DBJ                                                               with integrated DAB+ Tuner

Fits:                                                                                                                  Specials:
Fiat Ducato III *(Type 250, from 2006), Ducato IV ** (Type 290, from 2015)
Citroën Jumper II * (Type 250, from 2006), Jumper III ** (Type 290, from 2015)
Peugeot Boxer II * (Type 250, from 2006), Boxer III ** (Type 290, from 2015)

Highlights:
• High-resolution 25,9 cm (10.2”) touchscreen display
• iGo Camper & Truck navigation software Westeurope (46
  countries, incl. TMC), with camping POI, editable vehicle
  parameters, and vehicle management
• Advanced i45 operation system (Microsoft Windows CE 6)
• Device can be operated without ignition for up to 2 hours
• Pre-amplifier outputs for 2 x Front / 2 x Rear / Subwoofer
• Parrot™/Bluetooth® Handsfree with audio streaming
• Integrated CD/DVD drive
• FM/DAB+ Shift Tuner (Device automatically switches between                                                           Accurately fitting and easy installation thanks to
  analog and digital radio)                                                                                            „Plug & Play” cabling and matching frame includ-
                                                                                                                       ing storage
• AM/FM Radio with RDS function and FM Diversity Tuner
• DAB+ Digitalradio with optional radio channel logo presentation
• Android Link function with compatible Android® smartphones

                                                                                                                                                              +
• Voice control (via iOS™ or Android®)
• Support for steering wheel remote control (Depending on the
  vehicle, an optional adapter is required)
• Support of an external TV receiver (DVB-T ready)
• Support for iPod ™ via USB
• Further specifications and details can be found on page 42

14                                                                                                     * an existing analogue steering wheel remote control can be operated with the included adapter
                    ** In order to operate an existing digital steering wheel remote control with the device, depending on the model, the adapters „VNA-LFB-FD2”, „VNA-LFB-FD3” or „VNA-LFB-FD4 are required.
FIAT DUCATO / CITROËN JUMPER / PEUGEOT BOXER

               EXTERNAL

                TUNER
               OPTIONAL

         Applications                 USB Quick Charge Function        Virtual Disk Converting Function          Multimedia Player         Voice Control

VNC6315D                                           VN6315D with car navigation software (not shown)

Fits:
Fiat Ducato III (Type 250, from 2006), Ducato IV (Type 290, from 2015)
Citroën Jumper II (Type 250, from 2006), Jumper III (Type 290, from 2015)
Peugeot Boxer II (Type 250, from 2006), Boxer III (Type 290, from 2015)
The set contains: VN630D Double-DIN Naviceiver, steering wheel control adapter, vehicle-specific frame, wiring

Highlights:
• High-resolution 15.7 cm (6.2“) touchscreen display
• Advanced i30 operating system based on Microsoft Windows CE 6
• iGo navigation software (46 countries, incl. TMC) with camping POI, editable vehicle parameters, and vehicle management
  (only VNC6315D)
• Integrated TMC receiver for avoiding traffic disabilities, TMC Pro is supported
• Digital DAB+ radio reception (Optional with external VNA-TM-DAB module)
• AM/FM Radio with RDS function
• Integrated CD/DVD drive                                                                                 Specials:
• Pre-amplifier outputs for Front/Rear/Subwoofer                                                          The VNC6315D Naviceiver allows you to adjust the
                                                                                                          LED key illumination color.
• Quick-Boot & ACC Logic
• Bluetooth™ Handsfree incl. audio streaming
• External and internal microphone
• iPod/iPhone™ connection via USB
• Virtual Disk to convert audio CDs into MP3 format
• E-LINK mirror function with compatible Android® smartphones
• 1 x front USB port, 1 x front AUX (3,5 mm Jack)
• 1 x USB port (rear) with Quick Charge function
• Voice control (except navigation)
• 3 x Audio/Video inputs
• 2 x Audio/Video outputs
• Front and rear view camera connection
• Further specifications and details can be found on page 40 (VN630D)

                                                                                                                                                           15
RENAULT MASTER / OPEL MOVANO / NISSAN NV400

                                                                                                                                        EXTERNAL

                                                                                                                                         TUNER
                                                                                                                                        OPTIONAL

 Individual Menu Assignment              DAB+ Radio (optional)          E-Link mirror function for Android            AV/TV menu          A2DP Audio Streaming via BT

VNC6310D                                             VN6310D with iGo car navigation software (not shown)
                                                     VNS6310D navigation software optional (not shown)

Fits:
Renault Master III (from 2010), Opel Opel Movano (from 2010) , Nissan NV400 (from 2010)
The set contains:
VN630D Double-DIN Naviceiver, steering wheel control-adapter, vehicle-specific frame, wiring

Highlights:
• High-resolution 15.7 cm (6.2“) touchscreen display
• Advanced i30 operating system based on Microsoft Windows CE 6
• iGo Camper & Truck navigation software (46 countries, incl. TMC) with camping POI, editable vehicle parameters, and
  vehicle management (only VNC6310D)
• Integrated TMC receiver for avoiding traffic disabilities, TMC Pro is supported
• Digital DAB+ radio reception (Optional with external VNA-TM-DAB module)
• AM/FM Radio with RDS function
• Integrated CD/DVD drive                                                                                    Specials:
• Pre-amplifier outputs for Front/Rear/Subwoofer                                                             All i20/i30 Naviceiver with CD/DVD drive offers
                                                                                                             with the Virtual Disk function a virtual 10-fold CD-
• Quick-Boot & ACC Logic                                                                                     changer, which allows you to rip up to 10 CDs via
• Bluetooth™ Handsfree incl. audio streaming                                                                 the device, to save and play on a connected stor-
• External and internal microphone                                                                           age drive.
• iPod/iPhone™ connection via USB
• Virtual Disk to convert audio CDs into MP3 format
• E-LINK mirror function with compatible Android® smartphones
• 1 x Front USB port, 1 x Front AUX (3,5 mm Jack)
• 1 x USB port (rear) with Quick Charge function
• Voice control (except navigation)
• 3 x Audio/Video inputs
• 2 x Audio/Video outputs
• Front and rear view camera connection
• Further specifications and details can be found on page 40 (VN630D)

16
IVECO DAILY VI

          EXTERNAL

            TUNER
           OPTIONAL

         Applications                  USB Quick Charge Function         Virtual Disk Converting Function         Multimedia Player          Voice Control

VNC6312D                                            VN6312D with iGo car navigation software (not shown)

Fits:
Iveco Daily VI (from 2014)
The set contains:
VN630D Double-DIN Naviceiver, steering wheel control-adapter, vehicle-specific frame, wiring

Highlights:
• High-resolution 15.7 cm (6.2“) touchscreen display
• Advanced i30 operating system based on Microsoft Windows CE 6
• iGo Camper & Truck navigation software (46 countries, incl. TMC) with camping POI, editable vehicle parameters, and
  vehicle management (only VNC6310D)
• Integrated TMC receiver for avoiding traffic disabilities, TMC Pro is supported
• Digital DAB+ radio reception (Optional with external VNA-TM-DAB module)
• AM/FM Radio with RDS function
• Integrated CD/DVD drive                                                                                   Specials:
• Pre-amplifier outputs for Front/Rear/Subwoofer                                                            The VNC6312D Naviceiver allows you to adjust the
• Quick-Boot & ACC Logic                                                                                    LED key illumination color.
• Bluetooth™ Handsfree incl. audio streaming
• External and internal microphone
• iPod/iPhone™ connection via USB
• Virtual Disk to convert audio CDs into MP3 format
• E-LINK mirror function with compatible Android® smartphones
• 1 x Front USB port, 1 x Front AUX (3,5 mm Jack)
• 1 x USB port (rear) with Quick Charge function
• Voice control (except navigation)
• 3 x Audio/Video inputs
• 2 x Audio/Video outputs
• Front and rear view camera connection
• Further specifications and details can be found on page 40 (VN630D)

                                                                                                                                                             17
FORD TRANSIT 7

                                                                                                                                        EXTERNAL

                                                                                                                                         TUNER
                                                                                                                                        OPTIONAL

 Individual Menu Assignment              DAB+ Radio (optional)          E-Link mirror function for Android            AV/TV menu          A2DP Audio Streaming via BT

VNC6311D                                             VN6311D with iGo car navigation software (not shown)

Fits:
Ford Transit V363, 7. Generation (from 2014)
The set contains:
VN630D Double-DIN Naviceiver, steering wheel control-adapter, vehicle-specific frame, wiring

Highlights:
• High-resolution 15.7 cm (6.2“) touchscreen display
• Advanced i30 operating system based on Microsoft Windows CE 6
• iGo Camper & Truck navigation software (46 countries, incl. TMC) with camping POI, editable vehicle parameters, and
  vehicle management (only VNC6310D)
• Integrated TMC receiver for avoiding traffic disabilities, TMC Pro is supported
• Digital DAB+ radio reception (Optional with external VNA-TM-DAB module)
• AM/FM Radio with RDS function
                                                                                                             Specials:
• Integrated CD/DVD drive
                                                                                                             All i20/i30 Naviceiver with CD/DVD drive offers
• Pre-amplifier outputs for Front/Rear/Subwoofer
                                                                                                             with the Virtual Disk function a virtual 10-fold CD-
• Quick-Boot & ACC Logic                                                                                     changer, which allows you to rip up to 10 CDs via
• Bluetooth™ Handsfree incl. audio streaming                                                                 the device, to save and play on a connected stor-
• External and internal microphone                                                                           age drive.
• iPod/iPhone™ connection via USB
• Virtual Disk to convert audio CDs into MP3 format
• E-LINK mirror function with compatible Android® smartphones
• 1 x Front USB port, 1 x Front AUX (3,5 mm Jack)
• 1 x USB port (rear) with Quick Charge function
• Voice control (except navigation)
• 3 x Audio/Video inputs
• 2 x Audio/Video outputs
• Front and rear view camera connection
• Further specifications and details can be found on page 40 (VN630D)

18
FORD MULTIFIT

            Applications                           Time / Date Functions   Bluetooth™ Handsfree            Audio Player               5-band Equalizer

VN609 FO-U1
Fits:
Ford Mondeo BA7 (06/2007-2014), Focus (2007-12/2010), Galaxy WA6 (05/2006-2014), C-Max C214 (04/2007-11/2010), S-Max (05/2006-2014)
Note: Not compatible with A/C display function on the original radio.

Highlights:                                                                                       Specials:
• High-resolution 15.7 cm (6.2“) touchscreen display                                              An existing steering wheel* remote control will be
• iGo navigation software (46 countries, incl. TMC)                                               detected by the device and the original factory
                                                                                                  USB-ports are supported.
• Easy installation with QUADLOCK connectors
• AM/FM Radio with RDS function
• Integrated CD/DVD drive
• iPod / iPhone™ connection (possibly Lightning adapter required)
• Bluetooth™ Handsfree incl. audio streaming
• Audio/video/photo playback via USB, MicroSD or internal flash drive
  (4GB)
• Including connectors for optional rear view camera
• Several design themes (skins) for customizing the user interface
• SD card slot and 2 x USB port rear and 1 x USB port on the front
  panel with copy function
• Further specifications and details can be found on page 43

* depending on vehicle                                                                                                                                   19

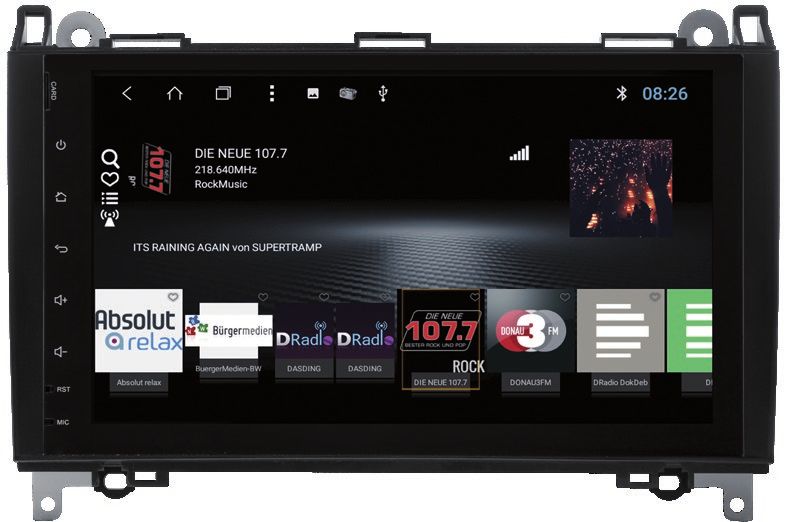

MERCEDES-BENZ MULTIFIT ANDROID®

               NEW

                                                                                                                                                                                  9”
                                                                                                                                                                               TOUCHSCREEN

             Main menu                                      Audio player                          Naviagtion (via Google Maps)                        Equalizer                 Phone menu

VN915-MB-A2-DAB
Fits:
Mercedes-Benz Sprinter (W906, 2006 >), Viano/Vito Typ 639 (2003 - 2014), Viano/Vito Typ 447 ** (2014 >), A-Class (W169 10/2004 - 4/2012),
B-Class (T245, 2005 - 2011), Volkswagen Crafter* (2006-2016)
* Under certain circumstances, the Mercedes radio recording is needed. ** No CANBUS support - ignition plus must be connected separately.

Highlights:                                                                                                                                 Specials:
• High-resolution 22,8 cm (9”) touchscreen display                                                                                          Perfect fit with extra large 9 inch touchscreen
• Advanced i15 Android® operating system
• Navigation via Google Maps (online and offline)
• Mobile internet connection via W-LAN hotspot possible
• Integrated CD/DVD drive
• Digital DAB+ radio reception (incl. radio station logos)
• Radio AM/FM with RDS function
• Bluetooth™ Handsfree incl. Audio-Streaming
• Internal microphone & connection for optional external microphone
• iPhone™ or Android® Smartphone connection via USB
• Voice control via connected smartphone
• Pre-amplifier outputs for Front/Rear/Subwoofer/Center
• 1 x Camera input (incl. adjustable guidelines)
• 1 x AUX Video input
• 2 x Audio/Video output
• 1 x AUX Audio input
• 3 x USB connection
• 2 x MicroSD card slot
• Own Bootlogos & wallpaper configurable
• Further specifications and details can be found on page 41

20
MERCEDES-BENZ MULTIFIT

          Applications          iPod/iPhone™ Compatibility                 Audio Player                 Equalizer               Main menu

VN809 MB-B1                                                  With large 20.3 cm (8“) touchscreen

Fits:
Mercedes-Benz B-Class W246 (9/2011–2015), A-Class W176 (7/2012–2016)
compatible with NTG4.5 – not compatible with NTG5*1

Highlights:                                                                                    Specials:
• High-resolution 20.3 cm (8“) touchscreen display
• iGo navigation software (46 countries, incl. TMC)
• Easy installation without additional adapters or jacks
• An existing steering wheel* remote control will be detected by the
  device and the original factory USB-ports are supported.
• iPod / iPhone™ connection (possibly Lightning adapter required)
• MicroSD card slot and USB port with copy function
• Integration of external applications (compatible with Windows CE 6)
• Including connectors for optional rear view camera
• Supports external TV or radio tuners (DVB-T, DAB, etc.)
• Further specifications and details can be found on page 41

                                                                                               The device is an upgrade of the existing factory
                                                                                               sound system and extends it with a touchscreen
                                                                                               monitor with many additional connections such as
                                                                                               iPod or USB connectivity.

Important Note:                                                                                Depending on the vehicle, the steering wheel re-
The integration of the ESX Naviceiver will be made through the AUX                             mote control or the center console controller is
port. If this is not available in the Audio Menu, it must be activated/                        supported and the and the Naviceiver can be op-
enabled by Mercedes-Benz.                                                                      erated together with the original radio.

* depending on vehicle                                                                                                                      21
OPEL INSIGNIA

           Main menu                        iPod/iPhone™ Compatibility                    Bluetooth™ Handsfree         Audio/Video-Player            File Manager

VN709 OP-INSIGNIA
Fits:
Opel Insignia (2008 -2013, not for facelift 2013 >)
Note: Only compatible with the factory-installed CD-Radio CD300/CD400
Vehicles with the factory-installed Navigations System NAVI600/NAVI900/DVD500/DVD800 are not compatible.

Highlights:
• High-resolution 17,8 cm (7“) touchscreen display
                                                                                                                 Specials:
• iGo navigation software (46 countries, incl. TMC)
• External CD/DVD drive for the glove compartment
• iPod / iPhone™ connection (possibly Lightning adapter required)
• Bluetooth™ Handsfree incl. audio streaming
• Audio/video/photo playback via USB, MicroSD or internal flash drive
  (4GB)
• Including connectors for optional rear view camera
• Supports A/C display
• Integration of external applications (compatible with Windows CE 6)
• Further specifications and details can be found on page 43

                                                                                                                 The Naviceiver for Opel Insignia comes with a
                                                                                                                 complete mounting panel, which fits perfect into
                                                                                                                 the vehicle interior. The device is an upgrade of the
                                                                                                                 existing factory sound system and extends it with
                                                                                                                 a DVD drive and touch screen monitor.

                                                                                                                 Depending on the vehicle, the steering wheel con-
                                                                                                                 trols are supported and enables to control the
                                                                                                                 Naviceiver together with the original radio.

22
OPEL ASTRA

           Main menu                                   Equalizer              Bluetooth™ Handsfree          Audio/Video-Player            A/C Display

VN709 OP-ASTRA
Fits:
Opel Astra J (2009-2015), Cascada (2013 >, With restrictions of the fit in the center console)
Note: Only compatible with the factory-installed CD-Radio CD300/CD400
Vehicles wit factory-installed navigation system are not compatible.

Highlights:                                                                                          Specials:
• High-resolution 17,8 cm (7“) touchscreen display
• iGo navigation software (46 countries, incl. TMC)
• External CD/DVD drive for the glove compartment
• iPod/iPhone-connection via USB
• Bluetooth™ Handsfree incl. audio streaming
• Audio/video/photo playback via USB, MicroSD or internal flash drive
  (4GB)
• Including connectors for optional rear view camera
• Support of the original info display (climate, radio etc.)
• Integration of external applications (compatible with Windows CE 6)
• Further specifications and details can be found on page 43

                                                                                                     The Naviceiver for Opel Astra comes with a com-
                                                                                                     plete mounting panel, which fits perfect into the
                                                                                                     vehicle interior. The device is an upgrade of the ex-
                                                                                                     isting factory sound system and extends it with a
                                                                                                     DVD drive and touch screen monitor.

                                                                                                     Depending on the vehicle, the steering wheel
                                                                                                     controls are supported and enables to control the
                                                                                                     Naviceiver together with the original radio.

                                                                                                                                                        23
HYUNDAI i30

           INTEGRATED

              TUNER
             OPTIONAL

        Applications          iPod/iPhone™ Compatibility            Bluetooth™ Handsfree          Internal 4GB Harddisk      9-band Equalizer

VN710 HY-i30                                               VN710 HY-i30-DAB with internal DAB+ Tuner (not shown)

Fits:
Hyundai i30 (GD, 2011-2016)

Highlights:                                                                                Specials:
• High-resolution 17,8 cm (7“) touchscreen display                                         An existing steering wheel* remote control will be
• iGo navigation software (46 countries, incl. TMC)                                        detected by the device and the original factory
                                                                                           AUX/USB-ports are supported.
• Easy installation with car-specific connectors
• AM/FM Radio with RDS function
• Integrated CD/DVD drive
• iPod / iPhone™ connection (possibly Lightning adapter required)
• Bluetooth™ Handsfree incl. audio streaming
• Audio/video/photo playback via USB, MicroSD or internal flash drive
  (4GB)
• Rear Media Dual Zone with audio outputs
• Including connectors for optional rear view camera
• Personalization made easy: various skins, custom boot logos and
  wallpapers
• Further specifications and details can be found on page 41

                                                                                           With the Rear Media Dual Zone function, it is possi-
                                                                                           ble to run two separate monitors on the rear seats,
                                                                                           which can play various media content (video/pho-
                                                                                           tos/sound) independently from the head unit.

24                                                                                                                              * depending on vehicle
HYUNDAI i40

                                                                                                                                              INTEGRATED

                                                                                                                                                 TUNER
                                                                                                                                                OPTIONAL

   Rear Media Entertainment                    Individual Menu Assignment                Audio Player                 Custom Bootlogo           Audio Settings

VN710 HY-i40                                                                VN710 HY-i40-DAB with internal DAB+ Tuner (not shown)

Fits:
Hyundai i40 (2011 >)
Note: Not compatible with factory-installed navigation system.

Highlights:                                                                                                  Specials:
• High-resolution 17,8 cm (7“) touchscreen display                                                           An existing steering wheel* remote control will be
• iGo navigation software (46 countries, incl. TMC)                                                          detected by the device and the original factory
                                                                                                             AUX/USB-ports are supported.
• Easy installation with car-specific connectors
• AM/FM Radio with RDS function
• Integrated CD/DVD drive
• iPod / iPhone™ connection (possibly Lightning adapter required)
• Bluetooth™ Handsfree incl. audio streaming
• Audio/video/photo playback via USB, MicroSD or internal flash drive
  (4GB)
• Rear Media Dual Zone with audio outputs
• Including connectors for optional rear view camera
• Personalization made easy: various skins, custom boot logos and
  wallpapers
• Further specifications and details can be found on page 41

                                                                                                             With the Rear Media Dual Zone function, it is possi-
                                                                                                             ble to run two separate monitors on the rear seats,
                                                                                                             which can play various media content (video/pho-
                                                                                                             tos/sound) independently from the head unit.

* depending on vehicle                                                                                                                                           25
HYUNDAI iX35

             EXTERNAL

              TUNER
             OPTIONAL

 Individual Menu Assignment              DAB+ Radio (optional)         E-Link mirror function for Android             AV/TV menu                     A2DP Audio Streaming via BT

VN720 HY-iX35
Fits:
Hyundai iX35 (2009 - 9/2013), iX35 Facelift 2014 (9/2013 - 2015*) Or with factory fitted navigation system
an original Hyundai center console dash panel (part number: 847402S050TAN) is required.

Highlights:                                                                                                 Specials:
• High-resolution 17,8 cm (7“) touchscreen display                                                          An existing steering wheel* remote control will be
• Advanced i20 operating system based on Microsoft Windows CE 6                                             detected by the device and the original factory
                                                                                                            AUX/USB-ports are supported.
• iGo navigation software (46 countries incl. TMC)
• Pre-amplifier outputs for Front/Rear/Subwoofer/Center
• Digital DAB+ radio (Optional with external VNA-TM-DAB module)
• Integrated CD/DVD drive
• AM/FM Radio with RDS function
• Bluetooth™ Handsfree incl. audio streaming
• Quick-Boot & ACC Logic
• External and internal microphone
• iPhone/iPod-Connection via USB
• Virtual Disk to convert audio CDs into MP3 format
• E-LINK mirror function with compatible Android® smartphones
• USB Quick Charge function up to 2.1A charge current
• Voice control (except navigation)
• 3 x Audio/Video inputs, 2 x Audio/Video outputs
• Front and rear view camera connection
• Support of factory AUX-/USB-input
• Supports analog steering wheel remote control
• Further specifications and details can be found on page 41

26                                                                                                                 * depending on vehicle (restrictions with factory rear view cameras)
HYUNDAI i20 II

                                                                                                                                            EXTERNAL

                                                                                                                                             TUNER
                                                                                                                                            OPTIONAL

         Applications                  USB Quick Charge Function         Virtual Disk Converting Function         Multimedia Player         Voice Control

VN6314D
Fits:
Hyundai i20 II GB (2014 >)

The set contains:
VN630D Double-DIN Naviceiver, steering wheel control-adapter, vehicle-specific frame, wiring

Highlights:
• High-resolution 15.7 cm (6.2“) touchscreen display
• Advanced i30 operating system based on Microsoft Windows CE 6
• iGo navigation software (46 countries incl. TMC)
• Integrated TMC receiver for avoiding traffic disabilities, TMC Pro is supported
• Digital DAB+ radio reception (Optional with external VNA-TM-DAB module)
• AM/FM Radio with RDS function
• Integrated CD/DVD drive                                                                                   Specials:
• Pre-amplifier outputs for Front/Rear/Subwoofer                                                            The VN6314D Naviceiver allows you to adjust the
                                                                                                            LED key illumination color.
• Quick-Boot & ACC Logic
• Bluetooth™ Handsfree incl. audio streaming
• External and internal microphone
• iPod/iPhone™ connection via USB
• Virtual Disk to convert audio CDs into MP3 format
• E-LINK mirror function with compatible Android® smartphones
• 1 x Front USB port, 1 x Front AUX (3,5 mm Jack)
• 1 x USB port (rear) with Quick Charge function
• Voice control (except navigation)
• 3 x Audio/Video inputs
• 2 x Audio/Video outputs
• Front and rear view camera connection
• Further specifications and details can be found on page 40 (VN630D)

                                                                                                                                                            27
HYUNDAI TUCSON III

             EXTERNAL

               TUNER
              OPTIONAL

 Individual Menu Assignment              DAB+ Radio (optional)          E-Link mirror function for Android            AV/TV menu           A2DP Audio Streaming via BT

VN6313D
Fits:
Hyundai Tucson III TL (2015 >)

The set contains:
VN630D Double-DIN Naviceiver, steering wheel control-adapter, vehicle-specific frame, wiring

Highlights:
• High-resolution 15.7 cm (6.2“) touchscreen display
• Advanced i30 operating system based on Microsoft Windows CE 6
• iGo navigation software (46 countries incl. TMC)
• Integrated TMC receiver for avoiding traffic disabilities, TMC Pro is supported
• Digital DAB+ radio reception (Optional with external VNA-TM-DAB module)
• AM/FM Radio with RDS function
                                                                                                             Specials:
• Integrated CD/DVD drive
                                                                                                             All i20/i30 Naviceiver with CD/DVD drive offers
• Pre-amplifier outputs for Front/Rear/Subwoofer
                                                                                                             with the Virtual Disk function a virtual 10-fold CD-
• Quick-Boot & ACC Logic                                                                                     changer, which allows you to rip up to 10 CDs via
• Bluetooth™ Handsfree incl. audio streaming                                                                 the device, to save and play on a connected stor-
                                                                                                             age drive.
• External and internal microphone
• iPod/iPhone™ connection via USB
• Virtual Disk to convert audio CDs into MP3 format
• E-LINK mirror function with compatible Android® smartphones
• 1 x Front USB port, 1 x Front AUX (3,5 mm Jack)
• 1 x USB port (rear) with Quick Charge function
• Voice control (except navigation)
• 3 x Audio/Video inputs
• 2 x Audio/Video outputs
• Front and rear view camera connection
• Further specifications and details can be found on page 40 (VN630D)

28
KIA SPORTAGE 3

                         EXTERNAL

                          TUNER
                         OPTIONAL

  iPod/iPhone™ Compatibility             Bluetooth™ Handsfree             RDS Radio            File Manager            9-band Equalizer

VN720 KI-SPORTAGE
Fits:
KIA Sportage 3 (SL, 2010 - 2015)

Note: Not compatible with factory-installed navigation or sound system.

Highlights:                                                                           Specials:
• High-resolution 17,8 cm (7“) touchscreen display                                    An existing steering wheel* remote control will be
• Advanced i20 operating system based on Microsoft Windows CE 6                       detected by the device and the original factory
                                                                                      AUX/USB-ports are supported.
• iGo navigation software (46 countries incl. TMC)
• Pre-amplifier outputs for Front/Rear/Subwoofer/Center
• Digital DAB+ radio (Optional with external VNA-TM-DAB module)
• AM/FM Radio with RDS function
• Integrated CD/DVD drive
• Bluetooth™ Handsfree incl. audio streaming
• External and internal microphone
• Quick-Boot & ACC Logic
• iPhone/iPod-Connection via USB
• Virtual Disk to convert audio CDs into MP3 format
• E-LINK mirror function with compatible Android® smartphones
• USB Quick Charge function up to 2.1A charge current
• Voice control (except navigation)
• 3 x Audio/Video inputs, 2 x Audio/Video outputs
• Front and rear view camera connection
• Supports original factory AUX/USB-ports
• Supports original steering wheel remote control
• Further specifications and details can be found on page 42

* depending on vehicle                                                                                                                    29
KIA SORENTO 2

            INTEGRIERTAL

               TUNER
              OPTIONAL

  Rear Media Entertainment            Individual Menu Assignment          Audio Player                 Custom Bootlogo                Audio Settings

VN710 KI-SORENTO                                                                    VN710 KI-SORENTO-DAB with internal DAB+ Tuner (not shown)

Fits:
KIA Sorento 2/XM (Oktober 2012 -2015)

Note: Not compatible with factory-installed navigation or sound system.

Highlights:                                                                                   Specials:
• High-resolution 17,8 cm (7“) touchscreen display                                            An existing steering wheel* remote control will be
• iGo navigation software (46 countries, incl. TMC)                                           detected by the device and the original factory
                                                                                              AUX/USB-ports are supported.
• Easy installation with car-specific connectors
• AM/FM Radio with RDS function
• Integrated CD/DVD drive
• iPod / iPhone™ connection (possibly Lightning adapter required)
• Bluetooth™ Handsfree incl. audio streaming
• Audio/video/photo playback via USB, MicroSD or internal flash drive
  (4GB)
• Rear Media Dual Zone with audio outputs
• Including connectors for optional rear view camera
• Personalization made easy: various skins, custom boot logos and
  wallpapers
• Further specifications and details can be found on page 42

                                                                                              With the Rear Media Dual Zone function, it is possi-
                                                                                              ble to run two separate monitors on the rear seats,
                                                                                              which can play various media content (video/pho-
                                                                                              tos/sound) independently from the head unit.

30                                                                                                                                      * depending on vehicle
KIA CEE’D

                         INTEGRATED

                           TUNER
                          OPTIONAL

          Audio Player                   Bluetooth™ Handsfree                    Applications             iPod/iPhone™ Compatibility     Audio Settings

VN710 KI-CEED                                                             VN710 KI-CEED-DAB with internal DAB+ Tuner (not shown)

Fits:
KIA Cee‘d JD (06/2012 >)

Note: Not compatible with factory-installed navigation or sound system.

Highlights:                                                                                          Specials:
• High-resolution 17,8 cm (7“) touchscreen display                                                   An existing steering wheel* remote control will be
• iGo navigation software (46 countries, incl. TMC)                                                  detected by the device and the original factory
                                                                                                     AUX/USB-ports are supported.
• Easy installation with car-specific connectors
• The cover panel for the naviceiver is included and matches
  perfectly to the interior design
• AM/FM Radio with RDS function
• Integrated CD/DVD drive
• iPod / iPhone™ connection (possibly Lightning adapter required)
• Bluetooth™ Handsfree incl. audio streaming
• Audio/video/photo playback via USB, MicroSD or internal flash drive
  (4GB)
• Rear Media Dual Zone with audio outputs
• Including connectors for optional rear view camera
• Personalization made easy: various skins, custom boot logos and
                                                                                                     With the Rear Media Dual Zone function, it is possi-
  wallpapers
                                                                                                     ble to run two separate monitors on the rear seats,
• Further specifications and details can be found on page 42                                         which can play various media content (video/pho-
                                                                                                     tos/sound) independently from the head unit.

* depending on vehicle                                                                                                                                    31
TOYOTA MULTIFIT

                                                                                                                                            INTEGRATED

                                                                                                                                              TUNER
                                                                                                                                             OPTIONAL

  Rear Media Entertainment          Individual Menu Assignment                Audio Player                     Custom Bootlogo                     Audio Settings

VN610 TO-U1                                                VN610 TO-U1-DAB with internal DAB+ Tuner (not shown)

Fits:
Toyota Corolla (E120, 2002 - 2007), FJ Cruiser (2006-2016), RAV4 (2001 - 2006)*, MR2 Spider (2000 - 2003)*, Celica (2000 - 2005)*, 4RUNNER (2003 - 2009)*, Yaris (2007 -
2010)*, Corolla Verso (2001 - 2009)*, Camry (2001 - 2006)*, Avensis Verso (2001 - 2009)*, Picnic (1996 - 2001)*, Vios (2000 - 2005)*, Previa (XR30/XR40 2000 - 2006)*

Highlights:                                                                                          Specials:
• High-resolution 15.7 cm (6.2“) touchscreen display                                                 An existing steering wheel* remote control will be
• iGo navigation software (46 countries, incl. TMC)                                                  detected by the device and the original factory AUX/
                                                                                                     USB-ports are supported.
• Easy installation with car-specific connectors
• AM/FM Radio with RDS function
• Integrated CD/DVD drive
• iPod / iPhone™ connection (possibly Lightning adapter required)
• Bluetooth™ Handsfree incl. audio streaming
• Audio/video/photo playback via USB, MicroSD or internal flash drive
  (4GB)
• Rear Media Dual Zone with audio outputs
• Including connectors for optional rear view camera
• Personalization made easy: various skins, custom boot logos and
  wallpapers
• Further specifications and details can be found on page 43

                                                                                                     With the Rear Media Dual Zone function, it is pos-
                                                                                                     sible to run two separate monitors on the rear seats,
                                                                                                     which can play various media content (video/pho-
                                                                                                     tos/sound) independently from the head unit.

32                                                                                                                                                * depending on vehicle
CHEVROLET AVEO

                 INTEGRATED

                   TUNER
                  OPTIONAL

   iPod/iPhone™ Compatibility   Bluetooth™ Handsfree         RDS Radio                   Vehicle settings*       9-band Equalizer

VN710 CV-AVEO                                           VN710 CV-AVEO-DAB with internal DAB+ Tuner (not shown)

Fits:
Chevrolet Aveo T300 (2011 >)

Highlights:                                                                    Specials:
• High-resolution 17,8 cm (7“) touchscreen display
• iGo navigation software (46 countries, incl. TMC)
• Easy installation with car-specific connectors
• AM/FM Radio with RDS function
• Integrated CD/DVD drive
• iPod / iPhone™ connection (possibly Lightning adapter required)
• Bluetooth™ Handsfree incl. audio streaming
• Audio/video/photo playback via USB, MicroSD or internal flash drive
  (4GB)
• Rear Media Dual Zone with audio outputs
• Including connectors for optional rear view camera
• Personalization made easy: various skins, custom boot logos and
  wallpapers
• In the „Vehicle Settings“ menu vehicle specific functions such as light
  modes, central locking and parking sensors etc. can be set
• Further specifications and details can be found on page 42

                                                                               The device comes with a complete mounting panel
                                                                               and supports the original steering wheel controls*

* depending on vehicle                                                                                                              33
LEXUS CT200h

                                                                                                                       INTEGRATED

                                                                                                                         TUNER
                                                                                                                        OPTIONAL

           Applications                        iPod/iPhone™ Compatibility   Bluetooth™ Handsfree        Rear Media Entertainment          9-band Equalizer

VN710 LX-CT200h                                                                     VN710 LX-CT200h-DAB with internal DAB+ Tuner (not shown)

Fits:
Lexus CT200h (2010 >)
Note: Not compatible with factory-installed navigation system.

Highlights:                                                                                        Specials:
• High-resolution 17,8 cm (7“) touchscreen display                                                 An existing steering wheel* remote control will be
• iGo navigation software (46 countries, incl. TMC)                                                detected by the device and the original factory
                                                                                                   AUX/USB-ports are supported.
• Easy installation with car-specific connectors
• AM/FM Radio with RDS function
• Integrated CD/DVD drive
• iPod / iPhone™ connection (possibly Lightning adapter required)
• Bluetooth™ Handsfree incl. audio streaming
• Audio/video/photo playback via USB, MicroSD or internal flash drive
  (4GB)
• Rear Media Dual Zone with audio outputs
• Including connectors for optional rear view camera
• Personalization made easy: various skins, custom boot logos and
  wallpapers
• Further specifications and details can be found on page 43
• Incl. remote control unit for the center console
                                                                                                   With the Rear Media Dual Zone function, it is possi-
                                                                                                   ble to run two separate monitors on the rear seats,
                                                                                                   which can play various media content (video/pho-
                                                                                                   tos/sound) independently from the head unit.

34                                                                                                                                             * depending on vehicle
BMW E39/E53

             NEW

            Main menu                                   Audio player                       Naviagtion (via Google Maps)             Equalizer              Phone menu

VN715-E39-DAB
Fits:
BMW 5er E39 (1996 – 2001) with 17-pin System connection, BMW 5er E39 (2002 – 2003) with 40-pole System connection, X5 E53 (2000 – 2001) with 17-pin System
connection, X5 E53 (2002 – 2007) with 40-pin System connection, M5 (1996 – 2003) with 17-pin or 40-pin System connection
For vehicles with the control unit in the trunk, the following accessories are required:
– Extension cable 17-pin, 6,5 m, incl. antenna extension at DIN I-Bus and Antenna remote line
– Extension cablel 40-pin (Quadlock), 6,5 m, incl. antenna extension at DIN I-Bus and Antenna remote line

Highlights:                                                                                                               Specials:
• High-resolution 17,8 cm (7”) touchscreen display                                                                        Perfect match to the vehicle interior - with CD /
• Advanced i15 Android® operation system                                                                                  DVD drive and two easily accessible buttons.
• Navigation via Google Maps (online and offline)
• Mobil internet connection via W-LAN Hotspot possible
• Integrated CD/DVD drive
• Digital DAB+ radio reception (incl. radio station logos)
• Radio AM/FM with RDS function
• Bluetooth™ Handsfree incl. Audio-Streaming
• Internal microphone & connection for optional external microphone
• iPhone or Android® Smartphone connection via USB
• Voice control via connected smartphone
• Pre-amplifier for Front/Rear/Subwoofer/Center
• 1 x Camera input (incl. adjustable guidelines)
• 1 x AUX Video input
• 2 x Audio/Video output
• 1 x AUX-Audio input
• 3 x USB connection
• 2 x MicroSD card slot
• Own bootlogos & wallpaper configurable
• Further specifications and details can be found on page 43

                                                                                                                                                                        35
You can also read
Next slide ... Cancel
