DATASHEET
POS-LINE 24
SIMPLY INTEGRATE
VISUALISE YOUR CONTENT
Distec GmbH – POS-Line 24 inch - 2021/ 10 Page 2
Panel and housing POS-Line 24 monitor
Panel Diagonal [mm] / 609.7/ 24.0
[Inch]
Type Open -frame monitor with 2 mounting bra-
ckets
(various bezels, true-flat glass and touch
solutions are available under options)
Resolution [Pixel) 1920 x 1080 FHD
Luminance (center) [cd/m²] 300
Viewing angle [°] 178 h / 178 v
Backlight LED

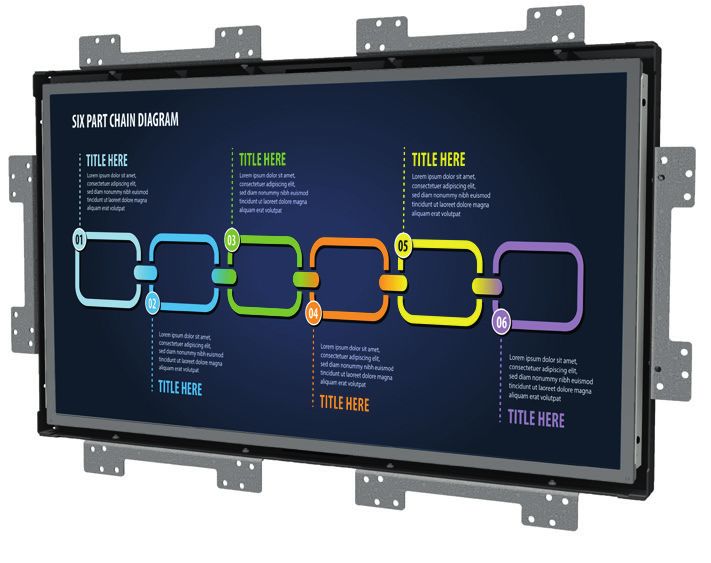

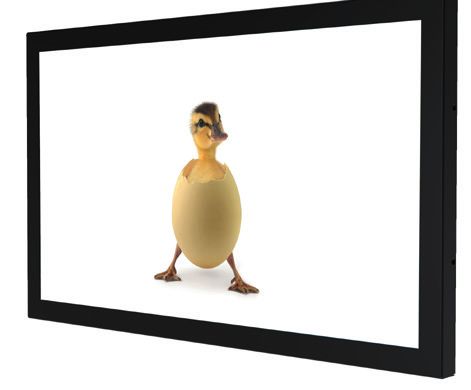

Open frame monitor including two standard
Active area (H/V) [mm] 531.36 x 298.89 brackets and all possible optional mounting
Number of colors [M] 16.7 brackets
Contrast ratio 5000:1
Response time [ms]
25
(on/off)
Pixel class ISO 9241-307 (pixel error class II)
Life time back light [h] 50.000
until reaching half
brightness
Continuous operation [hh/d] 24/ 7
Mounting [mm] VESA 200 x 100
Storage temperature [°C] / [°F] -20 ~ 70 / -4 ~ 158
Storage humidity [%] 5 ~ 90 (non condensing)
Operating humidity [%] 5 ~ 90 (non condensing)
Panel orientation Landscape and Portrait
Location of Landscape: bottom
connectors Portrait: left (front view)
Location of OSD Landscape: top
buttons Portrait: right (front view)
Housing Powdered Aluminium, black RAL 9005
IP grade IP 65 on the front if option
- TrueFlat glass or
- TrueFlat touch
Conformity CE, FCC Class A, EU-RoHS
All figures are typical values. The real
Packaging single packaging, up to 4 via parcel service, values of the panel may vary. The optical
from 5 units on pallet characteristics are determined after the
Package contents Safety instructions panel has been „ON“ for approximately 30
minutes at an ambient temperature of 25°
C (77° F).
Life time of the backlight is defined as the
time to take until the brightness reduces to
50% of its original value.
Copyright 2021 Distec GmbH. Information
in the document is subject to change wi-
thout prior notice.
Distec GmbH – POS-Line 24 inch - 2021/ 10 Page 3
VGA, HDMI, DisplayPort POS-Line 24 Video PME
Order number DS-91-740
1 x VGA, 1 x HDMI, 1 x DisplayPort, 1 x Audio
Interfaces
Line-Out, 1 x USB-Remote
Operating
[°C/ F°] -20 ~ 60/ -4 ~ 140
temperature
Power supply [V] 12
Power consumption
[Watt] 18
(typ.)
Weight [kg/ lb] 4.1/ 9.04
Dimensions 578 x 347.2 x 53
[mm/ inch]
(W x H x D) 22.75 x 13.67 x 2.09
Package contents SVGA cable
Network Mediaplayer POS-Line 24 VideoPoster
Order number DS-91-741
1 x LAN, 2 x USB, 1 x HDMI in, 1 x Line out,
Interfaces
1 x microSD card slot
Operating
[°C/ F°] -20 ~ 50/ -4 ~ 122
temperature
Power supply [V] 12
Power consumption
[Watt] 23
(typ.)
Weight [kg/ lb] 4.2/ 9.26
Dimensions 578 x 347.2 x 53
[mm/ inch]
(W x H x D) 22.75 x 13.67 x 2.09
Package contents USB stick 8GB
Distec GmbH – POS-Line 24 inch - 2021/ 10 Page 4
Raspberry® IoT controller POS-Line 24 IoT
Order number DS-91-822
Order number OS DS-60-859
1 x LAN, 2 x USB, 1 x HDMI, 1 x Line out, 1 x
Interfaces
microSD card slot
Operating
[°C/ F°] -20 ~ 50/ -4 ~ 122
temperature
Power supply [V] 12
Power consumption
[Watt] 23
(typ.)
Weight [kg/ lb] 4.2/ 9.26
Dimensions 578 x 347.2 x 53
[mm/ inch]
(W x H x D) 22.75 x 13.67 x 2.09
PC Intel® Celeron® POS-Line 24 IQ Celeron
Order number DS-92-181
2 x Gigabit LAN, 4 x USB 3.0, 1 x HDMI,
Interfaces
1 x RS232/422/485, 1 x RS232 (optional)
CPU: Intel® Celeron® J3455
(1,5GHz/2,3GHz),
PC
RAM: 4 GB DDR3L,
Storage: min. 120 GB mSATA
Fan no
Operating
[°C/ F°] 0 ~ 45/ 32 ~ 113
temperature
Power supply [V] 12 - 26
Power consumption
[Watt] ca. 33
(typ.)
Weight [kg/ lb] ca. 4.1/ 9.04
Dimensions 578 x 347.2 x 53
[mm/ inch]
(W x H x D) 22.75 x 13.67 x 2.09
USB 3.0 LAN LAN HDMI I/O (Option)
Line COM
out
Distec GmbH – POS-Line 24 inch - 2021/ 10 Page 5

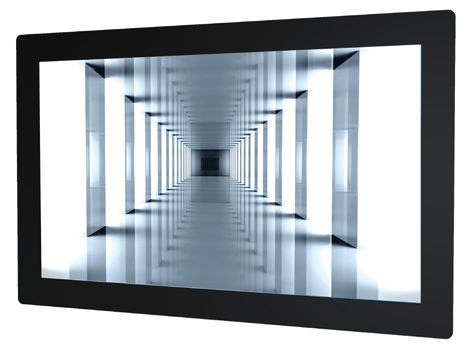

Glass* Options
Order number DS-91-742 DS-91-743
Name Safety glass TrueFlat glass
Safety glass TSG, 3
Safety glass TSG, 3
Glass mm anti glare,
mm anti glare
black passepartout
Can be combined Front bezel,
—
with Front plate
IP 64 (only with
front/ IP 65/
IP protection bezel or plate)/ Safety glass and touch are options for the
rear IP 20
IP 20 open frame chassis. It covers and protects the
TFT-panel.
Weight [kg/ lb] 1.33/ 2.93 1.80/ 3.97
Dimensions of [W x H x D] 578 x 347.2 x 53 608 x 377.2 x 59
monitor with option [mm/ inch] 22.75 x 13.67 x 2.09 23.94 x 14.85 x 2.32
Touches*
Order number DS-91-744 DS-91-745
Name PCAP touch TrueFlat PCAP touch
Glass Safety glass TSG, 3 mm anti glare
TrueFlat glass is a safety glass with round
Touch points 10 corners and passepartout for the open frame
chassis.
Touch technology Projected capacitive TrueFlat P-CAP touch is a TrueFlat glass with a
laminated P-CAP touch at the backside.
Can be combined Front bezel,
—
with Front plate
IP 64 (only with *Cover glass and touches will reduce monitor
front/ IP 65/
IP protection bezel or plate)/ brightness.
rear IP 20
IP 20
Available for cont-
Video PME, IoT, IQ Atom
roller
Weight [kg/ lb] 1.4/ 3.09 1.91/ 4.21
Dimensions of [W x H x D] 578 x 347.2 x 53 608 x 377.2 x 59
monitor with option [mm/ inch] 22.75 x 13.67 x 2.09 23.94 x 14.85 x 2.32
Bezel/ Plate
Order number DS-91-747 DS-91-746 Front bezel is a metal bezel for the open frame
Name Front bezel Front plate chassis and VESA mount.
Steel, powdered, Aluminum, powdered,
Finish
black RAL 9005 black RAL 9005
Can be combined with PCAP touch, Safety glass
IP64 (in combination with glass/ touch)
front/
IP protection otherw. IP20/
rear
IP 20
Weight [kg/ lb] 0.72/ 1.59
Front plate is a metal frame for front mount
Dimensions of [W x H x D] 581 x 350.2 x 55 608 x 377.2 x 57.7 applications with mounting brackets.
monitor with option [mm/ inch] 22.87 x 13.79 x 2.17 23.94 x 14.85 x 2.27
Distec GmbH – POS-Line 24 inch - 2021/ 10 Page 6
Mounting/ RS 232 Accessories
Order number DS-91-797 DS-91-356
Name VESA adapter plate Mounting brackets
Adaption from VESA 200 x Set of two additional moun-
Description
100 to VESA 100 x 100 ting brackets
Open frame, front plate, safe-
Can be combined with with all front options ty glass, TueFlat glass, PCAP
touch, TrueFlat PCAP touch
Available for DS-91-797
all
controller
Order number DS-91-823
Name 2nd RS 232 port
Can be combined with with all front options
Available for
Intel® Atom board
controller
DS-91-356
Power supply
Order number NT-01-062
Name Power supply 60 W
12V/ 5A power supply
Description
max. op. temperature 45°C
Can be combined with Video PME, VideoPoster, IoT, IQ Atom
Power cord EU 1,8 m DB-07-225
Power cord UK 1,8 m DB-07-226
Power cord USA 1,8 m DB-07-238
Operating systems, Software
Various accessories are available for POS-
Product Order no. Product description
Line monitors.
Embedded operation system
WIN 10 IOT DS-60-899
2019 LTSC All monitors can be customized according
Windows 10 Pro. 64 bit DE DS-60-811 Operation system to your specific requirements.
Windows 10 Pro. 64 bit EN DS-60-810 Operation system Please contact our sales team if you are
interested in product modifications or
WEBPOStER DS-60-787 WEBPOStER embedded Linux
custom designs.
