Replacing Legacy Systems in the
Weather Service
• Danie Malan
(South African Weather Service)
Ninjo Interactive Workstation
Index 1. Software Development In the SAWS. 2. Quick Overview of IT Servers. 3. Discussion of a few Large IT Systems Aquired or Replaced. 4. Disaster Recovery Site
1. Software Development.
• History.
SAWS has been developing visualization , database capture, Climate QC systems since
early 70’s.
• Developed by Meteorologists.
Almost all successful software systems were developed by Meteorologist software
developers. Large systems became unmanageable due to promotions and more often
resignations due to the IT boom in SA.
• Solution in the South African environment.
• Systems beeing developed became smaller.
• Exceptions METCAP (Norwegian Funds).
• Search for “of the shelf” products.
• Outsourcing large systems.
2 Overview of SAWS IT Servers.
• 2.1 Server Backup -
Backup
VERITAS Netbackup
LAN
22.5 TB Servers
20 LTO tape 1 GB FIBRE
2 GB FIBRE
Brocade Switch Brocade Switch
2 GB FIBRE
SAN
22.5 TB
60 HDU
2. Overview of SAWS IT Servers.
2.2 Server List
• 3 Web servers Radar products – HTML based
Aviation – DHP
SAWS external Web - Websphere (JSP)
• FTP Server
• Zetafax Server
• DNS Server – control weathersa.co.za domain
• 2 GPS Timeservers
• MAIL -> MailXServer (spam Antivirus/Archive/Content Filtering
Scalix Mailserver | MS Exchange Server
• Domain Controller | Active Directory Services
Group Policies
Auditing
Security
2. Overview of SAWS IT
SERVERS.
2.2 Server List continued
• Antivirus for Windows Desktop
Trend Micro Neatsuite
• DHCP/PROXY SERVER
Dansguardian (Content Filter, Banned Sites, Weighted phrases)
Trent Micro Internet Web Service Security.
• NEC SX 8
• 2 X Satellite image SERVERS ( earth station and image processing)
• Research - CYCLONE host
• Long term forecast research LORENZ server
METLAB Portland Group Compilers
3 Discussion of a Few Large ICT
SYSTEMS Acquired or Replaced.
• 3.1 Observation capturing system and climate QC system. (METCAP)
• 3.2 Replacement of Weather visualization system to the Ninjo
Workstation.
• 3.3 The NCAR radar software.
• 3.4 Development of MSG satellite display systems with European
Commission funds.
• 3.5 The Vaisala lightning display network.
• 3.6 Transfer of the NWP model from ETA to UNIFY Model.
Meteorological Data Capture System
Why develop this system inhouse?
• Developed with funds provided by the Norwegian Government (Nor-Aid
Program)
• Compiled detailed specifications and user requirements. A lot of
meteorological expertise available in weather observers and forecasters.
• Assemble a large development and maintenance team (10 persons)
• The need to replace the previous 20 year old system became critical due to the
fact that the developer retired. The old system were programmed in BASIC
and storing data in flat files. None of the current developers know BASIC.
• System Will Also be used by other SADEC countries.
Meteorological Data Capture System Phase 1: Delivery Date 2003/04/01 • Communication with AWS systems • METAR/SYNOP Observation capture • METAR/ SYNOP message generation • LOCAL (REMOTE) database store. • Point of Entry Quality Controll framework Phase 2: Delivery Date 2003/09/01 • Weather Information Display System (Aviation) • Climate Capture • Local Reporting (Inventory, extraction) • Data replication to Climate database (Configuration) • Quality Controll (POE and higher levels.) • Upper Air
Components
1. MetCapCon 5. MSGGEN
• Scheduler

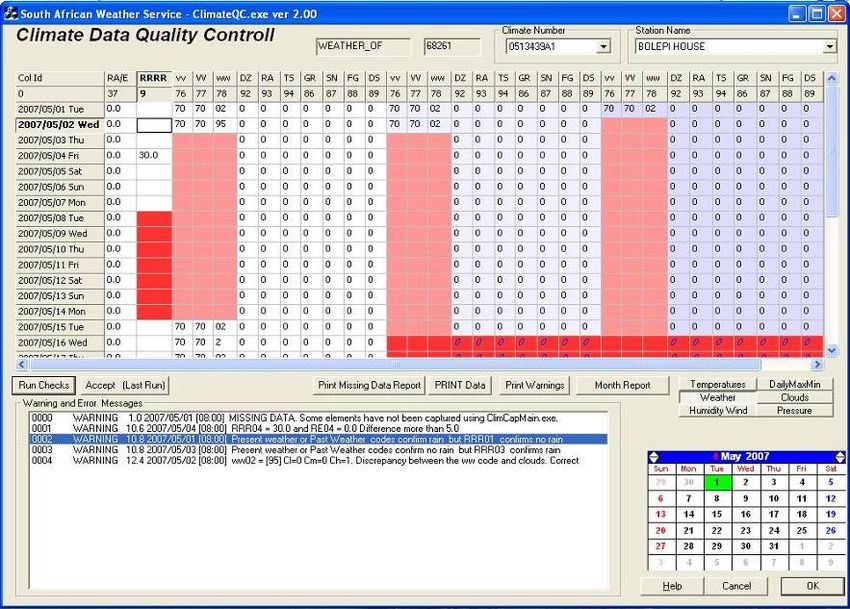

10. Quality control
• SYNOP Message • Point of Entry Rules
• Config • METAR Message
• Component Controll • Higher level QC
• Transmit to GTS • QC verification
• Version Controller
6. RuleEditor 11. Upper Air
2. COMMS • Point of entry rules
• Realtime data
• 5 minute data 7. WIDS
• Upperair • ATC display
• AWS reprogram • AWS real time data display
3. OBSENTRY 8. REPORTS
• Weather observations • Graphs
• Cloud Observations • Inventories
• Visability • Data Extractions
4. ADMINMETA 9. DBREPLICATE
• PC configuration • Meta data transfer
• Schedule config • Data updates
• Active elements
• Climate capture configDataflow
Head Office
AWS
22 Regional Offices CLIMDB
AWS Research
And
PC METCAP
Climatologists
AWS MS
SQL
PC SQL Replication
Database PC
UpAir Database
PC PC
Climate PC
WEB3 Discussion of a Few Large ICT SYSTEMS
Acquired or Replaced.

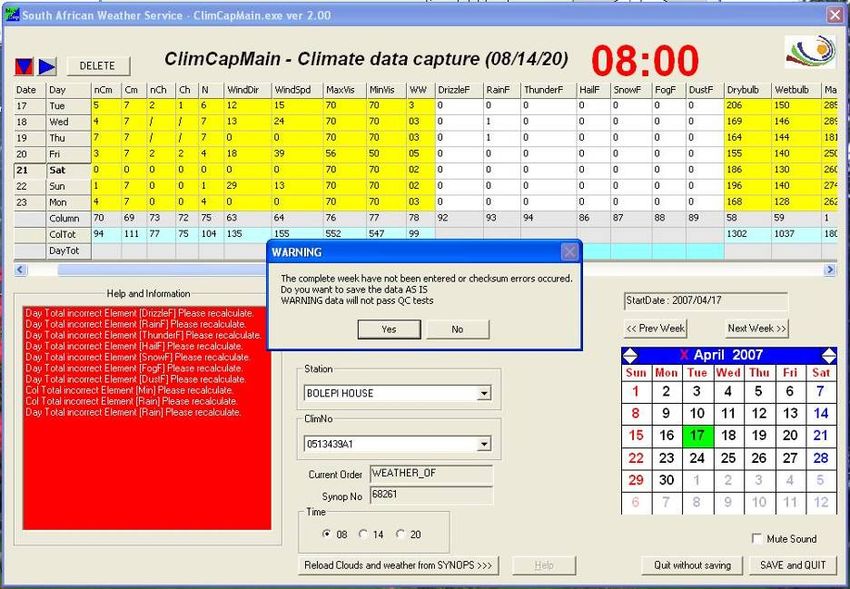

• 3.1 Observation capturing system and climate QC system. (METCAP)
• 3.2 Replacement of Weather visualization system to the Ninjo
Workstation.
• 3.3 The NCAR radar software.
• 3.4 Development of MSG satellite display systems with European
Commission funds.
• 3.5 The Vaisala lightning display network.

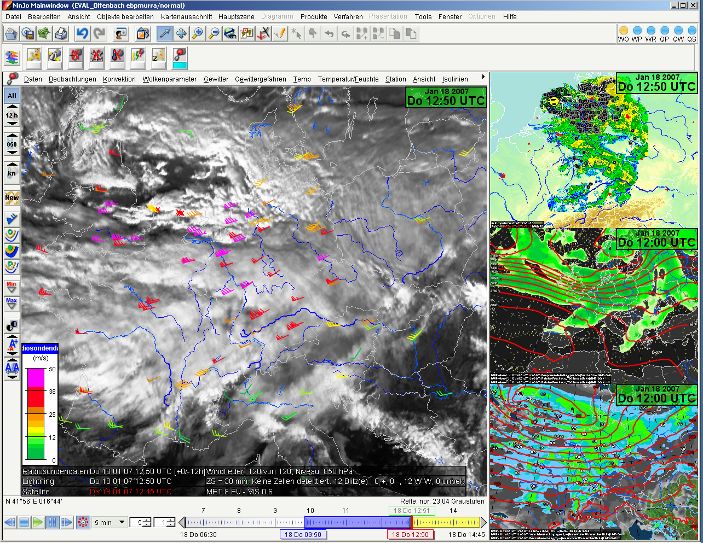

• 3.6 Transfer of the NWP model from ETA to UNIFY Model.Ninjo forecasting Workstation • Old system consisted of a number of independent programs each visualizing some part of the weather. • Different types of data could not be overlaid. • Developers of some of the systems resigned. • Some new development was required to provide weather to clients like SABC and national press in a more professional way.
NinJo Consortium Partners –
Distribution
• International project with 4 national
meteorological services, the Bundeswehr
Geoinformation Service and consulting
companies
• ~ 60+ members
• 10 sites
• Utilization of competences of each partnerThe whole NinJo Team
wants to say HELLO !!
• On behalf of the whole NinJo team and the participating services, we friendly
welcome SAWS as the Customer No 1 !!
Picture taken from last NInJo Team Meeting November 2006NinJo - examples of work packages
Geography: Offenbach
Cross Section: Switzerland
Graphical Editor: Canada
Diagram: Denmark
Sounding: BW Geoinformation ServiceNinJo GUI
NWP (GRIB) Layer
• all numerical weather
prediction models
• GME, LME, ECMWF,
GFS, LFP..
• more models, elements,
calculated elements (precip.
sums, differences,..)
• cropping (reduce resolution,
interpolation)
• display modes:
• Isolines
• Isoareas
• Numbers, Symbols
• Wind barbsChristine Oppe
EuMetSys
c/o Ernst Basler + Partner GmbH
E-Mail: christine.oppe@ebp.de3 Discussion of a Few Large ICT SYSTEMS
Acquired or Replaced.
• 3.1 Observation capturing system and climate QC system. (METCAP)
• 3.2 Replacement of Weather visualization system to the Ninjo
Workstation.
• 3.3 The NCAR radar software.
• 3.4 Development of MSG satellite display systems with European
Commission funds.
• 3.5 The Vaisala lightning display network.
• 3.6 Transfer of the NWP model from ETA to UNIFY Model.3.3 NCAR / SAWS RADAR
System.
• Cooperation since the early 1970’s on ETA model
and RADAR (TITAN) software development and
maintenance.
• Bethlehem Precipitation Research Program –
Weather Modification REASEARCH.
• It was thru this program that the links with NCAR
and the “Raped Application development
Program” (RAP) really took off .TITAN SYSTEM
• South Africa became one of the first users of the “TITAN” sweet of
programs out side the US for real-time radar thunder storm,
identification, tracking and now-casting program developed by Dr
Michele Dixon (NCAR).
• The main features were the ability to look at the storm movement,
vertical storm structure, identification of new development and the
ability to control seeding aircraft on the same console. The South
African experts played a big roll in getting TITAN installed in Europe,
Canada, USA, Mexico, South America and the Middle East.
• Thru continues collaboration with NCAR on these fields’ mentions
above the South African Weather Service is in a world leading position
today. With the diversion of NCAR in many critical fields we hope
that we can keep the momentum of the past to keep up with the new
global issues for whish we all need the same answers. Recourses in
these fields are scares and needs to be shares.3 Discussion of a Few Large ICT SYSTEMS
Acquired or Replaced.
• 3.1 Observation capturing system and climate QC system. (METCAP)
• 3.2 Replacement of Weather visualization system to the Ninjo
Workstation.
• 3.3 The NCAR radar software.
• 3.4 Development of MSG satellite display systems with European
Commission funds.
• 3.5 The Vaisala lightning display network.
• 3.6 Transfer of the NWP model from ETA to UNIFY Model.1. SUMO history. • Part of MTAP • MTAP had three main pillars, namely: • The provision to each African NMS with ground receiving equipment. • Training of NMS’s to utilize the data and maintain their systems (scientific and technical training). • The dissemination of METEOSAT-8 data and products to non-meteorological users through the vehicle of Outlook Activities.
2. What Is SUMO?
• SUMO is FREE software.
• A natural companion to Meteosat receiving stations
• Target users
• Natural resources management
• Vegetation production (agriculture, forestry)
• Water management (fisheries, watershed management,
security)
• Hazards response (fire, flood, drought)
• Full Weather Service Functionality
• All basic MSG channels.
• Full RGB and channel difference capability.
• Image viewer, zoom/pan, Gamma Correction, Histogram enhancement
• Command language (Web Publishing, product control)
•4. SUMO components SUMO.EXE application
3 Discussion of a Few Large ICT SYSTEMS
Acquired or Replaced.
• 3.1 Observation capturing system and climate QC system. (METCAP)
• 3.2 Replacement of Weather visualization system to the Ninjo
Workstation.
• 3.3 The NCAR radar software.
• 3.4 Development of MSG satellite display systems with European
Commission funds.
• 3.5 The Vaisala lightning display network.
• 3.6 Transfer of the NWP model from ETA to UNIFY Model.The Network

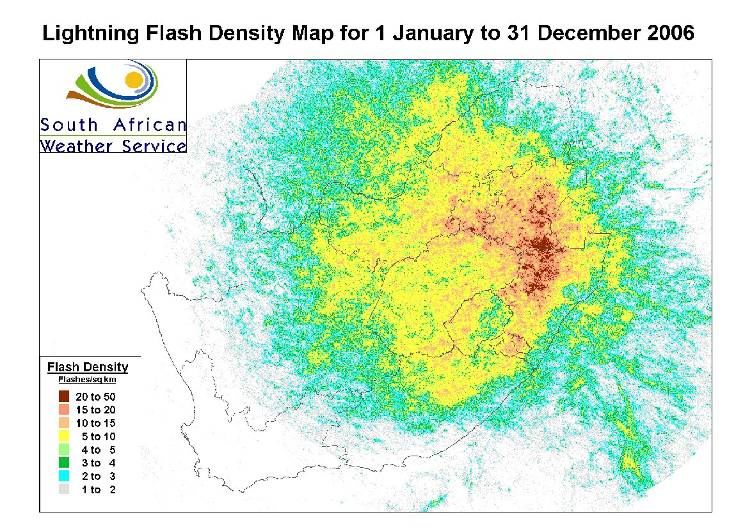

Preliminary Work: Ground Flash Density for 2006
A Free State Thunderstorm
Some Statistics (50 km buffer)
•Total number of strokes between
17:00 and 22:30 = 6306
•8% of all strokes were positive
Rain onset
•Average kiloAmperage = 16 kA
•Highest recorded stroke = 83 kA
•Lowest recorded stroke = 4 kA3 Discussion of a Few Large ICT SYSTEMS
Acquired or Replaced.
• 3.1 Observation capturing system and climate QC system. (METCAP)
• 3.2 Replacement of Weather visualization system to the Ninjo
Workstation.
• 3.3 The NCAR radar software.
• 3.4 Development of MSG satellite display systems with European
Commission funds.
• 3.5 The Vaisala lightning display network.
• 3.6 Transfer of the NWP model from ETA to UNIFY Model.Unified Model at the SAWS
• Replaces Eta3245 at end 2006
• Version 6.1 (since March 2006), will upgrade in
sync with Met Office
• Negotiating operational licence with Met Office:
– May use the model for operational forecasting
responsibilities
– Includes commercial use up to 10% of turnover
– Real-time feed of observations, LBCs and initial dump
– Software support from Met Office scientists, visitsPorted Unified Model Philosophy
• Developed to run on:
– Workstations
– PCs running Linux OS
– Massively parallel computer systems (NEC
SX-series)
• Advanced scientific and technical
capabilities
• Available to universities and meteorological
institutes under a licencing agreementUM SA12 & SA15 Domains
XAANA
XAANJ
XAANGMet Office Collaboration
• Research tropical convection for better diurnal cycle that
feeds into cloud, precipitation and surface temperature
– (will need to build up expertise at the SAWS)
• Model sensitivity studies of vegetation/ surface type, soil
moisture, etc.
– (are these important to improve model analyses and forecast skill)
• Ground-truth verification of the UM over SA using RADAR
and station network
– (emphasis on case-studies to identify cause of forecast failure)
• DA OSE studies
– (must work with Met Office DA team to prevent duplication)
• WWRP/WMO Southern Africa severe weather forecasting
project input and using the UM in a short-range ensemble
forecast system and how a SREF could add value
