      CONTENTS                                                               TOURING AND THEATRE
                                                                                    MLA®
                                                                                                                                                                                         02
                                                                                                                                                                                         02
                                                                                    Display™ Software                                                                                    05
                                                                                    Line Array Systems                                                                                   12
                                                                                    Line Array Software                                                                                  14
                                                                                    CDD-LIVE!™ Series                                                                                    16
                                                                                    Differential Dispersion™ Series                                                                      20
                                                                                    XD Series                                                                                            22
                                                                                    Stage Monitors                                                                                       24
                                                                                    Subwoofers                                                                                           26

                                                                             BLACKLINE+ SERIES                                                                                           28

                                                                             ARCHITECTURAL                                                                                               34
                                                                                     CDD™ Series                                                                                         34
                                                                                     CDD Weatherised™ Series                                                                             38
                                                                                     Ceiling Series                                                                                      42
                                                                                     Ceiling Software                                                                                    45
                                                                                     O-Line™                                                                                             46
                                                                                     O-Line™ Software                                                                                    49
                                                                                     Install Line Array Systems                                                                          50

                                                                             ELECTRONICS                                                                                                 52
                                                                                    Amplifiers                                                                                           53
                                                                                    Digital Loudspeaker Controllers                                                                      56

                                                                             ACCESSORIES                                                                                                 58

                                                                             INDEX		                                                                                                     61

All information is Copyright © 2016 Martin Audio Ltd. Due to Martin Audio’s policy of continuing improvement, we reserve the right to alter these specifications without prior notice.                               1
The Martin Audio Experience. Product Catalogue 2016.
TOURING & THEATRE – MULTI-CELLULAR LOUDSPEAKER ARRAY                                       www.martin-audio.com/mla

                                                           With multiple awards for innovation, the MLA Series —
                                                           comprising MLA, MLA Compact and MLA Mini — represents
                                                           the first fundamental change in array technology since the
                                                           introduction of line array over twenty years ago.

                                                           MLA’s combination of cellular drive and automated numerical
                                                           optimisation delivers much more consistent sound across the
                                                           audience, puts an end to trial-and-error tuning sessions and
                                                           reduces sound spill — both on stage and beyond the audience
                                                           boundary.

                                                           MLA technology is a departure from the principles behind
                                                           conventional line arrays, where the focus is on producing
                                                           coherent wavefronts as they exit the speaker grilles — giving
                                                           the user little control over what reaches the ears of the
                                                           audience. MLA cellular technology takes the opposite approach
                                                           — the user specifies the SPL and frequency response required
                                                           at the front rows, the mix position and the rear seats, and
                                                           intelligent optimisation software automatically determines the
                                                           array configuration and controls each individual cell in the
                                                           array to produce that result.

                                                           The MLA Series offers new solutions — the MLA touring
                                                           system resolves the conflicting requirements of audience and
                                                           local residents at outdoor festivals by delivering the highest
                                                           sound levels out-front without exceeding strict noise pollution
                                                           levels off-site. At the other end of the scale, the versatile MLA
                                                           Mini opens up a wide range of portable live sound applications
                                                           for smaller venues, as well as a myriad of installation
                                                           opportunities.
BottleRock, Napa Valley, USA

2
The Martin Audio Experience. Product Catalogue 2016.
TOURING & THEATRE – MULTI-CELLULAR LOUDSPEAKER ARRAY                                                                                                                                     www.martin-audio.com/mla

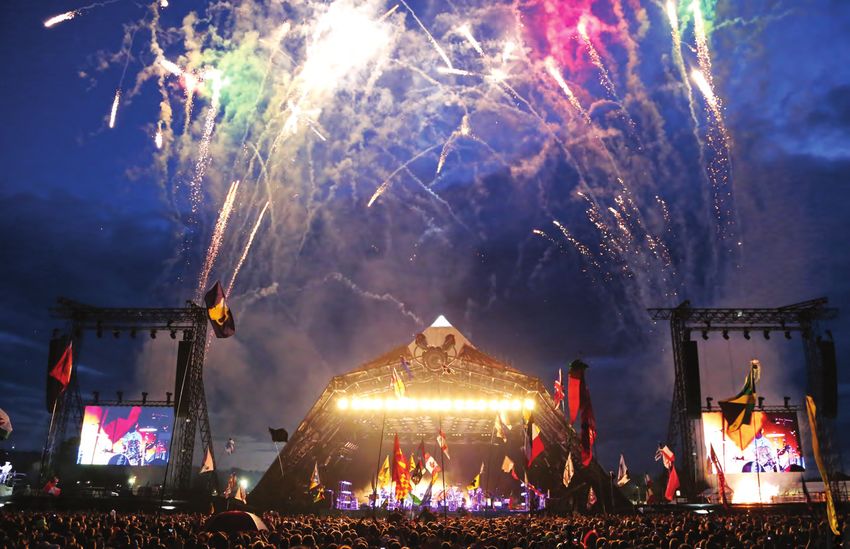

Glastonbury, UK

All information is Copyright © 2016 Martin Audio Ltd. Due to Martin Audio’s policy of continuing improvement, we reserve the right to alter these specifications without prior notice.                              3
The Martin Audio Experience. Product Catalogue 2016.
TOURING & THEATRE – MULTI-CELLULAR LOUDSPEAKER ARRAY                                               www.martin-audio.com/mla

          MLA CELLULAR TECHNOLOGY
          MLA, MLA Compact and MLA Mini all feature cellular drive —
          where each LF, MF and HF cell in the array has its own onboard
          DSP and amplification under the control of DISPLAY 2.1™
          automated intelligent software. A 24-box MLA system will have
          144 individual cells, a 16-box MLA Compact system will have 80
          cells, and a 16-box MLA Mini will have 32 cells.

          With each cell in the array under computer control, MLA Series
          systems are not constrained by the 3dB decrease in SPL with
          doubling of distance associated with conventional line arrays —
          enabling the engineer’s exact mix to be delivered throughout the
          audience with a degree of control, consistency and repeatability
          not previously possible.
                                                                              MLA cellular drive
          ‘Hard avoid’ areas, such as on-stage, ceilings, balcony edges and
          beyond the venue perimeter can be programmed in and vertical
          coverage can also be fine-tuned after rigging without the need to
          reposition the array or change the inter-cabinet splay angles.

          By departing from line array convention, and focusing on what
          arrives at the audience instead of what leaves the array, MLA
          cellular technology holds both SPL and frequency response within
          a very tight window – from the front rows to the rear balconies.

                                                                              Automated optimisation

4
The Martin Audio Experience. Product Catalogue 2016.
TOURING & THEATRE – MULTI-CELLULAR LOUDSPEAKER ARRAY                                                                                                                                                        www.martin-audio.com/mla

DISPLAY 2.1™ AUTOMATED CONTROL SOFTWARE
DISPLAY 2.1 is the brain of the MLA
Series. Its numerical optimisation process
eliminates lengthy trial-and-error tuning
sessions, so that an MLA Series system
achieves the required audience coverage
straight out of the box.

Based on a highly accurate acoustic
model of array behaviour, it gives a very
accurate prediction of the direct sound
produced over the audience as well as
areas where sound is to be reduced. It
takes the guesswork out of array design,
                                                                                                 Step 1: Venue entry                                                                     Step 2: Set coverage parameters
deployment and control – generating
highly accurate spot frequency responses
and comprehensive rigging information,
including mechanical load safety analysis.

The intelligent optimisation process
evaluates configurations of potential arrays
against various target functions — such
as frequency response, flatness and sound
leakage into non-audience areas. With the
computer working behind the scenes, the
engineer retains full artistic control over
the house curves — DISPLAY 2.1 simply
replicates what the engineer hears at the
mix position to the entire audience.                                                             Step 3: Calculate splay angles                                                          Step 4: Optimisation and upload

All information is Copyright © 2016 Martin Audio Ltd. Due to Martin Audio’s policy of continuing improvement, we reserve the right to alter these specifications without prior notice.                                                 5
The Martin Audio Experience. Product Catalogue 2016.
TOURING & THEATRE – MULTI-CELLULAR LOUDSPEAKER ARRAY                                                 www.martin-audio.com/mla

          MLA SYSTEM
          MLA system components comprise the MLA 3-way array enclosure, MLD
          downfill and MLX Sub-bass. MLA is a fully-integrated system, with Class D
          amplification, U-NET™ control network and DSP all integrated within each
          enclosure – simplifying set-up and eliminating long, heavy-gauge cable runs.

          An MLA touring system is complete and ready-to-use, with enclosures,
          flying hardware, software, cabling, flight cases and training all included in
          the system package.

          FEATURES
          • Cellular array with built-in amplification, DSP and digital networking
          • 6 dedicated Class D amplifier channels per enclosure for individual
             powering and DSP control of individual cells
          • Switch mode power supply with PFC (Power Factor Correction) and
             global mains voltage operation
          • Three-way all-horn design delivers LF/MF/HF peak SPL’s of
             140/139/145 dB @ 1m from a single enclosure                                  MLA arrray
          • Fast, integral flying system for suspension of up to 24 enclosures
          • True 90° (-6dB) horizontal constant directivity, mid and high frequency
             pattern control. Consistent and usable out to 120° (-10dB)
          • 60Hz-18kHz ± 3dB full bandwidth frequency response

          APPLICATIONS
          • Large-scale touring sound reinforcement for outdoor festivals, stadiums,
             arenas and concert halls
          • Premium fixed installations in concert halls, theatres and sports venues

                                                                                          MLX sub-bass

6
TOURING & THEATRE – MULTI-CELLULAR LOUDSPEAKER ARRAY                                                                                                                                     www.martin-audio.com/mla

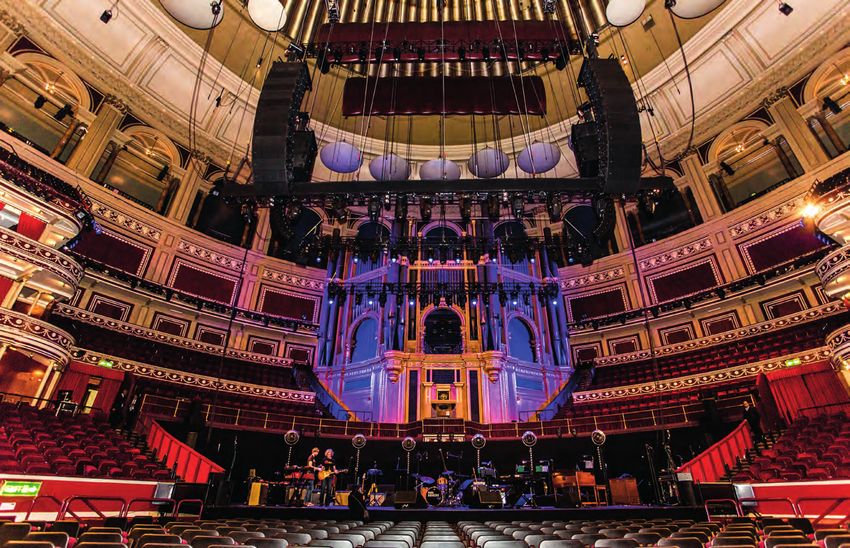

Royal Albert Hall, UK

All information is Copyright © 2016 Martin Audio Ltd. Due to Martin Audio’s policy of continuing improvement, we reserve the right to alter these specifications without prior notice.                              7
TOURING & THEATRE – MULTI-CELLULAR LOUDSPEAKER ARRAY                                      www.martin-audio.com/mla

          MLA COMPACT
          Scalable and versatile, MLA Compact brings MLA technology to the
          wide range of applications that do not require the full power and throw
          of the MLA. Its compact size belies its output capabilities – a 12-box
          MLA Compact array can easily deliver full rock SPL’s in a 5000 seat
          venue, whilst a 24-box array will approach the output of many ‘full-size’
          systems.

          The MLA Compact is partnered by either the DSX ground-stacked,
          powered sub-bass, or the DSX-F flying version.

          FEATURES
          • Cellular array with built-in amplification, DSP and digital networking
          • 5 dedicated Class D amplifier channels per enclosure for individual
             powering and DSP control of individual cells
          • Switch mode power supplies with PFC (Power Factor Correction) and
             global mains voltage operation
          • Three-way all-horn design delivers LF/MF/HF peak SPL’s of
             135/135/135 dB @ 1m from a single, compact enclosure
          • Fast, integral flying system for suspension of up to 24 enclosures
          • True 100° (-6dB) horizontal constant directivity, mid and
             high frequency pattern control. Consistent and usable out to
             130° (-10dB)
          • 65Hz-18kHz ± 3dB full bandwidth frequency response

          APPLICATIONS
          • Premium touring sound reinforcement for medium-size venues
          • Fixed installations in concert halls, theatres, ballrooms and HoW
          • Side hang for MLA festival and arena systems

                                                                                      DSX-F

8
TOURING & THEATRE – MULTI-CELLULAR LOUDSPEAKER ARRAY                                                                                                                                     www.martin-audio.com/mla

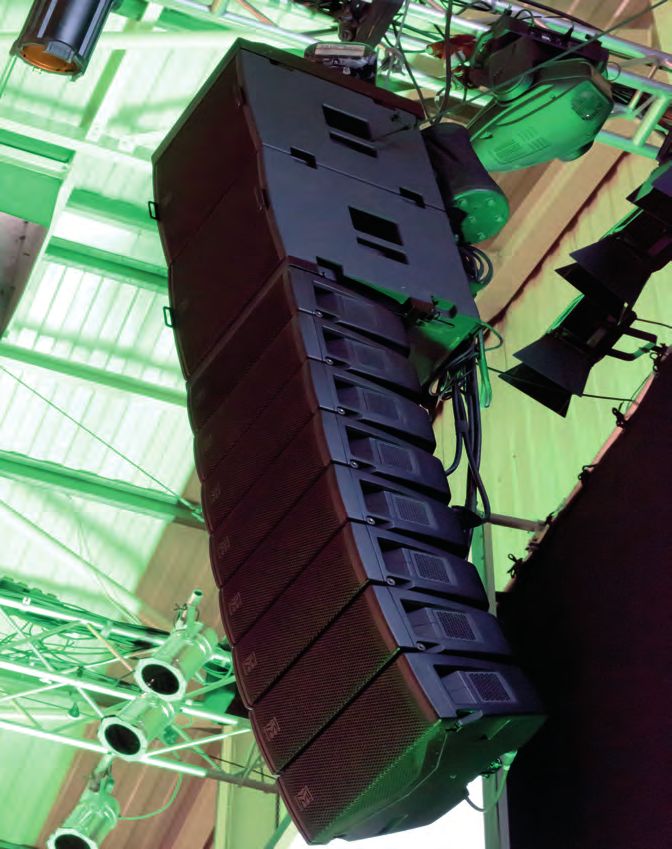

Starlight Express, Germany

All information is Copyright © 2016 Martin Audio Ltd. Due to Martin Audio’s policy of continuing improvement, we reserve the right to alter these specifications without prior notice.                              9
TOURING & THEATRE – MULTI-CELLULAR LOUDSPEAKER ARRAY                             www.martin-audio.com/mla

           MLA MINI
           The ultra-compact MLA Mini brings revolutionary MLA cellular technology
           to smaller-scale portable and installed sound applications. Its very
           small footprint and light weight make it the system of choice for small-
           to-medium venues. MLA Mini is designed as a complete system, with
           complementary MSX mini-sub power plant, which houses networking, DSP
           and 9 channels of Class D amplification necessary to power and control
           itself and 4 MLA Mini enclosures. MLA Mini can also operate as a plug-
           and-play system using onboard presets instead of computer control.

           FEATURES
           • Cellular array format with amplification, DSP and digital networking
              housed in companion MSX sub-bass
           • 2 Class D amplifier channels per enclosure for individual powering and
              DSP control of LF and HF cells
           • Switched mode power supplies with PFC (Power Factor Correction) and
              global mains voltage operation
           • Two-way design delivers LF/HF peak SPL’s of 130/129dB @ 1m from a
              single, ultra-compact enclosure
           • Fast, integral flying system for suspension of up to 16 MLA Minis
           • True 100° (-6dB) horizontal constant directivity
           • 76Hz-18kHz ± 3dB frequency response
           • Scalable for audiences of 100-3,000

           APPLICATIONS
           • Small-to-medium scale live music venues and theatres
           • Portable live sound and AV events
           • Fixed installations in concert halls, theatres, ballrooms and HoW
           • Side-fill for MLA Compact systems

10
TOURING & THEATRE – MULTI-CELLULAR LOUDSPEAKER ARRAY                                                                                                                                     www.martin-audio.com/mla

                                                                                                                                                      Backstage Centre, UK

Spar Corporate Event, UK                                                                                                                              IDC Church, Chicago, USA

All information is Copyright © 2016 Martin Audio Ltd. Due to Martin Audio’s policy of continuing improvement, we reserve the right to alter these specifications without prior notice.                              11
TOURING & THEATRE – LINE ARRAY SYSTEMS                                    www.martin-audio.com/touring

                                              LINE ARRAY SYSTEMS
                                              Utilising innovative driver-loading techniques, together with
                                              no-compromise constant directivity horns, Martin Audio line
                                              arrays deliver exceptional levels of efficiency and coverage
                                              consistency from the line array format.

                                              The W8LC compact line array is designed for medium-to-
                                              large scale touring and installation applications — ranging
                                              from arenas and sports stadiums to theatres and concert
                                              halls. A 3-way all-horn design, its Hybrid™ low frequency
                                              section marries the very high efficiency of horn loading with
                                              the extended low frequency response of a reflex enclosure.
                                              The W8LCD Downfill has wider horizontal coverage for the
                                              front rows.

                                              The W8LM is an ultra-compact line array that meets the need
                                              for a versatile system for small/medium scale applications —
                                              including live sound reinforcement, corporate events, theatres
                                              and fixed installations. It is particularly suited to musical
                                              theatre productions that require high output from a small,
                                              visually-discreet array and is the ideal sidefill or delay system
                                              for larger-scale W8LC arrays. The W8LMD is its designated
                                              downfill.

                                              The proprietary rigging systems of the Martin Audio line
                                              arrays are safe, quick to assemble and allow for venue-
                                              optimised progressive curvatures to be achieved in
                                              conjunction with DISPLAY 1.7™ or ViewPoint™ software.

                                              The Martin Audio W8LC and W8LM take line array
                                              performance to a new level.

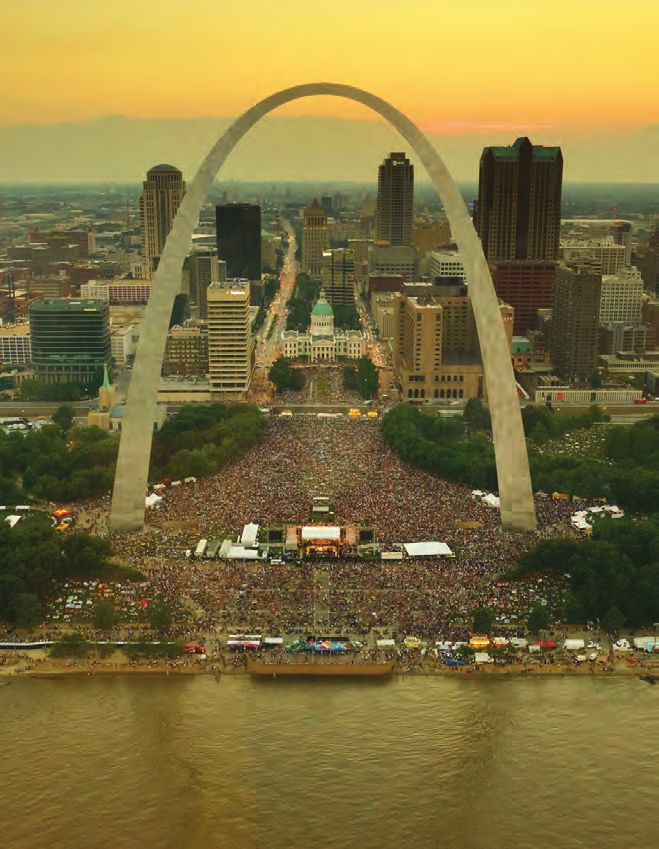

 Fair St. Louis, USA

12
TOURING & THEATRE – LINE ARRAY SYSTEMS                                                                                                                                                                                 www.martin-audio.com/touring

W8LC                                                                                                                                              W8LM
TYPE                              Three-way compact line array element                                                                           TYPE                              Three-way, passive/bi-amp, mini line array element
FREQUENCY RESPONSE (5)            60Hz-18kHz ± 3dB                                                                                               FREQUENCY RESPONSE (5)            60Hz-18kHz ± 3dB
DRIVERS                           12” (300mm)/3” (75mm) voice coil, neodymium                                                                    DRIVERS: LF + MF Section          8” (200mm)/2” (50mm) voice coil, reflex loaded
                                  magnet driver, Hybrid® bass horn loaded                                                                                                          direct radiator
                                  2 x 6.5” (165mm)/1.5” (37.5mm) voice coil drivers                                                                                                8” (200mm)/2” (50mm) voice coil, neodymium
                                  horn loaded                                                                                                                                      magnet, front horn loaded, rear reflex loaded
                                  3 x 1” (25mm) exit neodymium compression drivers,                                                              DRIVERS: HF Section               2 x 1” (25mm) exit HF compression drivers,
                                  horn loaded                                                                                                                                      horn loaded
RATED POWER (2)                   LF: 400W AES, 1600W peak                                                                                       RATED POWER (2)                   LF + MF: 400W AES, 1600W peak
                                  MF: 200W AES, 800W peak                                                                                                                          HF: 75W AES, 300W peak
                                  HF: 100W AES, 400W peak                                                                                                                          Passive: 400W AES, 1600W peak
SENSITIVITY (6)                   LF: 103dB MF: 106dB HF: 109dB                                                                                  SENSITIVITY (6)                   LF + MF: 100dB, HF: 106dB, Passive: 99dB rising to
MAXIMUM SPL (9)                   LF: 129dB continuous, 135dB peak                                                                                                                 105dB at HF
                                  MF: 129dB continuous, 135dB peak                                                                               MAXIMUM SPL (9)                   LF + MF: 126dB continuous, 132dB peak
                                  HF: 129dB continuous, 135dB peak                                                                                                                 HF: 125dB continuous, 131dB peak
DISPERSION (-6dB)                 90º horizontal, 7.5º vertical                                                                                                                    FR: 125dB continuous, 131dB peak
DIMENSIONS (inc. wheelboard)      (W) 1000mm x (H) 367mm x (D) 550mm (706mm)                                                                     DISPERSION (-6dB)                 100º horizontal, 7.5º vertical
                                  (W) 39.4ins x (H) 14.5ins x (D) 21.7ins (27.8ins)                                                              DIMENSIONS                        (W) 620mm x (H) 243mm x (D) 400mm
WEIGHT (ex. wheelboard)           58kg (128lbs)                                                                                                                                    (W) 24.4ins x (H) 9.6ins x (D) 15.8ins
                                                                                                                                                 WEIGHT                            29kg (64lbs)

W8LCD                                                                                                                                             W8LMD
TYPE                              Three-way compact, downfill line array element                                                                 TYPE                              Three-way, passive/bi-amp, mini downfill line array
FREQUENCY RESPONSE (5)            60Hz-18kHz ± 3dB, -10dB @ 45Hz                                                                                                                   element
DRIVERS                           12” (300mm)/4” (100mm) voice coil, neodymium                                                                   FREQUENCY RESPONSE (5)            60Hz-18kHz ± 3dB
                                  magnet driver, Hybrid® bass horn loaded                                                                        DRIVERS: LF + MF Section          8” (200mm)/2” (50mm) voice coil, reflex-loaded
                                  2 x 6.5” (165mm)/1.5” (37.5mm) voice coil drivers,                                                                                               direct radiator
                                  horn loaded                                                                                                                                      8” (200mm)/2” (50mm) voice coil, neodymium magnet,
                                  3 x 1” (25mm) exit neodymium compression drivers,                                                                                                front horn loaded, rear reflex loaded
                                  horn loaded                                                                                                    DRIVERS: HF Section               2 x 1” (25mm) exit HF compression drivers,
RATED POWER (2)                   LF: 1000W AES, 4000W peak                                                                                                                        horn loaded
                                  MF: 200W AES, 800W peak                                                                                        RATED POWER (2)                   LF + MF: 400W AES, 1600W peak
                                  HF: 100W AES, 400W peak                                                                                                                          HF: 75W AES, 300W peak
SENSITIVITY (6)                   LF: 103dB, MF: 106dB, HF: 109dB                                                                                                                  Passive: 400W AES, 1600W peak
MAXIMUM SPL (9)                   LF: 133dB continuous, 139dB peak                                                                               SENSITIVITY (6)                   LF + MF: 99dB, HF: 104dB, Passive: 98dB rising to
                                  MF: 129dB continuous, 135dB peak                                                                                                                 103dB at HF
                                  HF: 128dB continuous, 134dB peak                                                                               MAXIMUM SPL (9)                   LF + MF: 125dB continuous, 131dB peak
DISPERSION (-6dB)                 120º horizontal (140° @ -10dB), 20º vertical                                                                                                     HF: 123dB continuous, 129dB peak
DIMENSIONS (inc. wheelboard)      (W) 1000mm x (H) 454mm x (D) 550mm (706mm)                                                                                                       FR: 124dB continuous, 130dB peak
                                  (W) 39.4ins x (H) 17.9ins x (D) 21.7ins (27.8ins)                                                              DISPERSION (-6dB)                 120º horizontal, 20º vertical
WEIGHT (ex. wheelboard)           67kg (148lbs)                                                                                                  DIMENSIONS                        (W) 620mm x (H) 284mm x (D) 400mm
                                                                                                                                                                                   (W) 24.4ins x (H) 11.2ins x (D) 15.8ins
                                                                                                                                                 WEIGHT                            30kg (66lbs)

All information is Copyright © 2016 Martin Audio Ltd. Due to Martin Audio’s policy of continuing improvement, we reserve the right to alter these specifications without prior notice.                                                                13
TOURING & THEATRE – LINE ARRAY SYSTEMS                                                                         www.martin-audio.com/touring

           LINE ARRAY SOFTWARE
           ViewPoint is a simple-to-use program which advises on the            Field measurements have shown DISPLAY 1.7 to be an
           appropriate line array geometry and controller presets for a given   extremely accurate tool that ensures consistent results
           2D room geometry, while the more sophisticated DISPLAY 1.7           every time.
           may be used in 2D or 3D.

           In DISPLAY 1.7, venue details can be entered to
           show a 2D ‘slice’ for simple coverage, SPL and
           frequency response information. In 3D mode, a
           model of the venue showing the audience planes
           can be entered and more detailed information,
           including polar responses examined.

           In both cases, the user specifies the type and
           quantity of line array to be used and the height
           the array will be flown at, together with the
           required coverage start and stop positions.
           DISPLAY 1.7 will calculate the appropriate inter-
           cabinet angles and the overall tilt angle of the
           array to achieve the desired coverage.

           DISPLAY 1.7 combines high resolution
           measurement data with controller simulations,
           enabling the system tech to tweak drive patches
           and controller presets to fine-tune system
           coverage in even the most difficult venue. It
           will also calculate the total weight of the array,
           including flying hardware, and determine the
           safety of the proposed system.

14
TOURING & THEATRE – LINE ARRAY SYSTEMS                                                                                                                                                   www.martin-audio.com/touring

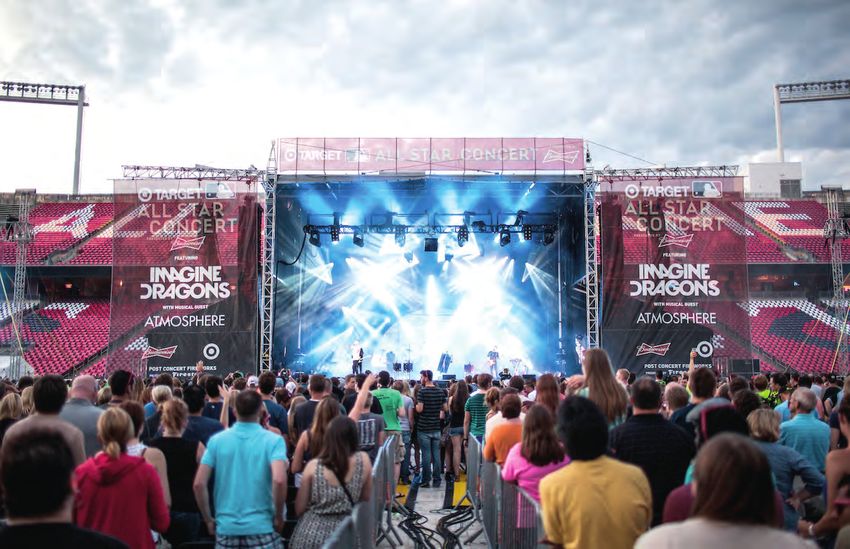

All Star Game Concert, Minneapolis, USA

All information is Copyright © 2016 Martin Audio Ltd. Due to Martin Audio’s policy of continuing improvement, we reserve the right to alter these specifications without prior notice.                                  15
TOURING & THEATRE – CDD-LIVE!                                                                              www.martin-audio.com/touring

           CDD-LIVE!
           Until now, most self-powered portable loudspeakers have been       With sonic consistency across the range, a rectangular coverage
           underpowered, light-duty systems or very high-end systems out      footprint and a multitude of deployment options, CDD-LIVE!
           of reach of many users. Now, with the multi-purpose                is truly versatile — the professional self-powered solution that
           CDD-LIVE! Series, Martin Audio brings everything rental            means business.
           companies, systems integrators and musicians require from a
           self-powered loudspeaker into sharp focus.                         CDD-LIVE! ‘The Sound of Things to Come’

           Comprising three full-range models and two subwoofers,
           CDD-LIVE! covers practically all professional stand-alone
           and distributed applications — from sound reinforcement
           and monitoring for live bands, DJ’s and corporate events, to
           installations in dance clubs, ballrooms, theatres and performing
           arts centres.

           Combining the ‘point-source’ benefits of coaxial designs with
           the consistent coverage of Differential Dispersion technology,
           CDD-LIVE! full-range systems project sound evenly front-to-back
           while exhibiting wide horizontal coverage close to the speaker
           — delivering ultimate fidelity and impact to all corners of the
           audience.

           Onboard Class D amplification, DSP and Dante™ Digital Audio
           networking assure simplicity of stage set-up and efficient
           installation, while tour-grade enclosures and comprehensive
           mounting options — including pole mount, wall brackets,
           yokes and rigging inserts — provide maximum flexibility in
           deployment.

16
TOURING & THEATRE – CDD-LIVE!                                                                                                                                                                                            www.martin-audio.com/touring

CDD-LIVE 8                                                                                                                                        CDD-LIVE 15
TYPE                             Ultra-compact, Coaxial Differential Dispersion powered t                                                        TYPE                              Ultra-compact, Coaxial Differential Dispersion powered
                                 wo-way system with onboard DSP, networking & Dante                                                                                                two-way system with onboard DSP, networking & Dante
FREQUENCY RESPONSE               70Hz – 20kHz ±3dB, -10dB @ 50Hz                                                                                 FREQUENCY RESPONSE                55Hz – 20kHz ±3dB, -10dB @ 45Hz
DRIVER                           LF: 8” (200mm)/2” (50mm) voice coil, long excursion,                                                            DRIVER                            LF: 15” (380mm)/3” (75mm) voice coil, long excursion,
                                 shared ferrite motor system with HF                                                                                                               shared ferrite motor system with HF
                                 HF: 1” (25mm) exit/1.4” (38mm) voice coil, polyimide                                                                                              HF: 1.4” (36mm) exit/3” (75mm) voice coil, titanium
                                 dome compression driver                                                                                                                           dome compression driver
INPUT SENSITIVITY                 -26dBu for 100dB SPL                                                                                           INPUT SENSITIVITY                 -30dBu for 100dB SPL
MAXIMUM SPL                      117dB continuous / 123dB peak                                                                                   MAXIMUM SPL                       126dB continuous / 132dB peak
DISPERSION                       110˚-80˚ horizontal, 60˚ vertical (user-rotatable)                                                              DISPERSION                        100˚-60˚ horizontal, 60˚ vertical (user-rotatable)
AMPLIFIER TYPE                   2 channel switch-mode, class D                                                                                  AMPLIFER TYPE                     2 channel switch-mode, class D, Bridged Tied Load
PEAK OUTPUT POWER                1000W LF, 300W HF                                                                                                                                 + 1 channel switch-mode, class D
AC INPUT OPERATING RANGE         85 – 265V ~ AC, 50 - 60Hz                                                                                       PEAK OUTPUT POWER                 2000W LF, 500W HF
FITTINGS                         Top hat for pole mounting                                                                                       AC INPUT OPERATING RANGE          85 – 265V ~ AC, 50 - 60Hz
                                 15 x M8 mounting points                                                                                         FITTINGS                          Top hat for pole mounting
                                 Single pocket handle                                                                                                                              15 x M8 mounting points
                                 Optional weather protection cowl                                                                                                                  Two side pocket handles
ACCESSORIES                      Transit Cover. Optional wall, yoke and universal brackets                                                                                         Optional weather protection cowl
DIMENSIONS                       (W) 258mm x (H) 428mm x (D) 254mm                                                                               ACCESSORIES                       Transit Cover. Optional wall, yoke and universal brackets
                                 (W) 10.16in x (H) 16.85in x (D) 10.00in                                                                         DIMENSIONS                        (W) 427mm x (H) 696mm x (D) 422mm
WEIGHT                           14kg (30.8lbs) excluding Transit cover                                                                                                            (W) 16.81in x (H) x 27.42in (D) 16.61in
                                                                                                                                                 WEIGHT                            37kg (81.4lbs) excluding Transit cover

CDD-LIVE 12
TYPE                             Ultra-compact, Coaxial Differential Dispersion powered
                                 two-way system with onboard DSP, networking & Dante
FREQUENCY RESPONSE               62Hz – 20kHz ±3dB, -10dB @ 50Hz
DRIVER                           LF: 12” (300mm)/2.5” (63.5mm) voice coil, long
                                 excursion, shared ferrite motor system with HF
                                 HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide
                                 dome compression driver
INPUT SENSITIVITY                -30dBu for 100dB SPL
MAXIMUM SPL                      122dB continuous / 128dB peak
DISPERSION                       110˚-60˚ horizontal, 60˚ vertical (user-rotatable)
AMPLIFIER TYPE                   2 channel switch-mode, class D, Bridged Tied Load
                                 + 1 channel switch-mode, class D
PEAK OUTPUT POWER                2000W LF, 500W HF
AC INPUT OPERATING RANGE         85 – 265V ~ AC, 50 - 60Hz
FITTINGS                         Top hat for pole mounting
                                 15 x M8 mounting points
                                 Two side pocket handles
                                 Optional weather protection cowl
ACCESSORIES                      Transit Cover. Optional wall, yoke and universal brackets
DIMENSIONS                       (W) 359mm x (H) 580mm x (D) 373mm
                                 (W) 14.13in x (H) 22.83in x (D) 14.69in
WEIGHT                           28kg (61.6lbs) excluding Transit cover

All information is Copyright © 2016 Martin Audio Ltd. Due to Martin Audio’s policy of continuing improvement, we reserve the right to alter these specifications without prior notice.                                                                  17
TOURING & THEATRE – CDD-LIVE!                                                       www.martin-audio.com/touring

     CSX-LIVE 118
     TYPE                        Compact, direct radiating powered subwoofer with
                                 onboard DSP, networking & Dante
     FREQUENCY RESPONSE          43Hz – 150Hz ±3dB, -10dB @ 38Hz
     DRIVER                      18” (460mm)/4” (100mm) voice coil, long excursion,
                                 ferrite magnet, waterproof cone
     INPUT SENSITIVITY           -30dBu for 100dB SPL
     MAXIMUM SPL                 132dB continuous / 135dB peak
     DISPERSION                  Omnidirectional / or Cardioid (paired)
     AMPLIFIER TYPE              2 channel switch-mode, class D, Bridged Tied
     PEAK OUTPUT POWER           2000W total
     AC INPUT OPERATING RANGE    85 – 265V ~ AC, 50 - 60Hz
     FITTINGS                    Two skids on base, with mating channels on top
                                 Four rear-mounted 100mm (4in) castors
                                 M20 top-mounted thread plate for pole mounting
                                 16 x M10 mounting points
                                 2x Bar handles, 1 on each side
                                 4x fittings for optional transit cover
                                 Optional weather protection cowl
     ACCESSORIES                 Transit Cover
     DIMENSIONS (inc. castors)   (W) 600mm x (H) 509mm x (D) 632mm (760mm)
                                 (W) 23.62in x (H) 20.04in x (D) 24.86in (29.90in)
     WEIGHT                      50kg (110lbs) excluding Transit cover
     ACCESSORIES                 Transit Cover

     CSX-LIVE 218
     TYPE                        Compact, direct radiating powered subwoofer with
                                 onboard DSP, networking & Dante
     FREQUENCY RESPONSE          35Hz – 150Hz ±3dB, -10dB @ 30Hz
     DRIVER                      18” (460mm)/4” (100mm) voice coil, long excursion,
                                 ferrite magnet, waterproof cone
     INPUT SENSITIVITY           -30dBu for 100dB SPL
     MAXIMUM SPL                 140dB continuous / 143dB peak
     DISPERSION                  Omnidirectional / or Cardioid (paired)
     AMPLIFIER TYPE              Two 2 channel switch-mode, class D, Bridged Tied Load
     PEAK OUTPUT POWER           4000W
     AC INPUT OPERATING RANGE    85 – 265V ~ AC, 50 - 60Hz
     FITTINGS                    Two skids on base, with mating channels on top
                                 Four rear-mounted 100mm (4in) castors
                                 24 x M10 mounting points
                                 4x Bar handles, 2 on each side
                                 4x fittings for optional transit cover
                                 Optional weather protection cowl
     ACCESSORIES                 Transit Cover
     DIMENSIONS (inc. castors)   (W) 1085mm x (H) 530mm x (D) 792mm (920mm)
                                 (W) 42.72in x (H) 20.87in x (D) 31.16in (36.20in)
     WEIGHT                      105kg (231lbs) excluding Transit cover
     ACCESSORIES                 Transit Cover

18
TOURING & THEATRE – CDD-LIVE!                                                                                                                                                                www.martin-audio.com/installation

All All
    information
        information
                 is Copyright
                    is Copyright
                              ©© 2016
                                   2016
                                      Martin
                                        Martin
                                             Audio
                                               Audio
                                                   Ltd.Ltd.
                                                         DueDue
                                                             to Martin
                                                                to Martin
                                                                       Audio’s
                                                                          Audio’s
                                                                               policy
                                                                                  policy
                                                                                      of continuing
                                                                                         of continuing
                                                                                                    improvement,
                                                                                                       improvement,
                                                                                                                 wewe
                                                                                                                    reserve
                                                                                                                       reserve
                                                                                                                            thethe
                                                                                                                                right
                                                                                                                                   right
                                                                                                                                      to alter
                                                                                                                                         to alter
                                                                                                                                               these
                                                                                                                                                  these
                                                                                                                                                     specifications
                                                                                                                                                        specifications
                                                                                                                                                                    without
                                                                                                                                                                       without
                                                                                                                                                                            prior
                                                                                                                                                                               prior
                                                                                                                                                                                  notice.
                                                                                                                                                                                     notice.                                       19
TOURING & THEATRE – DIFFERENTIAL DISPERSION                                                            www.martin-audio.com/touring

           DIFFERENTIAL DISPERSION
           Martin Audio’s Differential Dispersion™ systems deliver more                        DD6
           consistent frequency response and SPL’s over the audience                           The ultra-compact DD6 is a passive two-
           than possible from systems with fixed X° x Y° dispersion.                           way, multi-purpose loudspeaker system
                                                                                               designed for premium applications which
                                                                                               require ‘on-the-fly’ flexibility. Its high
                                                                                               frequency horn can be easily rotated for
                                                                                               horizontal or vertical use in a quick, tool-
                                                                                               free operation. Up to three DD6’s can be
                                                                                               driven by the PSX self-powered companion
                                                                                               subwoofer.

                                                                           W8VDQ
                                                                           The W8VDQ combines line array and differential dispersion
                                                                           technologies within a single enclosure — a unique solution to
                                                                           the requirement of even coverage over wide angles and medium
                                                                           throw distances from a single element. The W8VDQ has wide
                                                                           short-throw horizontal dispersion of 120°, reducing to 100° as
                                                                           the throw increases.

           DD12
           Combining onboard networking, DSP and Class D amplification
           with state-of-the-art transducers, the compact DD12 sets a
           new benchmark for professional, powered two-way loudspeaker
           systems in terms of fidelity, output capability and coverage
           consistency. Its compact, multi-angle enclosure facilitates
           vertical or horizontal orientation, as well as use as a stage
           monitor.

20
TOURING & THEATRE – DIFFERENTIAL DISPERSION                                                                                                                                                                           www.martin-audio.com/touring

DD12                                                                                                                                              W8VDQ

TYPE                     Differential Dispersion™, compact multi-angled, self-powered
                         two-way system with onboard DSP and networking
FREQUENCY RESPONSE (5)   65Hz-18kHz ± 3dB, -10dB @ 55Hz
DRIVERS                  12” (300mm)/3” (75mm) voice coil, long-excursion,                                                                       TYPE                              Three-way, passive/bi-amp
                         neodymium magnet LF driver                                                                                              FREQUENCY RESPONSE (5)            60Hz-18kHz ± 3dB
                         1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome,                                                                  DRIVERS                           2 x 8” (200mm)/2” (50mm) voice coil, reflex loaded
                         neodymium magnet HF compression driver                                                                                                                    direct radiators
RATED POWER (2)          LF: 400W AES, 1600W peak HF: 50W AES, 200W peak                                                                                                           2 x 8” (200mm)/2” (50mm) voice coil, neodymium magnet,
MAXIMUM SPL (9)          125dB continuous, 131dB peak                                                                                                                              front horn loaded, rear reflex loaded drivers
DISPERSION               Differential Dispersion: 110-60° horizontal, 60° vertical                                                                                                 4 x 1” (25mm) exit HF compression drivers, horn loaded
AMPLIFIER TYPE		2 channel switch-mode, class D                                                                                                   RATED POWER (2)                   LF + MF: 800W AES, 3200W peak
PEAK OUTPUT POWER        1400W LF, 700W HF                                                                                                                                         HF: 150W AES, 600W peak
AC INPUT OPERATING RANGE 100 – 240V ~ AC, 50 - 60Hz                                                                                                                                Passive: 800W AES, 3200W peak
FITTINGS		Top hat for pole mounting, 15 x M8 threaded inserts                                                                                    SENSITIVITY (6)                   LF + MF: 102dB, HF: 106dB, Passive: 101dB rising to 105dB at HF
		Pocket handles                                                                                                                                 MAXIMUM SPL (9)                   131dB continuous, 137dB peak
ACCESSORIES 		Optional weather protection cowl, Transit cover                                                                                    DISPERSION (-6dB)                 100º-120° horizontal, 30º vertical (VDQ)
DIMENSIONS (with cowl)   (W) 360mm x (H) 571mm x (D) 384mm (503mm)                                                                               DIMENSIONS                        (W) 628mm x (H) 506mm x (D) 369mm
                         (W) 14.2in x (H) 22.5ins x (D) 15.1ins (19.8ins)                                                                                                          (W) 24.7ins x (H) 19.9ins x (D) 14.6ins
WEIGHT		26kg (57.2 lbs)                                                                                                                          WEIGHT                            47kg (103.5lbs)

DD6

TYPE                              Differential Dispersion™ ultra-compact, multi-angled,
                                  two-way passive
FREQUENCY RESPONSE (5)            70Hz-20kHz ± 3dB, -10dB @55Hz
DRIVERS                           6.5” (165mm)/1.75” (44mm) voice coil neodymium
                                  magnet LF driver
                                  0.5” (12.5mm) exit neodymium magnet
                                  HF compression driver
RATED POWER (2)                   150W AES, 600W peak
SENSITIVITY (6)                   91dB
MAXIMUM SPL (9)                   113dB continuous, 119dB peak
NOMINAL IMPEDANCE                 16 ohms
DISPERSION (-6dB)                 90-120º horizontal, 60º vertical
CONNECTORS                        4 x Neutrik® NL4, connected in parallel
FITTINGS                          8 x M8, 4 x M6 threaded insets
DIMENSIONS                        (W) 190mm x (H) 359mm x (D) 207mm
                                  (W) 7.5ins x (H) 14.1ins x (D) 8.1ins
WEIGHT                            5.9kg (13lbs)
                                                                                                                                                The Savoy, UK

All information is Copyright © 2016 Martin Audio Ltd. Due to Martin Audio’s policy of continuing improvement, we reserve the right to alter these specifications without prior notice.                                                               21
TOURING & THEATRE – XD SERIES                                                                               www.martin-audio.com/touring

           XD SERIES
           The XD Series loudspeakers are the perfect solution for high-       The XD15 and XD12 LF drivers both feature neodymium motor
           power applications where flexibility, ease of installation and      systems which combine high sensitivity with low weight and
           speed of deployment are important factors. The versatile,           advanced cooling to reduce power compression to negligible
           multi-angle enclosures and rotatable horns facilitate either        levels, and the HF compression drivers feature ultra-high flux
           horizontal or vertical orientation, and comprehensive brackets      neodymium magnet systems for maximum efficiency. The
           support the full variety of mounting options. Integral M8 inserts   tour-grade plywood enclosures are coated in hard-wearing
           increase the options even further. When configured horizontally,    polyurethane and have pre-curved Declon® backed perforated
           the XD15 and XD12 are also ideal as compact, high-output            steel grilles.
           stage monitors.
                                                                               The XD Series loudspeakers deliver best-in-class performance,
                                                                               including higher output levels and more extended frequency
                                                                               range than is normally associated with similarly-sized systems.

                                                                               The XD12 and XD15 can be used with Martin Audio
                                                                               subwoofers, or with the self-powered PSX subwoofer power plant
                                                                               — where they can be powered by a dedicated onboard amplifier
                                                                               channel.

                                                                               XD Series – the new benchmark for the compact two-way
                                                                               format.

22
TOURING & THEATRE – XD SERIES                                                                                                                                                                                          www.martin-audio.com/touring

XD15                                                                                                                                              XD12
TYPE                              Very high-output, passive/bi-amp, two-way system                                                               TYPE                              Compact, high output, passive/bi-amp, two-way system
FREQUENCY RESPONSE (5)            55Hz-18kHz ± 3dB, -10dB @ 45Hz                                                                                 FREQUENCY RESPONSE (5)            65Hz-20kHz ± 3dB, -10dB @ 55Hz
DRIVERS                           15” (380mm)/4” (100mm) voice coil, long excursion,                                                             DRIVERS                           12” (300mm)/3” (75mm) voice coil, long excursion,
                                  neodymium magnet LF driver                                                                                                                       neodymium magnet LF driver
                                  1.4” (35mm) exit/3” (75mm) voice coil, titanium dome,                                                                                            1” (25mm) exit/1.7” (44mm) voice coil, titanium ome,
                                  neodymium magnet HF compression driver                                                                                                           neodymium magnet HF compression driver
RATED POWER (2)                   FR/LF: 600W AES, 2400W peak                                                                                    RATED POWER (2)                   FR/LF: 400W AES, 1600W peak
                                  HF: 80W AES, 320W peak                                                                                                                           HF: 50W AES, 200W peak
SENSITIVITY (6)                   FR: 99dB                                                                                                       SENSITIVITY (6)                   FR: 98dB
                                  LF: 100dB                                                                                                                                        LF: 99dB
                                  HF: 108dB                                                                                                                                        HF: 108dB
MAXIMUM SPL (9)                   FR: 126dB continuous, 132dB peak                                                                               MAXIMUM SPL (9)                   FR:124dB continuous, 130dB peak
                                  LF: 127dB continuous, 133dB peak                                                                                                                 LF: 125dB continuous, 131dB peak
                                  HF: 127dB continuous, 133dB peak                                                                                                                 HF: 125dB continuous, 131dB peak
NOMINAL IMPEDANCE                 FR/LF: 8 ohms, HF: 16 ohms                                                                                     NOMINAL IMPEDANCE                 FR/LF: 8 ohms, HF: 16 ohms
DISPERSION (-6dB)                 80º horizontal, 50º vertical user rotatable                                                                    DISPERSION (-6dB)                 80º horizontal, 50º vertical user rotatable
CONNECTORS                        2 x Neutrik® NL4                                                                                               CONNECTORS                        2 x Neutrik® NL4
FITTINGS                          17 x M8 threaded inserts                                                                                       FITTINGS                          21 x M8 threaded inserts
                                  1 x Pole mount socket                                                                                                                            1 x Pole mount socket
                                  2 x Pocket handles                                                                                                                               1 x Pocket handle
DIMENSIONS                        (W) 429mm x (H) 690mm x (D) 414mm                                                                              DIMENSIONS                        (W) 360mm x (H) 571mm x (D) 341mm
                                  (W) 16.9ins x (H) 27.2ins x (D) 16.3ins                                                                                                          (W) 14.2ins x (H) 22.5ins x (D) 13.4ins
WEIGHT                            32kg (70.5lbs)                                                                                                 WEIGHT                            19.5kg (43lbs)

The Dorchester, UK

All information is Copyright © 2016 Martin Audio Ltd. Due to Martin Audio’s policy of continuing improvement, we reserve the right to alter these specifications without prior notice.                                                                23
TOURING & THEATRE – STAGE MONITORS                                                                         www.martin-audio.com/touring

           STAGE MONITORS
           Martin Audio introduced the first LE monitor, the LE200, in       Series continue that tradition. Differential Dispersion horns,
           the 1970’s. Since then its successors, the LE400 and LE700        with wide horizontal coverage close-up, gradually reducing as
           have become industry standards selling in their thousands and     the performer moves back, allow high SPL’s and consistent
           gracing the most prestigious stages for an unrivalled who’s who   coverage to be achieved without running into feedback or
           of artists.                                                       excessive spill problems. The performer is free to move over
                                                                             a wide area without hearing significant changes in frequency
           The LE2100S, LE1500LS and LE1200LS stage monitors are             response or SPL.
           capable of generating exceedingly high SPL’s with a minimum
           of distortion. They are housed in contemporary styled, camera     Right-handed versions of the LE1500LS and LE1200LS are
           friendly cabinets of lightweight, yet exceedingly robust          available as the LE1500RS and the LE1200RS respectively.
           construction and are ideally suited to any stage monitoring
           requirement.                                                      The LE Series – still setting the standard for stage monitors.

           Martin Audio has long been heralded for ground breaking horn
           design and the Differential Dispersion™ horns in the new LE

24
TOURING & THEATRE – STAGE MONITORS                                                                                                                                                                                         www.martin-audio.com/touring

LE2100S                                                                                                                                           LE1200LS
                                                                                                                                                  RIGHT-HAND VERSION AVAILABLE AS LE1200RS

TYPE                              Three-way bi-amp stage monitor with
                                  symmetrically arrayed 2 x 12” LF, phase plug                                                                   TYPE                              Two-way reflex passive/bi-amp stage monitor with
                                  loaded MF and differential dispersion HF horn                                                                                                    differential dispersion HF horn
FREQUENCY RESPONSE (1)            56Hz-18kHz ± 3dB, -10dB @ 48Hz                                                                                 FREQUENCY RESPONSE (1)            64Hz-18kHz ± 3dB, -10dB @ 54Hz
DRIVERS                           2 x 12” (300mm)/3” (75mm) voice coil, ultra-long excursion,                                                    DRIVERS                           12” (300mm)/3” (75mm) voice coil, ultra-long excursion,
                                  neodymium magnet, water resistant cone, reflex loaded LF driver                                                                                  water resistant cone LF driver
                                  6.5” (165mm)/2” (50mm) ccaw ribbon voice coil,                                                                                                   1.4” (35mm) exit, 3” (75mm) voice coil titanium dome
                                  water resistant cone                                                                                                                             HF compression driver
                                  1” (25mm) exit, 1.7” (44mm) voice coil, neodymium magnet,                                                      RATED POWER (2)                   FR/LF: 400W AES, 1600W peak, HF: 80W AES, 320W peak
                                  titanium dome HF compression driver                                                                            SENSITIVITY (3)                   FR: 97dB, LF: 98dB, HF: 106dB
RATED POWER (2)                   LF: 800W AES, 3200W peak, MF + HF: 250W AES, 1000W peak                                                        MAXIMUM SPL (9)                   FR: 123dB continuous, 129dB peak
SENSITIVITY (3)                   LF: 101dB, MF + HF: 102dB                                                                                                                        LF: 124dB continuous, 130dB peak
MAXIMUM SPL (9)                   LF: 130dB continuous, 136dB peak                                                                                                                 HF: 125dB continuous, 131dB peak
                                  MF + HF: 126dB continuous, 132dB peak                                                                          NOMINAL IMPEDANCE                 FR/LF: 8 ohms, HF: 16 ohms
NOMINAL IMPEDANCE                 LF: 4 ohms, MF + HF: 8 ohms                                                                                    DISPERSION (-6dB)                 60º - 100º horizontal (differential dispersion), 60º vertical
DISPERSION (-6dB)                 60° - 100º horizontal (differential dispersion), 60º vertical                                                  CONNECTORS                        4 x Neutrik® NL4
CONNECTORS                        4 x Neutrik® NL4                                                                                               FITTINGS                          4 x skids - 4 x M8 inserts
FITTINGS                          4 x skids - 4 x M8 inserts                                                                                     DIMENSIONS                        (W) 596mm x (H) 292mm x (D) 470mm
DIMENSIONS                        (W) 826mm x (H) 385mm x (D) 582mm                                                                                                                (W) 23.5ins x (H) 11.5ins x (D) 18.5ins
                                  (W) 32.5ins x (H) 15.2ins x (D) 22.9ins                                                                        WEIGHT                            20.5kg (45lbs)
WEIGHT                            39.5kg (87lbs)

LE1500LS
RIGHT-HAND VERSION AVAILABLE AS LE1500RS

TYPE                              Two-way reflex passive/bi-amp stage monitor
                                  with differential dispersion HF horn
FREQUENCY RESPONSE (1)            56Hz-18kHz ± 3dB, -10dB @ 48Hz
DRIVERS                           15” (380mm)/4” (100mm) voice coil, ultra-long excursion,
                                  water resistant cone LF driver
                                  1.4” (35mm) exit, 3” (75mm) voice coil titanium dome
                                  HF compression driver
RATED POWER (2)                   FR/LF: 600W AES, 2400W peak
                                  HF: 80W AES, 320W peak
SENSITIVITY (3)                   FR: 98dB, LF: 99dB, HF: 106dB
MAXIMUM SPL (9)                   FR: 125dB continuous, 131dB peak
                                  LF: 126dB continuous, 132dB peak
                                  HF: 125dB continuous, 131dB peak
NOMINAL IMPEDANCE                 FR/LF: 8 ohms, HF: 16 ohms
DISPERSION (-6dB)                 60º - 100º horizontal (differential dispersion), 60º vertical
CONNECTORS                        4 x Neutrik® NL4
FITTINGS                          4 x skids - 4 x M8 inserts
DIMENSIONS                        (W) 710mm x (H) 385mm x (D) 582mm
                                  (W) 27.9ins x (H) 15.2ins x (D) 22.9ins
WEIGHT                            36kg (79lbs)                                                                                                  Black Crowes Tour, USA

All information is Copyright © 2016 Martin Audio Ltd. Due to Martin Audio’s policy of continuing improvement, we reserve the right to alter these specifications without prior notice.                                                                    25
TOURING & THEATRE – SUBWOOFERS                                                                                                www.martin-audio.com/touring

         SUBWOOFERS                                                    WS218X

         Martin Audio has always had a reputation for producing
         exceptional subwoofers, and this is maintained with the
         current range.
                                                                       TYPE                       Dual-driver vented sub-bass system
         The now legendary WS218X is ideal for premium large-          FREQUENCY RESPONSE (1)     35Hz-150Hz ± 3dB
                                                                       DRIVERS                    2 x 18” (460mm)/4” (100mm) voice coil, ultra-long
         scale touring and installation requirements and features                                 excursion, water resistant cone LF drivers
         two powerful, reflex-loaded 18” (450mm), 1000 Watt AES        RATED POWER (2)            2000W AES, 8000W peak
                                                                       SENSITIVITY (3)            105dB (half space)
         drivers with magnet structures and suspensions engineered     MAXIMUM SPL (9)            138dB continuous, 144dB peak (half space)
         for maximum linear excursion.                                 NOMINAL IMPEDANCE          8 ohms per driver
                                                                       CONNECTORS                 2 x Neutrik® NL8
                                                                       FITTINGS                   4 x 4” (100mm) castors – Pocket handles –
         The WS18X is a high performance sub-bass system designed                                 Front lid fittings
                                                                       DIMENSIONS (inc. wheels)   (W) 1066mm x (H) 561mm x (D) 780mm (911mm)
         for small-to-medium scale touring and install applications.                              (W) 42ins x (H) 22.1ins x (D) 30.7ins (35.9ins)
         Housing a powerful 18” (450mm) driver, the enclosure          WEIGHT                     89kg (196.2lbs)
         has handles and castors for ease of deployment, plus a top
         hat fitting.

         Designed to be flown or ground-stacked with W8LC and
                                                                       WS18X
         W8LM line array elements, the WLX and WMX Hybrid®
         subwoofers combine the very high efficiency of horn loading
         with the extended low frequency response of a reflex
         enclosure.

         The PSX is a companion self-powered subwoofer for the         TYPE                       Compact vented sub-bass system
                                                                       FREQUENCY RESPONSE (1)     35Hz-150Hz ± 3dB, -10dB @ 28Hz
         DD6, XD12 and XD15 full-range systems as well as O-Line.      DRIVERS                    18” (460mm)/4” (100mm) voice coil, ultra-long
         Featuring a 15” (380mm) long-excursion driver in an                                      excursion, water resistant cone LF driver
                                                                       RATED POWER (2)            1000W AES, 4000W peak
         extremely compact reflex enclosure, it has two channels of    SENSITIVITY (3)            102dB (half space)
         onboard DSP and Class D amplification — one channel for       MAXIMUM SPL (9)            132dB continuous, 138dB peak (half space)
                                                                       NOMINAL IMPEDANCE          8 ohms
         itself and one channel to power an XD12, an XD15, up to       CONNECTORS                 2 x Neutrik® NL8
         three DD6’s or a hang of O-Line taking the performance of     FITTINGS                   4 x 4” (100mm) castors – Pocket handles –
                                                                                                  Front lid fittings
         each model to a whole different level.                        DIMENSIONS (inc. wheels)   (W) 561mm x (H) 533mm x (D) 780mm (911mm)
                                                                                                  (W) 22.1ins x (H) 21ins x (D) 30.7ins (35.9ins)
                                                                       WEIGHT                     52.5kg (116lbs)

26
TOURING & THEATRE – SUBWOOFERS                                                                                                                                                                                          www.martin-audio.com/touring

WLX                                                                                                                                               WMX

TYPE                              Hybrid® horn and reflex loaded sub-woofer                                                                      TYPE                              Hybrid® horn and reflex loaded sub-woofer
FREQUENCY RESPONSE (1)            32Hz-150Hz ± 3dB, -10dB @ 28Hz                                                                                 FREQUENCY RESPONSE (1)            32Hz-150Hz ± 3dB, -10dB @ 28Hz
DRIVERS                           18” (460mm)/4” (100mm) voice coil, ultra-long                                                                  DRIVERS                           18” (460mm)/4” (100mm) voice coil, ultra-long
                                  excursion, water resistant cone, LF driver                                                                                                       excursion, water resistant cone, LF driver
RATED POWER (2)                   1000W AES, 4000W peak                                                                                          RATED POWER (2)                   1000W AES, 4000W peak
SENSITIVITY (3)                   106dB (half space)                                                                                             SENSITIVITY (6,3)                 98dB (open space), 104dB (half space)
MAXIMUM SPL (9)                   136dB continuous, 142dB peak (half space)                                                                      MAXIMUM SPL (9)                   128dB continuous, 134dB peak (open space)
NOMINAL IMPEDANCE                 8 ohms                                                                                                                                           134dB continuous, 140dB peak (half space)
CONNECTORS                        2 x Neutrik® NL8                                                                                               NOMINAL IMPEDANCE                 8 ohms
FITTINGS                          Interlocking skids on top and bottom                                                                           CONNECTORS                        2 x Neutrik NL8
DIMENSIONS (inc. wheels)          (W) 1002mm x (H) 490mm x (D) 800mm (931mm)                                                                     FITTINGS                          Proprietary rigging system
                                  (W) 39.5ins x (H) 19.3ins x (D) 31.5ins (36.7ins)                                                              DIMENSIONS (inc. wheels)          (W) 620mm x (H) 620mm x (D) 900mm (1032mm)
WEIGHT                            73.5kg (161.7lbs)                                                                                                                                (W) 24.4ins x (H) 24.4ins x (D) 35.4ins (40.6ins)
                                                                                                                                                 WEIGHT                            87kg (191lbs)

                                                                                                                                                  PSX
                                                                                                                                                 TYPE                      Compact, self-powered 15” subwoofer with output for
                                                                                                                                                                           satellite system
                                                                                                                                                 FREQUENCY RESPONSE (1)    48Hz-150Hz ± 3dB, -10dB @ 40Hz
                                                                                                                                                 DRIVER                    1 x 15” (380mm)/4” (100mm) voice coil, ultra long
                                                                                                                                                                           excursion, high efficiency ferrite magnet
                                                                                                                                                 RATED POWER (2)           800W AES, 3200W peak
                                                                                                                                                 MAXIMUM SPL (9)           133dB continuous, 136dB peak
                                                                                                                                                 AMPLIFIER TYPE            2 channel switch-mode, class D
                                                                                                                                                 PEAK OUTPUT POWER         1400W PSX subwoofer, 1000W satellite system
                                                                                                                                                 AC INPUT OPERATING RANGE  100 – 240V ~ AC, 50 - 60Hz
                                                                                                                                                 FITTINGS                  M20 threaded plate for pole mount, Bar handles
                                                                                                                                                                           Wheelboard latch plates
                                                                                                                                                 OPTIONAL ACCESSORIES      Wheelboard with 4 x 100mm castors
                                                                                                                                                                           Weather protection cowl
                                                                                                                                                 DIMENSIONS (inc. w/board) (W) 500mm x (H) 565mm x (D) 574mm (735mm)
                                                                                                                                                                           (W) 19.6ins x (H) 22.2ins x (D) 22.6in (28.9ins)
                                                                                                                                                 WEIGHT		48.2kg (106.2lbs)

The Wave, Las Vegas, USA

All information is Copyright © 2016 Martin Audio Ltd. Due to Martin Audio’s policy of continuing improvement, we reserve the right to alter these specifications without prior notice.                                                                 27
BLACKLINE+ SERIES                                                                                          www.martin-audio.com/blackline

           BLACKLINE+ SERIES
           Blackline+ systems are synonymous with exceptional sound          that the sound balance and quality is maintained even at
           quality and reliability and have become the benchmark for         high levels.
           premium live music venues, nightclubs and installations
           worldwide.                                                        In the development of the Blackline+ Series, special attention
                                                                             has also been given to matching the directivity of the low
           All low frequency drivers used in the two-way systems now         frequency drivers to the HF horns in the crossover region.
           benefit from the addition of aluminium demodulation rings         This has been achieved by careful choice of LF cone profiles,
           to minimise the variation in voice coil inductance as the coil    together with improvements in the crossover design.
           moves in the gap. The result is improved midrange clarity and
           reduced intermodulation distortion at high excursions, ensuring   Blackline+ – superior by design.

28
BLACKLINE+ SERIES                                                                                                                                                                                                   www.martin-audio.com/blackline

H3T+                                                                                                                                              H3H+

TYPE                              Three-way bi-amp/tri-amp trapezoid Hybrid® fully horn
                                  loaded
FREQUENCY RESPONSE (5)            50Hz-18kHz ± 3dB                                                                                               TYPE                              Three-way bi-amp trapezoid Hybrid® fully horn loaded
DRIVERS                           15” (380mm)/4” (100mm) voice coil bass driver                                                                  FREQUENCY RESPONSE (5)            50Hz-18kHz ± 3dB
                                  10” (250mm)/2.5” (63.5mm) voice coil mid driver                                                                DRIVERS                           15” (380mm)/4” (100mm) voice coil bass driver
                                  1” (25mm) exit HF compression driver                                                                                                             10” (250mm)/2.5” (63.5mm) voice coil mid driver
RATED POWER (2)                   LF: 750W AES, 3000W peak                                                                                                                         1” (25mm) exit HF compression driver
                                  MF/(MF + HF): 300W AES, 1200W peak                                                                             RATED POWER (2)                   LF: 750W AES, 3000W peak
                                  HF: 60W AES, 240W peak                                                                                                                           MF + HF: 300W AES, 1200W peak
SENSITIVITY (6)                   LF: 104dB, MF/(MF + HF): 104dB, HF: 106dB                                                                      SENSITIVITY (6)                   LF: 104dB, MF + HF: 104dB
MAXIMUM SPL (9)                   133dB continuous, 139dB peak                                                                                   MAXIMUM SPL (9)                   133dB continuous, 139dB peak
NOMINAL IMPEDANCE                 LF: 8 ohms, MF/(MF + HF): 8 ohms, HF: 8 ohms                                                                   NOMINAL IMPEDANCE                 LF: 8 ohms, MF + HF: 8 ohms
DISPERSION (-6dB)                 70º horizontal, 40º vertical                                                                                   DISPERSION (-6dB)                 70º horizontal, 40º vertical
CONNECTORS                        2 x Neutrik® NL8                                                                                               CONNECTORS                        2 x Neutrik® NL4
FITTINGS                          12 x M10 threaded inserts, 4 x 4” (100mm) castors                                                              FITTINGS                          12 x M10 threaded inserts, 4 x 4” (100mm) castors
DIMENSIONS (inc. wheels)          (W) 560mm x (H) 1066mm x (D) 780mm (911mm)                                                                     DIMENSIONS (inc. wheels)          (W) 1066mm x (H) 560mm x (D) 780mm (911mm)
                                  (W) 22ins x (H) 42ins x (D) 30.7ins (35.9ins)                                                                                                    (W) 42ins x (H) 22ins x (D) 30.7ins (35.9ins)
WEIGHT                            77.5kg (170.5lbs)                                                                                              WEIGHT                            77.5kg (170.5lbs)

H3+                                                                                                                                               F215+

TYPE                              Three-way bi-amp trapezoid Hybrid® fully horn loaded                                                           TYPE                              Two-way passive reflex with dual bass drivers
FREQUENCY RESPONSE (5)            50Hz-18kHz ± 3dB                                                                                               FREQUENCY RESPONSE (5)            45Hz-18kHz ± 3dB, -10dB @ 40Hz
DRIVERS                           15” (380mm)/4” (100mm) voice coil bass driver                                                                  DRIVERS                           2 x 15” (380mm)/3” (75mm) voice coil,
                                  10” (250mm)/2.5” (63.5mm) voice coil mid driver                                                                                                  neodymium magnet LF drivers
                                  1” (25mm) exit HF compression driver                                                                                                             1.4” (35mm) exit HF compression driver
RATED POWER (2)                   LF: 750W AES, 3000W peak                                                                                       RATED POWER (2)                   800W AES, 3200W peak
                                  MF + HF: 300W AES, 1200W peak                                                                                  SENSITIVITY (6)                   101dB
SENSITIVITY (6)                   LF: 104dB, MF + HF: 104dB                                                                                      MAXIMUM SPL (9)                   130dB continuous, 136dB peak
MAXIMUM SPL (9)                   133dB continuous, 139dB peak                                                                                   NOMINAL IMPEDANCE                 8 ohms
NOMINAL IMPEDANCE                 LF: 8 ohms, MF + HF: 8 ohms                                                                                    DISPERSION (-6dB)                 80º horizontal, 50º vertical
DISPERSION (-6dB)                 70º horizontal, 40º vertical                                                                                   CONNECTORS                        2 x Neutrik® NL4
CONNECTORS                        2 x Neutrik® NL4                                                                                               FITTINGS                          12 x M10 threaded inserts, 4 x 4” (100mm) castors
FITTINGS                          12 x M10 threaded inserts, 4 x 4” (100mm) castors                                                              DIMENSIONS (inc. wheels)          (W) 560mm x (H) 1066mm x (D) 496mm (627mm)
DIMENSIONS (inc. wheels)          (W) 560mm x (H) 1066mm x (D) 780mm (911mm)                                                                                                       (W) 22ins x (H) 42ins x (D) 19.5ins (24.7ins)
                                  (W) 22ins x (H) 42ins x (D) 30.7ins (35.9ins)                                                                  WEIGHT                            59kg (130lbs)
WEIGHT                            77.5kg (170.5lbs)

All information is Copyright © 2016 Martin Audio Ltd. Due to Martin Audio’s policy of continuing improvement, we reserve the right to alter these specifications without prior notice.                                                               29
BLACKLINE+ SERIES                                                                                                                      www.martin-audio.com/blackline

     F15+                                                                              F10+

     TYPE                     Compact, two-way passive                                 TYPE                     Compact, two-way passive
     FREQUENCY RESPONSE (5)   55Hz-18kHz ± 3dB, -10dB @ 45Hz                           FREQUENCY RESPONSE (5)   65Hz-20kHz ± 3dB, -10dB @ 56Hz
     DRIVERS                  15” (380mm)/3” (75mm) voice coil,                        DRIVERS                  10” (250mm)/2.5” (63.5mm) voice coil LF driver
                              neodymium magnet LF driver                                                        1” (25mm) exit HF compression driver
                              1.4” (35mm) exit HF compression driver                   RATED POWER (2)          300W AES, 1200W peak
     RATED POWER (2)          400W AES, 1600W peak                                     SENSITIVITY (6)          96dB
     SENSITIVITY (6)          100dB                                                    MAXIMUM SPL (9)          121dB continuous, 127dB peak
     MAXIMUM SPL (9)          126dB continuous, 132dB peak                             NOMINAL IMPEDANCE        8 ohms
     NOMINAL IMPEDANCE        8 ohms                                                   DISPERSION (-6dB)        90º horizontal, 50º vertical
     DISPERSION (-6dB)        80º horizontal, 50º vertical                             CONNECTORS               2 x Neutrik® NL4
     CONNECTORS               2 x Neutrik® NL4                                         FITTINGS                 10 x M8, 4 x M8 threaded inserts, mounting pole socket
     FITTINGS                 12 x M8 threaded inserts, mounting pole socket           DIMENSIONS               (W) 351mm x (H) 500mm x (D) 317mm
     DIMENSIONS               (W) 471mm x (H) 690mm x (D) 443mm                                                 (W) 13.8ins x (H) 19.7ins x (D) 12.5ins
                              (W) 18.5ins x (H) 27.2ins x (D) 17.5ins                  WEIGHT                   17kg (37lbs)
     WEIGHT                   30.5kg (67lbs)

     F12+                                                                              F8+

     TYPE                     Compact, two-way passive                                 TYPE                     Ultra-compact, two-way passive
     FREQUENCY RESPONSE (5)   65Hz-18kHz ± 3dB, -10dB @ 55Hz                           FREQUENCY RESPONSE (5)   70Hz-20kHz ± 3dB, -10dB @ 55Hz
     DRIVERS                  12” (300mm)/2.5” (63.5mm) voice coil LF driver           DRIVERS                  8” (200mm)/2” (50mm) voice coil LF driver
                              1” (25mm) exit HF compression driver                                              1” (25mm) exit HF compression driver
     RATED POWER (2)          300W AES, 1200W peak                                     RATED POWER (2)          150W AES, 600W peak
     SENSITIVITY (6)          97dB                                                     SENSITIVITY (6)          93dB
     MAXIMUM SPL (9)          122dB continuous, 128dB peak                             MAXIMUM SPL (9)          115dB continuous, 121dB peak
     NOMINAL IMPEDANCE        8 ohms                                                   NOMINAL IMPEDANCE        8 ohms
     DISPERSION (-6dB)        80º horizontal, 50º vertical                             DISPERSION (-6dB)        90º horizontal, 50º vertical
     CONNECTORS               2 x Neutrik® NL4                                         CONNECTORS               2 x Neutrik® NL4
     FITTINGS                 10 x M8, 4 x M8 threaded inserts, mounting pole socket   FITTINGS                 10 x M8, 4 x M6 threaded inserts, mounting pole socket
     DIMENSIONS               (W) 398mm x (H) 571mm x (D) 365mm                        DIMENSIONS               (W) 299mm x (H) 435mm x (D) 269mm
                              (W) 15.6ins x (H) 22.5ins x (D) 14.3ins                                           (W) 11.8ins x (H) 17.1ins x (D) 10.6ins
     WEIGHT                   21kg (46lbs)                                             WEIGHT                   12kg (26lbs)

30
BLACKLINE+ SERIES                                                                                                                                                                        www.martin-audio.com/blackline

Lavo Club, New York, USA                                                                                                                                                                              Lavo Club, New York, USA

All information is Copyright © 2016 Martin Audio Ltd. Due to Martin Audio’s policy of continuing improvement, we reserve the right to alter these specifications without prior notice.                                       31
BLACKLINE+ SERIES                                                                                                                  www.martin-audio.com/blackline

     S218+                                                                         S15+

     TYPE                       Dual-driver, vented sub-bass system                TYPE                     Compact, vented sub-bass system
     FREQUENCY RESPONSE (1)     35Hz-150Hz ± 3dB, -10dB @ 28Hz                     FREQUENCY RESPONSE (1)   45Hz-120Hz ± 3dB, -10dB @ 40Hz
     DRIVERS                    2 x 18” (460mm)/4” (100mm) voice coil LF drivers   DRIVERS                  15” (380mm)/4” (100mm) voice coil LF driver
     RATED POWER (2)            1500W AES, 6000W peak                              RATED POWER (2)          750W AES, 3000W peak
     SENSITIVITY (3)            105dB (half space)                                 SENSITIVITY (3)          101dB (half space)
     MAXIMUM SPL (9)            136.5dB continuous, 142.5dB peak (half space)      MAXIMUM SPL (9)          129.5dB continuous, 135.5dB peak (half space)
     NOMINAL IMPEDANCE          4 ohms                                             NOMINAL IMPEDANCE        8 ohms
     CONNECTORS                 2 x Neutrik® NL4                                   CONNECTORS               2 x Neutrik® NL4
     FITTINGS                   4 x 4” (100mm) castors                             FITTINGS                 Pole mount socket
     DIMENSIONS (inc. wheels)   (W) 561mm x (H) 1066mm x (D) 780mm (911mm)         DIMENSIONS               (W) 470mm x (H) 690mm x (D) 496mm
                                (W) 22.1ins x (H) 42ins x (D) 30.7ins (35.9ins)                             (W) 18.5ins x (H) 27.2ins x (D) 19.5ins
     WEIGHT                     87kg (191.5lbs)                                    WEIGHT                   38.5kg (84.5lbs)

     S18+                                                                          S12+

     TYPE                       Compact, vented sub-bass system                    TYPE                     Compact, sub-bass system
     FREQUENCY RESPONSE (1)     40Hz-120Hz ± 3dB, -10dB @ 35Hz                     FREQUENCY RESPONSE (1)   52Hz-150Hz ± 3dB, -10dB @ 43Hz
     DRIVERS                    18” (460mm)/4” (100mm) voice coil LF driver        DRIVERS                  12” (300mm)/3” (75mm) voice coil LF driver
     RATED POWER (2)            750W AES, 3000W peak                               RATED POWER (2)          400W AES, 1600W peak
     SENSITIVITY (3)            102dB (half space)                                 SENSITIVITY (3)          100dB (half space)
     MAXIMUM SPL (9)            130.5dB continuous, 136.5dB peak (half space)      MAXIMUM SPL (9)          126dB continuous, 132dB peak (half space)
     NOMINAL IMPEDANCE          8 ohms                                             NOMINAL IMPEDANCE        8 ohms
     CONNECTORS                 2 x Neutrik® NL4                                   CONNECTORS               2 x Neutrik® NL4
     FITTINGS                   Pole mount socket                                  FITTINGS                 Pole mount socket
     DIMENSIONS                 (W) 561mm x (H) 690mm x (D) 595mm                  DIMENSIONS               (W) 398mm x (H) 571mm x (D) 364mm
                                (W) 22.1ins x (H) 27.2ins x (D) 23.4ins                                     (W) 15.6ins x (H) 22.5ins x (D) 14.3ins
     WEIGHT                     45kg (99lbs)                                       WEIGHT                   20kg (44lbs)

32
BLACKLINE+ SERIES                                                                                                                                                                        www.martin-audio.com/blackline

Eric Morillo, Ministry of Sound                                                                                                                       Nest of Angels, Romania

Barrio East, London, UK                                                                                                                               Gorilla, Manchester, UK

All information is Copyright © 2016 Martin Audio Ltd. Due to Martin Audio’s policy of continuing improvement, we reserve the right to alter these specifications without prior notice.                                    33
ARCHITECTURAL – CDD SERIES                                                                           www.martin-audio.com/installation

           CDD SERIES
           Martin Audio brings engineering innovation to installed sound    audience coverage than systems with X° x Y° horns — projecting
           with the all-new CDD™ Series — combining distinctive curved      more output to the rear of the audience to distribute sound
           enclosures with unique Coaxial Differential Dispersion™          evenly front-to-back, while having wide horizontal coverage
           technology to deliver class-leading performance, fidelity and    close-up.
           coverage consistency to venues that demand the ultimate in
           cutting-edge technology and style.                               Visually-appealing enclosure design is a signature of the
                                                                            CDD Series. The full-range enclosures can be used in either
           Whether it’s a bar, an AV installation, a church or a prestige   horizontal or vertical orientation, with rotation of the coaxial
           nightclub — the CDD Series has it covered. CDD is the one-       driver easily accomplished by removing the screw-free,
           stop solution; six two-way full-range coaxial systems — from     protective grille. The curved shape of each full-range enclosure
           the micro CDD5 to the powerful CDD15, complemented by            allows it to be discreetly mounted close to a wall and threaded
           high-performance subwoofers — cover practically all install      inserts are provided for eyebolt suspension of most models.
           applications.
                                                                            The CDD Series — the shape of things to come.
           The CDD Series has the audience covered too. Coaxial
           Differential Dispersion technology delivers more consistent

34
ARCHITECTURAL – CDD SERIES                                                                                                                                                                                      www.martin-audio.com/installation

CDD5                                                                                                                                              CDD8

TYPE                     Ultra-compact, Coaxial Differential Dispersion passive                                                                  TYPE                              Ultra-compact, Coaxial Differential Dispersion passive
                         two-way system                                                                                                                                            two-way system
FREQUENCY RESPONSE (5)   100Hz-20kHz ± 3dB, -10dB @ 70Hz                                                                                         FREQUENCY RESPONSE (5)            70Hz-20kHz ± 3dB, -10dB @ 55Hz
COAXIAL DRIVER           LF: 5.25” (130mm)/1.25” (32mm) voice coil,                                                                              COAXIAL DRIVER                    LF: 8” (200mm)/2” (50mm) voice coil, long excursion,
                         long excursion, ferrite motor system                                                                                                                      shared ferrite motor system with HF
                         HF: 0.75” (19mm) voice coil, fabric dome with                                                                                                             HF: 1” (25mm) exit/1.4” (38mm) voice coil,
                         neodymium motor system                                                                                                                                    polymide dome compression driver
RATED POWER (2)          100W AES, 400W peak                                                                                                     RATED POWER (2)                   200W AES, 800W peak
SENSITIVITY (8)          90dB                                                                                                                    SENSITIVITY (8)                   94dB
MAXIMUM SPL (9)          110dB continuous, 116dB peak                                                                                            MAXIMUM SPL (9)                   117dB continuous, 123dB peak
NOMINAL IMPEDANCE        8 ohms                                                                                                                  NOMINAL IMPEDANCE                 8 ohms
DISPERSION (-6dB)        120º-90º horizontal, 80º vertical (user-rotatable)                                                                      DISPERSION (-6dB)                 110º-80º horizontal, 60º vertical (user-rotatable)
CONNECTORS               Low profile 13A push-lock                                                                                               CONNECTORS                        Low profile 13A push-lock
FITTINGS                 6 x M5 inserts for wall/ceiling brackets                                                                                FITTINGS                          6 x M6 inserts for wall/ceiling brackets
DIMENSIONS               (W) 160mm x (H) 230mm x (D) 149mm                                                                                       DIMENSIONS                        (W) 256mm x (H) 410mm x (D) 252mm
                         (W) 6.3ins x (H) 9.1 ins x (D) 5.9 ins                                                                                                                    (W) 10.1ins x (H) 16.1ins x (D) 9.9ins
WEIGHT                   3kg (6.6lbs)                                                                                                            WEIGHT                            9.5kg (21lbs)
CDD5 is supplied with wall mount tilt/pan bracket

CDD6                                                                                                                                              CDD10

TYPE                              Ultra-compact, Coaxial Differential Dispersion passive                                                         TYPE                              Compact, Coaxial Differential Dispersion passive
                                  two-way system                                                                                                                                   two-way system
FREQUENCY RESPONSE (5)            80Hz-20kHz ± 3dB, -10dB @ 70Hz                                                                                 FREQUENCY RESPONSE (2)            65Hz-20kHz ± 3dB, -10dB @ 55Hz
COAXIAL DRIVER                    LF: 6.5” (165mm)/1.5” (38mm) voice coil,                                                                       COAXIAL DRIVER                    LF: 10” (250mm)/2.5” (63.5mm) voice coil,
                                  long excursion, ferrite motor system                                                                                                             long excursion, shared ferrite motor system with HF
                                  HF: 1” (25mm) voice coil, fabric dome with                                                                                                       HF: 1” (25mm) exit/1.4” (38mm) voice coil,
                                  neodymium motor system                                                                                                                           polymide dome compression driver
RATED POWER (2)                   150W AES, 600W peak                                                                                            RATED POWER (2)                   250W AES, 1000W peak
SENSITIVITY (8)                   91dB                                                                                                           SENSITIVITY (8)                   96dB
MAXIMUM SPL (9)                   113dB continuous, 119dB peak                                                                                   MAXIMUM SPL (9)                   120dB continuous, 126dB peak
NOMINAL IMPEDANCE                 8 ohms                                                                                                         NOMINAL IMPEDANCE                 8 ohms
DISPERSION (-6dB)                 110º-80º horizontal, 80º vertical (user-rotatable)                                                             DISPERSION (-6dB)                 110º-75º horizontal, 60º vertical (user-rotatable)
CONNECTORS                        Low profile 13A push-lock                                                                                      CONNECTORS                        Low profile 20A push-lock
FITTINGS                          4 x M6 inserts for wall/ceiling brackets                                                                       FITTINGS                          6 x M8 inserts for wall/ceiling brackets,
DIMENSIONS                        (W) 210mm x (H) 325mm x (D) 210mm                                                                                                                10 x M8 fly points
                                  (W) 8.3ins x (H) 12.8ins x (D) 8.3ins                                                                          DIMENSIONS                        (W) 323mm x (H) 513mm x (D) 310mm
WEIGHT                            5.5kg (12.1lbs)                                                                                                                                  (W) 12.7ins x (H) 20.2ins x (D) 12.2ins
                                                                                                                                                 WEIGHT                            15.3kg (33.7lbs)

All information is Copyright © 2016 Martin Audio Ltd. Due to Martin Audio’s policy of continuing improvement, we reserve the right to alter these specifications without prior notice.                                                              35
You can also read
NEXT SLIDES ... Cancel
