our vision                                                                       Welcome to our
To inspire our customers with innovative state of the art energy efficient       master lighting
lighting solutions
                                                                                 collection for 2014
                                                                                 For over 15 years Sycamore Lighting has been
                                                                                 at the forefront of lighting innovation.




“                                                                            “
                                                                                 Established in 1998, our dedication to quality
our vALUES                                                                       has resulted in sustained growth by offering
To remain committed to building on our reputation of excellence in customer      a diverse range of lighting and the very
service and to continue implementing the latest energy saving technology         latest in technology. Major investment in new
into our products                                                                technologies, personnel, and state of the art
                                                                                 testing and training facilities has enabled us
                                                                                 to cross over into different market sectors,
                                                                                 whilst also retaining our reputation as a
                                                                                 major supplier of lighting and control systems
                                                                                 throughout the UK and Europe.




                                                                                                                                  3
2014 Master Lighting Collection
Lighting has become a very technical subject, and
                                                              as market leaders in our field, we have invested
                                                                                                                      Spectroradiometer &                                    of installations in different environments, and
                                                                                                                                                                             ensures that our range complies with the criteria
                                                              in a fully operational laboratory, and employed         Integrating Sphere                                     that limits these types of emissions from electrical
                                                              a qualified electronics expert, enabling us to                                                                 components.

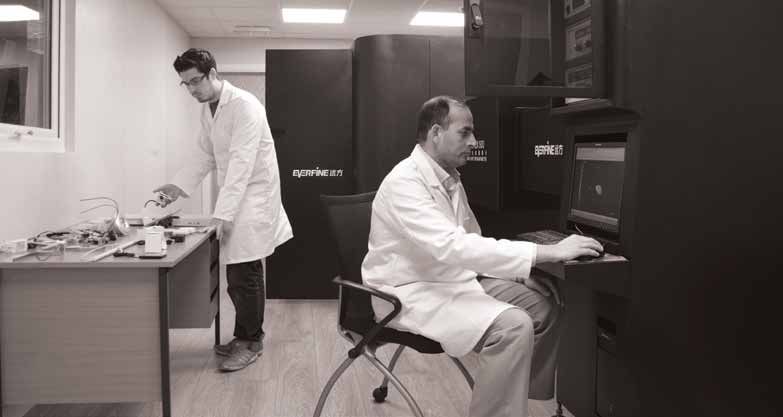

                                                                                                                      This apparatus has been installed within our new
                                                              offer consistency of information for all the lighting
                                                              products within our range, offering accurate data
                                                                                                                      laboratory to measure the photometric parameters
                                                                                                                      of light fittings and lamps.
                                                                                                                                                                             GONIO-
                                                              for lighting planners.
                                                                                                                      We can now offer accurate data in relation to
                                                                                                                                                                             SPECTRORADIOMETER
                                                              Our huge warehouse facilities and constant
                                                                                                                      lumen output, colour rendition, colour temperature     The Gonio-Spectroradiometer, now on site
                                                              stock control enable us to offer a quick and
                                                                                                                      and power factor of any given luminaire.               at Sycamore’s laboratory, tests light sources
                                                              comprehensive delivery service.
                                                                                                                                                                             for photometric, colorimetric and electrical
                                                                                                                                                                             parameters. The test system can measure the

                                                              Colour Temperature &                                    EMC Test Cabinet                                       luminous flux, luminous intensity, average beam
                                                                                                                                                                             angle and illuminance of the luminaire. It also
                                                                                                                      Allied to the sphere, this piece of equipment
                                                              Appearance                                              measures the electromagnetic interference of light
                                                                                                                                                                             measures the colour temperature, the colour
                                                                                                                                                                             rendering index at different angles, and generates
                                                              Our lighting range is available with a variety of       fittings and power converters under test conditions.   several detailed photometric and colorimetric test
                                                              different coloured LED enabling our customers to                                                               reports for our luminaires.
                                                                                                                      This test enables us to determine the suitability
                                                              choose the correct product for their application
                                                              and taste.
                                                              There are three options of colour temperature:
                                                              • Warm White - circa 3000 Kelvin
                                                              • Natural White - circa 4000 Kelvin
                                                              • Cool White - circa 5500 Kelvin
                                                              Traditional halogen and fluorescent light sources,
                                                              which are used in the majority of applications,
                                                              tend to be circa 3200 Kelvin, which falls into the
                                                              warm white category. Energy efficient Compact
                                                              Fluorescent (CFL) lamps, which followed the
                                                              standard household GLS bulbs, tend to be the
                                                              same.
                                                              When LED became commercially viable, they
                                                              tended to be cool white, giving the impression
                                                              of a very bright, clinical, almost blue output. As
                                                              technology evolves, warm white and natural white
                                                              are becoming more commonplace, with natural
                                                              white complimenting most surroundings, with warm
                                                              white and cool white options being more specific in
                                                              their application.




4   Tel: +44 (0) 113 286 6686 www.sycamorelightingltd.co.uk                                                                                                                                                                         5
