Consumer Lighting Solutions
Enduralite                            Innova Grid          Crown       Elite Maglev Dlx

                                                                      Havells’ energy efficient
                                                                       lighting equipments
                                                                 now comes with an added feature.
                                                                               Wide range.
                                  Endura Flat Panel                                                            LED Tunnel Tek Sq.

                                   Enduralite Round                             Endura DL 16   Wingo Lite SM           DL 21 Plus

                                             Sp
                                             Spring 3                               Combay     Ranger 2 Oval        Ranger 1 CFL

                                    Endura Cityliner                                 Optal 1    Optal 2 New    Crypton T5 4x24W

With companies like Sylvania, Concord and Lumiance as a part of its
portfolio, Havells has presence in over 50 countries. It also exports to almost
every major market and is also the leading exporter of CFLs from India. With
over 1000 products, 91 offices and 16 plants, the future only looks bright.

E-mail: marketing@havells.com, www.havells.com,
Consumer Care No.: 1800 103 1313 (All Connections), 011-4166 0303 (Landline)
Consumer Lighting Solutions
Contents

1   Introduction of Havells .............................................. 2-3

2   Manufacturing Plant ................................................. 4-5

3   Item Code Logic ...................................................... 6-6

4   Guide to Symbols .................................................... 7-7

5   Product Index Alphabetically..................................... 8-8

6   Product Index Category ......................................... 9-10

7   Consumer Lighting .............................................. 12-81
Consumer Lighting Solutions
Introduction of
                    Havells
Welcome to the world of Havells India Limited, a leading company in electrical consumer
durable and power distribution equipment manufacturer with a strong global footprint. With
total turnover exceeding billion-plus dollars, Havells enjoys an enviable market dominance
across a wide spectrum of products and services, including Industrial & Domestic Circuit
Protection Devices, Cables & Wires, Motors, Fans, Power Capacitors, CFL Lamps,
Luminaires for Domestic, Commercial & Industrial Applications, Modular Switches, &
Electric Water Heaters.
Powered by leading brands and strong service and delivery network
Havells owns some of the prestigious global brands like Havells, Crabtree, Sylvania,
Concord, Luminance & Standard as part of its portfolio. Its global network constitutes of
91 branches and representative offices with over 8000 professionals in over 50 countries
across the globe. Its twelve state-of-the-art manufacturing plants in India located at
Haridwar, Baddi, Noida, Sahibabad, Faridabad, Alwar, Neemrana and six plants located
across Europe & Latin America churn out globally acclaimed products, which are
synonymous with excellence and expertise in the electrical industry.

 2
Consumer Lighting Solutions
Backed with its 20000 strong global distribution network, Havells continuously strives
to set new benchmarks in prompt delivery and service to its customers – powering their
smiles like none other electrical brand!
Recognised by world quality leaders
Havells and its products & processes have acquired a number of International quality
certifications, like BASEC, CSA, KEMA, CB, CE, ASTA, CPA, SEMKO, SIRIUM (Malaysia),
SPRING (Singapore), TSE (Turkey), SNI (Indonesia) and EDD (Bahrain) – thus complying
with stringent quality norms at even the most testing markets, worldwide.
Today, Havells and its various brands, have earned the distinction of being the preferred
choice of electrical products for discerning individuals and industrial consumers both
in India and abroad and is all set to keep powering the world with its state-of-the-art
innovations and energy-efficient solutions.

                                                                                            3
Consumer Lighting Solutions
Manufacturing
       Plants

                    Havells - Alwar

                    Havells - Baddi

                Havells - Neemrana

4
Consumer Lighting Solutions

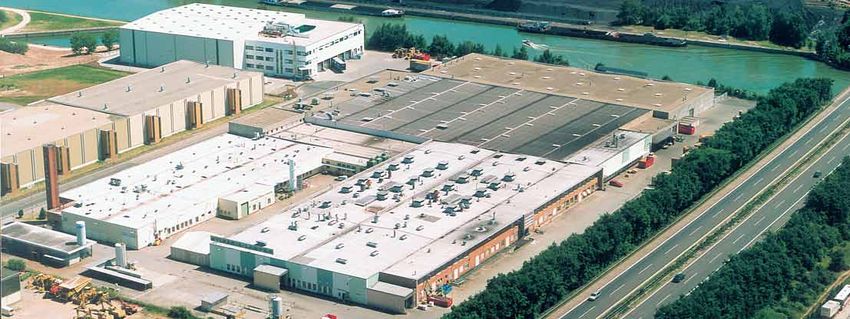

Havells Sylvania - Germany

Havells Sylvania - Colombia

   Havells Sylvania - Brazil

                         5
Consumer Lighting Solutions
Havells
                                         Item Code Logic
Lighting Havells Application                              Lamp                        Product                    No. Of            Lamp                Mounting Type                          Ballast
                   Type                                   Source                      Version                    Lamp             Wattage               ignitor Type                           Type

      L             H               C                        C                          N       1                     3             3    6                       1                             1    1

                           B   =   Ballast        B   =   Blended MV            A = MS white painted         1    =   1 Lamp   CFL Lamps              For Commercial Fixture          FTL/ FPL OCB
                           C   =   Commercial     C   =   CFL                       CAT III reflector (L1)   2    =   2 Lamp   09 = 9W CFL            1 = Armstrong ceiling           07 = 230V, 18/20W FTL/FPL OCB
                           D   =   Domestic       F   =   Flourescent           B = Specular finish Al.      3    =   3 Lamp   11 =11W CFL            2 = Gypsum Board                09 = 230V, 36/40W FTL/FPL OCB
                           E   =   Emergency      G   =   HPMV                      CAT III reflector (L1)   4    =   4 Lamp   13 = 13W CFL           3 = Recess mounting             11 = 240V, 36/40W FTL/FPL OCB
                           F   =   Flood Light    H   =   Tungsten              C = Specular finish Al.                        18 = 18W CFL/FPL/FTL   4 = Surface mounting            15 = 240V, 18/20W FTL/FPL OCB
                           G   =   Control                Halogen                   CAT II reflector (L2)                      26 = 26W CFL           6 = Luxlon ceiling              CFL OCB
                                   Gear Box       L   =   GLS                   N = Non Category Louvre                        36 = 36W FPL/FTL       7 = Pendent mounting            17 = 7/9/11W CFL OCB
                           I   =   Industrial     M   =   Metal Halide          P = Polycarbonate Louvre                       FTL / T5 Lamps         For HID Luminaires              18 = 13W CFL OCB
                           R   =   Roadway        S   =   Sodium Vapour                                                        02 = 20W FTL           A = Short distance Ignitor      20 = 18W CFL OCB
                           S   =   Sources        T   =   T5 FTL                                                               04 = 40W FTL                 suitable for SV only      21 = 26W CFL OCB
                           V   =   Vapour Proof   W   =   Elliptical HID only                                                  08 = 8W T5 FTL         B = Long distance Ignitor       Electronic Ballasts
                           W   =   Well Glass     Y   =   Tubular HID only                                                     14 = 14W T5 FTL              suitable for SV/MH        26 = 1X36/40W FTL EB THD
Consumer Lighting Solutions
Guide to Symbols

                   Consumer
                   Lighting
                              7
Consumer Lighting Solutions
Product Index
Alphabetically

1       Athena 2 (Prismatic)        Page 68   36   Glider                                  Page 43
2       Athena 3 (Moon)             Page 69   37   Innova 11 Watt Blister Pack             Page 37
3       Athena 4 (Globe)            Page 70   38   Innova 111 18 Watt                      Page 38
4       Athena 5 (Opal)             Page 71   39   Innova 111Grid 18 Watt                  Page 35
5       Beetle                      Page 62   40   Innova Combo Pack                       Page 36
6       Candy                       Page 58   41   Innova Downlighter Fixed Type           Page 39
7       CFL Copper Ballast          Page 80   42   Innova Downlighter Swivel Type          Page 40
8       CFL Electronic Ballast      Page 75   43   Innova Grid 11 Watt                     Page 34
9       City 1 New                  Page 65   44   Korona 1                                Page 54
10      City 2 (New)                Page 66   45   Korona 2                                Page 55
11      City 3                      Page 67   46   Liliput Electra                         Page 33
12      Crown                       Page 53   47   Lonon Round                             Page 50
13      DL 15 E                     Page 46   48   Lonon Square                            Page 49
14      DL 17 E                     Page 45   49   Lonon-Surface (Round)                   Page 52
15      DL 50                       Page 44   50   Lonon-Surface (Square)                  Page 51
16      Dreamlite Electronic        Page 24   51   Lonova Round                            Page 48
17      Eco Signage                 Page 79   52   Lonova-Square                           Page 47
18      EL Star DX                  Page 76   53   Luna-4Pin                               Page 60
19      Electra                     Page 29   54   Matrix-4Pin                             Page 61
20      Electra Popular             Page 28   55   Neo 1                                   Page 41
21      Electra Slim                Page 27   56   Neo 2                                   Page 42
22      E-Lite Desire               Page 18   57   Ovale 1                                 Page 56
23      E-Lite EZ Popular           Page 21   58   Ovale 2                                 Page 57
24      E-Lite Maglev DLX           Page 19   59   Peacock                                 Page 59
25      E-Lite Maglev DLX Popular   Page 20   60   Rayzor                                  Page 74
26      Endura Lite                 Page 15   61   Rayzor Electronic                       Page 26
27      Endura Lite Combo Pack      Page 13   62   Rayzor Slim                             Page 25
28      Endura Lite Fixture         Page 16   63   Rover EZ                                Page 23
29      Endura Plate                Page 14   64   Rover Plus                              Page 22
30      Estilo                      Page 73   65   Signage Slim                            Page 77
31      Eurostrip                   Page 30   66   Star Slim (Electronic Ballast)          Page 78
32      Ezee Deluxe                 Page 31   67   Super Strip                             Page 72
33      Ezee Popular                Page 32   68   Wallbrite                               Page 64
                                                                                    Consumer
                                                                                    Lighting
34      Flute                       Page 17   69   Wallbrite Electra                      Page 63
35      FTL Copper Ballast          Page 81
    8
Product Index
Category

DOWNLIGHTER
LED

                        Endura Lite          Endura Plate          Endura Lite         Endura Lite Fixture
                        Combo Pack           Page 14               Page 15             Page 16
                        Page 13

MINIATURE
FLUORESCENT LAMP

                        Innova Grid 11W      Innova 111 Grid 18W   Innova Combo Pack   Innova 11W            Innova 111 18W           Innova Downlighter
                        Page 34              Page 35               Page 36             Blister Pack          Page 38                  Fixed Type
                                                                                       Page 37                                        Page 39

                        Innova Downlighter   Lonova Square         Lonova Round
                        Swivel Type          Page 47               Page 48
                        Page 40

RETROFIT

                        Neo 1                Neo 2                 Glider              DL 50
                        Page 41              Page 42               Page 43             Page 44

NON-RETROFIT

                        DL 17 E              DL 15 E               Lonon Square        Lonon Round           Lonon-Surface (Square)   Lonon-Surface (Round)
                        Page 45              Page 46               Page 49             Page 50               Page 51                  Page 52

BATH/MIRROR LIGHTS

                        Flute                Ezee Deluxe           Ezee Popular        Liliput Electra
                        Page 17              Page 31               Page 32             Page 33

WALL/CEILING FIXTURES
NON-RETROFIT

                        Crown                Candy                 Peacock             Luna                  Matrix                   Wallbrite Electra
                        Page 53              Page 58               Page 59             Page 60               Page 61                  Page 63

                                                                                                                        Consumer
                        Wallbrite
                        Page 64
                                                                                                                        Lighting
                                                                                                                                                          9
RETROFIT

                     Korona 1                 Korona 2            Ovale 1                  Ovale 2             Beetle              City 1 (New)
                     Page 54                  Page 55             Page 56                  Page 57             Page 62             Page 65

                     City 2 (New)             City 3              Athena 2 (Prismatic)     Athena 3 (Moon)     Athena 4 (Globe)    Athena 5 (Opal)
                     Page 66                  Page 67             Page 68                  Page 69             Page 70             Page 71

BATTEN & STRIPLITE
RANGE
T5 RANGE

                     E-Lite Desire            E-Lite Maglev Dlx   E-Lite Maglev Dlx Pop.   E-Lite EZ Popular   Eurostrip
                     Page 18                  Page 19             Page 20                  Page 21             Page 30

T8/T12 RANGE

                     Rover Plus               Rover EZ            Dreamlite Electronic     Rayzor Slim         Rayzor Electronic   Electra Slim
                     Page 22                  Page 23             Page 24                  Page 25             Page 26             Page 27

                     Electra Popular          Electra
                     Page 28                  Page 29

COPPER RANGE

                     Super Strip              Estilo              Rayzor
                     Page 72                  Page 73             Page 74

ACCESSORIES

                     CFL Electronic Ballast   El-Star DX          Signage Slim             Star Slim           Eco Signage         CFL Copper Ballast
                     Page 75                  Page 76             Page 77                  Page 78             Page 79             Page 80

                                                                                                                           Consumer
                                                                                                                           Lighting
                     FTL Copper Ballast
                     Page 81

10
Consumer
Lighting
           11
Consumer
 Lighting
Endura Lite Combo Pack
                                                          Enduralite, ultra bright LED spotlight with 360° swivel
                                                          fixture and electronic driver pre-packed in blister.

                                                          Specification

                                           Ø80.8
                                                          Housing
                                                          Made up of pressure die-cast aluminium with decorative face.

                                                          Finish
                       66.0

                                                          Silver - Brush.

                                                          Optics
                              Top View                    General diffuser, view angle-25O, clear lens to make comfortable lighting.

                                                          Lamp holder
                                                   46±2

                                                          By means of mini flexi clip-on with wires.

                                                          Electric gear
                              Front View                  Pre fitted with HF electronic driver upto terminal block with clip-on connector to
                                                          fit with lamp.

                                           Ø80.8          Mounting
                                                          Fixed on false ceiling by means of SS spring clips/ blades.

                                                          Applications
                       66.0

                                                          Residences
                                                          Clean rooms
                                                          Hospital premises
                                                          Conference rooms
                              Top View
                                                   46±2

                              Front View

Cutout size : Ø70 mm
All dimensions are in mm
                                                                Ordering              Lamp              Nominal         Mains       Lamp
                                                                 Code                 Type             Voltage (V)    Current (A)   Socket
                                                              LHOD01103374         1x3W LED-3K            230            0.055      Clip-on
                                                              LHOD01103674         1x3W LED-6K            230            0.055      Clip-on
                                                              LHOD02301374         3x1W LED-3K            230            0.055      Clip-on
                                                              LHOD02301674         3x1W LED-6K            230            0.055      Clip-on

                                                                                                                     Consumer
                                                                                                                     Lighting
                                                                                                                                          13
Endura Plate
                                                                Enduraplate, ultra bright LED spotlight with 360° swivel
                                                                fixture provided with electronic driver.

                                                                Specification

                                200±2
                                                                Housing
                                                                Decorative silver brush finish cast aluminium LM 24 plate.

                                                                Finish
                                                                Silver - Brush.
                                                        110±2

                                                                Mounting
                                                                Fixed into false ceiling with the help of SS spring clips.

                               Top View                         Applications
                                                                Suitable for MR 16/ Innova 11/ Endura Lite.
                                                        46±1

                               Front View

                           Cutout size : 173x87 mm
                                200±2
                                                      200±2

                               Top View
                                                      46±1

                                                                        Ordering                Lamp         Nominal           Mains       Lamp
                                                                         Code                   Type        Voltage (V)      Current (A)   Socket
                                                                    LHOH83250399               2x3W LED        230              0.110      Clip-on
                               Front View                           LHOH83450399               4x3W LED        230              0.220      Clip-on
                           Cutout size : 173x173 mm
                                                                Data given with Endura Lite.
All dimensions are in mm

                                                                                                                          Consumer
                                                                                                                          Lighting
 14
Endura Lite
                                                                                                            Enduralite, ultra bright LED spotlight and electronic
                                                                                                            driver pre-packed in blister, a cool replacement for MR
                                                                                                            16 lamp (Dichroic Lamp).

                                                                                                            Specification

                                                                                                            Lamp housing
                                                                                                            Compact design pressure die-cast aluminium housing.

                                                                                                            Finish
                                                                                                            Textured finish/ Brush finish.

                           Ø50                          40.5                            20.6                Optics
                                                                      Ø4.0                                  General diffuser, view angle-25O, clear lens to make comfortable lighting.

                                                                                                            Lamp holder
                                   Endura Lite LED Driver                                                   By means of mini flexi clip-on with wires.
                                   Description      :     Endura Lite 3x1W
                                   Ord. Code        :     LHBD01301078
                                   Supply Voltage   :     110-240VAC 50/60Hz
                                                                                                            Electric gear
                                                                                                   57.5±1
                                                                               49.7

                                   Current          :     350mA
                                   Power            :     upto 3W max.
                                   ta=50º C                                                                 Pre fitted with HF electronic driver upto terminal block with clip-on connector to
                                   tc=70º C

          Top View
                                                                       tc
                                                                                                            fit with lamp.
                                                         F

                                                        HL08                                                Mounting
                                                                                                            Fixed on false ceiling wherein replacement of dichroic lamp/ MR 16 lamp.
                            46±1

                                                                    Ø3.4              Front View
                                                Top View
                                                                                                            Applications
                                                                                                            Residences
                                                                                                            Clean rooms
                                                                                                            Hospital premises
                                                                                                            Conference rooms
          Front View

All dimensions are in mm
                                                                                                                  Ordering              Lamp              Nominal        Mains       Lamp
                                                                                                                   Code                 Type             Voltage (V)   Current (A)   Socket
                                                                                                               LHOD03103374          1x3W LED-3K            230           0.055      Clip-on
                                                                                                               LHOD03103674          1x3W LED-6K            230           0.055      Clip-on
                                                                                                               LHOD04301374          3x1W LED-3K            230           0.055      Clip-on
                                                                                                               LHOD04301674          3x1W LED-6K            230           0.055      Clip-on

                                                                                                                                                                       Consumer
                                                                                                                                                                       Lighting
                                                                                                                                                                                                D-10
                                                                                                                                                                                               15
Endura Lite Fixture
                                                    Cast aluminium swivel fixture in silver finish suitable for
                                                    endura lite.

                                                    Specification

                                                    Housing
                                                    Decorative silver finish cast aluminium LM 24 ring rivetted to the black powder
                                                    coated MS frame.

                                                    Finish
                                                    Matt silver finish face with glossy border.
                                        Ø77.2
                                            Ø82.0   Mounting
                                                    Fixed into false ceiling with the help of SS spring clips rivetted to the ring.

                                                    Applications
                                                    Suitable for MR 16/ Innova 11/ Endura Lite.

                           Top View
                                          30±1

                           Front View

                              67.0
                           Side View

Cutout size : Ø71 mm
All dimensions are in mm
                                                          Ordering              Lamp               Nominal         Mains         Lamp
                                                           Code                 Type              Voltage (V)    Current (A)     Socket
                                                       LHOD01103099            1x3W LED              230            0.055        Clip-on

                                                                                                                Consumer
                                                                                                                Lighting
 16
Flute
                                                                      Elegantly designed contemporary ultra sleek Mirror
                                                                      Light suitable for T2 13W Lamp.

                                                                      Specification

                                                                      Housing
                                                                      Made up of high grade engineering plastic (ABS) body.

                                                                      Optics
                                                                      Methacrylate round shaped diffuser with 50% reflector coated to give directional
                                                                      light.360o rotation of the diffuser gives a provision to direct the light output in
                                                                      desired direction.
                                                               24±1

       OPEN                                            OPEN
        CLOSE                                          CLOSE

                           Top View
                            540±2                                     Lamp holder
                                                                      Push fit type white polycarbonate with phosphor bronze contacts.
                                               Flute

                           Front View
                                                                      Electric gear
                                                                      Pre wired with 230V HF electronic ballast upto terminal block.
                           R11
                                                                      Not recommended for 240V industrial application
                                        44±1

                           Side View
                                                                      Mounting
                                                                      Fixed on wall / ceiling with the help of screws
                                                                      3 mounting arrangements provided for flexible mounting arrangement
                                                                      a) Steel C – Clamps
                                                                      b) L – Clamps
                                                                      c) Direct fit clamp

                                                                      Applications
                                                                      Mirror light
                                                                      Study room light
                                                                      Hotels
                                                                      Residences
                                                                      Art galleries
                                                                      Museums
                                                                      Recreation clubs

All dimensions are in mm
                                                                           Ordering           Lamp           Nominal        Mains        Lamp       Power
                                                                            Code              Type          Voltage (V)   Current (A)    Socket     Factor
                                                                         LHDT15113431     T2 13W FTL - 4K      230           0.060      W4.3x8.5d   >0.98
                                                                         LHDT15113631     T2 13W FTL - 6K      230           0.060      W4.3x8.5d   >0.98

                                                                                                                                Consumer
                                                                                                                                Lighting
                                                                                                                                                        17
E-Lite Desire
                                                           Decorative ultra slim fixture with extruded aluminium
                                                           body, prismatic diffuser, snap on installers & HF
                                                           electronic ballast suitable for T5 FTL.

                                                           Specification

                                                           Housing
                                                           Made up of ultra slim extruded aluminium channel with rib for extra strength,
                                                           powder coated with white finish.

                                                           End caps
                                                           Twin silver colour clip-on end caps provided for better aesthetic appearance.
                                      L
                                                           Diffuser
                                                           Methacrylate, prismatic diffuser for glare free light.
                                  Top View
                                                           Lamp holders
                                                           Push fit rotary type white polycarbonate with phosphor bronze contacts.
                                                       H

                                 Front View
                                                           Electric gear
                                                           Pre-wired with 230V rated high frequency electronic ballast, upto terminal block,
                                                           pre-fitted with lamp.
                                      W
                                  Side View                Not recommended for industrial 240V application.

                                                           Mounting
                                                           Fixed on wall/ ceiling with the help of snap-on installers provided.

                                                           Applications
                                                           Residences
                                                           Clean rooms
                                                           Cove lighting
                                                           Hospital premises
                                                           Educational institutions
                                                           Corridors

All dimensions are in mm

  Lamp Type     Length (L)   Width (W)    Height (H)             Ordering             Lamp           Nominal          Mains       Lamp     Power
                                                                  Code                Type          Voltage (V)     Current (A)   Socket   Factor
 1x14W T5 FTL      625+2       24+1           38+1
 1x28W T5 FTL     1225+2       24+1           38+1             LHDT01114631        1x14W T5 FTL        230             0.110       G5      >0.55
                                                               LHDT01128632        1x28W T5 FTL        230             0.220       G5      >0.55

                                                                                                                       Consumer
                                                                                                                       Lighting
 18
E-Lite Maglev DLX
                                                             Decorative ultra slim fixture with extruded aluminium
                                                             body prismatic diffuser, snap on installers & HF
                                                             electronic ballast suitable for 8W/ 14W/ 28W/ 54W T5
                                                             FTL.
                                                             Specification

                                                             Housing
                                                             Made up of ultra slim extruded aluminium, powder coated with white finish.

                                                             End caps
                                                             Silver colour clip-on end caps provided as standard upto 28W T5 FTL. Blue colour
                                                             clip -on-end caps provided as standard for 54W T5 FTL.

                                                             Diffuser
                                                         W

                                                             Methacrylate, prismatic diffuser for glare free light.
                                  Top View
                                                             Lamp holders
                                                             Push fit rotary type white polycarbonate with phosphor bronze contacts.

                                                             Electric gear
                                     L                       Pre-wired with 230V rated high frequency electronic ballast, upto terminal block,
                                 Front View                  pre-fitted with lamp.
                                                             Not recommended for industrial 240V application.
                                             H

                                                             Mounting
                                Side View                    Fixed on wall/ ceiling with the help of snap-on installers provided.

                                                             Applications
                                                             Residences
                                                             Clean rooms
                                                             Cove lighting
                                                             Hospital premises
                                                             Educational institutions
                                                             Corridors

All dimensions are in mm
 Lamp Type      Length (L)   Width (W)      Height (H)             Ordering             Lamp            Nominal         Mains       Lamp     Power
                                                                    Code                Type           Voltage (V)    Current (A)   Socket   Factor
  1x8W T5 FTL     385+2        23+1           44.5+1
 1x14W T5 FTL     640+2        23+1           44.5+1             LHDF11108031      1x8W T5 FTL - 6K       230            0.060       G5      >0.55
 1x28W T5 FTL    1240+2        23+1           44.5+1             LHDF11114031      1x14W T5 FTL - 6K      230            0.110       G5      >0.55
 1x54W T5 FTL    1240+2        23+1           44.5+1             LHDF11128332      1x28W T5 FTL - 3K      230            0.260       G5      >0.55
                                                                 LHDF11128032      1x28W T5 FTL - 6K      230            0.260       G5      >0.55
                                                                 LHDF11154371      1x54W T5 FTL - 3K      230            0.320       G5      >0.55
                                                                 LHDF11154071      1x54W T5 FTL - 6K      230            0.320       G5      >0.55

                                                                                                                         Consumer
                                                                                                                         Lighting
                                                                                                                                                 19
E-Lite Maglev DLX Popular
                                                        Extruded aluminium decorative ultra slim fixture without
                                                        diffuser, snap on installers & domestic electronic ballast
                                                        suitable for 14W/ 28W/ 54W T5 FTL.

                                                        Specification

                                                        Housing
                                                        Made up of ultra slim extruded aluminium, powder coated with white finish.

                                                        End caps
                                                        Silver colour clip-on end caps provided as standard upto 28W T5 FTL. Blue colour
                                                        clip-on-end caps provided as standard for 54W T5 FTL.

                                                        Lamp holders
                                                        Push fit rotary type white polycarbonate with phosphor bronze contacts.
                                      Top View

                                                        Electric gear
                                                        Pre-wired with 230V rated high frequency electronic ballast, upto terminal block,
                                                        pre-fitted with lamp.
                                          L             Not recommended for industrial 240V application.
                                      Front View

                                                        Mounting
                                                        Fixed on wall/ ceiling with the help of snap-on installers provided.
                                                 H

                                                        Applications
                                       W                Residences
                                   Side View            Cove lighting
                                                        Hospital premises
                                                        Educational institutions
                                                        Corridors

All dimensions are in mm
 Lamp Type      Length (L)   Width (W)     Height (H)         Ordering             Lamp         Nominal        Mains       Lamp     Power
                                                               Code                Type        Voltage (V)   Current (A)   Socket   Factor
 1x14W T5 FTL     640±2        23±1          44.5+1
 1x28W T5 FTL    1240±2        23±1          44.5+1         LHDF12114031       1x14W T5 FTL        230          0.110          G5   >0.55
 1x54W T5 FTL    1240±2        23±1          44.5+1         LHDF12128032       1x28W T5 FTL        230          0.260          G5   >0.55
                                                            LHDF12154071       1x54W T5 FTL        230          0.320          G5   >0.55

                                                                                                                Consumer
                                                                                                                Lighting
 20
E-Lite EZ Popular
                                                                                                                                                   Decorative ultra slim fixture with electronic ballast
                                                                                                                                                   suitable for single 28W linear fluorescent lamp for
                                                                                                                                                   indoor application only.

                                                                                                                                                   Specification

                                                                                                                                                   Housing
                                                                                                                                                   Made up of ultra slim CRCA sheet steel.

                                                                                                                                                   Finish
                                                                                                                                                   Epoxy coated white after phosphochromate treatment.

                                                                      1240±2                                                                       End caps
                                                                       345±2                                                                       Silver coloured clip-on end caps provided as standard.

                                                                                                                                                   Lamp Holders
24±1

                           N
                               ELECTRONIC BALLAST: 1x28W T5 FTL   Item Code: LHBT03128032   Vin-240V, 50Hz, Iin-0.140A, P.F.-0.95   T5 Ez   Lamp
                           P

                                                                                                                                                   Push fit type white polycarbonate with phosphor bronze contacts.
                                                                   332±2
                                                                  Top View                                                                         Electric gear
                                                                                                                                                   Pre-wired with 230V rated high frequency HPF electronic ballast, less than 33%
44±2

                                                                                                                                                   upto terminal block.
                                                                              612                                                                  Not recommended for industrial 240V application.
                                                                   1128±2
                                                                  Front View
                                                                                                                                                   Mounting
                                                                                                                                                   On ceiling/ wall with screws or suspend by stainless steel suspension wire.
                                                                                                                                    47±1
                                                                                                               16.7

                                                                                                                                                   Applications
                                                                    24±1                                                                           Residences
                                                                  Side View
                                                                                                                                                   Cove lighting
                                                                                                                                                   Hospital premises
                                                                                                                                                   Educational institutions
                                                                                                                                                   Corridors

All dimensions are in mm
                                                                                                                                                      Ordering          Lamp         Nominal        Mains       Lamp       Power
                                                                                                                                                       Code             Type        Voltage (V)   Current (A)   Socket     Factor
                                                                                                                                                    LHDT01128032     1x28W FTL T5       230          0.140        G5        >0.95

                                                                                                                                                                                                         Consumer
                                                                                                                                                                                                         Lighting
                                                                                                                                                                                                                                 21
Rover Plus
                                                      Decorative shock proof slim extruded fixture with anti
                                                      glare diffuser domestic electronic ballast, with CF
                                                      technology suitable for only single 36W T8 FTL for
                                                      domestic/ indoor application only.
                                                      Specification

                                                      Housing
                                                      Made up of Extruded PVC section.

                                                      End caps
                                                      Made of high grade ABS countered perfectly to match 36W T8 lamp profile.

                                                      Diffuser
                                                      Methacrylate diffuser for glare free light.
                                               63±1

                                                      Finish
                            1260±2
                                                      PVC off white finish.
                           Front View
                                                      Lamp holders
                                                      Push fit type white polycarbonate with phosphor bronze contacts.
                                        63±1

                                                      Electric gear
                                                      Pre-wired with 230V rated high frequency electronic ballast, upto terminal block.
                             32.7±1
                            Side View
                                                      Not recommended for industrial 240V application.

                                                      Mounting
                                                      Fixed on wall/ ceiling with the help of snap-on installers provided.

                                                      Applications
                                                      Residences
                                                      Small offices
                                                      Reception areas
                                                      Hospital premises
                                                      Conference rooms

All dimensions are in mm
                                                            Ordering             Lamp          Nominal        Mains       Lamp     Power
                                                             Code                Type         Voltage (V)   Current (A)   Socket   Factor
                                                          LHDF18136025        1x36W T8 FTL          230        0.160       G13     >0.90

                                                                                                               Consumer
                                                                                                               Lighting
 22
Rover EZ
                                                                                                                               Sleek and decorative fixture with coloured end caps,
                                                                                                                               domestic electronic ballast suitable for single 36W T8
                                                                                                                               linear fluorescent lamp for domestic/ indoor application
                                                                                                                               only.
                                                                                                                               Specification

                                                                                                                               Housing
                                                                                                                               Made up of CRCA sheet steel with a compact profile to suit 36W, T8 FTL.

                                                                                                                               End caps
                                                                                                                               ABS contoured coloured end caps perfectly to match 36W T8 lamp profile for
                                                                                                                               better aesthetic.
                                                                                                                        33±1

                                                                                                                               Finish
                                                                                                  STAR       SLIM
                                                                   Voltage     : 23050 Hz
                                                                   Lamp Type   : 1x36 / 40W FTL
                           ELECTRONIC BALLAST 36 / 40W FTL (HPF)   Current     : 160mA
                           Ord. Code: LHBF13136025                 (.) tc      : 65˚C              with CF Technology

                                                  Top View                                                                     Epoxy powder coated white after phosphochromate treatment for rust free long
                                                                                                                               life.
                                                                                                                        63±1

                                                                                                                               Lamp holders
                                                                                                                               Push fit type white polycarbonate/ ABS with electrical grade brass contacts.

                                               1260±2
                                              Front View
                                                                                                                               Electric gear
                                                                                                                               Pre-wired with 230V rated high frequency electronic ballast upto terminal block.
                                                                                                                               Luminaire is not suitable for 40W FTL (T12 : Ø 38mm) due to higher tube
                                                                                                                               diameter.
                                                                                                  63±1

                                                                                                                               Not recommended for industrial 240V application.
                                                           Side View

                                                                                                                               Mounting
                                                                                                                               Fixed on wall/ ceiling with help of srews provided.

                                                                                                                               Applications
                                                                                                                               Staircases
                                                                                                                               Residences
                                                                                                                               Small offices
                                                                                                                               Society parking areas

All dimensions are in mm
                                                                                                                                    Ordering           Lamp         Nominal        Mains       Lamp     Power
                                                                                                                                     Code              Type        Voltage (V)   Current (A)   Socket   Factor
                                                                                                                                  LHDF21136025      1x36W T8 FT       230            0.160      G13     >0.90

                                                                                                                                                                                       Consumer
                                                                                                                                                                                       Lighting
                                                                                                                                                                                                              23
Dreamlite Electronic
                                                            Decorative compact energy efficient luminaire with
                                                            coloured end caps and HPF electronic ballast suitable
                                                            for 36W T8 FTL.

                                                            Specification

                                                            Housing
                                                            Made up of CRCA sheet steel with a compact-profile to suit T8 36W lamp.

                                                            End caps
                                                            Aesthetically designed silver coloured clip-on end caps.

                                                            Finish
                                                            Epoxy powder coated white after phosphochromate treatment for rust free long
                                                        W

                                                            life.
                                  Top View

                                                            Lamp holders
                                                            Push fit type white polycarbonate/ ABS with electrical grade brass contacts.

                                                            Electric gear
                                      L                     Pre-wired with 230V rated high frequency electronic ballast upto terminal block.
                                  Front View
                                                            Luminaire is not suitable for 40W FTL (T12 : Ø 38mm) due to higher tube
                                                            diameter.
                              H

                                                            Not recommended for industrial 240V application.
                                  Side View
                                                            Mounting
                                                            Fixed on wall/ ceiling with help of srews provided.

                                                            Applications
                                                            Staircases
                                                            Residences
                                                            Small offices
                                                            Society parking areas

All dimensions are in mm
 Lamp Type      Length (L)   Width (W)    Height (H)             Ordering              Lamp         Nominal         Mains       Lamp     Power
                                                                  Code                 Type        Voltage (V)    Current (A)   Socket   Factor
 1x18W T8 FTL     612±2        38±1            60.5+1
 1x36W T8 FTL    1290±2        38±1            60.5+1          LHDF01118030         1x18W T8 FTL      230            0.090       G13     >0.95
                                                               LHDF20136025         1x36W T8 FTL      230            0.160       G13     >0.90

                                                                                                                     Consumer
                                                                                                                     Lighting
 24
Rayzor Slim
                                               Decorative sleek luminaries with domestic electronic
                                               ballast & engineering plastic end caps suitable only for
                                               36W T8 FTL.

                                               Specification

                                               Housing
                                               Made up of CRCA sheet steel with decorative end profile caps.

                                               End caps
                                               ABS contoured perfectly to match 36W T8 lamp profile for better aesthetic.

                                   1265±2      Finish
                                               Epoxy powder coated white after phosphochromate treatment for rust free long
                                               life.

                                               Lamp Holders
                                  Front View   Push fit type white polycarbonate/ ABS with electrical grade brass contacts.

                                               Electric gear
                           62±1

                                               Pre-wired with 230V rated domestic electronic ballast.
                                               Not recommended for industrial 240V application.
                                    44±1
                                  Side View    Mounting
                                               Fixed on wall/ ceiling with help of screws.

                                               Applications
                                               Staircases
                                               Residences
                                               Small offices
                                               Society parking areas

All dimensions are in mm
                                                      Ordering                Lamp         Nominal        Mains       Lamp     Power
                                                       Code                   Type        Voltage (V)   Current (A)   Socket   Factor
                                                   LHDF32136025*           1x36W FTL T8      230           0.160       G13     >0.90

                                               *Not suitable for T12 FTL

                                                                                                             Consumer
                                                                                                             Lighting
                                                                                                                                   25
Rayzor Electronic
                                               Decorative luminaries with domestic electronic ballast
                                               & engineering plastic end caps suitable for T12 FTL.

                                               Specification

                                               Housing
                                               Made up of CRCA sheet steel with decorative end caps.

                                               End caps
                                               ABS contoured perfectly to match 40W T12 lamp profile for better
                                               aesthetic.
                                   1272±2
                                               Finish
                                               Epoxy powder coated white after phosphochromate treatment for rust free
                                               long life.

                                  Front View   Lamp Holders
                                               Push fit type white polycarbonate/ ABS with electrical grade brass
                                               contacts.
                           75±1

                                               Electric gear
                                               Pre-wired with 230V rated domestic electronic ballast.
                                     60±1
                                   Side View   Not recommended for industrial 240V application.

                                               Mounting
                                               Fixed on wall/ ceiling with help of screws.

                                               Applications
                                               Staircases
                                               Residences
                                               Small offices
                                               Society parking areas

All dimensions are in mm
                                                    Ordering           Lamp       Nominal        Mains       Lamp     Power
                                                     Code              Type      Voltage (V)   Current (A)   Socket   Factor
                                                  LHDF31104025      1x40W FTL       230           0.160       G13     >0.90

                                                                                                   Consumer
                                                                                                   Lighting
 26
Electra Slim
                                                                                                           General purpose sleek and decorative strip type
                                                                                                           fixture with coloured end caps, electronic ballast
                                                                                                           suitable for single T8 linear fluorescent lamp for
                                                                                                           domestic/ indoor application only.
                                                                                                           Specification

                                                                                                           Housing
                                                                                                           Made up of CRCA sheet steel with decorative ABS coloured lamp holding end
                                                                                                           plates.

                                                                                                           Finish
                                                                                                           Epoxy powder coated white after phosphochromate treatment for rust free long
                                                        600                                                life.

                                                                                                           Lamp holders
                                                                                                    36±1

                                                                ELECTRA
                                                                            SLIM
                           ELECTRONIC BALLAST 36W FTL         with CF Technology   ELECTRA
                           Ord. Code: LHBF09136025                                           SLIM

                                                                                                           Push fit type white polycarbonate/ ABS with electrical grade brass contacts.
                                              Top View

                                                                                                           Electric gear
                                                                                                           Pre-wired with 230V rated electronic ballast upto terminal block, for ready to use.

                                             1235±3
                                                                                                           Not recommended for industrial 240V application.
                                            Front View
                                                                                                           Mounting
                                                                                                           Fixed on wall/ ceiling with help of screws.
                                                                  68±1

                                           Side View
                                                                                                           Applications
                                                                                                           Staircases
                                                                                                           Residences
                                                                                                           Small offices
                                                                                                           Society parking areas

All dimensions are in mm
                                                                                                                 Ordering           Lamp         Nominal        Mains       Lamp     Power
                                                                                                                  Code              Type        Voltage (V)   Current (A)   Socket   Factor
                                                                                                              LHDF14104025         1x36W FTL       230           0.160       G13      >0.90

                                                                                                                                                                   Consumer
                                                                                                                                                                   Lighting
                                                                                                                                                                                          27
Electra Popular
                                                              General purpose strip type fixture with domestic
                                                              electronic ballast suitable for single 36/40W FTL for
                                                              domestic/ indoor application only.

                                                              Specification

                                                              Housing
                                                              Made up of CRCA sheet steel with ABS lamp holding end plates.

                                                              Finish
                                                              Epoxy powder coated white after phosphochromate treatment for rust free long
                                                              life.
                                         600
                                                              Lamp holders
                                                       47±1

                                ELECTRA
                           ELECTRONIC BALLAST
                                                              Push fit type white polycarbonate/ ABS with electrical grade brass contacts.
                                    Top View
                                                              Electric gear
                                                              Pre-wired with 230V rated electronic ballast upto terminal block.
                                                              Not recommended for industrial 240V application.
                                    1230±2
                                   Front View
                                                              Mounting
                                                85±2

                                                              Fixed on wall/ ceiling with help of screws.
                                  Side View
                                                              Applications
                                                              Staircases
                                                              Residences
                                                              Small offices
                                                              Society parking areas

All dimensions are in mm
                                                                   Ordering            Lamp         Nominal        Mains       Lamp     Power
                                                                    Code               Type        Voltage (V)   Current (A)   socket   factor
                                                                 LHDF15104025         1x36W FTL        230          0.160         G13   >0.90

                                                                                                                     Consumer
                                                                                                                     Lighting
 28
Electra
                                                               General purpose decorative strip type fixture with
                                                               coloured end caps, domestic electronic ballast suitable
                                                               for single T8/ T12 linear fluorescent lamp for domestic/
                                                               indoor application only.
                                                               Specification

                                                               Housing
                                                               Made up of CRCA sheet steel with decorative ABS coloured lamp holding end
                                                               plates.

                                                               Finish
                                                               Epoxy powder coated white after phosphochromate treatment for rust free long
                           600±2                               life.

                                                               Lamp holders
                                                        47±1

                                                               Push fit type white polycarbonate/ ABS with electrical grade brass contacts.
                                 ELECTRA
                            ELECTRONIC BALLAST

                                  Top View

                                                               Electric gear
                                                               Pre-wired with 230V rated domestic electronic ballast upto terminal block.
                                                               Not recommended for industrial 240V application.
                                 1235±3
                                Front View                     Mounting
                                                               Fixed on wall/ ceiling with help of screws.

                                                               Applications
                                                 87±2

                                                               Staircases
                              Side View
                                                               Residences
                                                               Small offices
                                                               Society parking areas

All dimensions are in mm
                                                                    Ordering           Lamp          Nominal        Mains       Lamp     Power
                                                                     Code**            Type         Voltage (V)   Current (A)   Socket   Factor
                                                                  LHDF13104025      1x36/40W FTL       230           0.160       G13        >0.90

                                                                                                                      Consumer
                                                                                                                      Lighting
                                                                                                                                               29
Eurostrip
                                                                                              General purpose sleek and decorative strip type fixture
                                                                                              with coloured end caps, electronic ballast suitable for
                                                                                              single 28W T5 linear fluorescent lamp for domestic/
                                                                                              indoor application only.
                                                                                              Specification

                                                                                              Housing
                                                                                              Made up of CRCA sheet steel with decorative ABS coloured lamp holding end
                                                                                              plates.

                                                                                              Finish
                                                                                              Epoxy powder coated white after phosphochromate treatment for rust free long
                                                      600                                     life.

                                                                                              Lamp holders
                                                                                       36±1

                                                                EURO STRIP
                       ELECTRONIC BALLAST 28W T5

                                                                                              Push fit type white polycarbonate/ ABS with electrical grade brass contacts.
                                                                  with CF Technology
                       Ord. Code: LHBT09128032
                                                                             tc-65ºC

                                                    Top View
                                                                                              Electric gear
                                                                                              Pre-wired with 230V rated electronic ballast upto terminal block, for ready to use.
                                                                                              Not suitable for industrial 240V application.
                                                    1195±3
                                                   Front View                                 Mounting
                                                                                              Fixed on wall/ ceiling with the help of screws.
                                                                65±1

                                                                                              Applications
                                                                                              Staircases
                                                   Side View                                  Residences
                                                                                              Small offices
                                                                                              Cove lighting
                                                                                              Society parking areas

All dimensions are in mm
                                                                                                   Ordering            Lamp         Nominal        Mains       Lamp     Power
                                                                                                    Code               Type        Voltage (V)   Current (A)   Socket   Factor
                                                                                                 LHDT14128032      1x28W T5 FTL       230           0.260       G5       >0.55

                                                                                                                                                     Consumer
                                                                                                                                                     Lighting
 30
Ezee Deluxe
                                                 Decorative compact energy efficient luminaire with anti
                                                 glare diffuser & HF electronic ballast suitable for 36W
                                                 FP-L.

                                                 Specification

                                                 Housing
                                                 Elegant, unbreakable polycarbonate body.

                                                 Reflector
                                                 Reflector made up of high purity pre-anodised specular aluminium sheet.

                                                 Diffuser
                                                 Methacrylate diffuser for better glare control.

                           Top View
                                                 Electric gear
                                                 Wired with high frequency integral electronic ballast upto terminal block for input
                                                 supply connection. Ready to use pre-fitted with 36W FP-L 6K lamp, packed in
                                        84.5±2

                                                 attractive gift box.

                                                 Benefits
                             460±2               Hum free operation.
                           Front View            Low voltage pick-up (130V).
                                                 Hot re-lamping facility.
                                                 High power factor (>0.95)
                                                 Total Harmonic Distortion (THD0.95

                                                                                                          Consumer
                                                                                                          Lighting
                                                                                                                                31
Ezee Popular
                                                          Compact energy efficient luminaire with decorative end
                                                          cover & HF electronic ballast suitable for 36W FP-L.

                                                          Specification

                                                          Housing
                                                          Elegant, unbreakable polycarbonate body with decorative end-cover made up of
                                                          composite aluminium sheet in brush finish.

                                                          Reflector
                                                          Made up of white powder coated CRCA sheet.

                                                          Electric gear
                                                   70±1

                                                          Wired with high frequency, 230V, integral electronic ballast upto terminal block for
                            Top View
                                                          input supply connection. Ready to use pre-fitted with 36W FP-L 6K lamp, packed
                                                          in attractive gift box.
                                                          Not suitable for industrial 240V application.
                                                   74

                                                          Benefits
                                                          Hum free operation.
                             470±2                        Low voltage pick-up (130V).
                           Front View
                                                          Hot re-lamping facility.
                           R3                             High power factor (>0.95)
                             5                            Total Harmonic Distortion (THD0.95

                                                                                                                 Consumer
                                                                                                                 Lighting
 32
Liliput Electra
                                        Decorative compact luminaires suitable for 36W
                                        fluorescent parallel lamp for domestic/ indoor
                                        application only.

                                        Specification

                                        Housing
                                        Made up of CRCA sheet steel with self styled ABS ballast cover.

                                        End caps
                                        White coloured ABS plastic.

                                        Finish
                                        Epoxy powder coated white after phosphochromate treatment for rust free long
      56±1

                                        life.
                           Top View
                                        Lamp holders
                                        White polycarbonate/ ABS with electrical grade brass contacts.
      82±2

                                        Electric gear
                                        Pre-wired with 230V high frequency electronic ballast upto terminal block, packed
                             512±2      in attractive gift box. Low voltage pick-up (130V)
                           Front View

                                        Mounting
                                        Fixed on wall/ ceiling with the help of screws.

                                        Applications
                                        Staircases
                                        Residences
                                        Small offices
                                        Society parking areas
                                        Shops & establishments

All dimensions are in mm
                                             Ordering           Lamp          Nominal        Mains       Lamp     Power
                                              Code              Type         Voltage (V)   Current (A)   Socket   Factor
                                           LHDC15136025       1x36W FP-L         230          0.160       2G11    >0.90

                                                                                               Consumer
                                                                                               Lighting
                                                                                                                      33
Innova Grid 11 Watt
                                                                            Aesthetically designed recessed grid fixture in silver
                                                                            finish with engineering plastic housing, domestic
                                                                            electronic ballast for 11W spotlight with spiral MFL for
                                                                            low ceiling height application.
                                                                            Specification

                                                                            Compact Cool Spot Light
                                                                            ABS housing with silver finished. Anti-oxidant coated high purity aluminium,
                                                                            encapsulated reflector gives consistent bright light output. Mini spiral, tri-phosphor
                                                                            coated lamp tube ensures better lumen, longer lamp life, higher CRI and low
                                                                            temperatures. Available in options 3K & 6K.

                                                    95±2                    Electronic Ballast
                                                                            Housing made up of ABS white case.
                                                                            Push fit type terminals for input supply and lamp connection.
                                     95±2

                                                                            Lead wire with GU5.3 lamp holder.
                                                                     95±2

                                                                            Finish
                                                                            Available in silver finish.

                   178±2
                  Top View
                                                                            Advantages
                                                  Top View
                                                                            Saves energy upto 85%.
                                                                            Very low heat generation.
                                     50±2

                                                                     50±2

                                                                            Longer lamp life(>8000 BH).
                  Front View                                                Distance between source & object not limited.
                                                  Front View
           Cut Out Size: 160x85 mm          Cut Out Size: 85x85 mm
                                                                            Ready to use complete set, attractively packed with cutout template.

                                                                            Mounting
                                                                            Fixed into false ceiling with help of SS spring clips. Use cut-out template from
                                                                            packaging.

                                                                            Applications
                                                                            Showrooms
                                                                            Restaurants
                                                                            Banquet halls
                                                                            Conference rooms

All dimensions are in mm
                                                                                   Ordering                  Lamp         Nominal        Mains       Lamp     Power
                                                                                    Code                     Type        Voltage (V)   Current (A)   Socket   Factor
                                                                                LHOC34111364             1x11W MFL-3K       230           0.075      GU5.3    >0.60
                                                                                LHOC34111664             1x11W MFL-6K       230           0.075      GU5.3    >0.60
                                                                                LHOC34211364             2x11W MFL-3K       230           0.150      GU5.3    >0.60
                                                                                LHOC34211664             2x11W MFL-6K       230           0.150      GU5.3    >0.60

                                                                            Fixture not suitable for MR16 halogen lamp

                                                                                                                                          Consumer
                                                                                                                                          Lighting
 34
Innova 111Grid 18 Watt
                                                                                Aesthetically designed recessed grid fixture in silver finish
                                                                                with engineering plastic housing, domestic electronic
                                                                                ballast and center frosted glass diffuser for 18W spotlight
                                                                                with spiral MFL for low ceiling height application.
                                                                                Specification

                                                                                Compact Cool Spot Light
                                                                                ABS housing with silver finished. Anti-oxidant coated high purity aluminium,
                                                                                encapsulated reflector gives consistent bright light output. Mini spiral, tri-phosphor
                                                                                coated lamp tube ensures better lumen, longer lamp life, higher CRI and low
                                                                                temperatures. Available in 6K.

                                                                                Electronic Ballast
                                                                                Housing made up of ABS white case.
                                                     190±2                      Push fit type terminals for input supply and lamp connection.
                                                                                Lead wire with GU5.3 lamp holder.

                                                                                Finish
                                     190±2

                                                                                Available in silver finish with centre frosted glass to reduce glare.
                                                                        190±2

                                                                                Advantages
                                                                                Saves energy upto 85%.
                   362±2                                                        Very low heat generation.
                  Top View                          Top View
                                                                                Longer lamp life(>8000 BH).
                                                                                Distance between source & object not limited.
                                                                        73±2
                                     73±2

                                                                                Ready to use complete set, attactively packed with cutout template.
                  Front View                         Front View
          Cut Out Size: 333x165 mm           Cut Out Size: 165x165 mm
                                                                                Mounting
                                                                                Fixed into false ceiling with help of SS spring clips. Use cut-out template from
                                                                                packaging.

                                                                                Applications
                                                                                Showrooms
                                                                                Restaurants
                                                                                Banquet halls
                                                                                Conference rooms

All dimensions are in mm
                                                                                      Ordering                 Lamp            Nominal        Mains       Lamp     Power
                                                                                       Code                    Type           Voltage (V)   Current (A)   Socket   Factor
                                                                                   LHOC34118664           1x18W MFL-6K           230           0.080      GU5.3    >0.90
                                                                                   LHOC34218664           2x18W MFL-6K           230           0.160      GU5.3    >0.90

                                                                                Fixture not suitable for QR111 halogen lamp

                                                                                                                                               Consumer
                                                                                                                                               Lighting
                                                                                                                                                                      35
Innova Combo Pack
                                                                          Decorative energy efficient 7/11W spotlight with spiral
                                                                          miniature fluorecsent Lamp, domestic electronic
                                                                          ballast for low ceiling height application. An alternative
                                                                          for MR11/ MR16 lamp.
                                                                          Specification

                                                                          Compact Cool Spot Light
                                                                          ABS base with ventilated openings ensures low temperatures. Anti-oxidant coated
                                                                          high purity aluminium, encapsulated reflector gives consistent bright light output.
                                                                          Mini spiral, tri-phosphor coated lamp tube ensures better lumen, longer lamp life
                                                                          and higher CRI. Available in options 3K & 6K.

                                                                          Electronic Ballast
                                              40±2

                                                                  45±2

                                                                          Housing made up of ABS white case.
                                       36±2

                                                                          Push fit type terminals for input supply and lamp connection.
                                                     Top View
                                                                          Lead wire with GU5.3 lamp holder.
                             50±2
                           Side View
                                                                          Fixture
                              INNOVA SPOT LAMP                            Availables in 7w silver and 11w white & silver.
                                                                   23±2
                                              40±2

                                                                          Advantages
                                                     Front View           Saves energy upto 85%.
                             70±2                                         Very low heat generation.
                              80±2                                        Longer lamp life(>8000 BH).
                            Top View                                      Distance between source & object not limited.
                                                                          Ready to use complete set, attractively packed in blister pack with cutout
                               INNOVA BALLAST                             template.
                                                          25±2

                                                                          Mounting
                                                                          Fixed into false ceiling with help of twin quick fix SS spring clips. Use cut-out
                                       84±2
                                                                          template from blister packaging.
                                    Front View

                                INNOVA FIXTURE                            Applications
                                                                          Showrooms
                                                                          Restaurants
                                                                          Banquet halls
                                                                          Conference rooms

All dimensions are in mm
                                                                                Ordering                Lamp          Nominal        Mains       Lamp     Power
                                                                                 Code                   Type         Voltage (V)   Current (A)   Socket   Factor
                                                                             Innova 7W blister
                                                                              with Silver fixture
                                                                              LHOC43107364          1x7W MFL – 3K       230           0.065      GU5.3    >0.60
                                                                              LHOC43107664          1x7W MFL – 6K       230           0.065      GU5.3    >0.60
                                                                            Innova 11W blister
                                                                             with White fixture
                                                                              LHOC44111364          1x11W MFL – 3K      230           0.075      GU5.3    >0.60
                                                                              LHOC44111664          1x11W MFL – 6K      230           0.075      GU5.3    >0.60
                                                                            Innova 11W blister
                                                                              with Silver fixture
                                                                              LHOC45111364          1x11W MFL –3K       230           0.075      GU5.3    >0.60
                                                                              LHOC45111664          1x11W MFL – 6K      230           0.075      GU5.3    >0.60

                                                                                                                                      Consumer
                                                                                                                                      Lighting
 36
Innova 11 Watt Blister Pack
                                                                         Decorative energy efficient 11W spotlight with spiral
                                                                         miniature flourescent lamp, domestic electronic ballast
                                                                         for low ceiling height application.

                                                                         Specification

                                                                         Compact Cool Spot Light
                                                                         ABS housing with silver finished. Anti-oxidant coated high purity aluminium,
                                                                         encapsulated reflector gives consistent bright light output. Mini spiral, tri-phosphor
                                                                         coated lamp tube ensures better lumen, longer lamp life, higher CRI and low
                                                                         temperatures. Available in options 3K & 6K.

                                                                         Electronic Ballast
                                              40±2

                                                                  45±2

                                                                         Housing made up of ABS white case.
                                      36±2

                                                                         Push fit type terminals for input supply & lamp connection.
                                                      Top View
                                                                         Lead wire with GU5.3 lamp holder.
                         50±2
                       Side View
                                                                         Finish
                            INNOVA SPOT LAMP                             Available in silver finish with glass to reduce glare.
                                                                  23±2
                                             40±2

                                                                         Advantages
                                                     Front View          Saves energy upto 85%.
                            70±2                                         Very low heat generation.
                             80±2                                        Longer lamp life(>8000 BH).
                           Top View                                      Distance between source & object not limited.
                                                                         Ready to use complete set, attractively packed with cutout template.
                              INNOVA BALLAST
                                                                         Mounting
                                                                         Fixed into Innova Grid 11W/ Innova Combo Pack.

                                                                         Applications
                                                                         Showrooms
                                                                         Restaurants
                                                                         Banquet halls
                                                                         Conference rooms

All dimensions are in mm
                                                                              Ordering              Lamp           Nominal          Mains       Lamp     Power
                                                                               Code                 Type          Voltage (V)     Current (A)   Socket   Factor
                                                                            LHOC43111364        1x11W MFL 3K          230            0.075      GU5.3    >0.60
                                                                            LHOC43111664        1x11W MFL 6K          230            0.075      GU5.3    >0.60

                                                                                                                                     Consumer
                                                                                                                                     Lighting
                                                                                                                                                             37
Innova 111 18 Watt
                                                                            Decorative energy efficient 18W spiral miniature
                                                                            fluorescent Lamp with domestic electronic ballast
                                                                            suitable for low ceiling height application.

                                                                            Specification

                                                                            Compact Cool Spot Light
                                                                            ABS base with ventilated openings ensures low temperatures. Anti-oxidant
                                                                            coated high purity aluminium, encapsulated concentrated beam reflector gives
                                                                            consistent bright light output. Mini spiral, tri-phosphor coated lamp tube ensures
                                                                            better lumen, longer lamp life and higher CRI. Available in options 3K & 6K.

                           Ø110.8                                           Electronic Ballast
                                                                            Housing made up of ABS white case.
                                                  Ø81                       Push fit type terminals for input supply and lamp connection.
                                                                            Lead wire with GU5.3 lamp holder.
                                                                   55.7±2

                                                                            Advantages
                                                                            Saves energy upto 85%.
                       Top View                Front View                   Very low heat generation.
                                                                            Longer lamp life (>8000 BH).
                             INNOVA SPOT LAMP                               Distance between source & object not limited.
                                                                            Ready to use complete set, attactively packed in blister pack with cutout
                                                            23±2

                                                                            template.
                                       40±2

                                              Front View
                             70±2
                                                                            Mounting
                                                                            Can be use with QR111/AR111 fixtures (Please order for fixture seperately).
                              80±2
                            Top View
                                                                            Applications
                               INNOVA BALLAST                               Showrooms
                                                                            Restaurants
                                                                            Banquet halls
                                                                            Conference rooms

All dimensions are in mm
                                                                                Ordering           Lamp          Nominal        Mains       Lamp      Power
                                                                                 Code              Type         Voltage (V)   Current (A)   Socket    Factor
                                                                              LHOC33118364      1x18W MFL-3K        230          0.080      GU5.3     >0.90
                                                                              LHOC33118664      1x18W MFL-6K        230          0.080      GU5.3     >0.90

                                                                                                                                  Consumer
                                                                                                                                  Lighting
 38
Innova Downlighter Fixed Type
                                                         Decorative recess, compact, fixed type energy efficient
                                                         downlighter with electronic ballast suitable for 15W/
                                                         23W/ 45W spiral CFL lamp GU10 base.

                                                         Specification

                                                         Housing
                                                         Made up of ABS white and reflector holding ring in ABS material in white finish.

                                                         Reflector
                                                         Reflector made up of high purity pre-anodised specular aluminium sheet.

                               C                         Electric gear
                                                         Wired with high frequency integral electronic ballast with push-fit type mains
                                                         terminals for input supply connection. Pre-fitted with replaceable spiral CFL (6K)
                                                         lamp as standard and packed in attractive gift box. Use single strand wire or multi-
                                                         strand wire with thimble for supply connection.
                                                         Lamp option also available in 3K.

                                                         Mounting
                                                         Fixed into false ceiling with help of twin quick fix SS spring clips as per instruction
                                                         manual provided. Use cut-out template from blister packaging. Suitable for false
                                                         ceiling thickness upto 14mm.
                           Top View
                               A
                                                         Applications
                                                         Showrooms
                                                         Small offices
                                                         Shopping malls
                                                         Residential areas
                                                         Passages & corridors
                                                B

                           Front View
All dimensions are in mm
   Lamp Type          A       B         C (Ø)   Cutout        Ordering           Lamp           Nominal        Mains        Lamp       Power
                                                 Size          Code              Type          Voltage (V)   Current (A)    Socket     Factor

    15W CFL        60±2    120±2         95±2   86±2       LHOC01115356       1x15W CFL-3K        230           0.060        GU10       >0.90
    23W CFL        70±2    143±2        124±2   108±2      LHOC01115663       1x15W CFL-6K        230           0.060        GU10       >0.90
    45W CFL        100±2   185±2        176±2   147±2      LHOC01123363       1x23W CFL-3K        230           0.095        GU10       >0.90
                                                           LHOC01123663       1x23W CFL-6K        230           0.095        GU10       >0.90
                                                           LHOC01145363       1x45W CFL-3K        230           0.210        GU10       >0.90
Tolerance: +/- 2mm.                                        LHOC01145663       1x45W CFL-6K        230           0.210        GU10       >0.90

                                                                                                                  Consumer
                                                                                                                  Lighting
                                                                                                                                           39
Innova Downlighter Swivel Type
                                                           Decorative recess, compact, swivel, energy efficient
                                                           downlighter with electronic ballast suitable for 13W/
                                                           23W spiral CFL lamp GU10 base.

                                                           Specification

                                                           Housing
                                                           Made up of ABS white and reflector holding ring in ABS material in silver finish.

                                                           Reflector
                                                           Reflector made up of high purity pre-anodised specular aluminium sheet.

                                   C                       Electric gear
                                                           Wired with high frequency integral electronic ballast and push-fit type mains
                                                           terminals for input supply connection. Pre-fitted with replaceable, swivel, spiral
                                                           CFL (6K) lamp as standard and packed in attractive gift box. Use single strand
                                                           wire or multi-strand wire with thimble for supply connection.
                                                           Lamp option also available in 3K.

                                                           Mounting
                                                           Fixed into false ceiling with help of twin quick fix SS spring clips as per instruction
                                                           manual provided. Use cut-out template from blister packaging.
                                                           Suitable for false ceiling thickness upto 14mm.
                             Top View

                                   A
                                                           Applications
                                                           Showrooms
                                                           Small offices
                                                           Shopping malls
                                                           Residential areas
                                                           Passages & corridors
                                                   B

                             Front View

All dimensions are in mm
   Lamp Type           A       B          D (Ø)   Cutout       Ordering            Lamp           Nominal        Mains       Lamp        Power
                                                   Size         Code               Type          Voltage (V)   Current (A)   Socket      Factor

      13W CFL         60+2   106+2         95+2    86+2      LHOC02113363      1x13W CFL-3K         230           0.055       GU10        >0.90
      23W CFL         70+2   145+2        124+2   108+2      LHOC02213663      1x13W CFL-6K         230           0.055       GU10        >0.90
                                                             LHOC02123363      1x23W CFL-3K         230           0.095       GU10        >0.90
                                                             LHOC02123663      1x23W CFL-6K         230           0.095       GU10        >0.90
Tolerance: +/- 2mm.

                                                                                                                    Consumer
                                                                                                                    Lighting
 40
Neo 1
                                                  Decorative, square shaped, recess mounted, horizontal
                                                  wide beem downlighter with center frosted lense
                                                  suitable for 1x15W retrofit CFL.

                                                  Specification

                                                  Housing
                                                  MS powder coated silver finish frame with black powder coated MS bracket for
                                                  holding reflector and lamp holder.
                                                  Push type clip for opening glass and lamp replacement.

                                                  Optics
                                                  Spun aluminium, specular finish anodised reflector with hammered pattern on
                                                  upper half and diamond pattern on lower half with center frosted lense for better
                                                  glare control.

                                                  Lamp holders
                                         180±2

                                                  B22-d lamp holder with electrical grade copper contacts provided as standard,
                                                  wired upto terminal block mounted on adjustable frame.

                                                  Electric gear
                                                  Pre-wired upto terminal block for CFL operation.
                                                  Not recommended for industrial 240V application.
                           Top View

                            180±2                 Mounting
                                                  Fixed into false ceiling by means of 2 nos. SS spring clips provided as per
                                                  instruction.
                                           85±2

                                                  Applications
                                                  Residences
                           Front View             Small Ofices
                                                  Showrooms
                                                  Restaurants
                                                  Corridors & passage

All dimensions are in mm
                                                      Ordering           Lamp           Nominal        Mains       Lamp     Power
                                                       Code              Type          Voltage (V)   Current (A)   Socket   Factor
                                                    LHOC48115399     upto 1x15W (TU)      230           0.075       B22         >0.85
                                                                        retrofit CFL
                                    70
                                 Ø1

                                                                                                         Consumer
                                                                                                         Lighting
                                                                                                                                   41
Neo 2
                                                  Decorative, square shaped, recess mounted, horizontal
                                                  wide beem downlighter with center frosted lense
                                                  suitable for 2x11W retrofit CFL.

                                                  Specification

                                                  Housing
                                                  MS powder coated silver finish frame with black powder coated MS bracket for
                                                  holding reflector and lamp holder.
                                                  Push type clip for opening glass and lamp replacement.

                                                  Optics
                                                  Spun aluminium, specular finish anodised reflector with hammered pattern on
                                                  upper half and diamond pattern on lower half with center frosted lense for better
                                                  glare control.

                                                  Lamp holders
                                                  B22-d lamp holder with electrical grade copper contacts provided as standard,
                                                  wired upto terminal block mounted on adjustable frame.
                                         217

                                                  Electric gear
                                                  Pre-wired upto terminal block for CFL operation.
                                                  Not recommended for industrial 240V application.

                                                  Mounting
                           Top View               Fixed into false ceiling by means of 2 nos. SS spring clips provided as per
                                                  instruction.
                            217±2
                                                  Applications
                                                  Residences
                                                  Small Ofices
                                          100±2

                                                  Showrooms
                                                  Restaurants
                                                  Corridors & passage
                           Top View

All dimensions are in mm
                                                      Ordering           Lamp           Nominal        Mains       Lamp     Power
                                                       Code              Type          Voltage (V)   Current (A)   Socket   Factor
                                                    LHOC47211399     upto 2x11W (TU)      230           0.110       B22         >0.85
                                                                        retrofit CFL
                                    95
                                Ø1

                                                                                                         Consumer
                                                                                                         Lighting
 42
Glider
                                                             Compact modular horizontal wide beam downlighter
                                                             with glass diffuser suitable for 1x15W retrofit CFL.

                                                             Specification

                                                             Housing
                                                             Made up of high grade CRCA sheet metal with adjustable lamp holder plate
                                                             according to CFL length.

                                                             Optics
                                                             Spun aluminium, specular finish reflector with glass cover for diffused light.
                                                 .5

                                                             Finish
                                                 78
                                                Ø1

                                                             Epoxy powder coated white after phosphocromate treatment for rust free long
                                                             life.

                                                             Lamp holders
                                                             B-22 with electrical grade copper contacts.

                                                             Electric gear
                                                             Pre-wired upto terminal block for CFL operation.
                                                             Not recommended for industrial 240V application.

                                                             Mounting
                           Top View                          Fixed into false ceiling by means of 2 nos. SS spring clips provided as per
                                                             instruction.
                                 226±2
                                                             Applications
                                                             Residences
                                                             Hotel lobbies
                                                      80±2

                                                             Study rooms
                                                             Dressing rooms
                                                             Hospital premises
                               30                            Corridors & lobbies
                           Front View

All dimensions are in mm
                                                                 Ordering            Lamp           Nominal        Mains       Lamp      Power
                                                                  Code               Type          Voltage (V)   Current (A)   Socket    Factor
                                                               LHOC49115399      upto 1x15W (TU)      230           0.075       B22       >0.85
                                                                                    retrofit CFL
                                            0
                                        Ø15

                                                                                                                     Consumer
                                                                                                                     Lighting
                                                                                                                                              43
DL 50
                                                       A compact vertical narrow beam downlighter suitable
                                                       for incandescent lamp upto 60W or 11W (TU) retrofit
                                                       CFL.

                                                       Specification

                                                       Housing
                                                       MS powder coated silver/ white finish frame with black powder coated MS bracket
                                                       for holding reflector and lamp holder.

                                                       Optics
                                                       Spun aluminium, specular finish reflector with diamond pattern on upper half
                                                       and vertical facets on lower half for better glare control.

                                                       Lamp holders
                                            2          B22-d lamp holder with electrical grade copper contacts provided as standard,
                                         11
                                        Ø              wired upto terminal block mounted on adjustable frame.

                                                       Electric gear
                                                       Pre-wired upto terminal block for CFL operation.
                                                       Not recommended for industrial 240V application.

                                                       Mounting
                                                       Fixed into false ceiling by means of 2 nos. SS spring clips provided as per
                                                       instruction.
                           Top View

                             77.5                      Applications
                                                       Residences
                                                       Small Ofices
                                                       Showrooms
                                                       Restaurants
                                                       Corridors & Passage
                                                96±2

                           Front View
All dimensions are in mm                                     Ordering                 Lamp             Nominal   Mains     Lamp     Power
                                                              Code                    Type             Voltage   Current   Socket   Factor
                                                                                                         (V)       (A)
                                                        LHOL01160399 (Silver)   1x11W Retro CFL (TU)     230      0.055    B22-d     >0.85
                                  86                    LHOL02160399 (White)    1x11W Retro CFL (TU)     230      0.055    B22-d     >0.85

                                                                                                                 Consumer
                                                                                                                 Lighting
 44
DL 17 E
                                               An integral compact vertical narrow beam downlighter
                                               suitable for single 18W non-retrofit CFL/PL-C for
                                               accentuating lighting effect.

                                               Specification

                                               Housing
                                               MS powder coated white finish frame with galvanised iron sheet bracket for
                                               holding reflector and lamp holders.

                                               Optics
                                               Spun aluminium, specular finish reflector with square pattern on top, diamond
                                               pattern for middle and vertical facets on lower portion for better glare control.

                                               Lamp Holder
                                               White polycarbonate/ ABS lamp holder with electrical grade copper contacts.

                                               Electric gear
                                               Pre-wired with high frequency electronic ballast mounted on one of mounting legs
                                       175±2

                                               upto terminal block.

                                               Mounting
                                               Fixed into false ceiling by means of 3 nos. SS spring clips provided as per
                                               instruction.

                                               Applications
                                               Showrooms
                                               Restaurants
                           Ø140±2
                                               Hotel lobbies
                                               Corridors & passage areas

All dimensions are in mm
                                                   Ordering          Lamp          Nominal        Mains       Lamp      Power
                                                    Code             Type         Voltage (V)   Current (A)   Socket    Factor
                                   0
                               11220             LHOC14118354    1x18W CFL/PL-C      240           0.145      G24 d-2   >0.55

                                                                                                     Consumer
                                                                                                     Lighting
                                                                                                                            45
DL 15 E
                                              A compact modular horizontal wide beam downlighter
                                              suitable for twin 18W non-retrofit CFL/PL-C.

                                              Specification

                                              Housing
                                              MS powder coated white finish frame with galvanised iron sheet bracket for
                                              holding reflector and lamp holders.

                                              Optics
                                              Spun aluminium, specular finish reflector with circular pattern on top, diamond
                                              pattern for middle and matt finish on lower portion for better glare control.

                                              Lamp Holder
                                              White polycarbonate/ ABS lamp holder with electrical grade copper contacts.

                                              Electric gear
                                              Pre-wired with high frequency electronic ballast upto terminal block.

                           Top View           Mounting
                                              Fixed into false ceiling by means of 2 nos. SS spring clips provided as per
                            206±2
                                              instruction.

                                              Applications
                                       90±2

                                              Showrooms
                                              Restaurants
                                              Hotel lobbies
                           Ø192±2             High ceiling areas
                           Side View

All dimensions are in mm
                                                  Ordering             Lamp          Nominal        Mains       Lamp      Power
                                                   Code                Type         Voltage (V)   Current (A)   Socket    Factor
                                                LHOC04218354       2x18W CFL/PL-C      240           0.290      G24 d-2   >0.55

                                                                                                       Consumer
                                                                                                       Lighting
 46
Lonova Square
                                                                       Decorative, compact, recess mounted swivel
                                                                       downlighter in silver finish with HF electronic ballast &
                                                                       clear acrylic cover pre-fitted with GU10 base MFL.

                                                                       Specification

                                                                       Housing
                                                                       Housing made up of white polycarbonate with mirror finish metalizing from inside.
                                                                       Premium finish square acrylic cover holding ring made up of ABS plastic with
                                                                       electroplating.

                                                                       Diffuser
                                C                                      Clear acrylic optic cover for clean lamp compartment.

                                                                       Lamp holders
                                                                       GU 10 base white polycarbonate with electrical grade brass contacts.

                                                                       Electric gear
                                                                       Pre-wired with high frequency electronic ballast, upto terminal block. Pre-fitted
                                                         E             with spiral miniature fluorescent lamp (6K) as standard, Packed in attractive gift
                                                                       box.
                                        Top View
                                                                       Mounting
                                                                       Fixed into false ceiling with help of 2nos. quick fix SS spring clips as per instruction
                                                                       manual provided. Use cut-out template from gift box packing. Suitable for false
                                                             B
                  D

                                                                       ceiling thickness upto 14mm.

                                                                       Applications
                                            A                          Cell offices
                                        Front View                     Cyber cafes
                                                                       Telephone kiosks
                                                                       Small clean rooms
                                                                       Stary night ceilings
                                                                       Hospitals/ OPD rooms
                                                                       Office corridors/ lobbies

All dimensions are in mm
  Lamp Type      A         B        C      D         E       Cutout          Ordering                  Lamp               Nominal              Mains        Lamp     Power
                                                             Size(Ø)          Code*                    Type**            Voltage (V)         Current (A)    Socket   Factor

    3W CFL       101       76   103        70        83        68         LHOC03103673             1x3W MFL-6K                230               0.040       GU10     >0.50
    5W CFL       120       83   105        70        96        78         LHOC03105673             1x5W MFL-6K                230               0.045       GU10     >0.50

                                                                       *For fixture with 3K lamp option change last three digits of ordering code to 373.
                                                                       **Suitable for 3K lamp.

                                                                                                                                                  Consumer
                                                                                                                                                  Lighting
                                                                                                                                                                         47
Lonova Round
                                                                 Decorative, compact, recess mounted fixed
                                                                 downlighter in silver finish with HF electronic ballast &
                                                                 clear acrylic cover pre-fitted with GU10 base MFL.

                                                                 Specification

                                                                 Housing
                                                                 Housing made up of white polycarbonate with mirror finish metalizing from inside.
                                                                 Premium finish round acrylic cover holding ring made up of ABS plastic with
                                                                 electroplating.

                                                                 Diffuser
                                                                 Clear acrylic optic cover for clean lamp compartment.

                                              C
                                                                 Lamp holders
                                                                 GU 10 base white polycarbonate with electrical grade brass contacts.

                                                                 Electric gear
                                                                 Pre-wired with high frequency electronic ballast, upto terminal block. Pre-fitted
                  B

                                                         D

                                                                 with spiral miniature fluorescent lamp (6K) as standard.

                                                                 Mounting
                                A                                Fixed into false ceiling with help of 2nos. quick fix SS spring clips as per instruction
                            Side View
                                                                 manual provided. Use cut-out template from gift box packing.
                                                                 Suitable for false ceiling thickness upto 14mm.

                                                                 Applications
                                                                 Cell offices
                                                                 Cyber cafes
                                                                 Telephone kiosks
                                                                 Small clean rooms
                                                                 Stary night ceilings
                                                                 Hospitals/ OPD rooms
                                                                 Office corridors/ lobbies

All dimensions are in mm
   Lamp Type          A      B          C         D    Cutout          Ordering              Lamp         Nominal        Mains       Lamp       Power
                                                       Size(Ø)          Code                 Type*       Voltage (V)   Current (A)   Socket     Factor

       7W MFL         105    79         113       70     90         LHOC03107673           1x7W MFL-6K      230           0.055       GU10       >0.55
       9W MFL         130    81         125       70    113         LHOC03109673           1x9W MFL-6K      230           0.073       GU10       >0.55
      11W MFL         150    98         135       98    134         LHOC03111673          1x11W MFL-6K      230           0.095       GU10       >0.55

                                                                 *Suitable for 3K lamp.
Tolerance: +/- 2mm.

                                                                                                                           Consumer
                                                                                                                           Lighting
 48
