Limitless™ Wireless Solutions

Imagine a world without wires.
What would you do with more freedom?

                                       1
Limitless Wireless Solutions - Imagine a world without wires. What would you do with more freedom?
It’s time to retire the wire. To give your best ideas free rein.
Honeywell’s Limitless™ Series of wireless limit switches and
receivers allows you to go farther, work smarter, and explore
more possibilities than ever before.

Honeywell’s Limitless™ series of switch solutions is leading the way. Honeywell Sensing and Control developed
this technology to be a cutting-edge, cost-saving solution. That innovation starts whether you’re retrofitting into
an existing industrial or transportation application, or starting a new design. Now you have the freedom to push
your designs and applications further and expand your vision.

For far too long, technology has been tied to the same old way of transmitting and connecting. But there’s a
price to pay for clinging to wired technology. There’s an intangible cost in man-hours and missed production
hours. And there are tangible costs — actual wear-and tear on equipment wiring and connections that can
cause complete disruption of your operation.

Imagine how much could be saved once your best ideas were given free rein...
2
It’s time to discover the possibilities.
Choose wireless Limitless™                                                                       More flexibility
switches to give your ideas free rein.                                                           Since you’re no
                                                                                                longer tethered
                                                                                               by wire, you can
                                                                                             reconfigure and
                                                                                        network multiple switches,
                                                                                     easily allowing addition,
                                                                                   subtraction, or relocation of
                      More distance - Limitless™ devices                             Limitless™ switches
                      have up to a 305 m [1000 ft] line-
                                                                                        More diagnostics -
                      of-sight range without using
                                                                                        Limitless™ user-friendly
                      repeaters, depending on
                                                                                        software provides
                      antenna type
                                                                                        information on battery
                                                                                        health, and signal
                                                                                       strength for each specific
                                                                                      input
More durability - Limitless™ Series
offerings will include versions with
an all-metal body and drive train,
low-temperature capability,
and/or enclosure with an anti-
corrosion epoxy coating

                                  More
                               savings -
                          Limitless™ switches                                                     More standard
                    can greatly reduce the                                                       options -
               costs of wiring, installation, and                                              Limitless™ products
          maintenance for all devices                                                        use a globally license-
          and equipment                                                                   free, 802.15.4 RF radio
                                                                                      and commercially available
                                                                                  batteries for easy replacement
                                                                               anywhere in the world

                                                            More
                                                         security -
                                               Limitless™ products conform
                                          to the international IEEE 802.15.4
                                      standard and feature 16-bit address
                                  and 128-bit AES security keys

*Some countries require specific communication certifications.
Contact Honeywell for existing certification information.                                                           3
Limitless™ Limit Switch Series
WGLA Global Limit Switches
WLS Heavy-Duty Limit Switches

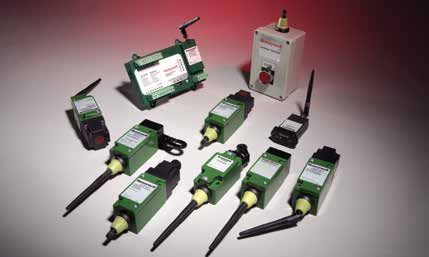

Honeywell’s Limitless™ product line combines the best of Honeywell’s global limit switches with the latest commercial
state-of-the-art wireless technology. Wireless-enabled limit switches can be used for position sensing and presence/
absence detection for an endless number of applications.

The Limitless™ Series is especially beneficial for remote monitoring applications where wiring or wire maintenance is
not physically possible or economically feasible. Combining this greater flexibility with proven harsh-duty packaging can
result in increased efficiencies for machines, equipment, OEMs, and operators.

FEATURES                                      BENEFITS
Wireless Design                               •   Enables wireless presence/absence
•   Radio (license-free and global*):             detection in applications/machinery
    WPAN 802.15.4, 2.4 GHz,                       where wiring is challenging or
    point-to-point                                not feasible
•   FCC 15, IC, ACMA, COFETEL, IDA,           •   Integration of existing wireless
    ETSI, WPC, SRRC, KCC, and ANATEL              technology with the superior reliability
    (see specific product series for              of Honeywell’s MICRO SWITCH™ limit
    applicable approvals)                         switch series
•   RoHS compliant                            •   Ability to reconfigure and network
•   EMI resistance protects against               multiple switches, easily allowing
    external interference                         addition, subtraction or relocation of
•   In excess of 305 m [1000 ft] line-of-         Limitless™ switches in the application
    sight communication                       •   Reduces installation/maintenance
•   Reliable, flexible, and secure wireless       costs with no wires, conduit, strain
    transmission                                  relief, clips, connectors, or                APPLICATIONS
•   Standard replaceable battery with             connection boxes                             •   Construction/ag machines
    ultra-low power consumption               •   Output options                               •   Conveyors
•   Direct or remote mount antenna                - Panel-mount monitor: visual,               •   Crane boom/jib/skew position
    options                                          audible (buzzer), one NPN output          •   Door position
WGLA Series Features                              - DIN-mount receiver: visual, 14             •   Grain diverters or flaps
•   EN50041 metal enclosure                          NPN/PNP-type outputs                      •   Hose attachment verification
•   IP67; NEMA 1,4,12,13                      •   Consumes ultra-low power to prolong          •   Lifts
•   Multiple operating heads and lever            battery life (replaceable)                   •   Material handling
    options                                   •   RF board operating in 2.4 GHz                •   Movable machinery
•   Modular construction of components            globally license-free frequency band;        •   Presses
WLS Series Features                               WPAN 802.15.4                                •   Remote or temporary equipment
•   EN 50041 metal enclosure                  •   SIL reliability data available               •   Specialty machines
•   IP67/IP68; NEMA 1, 3, 4, 6, 6P, 12, 13        upon request                                 •   Valve position
•   Unique all-metal drive train
•   Twin shaft seals (rotary)
•   Zinc head and body are phosphate
    treated and epoxy finished making
    it less susceptible to effects from
    environmental exposure
•   Full complement of operating heads
    and levers
•   Chemical resistant fluorocarbon seals
    (optional)

                                                                           *Some countries require specific communication certifications.
4                                                                          Contact Honeywell for existing certification information.
WGLA Series                               WLS Series
                  Limitless™ global limit switches         Product type     Limitless™ heavy-duty limit switches
                   Global, license-free RF bands*           Availability    Global, license-free RF bands*
                                                            Operating
            Reference WGLA installation drawing                             Reference WLS installation drawing
                                                          characteristics
                                                                            Side rotary, top plunger, side plunger, top roller
Side rotary, top plunger, top roller, top roller lever       Actuator
                                                                            plunger, top adjustable plunger, wobble stick
              Rotary lever included w/side rotary;
                                                            Lever type      Many rotary lever options available
                     other lever options available
      Zinc head and body are phosphate treated                              Zinc head and body are phosphate treated
                                                         Housing material
                            and epoxy finished                              and epoxy finished
                                           EN 50041        Housing type     WLS (EN 50041)
          WPAN 802.15.4; 2.4 GHz point-to-point;                            WPAN 802.15.4; 2.4 GHz point-to-point;
specific country communication agency approval                Radio         specific country communication agency approval
                                       required                             required
         Direct or remote-mount antenna options;                            Direct or remote-mount antenna options;
                                                           Antenna type
                                 omni-directional                           omni-directional
        In excess of 305 m [1000 ft] line-of-sight                          In excess of 305 m [1000 ft] line-of-sight
             communication between Limitless™                               communication between Limitless™
                                                           Signal range
       switches and monitor/receiver when using                             switches and monitor/receiver when using
                         2.2dBi integral antenna                            2.2dBi integral antenna
   3.6 Vdc Lithium Thionyl Chloride; 2/3 AA size                            3.6 Vdc Lithium Thionyl Chloride; 2/3 AA size
 manufactured by Green Energy p/n ER14335M;                   Battery       manufactured by Green Energy p/n ER14335M;
                           Honeywell p/n WBT1                               Honeywell p/n WBT1
                           IP67; NEMA 1, 4, 12, 13           Sealing        IP67, IP68; NEMA 1, 3, 4, 6, 6P, 12, 13
Latest applicable standards: EN 300 328, V1.7.1;                            Latest applicable standards: EN 300 328, V1.7.1;
       EN 61326-1 (2006); EN 301 489-1, V1.8.1;                EMC          EN 61326-1 (2006); EN 301 489-1, V1.8.1;
                          EN 301 489-17, V2.1.1                             EN 301 489-17, V2.1.1
     IEC 60068-2-27; half sine, 10 g, 6 mS, 3 axis            Shock         IEC 60068-2-27; half sine, 50 g, 6 mS, 3 axis
                IEC 60068-2-6; 10 Hz to 500 Hz                              IEC 60068-2-6; 10 Hz to 58 Hz w/ 0,35 mm
                                                             Vibration
  w/ 0,35 mm peak-to-peak, 58 Hz to 500 Hz, 5 g                             peak-to-peak, 58 Hz to 500 Hz, 5 g
-40 °C to 85 °C [-40 °F to 185 °F] (side rotary and
                                      side plunger)         Operating       -40 °C to 85 °C [-40 °F to 185 °F]
       -25 °C to 85 °C [-13 °F to 185 °F] (all other       temperature      -30 °C to 85 °C [-22 °F to 185 °F](wobble sticks)
                                         actuators)
                                    FCC 15.247                              FCC 15.247
                       Industry Canada RSS 210                              Industry Canada RSS 210
                                  ETSI, CE mark          Agency approvals   ETSI, CE mark
                             ACMA, C-Tick mark            and standards     ACMA, C-Tick mark
                                      COFETEL                               COFETEL
                 IDA; ANATEL; SRRC; KCC; WPC                                IDA; ANATEL; SRRC; KCC; WPC

*Some countries require specific communication certifications.
Contact Honeywell for existing certification information.                                                                        5
Limitless™ Limit Switch Series
WGLA and WLS Series
Dimensions and Ordering Options
WGLA Series                                                                          Y                                                         WLS Series
                       ØX
                                                                    Z

                                                  70,00 mm max.                  62,1 mm
                                                   [2.76 in max]                 [2.44 in]

           20 mm [0.79 in]

                                                  75,9 mm max.                                                 102,85 mm
               60 mm                                                                                            [4.05 in]
                                                  [2.99 in max]
              [2.36 in]
                                                                                                      82 mm
                                                 5,3 mm
                                                                                                     [3.23 in]
                                                [0.21 in]

                                                 7,3 mm
Ø 5,3 mm [Ø 0.21 in]                            [0.29 in]

          30,0 mm [1.18 in]                     25 mm
          28,0 mm [1.10 in]                    [0.98 in]

           10 mm [0.39 in]                                                                           16 mm [0.63 in]
                  42 mm
                 [1.65 in]
                                                      125 mm                                         31,5 mm [1.24 in]
                                                      [4.92 in]
                                                                                                     42,00 mm
                                                                                                      [1.65 in]

           Lever          Roller Material    X Dim                      Y Dim                 Z Dim
           GLZ51A         Nylon              19,1 mm [0.75 in]          55,9 mm [2.2 in]      6,4 mm [0.25 in]
           GLZ51B         Steel              19,1 mm [0.75 in]          55,9 mm [2.2 in]      6,4 mm [0.25 in]
           GLZ51T         Stainless Steel    19,1 mm [0.75 in]          56,8 mm [2.24 in]     8,8 mm [0.35 in]
           GLZ51Y         Rubber             50,0 mm [1.97 in]          66,1 mm [2.60 in]     10,0 mm [0.39 in]

WGLA NOMENCLATURE
     WGLA                          1                         A                           00                                     A                        A                      1                     A                     3

                                                                                   Antenna                            Country use                    Operating                                                       Modification
    Switch type                 Gen Code              RF Code                                                                                                            Lever code4          Roller code mm[in]
                                                                                  type code                              code                        head code                                                         code
WGLA Series                                                 2.4 GHz;                No antenna; RP-SMA                      US, Canada,
                            1    Version 1       A                           00     connector jack                    A                          A    Side rotary,
                                                                                                                                                      momentary
                                                                                                                                                                             Not applicable         Not applicable       Not applicable
 Wireless                                                   IEEE 802.15.4                                                   Mexico
                                                                                                                            All other                                                               19 x 6,35            Head assembled
                                                                             01     2.2 dBi omni w/switch
                                                                                    mount; straight design            B     approved
                                                                                                                            countries1, 2, 3
                                                                                                                                                 B    Top pin
                                                                                                                                                      plunger            1   Standard
                                                                                                                                                                             fixed length      A    [0.75 x 0.25]
                                                                                                                                                                                                    nylon
                                                                                                                                                                                                                     3   with actuator to
                                                                                                                                                                                                                         right side
                                                                                                                  1
                                                                                                                   Use with antenna type                                                           19 x 6,35             Head assembled
                                                                             02
                                                                                    2.2 dBi omni w/switch
                                                                                    mount; tilt/swivel            codes 00 - 03, 05, 10, 11      C    Top roller
                                                                                                                                                      plunger            2   Adjustable
                                                                                                                                                                             roller            B   [0.75 x 0.25]
                                                                                                                                                                                                   steel
                                                                                                                                                                                                                     4   with actuator to
                                                                                                                                                                                                                         left side
                                                                                                                  only; usage also allowed
                                                                                    3.0 dBi omni w/remote                                                                                          38,1 x 6,35           Head assembled
                                                                                                                  in Country Code A.
                                                                             03     adhesive mount                                               D    Top roller
                                                                                                                                                      lever              3   Yoke roller       D   [1.5 x 0.25]
                                                                                                                                                                                                   nylon
                                                                                                                                                                                                                     5   with actuator to
                                                                                                                                                                                                                         mounting surface
                                                                                    9.8 ft cable                  2
                                                                                                                   Some countries require
                                                                                    5.5 dBi omni w/remote                                                                                           200 mm               Roller
                                                                                                                  specific communication
                                                                             04     mag. mount, tilt/swivel,      certifications. Contact                                4   Adjustable rod    J    aluminum
                                                                                                                                                                                                    adjustable rod
                                                                                                                                                                                                                     6   perpendicular to
                                                                                                                                                                                                                         mounting surface
                                                                                    5 ft cable
                                                                                                                  Honeywell for existing
                                                                                    5.5 dBi omni w/remote                                                                                          140 mm
                                                                             05     mag. mount, tilt/swivel,
                                                                                                                  certification information.
                                                                                                                                                                         5   Offset            K   aluminum
                                                                                                                                                                                                   adjustable rod
                                                                                    10 ft cable                   3
                                                                                                                   If Limitless devices are                                                        318 mm
                                                                                    9.0 dBi omni w/remote                                                             Additional levers on
                                                                                                                                                                                               N
                                                                                                                                                                     4
                                                                                                                  used on machinery that                                                           stainless steel
                                                                             06     mag. mount, tilt/swivel
                                                                                    5 ft cable
                                                                                                                  may shipped globally,                              page 8.                       adjustable rod
                                                                                                                  use country code “B”.                                                             40,0 x 12,7

                                                                             07
                                                                                    9.0 dBi omni w/remote
                                                                                    mag. mount, tilt/swivel
                                                                                                                                                                                               W    [1.5 x 0.5]
                                                                                                                                                                                                    rubber
                                                                                    10ft cable
                                                                                                                                                                                                   50,9 x 12,7

                                                                             08
                                                                                    8.0 dBi omni w/remote
                                                                                    bkt. mount, str. design
                                                                                                                                                                                               Y   [2.0 x 0.5]
                                                                                                                                                                                                   rubber
                                                                                    3 ft cable
                                                                                                                                                                                                   19 x 8,76

                                                                             09
                                                                                   8.0 dBi omni w/remote
                                                                                   bkt. mount, str. design        NOTE: Not all combinations available.                                        T   [0.75 x 0.345]
                                                                                                                                                                                                   stainless steel
                                                                                   11 ft cable                    For further information on establishing any of the above
                                                                                   2.2 dBi omni w/remote
                                                                             10    mag. mount, tilt/swivel        listings, please contact Honeywell Sensing and Control
                                                                                   10 ft cable                    or your local sales office.
                                                                                   0 dBi omni w/
                                                                             11    switch mount;
                                                                                   straight design

6
WLS NOMENCLATURE
  WLS                         1                   A                        00                                 A                        A                           1                           3

                                                                        Antenna                       Country use                  Operating                                         Modification
Switch type               Gen Code             RF Code                                                                             head code               Actuator code
                                                                       type code                         code                                                                          code
WLS Series                                       2.4 GHz;               No antenna; RP-SMA                 US, Canada,
                      1    Version 1      A      IEEE 802.15.4    00    connector jack                A    Mexico              A    Side rotary,
                                                                                                                                    momentary
                                                                                                                                                           See WLS actuator
                                                                                                                                                           code table for details.
                                                                                                                                                                                          Not applicable
 Wireless
                                                                                                          All other                                                                       Head assembled
                                                                        2.2 dBi omni w/switch                                       Top plunger,           Actuators for operating
                                                                  01    mount; straight design        B   approved
                                                                                                          countries1, 2, 3
                                                                                                                               C    plain                  head code “A” only,       3    with actuator to
                                                                                                                                                                                          right side
                                                                                                                                                           insert actuator code
                                                                                                  1
                                                                                                   Use with antenna type                                   from table below.              Head assembled
                                                                        2.2 dBi omni w/switch
                                                                  02    mount; tilt/swivel        codes 00 - 03, 05, 10, 11    D    Top plunger,
                                                                                                                                    roller                 OR
                                                                                                                                                                                     4    with actuator to
                                                                                                                                                                                          left side
                                                                                                  only; usage also allowed
                                                                        3.0 dBi omni w/remote     in Country Code A.                                       Order actuator                 Head assembled
                                                                  03    adhesive mount
                                                                        9.8 ft cable
                                                                                                                               E    Side plunger,
                                                                                                                                    momentary              catalog listing           5    with actuator to
                                                                                                                                                                                          mounting surface
                                                                                                  2
                                                                                                   Some countries require                                  separately for reduced
                                                                        5.5 dBi omni w/remote                                                              delivery time.                 Roller
                                                                                                  specific communication
                                                                  04    mag. mount, tilt/swivel   certifications. Contact      J    Wobble stick4                                    6    perpendicular to
                                                                                                                                                                                          mounting surface
                                                                        5 ft cable
                                                                                                  Honeywell for existing
                                                                        5.5 dBi omni w/remote                                       Side rotary,
                                                                  05    mag. mount, tilt/swivel
                                                                                                  certification information.
                                                                                                                               N    maintained
                                                                        10ft cable                3
                                                                                                   If Limitless devices are
                                                                                                                                    Top plunger,
                                                                  06
                                                                        9.0 dBi omni w/remote
                                                                        mag. mount, tilt/swivel
                                                                                                  used on machinery that
                                                                                                  may shipped globally,
                                                                                                                               V    adjustable
                                                                        5 ft cable
                                                                                                  use country code “B”.        See page 14 for
                                                                                                                               4
                                                                        9.0 dBi omni w/remote
                                                                  07    mag. mount, tilt/swivel
                                                                        10ft cable
                                                                                                                               more detail.

                                                                        8.0 dBi omni w/remote     NOTE: Not all combinations available. For further information on establishing
                                                                  08    bkt. mount, str. design
                                                                        3 ft cable
                                                                                                  any of the above listings, please contact Honeywell Sensing and Control or your
                                                                                                  local sales office.
                                                                        8.0 dBi omni w/remote
                                                                  09    bkt. mount, str. design
                                                                        11 ft cable
                                                                        2.2 dBi omni w/remote
                                                                                                  EXAMPLE: WLS1A01AA1A (ordered with lever included)
                                                                  10    mag. mount, tilt/swivel
                                                                        10 ft cable
                                                                                                  Limitless™ heavy-duty limit switch, 2.2 dBi straight antenna, momentary,
                                                                                                  standard lever with nylon roller
                                                                        0 dBi omni w/
                                                                  11    switch mount;
                                                                        straight design
                                                                                                  EXAMPLE: WLS1A01AA (order lever separately)
                                                                                                  Limitless™ heavy-duty limit switch, 2.2 dBi straight antenna, momentary.
                                                                                                  LSZ51A (standard lever with nylon roller) ordered separately,

   WLS SERIES ACTUATOR CODE TABLE (see page 9 for more detail)
Code      Catalog        Material       Roller Dia. (in) Roller Width (in) Roller Mounting        Code      Catalog        Material                 Roller Dia. (in) Roller Width (in) Roller Mounting
          Listing                                                                                           Listing
Fixed 1.5 inch radius                                                                             Yoke – 1.5 in radius , continued
1                        Rollerless     n/a             n/a               n/a                     3E        LSZ53E         Nylon                    0.75             0.25                Back/Front
1A        LSZ51A         Nylon          0.75            0.25              Front                   3M        LSZ53M         Nylon                    0.75             1.25                Back/Front
1B        LSZ51B         Steel          0.75            0.25              Front                   3P        LSZ53P         Steel                    0.75             0.25                Back/Back
1C        LSZ51C         Nylon          0.75            0.25              Back                    3S        LSZ53S         Nylon                    0.75             0.25                Back/Back
1D        LSZ51D         Steel          0.75            0.25              Back                    Rod
1F        LSZ51F         Nylon          1.0             0.520             Front                   4                        Hub only                 n/a              n/a                 n/a
1G        LSZ51G         Nylon          1.5             0.25              Front                   4M        LSZ54M         Alum, 5.5 in             n/a              n/a                 n/a
1J        LSZ51J         Nylon          1.0             0.520             Back                    4N        LSZ54N         Stainless, 13 in         n/a              n/a                 n/a
1L        LSZ51L         Ball bearing   0.75            0.25              Back                    4R        LSZ54R         Spring Wire,             n/a              n/a                 n/a
1M        LSZ51M         Nylon          0.75            1.25              Back                                             12 in
1N        LSZ51N         Steel          0.75            1.25              Front                   4V        LSZ54V         Flex cable, 4.8 in       n/a              n/a                 n/a
1P        LSZ51P         Nylon          0.75            0.50              Front                   Offset – 1.5 in radius
Adjustable 1.5 in to 3.5 in radius                                                                5                        Rollerless               n/a              n/a                 n/a
2                        Rollerless     n/a             n/a               n/a                     5A        LSZ55A         Nylon                    0.75             0.25                Back
2A        LSZ52A         Nylon          0.75            0.25              Back                    5B        LSZ55B         Steel                    0.75             0.25                Back
2B        LSZ52B         Steel          0.75            0.25              Back                    5C        LSZ55C         Nylon                    0.75             0.25                Front
2C        LSZ52C         Nylon          0.75            0.25              Front                   5D        LSZ55D         Steel                    0.75             0.25                Front
2D        LSZ52D         Steel          0.75            0.25              Front                   5E        LSZ55E         Nylon                    0.75             0.50                Front
2E        LSZ52E         Nylon          0.75            1.30              Front                   5K        LSZ55K         Nylon                    1.5              0.25                Front
2J        LSZ52J         Nylon          1.0             0.50              Front                   Wobble stick
2K        LSZ52K         Nylon          1.5             0.25              Front                   7A        LSZ1JGA        Delrin™ rod, 5.5         n/a              n/a                 n/a
2L        LSZ52L         Ball bearing   0.75            0.25              Front                   7M        LSZ1JGM        Spring wire, 13.0        n/a              n/a                 n/a
2M        LSZ52M         Nylon          2.0             0.25              Front                   7N        LSZ1JGN        Cable, 5.5 in.           n/a              n/a                 n/a
2N        LSZ52N         Nylon          0.75            0.50              Front                   Short fixed - 1.3 in radius
Yoke – 1.5 in radius                                                                              9A        LSZ59A         Nylon                    0.75             0.25                Front
3A        LSZ53A         Nylon          0.75            0.25              Front/Back              9B        LSZ59B         Steel                    0.75             0.25                Front
3B        LSZ53B         Steel          0.75            0.25              Front/Back              9C        LSZ59C         Nylon                    0.75             0.25                Back
3D        LSZ53D         Steel          0.75            0.25              Front/Front             9D        LSZ59D         Steel                    0.75             0.25                Back

                                                                                                                                                                                                             7
Limitless™ Limit Switch Series
WGLA Series
Levers

        GLZ51A                         GLZ51B                  GLZ55A                   GLZ55B                                  GLZ53A
    fixed rotary lever,            fixed rotary lever,     fixed rotary offset      fixed rotary offset                  yoke lever, nylon rollers,
    nylon roller, front             steel roller, front    lever, nylon roller,   lever, steel roller, front                 front placement
                                                                  front

                      GLZ53B
                yoke lever, steel rollers,
                   front placement

       GLZ52A                          GLZ52B                GLZ52C/D                  GLZ54J                      GLZ54K                      GLZ54N
        adj. lever,                    adj. lever,             adj. lever,           adjustable rod,             adjustable rod,             adjustable rod,
    nylon roller, back              steel roller, back    nylon & steel roller,    200 mm aluminum             140 mm aluminum              318 mm stainless
                                                                 front                                                                            steel

8
Limitless™ Limit Switch Series
WLS Series
Levers

     LSZ51A                LSZ51B                  LSZ51C                         LSZ51D
 fixed rotary lever,   fixed rotary lever,     fixed rotary lever,            fixed rotary lever,
 nylon roller, front    steel roller, front    nylon roller, back              steel roller, back

                                                                                                     LSZ61         LSZ54R
                                                                                                      6-inch        12-inch
                                                                                                       loop        spring wire

     LSZ55A                 LSZ60                         LSZ53A through D
   through D                one-way                   yoke lever, nylon and steel rollers,
     offset lever,         roller lever                   front and back placement
    front & back

     LSZ52A                LSZ52J                  LSZ52K                         LSZ54M             LSZ68          LSZ54N
   through D            adjustable lever,       adjustable lever,                  5.5-inch         12-inch rod      13-inch
 adj. lever, nylon &   1-inch nylon roller    1.5-inch nylon roller             aluminum rod        with spring   stainless steel
  steel, front/back                                                                                                     rod

                                                                                                                                    9
Limitless™ Limit Switch Series
WLS Heavy-Duty Limit Switch
with Eyelet Pull
Limitless™ WLS Series Heavy Duty Wireless Limit Switches with an eyelet-pull operating head can be used to attach a rope, cable or
chain. It also can be used on cranes as an anti-two-block (A2B) switch. The Limitless™ Series benefits remote monitoring applications
where wiring or wire maintenance is not physically possible or economically feasible. Combining this greater flexibility with proven
harsh-duty packaging can result in increased efficiencies and improved safety for machines, equipment, OEMs, and operators.

FEATURES                                      BENEFITS
Wireless Design                               •    Enables presence/absence detection
•   Radio (license-free and global):               in remote parts of application/
    WPAN 802.15.4, 2.4 GHz, point-to-              machinery, where wiring is an issue or
    point                                          not feasible
•   FCC 15, IC, ACMA, ETSI, COFETEL,          •    Ability to reconfigure multiple switch-
    WPC, IDA, ANATEL, SRRC, and KCC                es that easily allows for adding,
•   Up to 1000 ft [305 m] line of sight            subtracting or relocating Limitless™
    communication range when used with             WLS switches
    a Limitless™ WPMM Series wireless         •    Reduces installation/maintenance
    monitor or WDRR Series receiver                costs with no wires, conduit, strain
    module (sold separately)                       relief, clips, connectors, or connec-
•   Reliable, flexible, and secure wireless        tion boxes
    transmission                              •    Eliminates issues with wire connec-
•   Long-life standard replaceable bat-            tion integrity on moving equipment
    tery                                       •   Consumes ultra-low power to prolong          APPLICATIONS
•   Direct or remote mount antenna op-             battery life                                 •    Cranes: A2B (anti-two block) switch
    tions                                                                                       •    Rope-pull: door activation switch
Mechanical Design                                                                               •    Cable pull for production stop
•   IP67/IP68; NEMA 1, 4, 6, 6P, 12, 13                                                              applications (e.g., quality, broken
•   Unique all-metal drive train                                                                     tool, maintenance, out of parts); not
•   Zinc head and body are phosphate                                                                 applicable to human safety-stop
    treated and epoxy finished                                                                       applications
•   Tested to 750 lb of pull force
•   Captive head and body screws

                                                                           *Some countries require specific communication certifications.
10                                                                         Contact Honeywell for existing certification information.
WLS Series with Eyelet Pull
  Product type         Limitless™ Wireless Heavy-Duty Limit Switches
   Availability        Global, license-free bands
   Operating
                       Operating force: 7 lb approx. or 18 lb approx.
 characteristics
  Actuator type        Eyelet-pull operating head (pull eyelet in-line with shaft to prevent damage)
Housing material       Zinc head and body are phosphate treated and epoxy finished
      Radio            WPAN 802.15.4; 2.4 GHz
  Antenna type         RP-SMA jack for direct or remote mount antenna options; omni-directional
                       In excess of 305 m [1000 ft] line-of-sight communication between Limitless™ switches and
   Signal range
                       monitor/receiver when using 2.2 dBi integral antenna
                       3.6 Vdc Lithium Thionyl Chloride; 2/3 AA size (Est. life >1yr)
     Battery           Manufactured by Green Energy, part number ER14335M
                       Manufactured by Honeywell, part number WBT1
     Sealing           IP67/IP68; NEMA 1, 4, 6, 6P, 12, 13
                       Latest applicable standards: EN 300 328, V1.7.1; EN 61326-1 (2006);
       EMC
                       EN 301 489-1, V1.8.1; EN 301 489-17, V2.1.1
      Shock            IEC 60068-2-27; half sine, 10 g, 6 mS, 3 axis
    Vibration          IEC 60068-2-6; 10-500Hz w/ 0,35 mm peak-to-peak, 58-500 Hz- 5g
    Operating
                       -40 °C to 85 °C [-40 °F to 185 °F]
   temperature
                       - FCC 15.247: United States of America
                       - IC RSS 210: Canada
                       - ETSI, CE mark: European countries
                       - ACMA, C-TICK: Australia, New Zealand
Agency approvals       - IDA: Singapore
 and standards         - COFETEL: Mexico
                       - WPC: India
                       - ANATEL: Brazil
                       - SRRC: China
                       - KCC: South Korea

*Some countries require specific communication certifications.
Contact Honeywell for existing certification information.                                                         11
Mounting
                                                                                       59,44 mm                                                                                                                        5,84 mm            pads
                                                                                        [2.34 in]                                                                                                                      [0.23 in]

             Limitless™ Wireless Heavy-Duty
                                                                                                                                                                                                                       41,15 mm
                                                                                                                                                                                                                        [1.62 in]
                                                                                                                                                                                                                          29,46 mm

             Limit Switch with Eyelet Pull
                                                                                                                                                                                                                           [1.16 in]
                                                                                      10,93 mm [0.43 in]

             Dimensions and Ordering Options
                                                             83,82 mm [3.30 in]
                                                                 full travel                                                                                                                                                                                                        29,21 m
                                                                                                                                                                                                                                                     29,21 mm                        [1.15
                                         29,21 mm          76,17 mm [2.92 in]                                                                                                                                                      75,69 mm           [1.15 in]
                                          [1.15 in]           free position                                                             21,59 mm                            21,59 mm                                                [2.98 in]
                                                                                                                                         [0.85 in]                           [0.85 in]

               31,5 mm
               [1.24 in]                                                                            5,84 mm
                           19,05 mm                                                                 [0.23 in]
                            [0.75 in]
                                                                                                    41,15 mm                                                                                                   20,32 mm                                             19,05 mm
                                                                                                     [1.62 in]                                                                                                  [0.80 in]                                            [0.75 in]
                                                                                                         29,46 mm
                                                                                                                                                                 Mounting                                 39,12 mm
                                                                                                                                                                                                           [1.54 in]
                                                                                                          [1.16 in]                              Mounting         pads
              59,44 mm                                                                                                                            pads                                                    44,45 mm
               [2.34 in]                                                                                                                                                                                   [1.75 in]

              10,93 mm [0.43 in]

                                                                                                                                                                                29,21 mm          76,17 mm [2.92 in]
                                                                                                                                        29,21 mm                                 [1.15 in]           free position
                                                                                                                75,69 mm                 [1.15 in]
                                                                         21,59 mm                                [2.98 in]                                                                   21,59 mm
                                                                          [0.85 in]                                                                                                           [0.85 in]

                                                                                                                                                                                                                                                                     19,05 mm
                                                                                                                                                                                                                                                                      [0.75 in]
                                                                                                                                                         19,05 mm
                                                                                                                                                          [0.75 in]
                                                           Mounting
                                                            pads                                                                                                                                                                       Mounting
                            5,84 mm
                                                                                                                                                                                                                                        pads
                            [0.23 in]

                            41,15 mm                                                                                       20,32 mm
                                                                                                                            [0.80 in]
                             [1.62 in]
                                                                                                                      39,12 mm
                               29,46 mm                                                                                [1.54 in]
                                [1.16 in]
                                                                                                                      44,45 mm
                                                                                                                       [1.75 in]

              WLS WITH EYELET PULL NOMENCLATURE

                  WLS                            1         29,21 mm
                                                                                A           29,21 mm
                                                                                             [1.15 in]
                                                                                                              00
                                                                                                              76,17 mm [2.92 in]                       A                               A                     —                 3                        PO1
                                                                                                                  free position
                                        75,69 mm            [1.15 in]
21,59 mm                                 [2.98 in]                                                       21,59 mm
 [0.85 in]                                                                                                [0.85 in]
                                                                                                        Antenna                              Country use                        Operating                              Modification
             Switch type                     Gen Code                   RF Code                                                                                                 head code                                                              Specials
                                                                                                       type code                                code                                                                     code
             WLS Series                                                    2.4 GHz;                   No antenna; RP-SMA                             US, Canada,                19,05
                                                                                                                                                                                   Seemm                                Head assembled                   Eyelet-pull
                                         1     Version 1           A       IEEE 802.15.4     00       connector jack                         A       Mexico                 Q    [0.75 in]
                                                                                                                                                                                   specials                             with actuator towards     PO1 operating head
              Wireless                                                  19,05 mm
                                                                                                                                                                                                                        nameplate surface                (low force, 7 lb ref.)
                                                                         [0.75 in]                                                                   All other                                                              Head assembled               Eyelet-pull
                                                                                                      2.2 dBi omni w/switch
                                                                                             01       mount; straight design                 B       approved
                                                                                                                                                     countries1, 2, 3
                                                                                                                                                                                                                   3        with actuator to
                                                                                                                                                                                                                            right side
                                                                                                                                                                                                                                                  PO2 operating head
                                                                                                                                                                                                                                                         (high force, 18 lb ref.)
                                                                                                      2.2 dBi omni w/switch
                                                                                                                                         1
                                                                                                                                          UseMounting
                                                                                                                                               with antenna type                                                            Head assembled
                                                                                             02       mount; tilt/swivel                 codespads
                                                                                                                                                00 - 03, 05, 10, 11                                                4        with actuator to
                                                                                                                                                                                                                            left side
                                                                                                                                         only; usage also allowed
                                                                                                      3.0 dBi omni w/remote              in Country Code A.                                                                 Head assembled
                                                                                             03       adhesive mount
                                                                                                      9.8 ft cable
                                                                                                                                                                                                                   5        with actuator to
                                                                                                                                                                                                                            mounting surface
                                                                                                                                         2
                                                                                                                                          Some countries require
                                                                                                      5.5 dBi omni w/remote              specific communication
                                                                                             04       mag. mount, tilt/swivel
                                                                                                      5 ft cable
                                                                                                                                         certifications. Contact
                                                                                                                                         Honeywell for existing
                                                                                                      5.5 dBi omni w/remote              certification information.
                                                                                             05       mag. mount, tilt/swivel
                                                                                                      10 ft cable                        3
                                                                                                                                          If Limitless devices are
                                                                                                      9.0 dBi omni w/remote              used on machinery that
                                                                                             06       mag. mount, tilt/swivel
                                                                                                      5 ft cable
                                                                                                                                         may be shipped globally,
                                                                                                                                         use Country Code “B”.
                                                                                                      9.0 dBi omni w/remote
                                                                                             07       mag. mount, tilt/swivel
                                                                                                      10 ft cable
                                                                                                      8.0 dBi omni w/remote
                                                                                             08       bkt. mount, str. design
                                                                                                      3 ft cable

              NOTE: Not all combinations available.                                                  8.0 dBi omni w/remote
              For further information on establishing any of the above
                                                                                             09      bkt. mount, str. design
                                                                                                     11 ft cable
              listings, please contact Honeywell Sensing and Control                                  2.2 dBi omni w/remote
              or your local sales office.                                                    10       mag. mount, tilt/swivel
                                                                                                      10 ft cable
                                                                                                      0 dBi omni w/
                                                                                             11       switch mount;
                                                                                                      straight design
             12
Limitless™ Wireless Heavy-Duty
Limit Switch with Eyelet Pull
Standard Listings
Limitless™ WLS Series with Eyelet Pull for use in US/Canada

WLS        1A11     A   Q-4P01    Limitless™ WLS Series heavy-duty limit switch with 7 lb low-force eyelet pull operating head, head assembled with actuator to left
                                  side, 0 dBi omni antenna

WLS        1A11     A   Q-P01     Limitless™ WLS Series heavy-duty limit switch with 7 lb low-force eyelet pull operating head, head assembled with actuator to label
                                  side, 0 dBi omni antenna

WLS        1A11     A   Q-P02     Limitless™ WLS Series heavy-duty limit switch with 18 lb high-force eyelet pull operating head, head assembled with actuator to label
                                  side, 0 dBi omni antenna
Limitless™ WLS Series with Eyelet Pull for use in all other approved countries

WLS        1A11     B   Q-4P01    Limitless™ WLS Series heavy-duty limit switch with 7 lb low-force eyelet pull operating head, head assembled with actuator to left
                                  side, 0 dBi omni antenna

WLS        1A11     B   Q-P01     Limitless™ WLS Series heavy-duty limit switch with 7 lb low-force eyelet pull operating head, head assembled with actuator to label
                                  side, 0 dBi omni antenna

WLS        1A11     B   Q-P02     Limitless™ WLS Series heavy-duty limit switch with 18 lb high-force eyelet pull operating head, head assembled with actuator to label
                                  side, 0 dBi omni antenna

                                                                                                                                                                        13
Limitless™ Limit Switch Series
WLS Heavy-Duty Limit Switch
Single Switch Adapter
Honeywell’s Limitless™ product line uses the latest commercial off-the-shelf wireless technology and has expanded the WLS Series
to convert almost any electromechanical switch with low-energy contacts (i.e., gold) into a wireless switch. A user-supplied electro-
mechanical switch is simply wired to the WLS Series Single Switch Adapter via the internal or external connections to then become
a wireless-enabled switch for use with the Limitless™ WPMM or WDRR Series of monitors/receivers. The Limitless™ Single Switch
Adapter can be used in a variety of industrial wireless limit switch applications such as reed, contact, pressure, door actuator, etc.

The Limitless™ Series is especially beneficial for remote monitoring applications where wiring or wire maintenance is not physically
possible or economically feasible. Combining this greater flexibility with proven harsh-duty packaging can result in increased efficien-
cies and improved safety for machines, equipment, OEMs, and operators.

FEATURES                                      BENEFITS
Wireless Design                               •    Allows almost any type of
•   Radio (license-free and global):               electromechanical switch with
    WPAN 802.15.4, 2.4 GHz, point-to-              low-energy contacts (i.e., gold) to
    point                                          become “wireless”
• FCC 15, IC, ACMA, ETSI, COFETEL,            •    Enables presence/absence detection
    WPC & IDA                                      in remote parts of application/machin-
•   Up to 305 m [1000 ft] line-of-sight            ery, where wiring is an issue or not
    communication range when used                  feasible
    with a Limitless™ WPMM Series wire-       •    Ability to reconfigure multiple switch-
    less monitor or WDRR Series receiver           es, which easily allows for adding,
    module (sold separately)                       subtracting or relocating of the Limit-
•   Reliable, flexible, and secure wireless        less™ WLS Single Switch Adapters
    transmission                              •    Reduced installation/maintenance
•   Standard replaceable battery with              costs with no wires, conduit, strain
    ultra-low power consumption                    relief, clips, connectors, connection
                                                                                                APPLICATIONS
                                                                                                •    Agricultural equipment
•   Direct or remote mount antenna op-             boxes, etc.
                                                                                                •    Construction equipment
    tions                                     •    Eliminates issues with wire connec-
                                                                                                •    Door actuation (up/down) switch
Mechanical Design                                  tion integrity on moving equipment
                                                                                                •    Industrial machines
•   IP67; NEMA 1, 4, 12, 13                   •    Consumes ultra-low power to prolong
                                                                                                •    Lifts
• 4 PIN M12 micro-change receptacle,               battery life
                                                                                                •    Machine tools
    cable grip with internal connector wir-
                                                                                                •    Packaging machinery
    ing options
                                                                                                •    Wireless warehouse operations
•   Internal battery power
                                                                                                •    Wireless electromechanical switch
•   Body phosphate treated and epoxy
                                                                                                     applications (i.e., pressure switch,
    finished with a 30 % glass-filled PBT
                                                                                                     reed switch, basic switch and/or
    plastic head
                                                                                                     limit switch)

                                                                           *Some countries require specific communication certifications.
14                                                                         Contact Honeywell for existing certification information.
WLS Series Single Switch Adapter
     Product type          Limitless™ Single Switch Adapter
      Availability         Global, license-free bands
  Housing material         Zinc body is phosphate treated and epoxy filled; 30 % glass-filled PBT plastic head
         Radio             WPAN 802.15.4; 2.4 GHz
    Antenna type           RP-SMA jack for direct or remote mount antenna options; omni directional standard
                           Nominal 305 m [1000 ft] clear line of sight between Limitless™ switch and monitor/receiver when using
     Signal range
                           2.2 dBi integral antennas
                           3.6 Vdc Lithium Thionyl Chloride; 2/3 AA size (Est. life >1yr)
        Battery            Manufactured by Green Energy, part number ER14335M
                           Manufactured by Honeywell, part number WBT1
        Sealing            IP67, NEMA 1, 4, 12, 13
                           Latest applicable standards: EN 300 328, V1.7.1; EN 61326-1 (2006);
         EMC
                           EN 301 489-1, V1.8.1; EN 301 489-17, V2.1.1
        Shock              IEC 60068-2-27; half sine, 50 g, 6 mS, 3 axis
       Vibration           IEC 60068-2-6; 10-500Hz w/ 0,35 mm peak-to-peak, 58-500 Hz- 10g
      Operating
                           -40 °C to 85 °C [-40 °F to 185 °F]
     temperature
 Electromechanical         SPDT (Form C) switch with low-energy contacts (i.e., gold) capable of reliably controlling a 3.6 Vdc
       switch              @ 30 mA electrical load to ensure proper operation
                           •   4-pin M12 micro-connector with three-pole, single keyway female receptacle
      Electrical
                           •   Cable grip with internal screw connector
     connections
                           Note: Maximum cable length 3 m [9.84 ft]
                           - FCC 15.247: United Sates of America
                           - IC RSS 210: Canada
  Communication            - COFETEL: Mexico
 Agency Approvals/         - ETSI, CE mark: European countries
   Certificates*           - ACMA, C-TICK: Australia
                           - IDA: Singapore
                           - WPC: India
* Honeywell is continuing to add new Country Communication Agency Approvals as opportunities and requirements are established.

  *Some countries require specific communication certifications.
  Contact Honeywell for existing certification information.                                                                        15
Limitless™
Single Switch Adapter
Dimensions and Ordering Options

WLS SINGLE SWITCH ADAPTER NOMENCLATURE

     WLS               1                    A                       00                              A                        Q                                                 BT1

                                                                 Antenna                    Country Use                  Operating       Modification Code                    Specials
 Switch type      Gen Code               RF Code                Type Code                      Code                      Head Code       (BT2 & BT4 only)
WLS Series                                 2.4 GHz;             No antenna; RP-SMA               US, Canada,                                 Head assembled                     Internal battery w/
           1         Version 1       A     IEEE 802.15.4   00   connector jack              A    Mexico              Q    See specials       with cable grip/connector   BT1 micro-connector
 Wireless                                                                                                                                    to label side                   on top of head
                                                                                                All other                                    Head assembled                     Internal battery w/
                                                                2.2 dBi omni w/switch
                                                           02   mount; tilt/swivel          B   approved
                                                                                                countries1, 2, 3
                                                                                                                                         3   with cable grip/connector
                                                                                                                                             to right side
                                                                                                                                                                         BT2 micro-connector
                                                                                                                                                                             on side of head
                                                                0 dBi omni w/           1
                                                                                         Use with antenna type                               Head assembled                     Internal battery w/
                                                           11   switch mount;
                                                                straight design
                                                                                        codes 00 - 03, 05, 10, 11                        4   with cable grip/connector
                                                                                                                                             to left side
                                                                                                                                                                         BT3 cable  grip on
                                                                                                                                                                             top of head
                                                                                        only; usage also allowed
                                                                                        in Country Code A.                                   Head assembled                     Internal battery w/
                                                                                                                                         5   with cable grip/connector
                                                                                                                                             to mounting surface
                                                                                                                                                                         BT4 cable grip on
                                                                                                                                                                             side of head
                                                                                        2
                                                                                         Some countries require
                                                                                        specific communication
                                                                                        certifications. Contact
                                                                                        Honeywell for existing
                                                                                        certification information.
NOTE: Not all combinations available.                                                   3
                                                                                         If Limitless devices are
For further information on establishing any of the above                                used on machinery that
listings, please contact Honeywell Sensing and Control                                  may shipped globally,
or your local sales office.                                                             use country code “B”.

16
Limitless™
Single Switch Adapter
Standard Listings
Limitless™ Single Switch Adapter for use in US/Canada
M12 Connector
WLS          1A00   A   QBT1     Limitless™ WLS Series Single Switch Adapter, no antenna, internal battery with M12 micro-connector on top of head
WLS          1A02   A   QBT1     Limitless™ WLS Series Single Switch Adapter, 2.2 dBi tilt/swivel antenna, internal battery with M12 micro-connector on top of head
WLS          1A11   A   QBT1     Limitless™ WLS Series Single Switch Adapter, 0 dBi straight antenna, internal battery with M12 micro-connector on top of head
Cable Grip
WLS          1A00   A   QBT3     Limitless™ WLS Series Single Switch Adapter, no antenna, internal battery with cable grip on top of head
WLS          1A02   A   QBT3     Limitless™ WLS Series Single Switch Adapter, 2.2 dBi tilt/swivel antenna, internal battery with cable grip on top of head
WLS          1A11   A   QBT3     Limitless™ WLS Series Single Switch Adapter, 0 dBi straight antenna, internal battery with cable grip on top of head
Limitless™ Single Switch Adapter for use in all other approved countries
M12 Connector
WLS          1A00   B   QBT1     Limitless™ WLS Series Single Switch Adapter, no antenna, internal battery with M12 micro-connector on top of head
WLS          1A02   B   QBT1     Limitless™ WLS Series Single Switch Adapter, 2.2 dBi tilt/swivel antenna, internal battery with M12 micro-connector on top of head
WLS          1A11   B   QBT1     Limitless™ WLS Series Single Switch Adapter, 0 dBi straight antenna, internal battery with M12 micro-connector on top of head
Cable Grip
WLS          1A00   B   QBT3     Limitless™ WLS Series Single Switch Adapter, no antenna, internal battery with cable grip on top of head
WLS          1A02   B   QBT3     Limitless™ WLS Series Single Switch Adapter, 2.2 dBi tilt/swivel antenna, internal battery with cable grip on top of head
WLS          1A11   B   QBT3     Limitless™ WLS Series Single Switch Adapter, 0 dBi straight antenna, internal battery with cable grip on top of head

                                                                                                                                                                      17
Limitless™ Limit Switch Series
WLS Series
Wireless Non-Contact Switch
Honeywell’s Limitless™ product line uses the latest commercial off-the-shelf wireless technology. The Limitless™ WLS Series is
especially beneficial for remote monitoring applications where wiring or wire maintenance is not physically possible or economically
feasible. Honeywell has expanded the Limitless™ product line with its industrial Wireless Non-Contact Switch that provides non-
contact presence/absence detection of a variety of different magnet styles and magnetic actuators installed on the end-users’
product, machine, equipment, etc. The Limitless™ WLS Non-Contact Switch’s design features an industrial grade reed switch.
Customers can choose how the reed switch is oriented within the switch’s plastic head, i.e., either top- or side-sensing. Combining this
greater flexibility with proven harsh-duty packaging can result in increased efficiencies and improved safety for industrial machines,
equipment, OEMs, and operators.

FEATURES                                      BENEFITS
Wireless Design                               •    Allows “non-contact” actuation
•   Radio (license-free and global):          •    Enables presence/absence detection
    WPAN 802.15.4, 2.4 GHz, point-to-              in remote parts of application/machin-
    point                                          ery, where wiring is an issue or not
•   FCC 15, IC, ACMA, ETSI, COFETEL,               feasible
    WPC & IDA                                 •    Able to reconfigure and network mul-
•   Up to 305 m [1000 ft] line-of-sight            tiple switches, or point-to-point with
    communication range when used                  personalized addresses, which allows
    with a Limitless™ wireless monitor or          for adding, subtracting or relocating
    receiver module (sold separately)              of the Limitless™ WLS Non-Contact
•   Reliable, flexible, and secure wireless        Switches
                                                                                                APPLICATIONS
    transmission                                                                                •    Machine tools
                                              •    Reduced installation/maintenance
•   Replaceable battery with ultra-low                                                          •    Packaging machinery
                                                   costs with no wires, conduit, strain
    power consumption                                                                           •    Lifts
                                                   relief, clips, connectors, connection
•   Direct or remote mount antenna                                                              •    Ag/construction equipment
                                                   boxes, etc.
    options                                                                                     •    Industrial machines
                                              •    Eliminates issues with wire connec-
Mechanical Design                                  tion integrity on moving equipment
•   IP67; NEMA 1, 4, 12, 13                   •    Consumes ultra-low power to prolong
•   Top and side sensing heads                     battery life
•   Zinc head and body are phosphate
    treated and epoxy finished

                                                                           *Some countries require specific communication certifications.
18                                                                         Contact Honeywell for existing certification information.
WLS Series Wireless Non-Contact Switch
     Product type         Limitless™ Wireless Non-Contact Switch
      Availability        Global, license-free bands
                          Operating point: 3,81 mm [0.15 in] min.;
      Operating
                          Release point: 15,24 mm [0.60 in] max.
    characteristics
                          with use of WMG1 magnet (included with WLS Series Non-Contact Switch)
    Sensing target        Top and side of head
  Housing material        Zinc head and body are phosphate treated and epoxy finished; 30% glass-filled PBT plastic head
         Radio            WPAN 802.15.4; 2.4 GHz
    Antenna type          RP-SMA jack for direct or remote mount antenna options; omni directional standard
                          Nominal 305 m [1000 ft]
     Signal range
                          Clear line-of-sight between Limitless™ switch and monitor/receiver when using 2.2 dBi integral antenna
                          3.6 Vdc Lithium Thionyl Chloride; 2/3 AA size (Est. life >1yr)
        Battery           Manufactured by Green Energy, part number ER14335M;
                          Manufactured by Honeywell, part number WBT1
        Sealing           IP67; NEMA 1, 4, 12, 13
                          Latest applicable standards: EN 300 328, V1.7.1; EN 61326-1 (2006);
         EMC
                          EN 301 489-1, V1.8.1; EN 301 489-17, V2.1.1
        Shock             EC 60068-2-27; half sine, 10 g, 6 mS, 3 axis
       Vibration          IEC 60068-2-6; 10-58 Hz w/ 0,35 mm peak-to-peak - 5g
      Operating
                          -40 to 85 °C [-40 °F to 185 °F]
     temperature
                          - FCC 15.247: United Sates of America
                          - IC RSS 210: Canada
  Communication           - COFETEL: Mexico
 Agency Approvals/        - ETSI, CE mark: European countries
   Certificates*          - ACMA, C-TICK: Australia
                          - IDA: Singapore
                          - WPC: India
* Honeywell is continuing to add new Country Communication Agency Approvals as opportunities and requirements are established

 *Some countries require specific communication certifications.
 Contact Honeywell for existing certification information.                                                                         19
Limitless™
Wireless Non-Contact Switch
Dimensions and Ordering Options

WLS SERIES NON-CONTACT SWITCH NOMENCLATURE
     WLS               1                    A                      00                                 A                        Q                                                 RS2

                                                                 Antenna                      Country Use                  Operating       Modification Code                     Specials
 Switch Type       Gen Code              RF Code                Type Code                        Code                      Head Code          (RS2 only)
WLS Series                                 2.4 GHz;              No antenna; RP-SMA                US, Canada,                                                                    Internal battery w/
           1         Version 1       A     IEEE 802.15.4   00    connector jack               A    Mexico              Q    See specials       Head assembled
                                                                                                                                               with target to label side   RS1 reed switch target
 Wireless                                                                                                                                                                      on top of head
                                                                                                  All other                                                                       Internal battery w/
                                                                 2.2 dBi omni w/switch
                                                           02    mount; tilt/swivel           B   approved
                                                                                                  countries1, 2, 3
                                                                                                                                           3   Head assembled
                                                                                                                                               with target to right side   RS2 reed switch target
                                                                                                                                                                               on side of head

                                                                 0 dBi omni w/ switch
                                                                                          1
                                                                                           Use with antenna type
                                                           11    mount; straight design   codes 00 - 03, 05, 10, 11                        4   Head assembled
                                                                                                                                               with target to left side
                                                                                          only; usage also allowed
                                                                                          in Country Code A.                                   Head assembled
                                                                                                                                           5   with target to mounting
                                                                                                                                               surface
                                                                                          2
                                                                                           Some countries require
                                                                                          specific communication
                                                                                          certifications. Contact
                                                                                          Honeywell for existing
NOTE: Not all combinations available.                                                     certification information.
For further information on establishing any of the above                                  3
                                                                                           If Limitless devices are
listings, please contact Honeywell Sensing and Control
                                                                                          used on machinery that
or your local sales office.                                                               may shipped globally,
                                                                                          use country code “B”.

20
Limitless™
Wireless Non-Contact Switch
Standard Listings
Limitless™ Wireless Non-Contact Switch for use in US/Canada
Top Sensing
WLS       1A00     A   QRS1     Limitless™ WLS Series Non-Contact Switch with no antenna and a top sensing target
WLS       1A11     A   QRS1     Limitless™ WLS Series Non-Contact Switch with a 0 dBi antenna and a top sensing target
Side Sensing
WLS       1A00     A   QRS2     Limitless™ WLS Series Non-Contact Switch with no antenna and a side sensing target
WLS       1A11     A   QRS2     Limitless™ WLS Series Non-Contact Switch with a 0 dBi antenna and a side sensing target
Limitless™ Wireless Non-Contact Switch for use in all other approved countries
Top Sensing
WLS       1A00     B   QRS1     Limitless™ WLS Series Non-Contact Switch with no antenna and a top sensing target
WLS       1A11     B   QRS1     Limitless™ WLS Series Non-Contact Switch with a 0 dBi antenna and a top sensing target
Side Sensing
WLS       1A00     B   QRS2     Limitless™ WLS Series Non-Contact Switch with no antenna and a side sensing target
WLS       1A11     B   QRS2     Limitless™ WLS Series Non-Contact Switch with a 0 dBi antenna and a side sensing target

                                                                                                                          21
Limitless™ Wireless
Operator Interface
WOI Series
The Limitless™ product line extends to include wireless operator interface. With both momentary and maintained contacts, the wireless
operator interface (WOI) can be used by an operator to provide indication via a pushbutton or another user-chosen operator type (i.e.
22 mm rotary switch, 22 mm key switch, etc.). The WOI Series adds a human interface device to the product-driven interfaces of Limit-
less™ switches and receivers – wireless control from both person and position.

The WOI Series is especially beneficial for remote monitoring applications where wiring or wire maintenance is not physically possible or
economically feasible. Combining this greater flexibility with proven harsh-duty packaging can result in increased efficiencies and ease
in establishing a remote operator for use in a variety of applications, including turning equipment or devices on or off, opening and clos-
ing doors/gates, stopping a production conveyor, indicating the need for service, and much more.

FEATURES                                      BENEFITS
Wireless Design                               •    Enables operator indication (i.e. push
•   Radio (license-free and global):               button) from remote locations where
    WPAN 802.15.4, 2.4 GHz, point-to-              wiring is too costly or not possible
    point                                     •    Flexibility for users to choose and
•   FCC 15, IC, ACMA & ETSI                        install their desired operator type;
•   RoHS compliant                                 i.e. 22 mm rotary switch, 22 mm key
•   EMI immunity                                   switch, etc.
•   Up to 305 m [1000 ft] communication       •    Ability to reconfigure and network
    range when used with a Limitless™              multiple WOI inputs, or point-to-point
    wireless monitor or receiver module            with personalized addresses, which
    (sold separately)                              allows for adding, subtracting or re-
•   Reliable, flexible, and secure wire-           locating of Limitless™ WOI switches
    less transmission                              easily                                      APPLICATIONS
•   Standard replaceable battery with         •    Offers the ability to be used in con-       Industrial
    ultra-low power consumption                    junction with Limitless™ switches           •   CNC action
•   Direct or remote mount antenna                 configured on a single Limitless™           •   Conveyors
    options                                        receiver                                    •   Door/Gate action
Mechanical Design                             •    Reduced installation/maintenance            •   Lifts
•   Aluminum enclosure                             costs with no wires, conduit, strain        •   Material handling
•   IP65 sealing                                   relief, clips, connectors, connection       •   Motor drives
•   22 mm flush, 29 mm mushroom, &                 boxes, etc.                                 •   Presses
    40 mm mushroom (push-pull) round          •    Eliminates issues with wire connec-         •   Pumps
    pushbutton operators available                 tion integrity on moving equipment          •   Quality control buttons
•   User chosen/installed operator type       •    Consumes ultra-low power to prolong         •   Specialty machines
    is allowable                                   battery life                                •   Stop/Start machinery
•   Momentary and maintained contact                                                           •   Stop/Start production
    options                                                                                    •   Valve action
•   Design for ease of installation                                                            Transportation
                                                                                               •   Agricultural equipment
                                                                                               •   Movable machinery

                                                                           *Some countries require specific communication certifications.
22                                                                         Contact Honeywell for existing certification information.
WOI Series
  Product type     Limitless™ Operator Interface Switches
   Availability    Global, license-free bands
                   Momentary pushbutton: 6,2 N ±2 N [1.4 lb ±0.45 lb]
 Operating force
                   Maintained pushbutton: 7,0 N ±2 N [1.6 lb ±0.45 lb]
                   Pushbutton operators
                   • 22 mm round flush momentary
  Actuator type    • 29 mm mushroom head momentary
                   • 40 mm mushroom head maintained (push-pull);
                   No operator option available for use with user supplied 22 mm operator and contact blocks
Actuator/contact   22 mm switch design (i.e. 22mm rotary switch, 22mm key switch, etc.) /gold contact, normally open and
 blocks (if user
                   normally closed contact blocks capable of reliably controlling a 30 mA @ 3.6 Vdc electrical load
   supplied)
                   Black, Green, Red*, Yellow
 Actuator colors
                   * not available for the 29 mm mushroom, & 40 mm mushroom (push-pull) pushbuttons
Housing material   Powder coated aluminum
     Radio         WPAN 802.15.4; 2.4 GHz
  Antenna type     Direct or remote mount antenna options; Omni directional
                   Nominal 305 m [1000 ft] clear line of sight between Limitless™ WOI switch and monitor/receiver when
  Signal range
                   using 2.2 dBi integral antennas
                   3.6 Vdc Lithium Thionyl Chloride; 2/3 AA size (Est. life >1.5 years)
     Battery       Manufactured by Green Energy p/n ER14335M;
                   Manufactured by Honeywell, part number WBT1
    Sealing        IP65
                   Latest applicable standards: EN 300 328, V1.7.1; EN 61326-1 (2006);
      EMC
                   EN 301 489-1, V1.8.1; EN 301 489-17, V2.1.1
     Shock         IEC 60068-2-27; half sine, 50 g, 6 mS, 3 axis
    Vibration      IEC 60068-2-6; 10-500Hz w/ 0,35 mm peak-to-peak, 58-500 Hz- 10g
   Operating
                   -25 °C to 50 °C [-13 °F to 122 °F]
  temperature
                   FCC 15.247
Agency approvals   Industry Canada RSS 210
 and standards     ETSI, CE mark
                   ACMA, C-Tick mark

                                                                                                                           23
Limitless™ Wireless
Operator Interface
Dimensions and Ordering Options

                   R 0,80 mm                                                                                                                                            50,1 mm [1.97 in]
                                                                         Ø 22,3 mm ±0,40 mm
                    [0.30 in]
                                                                         [Ø 0.88 in ±0.016 in]

 3,20 mm
 [0.13 in]

                                                                                                                 Space allowed for
                                                                                                                    22 mm switch
                            24,10 mm ±0,40 mm                                            63,5 mm
                             [0.95 in ±0.016 in]                                                               Operator/Contact Blocks
                                                                                          [2.5 in]

                                                                   43,5 mm
                                                                   [1.71 in]

                                                                                                                   72,1 mm [2.84 in]

WOI NOMENCLATURE

     WOI                  1                         A                            00                                A                             PA                            G

                                                                            Antenna                        Country use
Module type            GEN code                RF code                     type code                          code                          Actuator type               Actuator color
WOI Series                                         2.4 GHz;                    No antenna; RP-SMA               US, Canada
                   1    Version 1         A        IEEE 802.15.4     00        connector jack              A    Mexico
                                                                                                                                            None; open hole in
                                                                                                                                            enclosure
                                                                                                                                                                              None
 Operator
                                                                                                                                            Pushbutton only
 Interface                                                                     2.2 dBi omni w/switch
                                                                                                           B
                                                                                                                All other
                                                                                                                                    PA                                  B
                                                                     02        mount; tilt/swivel               approved
                                                                                                                countries1,2
                                                                                                                                            22 mm round flush button,
                                                                                                                                            momentary
                                                                                                                                                                              Black

                                                                                                                                            Pushbutton only3
                                                                                                        Some countries require
                                                                                                                                    PB                                  G
                                                                                                       1
                                                                               0 dBi omni w/ switch                                                                           Green
                                                                     11        mount; str. design      specific communication
                                                                                                                                            29 mm mushroom head,
                                                                                                                                            momentary
                                                                                                       certifications. Contact
                                                                                                       Honeywell for existing
                                                                                                                                    PC
                                                                                                                                            Pushbutton only3
                                                                                                                                            40 mm mushroom head,        R     Red
                                                                                                       certification information.           maintained/push-pull
NOTE: Not all combinations available.
For further information on establishing any of the above listings, please
                                                                                                       2
                                                                                                        If Limitless™ devices are   3
                                                                                                                                        NOT AVAILABLE IN RED            Y     Yellow
contact Honeywell Sensing and Control or your local sales office.                                      used on machinery that
                                                                                                       may be shipped globally,
                                                                                                       use Country Code “B”.

24
Limitless™ Wireless
  Operator Interface
  WOI Standard Listings
Limitless™ WOI Series Operator Interface for use in US/Canada
22 mm flush pushbutton
WOI        1A00     A   PAG     Limitless™ WOI, no antenna, 22 mm round flush momentary green pushbutton
WOI        1A00     A   PAR     Limitless™ WOI, no antenna, 22 mm round flush momentary red pushbutton
WOI        1A11     A   PAG     Limitless™ WOI, 0 dBi straight antenna, 22 mm round flush momentary green pushbutton
WOI        1A11     A   PAR     Limitless™ WOI, 0 dBi straight antenna, 22 mm round flush momentary red pushbutton
29 mm mushroom pushbutton
WOI        1A00     A   PBY     Limitless™ WOI, no antenna, 29 mm mushroom head momentary yellow pushbutton
WOI        1A11     A   PBY     Limitless™ WOI, 0 dBi straight antenna, 29 mm mushroom head momentary yellow pushbutton
40 mm maintained pushbutton
WOI        1A00     A    PCY    Limitless™ WOI, no antenna, 40 mm maintained yellow pushbutton
WOI        1A11     A    PCY    Limitless™ WOI, 0 dBi straight antenna, 40 mm maintained yellow pushbutton
Limitless™ WOI Series Operator Interface for use in all other approved countries
22 mm flush pushbutton
WOI        1A00     B   PAG     Limitless™ WOI, no antenna, 22 mm round flush momentary green pushbutton
WOI        1A00     B   PAR     Limitless™ WOI, no antenna, 22 mm round flush momentary red pushbutton
WOI        1A11     B   PAG     Limitless™ WOI, 0 dBi straight antenna, 22 mm round flush momentary green pushbutton
WOI        1A11     B   PAR     Limitless™ WOI, 0 dBi straight antenna, 22 mm round flush momentary red pushbutton
29 mm mushroom pushbutton
WOI        1A00     B   PBY     Limitless™ WOI, no antenna, 29 mm mushroom head momentary yellow pushbutton
WOI        1A11     B   PBY     Limitless™ WOI, 0 dBi straight antenna, 29 mm mushroom head momentary yellow pushbutton
40 mm maintained pushbutton
WOI        1A00     B    PCY    Limitless™ WOI, no antenna, 40 mm maintained yellow pushbutton
WOI        1A11     B    PCY    Limitless™ WOI, 0 dBi straight antenna, 40 mm maintained yellow pushbutton

                                                                                                                          25
Limitless™ Monitor and Receiver
WPMM Wireless Panel-Mount Monitor
WDRR Wireless DIN-Rail Receiver
Limitless™ WPMM Series wireless panel-mount monitors provide a visual, audio, and output based on a signal received
from a Limitless™ input. Limitless™ WPMM monitors offer quick indication of an actuator position change on a paired
Limitless™ wireless limit switch.
The WDRR Series DIN-Rail receiver accommodates up to 14 Limitless™ digital inputs for applications that need more than
one-input/one-receiver configuration. It provides a separate visual and selectable NPN- or PNP-type output for indication
of a change on a Limitless™ input.

WPMM FEATURES                                  WDRR FEATURES
Wireless Electrical Design                     Wireless Electrical Design
•   Radio (license-free and global*):          •   Selectable NPN-, PNP-, or totem-
    WPAN 802.15.4, 2.4 GHz, point-to-point         pole- type output
•   FCC 15, IC, ACMA, ETSI, COFETEL,           •   Fourteen configurable normally open
    IDA, WPC, SRRC, KCC, and ANATEL                or normally closed outputs for up to
•   RoHS compliant                                 14 Limitless™ inputs (sold separately)
•   EMI resistance protects against            •   Reliable, flexible, and secure
    external interference                          wireless transmission
•   In excess of 305 m [1000 ft] line-of-      •   Radio (license-free and global*):
    sight communication                            WPAN 802.15.4, 2.4 GHz,
•   Reliable, flexible, and secure                 point-to-point
    wireless transmission                      •   In excess of 305 m [1000 ft] line-
•   10 Vdc to 30 Vdc supply                        of-sight communication between
•   Three output options: NPN normally             Limitless™ switches and monitor/
    open current sinking, PNP normally             receiver when using 2.2dBi
                                                                                               APPLICATIONS
                                                                                               •    Construction/ag machines
    open current sourcing, and solid state         integral antenna
                                                                                               •    Conveyors
    relay                                      •   FCC 15, IC, ACMA, ETSI, COFETEL,
                                                                                               •    Crane boom/jib/skew position
•   Diagnostic functions include lost RF           IDA, WPC, SRRC, KCC, and ANATEL
                                                                                               •    Door position
    and low battery indication                 •   RoHS compliant
                                                                                               •    Grain diverters or flaps
•   Designed primarily for single switch       •   Field pairing allows for rapid adding
                                                                                               •    Hose attachment verification
    applications, but can monitor multiple         or subtracting inputs for
                                                                                               •    Lifts
    wireless switches (sold separately)            quick configuration
                                                                                               •    Material handling
•   Field pairing function allows for          •   10 Vdc to 28 Vdc supply
                                                                                               •    Movable machinery
    rapid configuration                        •   Diagnostic functions include lost RF
                                                                                               •    Presses
Mechanical Design                                  and low battery indication
                                                                                               •    Remote or temporary equipment
•   Panel-mount enclosure (snap-in or          Mechanical Design
                                                                                               •    Specialty machines
    screw mount)                               •   DIN Rail or screw mount
                                                                                               •    Valve position
•   Polycarbonate, shock resistant,            •   Cage clamp screw terminal blocks for
    tamper-proof case                              input/output connections
•   Sealed to IP67                             •   Sealed to IP20
•   Multiple LED function/status               •   Multiple LED function and
    indicators with audible buzzer                 status indicators
    (configurable to silent)                   •   LED RF signal strength indication for
•   Direct or remote-mount antenna                 up to 14 Limitless™ inputs
                                               •   Direct or remote mount antenna

LIMITLESS™ SERIES BENEFITS
•    Ability to reconfigure and network multiple switches, or point-to-point with personalized addresses that allow for adding, subtracting
     or relocating Limitless™ switches easily
•    Reduced installation/maintenance costs with no wiring, conduit, strain relief, clips, connectors, connection boxes, etc.
•    Communication security per the IEEE 802.15.4 standard [16-bit PAN (network) ID,16-bit address and 128-bit security key]
•    Eliminates issues with wire and connector integrity on moving equipment
                                                                           *Some countries require specific communication certifications.
26                                                                         Contact Honeywell for existing certification information.
WPMM Series                              WDRR Series
         Limitless™ wireless panel mount monitor         Product type     Limitless™ wireless din-rail receiver (PLC interface)
                                     WPMM Series         Series name      WDRR Series
                    Global, license-free RF bands*        Availability    Global, license-free RF bands*
                               LCP, VECTRA E130i       Housing material   Flame retardant ABS
            Snap-in panel or screw-mount design          Housing type     DIN-Rail or screw-mount design
           WPAN 802.15.4, 2.4 GHz point to point          Radio type      WPAN 802.15.4, 2.4 GHz point-to-point
  RP-SMA jack for direct mount or remote antenna                          RP-SMA jack for direct mount or remote antenna
                                                         Antenna type
               options; omni-directional standard                         options; omni-directional standard
         In excess of 305 m [1000 ft] line-of-sight                       In excess of 305 m [1000 ft] line-of-sight
              communication between Limitless™                            communication between Limitless™
                                                         Signal range
        switches and monitor/receiver when using                          switches and monitor/receiver when using
                         2.2 dBi integral antenna                         2.2 dBi integral antenna
                   Three LEDs: green, yellow, red
                                                                          Configuration LEDs: green, yellow, red
                           Power indication: green
                                                                          14 output/diagnostic LEDs: green, yellow, red
                             Output indication: red       Indication
                                                                          Low battery & lost RF output LEDs: red, green
     Configuration/diagnostic: green, yellow, red
                                                                          RF signal strength LEDs: blue
 Buzzer (output indic, config/diag) w/ silent option
                                  10 Vdc to 30 Vdc      Supply voltage    10 Vdc to 28 Vdc
                                      750 mA max.       Supply current    500 mA max.
              NPN normally open current sinking;                          Selectable: NPN-type current sinking open collector
             PNP normally open current sourcing;         Output type      or NPN-type “totem pole”; PNP-type current
                                solid state relay                         sourcing open collector or PNP-type “totem pole”
                                   5 mA to 200 mA        Load current     10 mA max.
                                        50 uA max.     Leakage current    100 uA max.
       1.75 Vdc max. @ max. load @ 25 °C [77 °F]         Voltage drop     2.0 Vdc max. @ max. load @ 25 °C [77 °F]
                                                  3       Terminal(s)     18 usable
               Quick connect, 0.25 in male blade         Termination      Cage-clamp screw terminal blocks
                                               IP67        Sealing        IP20
                                                       Reverse polarity
                                                Yes                       Yes
                                                         protection
 Latest applicable standards: EN 300 328, V1.7.1;                         Latest applicable standards: EN 300 328, V1.7.1;
        EN 61326-1 (2006); EN 301 489-1, V1.8.1;             EMC          EN 61326-1 (2006); EN 301 489-1, V1.8.1;
                           EN 301 489-17, V2.1.1                          EN 301 489-17, V2.1.1
      IEC 60068-2-27; half sine, 10 g, 6 mS, 3 axis         Shock         IEC 60068-2-27; Half sine, 10 g, 6 mS, 3 axis
      IEC 60068-2-6; 10 Hz to 500 Hz w/ 0,35 mm                           IEC 60068-2-6; 10-500Hz w/ 0,35 mm
                                                           Vibration
              peak-to-peak, 58 Hz to 500 Hz- 5 g                          peak-to-peak, 58-500 Hz- 5 g
                 -40 °C to 85 °C [-40 °F to 185 °F]    Operating temp.    -20 °C to 70 °C [-4 °F to 158 °F]
       FCC 15.247; IC RSS 210, ETSI, CE mark;                             FCC 15.247; IC RSS 210, ETSI, CE mark;
                                                       Agency approvals
   ACMA, C-TICK; COFETEL; IDA; ANATEL; WPC;                               ACMA, C-TICK; COFETEL; IDA; ANATEL; WPC;
                                                        and standards
                                 SRRC; KCC                                SRRC; KCC
        31,87 mm H x 44,40 mm W x 74,30 mm D                              88,9 mm H x 152,4 mm W x 38,1 mm D
                                                             Size
          [1.25 in H x 1.748 in W x 2.925 in D] ref.                      [3.5 in H x 6 in W x 1.5 in D] ref.

*Some countries require specific communication certifications.
Contact Honeywell for existing certification information.                                                                         27
Limitless™ Monitor
WPMM Wireless Panel-Mount Monitor
Dimensions and Ordering Options

All dimensions for reference only.

WPMM NOMENCLATURE
     WPMM                       1               A                      00                                 A                      P01

                                                                     Antenna                      Country use
     Switch type             Gen Code         RF Code               type code                        code                    Specials
 WPMM Series                                   2.4 GHz;             No antenna; RP-SMA
                         1    Version 1   A    IEEE 802.15.4   00   connector jack                A    US, Canada,
                                                                                                                                 None/NPN output
   Monitor                                                                                             Mexico

                                                                    2.2 dBi omni w/switch             All other
                                                               01   mount; straight design        B   approved             P01   PNP output
                                                                                                      countries1, 2, 3
                                                                    2.2 dBi omni w/switch     1
                                                                                               Use with antenna type             Solid state
                                                               02   mount; tilt/swivel        codes 00 - 03, 05, 10, 11    S01   relay output
                                                                                              only; usage also allowed
                                                                    3.0 dBi omni w/remote     in Country Code A.
                                                               03   adhesive mount
                                                                    9.8 ft cable              2
                                                                                               Some countries require
                                                                    5.5 dBi omni w/remote     specific communication
                                                               04   mag. mount, tilt/swivel
                                                                    5 ft cable                certifications. Contact
                                                                                              Honeywell for existing
                                                                    5.5 dBi omni w/remote     certification information.
                                                               05   mag. mount, tilt/swivel
                                                                    10 ft cable               3
                                                                                               If Limitless™ devices
                                                                    9.0 dBi omni w/remote     are used on machinery
                                                               06   mag. mount, tilt/swivel
                                                                    5 ft cable
                                                                                              that may be shipped
                                                                                              globally, use
                                                                    9.0 dBi omni w/remote     Country Code “B”.
                                                               07   mag. mount, tilt/swivel
                                                                    10 ft cable
                                                                    8.0 dBi omni w/remote
                                                               08   bkt. mount, str. design
                                                                    3 ft cable
                                                                    8.0 dBi omni w/remote
                                                               09   bkt. mount, str. design
                                                                    11 ft cable
                                                                    2.2 dBi omni w/remote
                                                               10   mag. mount, tilt/swivel
                                                                    10 ft cable

28
You can also read
NEXT SLIDES ... Cancel
