NEW PRODUCTS FOR 2020
NEW PRODUCTS FOR 2020
JOVENTA DAMPER CONTROLLI IP65 UNIVERSAL
ACTUATORS ACTUATOR
A range of damper actuators The Controlli MVE515-IP65 universal
designed for HVAC & valve 24v 0-10v motor, to fit on most makes
applications. of valves giving IP65 Protection.
PAGE PAGE
19 21
DANFOSS EV220W S&S NORTHERN GAS
WRAS SOLENOID SAFETY PRODUCTS
VALVES A range of gas proving
The new Danfoss WRAS for laboratories & Kitchen
range of normally closed including gas & CO2
solenoid valves for water. detection. Also Interlock
& isolation systems.
PAGE
22 PAGE
39 & 46

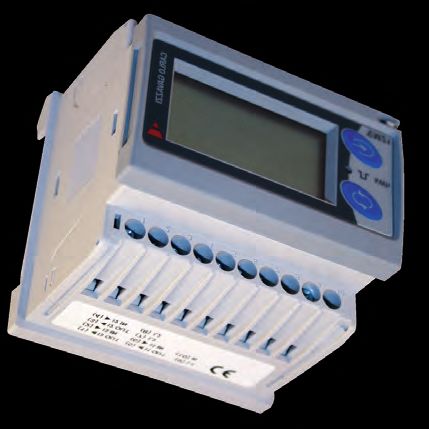

HONEYWELL ELECTRONIC SINGLE AX-WLDF 4 ZONE WATER
PHASE ENERGY METER LEAK DETECTION MODULE
With LCD display.Is a hardware A new 4 zone water leak detection
interface for the transmission module with open or short
of measured values in building circuit cable sensor/Point
Automation. sensors.
PAGE PAGE
34 83
OTHER NOTABLE NEW PRODUCT S FOR 2020
PAGE 26 KAMSTRUP MULTICAL 62 PAGE 61 REGIN IP65
ULTRASONIC WATER METER DUCT THERMOSTAT
PAGE 31 SIGMA RANGE OF GAS PAGE 84 AXIO WATER DRIP
DIAPHRAGM METERS TRAY SENSOR
PAGE 49 STAINLESS STEEL 10K3A1 PAGE 86 AXIO LOW COST
PLATE SENSOR PIR’S
PAGE 60 REGIN SLIMLINE ELECTRONIC PAGE 89 REGIN DUCT SMOKE
ROOM THERMOSTAT DETECTION UNIT
seRVING the INDUstRY Datasheets
FOR OVeR 30 YeaRs AVAILABLE TO DOWNLOAD FROM OUR
WEBSITE www.heatcombustion.co.uk
04
DATASHEETS ARE AVAILABLE TO DOWNLOAD FROM OUR WEBSITE WWW.HEATCOMBUSTION.CO.UK
TEL: (029) 20 463345 | FAX: (029) 20 463346
H+C Catalogue 2020 MASTER V4.qxp_Layout 1 10/12/2019 07:28 Page 5
CONTENTS
CONTENTS
SECTION PAGE SECTION PAGE
MOTORISED VALVES & ACTUATORS INVERTER DRIVES
INVERTER DRIVES 47
PRESSURE INDEPENDENT CONTROL VALVES & ACTUATORS 6, 8
FLUSHING BYPASS ARRANGEMENTS 7 TEMPERATURE & HUMIDITY
LIFT & LAY CONTROL VALVES & ACTUATORS 9-11 WIRELESS TEMPERATURE SENSORS 48
FAN COIL VALVES & ACTUATORS 11 TEMPERATURE SENSORS & POCKETS 49-52
RETROFIT ACTUATORS 12 RH & T SENSORS 53-54
ROTARY SHOE VALVES 13-14 CAPILLARY FROST STATS 55
BALL VALVES & ACTUATORS 14-15, 19 THERMOSTATS 55-61
ZONE VALVES & ACTUATORS 16-17
BUTTERFLY VALVES & ACTUATORS 20 CONTROLLERS
WEATHERPROOF ACTUATOR COVERS 17 STANDALONE CONTROLLERS 62-65
DAMPER ACTUATORS 18-19 PROPORTIONAL CONTROLLERS 65-66
RETROFIT ACTUATORS 21 THYRISTOR CONTROLLERS 67
WRAS & GENERAL PURPOSE SOLENOID VALVES PRESSURE
AIR PRESSURE SWITCHES & SENSORS 68-70
WRAS & GENERAL PURPOSE SOLENOID VALVES 22-23
LIQUID PRESSURE SWITCHES & SENSORS 71-73
MISCELLANEOUS PRESSURE SWITCHES 74
METERING
ENERGY METERS 24-26
INPUT/OUTPUT MODULES & PANEL ACCESSORIES
ENERGY METER CALCULATORS 25 INPUT/OUTPUT MODULES 75-80
WATER METERS & ACCESSORIES 26-31 ETHERNET SWITCHES 80
GAS METERS 31-33 BMS RELAYS 81
OIL & ELECTRICITY METERS 33-34 LED LAMPS, ISOLATORS & PUSHBUTTONS 82
GAS SAFETY MISCELLANEOUS
GAS VALVES & GAS PROVING 35-39 WATER LEAK DETECTION MODULES & WINDSPEED SENSORS 83-84
GAS VALVE ACCESSORIES 38-39 AIR VELOCITY SENSORS & PROBES 85
LIGHT LEVEL & OCCUPANCY SENSORS 86
GAS DETECTION & CO2 FLOW, LEVEL & FLOAT SWITCHES & SENSORS 87-88
GAS DETECTORS 40, 46 TIME SWITCHES 88
GAS SENSORS 40-42, 46 SMOKE DETECTORS & ALARM ANNUNCIATORS 89
CO2 MONITORING 43-46 BESPOKE SENSORS & ACCESSORIES 90
H&C PARTNERSHIPS
ACI
“First in Sensor Quality”
05
DATASHEETS ARE AVAILABLE TO DOWNLOAD FROM OUR WEBSITE WWW.HEATCOMBUSTION.CO.UK
WEB: WWW.HEATCOMBUSTION.CO.UK | EMAIL: SALES@HEATCOMBUSTION.CO.UK
H+C Catalogue 2020 MASTER V4.qxp_Layout 1 10/12/2019 07:28 Page 6
MOTORISED VALVES & ACTUATORS

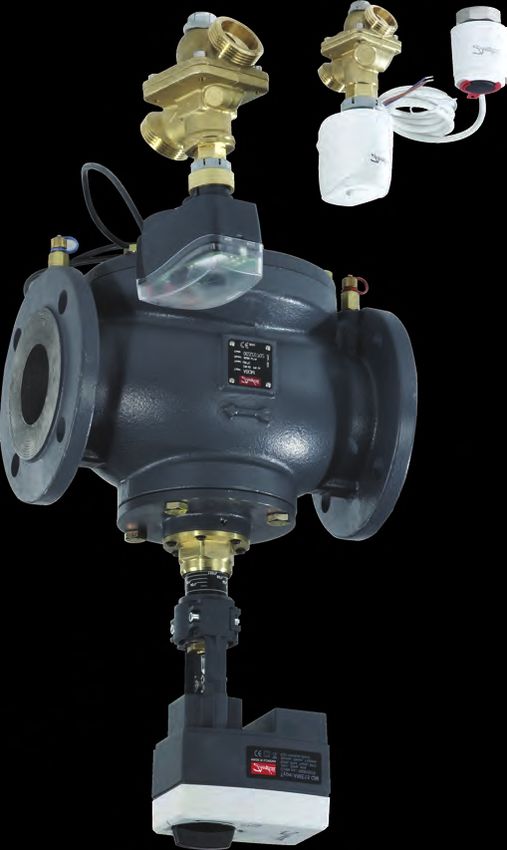

DANFOSS ABQM PRESSURE INDEPENDENT CONTROL VALVES
the aB-QM has a linear control characteristic. Part Number type Description Max Flow trade
(l/hr) Price
the aB-QM is pressure independent which means that the control
characteristic is independent from the available pressure and is not 003z126100 aB-QM DN10 LF DN10 LOW FLOW sCReWeD. ORDeR FIttINGs sePaRateLY 150 £60.90
influenced by a low authority. 003z126200 aB-QM DN15 LF DN15 LOW FLOW sCReWeD. ORDeR FIttINGs sePaRateLY 275 £66.00
the flow limitation on the aB-QM is achieved by limiting the stroke and the 003z121200 aB-QM DN15 DN15 sCReWeD. ORDeR FIttINGs sePaRateLY 450 £68.00
Danfoss actuators calibrate to the stroke of the valves. this means that the 003z122200 aB-QM-DN15 hF DN15 sCReWeD hIGh FLOW. ORDeR FIttINGs sePeRateLY 1135 £74.00
aB-QM keeps its linear characteristic independent of the setting or
003z121300 aB-QM DN20 DN20 sCReWeD. ORDeR FIttINGs sePaRateLY 900 £83.00
differential pressure.
003z121400 aB-QM DN25 DN25 sCReWeD. ORDeR FIttINGs sePaRateLY 1,700 £97.00
Because of the predictable characteristic the actuators on the aB-QM can
be used to change the response from linear to logarithmic (equal 003z121500 aB-QM DN32 DN32 sCReWeD. ORDeR FIttINGs sePaRateLY 3,200 £148.00
percentage). 003z077000 aB-QM DN40 DN40 sCReWeD. ORDeR FIttINGs sePaRateLY 7,500 £322.00
that makes the aB-QM suitable for all applications, including ahUs, where 003z077100 aB-QM DN50 DN50 sCReWeD. ORDeR FIttINGs sePaRateLY 12,500 £362.00
the equal percentage characteristic is needed to get a stable control loop. 003z077300 aB-QM DN65 DN65 FLaNGeD PN16 20,000 £845.00
the actuators can be switched from linear to logarithmic by changing a 003z077400 aB-QM DN80 DN80 FLaNGeD PN16 28,000 £966.00
dipswitch setting on the actuator.
003z077500 aB-QM DN100 DN100 FLaNGeD PN16 38,000 £1,323.00
003z070500 aB-QM DN125 DN125 FLaNGeD PN16 90,000 £3,019.00
003z071500 aB-QM DN125 hF DN125 hIGh FLOW FLaNGeD PN16 120,000 £3,833.00
003z070600 aB-QM DN150 DN150 FLaNGeD PN16 145,000 £3,780.00
003z071600 aB-QM DN150 hF DN150 hIGh FLOW FLaNGeD PN16 229,000 £4,777.00
003z070700 aB-QM DN200 DN200 FLaNGeD PN16 190,000 £5,985.00
003z071700 aB-QM DN200 hF DN200 hIGh FLOW FLaNGeD PN16 300,000 £7,402.00
003z070800 aB-QM DN250 DN250 FLaNGeD PN16 280,000 £7,665.00
003z071800 aB-QM DN250 hF DN250 hIGh FLOW FLaNGeD PN16 442,000 £9,240.00
Fittings (2 per valve)
003z023100 UNION CONNeCtION ⁄8” BsP FOR VaLVe sIze DN10. (ONe PCs.)
3
£1.75
003z023200 UNION CONNeCtION ⁄2” BsP FOR VaLVe sIze DN15. (ONe PCs.)
1
£1.75
003z023300 UNION CONNeCtION ⁄4” BsP FOR VaLVe sIze DN20 (ONe PCs.)
3
£3.00
003z023400 UNION CONNeCtION 1” BsP FOR VaLVe sIze DN25. (ONe PCs.) £5.00
003z023500 UNION CONNeCtION 11⁄4” BsP FOR VaLVe sIze DN32. (ONe PCs.) £7.25
003z027900 UNION CONNeCtION 11⁄2” BsP FOR VaLVe sIze DN40. (ONe PCs.) £14.75
003z027800 UNION CONNeCtION 2” BsP FOR VaLVe sIze DN50. (ONe PCs.) £16.75
IF YOU haVe a LaRGe PROJeCt
seRVING the INDUstRY -taLK tO Us
FOR OVeR 30 YeaRs CONTACT OUR TEAM ON (029) 20 463345
OR E-MAIL sales@heatcombustion.co.uk
06
DATASHEETS ARE AVAILABLE TO DOWNLOAD FROM OUR WEBSITE WWW.HEATCOMBUSTION.CO.UK
TEL: (029) 20 463345 | FAX: (029) 20 463346
H+C Catalogue 2020 MASTER V4.qxp_Layout 1 10/12/2019 07:28 Page 7
MOTORISED VALVES & ACTUATORS

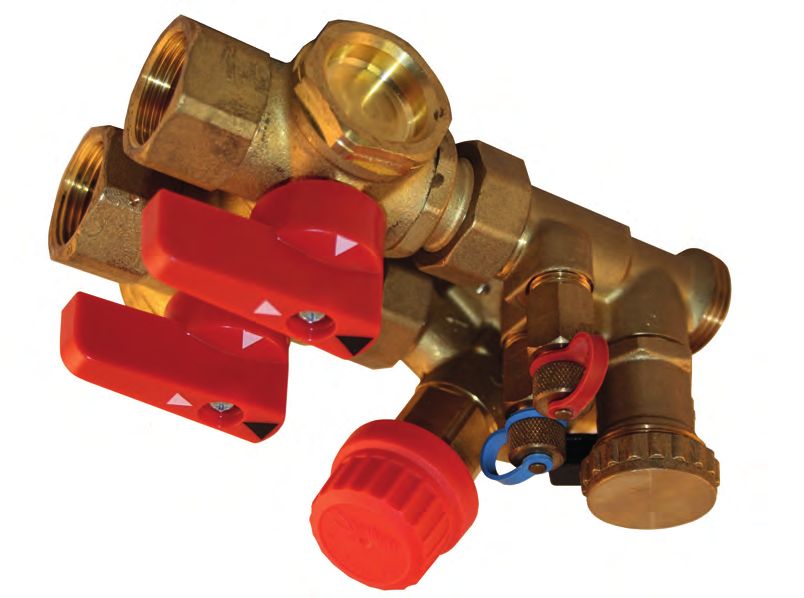

MINIFLUSH PRE-FABRICATED FLUSHING BYPASS ASSEMBLY C/W DANFOSS ABQM
Miniflush 40 is a pre-fabricated, flushing bypass arrangement for balance, control,
isolation, and operation of terminal devices. It is designed for use with fan coil
units, chilled beams, and other terminal devices, where flow is controlled via a
pressure independent control valve, and isolation, drain, flushing bypass, and flow
measurement is required.
FeatURes
• a compact, pre-fabricated design
• Factory pressure tested assembly
• Flexible product which can be tailored to suit exact requirements for
specific applications, eg additional drain, strainer, 4 port valve etc
• each assembly is labelled with FCU location and Miniflush 40 instructions
• high flow DN15 option for direct connection to ChW terminals with flows
up to 0.315 l/s AB-QM
• Low flow option for LthW flow rates down to 0.008 l/s
IV
• Left and right handed versions to prevent clashes within the fan coil
• a wide range of connection options, including BsP, compression, and
solder connections to the coil IV (NC)
DOC
• Danfoss aB-QM type pressure independent control valve for balance IV
MS
at full or partial loads
• a comprehensive compatible range of actuators to enable it to be
connected to a building management system or other controller
• Flow mounted drain for flushing and quick drain-downs
schematic symbol guide:
• Flow measurement function in all sizes aB-QM - Pressure Independant Control Valve (actuator supplied separately)
DOC - Drain Point
IV - Isolation valve
Ms - Measuring station
PRICe ON aPPLICatION tO sUIt sPeCIFIC CUstOMeR ReQUIReMeNts. PLease CONtaCt h&C FOR eNQUIRes.
Datasheets NeXt DaY DeLIVeRY
AVAILABLE TO DOWNLOAD FROM OUR ON ORDERS PLACED BEFORE 4PM,
WEBSITE www.heatcombustion.co.uk THE ITEMS WILL BE DELIVERED NEXT DAY
07
DATASHEETS ARE AVAILABLE TO DOWNLOAD FROM OUR WEBSITE WWW.HEATCOMBUSTION.CO.UK
WEB: WWW.HEATCOMBUSTION.CO.UK | EMAIL: SALES@HEATCOMBUSTION.CO.UK
H+C Catalogue 2020 MASTER V4.qxp_Layout 1 10/12/2019 07:28 Page 8
MOTORISED VALVES & ACTUATORS
DANFOSS HERO PLANT C/W ABQM
hero plant is a pre-fabricated, flushing bypass arrangement for balance, control, Part Number Description Nominal Flow (l/h) trade Price
isolation and operation of plant devices. Flow is controlled by the aBQM pressure
146B5928 heRO PLaNt DN15 450 £430.50
independent control valve to avoid overflow and optimize the efficiency of the
terminal unit. It is designed for use with air handling units, heat exchangers, 146B5929 heRO PLaNt DN20 900 £593.25
heater batteries and all other plant devices. 146B5930 heRO PLaNt DN25 1700 £777.00
FeatURes 146B2683 heRO PLaNt DN32 3200 £908.25
• a compact, 146B2684 heRO PLaNt DN40 7500 £1,113.00
pre-fabricated design 146B2685 heRO PLaNt DN50 12500 £1,260.00
• Factory pressure tested
146B2686 heRO PLaNt DN65 20000 £2,677.50
assembly to PeD
standard 146B5931 heRO PLaNt DN80 28000 £3,071.25
• PN16 screwed 146B5932 heRO PLaNt DN100 38000 £3,806.25
connections DN15-50 146B5933 heRO PLaNt DN125 90000 £6,300.00
and flanged connections 146B5934 heRO PLaNt DN150 145000 £7,612.50
DN65-150
• a wide flow rate range
or all applications
DANFOSS ABQM ACTUATORS
the aMV/aMe series actuators are used together with automatically balanced Part Number type Voltage (V) 0-10v Feedback to suit Valve (mm) trade Price
combination valve type aB-QM for DN10 to DN32 whilst the aMe 435QM actuator
082h803600 aMV 130 24 NO 10-32 £40.95
for modulating control is used with pressure independent balancing and control
valve type aB-QM from DN40 to DN100. aMe 55QM actuator to be used with DN125 082h805700 aMe 110 NL 24 0-10V NO 10-32 £59.85
& DN150. aMe 85QM actuator is used together with large pressure independent 082h806000 aMe 110NLX 24 0-10V Yes 10-32 £69.30
balancing and control valves 082h017100 aMe 435QM 24 0-10V Yes 40-100 £183.75
type aB-QM DN200 and DN250.
082h307800 aMe 55QM 24 0-10V Yes 125-150 £367.50
082G145300 aMe 85QM 24 0-10V Yes 200-250 £861.00
DANFOSS NOVOCON ACTUATORS WITH REMOTE I/O
NovoCon is a high accuracy multi-functional field bus actuator, specifically Part Number Description trade Price
designed for use in combination with aBQM DN10-DN100. the NovoCon comes
003z8503 NOVOCON s CO6, eNeRGY, I/O £139.65
with remote I/O functionality; with remote I/O you can now control a fan coil unit
without the need of a room controller. Incorporate the remote I/O functionality to ACCESSORIES
monitor energy usage, condensation, presence detection or window contacts. all
Part Number type Connections trade Price
controlled via the NovoCon BaCnet actuator.
003z860000 CaBLe NOVOCON DIGItaL, 1.5M BUs/POWeR £11.55
FeatURes 003z860300 CaBLe NOVOCON DIGItaL, DaIsY ChaIN, 1.5M aCtUatOR/aCtUatOR £13.65
• Bacnet Ms/tP and Modbus RtU in the same product
003z860600 CaBLe NOVOCON DIGItaL, aNaLOGUe, 1.5M 0-10V/POWeR £11.55
• Remote commissioning/Pre-set/Flush Features /VOLtaGe/BOOsteR
• Remote I/O allows connection to other devices, eg room thermostat,
window contact, CO2 sensor, humidity sensors,
fan control, 0-10v actuator etc
• 1.5m cable offered as standard,
5m & 10m available on request
• Flow indication
• high Position accuracy
• LeD bar displaying status
08
DATASHEETS ARE AVAILABLE TO DOWNLOAD FROM OUR WEBSITE WWW.HEATCOMBUSTION.CO.UK
TEL: (029) 20 463345 | FAX: (029) 20 463346
H+C Catalogue 2020 MASTER V4.qxp_Layout 1 10/12/2019 07:28 Page 9
MOTORISED VALVES & ACTUATORS
DANFOSS VRB/VF 2 PORT CONTROL VALVES
VRB/VF valves provide a quality, cost effective solution for most water Part Number type size (mm) Kvs (m³/hr) trade Price
and chilled applications.
065z023100 VRB2 15/0.63 15 0.63 £65.10
FeatURes 065z023200 VRB2 15/1.0 15 1.0 £65.10
• Plant valves for 15-300mm, used with 3-point, modulating and
065z023300 VRB2 15/1.6 15 1.6 £65.10
spring return plant actuators
• VRB internally threaded valves – direct connection to BsP pipework 065z023400 VRB2 15/2.5 15 2.5 £65.10
without the need for couplings 065z023500 VRB2 15/4.0 15 4.0 £65.10
• VF flanged valves – made with PN16 cast iron body, stainless steel 065z023600 VRB2 20/6.3 20 6.3 £77.70
spindle and brass plug 065z023700 VRB2 25/10 25 10 £81.90
• suitable for medium temperature up to 130°C 065z023800 VRB2 32/16 32 16 £101.85
• Can be used with glycol concentrations of up 50%
065z023900 VRB2 40/25 40 25 £127.05
• stem heaters available for temperatures down to -10°C
065z024000 VRB2 50/40 50 40 £152.25
065z028100 VF2 65/63 65 63 £561.00
065z028200 VF2 80/100 80 100 £645.70
065B320500 VF2 100/145 100 145 £654.50
065B323000 VF2 125/220 125 220 £899.80
065B325500 VF2 150/320 150 320 £1,251.80
065B350500 VFM2 200/630 200 630 £4,950.00
065B350600 VFM2 250/900 250 900 £5,775.00
DANFOSS VRB/VF 3 PORT CONTROL VALVES
VRB/VF valves provide a quality, cost effective solution for most water Part Number type size (mm) Kvs (m³/hr) trade Price
and chilled applications.
065z021100 VRB3 15/0.63 15 0.63 £65.10
FeatURes 065z021200 VRB3 15/1.0 15 1.0 £65.10
• Plant Valves for 15-300mm, used with 3-point, modulating
and spring return plant actuators 065z021300 VRB3 15/1.6 15 1.6 £65.10
• VRB valves – direct connection to BsP pipework without the need 065z021400 VRB3 15/2.5 15 2.5 £65.10
for couplings 065z021500 VRB3 15/4.0 15 4.0 £65.10
• VF valves – made with cast iron body, stainless steel spindle and brass plug 065z021600 VRB3 20/6.3 20 6.3 £77.70
• suitable for medium temperature up to 130°C 065z021700 VRB3 25/10 25 10 £81.90
• Can be used with glycol concentrations of up 50% 065z021800 VRB3 32/16 32 16 £101.85
• stem heaters available for temperatures down to -10°C
065z021900 VRB3 40/25 40 25 £127.05
• suitable for mixing and diverting applications
065z022000 VRB3 50/40 50 40 £152.25
065z026100 VF3 65/63 65 63 £561.00
065z026200 VF3 80/100 80 100 £645.70
065B168500 VF3 100/145 100 145 £654.50
065B312500 VF3 125/220 125 220 £899.80
065B315000 VF3 150/320 150 320 £1,251.80
065B420000 VF3 200/630 200 630 £4,290.00
065B425000 VF3 250/1000 250 1000 £4,840.00
065B430000 VF3 300/1350 300 1350 £7,672.50
PLease CONtaCt Us FOR PROJeCt QUaNtItY eNQUIRIes. CONtaCt the teaM
ON (029) 20 463345 OR e-MaIL saLes@heatCOMBUstION.CO.UK
teChNICaL heLPINe stOCK IteMs
FOR ALL PRODUCT GUIDANCE AND H&C CARRY OVER 1,000 PRODUCTS
TECHNICAL SUPPORT CALL (029) 20 463345 IN STOCK FOR IMMEDIATE DELIVERY
09
DATASHEETS ARE AVAILABLE TO DOWNLOAD FROM OUR WEBSITE WWW.HEATCOMBUSTION.CO.UK
WEB: WWW.HEATCOMBUSTION.CO.UK | EMAIL: SALES@HEATCOMBUSTION.CO.UK
H+C Catalogue 2020 MASTER V4.qxp_Layout 1 10/12/2019 07:28 Page 10
MOTORISED VALVES & ACTUATORS
DANFOSS CONTROL VALVE ACTUATORS
aMV/aMe actuators for use with VRB/VF control valves. 24v
FeatURes Part Number type Voltage (V) to suit Valve (mm) trade Price
• For use in 3-point control and modulating applications 082h016200 aMV 435 24 VRB/VF 15-80 £142.80
• self-stroking function on modulating version 082h302000 aMV 55 24 VF 100 £321.30
• Diagnostic LeD 082G145000 aMV 85 24 VF 125-150 £732.90
• Position Indication 082G344000 aMV 655 24 VFM2 200-250 £950.25
• Manual Override
230v
Part Number type Voltage (V) to suit Valve (mm) trade Price
082h016300 aMV 435 230 VRB/VF 15-80 £142.80
082h302100 aMV 55 230 VF 100 £321.30
082G145100 aMV 85 230 VF 125-150 £732.90
0-10v
Part Number type Voltage (V) to suit Valve (mm) trade Price
082h016100 aMe 435 24 0-10v VRB/VF 15-80 £155.40
082h302200 aMe 55 24 0-10v VF 100 £367.50
082G145200 aMe 85 24 0-10v VF 125-150 £844.20
082G344200 aMe 655 24 0-10v VFM2 200-250 £1,118.25
082G350000 aMe 685 24 0-10v VF3 200-300 £1,995.00
aCCessORIes
Part Number type Description to suit Valve (mm) trade Price
065z031300 aDaPtOR FOR tO eNaBLe NeW 15-80 £40.95
aMV/e 435 tYPe aCtUatORs
tO FIt OLD stYLe
VRG/VBG/VF/VL
seRIes VaLVes
DANFOSS SPRING RETURN CONTROL VALVE ACTUATORS
aMV/aMe spring return actuators for use with VRB/VF control valves. 24v
FeatURes Part Number type Voltage (V) to suit Valve (mm) trade Price
• For use in 3-point control and modulating applications 082h012200 aMV 438sU 24 VRB/VF 15-50 £330.75
• self-stroking function on modulating version 082G344600 aMV 658sU 24 VF 100-150 £1,118.25
• spring up function: In case of power failure or power switch off
spring up function retracts actuator stem to end position. 230v
Further manual stem positioning is not disabled Part Number type Voltage (V) to suit Valve (mm) trade Price
082h012300 aMV 438sU 230 VRB/VF 15-50 £330.75
082G344700 aMV 658sU 230 VF 100-150 £1,118.25
0-10v
Part Number type Voltage (V) to suit Valve (mm) trade Price
082h012100 aMe 438sU 24 0-10v VRB/VF 15-50 £409.50
082G345100 aMe 658sU 24 0-10v VF 100-150 £1,312.50
FOR OtheR VaLVe sIzes PLease CaLL OUR OFFICe
ON (029) 20 463345
seRVING the INDUstRY IF YOU haVe a LaRGe PROJeCt
-taLK tO Us
FOR OVeR 30 YeaRs CONTACT OUR TEAM ON (029) 20 463345
OR E-MAIL sales@heatcombustion.co.uk
10
DATASHEETS ARE AVAILABLE TO DOWNLOAD FROM OUR WEBSITE WWW.HEATCOMBUSTION.CO.UK
TEL: (029) 20 463345 | FAX: (029) 20 463346H+C Catalogue 2020 MASTER V4.qxp_Layout 1 10/12/2019 07:28 Page 11
MOTORISED VALVES & ACTUATORS
DANFOSS VZL 2 & 4 PORT FAN COIL VALVES
VzL valves provide a high quality, cost effective solution for the control of 2 PORt
hot and/or chilled water for fan coil units, small re-heaters and re-coolers
Part Number type size (mm) Kvs (m³/hr) trade Price
in temperature control systems.
065z204000 VzL2 15/0.25 15 0.25 £22.00
FeatURes 065z204100 VzL2 15/0.40 15 0.40 £22.00
• Fan coil valves for 15-20mm, used with 3-point and modulating
065z204200 VzL2 15/0.63 15 0.63 £22.00
fan coil valve actuators
065z204300 VzL2 15/1.0 15 1.0 £22.00
• Conex compression connection as standard, flat faced connection
version available on request 065z204400 VzL2 15/1.6 15 1.6 £22.00
• suitable for medium temperature up to 120°C 065z204500 VzL2 20/2.5 20 2.5 £25.30
• Can be used with glycol concentrations of up 50% 065z204600 VzL2 20/3.5 20 3.5 £25.30
4 PORt
Part Number type size (mm) Kvs (m³/hr) trade Price
065z206000 VzL4 15/0.25 15 0.25 £24.20
065z206100 VzL4 15/0.40 15 0.40 £24.20
065z206200 VzL4 15/0.63 15 0.63 £24.20
065z206300 VzL4 15/1.0 15 1.0 £24.20
065z206400 VzL4 15/1.6 15 1.6 £24.20
065z206500 VzL4 20/2.5 20 2.5 £30.80
065z206600 VzL4 20/3.5 20 3.5 £30.80
DANFOSS FAN COIL VALVE ACTUATORS
aMV/aMe 130 actuators for use with VzL fan coil valves. Part Number type Voltage (V) to suit Valve (mm) trade Price
FeatURes 082h803600 aMV 130 24 VzL 15-20 £40.95
• For use in 3-point control and modulating applications 082h803700 aMV 130 230 VzL 15-20 £42.00
• self-stroking function on modulating version 082h804400 aMe 130 24 0-10v VzL 15-20 £61.95
• Force switch-off at stem down position prevents overload
of actuator and valve type aMV 130 aMe 130 (0-10V output)
• thermic option available on request Power supply 24vac.230Vac; +10 to -15ºC 24 Vac; +10 to -15ºC
• supplied with 1.5m cable as standard, Power consumption 1V -24Vac; 8 Va-230Vac 1.3 Va
5m cable available on request
Frequency 50hz/60hz 50hz/60hz
Close of force 200 N 200 N
stroke 5.5mm 5.5mm
speed 24 s/mm 24 s/mm
Max. medium temperature inside the pipe 130ºC 130ºC
ambient temperature 0 - 55ºC 0 - 55ºC
storage and transport temperature -40ºC - +70ºC -40ºC - +70ºC
Protection code IP42 IP42
Weight 0.3kg 0.3kg
Datasheets NeXt DaY DeLIVeRY
AVAILABLE TO DOWNLOAD FROM OUR ON ORDERS PLACED BEFORE 4PM,
WEBSITE www.heatcombustion.co.uk THE ITEMS WILL BE DELIVERED NEXT DAY
11
DATASHEETS ARE AVAILABLE TO DOWNLOAD FROM OUR WEBSITE WWW.HEATCOMBUSTION.CO.UK
WEB: WWW.HEATCOMBUSTION.CO.UK | EMAIL: SALES@HEATCOMBUSTION.CO.UKH+C Catalogue 2020 MASTER V4.qxp_Layout 1 10/12/2019 07:28 Page 12
MOTORISED VALVES & ACTUATORS
REGIN THERMAL ACTUATORS & ADAPTORS
thermal actuators with position indicaton for control of valves in heating 24v
or cooling systems.
Part Number Voltage (V) Normally Force (N) stroke (mm) trade Price
the actuator can be used to control radiator circuits, solar heating systems, Open/Closed
heating or cooling coils, floor heating, etc... the Va54 adapter is included RtaM100-24 24 NC 100 4 £24.00
upon delivery (does not apply to 125 N variants).
RtaOM100-24 24 NO 100 4 £22.00
teChNICaL Data RtaM125-24 24 NC 125 6.5 £27.00
• ambient temperature 0-60°C RtaOM125-24 24 NO 125 6.5 £27.00
• Protection class IP54
• Cable length 2m 230v
Part Number Voltage (V) Normally Force (N) stroke (mm) trade Price
Open/Closed
RtaM100-230 230 NC 100 4 £24.00
RtaOM100-230 230 NO 100 4 £22.00
RtaM125-230 230 NC 125 6.5 £27.00
RtaOM125-230 230 NO 125 6.5 £27.00
0-10v
Part Number Voltage (V) Normally Force (N) stroke (mm) trade Price
Open/Closed
RtaM100-24a 24 0-10v NC 100 4 £69.00
RtaOM100-24a 24 0-10v NO 100 4 £84.00
RtaM125-24a 24 0-10v NC 125 6.5 £73.00
adapters for adjusting the Rta(O)M actuators to valves of other brands.
Part Number to suit Valve Connection type trade Price
Va02 LK/UPONOR M30 X 1.5 £6.00
Va10 sIeMeNs/OVeNtROP M30 X 1.5 £3.00
Va13h CONtROLLI M30 X 1.5 £5.50
Va16h heRz M28 X 1.5 £6.00
Va17 MMa M30X1.5 £6.50
Va18 hONeYWeLL M30 X 1.5 £6.00
Va26 GIaCOMINI CLaMPING RING £3.50
Va32 ta M28 X 1.5 £3.00
Va39 OVeNtROP M30X1.5 £3.00
Va41 DaNFOss aBQM M30 X 1.5 £3.00
Va44h CazzaNIGa M32 X 1.5 £9.00
Va50 hONeYWeLL M30 X 1.5 £3.00
Va54 MMa M28 X 1.5 £3.00
Va59 DaNFOss RaV/L CLaMPING RING £6.00
Va64 PettINaROLI M28 X 1.5 £3.00
Va66 INDUstRIteChNIK M30 X 1.5 £6.00
Va72 DaNFOss RaV GRUB sCReW £8.00
Va78 DaNFOss Ra GRUB sCReW £3.00
Va80 ta M30 X 1.5 £3.00
Va90 VaLsIR M30 X 1.5 £3.00
teChNICaL heLPINe stOCK IteMs
FOR ALL PRODUCT GUIDANCE AND H&C CARRY OVER 1,000 PRODUCTS
TECHNICAL SUPPORT CALL (029) 20 463345 IN STOCK FOR IMMEDIATE DELIVERY
12
DATASHEETS ARE AVAILABLE TO DOWNLOAD FROM OUR WEBSITE WWW.HEATCOMBUSTION.CO.UK
TEL: (029) 20 463345 | FAX: (029) 20 463346H+C Catalogue 2020 MASTER V4.qxp_Layout 1 10/12/2019 07:28 Page 13
MOTORISED VALVES & ACTUATORS
DANFOSS HRE/HFE ROTARY SHOE VALVES
hRe/hFe rotary valves are primarily designed for regulation of flow Part Number type size (mm) Kvs (m³/h) trade Price
temperature in heating systems where a certain leakage can be 065z041800 hRe3 20/6.3 20 6.3 £54.60
accepted and where a defined control characteristic is not required.
065z041900 hRe3 25/10 25 10 £56.70
FeatURes 065z042000 hRe3 32/16 32 16 £58.80
• Rotary shoe valves for 20-150mm, used with 3-point 065z042100 hRe3 40/25 40 25 £96.60
and modulating actuators
065z042200 hRe3 50/40 50 40 £118.65
• hRe internally threaded valves, cast iron body
• hFe flanged valves, PN6 cast iron body 065z043300 hFe3 65/90 65 90 £225.50
• suitable for medium temperature up to 110°C 065z043400 hFe3 80/150 80 150 £310.20
• Lowest leakage in class 065z043500 hFe3 100/225 100 225 £448.80
• For mixing and diverting applications 065z043600 hFe3 125/280 125 280 £548.90
065z043700 hFe3 150/400 150 400 £746.90
DANFOSS ROTARY SHOE VALVE ACTUATORS
aMB actuators for use with hRe/hFe rotary shoe valves 24v
FeatURes Part Number type Voltage (V) aux switch to suit Valve (mm) trade Price
• For use in 3-point control and modulating applications
• LeD indication of turning direction 082h021300 aMB162 24 NO hRe 20-50 £93.50
• selectable speed on DIP switch 082h021800 aMB162 24 Yes hRe 20-50 £100.10
• Manual valve turning mode enabled by a permanent clutch 082h023400 aMB182 24 NO hFe 65-150 £110.00
082h023600 aMB182 24 Yes hFe 65-150 £113.30
230v
Part Number type Voltage (V) aux switch to suit Valve (mm) trade Price
082h022300 aMB162 230 NO hRe 20-50 £93.50
082h022800 aMB162 230 Yes hRe 20-50 £100.10
082h023800 aMB182 230 NO hFe 65-150 £110.00
082h024000 aMB182 230 Yes hFe 65-150 £113.30
0-10v
Part Number type Voltage (V) aux switch to suit Valve (mm) trade Price
082h023000 aMB162 24 0-10v NO hRe 20-50 £132.00
082h024100 aMB182 24 0-10v NO hFe 65-150 £167.20
seRVING the INDUstRY IF YOU haVe a LaRGe PROJeCt
-taLK tO Us
FOR OVeR 30 YeaRs CONTACT OUR TEAM ON (029) 20 463345
OR E-MAIL sales@heatcombustion.co.uk
13
DATASHEETS ARE AVAILABLE TO DOWNLOAD FROM OUR WEBSITE WWW.HEATCOMBUSTION.CO.UK
WEB: WWW.HEATCOMBUSTION.CO.UK | EMAIL: SALES@HEATCOMBUSTION.CO.UKH+C Catalogue 2020 MASTER V4.qxp_Layout 1 10/12/2019 07:28 Page 14
MOTORISED VALVES & ACTUATORS
TERMOMIX ROTARY SHOE VALVES, LINKAGE & GRUNER ACTUATORS
Rotary shoe valves and actuators for use in heating systems. VaLVes
FeatURes Part Number size (mm) Kvs (m³/h) trade price
• Rotary shoe valves for 20-50mm, used with 3-point 2320 20 13 £47.70
and modulating actuators 2325 25 17 £51.94
• Internally threaded, cast iron body
2332 32 24 £56.18
• suitable for medium temperature up to 110°C
2340 40 31 £61.48
• suitable for mixing and diverting applications
2350 50 41 £96.46
• Use with Gruner actuators
and et3 linkage LINKaGe
Part Number to suit Valve (mm) trade Price
et3 20-50 £21.00
aCtUatORs
Part Number Voltage (V) aux switch to suit Valve (mm) trade Price
227-024-10 24 NO 15-50 £67.98
227-024-10-s1 24 Yes 15-50 £82.40
227-230-10 230 NO 15-50 £67.98
227-230-10-s1 230 Yes 15-50 £82.40
227C-024-10 24 0-10v NO 15-50 £97.85
DANFOSS AMZ 2 & 3 PORT MOTORISED BALL VALVES
the aMz range of motorised ball valves are typically used in domestic 2 PORt
and commercial central heating applications.
Part Number type size (mm) Voltage (V) trade Price
FeatURes 082G540600 aMz 112 15 230 £87.48
• supplied as complete valve/actuator assembly
082G540700 aMz 112 20 230 £88.56
• Indication of actual valve position
082G540800 aMz 112 25 230 £90.72
• suitable for medium temperature up to 110°C
082G540900 aMz 112 32 230 £112.32
• auxiliary switch fitted as standard with LeD indication
082G541000 aMz 112 40 230 £144.72
• silent and reliable operation
082G541100 aMz 112 50 230 £172.80
082G540000 aMz 112 15 24 £87.48
082G540100 aMz 112 20 24 £88.56
082G540200 aMz 112 25 24 £90.72
082G540300 aMz 112 32 24 £112.32
082G540400 aMz 112 40 24 £144.72
082G540500 aMz 112 50 24 £172.80
3 PORt
Part Number type size (mm) Voltage (V) trade Price
082G541800 aMz 113 15 230 £116.64
082G541900 aMz 113 20 230 £117.72
082G542000 aMz 113 25 230 £120.96
082G542100 aMz 113 32 230 £179.28
082G541200 aMz 113 15 24 £116.64
082G541300 aMz 113 20 24 £117.72
082G541400 aMz 113 25 24 £120.96
082G541500 aMz 113 32 24 £179.28
Datasheets seRVING the INDUstRY
AVAILABLE TO DOWNLOAD FROM OUR
WEBSITE www.heatcombustion.co.uk FOR OVeR 30 YeaRs
14
DATASHEETS ARE AVAILABLE TO DOWNLOAD FROM OUR WEBSITE WWW.HEATCOMBUSTION.CO.UK
TEL: (029) 20 463345 | FAX: (029) 20 463346H+C Catalogue 2020 MASTER V4.qxp_Layout 1 10/12/2019 07:28 Page 15
MOTORISED VALVES & ACTUATORS
GRUNER BALL VALVES & ACTUATORS
Gruner range of 2 & 3 port female connection ball valves for use 2 PORt
in hVaC systems to regulate the flow of water.
Part Number size (mm) Kvs (m³/h) trade Price
FeatURes BOFI150a 15 22 £25.75
• 2 port shut off valves DN15-50 – 2 port characterised valves available BOFI200a 20 34 £28.84
on request BOFI250a 25 70 £33.99
• 3 port characterised valves DN15-50 – other 3 port Kvs available BOFI320a 32 105 £49.44
on request
BOFI400a 40 180 £59.74
• For use with 24v, 230v and 0-10v modulating actuators
BOFI500a 50 290 £78.28
• Linkage supplied as standard with all valves
• Valve Body Material – 2 port brass, 3 port brass/stainless steel 3 PORt
• 2 port suitable for medium temperature up to 100°C, 3 port suitable Part Number size (mm) Kvs (m³/h) trade Price
for medium temperature up to 140°C
BOLB154K1B 15 4.0 £43.26
• suitable for use with glycol – 2 port max 30%, 3 port max 50%
BOLB206K4B 20 6.3 £49.44
BOLB2510KB 25 10 £63.86
BOLB3216KB 32 16 £96.82
BOLB4025KB 40 25 £127.72
BOLB5041KB 50 40 £187.46
24V
Part Number Force (Nm) Voltage (V) aux switch to suit Valve (mm) trade Price
227-024-05 5 24 NO 15-20 £55.62
227-024-05-s1 5 24 Yes 15-20 £63.86
227-024-10 10 24 NO 25-40 £67.98
227-024-10-s1 10 24 Yes 25-40 £82.40
227-024-15 15 24 NO 50 £75.19
227-024-15-s1 15 24 Yes 50 £93.73
230V
Part Number Force (Nm) Voltage (V) aux switch to suit Valve (mm) trade Price
227-230-05 5 230 NO 15-20 £55.62
227-230-05-s1 5 230 Yes 15-20 £63.86
227-230-10 10 230 NO 25-40 £67.98
227-230-10-s1 10 230 Yes 25-40 £82.40
227-230-15 15 230 NO 50 £75.19
227-230-15-s1 15 230 Yes 50 £93.73
0-10V
Part Number Force (Nm) Voltage (V) aux switch to suit Valve (mm) trade Price
227C-024-05 5 24 0-10v NO 15-20 £75.19
227C-024-10 10 24 0-10v NO 25-40 £97.85
227C-024-15 15 24 0-10v NO 50 £108.15
sPRING RetURN
Part Number Force (Nm) Voltage (V) aux switch to suit Valve (mm) trade Price
341-024-05 5 24 NO 15-25 £90.64
341-024-05-s2 5 24 Yes 15-25 £105.06
341-230-05 5 230 NO 15-25 £97.85
341-230-05-s2 5 230 Yes 15-25 £110.21
341C-024-05 5 24 0-10v NO 15-25 £121.54
341C-024-05-s2 5 24 0-10v Yes 15-25 £143.17
IF YOU haVe a LaRGe PROJeCt NeXt DaY DeLIVeRY
-taLK tO Us ON ORDERS PLACED BEFORE 4PM,
CONTACT OUR TEAM ON (029) 20 463345
OR E-MAIL sales@heatcombustion.co.uk THE ITEMS WILL BE DELIVERED NEXT DAY
15
DATASHEETS ARE AVAILABLE TO DOWNLOAD FROM OUR WEBSITE WWW.HEATCOMBUSTION.CO.UK
WEB: WWW.HEATCOMBUSTION.CO.UK | EMAIL: SALES@HEATCOMBUSTION.CO.UKH+C Catalogue 2020 MASTER V4.qxp_Layout 1 10/12/2019 07:28 Page 16
MOTORISED VALVES & ACTUATORS
REGIN ZFCM ON/OFF SPRING RETURN ZONE VALVES
the zFCM valves are designed for temperature control in heating 2 PORt VaLVes
and cooling systems. Part Number size (mm) Kv (m³/h) trade Price
the valves are available as both 2 & 3 way models.
zFCM-215X 15 3.2 £27.00
the zFCM valves can only be used together with Regin's RVaFC actuators.
zFCM-220X 20 4.6 £29.00
Valves and actuators are ordered separately.
zFCM-225X 25 5.7 £33.00
zFCM-232X 32 10 £58.00
3 PORt VaLVes
Part Number size (mm) Kv (m³/h) trade Price
zFCM-315X 15 3.2 £28.00
zFCM-320X 20 4.6 £32.00
zFCM-325X 25 5.7 £35.00
zFCM-330X 32 10 £65.00
aCtUatORs
Part Number Description trade Price
RVaFC-2302 VaLVe aCtUatOR FOR zFCM, 2-WaY 230V £30.00
RVaFC-2303 VaLVe aCtUatOR FOR zFCM, 3-WaY 230V £31.00
REGIN DB-V MOTORISED ZONE VALVES
the Regin range of DB-V zone valves are especially designed and produced 2 PORt VaLVes & aCtUatORs
for hVaC systems. 2 & 3 way versions in 24v, 230v and sized ½” to 1”
Part Number Description size (mm)- Voltage (V) Kv (m³/h) trade Price
the DB-Vz valves can be used with the sM actuators. Valves and actuators
sold separately. DB-Vz2-15 2 PORt VaLVe 15 1.5 £16.00
DB-Vz2-20 2 PORt VaLVe 20 2.5 £22.00
DB-Vz2-25 2 PORt VaLVe 25 4.8 £29.00
sM230/Ca aCtUatOR C/W aUX 230 N/a £20.00
sM24/Ca aCtUatOR C/W aUX 24 N/a £20.00
3 PORt VaLVes & aCtUatORs
Part Number Description size (mm)- Voltage (V) Kv (m³/h) trade Price
DB-Vz3-15 3 PORt VaLVe 15 1.5 £18.00
DB-Vz3-20 3 PORt VaLVe 20 2.5 £25.00
DB-Vz3-25 3 PORt VaLVe 25 4.8 £33.00
sM230/Ca aCtUatOR C/W aUX 230 N/a £20.00
sM24/Ca aCtUatOR C/W aUX 24 N/a £20.00
PLease seLeCt the sUItaBLe aCtUatOR FOR the ReQUIReD VaLVe
seRVING the INDUstRY Datasheets
FOR OVeR 30 YeaRs AVAILABLE TO DOWNLOAD FROM OUR
WEBSITE www.heatcombustion.co.uk
16
DATASHEETS ARE AVAILABLE TO DOWNLOAD FROM OUR WEBSITE WWW.HEATCOMBUSTION.CO.UK
TEL: (029) 20 463345 | FAX: (029) 20 463346H+C Catalogue 2020 MASTER V4.qxp_Layout 1 10/12/2019 07:28 Page 17
MOTORISED VALVES & ACTUATORS
DOMESTIC MOTORISED ZONE VALVES
the zV range of DOMestIC 2/3 port spring return motorised valves for domestic 2 PORt
applications. C/W aux switch as standard.
Part Number size trade Price
zV½” ½” £45.15
zV15 15mm £48.30
zV¾” ¾” £45.15
zV22 22mm £48.30
zV1” 1” £51.45
zV28 28mm £54.60
3 PORt
Part Number size trade Price
zVD½” ½” £48.30
zVD15 15mm £52.50
zVD¾” ¾” £48.30
zVD22 22mm £52.50
zVD1” 1” £54.60
zVD28 28mm £59.85
PLease NOte:
FOR COMMeRCIaL aPPLICatIONs We ReCOMMeND UsING the ReGIN
RaNGe OF zONe VaLVes ON PaGe 16 PLease sPeCIFY ReQUIReD VOLtaGe, 240 OR 24V WheN ORDeRING
ROBUST PROTECTIVE COVER FOR CONTROL VALVES AND DAMPER ACTUATORS
If you have difficult operating conditions then it is the ideal solution for Part Number Description trade Price
protecting your control valves in harsh environments.
BLUe BaG LaRGe LaRGe OUtDOOR PROteCtIVe COVeR sUItaBLe FOR MOst £24.00
the BLUe BaG series cover offers an innovative and effective weather MaKes OF MOtORIseD VaLVes
protection solution for control valves and actuators.
BLUe BaG sMaLL sMaLL OUtDOOR PROteCtIVe COVeR sUItaBLe FOR MOst £18.00
Made of heavy duty fabric, it gives significant protection against severe MaKes OF MOtORIseD VaLVes
weather such as rain, sleet or snow. the “Ice Blue” colour minimizes solar
glare which keeps the protected equipment cooler than other forms of
protection It can be installed and removed in seconds and it is available
in two sizes to fit various control valve assemblies.
FeatURes 12”
• easiest of Installations 10”
• Long lasting nylon rope included
• Ice Blue colour to minimise solar glare
• Water repellent fabric
• Keeps equipment cooler in hot conditions 12”
16”
• Keeps equipment clean and protected
• UV Protective coating.
teChNICaL heLPINe NeXt DaY DeLIVeRY
FOR ALL PRODUCT GUIDANCE AND ON ORDERS PLACED BEFORE 4PM,
TECHNICAL SUPPORT CALL (029) 20 463345 THE ITEMS WILL BE DELIVERED NEXT DAY
17
DATASHEETS ARE AVAILABLE TO DOWNLOAD FROM OUR WEBSITE WWW.HEATCOMBUSTION.CO.UK
WEB: WWW.HEATCOMBUSTION.CO.UK | EMAIL: SALES@HEATCOMBUSTION.CO.UKH+C Catalogue 2020 MASTER V4.qxp_Layout 1 10/12/2019 07:29 Page 18
MOTORISED VALVES & ACTUATORS
GRUNER DAMPER ACTUATORS
Range of Gruner damper actuators for use in hVaC systems.
FeatURes
• standard range from 5Nm up to 40Nm, spring Return range up to 20Nm
• 230v, 24v & 0-10v versions available
• auxiliary switch versions available
5NM (DaMPeR sIze UP tO 1M²)
Part Number Nm Voltage (V) Control aux switches trade Price
227-024-05 5 24 2/3 POINt NO £55.62
227-230-05 5 230 2/3 POINt NO £55.62
227-024-05-s1 5 24 2/3 POINt Yes £63.86
227-230-05-s1 5 230 2/3 POINt Yes £63.86
227C-024-05 5 24 0-10V NO £75.19
10NM (DaMPeR sIze UP tO 2M²) 15NM (DaMPeR sIze UP tO 3M²)
Part Number Nm Voltage (V) Control aux switches trade Price Part Number Nm Voltage (V) Control aux switches trade Price
227-024-10 10 24 2/3 POINt NO £67.98 227-024-15 15 24 2/3 POINt NO £75.19
227-230-10 10 230 2/3 POINt NO £67.98 227-230-15 15 230 2/3 POINt NO £75.19
227-024-10-s1 10 24 2/3 POINt Yes £82.40 227-024-15-s1 15 24 2/3 POINt Yes £93.73
227-230-10-s1 10 230 2/3 POINt Yes £82.40 227-230-15-s1 15 230 2/3 POINt Yes £93.73
227C-024-10 10 24 0-10V NO £97.85 227C-024-15 15 24 0-10V NO £108.15
20NM (DaMPeR sIze UP tO 4M²) 30NM (DaMPeR sIze UP tO 6M²)
Part Number Nm Voltage (V) Control aux switches trade Price Part Number Nm Voltage (V) Control aux switches trade Price
363-024-20 20 24 2/3 POINt NO £78.28 363-024-30 30 24 2/3 POINt NO £130.81
363-230-20 20 230 2/3 POINt NO £78.28 363-230-30 30 230 2/3 POINt NO £130.81
363-024-20-s2 20 24 2/3 POINt Yes £97.85 363-024-30-s2 30 24 2/3 POINt Yes £154.50
363-230-20-s2 20 230 2/3 POINt Yes £97.85 363-230-30-s2 30 230 2/3 POINt Yes £154.50
363C-024-20 20 24 0-10V NO £113.30 363C-024-30 30 24 0-10V NO £164.80
363C-024-20-s2 20 24 0-10V Yes £138.02 363C-024-30-s2 30 24 0-10V Yes £190.55
40NM (DaMPeR sIze UP tO 8M²) 5NM sPRING RetURN (DaMPeR sIze UP tO 1M²)
Part Number Nm Voltage (V) Control aux switches trade Price Part Number Nm Voltage (V) Control aux switches trade Price
363-024-40 40 24 2/3 POINt NO £139.05 341-024-05 5 24 2 POINt NO £90.64
363-230-40 40 230 2/3 POINt NO £139.05 341-230-05 5 230 2 POINt NO £97.85
363-024-40-s2 40 24 2/3 POINt Yes £159.65 341-024-05-s2 5 24 2 POINt Yes £105.06
363-230-40-s2 40 230 2/3 POINt Yes £159.65 341-230-05-s2 5 230 2 POINt Yes £110.21
363C-024-40 40 24 0-10V NO £169.95 341C-024-05 5 24 0-10V NO £121.54
363C-024-40-s2 40 24 0-10V Yes £199.82 341C-024-05-s2 5 24 0-10V Yes £143.17
10NM sPRING RetURN (DaMPeR sIze UP tO 2M²) 20NM sPRING RetURN (DaMPeR sIze UP tO 4M²)
Part Number Nm Voltage (V) Control aux switches trade Price Part Number Nm Voltage (V) Control aux switches trade Price
361-024-10 10 24 2 POINt NO £110.21 361-024-20 20 24 2 POINt NO £135.96
361-230-10 10 230 2 POINt NO £130.81 361-230-20 20 230 2 POINt NO £156.56
361-024-10-s2 10 24 2 POINt Yes £124.63 361-024-20-s2 20 24 2 POINt Yes £150.38
361-230-10-s2 10 230 2 POINt Yes £149.35 361-230-20-s2 20 230 2 POINt Yes £170.98
361C-024-10 10 24 0-10V NO £133.90 361C-024-20 20 24 0-10V NO £159.65
361C-024-10-s2 10 24 0-10V Yes £156.56 361C-024-20-s2 20 24 0-10V Yes £170.98
18
DATASHEETS ARE AVAILABLE TO DOWNLOAD FROM OUR WEBSITE WWW.HEATCOMBUSTION.CO.UK
TEL: (029) 20 463345 | FAX: (029) 20 463346H+C Catalogue 2020 MASTER V4.qxp_Layout 1 10/12/2019 07:29 Page 19
MOTORISED VALVES & ACTUATORS
JOVENTA DAMPER ACTUATORS NEW PRODUCT
a range of damper actuators designed for hVaC & valve applications. ON-OFF VeRsIONs WIth aUX sWItCh
FeatURes Part Number NM Voltage Control aux switch trade Price
• standard range from 4nm - 32nm Da1.s 16 24 2/3 POINt Yes £97.00
• 24v,230v and 0-10v versions avalable Da2.s 16 230 2/3 POINt Yes £110.00
• aux switches as standard on 24/230v on-off version DaG1.s 32 24 2/3 POINt Yes £165.00
DaG2.s 32 230 2/3 POINt Yes £165.00
MODULatING 0-10V VeRsIONs
Part Number NM Voltage Control aux switch trade Price
DMs1.1 8 24 0-10V NO £120.00
DM1.1 16 24 0-10V NO £140.00
aCCessORY
Part Number Description trade Price
M16-M20 MetaL aDaPtOR £3.00
**PLease NOte **
as We aRe NO LONGeR PaRtNeRs WIth NeNUteC. the aBOVe JOVeNta
RaNGe aRe DIReCt RePLaCeMeNt VeRsIONs WIth the saMe FOOtPRINt.
PLease CONtaCt the OFFICe FOR aNY OLD NeNUteC ReQUIReMeNts
YOU MaY haVe, aND We WILL QUOte RePLaCeMeNts WheRe We CaN.
OtheR JOVeNta VeRsIONs aRe aVaILaBLe ON ReQUest
- CONtaCt OFFICe FOR DetaILs
WRAS APPROVED BALL VALVES & ACTUATORS
a range of 2 way WRas actuated ball Part Number size (mm) trade Price
valves sized ½” to 2” C/W either a 230V
WBV15/hQ005 15 £326.03
or 24V actuator which are fitted with
aUX switch as standard. WBV20/hQ005 20 £341.55
Valves are brass bodied with a PtFe WBV25/hQ005 25 £351.90
seat and VItON ‘O’ Ring. WBV32/hQ005 32 £382.95
the valves are screwed BsP, fully WBV40/hQ005 40 £414.00
assembled and factory tested. WBV50/hQ005 50 £465.75
teChNICaL heLPINe stOCK IteMs
FOR ALL PRODUCT GUIDANCE AND H&C CARRY OVER 1,000 PRODUCTS
TECHNICAL SUPPORT CALL (029) 20 463345 IN STOCK FOR IMMEDIATE DELIVERY
19
DATASHEETS ARE AVAILABLE TO DOWNLOAD FROM OUR WEBSITE WWW.HEATCOMBUSTION.CO.UK
WEB: WWW.HEATCOMBUSTION.CO.UK | EMAIL: SALES@HEATCOMBUSTION.CO.UKH+C Catalogue 2020 MASTER V4.qxp_Layout 1 10/12/2019 07:29 Page 20
MOTORISED VALVES & ACTUATORS
XUROX BUTTERFLY VALVES & JOVENTA ACTUATORS
a range of wafer type butterfly valves & actuators used in heating VaLVes
and cooling systems.
Part Number size (mm) Kvs (m³/hr) trade Price
FeatURes 405Weht40 40 50 £125.46
• aluminium body – DN50-150
405Weht50 50 83 £125.46
• stainless steel disc and shaft
405Weht65 65 212 £135.66
• ePDM seat
• to suit PN10, PN16 flanges 405Weht80 80 400 £139.74
405Weht100 100 750 £166.26
405Weht125 125 1100 £191.76
405Weht150 150 2000 £217.26
aCtUatORs
Part Number Force (Nm) Voltage (V) aux switch to suit Valve (mm) trade Price
Da1.s 16 24 Yes 40-100 £97.00
Da2.s 16 230 Yes 40-100 £110.00
DaG1.s 32 24 Yes 125-150 £165.00
DaG2.s 32 230 Yes 125-150 £165.00
BUTTERFLY VALVES & ACTUATORS – DN200-DN350
a range of wafer type butterfly valves & actuators Part Number size (mm) Voltage (V) trade Price
used in heating and cooling systems.
BF200/hQ020-24 200 24 £1,230.85
FeatURes BF200/hQ020-230 200 230 £1,230.85
• Butterfly valves – cast iron body, PN16,
BF250/hQ030-24 250 24 £1,514.10
wafer pattern, ePDM seat & stainless steel disc
• actuators – manual override, 4 off limit switches BF250/hQ030-230 250 230 £1,514.10
(2 off auxiliary) & position indicator BF300/hQ050 300 230 £1,843.70
• Fully assembled & tested BF350/hQ060 350 230 £2,260.85
WRAS APPROVED BUTTERFLY VALVES & ACTUATORS
a range of 2-Way WRas actuated Butterfly Valves, Part Number size (mm) trade Price
sizes 40mm (11⁄2”) - 200mm (8”) c/w either 230v WBF40/hQ005 40 £470.00
or 24VaC actuator (0-10v option available). WBF50/hQ005 50 £480.00
Fitted with aUX switches as standard. Valves WBF65/hQ005 65 £490.00
are Cast Iron body, wafer pattern with
WBF80/hQ005 80 £505.00
ePDM seat and stainless steel Disc.
WBF100/hQ006 100 £720.00
Fully assembled and factory tested.
WBF125/hQ015 125 £1,350.00
WBF150/hQ015 150 £1,455.00
WBF200/hQ030 200 £1,875.00
IF YOU haVe a LaRGe PROJeCt
seRVING the INDUstRY -taLK tO Us
FOR OVeR 30 YeaRs CONTACT OUR TEAM ON (029) 20 463345
OR E-MAIL sales@heatcombustion.co.uk
20
DATASHEETS ARE AVAILABLE TO DOWNLOAD FROM OUR WEBSITE WWW.HEATCOMBUSTION.CO.UK
TEL: (029) 20 463345 | FAX: (029) 20 463346H+C Catalogue 2020 MASTER V4.qxp_Layout 1 10/12/2019 07:29 Page 21
MOTORISED VALVES & ACTUATORS
CONTROLLI IP65 UNIVERSAL ACTUATOR NEW PRODUCT
the Controlli type MVe515-IP65 universal 24v 0-10v proportional Part Number type Rating & stroke trade Price
motor,can be used/fitted to all schneider type valves, as well as other
MVe515-IP65 24V 0-10V PROPORtIONaL 1500N-60MM stROKe £260.00
makes of valves, to make suitable for IP65 outdoor protection, where
bags/covers are not an ideal option.
the MVe515-IP65 can fit directly on to the below schneider type
valves Ranges: V241/V211t/V211/V212/VG211/VG222/V231/V232/V292 UNIVeRsaL LINKaGe KIts
Part Number to suit type of valve trade Price
aG53 satChWeLL Vz/VsF/Mz/MJF/MzF £43.00
aG60-10 hONeYWeLL V176a.B/V5011a £43.00
aG79 hONeYWeLL V5011R £43.00
aG66 JOhNsON VB7816 £43.00
aG60-07 DaNFOss VF2/VF3 £43.00
aG70-10 BeLIMO h6.N (DN15-100), h7.N (DN15-100) £43.00
sIeMeNs VVF21(DN25-80),VVF31(DN15-80),
VVF40(DN15-80),VVF51(DN15-40), VVF52(DN15-40),
VVF53(DN15-150),VVF61(DN15-25),VVF61_2(DN15-150),
VVG41(DN15-50),VVG11(DN25-40),VXF21(DN25-80),
VXF31(DN15-80), VXF40(DN15-80),VXF51(DN15-40),
VXF52(DN15-40),VXF53(DN15-150), VXF61(DN15-25),
VXF61_2(DN15-150),VXG41(DN15-50),VXG11(DN25-40)
aG70-1 sIeMeNs VVF21(DN100).VVF31(DN150),VVF40(DN150), £43.00
VVF41(DN50-150), VVF45(DN50-150), VVF61(DN40-150),
VXF21(DN100),VXF31(DN100-150),
VXF40(DN100-150),VXF41(DN50-150),
VXF45(DN50-150),VXF61(DN40-150).
PLease NOte:
PLease CONtaCt the OFFICe FOR aNY OtheR tYPe/MaKe OF VaLVes
(NOt LIsteD aBOVe), as We MaY Be aBLe tO OFFeR OtheR OPtIONs .
Datasheets NeXt DaY DeLIVeRY
AVAILABLE TO DOWNLOAD FROM OUR ON ORDERS PLACED BEFORE 4PM,
WEBSITE www.heatcombustion.co.uk THE ITEMS WILL BE DELIVERED NEXT DAY
21
DATASHEETS ARE AVAILABLE TO DOWNLOAD FROM OUR WEBSITE WWW.HEATCOMBUSTION.CO.UK
WEB: WWW.HEATCOMBUSTION.CO.UK | EMAIL: SALES@HEATCOMBUSTION.CO.UKH+C Catalogue 2020 MASTER V4.qxp_Layout 1 10/12/2019 07:29 Page 22
SOLENOID VALVES
WRAS APPROVED SOLENOID VALVES - DANFOSS EV220W RANGE NEW PRODUCT
the new Danfoss WRas approved range of 2 way normally closed servo assisted 230V VeRsION
solenoid valves. Part Number size (inch) Voltage trade Price
FeatURes 042U471432 ½” 230 £56.00
• WRas approved solenoid valves for water 042U471832 ¾” 230 £71.00
• ePDM seal, brass body 042U472232 1” 230 £107.00
• For temperatures up to 100c 042U473232 1¼” 230 £220.00
• 230v or 24v as standard , other voltages available on request (picture) 042U474032 1½” 230 £261.00
• Pressure range 0.3 -10 bar 042U475032* 2” 230 £332.00
• Normally closed as standard
• Normally open versions – available on request * 2” VeRsION - aWaItING WRas aPPROVaL - DUe Late JaN 2020
• Clip on coil for easy installation
• zero rated versions available on request (contact office) 24V VeRsION
Part Number size (inch) Voltage trade Price
aPPROVaLs 042U471419 ½” 24 £56.00
• WRas approved 042U471819 ¾” 24 £71.00
• Rohs Directive 2011/65/eU 042U472219 1” 24 £107.00
• Low voltage directive 2014/35/eU-eN60730-1 042U473219 1¼” 24 £220.00
• eN60730-2-8 042U474019 1½” 24 £261.00
• UL Recognized
042U475019* 2” 24 £332.00
* 2” VeRsION - aWaItING WRas aPPROVaL - DUe Late JaN 2020
sPaRe COILs
Part Number Voltage trade Price
as024Cs(042N7608) 24 £26.00
as230Cs(042N7601) 230 £26.00
zeRO RateD VeRsIONs aVaILaBLe ON ReQUest (CONtaCt OUR saLes teaM).
PLease NOte
PLease CONtaCt the OFFICe FOR aNY OtheR DaNFOss INDUstRIaL/ReFRIGeRatION PRODUCts YOU MaY ReQUIRe - as We CaN QUOte tO sUIt.
aVaILaBLe ON ReQUest.
seRVING the INDUstRY teChNICaL heLPINe
FOR OVeR 30 YeaRs
FOR ALL PRODUCT GUIDANCE AND
TECHNICAL SUPPORT CALL (029) 20 463345
22
DATASHEETS ARE AVAILABLE TO DOWNLOAD FROM OUR WEBSITE WWW.HEATCOMBUSTION.CO.UK
TEL: (029) 20 463345 | FAX: (029) 20 463346H+C Catalogue 2020 MASTER V4.qxp_Layout 1 10/12/2019 07:29 Page 23
SOLENOID VALVES
WRAS APPROVED SOLENOID VALVES
a WRas approved range of 2 way normally closed servo-assisted solenoid valves. 230V
FeatURes Part Number size (“) Voltage (V) trade Price
• WRas approved solenoid sLP15ee2-13L ½ 230 £56.00
Valves sLP20ee2 ¾ 230 £71.00
• ePDM seal, suitable for sLP25ee2 1 230 £107.00
temperature up to 120°C
sLP35ee2 1¼ 230 £220.00
• 230v or 24v as standard,
110vac & 12/24vdc sLP40ee2 1½ 230 £261.00
verions available on sLP50ee2 2 230 £332.00
request
• Pressure range 24V
- 0.5 - 12 bar Part Number size (“) Voltage (V) trade Price
• Normally Closed sLP15ee7-13L ½ 24 £56.00
as standard, Normally
Open versions available sLP20ee7 ¾ 24 £71.00
on request sLP25ee7 1 24 £107.00
sLP35ee7 1¼ 24 £220.00
sLP40ee7 1½ 24 £261.00
sLP50ee7 2 24 £332.00
sPaRe COILs
Part Number Voltage (V) trade Price
sLP-230V 230 £26.00
FOR DN65 & aBOVe PLease GO tO the MOtORIseD VaLVes & aCtUatORs
seCtION FOR the WRas BUtteRFLY VaLVes sLP-24V 24 £26.00
GENERAL PURPOSE SOLENOID VALVES
a range of general purpose 2/2 normally closed solenoid valves direct acting Part Number size (mm) Voltage (V) trade Price
1⁄2” to 2” 240/50hz as standard. 24VaC also available from stock.
zs15 15 24 or 240 £47.00
(Other voltages & sizes available on request. as well as valves for steam).
zs20 20 24 or 240 £54.00
Please contact the office for further details.
zs25 25 24 or 240 £85.00
FeatURes zs35 35 24 or 240 £182.00
• Body material Brass
zs40 40 24 or 240 £189.00
• Usage: air / Gas / Water / Light oil (35 sec oil)
zs50 50 24 or 240 £200.00
• temperature range: -5˚C to + 80˚C
• Protection: IP65 spare Coils (240V / 110V / 24VaC) trade Price
• Mounting Position: Preferred with vertical coil above
zs15 - 25 £29.00
• 1/2” - 2” BsP Pipesize - Direct acting 0-7BaR
zs35 - 50 £31.00
PLease CONFIRM VOLtaGe ReQUIReD WheN ORDeRING
stOCK IteMs Datasheets
H&C CARRY OVER 1,000 PRODUCTS AVAILABLE TO DOWNLOAD FROM OUR
IN STOCK FOR IMMEDIATE DELIVERY WEBSITE www.heatcombustion.co.uk
23
DATASHEETS ARE AVAILABLE TO DOWNLOAD FROM OUR WEBSITE WWW.HEATCOMBUSTION.CO.UK
WEB: WWW.HEATCOMBUSTION.CO.UK | EMAIL: SALES@HEATCOMBUSTION.CO.UKH+C Catalogue 2020 MASTER V4.qxp_Layout 1 10/12/2019 07:29 Page 24
METERING
DANFOSS SONO30 ULTRASONIC ENERGY METERS
the Danfoss sono30 is a range of ultrasonic, compact energy meters Part Number size (DN) Nom Flow (m³/h) trade Price
intended for measuring energy consumption in heating and cooling
sONO30/15/1.5 15 1.5 £324.45
applications for billing purposes.
sONO30/20/2.5 20 2.5 £334.75
FeatURes sONO30/25/3.5 25 3.5 £468.65
• MID approved Class II sONO30/25/6.0 25 6 £468.65
• DN15-40 (screwed) - suitable for heating sONO30/40/10 40 10 £684.95
as standard, cooling available on request sONO30/50/15 50 15 £875.50
• DN50-100 (Flanged) - suitable for heating sONO30/65/25 65 25 £1,246.30
& cooling as standard
sONO30/80/40 80 40 £1,369.90
• M-Bus or Pulse as standard
sONO30/100/60 100 60 £1,751.00
• Battery as standard, 230v
or 24v available please specify Option trade Price
• Meters complete with 1.5m temperature Rs-485 MODBUs MODULe £121.54
sensors, pockets & connections
3M teMP seNsORs £65.92
• DN15-20 meters - return sensor
5M teMP seNsORs £93.73
mounted directly into supplied
to allow flow sensor to be mounted 10M teMP seNsORs £107.12
direct into line/media
• to be mounted in return line as PLease NOte
standard, flow versions available LaRGeR sIzes (DN125-DN200)- WILL Be aVaILaBLe sPRING 2020.
CONtaCt the OFFICe FOR FURtheR DetaILs.
on request
PLease CONtaCt Us FOR PROJeCt QUaNtItY eNQUIRIes. CONtaCt the teaM ON (029) 20 463345 OR e-MaIL saLes@heatCOMBUstION.CO.UK
DANFOSS SONOSELECT ULTRASONIC ENERGY METERS
the sonoselect meter range are ultrasonic, compact energy meters intended for Part Number size (DN) Nom Flow (m³/h) heating/Cooling trade Price
measuring energy consumption in heating applications for billing purposes.
sONOseLeCt/15/1.5-h 15 1.5 heatING £242.05
FeatURes sONOseLeCt/20/2.5-h 20 2.5 heatING £257.50
• MID approved Class II sONOseLeCt/25/3.5-h 25 3.5 heatING £386.25
• DN15-32, heating & cooling versions sONOseLeCt/32/6.0-h 32 6.0 heatING £448.05
• M-bus + 2 Pulse Inputs as standard, sONOseLeCt/15/1.5-C 15 1.5 COOLING £264.71
(pulse inputs allow additional pulse
devices to be wired directly through sONOseLeCt/20/2.5-C 20 2.5 COOLING £280.16
heat meter) sONOseLeCt/25/3.5-C 25 3.5 COOLING £406.85
• Battery as standard (17 Year life). sONOseLeCt/32/6.0-C 32 6.0 COOLING £468.65
230vac option available.
Please specify.
• sensor mounted directly into meter
body, M10 adaptor supplied to
allow free sensor to be mounted
direct into line/media
• Compatible with app connectivity
via Bluetooth dongle
• to be mounted in return line
as standard
PLease CONtaCt Us FOR PROJeCt QUaNtItY eNQUIRIes. CONtaCt the teaM ON (029) 20 463345 OR e-MaIL saLes@heatCOMBUstION.CO.UK
IF YOU haVe a LaRGe PROJeCt
seRVING the INDUstRY -taLK tO Us
FOR OVeR 30 YeaRs CONTACT OUR TEAM ON (029) 20 463345
OR E-MAIL sales@heatcombustion.co.uk
24
DATASHEETS ARE AVAILABLE TO DOWNLOAD FROM OUR WEBSITE WWW.HEATCOMBUSTION.CO.UK
TEL: (029) 20 463345 | FAX: (029) 20 463346You can also read
