PCXF14
Chilled Water
PRODUCT SYSTEM
Wall Mounted
Ceiling Cassette
Ceiling Convertible
Ducted
Fan Coil Unit
Product Catalogue
Products manufactured in an ISO certified facility.
This document contains the most current product information as of this printing.
@2014-1
Contents Products Overview
kW
Cooling Capacity
0 5 10 15 20 25 30 35 40
2/3/4/5/6
FWW-L
Wall Mounted Type
02 FWF-C 2/4/5
Ceiling Cassette Type
* With Brushless DC Motor
FWK-E/
FWKE-E/ 5 / 6 / 8 / 9 / 11 / 13
FWKE-EH
05 08 12
FWE-E 5 / 6 / 7 / 8 / 10 / 12
Ceiling Convertible Type
FWC-C 3 / 4 / 6 / 7 / 9 / 11 / 12 / 14 / 16
16
Ceiling Concealed Type
FUD-B 20 / 25 / 30 / 40
20
Ducted Blower Type
24
Remark: All unit photos in this catalog are solely for illustration purpose, actual outlook may differ slightly.
All specifications are subjected to change by the manufacturer without prior notice.
Wall Mounted Type Comfortble Air Flow & Lower Sound Level Easy Maintenance
User given more choice on preferable fan speed, quiet mode or Air intake grill is easily detachable to be cleaned with water.
automatic setting. With the introduction of SCR indoor fan motor, a
step-less change of fan speed results in smooth air flow and
unnoticeable sound level change during fan speed change.
Sleep function for Cool and Heat mode
Once activated, set temperature will be increased / decreased
gradually according to normal sleeping temperature patterns to
ensure a comfortable sleeping environment.
Sleep Set On
0 1/2
1
2
Temperature
urs
Ho
FWW-L Wireless Remote Controller Wired Remote Controller -1˚C
BRC52A BRC51A (Option)
ting -2˚C
Hea ling
Coo
-3˚C
Temperature
+1˚C
Heating mode* +0.5˚C +0.5˚C
› Comfortable Air Flow & Lower Sound Level › NIM-Able Stylish Flat-Panel
› Stylish Flat-Panel › Sleep Function For Cool And Heat Mode
› Indoor Quiet Mode › Auto Restart With Last-State-Memory Ideal blend of style and function. 0
Sleep 1/2
› Turbo Mode › Valve & Valveless Control Options • The front panel is designed for contemporary style without Set O
n
1
› Uniform Air Distribution › Self Diagnosis Features compromising on function. 2
rs
› Easy Maintenance › Compact & Easy To Use Wireless Remote Controller
Hou
• Air intake area is designed to ensure smooth air flow profile for Cooling mode
better sound quality and optimized volume.
Indoor Quiet Mode Auto Restart with Last-State-Memory
More quiet room environment. In case of sudden power failure during operation, unit restarts
• With up to five selectable fan speeds, users are given more automatically & unit will operate based on previous setting when
choices. By selecting Quiet mode, the sound pressure level is power is resumed.
reduced down to an unobstrusive 24 dBA.
• To quickly cool down the room, Turbo model can be selected for Power Failure Power Returns
maximum cooling power and highest airflow.
Operation Stop Restart
24dBA Is So Quiet You Can Even Hear Whispers
20 E2 PROM
Rustling 30
Of Leaves Pendulum Of 40
A Wall Clock Library
50
24dBA
for Normal Office (dB)
FWWM-L
Setting stored before power failure.
SL L M H Turbo
Compact & Easy To Use Wireless Remote Controller
Fan Low High Compact and user friendly wireless remote controller BRC52A offers:
Speed
• Real Time Clock
• "Glow in the dark" ON/OFF Button
Turbo Mode • Low, Medium, High fan speed options
TURBO function is available in COOL and HEAT modes only. Once it • ON Timer Setting
is activated, the air-conditioner will run into full power with indoor fan
running at MAX speed for 20 minutes. This enables the set
temperature to be achieved faster. If TURBO and SLEEP are activated
at the same time, the SLEEP mode timer will be reset, it will resume
after TURBO function is cleared.
T room
Wireless Remote Controller Wired Remote Controller
BRC52A BRC51A (Option)
T set
Start 20min 30min
Self Diagnosis Features
Uniform Air Distribution This feature helps to detect any faults or malfuctioning in the system
Automated air swing ensures conditioned air distributed evenly. and provide user a warning by blinking of the LED lights.
2 3
Specification for Wall Mounted Type ~ 50HZ
Ceiling Cassette Compact Type (600x600)
MODEL FWW02L FWW03L FWW04L FWW05L FWW06L
Btu/h 8300 9200 11300 15500 18000
NOMINAL COOLING CAPACITY
W 2430 2700 3310 4540 5280
Btu/h 6300 6900 9000 11700 14000
NOMINAL SENSIBLE COOLING CAPACITY
W 1850 2020 2640 3430 4100
NOMINAL HEATING CAPACITY Btu/h 11000 12000 15000 20500 25000
(ENTERING WATER TEMP. = 50°C) W 3220 3520 4400 6010 7330
NOMINAL TOTAL INPUT POWER W 31 32 42 57 72
NOMINAL RUNNING CURRENT A 0.20 0.20 0.21 0.30 0.34
POWER SOURCE V/Ph/Hz 220-240 / 1 / 50
REFRIGERANT TYPE N/A Wireless Remote Controller Wired Remote Controller
AIR DISCHARGE AUTOMATIC LOUVER (UP & DOWN) BRC52A BRC51A
CONTROL
OPERATION LCD WIRELESS MICRO-COMPUTER REMOTE CONTROL
FWF-C
HIGH CFM 260 280 370 510 620
MEDIUM CFM 230 250 320 450 520
AIR FLOW
LOW CFM 200 220 260 390 460
› Compact Design › Branch Duct Connection
QUIET CFM 180 190 240 360 440
› Fresh Air Intake › Sleep Function For Cool & Heat Mode
USGPM 1.85 2.03 2.51 3.43 4.01 › Stylish & Slim Panel › Auto Restart With Last-State-Memory
NOMINAL WATER FLOW RATE
litres/min 7.00 7.68 9.50 13.00 15.18 › Built In High Head Drain Oump & Water Flow Switch › NIM-Able
HEAD LOSS (COOLING) kPa 34.0 24.0 31.0 30.0 36.0 › 4 Way Air Discharge & Air Swing › Self Diagnosis Features
› Valve Or Valveless Control Options › Choices Of Wired Or Withless Remote Controller
HEAD LOSS (HEATING) : 50˚C kPa 29.0 20.0 25.0 27.0 33.0
MAX. WORKING PRESSURE kPa 1608
SURFACE AIR VELOCITY m/s 0.68 0.74 0.97 0.83 1.01
SOUND PRESSURE LEVEL (H/M/L/Q) dBA 34 / 29 / 25 / 24 35 / 30 / 25 / 24 42 / 39 / 32 / 29 42 / 38 / 34 / 32 46 / 42 / 39 / 37
UNIT DIMENSION HXWXD mm 288 X 800 X 206 310 X 1065 X 224
PACKING DIMENSION HXWXD mm 344 x 874 x 274 386 X 1136 X 314
UNIT WEIGHT kg 9 14
CONDENSATE DRAIN SIZE mm 19.05
PIPE CONNECTION mm 12.70
TYPE CROSS FLOW FAN
DRIVE DIRECT
FAN HIGH RPM 1030 1050 1310 1035 1250
FAN SPEED MEDIUM RPM 890 910 1150 920 1070
INDOOR UNIT
LOW RPM 760 780 955 825 970
TYPE INDUCTION
INDEX OF PROTECTION (IP) IP20 IP44
INSULATION GRADE E
HIGH W 31 32 42 57 72
RATED
INPUT POWER MEDIUM W 29 31 37 50 68
LOW W 25 29 33 43 60
FAN MOTOR
HIGH A 0.20 0.20 0.21 0.30 0.34
RATED
RUNNING MEDIUM A 0.19 0.20 0.20 0.29 0.32
CURRENT LOW A 0.17 0.19 0.19 0.26 0.31
STARTING CURRENT A 0.40 0.40 0.40 0.30 0.43
MOTOR OUTPUT W 18 18 18 26 30
POLES 4
MATERIAL COPPER
TUBE
DIAMETER mm 7.00
MATERIAL ALUMINIUM
COIL
FIN FACE AREA m² 0.18 0.18 0.18 0.29 0.29
ROW 2
WATER VOLUME litre 0.52 0.58 0.58 0.95 0.95
TYPE WASHABLE SARANET FILTER
AIR QUALITY FILTER
QUANTITY pc 2
CASING COLOUR WHITE
MODE COOLING HEATING
ENTERING AIR TEMPERATURE 27˚C DB / 19˚C WB 20˚C DB
ENTERING WATER TEMPERATURE 7˚C 50°C (2 Pipes System)
70°C (4 Pipes System)
LEAVING WATER TEMPERATURE 12˚C 45°C (2 Pipes System)
60°C (4 Pipes System)
ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
4 5
Compact Design Branch Duct Connection Specification for Ceiling Cassette Compact Type ~ 50Hz
Ceiling Cassette C Series body dimension is only 570 mm x 570 mm Improves air flow distribution when there is an obstruction. It allows
MODEL FWF02C FWF04C FWF05C
which can easily fits into a 600 mm ceiling grid. for air conditioning of two rooms simultaneously.
Btu/h 8500 14000 15500
NOMINAL COOLING CAPACITY
Branch duct chamber W 2490 4100 4540
Discharge duct
Btu/h 6500 10000 11500
NOMINAL SENSIBLE COOLING CAPACITY
600mm W 1910 2930 3370
600mm
Wall
NOMINAL HEATING CAPACITY Btu/h 12000 16000 18000
(ENTERING WATER TEMP. = 50°C) W 3520 4690 5280
Room 1 Room 2 NOMINAL TOTAL INPUT POWER W 63 64 79
570mm 570mm NOMINAL RUNNING CURRENT A 0.28 0.28 0.35
POWER SOURCE V/Ph/Hz 220-240 / 1 / 50
Sleep Function For Cool And Heat Mode REFRIGERANT TYPE N/A
Once activated, set temperature will be increased / decreased AIR DISCHARGE 4 WAY AUTOMATIC LOUVER (UP & DOWN)
gradually according to normal sleeping temperature patterns to CONTROL
OPERATION LCD WIRELESS MICRO-COMPUTER REMOTE CONTROL
ensure a comfortable sleeping environment. HIGH CFM 380 400 440
AIR FLOW MEDIUM CFM 290 310 330
Sleep Set On
ling
0 Coo LOW CFM 230 220 280
Fresh Air Intake
1/2
1
2
USGPM 2.03 3.43 3.57
• Knock out hole is available at the unit. NOMINAL WATER FLOW RATE
Temperature
Temperature
+1˚C
+0.5˚C +0.5˚C litres/min 7.68 12.98 13.51
urs
Ho
• Installation & accessories need to be field supplied & installed. HEAD LOSS (COOLING) kPa 19.3 26.9 28.8
-1˚C
• Keep the introduction of fresh air intake within 20% of the total HEAD LOSS (HEATING) : 50°C kPa 16.8 23.9 26.5
ting -2˚C 0
air flow. Also provide a chamber and use a booster fan. Hea Sleep 1/2
Set O
n 1 MAX. WORKING PRESSURE kPa 1608
-3˚C
2 SURFACE AIR VELOCITY m/s 0.75 0.76 0.83
rs
Hou
Duct flange (With insulation material) Cooling mode SOUND PRESSURE LEVEL (H/M/L) dBA 42 / 35 / 29 45 / 38 / 30 48 / 40 / 36
Heating mode*
UNIT DIMENSION - ( ) WITH PANEL HXWXD mm 250 X 570 X 570 (295 X 640 X 640)
PACKING DIMENSION - ( ) PANEL HXWXD mm 316 X 630 X 630 (126 X 700 X 726)
Self Diagnosis Features UNIT WEIGHT (UNIT + PANEL) kg 15 + 3 17 + 3 17 + 3
This feature helps to detect any faults or malfuctioning in the system CONDENSATE DRAIN SIZE mm 19.05
Intake duct (Field supplied and installed) and provide user a warning by blinking of the LED lights. PIPE CONNECTION mm 19.05
TYPE TURBO FAN
Auto Restart With Last-State-Memory DRIVE DIRECT
Stylish & Slim Panel In case of sudden power failure during operation, unit restarts automatically FAN HIGH RPM 725 810 900
The slim panel can be blended easily into decoration and interior design. FAN SPEED MEDIUM RPM 565 630 700
INDOOR UNIT
& unit will operate based on previous setting when power is resumed.
LOW RPM 460 480 610
Built In High Head Drain Pump & Water Flow Switch Power Failure Power Returns
TYPE INDUCTION
The unit comes with a 700 mm built-in high head drain pump. A INDEX OF PROTECTION (IP) IP20
Operation Stop Restart
safety float is incorporated int he drain pump to monitor its water level. INSULATION GRADE B
HIGH W 63 64 79
RATED
INPUT POWER MEDIUM W 51 58 73
2
E PROM LOW W 46 52 69
FAN MOTOR
700mm HIGH A 0.28 0.28 0.35
RATED
RUNNING MEDIUM A 0.23 0.25 0.32
Setting stored before power failure. CURRENT LOW A 0.21 0.24 0.31
STARTING CURRENT A 0.32 0.30 0.47
4 Way Air Discharge & Air Swing Choices Of Wired Or Wireless Remote Controller MOTOR OUTPUT W 17 23 28
POLES 6
It comes with 4 way air discharge and air swing function to ensure Compact and user friendly wireless BRC52A and wired BRC51A
MATERIAL COPPER
better air distribution and circulation in the room. remote controller offer : TUBE
DIAMETER mm 7.00
• Real Time Clock
MATERIAL ALUMINIUM
• "Glow in the dark" ON/OFF Button COIL
FIN FACE AREA m² 0.24 0.25 0.25
• Low, Medium, High fan speed options
ROW 1 2 2
• ON Timer Setting
WATER VOLUME litre 0.43 0.83 0.83
TYPE WASHABLE SARANET FILTER
AIR QUALITY FILTER
QUANTITY pc 1
CASING COLOUR LIGHT GREY
MODE COOLING HEATING
ENTERING AIR TEMPERATURE 27˚C DB / 19˚C WB 20˚C DB
ENTERING WATER TEMPERATURE 7˚C 50°C (2 Pipes System)
70°C (4 Pipes System)
Valve Or Valveless Control Options Wireless Remote Controller Wired Remote Controller LEAVING WATER TEMPERATURE 12˚C 45°C (2 Pipes System)
60°C (4 Pipes System)
The design is flexible enough to allow for either valve or valveless
BRC52A BRC51A
control installation. ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
6 7
Ceiling Cassette Type (900x900) Multi Comfort - 3 Air Swing Pattern Control Optimum Air Discharge
To increase the comfort level of the air conditioned area of FWK-E Combining 4 ways air discharge and large discharge area on each
series, the system had been built in with three different type of air side, Ceiling Cassette promote even air distribution. The additional
flow pattern to suit different requirement. feature of automatic air swing helps to distribute the conditioned air
* The default setting is pattern 1. The air swing pattern can be more evenly to every corner of the room.
selected via wireless remonote control.
Standard Setting
Louver is set to swing at the maximum angle for gentle drafts.
Wireless Remote Controller Wired Remote Controller
BRC52A BRC51A 10˚ 10˚
FWK-E 65˚
Pattern 1 65˚
› Multi Comfort - 3 Air Swing Pattern Control › Low water Pressure Drop
› Fresh Air Intake › Self Diagnosis Features
Superior Sound Level
› Optimum Air Discharge › NIM-Able With the adapted technology from Daikin turbo fan, Ceiling
› Superior Sound Level › Valve Or Valveless Control Options Cassette series is able to achieve exceptional low noise.
› Branch Duct Connection › Sleep Function For Cool & Heat Mode
› Low Height Design › Auto Restart With Last-State-Memory Draft Prevention Setting With up to 4 selected fan speeds, users are given more choices.
› Built In High Head Drain Pump & Water Flow Switch › Choices Of Wired Or Wireless Remote Controller With the aid of Coanda effect, direct draft which may lead to By selecting the Quiet mode, the sound pressure level can be as
› Modern & Elegant Panel discomfort can be avoided. low as 23dBA.
10˚ 10˚ Longitudinal vortices
Pattern 2
generated along serration
40˚ 40˚
edges accelerate mixing
turbulence which reduces
vortex shedding noise.
Soil Prevention Setting
Even distribution of cooling whilst ensuring ceiling to be
kept spotless.
Branch Duct Connection
Improves air flow distribution when there is an obstruction. It allows
for air conditioning of two rooms simultaneously.
Branch duct chamber
30˚ 30˚
Pattern 3 Discharge duct
65˚ 65˚
Wall
Room 1 Room 2
Fresh Air Intake
• Knock out hole is available at the unit.
• Installation & accessories need to be field supplied & installed.
• Keep the introduction of fresh air intake within 20% of the total Low Height Design
air flow. Also provide a chamber and use a booster fan. Unit height as low as 265mm for installation convenience.
Duct flange (With insulation material)
265mm 350mm
Intake duct (Field supplied and installed)
8 9
Built In High Head Drain Pump & Sleep Function For Cool And Heat Mode Specification for Ceiling Cassette Type ~ 50Hz
Water Flow Switch Once activated, set temperature will be increased / decreased MODEL FWK06E FWK08E FWK09E FWK11E FWK13E
The unit comes with a 700mm built-in high head drain pump. A gradually according to normal sleeping temperature patterns to Btu/h 21000 25000 30000 38000 43000
NOMINAL COOLING CAPACITY
safety float is incorporated int he drain pump to monitor its ensure a comfortable sleeping environment. W 6150 7330 8790 11140 12600
water level. Btu/h 16700 19200 22300 27400 31000
NOMINAL SENSIBLE COOLING CAPACITY
W 4890 5630 6540 8030 9090
Sleep Set O
0 n NOMINAL HEATING CAPACITY Btu/h 28000 33600 38300 45500 52000
1/2
1
2 (ENTERING WATER TEMP. = 50°C) W 8210 9850 11230 13340 15240
NOMINAL TOTAL INPUT POWER W 95 126 167 186 227
Temperature
NOMINAL RUNNING CURRENT A 0.44 0.55 0.74 0.85 1.03
urs
700mm
Ho
POWER SOURCE V/Ph/Hz 220-240 / 1 / 50
-1˚C REFRIGERANT TYPE N/A
AIR DISCHARGE 4 WAY AUTOMATIC LOUVER (UP & DOWN)
ting -2˚C CONTROL
Hea OPERATION LCD WIRELESS MICRO-COMPUTER REMOTE CONTROL
-3˚C HIGH CFM 750 860 890 1000 1140
Heating mode*
MEDIUM CFM 620 700 720 840 1000
Modern & Elegant Panel AIR FLOW
LOW CFM 480 540 570 680 840
It is designed with unique "round" side contour and new LED light Co oling QUIET CFM 320 380 420 540 700
location. The rotateable intake grill promotes uniform installation USGPM 4.71 5.59 6.69 8.45 9.60
NOMINAL WATER FLOW RATE
as well. litres/min 17.83 21.17 25.29 31.94 36.29
Temperature
+1˚C
+0.5˚C +0.5˚C
HEAD LOSS (COOLING) kPa 20 37 22 44 53
HEAD LOSS (HEATING) : 50°C kPa 19 33 19 38 47
MAX. WORKING PRESSURE kPa 1600
0 SURFACE AIR VELOCITY m/s 0.91 1.04 1.14 1.03 1.17
Sleep 1/2
Set O 1
n SOUND PRESSURE LEVEL (H/M/L/Q) dBA 42/38/32/23 46/42/35/27 48/43/38/30 50/47/43/33 52/49/45/39
2 UNIT DIMENSION - ( ) WITH PANEL H X W X D mm 265 X 820 X 820 (340 X 990 X 990) 300 X 820 X 820 (375 X 990 X 990)
rs
Hou
Cooling mode PACKING DIMENSION - ( ) PANEL HXWXD mm 341 X 916 X 916 (125 X 1020 X 1020) 376 X 916 X 916 (125 X 1020 X 1020)
UNIT WEIGHT (UNIT + PANEL) kg 26 + 4 26 + 4 28 + 4 32 + 4 32 + 4
CONDENSATE DRAIN SIZE mm 19.05
PIPE CONNECTION mm 19.05
Auto Restart With Last-State-Memory TYPE TURBO FAN
In case of sudden power failure during operation, unit restarts automatically DRIVE DIRECT
& unit will operate based on previous setting when power is resumed. FAN HIGH RPM 530 600 660 710 800
INDOOR UNIT
FAN SPEED MEDIUM RPM 450 500 550 610 710
Power Failure Power Returns LOW RPM 360 400 450 510 610
TYPE INDUCTION
Operation Stop Restart
INDEX OF PROTECTION (IP) IP20
INSULATION GRADE B
HIGH W 95 126 167 186 227
2
E PROM RATED
INPUT POWER MEDIUM W 79 103 109 151 176
LOW W 67 89 86 118 144
FAN MOTOR
HIGH A 0.44 0.55 0.74 0.85 1.03
RATED
Setting stored before power failure.
RUNNING MEDIUM A 0.40 0.45 0.49 0.71 0.82
CURRENT LOW A 0.36 0.39 0.39 0.57 0.69
STARTING CURRENT A 0.44 0.71 0.89 1.02 1.28
Low Water Pressure Drop Choices Of Wired Or Wireless Remote Controller MOTOR OUTPUT W 30 45 65 80 110
Also commonly known as low head loss actually helps to increase POLES 8
Compact and user friendly wireless BRC52A and wired BRC51A
the system efficiency. MATERIAL COPPER
remote controller offer : TUBE
• Real Time Clock DIAMETER mm 7.00
Self Diagnosis Features • "Glow in the dark" ON/OFF Button COIL
MATERIAL ALUMINIUM
This feature helps to detect any faults or malfuctioning in the system • Low, Medium, High fan speed options FIN FACE AREA m² 0.39 0.39 0.37 0.46 0.46
and provide user a warning by blinking of the LED lights. • ON Timer Setting ROW 2 2 3 3 3
WATER VOLUME litre 1.36 1.34 1.97 2.35 2.35
TYPE WASHABLE SARANET FILTER
Valve Or Valveless Control Options AIR QUALITY FILTER
QUANTITY pc 1
The design is flexible enough to allow for either valve or valveless CASING COLOUR LIGHT GREY
control installation.
MODE COOLING HEATING
ENTERING AIR TEMPERATURE 27˚C DB / 19˚C WB 20˚C DB
NIM-Able ENTERING WATER TEMPERATURE 7˚C 50°C (2 Pipes System)
70°C (4 Pipes System)
Able to communicate with the versatile NIM networking control LEAVING WATER TEMPERATURE 12˚C 45°C (2 Pipes System)
module and offers the oppurtunity of one centralized control for a Wireless Remote Controller Wired Remote Controller 60°C (4 Pipes System)
system of multiple indoor units in a building. BRC52A BRC51A ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
10 11

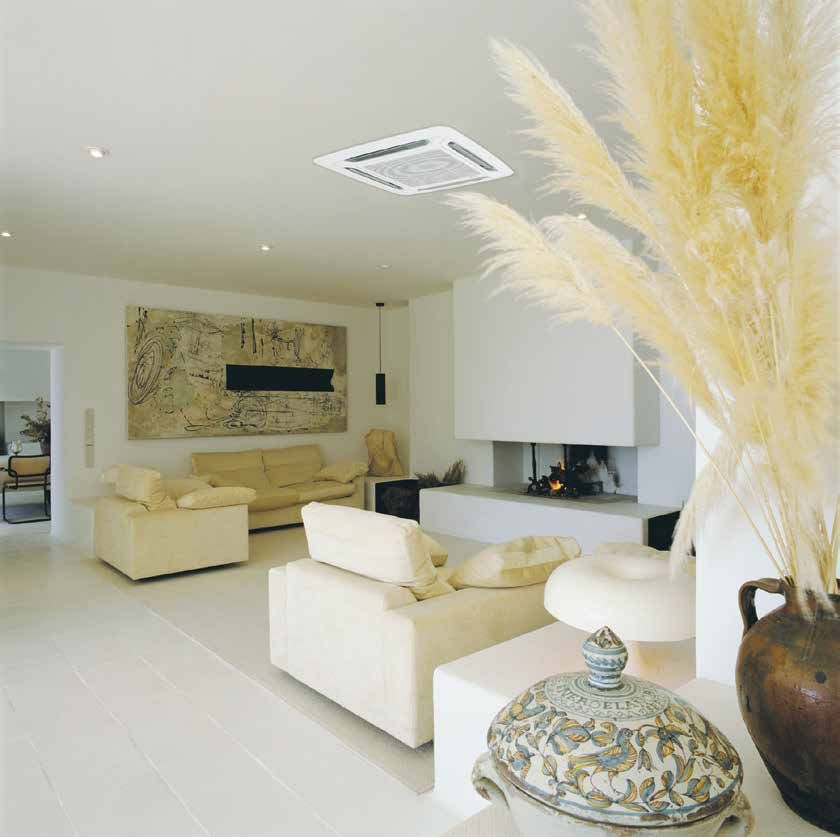

Ceiling Cassette Type (900x900) With Brushless DC Motor Energy Saving Low Noise
Compared to the traditional AC motor, DC motor offers the Due to no brushes or a mechnical commutator,
advantages of lower power input , higher efficiency and hence more it has less shaft friction or inertia and hence
energy saving. less audible noise as low as 16 dBA.
• Brushless DC motor has less internal resistance and better heat
dissipation in the stator coils. As a result, it has higher operating
efficiencies since heat can more efficiently dissipate via the Low Maintenance & No Brush Sparking
stationary motor housing. Brushless DC motor does not use carbon brushes or a mechanical
• With the green building and development being so welcomed commutator, thus, it is low maintenance and non-sparking.
now, this Ceiling Casstte type with Brushless DC motor gives you
another excellent option to consider.
4 Pipe System Available*
Wireless Remote Controller Wired Remote Controller
BRC52A BRC51A 4 pipe system allows a distribution system that contains both hot
FWKE-E Power Consumption Comparison Between water supply with return lines and a chilled water supply with
AC Motor & DC Motor return lines.
* FWKE-EH model
› Comfortable › Branch Duct Connection 200
› Energy Saving › Low Height Design
Power Input (W)
150
› Low Noise › Built In High Head Drain Pump & Water Flow Switch
› Low Maintenance & No Brush Sparking › Superior Sound Level 100
Modulating Fan Speed Control
› 4 Pipe System Available* › Fresh Air Intake Fan speed modulates steplessly based on room temperature to
› Modulating Fan Speed Control › Low Water Pressure Drop 50 reduce the difference between room temperature and set
› Optimum Air Discharge › Sleep Function For Cool And Heat Mode
› Multi Comfort - 3 Air Swing Pattern Control › Choices Of Wired Or Withless Remote Controller 0 temperature and hence provides maximum comfort and reduces
600 650 700 750 800 850 900 950 1000 1050 1100 energy consumption.
Air Flow (CFM)
* Available in auto fan mode
AC Motor DC Brushless Motor
Energy Saving Maximum 67% Room Temperature v.s. CFM
Room Temperature
Recommended Applications
Ceiling Cassette type fan coil with Brushless DC motor provides a
green and pleasant environment.
CFM
Office
Home
Restaurant
12 13
Specification for Ceiling Cassette Type ~ 50Hz (2 Pipe System) Specification for Ceiling Cassette Type ~ 50HZ (4 Pipe System)
FWKE05E FWKE08E FWKE11E FWKE05EH FWKE08EH FWKE11EH
MODEL MODEL
QUIET LOW MEDIUM HIGH QUIET LOW MEDIUM HIGH QUIET LOW MEDIUM HIGH QUIET LOW MEDIUM HIGH QUIET LOW MEDIUM HIGH QUIET LOW MEDIUM HIGH
Btu/h 8200 11900 15900 20100 15200 19800 24700 30000 21000 26800 33100 40100 Btu/h 6800 9600 12300 15000 13300 17100 20800 24600 17700 22200 26400 30700
NOMINAL COOLING CAPACITY NOMINAL COOLING CAPACITY
W 2400 3500 4650 5900 4550 5800 7250 8800 6150 7850 9700 11750 W 2000 2800 3600 4400 3900 5000 6100 7200 5200 6500 7750 9000
Btu/h 5800 8700 11700 15400 11000 14500 18500 21900 14600 18900 23800 28600 Btu/h 5300 7600 10200 13100 9900 13000 16600 19600 13300 16700 20700 24500
NOMINAL SENSIBLE COOLING CAPACITY NOMINAL SENSIBLE COOLING CAPACITY
W 1710 2540 3440 4510 3220 4260 5410 6430 4270 5540 6970 8370 W 1560 2240 2990 3850 2910 3810 4850 5750 3890 4900 6060 7170
NOMINAL HEATING CAPACITY Btu/h 11300 15200 19800 24200 18400 23900 30400 38200 24100 31600 39100 46700 NOMINAL HEATING CAPACITY Btu/h 12800 17200 21700 26100 21800 27300 32800 38200 31900 39100 46200 53400
(ENTERING WATER TEMP. = 50˚C) (ENTERING WATER TEMP. = 50˚C) W 3750 5050 6350 7650 6400 8000 9600 11200 9350 11450 13550 15650
W 3300 4450 5800 7100 5400 7000 8900 11200 7050 9250 11450 13700
FAN INPUT POWER W 7 12 19 37 17 26 50 90 23 39 83 120
FAN INPUT POWER W 7 12 19 37 17 26 50 90 23 39 83 120
NOMINAL RUNNING CURRENT A 0.11 0.13 0.19 0.26 0.19 0.28 0.43 0.74 0.21 0.35 0.55 0.95
NOMINAL RUNNING CURRENT A 0.11 0.13 0.19 0.26 0.19 0.28 0.43 0.74 0.21 0.35 0.55 0.95
POWER SOURCE V/Ph/Hz 220-240 / 1 / 50
POWER SOURCE V/Ph/Hz 220-240 / 1 / 50
REFRIGERANT TYPE N/A
REFRIGERANT TYPE N/A
AIR DISCHARGE 4 WAY AUTOMATIC LOUVER (UP & DOWN)
AIR DISCHARGE 4 WAY AUTOMATIC LOUVER (UP & DOWN) CONTROL
CONTROL OPERATION LCD WIRELESS MICRO-COMPUTER REMOTE CONTROL
OPERATION LCD WIRELESS MICRO-COMPUTER REMOTE CONTROL
AIR FLOW CFM 220 350 470 620 420 560 720 890 510 680 870 1060
AIR FLOW CFM 220 350 470 620 420 560 720 890 510 680 870 1060
EXTERNAL STATIC PRESSURE (H/M/L) Pa N/A
EXTERNAL STATIC PRESSURE (H/M/L) Pa N/A
USGPM 1.53 2.14 2.76 3.37 2.99 3.83 4.67 5.51 3.98 4.98 5.93 6.89
USGPM 1.84 2.68 3.56 4.52 3.41 4.44 5.55 6.74 4.71 6.01 7.43 9.00 NOMINAL WATER FLOW RATE (COOLING)
NOMINAL WATER FLOW RATE Litres/min 5.80 8.12 10.44 12.75 11.31 14.49 17.68 20.87 15.07 18.84 22.47 26.09
Litres/min 6.96 10.15 13.48 17.10 12.90 16.81 21.02 25.51 17.83 22.76 28.12 34.06 USGPM 1.44 1.93 2.43 2.93 2.45 3.06 3.68 4.29 3.58 4.38 5.19 5.99
NOMINAL WATER FLOW RATE (HEATING)
HEAD LOSS (COOLING) kPa 5 10 15 24 7 9 14 20 15 22 30 41 Litres/min 5.44 9.20 9.20 11.09 9.28 13.91 13.91 16.23 13.55 16.60 19.64 22.68
HEAD LOSS (HEATING) : 50˚C kPa 4 8 13 21 5 8 12 18 12 20 26 37 HEAD LOSS (COOLING) kPa 5 9 13 18 6 10 15 19 12 19 24 32
MAX. WORKING PRESSURE kPa 1608 HEAD LOSS (HEATING) : 50˚C kPa 7 10 17 22 13 18 25 32 21 30 39 52
SURFACE AIR VELOCITY m/s 0.27 0.42 0.60 0.64 0.43 0.55 0.68 0.81 0.45 0.57 0.71 0.83 MAX. WORKING PRESSURE kPa 1608
SOUND PRESSURE LEVEL dBA 16 23 31 37 31 37 42 47 34 41 46 51 SURFACE AIR VELOCITY m/s 0.27 0.42 0.60 0.64 0.43 0.55 0.68 0.81 0.45 0.57 0.71 0.83
UNIT DIMENSION - ( ) WITH PANEL H X W X D mm 265 X 820 X 820 (340 X 990 X 990) 300 X 820 X 820 (375 X 990 X 990) SOUND PRESSURE LEVEL dBA 16 23 31 37 31 37 42 47 34 41 46 51
PACKING DIMENSION - ( ) PANEL H X W X D mm 341 X 916 X 916 (125 X 1020 X 1020) 376 X 916 X 916 (125 X 1020 X 1020) UNIT DIMENSION - ( ) WITH PANEL H X W X D mm 265 X 820 X 820 (340 X 990 X 990) 300 X 820 X 820 (375 X 990 X 990)
UNIT WEIGHT kg 26 + 4 28 + 4 32 + 4 PACKING DIMENSION - ( ) PANEL H X W X D mm 341 X 916 X 916 (125 X 1020 X 1020) 376 X 916 X 916 (125 X 1020 X 1020)
CONDENSATE DRAIN SIZE mm 19.05 UNIT WEIGHT kg 26 + 4 28 + 4 32 + 4
PIPE CONNECTION mm 19.05 CONDENSATE DRAIN SIZE mm 19.05
INDOOR UNIT
TURBO FAN PIPE CONNECTION mm 19.05
TYPE
INDOOR UNIT
DIRECT TYPE TURBO FAN
FAN DRIVE
FAN DRIVE DIRECT
FAN SPEED RPM 200 280 360 450 350 440 550 660 400 510 630 750
FAN SPEED RPM 200 280 360 450 350 440 550 660 400 510 630 750
TYPE BLDC
TYPE BLDC
INDEX OF PROTECTION (IP) IP20 IP20 IP20
INDEX OF PROTECTION (IP) IP20 IP20 IP20
INSULATION GRADE E E E
FAN INSULATION GRADE E E E
RATED RUNNING CURRENT A 0.11 0.13 0.19 0.26 0.19 0.28 0.43 0.74 0.21 0.35 0.55 0.95 FAN
MOTOR MOTOR RATED RUNNING CURRENT A 0.11 0.13 0.19 0.26 0.19 0.28 0.43 0.74 0.21 0.35 0.55 0.95
STARTING CURRENT A 1.5 2.2 2.2
STARTING CURRENT A 1.5 2.2 2.2
MOTOR OUTPUT W 70 70 100
MOTOR OUTPUT W 70 70 100
POLES 8 8 8
POLES 8 8 8
MATERIAL COPPER COPPER
TUBE MATERIAL
DIAMETER mm 7.00 TUBE
DIAMETER mm 7.00
MATERIAL ALUMINUM MATERIAL ALUMINUM
COIL COIL
FIN FACE AREA m² 0.39 0.37 0.46 FIN FACE AREA m² 0.39 0.37 0.46
ROW 2 3 3 ROW 2 3 3
WATER VOLUME Litre 1.36 1.97 2.35 WATER VOLUME Litre 1.36 1.97 2.35
AIR TYPE WASHABLE SARANET FILTER AIR TYPE WASHABLE SARANET FILTER
FILTER FILTER
QUALITY QUANTITY pc 1 QUALITY QUANTITY pc 1
CASING COLOUR LIGHY GREY CASING COLOUR LIGHY GREY
NOTE: NOTE:
A) BASED ON EUROVENT CONDITIONS A) BASED ON EUROVENT CONDITIONS
B) ADDITIONAL 10W IS REQUIRED FOR CONDENSATE DRAIN PUMP B) ADDITIONAL 10W IS REQUIRED FOR CONDENSATE DRAIN PUMP
C) SOUND PRESSURE LEVEL IS TESTED AS PER JIS STANDARD AS BELOW: C) SOUND PRESSURE LEVEL IS TESTED AS PER JIS STANDARD AS BELOW:
FWKE05E MODEL - 1.4M BELOW THE FACE CENTER OF AIR RETURN OF THE UNIT FWKE05EH MODEL - 1.4M BELOW THE FACE CENTER OF AIR RETURN OF THE UNIT
FWKE08/11E MODEL - 1.5M BELOW THE FACE CENTER OF AIR RETURN OF THE UNIT FWKE08/11EH MODEL - 1.5M BELOW THE FACE CENTER OF AIR RETURN OF THE UNIT
MODE COOLING HEATING MODE COOLING HEATING
ENTERING AIR TEMPERATURE 27˚C DB / 19˚C WB 20˚C DB ENTERING AIR TEMPERATURE 27˚C DB / 19˚C WB 20˚C DB
ENTERING WATER TEMPERATURE 7˚C 50°C (2 Pipes System) ENTERING WATER TEMPERATURE 7˚C 50°C (2 Pipes System)
70°C (4 Pipes System) 70°C (4 Pipes System)
LEAVING WATER TEMPERATURE 12˚C 45°C (2 Pipes System) LEAVING WATER TEMPERATURE 12˚C 45°C (2 Pipes System)
60°C (4 Pipes System) 60°C (4 Pipes System)
ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE. ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
14 15
Ceiling Convertible Type Compact Design Ceiling and Floor Installating Option
Unit height as low as 212mm for installation at limited ceiling space. The unit is uniquely designed with possiblity to be installed under or
sitting on the floor to suit any interior design requirements.
1090mm
630mm
212mm
Wireless Remote Controller Wired Remote Controller
FWE-E BRC52A BRC51A
Far Air Throw
› Compact Design › Saranet Filter
› Far Air Throw › Sleep Function For Cool And Heat Mode
› Auto Air Swing › Auto Restart With Last-State-Memory
› Service & Maintenance At Ease › Valve Or Valveless Control Options
› Ceiling & Floor Installing Option › Self Diagnosis Features *Wall bracket is supplied as optional item.
› Versatile Installation › NIM-Able Maximum air throw distance up to 16.5m.
› Room Temperature Sensing › Choices Of Wired Or Wireless Remote Controller
Auto Air Swing Versatile Installation
The motorized louver enables the air flow to be evenly distributed. The unit is designed to work with high pressure head drain pump
(optional). Thus offering flexibility for installation on condensate drain
pipe. The drain pump comes with a high head and is incorporate
with the float switch as safery protection.
* Drain pump kit supplied as optional item
700mm
Service & Maintenance at Ease
The washable fitler can be easily accessed by just pulling down the
intake grill.
During servicing or repairing, only the bottom panel needs to be
removed in order to access the parts like fan motor, blower, wiring
connection, control box, piping connection and so on.
Room Temperature Sensing
Able to sense the room temperature in order to perform more
controls for comfort.
Saranet Air Filter
The anti fungus air filter removes air-particles from the air.
16 17Sleep Function For Cool And Heat Mode Valve Or Valveless Control Options Specification for Ceiling Convertible Type ~ 50Hz
Once activated, set temperature will be increased / decreased The design is flexible enough to allow for either valve or valveless
MODEL FWE05E FWE06E FWE07E FWE08E FWE10E FWE12E
gradually according to normal sleeping temperature patterns to control installation. Btu/h 15500 20300 21000 24800 33700 40000
ensure a comfortable sleeping environment. NOMINAL COOLING CAPACITY
W 4540 5950 6150 7270 9880 11720
Self Diagnosis Features NOMINAL SENSIBLE COOLING CAPACITY
Btu/h 12700 15400 16150
COMING SOON
This feature helps to detect any faults or malfuctioning in the system W 3720 4510 4730
Sleep Set O
0 n and provide user a warning by blinking of the LED lights. NOMINAL HEATING CAPACITY Btu/h 19500 25000 28000 34500 46300 51600
1/2
1 (ENTERING WATER TEMP. = 50 ⁰C) W 5720 7330 8210 10110 13570 15120
2
NOMINAL TOTAL INPUT POWER W 101 109 113
NIM-Able
Temperature
NOMINAL RUNNING CURRENT A 0.46 0.49 0.52
urs
Able to communicate with the versatile NIM networking control POWER SOURCE V/Ph/Hz 220-240 / 1 / 50
Ho
module and offers the oppurtunity of one centralized control for a REFRIGERANT TYPE N/A
-1˚C
system of multiple indoor units in a building. AIR DISCHARGE AUTOMATIC LOUVER (UP & DOWN)
CONTROL
ing LCD WIRELESS MICRO-COMPUTER
t -2˚C OPERATION
Hea REMOTE CONTROL
HIGH CFM 520 580 620
Heating mode*
-3˚C Choices Of Wired Or Wireless Remote Controller AIR FLOW MEDIUM CFM 450 530 570
Compact and user friendly wireless BRC52A and wired BRC51A LOW CFM 400 490 520
remote controller offer : USGPM 3.43 4.49 4.67
ling NOMINAL WATER FLOW RATE
Coo • Real Time Clock Litres/min 13 17 17.68
• "Glow in the dark" ON/OFF Button HEAD LOSS (COOLING) kPa 27.4 48.1 57.1
• Low, Medium, High fan speed options HEAD LOSS (HEATING) : 50 ⁰C kPa 24.2 42.1 50.2
Temperature
+1˚C
+0.5˚C +0.5˚C MAX. WORKING PRESSURE kPa 1608
• ON Timer Setting
SURFACE AIR VELOCITY m/s 0.87 1.01 1.08
SOUND PRESSURE LEVEL (H/M/L) dBA 50 / 43 / 41 53 / 51 / 49 56 / 51 / 44
UNIT DIMENSION HXWXD mm 212 X 1090 X 630
0
Sleep 1/2 PACKING DIMENSION HXWXD mm 297 X 1197 X 740
Set O 1
n
UNIT WEIGHT kg 27
N
O
2 CONDENSATE DRAIN SIZE mm 19.05
rs
Hou
SO
Cooling mode PIPE CONNECTION mm 12.7
TYPE BLOWER
G
DRIVE DIRECT
IN
FAN HIGH RPM 1192 1346 1380
M
Wireless Remote Controller Wired Remote Controller FAN SPEED MEDIUM RPM 945 1238 1300
INDOOR UNIT
Auto Restart with Last-State-Memory
CO
BRC52A BRC51A62 LOW RPM 871 1143 1200
In case of sudden power failure during operation, unit restarts TYPE INDUCTION
automatically & unit will operate based on previous setting when INDEX OF PROTECTION (IP) IP 22
power is resumed. INSULATION GRADE B
HIGH W 101 109 113
RATED INPUT POWER MEDIUM W 98 108 115
Power Failure Power Returns LOW W 94 107 113
FAN MOTOR
HIGH A 0.46 0.49 0.52
Operation Stop Restart
RATED RUNNING CURRENT MEDIUM A 0.43 0.47 0.51
LOW A 0.41 0.47 0.51
STARTING CURRENT A 5.2 10.3 24
2
E PROM MOTOR OUTPUT W 50 65 70
POLES 4
MATERIAL COPPER
TUBE
DIAMETER mm 6.35
Setting stored before power failure. MATERIAL ALUMINUM
COIL
FIN FACE AREA m² 0.27
ROW 3
WATER VOLUME Litre 1.11
TYPE WASHABLE SARANET FILTER
AIR QUALITY FILTER
QUANTITY pc 2
CASING COLOUR WHITE
NOTE:
A) BASED ON EUROVENT CONDITIONS
B) ADDITIONAL 10W IS REQUIRED FOR CONDENSATE DRAIN PUMP
MODE COOLING HEATING
ENTERING AIR TEMPERATURE 27˚C DB / 19˚C WB 20˚C DB
ENTERING WATER TEMPERATURE 7˚C 50°C (2 Pipes System)
70°C (4 Pipes System)
LEAVING WATER TEMPERATURE 12˚C 45°C (2 Pipes System)
60°C (4 Pipes System)
ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
18 19Ceiling Concealed Type Excellent Air Distribution Easy To Service
The air can be distributed evenly to every corner of the room Direct access to control box at side panel and filter is accessible
through ducting. This not only presents a confortable environment, it from side panel too.
also enables the installation of multiple area by using only one fan
coil unit.
Left / Right Piping option
For flexible installation and application at site
4 Useable Fan Speed
Each speed offers different external static pressure and air flow
which enhances flexibility.
Wired Remote Controller
BRC51A
Valve Or Valveless Control Options
FWC-C
The design is flexible enough to allow for either valve or valveless
control installation
› Excellent Air Distribution › 4 Useable Fan Speed
› Compact Design › Valve Or Valveless Control Options Self Diagnosis Features
› High Capacity Range › Self Diagnosis Features Ability to detect and diagnose faults and display as error code in the
› High External Static Pressure Range › NIM-Able
› Double Protection Drainage › Auto Restart With Last-State-Memory wired controller.
› East To Service › Choices Of Wired Or Without Wired Controller
› Left/Right Piping Option
Compact Design NIM-Able
Unit height as low as 266mm for installation at limited ceiling space. Able to communicate with the versatile NIM networking control
module and offers the oppurtunity of one centralized control for a
system of multiple indoor units in a building
702mm
Auto Restart With Last-State-Memory
In case of sudden power failure during operation, unit restarts
266mm
automatically & unit will operate based on previous setting
Power Failure Power Returns
351mm
Operation Stop Restart
High Capacity Range
From 3kW to 16kW. 2
E PROM
High External Static Pressure Range
Available up to 167Pa for high static application like the ducting Setting stored before power failure.
application.
Double Protection Drainage System
There are primary and secondary drain pan from the standard
Choices Of With Or Without Wired Remote Controller
model, which provide extra protection against condensed or water Compact and user friendly wired BRC51A remote controller offers:
leaking posibilities. • Real Time Clock
• "Glow in the dark" ON/OFF Button
• Low, Medium, High fan speed options
• ON Timer Setting
Filter Cover
Primary Drain Pan
Polysterene (PS)
Secondary Drain Pan
With Insulation
With High Impact
Polystyrene (HIPS)
Wired Remote Controller
Cover BRC51A
20 21Specification for Ceiling Concealed Type ~ 50Hz Specification for Ceiling Concealed Type ~ 50HZ
MODEL FWC03C FWC04C FWC06C FWC07C MODEL FWC09C FWC11C FWC12C FWC14C FWC16C
Btu/h 9900 11600 18000 22500 Btu/h 24800 38000 37000 44700 51800
NOMINAL COOLING CAPACITY NOMINAL COOLING CAPACITY
W 2900 3400 5280 6590 W 7270 11140 10840 13100 15180
Btu/h 7000 8120 12600 15750 Btu/h 19700 29800 29300 35100 40900
NOMINAL SENSIBLE COOLING CAPACITY NOMINAL SENSIBLE COOLING CAPACITY
W 2050 2380 3690 4620 W 5770 8730 8590 10290 11990
Btu/h 11500 15000 23000 29000 NOMINAL HEATING CAPACITY Btu/h 32800 49200 48000 54900 65300
NOMINAL HEATING CAPACITY
(ENTERING WATER TEMP. = 50°C) 3370 4400 6740 8500 (ENTERING WATER TEMP. = 50°C) W 9610 14420 14070 16090 19140
W
NOMINAL TOTAL INPUT POWER W 89 140 168 182 NOMINAL TOTAL INPUT POWER W 345 504 442 427 531
NOMINAL RUNNING CURRENT A 0.40 0.65 0.77 0.86 NOMINAL RUNNING CURRENT A 1.50 2.28 1.93 1.86 2.32
POWER SOURCE V/Ph/Hz 220-240 / 1 / 50 POWER SOURCE V/Ph/Hz 220-240 / 1 / 50
REFRIGERANT TYPE N/A REFRIGERANT TYPE N/A
AIR DISCHARGE DUCTED AIR DISCHARGE DUCTED
CONTROL CONTROL
OPERATION WIRED MICRO-COMPUTER REMOTE CONTROL OPERATION WIRED MICRO-COMPUTER REMOTE CONTROL
HIGH CFM 300 510 700 730 HIGH CFM 830 1250 1240 1340 1550
AIR FLOW MEDIUM CFM 285 490 675 660 AIR FLOW MEDIUM CFM 760 1130 1100 1220 1400
LOW CFM 260 400 640 580 LOW CFM 710 1040 1020 1190 1300
EXTERNAL STATIC PRESSURE Pa 49 / 44 / 36 49 / 42 / 28 49 / 45 / 41 49 / 43 / 30 EXTERNAL STATIC PRESSURE Pa 167 / 128 / 88 118 / 108 / 88 128 / 88 / 39 157 / 137 / 108 157 / 137 / 98
USGPM 2.20 2.60 4.05 5.06 USGPM 5.55 8.59 8.28 10.04 11.62
NOMINAL WATER FLOW RATE NOMINAL WATER FLOW RATE
litres/min 8.33 9.84 15.33 19.15 litres/min 21.01 32.51 31.34 38.00 43.98
HEAD LOSS (COOLING) kPa 10.5 24.0 20.1 32.4 HEAD LOSS (COOLING) kPa 14.0 39.0 23.0 38.0 51.0
HEAD LOSS (HEATING) : 50°C kPa 8.8 20.3 17.0 27.6 HEAD LOSS (HEATING) : 50°C kPa 11.0 37.0 19.0 33.0 48.0
MAX. WORKING PRESSURE kPa 1608 MAX. WORKING PRESSURE kPa 1608
SURFACE AIR VELOCITY m/s 1.29 1.72 1.83 1.72 SURFACE AIR VELOCITY m/s 1.40 1.74 1.83 1.54 1.52
SOUND PRESSURE LEVEL (H/M/L) dBA 36 / 35 / 33 40 / 38 / 33 42 / 41 / 40 41 / 40 / 36 SOUND PRESSURE LEVEL (H/M/L) dBA 46 / 42 / 38 51 / 48 / 45 49 / 45 / 41 52 / 50 / 47 53 / 50 / 47
UNIT DIMENSION HXWXD mm 267 x 702 x 351 267 x 842 x 351 267 x 1002 x 351 267 x 1137 x 351 UNIT DIMENSION HXWXD mm 384 x 917 x 462 316 x 1225 x 559 384 x 1003 x 462 384 x 1287 x 462 384 x 1487 x 462
PACKING DIMENSION HXWXD mm 376 x 951 x 541 376 x 1091 x 541 376 x 1251 x 541 376 x 1386 x 541 PACKING DIMENSION HXWXD mm 415 x 1126 x 631 355 x 1461 x 727 415 x 1245 x 631 415 x 1497 x 631 415 x 1701 x 631
UNIT WEIGHT kg 18 22 24 26 UNIT WEIGHT kg 42 47 44 50 56
CONDENSATE DRAIN SIZE mm 19.05 CONDENSATE DRAIN SIZE mm 19.05
PIPE CONNECTION mm 19.05 PIPE CONNECTION mm 19.05
TYPE BLOWER TYPE BLOWER
DRIVE DIRECT DRIVE DIRECT
FAN HIGH RPM FAN HIGH RPM 1230 1381 1260 1284 1303
1282 1385 1369 1348
INDOOR UNIT
INDOOR UNIT
FAN SPEED MEDIUM RPM FAN SPEED MEDIUM RPM 1093 1268 1097 1203 1215
1221 1279 1331 1270
LOW RPM LOW RPM 937 1169 913 1108 1067
1117 1078 1263 1072
TYPE INDUCTION TYPE INDUCTION
INDEX OF PROTECTION (IP) IP20 INDEX OF PROTECTION (IP) IP20 IP21 IP22 IP20 IP20
INSULATION GRADE B INSULATION GRADE B
HIGH W 89 140 168 182 HIGH W 345 504 442 427 531
RATED
RATED MEDIUM W 304 380 384 388 466
MEDIUM W 86 128 165 175 INPUT POWER
INPUT POWER
LOW W 78 127 163 163 LOW W 270 338 342 373 413
FAN MOTOR FAN MOTOR
HIGH A 0.40 0.65 0.77 0.86 HIGH A 1.50 2.28 1.93 1.86 2.32
RATED
RATED
MEDIUM A 0.39 0.59 0.76 0.83 RUNNING MEDIUM A 1.34 1.72 1.69 1.69 2.02
RUNNING
CURRENT LOW A 1.21 1.53 1.54 1.63 1.81
CURRENT LOW A 0.35 0.59 0.75 0.77
STARTING CURRENT A 0.73 1.66 1.22 1.86 STARTING CURRENT A 2.43 2.77 3.18 3.50 4.90
MOTOR OUTPUT W 38 72 80 90 MOTOR OUTPUT W 310 470 355 373 500
POLES 4 POLES 4
MATERIAL COPPER MATERIAL COPPER
TUBE TUBE
DIAMETER mm 9.52 DIAMETER mm 9.52
MATERIAL ALUMINIUM MATERIAL ALUMINIUM
COIL COIL
FIN FACE AREA m² 0.11 0.14 0.18 0.20 FIN FACE AREA m² 0.28 0.34 0.32 0.41 0.48
ROW 3 ROW 3 3 3 3 3
WATER VOLUME litre 0.94 1.15 1.43 1.63 WATER VOLUME litre 2.21 2.66 2.60 3.33 3.80
TYPE SARANET TYPE SARANET
AIR QUALITY FILTER AIR QUALITY FILTER
QUANTITY pc N/A QUANTITY pc N/A
CASING COLOUR N/A CASING COLOUR N/A
MODE COOLING HEATING MODE COOLING HEATING
ENTERING AIR TEMPERATURE 27˚C DB / 19˚C WB 20˚C DB ENTERING AIR TEMPERATURE 27˚C DB / 19˚C WB 20˚C DB
50°C (2 Pipes System) ENTERING WATER TEMPERATURE 7˚C 50°C (2 Pipes System)
ENTERING WATER TEMPERATURE 7˚C 70°C (4 Pipes System)
70°C (4 Pipes System)
45°C (2 Pipes System) LEAVING WATER TEMPERATURE 12˚C 45°C (2 Pipes System)
LEAVING WATER TEMPERATURE 12˚C 60°C (4 Pipes System)
60°C (4 Pipes System)
ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE. ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
NOTE: ALSO AVAILABLE FOR LEFT/RIGHT PIPING AND WIRED/WIRELESS REMOTE CONTROL OPTION NOTE: ALSO AVAILABLE FOR LEFT/RIGHT PIPING AND WIRED/WIRELESS REMOTE CONTROL OPTION
22 23Ducted Blower Type Excellent Air Distribution High External Static Pressure Range
The air can be distributed evenly to every corner of the room Available up to 2256Pa for high static application like the ducting
through ducting. This not only presents a confortable environment, application
it also enables the installation of multiple area by using only one
fan coil unit.
Cabinet Construction
It is coated with weatherproofed electro galvanized mild steel casing,
with an epoxy is coated with an epoxy polyester powder costing for
sever external conditions.
Service panel is available at the convenience side as well.
Left / Right Piping option
FUD20/25B FUD40/50B For flexible installation and application at site.
Fire-Resistant
Polyrethylene (PE) insulation is used at every possible condensate
› Excellent Air Distribution › Cabinet Construction panel to prevent all forms of water or moisture penetration.
› 4 Useable Fan Speed* › High External Static Pressure Range Polyethylene, which is also a type of Closed Cell Foam (CCF)
› Easy To Service › ChangeableDrive Package*
› Fire-Resistant Polysthylene Insulation › Convertible Air Throw Direction*
insulation has offered the following advantages:
› Left/Right Piping Option › High CFM Range • Durable external surface that resists tough dirt and resilient.
4 Useable Fan Speed* • Higher degree of punsture resistance when compared to
fiberglass.
Each speed offers different external static pressure and air flow
• Easily cleaned surface (if necessary) to further resist microbial
which enhances flexibility
growth.
*Only available for FUD20/25B
High CFM Range Changable Drive Package*
Changeable belt driven package offers flexibility in customizing
From 20kW to 40kW and 2500CFM to 4600CFM.
project based according to application
*Only available for FUD30/40B
Convertible Air Throw Direction*
Convertible discharge air direction (vertical or horizontal air throw)
provides flexibility in installation at site
*Only available for FUD30/40B
Return
Duct Air Grille
System
FUD Unit
Concrete
Plinth
Easy To Service
Ducted Supply Ducted Return There is a service way allocated at the bottom for servicing available
for FUD20/25B
FUD Unit
Air Discharge Grille Return Air Grille
24 25Controller
Specification for Ducted Blower Type ~ 50Hz
MODEL FUD20B FUD25B FUD30B FUD40B
Btu/h 75600 95000 125000 150000
NOMINAL COOLING CAPACITY
W 22160 27840 36640 43960
Btu/h 53700 69400 90000 106500 BRC52A
NOMINAL SENSIBLE COOLING CAPACITY
W 15740 20340 26380 31210
BRC52A61 – Heatpump with auto mode
NOMINAL HEATING CAPACITY Btu/h 78000 97500 138000 170000
BRC52A62 – Cooling only
(ENTERING WATER TEMP. = 50°C) W 22860 28580 40450 49820 BRC52A63 - Heatpump
NOMINAL TOTAL INPUT POWER W 760 1800 1620 1910 1. Vertical Automatic Air Swing
7
NOMINAL RUNNING CURRENT A 3.49 7.84 3.33 4.03 2. Selectable Mode:
POWER SOURCE V/Ph/Hz 220-240 / 1 / 50 380-415 / 3 / 50 Auto Mode, Cooling , Heating, Dry, Fan
REFRIGERANT TYPE N/A 3. Turbo Function
AIR DISCHARGE DUCTED 4. Quiet Function
CONTROL
OPERATION WITHOUT CONTROLLER 8
5. ON Timer Setting
HIGH CFM 2500 3200 4200 4600 1 9
2 6. Real Time Clock
AIR FLOW MEDIUM CFM 2100 3000 N/A N/A
3 7. Transmission Source
LOW CFM 1750 2800 N/A N/A 10
4 8. “Glow in the dark” ON/OFF Button
EXTERNAL STATIC PRESSURE Pa 100 / 72 / 50 100 / 80 / 60 230 230 11
USGPM 16.90 21.10 27.70
9. Fan Speed Selection: Low, Med, High, Auto
33.30 5 12
NOMINAL WATER FLOW RATE 10. Temperature Setting: Up & Down
litres/min 64.00 80.00 105.00 126.00
6 11. Sleep Mode Function
HEAD LOSS (COOLING) kPa 34.5 42.0 48.8 53.3
HEAD LOSS (HEATING) : 50°C kPa 32.9 27.4 31.5 63.2 12. OFF Timer Setting
MAX. WORKING PRESSURE kPa 1608
SURFACE AIR VELOCITY m/s 2.19 2.80 1.96 2.15
SOUND PRESSURE LEVEL dBA 50/46/42 54/52/50 58 58
UNIT DIMENSION HXWXD mm 572 x 1402 x 605 885 x 1540 x 850
BRC51A
PACKING DIMENSION HXWXD mm 762 x 1605 x 880 1154 x 1787 x 1188
UNIT WEIGHT kg 92 102 176
BRC51A61 – Heatpump with auto mode
189
BRC51A62 – Cooling only
CONDENSATE DRAIN SIZE mm 19.05
Features:
PIPE CONNECTION mm 28.58
• Cool/Heat/Fan/Dry/Auto mode
TYPE BLOWER
• Auto/High/Med/Low fan speed
DRIVE DIRECT BELT
• Temperature operate in ºC and ºF
FAN HIGH RPM 835 950 707 707
• Turbo and Quiet Function
INDOOR UNIT
FAN SPEED MEDIUM RPM 720 885 N/A N/A
• Sleep function
LOW RPM 615 805 N/A N/A
• Swing function
TYPE INDUCTION
• Real time clock and day display
INDEX OF PROTECTION (IP) IP22
• 7-days programmable timer
INSULATION GRADE B
• Error indicator
HIGH W 760 1800 1620 1910
RATED • Key lock and fan lock features
INPUT POWER MEDIUM W 611 1620 N/A N/A
• Batteries backup and retain setting during power failure
LOW W 478 1320 N/A N/A
FAN MOTOR • Last state memory (Memory backup setting from main board)
HIGH A 3.49 7.84 3.33 4.03
RATED • Delay Timer (1 or 2 hours)
RUNNING MEDIUM A 2.86 7.06 N/A N/A
CURRENT • Interaction with Wireless Handset (BRC52A61/BRC52A62)
LOW A 2.32 5.82 N/A N/A
STARTING CURRENT A 5.20 10.30 24.00 29.00
MOTOR OUTPUT W 375 500 1500 2200
POLES 6 4 4 4
MATERIAL COPPER
TUBE
DIAMETER mm 9.53
MATERIAL ALUMINIUM
COIL
FIN FACE AREA m² 0.54 0.54 1.01 1.01
ROW 3 4 3 4
WATER VOLUME litre 4.53 6.27 8.14 11.63
TYPE N/A
AIR QUALITY FILTER
QUANTITY pc N/A
CASING COLOUR IVORY
MODE COOLING HEATING
ENTERING AIR TEMPERATURE 27˚C DB / 19˚C WB 20˚C DB
ENTERING WATER TEMPERATURE 7˚C 50°C (2 Pipes System)
70°C (4 Pipes System)
LEAVING WATER TEMPERATURE 12˚C 45°C (2 Pipes System)
60°C (4 Pipes System)
ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
NOTE: ALSO AVAILABLE FOR LEFT/RIGHT PIPING.
26 27Intelligent Control Series Supported Configuration
BRC51A
Master Slave
BRC52A
Network Interface Module (NIM) is a networking system which enables communication among Daikin air conditioners.
With the Network Interface Module (NIM), all your air conditioning systems can be controlled with just a single controller giving you benefits:
Communication Bus Connection Recommended Maximum Cable Length (m)
Network Control NIM A 2-way twisted pair cable is used as the communication First NIM to the furthest
bus. Recommended cable for communication bus is a pair connected NIM 1000
Benefits of screened & shielded, twisted single core wire with core NIM to Main Board 10
• More convenience. No more individually controlling air conditioning units diameter of 0.5mm to 1.0mm.
• Quicker and easier zone control from the master control unit NIM to Wired Controller 10
• Better control of air conditioning systems operating conditions
Connection
NIM utilizes master-slave type system whereby the master node will issue commands to each of
the slave nodes. The communication bus must be connected serially to the adjacent NIM. (Daisy chain connection). The same polarity has to be
connected between the NIMs (A to A, B to B).
Every master unit will have a group address so that every slave can only response to their
respective master. Each slave unit must have a unique address so that it can be addressed
independently of other nodes.
The master unit will be operating in conjunction with a control panel. Any settings done via the G-Way
control panel connected to the master will overwrite the settings of its slave units.
Slave unit can be operated with or without control panel. If a slave unit is operating with a control Function
panel, its settings can be changed without following its master. • Gateway between DX fan coil unit and basic Building
NIM Management System (BMS).
Basic Features Note:
• DIP switch setting for Group & Unit address. • Maximum point to point communication bus up to 1000m. • Remote (On/Off) control of air conditioner via BMS.
• Master or slave system configuration. • A single master unit can control up to 15 slave units in each group. • Unit error indication via BMS and BRC51A controller.
• Automatic detection of control panel existence. • Each slave unit will sense their individual local temperature.
• Error type and unit ID indication through display control panel. • Unit address range from 0 to 15 (0000-1111).
• Unit operation status monitoring via BMS.
• Maximum point to point communication bus between air
conditioner and BMS of up to 1000m.
The NIM System Consists Of • DIP switch setting for control or monitoring function.
G-Way
• Main Board controller • Display control panel • NIM controller • Communications bus
Types of Operation DSW2 Setting
Connection
Control & Monitor (Ext. Switch Closed = ON A/C) 0000
Control & Monitor (Ext. Switch Open = ON A/C) 0010
Monitoring only 0001
DSW2 Setting
(up to total of
16 FCUs)
To Wired Control Panel
Dry Contact Dry Contact
CN2 Switch
Input
Slave(s) Unit On/Off
Master Slave Slave(s) To MainBoard CN1 RELAY 1 NO Dry Contact
COM Output 1 Indicator
RELAY 2
NO Dry Contact Unit Error
Output 2 Indicator
Main Board Controllers And Display Control Panel DIP Switch
COM
NIM must be used in conjunction with: Terminal
• DX fan coil units (except FT(Y)N model. The development is in progress and kindly contact with local distributor for status update.) Blocks
• BRC51A or BRC52A
1000 m
G-Way Controller BMS
28 29S-NIM For Timer Switchover Control
Built on the NIM configuration, S-NIM serves to enhance the abilities
and extend the operating lifetime of existing air conditioning units in
harsh and demanding environment.
S-NIM works in a master & slave system, operating at alternate
sequence of preset hours. Whenever the operating unit is at fault, the
standby unit will automatically takes over.
S-NIM
Features
• Auto restart feature with last state settings.
• 2 air conditioning units in a master & slave system, operating at alternate sequence of preset time (3/4/5/7/9/11/12 hours).
• System controlled by a single BRC51A controller.
• When the operating unit is at fault, the standby unit automatically takes over.
• Error indication via error code displayed on LCD panel. (only is using Netware 3 control panel)
• During system OFF mode, running timer will stop. It resumes when changing to ON mode.
• Preset operation hours can be set via DIP Switch.
* The air conditioning unit connected to the wired controller is always the master unit.
The S-NIM System Consists Of
• Main Board controller • S-NIM controller
• BRC51A • Communication Bus
Communication Bus
A 2-way twisted pair cable is used as the communication bus.
Recommended cable for communication bus is a pair of screened & shielded, twisted single core wire with core diameter of 0.5mm to 1.0mm.
S-NIM Controller Application
• Server Room • Laboratory
• Telecommunication Tower • Railway Switching Center
• Livestock Breeding Farm • Room with Critical Electronics Equipments
• Warehouse
Main Board Main Board
S-NIM S-NIM
Slave Unit
Control Panel
Master Unit
Typical connection structure for S-NIM
30You can also read
