HOMEVIEW Windows & Doors
Timber Product Specification Catalogue
2012
Quality Assurance What you need to know when
you choose a window or door
Homeview Assurance
Homeview is a member of the Australian Window Association (AWA).
All of our products are independently audited to maintain the highest
Windows and doors play a significant role in key areas of home construction,
possible standard. As a result, all of our products meet the AWA’s exacting
alteration and renovation. For example, they have an impact on the design,
requirements, including compliance to all relevant Australian Standards,
look and character of a home, its functionality, the lifestyle it offers, energy
such as AS2047 and AS1288 where applicable, and are verified by a NATA
efficiency and comfort (heating and cooling) and noise penetration. Windows
accredited company.
and doors form a considerable investment as part of the overall value of a
home.
Our Guarantees
When choosing windows, major areas of consideration should
In order to give you long-term peace of mind, Homeview be:
offers you warranties* of up to:
• Appearance of the home both internally and externally.
• 7 years on PROTIMTM treated Meranti against insect attack and decay.
• The style/era of the home.
• 7 years on Western Red Cedar against insect attack and decay.
• Choice of material (substrate) and treatment (painting, staining).
• Specialty Merbau and KD Hardwood components for 7 years against
insect attack and decay. • Lifestyle and functionality.
• 1 year against defects and degradation of glass (does not include glass • Ventilation and window positioning.
breakage). • Energy Efficiency (Star Rating).
• 1 year on all moving parts. • Privacy (day and night).
*The Window and Door Warranties are explained in greater detail on • Light and vista.
pages 37-38 of this brochure.
• Space.
Homeview also provides you with:
Homeview has a team of qualified experts that can help you with all aspects of
• Weatherseals fitted to all windows (other than Counter Balanced) at no your window and door selection, based on what is important to you. This can
extra cost. be done in our showroom or in your home – it’s your choice! Your Homeview
advisor can also provide support and guidance on your options starting with
• Free window and door design advisory service.
a detailed analysis of your home plans and personalised help with custom
• Mobile Account Managers that can visit you on site. designed windows.
• Windows that are designed to 1000pa rating at no extra cost. Homeview is one of Australia’s largest timber window and door manufacturers
and you can be assured that we have the necessary expertise and experience,
• Windows and doors that are energy star-rated. and that we are looking forward to assisting you.
Homeview can provide you with energy star rated products as well as an energy
rating service to help you select the windows and doors that will best suit your needs.
2
Timber Windows & Doors
Contents
Timber Selection 4
Hardware Selection 5
Custom Windows 6-7
Awning Windows 8-9
Casement Windows & Doors 10 - 11
Jambliner Double Hung Windows 12 - 13
Counter Balance Double Hung Windows 14 - 15
Sliding Windows 16 - 17
Bifold Windows 18 - 19
Sashless Double Hung Windows 20
Louvre Windows 21
Sliding Doors 22 - 23
French Doors, Doors and Door Frames 24 - 25
Paramount Stacker Doors 26 - 27
Bifold Doors 28 - 29
Screened Bifold Doors 30 - 32
Building-in Details 32
Care & Installation Instructions 33 - 36
Window and Door Warranties 37 - 38
Please note the hardware pictured is available in NSW only.
3
Timber Selection
Timber Selection
Homeview timber windows and doors can help you fulfil your dreams and All Homeview Meranti is kiln dried and organically treated to protect against
capture that look and feel you really want for your home. decay or Borer/Termite attack. Or if you prefer Western Red Cedar, you
will benefit from the natural protection from the elements that this timber
Homeview’s standard range covers the most frequently selected styles in
delivers.
today’s contemporary designs whilst maintaining the timeless beauty and
warmth of timber. Homeview carefully selects timbers that combine beauty Homeview Meranti, Kiln Dried Hardwood and Western Red Cedar timbers
with stability and durability. can be painted or stained to suit your tastes. Natural beauty and grain adorn
these timbers, with Meranti being highly dent and warp resistant.
Our range includes Meranti, Western Red Cedar and KD Hardwood. All of
these timbers have proven to be extremely durable over time and will deliver But the best news is that these modern timbers, combined with the latest
years of trouble free service. KD Hardwood is taken from Victorian forests technology coatings, will deliver you many years of trouble free service. And,
under Government regulations. No old growth – only regrown timber, kiln over time, if you decide to change the look of your home, with timber you
dried to create a more stable timber that will not twist or warp. can, simply and quickly.
Pre-Primed
Timber Characteristics Paintable Stainable Treated
Available
Meranti Versatile Economical 3 3 On Request PROTIMTM
Western Red Cedar Natural resistance to decay 3 3 On Request No
KD Hardwood* Natural Australian Hardwood 3 3 On Request No
*KDHW is not available in NSW
4
Hardware Selection
Hardware Selection
Homeview Windows and Doors offers the best quality hardware to
complement our products. Our hardware range combines style with
practicality to ensure the best possible finished product.
Homeview offers a range of standard hardware colours as pictured in the
chart below. These colours have been carefully selected to suit the needs
of home owners today. However, if you desire a particular colour that is not
part of our standard range, please speak to your Sales or Customer Care
Representative who can advise you on other options and related costs.
Satin Chrome
White Birch
Pottery
Brown
White
Silver
Black
Gold
Awning Window 3 3 3 3 3 7 3 7
Casement/Awning (Whitco
25 3 3 3 3 7 3 3 7
Lever Catch)
Casement Window (Truth) 3 7 3 3 3 7 7 7
Double Hung Window 3 3 3 3 7 3 3 3
Sliding Window
Handle 3 7 3 3 7 3 3 7
Sliding Window/
Door Track 7 7 7 7 3 7 7 7
Bifold Window 7 7 7 7 7 3 7 7
Bifold Door 7 7 7 7 7 3 7 7
Sliding and Stacker
Door Handle 3 7 3 3 3 7 7 7
Sliding and Stacker
Door Track 7 7 7 7 3 7 7 7
Please note: Colour depicted may vary from actual. Other colours are available upon request. Sash catches fitted to sashes over 1500mm height or
1210mm wide will have Almond colored sash catches where a White Birch colored winder is selected. Sash catches fitted to sashes over 1500mm
height or 1210mm wide will have Sandstone colored sash catches where a Pottery colored winder is selected. Sash catches fitted to sashes over
1500mm height or 1210mm wide will have Almond colored sash catches where a SPECIAL colored winder is selected.
5
Custom Windows & Doors
Custom PRODUCTS
Do you want your home to have a particular look? Homeview can help.
With the largest range of timber windows and doors available in the market,
Homeview can help you enhance the look and functionality of your home in
a way that will enhance your lifestyle as well as adding value to your home.
Using windows and doors in standard industry sizes, or creating a custom
product, Homeview will help you find the right solution to complement the
design of your home.
We even make “one off” windows and doors to your exacting requirements.
You only need to provide either a sample of what you want, a CAD drawing,
a photo or even just a sketch.
You can specify Homeview Windows and Doors with confidence as each
Homeview window and door has been quality crafted to rigorous standards
and, where applicable, is made to meet the standards of the Australian
Building Code.
6
Custom Window & Door Capabilities
Custom PRODUCTS
• Glazing in windows complies with AS 1288. Wind Region A. Exposed Suburban
• Purchaser to specify if window conditions vary from this
• These products are designed to 1000pa wind pressure and 150pa water pressure
• All frames are viewed from the outside
1 2 3 4
Casement Window with Highlight Double Hung Bay Window with Double Hung Window with Butt-Joined Box Bay Window
Colonial Bars and Scallop Horns Colonial Bars and Scallop Horns
5 6 7 8
Triangular Window Elliptical Window Radius Window Circular Window
with Colonial Bars
9 10 11 12
Louvre Window Casement Bay Window Double Hung Window Sashless Window
with Colonial Bars
13 14
These configurations / sizes are provided as a guide. Homeview can
Hooded Window Raked Window manufacture these products to suit most openings. Options are only
available at time of ordering. Please note: Some frames may require doors or
sashes removed upon delivery and or onsite glazing depending on size.
And many more... Unique Shapes
Our craftsmen specialise in architectural window and door Many of our special windows are one-of-a-kind. We can build a
designs. window or door to almost any shape, working from a simple sketch or
from a CAD drawing. Every architectural mood can be catered for.
From octagons to trapezoids, from ellipses to ovals, every shape is
crafted with meticulous attention to detail.
Our commitment to continual product development necessitates that sizes and specifications may change without notice.
7
Awning Windows
Awning Windows
Homeview Awning Windows are hinged along the top and open from the
bottom providing ventilation, but preventing rain from entering your home.
The advantage of this design is that the sash is easily removable for cleaning
and painting. The window can also be open or closed in all weather conditions
and the flyscreen stays in place to protect your home from insects.
The operable sashes in Homeview Awning Windows are fitted with a high
quality slimline winder as standard, ensuring smooth, easy operation and
providing ventilation control at your fingertips.
Homeview Awning Windows are one of the most popular designs offering
flexibility and giving scope for different bar configurations whilst retaining
modern lines and maximum glass area.
As with most Homeview windows, our Awning Windows can be fitted with
standard, toughened or laminated glass and can even be glazed for low noise
or double glazed for superior energy efficiency.
Available Hardware
Key Features & Benefits
• Removable sash for simple cleaning or painting.
• Engineered to exact, industry standard sizes.
Lockable Winder (standard)
• Fitted with full window seals to reduce drafts & rattle.
• Available in various timber types and also available pre-primed.
• Optional flywire screen available.
• Comes with winder as standard in a range of colours
8
Awning Window Specifications
Awning Windows
• Glazing in windows complies with AS 1288. Wind Region A. Exposed Suburban
• Purchaser to specify if window conditions vary from this
• These products are designed to 1000pa wind pressure and 300pa water pressure
• All frames are viewed from the outside
STUD OPENING 630 785 935 1230 1530 1830 2420 2725
FRAME 610 765 915 1210 1510 1810 2400 2705
617 597
AW0606 AW0608 AW0609 AW0612 AW0615 AW0618 AW0624 AW0627
1077 1057
AW1006 AW1008 AW1009 AW1012 AW1015 AW1018 AW1024 AW1027
1217 1197
AW1206 AW1208 AW1209 AW1212 AW1215 AW1218 AW1224 AW1227
1417 1397
AW1406 AW1408 AW1409 AW1412 AW1415 AW1418 AW1424 AW1427
1517 1497
AW1506 AW1508 AW1509 AW1512 AW1515 AW1518 AW1524 AW1527
1817 1797
No transom
option
AW1806 AW1808 AW1809 AW1812 AW1815 AW1818 AW1824 AW1827
2127 2107
No transom
option
AW2106 AW2108 AW2109 AW2112 AW2115 AW2118 AW2124 AW2127
2417 2397
AW2406 AW2408 AW2409 AW2412 AW2415 AW2418 AW2424 AW2427
These configurations / sizes are provided as a guide. Homeview can manufacture this product to suit most openings. Timber and aluminium flywire screens
are available with this product. Lockable and non-lockable hardware is also available. Options are only available at time of ordering Please note: Some frames
may require doors or sashes removed upon delivery and or onsite glazing depending on size.
1 2 3 4 5 6
1 Standard 2 Simulated Casement or Georgian Bar 3 Heritage Bar 4 Federation Bar 5 Colonial Bar 6 Simulated Double Hung
Our commitment to continual product development necessitates that sizes and specifications may change without notice.
9
Casement Windows
Casement Windows
Homeview Casement windows are hinged along either vertical edge and open
out from the side opposite to the side that is hinged, providing ventilation
as required.
The contemporary look of Homeview Casement windows sees them as
popular inclusions in the latest home designs. The advantage of Homeview
Casement windows are that the sash can be opened to provide outstanding
ventilation, which is particularly important in semi-tropical or coastal areas.
The operable sashes in Homeview Casement Windows are fitted with high
quality hardware as standard giving smooth, easy operation and providing
fingertip ventilation control.
As with most Homeview windows, our Casement Windows can be fitted with
standard, toughened or laminated glass and can be glazed for low noise or
double glazed for superior energy efficiency.
Available Hardware
Sash Catch
Series 25 Lock
Key Features & Benefits
Single Arm Winder
• Outstanding airflow and ventilation control.
• Engineered to exact, industry standard sizes. Dual Arm Winder
• Fitted with full window seals to reduce drafts and rattle.
• Comes with winder as standard in a range of colours.
• Available in various timber types and also available pre-primed.
• Optional flywire screen available.
Roto Fit Winder
10Casement Window Specifications
Casement Windows
• Glazing in windows complies with AS 1288. Wind Region A. Exposed Suburban
• Purchaser to specify if window conditions vary from this
• These products are designed to 1000pa wind pressure and 150pa water pressure
• All frames are viewed from the outside
STUD OPENING 630 785 935 1230 1530 1830 2420 2725
FRAME 610 765 915 1210 1510 1810 2400 2705
1077 1057
CW1006 CW1008 CW1009 CW1012 CW1015 CW1018 2S CW1024 2S CW1027 2S
1217 1197
CW1206 CW1208 CW1209 CW1212 CW1215 CW1218 2S CW1224 2S CW1227 2S
1417 1397
CW1406 CW1408 CW1409 CW1412 CW1415 CW1418 2S CW1424 2S CW1427 2S
1517 1497
CW1506 CW1508 CW1509 CW1512 CW1515 CW1518 2S CW1524 2S CW1527 2S
NO TRANSOM
1817 1797
CW1806 CW1808 CW1809 CW1812 CW1815 CW1818 2S CW1824 2S CW1827 2S
WITH TRANSOM
1817 1797
CW1806T CW1808T CW1809T CW1812T CW1815T CW1818T 2S CW1824T 2S CW1827T 2S
NO TRANSOM
2127 2107
CW2106 CW2108 CW2109 CW2112 CW2115 CW2118 2S CW2124 2S CW2127 2S
WITH TRANSOM
2127 2107
CW2106T CW2108T CW2109T CW2112T CW2115T CW2118T 2S CW2124T 2S CW2127T 2S
These configurations / sizes are provided as a guide. Homeview can manufacture this product to suit most openings. Timber and aluminium flywire screens
are available with this product. Lockable hardware (25 Series) is also available. Options are only available at time of ordering Please note: Some frames may
require doors or sashes removed upon delivery and or onsite glazing depending on size.
1 2 3 4 5
1 Standard 2 Heritage Bar 3 Federation Bar 4 Colonial Bar 5 Multi-Colonial Bar
Our commitment to continual product development necessitates that sizes and specifications may change without notice.
11Jambliner Double Hung
Windows
Double HungS
The Jambliner Double Hung Window is a vertical sliding window style which
has been used in home construction throughout the 19th and 20th centuries.
Historically, the most common design has been the “weights and cords”
Double Hung window, which used a set of counter weights hidden in the
frame to offset the weight of the sash.
The Homeview Jambliner Double Hung window offers a state of the art
mechanism that not only makes opening and closing the window easy, it also
allows you to completely remove the sashes from inside for easy painting
and cleaning. This is not normally possible with traditional Double Hung
windows.
The Jambliner system incorporated into the Homeview window is
flush fitted into the side of the frame and does not require painting or
maintenance. The Jambliner system also negates the need for containers to
hold the counter weights (called boxed mullions or jambs). This allows the
maximum amount of glass in the frame,
allowing more light.
Note: Jambliner is available in a limited colour range
Available Hardware
Sash Lifts
Sash Lock
Key Features & Benefits
• Comes with a keyed sash lock as standard, in a range Heavy Duty Jambliner
of colours. Double Hung
• Available with boxed mullions for that traditional look.
The Heavy Duty Jambliner Double Hung has been specifically
• Available in various timber types and also available pre-primed. designed to hold double glazing. The design operates in exactly the
same way as the standard Jambliner. However, unlike the standard,
• Sashes can be removed from inside for painting or cleaning. the Heavy Duty Jambliner is able to carry much greater sash weights.
For further information regarding range and size contact your Homeview
• Optional flywire screen available. sales representative.
12Jambliner Double Hung Window Specifications
Double HungS
• Glazing in windows complies with AS 1288. Wind Region A. Exposed Suburban
• Purchaser to specify if window conditions vary from this
• These products are designed to 1000pa wind pressure and 150pa water pressure
• Heavy duty option for double glazed and heavy applications
• All frames are viewed from the outside
STUD OPENING 655 845 955 1227 1607 1827 2417 2412 2742
FRAME 635 825 935 1207 1587 1807 2397 2392 2722
1046 1026
DH1006 DH1008 DH1009 DH1012 DH1015 DH1018 DH1023 2S DH1024 2S DH1027 2S
1217 1197
DH1206 DH1208 DH1209 DH1212 DH1215 DH1218 DH1223 2S DH1224 2S DH1227
1389 1369
DH1306 DH1308 DH1309 DH1312 DH1315 DH1318 DH1323 2S DH1324 2S DH1327
1559 1539
DH1506 DH1508 DH1509 DH1512 DH1515 DH1518 DH1523 2S DH1524 2S DH 1527 2S
1817 1797
DH1806 DH1808 DH1809 DH1812 DH1815 DH1818 DH1823 2S DH1824 2S DH1827 2S
2127 2107
DH2106 DH2108 DH2109 DH2112 DH2115 DH2118 DH2123 2S DH2124 2S DH2127 2S
2417 2397
DH2406 DH2408 DH2409 DH2412 DH2415 DH2418 DH2423 2S DH2424 2S DH2427 2S
These configurations / sizes are provided as a guide. Homeview can manufacture this product to suit most openings. Timber and aluminium flywire screens
are available with this product. Lockable hardware is standard. Options are only available at time of ordering Please note: Some frames may require doors or
sashes removed upon delivery and or onsite glazing depending on size.
Scallop Federation Splayed Bullnose
Jambliner System 1 2 3 4 5
The Jambliner system allows the sashes to be quickly tilted or
removed for easy cleaning, painting or reglazing. The sashes
easily snap back into position, resuming normal vertical operation
without compromising security.
1 Standard 2 Colonial Bar 3 Colonial Bar 4 Heritage Bar 5 Federation Bar
Please note: Horns are available on top outside sash only.
Our commitment to continual product development necessitates that sizes and specifications may change without notice.
13Counter Balance |
Double Hung Windows
Double HunGS
Much like the Jambliner Double Hung Window, the Counter Balance Double
Hung Window is, effectively, a vertical sliding window. The Double Hung
style has been used in home construction throughout the 19th and 20th
centuries.
The Homeview Counter Balance Double Hung window offers a combination
of the look of weights & cords and a modern counter balance sash system,
adding that sense of tradition and technology in one package.
The heart of this new Homeview system is the counter balance mechanism
which utilises the weight of one sash to counter the weight of the other.
When sliding up the inner sash, the outer sash simultaneously moves in the
opposite direction. The counter balance system also negates the need for
containers to hold the counter weights (called boxed mullions). This allows
the maximum amount of glass in the frame, therefore allowing more light.
This system provides all the advantages of weights and cords, but none of
the disadvantages. As with most Homeview windows, our Counter Balance
Double Hung windows can be fitted with standard, toughened or laminated
glass and can even be glazed for low noise or double glazed for superior
energy efficiency.
Key Features & Benefits Available Hardware
• Comes with a sash lock as standard in a range of colours.
• Available with traditional style boxed mullions.
• Modern profile timber combines traditional and contemporary Sash Lifts
lines.
• Sizes available up to 1200mm wide x 2400mm high.
• Optional flywire screen available.
Sash Lock
• Available in various timber types and also available pre-primed.
14Counter Balance Double Hung Window Specifications
Double HunGS
• Glazing in windows complies with AS 1288. Wind Region A. Exposed Suburban
• Purchaser to specify if window conditions vary from this
• These products are designed to 1000pa wind pressure and 150pa water pressure
• All frames are viewed from the outside
STUD OPENING 630 785 935 1230 1230 1530 1830 2420 2725
FRAME 610 765 915 1210 1210 1510 1810 2400 2705
1077 1057
CBDH1006 CBDH1008 CBDH1009 CBDH1012M CBDH1012 CBDH1015 CBDH1018 CBDH1024 CBDH1027
1217 1197
CBDH1206 CBDH1208 CBDH1209 CBDH1212M CBDH1212 CBDH1215 CBDH1218 CBDH1224 CBDH1227
1417 1397
CBDH1406 CBDH1408 CBDH1409 CBDH1412M CBDH1412 CBDH1415 CBDH1418 CBDH1424 CBDH1427
1517 1497
CBDH1506 CBDH1508 CBDH1509 CBDH1512M CBDH1512 CBDH1515 CBDH1518 CBDH1524 CBDH1527
1817 1797
CBDH1806 CBDH1808 CBDH1809 CBDH1812M CBDH1812 CBDH1815 CBDH1818 CBDH1824 CBDH1827
2127 2107
CBDH2106 CBDH2108 CBDH2109 CBDH2112M CBDH2112 CBDH2115 CBDH2118 CBDH2124 CBDH2127
2417 2397
CBDH2406 CBDH2408 CBDH2409 CBDH2412M CBDH2412 CBDH2415 CBDH2418 CBDH2424 CBDH2427
These configurations / sizes are provided as a guide. Homeview can manufacture this product to suit most openings. Timber and aluminium flywire screens
are available with this product. Lockable hardware is standard. Options are only available at time of ordering Please note: Some frames may require doors or
sashes removed upon delivery and or onsite glazing depending on size.
Scallop Federation Splayed Bullnose
Counter Balance System 1 2 3 4 5
The Counter Balance window is effectively a vertical sliding window that offers
a combination of the look of weights and cords and a modern Counter Balance
system which utilises the weight of one sash to counter the weight of the other.
1 Standard 2 Colonial Bar 3 Colonial Bar 4 Heritage Bar 5 Federation Bar
Please note: Horns are available on both top and bottom sashes.
Our commitment to continual product development necessitates that sizes and specifications may change without notice.

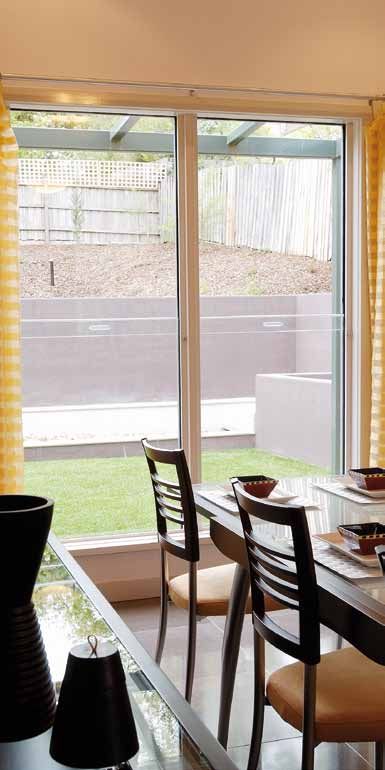

15Sliding Windows
Sliding Windows
Homeview Sliding Windows have a sliding sash which runs on metal tracks. One
of the advantages of this design is that the sash is easily removable for cleaning or
painting. It also offers excellent ventilation characteristics and is easily operated.
Homeview Sliding Windows are one of the most popular designs offering
flexibility and scope for different bar configurations while retaining the modern
lines and maximum glass area.
As with most Homeview windows, our sliding windows can be fitted with
standard, toughened or laminated glass and can even be glazed for low noise or
double glazed for superior energy efficiency.
Key Features & Benefits Available Hardware
• Removable sash for simple cleaning or painting.
• Engineered to exact, industry standard sizes.
• Fitted with full window seals to reduce drafts and rattle.
• Available in various timber types and also available pre-primed.
• Comes with keyed sash lock as standard in a range of colours. Lock
• Optional flywire screen available (sash slides on outside,
fly screen slides on inside).
16Sliding Window Specifications
Sliding Windows
• Glazing in windows complies with AS 1288. Wind Region A. Exposed Suburban
• Purchaser to specify if window conditions vary from this
• These products are designed to 1000pa wind pressure and 150pa water pressure
• All frames are viewed from the outside
STUD OPENING 1530 1830 2420 2690
FRAME 1510 1810 2400 2670
617 597
SW0615 SW0618 SW0624 SW0626
1077 1057
SW1015 SW1018 SW1024 SW1026
1217 1197
SW1215 SW1218 SW1224 SW1226
1417 1397
SW1415 SW1418 SW1424 SW1426
1517 1497
SW1515 SW1518 SW1524 SW1526
1817 1797
SW1815T SW1818T SW1824T SW1826T
2127 2107
SW2115T SW2118T SW2124T SW2126T
2417 2397
SW2415T SW2418T SW2424T SW2426T
These configurations / sizes are provided as a guide. Homeview can manufacture this product to suit most openings. Timber and aluminium flywire screens
are available with this product. Lockable hardware is standard. Options are only available at time of ordering Please note: Some frames may require doors or
sashes removed upon delivery and or onsite glazing depending on size.
1 2 3 4
1 Standard 2 Heritage Bar 3 Federation Bar 4 Colonial Bar
Please note: The Heritage Bar is displayed with fixed sashes.
Our commitment to continual product development necessitates that sizes and specifications may change without notice.
17Bifold Windows
Bifold Windows

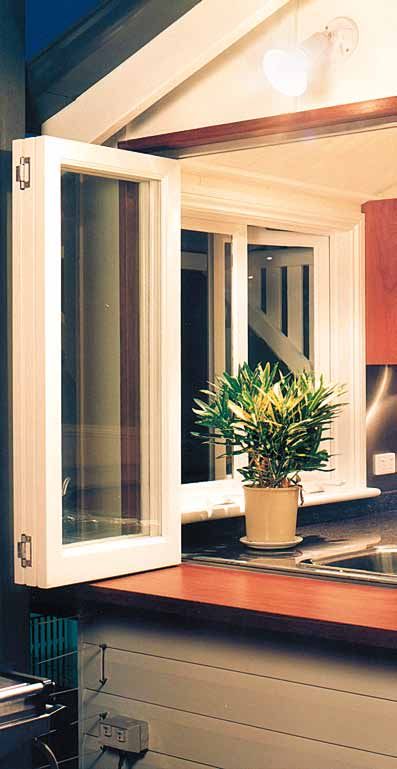

Homeview has developed the Bifold window to capture the essence of your
lifestyle.
The Homeview Bifold window opens your home to your entertainment area
within seconds. It is flexible and functional with the option of an extended
servery sill - great as a kitchen servery. Coupled with a Homeview Bifold
Door, this innovative design can become a total entertainment area solution.
The Homeview Bifold window can be hinged on either side of the frame and
comes in two, three or four panel options in a number of bar configurations
to suit your tastes and décor. Made to order, the Homeview Bifold window
can be supplied with a flatter and wider sill for serving food, a standard sill
or, in new home applications, the Bifold window can be supplied with no
sill where you want to extend your bench top through the window to the
entertainment area.
As with most Homeview windows, our Bifold windows can be fitted with
standard, toughened or laminated glass and can even be glazed for low noise
or double glazed for superior energy efficiency.
Key Features & Benefits Available Hardware
• Fitted with stainless steel hardware for long life.
• Fitted with full window seals to reduce drafts and rattles.
• Available in two, three or four panel options.
• Option of a “roll-down” flywire screen that can be easily raised when
using the Bifold window for entertaining.
• Available in various timber types and also available pre-primed.
Lockable Flush Bolt Hinge
• The Homeview Bifold window can be opened in seconds for
entertaining or ventilation, with almost 100% of the area open
and usable.
18Bifold Window Specifications
Bifold Windows
• Glazing in windows complies with AS 1288. Wind Region A. Exposed Suburban
• Purchaser to specify if window conditions vary from this
• These products are designed to 1000pa wind pressure and 150pa water pressure
• All frames are viewed from the outside. Items as below are open out only
STUD OPENING 935 1230 1230 1530 1830
FRAME 915 1210 1210 1510 1810
1077 1057
BW22R1009 BW22R1012 BW33R1012 BW33R1015 BW33R1018
1570 1570 1830 1830 2420 2420
1550 1550 1810 1810 2400 2400
1077 1057
BW44R1015 BW42L2R1015 BW44R1018 BW42L2R1018 BW44R1024 BW42L2R1024
935 1230 1230 1530 1830
915 1210 1210 1510 1810
1217 1197
BW22R1209 BW22R1212 BW33R12152 BW33R1215 BW33R1218
1570 1570 1830 1830 2420 2420
1550 1550 1810 1810 2400 2400
1217 1197
BW44R1215 BW42L2R1215 BW44R1218 BW42L2R1218 BW44R1224 BW42L2R1224
935 1230 1230 1530 1830
915 1210 1210 1510 1810
1417 1397
BW22R1409 BW22R1412 BW33R1412 BW33R1415 BW33R1418
1570 1570 1830 1830 2420 2420
1550 1550 1810 1810 2400 2400
1417 1397
BW44R1415 BW42L2R1415 BW44R1418 BW42L2R1418 BW44R1424 BW42L2R1424
935 1230 1230 1530 1830
915 1210 1210 1510 1810
1517 1497
BW22R1509 BW22R1512 BW33R1512 BW33R1515 BW33R1518
1570 1570 1830 1830 2420 2420
1550 1550 1810 1810 2400 2400
1517 1497
BW44R1515 BW42L2R1515 BW44R1518 BW42L2R1518 BW44R1524 BW42L2R1524
These configurations / sizes are provided as a guide. Homeview can manufacture this product to suit most openings. Optional “wind down” flywire screens
are available with this product. Lockable hardware is standard. Options are only available at time of ordering. Please note: Some frames may require doors or
sashes removed upon delivery and or onsite glazing depending on size.
Bifold Windows are available with the following sill options
1 Standard sill with threshold
2 Standard sill no threshold* 1 2 3
3 No sill*
4 Extended sill with threshold
5 Extended sill no threshold.*
*These options are not available on 2 panel or 4 panel
two each way Bifold Windows. Benchtop is 400mm as standard.
1 Standard 2 Colonial Bar 3 Heritage Bar
NOTE: Substitute “L” for “R” when ordering left–handed options.
Our commitment to continual product development necessitates that sizes and specifications may change without notice.
19Sashless Double
Hung Windows
Sashless Windows

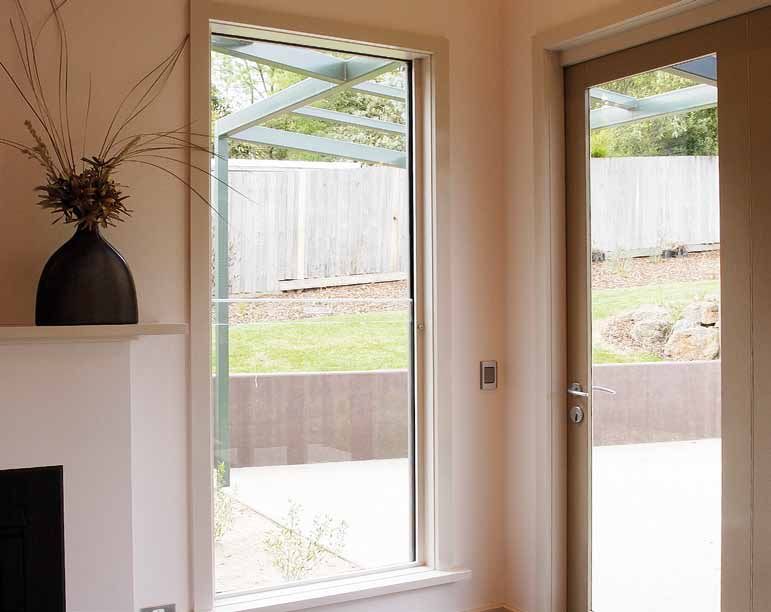

Homeview Sashless Double Hung Windows will complement the design
characteristics of your home whilst providing superior climate control and
unrestricted views.
The heart of the Homeview system is the counter balance mechanism, which
utilises the weight of one pane to counter the weight of the other. By sliding
up the inner pane, the outer pane simultaneously moves in the opposite
direction.
Easily installed in restricted spaces, the windows have integrated long life
slides with self-aligning grooves and a large anti-jamming sliding clearance.
The rigid centre metal track provides improved noise and weather insulation.
The concealed locking feature operates in a closed or partially open position.
Available with Homeview’s range of timber frames, Homeview Sashless
Double Hung Windows are designed to withstand significant adverse weather
conditions.
As with most Homeview windows, our Sashless Double Hung Windows can
be fitted with toughened or laminated glass and can even be glazed for low
noise or double glazed for superior energy efficiency.
Key Features & Benefits
• Top and bottom panes move concurrently.
• Fully sealed for weather and noise reduction.
• Minimum frame means maximum view.
• Rigid aluminium internal frame.
• Available in various timber types and also available pre-primed.
• Can be used horizontally or vertically.
• Can be used in doors as well as windows.
• Optional flywire screen available.
20Louvre Windows
Louvre Windows

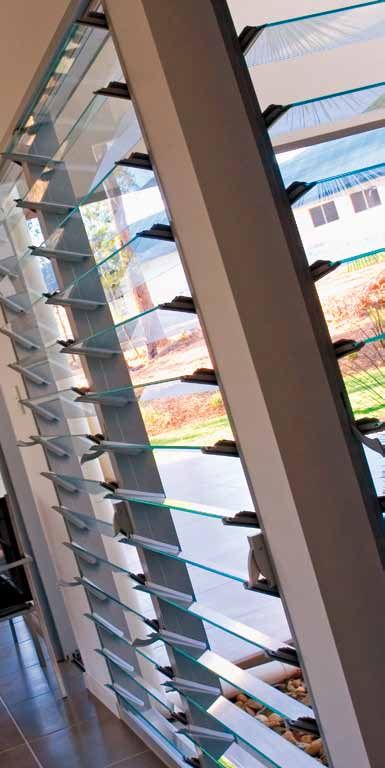

Gone are the days of stiff, metallic mechanical Louvres. Homeview Louvre
Windows provide timeless beauty combined with ventilation and climate
control at the flick of the lever. Your Homeview Louvre window allows you to
control noise, airflow and, when fitted with optional obscure glass or timber
louvre blades, you can control your privacy too.
Available in blade sizes of 102mm and 152mm, you can also select the colour
of the louvre frame from a range to suit your tastes. Your Homeview Louvre
window will be encased in a timber frame made from Meranti, Western Red
Cedar, KD Hardwood or laminated and finger-jointed Pine.
Pearl White White Birch Primrose Clear Anodised
Key Features & Benefits
APO Grey Deep Ocean Black Satin
• Full-length louvres provide full flexibility for ventilation and
climate control.
• Engineered to exact, industry standard sizes.
• Can be used with evaporative air conditioners to
improve efficiency.
• Louvre holders and frame mechanism are available in a number
of colour options to suit your taste.
• Available in various timber types and also available pre-primed.
• Optional flywire screen available.
• Electronic remote control available.
Please Note: Colours shown are for representation purposes only and may vary from the
actual. Other colours available on request.
21Sliding Doors
Sliding Doors

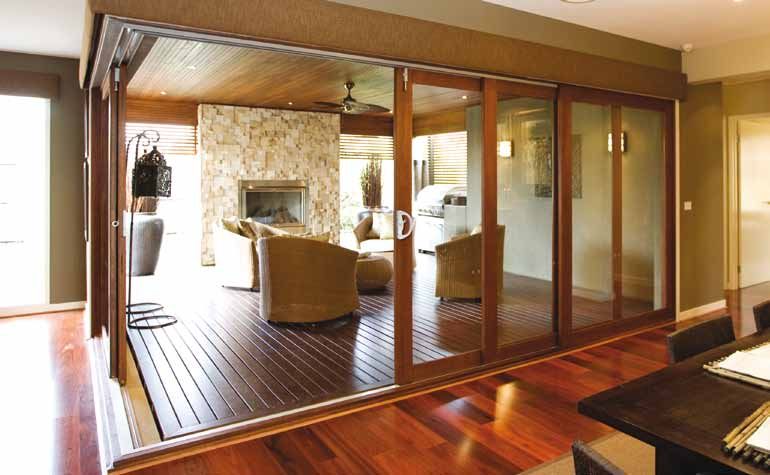

With the beauty of natural timber, the space efficiency of a sliding door and
the clarity of glass, the Homeview Courtyard or Terrace Sliding Doors are
a welcome addition to your home. Reinforced ball bearing wheels allow for
fingertip control with a smooth gliding action that can be adjusted to suit
your needs. Available in a number of bar configurations and sizes to suit
almost every application, you can match the look of your doors to your
Homeview windows, as you desire.
Fully sealed, Homeview Sliding Doors will reduce drafts, but when you are
wanting to take advantage of a cool breeze, the optional Timber Fly Screen
allows full ventilation while providing protection from insects.
As with most Homeview doors, our sliding doors can be fitted with standard,
toughened or laminated glass and can even be glazed for low noise or double
glazed for superior energy efficiency.
Key Features & Benefits Available Hardware
• Fitted with full door seals to reduce drafts and rattle.
• Fitted with quality lockable hardware as standard in a number of
colour options.
• Heavy Duty Ball Bearing race wheels to keep door operation
smooth.
• Available in various timber types & also available pre-primed.
• Large glass area. Standard Dead Lock
• Glazing options available to allow adjustment to noise
infiltration or star rating requirements.
• Optional flywire screen or security door available, not a
Homeview product. (Door slides on outside, flydoor slides on
the inside).
• New retractable pleated screen available. Architectural Option Architectural
Dead Lock Option Dead Lock
22Sliding Door Specifications
Sliding Doors
• Glazing in doors complies with AS 1288. Human Impact Requirements
• Purchaser to specify if door conditions vary from this
• These products are designed to 1000pa wind pressure and 200pa water pressure
• All frames are viewed from the outside
Sliding Courtyard Doors Sliding Terrace Doors
STUD OPENING 1830 2420 1830 2420
FRAME 1810 2400 1810 2400
2127 2107
2417 2397
2720 2700
CD2118 CD2124 TD2118 TD2124
2690 3615 2690 3615
2670 3555 2670 3555
2127 2107
2417 2397
2720 2700
CD2126 CD2135 TD2126 TD2135
3592 4772 3592 4772
3572 4752 3572 4752
2127 2107
2417 2397
2720 2700
CD2136 CD2147 TD2136 TD2147
These configurations / sizes are provided as a guide. Homeview can manufacture this product to suit most openings. Timber and aluminium flywire screens
are available with this product. Lockable hardware comes as standard. Options are only available at time of ordering Please note: Some frames may require
doors or sashes removed upon delivery and or onsite glazing depending on size.
1 1 2
2 3 3 4 5
1 Standard 2 Colonial Bar 3 Multi Colonial Bar 1 Standard 2 Colonial Bar 3 Multi Colonial Bar 4 Federation Bar 5 Heritage Bar
Our commitment to continual product development necessitates that sizes and specifications may change without notice.
23French Doors
French Doors
Tradition and quality abound in the beautiful Homeview French Doors.
Ever popular, French doors allow seamless access to your entertainment area
and can be provided in open in or open out configurations to meet your
requirements.
Your Homeview French Doors can also be provided in a number of door
styles to meet your personal tastes and to complement your current home
design. When opened, Homeview French doors provide immediate and easy
access to your entertainment area. Homeview French Doors will be one of
the more outstanding investments that you make in your home.
As with most Homeview doors, our French doors can be fitted with standard,
toughened or laminated glass and can even be glazed for low noise or double
glazed for superior energy efficiency.
Door Furniture not supplied
by Homeview.
Key Features & Benefits
• Large glass area with glazing options available to allow
adjustment to noise infiltration or star rating requirements.
• Available in various timber types and also available pre-primed.
• Optional pre-hanging of doors into a frame is available - up to
870mm wide door.
• Optional solid timber panels are available.
• Retractable flat screen available.
* Hardware not included.
24Doors and Door Frame Specifications
Doors & Frames
• Glazing in windows complies with AS 1288. Human Impact Requirements
• Purchaser to specify if door conditions vary from this
• All frames are viewed from the outside. Default entries are open in - optional open out available
Doors
FRAME 820 820 820 820 820 820 820 820
2040
GD820 GD820C GD820C10E GD820C10 GD820C8E* GD820FED GD820T* GD820TF*
2040
*34mm Transom Bar standard option.
GD820CF* GD820F-FED* GD8202F* GD820C2F* GD8202F-HER* GD8202F-FED* Wider chair rail available.
Door Frames
STUD OPENING 885 935 1695 1705
FRAME 865 915 1675 1685
2127 2107
E865 E915 E1675 E1685
SUITS 2x820 REBATED DOORS SUITS 2x820 with MUSHROOM STOP OR CAP STOP
Door Frames and Sidelight
STUD OPENING 1165 1230 1305 1350 1576 1765
FRAME 1145 1210 1285 1330 1556 1745
2127 2107
FE1145 FE1210 FE1285 FE1330 FE1556 FE1745P
TO SUIT 400mm infill panels - no glazing
Timber Laundry Combinations (also available in right hand configuration)
STUD OPENING 1495 1650 1800
FRAME 1475 1630 1780
2127 2107
LE1006 LE1008 LE1009
These configurations / sizes are provided as a guide. Homeview can manufacture this product to suit most openings. Options are only available at time of
ordering. Please note: Some frames may require doors or sashes removed upon delivery and or onsite glazing depending on size. Unless specified all sidelights
are clear glazed and all entries suit 820 wide door. Colonial bars are available to match windows. Single sidelight entries are also available in 1455, 1610, 1760
widths. Double sidelight entries are also available in 1425, 1705, 1796, 1930 widths. All Swing Doors are 38mm thick unless otherwise specified.
1 2 3 4 5 6 7 8
1 Standard 2 Transom Bar 3 Colonial Bar 4 Colonial Bar (8 Light) 5 Colonial Bar (10 Light) 6 Heritage Bar 7 Federation Bar 8 Fielded Panel
Our commitment to continual product development necessitates that sizes and specifications may change without notice.
25Paramount Stacker Doors
Stacker Doors
The Homeview Paramount Stacker Door provides a seamless transition to
and from your indoor and outdoor living spaces without taking up any interior
space and providing 32% more opening than a normal sliding door.
The Homeview Paramount Stacker Door epitomise Homeview’s outstanding
quality in manufacture, design and functionality. The Paramount can be
ordered to slide from either side of the frame and two doors can be joined
end to end to provide an even larger opening area, without need for an inbuilt
lintel. The Paramount also offers options such as fly screens and the ability to
create a stylish corner unit. The stacker door is extremely flexible, allowing
you to open the door part or all of the way, while full seals provide insulation
from drafts when the door is closed in the cooler weather.
Homeview Stacker doors can be fitted with standard, toughened or laminated
glass and can even be glazed for low noise or double glazed for superior
energy efficiency.
Homeview Windows and Doors offer a screen solution for the Paramount
Stacker Door. The pleated, lightweight screen can be up to 4.5 metres wide
operating from one side and pulled out horizontally. Larger openings can
be covered with a second screen. It also conveniently fits within a frame.
Offering a seamless transition from inside to outside, uninterrupted views
Screened Option
and efficient ventilation, while protecting your home and family from flies,
insects and other pests, the screened Paramount Stacker Door is a practical • Pleated mesh is particularly well suited to oversized openings.
and stylish solution for your home.
• Each pleat at 20mm wide, set at an angle of 45 degrees, adds
stability to screen.
• Multiple stainless-steel bearings across all friction points ensure
effortless operation.
• Tensioning cords running horizontally across the opening
Key Features & Benefits provide stability to the screen and prevent the mesh from
blowing out of its channel in windy conditions (able to
• Large glass area, with glazing options available to allow withstand wind gusts up to 30km/h).
adjustments to noise infiltration or star rating requirements.
• Hardware can be matched to your Homeview stacker door.
• Fitted with quality hardware in a number of colour options.
• Opening width size is not restricted.
• Fitted with full door seals to reduce drafts and rattle.
• Trouble-free installation for renovation/alteration projects.
• Corner units available.
26Paramount Stacker Door Specifications
Stacker Doors
• Glazing in windows complies with AS 1288. Human Impact Requirements
• Purchaser to specify if door conditions vary from this
• These products are designed to 1000pa wind pressure and 200pa water pressure
• All frames are viewed from the outside
STUD OPENING 2460 2790 3210 3522 4420
FRAME 2440 2770 3190 3502 4000
2130 2110
TP2124 TP2127 TP2132 TP2135 TP2140
4350 5186 6020
4330 5166 6000
2130 2110
TP2143 TP2152 TP2160
2460 2790 3210 3522 4420
2440 2770 3190 3502 4000
2420 2400
TP2424 TP2427 TP2432 TP2435 TP2440
4350 5186 6020
4330 5166 6000
2420 2400
TP2443 TP2452 TP2460
2460 2790 3210 3522 4420
2440 2770 3190 3502 4000
2723 2703
TP2724 TP2727 TP2732 TP2735 TP2740
4350 5186 6020
4330 5166 6000
2723 2703
TP2743 TP2752 TP2760
These configurations / sizes are provided as a guide. Homeview can manufacture this product to suit most openings. Lockable hardware is standard. Options
are only available at time of ordering. Please note: Some frames may require doors or sashes removed upon delivery and or onsite glazing depending on size.
1 2 3 4 5
Our commitment to continual product development
necessitates that sizes and specifications may change without notice. 1 Standard 2 Colonial Bar 3 Colonial Bar 4 Heritage Bar 5 Federation Bar
27Bifold Doors
Bifold Doors
Incorporating a Homeview Bifold door into your home, apartment or
business will prove to be one of the best decisions you’ll ever make. The
Homeview Bifold door opens your home or office to your entertainment area
within seconds. Its design elements mean that it can be used on its own or
in conjunction with the Homeview Bifold window as a total entertainment
area solution.
The Homeview Bifold door can be hinged on either side of the frame and
comes in anything from two to eight panel options in a number of bar
configurations to suit your tastes and décor. Made to order, the Homeview
Bifold door can be supplied in a folding in or folding out format. Folding in
can be a great benefit where you want to maximise the outside available area.
As with most Homeview doors, our Bifold doors can be fitted with standard,
toughened or laminated glass and can even be glazed for low noise or double
glazed for superior energy efficiency.
Key Features & Benefits Available Hardware
• Fully fitted with stainless steel hardware for long life.
• Fitted with full door seals to reduce drafts and rattle.
• Available in various timber types and also available pre-primed.
• Door can be opened in seconds for entertaining or ventilation, Deadlock
with almost 100% of the area open and usable.
• Available in open-out or open-in configurations, allowing you to
utilise small outside spaces.
Lockable Flush Bolt Hinge Handle
28Bifold Door Specifications
Bifold Doors
• Glazing in doors complies with AS 1288. Human Impact Requirements
• Purchaser to specify if door conditions vary from this
• These products are designed to 1000pa wind pressure and 150pa water pressure
• All frames are viewed from the outside. Optional open in available
STUD OPENING 1230 1530 1830
FRAME 1210 1510 1810
2127 2107
2417 2397
2720 2700
BF2112R2 BF2115R2 BF2118R2
1830 1830 2420 2420 2725 2725
1810 1810 2400 2400 2705 2705
2127 2107
2417 2397
2720 2700
BF2118R3 BF2118L1R2 BF2124R3 BF2124L1R2 BF2127R3 BF2127L1R2
2420 2420 2420 3020 3020 3020 4010 4010 4010
2400 2400 2400 3000 3000 3000 3990 3990 3990
2127 2107
2417 2397
2720 2700
BF2124L1R3 BF2124R4 BF2124L2R2 BF2130L1R3 BF2130R4 BF2130L2R2 BF2140L1R3 BF2140R4 BF2140L2R2
3020 3020 3020 3620 3620 3620
3000 3000 3000 3600 3600 3600
2127 2107
2417 2397
2720 2700
BF2130L2R3 BF21301R4 BF2130R5 BF2136L21R3 BF2136L1R4 BF2136R5
4020 4020 4020 4920 4920 4920
4000 4000 4000 4900 4900 4900
2127 2107
2417 2397
2720 2700
BF2140L2R3 BF2140L1R4 BF2140R5 BF2150L2R3 BF2150L1R4 BF2150R5
3620 3620 3620 3620
3600 3600 3600 3600
2127 2107
2417 2397
2720 2700
BF2136L1R5 BF2136L2R4 BF2136L3R3 BF2136R6
4020 4020 4020 4020
4000 4000 4000 4000
2127 2107
2417 2397
2720 2700
BF2140L1R5 BF2140L2R4 BF2140L3R3 BF2140R6
4820 4820 4820 4820 4820
4800 4800 4800 4800 4800
2127 2107
2417 2397
2720 2700
BF2148L1R5 BF2148L2R4 BF2148L3R3 BF2148R6 BF2148L3R3
5920 5920 5920 5920
5900 5900 5900 5900
2127 2107
2417 2397
2720 2700
BF2160L1R5 BF2160L2R4 BF2160L3R3 BF2160R6
These configurations / sizes are provided as a guide. Homeview can manufacture this product to suit most openings. Maximum door panel width is
1000mmm. Lockable hardware is available with the product as standard. Options are only available at time of ordering. Please note: Some frames may require
doors or sashes removed upon delivery and or onsite glazing depending on size. NOTE: Change height to “24” for 2397mm and “27” for 2700mm as
required. For opposite hand, switch “L” for “R” and vice versa.
1 2 3 4 5
1 Standard 2 Federation Bar 3 Heritage Bar 4 Colonial Bar 5 Colonial Bar (10 Light)
Please note: The following options are also available: – Opening inwards – No sill – Equal light
Our commitment to continual product development necessitates that sizes and specifications may change without notice.
29Screened Bifold Doors
Screened BifoldS
A Homeview Screened Bifold door is a perfect solution to maximise Retractable Pleated Screen
indoor/outdoor spaces providing seamless transition from inside to outside,
uninterrupted views and efficient ventilation, whilst protecting your home and The Homeview Bifold retractable pleated screen has been designed
family from flies, insects and other pests. specifically for very large openings. Offering smooth and effortless operation,
the retractable pleated screen features multiple stainless steel bearings across
And now there are two screen options available. all friction points so that operating force is kept to a low 15N. The bearings
not only reduce the force required to operate the screen, but significantly
Flat Screen improve the life of the screen. The pleated screen is inherently stable and
The Homeview Bifold flat screen is smooth to operate and can be opened and provides increased resistance to sagging.
closed with a touch of a finger. Unique Load Balancing Technology (LBT)
As with most Homeview door products, the Screened Bifold door can be
frees the screen of heavy springs and latches, instead it uses only magnets
fitted with standard, toughened or laminate glass and can even be glazed for
and pulleys. The screen slides horizontally along its track until it comes to
low noise or double glazed for superior energy efficiency.
a smooth stop and, when not in use, slides back into its concealed housing.
“Tight Technology” ensures that the mesh is always at its optimum tension,
avoiding creasing, sagging and tearing, and if the screen is bumped out of its
track by wind or contact, the screen will automatically reset itself by retracting
back into the cavity.
Key Features & Benefits
Retractable Pleated Screen
Refer to standard Bifold door for decorative bar options.
• Pleated mesh is particularly well suited for oversized openings.
• •With large opening widths the pleated screen sits comfortably
Key Features & Benefits on the face of the jamb and does not require oversized canisters
Flat Screen that need concealing.
• Horizontal rolling flyscreen that retracts into the wall cavity. • Each pleat at 20mm wide, set at an angle of 45 degrees, adds
stability to screen.
• Suitable for existing and new openings. (Screen cannot be fitted
to an existing bifold door). • Multiple stainless steel bearings across all friction points ensure
effortless operation.
• Available in various timber species.
• Bearings contribute to significantly improve the life of the
• ‘Tight Technology’ leaves mesh straight, tight and at maximum screen.
tension at all times.
• Tensioning cords running horizontally across the opening
• Load Balancing Technology (LBT) – smooth, easy and safe provide stability to the screen and prevent the mesh from
operation. blowing out of its channel in windy conditions (able to
withstand wind gusts up to 30kmh).
• Screen automatically resets if bumped or disturbed by gusts of
wind. • Hardware can be matched to your Homeview bifold door.
• Available in open-out configurations only. • Opening width size is not restricted.
• PetScreen Lite flymesh. • Trouble-free installation for renovation/alteration projects.
• Size restrictions apply. • Available in open out configurations only.
30Screened Bifold Door FLAT Screen DETAILS ONLY
Specifications
Screened BifoldS
Flat Screen Screened Bifold Door
• Suitable for tall openings – up to 2700mm high
• Suitable for wide openings – up to 3000mm wide single span (2400mm max panel weight 40 kgs
high), 5900 wide double span
• max panel weight 40 kgs max panel width 1000mm
• max panel width 1000mm
max frame sizes - FLAT SCREEN ONLY
Retractable Pleated Screen
• Suitable for tall openings – up to 2400 mm high 2400mm(H) x 5900mm(W)
• Suitable for wide openings – up to 4560mm wide single span (2400mm double screen
high), 8 metre wide double span 2700mm(H) x 4800mm(W)
• max panel weight 75 kgs
2400mm(H) x 3000mm(W)
• max panel width 1000mm single screen
Available Hardware 2700mm(H) x 2400mm(W)
How to Order Flat Screen
Bifold Door
When ordering please specify both sizes a) Overall Frame Width (measured
from outer metal housing to outer metal housing) and b) Jamb Width
Deadlock
(measured from outer jamb to outer jamb). Speak to your builder or call
Homeview for more advice and installation details. Important note: Do
not allow any fixings to penetrate the screen housing or the screen will be
damaged
Lockable Flush Bolt Hinge Handle
Detail for ‘Flat’ Screen Bifold Door
For Retractable Pleated Screen Bifold Door refer to standard Bifold Door Installation Instructions.
(a) Inside View
Overall Frame Width_______mm
19
75
180
86
(b)
63 Jamb Width_______mm 63
External View
Existing Construction New Construction
Installation – Brick veneer Installation – Brick veneer
Aluminium Stud Bracket
Screw Fix Packer
Screen Housing Screen Housing
Packer
Stud
Flashing Stud
External Architrave Bifold Jamb Packer Bifold Jamb
Our commitment to continual product development necessitates that sizes and specifications may change without notice.
31Screened Bifold Door Specifications Cotinued
Building-In Details
Detail for ‘Pleated’ Stud
Stud
Screen Bifold Door Screen Housing
New Construction
Installation
– Brick veneer
Flashing
Packer Bifold Jamb
Building-In Details
Awning & Casement Windows Double Hung Windows
Head Head
Outer Brickwork Outer Brickwork
Flashing by builder Flashing by builder
Head Trimmer Head Trimmer
Head Head
IMPORTANT
Leave 10mm space between
window head & head trimmer Architrave by builder Architrave by builder
Sill Sill
Packing by builder Packing by builder
Outer Brickwork Outer Brickwork
Sill Sill
Stud Wall Stud Wall
Sill brick Sill brick
IMPORTANT
Leave 10mm space between
window sill & sill brick Flashing by builder Flashing by builder
Jamb Jamb
Packing by builder Packing by builder
Stile
Stud Wall Stud Wall
Stile
Flashing by builder Flashing by builder
Windmould Windmould
(Stormmould) Outer Brickwork (Stormmould) Outer Brickwork
32Care & Installation
Instructions
Care & Installation
Bifold Window Pre-Installation Instructions
Pre-Installation
1 A structural beam or lintel is recommended to be fitted above all Bifold
• Store in a dry location, under cover where possible, to protect against
Window units.
damage.
2 The lintel must be able to support the weight of the Bifold Window unit.
• Do not rack frames out of square.
Bifold Window units weigh approximately 22kg per m2.
• Prevent exposure to moisture particularly pooling or ponding.
FOR EXAMPLE A 1500mm x 2500mm Bifold Window will weigh
• Do not remove bands from Double Hung Windows until after installation. 1.5m x 2.5m x 22kg = 82kg.
NOTE Twin glazing will double the calculation.
Care and Maintenance
3 Failure to comply with instructions may result in poor operation of the
• Keep wet cement, mortar and brick cleaning acid from being in contact unit and could void the warranty.
with timber or aluminium before, during and after installation.
• If accidentally splashed, wash off immediately with clean water, otherwise
permanent staining or damage may occur, voiding the warranty. Bifold Window Installation Instructions
• Do not use acid to remove mortar stains on window frames. 1 Fit flashing to sill and, where required, to jambs and head.
• Hose down brick work to remove residual cleaning acid which may leach 2 The complete unit must be installed square, plumb and level. Panels will
out and cause damage to the finish later. not operate successfully with a bowed sill or a dropped head.
• Do not place windows directly onto green concrete slabs. 3 It is highly recommended that the Bifold Window head is fixed to a
suitable lintel above. Fix the Bifold Window head to the lintel as per
• Keep the tracks of sliding windows and doors clear of sand and cement drawing below.
droppings.
• Do not use window frames to support planks or temporary scaffolding.
• Clean up when the job is complete with mild detergent and rinse with
clean water.
Glass
• To clean simply wipe over the surface with a few drops of methylated
spirits on a damp cloth, then polish the surface dry with a lint free cloth.
• Ensure that all cleaning cloths are free from any abrasive substances.
• Never remove abrasive materials such as mortar from the glass with a
scraper. (To clean, flood with water and dab with a sponge. Don’t scrub
with sponge or scratching will occur.) 75mm skewed screw
• Avoid causing extreme temperature changes as this may lead to thermal 16mm diameter
clearance hole
fracture of the glass (i.e. do not direct hot or cold water onto glass).
Locks and Catches
• Keep locks and catches clean and free from blind cords and any other
interference which may prevent proper operation.
Fix head to lintel
Painting
• Timber windows must have a first coat of an appropriate paint, oil or stain
applied within 30 days of delivery.
• Fill nail recesses, lightly sand and clean immediately prior to the application
of further coats.
• Re-prime immediately if primer coat is removed during installation.
• Paint manufacturers instructions must be followed in the application of all
subsequent coats of paint.
• It is recommended to use light colours on all timber products to protect
warranty.
• Do not paint over weatherseals.
• Primed products need to be lightly sanded before the undercoat and top
coats are applied. Primer is not a substitute for an undercoat.
Adjustments
• All products should be adjusted as required to maintain correct
performance.
The Bifold Window head extrusion has been pre-drilled with a 16mm
• Adjustment instructions are supplied with the product. clearance hole and a 5mm screw hole in the centre of the track. Use a
75mm screw to screw the Bifold Window head to the lintel.
NOTE: AS2047 sets out the requirements for installation of
timber windows in buildings. It is the responsibility of the installer
to properly adjust windows and doors as per instructions.
33You can also read
