Operator's manual
HUSQVARNA AUTOMOWER®
435X AWD EN, English
Read the operator's manual carefully and make sure that you
understand the instructions before you use the product.
Contents
5.5 Battery...................................................... 44
1 Introduction
5.6 Winter service...........................................45
1.1 Support.......................................................3
1.2 Product description.....................................3 6 Troubleshooting
1.3 Automower® Access.................................. 3 6.1 Introduction - troubleshooting...................46
1.4 Automower® Connect.................................3 6.2 Error icons in the Automower®
1.5 Product overview .......................................4 Access display................................................46
1.6 Symbols on the product..............................5 6.3 Fault messages........................................ 47
1.7 Symbols on the battery...............................6 6.4 Information messages.............................. 54
1.8 General manual instructions.......................6 6.5 Indicator lamp in the charging station.......55
1.9 Automower® Access.................................. 6 6.6 Symptoms................................................ 56
6.7 Find breaks in the loop wire..................... 57
2 Safety
2.1 IMPORTANT. READ CAREFULLY 7 Transportation, storage and disposal
BEFORE USE. KEEP FOR FUTURE 7.1 Transportation.......................................... 60
REFERENCE................................................. 15 7.2 Storage.....................................................60
2.2 Safety definitions...................................... 16 7.3 Disposal....................................................60
2.3 Safety instructions for operation...............16
8 Technical data
3 Installation 8.1 Technical data.......................................... 62
3.1 Introduction - Installation.......................... 20 8.2 Registered trademarks............................. 64
3.2 Main components for installation..............20
9 Warranty
3.3 General preparations................................20
9.1 Warranty terms.........................................65
3.4 Before the installation of the wires........... 20
3.5 Installation of the product......................... 25 10 Applicable to US/CA market
3.6 To put the wire into position with stakes...28 10.1 Supplier's Declaration of Conformity...... 66
3.7 To bury the boundary wire or the 10.2 Compliance requirements...................... 66
guide wire....................................................... 28
3.8 To extend the boundary wire or the
guide wire....................................................... 28
3.9 After the installation of the product...........29
3.10 Automower® Connect.............................29
3.11 To start the product for the first time...... 30
3.12 Settings in Automower® Connect...........31
4 Operation
4.1 To switch on the product.......................... 37
4.2 Operating modes......................................37
4.3 To stop the product.................................. 38
4.4 To switch off the product.......................... 38
4.5 To charge the battery............................... 38
4.6 To adjust the cutting height with
Automower® Access...................................... 39
5 Maintenance
5.1 Introduction - maintenance.......................40
5.2 Clean the product..................................... 40
5.3 Replace the blades...................................41
5.4 To replace the top covers.........................42
2 1404 - 002 -
1 Introduction
Serial number:
PIN code:
The serial number is on the product rating plate and on the product carton.
• Use the serial number to register your product on www.husqvarna.com.
1.1 Support The operator selects the operation settings in
For support about the product, speak to your Automower® Access on the product. The display
Husqvarna servicing dealer. shows the selected and possible operation
settings, and the operation mode of the product.
1.2 Product description
1.2.1 Mowing technique
Note: Husqvarna regularly updates the The product is emission free, easy to use and
appearance and function of the products. Refer saves energy. The frequent cutting technique
to Support on page 3. improves the grass quality and decreases the
use of fertilizers. Collection of grass is not
necessary.
The product is a robotic lawn mower. The product
has a battery power source and cuts the grass 1.2.2 Find the charging station
automatically. It continuously alternates between
The product operates until the battery is low, then
mowing and charging. The movement pattern is
it starts to go to the charging station. The product
random, which means that the lawn is mowed
has 3 search methods to find the charging
evenly and with less wear. The boundary wire
station. Refer to To find the charging station on
and the guide wire controls the movement of the
page 32.
product within the work area. Sensors in the
product senses when it is approaching the
boundary wire. The front of the product always 1.3 Automower® Access
passes the boundary wire by a specific distance The user interface of the product is called
before the product turns around. When the Automower® Access. It consists of the display,
product hits an obstacle or approaches the the jog wheel, the LED status indicator, the
boundary wire the product selects a new START button and the STOP button. Refer to
direction. Automower® Access on page 6.
1.4 Automower® Connect
Automower® Connect is a mobile application that
makes it possible to select the operation settings
remotely. Refer to Automower® Connect on page
29.

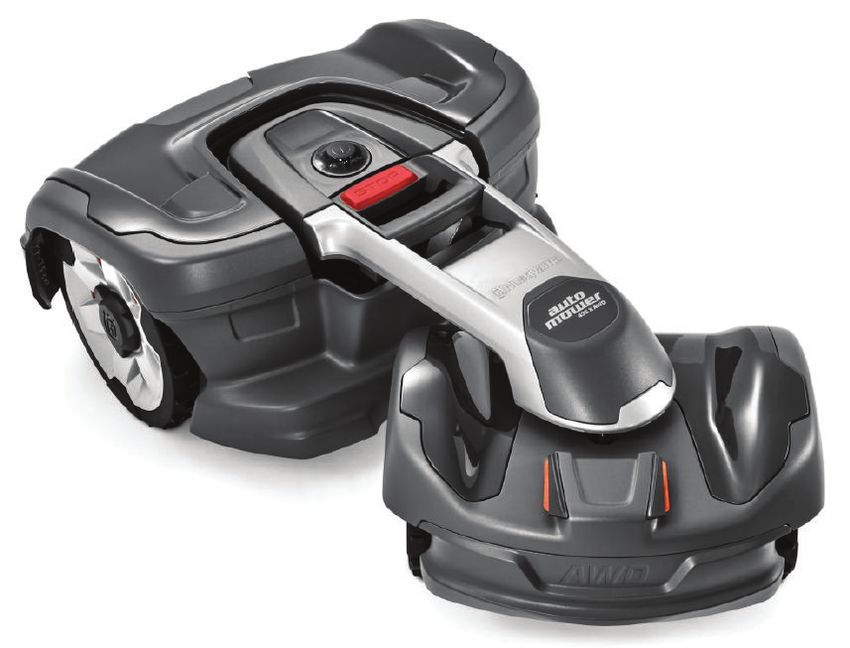

1404 - 002 - Introduction - 31.5 Product overview
4 5 9 3
2 3 P 10
11
1
12
13
8
14
7 15
23
16
6
22
17
24
18
21
19
20 25 26
27
28
29
30 31 32 33 34 35 36
1. Ultrasonic sensors 14. START button
2. Front top cover 15. Battery cover
3. Lifting handle 16. Rear chassis box with electronics, motors
4. Rear top cover and battery
5. Charging plates 17. Skid plate
6. Headlights 18. Rating plate (incl. product identification
7. Front wheels code)
8. Rear wheels 19. Front chassis box with electronics and
motors
9. Automower® Access
20. Blades
10. Display
21. Blade disc
11. Jog wheel
22. Contact plates
12. LED status indicator
23. LED for operation check of the charging
13. STOP button
station and boundary wire
4 - Introduction 1404 - 002 -24. Charging station WARNING: Read the
25. Power supply1 user instructions before
26. Low voltage cable operating the product.
27. Loop wire for boundary loop and guide wire
2
WARNING: Disable the
28. Couplers for loop wire 3 product before working on
29. Stakes4 or lifting the product.
30. Connector for the loop wire 5
31. Screws for securing the charging station WARNING: Keep a safe
32. Measurement gauge for help when installing distance from the product
the boundary wire (the measurement gauge when operating. Keep
is broken loose from the box) your hands and feet away
33. Operator’s Manual and Quick Guide from the rotating blades.
34. Cable markers WARNING: Do not ride
35. Extra blades on the product. Never put
36. Alarm decal your hands or feet close
to or under the product.
1.6 Symbols on the product Never use a high-pres-
These symbols can be found on the product. sure washer or even run-
Study them carefully. ning water to clean the
product.
Use a detachable power
supply as defined on the
rating label next to the
symbol.
This product conforms to the
applicable EC Directives.
Noise emission to surroundings. The
product’s emissions are set out in
Technical data on page 62 and on the
rating plate.
It is not permitted to dispose this
product as normal household waste.
Ensure that the product is recycled in
accordance with local legal
requirements.
1 The appearance may differ depending on market.
2 Is a part of the Installation kit which is purchased separately.
3 Refer to note 2
4 Refer to note 2
5 Refer to note 2
1404 - 002 - Introduction - 5The chassis contains components 1.9 Automower® Access
which are sensitive to electrostatic
discharge (ESD). The chassis must
also be resealed in a professional
manner. For these reasons the chassis
3
1
shall only be opened by authorized P
service technicians. A broken seal can
result in the entire or parts of the
warranty no longer being valid. 2 3
The low voltage cable must not be
shortened, extended or spliced.
Do not use a trimmer nearby the low
voltage cable. Be careful when 4
trimming edges where the cables are
placed.
1.7 Symbols on the battery
5
Read the user instructions.
Do not discard the battery into fire and 1. The display shows the status bar and the
do not expose the battery to a heat main menu symbols. Refer to Display on
source. page 7.
2. Use the jog wheel to move through the
menu structure and to select a menu option.
3. The LED status indicator shows the status of
Do not immerse the battery into water. the product. Refer to LED status indicator on
page 14.
1.8 General manual instructions 4. STOP button
5. START button
The following system is used in the Operator’s
Manual to make it easier to use:
• Text written in italics is a text that is shown
in the display or is a reference to another
section in the Operator’s Manual.
• Text written in bold is one of the buttons on
the product.
• Text written in UPPERCASE and italics refer
to the different operating modes available in
the product.
6 - Introduction 1404 - 002 -1.9.1 Display
A
3
P
B
The display shows the status bar and the main menu symbols. If an error occurs, the display shows an
error indication. Refer to Error icons in the Automower® Access display on page 46.
A. Status bar
The current product activity status is shown as either
Product activity P mowing or parked.
The cutting height symbol shows the current cutting
Cutting height height.
6
The mobile network symbol shows the current cellu-
Mobile network lar signal strength.
When the Bluetooth® connection is active, the Blue-
Bluetooth® status tooth® symbol is visible in the status bar.
The battery level symbol shows the current battery
Battery level status.
1404 - 002 - Introduction - 7B. Main menu symbols
When the on/off symbol is confirmed in the main
menu, the product is switched off. For how to switch
on/off
on the product, refer to To switch on the product on
page 37.
In the Park menu it is possible to let the product park
in the charging station. For different options, refer to
Park
Menu structure overview in Automower® Access on
page 9.
The Main area is the standard operating mode
where the product mows and charges automatically.
Main area
For different options, refer to Menu structure over-
view in Automower® Access on page 9.
If you select the Secondary area mode, the product
must be manually moved to and from an adjacent
Secondary area work area, refer to To make a secondary area on
page 24. For different options, refer to Menu struc-
ture overview in Automower® Access on page 9.
In the Settings menu it is possible to adjust the cut-
Settings ting height and to activate Bluetooth® pairing.
1.9.2 To operate Automower® Access 2. Turn the jog wheel clockwise to move to the
right or down in the menus. Turn the jog
For information, refer to Automower® Access on
wheel counterclockwise to move to the left
page 6.
or up in the menus.
If it is the first time you start the product, refer to 3. Push the jog wheel to select a menu option.
To start the product for the first time on page 30.
1. Push the jog wheel to start the display. If the
product is switched off, refer to To switch on
the product on page 37.
8 - Introduction 1404 - 002 -1.9.3 Menu structure overview in Automower® Access
P
9
90min 48h
8
24h 30min 24h
7
12h 12h
6
6h 6h
5
3h 3h
4
3
2
1
1404 - 002 - Introduction - 9Symbol description
Use the Schedule settings in the Activate the Bluetooth® pairing
Automower® Connect app. mode.
Operate in the selected mode Pairing between the product and
until a new option is chosen. mobile device is not successful.
Operate in the selected mode Pairing between the product and
until the battery is empty. mobile device is successful.
Change the cutting height.
10 - Introduction 1404 - 002 -1.9.4 Menu structure overview 1
Schedule
Overview Schedule settings
Edit
Change current Add new
Schedule settings Schedule settings
Cutting height
Cutting height
Operation
Weather timer ECO mode
Cutting time
Low Medium High
1404 - 002 - Introduction - 111.9.5 Menu structure overview 2
Installation
Lawn coverage Drive Starting
Find
past wire point
charging station
Charging Follow Follow guide
station signal boundary wire 1/2
GPS assisted Area How often
navigation (default) 1/2/3/4/5
Accessories
Headlights Mower house Ultrasonic
12 - Introduction 1404 - 002 -1.9.6 Menu structure overview 3
General
Time & date Reset to factory settings
Mower time Mower date Time & date Reset to factory settings
(Edit) (Edit) from phone
Security
New loop signal Change PIN code Theft protection GeoFence
Create new
loop signal
Require Alarm STOP button Carried
PIN code duration pressed away
Automower® Connect
Signal strength Connected Initiate Remove mower
/No signal /Not connected new pairing from paired accounts
1404 - 002 - Introduction - 131.9.7 LED status indicator
LED indication Status
Green In operation
Blue Parked
Red Error
Yellow Paused/stopped
Flashing yellow PIN code needed
Pulsating green/blue Charging in progress
Flashing green/blue Push the jog wheel to
confirm start of operation
Flashing green, low- Inactive
frequent
White Switching off
14 - Introduction 1404 - 002 -2 Safety 2.1 IMPORTANT. READ CAREFULLY BEFORE USE. KEEP FOR FUTURE REFERENCE The operator is responsible for accidents or hazards occurring to other people or property. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities (that could affect a safe handling of the product), or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Local regulations may restrict the age of the operator. Cleaning and maintenance shall not be made by children without supervision. Never connect the power supply to an outlet if the plug or cord is damaged. Worn or damaged cord increase the risk of electric shock. Only charge the battery in the included charging station. Incorrect use may result in electric shock, overheating or leaking of corrosive liquid from the battery. In the event of leakage of electrolyte, flush with water/neutralizing agent. Seek medical help if it comes in contact with the eyes. Use only original batteries recommended by the manufacturer. Product safety cannot be guaranteed with other than original batteries. Do not use non-rechargeable batteries. The appliance must be disconnected from the supply mains when removing the battery. 1404 - 002 - Safety - 15
or the adjacent area if the instructions
WARNING: The product in the manual are not obeyed.
can be dangerous if used
incorrectly. Note: Used to give more information that is
necessary in a given situation.
WARNING: Do not use 2.3 Safety instructions for operation
the product when 2.3.1 Use
persons, especially • The product may only be used with the
equipment recommended by the
children, or animals, are manufacturer. All other types of use are
in the work area. incorrect. The manufacturer’s instructions
with regard to operation/maintenance must
be followed precisely.
• The product may only be operated,
WARNING: Keep your maintained and repaired by persons that are
fully conversant with its special
hands and feet away characteristics and safety regulations.
from the rotating blades. Please read the Operator’s Manual carefully
and make sure you understand the
Never put your hands or instructions before using the product.
feet close to or under the • It is not permitted to modify the original
design of the product. All modifications are
product when the motor made at your own risk.
is running. • Warning signs shall be placed around the
work area of the product if it is used in public
areas. The signs shall have the following
text: Warning! Automatic lawn mower! Keep
away from the machine! Supervise children!
WARNING: In the event
of an injury or accident
seek medical help.
2.2 Safety definitions
Warnings, cautions and notes are used to point I am a robotic lawnmower and I work here quietly
out specially important parts of the manual.
to keep the lawn in perfect condition.
I work 24/7 independently of weather conditions and do it
without releasing any exhaust emissions.
Stay a while and enjoy my work,
WARNING: Used if there is a risk of
but please let me work in peace.
injury or death for the operator or WARNING!
bystanders if the instructions in the Automatic lawnmower!
Keep away from the machine!
manual are not obeyed.
Supervise children!
CAUTION: Used if there is a risk of
damage to the product, other materials
16 - Safety 1404 - 002 -• Use the park function or switch off the • Do not put anything on top of the product or
product when persons, especially children or its charging station.
pets, are in the work area. Refer to To • Do not allow the product to be used with a
switch off the product on page 38. It is defective guard, blade disc or body. Neither
recommended to program the product for should it be used with defective blades,
use during hours when the area is free from screws, nuts or cables. Never connect a
activity, e.g. at night. Consider that certain damaged cable, or touch a damaged cable
species, e.g. hedgehogs, are active at night. before it is disconnected from the supply.
They can potentially be harmed by the • Do not use the product if the STOP button
product. Refer to Schedule on page 31. does not work.
• Check that there are no foreign objects such • Always switch off the product when it is not
as stones, branches, tools or toys on the in use. The product can only start when the
lawn. If the blades hit foreign objects the correct PIN code has been entered.
blades can be damaged. Always switch off
• The product must never be used at the
the product before clearing a blockage.
same time as a sprinkler. Use the Schedule
Inspect the product for damage before
function so the product and sprinkler never
staring the product again. Refer to To switch
run simultaneously. Refer to Schedule on
off the product on page 38.
page 31.
• Husqvarna does not guarantee full
compatibility between the product and other
types of wireless systems such as remote
controls, radio transmitters, hearing loops,
underground electric animal fencing or
similar.
• The built-in alarm is very loud. Be careful,
especially if the product is handled indoors.
• Metal objects in the ground (for example
reinforced concrete or anti-mole nets) can
result in a stoppage. The metal objects can
cause interference with the loop signal
• If the product starts to vibrate abnormally. which then can lead to a stoppage.
Always switch off the product and inspect for • Operation and storage temperature is 0-50
damage before staring the product again. °C / 32-122 °F. Temperature range for
Refer To switch off the product on page 38. charging is 0-45 °C / 32-113 °F. Too high
• Switch on the product according to the temperatures might cause damage to the
instructions. When the product is switched product.
on; make sure to keep your hands and feet 2.3.2 Battery safety
away from the rotating blades. Never put
your hands and feet under the product. WARNING: Lithium-ion batteries can
• Never touch moving hazardous parts, such explode or cause fire if disassembled,
as the blade disc, before it has come to a short-circuited, exposed to water, fire,
complete stop. or high temperatures. Handle carefully,
• Never lift up the product or carry it around do not dismantle, open the battery or
when it is switched on. use any type of electrical/mechanical
• The product must never be allowed to abuse. Avoid storage in direct sunlight.
collide with persons or other living creatures.
If a person or other living creature comes in For more information about the battery, refer to
the way of the product, it shall be stopped Battery on page 44
immediately. Refer to To stop the product on
page 38.
1404 - 002 - Safety - 172.3.3 How to lift and move the product
WARNING: The product must be
switched off before you lift it. The
product is switched off when the LED
status indicator is not lit.
CAUTION: Do not lift the product when
it is parked in the charging station. It
can damage the charging station
and/or the product. Push the STOP
button and pull the product out of the
charging station before lifting it.
To safely move from or within the work area:
1. Push the STOP button to stop the product.
2.3.4 Maintenance
WARNING: The product must be
switched off before it is turned upside
down.
The product must be switched off
before any maintenance is done.
CAUTION: Never use a high-pressure
washer or even running water to clean
the product. Never use solvents for
cleaning.
2. Enter the PIN code if required.
3. Push the jog wheel for 3 seconds to switch
off the product. WARNING: Use the plug to disconnect
4. Make sure that the LED status indicator is the charging station before any
not lit. cleaning or maintenance of the
5. Carry the product by the lifting handle as the charging station or the loop wire.
illustration shows.
Inspect the product each week and replace any
damaged or worn parts. Refer to Maintenance on
page 40.
18 - Safety 1404 - 002 -2.3.5 In the event of a thunderstorm
To reduce the risk of damage to electrical
components in the product and the charging
station, we recommend that all connections to the
charging station are disconnected (power supply,
boundary wire and guide wire) if there is a risk of
a thunderstorm.
1. Mark the wires to simplify reconnecting. The
charging station’s connections are marked
AR, AL and G1, G2.
2. Disconnect all connected wires and the
power supply.
3. Connect all the wires and the power supply
if there is no longer a risk of thunder. It is
important that each wire is connected to the
right place.
1404 - 002 - Safety - 193 Installation
3.1 Introduction - Installation performs. It is therefore important to plan the
installation carefully.
WARNING: Read and understand the
safety chapter before you install the
product. • Make a blueprint of the work area and
include all obstacles. This makes it easier to
see the ideal positions for the charging
station, the boundary wire and the guide
CAUTION: Use original spare parts
wire.
and installation material.
• Make a mark on the blueprint where to put
the charging station, the boundary wire and
Note: Refer to www.husqvarna.com for more the guide wire.
information about installation. • Make a mark on the blueprint where the
guide wire connects to the boundary wire.
Refer to To install the guide wire on page
3.2 Main components for installation 27.
The installation involves the following • Fill in holes in the lawn.
components: • Cut the grass before you install the product.
Make sure that the grass is maximum 10
• A robotic lawn mower that mows the lawn cm / 4 in.
automatically.
• A charging station, which has 3 functions: Note: The first weeks after installation the
perceived sound level when cutting the grass
• To send control signals along the
may be higher than expected. When the product
boundary wire.
has cut the grass for some time, the perceived
• To send control signals along the guide sound level is much lower.
wire so that the product can be send to
specific remote areas in the garden and
can find its way back to the charging 3.4 Before the installation of the wires
station.
You can select to attach the wires with stakes or
• To charge the product.
bury them. You can use the 2 procedures for the
• A power supply, which is connected to the same work area.
charging station and a 100-240V wall
socket. • Bury the boundary wire or the guide wire if
• Loop wire, which is laid around the work you are going to use a dethatcher on the
area and around objects and plants that the work area. If not, attach the boundary wire
product must not run into. The loop wire is or guide wire with stakes.
used both as boundary wire and guide wire. 3.4.1 To examine where to put the charging
station
3.3 General preparations
• Keep a minimum 3 m / 10 ft. of free space in
CAUTION: Holes with water in the front of the charging station.
lawn can cause damage to the • Keep a minimum of 1.5 m / 5 ft. of free
product. space to the right and to the left of the
charging station.
• Put the charging station near a power outlet.
Note: Read through the Installation chapter
• Put the charging station on a level surface.
before beginning the installation. How the
installation is done affects how the product
20 - Installation 1404 - 002 -interference with the signal from the
charging station.
max. 5 cm / 2"
max. 5 cm / 2"
• Put the power supply in an area with a roof
and protection from the sun and rain.
• Put the power supply in an area with good
airflow.
• Use a residual-current device (RCD) when
• Put the charging station in the largest open you connect the power supply to the power
section of the work area. outlet.
• Put the charging station in an area without
an irrigation system. Low-voltage cables of different lengths are
available as accessories.
• Put the charging station in an area with
protection from the sun. 3.4.3 To examine where to put the
• If the charging station is installed on an boundary wire
island, make sure to connect the guide wire
to the island. Refer to To make an island on CAUTION: If the work area is adjacent
page 23. to water bodies, slopes, precipices or a
public road, the boundary wire must
have a protective wall. The wall must
be minimum 15 cm / 6 in. in height.
CAUTION: Do not let the product
operate on gravel.
CAUTION: Do not make sharp bends
when you install the boundary wire.
3.4.2 To examine where to put the power
supply CAUTION: For careful operation
without noise, isolate all obstacles
WARNING: Do not cut or extend the such as trees, roots and stones.
low-voltage cable. There is a risk of
electrical shock.
The boundary wire should be put as a loop
around the work area. Sensors in the product
CAUTION: Make sure that the blades senses when the product approaches the
on the product do not cut the low- boundary wire, and the product selects another
voltage cable. direction.
To make the connection easier between the
guide wire and the boundary wire, it is
CAUTION: Do not put the low-voltage recommended to make an eyelet where the guide
cable in a coil or below the charging wire will be connected. Make the eyelet with
station plate. The coil causes approximately 20 cm / 8 in. of the boundary wire.
1404 - 002 - Installation - 21> 5 cm / 2"
35 cm /14"
• Put the boundary wire 30 cm / 12 in. (C)
from an obstacle that is 1-5 cm / 0.4-2 in.
Note: Make a blueprint of the work area before high.
you install the boundary wire and guide wire.
E D
F
30 cm / 12"
1-5 cm / 0.4 - 2"
C • Put the boundary wire 10 cm / 4 in. (D) from
an obstacle that is less than 1 cm / 0.4 in.
A
10 cm / 4"
B
max 1 cm / 0.4"
• Put the boundary wire around all of the work • If you have a paving stone path that is in
area (A). Adapt the distance between the level with the lawn, put the boundary wire
boundary wire and obstacles. below the paving stone.
• Put the boundary wire 35 cm / 14 in. (B)
from an obstacle that is more than 5 cm / 2 Note: If the paving stone is minimum 30 cm /
in. high. 12 in. wide, use the factory setting for the
Drive Past Wire function to cut all the grass
adjacent to the paving stone. Refer to Drive
Past Wire on page 34.
• If you make an island, put the boundary wire
that runs to and from the island near
together (E). Put the wires in the same
stake. Refer to To make an island on page
23.
22 - Installation 1404 - 002 -• Make an eyelet (F) where the guide wire is Note: If a passage is less than 2 m / 6.5 ft. wide,
to be connected to the boundary wire. install a guide wire through the passage.
3.4.3.1 To put the boundary wire in a slope
The product can operate in 70% slopes. Slopes A dead end must be a minimum of 2.5 m / 8.5 ft.
that are too steep must be isolated with the wide.
boundary wire. The gradient (%) is calculated as
height per m. Example: 10 cm / 100 cm = 10%.
>2 m / 7 ft
10%
100 cm/40"
10 cm/4"
>2.5 m / 8.5 ft
• For slopes up to 50% steep inside the work
area, the product will operate normally.
Keep a distance of 1.5 m / 5 ft between the
boundary wire and obstacles, or between
obstacles. Max.
• For slopes between 50-70% steep, make >60 cm / 12" distance
sure that there are no obstacles in the slope.
There must be a distance of 1.5 m / 5 ft from >30 cm / 12"
the bottom of the slope to the boundary wire.
> 1.5 m / 5 ft
> 1.5 m / 5 ft
> 1.5 m / 5 ft
>2 m / 7 ft
0% - 50%
50% - 70% Note: Make sure that the guide wire has as much
free area as possible to the left of the guide wire
• For slopes adjacent to a public road, put a
when facing the charging station. Minimum
fence or a protective wall along the outer
distance between the guide wire and boundary
edge of the slope.
wire is 30 cm / 12 in.
3.4.3.2 Passages
A passage is a section that has boundary wire on 3.4.3.3 To make an island
each side and that connects 2 work areas. The
passage must be a minimum of 2 m / 6.5 ft wide CAUTION: Do not put a section of
to get a good cutting result. Short passages can boundary wire across the other. The
be as narrow as 60 cm / 2 ft., if a guide wire is sections of boundary wire must be
installed through the passage. A long narrow parallel.
passage can have a negative impact of the
cutting result.
1404 - 002 - Installation - 23CAUTION: Do not put the guide wire
across the boundary wire, for example
a boundary wire that goes to an island.
1.5 m/5 ft 1.5 m/5 ft
0 cm/0"
3.4.3.4 To make a secondary area
Make a secondary area (B) if the work area has 2
areas that are not connected with a passage. The
work area with the charging station is the main
Some obstacles can withstand a collision, for area (A).
example, trees or bushes taller than 15 cm / 6 in.
The product will collide and then turn around with Note: The product must be manually moved
this type of obstacle. However, obstacles that between the main area and the secondary area.
slope slightly, for example stones or large trees
with raised roots, must be isolated or removed.
The product can run onto this kind of obstacle
causing the blades to be damaged. Use the
boundary wire to isolate areas inside the work B
area by creating islands. When the boundary
wires to and from the island are put close
together, the product can run over the wire.
Note: To achieve careful and silent operation, it is
recommended to isolate all fixed objects in the
work area.
A
• Put the boundary wire to and around the
obstacle to make an island.
• Put the 2 sections of boundary wire that run
to and from the obstacle close together • Put the boundary wire around the secondary
without crossing. area (B) to make an island. Refer to To
• Put the 2 sections of boundary wire in the make an island on page 23.
same stake.
Note: The boundary wire must be put as 1
• Make sure that there is a minimum of 1.5 m / loop around all of the work area (A + B).
5 ft of empty space before an obstacle.
Note: When the product cuts grass in the
secondary area, the Secondary area mode
must be selected. Refer to Secondary area
(2nd area) on page 37.
24 - Installation 1404 - 002 -3.4.4 To examine where to put the guide 3.4.5 Work area examples
wire • If the charging station is put in a small area
Put the guide wire from the charging station (A), make sure that the distance to the
through the work area and connect it to the boundary wire is at a minimum 3 m / 10 ft. in
boundary wire. This product has 2 guide wires. front of the charging station.
Use the same approach for all guide wires. • If the work area has a passage (B), make
sure that the distance to the boundary wire
• Put the guide wire in a line at a minimum of
is at a minimum 2 m / 6.5 ft. If the passage is
2 m / 7 ft. in front of the charging station.
smaller than 2 m / 6.5 ft., install a guide wire
• Make sure that the guide wire has as much through the passage. Minimum passage
free area as possible to the left of the guide between the boundary wire is 60 cm / 24 in.
wire when facing the charging station.
• If the work area has areas which are
• Put the guide wire minimum 30 cm / 12 in. connected by a narrow passage (B), you
from the boundary wire. can set the product to first follow and then
• Do not make sharp bends when you install leave the guide wire after a certain distance
the guide wire. (C). The settings can be changed in Lawn
• If the work area has a slope, put the guide coverage on page 33.
wire in a straight line from the bottom of the • If the work area includes a secondary area
slope to the top of the slope. If it is not (D), refer to To make a secondary area on
possible to make a straight line, put the page 24. Put the product in the secondary
guide wire diagonally across the slope. area and select Secondary area mode.
D
A
B
C
CAUTION: Do not put the guide
wire in parallel with the slope, as
the illustration shows. This can
increase the wear on the grass. 3.5 Installation of the product
3.5.1 Installation tools
• Hammer/plastic mallet: To simplify putting
the stakes into the ground.
1404 - 002 - Installation - 25• Combination pliers: For cutting the boundary CAUTION: The power supply cable
wire and pressing the connectors together. and extension cable must be outside
• Adjustable plier: For pressing the couplers the work area to avoid damage to the
together. cables.
• Edge cutter/straight spade: To bury the
boundary wire.
When connecting the power supply, only use a
3.5.2 To install the charging station wall socket that is connected to an earth fault-
breaker (RCD).
WARNING: Obey national regulations
about electrical safety. 1. Read and understand the instructions about
the charging station. Refer to To examine
where to put the charging station on page
WARNING: The product is only to be 20.
used with the power supply unit 2. Put the charging station in the selected area.
supplied by Husqvarna.
Note: Do not attach the screws for the
charging station to the ground until the guide
wire is installed. Refer to To install the guide
WARNING: Do not put the power
wire on page 27.
supply at a height where there is a risk
it can be put in water. Do not put the
power supply on the ground. 3. Connect the low-voltage cable to the
charging station.
4. Put the power supply at a minimum height of
WARNING: Do not encapsulate the 30 cm / 12 in.
power supply. Condensed water can
harm the power supply and increase
the risk of electrical shock.
WARNING: Risk of Electric Shock. min 30 cm / 12”
Install only to an earth fault breaker
(RCD) when connecting the power
supply to the wall socket. Applicable to
USA/Canada. If power supply is 5. Connect the power supply cable to a
installed outdoors: Risk of Electric 100-240V power outlet.
Shock. Install only to a covered Class
A GFCI receptacle (RCD) that has an Note: When the charging station is
enclosure that is weatherproof with the connected, it is possible to charge the
attachment plug cap inserted or product. Place the product in the charging
removed. station while the boundary and guide wires
are being laid. Switch on the product. Refer
to To switch on the product on page 37. Do
CAUTION: Do not make new holes in not continue with any product settings
the charging station plate. before the installation is complete.
6. Put the low-voltage cable in the ground with
stakes or bury the cable. Refer to To put the
CAUTION: Do not put your feet on the
wire into position with stakes on page 28 or
baseplate of the charging station.
To bury the boundary wire or the guide wire
on page 28.
7. Connect the wires to the charging station
after the installation of boundary wire and
26 - Installation 1404 - 002 -guide wire is complete. Refer to To install 3.5.4 To install the guide wire
the boundary wire on page 27 and To
install the guide wire on page 27. CAUTION: Twinned cables, or a screw
terminal block that is insulated with
8. Attach the charging station to the ground
insulation tape are not satisfactory
with the supplied screws after the guide wire
splices. Soil moisture will cause the
is installed. Refer to To install the guide wire
wire to oxidize and after a time result in
on page 27.
a broken circuit.
3.5.3 To install the boundary wire
CAUTION: Do not put unwanted wire 1. Open the connector and put the wires in the
in a coil. The coil causes interference connector.
with the product. 2. Close the connector with a pair of pliers.
3. Cut the guide wires 1-2 cm / 0.4-0.8 in.
1. Put the boundary wire around all of the work above each connector.
area. Start and complete the installation 4. Put the guide wires centrally below the
behind the charging station. charging station plate, and push them
2. Open the connector and put the boundary through the slot in the charging station
wire in the connector. tower.
5. Push the connector onto the metal pin on
the charging station with the mark "G1" or
"G2".
6. Disconnect the charging station from the
power outlet.
7. Put the cable mark on the guide wires.
8. Put the end of the guide wires at the eyelet
on the boundary wire.
3. Close the connector with a pair of pliers. 9. Cut the boundary wire with a pair of wire
cutters.
10. Connect the guide wires to the boundary
wire with a coupler.
4. Cut the boundary wire 1-2 cm / 0.4-0.8 in.
above each connector.
5. Put the right end of boundary wire into the
channel with the mark "AR".
6. Put the left end of boundary wire into the
channel with the mark "AL".
7. Push the right connector onto the metal pin
on the charging station with the mark "AR".
8. Push the left connector onto the metal pin
on the charging station with the mark "AL". a) Put the 2 ends of the boundary wire
and the end of the guide wires into the
9. Put the cable mark on the left and right coupler.
boundary wire. Do not walk on the charging
station.
1404 - 002 - Installation - 27Note: Make sure that you can see the 3.7 To bury the boundary wire or the
end of the guide wires through the guide wire
transparent area of the coupler.
• Cut a groove in the ground with an edge
cutter or a straight shovel.
b) Push the button on the coupler with an
adjustable pliers. • Put the boundary wire or the guide wire 1-20
cm / 0.4-8 in. into the ground.
3.8 To extend the boundary wire or the
guide wire
Note: Extend the boundary wire or the guide wire
if it is too short for the work area. Use original
spare parts, for example couplers.
1. Disconnect the charging station from the
power outlet.
2. Cut the boundary wire or the guide wire with
11. Attach the guide wires to the ground with
a pair of wire cutters where it is necessary to
stakes or bury the guide wires in the ground.
install the extension.
Refer to To put the wire into position with
stakes on page 28 or To bury the boundary 3. Add wire where it is necessary to install the
wire or the guide wire on page 28. extension.
12. Connect he charging station to the power 4. Put the boundary wire or the guide wire into
outlet. position.
5. Put the wire ends into a coupler.
3.6 To put the wire into position with
Note: Make sure that you can see the ends
stakes of the boundary wire or the guide wire
CAUTION: Make sure that the stakes through the transparent area of the coupler.
hold the boundary wire and the guide
wire against the ground. 6. Push the button on the coupler with an
adjustable pliers.
CAUTION: Cutting the grass too low
right after installation can damage the
wire insulation. Damage to the
insulation may not cause disruptions
until several weeks or months later.
1. Put the boundary wire and the guide wire on
the ground.
2. Put the stakes at a maximum of 75 cm / 30
in. distance from each other.
3. Attach the stakes to the ground with a 7. Put the boundary wire or the guide wire into
hammer or a plastic mallet. position with stakes.
8. Connect the charging station to the power
Note: The wire is overgrown with grass and not outlet.
visible after a few weeks.
28 - Installation 1404 - 002 -3.9 After the installation of the product 2. Sign up for a Husqvarna account in the
Automower® Connect app.
3.9.1 To do a visual check of the charging 3. Log in to your Husqvarna account in the
station Automower® Connect app.
1. Make sure that the indicator LED lamp on
the charging station has a green light. 3.10.2 To pair Automower® Connect and
the product
1. Do step 1-6 in To start the product for the
first time on page 30.
2. Obey the instructions in the Automower®
Connect app.
3.10.3 My mowers
When you choose My mowers you can manage
2. If the indicator LED lamp does not have a all the products paired to your account, as well as
green light, do a check of the installation. add new ones. If there are several paired
Refer to Indicator lamp in the charging products it is possible to select one of them as
station on page 55 and To install the Current mower.
charging station on page 26.
To pair a new product to the Automower®
3.10 Automower® Connect Connect app:
The product has Automower® Connect included 1. Select the plus sign (+).
from factory. 2. Select model.
The app gives 2 modes of connectivity: Long- 3. Obey the instructions in the Automower®
range cellular connectivity and Short-range Connect app to finish the pairing.
Bluetooth® connectivity. 3.10.4 Firmware over the air (FOTA)
The product can connect to mobile devices that The product has a function that automatically
have the Automower® Connect app installed. downloads new firmware. When a new firmware
Automower® Connect is a free app for your is available, a notification shows in the app where
mobile device. The Automower® Connect app you can select to install the new firmware. In the
gives extended functions to your Husqvarna factory setting this function is enabled.
product. You can:
3.10.4.1 To set the Firmware over the air (FOTA)
• See the status of your product.
1. Select My Mowers.
• Change settings to your product.
• Get extended product information. 2. Select Mower information for the current
mower.
• Get an alarm if the product moves out of the
work area. 3. Select on/off to enable or disable the
• See statistics of your product. function.
3.10.5 Automower® Direct
Note: All countries do not support Automower®
Connect because of regional specified cellular Automower® Direct uses short-range Bluetooth®
systems. The included Automower® Connect communication, and is included in Automower®
lifetime service only applies if there is a third part 435X AWD.
sub-supplier of 2G/3G/4G available in the Husqvarna cannot guarantee the time period or
operational area. coverage of the long-range cellular connectivity.
It is possible to communicate with the product
through Bluetooth® if you are in short-range of
3.10.1 To install the Automower® Connect
the product. You can use Automower® Direct
app without a Husqvarna account as long as you
1. Download the Automower® Connect app on have the product PIN code.
your mobile device.
1404 - 002 - Installation - 293.10.5.1 To start to use Automower® Direct 5. Select the product to pair with in the
1. Download the Automower® Connect app on Automower® Connect app.
your mobile device. 6. Enter the PIN code for the product.
2. Select Automower® Direct on the start
Note: You have access to the menus and
screen of the Automower® Connect app.
functions as long as you are in Bluetooth® short-
3. Start Bluetooth® on your mobile device and range.
on the product, refer to To start the product
for the first time on page 30.
4. Go to the Settings symbol in the display and
activate Bluetooth®.
3.10.6 User interface overview
The user interface overview below shows examples of Automower® Connect and the corresponding
display in Automower® Access.
Automower® Connect
My Automower R
My Automower R
My Automower R
My Automower R
6 6 6 6
MOWING PARKED PAUSED ERROR
Mowing session ends 13:30 Next start tomorrow 16:30 Ends 13:30 Charging station Blocked
PARK PAUSE PARK START PARK START MORE DETAILS
Schedule Map Schedule Map Schedule Map Schedule Map
Automower® Access
6 6 6 6
P
3.11 To start the product for the first 1. Push the jog wheel for 3 seconds to switch
on the product.
time
When the product is switched on for the first time,
there are some basic settings to do before the
product can start to operate.
30 - Installation 1404 - 002 -Note: The Bluetooth® pairing mode is on for The default schedule setting allows the product to
3 minutes. If the product does not pair with operate around the clock 7 days a week. This is
Bluetooth® in 3 minutes, switch off the normally a suitable setting for a work area
product. Wait until the LED status indicator corresponding to the maximum capacity. If the
is not lit, and then switch on the product work area is less than the maximum capacity the
again. schedule should be used to minimize wear on the
grass and to the product.
2. Enter the factory PIN code. To calculate the schedule setting, refer to To
3. Log on to your Husqvarna account in the calculate the schedule setting on page 31.
Automower® Connect app to pair your 3.12.1.1 To edit the schedule settings
product with Automower® Connect.
1. Select Settings > Schedule > Edit in the app.
Note: It is recommended to pair your product
2. Select the pencil symbol in the app.
with Automower® Connect to get access to
all functions in the product. If it is not 3. Select which days of the week and hours the
necessary to pair your product with product must operate.
Automower® Connect, push the arrow 4. Select Save.
symbol to continue to the menu.
3.12.1.2 To add a new schedule setting
4. Start Bluetooth® on your mobile device. 1. Select Settings > Schedule > Edit in the app.
5. Select My mowers in the Automower® 2. Select the plus sign in the app.
Connect app, and then select the plus sign 3. Select which days of the week and hours the
(+). product must operate.
6. Select model. The Automower® Connect 4. Select Save.
app searches for available products within
short-range (Bluetooth®). 3.12.1.3 To calculate the schedule setting
7. Select product. 1. Calculate the dimension of your lawn in m2 /
yd2.
8. Obey the instructions in the Automower®
Connect app. 2. Divide the m2 / yd2 of the lawn with the
approximate operation capacity. Refer to
3.12 Settings in Automower® Connect table below.
3. The result is equal to the number of hours
The product has factory settings but
that the product must operate each day.
the settings can be adapted to each
work area. Note: The operation capacity is approximate and
is calculated for flat and open work area. If the
3.12.1 Schedule work area has a lot of slopes or obstacles, you
need to increase the Schedule settings.
In Schedule you can change the
schedule settings for the product. To
change the settings, obey the Model Approximate operation ca-
instructions in the Automower® pacity, m2 / yd2 / h
Connect app.
Automower® 146 / 175
435X AWD
The schedule function controls which work hours
the product should operate and not operate.
Example: A lawn of 500 m2 / 600 yd2, cut with an
When the product is not operating it is parked in
Automower® 435X AWD.
the charging station. The operating hours and
days can be seen in an overview in the 500 m2 / 146 ≈ 3.5 h.
Automower® Connect app.
600 yd2 / 175 ≈ 3.5 h.
1404 - 002 - Installation - 31Days / h / day Schedule settings 3.12.2.2 ECO mode
week If ECO mode is activated, it switches off the
signal in the boundary loop, the guide wire and
7 3.5 10:00 - 13:30 / 10 the charging station, when the product is parked
am - 1.30 pm or is charging.
3.12.2 Operation Note: Use ECO mode to save energy and avoid
interference with other equipment, for example
In Operation you can change the
hearing loops or garage doors.
operation settings of the product. To
change the settings, obey the
instructions in the Automower®
Note: To start the product manually in the work
Connect app.
area, push the STOP button before you remove
the product from the charging station. If not, the
3.12.2.1 Weather timer product can not be started in the work area.
The Weather timer automatically adjust the
cutting time to the growth of the grass. The
To set the ECO mode
product is not permitted to operate more than the
schedule settings. 1. Select Settings > Operation in the app.
2. Select on/off to enable or disable the ECO
Note: When using Weather timer, it is mode function.
recommended to make as much operating time
as possible available for the Weather timer. Do 3. Select Save.
not restrict the schedule more than necessary. 3.12.3 Installation
In Installation you can change the
The first operation of the day is set by the installation settings of the product. To
schedule settings. The product always complete change the settings, obey the
1 mowing cycle, and then the Weather timer instructions in the Automower®
selects if the product will continue to operate or Connect app.
not.
Note: The Weather timer is reset if the product 3.12.3.1 To find the charging station
does not operate for more than 50 hours, or if a The product can be set to search for the charging
Reset of all user settings is done. The Weather station in 3 methods:
timer is not changed if a Reset of schedule
settings is done. • Charging station signal
• Follow boundary wire
• Follow guide wire
To set the Weather timer
The factory setting is set to use the 3 search
1. Select Settings > Operation in the app.
methods at the same time. Use the factory
2. Select on/off to enable or disable the setting to find the charging station as fast as
Weather timer. possible and to keep the risk of tracks on the
Note: If the cutting results are not lawn to a minimum. The product always starts to
satisfactory, the cutting time can be search for the Charging station signal. After a
adjusted. Set the cutting time High to cut for specified time interval, it also uses Follow guide
a longer time or Low to cut for a shorter and Follow boundary wire.
time. Causes why the product cannot follow the wire:
3. Select Save. • Obstacles near the wire have not been
isolated.
• The charging station, the boundary wire or
the guide wire are not installed according to
32 - Installation 1404 - 002 -the instructions in To examine where to put used even if manual settings have been
the charging station on page 20, To examine made. Only when GPS service is not
where to put the boundary wire on page 21 available, the manual settings are used.
and in To examine where to put the guide
wire on page 25. 3. Select Save.
To change the signal range of the charging To set the Lawn Coverage function
station The Lawn Coverage function is used to guide the
For some installations it is necessary to decrease product to remote parts of the work area. If the
the signal of the charging station. For example work area includes remote parts that are
when the charging station is put near an obstacle connected with narrow passages, the Lawn
such as a bush or wall and the signal reaches to Coverage function is useful to to keep a well-cut
the other side of the obstacle. The product knows lawn in all parts of the yard. You can set a
that it is close to the charging station and tries to maximum of 5 remote areas where the product
dock, but the objects prevents it. The options are starts to cut the lawn.
min, avg (average) or max.
Each area can be enabled or disabled, without
Note: It is usually better to move the charging having to enter the settings again.
station, than to decrease the range of the
charging station signal. 1. Select Settings > Installation > Lawn
coverage in the app.
2. Select on/off to disable the GPS function to
1. Select Settings > Installation > Find charging
set the Lawn Coverage.
station in the app.
3. Select on/off Area 1-5 to activate the area.
2. Select signal range.
4. Move the horizontal bar to set which wire the
3. Select Save.
product will follow. The product can follow
To set the delay time for the guide wire and the Boundary wire left, Boundary wire right or
boundary wire one of the guide wires.
1. Select Settings > Installation > Find charging 5. Move the horizontal bar to set the distance
station in the app. the product must follow the wire. The
2. Select on/off to enable or disable to follow product then leaves the wire and starts to
the wire. cut the lawn. Refer to To measure the
distance from the charging station on page
3. Move the horizontal bar to set the time 34.
delay.
6. Move the horizontal bar to set how often the
4. Select Save. product goes to each area. At all other
3.12.3.2 Lawn coverage times, the products starts to cut near the
charging station. The percentage is equal to
The product has GPS Assisted Navigation that the percentage of the area in relation to the
helps the product select the most optimal complete work area.
operation.
a) Measure the area.
Use the Lawn coverage function to set the b) Divide the area with the complete work
settings to manual. area.
To set the GPS function c) Convert the result to %.
1. Select Installation > Settings > Lawn d) Move the horizontal bar to set the
coverage in the app. distance from the charging station.
2. Select on/off to disable or enable the GPS 7. Select Save.
function. The default settings lets the product follow the
Note: When GPS assisted navigation is guide wire 300 m / 980 ft. in 20% of the times it
enabled it is used while there is a GPS leaves the charging station. If the guide wire is
service. The GPS assisted navigation is less than 300 m / 980 ft. the product will follow it
1404 - 002 - Installation - 33to the point where the guide wire is connected to area with limited space, for example under a
the boundary wire. veranda.
To measure the distance from the charging Note: Starting point must not be set to a distance
station longer than the distance the guide wire is
installed in a line in front of the charging station.
1. Put the product in the charging station.
Refer to To examine where to put the guide wire
2. Select Settings > Installation > Lawn on page 25.
coverage in the app.
3. Move the horizontal bar to set the distance
To set the starting point
to the charging station to maximum.
1. Select Settings > Installation > Starting point
4. Select Test: Area 1-5 setup.
in the app.
5. Follow the instructions in the app to start the
2. Move the horizontal bar to set the distance.
test.
3. Select Save.
6. Push the STOP button when the product is
at the distance you select to measure. The 3.12.4 Accessories
distance shows in the app.
In Accessories you can change the
To do a test of the Lawn Coverage function settings of the product accessories. To
1. Put the product in the charging station. change the settings, obey the
2. Select Settings > Installation > Lawn instructions in the Automower®
coverage in the app. Connect app.
3. Select Test: Area 1-5 setup.
3.12.4.1 Headlights
4. Follow the instructions in the app to start the
test. There are 4 different headlight settings that
control when the headlights are on:
5. The product will run to the starting point for
this area. • Always ON
3.12.3.3 Drive Past Wire • Evening only (19:00-00:00)
• Evening and night (19:00-07:00)
The front of the product always moves past the
boundary wire by a specified distance before the • Always OFF
product moves back into the work area. The The default setting is Always ON.
factory setting for the Drive Past Wire function
function is 31 cm. You can select a distance of To set the headlight settings
20-50 cm. 1. Select Settings > Accessories in the app.
Note: With the factory setting the product will cut 2. Move the horizontal bar to change the
11 cm past the wire. settings.
3. Select Save.
To set the Drive past wire To set the headlight to flash when fault
1. Select Settings > Installation > Drive past The factory setting is that Flashes when fault is
wire in the app. enabled. The headlights flashes if the product
stops to operate because of a fault.
2. Move the horizontal bar to set the distance.
3. Select Save. 1. Select Settings > Accessories in the app.
2. Select on/off to enable or disable the
3.12.3.4 Starting point function.
The Starting point function allows you to control 3. Select Save.
how far the product drives forward from the
charging station before it starts to operate. Use
this function if the charging station is placed in an
34 - Installation 1404 - 002 -You can also read
