2018-2021
JUDY, 30, RECON
SERVICE MANUAL
GEN.0000000006173 Rev A © 2020 SRAM, LLC
SRAM LLC WARRANTY
EXTENT OF LIMITED WARRANTY
Except as otherwise set forth herein, SRAM warrants (i) Zipp MOTO Rims to be free from defects in materials or workmanship for the lifetime of the product, and (ii)
its other products to be free from defects in materials or workmanship for a period of two years after original purchase. This warranty only applies to the original
owner and is not transferable. Claims under this warranty must be made through the retailer where the bicycle or the SRAM component was purchased. Original
proof of purchase is required. Except as described herein, SRAM makes no other warranties, guaranties, or representations of any type (express or implied),
and all warranties (including any implied warranties of reasonable care, merchantibility, or fitness for a particular purpose) are hereby disclaimed.
LOCAL LAW
This warranty statement gives the customer specific legal rights. The customer may also have other rights which vary from state to state (USA), from province to
province (Canada), and from country to country elsewhere in the world.
To the extent that this warranty statement is inconsistent with the local law, this warranty shall be deemed modified to be consistent with such law, under such
local law, certain disclaimers and limitations of this warranty statement may apply to the customer. For example, some states in the United States of America, as
well as some governments outside of the United States (including provinces in Canada) may:
a. Preclude the disclaimers and limitations of this warranty statement from limiting the statutory rights of the consumer
(e.g. United Kingdom).
b. Otherwise restrict the ability of a manufacturer to enforce such disclaimers or limitations.
FOR AUSTRALIAN CUSTOMERS:
This SRAM limited warranty is provided in Australia by SRAM LLC, 1000 W. Fulton Market, 4th Floor, Chicago, IL, 60607, USA. To make a warranty claim please
contact the retailer from whom you purchased this SRAM product. Alternatively, you may make a claim by contacting SRAM Australia, 6 Marco Court, Rowville
3178, Australia. For valid claims SRAM will, at its option, either repair or replace your SRAM product. Any expenses incurred in making the warranty claim are
your responsibility. The benefits given by this warranty are additional to other rights and remedies that you may have under laws relating to our products. Our
goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and
for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of
acceptable quality and the failure does not amount to a major failure.
LIMITATIONS OF LIABILITY
To the extent allowed by local law, except for the obligations specifically set forth in this warranty statement, in no event shall SRAM or its third party suppliers be
liable for direct, indirect, special, incidental, or consequential damages.
LIMITATIONS OF WARRANTY
This warranty does not apply to products that have been incorrectly installed, adjusted, and/or maintained according to the respective SRAM user manual. The
SRAM user manuals can be found online at sram.com, quarq.com, or zipp.com.
This warranty does not apply to damage to the product caused by a crash, impact, abuse of the product, non-compliance with manufacturers specifications of
usage or any other circumstances in which the product has been subjected to forces or loads beyond its design.
This warranty does not apply when the product has been modified, including, but not limited to any attempt to open or repair any electronic and electronic related
components, including the motor, controller, battery packs, wiring harnesses, switches, and chargers.
This warranty does not apply when the serial number or production code has been deliberately altered, defaced or removed.
SRAM components are designed for use only on bicycles that are pedal powered or pedal assisted (e-MTB/Pedelec).
To qualify for the warranty, Eagle Chain, Cassette, and Rear Derailleur must be used with a SRAM 1-Click shifter when used on e-MTB/Pedelec style bicycles.
Zipp 3ZERO MOTO Rims and wheels comply with ASTM F2043-13 5.1.4, Conditions 1, 2, 3, and 4 for use of bicycle components on paved roads, rough trails,
rough unpaved roads, rough terrain and unimproved trails that require technical skills, and downhill grades on rough trails at speeds less than 40 km/h (25
mph). Jumps are intended to be less than 122 cm (48 in.).
This warranty does not apply to damage to Zipp MOTO Rims outside of intended use (Trail/Enduro) situations or incurred in connection with Downhill/Dual Crown
bicycles.
All Zipp MOTO Rim warranty claims will be evaluated by a SRAM/Zipp Authorized Service Location.
This warranty does not apply to normal wear and tear. Wear and tear parts are subject to damage as a result of normal use, failure to service according to SRAM
recommendations and/or riding or installation in conditions or applications other than recommended.
WEAR AND TEAR PARTS ARE IDENTIFIED AS:
• Dust seals • Stripped threads/bolts (aluminium, • Handlebar grips • Transmission gears
• Bushings titanium, magnesium or steel) • Shifter grips • Spokes
• Air sealing o-rings • Brake sleeves • Jockey wheels • Free hubs
• Glide rings • Brake pads • Disc brake rotors • Aero bar pads
• Rubber moving parts • Chains • Wheel braking surfaces • Corrosion
• Foam rings • Sprockets • Bottomout pads • Tools
• Rear shock mounting • Cassettes • Bearings • Motors
hardware and main seals • Shifter and brake cables • Bearing races • Batteries
• Upper tubes (stanchions) (inner and outer) • Pawls • Driver Bodies
Notwithstanding anything else set forth herein, the battery pack and charger warranty does not include damage from power surges, use of improper charger,
improper maintenance, or such other misuse.
This warranty shall not cover damages caused by the use of parts of different manufacturers.
This warranty shall not cover damages caused by the use of parts that are not compatible, suitable and/or authorised by SRAM for use with SRAM components.
This warranty shall not cover damages resulting from commercial (rental) use.
SAFETY FIRST!
We care about YOU. Please, always wear your safety glasses
and protective gloves when servicing RockShox products.
Protect yourself! Wear your safety gear!
TABLE OF CONTENTS
ROCKSHOX SERVICE...........................................................................................................................................................................................6
PART PREPARATION .......................................................................................................................................................................................................................................6
SERVICE PROCEDURES..................................................................................................................................................................................................................................6
PARTS, TOOLS, AND SUPPLIES...................................................................................................................................................................................................................7
RECOMMENDED SERVICE INTERVALS.....................................................................................................................................................................................................8
RECORD YOUR SETTINGS.............................................................................................................................................................................................................................8
TORQUE VALUES..............................................................................................................................................................................................................................................8
OIL VOLUME AND LUBRICANT - 2018.......................................................................................................................................................................................................9
OIL VOLUME AND LUBRICANT - 2019..................................................................................................................................................................................................... 10
OIL VOLUME AND LUBRICANT - 2020..................................................................................................................................................................................................... 11
OIL VOLUME AND LUBRICANT - 2021..................................................................................................................................................................................................... 12
EXPLODED VIEW - 2018-2021 JUDY GOLD RL - SOLO AIR ........................................................................................................................ 13
EXPLODED VIEW - 2018-2021 JUDY SILVER TK - SOLO AIR ......................................................................................................................14
EXPLODED VIEW - 2021 JUDY TK - COIL ......................................................................................................................................................15
EXPLODED VIEW - 2018-2020 30 GOLD RL / 2021 JUDY GOLD RL - SOLO AIR ....................................................................................16
EXPLODED VIEW - 2018-2020 30 SILVER TK / 2021 JUDY SILVER TK - SOLO AIR ............................................................................... 17
EXPLODED VIEW - 2018-2020 30 SILVER TK / 2021 JUDY SILVER TK - COIL.........................................................................................18
EXPLODED VIEW - 2021 RECON GOLD RL - DEBONAIR ............................................................................................................................19
EXPLODED VIEW - 2018-2020 RECON GOLD RL - SOLO AIR ................................................................................................................... 20
EXPLODED VIEW - 2018-2020 RECON RL / 2021 RECON SILVER RL - SOLO AIR .................................................................................21
EXPLODED VIEW - 2020 RECON RL (BOOST) / 2021 RECON SILVER RL (BOOST) - SOLO AIR.......................................................... 22
EXPLODED VIEW - 2018-2020 RECON TK / 2021 RECON SILVER TK - COIL.......................................................................................... 23
EXPLODED VIEW - 2020 RECON TK (BOOST) / 2021 RECON SILVER TK (BOOST) - COIL.................................................................. 24
LOWER LEG REMOVAL AND SERVICE........................................................................................................................................................... 25
50/200 HOUR SERVICE
LOWER LEG REMOVAL................................................................................................................................................................................................................................. 25
50 HOUR SERVICE
LOWER LEG SERVICE................................................................................................................................................................................................................................... 27
200 HOUR SERVICE
LOWER LEG SEAL SERVICE........................................................................................................................................................................................................................ 29
AIR SPRING SERVICE - JUDY GOLD, 30 GOLD, RECON GOLD................................................................................................................. 32
200 HOUR SERVICE
AIR SPRING REMOVAL AND SERVICE - GOLD..................................................................................................................................................................................... 32
ALL-TRAVEL SPACER CONFIGURATIONS (OPTIONAL)..................................................................................................................................................................... 38
ALL-TRAVEL SPACERS - JUDY GOLD, 30 GOLD, RECON GOLD - SOLO AIR............................................................................................................................. 38
AIR SPRING AND ALL-TRAVEL SPACER CONFIGURATIONS - JUDY GOLD, 30 GOLD, RECON GOLD - SOLO AIR...................................................... 39
BOTTOMLESS TOKENS (OPTIONAL) - 2021 RECON GOLD............................................................................................................................................................. 40
ALL-TRAVEL SPACERS AND BOTTOMLESS TOKENS - 2021 RECON GOLD - DEBONAIR..................................................................................................... 40
AIR SPRING AND ALL-TRAVEL SPACER CONFIGURATIONS - 2 0 2 1 R E C O N G O L D .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 0
BOTTOMLESS TOKENS INSTALLATION (OPTIONAL) - 2021 RECON GOLD - DEBONAIR...................................................................................................... 41
AIR SPRING INSTALLATION - GOLD........................................................................................................................................................................................................ 42
AIR SPRING SERVICE - JUDY SILVER, 30 SILVER, RECON SILVER RL..................................................................................................... 46
EXPLODED VIEW............................................................................................................................................................................................................................................ 46
200 HOUR SERVICE
AIR SPRING REMOVAL AND SERVICE - SILVER....................................................................................................................................................................................47
ALL-TRAVEL SPACER CONFIGURATIONS (OPTIONAL) - SILVER...................................................................................................................................................50
TRAVEL CONFIGURATIONS - JUDY SILVER, 30 SILVER, RECON SILVER RL.............................................................................................................................. 51
AIR SPRING INSTALLATION - SILVER...................................................................................................................................................................................................... 52
COIL SPRING SERVICE - 30 SILVER, JUDY SILVER, RECON SILVER TK................................................................................................. 55
200 HOUR SERVICE
COIL SPRING REMOVAL AND SERVICE................................................................................................................................................................................................ 55
COIL SPRING INSTALLATION.................................................................................................................................................................................................................... 57
DAMPER SERVICE - JUDY GOLD, 30 GOLD, RECON GOLD...................................................................................................................... 59
200 HOUR SERVICE
DAMPER REMOVAL...................................................................................................................................................................................................................................... 59
DAMPER SERVICE......................................................................................................................................................................................................................................... 64
REBOUND DAMPER INSTALLATION....................................................................................................................................................................................................... 67
COMPRESSION DAMPER INSTALLATION............................................................................................................................................................................................. 68
DAMPER SERVICE - JUDY SILVER, 30 SILVER, RECON SILVER RL, RECON SILVER TK.......................................................................73
200 HOUR SERVICE
DAMPER REMOVAL...................................................................................................................................................................................................................................... 73
DAMPER SERVICE......................................................................................................................................................................................................................................... 78
REBOUND DAMPER INSTALLATION....................................................................................................................................................................................................... 79
COMPRESSION DAMPER INSTALLATION.............................................................................................................................................................................................. 81
LOWER LEG ASSEMBLY....................................................................................................................................................................................87
50/200 HOUR SERVICE
LOWER LEG INSTALLATION...................................................................................................................................................................................................................... 87
RockShox Service
We recommend that you have your RockShox suspension serviced by a qualified bicycle mechanic. Servicing RockShox suspension requires
knowledge of suspension components, as well as the use of specialized tools and lubricants/fluids. Failure to follow the procedures outlined in this
service manual may cause damage to your component and void the warranty.
Visit www.sram.com/service for the latest RockShox Spare Parts catalog and technical information. For order information, please contact your local
SRAM distributor or dealer.
Information contained in this publication is subject to change at any time without prior notice.
Your product's appearance may differ from the pictures contained in this publication.
For recycling and environmental compliance information, please visit www.sram.com/company/environment.
Part Preparation
Remove the component from the bicycle before service.
Disconnect and remove the remote cable or hydraulic hose from the fork or rear shock, if applicable. For additional information about RockShox
remotes, user manuals are available at www.sram.com/service.
Clean the exterior of the product with mild soap and water to avoid contamination of internal sealing part surfaces.
Service Procedures
The following procedures should be performed throughout service, unless otherwise specified.
Clean the part with isopropyl alcohol or RockShox Suspension Cleaner and
a clean, lint-free shop towel. For hard to reach places (e.g. upper tube, lower
leg), wrap a clean, lint-free shop towel around a non-metallic dowel to clean
the inside.
Clean the sealing surface on the part and inspect it for scratches.
Replace the o-ring or seal with a new one from the service kit. Use your
fingers or a pick to pierce and remove the old seal or o-ring.
Apply Liquid-O-Ring PM600 or SRAM Butter grease to the new seal
or o-ring.
NOTICE
Do not scratch any sealing surfaces when servicing the product. Scratches
can cause leaks. Consult the spare parts catalog to replace the
damaged part.
Use aluminum soft jaws when placing a part in a bench vise. Specified torque value in N·m (in-lb)
Tighten the part with a torque wrench to the torque value listed in the red bar.
When using a crowfoot socket and torque wrench, install the crowfoot socket
at 90 degrees to the torque wrench.
RockShox Service 6
P a r t s , To o l s , a n d S u p p l i e s
Parts Bicycle Tools
• RockShox Judy, 30, or Recon 200 Hour Service Kit • Bicycle work stand
Safety and Protection Supplies • Downhill tire lever
• Apron Common Tools
• Clean, lint-free shop towels • Dowel - plastic or wood (≤10 mm diameter)
• Nitrile gloves • Dowel - plastic or wood (15 mm - 17 mm diameter)
• Oil pan • Flat blade screwdriver
• Safety glasses • Hex bit sockets: 2, 2.5, 5 mm
Lubricants and Fluids • Hex wrenches: 2, 2.5, 5, 8, 10 mm
• Isopropyl alcohol or RockShox Suspension Cleaner • Internal retaining ring pliers - large
• Liquid-O-Ring PM600 • Pick
• RockShox 5wt Suspension Oil • Rubber or plastic mallet
• RockShox 15wt Suspension Oil • Socket: 24 mm or RockShox x Abbey Bike Tools 24 mm Top Cap Socket
• SRAM Butter grease • Socket wrench
RockShox Tools • Torque wrench
• RockShox Bleed Syringe
• RockShox Dust Seal Installation Tool (28 mm/30 mm): Judy / 30
• RockShox Dust Seal Installation Tool (32 mm): Recon non-Boost
• RockShox Dust Seal Installation Tool Flangeless (32 mm) or
RockShox x Abbey Bike Tools Flangeless Dust Seal Installation Tool:
Recon Boost
• RockShox Shock Pump
SAFETY INSTRUCTIONS
Always wear safety glasses and nitrile gloves when working with suspension oil.
Place an oil pan on the floor underneath the area where you will be working on the suspension fork.
Parts, Tools, and Supplies 7
Recommended Service Intervals
Regular service is required to keep your RockShox product working at peak performance. Follow this maintenance schedule and install the service
parts included in each service kit that corresponds with the Service Hours Interval recommendation below. For spare part kit contents and details,
refer to the RockShox Spare Parts Catalog at www.sram.com/service.
Service Hours Interval Maintenance Benefit
Extends wiper seal lifespan
Every ride Clean dirt from upper tubes and wiper seals Minimizes damage to upper tubes
Minimizes lower leg contamination
Restores small bump sensitivity
Every 50 Hours Perform lower leg service Reduces friction
Extends bushing lifespan
Extends suspension lifespan
Every 200 Hours Perform damper and spring service Restores small bump sensitivity
Restores damping performance
R e c o r d Yo u r S e t t i n g s
Use the table below to record your suspension settings to return your suspension to its pre-service settings. Record your service dates to track
service intervals.
Rebound setting - Count the
number of clicks while turn-
Service Hours Interval Date of Service Air Pressure
ing the rebound adjuster fully
counter-clockwise.
50
100
150
200
To r q u e Va l u e s
Part Tool Torque
Bottom bolts 5 mm hex bit socket 6.8 N•m (60 in-lb)
Pinch bolt - remote cable stop clamp
2 mm hex bit socket 0.6 - 1.1 N•m (6 - 10 in-lb)
(2018 Recon Gold RL R)
Retaining screw - coil spring preload adjuster knob, compression knob,
2.5 mm hex bit socket 1.4 N•m (12 in-lb)
and remote spool
Set screw - remote cable stop collar
2 mm hex bit socket 0.25 - 0.6 N•m (2.2 - 5.3 in-lb)
(2018-2019 Judy Gold RL R / 2019 30 Gold RL R / 2019 Recon Gold RL R)
Set screw - remote cable stop collar
(2020-2021 Judy Gold RL R / 2020-2021 Judy Silver TK R / Finger Tight or
2 mm hex bit socket
2020 30 Gold RL R / 30 Silver TK R / 2020-2021 Recon Gold RL R / 0.1-0.3 N•m (0.8-2.6 in-lb)
2020-2021 Recon RL R / 2020-2021 Recon TK R)
Top caps 24 mm socket 12.4 N•m (110 in-lb)
Recommended Service Intervals 8
Oil Volume and Lubricant - 2018
Damper Spring
Upper Tube Lower Leg Upper Tube Lower Leg
Travel Oil
Fork Model Damper Spring
(mm) Oil Oil Oil Weight‡ Oil
Volume Volume Volume Volume
Weight Height* Weight (wt) Weight
(mL) (mL) (mL) (mL)
(wt) (mm) (wt) and/or (wt)
Grease
RL 27.5" B† Motion
Judy Gold 102
RL 29" B† Control
80-120 5 80-85 15 6 Solo Air 5‡ 2 15 6
TK 27.5" B†
Judy Silver TurnKey 122
TK 29" B†
RL 26" 80-100 85
Motion
30 Gold 5 80-85 15 5 Solo Air 5‡ 2 15 10
RL 27.5" Control
80-120 102
RL 29"
TK 26" 100 Solo Air 5‡ 2
PM600 Grease
80-120 Coil or SRAM Coil
TK 27.5" Butter Spring
30 Silver TurnKey 5 80-85 15 5 Solo Air 5‡ 2 15 10
122
PM600 Grease
Coil or SRAM Coil
TK 29" 80-100 Butter Spring
Solo Air 5‡ 2
RL 27.5" 80-130
RL 27.5" B† 80-150
Motion
Recon Gold 5 80-85 130 15 6 Solo Air 5‡ 2 15 6
Control
RL 29" 80-130
RL 29" B† 80-140
80-120 118
RL 27.5"
RL 29"
130-140 150
Motion Solo Air 5‡ 2 6
Control
RL 27.5" B† 80-150
Recon 5 80-85 15 6 15
140
RL 29" B† 80-140
PM600 Grease
TK 27.5" 80-100 TurnKey 118 Coil or SRAM Coil 9
TK 29" Butter Spring
*Oil Height - Measure from the top of the crown (above the upper tube) down to the oil.
†Boost (15 mm x 110 mm)
‡Apply grease (PM600 or SRAM Butter) to the air piston in addition to suspension oil.
Oil Volume and Lubricant - 2018 9
Oil Volume and Lubricant - 2019
Damper Spring
Upper Tube Lower Leg Upper Tube Lower Leg
Travel Oil
Fork Model Damper Spring
(mm) Oil Oil Oil Weight‡ Oil
Volume Volume Volume Volume
Weight Height* Weight (wt) Weight
(mL) (mL) (mL) (mL)
(wt) (mm) (wt) and/or (wt)
Grease
RL 27.5" B† Motion
Judy Gold 102
RL 29" B† Control
80-120 5 80-85 15 6 Solo Air 5‡ 2 15 6
TK 27.5" B†
Judy Silver TurnKey 122
TK 29" B†
RL 26" 80-100 85
Motion
30 Gold 5 80-85 15 5 Solo Air 5‡ 2 15 10
RL 27.5" Control
80-120 102
RL 29"
TK 26" 100 Solo Air 5‡ 2
PM600 Grease
80-120 Coil or SRAM Coil
TK 27.5" Butter Spring
30 Silver TurnKey 5 80-85 15 5 Solo Air 5‡ 2 15 10
122
PM600 Grease
Coil or SRAM Coil
TK 29" 80-100 Butter Spring
Solo Air 5‡ 2
RL 27.5" Motion
Recon Gold 80-130 5 80-85 130 15 6 Solo Air 5‡ 2 15 6
RL 29" Control
80-120 118
RL 27.5"
RL 29"
130-140 150
Motion Solo Air 5‡ 2 6
Control
RL 27.5" B† 80-150
Recon 5 80-85 15 6 15
140
RL 29" B† 80-140
PM600 Grease
TK 27.5" 80-100 TurnKey 118 Coil or SRAM Coil 9
TK 29" Butter Spring
*Oil Height - Measure from the top of the crown (above the upper tube) down to the oil.
†Boost (15 mm x 110 mm)
‡Apply grease (PM600 or SRAM Butter) to the air piston in addition to suspension oil.
Oil Volume and Lubricant - 2019 10Oil Volume and Lubricant - 2020
Damper Spring
Upper Tube Lower Leg Upper Tube Lower Leg
Travel Oil
Fork Model Damper Spring
(mm) Oil Oil Oil Weight‡ Oil
Volume Volume Volume Volume
Weight Height* Weight (wt) Weight
(mL) (mL) (mL) (mL)
(wt) (mm) (wt) and/or (wt)
Grease
RL 27.5" B† Motion
Judy Gold 102
RL 29" B† Control
80-120 5 80-85 15 6 Solo Air 5‡ 2 15 6
TK 27.5" B†
Judy Silver TurnKey 122
TK 29" B†
RL 26" 80-100 85
Motion
30 Gold Control 5 80-85 15 5 Solo Air 5‡ 2 15 10
RL 27.5" 80-120 102
RL 29"
TK 26" 100 Solo Air 5‡ 2
PM600 Grease
80-120 Coil or SRAM Coil
TK 27.5" 122 Butter Spring
30 Silver TurnKey 5 80-85 15 5 Solo Air 5‡ 2 15 10
PM600 Grease
Coil or SRAM Coil
TK 29" 80-100 123 Butter Spring
Solo Air 5‡ 2
RL 27.5"
RL 27.5" B† Motion
Recon Gold 80-130 5 80-85 130 15 6 Solo Air 5‡ 2 15 6
RL 29" Control
RL 29" B†
80-120 118
RL 27.5" 80-85
RL 29"
130-140 Motion 150
Control Solo Air 5‡ 2 6
RL 27.5" B† 80-150 91-96 140
RL 29" B†
Recon 5 15 6 15
TK 27.5" 80-100 80-85 118
TK 29" PM600 Grease
TurnKey Coil or SRAM Coil 9
TK 27.5" B† Butter Spring
80-150 86-91 140
TK 29" B†
*Oil Height - Measure from the top of the crown (above the upper tube) down to the oil.
†Boost (15 mm x 110 mm)
‡Apply grease (PM600 or SRAM Butter) to the air piston in addition to suspension oil.
Oil Volume and Lubricant - 2020 11Oil Volume and Lubricant - 2021
Damper Spring
Upper Tube Lower Leg Upper Tube Lower Leg
Travel Oil
Fork Model Damper Spring
(mm) Oil Oil Oil Weight‡ Oil
Volume Volume Volume Volume
Weight Height* Weight (wt) Weight
(mL) (mL) (mL) (mL)
(wt) (mm) (wt) and/or (wt)
Grease
RL 26" 80-100 85 10
5
RL 27.5"
RL 29" Motion
Judy Gold Control
80-120 102 6
RL 27.5" B† 6
RL 29" B† Solo Air 5‡ 2
TK 26" 80-100 100
15 15
TK 27.5" 80-120 123
5 80-85
TK 29" 80-100 122 5 10
Judy Silver TurnKey
TK 27.5" 80-120 123 PM600 Grease
Coil or SRAM Coil
TK 29" 80-100 122 Butter Spring
TK 27.5" B†
TK 29" B† 80-130 122 6 Solo Air 5‡ 2 6
TK 27.5" 80-120 PM600 Grease
Judy TurnKey 143 - - Coil or SRAM Coil - -
TK 29" 80-100 Butter Spring
RL 27.5" B† Motion
Recon Gold 80-150 5 80-85 130 15 6 DebonAir 5‡ 2 15 6
RL 29" B† Control
100-120 118
RL 27.5" 80-85
RL 29"
130-140 Motion 150
Control Solo Air 5‡ 2 6
RL 27.5" B† 80-150 91-96 140
RL 29" B†
Recon Silver 5 15 6 15
TK 27.5" 80-100 80-85 118
TK 29" PM600 Grease
TurnKey Coil or SRAM Coil 9
TK 27.5" B† Butter Spring
TK 29" B† 80-120 86-91 140
*Oil Height - Measure from the top of the crown (above the upper tube) down to the oil.
†Boost (15 mm x 110 mm)
‡Apply grease (PM600 or SRAM Butter) to the air piston in addition to suspension oil.
Oil Volume and Lubricant - 2021 12Exploded View - 2018-2021 Judy Gold RL - Solo Air
Air Spring Assembly
Steerer tube
Compression Damper
Air cap (2019-2021)
Assembly
Retaining screw
Rebound Damper
Air cap (2018)
Assembly
Compression adjuster knob
(2019-2021) Air valve
Air spring top cap
Compression adjuster knob
(2018) Crown
Compression damper top cap
Upper tube
Compression damper
Arch
Brake hose guide
Air spring piston
Top out bumper
Dust wiper seal
Foam ring
All-Travel spacer (optional)
Negative air seal head
Rebound damper piston
Retaining washer
Wave spring
Base plate
Rebound damper shaft
Retaining ring
Rebound damper seal head Air spring shaft
Retaining ring
2020-2021 Judy Gold RL R
Lower leg
Retaining screw
Set screw
Remote spool
Cable stop collar
Set screw
Maxle Stealth
2018-2019 Judy Gold RL R Crush washer
Crush washer retainer
Retaining screw
Bottom bolt
Upper remote spool
Lower remote spool
Cable stop collar
Set screw
Rebound adjuster knob
Exploded View - 2018-2021 Judy Gold RL - Solo Air 13Exploded View - 2018-2021 Judy Silver TK - Solo Air
Air Spring Assembly
Steerer tube
Air cap Compression Damper
(2019-2021) Assembly
Retaining screw
Air cap (2018) Rebound Damper
Compression adjuster knob Assembly
(2019-2021)
Air valve
Air spring top cap
Compression adjuster knob
(2018) Crown
Compression damper top cap
Air tube
Compression damper
Arch
Brake hose guide
Upper tube
Air spring piston
Dust wiper seal
Foam ring
Top out bumper
Negative air seal head
2020-2021 Judy Silver RL R
Rebound
Retaining screw damper piston
Set screw Shaft guide
Remote spool Rebound
damper shaft Retainer
Cable stop collar Rebound damper Air spring shaft
seal head
Set screw Retainer
Lower leg
2019 Judy Silver TK R
Retaining screw
Upper remote spool
Lower remote spool
Cable stop collar
Set screw
Maxle Stealth
2018 Judy Silver TK R
Crush washer
Crush washer retainer
Retaining screw
Bottom bolt
Set screw
Remote spool
Cable stop
Rebound adjuster knob
Exploded View - 2018-2021 Judy Silver TK - Solo Air 14Exploded View - 2021 Judy TK - Coil
Air Spring Assembly
Steerer tube Retaining screw
Compression Damper
Assembly
Preload adjuster knob
Retaining screw Rebound Damper
Spring top cap Assembly
Compression adjuster knob
Crown
Compression damper top cap
Upper tube
Compression damper
Arch
Brake hose guide
Coil spring
Dust wiper seal
Foam ring
Coil spring isolator
Rebound damper piston Negative spring
Shaft guide
Retainer
Rebound damper seal head
Retainer Coil spring shaft
Rebound damper shaft Lower leg
Crush washer
Crush washer retainer
Bottom bolt
Exploded View - 2021 Judy TK - Coil 15Exploded View - 2018-2020 30 Gold RL / 2021 Judy Gold RL - Solo Air
Steerer tube Air Spring Assembly
Air cap (2019-2021)
Retaining screw Compression Damper
Assembly
Air cap (2018)
Compression adjuster knob
(2019-2021) Rebound Damper
Air valve Assembly
Compression adjuster knob Air spring top cap
(2018)
Crown
Compression damper top cap
Compression damper Upper tube
Arch
Brake hose guide
Air spring piston
Dust wiper seal Top out bumper
Foam ring
All-Travel spacer (optional)
Negative air seal head
Rebound damper
2020-2021 Gold RL R piston
Retaining screw Retaining washer
Rebound Wave washer
Set screw
damper shaft Base plate
Remote spool
Retaining ring
Cable stop collar Rebound damper
seal head
Set screw Retaining ring
Air spring shaft
2019 Gold RL R
Retaining screw
Lower leg
Upper remote spool
Lower remote spool
Cable stop collar
Set screw
Crush washer
Crush washer retainer
2018 Gold RL R
Retaining screw Bottom bolt
Set screw
Remote spool
Cable stop
Rebound adjuster knob
Exploded View - 2018-2020 30 Gold RL / 2021 Judy Gold RL - Solo Air 16Exploded View - 2018-2020 30 Silver TK / 2021 Judy Silver TK - Solo Air
Steerer tube Air Spring Assembly
Air cap
(2019-2021)
Retaining screw Compression Damper
Assembly
Air cap (2018)
Compression adjuster knob Rebound Damper
(2019-2021) Assembly
Air valve
Compression adjuster knob Air spring top cap
(2018)
Crown
Compression damper top cap
Air tube
Upper tube
Compression damper
Arch
Brake hose guide
Dust wiper seal
Air spring piston
Foam ring
Top out bumper
Negative air seal head
2020-2021 Silver TK R
Retaining screw Rebound damper
piston
Set screw
Rebound damper
Remote spool shaft Shaft guide
Retainer
Cable stop collar
Rebound damper Air spring shaft
Set screw
seal head
Retainer Lower leg
2019 Silver TK R
Retaining screw
Upper remote spool
Lower remote spool
Cable stop collar
Set screw
2018 Silver TK R Crush washer
Crush washer retainer
Retaining screw
Bottom bolt
Set screw
Remote spool
Cable stop
Rebound adjuster knob
Exploded View - 2018-2020 30 Silver TK / 2021 Judy Silver TK - Solo Air 17Exploded View - 2018-2020 30 Silver TK / 2021 Judy Silver TK - Coil
Retaining screw Retaining screw Coil Spring Assembly
Steerer tube
Preload adjuster knob
Compression Damper
Compression adjuster knob
(2019-2021) Assembly
Spring top cap Rebound Damper
Compression adjuster knob
(2018) Assembly
Crown
Compression damper top cap
Coil spring
Upper tube
Compression damper
Coil spring isolator
Arch
Brake hose guide
Dust wiper seal
Foam ring
2020-2021 Silver TK R Rebound
damper piston Negative spring
Retaining screw Shaft guide
Set screw Retainer
Remote spool Rebound damper
seal head
Cable stop collar Retainer Lower leg
Set screw
Rebound damper shaft
Coil spring shaft
2019 Silver TK R
Retaining screw
Upper remote spool
Lower remote spool
Cable stop collar
Set screw
2018 Silver TK R Crush washer
Crush washer retainer
Retaining screw
Set screw Bottom bolt
Remote spool
Cable stop Rebound adjuster knob
Exploded View - 2018-2020 30 Silver TK / 2021 Judy Silver TK - Coil 18Exploded View - 2021 Recon Gold RL - DebonAir
Air Spring Assembly
Steerer tube
Compression Damper
Air cap Assembly
Air valve
Retaining screw Rebound Damper
Air spring top cap
Compression adjuster knob
Assembly
Bottomless Token 32 mm black (optional)
Detent spring
Compression damper top cap
Crown
Upper tube
Compression damper
Arch
Brake hose guide
Air spring piston
Dust wiper seal
Foam ring
Top out bumper
All-Travel spacer (optional)
Negative air piston
Rebound damper piston
Retaining washer
Wave spring
Base plate
Retaining ring
Rebound damper deal head
Retaining ring
Lower leg
Rebound damper shaft
2 0 2 1 Re c o n G o l d R L R
Retaining screw
Set screw
Remote spool Maxle Stealth
Crush washer
Crush washer retainer
Cable stop collar
Bottom bolt
Set screw
Rebound adjuster knob
Exploded View - 2021 Recon Gold RL - DebonAir 19Exploded View - 2018-2020 Recon Gold RL - Solo Air
Air Spring Assembly
Air cap (2019-2020)
Steerer tube
Retaining screw Compression Damper
Air cap (2018)
Assembly
Compression adjuster knob
(2019-2020) Air valve
Air spring top cap Rebound Damper
Compression adjuster knob Assembly
(2018)
Crown
Detent spring
Compression damper top cap
Compression damper Upper tube
Arch
Brake hose guide
Dust wiper seal Air spring piston
Foam ring
Top out bumper
Negative air piston
All-Travel spacer (optional)
Rebound damper piston Piston bumper
Retaining washer
2 0 2 0 Re c o n G o l d R L R Wave spring
Base plate
Retaining screw
Retaining ring
Set screw
Rebound damper
Remote spool seal head
Retaining ring
Cable stop collar
Set screw Lower leg
Rebound damper
shaft
2 0 1 9 Re c o n G o l d R L R
Retaining screw
Upper remote spool
Lower remote spool
Cable stop collar
Set screw
Maxle Stealth
Crush washer
Crush washer retainer
2 0 1 8 Re c o n G o l d R L R
Retaining screw Bottom bolt
Set screw
Remote spool
Cable stop clamp
Pinch bolt
Rebound adjuster knob
Exploded View - 2018-2020 Recon Gold RL - Solo Air 20Exploded View - 2018-2020 Recon RL / 2021 Recon Silver RL - Solo Air
Air Spring Assembly
Steerer tube
Air cap (2019-2021) Compression Damper
Retaining screw Assembly
Air cap (2018)
Compression adjuster knob Rebound Damper
(2019-2021) Air valve
Assembly
Compression adjuster knob Air spring top cap
(2018)
Detent spring Crown
Compression damper top cap
Air tube
Compression damper
Upper tube
Arch
Brake hose guide
Dust wiper seal
Air spring piston
Foam ring
Top out bumper
All-Travel spacer (optional)
2 0 2 0 - 2 0 2 1 Re c o n R L R Rebound
Negative air seal head
damper
Retaining screw piston
Set screw Rebound damper
Remote spool seal head
Retainer Air spring shaft
Cable stop collar
Set screw
Lower leg
Rebound
damper shaft
2019 Recon RL R
Retaining screw
Upper remote spool
Lower remote spool
Cable stop collar
Set screw
Maxle Lite
Crush washer
Crush washer retainer
2018 Recon RL R
Bottom bolt
Retaining screw
Set screw
Remote spool
Rebound adjuster knob
Cable stop
Exploded View - 2018-2020 Recon RL / 2021 Recon Silver RL - Solo Air 21Exploded View - 2020 Recon RL (Boost) / 2021 Recon Silver RL (Boost) - Solo Air
Steerer tube
Air cap Air Spring Assembly
Retaining screw
Air valve Compression Damper
Compression adjuster knob Air spring top cap
Assembly
Rebound Damper
Assembly
Detent spring
Air tube
Crown
Upper tube
Compression damper Arch
Brake hose guide
Air spring piston
Dust wiper seal
Foam ring Top out bumper
All-Travel spacer (optional)
Rebound damper piston
Seal head
Rebound damper seal head Air spring shaft
Retainer
Rebound damper shaft
Lower leg
2 0 2 0 - 2 0 2 1 Re c o n R L R
Retaining screw
Set screw Crush washer
Remote spool Crush washer retainer
Maxle Stealth Bottom bolt
Remote cable
stop collar
Set screw
Rebound adjuster knob
Exploded View - 2020 Recon RL (Boost) / 2021 Recon Silver RL (Boost) - Solo Air 22Exploded View - 2018-2020 Recon TK / 2021 Recon Silver TK - Coil
Steerer tube Retaining Air Spring Assembly
screw
Retaining screw
Preload Compression Damper
adjuster knob
Assembly
Compression adjuster knob
(2019-2021)
Rebound Damper
Top cap
Assembly
Compression adjuster knob
(2018) Crown
Compression damper top cap
Coil spring
Coil spring isolator
Compression damper
Arch
Upper tube Brake hose guide
Dust wiper seal
Foam ring
Negative spring
Shaft guide
Rebound damper Retainer
piston
2 0 2 0 - 2 0 2 1 Re c o n T K R
Rebound damper
Retaining screw seal head Lower leg
Retainer
Set screw
Remote spool
Spring shaft
Cable stop collar
Set screw Rebound damper shaft
2019 Recon TK R
Retaining screw
Upper remote spool
Lower remote spool
Cable stop collar
Set screw
Maxle Lite
Crush washer
Crush washer retainer
2018 Recon TK R Bottom bolt
Retaining screw
Set screw
Remote spool
Rebound adjuster knob
Cable stop
Exploded View - 2018-2020 Recon TK / 2021 Recon Silver TK - Coil 23Exploded View - 2020 Recon TK (Boost) / 2021 Recon Silver TK (Boost) - Coil
Retaining screw Coil Spring Assembly
Steerer tube
Preload adjuster knob
Compression Damper
Retaining screw Assembly
Rebound Damper
Compressionadjuster knob Assembly
Compression damper top cap
Coil spring assembly
Crown
Upper tube
Compression damper
Arch
Brake hose guide
Dust wiper seal Coil spring isolator
Foam ring
Rebound damper piston
Retainer
Rebound damper seal head
Coil spring shaft
Retainer
Rebound damper shaft
Lower leg
2 0 2 0 - 2 0 2 1 Re c o n T K R
Retaining screw
Set screw
Remote spool Crush washer
Crush washer retainer
Maxle Stealth
Bottom bolt
Remote cable
stop collar
Set screw
Rebound adjuster knob
Exploded View - 2020 Recon TK (Boost) / 2021 Recon Silver TK (Boost) - Coil 24Lower Leg Removal and Service
50/200 Hour Service Lower Leg Removal
Solo Air / DebonAir: Remove the air valve cap.
1
Solo Air / DebonAir: Depress the Schrader valve and release all air
2 pressure.
⚠ CAUTION - EYE HAZARD
Verify all pressure is removed from the fork before proceeding.
Failure to do so can result in injury and/or damage to the fork. Wear
safety glasses.
Turn the rebound adjuster knob counter-clockwise until it stops. This is
3 the full open/fast rebound setting.
Remove the rebound adjuster knob.
Lower Leg Removal and Service 25Place an oil pan beneath the fork to catch the draining oil.
4 5 mm Damper side
Loosen both bottom bolts 3 to 4 turns.
5 mm Spring side
Insert a 5 mm hex wrench into each bottom bolt head and strike the
5 wrench to dislodge the shafts from the lower leg. The bolt head should
Spring side
contact the bottom of the lower leg.
Remove each bottom bolt. Clean each bolt and set them aside.
5 mm and Mallet Spring side
Damper side
5 mm and Mallet Damper side
Firmly pull the lower leg downward until oil begins to drain. Continue
6 pulling downward to remove the lower leg.
If the lower leg does not slide off of the upper tube or if oil does not
drain from either side, the press fit of the shaft(s) into the lower leg may
still be engaged. Reinstall the bottom bolts 2 to 3 turns and repeat the
previous step.
NOTICE
Do not strike the fork arch with any tool when removing the lower leg
as this could damage the lower leg.
50 Hour Service Continue the 50 Hour Service with Lower Leg Service.
200 Hour Service Continue the 200 Hour Service with Lower Leg Seal Service.
Lower Leg Removal 2650 Hour Service Lower Leg Service
Remove the foam rings.
1
Pick
Clean the foam rings.
2
Replace the foam rings if worn, damaged, or excessively contaminated.

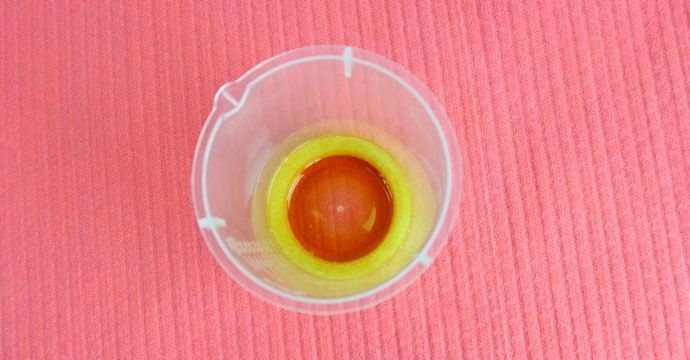

Soak the foam rings in suspension oil.
3
15wt
Lower Leg Service 27Remove the dust wiper outer springs and clean the inside and outside
4 of the lower leg.
Clean the wiper seals.
Install the foam rings under the wiper seals.
5
Confirm the foam rings are installed evenly in the space under the
wiper seals and do not protrude over the bushings.
Install the wiper springs.
6 SRAM Butter Grease
Apply SRAM Butter grease to the inner surfaces of the wiper seals.
50 Hour Service Continue the 200 Hour Service with Lower Leg Installation.
Lower Leg Service 28200 Hour Service Lower Leg Seal Service
Remove and discard the foam rings.
1
Remove the outer wire springs from the dust wiper seals.
Pick
Stabilize the lower leg on a bench top. Place the tip of a downhill
2 tire lever under the wiper seal. Press down on the downhill tire lever
handle to remove the seal.
Repeat on the other side. Discard the wiper seals.
NOTICE
Keep the lower leg stable. Do not allow the lower leg to twist in
opposite directions, compress toward each other, or be pulled apart.
This will damage the lower leg.
Downhill tire lever
Clean the inside and outside of the lower leg.
3
Lower Leg Seal Service 29Soak the new foam rings in suspension oil. Install the new foam rings.
4
15wt
Remove the outer wire spring from each new seal and set them aside.
5
Insert the narrow end of a new seal into the recessed end of the
6 RockShox Dust Seal Installation tool.
Judy / 30: 28 mm / 30 mm Dust Seal Installation Tool
Recon: 32 mm Dust Seal Installation Tool
NOTICE
Recon: If the RockShox x Abbey Bike Tools installation tool is used,
confirm the 32 mm installation puck is tightened hand tight on the
installation tool handle to avoid damage to the installation puck
during use.
Dust Seal Installation Tool
Abbey Bike Tools 32 mm Dust Seal Installation Tool
Lower Leg Seal Service 30Stabilize the lower leg on a bench top. Hold the lower leg steady and
7 press the seal into the lower leg until the top of the seal is flush with
the top of the lower leg.
Repeat on the other side.
NOTICE
Only press the seal into the lower leg until it is flush with the top
surface of the lower leg. Pressing the wiper seal below the top
surface of the lower leg will compress the foam rings.
Dust Seal Installation Tool
Abbey Bike Tools 32 mm Dust Seal Installation Tool
Install the outer wire springs.
8 SRAM Butter Grease
Apply SRAM Butter grease to the inner surfaces of the wiper seals.
Lower Leg Seal Service 31Air Spring Service - Judy Gold, 30 Gold, Recon Gold
200 Hour Service Air Spring Removal and Service - Gold
⚠ WARNING- EYE HAZARD
Verify all pressure is removed from the fork before proceeding. Depress the Schrader valve again to remove any remaining air pressure. Failure to
do so can result in injury and/or damage to the fork.
NOTICE SRAM Butter
Inspect each part for scratches. Do not scratch any sealing surfaces when
servicing your suspension. Scratches can cause leaks.
When replacing seals and o-rings, use your fingers or a pick to remove the
seal or o-ring. Spray isopropyl alcohol on each part and clean with a clean
lint-free shop towel.
Apply Liquid-O-Ring PM600 or SRAM Butter grease to the new seals and
o-rings. If a brush is used to apply grease, confirm there are no loose bristles
in the grease or on the part.
PM600
Remove the air spring top cap.
1
Clean the upper tube threads.
24 mm
Push the air shaft into the upper tube to prevent it from getting
2 scratched while removing the retaining ring.
Air Spring Service - Judy Gold, 30 Gold, Recon Gold 32(A): Place the tips of large retaining ring pliers into the eyelets of the
3 retaining ring. Press firmly on the pliers to push the base plate into
Retaining ring pliers
the upper tube enough to compress and remove the retaining ring.
Remove the retaining ring. Use your finger to guide the retaining ring
over the air spring shaft.
(B): Push the seal head tab into the upper tube and under the retaining
ring. Place the tips of large retaining ring pliers into the eyelets of the
retaining ring. Remove the retaining ring. Use your finger to guide the
retaining ring over the air spring shaft.
NOTICE A
Do not scratch the air spring shaft. Scratches on the air shaft will allow
air to bypass the seal head into the lower leg, resulting in reduced Retaining ring pliers
spring performance.
B
Flat blade screwdriver
Retaining ring pliers
Thread the shaft bolt into the end of the air spring shaft and pull the
4 shaft out to full extension.
Remove the bolt.
Air Spring Removal and Service - Gold 33Firmly pull on the air shaft to remove the air spring assembly from the
5 upper tube.
80 mm - 120 mm: Remove the seal head base plate assembly,
6 All-Travel spacer if installed (not pictured), and the top out bumper.
80 mm - 120 mm
Clean and inspect the shaft for damage.
80 mm - 120 mm
130 mm - 150 mm: Remove the base plate, wave spring, retaining
130 mm - 150 mm
washer, seal head bumper, All-Travel spacer if installed (not pictured),
floating seal head, and top out bumper.
Clean and inspect the shaft for damage.
NOTICE
Scratches on the air spring shaft can cause air to leak. If a scratch is
visible the air spring assembly may need to be replaced.
130 mm - 150 mm
130 mm - 150 mm
130 mm - 150 mm
Air Spring Removal and Service - Gold 34Remove and discard the positive air piston o-ring.
7
Apply grease to a new o-ring and install it.
NOTICE
Do not scratch the air piston. Scratches will cause air to leak.
Remove the inner and outer o-ring seals from the seal head and
8 discard them.
80 mm - 120 mm
Clean the seal head.
NOTICE
Do not scratch the seal head. Scratches will cause air to leak.
80 mm - 120 mm
130 mm - 150 mm
130 mm - 150 mm
Air Spring Removal and Service - Gold 35Apply grease to new inner and outer o-ring seals and install them.
9 10 mm 80 mm - 120 mm
80 mm - 120 mm: Apply grease to the new inner o-ring and insert it
into the inner gland. Apply grease to the ball end of a clean 10 mm hex
wrench.
Insert the ball end of the wrench into the base plate and stop just
below the inner o-ring gland of the seal head.
Apply grease to the ball end of a clean 8 mm hex wrench and use it
to push the inner o-ring into the gland using the 10 mm hex wrench to
guide the o-ring into the gland.
80 mm - 120 mm
8 mm 80 mm - 120 mm
80 mm - 120 mm
80 mm - 120 mm
80 mm - 120 mm
130 mm - 150 mm
80 mm - 120 mm
Air Spring Removal and Service - Gold 36Clean the inside and outside of the upper tube.
10
Inspect the inside and outside of the upper tube for damage.
NOTICE
Scratches on the inside surface of the upper tube can cause air to
leak. If an internal scratch is visible, the crown steerer upper tube
assembly may need to be replaced.
Dowel
Dowel
Air Spring Removal and Service - Gold 37A l l - Tr a v e l S p a c e r C o n f i g u r a t i o n s ( o p t i o n a l )
To increase or decrease the travel of your RockShox fork, an All-Travel spacer can be installed or removed. For example, to increase travel from a
maximum of 130 mm of travel to a maximum of 150 mm of travel, the 20 mm All-Travel spacer must be removed from the air spring assembly.
If travel is changed from 80 mm, 100 mm, or 120mm to 130 mm, 140 mm, or 150 mm, and vice versa, the air spring must be replaced with the
appropriate length air spring assembly in addition to the appropriate length All-Travel spacer.
Use the table and images below to determine which All-Travel spacer and air spring assembly can be used with each fork travel option.
Refer to the RockShox Spare Parts Catalog at www.sram.com/service for available air springs and All-Travel spacer kits.
For part ordering information, please contact your local SRAM distributor or dealer.
NOTICE
Do not install All-Travel spacers larger than the largest specified spacer for your fork.
Do not install an air spring assembly that exceeds the maximum travel specified for your fork.
A l l - Tr a v e l S p a c e r s - J u d y G o l d , 3 0 G o l d , Re c o n G o l d - S o l o A i r
Wheel Size
26" 27.5" 27.5" Boost 29" 29" Boost
Fork Model Travel All-Travel Spacer
80 mm 20 mm 40 mm 40 mm 40 mm 40 mm
2018-2021
100 mm No Spacer 20 mm 20 mm 20 mm 20 mm
Judy Gold
120 mm - No Spacer No Spacer No Spacer No Spacer
80 mm 20 mm 40 mm - 40 mm -
2018-2020
100 mm No Spacer 20 mm - 20 mm -
30 Gold
120 mm - No Spacer - No Spacer -
80 mm - 40 mm 40 mm 40 mm 40 mm
100 mm - 20 mm 20 mm 20 mm 20 mm
2018-2020 120 mm - No Spacer No Spacer No Spacer No Spacer
Recon Gold 130 mm - 20 mm 20 mm 20 mm 20 mm
140 mm - - 10 mm - 10 mm
150 mm - - No Spacer - -
All-Travel Spacer Configurations (optional) 38A i r S p r i n g a n d A l l - Tr a v e l S p a c e r C o n f i g u r a t i o n s - J u d y G o l d , 3 0 G o l d , Re c o n G o l d - S o l o A i r
2018-2020 30 Gold - 26" 2018-2021 Judy Gold - 27.5" Boost, 29" Boost
2021 Judy Gold - 26" 2021 Judy Gold - 27.5", 29"
2018-2020 30 Gold - 27.5", 29"
40 mm
20 mm
20 mm
100mm 80mm 120mm 100mm 80mm
2018-2020 Recon Gold - 27.5", 29"
40 mm
20 mm 20 mm
130mm 120mm 100mm 80mm
2018-2020 Recon Gold - *27.5" Boost, 29" Boost
40 mm
10 mm 20 mm
20 mm
*150mm 140mm 130mm 120mm 100mm 80mm
Air Spring and All-Travel Spacer Configurations - Judy Gold, 30 Gold, Recon Gold - Solo Air 39B o t t o m l e s s To k e n s ( o p t i o n a l ) - 2 0 2 1 R e c o n G o l d
Bottomless Tokens can be added to, or removed from, the DebonAir top cap to fine-tune the spring curve and bottom out feel. Use the table below
to help determine the number of Bottomless Tokens that can be used with each fork travel option. If fork travel is changed from stock, it may be
necessary to add or remove Bottomless Tokens.
Refer to the RockShox Spare Parts Catalog at www.sram.com/service for available air spring, All-Travel spacer, and Bottomless Token kits.
For part ordering information, please contact your local SRAM distributor or dealer.
A l l - T r a v e l S p a c e r s a n d B o t t o m l e s s To k e n s - 2 0 2 1 R e c o n G o l d - D e b o n A i r
27.5" Boost & 29" Boost
Fork Travel All-Travel Spacer Air Spring Assembly Bottomless Tokens Bottomless Tokens
(mm) (mm) (mm) Factory Installed Maximum
80 40
100 20 80 - 120
120 -
0 2
130 20
140 10 130 - 150
150 -
A i r S p r i n g a n d A l l - T r a v e l S p a c e r C o n f i g u r a t i o n s - 2021 Recon Gold
2021 Recon Gold - 27.5" Boost, 29" Boost
40 mm
10 mm 20 mm
20 mm
150 mm 140 mm 130 mm 120 mm 100 mm 80 mm
Bottomless Tokens (optional) - 2021 Recon Gold 40B o t t o m l e s s To k e n s I n s t a l l a t i o n ( o p t i o n a l ) - 2 0 2 1 R e c o n G o l d - D e b o n A i r
Bottomless Tokens reduce air volume and create greater ramp at the end of the fork's travel. Add or remove Tokens to tune your fork's bottomless
feel. See Air Spring Travel Change and Bottomless Tokens for the maximum number of Tokens for your fork.
Thread a Bottomless Token into another Bottomless Token, or into the
the bottom of the top cap, and tighten.
8 mm 4 N•m (35 in-lb) 24 mm
8 mm 4 N•m (35 in-lb) 24 mm
Bottomless Tokens Installation (optional) - 2021 Recon Gold - DebonAir 41200 Hour Service Air Spring Installation - Gold
Apply a liberal amount of grease to the inside of the upper tube, from
1 the end of the tube to approximately 60 mm into the tube.
Install the top out bumper onto the shaft.
2
Note: 2021 Recon Gold top out bumper pictured.
Apply a liberal amount of grease to the air spring shaft.
3
Air Spring Installation - Gold 42All-Travel: Refer to Air Spring Travel Change and Bottomless Tokens for
4 spacer configurations.
80 mm - 120 mm
80 mm - 120 mm: Install the All-Travel spacer (optional) and seal head
base plate assembly onto the air shaft.
80 mm - 120 mm
130 mm - 150 mm: Install the seal head, All-Travel spacer (optional), 130 mm - 150 mm
and the seal head bumper.
130 mm - 150 mm
130 mm - 150 mm: Install the retaining washer, a new wave spring, and
5 the base plate, in that order, onto the air shaft.
130 mm - 150 mm
Slide all the parts to the air piston until they stop.
130 mm - 150 mm
Insert the air spring assembly into the upper tube. Firmly push the air
6 piston into the upper tube.
Position the flat retaining washer (A) into the upper tube, followed by A
the wavy washer (B).
Use your fingers to firmly press the seal head into the upper tube until
it stops.
This procedure is the same for all fork travel configurations.
B
Air Spring Installation - Gold 43You can also read
