Lidl Store Grove Road, Grove - DESIGN & ACCESS STATEMENT August 2018
Lidl Store
  Grove Road, Grove
DESIGN & ACCESS STATEMENT
          August 2018
Lidl Store Grove Road, Grove - DESIGN & ACCESS STATEMENT August 2018
Lidl Store
Grove Road, Grove
DESIGN & ACCESS STATEMENT

This document is the property of FPCR Environment and Design Ltd and is issued on the condition it is not reproduced,
retained or disclosed to any unauthorised person, either wholly or in part without the written consent of FPCR Environment
and Design Ltd.

Ordnance Survey material - Crown Copyright. All rights reserved. Licence Number: 100019980 (Centremapslive.com).

Aerial imagery © 2018 Bluesky, DigitalGlobe, Getmapping plc, Infoterra Ltd and Bluesky. Map data © 2018 Google

Rev       Issue Status            Prepared / Date                                      Approved / Date

-         Draft                   MST / OFD 21 August 2018                             MGH / 21 August 2018

A         Revision                HGK / 28 August 2018                                 OFD / 29 August 2018

B         Revision                OFD / 29 August 2018                                 OFD / 29 August 2018

C         Revision                OFD / 29 August 2018                                 OFD / 29 August 2018

D         Final                   OFD / 31 August 2018                                 OFD / 31 August 2018

FPCR Environment and Design Ltd, Lockington Hall, Lockington, Derby, DE74 2RH   t: 01509 672772   f: 01509 674565    e: mail@fpcr.co.uk    w: www.fpcr.co.uk
masterplanning       environmental assessment       landscape design      urban design     ecology    architecture    arboriculture       graphic design

K:\8500\8531\LANDS\DAS\8531 DAS REV D.indd
Lidl Store Grove Road, Grove - DESIGN & ACCESS STATEMENT August 2018
Lidl Store
                                                     Grove Road, Grove
                                                DESIGN & ACCESS STATEMENT

                                              CONTENTS
Chapter 1
INTRODUCTION					p.4
 Introduction and Site Context
 Purpose of the DAS
 Planning Context

Chapter 2
THE SITE AND CONTEXT				               p.6
 Context – The local Area
 Context – The site
 Context Photographs
 Constraints and Opportunities

Chapter 3
PROPOSALS						p.18
 The Design
 Proposed Site Plan
 Access
 Elevations
 Scale and Appearance
 Landscaping and Boundary Treatments

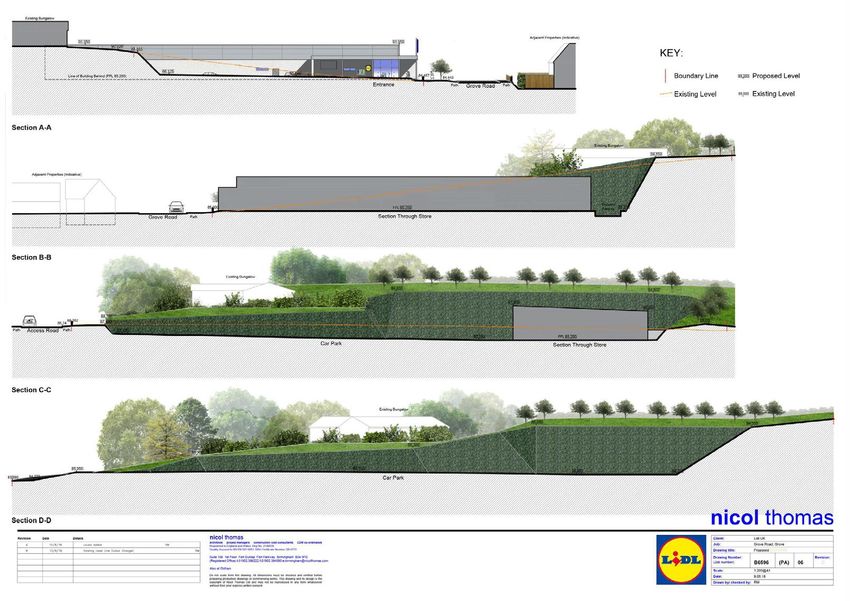

 Landcape Elevations

Chapter 4
SUSTAINABILITY AND ENERGY EFFICIENCY   p.28

 Materials
 Lighting
 Recycling and Waste Management
 Water

                                                                       3
Lidl Store Grove Road, Grove - DESIGN & ACCESS STATEMENT August 2018
Lidl Store
Grove Road, Grove
DESIGN & ACCESS STATEMENT

Chapter 1
INTRODUCTION
This is a Design and Access Statement   Introduction
(DAS) for a new foodstore on land off
                                        The detailed planning application seeks planning
Grove Road, Grove.                      consent to erect a new Lidl foodstore with
                                        associated car parking, landscaping and access
                                        on land off Grove Road, Grove. The location of the
                                        site is illustrated in Figure 1.

                                        Site Context
                                        The site encompasses approximately 1.1 ha of
                                        agricultural land and lies to the east of the A338
                                        Grove Road in Grove. The A338 leads southwards
                                        to Wantage in Oxfordshire. The site is ‘L’ shaped
                                        and comprises part of a larger field that stretches
                                        south to the allotments off the A338. The site is
                                        sloping with land rising up from A338 Grove Road
                                        to the eastern site boundary.

                                        The site is bound to the north by an access road
                                        to the Elms Farm Business Park, located to the
                                        north east of the site. A bungalow is also situated
                                        adjacent to the north eastern boundaries of the
                                        site. Opposite the site to the west of the A338
                                        are residential properties in Grove. A children’s
                                        play area is located to the south west. The A338
                                        roundabout is located just south of the site and
                                        provides access to Wantage town centre.

                                        Just beyond the sites southern boundary a
                                        new road is proposed off the A338 heading
                                        east, this new road will be set within a cutting
                                        approximately 50m from the site’s southern
                                        boundary and will serve a new sustainable urban
                                        extension for 1,500 dwellings to the south known
4                                       as ‘Crab Hill’.
Lidl Store Grove Road, Grove - DESIGN & ACCESS STATEMENT August 2018
N

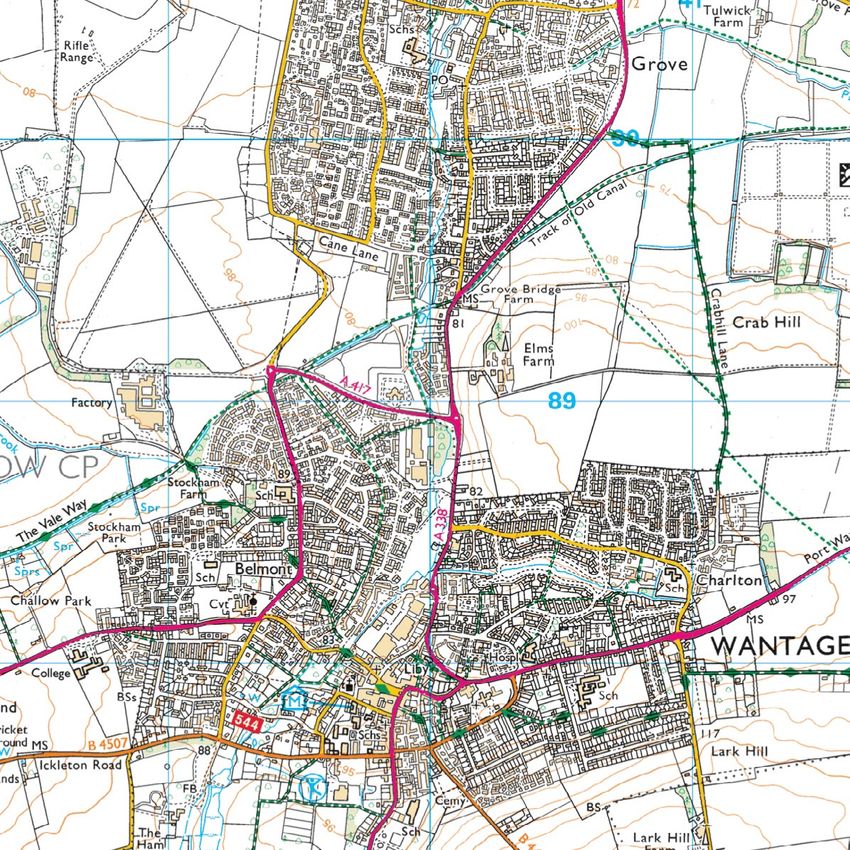

Figure 1: Site Location                not to scale

       Site Boundary

                               GROVE ROAD

           WOLAGE DR
                       A 338

                               APPLICATION SITE

MABL
    Y WA
        Y
              A417

                                                      5
Lidl Store Grove Road, Grove - DESIGN & ACCESS STATEMENT August 2018
Lidl Store
Grove Road, Grove
DESIGN & ACCESS STATEMENT

Chapter 1
INTRODUCTION

Purpose of the DAS
The Planning Practice Guidance (PPG) was published     What should be included in a Design and Access          of this consultation has informed the proposed
as a web based resource and was launched on            Statement accompanying an application for               development. Applicants must also explain how
6th March 2014. The PPG provides the following         planning permission?                                    any specific issues which might affect access to the
guidance on Design and Access Statements:                                                                      proposed development have been addressed.”
                                                       “A Design and Access Statement must:
“What is a Design and Access Statement?                                                                        (Paragraph 031 Reference ID: 14-031-20140306
                                                       a) Explain the design principles and concepts that      Revision date: 06.03.2014)
A Design and Access Statement is a concise report      have been applied to the proposed development;
accompanying certain applications for planning         and
permission and applications for listed building
consent. They provide a framework for applicants       b) Demonstrate the steps taken to appraise the
to explain how the proposed development is a           context of the proposed development, and how the
suitable response to the site and its setting, and     design of the development takes that context into
demonstrate that it can be adequately accessed by      account.
prospective users. Design and Access Statements
can aid decision-making by enabling local planning     A development’s context refers to the particular
authorities and third parties to better understand     characteristics of the application site and its wider
the analysis that has underpinned the design of a      setting. These will be specific to the circumstances
development proposal.                                  of an individual application and a Design and Access
                                                       Statement should be tailored accordingly.
The level of detail in a Design and Access Statement
should be proportionate to the complexity of the       Design and Access Statements must also explain
application, but should not be long.”                  the applicant’s approach to access and how relevant
                                                       Local Plan policies have been taken into account.
(Paragraph 029 Reference ID: 14-029-20140306           They must detail any consultation undertaken in
Revision date: 06.03.2014)                             relation to access issues, and how the outcome

6
Lidl Store Grove Road, Grove - DESIGN & ACCESS STATEMENT August 2018

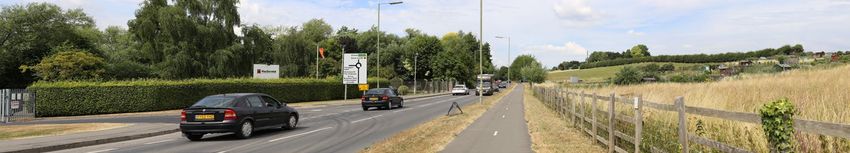

The access road off the A338 Grove Road

                                          7
Lidl Store Grove Road, Grove - DESIGN & ACCESS STATEMENT August 2018
Lidl Store
Grove Road, Grove
DESIGN & ACCESS STATEMENT

Chapter 1
INTRODUCTION

National Planning Policy                                 Planning Practice Guidance
The National Planning Policy Framework (NPPF),           The PPG supports the NPPF an and offers accessible     With regard to why good design matters, it states:
revised 24th July 2018, sets out the government’s        guidance on a broad range of categories, including
planning policies for England and how these are          Design and the Natural Environment. The NPPF           “Good quality design is an integral part of
expected to be applied. The heart of the NPPF is “A      continues to be the primary document for decision      sustainable development. The National Planning
presumption in favour of sustainable development.”       making.                                                Policy Framework recognises that design quality
                                                                                                                matters and that planning should drive up
Paragraph 124 of the NPPF makes specific reference       The design section of the PPG advises on the key       standards across all forms of development.”
to good design as a key aspect of sustainable            points, including:
development.
                                                          • The importance of good design,
                                                          • What planning objectives can good design help
“The creation of high quality buildings and                 achieve?
places is fundamental to what the planning and            • What is a well designed place?
development process should achieve. Good design           • How should buildings and the spaces between
is a key aspect of sustainable development, creates         them be considered?
better places in which to live and work and helps         • Which planning processes and tools can we use
make development acceptable to communities.                 to help achieve good design?
Being clear about design expectations, and how            • Are there design issues that relate to particular
these will be tested, is essential for achieving this.      types of development?
So too is effective engagement between applicants,
communities, local planning authorities and other
interests throughout the process.”

8
Lidl Store Grove Road, Grove - DESIGN & ACCESS STATEMENT August 2018
Lidl Store
                                                                                                                                                Grove Road, Grove
                                                                                                                                         DESIGN & ACCESS STATEMENT

Vale of White Horse Local Plan 2011                      Local Plan 2031 Part 1 - Strategic Sites                Draft Local Plan 2031 Part 2 - Detailed
(Adopted 2006)                                           and Policies (Adopted 2016)                             Policies and Additional Sites
The Vale of White Horse District Council adopted the     The Vale of White Horse District Council adopted        A draft of Part 2 of the new Local Plan for the Vale of
Local Plan 2011 in 2006.                                 Part 1 of the new Local Plan in December 2016.          White Horse was submitted to the Secretary of State
                                                                                                                 in February 2018.
The following ‘saved’ policies include content of        The following policies are of relevance to the design
relevance to the design of the proposals for the site:   of the proposals for the site:                          The following draft policies are of relevance to the
                                                                                                                 site and the proposed development:
 • Policy DC6: Landscaping                                • Core Policy 37: Design and Local Distinctiveness
 • Policy DC9: The Impact of Development on               • Core Policy 40: Sustainable Design and                • Development Policy 23: Impact of Development
   Neighbouring Uses                                        Construction                                            on Amenity
 • Policy NE9: The Lowland Vale                           • Core Policy 44: Landscape                             • Development Policy 29: Settlement Character
                                                          • Core Policy 45: Green Infrastructure                    and Gaps
These saved policies will be superseded by Part 2 of      • Core Policy 46: Conservation and Improvement
the new Local Plan 2031 when it is adopted.                 of Biodiversity

                                                                                                                                                                        9
Lidl Store Grove Road, Grove - DESIGN & ACCESS STATEMENT August 2018
Lidl Store
Grove Road, Grove
DESIGN & ACCESS STATEMENT

Chapter 2
THE SITE AND CONTEXT
The site is situated off the A338 Grove Road to the south of Grove and
north of Wantage in Oxfordshire.

Context - The Local Area
The site is bound to the north by the access road to
the Elms Farm Business Park, located to the north
east of the site. A bungalow is situated adjacent to
the north eastern boundaries of the site.

The site is bound to the west by the A338 beyond
which is the Wolage Drive modern residential
development, with a children’s play area to the south
west. The A338 roundabout is located just south of
the site and provides access to Wantage town centre.

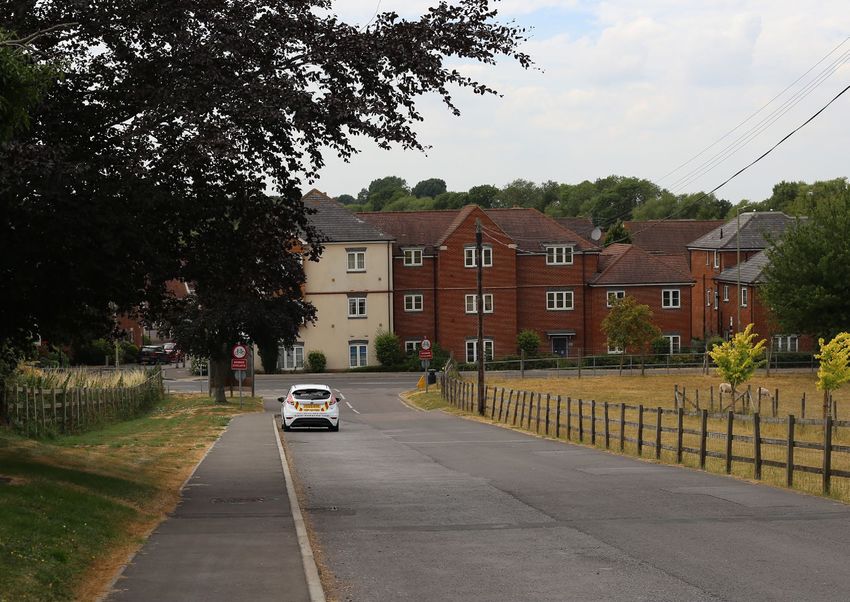

                                                        Properties off Wolage Drive                       Grove village welcome sign
A number of new developments are proposed
in the surrounding area including large scale
strategic developments at Grove Airfield and Crab
Hill as shown on the context plan at figure 2. The
proposed Lidl store will appear in context with these
large scale developments. Refer to the Planning
Statement associated with this planning application
for further information.

A new road is proposed, to the south of the site,
off the A338 heading east, this new road will be set
within a cutting approximately 50m from the site’s
southern boundary and will serve a new residential
development to the south.                               Danetree vets off A338 to the north of the site   Allotments off the A338

10
A338

                                                                                             Williams Racing F1
                                                                                                                                     Grove
                                                           N

           Figure 2: Context Plan                      not to scale

                   Site Boundary
                                                                                    Grove Airfield
                                                                                                     A338
                                                                                                                                                                                 Solar Farm
                   Proposed Development
                                                                      Grove Business
ent                                                                        Park
                   Wantage Eastern Link Road

                   A Roads
opment
                   B Roads
                                                                                                                                                     Elms Farm
                                                                       Grove                                                                        Business Park
                   Tertiary Roads                                                                                 Leisure Centre

                   Existing Solar Farm
                                                                                                                            A417
               Grove Airfield
                                                                                                                                   Solar Farm Crab Hill
  Grove Business
       Park                                                                                                       WANTAGE              Care Home

                                                                                     Elms Farm                                                                Grove Park Drive
                                                                                    Business Park
                                               Leisure Centre

                                                           A417

                                                                               Crab Hill

                                                                                B4507
                                                                        Care Home
                                               WANTAGE

                                                                                                                                                                                              11
                                                                                                                                                B4494
Lidl Store
Grove Road, Grove
DESIGN & ACCESS STATEMENT

Chapter 2
THE SITE AND CONTEXT

Context - The Site
The site encompasses approximately 1.1 ha of
agricultural land currently in arable use.

The site is ‘L’ shaped and comprises part of a larger
field that stretches south to the allotments off
the A338. An area of scrub is located at the south
western corner of the site adjacent to the A338
roundabout and a hedgerow adjoins the boundary
to the south east (beyond the site boundary).

                                                        Residential properties off Wolage Drive and the A338   Elms Farm Business Park

                                                        Entrance to the Elms Farm Business Park                Bungalow to the north east of the site

12
e Brook
                                                           Letcomb

                                                                                             A338
                                              N

Figure 3: Aerial Photograph               not to scale

      The Site                                                                                      2               Access Road          Elm Farm
  3
      Site Context Photo Viewpoint Locations                                                           1                               Business Park

      Proposed New Road

                                                                                                Grove Road
                                                         Mably
                                                                     Way
                                                                            A417
                                                                                                3

                                                                                                             A338
                                                                                            k
                                                                                        roo
                                                                                      be B
                                                                                                                          Allotments
                                                                                      com
                                                                                   Let

                                                                                                             4                                         13
Lidl Store
Grove Road, Grove
DESIGN & ACCESS STATEMENT

Chapter 2
THE SITE AND CONTEXT

Site Context Photographs                                                                                         Scrub at the south
                                                                                                                west corner of the site
                            Bungalow to the north east of the site                        The site                                    A338 Grove Road

                                                                                                                       A338 Grove Road
 1   View from the north west corner of the site off Grove Road facing directly south of the site
                                                                                                                                  Residential properties
 Bungalow to the north east of the site                                                                                             off Wolage Drive
                                                                                                     The site

 2   View from the Access Road to the north of the site facing south

14
Lidl Store
                                                                                                                                  Grove Road, Grove
                                                                                                                            DESIGN & ACCESS STATEMENT

                                                      Approximate location of the site

                  A338 Grove Road                                                                                               A338 Roundabout

3   View from A338 Roundabout facing north towards the site
                                                                                         Approximate location of the site
                                                              A338 Grove Road                                                    Allotments

4   View north from A338 Grove Road south of roundabout facing north

                                                                                                                                                  15
Chapter 2
THE SITE AND CONTEXT

Constraints and Opportunities                         Summary of Constraints                              Summary of Opportunities
The constraints and opportunities associated          • Site is located on a slope and requires           • New tree planting along the western site
with the proposed development have been                 earthworks in order to accommodate the              boundary with the A338 will soften views of the
identified following the assessment of the site and     proposed development                                new store
its surroundings. These are listed opposite. This
assessment of the site and its surroundings have      • Retaining walls and slopes required to the        • New tree and shrub planting along the eastern
informed the design proposals.                          east and south of the site to ensure a level        and southern boundaries will create a soft
                                                        topography for the new building and car park        edge to the site

                                                      • The A338 and residential properties to the west   • New link road proposed to the south of the site
                                                        of the site have clear views into the site          off the A338 roundabout will provide access to
                                                                                                            a new residential development
                                                      • Proposed levels to tie in to existing levels at
                                                        store entrance for ease of pedestrian and cycle   • The proposed link road is set within a cutting
                                                        movement                                            and once built it is likely that views from the
                                                                                                            south will be restricted with the store seen in
                                                                                                            context to the new road

                                                                                                          • Provision of an attractive modern foodstore of
                                                                                                            high quality design

                                                                                                          • Proposed earthworks will allow the store to
                                                                                                            be set within the landscape assisting with
                                                                                                            screening from the south
The application site as existing

                                   17
Lidl Store
Grove Road, Grove
DESIGN & ACCESS STATEMENT

Chapter 3
PROPOSALS

The Design                                                                                                Area Schedule
The proposed development is a new Lidl foodstore         The design uses a simple, high quality palette
with associated car park and landscaping. Access for     of materials. The use of white render, glazing   Sales Area       1325sq.m
the store is proposed off Grove Road via the existing    and an aluminium frame provides a clean and
Elms Farm Business Park access road to the north of      contemporary appearance.                         Warehouse Area   547sq.m (including Freezer
the site.                                                                                                                  Compartment)

The proposed store is for a single storey building                                                        Ancillary Area   213sq.m
located adjacent to the southern site boundary with
car parking to the north of the store building and                                                        Car Parking      128 Cars (Including 8 disabled
with soft landscaping around the boundaries of the                                                                         and 8 parent and child
site.                                                                                                                      spaces)

Construction of the proposed development will                                                             Cycle spaces     12 cycles
include earthworks in order to provide a level
topography for the proposed store and car park
resulting in retaining slopes along the east and
south of the site. Retaining slopes will incorporate a
metal mesh and will be hydroseeded with grass and
wildflowers. The gradient of retaining slopes will be
subject to detailed engineering design.

Retaining slopes will be hydroseeded with a grass
and wildflower seed mix with shrub and tree
planting at the tops of the slopes.

18
11
                                                                                                                       Elms Farmhouse

                                  Little Court
                                                                             El Sub S
                                                                                        ta

                                                                                                       4
                                                 1

                                                        8
                                                               Lains Court

                                                                                                          1
                                                                                             9 to 20
                                   N

Figure 4: Proposed Site Plan   not to scale

                                                                                                                                                                                                                                                                                                                                           AREA SCHEDULE

                                                           1
                                                                                                                                                                                                                                                                                                                                           GIA = 2125sq.m

                                                                                                                                                                                                                                                                                                                                           Sales Area = 1325sq.m
                                                                                                                                                                                                                                                                                                                                           Warehouse Area = 547sq.m
                                                                                                                                                                                                                                                                                                                                           (Incl. Freezer Compartment)
                                                                                                                                                                                                                                                                                                                                           Ancillary Area = 213sq.m

                                                                                                                                                                                                                                                                                                                                           Car Parking = 128 Cars
                                                                                                                                                                                                                                                                                                                                           (Incl. 8 disabled and 8 parent and child spaces)
                                                                                                                                                                                                                                                                                                                                           Cycle Spaces = 12 cycles
                                                                                                                                                                                                                                                                                                                                           Application Site Area   = 3.66 acre (1.48 ha)

                                   34
                                                                       24                      2 to 22

                                                                                                                                                                                                                                                                                                                                                 Business Park
                                                                                    Wolage
                                                                                                  Drive                                                                                                                                                                                                        Farm
                                                               13             11
                                                   15                                                     1 to 9

                                                                               Court

                                                                                                                           (subject to
                                                                                                                           2m Gas Eas tion verification)
                                                               Tulwick

                                                                                                          8

                                                                                                                                       loca
                                                                               1

                                                                                                                                         ement
                                2

                                                   Elm
                                                    Farm

                                                                                                            5
                                                                                   4
                                                        Clos

                                                                                                       3
                                                                               1
                                                         e

                                                                                                                   5

                                                                                                                        GROVE ROAD
                                                                                   11

                                                         8
                                                                                                                                                                                                                                                                                                                Utility
                                                                                                                                                                                Canopy
                                                                                                                                                                                                             Trolley
                                                                                                                                                                                Over
                                                                                                                                                                                                             Bays

                                                                                                                                                                                                                                                                                   Warehouse
                                                                                                                                                                                                                                                                                                   Warehouse
                                                                                                                                                                                                                                                  Managers
                                                                                                                                                                                                                                                  Office
                                                                                                                                                                         Entrance
                                                                                                                                                                                                                                        IT Room
                                                                                                                                                                                                                       Cloakroom
                                                                                                                                                                                         Customer/Acc.   Welfare
                                                                                                                                                                              Entrance
                                                                                                                                                                                         WC
                                                                                                                                                                              Lobby

                                                                                                                                                           les
                                                                                                                                                                                                                                                                                          Cooler

                                                                                                                                                           12no Cyc
                                                                                                                                                                                             Lobby                                                            Freezer

                                                                                                                                                                                                                               Bakery

                                                                                                                                                              Canopy
                                                                                                                                                              Over

                                                                                                                                                                                                                                                                         6m²
                                                                                                                                                                                                                                                                GEA 2,20
                                                                                                                                                                                                                                                                GIA 2,125m²
                                                                                                                                                                                                                                                                          s Area
                                                                                                                                                                                                                                                             1325 m² Sale
                                                                                                                                                                                                                                                                       DSTORE                                               Warehouse
                                                                                                                                                                                                                                                              LIDL FOO
                                                                                                                          A 338

                                                                             Playground
                                                                                                                                                                                                                                                                                                                          External Plant
                                                                                                                                                                                                                                                                                                                             Compound

                                                                                                                                                                       Cash
                                                                                                                                                                       Room

                                                                                                                                                                                                                                                                                                                                                                         19
Lidl Store
Grove Road, Grove
DESIGN & ACCESS STATEMENT

Chapter 3
PROPOSALS

Access
Access to the new Lidl store is proposed from a
single entrance off the access road to the Elms Farm
Business Park, off the A338 Grove Road.

The proposed entrance road will provide vehicular
access for customers, deliveries and service vehicles.

Customer parking is located north of the store
immediately upon entering the site and will provide
parking for 128 cars including 8 disabled spaces and
8 parent and child spaces.

12 cycle spaces are located adjacent to the west of
the store.

20
N

Figure 5: Proposed Access            not to scale

     Vehicular Access

     Delivery Vehicle Route

     Vehicular Route

     Pedestrian and Cycle Access /
     Route

                                                    21
Lidl Store
Grove Road, Grove                                           Withybeck

                                                                 11
                                                                                                                                                        Elms Farmhouse
DESIGN & ACCESS STATEMENT

                                                       Little Court
Chapter 3
                                                                                                 El Sub Sta

                                                                                                                               4
                                                                      1
PROPOSALS

                                                                           8
                                                                                   Lains Court

                                                                                                                               1
                                                                                                                 9 to 20
Figure 6: Proposed Elevations

                                                                                                                                                                                                                                                                                             D-D
                                                                                                                                                                                                                                                                                                                                                                                                                     AREA SCHEDULE

                                                                               1
                                                                                                                                                                                                                                                                                                                                                                                                                     GIA = 2125sq.m

                                                                                                                                                                                                                                                                                                                                                                                                                     Sales Area = 1325sq.m
                                                                                                                                                                                                                                                                                                                                                                                                                     Warehouse Area = 547sq.m
                                                                                                                                                                                                                                                                                                                                                                                                                     (Incl. Freezer Compartment)
                                                                                                                                                                                                                                                                                                                                                                                                                     Ancillary Area = 213sq.m

                                                                                                                                                                                                                                                                                                                                                                                                                     Car Parking = 128 Cars
                                                                                                                                                                                                                                                                                                                                                                                                                     (Incl. 8 disabled and 8 parent and child spaces)

                                                                                                                                          A-
                                                                                                                                                                                                                                                                                                                                                                                                                     Cycle Spaces = 12 cycles
                                                                                                                                                                                                                                                                                                                                                                                                                     Application Site Area   = 3.66 acre (1.48 ha)

                                                                                                                                             A
                                                       34
                                                                                           24                      2 to 22

 Scale and Appearance                                                                                    Wolage
                                                                                                                      Drive                                                                                                                                                                                                                              Farm                                                              Business Park
                                                                                   13             11

 The proposed building is single storey, rectangular
                                                                      15                                                       1 to 9

 in shape, having a stepped mono-pitched roof                                                                                                                                                                                                                                                                                                            B-B
                                                                                                   Court
                                                                                                                                         B-B

                                                                                                                                                               (subject to
                                                                                                                                                               2m Gas Easemon verification)
                                                                                   Tulwick

 with the highest elevation on the northern

                                                                                                                               8

                                                                                                                                                                           locati
                                                                                                   1
                                                       2

                                                                                                                                                                                  ent
 boundary at approximately 6.7m and the

                                                                      Elm
                                                                       Farm
 lowest adjacent to the southern boundary at

                                                                                                                                   5
                                                                                                       4
                                                                           Clos

                                                                                                                               3
 approximately 5.5m.

                                                                                                   1
                                                                             e

                                                                                                                                        5

                                                                                                                                                            GROVE ROAD
                                                                                                       11
                                                                             8

 The elevation fronting Grove Road has a glazed                                                                                                                                                                            Canopy
                                                                                                                                                                                                                           Over
                                                                                                                                                                                                                                                        Trolley
                                                                                                                                                                                                                                                        Bays
                                                                                                                                                                                                                                                                                                                                                          Utility

                                                                                                                                                                                                                                                                                                                                                                                              C-C
                                                                                                                                                                                                                                                                                                                             Warehouse
                                                                                                                                                                                                                                                                                                                                             Warehouse
                                                                                                                                                                                                                                                                                             Managers
                                                                                                                                                                                                                                                                                             Office
                                                                                                                                                                                                                    Entrance

 frontage to canopy height at approximately 4.6m,
                                                                                                                                                                                                                                                                                   IT Room
                                                                                                                                                                                                                                                                  Cloakroom
                                                                                                                                                                                                                                    Customer/Acc.   Welfare
                                                                                                                                                                                                                         Entrance
                                                                                                                                                                                                                                    WC
                                                                                                                                                                                                                         Lobby

                                                                                                                                                                                                    12no Cycles
                                                                                                                                                                                                                                                                                                                                    Cooler

                                                                                                                                                                                                                                        Lobby                                                            Freezer

                                                                                                                                                                                                                                                                          Bakery

 with glazing returning on the frontage to the car                                                                                           C-C                                                         Canopy
                                                                                                                                                                                                         Over

                                                                                                                                                                                                                                                                                                           GEA 2,206m²
                                                                                                                                                                                                                                                                                                           GIA 2,125m
                                                                                                                                                                                                                                                                                                        1325 m² Sales
                                                                                                                                                                                                                                                                                                                      ²

                                                                                                                                                                                                                                                                                                                      Area

 park. The store entrance is on the western corner
                                                                                                                                                                                                                                                                                                                     TORE
                                                                                                                                                                                                                                                                                                         LIDL FOODS
                                                                                                                                                                                                                                                                                                                                                                      Warehouse

                                                                                                                                                              A 338
                                                                                                 Playground
                                                                                                                                                                                                                                                                                                                                                                    External Plant
                                                                                                                                                                                                                                                                                                                                                                       Compound

 of the building and is marked by a projecting

                                                                                                                                                                                                                                                                                                                                                                                              A-
                                                                                                                                                                                                                  Cash
                                                                                                                                                                                                                  Room

 canopy feature with LIDL signage to this corner.

                                                                                                                                                                                                                                                                                                                                                                                               A
                                                                                                                                                                                                                                                                                                                   D-D
                                                                                       MABL
                                                                                                       Y WA
                                                                                                                     Y A4                                                                                                                                                                                                                                                            W ROAD
                                                                                                                          17                                                                                                                                                                                                                      PROPOSED NE

                                                                                                                                                                                                                                                                                                                                                                                                    nicol thoma
                                                                                                                                                                                                                               nicol thomas                                                                                                                                                         Client:                   LIDL UK
                                                          Revision          Date                   Details                                                                                                                   architects project managers construction cost consultants CDM co-ordinators
                                                                                                                                                                                                                             Registered in England and Wales. Reg No. 2140639                                                                                                                       Job:                      GROVE ROAD, GROVE
                                                                A           01.06.18               Colour added to site plan                                                                                                 Quality Assured to BS EN ISO 9001:1994 Certificate Number GB 4723
                                                                                                                                                                                                                                                                                                                                                                                                    Drawing title:            Proposed Site Plan
                                                                B           15.06.18               2m gas pipe easement indicated, pedestrian ramp and steps adjusted to suit.PW
                                                                                                                                                                                                                             Suite 108 1st Floor Fort Dunlop Fort Parkway Birmingham B24 9FD
                                                                C           21.06.18               Notes adjusted.                                                                            PW                             (Registered Office) t:01902 398222 f:01902 394080 e:birmingham@nicolthomas.com                                                                                         Drawing Number:                                                     Rev
                                                                D           04.07.18               Building moved.                                                                             RM                                                                                                                                                                                                   (Job number)              B6596             (PA)         02
                                                                                                                                                                                                                               Also at Oldham
                                                                E           25.07.18               Highway design added.                                                                       PW                                                                                                                                                                                                   Scale:                    1:500@A1
                                                                                                                                                                                                                             Do not scale from this drawing. All dimensions must be checked and verified before
                                                                H           17.08.18               Annotation amended                                                                         RM                             preparing production drawings or commencing works. This drawing and its design is the                                                                                  Date:                     09.05.18
                                                                                                                                                                                                                             copyright of Nicol Thomas Ltd and may not be reproduced in any form whatsoever
                                                                J           20.08.18               Trees added                                                 RM                                                            without their prior express written consent.                                                                                                                           Drawn by/ checked by: RM/PW

A-A

22
Lidl Store
                          Grove Road, Grove
                     DESIGN & ACCESS STATEMENT

B-B

C-C

D-D
      Sections

                 D
                                           23
Lidl Store
Grove Road, Grove
DESIGN & ACCESS STATEMENT

Chapter 3
PROPOSALS

Landscaping and Boundary Treatments
A planting strategy has been prepared by FPCR to
support the detailed planning application for the
proposed foodstore (see Figure 7).

 • Low level shrub planting is proposed around the
   entrance to the new Lidl store.

 • Tree planting is proposed along the western
   edge of the site underplanted with shrubs
   to form a soft edge to the scheme and filter
   views towards the Lidl store from the A338 and     Skimmia japonica ‘Rubella’   Example of retaining slope planting
   properties off the A338 and Wolage Drive

 • Low maintenance shrub planting throughout
   the scheme

 • Retaining slopes to incorporate a metal mesh
   and to be hydroseeded with flowering grass
   mix. Slopes to be kept as long grass and flowers
   and maintained once or twice per year

 • Planting along the east and south of the site to
   soften the development edge

                                                      Brachyglottis ‘Sunshine’     Example of retaining slope planting

24
3300
                                                                 3000
                                                          3300

                                      24

                                               N

Figure 7: Planting Plan                    not to scale
                                                                                                                         7000

                                                                                                           7000

                                                                                             2700

           Low level shrub planting
                                                                                      5200
           at entrance to store                                                4531
                                                                                                    7000

              New tree planting along
              western edge

 New tree and shrub planting above                                                                                              7000

 retaining slopes along eastern
 boundary

         Flowering grass
                                                                                        4093
                                                                                                                  7533

         hydroseeding on slopes

 New tree and shrub planting above
 retaining slopes along southern
 boundary

                                                                                                                                       25
Lidl Store
Grove Road, Grove
DESIGN & ACCESS STATEMENT

Chapter 3
PROPOSALS

Figure 8: Landscape Elevation

  Proposed tree and                                      Proposed Lidl store                                        A338 Grove Road
    shrub planting
                              Retaining slope
                           hydroseeded with grass                                                               Proposed
                                                                                                                                                   Existing trees adjacent to
                               and wildflower                                                                    avenue
                                                                                                                                                      childrens play area
                                                                                                                  trees

                                                                                                                                                                                                                                                                                     Existing properties off
                                                                                                                                                                                                                                                                                          Wolage Drive

                                                                                                                                  Withybeck

                                                                                                                                       11
                                                                                                                                                                                                              Elms Farmhouse

                                                                                                                            Little Court
                                                                                                                                                                       El Sub Sta

                                                                                                                                                                                               4
                                                                                                                                           1

                                                                                                                                                 8
                                                                                                                                                         Lains Court

                                                                                                                                                                                                 1
Section Elevation A - A1

                                                                                                                                                                                    9 to 20
                                                                                                                                                                                                                                                                                                                                                                                                                                            AREA SCHEDULE

                                                                                                                                                    1
                                                                                                                                                                                                                                                                                                                                                                                                                                            GIA = 2125sq.m

Landscape section elevation through proposed car park, retaining slope and landscaping with new store behind.                                                                                                                                                                                                                                                                                                                               Sales Area = 1325sq.m
                                                                                                                                                                                                                                                                                                                                                                                                                                            Warehouse Area = 547sq.m
                                                                                                                                                                                                                                                                                                                                                                                                                                            (Incl. Freezer Compartment)
                                                                                                                                                                                                                                                                                                                                                                                                                                            Ancillary Area = 213sq.m

                                                                                                                                                                                                                                                                                                                                                                                                                                            Car Parking = 128 Cars
                                                                                                                                                                                                                                                                                                                                                                                                                                            (Incl. 8 disabled and 8 parent and child spaces)
                                                                                                                                                                                                                                                                                                                                                                                                                                            Cycle Spaces = 12 cycles
                                                                                                                                                                                                                                                                                                                                                                                                                                            Application Site Area   = 3.66 acre (1.48 ha)

                                                                                                                            34
                                                                                                                                                                  24                  2 to 22

                                                                                                                                                                              Wolage
                                                                                                                                                                                         Drive                                                                                                                                                                                                       Farm                                         Business Park
                                                                                                                                                         13             11
                                                                                                                                            15                                                   1 to 9

                                                                                                                                                                         Court

                                                                                                                                                                                                                  (subject to
                                                                                                                                                                                                                  2m Gas Easeme verification)
                                                                                                                                                         Tulwick

                                                                                                                                                                                                 8

                                                                                                                                                                                                                              location
                                                                                                                                                                         1
                                                                                                                            2

                                                                                                                                                                                                                                     nt
                                                                                                                                            Elm
                                                                                                                                             Farm
                                                                                                                                                                                                                                                                                                                                                                                                                                        A

                                                                                                                                                                                                   5
                                                                                                                                                                             4
                                                                                                                                                 Close

                                                                                                                                                                                               3
                                                                                                                                                                         1
                                                                                                                                                                                          A1

                                                                                                                                                                                                          5

                                                                                                                                                                                                               GROVE ROAD
                                                                                                                                                                             11
                                                                                                                                                   8
                                                                                                                                                                                                                                                                                                                                                                                                      Utility
                                                                                                                                                                                                                                                                       Canopy
                                                                                                                                                                                                                                                                                                    Trolley
                                                                                                                                                                                                                                                                       Over
                                                                                                                                                                                                                                                                                                    Bays

                                                                                                                                                                                                                                                                                                                                                                        Warehouse
                                                                                                                                                                                                                                                                                                                                                                                        Warehouse
                                                                                                                                                                                                                                                                                                                                         Managers
                                                                                                                                                                                                                                                                                                                                         Office
                                                                                                                                                                                                                                                                Entrance
                                                                                                                                                                                                                                                                                                                               IT Room
                                                                                                                                                                                                                                                                                                              Cloakroom
                                                                                                                                                                                                                                                                                Customer/Acc.   Welfare
                                                                                                                                                                                                                                                                     Entrance
                                                                                                                                                                                                                                                                                WC
                                                                                                                                                                                                                                                                     Lobby

                                                                                                                                                                                                                                                12no Cycles
                                                                                                                                                                                                                                                                                                                                                                               Cooler

                                                                                                                                                                                                                                                                                    Lobby                                                            Freezer

                                                                                                                                                                                                                                                                                                                      Bakery

                                                                                                                                                                                                                                                     Canopy
                                                                                                                                                                                                                                                     Over

                                                                                                                                                                                                                                                                                                                                                       GEA 2,206m²
                                                                                                                                                                                                                                                                                                                                                       GIA 2,125m²
                                                                                                                                                                                                                                                                                                                                                                 Area
                                                                                                                                                                                                                                                                                                                                                    1325 m² Sales RE
                                                                                                                                                                                                                                                                                                                                                     LIDL FOODSTO
                                                                                                                                                                                                                                                                                                                                                                                                                  Warehouse

                                                                                                                                                                                                                 A 338
                                                                                                                                                                       Playground
                                                                                                                                                                                                                                                                                                                                                                                                                External Plant
                                                                                                                                                                                                                                                                                                                                                                                                                   Compound

                                                                                                                                                                                                                                                              Cash
                                                                                                                                                                                                                                                              Room

                                                                                                                                                                                                                                                                                                                                                                                                    Location Plan
26                                                                                                                                                            MABLY
                                                                                                                                                                                  WAY
                                                                                                                                                                                              A417                                                                                                                                                                                                                               ROAD
                                                                                                                                                                                                                                                                                                                                                                                             PROPOSED NEW
Lidl Store
                                                                                                                                                                                                                                                                         Grove Road, Grove
                                                                                                                                                                                                        DESIGN & ACCESS STATEMENT

Figure 9: Landscape Elevation

                                         Existing bungalow to                                                    Proposed Lidl store
                                           north east of site
Proposed access into
   store car park
                                                                Customer parking                  Proposed tree and             Retaining slope along east
                           Avenue tree planting                                                     shrub planting               of site hydroseeded with
                               along A338                                                                                          grass and wildflower
                                                     Shrubs along line
                                                      of avenue trees

                                                                                                                                     Withybeck

                                                                                                                                          11
                                                                                                                                                                                                                 Elms Farmhouse

                                                                                                                               Little Court
                                                                                                                                                                          El Sub Sta

                                                                                                                                                                                                  4
                                                                                                                                              1

                                                                                                                                                    8
                                                                                                                                                            Lains Court

                                                                                                                                                                                                    1
Section Elevation B - B1

                                                                                                                                                                                       9 to 20
                                                                                                                                                                                                                                                                                                                                                                                                                                                AREA SCHEDULE

                                                                                                                                                       1
                                                                                                                                                                                                                                                                                                                                                                                                                                                GIA = 2125sq.m

Landscape section elevation through avenue tree planting along A338 showing proposed store, car parking and retaining slopes
                                                                                                                                                                                                                                                                                                                                                                                                                                                Sales Area = 1325sq.m
                                                                                                                                                                                                                                                                                                                                                                                                                                                Warehouse Area = 547sq.m
                                                                                                                                                                                                                                                                                                                                                                                                                                                (Incl. Freezer Compartment)

                                                                                                                                                                                                                 B
                                                                                                                                                                                                                                                                                                                                                                                                                                                Ancillary Area = 213sq.m

                                                                                                                                                                                                                                                                                                                                                                                                                                                Car Parking = 128 Cars

behind.
                                                                                                                                                                                                                                                                                                                                                                                                                                                (Incl. 8 disabled and 8 parent and child spaces)
                                                                                                                                                                                                                                                                                                                                                                                                                                                Cycle Spaces = 12 cycles
                                                                                                                                                                                                                                                                                                                                                                                                                                                Application Site Area   = 3.66 acre (1.48 ha)

                                                                                                                               34
                                                                                                                                                                     24                  2 to 22

                                                                                                                                                                                 Wolage
                                                                                                                                                                                            Drive                                                                                                                                                                                                       Farm                                          Business Park
                                                                                                                                                            13             11
                                                                                                                                               15                                                   1 to 9

                                                                                                                                                                            Court

                                                                                                                                                                                                                     (subject to
                                                                                                                                                                                                                     2m Gas Easeme verification)
                                                                                                                                                            Tulwick

                                                                                                                                                                                                    8

                                                                                                                                                                                                                                 location
                                                                                                                                                                            1
                                                                                                                               2

                                                                                                                                                                                                                                        nt
                                                                                                                                               Elm
                                                                                                                                                Farm

                                                                                                                                                                                                      5
                                                                                                                                                                                4
                                                                                                                                                    Close

                                                                                                                                                                                                  3
                                                                                                                                                                            1

                                                                                                                                                                                                             5

                                                                                                                                                                                                                  GROVE ROAD
                                                                                                                                                                                11
                                                                                                                                                      8
                                                                                                                                                                                                                                                                                                                                                                                                         Utility
                                                                                                                                                                                                                                                                          Canopy
                                                                                                                                                                                                                                                                                                       Trolley
                                                                                                                                                                                                                                                                          Over
                                                                                                                                                                                                                                                                                                       Bays

                                                                                                                                                                                                                                                                                                                                                                           Warehouse
                                                                                                                                                                                                                                                                                                                                                                                           Warehouse
                                                                                                                                                                                                                                                                                                                                            Managers
                                                                                                                                                                                                                                                                                                                                            Office
                                                                                                                                                                                                                                                                   Entrance
                                                                                                                                                                                                                                                                                                                                  IT Room
                                                                                                                                                                                                                                                                                                                 Cloakroom
                                                                                                                                                                                                                                                                                   Customer/Acc.   Welfare
                                                                                                                                                                                                                                                                        Entrance
                                                                                                                                                                                                                                                                                   WC
                                                                                                                                                                                                                                                                        Lobby

                                                                                                                                                                                                                                                   12no Cycles
                                                                                                                                                                                                                                                                                                                                                                                  Cooler

                                                                                                                                                                                                                                                                                       Lobby                                                            Freezer

                                                                                                                                                                                                                                                                                                                         Bakery

                                                                                                                                                                                                                                                        Canopy
                                                                                                                                                                                                                                                        Over

                                                                                                                                                                                                                                                                                                                                                          GEA 2,206m²
                                                                                                                                                                                                                                                                                                                                                          GIA 2,125m²
                                                                                                                                                                                                                                                                                                                                                                    Area
                                                                                                                                                                                                                                                                                                                                                       1325 m² Sales RE
                                                                                                                                                                                                                                                                                                                                                        LIDL FOODSTO
                                                                                                                                                                                                                                                                                                                                                                                                                     Warehouse

                                                                                                                                                                                                                    A 338
                                                                                                                                                                          Playground
                                                                                                                                                                                                                                                                                                                                                                                                                   External Plant
                                                                                                                                                                                                                                                                                                                                                                                                                      Compound

                                                                                                                                                                                                                                                                 Cash
                                                                                                                                                                                                                                                                 Room

                                                                                                                                                                                                                          B1
                                                                                                                                                                                                                                                                                                                                                                                                       Location Plan
                                                                                                                                                                 MABLY
                                                                                                                                                                                     WAY
                                                                                                                                                                                                 A417
                                                                                                                                                                                                                                                                                                                                                                                                PROPOSED NEW
                                                                                                                                                                                                                                                                                                                                                                                                                                    ROAD
                                                                                                                                                                                                                                                                                                                                                                                                                                           27
Lidl Store
Grove Road, Grove
DESIGN & ACCESS STATEMENT

Chapter 4
SUSTAINABILITY AND ENERGY EFFICIENCY
Throughout the design process careful consideration has been given
to making the building as efficient as possible during the construction
and operational phases of the development.

Water                                                      Lighting                                                 Recycling and Waste Management
In terms of water usage, LIDL have a number of             To ensure that the LIDL store does not waste energy      As well as saving energy through lighting systems,
objectives which govern the water use on site.             through unnecessary lighting all internal and            LIDL operate an extensive recycling policy for all
                                                           external lighting would be remotely operated. This       waste cardboard and plastics generated during
These include:                                             means that the lighting within ancillary areas uses      store operations. All recyclable waste is separated
                                                           sensors to turn on when someone enters the room          into its constituent parts, the cardboard is then
 •   Water use is fully metered                            and turns off after a specified period of inactivity.    collated and collected as required to be recycled. All
 •   Water usage monitored on a monthly basis              The lighting on the sales floor drops to one third the   plastics are separated and bagged. The cardboard
 •   Water usage target of 13m³ per month                  normal level when the alarm is set at the end of the     bales and plastic bags are returned to the Regional
 •   Installation of low water use fittings                day only returning when the alarm is deactivated in      Distribution Centre on the return journeys of store
 •   All new toilets have dual flush controls installed.   the morning.                                             deliveries along with any other returns, e.g. stock
                                                                                                                    transfers, stacks and pallets, bread crates and milk
                                                                                                                    trolleys etc meaning no waste is stored on site.
                                                                                                                    Operational waste produced in store is segregated at
                                                                                                                    source.

28
Lidl Store
                                                                Grove Road, Grove
                                                           DESIGN & ACCESS STATEMENT

Materials
The materials applied to the building are low
maintenance and in the case of the aluminium
composite panelling minimal upkeep is required.
The guttering and downpipes are a natural zinc
finish and therefore do not require repainting or
maintenance. LIDL use materials that are highly
rated within the Green Guide for specification in the
construction of new stores.

Energy efficiency is a long term life-cycle issue, which
should not only be addressed in the short term
build, such as through materials, but also in the
long term through the operations and maintenance
costs. The windows have an Aluminium frame which
can be recycled at the end of its operational life. This
material is also durable, having some of the longest
replacement intervals according to the Green Guide.

                                                                                 29
Lidl Store
  Grove Road, Grove
DESIGN & ACCESS STATEMENT
          August 2018
You can also read
