OptiFEED
Optimally in every farm
SaMASZ offers wide range of mixer feeders to meet all various requirements. Capacities of machines dif-
fer within 5 - 32 m2 range for both one-auger (UNO) and two-auger (DUO) models. SaMASZ strives to keep
farmers satisfied, so it is possible to make a custom machine based on individual order and demands.
OptiFEED UNO MINI
• designed for use in small farms with narrow feed passages or for distribu-
tion of feed for smaller number of animals
• innovative method of worm bending reduces mixing time and tractor po-
wer demand by about 15%
• the worm is equipped with 7 cutting knives of hard wearing steel available
sizes: 5, 6 m³
OptiFEED UNO
• designed for small and mid-size farms
• low power demand (from 40 HP) - owing to use of two-step gearbox
• available sizes: 7, 8, 9, 10, 12 m³
• wide range of standard and optional equipment
OptiFEED UNO S
• designed for mid-size farms
• best height-capacity ratio
• small height owing to moving the axis backwards and
introduction of bottom design modification
• available sizes 7, 8, 10 m³
OptiFEED DUO
• designed for large farms
• two mixing augers for better productivity
• very low power demand - from 60 HP at 14 ml
• tandem axis for greater stability (optional equipment)
• available sizes 14, 16, 18, 20m³
• 2 mixing augers: faster mixing
lower power demand and fuel consumption
reduced machine wear
OptiFEED DUO HD
• designed for large farms
• available sizes: 22, 24, 26, 28, 30, 32 m³
• relatively low power demand: from 80 HP
• ,,HD” means application of wide bottom: best relation of height, capacity
and mixing time in two-auger feeders
• strenghtened frame
Number of cows [pcs.] Recommended mixerfeeder capacity [m3] Number of cows [pcs.] Recommended mixerfeeder capacity [m3]
up to 30 7 from 60 to 70 12
up to 40 8 from 70 to 100 14-16
from 40 to 60 10 mare than 100 18 and more
2
Advantages of feeders one-auger
OptiFEED UNO MINI, UNO i UNO S
Mixing auger Capacity
• wali thickness 15 mm, • UNO MINI: from 5 to 6 m , 3
• innovative method of auger bending, • UNO: from 7 to 12 m ,
3
Container’s wall
• hardened cutting knives, • UNO S: from 7 to 10 m 3
• rolled-longer life,
• strengthened knife holders 20 mm • thickness 6-8 mm,
• welded only in two places
Counter-knife
• mechanical in standard,
• hydraulic in option,
• facilitates cutting and mixing process
Inspection platform Discharge
• enables better control • hydraulic discharge window,
of mixing process • discharge placement according to
customer’s needs,
• different mays of discharge
(belt, window with curtain, etc.)
Two-step gearbox
• choice between
two gears possible Container’s bottom
• thickness 15-20 mm,
Weighing system
• strengthened in the biggest
tension spots
• based on 4 sensors
OTHER ADVANTAGES OF OptiFEED UNO MINI, UNO i UNO S
Design UNO MINI - designed to small er farms with very narrow fodder corridors or to feed smaller groups
- smaller dimensions make it a perfect offer for smaller buildings with limited space
Design UNO - designed for middle size and small farms
- low power demand (from 50 HP) thanks to two-step gearbox
Design UNO S - designed for middle size and small farms
- ideal relation of height to capacity
- minimum heightthanks to moving an axle to the rear of wagon and change of bottom’s shape
Mixing auger - innovative method of auger bending shortens mixing time and decreases
power demand by 15%
- from 7 to 9 cutting knives made of hard to tear steel
Two-step gearbox - enables choice of proper RPMS to necessary power demand in relation to fodderamound
- protects working units and lowers fuel consumption
OPTIONAL EQUIPMENT
Straw blower SHOT Weighing system DG 500 Electronic control
MIXER FEEDERS 2019/2020 3
Standard equipment
Two step gearbox PTO shaft
Gearbox by Comer allows setting needed speed Shaft by Bondioli & Pavesi available
as standard equipment in every mixer
to suit the required power demand to fodder
feeder.
volume.
Scale system STAD 04 Tires
Multi-purpose, simple in use electronic scales
10.0/75-15.3: standard tiers in UNO mo-
system by Dinamica Generale fitted with all
dels. Detailed description of tiers used
functions needed for proper weighing of indivi-
in DUO feeders is available on p. 15
dual fodder components.
Support leg Anti-spill rim
Mechanically adjusted support leg facilitates Disables spillage of the fodder outside
the machine attachment to and detachment the feeder while mixing. As an option the
from the tractor. rim can be tilted by 45o and provided mo-
vable on the chain.
4
Standard equipment
Hydraulic flow Augers with knives
Cutting knives (from 7 up to 9 mm de-
divider pending on wagon) mounted on augers,
Enables machine control with one hydraulic are made of hard-wearing steel provide
connector on the tractor. perfect fodder shredding.
Inspection ladder Hydraulic discharge
Enables controlling of the fodder mixing window
process in a simple, easy and safe way. Arrangement of hydraulic dosing win-
dows - according to feeder model and
client’s needs
Mechanical counter-knife Position indicator
Mechanically adjusted counter-knives sup- Position indicator for the discharge win-
port the cutting and mixing process. Depn- dow indicates the position of its lower
ding on needs, thses can be retracted or edge.
extended (optional hydraulic adjustment).
MIXER FEEDERS 2019/2020 5
Standard equipment
Additional discharge Belt conveyor PVC
window (rear or front)
Enables fodder distribution with additional PVC belt is on possibility for fodder discharge.
discharge window.
Inspection platform Axis at vehicle rear
Is perfect for observing the mixing process at This solution lowers the feeder and increases the
any time. tractor’s capacity (particularly useful for smaller
tractors and operation on steep ascents).
Electronic control Scale system DG 500
panel Multi-purpose programmable scales system al-
lows for drawing feeding strategies, fodder distri-
Enables control for all operating processes,e.g.
bution according to the specified strategy and
discharge windows opening, conveyor speed
collection of feeding data.
adjustment, etc.
6
Standard equipment
Straw blower Discharge opening guard
Spreading device incorporates functions of fodder Limits fodder discharge distance which is parti-
shredding, mixing and distributing with possibility cularly recommeded in very narrow barns.
of preparing straw bedding in a barn.
Discharge support plate Extension
It is located between auger lower part and conta- Increases mixer feeder capacity in a simple and
iner bottom. Ensures thorough container cleaning - easy way.
removal of fodder leftovers from feeder container.
Belt conveyor Tandem suspension
Available in length from 0.7 up to 1.5 m - owing to Ensures greater stability at such large machine
it the fodder can be discharged at any angle and dimensions. Additional frame strengthening
height with hydraulic adjustment, recommended provides for greater stiffness and durability.
for barns with feed troughs.
Road lights Discharge chute
Improve visibility of the machine when it is Enables application of fodder at specified point
necessary to drive on public roads on the fodder tract. Installation under any of
discharge windows possible.
Additionally feeders can be equipped with:
• hydraulic side shift of belt conveyor • wireless scales
• hydraulic support leg • hydraulic counter-knives
• backsight camera • magnet on auger to detect metal parts in fodder
• pneumatic brakes
MIXER FEEDERS 2019/2020 7
MIXER FEEDERS one-auger
OptiFEED UNO MINI
To meet expectations of our Customers, we have developed a serviceable and power demand is 40-45 HP. Wide range of standard equipment together with many
reliable mixer feeder. Attractive price and appropriate components combined with options of additional equipment make it a versatile machine.
properly selected capacity makes it the right choice for farms with small num-
ber of animals. The OptiFEED UNO MINI mixer feeder series is designed for use
in small farms with narrow feed passages or for distribution of feed for smaller
number of animals. Thanks to its small size this mixer feeder is perfect for use in
buildings with a limited amount of space. With a use of double reduction gearbox,
OptiFEED UNO
The OptiFEED UNO mixer feeders are intended for small and mid-size farms. Owing
to the application of a two-step gearbox the power demand is 50 HP. Wide range of
standard equipment and many possibilities of optional equipment make this machi-
ne a versatile one.
OptiFEED UNO is a compact machine available in capacities from 7 up to 12 m3. Mixer
feeders by SaMASZ can be tailor-made to meet the needs of the most demanding
customers. Thanks to this the feeders can be used in non-standard buildings with
height and width restrictions.
Scale system Mixing knives
Dinamica Generale, model DC 400, Mounted on mixing augers, are made
sensor-based allows for weighing with of hard-wearing steel, provide perfect
no need of attaching the machine to shredding of the fodder.
the tractor.
Type UNO MINI 500 UNO MINI 600 UNO 700 UNO 800 UNO 900 UNO 1000 UNO 1200
Capacity [m3] 5 6 7 8 9 10 12
Number of augers [pcs.] 1
Number of knives [pcs.] 7 9
Power demand [HP] from 40 from 45 from 50 from 60 from 70
Width / Height / Length [cm] 180 / 215 / 405 180 / 240 / 408 225 / 232 / 470 225 / 247 / 475 225 / 266 / 480 225 / 283 / 485 225 / 312
Weight [kg] 2 700 2 740 3 525 3 600 3 675 3 750 3 900
Width of discharge window [cm] 90
8
MIXER FEEDERS one-auger OptiFEED UNO S • with axis moved backwards • with lowered bottom on the main frame The best hight to capacity ratio. Range is dedicated for medium farms with height restrictions. Thanks to its dimensions and design this wagon will fit to every barn. UNO S owes its minimal height to wheel axle retraction. Design modi- fications of the bottom provide stability and maximum support for the gear drive. OptiFEED UNO S the container bottom underwent design modifications which enabled the container to be set on the linkage. These feeders can- not be equipped with the belt. Type UNO 700 S UNO 800 S UNO 900 S UNO 1000 S Capacity [m3] 7 8 9 10 Number of augers [pcs.] 1 Number of knives [pcs.] 7 9 Power demand [HP] from 50 from 60 Width / Height / Length [cm] 225 / 199 / 478 225 / 214 / 480 225 / 233 / 485 225 / 250 / 490 Weight [kg] 3 525 3 600 3 675 3 750 Width of discharge window [cm] 90 MIXER FEEDERS 2019/2020 9
ADVANTAGES OF MIXER FEEDERS two-augers
OptiFEED DUO
Discharge
Mixing auger • hydraulic discharge window,
• thickness 15 mm, • discharge placement according to custo-
• innovative method of auger bending, mer’s needs, Capacity
• cutting knives15 mm, • different ways of discharge • DUO: from 14 to 20 m 3
• strengthened knife holders 20 mm (bełt, window with curtain, etc.)
Counter-knife
• mechanical in standard,
• hydraulic in option,
• facilitates cutting and mixing process
Inspection platform
• enables better control
of mixing process
Two-step gearbox
• choice between two
gears possible
Container’s wall
• rolled-longer life,
• thickness 8 mm
Container’s bottom
• thickness 20 mm,
Weighing system • reinforced in places of the biggest
• based on 4 sensors force impact
OTHER ADVANTAGES OF MIXER FEEDERS OPTIFEED DUO
Design DUO - designed for big farms
- 2 mixing augers:
• faster mixing
• very low power demand
• lower wear of the machine
Mixing auger - innovative method of auger bending shortens mixing time and decreases
power demand by 15%
- from 7 to 9 cutting knives made of hard to tear steel (depending on the model)
Two-step gearbox - enables chcice of proper RPM to necessary power demand in relation to fodder amount
- protects working units and lowers fuel consumption
OPTIONAL EQUIPMENT
Straw blower SHOT Weighing system DG 500 Electronic steering
10MIXER FEEDERS two-augers
Fodder wagon is dedicated for large farms. Can be distinguished
by its great capacity and high performance, thanks to the use of
two vertical augers.
Shock absorbers and tandem suspension ensure great stability
of such size machine. Additional frame reinforcement provides
greater stiffness and strength.

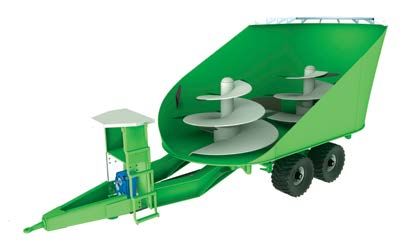

Two-auger mixing system for quicker fodder cutting Tandem suspension (option)
Type DUO 1400 DUO 1600 DUO 1800 DUO 2000
Capacity [m ] 3
14 16 18 20
Number of augers [pcs.] 2
Number of knives [pcs.] 14 18
Power demand [HP] from 70 from 80 from 90 from 100
Width / Height / Length [cm] 225 / 251 / 690 225 / 269 / 695 225 / 287 / 700 225 / 305 / 707
Weight [kg] 5 375 5 650 5 800 6 000
Width of discharge window [cm] 90
MIXER FEEDERS 2019/2020 11ADVANTAGES OF MIXER FEEDERS two-augers
OptiFEED DUO HD
Discharge
Mixing auger • hydraulic discharge window,
• thickness of the wall 15 mm, • discharge placement according to custo-
mer’s needs,
• innovative method of auger bending, • different ways of discharge Capacity
• cutting knives 15 mm, (belt, window with curtain, etc.)
• DUO HD: from 22 to 32 m 3
• strengthened knife holders 20 mm
Counter-knife
• mechanical in standard,
• hydraulic in option,
• facilitates cutting and mixing process
lnspection platform
• enables better control
of mixing process
Two-step gearbox
• choice between
two gears possible
Container’s wall
• rolled-longer life,
• thickness 8 mm
Weighing system Container’s bottom
• based on 4 sensors • thickness20 mm,
• reinforced in places of the biggest force impact
INNE ATUTY WOZÓW PASZOWYCH OPTIFEED DUO HD
Design DUO HD - designed for big farms
- ideał relation of height to capacity(2,85m high with 22m3 cu.ft.)
- innovative design of wide container and wider augers
- very low power demand
Mixing auger - innovative method of auger banding shortens mixing time and decreases power
demand by 15%
- cutting knives made of hard to tear steel on each auger (depending on the model)
Two-step gearbox - enables choice of proper RPM to necessary power demand in relation
to fodder vol u me
- protects working units and lowers fuel consumption
OPTIONAL EQUIPMENT
Straw blower SHOT Weighing system DG 500 Electronic steering
12MIXER FEEDERS two-augers OptiFEED DUO HD is a series of mixer feeders developed for large farms aiming for effective breeding and milk production. These machines are characterized for exceptionally high productivity at considerably low power demand. Wide bottom design resulted in small dimensions in relation to the offered capacities. In mixer feeders DUO HD the container bottom underwent design modifications therefore al- lowed for capacity increase while keeping the feeder’s smaller height as compared with the DUO machines. Type DUO 2200 HD DUO 2400 HD DUO 2600 HD DUO HD 2800 DUO HD 3000 DUO HD 3200 Capacity [m3] 22 24 26 28 30 32 Number of augers [pcs.] 2 Number of knives [pcs.] 18 Power demand [HP] from 80 from 90 from 100 Width / Height / Length [cm] 255 / 285 / 710 255 / 301 / 720 255 / 321 / 730 255 / 336 / 740 255 / 361 / 750 255 / 375 / 760 Weight [kg] 6 500 6 600 9 700 10 000 10 300 10 650 Width of discharge window[cm] 120 MIXER FEEDERS 2019/2020 13
Possible configuration
of discharge windows for mixer feeders
OptiFEED UNO i UNO S
OptiFEED UNO UNO S
Belt at the front + -
Belt at the rear + -
Window at central rear + +
Two windows at the rear + -
Window at right front + +
Window at left rear + -
Hydraulic belt conveyor
+ -
extension
OptiFEED UNO
OptiFEED UNO S
OptiFEED UNO MINI
14Possible configuration
of discharge windows for mixer feeders
OptiFEED DUO i DUO HD
OptiFEED DUO
OptiFEED DUO HD
AXLES AND TIRES UNO UNO S DUO DUO HD
R 15,3 - 10,0/75 s/P s/P - -
R 15,3 - 11,5/80 o/P o/P o/T -
R 14,5 - 30x11,5 o/P o/P o/T o/T
R 15,5 - 400/60 o/P - o/T o/T
R 17,5 - 215/75 twin - - s/P -
R 19,5 - 435/50 o/P - o/P s/P
425/40B17 Delcora GSP - - o/P o/P
LEGEND: s - standard, o - option, P - single axle, T - tandem axle Dimensions may vary, depending on equipment and tires.
MIXER FEEDERS 2019/2020 15Twójdealer:
Your diler:
SaMASZ Sp. z o.o.
16-060 Zabłudów
St. Trawiasta 1
Poland
tel.: +48 85 664 70 31
fax: +48 85 664 70 41
e-mail: samasz@samasz.pl
www.samasz.com
True passion
Pasja do pracyand i ciągłe
constant
poszukiwania
seeking ofjakthe
najlepszych
best solutions
rozwiązań
are amongst
to idee,the
ja- Today,
różnychSaMASZ
maszyn:iskosiarek
the top bębnowych,
Polish and one of the major
dyskowych, European manufactu-
przetrząsaczy, zgrabiarek,
kie od which
ideas, początkuhave nam
beenprzyświecały
essential fori stały
the SaMASZ
się kluczem
employees
do sukcesu.
and have be- rers of forage
owijarek, wozów machinery.
paszowych,Our offer includes
kosiarek mare than
bijakowych, 300 types
ramion of different
wysięgnikowych,
come the key to the company’s success. machines: drum mowers, disc mowers, tedders, rakes, flail mowers, extension
pługów odśnieżnych.
Główne czynniki przyczyniające się do dynamicznego rozwoju firmy to bliski arms or snowistnienia
Od początku plows. firmy, wyprodukowaliśmy i sprzedaliśmy ponad 110 tys.
kontakt
What contributes
z klientemthei otwartość
most to constant
na jego potrzeby.
and dynamie
To właśnie
develop
poprzez
ment ofpartnerski
the com- Since thei beginning
kosiarek kilka tysięcyweinnych
managed to manufacture
maszyn. Eksportujemy andnasze
sell mare thando110
maszyny 000
ponad
dialogare
pany z naszymi
close contact
obecnymi
with iour
przyszłymi
customers klientami,
and staying
wychodząc
open tonaprzeciw
their needs.
ich mowers
50 krajówand few thousands
całego of other
świata. Nasza machines. obejmuje
sieć handlowa We exportok. to60
mare
firmthan 50 co-i
w Polsce
oczekiwaniom
Thanks to dialogue
i potrzebom
with our tworzymy
present andoraz
future
umacniamy
clients andpodstawy
trying to dynamicz-
meet their untries
ok. 70 zaaround the world. Our sales network includes approx. 60 companies in
granicą.
nego rozwoju.we create and strengthen up the basis of our dynamie success.
expectations Poland and approx. 70 abroad.
Naszym głównym celem jest nieustanne unowocześnianie i doskonalenie kon-
Considering
Mając na celuconstant
nieprzerwany
development
rozwój, as
inwestujemy
our top priority,
w prace
webadawczo-rozwo-
invest in product Our main
strukcji goal, which
naszych maszynis constant development
oraz wdrażanie and implementa
do procesów produkcjitnajwyższych
ion to our produc-
osią-
jowe. Zatrudniamy
research. Our employees
najzdolniejszych
are the most absolwentów
talented Technical
wyższych
University
uczelni, gradu-
którzy tion
gnięćcutting edge w
technologii technology in order
celu osiągania to keep
jakości the world’spoziomie.
na światowym top quality. We aresobie
Zdajemy fully
są niewho
ates, tylkoarefachowcami
not only experts
w swoich
in their
dziedzinach,
own fields,
ale but
wnoszą
also profesjonalizm
bring in a greati aware,
sprawę,that
że winobliczu
this ever changing
zmian, jakie re
ality,miejsce
mają customers tend to seek trading
we współczesnym partners
świecie, klienci
pasję ofwprofessionalism
dose to co robią. Zawsze
andmożna
passionliczyć
to their
na ich
duties.
kompetencję
You can always
i niezawodność.
count on who are trustworthy,
poszukują partnerów and thereforegodnych
handlowych we havezaufania,
an ambition of being
dlatego mamyconsidered
ambicję asbyća
their competence and reliability. reliable and professional
postrzegani jako uznany,manufacturer.
wiarygodny i profesjonalny producent.
SaMASZ dziś to lider w Polsce oraz jeden z czołowych europejskich produ-
centów maszyn zielonkowych. W swojej ofercie posiadamy ponad 300 typów
Wydanie
Edition / 2018
1 /22020
Technical data and equipment provided herein, as well as images of the products
may be different due to constant technical development.You can also read
