2020
PRODUCT
CATALOG
SURFACE PREPARATION
INDUSTRIAL CONCRETE FLOORING EQUIPMENT
U.S.SAWS professional grade surface preparation equipment line includes dust-free tools for cutting and widening joints, grinding and polishing concrete, decorative concrete cutting and vacuums for collecting the dust. Accessories available include dust shrouds for your existing tools and a full line of diamond blades, cup wheels, polishing pads and resins for grinding, polishing, and cutting concrete on hand-held and walk-behind equipment. U.S.SAWS surface preparation products are designed for the professsional contractor who focuses on concrete repair and surface preparation where time and dust control are critical.
TABLE OF CONTENTS
CONCRETE
GRINDERS &
DUST SHROUDS
PAGES 4 - 6
CONCRETE
POLISHING PAGE 7
JOINT CLEANOUT
& CRACK CHASING
SAWS
PAGES 8 - 10
INDUSTRIAL DUST
VACUUMS PAGES 11 - 12

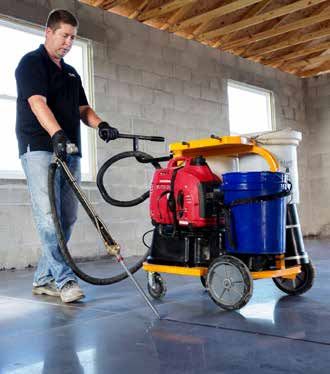

POLYUREA
PUMPS PAGES 13 - 14
DIAMOND BLADES
& TOOLING
CUP & ZEC WHEELS
PAGES 15 - 22
For the latest U.S.SAWS products and pricing, go to www.ussaws.com or
speak to one of our experts at 877.817.6687
CONCRETE GRINDERS &
DUST SHROUDS
TC-7 STAND-UP EDGER TC-7 Edger
PART NUMBER: SX67000 Part Number SX67000
The U.S.SAWS TC-7 Stand-Up Edge Power Source Metabo 24- 230 15 AMP 6600 RPM
Grinder was designed for concrete Includes Metabo 24-230, 7” 24 segment turbo cup
floor grinding and polishing concrete wheel and shroud
surfaces near walls and other vertical
surfaces. This grinder can be used Power Requirements 115V 15A
indoors or outdoors in small or large Grinding Wheels Used 7” Diamond Cup Wheels, PCDs, ZEC Wheels,
spaces. This edge grinder utilizes 7” EZ Edge Ceramic Wheels, Polishing Pads
diamond cup wheel to level, smooth, Weight 49lbs
or clean the edges of the concrete
slab. Price $2400
Powered by a Metabo 24-230 15 Amp grinder Comes complete with US Saws G-2 Dust shroud
7” 24 Segment Turbo Cup Wheel INCLUDED. Optional Variable Speed Control for polishing
available.
TC-7 ADD-ON PACKAGES
VARIABLE SPEED
CONTROL BOX
PART NUMBER: SX67099
Add to the TC-7 to make it a
variable speed polisher
SX67099 $255
POLISHING SET
PART NUMBER: SX-TC7
The tools you need for polishing: 120
grit bi-turbo metal, 50-3000 resin pads,
steel core backing pad & adaptor nut.
SX-TC7 Polishing set $470
For the latest U.S.SAWS products and pricing, go to www.ussaws.com or 4
speak to one of our experts at 877.817.6687
CONCRETE GRINDERS &
DUST SHROUDS
7” METABO PRO GRINDER-VAC PACKAGE 7” METABO PRO GRINDER-VAC
Includes: Metabo 24-230 15 amp, 6,600 rpm grinder, Generation Includes: Metabo 15 amp 8,500 rpm or 6,600 rpm grinder, U.S.SAWS
2 convertible dust shroud, loop handle, and (2) 7” 12 segment polyurethane convertible edging style pro dust shroud, loop handle, pro
standard thread-on turbo cup wheels. blade adapter nuts, blade nut wrench, and allen wrench & 24 segment
cup wheel.
6,600 rpm model SX60000CG2 $430 8,500 rpm model SX60010CG2 $594
6,600 rpm model SX60006CG2 $556
7” SHROUD KITS
DELUXE SHROUD KITS BASIC SHROUD KITS
Custom made to fit: Bosch, DeWalt, Hilti, Makita, Custom made to fit: Bosch, DeWalt, Hilti, Makita,
Metabo, and Milwaukee model grinders Metabo, and Milwaukee model grinders
Includes: convertible edging style dust shroud, Includes: convertible style dust shroud and
aluminum adapter ring, long and short pro aluminum adapter ring
blade nuts, blade nut wrench, and allen wrench
Metabo models $229 Metabo models $159
Other models $259 Other models $189
7” GRINDER-VAC ACCESSORIES
7” UNIVERSAL GRINDER- 7” SIMPLE DURABLE DUST
VAC KITS SHROUD - FITS METABO
Includes: 7” convertible edging style dust Includes: polyurethane convertible edging
shroud, (3) polyurethane adapter rings, and style shroud only; designed to be used with
collar clamp Metabo 7” & 9” Grinders.
Fits 7” & 9” 15 amp grinders manufactured
7” Convertible G2 SX65807M $139
by: Bosch, DeWalt, Hitachi, Makita, Metabo,
or Milwaukee
G2 Universal Shroud SX65807U $118
LOOP HANDLE ASSEMBLY ANTI-VIBRATION MOUNT
Fits on a variety of grinders and provides
increased operator comfort Short - 4.5” Zec 05-69003 $6
Includes: loop handle with rubber grip, Short with 2 Spacers 05-69001 $6
bolts, and lock washers Medium with 1 Spacer 05-69006 $9
Long - 7” Zec 05-69004 $9
7” Loop Handle SX73907 $59
For the latest U.S.SAWS products and pricing, go to www.ussaws.com or 5
speak to one of our experts at 877.817.6687
CONCRETE GRINDERS &
DUST SHROUDS
5” HD ECONOMY GRINDER-VAC PACKAGE 5” PRO GRINDER-VAC
SPECIAL PART NUMBER: SX65000C (2,800-9,600 RPM)
PART NUMBER: SX65000EC Includes: Metabo 13.5 amp, 2,800 to 9,600 rpm variable speed or 8
amp 10,000 rpm grinder, US Saws polyurethane convertible edging
Includes: Metabo 13.5 amp, 2,800 to 9,600 rpm variable speed
grinder, convertible edging style hub dust shroud, and (1) 4.5” 9 style pro dust shroud, loop handle, 4.5” 9 segment cup wheel, pro
segment turbo cup wheel blade adapter nuts, blade nut wrench, and allen wrench.
2,800-9,600 rpm model SX65000C $599
2,800-9,600 rpm model SX65000EC $365 10,000 rpm model SX65005C $420
5” SHROUD KITS
DELUXE SHROUD KIT BASIC SHROUD KIT
Custom made to fit: Bosch, DeWalt, Hilti,
Custom made to fit: Bosch, DeWalt, Hilti,
Makita, Metabo, and Milwaukee model
Makita, Metabo, and Milwaukee model grinders
grinders
Includes: convertible edging style dust shroud,
Includes: convertible style dust shroud and
aluminum adapter ring, long and short pro
aluminum adapter ring
blade nuts, blade nut wrench, and allen wrench
Metabo models $209 Metabo models $90
Other models $239 Other models $159
5” GRINDER-VAC ACCESSORIES
LOOP HANDLE ASSEMBLY
PART NUMBER: SX53900
Fits on a variety of grinders and provides
increased operator comfort
Includes: loop handle with rubber grip,
bolts, and lock washers
5” Assembly SX53900 $39
PRO REPLACEMENT SHROUDS
Includes: polyurethane convertible edging
style replacement shroud only; for use with
U.S.SAWS’ adapter rings
5” Convertible SX65852 $85
For the latest U.S.SAWS products and pricing, go to www.ussaws.com or 6
speak to one of our experts at 877.817.6687
CONCRETE POLISHING
5” PRO POLISHING ASSEMBLY 7” PRO POLISHING ASSEMBLY
PART NUMBER: SX65005CP PART NUMBER: SX60006CP
Includes: Metabo PE15-30 variable speed grinder (13 Amp, 800 Includes: Metabo PE15-30 variable speed grinder (13 Amp, 800
to 3,000 RPM), 5” US Saws polyurethane convertible edging style to 3,000 RPM), 5” US Saws polyurethane convertible edging style
shroud, 5” loop handle, and 5” flexible backing pad shroud, 5” loop handle, and 7” flexible backing pad
SX65005CP $529 SX65006CP $559
POLISHING SHROUD KITS
VSG-10 GRINDER/POLISHER
5” SHROUD KIT
PART NUMBER: SX65216
Includes: convertible style dust shroud,
adapter ring and 5” backing pad
SX65216 $169
7” SHROUD KIT
PART NUMBER: SX60216
Includes: convertible style dust shroud,
adapter ring and 7” backing pad
SX60216 $198
POLISHING ACCESSORIES
VSG-10 GRINDER/POLISHER
PART NUMBER: SX61000
The variable speed grinder is an easy to use, floor grinder/polisher
that will prep concrete surfaces in areas that cannot be accessed
STANDARD CONCRETE POLISHING PAD PACKS by larger equipment. 115V power, variable speed and adjustable
head pressure makes this machine excellent for smaller job sites.
Require backing pad (sold separately)
Includes Grits: #50, #100, #200, #400, #800, #1500, #3000 VSG-10
5” Package PPN5GPACK
Part Number SX61000
7” Package PPN7GPACK
Power Requirement 115V 15 Amp Electric
HONEYCOMB CONCRETE POLISHING PAD Max RPM 400 - 1,500
PACKS Grinding Wheels Fast Change Diamonds, PCDs, and
Used Polishing Pads
High production polishing pads. Require backing pad (sold separately)
Weight 155 lbs
Includes Grits: #50, #100, #200, #400, #800, #1500, #3000
5” Package PHN05PACK Price $4,300
7” Package PHN07PACK
For the latest U.S.SAWS products and pricing, go to www.ussaws.com or 7
speak to one of our experts at 877.817.6687
JOINT CLEANOUT &
CRACK CHASING SAWS
U.S.SAWS’ JOINT CLEANOUT SAWS
U.S.SAWS offers a wide-ranging line of high-quality Joint Cleanout & Crack Saws
for the surface preparation, concrete polishing, and construction industries. Our
saws are designed to run deep, straight, fast cuts, & precise in concrete.
Mark3 Dust Buggy
Part Number SX13700
MARKIII JOINT CLEANOUT Grinder Make/
Metabo W24-230
Model
PART NUMBER: SX13700
Output Power 15 Amp Electric
The U.S.SAWS MarkIII is designed to clean Max RPM 6,600
out joints and remove existing joint filler Power Require-
faster and more accurately. The custom- 115V, 60Hz
ments
designed blade guard allows the operator Max Cutting Depth 2”
to see the blade yet still covers 98% for
Blade Diameter 7” or 8”
excellent dust control. The redesigned handle
Dry Diamond
is more stable and has an adjustable height
Blade Width .090”, .125”, .250”
and also rotates 90O to get closer to walls or
racks. The joint cleanout saw cuts up to 2” Blade Arbor 7/8”
deep and fully complies with ANSI diamond Weight 56 lb
blade speed regulations.
Price $1850
Heavy Duty Dust Buggy
HEAVY DUTY DUST BUGGY Part Number SX13550
PART NUMBER: SX13590 Grinder Make/Model Metabo W24-230
The U.S.SAWS Heavy Duty Dust Buggy is Power Source 15 Amp Electric
perfect for indoor control joint work. Its Max RPM 6,600
up-cut blade rotation allows debris to be Power Requirements 120V, 60Hz
removed from joints as your moving forward. Max Cutting Depth 2”
Designed to clean out existing control
Blade Diameter 7” or 8” Dry Diamond
joints before filling, or to remove failing or
Blade Width .090”, .125”, .250”
deteriorated epoxy, polyurea, or polyurethane .375”, .500”
joint fillers.
Blade Arbor 7/8”
Weight 48 lb
Price $1499
For the latest U.S.SAWS products and pricing, go to www.ussaws.com or 8
speak to one of our experts at 877.817.6687
JOINT CLEANOUT &
CRACK CHASING SAWS
JS-130 13HP HONDA GAS WALK- Gas JS Saw Model JS-130
BEHIND JOINT CLEANOUT SAW Part Number SX77130
PART NUMBER: SX77130 Power Source 13 HP Honda Gas
Max RPM 5,850
The U.S.SAWS JS-130 Gas – Joint Cleanout
Saw is a gas powered walk-behind saw used Max Cutting Depth 2-3/4”
for joint cleanout, concrete sawing, and trench Blade Diameter 8” or 10” Dry Diamond
cutting. The material is milled out of the joint Blade Width .090”, .125”, .250” .375”, .500”
in an upward direction and is collected by the Arbor Size 1” with Drive Pin Hole
debris collection port. It features a blade guard
Weight 185 lb
design that permits easy dust extraction
and a secure connection to the dust Price $4500
collection system.
WALK-BEHIND CRACK CHASING SAW
CC100 CRACK CHASER
WITH 9HP HONDA ENGINE
PART NUMBER: SX90102
The CC-100 is the fastest and most
productive walk-behind crack chaser
on the market today. Operators have
a clear view of the cutting blade of the
CC-100 by pulling the saw backward.
Its unique pivoting system allows the
CC-100 to cut in tight curves effortlessly
avoiding stopping and restarting. The
CC-100 can also be used for joint
cleanout projects.
CC-100
Part Number SX90102
Description Walk-Behind Crack Chaser
Motor Make/Model Honda GX270
Power Source 9 HP Gas
Max RPM 8,775
Max Cutting Depth 1”
Blade Diameter 6” Dry Diamond
Blade Width .250”, .375”, .500”
Blade Arbor 5/8” with Drive Pin Hole
Weight 140 lb
Price $4500
For the latest U.S.SAWS products and pricing, go to www.ussaws.com or 9
speak to one of our experts at 877.817.6687
JOINT CLEANOUT &
CRACK CHASING SAWS
5” CRACK CHASER Tuc-Pointer
Part Number SX55010 SX55014
ASSEMBLY Grinder Make/
PART NUMBERS: SX55010 Model
5” Metabo WE15-125 5” Metabo W9-115
SX55014 13.5 Amp Electric
Power 8.5 Amp Electric
Variable Speed
The 5” crack chaser saw is powered by
RPM 2,800-9,600 10,500
a 5” Metabo grinder WE15-125 Great
(Blade sold separately) Power
for cutting out mortar or grout joints. 120V, 60Hz 120V, 60Hz
Requirements
The 5” Crack Chaser is a handheld saw
designed for routing out random cracks Max Cutting
1-1/4” 1-1/4”
Depth
or cutting concrete while collecting the
dust. 4”, 4.5” or 5” Dry 4”, 4.5”, or 5” Dry
Blade Diameter
Diamond Diamond
Price $539 $430
CUT VAC
SX70000
CUT VAC DOLLY Cut Vac
ASSEMBLY Part Number SX70000 SK70000K
PART NUMBER: SX70000 Description Hand-Held Crack
Chaser
Hand-Held Crack
Chaser
SX70000K Grinder/Motor Metabo W24-180 Metabo W24-180
Make/Model
The U.S.SAWS Cut Vac is
Power Source 15 Amp 110V Electric 15 Amp 110V Electric
designed to cleanout joints as
well as cut and remove existing Max RPM 8,500 8,500
SX70000K
joint filler. The hand-held Cut Max Cutting 1-1/8” 1-1/8”
Depth
Vac can also be used for scoring
lines in decorative concrete Blade Diameter 7” or 8” 7” or 8”
applications and for random Blade Width .250”, .375” .250”, .375”
crack chasing. Blade Arbor 7/8” 7/8”
Weight 27 lb 47 lb
Price $965 $1325
SCORING SAW
Scoring Saw 360° WHEEL KIT (SET OF 4)
Part Number SX13402 SX13401
PART NUMBER: SX70000
Power W14-125 Metabo Grinder W8-115 Metabo Grinder Add the 360° wheel kit to the scoring saw
7,500 - 10,000 Variable to turn the decorative saw, into a crack
Speed 10,000
Speed chasing saw.
Voltage 12 Amp 12 Amp SXOMNI $100
Blade 4”, 4.5”, & 5” Dry Di- 4”, 4.5”, & 5” Dry
Capacity amond Diamond
Depth of Cut 3/4” 3/4”
Arbor 5/8” / 7/8” 5/8” / 7/8”
Weight 16 lbs 16 lbs
Price $599 $699
For the latest U.S.SAWS products and pricing, go to www.ussaws.com or 10
speak to one of our experts at 877.817.6687INDUSTRIAL DUST VACUUMS
U.S.SAWS’ ULTRA-VAC DUST VACUUMS
This line of dust vacuums are designed specifically for concrete dust and for
the construction industry. Using our extensive knowledge and experience in
the surface preparation industry, our Ultra Vacs are engineered to be the most
efficient, durable vacuums on the market.
They feature front and rear handles for easy transportation, heavy-duty wheels
that roll over cords and job site debris easily, shaker style filter clearing, large
capacity dust bins, and large multi-pleated filters that allow for longer use.
ULTRA-VACS
ULTRA-VAC 1250 GAS Model Ultra Vac 1250 Gas
INDUSTRIAL VACUUM Part Number SX50005G
PART NUMBER: SX50005G CFM 450
Water Lift 115
The Ultra-Vac 1250 Gas model is equipped
Dust Bin 12.5 Gallons
with a Honda GX gas engine and a large CFM
blower for use with bigger machines that Power Source Honda Gas Engine GX240
require more air flow. Filter Size 18.3 sq. ft.
Weight 170 lbs
*The Vac is designed for use with the Hose Inlet Size 3”
U.S.SAWS Js-130, CC-100, and a variety of
Tube Steel /
early entry saws. Frame / Body
High Density Polyethylene
Price $6300
ULTRA-VAC 1250 DUST Model
Ultra Vac 1250 -
HEPA
COLLECTOR – WITH HEPA FILTERS Part
SX50000
PART NUMBER: SX50000 Number
CFM 220
The heavy duty and extremely durable Ultra-
Water Lift 110”
Vac 1250 is our most popular vacuum. It’s
large filter will allow the vacuum to perform Dust Bin 12.5 Gallons
without losing suction even with a full load Amperage 17 Amp
of dust. The vacuum is designed for the Voltage 120V
construction industry and is a perfect match Filter Size 18.3 sq. ft.
for 7” grinders, 8” scarifiers, small planetary
Weight 96 lbs
machines and joint cleanout equiment.
Price $2895
For the latest U.S.SAWS products and pricing, go to www.ussaws.com or 11
speak to one of our experts at 877.817.6687INDUSTRIAL DUST VACUUMS
Model Ultra Vac 950 - HEPA
ULTRA-VAC950 WITH Part Number SX50950
CFM 175
SINGLE 120V MOTOR Water Lift 110
PART NUMBER: SX50950
Dust Bin Capacity 9.5 Gallons
The OSHA certified Ultra-Vac 950 dust Amperage 14 Amp
collection vacuum contains a single, 120V
high-efficiency turbine motor, 9.5-gallon Voltage 120V
dust bin, 25’ 2” hose, and one HEPA filter
Filter Size 13.7 sq. ft
for maximum dust collection.
Weight 70 lbs
(1) HEPA Filter & 2”x 25’ Crush Proof Hose Hose Inlet Size 2”
Tube Steel / High
Frame/ Body
Density Polyethylene
Price $2050
ULTRA-VAC 1250 ACCESSORIES
ULTRA-VAC 1250 ULTRA-VAC 1250 PAN
BAGGER VAC WITH REINFORCEMENT
PART NUMBER: SX50110
(DUST PAN ONLY)
This steel frame pairs with Ultra-Vac PART NUMBER: SX24600-6
1250 models to convert them into a
bagging vacuum system. Vacuum Fits to the U.S.SAWS Ultra-Vac 1250
Base only
sold separately.
SX50110 $995
Example shown with bag
DUST COLLECTION PRE-SEPERATOR
5 GALLON CYCLONE PRE- 5 GALLON CYCLONE PRE-
SEPARATOR WITH 10 BAGS SEPARATOR
PART NUMBER: SX24445BAG PART NUMBER: SX24445
The U.S.SAWS Cyclone Pre-Separator The U.S.SAWS Cyclone Pre-Separator attaches to
is a low-cost way to turn your shop-vac any shop-type vacuum & extends its’ motor’s life.
into an effective industrial dust collector. The unit includes separator, 8’ hose, roller base. 2
It separates 99% of the concrete dust models offered--with or without bags
before it reaches the shop-vac. This
package comes with 10 disposable
bags.
Cyclone Separator with 10
Model Cyclone Separator
Bags
Part Number SX24445 SX24445BAG
Power Source Powered By Your Shop Vacuum Unit
Included Accessories 8’ 2-1/4” Hose and 5 Gallon Bucket Dolly
Price $230.00 $279.00
For the latest U.S.SAWS products and pricing, go to www.ussaws.com or 12
speak to one of our experts at 877.817.6687POLYUREA PUMPS
Joint filling on exposed concrete slabs is a crucial part of maintaining a smooth and durable control joint system. An unfilled joint will quickly
deteriorate under heavy loads causing material handling and cleanliness problems. Most control joints are being filled with epoxy or polyurea joint
fillers and US Saws has a solution for all your joint fill needs.
The US Saws polymer pumps were designed with the industrial flooring contractor in mind. These machines are easy to use, easy to repair and
maintain and have been built using high quality components for years of use. Our unique semi-transparent tanks allow the operator to monitor
the level of material in them so they never run out and proper ratio can be observed. Our pumps use a driven gear and chain design to ensure the
pumps are turning at the exact same speed. Variable pumping speed controlled by the operator allows the user to go as fast as they can or slow
down for optimal accuracy. These machines are proudly made in the USA.
ONE MAN POLYUREA PUMP
PART NUMBER: SX20550
The New Design of this joint fill pump
allows for one person operation. The unit
comes standard with a 1:1 component
ratio, but a 2:1 component ratio is
available. Lower tanks it makes for easier
filling. There is a dedicated storage area
for generator or battery. Also equipped
with a box for tools storage and a waste
bucket holder for less drips on the floor.
SX20550 $7250
*This pump can also be used to mix and dispense certain polyaspartic floor coatings.
Please contact customer service for more information*
1/2HP 110V ELECTRIC DUAL
COMPONENT POLYMER
GEAR PUMP
PART NUMBER: SX20550
A simple to use, easy to maintain,
efficient joint fill pump. Single chain
gear drive keeps the pumping ratio
consistent. Semi-transparent tanks
allow the user to monitor fluid levels.
Can be used with a power inverter and
battery for cordless use.
SX20100 $6899
*This pump can also be used to mix and dispense certain polyaspartic floor coatings.
Please contact customer service for more information*
For the latest U.S.SAWS products and pricing, go to www.ussaws.com or 13
speak to one of our experts at 877.817.6687POLYUREA PUMPS
DUAL COMPONENT PUMP ACCESSORIES
(A) Tank Warmers (Set of 2)
SX20017 $200.00
(B) Power Inverter
SX20018 $300.00
A B C (C) 2:1 Ratio Kit
SX21000 $99.00
(D) Replacement Static Mixer
(Quantity: 20)
SX20010-20 $53.50
(E) 6.5 Gallon Tank
SX20005-5 $67.50 ea.
(F) 6.5 Gallon Tank Lid
SX20005-6 $18.75 ea.
D E/F G (G) Replacement Pump
SX20201
(H) Manifold with Grease Fittings
SX20118 $150.00
(I) Static Mixer Retaining Nut
SX20111 $13.00
(J) Static Mixer Cap
SX20012 $3.00
(K) Pump Seal Kit
SX20201-1 $68.00
H I J
(L) Hose with fittings (each)
SX20410 $115.00
(M) 5” Hand Scraper
CTHDS0305ERG $185.00
(N) 5” Scraper Replacement Blades
50 ct: CTHDS03BL50 $60.00
100 ct: CTHDS03BL100 $110.00
K L M N
For the latest U.S.SAWS products and pricing, go to www.ussaws.com or 14
speak to one of our experts at 877.817.6687DIAMOND BLADES & TOOLING
CUP & ZEC WHEELS
Description Part No.
4”x.080”x7/8”-5/8” APB04080
TIGER TOOTH® DIAMOND GRIT BLADES 4.5”x.080”x7/8” APB45080
Removes polyurea without loading up. Oversized diamond 7”x.090”x7/8” APB07090
grit. Patented step segments for longer life. Can be used 7”x.125”x7/8” APB07125D
wet or dry. 8”x.095”x7/8” APB08095D
Applications: Plastic Pipe, Rebar, Angle Iron, Threaded Rod, 8”x.125”x7/8” APB08125D
Polyurea, Epoxy
Description Part No.
USAGE: JOINT CLEANOUT SAWS, HAND-HELD SAWS
8”x.095”x1” w/DPH APB08095E
8”x.125”x1” w/DPH APB08125E
10”x.095”x1” w/DPH APB10095E
DRY CUT DIAMOND BLADES
• High diamond concentration for
general joint cleanout and crack
chasing applications.
• Laser welded segments for
durability.
• May be used wet or dry.
Most Popular Blades Shown Below. Many other sizes available. Please call for more information.
Size Part No. Description Size Part No. Description
4”x.080”x7/8” Standard
Blade Width Guide
DCB04080 8”x.095”x7/8” Supreme Dry
Concrete Blade DCB08095
Concrete Blade
4”x.250”x7/8” Prem Tuck .080”
DCB04250 8”x.125”x7/8”-5/8” Supreme Dry
Point Blade - Med Bond DCB08125
Concrete Blade
4.0”
4.5”x.375”x7/8” Prem Tuck
.090”
DCB04375 8”x.187”x1”-7/8” Supreme
Point Blade - Med Bond DCB08187
Concrete Blade w/DPH* .095”
8.0”
4.5”x.500”x7/8” Standard 8”x.250”x7/8” Prem Dry
DCB04500 DCB08250
Tuck Point Blade Concrete Blade .100”
4.5”x.080”x7/8” Standard 8”x.375”x7/8” Prem Dry
DCB45080 DCB08375
Concrete Blade Concrete Blade .110”
4.5”x.125”x7/8” Supreme 8”x.500”x1” Prem Dry
DCB45125 DCB08500
Concrete Blade
4.5” Concrete Blade w/DPH* .125”
4.5”x.250”x7/8” Prem 10”x.095”x1”-7/8” Supreme Dry
DCB45250 DCB10095
Concrete Blade - Med Bond Cut Concrete Blade w/DPH*
4.5”x.375”x7/8” Prem Tuck
.187”
DCB45375 10”x.110”x1”-7/8” Supreme Dry
Point Blade DCB10110
Cut Concrete Blade w/DPH*
5” DCB05250
5”x.250”x7/8” Supreme 10”x.125”x1”-7/8” Supreme Dry .250”
Concrete Blade DCB10125
Cut Concrete Blade w/DPH*
7”x.095”x7/8” Supreme 10”
DCB07095 10”x.187”x1”-7/8” Supreme Dry
Concrete Blade DCB10187
Cut Concrete Blade w/DPH*
7”x.125”x7/8” Supreme
.375”
DCB07125 10”x.250”x1” Supreme
Concrete Blade DCB10250
Concrete Blade w/DPH*
7”x.250”x7/8” Prem Dry 10”x.375”x1” Supreme
7” DCB07250 DCB10375
Concrete Blade Concrete Blade w/DPH*
7”x.375”x7/8” Prem Dry .500”
DCB07375 * DPH - Drive Pin Hole
Concrete Blade
7”x.500”x7/8” Prem Dry
DCB07500 • Most blades available in Standard, Premium,
Concrete Blade
and Supreme grades
• Hard and soft bonds are also available. Call for
more information.
For the latest U.S.SAWS products and pricing, go to www.ussaws.com or 15
speak to one of our experts at 877.817.6687DIAMOND BLADES & TOOLING
CUP & ZEC WHEELS
CRACK CHASING “V” BLADES
High diamond concentration for general joint cleanout and crack chasing applications. Laser welded segments for durability.
May be used wet or dry.
Applications: Concrete, Grout, Mortar
USAGE: JOINT CLEANOUT SAWS, HAND-HELD SAWS, CC-100
Description Part No.
Rectangular Segments
Description Part No. w/DPH & Kicker Segments
“V” Shaped Segments 6”x.250”x5/8” CCB06250PD
4”x.375”x7/8” CCB04375PVD 6”x.375”x5/8” CCB06375PD
4.5”x.375”x7/8” CCB45375PVD 6”x.500’x5/8” CCB06500PD
5”x.375”x7/8” CCB05375PVD “V” Shaped Segments
w/DPH & Kicker Segments
6”x.250”x5/8” CCB06250PVD
6”x.375”x5/8” CCB06375PVD
6”x.500”x 5/8” CCB06500PVD
Description Part No. Description Part No.
Rectangular Segments
4”x.080”x7/8” DCB04080U 5”x.060”x7/8” DTB05060P
4”x.250”x7/8” DCB04250P 5”x.080”x7/8” DCB05080U
4”x.375”x7/8” DCB04375P 5”x.250”x7/8” DCB08250P
4.5”x.080”x7/8” DCB45080U 5”x.375”x7/8” DCB08375P
BEVEL BLADES
PREM BEVELLED BLADE
Beveled segment allows for use with rectangular
segmented blades to bevel joints.
• Set of 2 (Left & Right)
Description Part No.
6”x.250”x7/8” DCC06BEV250D
SANDWICH TUC-POINT BLADES
Size Part No. Description
Sandwich Tuc-Point blades for tuc-pointing or cleaning and widening joints.
Premium
TSS042539P40D 4”x.250”x7/8” Premium
4”
TSS043739P40D 4”x.375”x7/8” Premium
TSS452539P40D 4.5”x.250”x7/8” Premium
4.5”
TSS453739P40D 4.5”x.375”x7/8” Premium
TSS052539P40D 5”x.250”x7/8” Premium
5”
TSS053739P40D 5”x.375”x7/8” Premium
6” TSS062539P40D 6”x.250”x7/8” Premium
TSS072539P40D 7”x.250”x7/8” Premium
7”
TSS073739P40D 7”x.375”x7/8” Premium
For the latest U.S.SAWS products and pricing, go to www.ussaws.com or 16
speak to one of our experts at 877.817.6687DIAMOND BLADES & TOOLING
CUP & ZEC WHEELS
TURBO CUP WHEELS
Angled segments stabilize the wheel to help eliminate gouging.
Applications: Planing down high spots, thin coatings removal
Choose fewer segments for more aggressive grinding.
Turbo Cup Wheels
Description Part No.
4”x7/8” 8 Segment Std CW4TR8PDB
4”x7/8” 16 Segment Std CW4TR16SDN
4.5”x7/8” 9 Segment Std CW4TR16SDN
4.5”x7/8” 10 Segment Prem CW45TR10PDS
4.5”x7/8” 18 Segment Std CW45TR18SDN
4.5”x7/8” 18 Segment Prem CW45TR18PDS
7”x7/8” 12 Segment Std CW7TR12SDN
7”x7/8” 12 Segment Prem CW7TR12PDS
7”x7/8” 24 Segment Std CW7TR24SDN
7”x7/8” 24 Segment Prem CW7TR24PDS
7” SWAT Cup Wheels - *18 Grit
Description Part No.
3+3 most aggressive CW7SW33DS
6+3 aggressive; longer life than 3+3 CW7SW63DS
9+9 longest life CW7SW99DS
BI-TURBO CUP WHEELS
Long segments help eliminate gouging and cover
Bi- Turbo Cup Wheel
more surface to increase production. Select a wheel
with fewer segments for more aggressive grinding. Description Part No.
Select a wheel with more segments for longer life. 4.5”x7/8” 14 Segment #18 Grit CW45TN14PDS
Applications: Planing down high spots, thin coatings 5”x7/8” 18 Segment #16/20 Grit CW5BT9918SDN
removal
5”x7/8” 18 Segment #60/80 Grit CWBT9960SDN
5”x7/8” 18 Segment #120/150 Grit CW5BT99120SDN
7”x7/8” 3 Segment #16/20 Grit CW7TN3SDN
7”x7/8” 6 Segment #16/20 Grit CW7TN6SDN
7”x7/8” 9 Segment #16/20 Grit CW7TN9SDN
7”x7/8” 18 Segment #16/20 Grit CW7BT9918DN
7”x7/8” 18 Segment #60/80 Grit CW7BT9960DN
7”x7/8” 18 Segment #120 Grit CW7BT99120SDN
For the latest U.S.SAWS products and pricing, go to www.ussaws.com or 17
speak to one of our experts at 877.817.6687DIAMOND BLADES & TOOLING
CUP & ZEC WHEELS
ARROW SEGMENT CUP WHEELS Arrow Segment Cup Wheels
Best production when used on thin coatings, epoxy and Description Part No.
other paint materials. The angle of the arrow shaped
segment allows the wheel to scrape and grind at the 5”x7/8” 6 Segment CW5AR6PDS
same time. The design allows segments to burrow 5”x5/8”-11 6 Segment CW5AR6PTS
underneath coatings and adhesives to remove them.
Provides fast production rates and long life. 7”x7/8” 10 Segment CW7AR10PDS
7”x5/8”-11 10 Segment CW7AR10PTS
PCD CUP WHEELS
Best production when used on thick PCD Cup Wheels
coatings, epoxy, urethane and other Description Part No.
membrane materials without loading
up. Quarter round PCD segments for fast 5” 4 Quarter Round Segment PCD Wheel CW5PCD4DN
production and long life; select fewer 5” 6 Quarter Round Segment PCD Wheel CW5PCD6R
segments for more aggressive action.
5” 12 Sharp Segment, Double Row PCD Wheel CW5PCD12S
7” 6 Quarter Round Segment PCD Wheel CW7PCD6R
7” 8 Quarter Round Segment, Double Row PCD Wheel CW7PCD8DN
7” 24 Sharp Segment, Double Row PCD Wheel CW7PCD245
T-SEGMENT CUP WHEELS
Select the T-Segment cup wheel for aggressive grinding Size Part No. Description
with good life. TTS0408PD 4”x7/8”-5/8” 8 Segment
Applications: Planing down high spots and removal of 4”
thin coatings TTS0408PT 4”x5/8-11” 8 Segment Threaded
TTS4509PD 4.5”x7/8”-5/8” 9 Segment
*Not recommended for curing compounds or before 4.5”
thin mil coating application or polishing. TTS4509PT 4.5”x5/8-11” 9 Segment Threaded
TTS0510PD 5”x7/8”-5/8” 10 Segment
5”
TTS0510PT 5”x5/8-11” 10 Segment Threaded
TTS0612PD 6”x7/8”-5/8” 12 Segment
6”
TTS0612PT 6”x5/8-11” 12 Segment Threaded
TTS0714PD 7”x7/8”-5/8” 14 Segment
7”
TTS0714PT 7”x5/8-11” 14 Segment Threaded
For the latest U.S.SAWS products and pricing, go to www.ussaws.com or 18
speak to one of our experts at 877.817.6687DIAMOND BLADES & TOOLING
CUP & ZEC WHEELS
FAST CHANGE DIAMOND TOOLING
Increases production by reducing downtime due to changing out diamond tooling.
Plates are available for the VSG-10 and many other makes/models of planetary machines.
Available Bonds : Soft, Medium & Hard
Grit Part No. Grit Part No.
Single Segment Double Segment
#6 SWN1R6FC #6 DWN2R6FC
# 16/20 SWN1R18FC # 16/20 DWN2R18FC
# 30/40 SWN1R30FC # 30/40 DWN2R30FC
# 60/80 SWN1R60FC # 60/80 DWN2R60FC
# 120/150 SWN1R120FC # 120/150 DWN2R120FC
Direction Part No. Direction Part No.
Fast Change Plate System PCD with Sweeper Standard PCD
Plates available for many makes/ Segment
Right PWNQRRFC
models of planetary machines. Call Right PWNQRRWFC
Left PWNQRLFC
for availability
Left PWNQRLWFC
TRAPEZOIDS/BOLT-ON TOOLS
Single & Double Segment Premium Wings Grit Part No. Grit Part No.
Used for cleaning, smoothing & coating removal Single Segment Double Segment
Single segments are better for lighter weight planetary &
#6 SWN1R6 #6 DWN2R6
trapezoid machines
#16/20 SWN1R18 #16/20 DWN2R18
Double segments are better for heavier weight planetary &
trapezoid machines #30/40 SWN1R30 #30/40 DWN2R30
#60/80 SWN1R60 #60/80 DWN2R60
Available in soft, medium and hard bonds #120/150 SWN1R120 #120/150 DWN2R120
Part No. Description
DTTR2RD18ST #18/20 Grit Soft Bond
PCD (Polycrystalline Diamond) Wings DTTR2RD30ST #30/40 Grit Soft Bond
Used for thick coatings, epoxy, glue, resin &
DTTR2RD60ST #60/80 Grit Soft Bond
other membrane removal
DTTR2RD120ST #120/150 Grit Soft Bond
Provide aggressive removal.
DTTR2RD18MT #18/20 Grit Medium Bond
DTTR2RD30MT #30/40 Grit Medium Bond
DTTR2RD60MT #60/80 Grit Medium Bond
Description Part No. DTTR2RD120MT #120/150 Grit Medium Bond
2 Quarter Round RH PWNQRR DTTR2RD18HT #18/20 Grit Hard Bond
2 Quarter Round LH PWNQRL DTTR2RD30HT #30/40 Grit Hard Bond
DTTR2RD60HT #60/80 Grit Hard Bond
DTTR2RD120HT #120/150 Grit Hard Bond
For the latest U.S.SAWS products and pricing, go to www.ussaws.com or 19
speak to one of our experts at 877.817.6687DIAMOND BLADES & TOOLING
CUP & ZEC WHEELS
DIAMOND GRINDING PLATE
10” Segmented Grinding Plates
10” Diamond Arrow Segmented Grinding Plates Used for cleaning, smoothing & coating
Used for thick coatings, epoxy, glue, resin & other membrane removal. Designed for 10” high speed grinders.
removal. The angle of the arrow shaped segment allows segment to Select fewer segments for more aggressive
scrape and grind at the same time. The design allows segments to grinding; more segments for longer life.
burrow underneath coatings and adhesives. 10 or 20 segment grinding plate with 4 bolt
holes
Description Part No. Description Part No.
10 Segment ARN1010P20F 10 Segment FGN1010P20F
20 Segment ARN1020P20F 20 Segment FGN1020P20F
EASY EDGE
Easy Edge is a revolutionary design that improves the Description Part No. Description Part No.
quality of edge work while reducing the scratches 7” #30 Grit CTO07030G 7” #270 Grit CTO07270G
and gouging that metal bond cup wheels can cause.
7” #50 Grit CTO07050G 7” #400 Grit CTO07400G
The Easy Edge™ system will eliminate metal bond
7” #100 Grit CTO07100G
cup wheels on most concrete polishing projects. Easy
Edge is fast, lightweight, and easy to use resulting in a
superior edge. Works well on hard, medium and soft
concrete. Dry or wet.
New and revolutionary diamond discs to restore the
gloss on marble and terrazzo floors. Used regularly, they
maintain floors’ bright shine and look newly polished. Easy
to use. Use them as a normal “floor pad” disc with mono
brush machines or auto-scrubbers. They remove scratches,
deep clean, and polish.
PART NUMBER: KL30178K
RESIN PADS
Thin Resin Pads Resin Pads
3” thin, velcro resin pads 3” thick, velcro resin pads
Description Part No. Description Part No.
#50 Grit PPT030050 #50 Grit VPN0350
#100 Grit PPT030100 #100 Grit VPN03100
#200 Grit PPT030200 #200 Grit VPN03200
#400 Grit PPT030400 #400 Grit VPN03400
#800 Grit PPT030800 #800 Grit VPN03800
#1500 Grit PPT031500 #1500 Grit VPN031500
For the latest U.S.SAWS products and pricing, go to www.ussaws.com or 20
speak to one of our experts at 877.817.6687DIAMOND BLADES & TOOLING
CUP & ZEC WHEELS
CONCRETE POLISHING PADS (STANDARD)
*Require backing pad (sold separately)
Start with lower numbered (coarser) grit and progress to higher numbered grit
5” Package: Part No. PPN5GPACK Concrete Polishing Pads
7” Package: Part No. PPN7GPACK Grit 5” Part No. 7” Part No.
(Includes one of: #50, #100, #200, #400, #800,#1500, and #3000)
#50 PPN5G0050 PPN7G0050
5” Backing Pad: Part No. PPN5BP #100 PPN5G0100 PPN7G0100
7” Backing Pad: Part No. PPN7BP #200 PPN5G0200 PPN7G0200
#400 PPN5G0400 PPN7G0400
#800 PPN5G0800 PPN7G0800
#1500 PPN5G1500 PPN7G1500
#3000 PPN5G3000 PPN5G3000
CONCRETE POLISHING PADS (HONEYCOMB)
*Require backing pad (sold separately)
Start with lower numbered (coarser) grit and progress to higher numbered grit
Honeycomb Polishing Pads
5” Package: Part No. PHN05PACK Grit 5” Part No. 7” Part No.
7” Package: Part No. PHN07PACK
#50 PHN050050 PHN070050
(Includes one of: #50, #100, #200, #400, #800, #1500, and #3000)
#100 PHN050100 PHN070100
5” Backing Pad: Part No. PPN5BP #200 PHN050200 PHN070200
7” Backing Pad: Part No. PPN7BP #400 PHN050400 PHN070400
#800 PHN050800 PHN070800
#1500 PHN051500 PHN071500
#3000 PHN053000 PHN073000
For the latest U.S.SAWS products and pricing, go to www.ussaws.com or 21
speak to one of our experts at 877.817.6687DIAMOND BLADES & TOOLING
CUP & ZEC WHEELS
#12 Grit #16 Grit #24 Grit #36 Grit
Description Part No.
ZEC® SILICON CARBIDE DISC 4.5” #12 Grit ZEC4512L
(THE ORIGINAL) 4.5” #16 Grit ZEC4516L
4.5” #24 Grit ZEC4524L
Best for removal of mastics, soft coatings,
4.5” #36 Grit ZEC4536L
urethanes, epoxies, carpet glue, or paint. Spiral
4.5” #50 Grit ZEC4550L
design and air holes allow disc to run cooler,
preventing loading. 4.5” #60 Grit ZEC4560L
Several grits for different coating removal 4.5” #80 Grit ZEC4580L
applications 4.5” #120 Grit ZEC45120L
No backing pad required
7” #12 Grit ZEC712L
Sold in packages of 5
7” #16 Grit ZEC716L
7” #24 Grit ZEC724L
7” #36 Grit ZEC736L
SILICON CARBIDE DISC
(NON-BRANDED) Description Part No.
4.5” #8 Grit 05-20749
Best for coatings removal of mastics,
4.5” #16 Grit 05-20750
soft coatings, urethanes, epoxies,
carpet glue, or paint 7” #8 Grit 05-20705
No backing pad required 05-20700
7” #16 Grit
Sold in packages of 5
Epoxy Glue/Mastic Paint
For the latest U.S.SAWS products and pricing, go to www.ussaws.com or 22
speak to one of our experts at 877.817.6687ABOUT U.S.SAWS
U.S.SAWS’ Surface Preparation division manufactures specialty equipment for the industrial flooring, concrete repair, and concrete polish-
ing industries.
Former owners of Sawtec®, U.S. SAWS’ principals each have over 30 years experience in the concrete repair industry and are very knowl-
edgeable about Sawtec® products. They are dedicated to improving contractors’ brand loyalty through innovative product
enhancement and personal customer service.
U.S.SAWS’ professional grade surface preparation equipment line includes dust-free tools and accessories for grinding, cleaning and polish-
ing concrete, cutting and widening joints, and other joint cleanout applications and crack chasing equipment. The products are designed
for the professional contractor who focuses on concrete repair and surface preparation where time and dust control
are critical.
U.S. SAWS offers a “Satisfaction Guaranteed” policy on all products sold.
“Quality, No Excuses!”
LIMITED EQUIPMENT WARRANTY
U.S. SAWS warrants each new unit to be free from defects in material and workmanship for one year from date of factory shipment.
This warranty does not obligate U.S. SAWS to bear any transportation charges or personnel time in connection with the replacement or
repair of defective parts. This warranty does not obligate U.S. SAWS to bear any expense for travel time or for personnel in connection with
service calls.
Accessories or equipment furnished and installed on the product by U.S. SAWS but manufactured by others shall carry the accessory man-
ufacturer’s own warranty.
U.S. SAWS will not, in any event, be liable to the user for any consequential damages arising out of the sale for the loss of use, loss of prof-
its or revenue, interest, lost goodwill or work stoppage.
RETURN / CLAIM POLICY
1. Return of merchandise for credit or exchange must be done within 90 days of receipt. Authorized U.S. SAWS factory personnel must
approve all returns, at which time an RA# (Return Authorization) will be issued. A copy of the RA will then be faxed to the customer to
use as a packing list and to describe any defects.
2. Obsolete parts or special orders will not be accepted for return.
3. Package MUST include a copy of the RA. Merchandise shall be returned freight prepaid unless approved otherwise.
All returns NOT accompanied by an RA# will be refused.
4. Upon arrival, all items will be evaluated for credit. If an item is deemed defective, a credit will be issued toward any replacement
order.
5. Each return will be subject to a 15% restocking charge.
6. Any claims of shortage, damage, defects or wrong items must be submitted to U.S. SAWS within 30 days of receipt.
7. Electric motors and gas engines are covered under the manufacturer’s warranty. These items should be sent to their respective ser-
vice centers for inspection, repair or replacement when deemed necessary.
8. The customer must submit a claim to the carrier when items are received damaged.
ALL ORDERS SHIPPED IN THE U.S. OR CANADA
1. All prices quoted are F.O.B. origin.
2. All prices are subject to change without notice.
3. Discounts are not allowed on tax, freight or labor. Accounts not paid within 30 days are subject to 1.5% per month service charge
(18% annual percentage rate).
4. U.S. SAWS reserves the right to bid and sell direct to the U.S. Government.
5. U.S. SAWS reserves the right to modify, alter and improve any part or parts without incurring any obligation to replace any part or
parts, previously sold with such modified, altered or improved part or parts.
6. $25.00 minimum net order for parts and accessories.
For the latest U.S.SAWS products and pricing, go to www.ussaws.com or 23
speak to one of our experts at 877.817.6687BUILT FOR PROFESSIONALS
3702 West Central Avenue 8004-B E. Broadway Avenue
Santa Ana, CA 92704 Tampa, FL 33619
Phone 714-434-7297 Phone 813-621-8015
Fax 714-434-7299 Fax 813-621-7125
877.817.6687
www.ussaws.comYou can also read
