S PE C I F I CATI O N
Mercedes-Benz
3D wheel aligner
RAVTD3000HPMB
Description
RAVTD3000HPMB
3D wheel aligner
Supplied with the aligner:
Specific Mercedes software
Mercedes original database
Two pair of 4-point wheel clamps STDA46EU/3D-MB
One set of four spirit levels STDA149 for targets
One pair of STDA134 low friction turn tables
One extra pair of STDA128 batteries (total 4)
One extra pair of STDA117 lift brackets (total 4)
Exclusive aligner with 3D targets.
Cabinet equipped with side holders for MB 3-point
Equipped with 2 space saver sensors and wheel clamps (not included)
4 high resistance plastic targets to detect
Cabinet including support for Romess device (not included)
all vehicle angles in just few seconds.
Remote control located on each sensor. PC with mouse and DVD reader
S PE C I F I CATI O N
Mercedes-Benz
3D wheel aligner
RAVTD3000HPMB
Bluetooth transmission
between measuring heads
and control unit.
Mouse and mouse pad. Exclusive 3D targets:
PC including DVD reader - extremely light
- no electronic components inside
Original Mercedes database Data before and after adjustment
Included
STDA46EU/3D-MB
Two pair of 4-point wheel clamps for general usage
STDA149 (4 x kit)
Spirit levels for targets
One standard kit
STDA117
Pair of brackets for One extra kit
lift mounting
STDA128 (2 sets = 4 batteries) STDA134 (2 x kit)
Two standard batteries and Turntables
two spares
Not included
To be ordered from company Romess: To be ordered from Mercedes AG:
ROMESS measuring device Mercedes wheel clamps (4 x kit)
Ravaglioli S.p.A. via 1° maggio 3 - Fraz. Pontecchio M. - 40037 Sasso Marconi (Bo) - Italia Tel. +39 - 051-6781511 - Fax +39 - 051-846349 - rav@ravaglioli.com - www.ravaglioli.com
S PE C I F I CATI O N
Mercedes-Benz

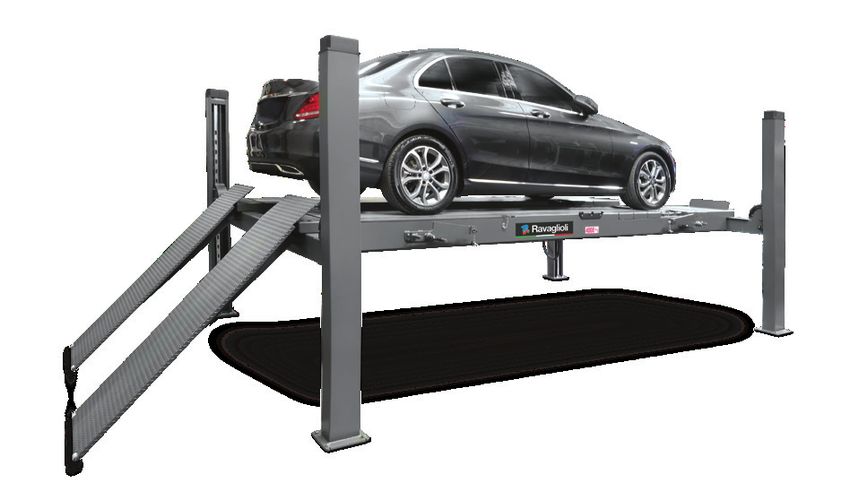

Electro-hydraulic 4 post lift
Capacity 4 T
RAV4406 MB
J30PMB
Includes:
S305A4
Description
RAV4406 MB
Electro-hydraulic 4 post lift, capacity 4 T
Supplied with the lift: S370A19
Alignment runways
Rear built-in sliding tables front spacers for turn tables
Long run-up ramps
J30PMB - 3t Jacking Beam with MB specific adapters
(spiral cable included)
S224A3
MKS - system to check lift planarity. H=140 MM
The MKS kit allows to place the four targets and check the perfect lift planarity.
Targets, cameras and turn tables are part of the wheel aligner and not included
with the lift.
Lighting Kit - four led
Energy Kit: S224A4
- 2 compressed air quick connections H=80 MM
- 1 electric plug Schuko 220V single phase
S PE C I F I CATI O N
Mercedes-Benz
Electro-hydraulic 4 post lift
Capacity 4 T
RAV4406 MB
3000
H alignment 1999
650 900 650
2640
H max 2051
2300
2660
244
Alignment runways
Rear built-in sliding tables front spacers for turn
3355 tables
254
254
100
°
7,5
A MKS system to check lift planarity.
660 660
J30PMB - 3t jacking beam with MB
7157 B
4940 specific adapters (spiral cable included)
R 700
C Lighting kit - four led
27,5
3°
D Long run uo ramps
±8
± 29
±8 ±8
± 29 ± 29
750
810
±8
± 29
450
246 1600 1285 1444 525
5100
6915
The MKS kit allows to place the four targets and
check the perfect lift planarity.
Targets, cameras and turn tables are part of the
wheel aligner and are not included with the lift.
A
D
A B
C
A
C
A
Ravaglioli S.p.A.
via 1° maggio 3 - Fraz. Pontecchio M. - 40037 Sasso Marconi (Bo) - Italia
Tel. +39 - 051-6781511 - Fax +39 - 051-846349 - rav@ravaglioli.com - www.ravaglioli.com
S PE C I F I CATI O N
Mercedes-Benz
Electro-hydraulic 4 post lift
Capacity 6,5 T
RAV4652 MB
J40PMB
Includes:
S305A4
Description
RAV4652 MB
Electro-hydraulic 4 post lift, capacity 6,5 T S370A19
Supplied with the lift:
Alignment runways
Rear built-in sliding tables front spacers for turn tables
Long run-up ramps
J40PMB - 4t Jacking Beam with MB specific adapters S224A3
H=140 MM
(spiral cable included)
MKS - system to check lift planarity.
The MKS kit allows to place the four targets and check the perfect lift planarity.
Targets, cameras and turn tables are part of the wheel aligner and not included
with the lift.
S224A4
Lighting Kit - four led H=80 MM
Energy Kit:
- 2 compressed air quick connections
- 1 electric plug Schuko 220V single phase
S PE C I F I CATI O N
Mercedes-Benz
Electro-hydraulic 4 post lift
Capacity 6,5 T
RAV4652 MB
3020
H lavoro - 1969
H max - 2019
650 900 650
2870
2560
2530
Alignment runways
244 Rear built-in sliding tables front spacers for turn
tables
3500 100
254
254
7,5
°
A MKS - system to check lift planarity.
660 660
7786,5 J40PMB - 4t Jacking Beam with MB
B
5545 specific adapters (spiral cable included)
R 700
C Lighting Kit - four led
27,5
3°
D Long run uo ramps
±8
± 29
±8 ±8 750
± 29 ± 29 797
±8
± 29
450
345 1600 1365 1865 525
5700
7520
The MKS kit allows to place
the four targets and check
the perfect lift planarity.
Targets, cameras and turn
tables are part of the wheel
aligner and not included
with the lift. A
B
A
C
A C D
A
Ravaglioli S.p.A.
via 1° maggio 3 - Fraz. Pontecchio M. - 40037 Sasso Marconi (Bo) - Italia
Tel. +39 - 051-6781511 - Fax +39 - 051-846349 - rav@ravaglioli.com - www.ravaglioli.com
Merce d es-B enz
EMPFOHLENE GER ÄTE
REC OMMENDED EQUIPMENT
SUPPLIER NUMBER / LIEFER ANTENNUMMER: 18581058 R AVAGLIOLI SPA
Stardardbühnen
Lifts for general service
KPX 336 DC - 2700 kg
KPX 337 DC - 3200 kg
KPN 345 DC - 3700 kg
KPN 250 DC - 5000 kg
KPX336MCC DC - 2700 kg
Hebebühnen empfohlene für Smart. RAV 518 DC - 3000 kg
Lifts recommended for Smart.KPH 370.32K DC / 3200 kg
KPH 370.42K DC / 4200 kg
Aufnahmen mit Schnellstecksystem
erleichtern den Einsatz von
Verlängerungen und anderem
Zubehör. Option
Arms suitable for quick drop-
in extensions and other lifting
accessories.
S 305 A9
Bracci predisposti per (Standard ➔ KPN 235DC
l’alloggiamento rapido di prolunghe
e accessori di sollevamento. KPN 250DC)
Bras prédisposés pour le montage Abstandstücke für Sprinter (2+2 Stücke)
rapide de rallonges et autres Spacers for Sprinter (2+2 pcs)
accessoires de levage. Distanziali per Sprinter (2+2 pezzi)
Brazos predispuestos para el Rehausses pour Sprinter (2+2 pièces)
alojamiento rapido de suplementos Espesores para Sprinter. (2+2 piezas)
para los tacos y accesorios.
KPH 370.42LIK DC / 4200 kg
Modell mit vier zweifach ausziehbaren
langen Armen: ideal zum Heben
von Lieferwagen auch mit langem
Radstand, garantiert auch eine
optimale Aufnahme von PKW.
Model equipped with four long three- S 305 A10
stage arms: ideal to lift long wheel Halterung.
base vans and easy loading of cars. Vehicle locking bar.
Modello equipaggiato con 4 bracci Barra trattenimento veicolo.
lunghi a tre stadi: ideali per il Barre de blocage voiture.
sollevamento di furgoni e furgonati a Bloqueo de seguridad.
passo lungo, consentono allo stesso
tempo caricabilità ottimale anche per
le autovetture.
Elévateur équipé de quatre bras longs
à trois étages: idéal pour le levage de
fourgons à châssis long, il garantit
aussi le levage optimal des voitures.
Elevador equipado con 4 brazos largos
de tres extensiones: ideal sea para el
levantamiento de furgonetas normales
y de chasis largo sea de turismos.
RAV 4401 SI DC - 4000 kg
Versionen mit integriertem Radfreiheber
Versions with wheel free lift
Versioni con sollevatore integrato
RAV 4350 DC - 3500 kg
Versions avec élévateur intégré
RAV 4401 DC - 4000 kg
Versiones con elevador auxiliarZweistempel - Unterflurhebebühnen
Twin Cylinder in - ground lifts
RAV1120 DC - kg 3.500
Hebebühne mit Flachträgeraufnahmen. Die Auffahrtsrampen können
hochgeklappt werden und als Verlängerungen benutzt werden.
Auffahrtshöhe 95 mm.
Lift with platforms.
The run-up ramps can easily and quickly be blocked in horizontal
position to serve as platform extensions. Min. height: 95mm.
Sollevatore a pedanine.
Le rampe di salita possono essere bloccate rapidamente in posizione
orizzontale e servire da prolunghe. Altezza minima 95 mm.
Elévateur avec plateaux de levage de type prise sous coque.
Les rampes de montée peuvent être bloquées rapidement en
position horizontale et servir de rallonges. 95 mm.
Elevador con plataformas pequeñas.
Las rampas de subida pueden bloquearse rápidamente en posición
horizontal y utilizarse como extensiones. Altura min. del suelo 95 mm.
RAV1125M DC - kg 3.500
Hebebühne mit Flachträgeraufnahmen 95 mm hoch.
Aufnahmen sind längs und seitlich ausziehbar.
Lift with adjustable platforms: both in length and
in width. Min. height: 95mm.
Sollevatore con pedanine regolabili sia in lunghezza
che in larghezza. Altezza minima di 95 mm.
Elévateur avec plateaux réglables en longueur
ainsi qu’en largeur. Hauteur minimum 95 mm.
Elevador con plataformas regulables tanto en largura
como en anchura. Altura minima del suelo de 95 mm.
RAV1110 DC - kg 3.500
Hebebühne mit Tragarmen.
Lift with arms.
Sollevatore a bracci.
Elévateur avec bras.
Elevador con brazos.
RAV1150U DC - kg 5.000
Hebebühne für PKW uns Lieferwagen, auch mit langem Radstand.
Tragarmewagenlängs verschiebbar für einen universellen Einsatz.
Lift for cars and vans, also with long wheel-base. The
carriages supporting the arms can be adjustedin width, in
order to make the lift suitable for any application.
Sollevatore per auto e furgoni, anche a passo lungo. Il carrello
supporto bracci è regolabile in larghezza,consentendo l’utilizzo
universale del sollevatore.
Elévateur pour voitures et fourgons, ainsi que les châssis longs.
La position de l’ensemble chariot/brasest réglable en largeur,
permettant une utilisation universelle du pont.
Elevador para turismos y furgonetas, incluidas las de chasis largo.
El carro quesoporta los brazos es regulable enanchura y permite el
utilizo universal del elevador.Hebebühnen freigegeben für Achsvermessung
Lifts approved for Wheel Alignment
RAV 4406 DC - 4000 kg
Prädisponiert für di Montage der Kalibriervorrichtung
von gelisteten Achsmessgeräten
Ready for installation of approved alignment
calibration kits
Predisposizione per montaggio attrezzi di taratura MKS-Halter für gelistete Achsmessgeräte
per assetti omologati MKS supports for approved aligners
Prédisposition pour le montage de kitsde Supporti MKS per assetti ruote omologati
calibration pour géométries homologuées Supports MKS pour géométries homologuées
Preparado para instalación de kits decalibración de Soportes MKS para alineadores homologados
alineadores homologados
J20 PNXL DC - 2000 kg
Option
RAV 4406 A1 DC/M
(➔ RAV 4406 DC)
MKS Verkabelung
MKS pre-wiring
Precablaggio MKS
Cablage MKS pré-assemblé
Spezieller Wekzeughalter Mercedes Luftanschluss für Achsheber
Special Mercedes tool holder Air connection for jacking beam Pre-cablaje MKS
Speciale portautensili Mercedes Attacco aria per traversa
Porte-outils spécial Mercedes Prise d’air pour traverse
Porta utiles especial Mercedes Conexión de aire para el gatoHebebühnen freigegeben für Achsvermessung
Lifts approved for Wheel Alignment

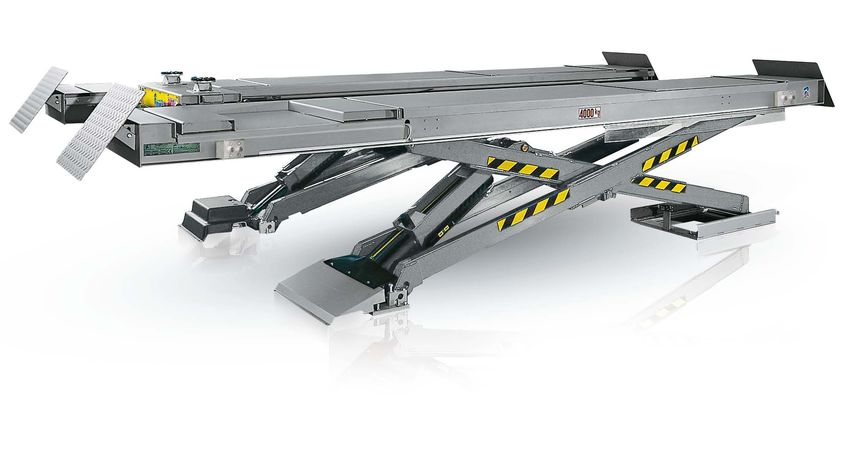

RAV640.2 ISWA DC - 4200 kg
Achmessbühne bodeneben
eingebaut
Wheel alignment lift for
recessed installation
Ponte per assetto in versione
incassata nel pavimento
Elévateur pour géométrie
encastré dans le sol
Elevador para alineación
completa en versión empotrada
Perfekte Nivellierung der Fahrschienen
für Achsvermessung:
+/- 0,5 mm in der Länge und Breite
+/- 1,0 mm diagonal
RAV640.2 SWA DC - 4200 kg
Perfect platform levelling for vehicle
alignment:
+/- 0,5 mm in lenght and width
+/- 1,0 mm diagonally
Perfetto livello delle pedane per
misurazione assetto ruote:
+/- 0,5 mm in lunghezza e larghezza
+/- 1,0 mm in diagonale
Niveau parfait des chemins de roulement
pour le réglage de la géométrie: Option
+/- 0,5 mm sur la longueur et la largeur
+/- 1,0 mm sur la diagonale
Nivel perfecto de las plataformas para el
ajuste de las medidas durante la alineación:
+/- 0,5 mm en largo y ancho
+/- 1,0 mm en diagonal
RAV 640.2 A1 DC/M (➔ RAV 640.2 SWADC)
(➔ RAV 640.2 ISWADC)
MKS Verkabelung
MKS pre-wiring
Precablaggio MKS
Cablage MKS pré-assemblé
Pre-cablaje MKSbenheit in 3 Positionen garantiert:
1) ganz unten - 2) in Arbeitshöhe - 3) ganz oben
Perfect levelling granted in 3 working positions:
1) down position - 2) working height - 3) full height
Planarità garantita in 3 posizioni:
1) tutto basso - 2) altezza di lavoro - 3) tutto alto
Niveau garanti en 3 positions:
1) tout bas - 2) hauteur de réglage - 3) tout haut
Nivel garantizado en 3 posiciones:
MKS-Halter für gelistete Achsmessgeräte 1) todo bajo - 2) altura de ajuste del alineado - 3) todo alto
MKS supports for approved aligners
Supporti MKS per assetti ruote omologati
Supports MKS pour géométries homologuées
Soportes MKS para alineadores homologados
Scherenhebebühne mit Beleuchtung
Scissors lifts with lighting kit
Sollevatori a forbice con impianto di illuminazione
Ciseaux avec systeme d’éclairage
Elevadores de tijera con instalación de alumbrado
RAV 640.1 DC - 4200 kg RAV 640.4.46 DC - 4200 kg RAV 650.1 SI DC - 5000 kg
RAV 650.1 DC - 5000 kg RAV 650.6 DC - 5000 kg Hebebühnen mit flachen Fahrschienen mit integrierter
Radfreiheber.
Hebebühnen mit flachen Fahrschienen. Hebebühnen mit Gelenkspieltestern.
Lifts with flat platforms with built in wheel free lift.
Lifts with flat platforms. Lifts with built in play detector.
Sollevatori con pedane piane e sollevatore integrato.
Sollevatori con pedane piane. Sollevatori con provagiochi.
Ponts élévateurs avec chemins de roulement plats
Ponts élévateurs avec cheminsde Ponts élévateurs avec plaques à jeux. etelévateur intégré.
roulement plats. Elevadores con detector de holguras. Elevadores co n plataformas lisas y elevador auxiliar
Elevadores con plataformas lisas. integrado.Tire Service Equipment
Reifendienstgeräte
COMPLETELY LEVERLESS
KOMPLETT HEBELLOS Utensile di montaggio/smontaggio brevettato
Costruito in materiale plastico, consente di lavorare vicino
al cerchio rendendo più facile l’estrazione del tallone e
agevolando così lo smontaggio di qualsiasi tipo di pneumatico.
Patented mounting/demounting tool
Made from plastic material, it allows operation close to the
rim, making bead extraction easier and thus simplifying the
demounting of any type of tyre.
Patentierter Montage-/Demontagekopf
Der aus Kunststoff gefertigte Montage-/Demontagekopf erlaubt
das Arbeiten in der Felgennähe und erleichtert das Abziehen
des Wulstes für eine leichtere Demontage aller Reifentypen.
Outil de montage/démontage breveté
Réalisé en matériel plastique, il permet d'opérer près de
la jante, ce qui permet de faciliter l'extraction du talon et,
conséquemment,le démontage de tout type de pneumatique.
Útil de montaje/desmontaje patentado
G1200.34 slim Fabricado en material plastico, permite trabajar cerca del
la llanta facilitando la extracción del talón y agilizando el
desmontaje de cualquier tipo de neumático.
Utensile sintetico
A differenza di un tradizionale utensile in metallo, l’utensile sintetico
permette di lavorare vicino al cerchio rendendo più facile l’estrazione
del tallone.
Synthetic tool
Unlike standard metal tools, the synthetic tool allows to work close to
the rim getting an easier bead extraction.
Kunststoffmontagekopf
Im Gegensatz zu Metallwerkzeugen erlaubt das Kunststoffwerkzeug
das Arbeiten bei der Felge. Dies erlaubt einen einfacheren Auszug des
Wulstes.
Outil synthétique
À différence des outils en métal, l'outil synthétique permet de
travailler près de la jante obtenant une extraction plus facile du talon.
Útil sintético
A diferencia de los útiles de metal, el útil sintético permite trabajar
cerca de la llanta. Esto consigue una extracción más fácil del talón.
Esclusivo sistema a rulli idraulici
Il rullo inferiore può essere d’ausilio come solleva - pneumatico
mentre nella fase di montaggio il rullo superiore viene utilizzato
come premitallone.
Exclusive hydraulic roller system
The lower roller can be a helpful tyre lifter while the upper
roller is used as a bead depressor in the demounting phase.
Exklusives hydraulisches Rollensystem
Die untere Rolle kann als Reifenheber dienen, während die
obere Rolle in der Montagephase als Wulstboy verwendet wird.
Système exclusif à rouleaux hydrauliques
Le rouleau inférieur fournit également une aide pour soulever
le pneu, alors que durant la phase de montage le rouleau
supérieur est utilisé comme presse-talon.
Exclusivo sistema de rodillos hidráulicos
El rodillo inferior puede resultar útil como elevador de
neumáticos, mientras que en la fase de montaje, el rodillo
G1041.24AX superior se utiliza como sujeta talón.
Ravaglioli S.p.A. RAV France Ravaglioli Deutschland RAV Equipment UK LTD RAV en Belgique RAV Equipos España
via 1° maggio 3 6, Rue Longue Raie Kirchenpoint 22 Prince Albert House Nederlandstalig Avenida Europa 17
Fraz. Pontecchio M. ZAC de la Tremblaie 85354 Freising 20 King Street Tel. 0498-162016 Pol. Ind. de Constantì DRW07U
40037 Sasso Marconi (Bo) - Italia 91220 Le Plessis Pâté Tel. 08165-646956 Maidenhead, SL6 1DT Fax 016-781025 Tarragona 43120
Tel. +39 - 051 - 6781511 Tel. 01.60.86.88.16 Fax 08165-646958 Tel. 020-76286832 Zone Francophone Tel. 977 524525
Fax +39 - 051 - 846349 Fax 01.60.86.82.04 info@ravaglioli.de Fax 020-76286833 Tel. 0498-163016 Fax 977 524532
rav@ravaglioli.com rav@ravfrance.fr ravuk@ravaglioli.com Fax 078 055030 ravequipos@ravaglioli.e.telefonica.net
www.ravaglioli.comYou can also read
