Technical Specifications Television and digital
10, 15 or 30 seconds
COMMERCIAL MATERIAL
TECHNICAL SPECIFICATIONS
XDCAM HD422 50 Mbps encapsulated MXF OP1a or QuickTime
• 1920x1080
Video
• Constant 29.97 frames/sec interlaced, upper filed first
• Safe title zone: 90% height and width of the full HD picture
• PCM, 48kHz, 24-bit, -2dBTP Max.
• An audio mix ranging between 2 tracks (stereo) and to 6 tracks (5.1)
Audio • Track allocation : 1 :L 2 :R 3 :C 4:LFE 5 :Ls 6 :Rs 7 :Lt/Lo 8 :Rt/Ro or stereo mix on tracks 1-2 and 7-8
• Integrated commercial loudness : -24LKFS +/-2LU (measured using UIT-R BS.1770-3 algorithm)
Lip Sync • 1 field maximum tolerable sound and picture misalignment
• Drop frame mode, continuous (from start to end – not visible on screen)
Time Code • Start at 10;00;00;00
• No lead-in/lead-out, advertising only
• All commercials must be closed captioned (.scc files or embedded into video file) (required by the CRTC).
• Commercials with no voice over, with music only, still require closed captioning: meaning a musical note ♪ or the word "music"
must appear in the closed captioning throughout the commercial.
Close Captioning (CC)
• The length of the CC file must be the same as the length of the video file. The same applies to the time code
• The CC file needs to be structured for 29.9fps, Type: drop frame
For additional information on specs, https://static.tele.quebec/portail/societe/31/pdf/normestq-commercialmaterial-2021-2022.pdf
10 seconds
ANIMATED LOW THIRD (before September 5th, 2021)
TECHNICAL SPECIFICATIONS
• Size of the banner : 1920x250 pixels
• Total size of the clip : 1920x300 pixels
• The clip (outside of the banner’s creative area) must be 100% transparent.
• QuickTime Video file (.mov).
Video • 29.97 fps with integrated alpha chanel.
• 32-bit QuickTime Codec : Apple Animation, PNG or Apple ProRes4444.
• The clip’s alpha must be delivered non‐premultiplied (straight).
• Important : the first frame and the last frame must be completely empty: 100%
transparent. The banner must include animations for enter and exit transitions.
VO • N/A
CONTENT SPECIFICATIONS
VO SUPER/VISUAL NOTES
• N/A • In the adv ertiser's • Commercial offer and/or "call to Elements required :
brand colours action," are allowed • Creation Brief.
• Product/packaging • No fixed positioning during the If produced by Télé-Québec
• All visual materials for editing and/or animation: Logo, photos, typography,
v isual and client logo program
icons, advertiser branding elements required for animation
• Description of product • Mov eable if the program
or serv ice attributes becomes sponsored
• If produced by the adv ertiser:
• Visual concept/script must
be approv ed by Télé-
Québec before airing.
For additional information on specs, https://static.tele.quebec/portail/societe/31/pdf/normestq-commercialmaterial-2021-2022.pdf
10 seconds

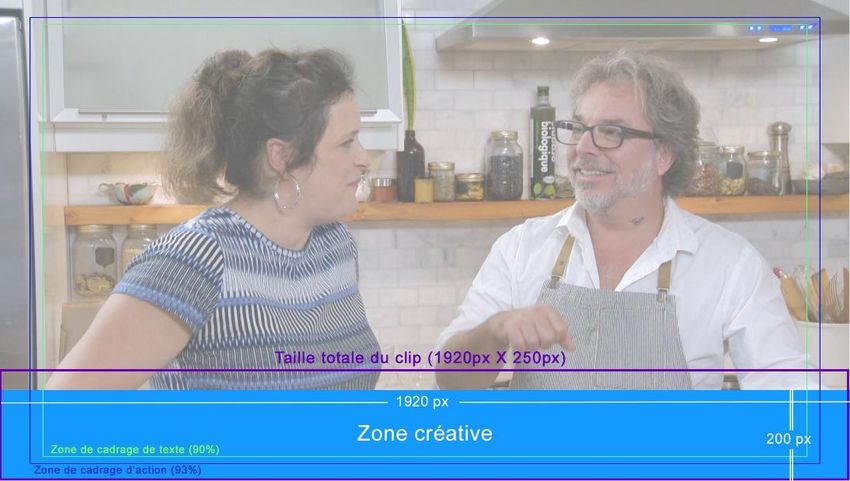

ANIMATED LOW THIRD (after September 6th, 2021)
TECHNICAL SPECIFICATIONS
• Size of the banner : 1920x200 pixels
• Total size of the clip : 1920x250 pixels
• The clip (outside of the banner’s creative area) must be 100% transparent.
• QuickTime Video file (.mov).
Video • 29.97 fps with integrated alpha chanel.
• 32-bit QuickTime Codec : Apple Animation, PNG or Apple ProRes4444.
• The clip’s alpha must be delivered non‐premultiplied (straight).
• Important : the first frame and the last frame must be completely empty: 100%
transparent. The banner must include animations for enter and exit transitions.
VO • N/A
CONTENT SPECIFICATIONS
VO SUPER/VISUAL NOTES
• N/A • In the adv ertiser's • Commercial offer and/or "call to Elements required :
brand colours action," are allowed • Creation Brief.
• Product/packaging • No fixed positioning during the If produced by Télé-Québec
• All visual materials for editing and/or animation: Logo, photos, typography,
v isual and adv ertiser program
icons, advertiser branding elements required for animation
logo • Mov eable if the program
• Description of product becomes sponsored
or serv ice attributes
• If produced by the adv ertiser:
• Visual concept/script must
be approv ed by Télé-
Québec before airing
For additional information on specs, https://static.tele.quebec/portail/societe/31/pdf/normestq-commercialmaterial-2021-2022.pdf
15 or 30 seconds

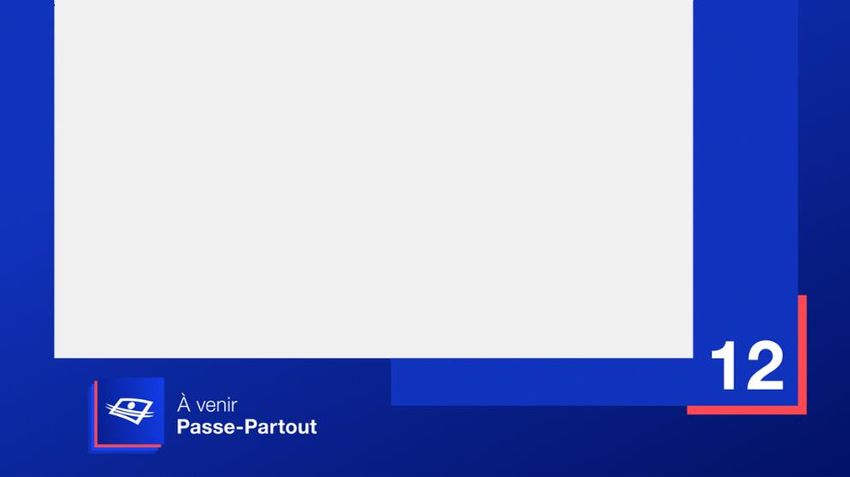

COUNTDOWN TECHNICAL SPECIFICATIONS – Advertiser's commercial message
XDCAM HD422 50 Mbps encapsulated MXF OP1a or QuickTime
• 1920x1080
Video
• Constant 29.97 frames/sec interlaced, upper filed first
• Safe title zone: 90% height and width of the full HD picture
• PCM, 48kHz, 24-bit, -2dBTP Max.
Advertiser's commercial message
• An audio mix ranging between 2 tracks (stereo) and to 6 tracks (5.1)
• Track allocation : 1 :L 2 :R 3 :C 4:LFE 5 :Ls 6 :Rs 7 :Lt/Lo 8 :Rt/Ro or stereo mix
Audio
on tracks 1-2 and 7-8
• Integrated commercial loudness : -24LKFS +/-2LU (measured using UIT-R
BS.1770-3 algorithm)
Lip Sync • 1 field maximum tolerable sound and picture misalignment
• Drop frame mode, continuous (from start to end – not visible on screen)
Time Code • Start at 10;00;00;00
• No lead-in/lead-out, advertising only
• All commercials must be closed captioned (.scc files or embedded into video
file) (required by the CRTC).
CONTENT SPECIFICATIONS • Commercials with no voice over, with music only, still require closed
VO SUPER/VISUAL captioning: meaning a musical note ♪ or the word "music" must appear in the
• Audio of the commercial. • Inside the frame : Close Captioning (CC)
closed captioning throughout the commercial.
• Adv ertiser's commercial
message. • The length of the CC file must be the same as the length of the video file. The
• On the frame : same applies to the time code
• Télé-Québec's branding. • The CC file needs to be structured for 29.9fps, Type: drop frame
• Countdown to zero.
• Name of upcoming program.
• No client action required for production.
Produced by Télé-Québec • The advertiser's ad material will be inserted into the station frame by Télé-
Québec
For additional information on specs, https://static.tele.quebec/portail/societe/31/pdf/normestq-commercialmaterial-2021-2022.pdf
15 seconds
SPONSORSHIP BILLBOARD TECHNICAL SPECIFICATIONS
XDCAM HD422 50 Mbps encapsulated MXF OP1a or QuickTime
• 1920x1080
Video
• Constant 29.97 frames/sec interlaced, upper filed first
• Safe title zone: 90% height and width of the full HD picture
• PCM, 48kHz, 24-bit, -2dBTP Max.
• An audio mix ranging between 2 tracks (stereo) and to 6 tracks (5.1)
• Track allocation : 1 :L 2 :R 3 :C 4:LFE 5 :Ls 6 :Rs 7 :Lt/Lo 8 :Rt/Ro or stereo mix
Audio
on tracks 1-2 and 7-8
• Integrated commercial loudness : -24LKFS +/-2LU (measured using UIT-R
BS.1770-3 algorithm)
Lip Sync • 1 field maximum tolerable sound and picture misalignment
• Drop frame mode, continuous (from start to end – not visible on screen)
Time Code • Start at 10;00;00;00
• No lead-in/lead-out, advertising only
• All commercials must be closed captioned (.scc files or embedded into video
CONTENT SPECIFICATIONS file) (required by the CRTC).
• Commercials with no voice over, with music only, still require closed
VO SUPER/VISUAL IMPORTANT captioning: meaning a musical note ♪ or the word "music" must appear in the
• Promotion of the • W ith the adv ertiser’s • No commercial offer or Close Captioning (CC)
closed captioning throughout the commercial.
adv ertiser’s product or brand image and "call to action"
serv ice. colours • Only av ailable to • The length of the CC file must be the same as the length of the video file. The
• Reference to the • Visual of packaging program sponsors same applies to the time code
associated content allowed • If produced by the • The CC file needs to be structured for 29.9fps, Type: drop frame
while incorporating the • Adv ertiser’s logo adv ertiser: Visual
name of the sponsor, • Adv ertiser website URL concept/script must be
Example: (program) is approv ed by Télé- Elements required :
brought to you by Québec before airing • Creation Brief.
(adv ertiser) If produced by Télé-Québec • All visual materials for editing and/or
animation: Logo, photos, typography, icons, advertiser branding elements requir
ed for animation
For additional information on specs, https://static.tele.quebec/portail/societe/31/pdf/normestq-commercialmaterial-2021-2022.pdf
10 or 15 seconds
ASSOCIATION BILLBOARD TECHNICAL SPECIFICATIONS
XDCAM HD422 50 Mbps encapsulated MXF OP1a or QuickTime
• 1920x1080
Video
• Constant 29.97 frames/sec interlaced, upper filed first
• Safe title zone: 90% height and width of the full HD picture
• PCM, 48kHz, 24-bit, -2dBTP Max.
• An audio mix ranging between 2 tracks (stereo) and to 6 tracks (5.1)
• Track allocation : 1 :L 2 :R 3 :C 4:LFE 5 :Ls 6 :Rs 7 :Lt/Lo 8 :Rt/Ro or stereo mix
Audio
on tracks 1-2 and 7-8
• Integrated commercial loudness : -24LKFS +/-2LU (measured using UIT-R
BS.1770-3 algorithm)
Lip Sync • 1 field maximum tolerable sound and picture misalignment
• Drop frame mode, continuous (from start to end – not visible on screen)
Time Code • Start at 10;00;00;00
• No lead-in/lead-out, advertising only
• All commercials must be closed captioned (.scc files or embedded into video
CONTENT SPECIFICATIONS •
file) (required by the CRTC).
Commercials with no voice over, with music only, still require closed
VO SUPER/VISUEL NOTES captioning: meaning a musical note ♪ or the word "music" must appear in the
• Promotion of the • W ith the adv ertiser’s • Commercial offers Close Captioning (CC)
closed captioning throughout the commercial.
adv ertiser’s product or brand image and or "call to action"
serv ice colours are permitted • The length of the CC file must be the same as the length of the video file. The
• Reference to the • Visual of packaging same applies to the time code
associated content while allowed • The CC file needs to be structured for 29.9fps, Type: drop frame
incorporating the name of • Adv ertiser’s logo
the sponsor. Closed • Adv ertiser's website
captioning example: Elements required :
Closed captioning of this • Creation Brief.
program is brought to you If produced by Télé-Québec • All visual materials for editing and/or
by (adv ertiser) animation: Logo, photos, typography, icons, advertiser branding elements requir
ed for animation
For additional information on specs, https://static.tele.quebec/portail/societe/31/pdf/normestq-commercialmaterial-2021-2022.pdf15 or 30 seconds

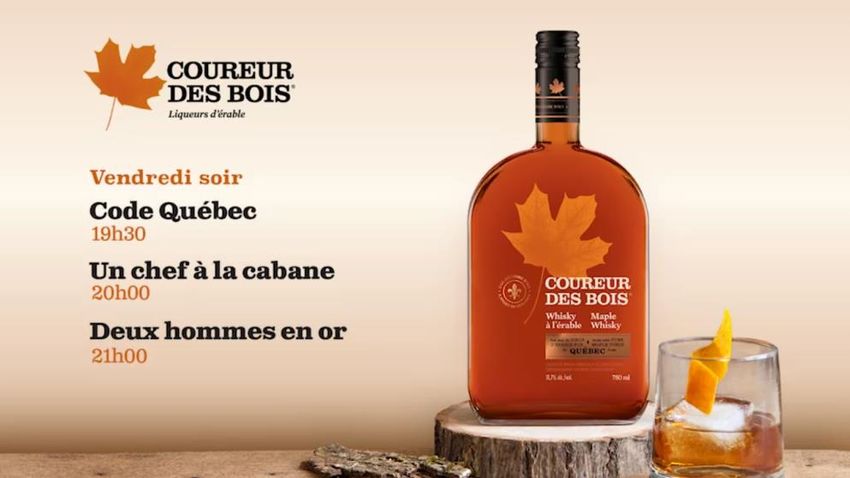

SPONSORED EVENING LINE-UP TECHNICAL SPECIFICATIONS
XDCAM HD422 50 Mbps encapsulated MXF OP1a or QuickTime
• 1920x1080
Video
• Constant 29.97 frames/sec interlaced, upper filed first
• Safe title zone: 90% height and width of the full HD picture
• PCM, 48kHz, 24-bit, -2dBTP Max.
• An audio mix ranging between 2 tracks (stereo) and to 6 tracks (5.1)
• Track allocation : 1 :L 2 :R 3 :C 4:LFE 5 :Ls 6 :Rs 7 :Lt/Lo 8 :Rt/Ro or stereo mix
Audio
on tracks 1-2 and 7-8
• Integrated commercial loudness : -24LKFS +/-2LU (measured using UIT-R
BS.1770-3 algorithm)
Lip Sync • 1 field maximum tolerable sound and picture misalignment
• Drop frame mode, continuous (from start to end – not visible on screen)
Time Code • Start at 10;00;00;00
• No lead-in/lead-out, advertising only
CONTENT SPECIFICATIONS • All commercials must be closed captioned (.scc files or embedded into video
file) (required by the CRTC).
VO SUPER/VISUAL IMPORTANT • Commercials with no voice over, with music only, still require closed
• In the adv ertiser's • No commercial offer or
• Mention of the captioning: meaning a musical note ♪ or the word "music" must appear in the
programs in the line- brand colours "call to action" Close Captioning (CC)
• Télé-Québec's logo must
closed captioning throughout the commercial.
up, with their air dates • Visual of the
and times product/packaging appear in the message • The length of the CC file must be the same as the length of the video file. The
allowed • If produced by the same applies to the time code
• Adv ertiser’s logo adv ertiser: Design in • The CC file needs to be structured for 29.9fps, Type: drop frame
• Titles of the programs in collaboration with Télé-
the line-up, with their Québec's media creativity
air dates and times team. Visual concept/script Elements required :
must be approv ed by Télé- • Creation Brief.
Québec before airing If produced by Télé-Québec • All visual materials for editing and/or
animation: Logo, photos, typography, icons, advertiser branding elements requir
ed for animation
For additional information on specs, https://static.tele.quebec/portail/societe/31/pdf/normestq-commercialmaterial-2021-2022.pdf15 seconds
CUSTOMIZED PROMO-AD TECHNICAL SPECIFICATIONS
XDCAM HD422 50 Mbps encapsulated MXF OP1a or QuickTime
• 1920x1080
Video
• Constant 29.97 frames/sec interlaced, upper filed first
• Safe title zone: 90% height and width of the full HD picture
• PCM, 48kHz, 24-bit, -2dBTP Max.
• An audio mix ranging between 2 tracks (stereo) and to 6 tracks (5.1)
• Track allocation : 1 :L 2 :R 3 :C 4:LFE 5 :Ls 6 :Rs 7 :Lt/Lo 8 :Rt/Ro or stereo mix
Audio
on tracks 1-2 and 7-8
• Integrated commercial loudness : -24LKFS +/-2LU (measured using UIT-R
BS.1770-3 algorithm)
Lip Sync • 1 field maximum tolerable sound and picture misalignment
• Drop frame mode, continuous (from start to end – not visible on screen)
Time Code • Start at 10;00;00;00
• No lead-in/lead-out, advertising only
•
CONTENT SPECIFICATIONS All commercials must be closed captioned (.scc files or embedded into video
file) (required by the CRTC).
• Commercials with no voice over, with music only, still require closed
VO SUPER/VISUAL NOTES captioning: meaning a musical note ♪ or the word "music" must appear in the
• Mention of the • In the adv ertiser's • No commercial offer or "call Close Captioning (CC)
closed captioning throughout the commercial.
program title to be brand image and to action"
promoted, with its air colours • No commercial offer or "call • The length of the CC file must be the same as the length of the video file. The
date and time • Visual of the to action" same applies to the time code
product/packaging • If produced by the adv ertiser: • The CC file needs to be structured for 29.9fps, Type: drop frame
allowed Creativ e concept must be
• Visual of the dev eloped in collaboration
product/packaging with Télé-Québec’s media Elements required :
allowed creative team. Visual
• Creative brief.
• Program title to be concept/script must be If produced by Télé-Québec
promoted, with its air approv ed by Télé-Québec • All visual materials for editing and/or animation, Logo, photos, typography, icons,
date and times before airing advertiser branding elements required for animation
For additional information on specs, https://static.tele.quebec/portail/societe/31/pdf/normestq-commercialmaterial-2021-2022.pdfTechnical specs- digital
Display & video
Dimensions File Load Siza
Maxim um Initial Load
Max Animation & Video Implementation Notes &
Transtion Fixed Size Allow ance (See Audio initiation
Initial Dim ensions Length Best Practices
Size Ad Unit (WxH further HTML5 Subsequent Max Polite File Load Size
(WxH in pixels)
in px) guidance in notes)
Standard Creative:
A ccepted file fo rmats
Image: 50 ko HTML5 :
Leaderboard 728x90 728x90 include:
100 ko .GIF | .JP G | HTM L5
Expansio n must be user-
initiated. P re-expanding ads
NOT
suppo rted. P ro vide a call-to -
actio n ("ro ll o ver to expand"
o r "click to
expand") fo r clarity; retract
instantly o n mo use-o ff.
M ust have a
Image: 80 ko HTML5 : 30 seconds co ntro l = "Clo se X" o n
Billboard 970x250 970x250 expanded panel and
150 ko 2,2 mb or less (loops included);
"Expand" o n co llapsed
Unlimited if streaming video within the ad unit 15 seconds must be user panel.
recommended; initiated ( on click
maximum 3 loops : mute/un-mute) must be on mute P o lice = 8pt (11px) - 16pt
Recommended that final by default (21px)
frame contains
pertinent information
300x250 In- B a nne r V ide o :
Video must include: P lay,
P ause, M ute (and/o r
vo lume co ntro l to
Image: 50 ko HTML5 :
Big Box 300x250 0). No te: A clo se butto n is
100 ko
no t required as the video
resides within
the ad unit itself
Double Big Box (half Image: 80 ko HTML5 :
300x600
page) 300x600 150 ko
Video 6,15 or 30 seconds Le sound level of the ad must be of 24 Do not activate the
Maximum size up to 512
Video Adaptative 16:9 N/A LKFS or lower option for the ad to be
KB
recommended skippableMATERIAL DELIVERY TÉLÉVISION The file delivery method shall be by upload. You can use these paid delivery services or our FTP site: • LaMajeure • Extream Reach or • FTPsite: transit.telequebec.tv/public/Pubs/ Username: inviteftp Password : wjufr(h37 IMPORTANT: when the material is uploaded, you must inform us via email at the following address: routage@telequebec.tv For all questions related to material, you can communicate with: routage@telequebec.tv For additional information on specs, https://static.tele.quebec/portail/societe/31/pdf/normestq-commercialmaterial-2021-2022.pdf
You can also read
