2021 Azimut Flybridge 78
New Azimut Fly 78 2021 hull number commissioned
and ready for delivery | Location Med
This boat is not used for charter, it is a private vessel. However, we have
the option to adapt for charter as the boat comes fully specified with full
MCA coded safety equipment.
Contact Azimut UK Official Dealers
Richard (Sales Director)
+44 7507856112
globalyachtsuk@gmail.com
www.globalyachts.co.uk
Price reduced for fast sale
from £4,100,000 to £3,200,000 Ex VAT
We are open to offers from agents, brokers and end users.
It may be possible to consider PX options
Engines 3 x VOLVO IPS 1350 1000 hp
Speed Top/Cruise Up to 33/27
Enhance Cruising Solution Included
Key Features
Brand New out of the Factory
3 x Volvo IPS 1350 Engines
Seakeeper NG26 Zero Speed Stabilisers
Volvo Glass Cockpit
Garmin AIS System
Sonos Sound System Throughout
European Satellite Antenna TV6
Main System
Bow thruster 11.4 kw
CO indicator
Cockpit docking station
Double glenndining Cable Master
Seakeeper Stabilizer NG26
Watermaker 180 lt/h
Exterior
Bow sunbed with removable Carbon poles and sun shade
Bow table in teak marble top folding
Co pilot seat on flybridge batyline
Cockpit awning (automatic)privacy screen electric
Cockpit chair
Cockpit enclosure with side accesses,side and front windscreen shades
Dimmer lights on flybridge
Electric awning for aft flybridge (requires hard top)
Extra fender (each)
Flagpole carbon fibre custom made
Flybridge covers
Flybridge hatch
Hard top
Custom furniture on aft fly U shaped in Batyline,table
converting to sunbeds, table top marble
Luxury lighting package for exteriors,pop up light on bow,
stern & fly courtesy lights low level plus night lights
Painted hull & gunwhale (grande 27 colour) Hard top standard contrast grey
Painted hull and gunwhale M27 colour dark grey
Sunbathing cushion on aft flybridge in Batyline fabric
Teak on flybridge deck and side decks ,cockpit and platform
Telescopic gangway
Underwater lights under sponsons (2x2) and transom (3) Oceanled S3124S
Upgraded standard external cushions in Batyline whole boat
Waterproof extra socket (each) Position TBC
Interior
Co pilot seat in main helm
Dimmer lights for interiors (master, VIP, guests)
Domotic Lighting System in saloon
Extra socket for interior (each) position TBC standard socket layout to follow
Forward salon sofa (lounge version) electric dinning table
Interior scenic lights package
Lacquered electric blue inserts on forward salon bulkhead
Lower deck carpet in moon grey
Main deck carpet light grey as per brochure
Master head shower wall in marble
Roman blinds in salon (automatic)
Roman blinds in VIP and guest cabins
Roman blinds in master cabin
Safe in crew cabin
Safe in master cabin
Table lamp in salon
Third bed in crew cabin
Vanity table in master cabin with shelf and lamp on starboard side
Wooden floor in helm station
Wooden floor in main deck and stairs
Appliances
BBQ on flybridge bar top
Cockpit furniture with barbicue, fridge and cuboard
Dishwasher full size in galley
Icemaker & fridge on flybridge bar
Washer and dryer in crew cabin (two separate units)
Winecooler in galley
Electronics
Garmin AIS 800
Video Cameras in engine room room, cockpit and flybridge
Volvo Glass Cockpit Platinum Package
Video | TV | HIFI
Flybridge furniture unit with fridge and cuboard
Hi-lo TV mechanism in salon 55inch TV or bigger samsung
Premium Audio Video Package sonus and Fusion,samsung tvs biggest possible
SAT antenna TV6 Europe (receivers exc.)
Documents and Commissioning
Builder’s Certificate including CE Certificate
Safety equipment for and commissioning and handover Delivery.

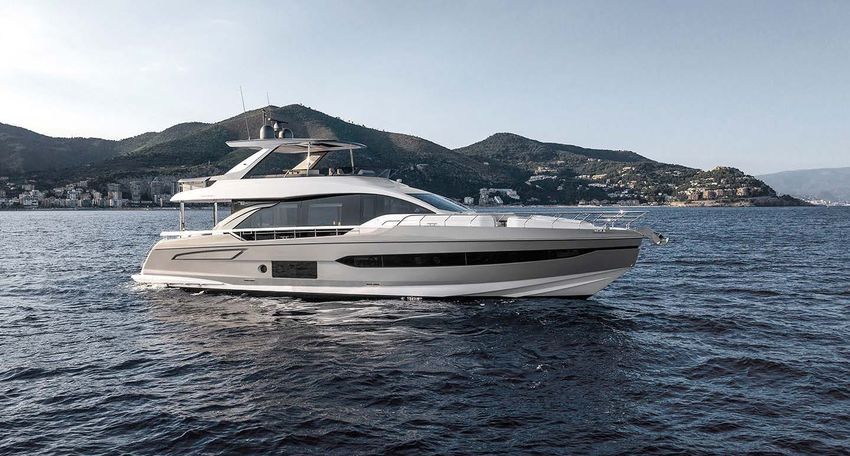

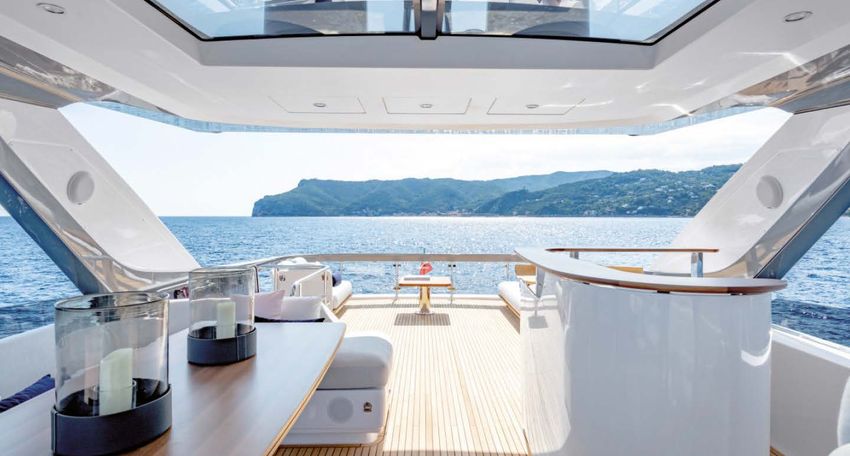

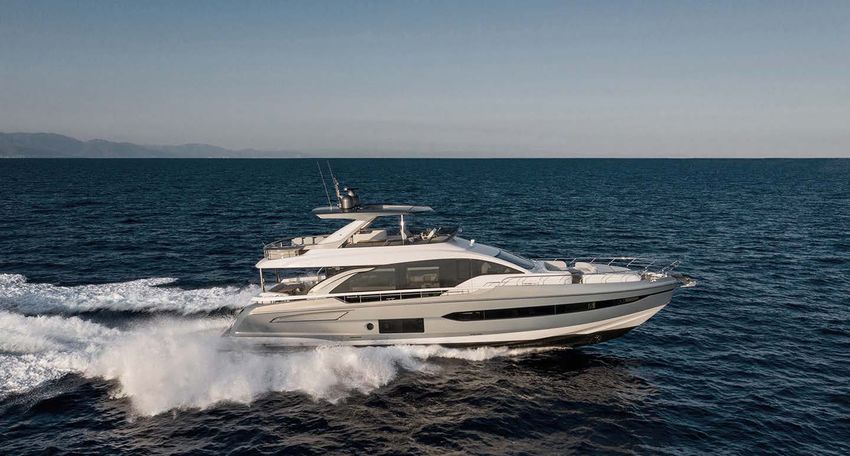

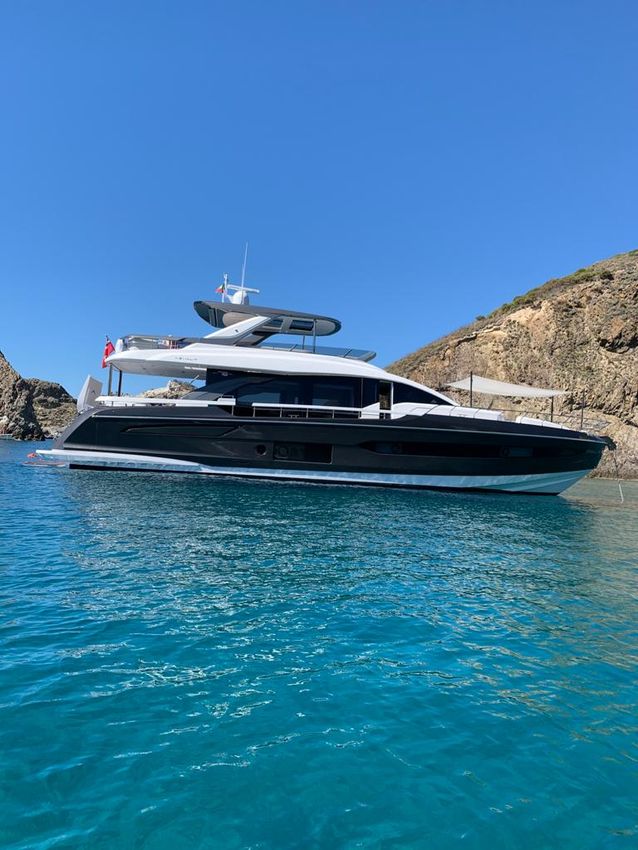

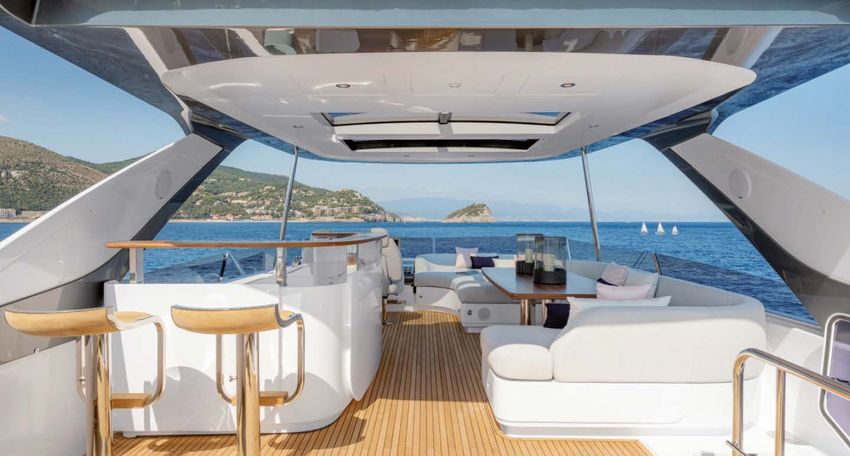

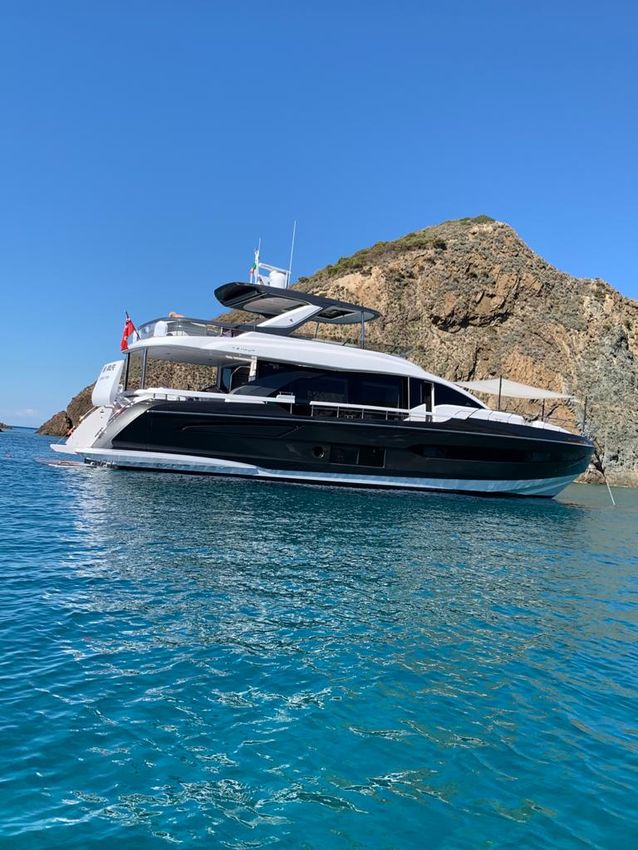

Exterior
Exterior
Exterior
Exterior
Exterior
Exterior
Exterior
Exterior

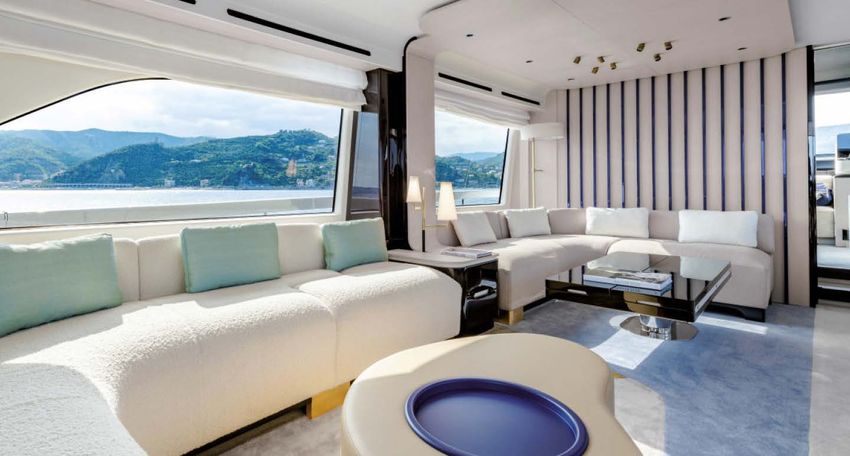

Interior
Interior
Interior
Interior
Interior
Interior
Interior
Interior
Layouts
Above View
Main Deck | Lounge VersionLayouts
Main Deck | Dining Version
Lower DeckTECHNICAL SPECIFICATIONS 78F (10/01/2020) Dimensional diagram (figure shown for indicative purposes)
TECHNICAL SPECIFICATIONS 78F (10/01/2020)
Main characteristics Loaded displacement 57.97 t
mLDC ISO 8666 (57.054 tn l.)
The following tables list the boat's main charac- (boat mass with full tanks +
teristics. max. no. of crew members
and personal equipment +
Dimensions and weights life raft, with tender)
(AA) Maximum length LMAX 23.64 m Light displacement m LCC ISO 45.16 t
ISO 8666 (77’ 7”) 8666 (44.447 tn l.)
(stern platform, pulpit over- (boat mass with empty
hang, bow roller, and rub- tanks without crew and
rails included) equipment)
(A) Hull length LH ISO 8666 22.34 m
(net GRP, excluding stern (73’ 4”) Tank capacity
platform)
Diesel tanks (two) capacity 5,000 l
Waterline length L WL ISO 19.75 m (1,320.9 US.
8666 (64’ 10”) liq.gal.)
(with full load)
Fresh water tank (one) ca- 1,100 l
(B) Maximum beam BMAX ISO 5.75 m pacity (290.6 US.
8666 (18’ 10”) liq.gal.)
(at aft protections)
Black water tank (one) ca- 450 l
(C) Draught T keel ISO 8666 1.2 m (3’ 11”) pacity (118.9 US.
(with full load) liq.gal.)
Draught T MAX ISO 8666 1.77 m (5’ 10”) Gray water tank (one) ca- 450 l
(at the propellers) pacity (118.9 US.
(D) Height H A ISO 8666 6.62 m (21’ 9”) liq.gal.)
(from waterline to radar Total capacity of tanks 7,000 l
arch) (1,849.2 US.
(E) Height Hmast 1.46 m (4’ 9”) liq.gal.)
(from radar arch to light
mast)
Layout and structure
(F) Height Hscreen 5.10 m (16’ 9”)
Cabins 4 + 1 crew
(from waterline to flybridge
cabin
screen)
Beds 8 + 2 crew
Maximum load 1,680 kg
cabin
recommended by the (3,703.8 lb)
manufacturer Heads 4 + 1 crew
((Max. no. people on board x cabin
75 kg) + (Max. no. people on Material GRP + CARB
board x 30 kg baggage)) Hull Planing with
aft deadrise
16.3°TECHNICAL SPECIFICATIONS 78F (10/01/2020)
Hull designer Pierluigi Au-
sonio Naval N.B.
Architect & The addition of the seakeeper (optional)
Azimut yachts leads to a further reduction of 1.0 kn.
Exterior designer Alberto The addition of the Hard-Top (optional)
Mancini leads to a further reduction of 0.5 kn.
Interior decorator Achille Sal-
vagni
GRP frame
Approval category and capacity
CARBON FIBER MANUFACTURE TECHNOL-
CE type approval category A OGY
Maximum capacity 16 people
CARBON FIBER-
Performance (3 x IPS1350 @ 2450 rpm) FIBER GLASS
Maximum speed (*) 33 kn HULL X
Cruising speed (*) 26 kn DECK X X
Maximum speed consump- 500 l/h (132 DECKHOUSE X
tion (*) US.liq.gal./h) FLYBRIDGE X
Cruising speed consumption 345 l/h (91.08 SALOON FLOOR X X
(*) US.liq.gal./h) RADAR ARCH X
Range at cruising speed 340 nmi HARD TOP (OPT) X
(*) (excluding 10% for fuel AFTERPEAK X
that cannot be pumped) STERN DOOR X
STERN PLATFORM X
N.B.
(*) All performance specified in the table TYPE OF RESIN
above applies to a standard configuration
boat (standard equipment installed exclud- VINYL POLYESTER
ing tender, jet ski, etc.) with clean hull, ESTER
propellers, and rudders. HULL SKIN COAT X
Furthermore, the performance indicated HULL CORE CON- X
above has been defined under good sea STRUCTION
and wind conditions (Beaufort Scale level
DECK SKIN COAT X
1, Douglas Scale level 1, ambient T < 25
°C, seawater T = 15 °C, atmospheric P = DECK CORE CON- X
1013.25 hPa) with two people on board, STRUCTION
25% fuel, and fresh, gray, and black water DECKHOUSE SKIN X
tanks empty. COAT
Different or harsher sea conditions may DECKHOUSE LAMI- X
significantly affect performance. NATION
FLYBRIDGE SKIN X
COATTECHNICAL SPECIFICATIONS 78F (10/01/2020)
VINYL Steering system
POLYESTER
ESTER Type Electronic
FLYBRIDGE CORE X progressive
CONSTRUCTION Quantity Three, inte-
SALOON FLOOR SKIN X grated
COAT Bow thruster (OPT) SP250-300TCi
E.R. TRAY LAMINA- X 24 V - 11.4 kW
TION
ENGINE ROOM TRAY X Tables of deck fittings characteris-
SKIN COAT tics
E.R. TRAY LAMINA- X
TION Anchor
CABINS TRAY SKIN X Quantity One
COAT Weight 50 kg
CABINS TRAY LAMI- X (110.2 lb)
NATION Material galvanized
steel
Tables of propulsion system compo-
nent characteristics Anchor chain
Quantity One
Engines
Diameter 12 mm
Manufacturer VOLVO Penta (0.47 in)
Model D13-900 Length 100 m
Type 6-cylinder (328’ 1”)
diesel engine Material galvanized
Max. power 3 x 662 kW steel
(900 hp)
Anchor winch
Reduction gears / marine gears
Quantity One
Manufacturer VOLVO Penta Engine power 2700 W
Model IPS 1200 Engine voltage 24 V
Reduction ratio 1.88:1
Mooring winch
IPS propellers
Quantity Two
Model Q3 Engine power 1700 W
Quantity Six (two Engine voltage 24 V
counter-
rotating twin
propellers per chocks
IPS drive) Quantity - bow Two
Quantity - stern TwoTECHNICAL SPECIFICATIONS 78F (10/01/2020)
Material stainless steel depth, speed, chain length, radar, sys-
tem monitoring and alarms), integrated
VOLVO engine control
Cleats - keys for activating: horn, alarm muting,
Quantity - bow Two anchor winch, chain washing system
Quantity - midship Two and flybridge lights, pre-installation for
Quantity - stern, on mooring Two Hard-Top mechanism movement con-
station (mushroom- trol
type) - Volvo Penta engine throttles with: sin-
gle lever, automatic interceptors and
Quantity of stern edges for Two
LOW SPEED system
cross member
- Volvo Penta maneuvering joystick with
Material stainless steel
joystick driving
- Adjustable steering wheel
Flybridge - Second VHF station
● Dashboard cover
● Accessible from the cockpit, via a teak- ● Logo, placed outside, one per side
covered GRP ladder
● Single helm seat with protection cushion
Bow
covers
● Fore sunbed area, starboard side, with ● Stainless steel anchor roller
protection cushion covers ● Stainless steel bow pulpit
● "C" shaped dinette on starboard side with ● Chain locker double GRP access door
cushion protection covers with gas pistons
● Teak table with double stainless steel ● Anchor winch and chain washing pump
support controls
● Bar cabinet with teak peninsula and ● Chain washing pump
top,with sink, fridge, and e waste bin
● Stainless steel anchor line anti-rubbing
(pre-installation for barbecue)
protection
● Plexiglas flybridge screen with stainless
● Hatch (escape route) from crew cabin on
steel lower frame
fore sunbed area
● Flybridge side handrails with upper
● Fender storage locker (four) under fore
carter in painted GRP
sunbed area cushions with closure and
● Stern liferail in stainless steel with plexi- drainage
glass closure and upper carter in painted
● Fore sunbed cushions with cushion cov-
GRP
ers
● Radar arch in carbon
● Opposed bench dinette cushions with
● Instrument support mast cushion covers
● Searchlight ● Storage compartment with glass racks
● Dashboard consisting of: on fore dinette bench
- BRONZE PACKAGE electronic instru- ● Windscreen wiper system
mentation (12" touchscreen multifunc-
tion display + control keyboard with the
following functions: chart plotter, in-
tegrated reading of water temperature,TECHNICAL SPECIFICATIONS 78F (10/01/2020)
Walk arounds ● Three storage lockers on deckhouse
columns (two on port side, one on
● Side pulpit in stainless steel with upper starboard side)
carter in GRP (one per side) ● Two cockpit bench lockers for storing
● Side unloading doors in GRP with up- fenders (four)
ward opening (one per side) ● Two lockers below cleat for storing an-
● Gray rubber rub-rail with knurled stain- chor lines (one per side)
less steel section
● Walk arounds in teak Platform
● Refueling and water filling plugs, black
water suction points on walk arounds ● Access from cockpit via two GRP stair-
● Tempered glass side windows of deck- ways with teak steps
house bonded to GRP structure ● engine room manual access door from
● Wheelhouse semi-automatic access wa- cockpit steps (port side)
tertight door on starboard side of super- ● Stern platform in carbon with teak coat-
structure ing and hydraulic lift mechanism
● Azimut logos, one per side ● Manual foldaway swimming ladder in-
stalled on starboard side
Cockpit ● Stainless steel climbing handle installed
on starboard side
● Accessible through stainless steel gates, ● Two stainless steel handrails to access
on both sides the stern platform
● Two stainless steel aft gates ● Shower with hot and cold mixer tap
● Cockpit bench with cushions and cush- ● One stern storage locker in carbon:
ion covers approximate dimensions (LxHxD) 2300
● Teak table with double stainless steel mm x 1270 mm x 1050 mm (7'7'' x 4'2'' x
support 3'5'')
● Three-panel manual saloon door with ● Stern door in carbon with pantograph-
stainless steel frame and painted alu- type opening hydraulic mechanism
minum panels (folding on port side) ● Two lockers for shore power socket (star-
● LED lighting board side)
● Ceiling-mounted watertight loudspeak- ● Two water intake lockers (one per side)
ers ● One locker for fire extinguishing system
● Cockpit floor in teak (hose storage on port side)
● Cockpit hatch leading to the engine ● One storage locker at stern of the deck
room, inserted in the generator (port side)
unloading fix hatch on floor board ● Platform dimensions: 1.40 x 4.30 m (4'7''
● Engine room access ladder x 14'1'')
● Emergency panel-battery cut-out with ● INSTALLABLE TENDER (OPT):
controls for: service, engine, generator - TENDER LIFT NET CAPACITY (MAX SYM-
battery cut-out, stern door mechanism METRICAL): 1100 kg (2425.08 lb)
● Flybridge climbing stainless steel - RECOMMENDED TENDER - GARAGE:
handrail Pirelli J39TECHNICAL SPECIFICATIONS 78F (10/01/2020)
- MAXIMUM DIMENSIONS OF TENDER: Saloon / Dinette
3.90 m (12'10'')
● Access from cockpit door
Wheelhouse ● Saloon entrance cabinet, on starboard
side, with open compartments and stor-
Located forward of the saloon on starboard side, age
it is accessible through: ● Three-seater sofa on starboard side
● Five seater “L”-shaped sofa on port side,
● Internal access from saloon through slid- partially used as storage
ing door (aft) ● Pouf in saloon with storage tray
● Watertight door on starboard walk ● Storage cabinet on starboard side
around (crew path) ● Port side saloon cabinet with two draw-
● Internal dashboard consisting of: ers
- BRONZE PACKAGE electronic instru- ● Dinette fixed table for eight people, on
mentation (12" touchscreen multifunc- port side
tion display + control keyboard with the
● Lower deck access through wooden
following functions: chart plotter, in-
stairs on starboard side
tegrated reading of water temperature,
● Concealed sliding door separating steer-
depth, speed, chain length, radar, sys-
ing area and galley (raised)
tem monitoring and alarms), integrated
● Carpeted floors
VOLVO engine control
- keys for activating: horn, windscreen ● LED lighting
wipers, windshield washer, alarm mut- ● Saloon side blinds
ing, anchor winch, chain washing sys- ● Saloon door blind
tem, battery parallel
- Volvo Penta engine throttles with: sin- Galley and dinette
gle lever, automatic interceptors and
LOW SPEED system Located forward of the saloon, on port side of
- Volvo Penta maneuvering joystick with the wheelhouse, sharing the accesses with the
joystick driving wheelhouse.
- Adjustable steering wheel It is composed of:
- Communication systems (VHF)
● Electrically adjustable helm seat ● Gentas galley floor
● Tableware storage cabinet under helm ● Gentas worktop
seats ● One steel double sink
● Electric panels cabinet aft of the steering ● Ceramic glass four-hob range with sili-
zone, partially used as storage cone pot holder
● Carpeted floor ● Wall cabinet with extraction hood with
● LED technology lighting external extraction
● Socket ● 20 l (0.71 cu.ft) microwave oven + grill
● Double-door fridge / freezer with stain-
less steel finishing (total width 90 cm
(2'11")); total capacity (404 l + 168 l
(14.26 cu.ft + 5.93 cu.ft))TECHNICAL SPECIFICATIONS 78F (10/01/2020)
● Storage on galley module on bulwark ● Vanity with drawers, mirror, and pouf,
side located on starboard bulwark
● Electrically openable window ● Direct access to the head through hinged
● Crew zone access ladder door aft of the cabin, starboard side
● Two-seater crew sofa with sliding table ● Direct access to separate dressing, with
and stainless steel support, located fore hanger bars and chest of drawers inside,
● LED lighting through panel door aft of the cabin, port
● Sockets side
● Air conditioning system control panel ● Two-seater sofa with table, located on
port bulwark
● Air conditioning outlet grid built in the
internal furnishing ● Provision for TV system on bulkhead in
front of the bed
● Two side windows with built-in open-
Corridor
able portlight (one per side)
The lower deck cabins are accessible through a ● Venetian blinds
wooden ladder located forward of the saloon, on ● LED technology main lighting
starboard side, followed by a corridor. ● LED technology courtesy lighting
The corridor is composed of: ● Two headboard wall lights
● Wooden ceilings with central dome in
● Carpeted floors painted GRP
● Wooden walls / upholstered with ● Carpeted floor
leatherette ● Wood-upholstered bulwarks
● Ceilings in lacquered wood ● Sockets
● LED technology lighting ● Air conditioning system control panel
● Ladder handrail ● Air conditioning outlet grids built in the
internal furnishing
Owner’s cabin
Owner's head
Full beam owner's cabin, midship.
It is composed of: Located aft of the owner's cabin, on port side
It is composed of:
● Double bed at the center of the boat,
with foldaway bed base and drawer-type ● independent access from owner's cabin
storage ● Head cabinet with double washbasin un-
● Leather upholstered headboard der top and drawer-type storage
● Bed surround covered with mahogany ● Top in statuary quartzite
frame 100 gloss ● Mixers
● Mattress, pillows and bedspread ● Portal with open cubby on aft side
● Two bedside tables with lower compart- ● Mirror (double) with manual movement
ment and drawers at the sides of the bed ● TECMA toilet
● Full-height mirror on fore bulkhead ● Shower enclosure with:
● Cabinet under the ladder upholstered in - glass access door
leatherette with shelf-type storage - shower walls in laminate with slate
finishingTECHNICAL SPECIFICATIONS 78F (10/01/2020)
- shower portal and grating in staved ● Air conditioning outlet grid built in the
iroko internal furnishing
- shower with shower head on ceiling ● Direct access to the head through inter-
- thermostatic mixer nal hinged door
- suction grids
● Openable portlight Port guest head / Day toilet
● Iroko flooring in the head
● Wooden head bulkheads Located forward of the port guest cabin with
● Head ceiling in lacquered wood access from the port guest cabin and from the
● LED lighting corridor.
It is composed of:
● Socket
● Head accessories
● Washbasin under the top with steel
● A/C outlet grid
blender
● Air extractor
● Top in statuary quartzite
● Head cabinet with storage
Port side guest cabin
● Mirror
Located along the central corridor, port side ● TECMA toilet
It is composed of: ● Shower enclosure with:
- glass access door
● Two single beds with storage from above - shower portal and grating in staved
and front drawers iroko
- shower enclosure walls covered with
● Upholstered headboard
laminate
● Bed surround covered with mahogany
- seating area and shower head on ceiling
frame 100 gloss
- thermostatic mixer
● Mattresses, pillows - openable portlight
● One bedside table with lower compart- - portlight curtain
ment and central drawer - suction grating
● Wardrobe with hanger bar and drawers ● Iroko flooring in the head
● Wood essence furniture ● Head laminated bulkheads, leatherette
● Provision for TV system finishing
● One window with openable built-in port- ● Head ceiling in lacquered wood
light ● LED lighting
● Venetian blind ● Socket
● LED technology lighting ● Head accessories
● Courtesy lights ● A/C outlet grid
● Two headboard wall lights ● Air extractor
● Ceiling in lacquered wood
● Wood/leatherette upholstered bulwarks Starboard side guest cabin
● Carpeted floor
● Sockets Located along the central corridor, starboard
● Air conditioning system control panel side
It is composed of:TECHNICAL SPECIFICATIONS 78F (10/01/2020)
● Foldaway double bed with drawer-type - glass access door
storage - shower portal and grating in staved
● Upholstered headboard iroko
● Bed surround covered with mahogany - shower enclosure walls covered with
frame 100 gloss laminate
● Mattress, pillows - shower with shower head on ceiling
- thermostatic mixer
● Two bedside tables with lower compart-
- suction grating
ment and drawers at the sides of the bed
● Portlight
● Wardrobe with hanger bar and drawers
● Iroko flooring in the head
● Wall unit above headboard with lac-
quered panels ● Head laminated bulkheads, leatherette
finishing
● Wood essence furniture
● Head ceiling in lacquered wood
● Full-height mirror on fore bulkhead
● LED lighting
● Provision for TV system
● Socket
● One window with openable built-in port-
light ● Head accessories
● Venetian blind ● A/C outlet grid
● LED technology main lighting ● Air extractor
● LED technology courtesy lighting
● Two headboard wall lights VIP cabin
● Ceiling in lacquered wood
Located at the bow end of the lower deck, acces-
● Wood/leatherette upholstered bulwarks
sible through the door located at the end of the
● Carpeted floor central corridor
● Sockets It is composed of:
● Air conditioning system control panel
● Air conditioning outlet grid built in the ● Foldaway double bed located at an angle
internal furnishing from the longitudinal axis of the boat,
● Direct access to the head through inter- with drawer-type storage
nal hinged door ● Upholstered headboard
● Bed surround covered with mahogany
Starboard guest head frame 100 gloss
● Mattress, pillows
Located fore of the starboard guest cabin ● Two bedside tables with lower compart-
It is composed of: ment and drawers at the sides of the bed
● Wardrobe with full-height hanger bar on
● Independent access from starboard the fore wall
guest cabin
● Wardrobe under the ladder with hanger
● Washbasin under top with mixer bar, shelves, and drawers
● Top in statuary quartzite ● Two storage compartments with shelves
● Head cabinet with storage at the sides of the bed
● Mirror (double) with manual movement ● Wood essence furniture
● TECMA toilet ● Full-height mirror on wall at the center
● Shower enclosure with: of the boatTECHNICAL SPECIFICATIONS 78F (10/01/2020)
● Provision for TV system ● Socket
● One window with openable built-in port- ● Head accessories
light ● A/C outlet grid
● Venetian blind ● Air extractor
● LED technology lighting
● LED technology courtesy lighting Crew / laundry area
● Two headboard wall lights
● Ceiling in lacquered wood Located on lower deck, fore, accessible through
● Wood/leatherette upholstered bulwarks a dedicated ladder forward of the galley
At the base of the ladder, on port side, is the
● Carpeted floor
washer-dryer storage compartment, composed
● Sockets
of:
● Air conditioning system control panel
● Air conditioning outlet grid built in the
● Washer-dryer
internal furnishing
● storage compartment with shelf above
● Direct access to the head through inter-
the washer-dryer (which can be used for
nal hinged door
the installation of the dryer (OPT) when
required)
VIP head ● power socket (light controls in visible
place, household appliances sockets not
Located aft of the VIP cabin in visible place)
It is composed of:
● LED lighting
● Independent access from VIP cabin
The crew cabin is accessible through a hinged
● Head cabinet with storage door
● Washbasin under top with mixer
● Top in statuary quartzite Crew cabin
● Mirror (double) with manual movement ● Single bed on port side
● TECMA toilet ● Single bed on starboard side (third
● Shower enclosure with: pullman-type bed OPT)
- glass access door ● Mattresses, pillows
- shower portal and grating in staved ● Fixed bedside table
iroko ● Three-unit crew wardrobe on port side
- shower enclosure walls covered with
● Open storage compartments on head-
laminate
board side
- shower with shower head on ceiling
● Laminated furniture
- thermostatic mixer
● Provision for TV system
- suction grating
● Openable portlights and aluminum
● Openable portlight
Venetian blinds
● Iroko flooring in the head
● Socket
● Head laminated bulkheads, leatherette
● LED lighting
finishing
● Carpeted floor
● Head ceiling in lacquered wood
● Air conditioning system control panel
● LED lightingTECHNICAL SPECIFICATIONS 78F (10/01/2020)
● Air conditioning outlet grid built in the Shore power sockets
internal furnishing ● Two 230 V - 50 A shore power sockets
● Escape route through opening in fore ● The AC power sources are controlled
sunbed area from the main electric panel, with a dig-
ital multimeter for the 230 V network.
Crew head The power sources are protected by suit-
● Head cabinet with washbasin and wall able power circuit breakers and/or fuses
unit and their introduction in the network is
● TECMA toilet made by a pushbutton panel or the mon-
itoring system.
● Separate shower
● Shower floor, seat, grating in iroko
Batteries
● Openable porthole and aluminum Vene-
● Services: six AGM 90 Ah - 24 V batteries,
tian blind
total 270 Ah - 24 V
● Socket
● Engines: six batteries in total, installed
● Head accessories
in 3 separate battery sets, one for each
● A/C outlet engine; each set is composed of two
● One air extractor AGM 90 Ah - 24 V batteries
● Generator: one 70 Ah - 12 V battery
Electric system
Battery recharging through battery
Main characteristics charger
● Onboard voltages: ● One 80 A - 24 V battery charger for service
- 230 V - 50 Hz AC battery set
- 24 V DC from battery sets ● One 30 A - 24 V battery charger for engine
- 12 V DC from DC-DC voltage reducers battery sets
● Main electric panels in engine room: ● One 10 A - 12 V battery charger for
- 230 V AC generator batteries
- 24 V DC
● Distribution electric panels in saloon: Battery recharging through engine alterna-
- 230 V AC tors
- 24 V DC (12 V DC from DC-DC voltage ● One starboard engine alternator for star-
reducers) board engine battery set
● Dimmers for saloon and cockpit lights ● One central engine alternator for central
● Junction boxes are installed in all areas engine battery set
● One port engine alternator for port en-
Galvanic current insulation gine battery set
● Zinc anodes ● One additional engine alternator for ser-
● Volvo ACP (Active Corrosion Protection vice battery set
system)
Lights and sockets
Generator ● AC sockets: 230 V for main utility power
● Two 1 9 k W g enerators ( 20.5 k W supply, of the type suitable for the local
from serial no. 0 16) l ocated i n market
the e ngine room
● USB socketsTECHNICAL SPECIFICATIONS 78F (10/01/2020)
● 24 V LED lighting ● Double diesel filters for each engine
● Watertight LED 24 V external lighting ● One filter for generator
● Two refueling plugs on walk arounds
Electronic navigation instruments (one per side)
● For STD equipment, see the paragraphs Fresh water system
on “Flybridge” and “Wheelhouse”
● For a detailed list of alterna- ● 1100 l (290.6 US.liq.gal.) PEHD tank
tive/additional equipment available, ● Water filling on starboard walk around
please refer to the Optionals price list ● Level sensor and status indicator in
wheelhouse
● Two tank vents on bulwark (one per side)
N.B. ● One water pressure pump with elec-
The electronics are constantly being up- tronic control
dated, therefore the indicated configura- ● One 100-liter (26.4 US.liq.gal.) water
tion may be subject to changes. heater
● Two water intakes (one per side)
● Hot/cold water line: distributed via net-
Bilge system work supplied by water pressure pump
or shore connection
● Five 24 V automatic motor pumps, lo-
● System that can be isolated by WAVIN
cated: three in engine room, one in own-
type manifolds
er's shower, and one in corridor
● Toilet fresh water supply
● Five bilge level alarms
● Provision for water maker
● Three manual pumps, two in engine
room and one in owner's cabin
Black water system
Fire extinguishing system ● One 450 l (118.9 US.liq.gal.) PEHD tank
● Level sensor and status indicator in
● Marinefire system consisting of one 960
wheelhouse
2100 MA extinguisher, automatic en-
● Two tank vents on bulwark with anti-
gine switch off control unit, manual acti-
odor filter
vation cable, audible alarm, and control
panel ● Emptying pump with manual control
● Two hydrants connected to a 24 V motor ● Tank suction point on port walk around
pump ● Outboard discharge
● Tank washing system with fresh water
Fuel system ● Tecma toilet (with macerator pump). All
toilets discharge into the tank
● Two aluminum fuel tanks, total capacity
5000 l (1320.86 US.liq.gal.) Gray water system
● Two breathers on bulwarks
● One electronic diesel level gage on star- ● One 450 l (118.9 US.liq.gal.) PEHD tank
board tank ● Internal and external utilities water dis-
● One optical diesel level gage on port tank charge in central collection tankTECHNICAL SPECIFICATIONS 78F (10/01/2020)
● Additional collection tank for owner's - electric control unit for wheelhouse side
head 50 l (13.2 US.liq.gal.) with dis- door
charge into the tank
● Two tank vents on bulwark Air conditioning system
● Level sensor and status indicator in
wheelhouse ● CONDARIA water-based system
● Pump for discharging into sea with man- ● One compressor in engine room, total
ual/auto control 120.000 BTU with inverter (including de-
● Tank washing system with fresh water aerator)
● One seawater pump with relevant intake
Seawater system ● Fan coils distribution:
- Saloon and Dinette: 500.00 BTU (4 x
● Engine cooling system: dynamic seawa- AP8)
ter intakes in keel with anti-block valve - Galley and wheelhouse: 452.00 BTU (1
(2 ½”) on each engine x AP5; 2 x TWIN 18)
● Generator cooling system: seawater in- - Owner's cabin and head: 18.400 BTU (2
takes with filter and valve (1") x AP5)
● Air conditioning cooling system: seawa- - VIP cabin and head: 12.500 BTU (1 x
ter intakes with filter and valve (1 ½") AP8)
- Port side guest cabin and head: 9.200
● Chain washing pump: one seawater in-
BTU (1 x AP5)
take with valve (1")
- Starboard side guest cabin and head:
9.200 BTU (1 x AP5)
Ventilation/extraction - Crew area: 10.680 BTU (1 x AP1; 1 x
AP3)
● Natural engine room ventilation
● Activation and temperature control of
● Engine room air forced extraction with
each cabin can be carried out through
two extractors
the Raymarine monitoring system or
● Separator filter built in the ducts from the dedicated control panel for
● Head ventilation system with dedicated each cabin
extractor for each head (excluded crew
head)
Equipment
Other systems ● One telescopic boat hook
● Five mooring lines
● Gas discharge system:
● Fender lines: 24 m (78' 9")
- engine exhaust: built in the POD, with
● One anchor chain stopper
by-pass exhaust
- Water/fumes separator for generator ● Eight fenders
with side exhaust ● eight black fender covers
● Hydraulic system: ● One Owner's manual
- 24 V electro-hydraulic pump for stern ● One AZIMUT document folder
door and lift mechanism ● One wooden boat model
- 24 V electro-hydraulic pump for con- ● One AZIMUT YACHTS scale model BOX -
cealed gangway BIG
● Electric system:TECHNICAL SPECIFICATIONS 78F (10/01/2020)
● One AZIMUT warranty service booklet
● One set of stainless steel cutlery
● One set of porcelain plates
● One set of glasses
● One floating keyring
● One large bag with logo for manuals
● One remote control holder with logo
● One shower pipe storage bag
● One stainless steel scheduled mainte-
nance kit
● One pin wrench for locking stainless
steel pinsTECHNICAL SPECIFICATIONS 78F (10/01/2020) Annex 1 - Lifting slings
TECHNICAL SPECIFICATIONS 78F (10/01/2020) Annex 2 - Performance / consumption chart
This Azimut 78 also benefits from a unique layout of the Flybridge, which was
designed by Azimut UK, to allow full enjoyment from the available area.
The following show the CGI Images and design specification for this
dynamic inclusion:Features
Carbon-Tech Generation
The use of carbon fibre is a construction choice that allows volumes and surfaces to
be increased in size while keeping the same weight, therefore maintaining excellent
levels of dynamic stability.
Carbon fiber lamination is applied to:
• deck (hybrid)
• superstructure
• rollbar
• hard top
• platform/transomFeatures
Triple IPS Propulsion
Triple Volvo IPS propulsion system installed on hydrodinamic optimized hull shape
• Superior manoeuverability
• Minimum noise and viration level
• Best fuel efficiency (up to 25% reduction compared to shaft line)Features
Active Trim Control
Interceptor technology provides a smooth, precise Auto mode that automatically
takes care of all trim adjustments. It delivers trouble-free handling and a system
without corrosion or leaking oil.Features
Integrated Control Panel
The integrated control system by Garmin has been customised to increase control
potential: from engine data and alarms, to bilge and water discharge pumps, tank
levels and engine room ventilation, right through to the sound system and the air
conditioning units. The system can be accessed from both helm stations and
remotely from a tablet.Features
Joystick driving
Joystick Driving offers an easy way to maneuver with precision and at the same time
it allows the driver to steer comfortably at all speeds with only one hand. When Joy-
stick Driving is activated, the Autopilot turns on simultaneously. The driver steers the
boat by moving the Joystick. When the Joystick is released, the Autopilot is engaged
and keeps a forward course.Features
Total privacy for owner and crew
The galley, adjoining the wheelhouse, also contains the crew mess and a stairway
which leads directly to the crew quarters on the lower deck. It opens directly onto
the side walkway whilst another door separates it from the saloon, creating a layout
which offers complete independence for crew and an exceptional level of privacy for
the owner and guests.Features
HTS High Technical Standard declaration
Azimut 78 has been designed and engineered according to the highest standards
applied in the recreational industry for production boats. Thanks to CE Category A
and NMMA Certification the boat is in compliance with the two major safety codes
for boat below 24 meters2021 Azimut Flybridge 78
New Azimut Fly 78 2021 hull number commissioned
and ready for delivery | Location Med
This boat is not used for charter, it is a private vessel. However, we have
the option to adapt for charter as the boat comes fully specified with full
MCA coded safety equipment.
Contact Azimut UK Official Dealers
Richard (Sales Director)
+44 7507856112
globalyachtsuk@gmail.com
www.globalyachts.co.uk
Price reduced for fast sale
from £4,100,000 to £3,200,000 Ex VAT
We are open to offers from agents, brokers and end users.
It may be possible to consider PX optionsYou can also read
