W W W . X C L E A R . N L PRODUCT CATALOGUE 2017/2018 MEMBER OF:
INTRODUCTION
WELCOME
A pond means life in your garden. To make the life of your pond’s flora and fauna the best as possible, it is required
to keep the water in perfect condition and balance. To ensure this, you have to rely on your filter technology every
day.
The Xclear UV-C purifiers and filters are the best solutions market. At the VGE International headquarters, Xclear
for keeping your pond water healthy and crystal clear. products are designed, produced and assembled. A
Next to these purifiers and filters, Xclear offers water team of professional product specialists are in contact
treatment products and other pond supplies. From a with customers in more than 70 countries worldwide.
professional koi pond to a “do it yourself” pond; Xclear
pond products are applicable for every situation. Innovation is of paramount importance to VGE International
B.V. Therefore, the company has its own product development
Xclear is a trademark of VGE International B.V. located department, which regularly introduces new products and
near Eindhoven, The Netherlands. More than 35 years product improvements. Innovative thinking is one of our main
of experience (since 1982) resulted in high quality and strengths. VGE International develops products which are
innovative products for the pond, pool and industrial customized to today’s pond trends and customer needs.
The successful Xclear product range is also available for
private labeling. Please contact our sales department for
details.
CONTACT:
VGE International B.V.
Ekkersrijt 4304
5692 DH Son & Breugel
The Netherlands
T: +31 (0)499 461 099 FOR MORE INFORMATION:
www.xclear.nl
info@vgebv.nl www.facebook.com/vgebv
www.vgebv.com www.facebook.com/xclear
PRODUCT CATALOGUE 2017 - 2018
INDEX
UV-C DISINFECTION 4 POND EQUIPMENT AND SUPPLIES 28-36
Fish Tank 600L | Topfilter 220L | Filter Media Bags | Bio Balls
UV-C PURIFIERS 5-17 Bio Blocks 28
Economy UV-C | Multimax UV-C | Ultraflex UV-C 6 Threaded Tank Connector | Tank Connector
Xpose UV-C 7 (Aerated) Bottom Drain 29
Professional UV-C | Flex UV-C | Tech UV-C 8 Slide Valve | Pre-Filter 30
Marine UV-C | Jumbo Tech UV-C | 130W Amalgam 2- and 3-Way Cylinder Valve | Automatic 2- & 3-Way Cylinder Valve 31
UV-C with Flow Switch 9 Dosatech 32
Professional UV-C Ø110 | Inox UV-C 10 Pond Safety Net | Pond Defence | Floating Feeding Ring |
Immersion UV-C | In-Line UV-C 11 Anti-Ice Device 33
AOP Compact Ozone + UV-C HP 12 ProfiHeater | Anti Algae Copper Electrolyzer | Static Mixer 34
AOP Compact Ozone + UV-C LP | AOP Compact Ozone Flow Switch | Flow Switch Plus 35
+ UV-C Saltwater LP 13 Fish Feeder 36
VGE Pro 14 - 17
WATER TREATMENT 37-39
Pond Support Maërl | Pond Support GH+ | Pond Support pH-
UV-C LAMPS 19-21 Pond Support KH+l | Pond Support Oxypower | Pond Support
TL Lamps | PL Lamps | T5 & T6 Lamps | Unit Specific Lamps 20-21 Algae Remover 37
Pond Support Lactic Acid Bacteria Dry Mix | Pond Support Bacto Dry |
POND FILTERS AND ACCESSORIES 23-27 Pond Support Pond Maintenance Bacteria
Biosteps | 3 Chamber Filters with and without UV-C 23 Pond Support Nitrifying Bacteria | Pond Support Anti Sludge Bacteria
Connect Clear Modular Filter Systems 24 Pond Support Pond Salt 38
Biosieve | Profi Cloverleaf Filter 25 Pond Support Lactic Acid Bacteria | Pond Support Bacto Gel
Sieve Pump Fed | Sieve Gravity Fed 26 Pond Support Bacto Liquid | Pond Support Bacto Pearls 39
Beadfilters | Beadfilter bypass 27
XCLEAR PROMOTIONAL ACTIVITIES 40
PRIVATE LABEL 41
DELIVERY CONDITIONS 42
SPARE PARTS 43 - 51
PVC
PVC Our special UV resistant PVC housing is highly
resistant to corrosive water, and therefore
very suitable for salt water applications.
STAINLESS STEEL HOUSING:
A stainless steel interior provides a reflection of UV
radiation and this increases the efficiency of the
radiation by up to 35%. In addition, the stainless
steel ensures a longer life of the housing.
ALUMINIUM HOUSING OR INTERIOR:
ALU An aluminium housing or coating on the inside
provides a reflection of the UV-C radiation and this
increases the efficiency of the radiation by up to 35%.
PRODUCT CATALOGUE 2017 - 2018
UV-C DISINFECTION UV-C TREATMENT Over 100 years ago German scientists discovered that the top surface of lake-water was sterile when exposed to sunlight. Investigation led to the discovery of Ultraviolet light. Situated in the electro- magnetic spectrum between X-rays and visible light, Ultraviolet (UV) light has many beneficial properties. UV light is split into four main categories, UV-A, UV-B, UV-C and Vacuum UV. The UV-C spectrum (200 to 280 nanometers) is the most lethal range of wavelengths for microorganisms. This range, with 254 nanometers being the peak germicidal wavelength, is known as the Germicidal Spectrum. UV-C light has the ability to cause permanent damage to a wide variety of nuisance microorganisms in water. THE TARGETED MICROORGANISM Each type of microorganism requires a specific UV-C radiation exposure rate to successfully complete the disinfection process. The targeted microorganism must be directly exposed to the UV-C radiation long enough for the radiation to penetrate the microorganism’s cell wall. However, it takes only seconds for UV-C light rays to inactivate waterborne microorganisms by breaking through the microorganism’s cell wall and disrupting their DNA. This often totally destroys the organism, or at the very least will impair its ability to reproduce. UV-C LAMP LIFESPAN TL-, PL- and T5 UV-C lamps have an average lifespan of minimal 9000 hours (± 1 year). After that the lamp will still function, but for less than 80% and the strength is too low to kill algae and bacteria. Amalgam lamps have a lifespan of 16000 hours. UV-C BENEFITS • The solution against green pond water • UV-C is effective against all micro-organisms • Improved water quality • A crystal clear pond • Protects fish from germs and harmful micro-organisms • Less energy and maintenance costs • No harmful chemicals needed • UV-C is a non-hazardous, green technology • Cannot be overdosed 4 | PRODUCT CATALOGUE 2017 - 2018
UV-C PURIFIERS
A UV-C purifier is indispensable to any pond. UV-C Light ensures healthy circumstances of flora and
fauna in and around the pond. UV-C makes sure that harmful bacteria and other micro-organisms are
rendered harmless which ensures a clear and healthy pond. The user-friendly range of Xclear UV-C
purifiers are the solution for these common pond problems. The wide range Xclear UV-C is thoughtfully
designed and tested with a strong focus on low-maintenance, safe and easy to apply pond solutions.
Weight Length Width Height Quantity
Item No. Type EAN
(kg) (cm) (cm) (cm) full pallet
XE01052 Economy UV-C 5 W 1,4 31 23 11 100 8714404009089
XE01092 Economy UV-C 9 W 1,5 31 23 11 100 8714404009157
XE01112 Economy UV-C 11 W 1,6 31 23 11 100 8714404009010
XE02052 MultiMax UV-C 5 W 1,7 31 23 11 100 8714404029322
XE02092 MultiMax UV-C 9 W 1,8 31 23 11 100 8714404029391
XE02112 MultiMax UV-C 11 W 1,9 39 24 11 100 8714404029469
XE03182 Ultraflex UV-C 18 W 2,6 25 55 12 60 8714404043267
XE03362 Ultraflex UV-C 36 W 2,9 32,5 55 12 40 8714404043274
XE03752 Ultraflex UV-C 75 W 3 100 28 12 30 8714404044172
XE07302 Xpose UV-C 30 W 4,6 103 25 15 30 8714404045728
XE07552 Xpose UV-C 55 W 4,6 103 25 15 30 8714404045650
XH01182 Professional UV-C 18 W 3,1 60 25 11 54 8714404037730
XH01362 Professional UV-C 36 W 3,8 55 33 12 40 8714404037808
XH01552 Professional UV-C 55 W 4,2 99 28 12 40 8714404037877
XE04402 Flex UV-C 40 W 3,2 77 21 13 60 8714404042802
XE04752 Flex UV-C 75 W 3,2 77 21 13 60 8714404042819
XE05402 Tech UV-C 40 W 3,5 77 18 13 60 8714404039116
XE05752 Tech UV-C 75 W 3,9 77 18 13 60 8714404039123
XH10402 Marine UV-C 40 W 4,1 101 27 15 30 8704404044189
XH11402 Marine UV-C 40 W short 3 55 33 12 40 8714404044196
XH10752 Marine UV-C 75 W 4,3 101 27 15 30 8714404044196
XH04402 Jumbo Tech UV-C 40 W 4,4 99 28 12 30 8714404034869
XH04752 Jumbo Tech UV-C 75 W 4,7 99 28 12 30 8714404034791
XH06132 130 W Amalgam UV-C with flow switch 4,9 99 28 12 30 8714404030052
XH07752 Professional UV-C Ø 110 T5 75 W 5,1 103 27 14 24 8714404004398
XH07132 Professional UV-C Ø 110 Amalgam 130 W 7,1 103 27 14 24 8714404004466
XP02752 Inox UV-C 75 W 11,2 105 26 18 18 8714404038539
XP02132 Inox UV-C 130 W Amalgam 11,6 105 26 18 18 8714404038546
XE06402 In-Line UV-C 40 W short 3 55 33 12 40 8714404046640
XE06752 In-Line UV-C 75W 2,3 99 28 12 30 8714404044202
XH09752 AOP Compact Ozone + UV-C High Pressure 7 101 27 15 24 8714404037594
XH08752 AOP Compact Ozone + UV-C Low Pressure 15,1 116 42 17 14 8714404035705
XH12752 AOP Compact Ozone + UV-C Saltwater Low Pressure 13,8 116 42 17 14 8714404987271
4053720 Biosteps 13,2 59 52 38 16 8714404029537
4056605N 3 chamber filter 220L 18 99 44 71 4 8714404044080
4056604N 3 chamber filter 220L + UV-C 20,3 99 44 71 4 8714404044097
4056607N 3 chamber filter 330L 25,9 101 70 72 3 8714404044103
4056606N 3 chamber filter 330L + UV-C 28,2 101 70 72 3 8714404044110
4053700 Connect Clear 80L 14,8 62 49 77 7 8714404027786
4053709 Vortex Connect Clear in doos 14,2 70 70 78 3 8714404032575
4053705 Connect Clear Super 150L 16,5 69 69 78 3 8714404027854
4058000 BioSieve 28,7 49 67 91 2 8714404030625
4058001 Sieve Pump Fed 9 50 37 55 18 8714404043281
4058002 Sieve Gravity Fed 24 72 39 101 7 8714404043298
4053768 Beadfilter 400 41 120 80 55 1 8714404043182
4053769 Beadfilter 500 61 120 80 70 1 8714404043199
4053772 Beadfilter 600 93 120 80 95 1 8714404043205
4053773 Beadfilter 750 141 120 80 140 1 8714404043212
4053774 Beadfilter 900 215 120 100 140 1 8714404043229
4053775 Beadfilter Bypass 400-500-600 2,9 45 42 26 -- 8714404043243
4053776 Beadfilter Bypass 750-900 4,8 51 46 36 -- 8714404043250
5056594N Dosatech 1,2 32 10 20 120 8714404046206
3300029 Anti Algae Copper Electrolyzer 2,3 54 25 11 40 8714404039093
6051800N Automatic Fish Feeder 3 58 58 47 8 8714404033688
PRODUCT CATALOGUE 2017 - 2018 | 5
UV-C PURIFIERS
ECONOMY UV-C The Economy UV-C is designed for small ponds.
• Keeps your pond clear and your fish healthy.
• Including hose connectors 1” – 25/20/15.
• Friendly price range.
• Suitable for saltwater applications.
Item No. Type UV-C Lamp Pond volume Max. flow Max. Pressure
XE01052 Economy UV-C 5W 5 Watt PL-S 2.500 L 1.500 L/h 1 Bar
XE01092 Economy UV-C 9W 9 Watt PL-S 7.000 L 3.000 L/h 1 Bar
XE01112 Economy UV-C 11W 11 Watt PL-S 10.000 L 5.000 L/h 1 Bar
MULTIMAX UV-C The Multimax UV-C is suitable for freshwater
environments and freshwater aquariums.
• Lined inside with reflecting aluminum which
increases the UV-C radiation with 35% and
prevents wear of the unit’s inside.
• Equipped with a Philips PL UV-C lamp.
• The ballast is integrated in the house.
• Including hose connectors 1"-32/25/20 mm.
ALU
Item No. Type UV-C Lamp Pond volume Max. flow Max. Pressure
XE02052 MultiMax UV-C 5W 5 Watt PL-S 2.500 L 1.500 L/h 1 Bar
XE02092 MultiMax UV-C 9W 9 Watt PL-S 7.000 L 3.000 L/h 1 Bar
XE02112 MultiMax UV-C 11W 11 Watt PL-S 10.000 L 5.000 L/h 1 Bar
ULTRAFLEX UV-C The UltraFlex UV-C is extremely suitable for
installing the purifier with total flexibility.
• Provides 360° installation possibilities.
• Less pressure loss because of straight union.
• Including 63mm PVC unions with adaptors
to 50mm/1½” fem. threading.
• These purifiers come with hose
connectors 1½” – 40/32/25 mm.
ALU
Item No. Type UV-C Lamp Pond volume Max. flow Max. Pressure
XE03182 Ultraflex UV-C 18W 18 Watt PL 15.000 L 6.000 L/h 2 bar
XE03362 Ultraflex UV-C 36W 36 Watt PL 35.000 L 10.000 L/h 2 bar
XE03752 Ultraflex UV-C 75W 75 Watt T5 70.000 L 20.000 L/h 2 bar
6 | PRODUCT CATALOGUE 2017 - 2018 PLEASE REFER TO PAGE 43 - 51 FOR SPARE PARTS
XPOSE UV-C
NEW

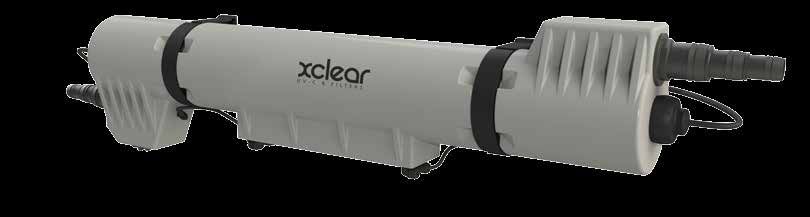

The Xclear Xpose UV-C is a high quality UV-C TL unit in
30 and 55 watt. Because of its large reactor diameter, the
water has a long exposure time to UV-C radiation. Ideal for
ponds where a high disinfection efficiency is needed.
BENEFITS
• A built-in (replaceable) electronic ballast
to ensure a smooth power supply
• Large reactor diameter for long exposure
time to UV-C radiation
• High quality PE housing, which is also suitable for saltwater
• Splash waterproof rubber end caps
• Fast lamp (re)placement
• Easy to install and to maintain
• Reactor is grounded for human and pet safety
• Made in the Netherlands
The Xpose UV-C has a special water guidance inside the
house for an optimal exposure. The special water guidance
inside the house will also guide the quartz sleeve for easy TL Lamp
replacement. The unit can also be mounted in the opposite
way. The position of the inlet and return (left or right) is
therefore free to choose. The inlet has 2 x 1½” female
threaded connections. With 1½” male threaded adaptor
suited for solvent connections. The remaining opening will
be used for the supplied transparent plug as lamp indicator.
The Xpose UV-C comes with hose tails 25/32/40 mm.
SALT-
WATER
Item No. Type UV-C Lamp Pond Volume Max. flow Max. Pressure
XE07302 Xpose UV-C 30W Xclear TL 30 Watt T8 Base I 27.000 L 13.000 L/h 1,5 Bar
XE07552 Xpose UV-C 55W Xclear TL 55 Watt T8 Base I 45.000 L 18.000 L/h 1,5 Bar
PLEASE REFER TO PAGE 43 - 51 FOR SPARE PARTS PRODUCT CATALOGUE 2017 - 2018 | 7
PROFESSIONAL UV-C The Professional UV-C is equipped with high-quality
components combined with a Philips PL UV-C lamp.
• Guaranteed maximum performance and durability.
• Stainless Steel body for maximum durability.
• These purifiers come with 63mm PVC unions with
adaptors to 50mm/1½” fem. threading.
• These purifiers come with hose
connectors 1½” – 40/32/25mm.
Item No. Type UV-C Lamp Pond volume Max. flow Max. Pressure
XH01182 Professional UV-C 18W 18 Watt PL-L 15.000 L 6.000 L/h 2 Bar
XH01362 Professional UV-C 36W 36 Watt PL-L 35.000 L 10.000 L/h 2 Bar
XH01552 Professional UV-C 55W 55 Watt PL-L 55.000 L 15.000 L/h 2 Bar
FLEX UV-C The Flex UV-C is an excellent solution when multiple
flexible installation options are needed.
• Multiple installation options thanks
to the connection options.
• Including 63mm PVC unions including
adaptors to 50mm/1½” fem. threading.
• Including hose connectors 1½” – 40/32/25mm.
• The length of the purifier is only 85cm.
ALU
With 4 connections!
Item No. Type UV-C Lamp Pond volume Max. flow Max. Press.
XE04402 Flex UV-C 40W 40 Watt T5 40.000 L 20.000 L/h 2 bar
XE04752 Flex UV-C 75W 75 Watt T5 75.000 L 25.000 L/h 2 bar
TECH UV-C Because of its short length and compact size, the
Tech UV-C is ideal for filter installations where space is
limited but a high disinfection efficiency is needed.
• Easy to install.
• Equipped with a 40 watt or 75 watt T5 UV-C lamp.
• Stainless Steel body for maximum durability.
• Competitively priced.
• Including 63mm PVC unions including
adaptors to 50mm/1½” fem. threading
• Including hose connectors 1½” – 40/32/25mm.
• The length of the purifier is only 85cm.
Item No. Type UV-C Lamp Pond volume Max. flow Max. Press.
XE05402 Tech UV-C 40W 40 Watt T5 40.000 L 20.000 L/h 2 Bar
XE05752 Tech UV-C 75W 75 Watt T5 75.000 L 25.000 L/h 2 Bar
8 | PRODUCT CATALOGUE 2017 - 2018 PLEASE REFER TO PAGE 43 - 51 FOR SPARE PARTS
The Marine UV-C purifier is very suitable to treat water
MARINE UV-C in salt water applications like sea water tanks.
• Ensures fresh, clean and clear water.
• Widely used for water treatment in aquaculture, agriculture
and sea water tanks, but can be used in any type of water.
• Special reactor made of extra UV-C stabilized PVC.
• Including a Philips High Performance low
pressure Smart Cap UV-C lamp.
• Provides 360° installation possibilities.
• Flexible installation options with 63/50mm glue connections.
• Reactor shape ensures optimal installation flexibility
• Disinfects marine water efficiently and safely.
• Protects your marine water from germs
• Including 1½” female threading.
• Including hose tails 25/32/40mm.
SALT-
WATER PVC
Item. No. Type UV-C Lamp Pond volume Max. flow Max. Press. Length
XH10402 Marine UV-C 40W 40 Watt T5 Smart Cap 40.000 L 10.000 L/h 2 Bar 100 cm
XH10752 Marine UV-C 75W 75 Watt T5 Smart Cap 75.000 L 15.000 L/h 2 Bar 100 cm
XH11402 Marine UV-C 40W short 40 Watt T5 30.000 L 10.000 L/h 2 Bar 48 cm
JUMBO TECH UV-C The Jumbo Tech UV-C purifier is designed for ponds where
a guaranteed contact time with UV-C is necessary.
• High intensity disinfection performance.
• 85 Centimeter lamp for longer contact time with UV-C light.
• Stainless Steel body for maximum durability.
• Including 63mm PVC unions with adaptors
to 50mm/1½” fem. threading
• The length of the purifier is 95cm.
Item No. Type UV-C Lamp Pond volume Max. flow Max. Pressure
XH04402 Jumbo Tech UV-C 40W 40 Watt Tech T5 40.000 L 20.000 L/h 2 Bar
XH04752 Jumbo Tech UV-C 75W 75 Watt Tech T5 75.000 L 25.000 L/h 2 Bar
130W AMALGAM UV-C The 130 watt amalgam UV-C purifiers are suitable for environments
where consistency of powerful radiation is required at all times.
WITH FLOW SWITCH
• Including a flow switch to switch off the
lamp when there is no water flow.
• Equipped with a high-quality 130W Philips Amalgam lamp
• Amalgam lamps are less affected by
temperature fluctuations in the water.
• Generates a constant, powerful radiation.
• Stainless steel body for maximum durability.
• Including 63mm PVC unions with adaptors
to 50mm/1½” fem. threading.
Item No. Type UV-C Lamp Pond volume Max. flow Max. Press.
XH06132 130W Amalgam UV-C incl. flow switch 130 Watt Amalgam 130.000 L 30.000 L/h 2 Bar
PLEASE REFER TO PAGE 43 - 51 FOR SPARE PARTS PRODUCT CATALOGUE 2017 - 2018 | 9
PROFESSIONAL UV-C Ø110 The professional UV-C is the best solution
to reduce head pressure losses.
• 110mm connections.
• 110mm diameter stainless steel body for maximum durability.
• Ideal for gravity systems.
• Ideal in combination with low pressure pumps.
• Available with a Philips T5 or T6 amalgam
lamp for optimal performance.
• 130 Watt amalgam has a flow switch to switch
off the lamp when there is no water flow.
Item No. Type UV-C Lamp Pond volume Max. flow Max. Press.
XH07752 Professional UV-C Ø110 75W 75 Watt T5 75.000 L 20.000 L/h 2 Bar
XH07132 Professional UV-C Ø110 130W 130 Watt T6 Amalgam 130.000 L 40.000 L/h 2 Bar
INOX UV-C The Inox UV-C purifier is the driving force for
large (professional) pond installations.
• Ability to keep large ponds free of algae, bacteria and fungi.
• Designed to connect easily in large (professional) filter installations.
• Full 316L stainless steel body for maximum
performance and durability.
• Equipped with a high quality Philips UV-C lamp.
• Including a flow switch to switch off the lamp
when there is insufficient water flow.
• Generates a constant, powerful radiation.
• Integrated timer accurately monitors the number of operating hours.
• Lamp replacement indication.
• The length of the purifier is 100cm.
• 114mm diameter.
• 2” male threaded connections.
Item No. Type UV-C Lamp Pond volume Max. flow Max. Press.
XP02752 Inox UV-C 75W 75 Watt T5 75.000 L 20.000 L/h 5 Bar
XP02132 Inox UV-C 130W 130 Watt T6 Amalgam 130.000 L 40.000 L/h 5 Bar
10 | PRODUCT CATALOGUE 2017 - 2018 PLEASE REFER TO PAGE 43 - 51 FOR SPARE PARTSIMMERSION UV-C Submersible UV-C lamps have a big advantage compared to
conventional UV-C units: no pressure loss.
• These lamps can be used in filter tanks so the water
can pass without any resistance/ pressure loss.
• The plastic end of the lamp has a 32mm diameter so you
can use 32mm pipe clips to mount the lamp in a tank.
• A special tank connector is available for direct
installation in i.e. filters (see picture).
NOTE:
• This product is only intended for professional use.
• It should be installed in a professional application
or assembled with other appliances.
• Before using this product the installer/user must
7201269
take care the product complies to the latest
local applying standards for UV-C units.
Item No. Type UV-C Lamp
XP01402 Immersion UV-C 40W 40 Watt T5
XP01752 Immersion UV-C 75W 75 Watt T5
XP01402.1 Immersion UV-C 40W Amalgam 40 Watt Amalgam T5
XP01802 Immersion UV-C 80W Amalgam 80 Watt Amalgam T5
7201269 Tank connector 1½" -
IN-LINE UV-C The In-Line UV-C is the answer for an effective and safe
water disinfection in open and closed (filter)systems like
multi-chamber filters, drum filters and buffer tanks.
FUNCTION
With the tank connector the In-Line UV-C is easy to integrate
in any system by mounting it in the (filter)wall. Choosing
for complete, partly or separate water flow makes the In-
Line UV-C versatile for any situation. The flow body and
Also suitable safety switch make the In-Line UV-C a perfect alternative
for saltwater
for the well-known submersible (immersion) UV-C units.
BENEFITS
• Easy to mount in (multi-chamber)filters,
drum filters, buffer tanks, etc.
• Safe to use due to flow body and safety switch
• Does not harm biological life in the filter
• Does not damage filter media
• Compact to build in, no extra separate
unit in technical filter room
• The water is forced to flow close to the lamp
• Variable output direction (1 ½” female threaded)
• Corrosion free PVC body (also suitable for saltwater)
• Comes with hosetail 1½” x 40/32/25 mm
• The hole for the tank connector
should be Ø85mm
SALT-
WATER PVC
Item No. Type UV-C Lamp Pond volume Max. flow Max. Press. Length
XE06752 In-Line UV-C 75W 75 Watt T5 75.000 L 16.000 L/h 2 Bar 84 cm
XE06402 In-line UV-C 40W short 40 Watt T5 30.000 L 10.000 L/h 2 Bar 51 cm
PLEASE REFER TO PAGE 43 - 51 FOR SPARE PARTS PRODUCT CATALOGUE 2017 - 2018 | 11AOP COMPACT OZONE + The AOP Compact Ozone + UV-C HP is the ideal unit
to combine ozone and Tech UV-C technology.
UV-C HIGH PRESSURE
OPERATION
This revolutionary combination of ozone and UV-C makes a
pond with a unbelievable clarity possible! With this Xclear AOP
Compact Ozone & UV-C unit on your pond system you are able
to keep your water fresh, crystal clear and especially hygienic
clean. You connect the Xclear AOP Compact Ozone & UV-C on
to your pond system. Using a pump, the water is pumped into
the unit through the supplied reactor. Because of the water
pressure in the reactor, air is sucked through the venturi system.
Air is sucked into the unit via the air valve and flows through the
area between the quartz glass and the AOP Compact Ozone &
UV-C lamp. Because air enters the unit via the lamp, it becomes
loaded with ozone particles that were generated by the special
AOP Compact Ozone & UV-C lamp, which produces 0.6 grams
of ozone. After it has passed the ball valve, the ozone enriched
TIP: The expected life-span of the T5 lamp regarding air is then mixed with water in the reactor. The oxidation and
UV-C is 9000 hrs. For the ozone producing part this is sterilisation take place here, and a powerful disinfection process
about 4500 hrs. After this period of time the intensity is achieved. The water ozone mixture is then exposed to the UV-C
decreases. When you replace the lamp in March there radiation of the lamp. The UV-C breaks down the remaining ozone
will be enough ozone-production for the whole season in the water, changing it into OH- (Hydroxyl radicals) which have
(from March to September) and there will be enough a very high oxidation potential for extra clarity of your water.
UV-C radiation for a whole year!
0,5
0
bar
1,5
1,0
• Including Venturi system and UV-C/Ozone combination lamp.
• No residual ozone left in the water flowing out.
• Reduces pathogens.
• Reduces algae growth.
• Removes organic matter.
• Removes yellow colorants in the water.
• Supports the performance of biological filters.
• Reduces ammonia level.
• Reduces nitrite level.
• Including 63mm PVC unions with adaptors
to 50mm/1½” fem. threading.
Item No. Type Ozone UV-C Lamp Pond volume Max. flow Max. Press.
XH09752 AOP Compact Ozone + UV-C HP 75 Watt 50.000 L 25.000 L/h 2 Bar
The Advanced Oxidation Process (AOP) combines the benefits of
Air ozone
+ 20% oxygen
PUMP
ozone and UV-C into one device. When is used in combination
UV-C
Ozone
with hydroxide
Air + ozone (O3)
Air + ozone (O3)
Water
Air + 20% oxygen
with UV-C light in water, hydroxyl radicals
Water
(OH-) are created. These A
radicals are very effective against germs, bacteria and organic Air + 20% oxygen
Air + ozone (O3) Air + 20% oxygen
pollutants. Because UV-C light will destroy the residual ozone in
A
Water
Air + ozone (O3)
the water, there is no deozonation device needed.3 AOP is a very OUT
Air + ozone (O3) Water
0,5
0
Air + ozone (O ) with hydroxide
bar
effective and efficient way of sanitizing and
with disinfecting your pond.
hydroxide
Ozone
1,5
1,0
UV-C
Air + ozone (O3)
Ozone
BENEFITS AOP:
UV-C Air + ozone (O3) O
• Strong combination of ozone (oxidation) 0,5 1,0 0,5 1,0
O3 with hydroxide
and UV-C (disinfection)
0 bar 1,5 0 bar 1,5
Ozone
• Improves the disinfection efficiency C
• Can be quickly added to existing filtration systems PUMP
UV-C B
O3
75W Ozone UV-C lamp
IN Quartz glass
O3
0,5 1,0
Air + 20% oxygen 0 bar 1,5
Air + 20% oxygen
Water Water
O3
O3
0,5 1,0 Air + ozone (O3) 0,5 1,0
Air + ozone (O3)
OUT
with hydroxide
Air + ozone (O3) 0 bar 1,5 Ozone
UV-C
0 bar 1,5
Air + 20% oxygen C
Air + ozone (O3) B Ozone UV-C
with hydroxide 0,5
0 bar
1,0
1,5
Water
PUMP 0,5
0 bar
1,0
1,5
O3
Ozone
Air + ozone (O3)
UV-C Ozone
UV-C PUMP
Air + ozone (O3) PUMP
75W Ozone UV-C lamp
IN
with hydroxide
IN
IN Quartz glass
Ozone
12 | PRODUCT CATALOGUE 2017 - 2018 PLEASE REFER TO PAGE 43 - 51 FOR SPARE PARTS
UV-C O3AOP COMPACT OZONE + The AOP Compact Ozone + UV-C LP is an excellent solution
to combine ozone and low pressure UV-C in one unit.
UV-C LOW PRESSURE
OPERATION
The air pump pushes air past the combination lamp which
produces about 0.6 grams of ozone per hour. The ozone
loaded air is mixed with water in the static mixer where the
oxidation process takes place. The water mixed with ozone is
then pumped through the combination lamp again but now
on the outside of the quartz glass. The water is exposed to
UV-C radiation so that nearly all algae, bacteria and viruses are
killed. The UV-C radiation will also break down any residual
ozone changing it into OH- (Hydroxyl radicals) which have a
very high oxidation potential for extra clarity of your water.
• Including venturi system and UV-C/Ozone combination lamp.
• No residual ozone left in the water flowing out.
• Enriches the pond water with oxygen.
• Reduces pathogens.
• Reduces algae growth.
• Removes organic matter.
• Removes yellow colorants in the water.
• Supports the performance of biological filters.
• Reduces ammonia level.
• Reduces nitrite level.
• Including 63mm PVC unions with adaptors
to 50mm/1½” fem. threading.
• Including hose connectors 1½” – 40/32/25mm.
Item No. Type Ozone UV-C Lamp Pond volume Max. flow Max. Press.
XH08752 AOP Compact Ozone + UV-C LP 75 Watt 50.000 L 20.000 L/h 1 Bar
AOP COMPACT OZONE + The AOP Compact Ozone + UV-C LP is an excellent solution to
combine ozone and low pressure UV-C in one unit. Because of
UV-C SALTWATER LOW PRESSURE its PVC housing, the AOP Compact Ozone + UV-C Saltwater
is very suitable to treat water in saltwater applications.
OPERATION
The air pump pushes air past the combination lamp which produces
about 0.6 grams of ozone per hour. The ozone loaded air is mixed
with water in the static mixer where the oxidation process takes
place. The water mixed with ozone is then pumped through the
combination lamp again but now on the outside of the quartz glass.
The water is exposed to UV-C radiation so that nearly all algae,
bacteria and viruses are killed. The UV-C radiation will also break down
any residual ozone changing it into OH- (Hydroxyl radicals) which
have a very high oxidation potential for extra clarity of your water.
• Suitable for saltwater applications
• Including venturi system and UV-C/Ozone combination lamp.
• No residual ozone left in the water flowing out.
• Enriches the pond water with oxygen.
• Reduces pathogens.
• Reduces algae growth.
• Removes organic matter.
• Removes yellow colorants in the water.
• Supports the performance of biological filters.
• Reduces ammonia level.
• Reduces nitrite level.
SALT- • Including 63mm PVC unions with adaptors to 50mm/1½” fem. threading.
WATER PVC
• Including hose connectors 1½” – 40/32/25mm.
Item No. Type Ozone UV-C Lamp Pond volume Max. flow Max. Press.
XH12752 AOP Compact Ozone + UV-C Saltwater LP 75 Watt 50.000 L 20.000 L/h 1 Bar
PLEASE REFER TO PAGE 43 - 51 FOR SPARE PARTS PRODUCT CATALOGUE 2017 - 2018 | 13VGE PRO ASSORTMENT

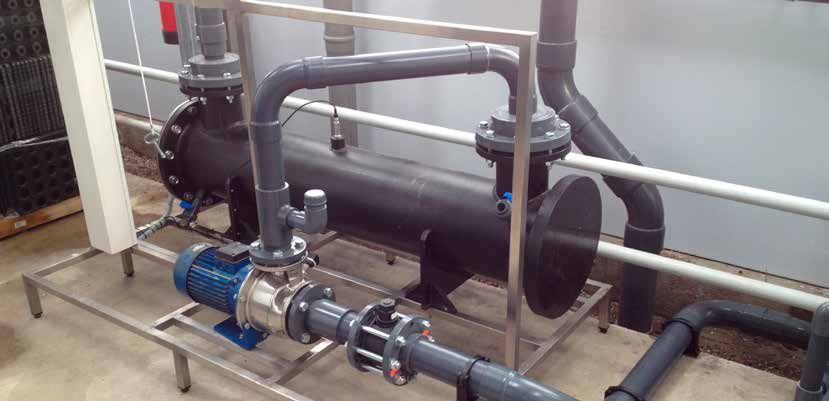

For high volumes and professional applications VGE International offers UV-C purifiers under the
brand name VGE Pro. VGE Pro UV-C purifiers are the driving force in an installation; they have
the ability to keep the water free of algae, bacteria and fungi. It is essential that the UV-C purifier
seamlessly connects to the design and the components used in the filter installation. By choosing
VGE Pro, you choose for guaranteed quality for a fair price.
• VGE Pro UV-C units are equipped with a 316L Stainless Steel
reactor or high quality HDPE reactor
• Allows lamp maintenance under working pressure
• Each unit is equipped with transparant parts to monitor the UV-C light
• VGE Pro units can be combined with UV-C sensor
• Low pressure amalgam lamps for high levels irrespective of the temperature of the water
• Extreme high quality lamps with a lifetime of 16.000 hours
VGE PRO UV INOX (316L)
Reactor Reactor Reactor Uv-c lamp power Recommended flow at 30 mJ/cm²
Type Connector mm
diameter length shape consumption (98% transmission)
VGE Pro UV INOX 40-76 Ø 76mm 370 mm L 3/4" male threaded BSP 40 Watt 2 m³/h
VGE Pro UV INOX 75-76 Ø 76mm 655 mm L 3/4" male threaded BSP 75 Watt 4,3 m³/h
VGE Pro UV INOX 75-114 Ø 114mm 850 mm U 2" male threaded BSP 75 Watt 7 m³/h
VGE Pro UV INOX 140-114 Ø 114mm 850 mm U 2" male threaded BSP 140 Watt 12 m³/h
VGE Pro UV INOX 140-76 Ø 76mm 850 mm U 1,5" male threaded BSP 140 Watt 6,5 m³/h
VGE Pro UV INOX 200-76 Ø 76mm 1100 mm U 2" male threaded BSP 200 Watt 9,6 m³/h
VGE Pro UV INOX 200-154 Ø 154 mm 1100 mm U 90 mm DN80 flange 200 Watt 24 m³/h
VGE Pro UV INOX 400-204 Ø 204 mm 1100 mm U 110 mm DN100 flange 2 x 200 Watt 50 m³/h (max flow: 39 mJ/cm²)
VGE Pro UV INOX 420-168 Ø 168mm 850 mm U 3" male threaded BSP 3 x 140 Watt 30 m³/h (max flow: 52 mJ/cm²)
VGE Pro UV INOX 600-219 Ø 219mm 1100 mm U 140 mm DN125 flange 3 x 200 Watt 77 m³/h (max flow; 60 mJ/cm²)
14 | PRODUCT CATALOGUE 2017 - 2018VGE PRO UV HDPE
Reactor Reactor Reactor Uv-c lamp power Recommended flow at 30 mJ/cm²
Type Connector mm
diameter length shape consumption (98% transmission)
VGE Pro UV HDPE 140-110 Ø 110mm 850 mm U 2" male threaded BSP 140 Watt 10 m³/h
VGE Pro UV HDPE 200-110 Ø 110mm 1100 mm U 2" male threaded BSP 200 Watt 12 m³/h
VGE Pro UV HDPE 200-160 Ø 160mm 1100 mm U 90mm DN80 flange 200 Watt 23 m³/h
VGE Pro UV HDPE 400-200 Ø 200mm 1100 mm U 110mm DN100 flange 2 x 200 Watt 50 m³/h (max flow: 33 mJ/cm²)
VGE Pro UV HDPE 600-225 Ø 225mm 1100 mm U 140mm DN125 flange 3 x 200 Watt 77 m³/h (max flow: 36 mJ/cm²)
VGE Pro UV HDPE 975-315 Ø 315mm 1670mm U 160mm DN150 flange 3x 325 Watt 150 m³/h (max flow: 46 mJ/cm²)
VGE Pro UV HDPE 1950-315 Ø 315mm 1670mm U 225mm DN200 flange 6x 325 Watt 250 m³/h (max flow: 53 mJ/cm²)
1,63m
PLEASE REFER TO PAGE 43 - 51 FOR SPARE PARTS PRODUCT CATALOGUE 2017 - 2018 | 15VGE PRO ASSORTMENT
VGE PRO UV IMMERSION
Unit Reactor Reactor Uv-c lamp power
Type Connector mm
diameter length shape consumption
VGE Pro UV INOX IMMERSION 40 Ø 40,5mm 450mm I 97,5mm special flange * 40 Watt
VGE Pro UV INOX IMMERSION 80 Ø 40,5mm 675mm I 97,5mm special flange * 80 Watt
VGE Pro UV INOX IMMERSION 130 Ø 40,5mm 923mm I 97,5mm special flange * 130 Watt
VGE Pro UV INOX IMMERSION 200 Ø 40,5mm 1220mm I 97,5mm special flange * 200 Watt
VGE Pro UV INOX IMMERSION 325 Ø 40,5mm 1653mm I 97,5mm special flange * 325 Watt
* Optional
VGE PRO UV-C CONTROL UNITS
Each VGE Pro UV-C purifier is equipped with a control cabinet. The following
overview provides the advantages per control unit for a VGE Pro UV-C purifier.
VGE Pro UV VGE Pro UV
VGE Pro UV Basic VGE Pro UV Control Monitor Plus
Control Timer Control Monitor
Electronic ballast
Microprocessor controlled functions - -
UV-monitoring by sensor - -
Lamp hour counter -
Switch-on cycle counter - -
Interlock input for external flow switch - -
LCD Display and buttons
-
mounted in the front
Main switch - -
Multi colour display - -
Steel powdercoated cabinet - - -
380 x 190 x 130 mm
450 x 300 x 210 mm
Dimension control unit 378 x 278 x 180 mm 350 x 100 x 180 mm 300 x 320 x 110 mm
400 x 300 x 150 mm
560 x 380 x 180 mm
16 | PRODUCT CATALOGUE 2017 - 2018SMART PIN TECHNOLOGY
The VGE Pro UV-C Purifiers are equipped with the unique Smart
Pin Technology (SPT). This innovative system is a reliable way to
integrate the UV-C lamp(s) in a safe, efficient and smart way in a
reactor.
The SPT makes it possible to replace the lamp safely, although
the system remains filled with water. If the lamp is mistakenly not
turned off during the replacement, it will switch off automatically
as soon as it is removed from the socket. Due to the seal
between the lamp socket and lamp, the system can be used in
situations where IPx4 is required. The high-quality ceramic is an
excellent electrical insulator and is resistant to corrosion. A visual
observation of the operation of the lamp is no problem through
various transparent parts.
BENEFITS:
• Prevents the release of harmful UV-C radiation
• Changing the UV-C lamp with water in the system
• Resistant to corrosion
• Splash proof
• Visual inspection for operation of the lamp
• Clamping system for optimal seal function
• Lamp replacement without tools
More information about the
VGE Pro range can be found
in the VGE Pro catalogue or at
www.vgepro.com.
PRODUCT CATALOGUE 2017 - 2018 | 17UVC Germicidal Lamps
Global Leaders
Light Sources and Lighttech, global leaders in UVC Germicidal
Lamps, offer unmatched innovation in the design and manufacture
of our lamp products. With both of our state of the art
manufacturing facilities, we can supply the world market with
high-quality standard lamp designs as well as custom designed
lamp solutions for your specific applications.
- Amalgam Lamps - Compact Lamps
- Soft Glass - Standard Output
- U Shaped - High Output
- Cell Lamps - Ozone Producing
- Medium Pressure (MPUV/MPHO)
- OEM - Proprietary Base Solutions
- Custom Lamp Configurations
18 | PRODUCT CATALOGUE 2017 - 2018UV-C LAMPS
UV-C LAMPS
The lamps in a UV-C purifier should be replaced periodically for optimal disinfection
performances. To replace these lamps, VGE International has a wide range of high quality UV-C
lamps for nearly all UV-C purifiers. For the professional market it's also possible to deliver special
high quality lamps with a higher wattage. For example lamps of 325 and 400 watt. Please contact
us at +31 499 461099 or by e-mail: info@vgebv.nl for the actual prices and delivery times.
PL-S LAMPS are compact UVC T5 LAMPS are single ended UVC
(germicidal) lamps used in residential (germicidal) lamps used in professional
water and air disinfection units. The water and air disinfection units. The
compact size of the lamp allows for small 16 mm diameter of the lamp
a small system design and design allows for a small system design and
flexibility. Thanks to the single-ended design flexibility. T5 lamps offer almost
lamp base, lamp replacement is easy. constant UV output over their complete
lifetime, for maximum security of
disinfection and high system efficacy.
PL-L LAMPS are compact UVC
(germicidal) lamps used in water and PHILIPS SMART CAP technology is a
air disinfection units. The compact development for optimal safety! The
size of the lamp allows for a small lamp foot and the fitting, that goes
system design and design flexibility. into the housing of the lamp, are both
Thanks to the single-ended lamp provided with a safety switch. As soon
base, lamp replacement is easy. as the lamp is taken out of the housing,
the power supply is interrupted. Hence
you won´t be able to look into the
burning UVC-lamp. This guarantees
optimal safety during maintenance.
TL MINI LAMPS are slim double-ended PHILIPS T6 TUV AMALGAM XPT
UVC (germicidal) lamps used in residential system consists of an electronic driver
water and air disinfection units. The small that operates one TUV Amalgam XPT
16 mm diameter of the lamp allows for a lamp, mounted in a sleeve. The electrical
small system design and design flexibility. specifications are tailored to the lamp,
ensuring an optimized performance of
the Philips TUV Amalgam XPT system.
Thanks to extensive testing before a
lamp system is released, we can ensure
maximum reliability and long lifetime.
TL LAMPS are double-ended VGE SMART PIN TECHNOLOGY
UVC (germicidal) lamps used in SPT makes it possible to replace the
professional air disinfection units. lamp safely, although the system remains
Moreover, they have a long and reliable filled with water. If the lamp is mistakenly
lifetime, which allows maintenance not turned off during the replacement,
to be planned for in advance. it will switch off automatically as soon
as it is removed from the socket. Due
to the seal between the lamp socket
and lamp, the system can be used in
situations where IPx4 is required. The
high-quality ceramic is an excellent
electrical insulator and is resistant to
corrosion. A visual observation of the
operation of the lamp is no problem
through various transparent parts.
PRODUCT CATALOGUE 2017 - 2018 | 19UV-C LAMPS
A B C D E F
TL BULBS
ITEM NR. BRAND MODEL BOX TYPE BASE
3903556 Philips TUV TL-MINI 4W FAM 25 TL I
3903557 Philips TUV TL-MINI 6W FAM 25 TL I
3903558 Philips TUV TL-MINI 8W FAM 25 TL I
3903559 Philips TUV TL 10W 1SL T8 25 TL I
3903563 Philips TUV TL-MINI 11W FAM 25 TL I
3903560 Philips TUV TL 15W 1SL T8 25 TL I
3903574 Philips TUV TL-MINI 16W 25 TL I
3903561 Philips TUV TL 25W 1SL T8 25 TL I
3903564 Philips TUV TL 30W 1SL T8 25 TL I
3903565 Philips TUV TL 36W SLV 6 TL I
3903562 Philips TUV TL 55W 1SL HO T8 6 TL I
3903570 Philips TUV TL 75W HO T8 6 TL I
3903070 VGE TL 25W T8 25 TL I
3903071 VGE TL 30W T8 25 TL I
3903072 VGE TL 55W T8 25 TL I
PL BULBS
ITEM NR. BRAND MODEL BOX TYPE BASE
3903005 Philips TUV PL-S 5W /2P 10 PLS-S A
3903009 Philips TUV PL-S 7W /2P 10 PLS-S A
3903010 Philips TUV PL-S 9W /2P 10 PLS-S A
3903013 Philips TUV PL-S 9W /4P 10 PLS-S -
3903020 Philips TUV PL-S 11W /2P 25 PLS-S A
3903030 Philips TUV PL-L 18W /4P 25 PL-L B
3903033 Philips TUV PL-L 24W /4P 25 PL-L B
3903040 Philips TUV PL-L 36W /4P 1 PL-L B
3903050 Philips TUV PL-L 55W /4P 1 PL-L B
B212012 Philips Replacement module 12W 230V 1 PL-S J
B212012 USA Philips Replacement module 15W 120V 1 PL-S J
4600003 Philips Replacement lamp Aetaire 1 PL-L -
4610007 Philips TUV PL-L 60W /4P 1 PL-L B
3903095 Philips TUV PL-L 95W /4P 1 PL-L B
3903006 VGE PL-S 5W 2P 20 PL-S A
3903011 VGE PL-S 9W 2P 20 PL-S A
3903021 VGE PL-S 11W 4P 20 PL-S A
3903034 VGE PL-L 18W 4P 25 PL-L B
3903037 VGE PL-L 24W 4P 25 PL-L B
3903045 VGE PL-L 36W 4P 25 PL-L B
3903054 VGE PL-L 55W 4P 25 PL-L B
E801406 LightTech PL-S 11W Compact4Pool 1 PL-S -
20 | PRODUCT CATALOGUE 2017 - 2018G H I J K L
T5 & T6 BULBS
ITEM NR. BRAND MODEL BOX TYPE BASE
E800900 Philips TUV 16W 4P-SE UNP 1 T5 C
E800901P Philips TUV 36T5 40W 4P-SE 1 T5 C
E800902P Philips TUV 36T5 HO 75W 4P-SE 1 T5 C
3903567 Philips TUV 64T5 75W 4P-SE (1.56m) 1 T5 C
B280005 Philips TUV Smart Cap 75W 1 T5 D
B280006 Philips TUV Smart Cap 40W 1 T5 D
E800904 Philips TUV XPT 130W 4P-SE Amalgam 1 T6 E
E801409 Philips TUV XPT 325W HO-SE Amalgam 1 T6 E
3903022 LightTech T5 11W 4P-SE 1 T5 C
E800901L LightTech T5 40W 4P-SE 1 T5 C
E800902L LightTech T5 75W 4P-SE 1 T5 C
F980007 LightTech T6 130W 4P Amalgam 1 T6 E
F980115 LightTech T6 200W 4P Amalgam 1 T6 E
4800070AM VGE - LightTech T5 40W 4P Amalgam 1 T5 C
4800082AM VGE - LightTech T5 80W 4P Amalgam 1 T5 C
3903073 VGE 4P-SE 40W T5 25 T5 C
3903074 VGE 4P-SE 75W T5 25 T5 C
UNIT SPECIFIC LAMPS
ITEM NR. BRAND MODEL BOX TYPE BASE
F980065 VGE - LightTech T5 16W 4P-SE 1 T5 G
F980068 VGE - LightTech T5 40W 4P-SE, length 365mm (short) 1 T5 F
F980002 VGE - LightTech T5 40W 4P-SE 1 T5 F
F980004 VGE - LightTech T5 75W 4P-SE 1 T5 F
F980078BU VGE - LightTech T5 40W 4P-SE 1 T5 G
F980079BU VGE - LightTech T5 75W 4P-SE 1 T5 G
4800033 VGE - LightTech T5 75W 4P-SE Ozone 1 T5 H
3903025 VGE - LightTech T6 325W 4P-SE Amalgam 1 T6 E
B280002 Blue Lagoon - LightTech T5 40W Ionizer, length 635mm (short) 1 T5 K
B280001 Blue Lagoon - LightTech T5 75W Ionizer, length 645mm (short) 1 T5 K
F980086 VGE Replacement lamp Delta EA-3H-5 / 35W 50 T5 C
F980080 VGE Replacement lamp Delta EA-3/4H-10 / 45W 50 T5 C
F980082 VGE Replacement lamp Delta EA-4/4H-20 / 90W 50 T5 C
F980084 VGE Replacement lamp Delta EA-4H-40 / 110W 60 T5 C
F980088 VGE Replacement lamp BIO-UV 10 / 38W 50 T5 C
F980090 VGE Replacement lamp BIO-UV 20 / 59W 50 T5 C
F980092 VGE Replacement lamp BIO-UV 30 / 87W 50 T5 C
F980094 VGE Replacement lamp BIO-UV 40 / 102W 60 T5 C
F980102 VGE Pro - LightTech SPT 140W 867mm 1 T6 L
F980103 VGE Pro - LightTech SPT 200W 1115mm 1 T6 L
F980107 VGE Pro - LightTech SPT 40W 389mm 1 T5 L
F980108 VGE Pro - LightTech SPT 75W 867mm 1 T5 L
F980109 VGE Pro - LightTech SPT 75W 680mm 1 T5 L
PRODUCT CATALOGUE 2017 - 2018 | 21ADVERTORIAL
Pure pleasure
Swimming pools and spas are the perfect places
for sports, fun and relaxing. Unfortunately they
are also the perfect breeding place for bacteria,
viruses and other primitive organisms. Clean
swimming pool water doesn’t have to mean high
doses of chlorine. With UV treatment the chlorine
level can be kept as low as possible, decreasing
the unpleasant side effects of it. So you can fully
enjoy every swim. up to 12,000 hours of clean pool water. And with very low
levels of mercury, they’re clearly better for the environment
The clear choice when they’re disposed of.
Our UV-C lamps significantly reduce the required
concentration of chemicals needed to keep the pool clean. You’re safe with us
So there’s no red eyes or skin irritations to worry about. Philips has been lighting your world for more than 100 years.
Also unpleasantly intense chlorine aromas that affect hair Our comprehensive range of UV-C solutions covers water,
and skin are avoided, making UV-C treated pools the air and surface disinfection using low and medium pressure
preferred choice with swimmers. mercury lamps.
Pure innovation
With a long and reliable lifetime, low energy and maintenance
costs and high end of life output, Philips UV-C lamps provide
To find out more dive into our website at
www.philips.com/uvpurification
22 | PRODUCT CATALOGUE 2017 - 2018POND FILTERS AND ACCESSORIES
BIOSTEPS The Biosteps filter is a complete filter, ideal for ponds up to 10 m³.
The compact filter is equipped with a Philips 11 watt UV PL unit
with an integrated ballast, filter substrate and 3 types of Matala
matting for progressive filtration from large to smaller waste
particles. Fitted with a bottom drain with 40mm slide valve.
BENEFITS
• Filtration and disinfection all in one compact unit,
assuring excellent purification and a clear pond.
• Provides mechanical and biological filtration.
• Open structure prevents blockage.
• Easy to clean because of 40mm slide valve bottom drain.
• Inlet: hose tail 25/32/40mm.
• Outlet 40mm.
Item No. Type Size (l x w x h) Max. flow Pond volume Inlet Outlet Waste Outlet
4053720 Biosteps + UV-C 11 Watt 55 x 36 x 45 cm 4.000 L/h 10.000 L 25-32-40 mm 40 mm 50 mm
3 CHAMBER FILTERS WITH The Xclear 3 Chamber Filter is a complete filter, suitable
for ponds up to 20m³ (220L) or 30m³ (330L).
AND WITHOUT UV-C OPERATION
3 Chamber filter without UV
The 3-chamber filter is a pump fed biological- and mechanical
filter. The water passes through 3 filter chambers that are filled
with honey comb media for biological filtration and filter foam
for progressive filtration from large to smaller waste particles.
3 Chamber filter with UV
Water enters the filter trough an in-line 40 watt UV-C lamp
before passing the filter chambers. The UV-C radiation
ensures that floating bacteria, germs and algae have no
chance to develop. After UV-C disinfection, the water
passes through 3 filter chambers that are filled with honey
comb media for biological filtration and filter foam for
progressive filtration from large to smaller waste particles.
BENEFITS
• Fast results visible; a clear and healthy pond.
• Smart design.
• All-in-one chamber filter.
• Inlet and outlet on same side of the filter
for easy installation and cleaning.
• Fitted with a 50mm slide valve waste outlet for easy cleaning.
• Without UV-C versions: hose tail 32mm.
• With UV-C versions Inlet: hose tail 25/32/40mm.
• Outlet: 63mm tank connector.
• Including lid.
Item No. Type Size (l x w x h) Max. Pond Max. Flow
4056605N 3 Chamber filter (220 liter) 96 x 42 x 60 cm 20 m³ 4 m³/h
4056604N 3 Chamber filter (220 liter) + 40 Watt UV-C 96 x 42 x 60 cm 20 m³ 4 m³/h
4056607N 3 Chamber filter (330 liter) 96 x 67 x 68 cm 30 m³ 6 m³/h
4056606N 3 Chamber filter (330 liter) + 40 Watt UV-C 96 x 67 x 68 cm 30 m³ 6 m³/h
PRODUCT CATALOGUE 2017 - 2018 | 23POND FILTERS AND ACCESSORIES
CONNECT CLEAR MODULAR Compose your own modular filter system that suits any size of
(koi) pond easily with the Connect Clear Modular Filter system.
FILTER SYSTEMS SPECIFICATIONS
• Modules are easy to connect with Ø90mm pipe or
(without glue) with special connectors (optional).
• Every module includes Ø90mm tank connectors
and a Ø50mm waste outlet with slide valve.
• The Connect Clear 80 liter module includes
filter grid and 4 filter brushes.
• The Connect Clear 150 liter and the Connect
Clear Vortex do not include filter media.
BENEFITS
• Complete pond filter.
• Usage of different filter media for optimal filtration.
150L • Create your pond filter with the filter materials you prefer.
• High quality filter material and filter tanks.
• Smart design for easy maintenance.
Please note: You can build your own filter system that suits
80L
any size of pond. See the chart below for several types of
filter media suitable for the modular filter systems.
150L
ACCESSORIES
150L 150L 80L
Item No. Type Size (l x w x h) Max. flow Max. pond In- / Outlet Waste Outlet
4053705 Connect Clear modular filter 150 liter 65 x 65 x 72 cm 8.000 L/h 12.000 L 90 mm 50 mm Slide valve
4053700 Connect Clear modular filter 80 liter 45 x 60 x 70 cm 3.500 L/h 5.000 L 90 mm 50 mm Slide valve
4053709 Vortex filter for Connect Clear 70 x 72 x 75 cm 8.000 L/h 12.000 L 90 mm 50 mm Slide valve
4902507 Matala Mat set (6 Piece) for Connect Clear 80 liter - - - - -
4902509 Japanese Filtermat cartridge for Connect Clear 80 liter - - - - -
4902508 Layer matting set (4 Piece) for Connect Clear 80 liter - - - - -
4902516 Matala Mat set 8 Piece fine for Connect Clear 150 liter - - - - -
4902514 Matala Mat set 8 Piece medium for Connect Clear 150 liter - - - - -
4902512 Matala Mat set 8 Piece coarse for Connect Clear 150 liter - - - - -
4900717 Coupling System 90 mm - - - - -
24 | PRODUCT CATALOGUE 2017 - 2018BIOSIEVE The Biosieve is a unique and proven biological
filter system suited for koi ponds.
OPERATION
Biological filter with 2 plastic sieve screens and a unique
filter system. The water is led into the filter and spread
out over 2 plastic screens (A). Then the water falls down
and has to go through a foam filter system with filter pipes
inside (B). The clean water exits the filter by gravity through
the big 110mm outlet. Pump fed inlet through hose tail
25/32/40mm. 50mm Waste outlet with slide valve.
A
B
B
A B
Item No. Type Size (l x w x h) Max. flow Pond volume Inlet (mm) Outlet Waste Outlet
4058000 Biosieve 66 x 66 x 95 cm 8.000 L/h 20.000 L 25-32-40 110 mm 50 mm Slide valve
PROFI CLOVERLEAF FILTER The Profi Cloverleaf filter is a modular filter system made of 4
modules. Each module has its own filter media for very effective
water filtration.
OPERATION
Module A: Water enters this 1st module through the Ø110mm inlet
and has to go up through a pipe system and a filter net structure.
A B C D Module B: Water goes up through black (coarse) Matala matting.
Module C: Water goes up through green (medium) Matala matting.
Module D: Water has to pass through the foam filter system with
filter pipes inside.
The water will rise and exits the filter through the Ø110mm outlet.
A B The modules are connected with 2 x Ø90mm Union fittings. Each
module has its own Ø50mm waste outlet with slide valve.
BENEFITS
• Complete pond filter.
• Usage of different filter media for optimal filtration.
• High quality filter material and filter tanks.
D C • Smart design for easy maintenance.
• Including filter media and all necessary fittings.
• Suited for both gravity as pump fed use.
Item No. Type Size (l x w x h) Max. flow Pond volume Inlet Outlet Waste Outlet
4056623 Profi Cloverleaf filter 137 x 137 x 75 cm 12.000 L/h 30.000 L 110 mm 110 mm 4x50 mm Slide valves
PRODUCT CATALOGUE 2017 - 2018 | 25POND FILTERS AND ACCESSORIES
SIEVE PUMP FED The Pump Fed Sieve is a perfect pre-filter for (koi)ponds
to take out bigger waste particles before the water is
pumped into a biological filter, pump or UV-C purifier.
ALSO
AVAILABLE OPERATION
IN PRIVATE Water is pumped into the sieve unit where all parts bigger than
LABEL 0,3 mm (300 micron) will stay on the screen and the water will
fall through. The pump fed model must be installed above the
water level of the pond.
BENEFITS
• Very effective mechanical
filter based on a
professional stainless
steel sieve bend screen.
• Reliable pre-filter.
• The “main filter” is able
to do his work better.
• Low-maintenance.
• Colour: black
• Including fittings
and cover.
pump pump
Item No. Type Max. flow Inlet Outlet Size
4058001 Sieve Pump Fed 15 m3/h 25/32/40 mm 75 mm 49 x 32 x 55 cm
SIEVE GRAVITY FED The Gravity Fed Sieve is a perfect pre-filter to take out
bigger waste particles before the water is pumped into a
biological filter (like a Beadfilter), pump or UV-C purifier.
OPERATION
The pre filter must be installed at water level (gravity fed).
The float system will automatically adjust the filter to work
with a pump flow up to 25.000 l/h. Cleaning the filter is very
easy; you can flush the waste with water from the screen
to the waste outlet. Including 300 micron stainless steel
sieve element. Inlet: 2 x 110mm. Waste outlet: 63mm. Pump
outlet 90/63mm (provided with 63mm suction pipe).
BENEFITS
ALSO
AVAILABLE • Made entirely of polyethylene.
IN PRIVATE • One-piece housing: extra sturdiness and austere appearance.
LABEL • The “main filter” is able to do its work better.
• Including heavy duty cover.
• Very effective mechanical filter based on a
professional stainless steel sieve bend screen.
• Low-maintenance.
• Colour: black
Pump
open
On Pump
closed
Off
Item No. Type Size Max. flow
4058002 Sieve Gravity Fed 67 x 36 x 101 cm ± 25 m3/h
26 | PRODUCT CATALOGUE 2017 - 2018BEADFILTERS Beadfilters are closed (pressure) vessels filters, filled with thousands of plastic beads.
Beadfilters are the most popular pond filters because they perform both mechanical-
and biological filtration for professional (koi) ponds, varying from 10m³ to 100m³.
ALSO OPERATION
AVAILABLE Beadfilters are closed (pressure) filters filled with thousands of small plastic beads. These
IN PRIVATE beads float and therefore provide a means of mechanical filtration. The bacteria growth
LABEL
on the enormous surface of these beads provide the biological filtration. Xclear Beadfilters
are made of a strong quality Polyethylene. All models are supplied with: a bottom drain to
remove the sludge from the bottom, a 6-way valve, a transparent lid, beads and a blower.
BENEFITS
• Most compact pond filter on the market.
• Available in 5 sizes for ponds from 10m³ to 100m³.
• Fine mechanical and biological filtration in one.
• Very compact in size.
• Easy to install.
• Easy to maintain; Very easy to rinse, without dirtying your hands.
• Colour: black.
• Max. working pressure: 1,2 bar (12 meter).
Item No. Type Size (Ø x h) Max. flow Max. pond size Max. swimming pond Max. fish load 6-way valve
4053768 Beadfilter 400 40 x 68 cm ± 15 m3/h 10 m3 20 m³ 35 kilo 1½"
4053769 Beadfilter 500 50 x 75 cm ± 15 m3/h 20 m3 40 m³ 50 kilo 1½"
4053772 Beadfilter 600 60 x 85 cm ± 15 m3/h 35 m3 70 m³ 80 kilo 1½"
4053773 Beadfilter 750 75 x 113 cm ± 25 m /h 3
60 m3 120 m³ 135 kilo 2"
4053774 Beadfilter 900 90 x 126 cm ± 25 m3/h 100 m3 200 m³ 200 kilo 2"
4053777 Beadfilter transparant lid - - - - - -
BEADFILTER BYPASS
Installing this bypass allows the use of more economical
(low pressure) pumps. Due to a very compact bypass
system, the multi-way valve is completely unused during
filtering as the water flows straight into the filter and also
leaves the filter in a straight line. This action results in at
least 30% less pressure loss (depending on the type of
pump). The bypass system is very easy to install on all
Xclear Beadfilter models, using the unions supplied.
Item No. Type Size
4053775 Bypass 400-500-600 Ø 50 mm
4053776 Bypass 750-900 Ø 63 mm
PRODUCT CATALOGUE 2017 - 2018 | 27POND EQUIPMENT AND SUPPLIES
FISH TANK 600 LITER Blue 600-litre pallet tank for storage or quarantine.
The tank can be ordered with 220-litre filter (filled with
honey-comb media) and 11 Watt PL UV unit. Including
16/20/25mm hose tail and 50mm slide valve.
Fish Tank Topfilter 220 liter
Item No. Type
4056587 Fish Tank 600 liter + plug
4056590 Fish tank 600 liter with 220 liter topfilter
4056591 Super Fish Tank 600 liter complete (incl. UV-C 11 Watt and 220 liter topfilter)
TOPFILTER Can be used on all
standard 600 liter (pallet)
FILTER MEDIA Special filter media
bags for filter media.
220 LITER tanks. Colour: black. BAGS
Item No. Type Size
9202026 Filter media bag black 45 x 30 cm
9202027 Filter media bag black 60 x 45 cm
9202028 Filter media bag black 85 x 50 cm
Item No. Type 4902609 Filter media bag black with header 45 x 30 cm
4901019 Topfilter 220 liter incl. lid 4902608 Filter media bag black with header 60 x 45 cm
BIO BALLS BIO BLOCKS
High quality Bio Balls with a unique shape for biological filtration Useful bacteria growing on the huge surface area provided by these
and a better water partition (trickle filters). High quality materials filter elements, converts harmful toxic fish wastes into relatively
for long life span. Various sizes, specially made for pond use. harmless by-products which are then removed by the plants or water
Total surface: 8797mm², protected surface: 7037 mm². changes. Size: Ø50 mm, height: 29 mm, total surface: 18897mm²,
protected surface: 11338 mm².
Ø 30 mm
Item No. Type Content
4902613 Bio Blocks Bag 10 L (± 90 pcs.)
Item No. Type Content 4902629 Bio Blocks Bag 25 L (± 225 pcs.)
4902021 Bio Balls Container 5 liter 4902010 Bio Blocks Bag ± 500 pcs.
4902611 Bio Balls Bag 10 liter 4902015 Bio Blocks Bag ± 2.000 pcs.
4902017 Bio Balls 30 mm big bag (± 72.000 pieces) 4902029 Bio Blocks Big Bag ± 16.000 pcs.
28 | PRODUCT CATALOGUE 2017 - 2018THREADED TANK CONNECTOR Threaded tank connectors with rubber ring and nut.
Item No. Type Size Box
7105510 Threaded Tank Connector Ø 40 mm 100 pcs.
7105512 Threaded Tank Connector Ø 50 mm 100 pcs.
7105514 Threaded Tank Connector Ø 63 mm 100 pcs.
7105516 Threaded Tank Connector Ø 75 mm 100 pcs.
7105518 Threaded Tank Connector Ø 90 mm 100 pcs.
7105520 Threaded Tank Connector Ø 110 mm 48 pcs.
TANK CONNECTOR Straight connector for PVC solvent pipes.
Including flange and screws.
Item No. Type Size Box
7105459 Tank Connector Ø 40 mm 108 pcs.
7105469 Tank Connector Ø 50 mm 108 pcs.
7105479 Tank Connector Ø 63 mm 75 pcs.
7105481 Tank Connector Ø 75 mm 40 pcs.
7105489 Tank Connector Ø 90 mm 30 pcs.
7105499 Tank Connector Ø 110 mm 24 pcs.
7105555 Radial Tank Connector for a round surface Ø 110 mm 24 pcs.
BOTTOM DRAIN AND High quality Bottom drain 110 mm outlet. The aerated
Bottom drain 110 mm has a rubber membrane on
AERATED BOTTOM DRAIN top. When an air pump is connected the air bubbles
will cause an optimal circulation in the water.
bottom drain wit aeration filter
25mm hose tail
Check valve Air pump
Item No. Type Size
5905010 Bottom Drain 110 mm Ø 110 mm
5905012 Aerated Bottom Drain Ø 110 mm & 25 mm
PRODUCT CATALOGUE 2017 - 2018 | 29You can also read
