INTEGRATED MARINE COMMUNICATIONS SYSTEMS
CLEAR employ new technologies in owner communication systems, they are based
on a various products as matrices, operator units, radio interfaces, modems, and so
other, all manufactured by CLEAR.
These products allows in a simple and reliable manner the realization of
communications system from small control center as well in large control center due to
the scalable features and to the availability for customization on request.
All these system allows an efficient connection
between various apparatus up to 128 units
(receivers, ransmitters, phone lines, operator
voice units, etc.) .
Enhanced feature of this new series of devices
is the digital signal processing capability that
allows low noise and low crosstalk on the signal
lines.
Remote control by RS232/485 or ETHERNET
line plus local control by keyborad and display
are available to the users for remote/local
control.
CLEAR produtcs are avalibale in various size
and enclosure from the
standard rack 19”.
The relevant features of these series of
products (matrices, operator units, radio MF CONSOLE
interfaces, modems and supervisors) are:
• High reliability and easy service
• Simple and intuitive local interface by keyboard and alphanumeric display
• Efficient remote control by extended instructions set
• Low power consumption
• Low distorsion
• Very low cross talk
NATO AQAP2120 n°
Pag. 1 di pag. 11
035/2005
ISO 9001:2008
n°1522/1998/S
CLEAR S.r.l.
Via Fontevivo, 21/N - 19125 – La Spezia
Tel. +39.0187. 561931 Fax +39.0187.930353
Email : clear@clear-elettronica.it
P.IVA 00760830117
C.C.I.A.A. La Spezia n° 71708
SYSTEM DESCRIPTION
The MultiFunctionConsolle(MFC) consists of one cabinet composed of three main
sections:
• Supervisor(SPV)
• Message Handling(MH)
• Logistic(LOG)
plus one communications system composed of four main device:
• System Digital Matrix(SDM)
• Remote Intelligent Interface Radio(RII_RD)
• Remote Intelligent Interface VoiceData(RII_VD)
• Twin FSK modem(TWU).
The first three (SPV, MH, LOG,) sections are provided with a computer a Monitor
and an operator desk. The interface man-machine for each one of these three sections is
realized by means a standard Qwerty 101 Keyboard.
The purpose of the main sections of the MFC equipment within the system can be
summarized as follow:
The SPV section absolves the functions of System Manager and System Status
Monitoring.
The MH section absolves the functions necessary to manipulate messages through
telephonic line, or radio channels. Radio vectors or telephonic line are not part of MFC.
The LOG section other than absolve the functions necessary to monitor the status of
the MFC and the status of the whole System, contains a I.E.T.M. (Interactive Electronic
Technical Manual) SGML standard.
The SDM section, in conjunction with the RII-RD, absolves the function necessary to
interface all radio vectors present in the system and moreover all the Remote Intelligent
Interface Voice Data (RII-VD) spread all around the ship, realizing, by means of the
technique related to the Integrated Services Digital Network, the centralization of all
System operators.
NATO AQAP2120 n°
Pag. 2 di pag. 11
035/2005
ISO 9001:2008
n°1522/1998/S
CLEAR S.r.l.
Via Fontevivo, 21/N - 19125 – La Spezia
Tel. +39.0187. 561931 Fax +39.0187.930353
Email : clear@clear-elettronica.it
P.IVA 00760830117
C.C.I.A.A. La Spezia n° 71708

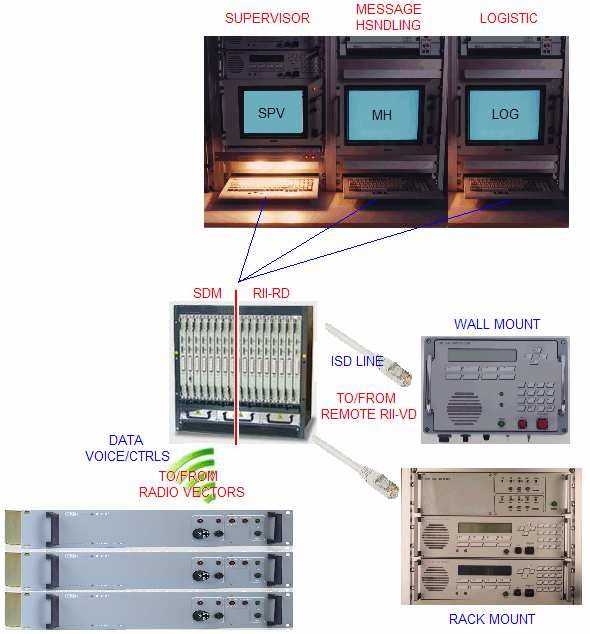

Purpose of Multi Function Console
NATO AQAP2120 n°
Pag. 3 di pag. 11
035/2005
ISO 9001:2008
n°1522/1998/S
CLEAR S.r.l.
Via Fontevivo, 21/N - 19125 – La Spezia
Tel. +39.0187. 561931 Fax +39.0187.930353
Email : clear@clear-elettronica.it
P.IVA 00760830117
C.C.I.A.A. La Spezia n° 71708
FUNCTIONAL DESCRIPTION
Following figure shows a general block diagram of MFC Console to outline the main
functions performed by it.
Three computers named Supervisor (SPV), Message Handler (MH) and Logistic
(LOG), with the respective monitor and keyboard, are provided to co-ordinate all the
operative functions.
In the MFC there are four Remote Intelligent Interface-Voice/Data (RII-VD); two of
this to permit the operators (SPV. MH) to access the Integrated Digital Communication
System Network and the other two to connect the Twin FSK Modem to the radio
vectors.
A Dot Printer, connected with the MH computer, is the printing unit for the
messages.
Switching Digital Matrix (SDM) in conjunction with SPV section realizes the
management of the Integrated Communication System (ICS), while the Remote
Intelligent Interface (two out of four mentioned before) assure the interfacing with the
radio vector.

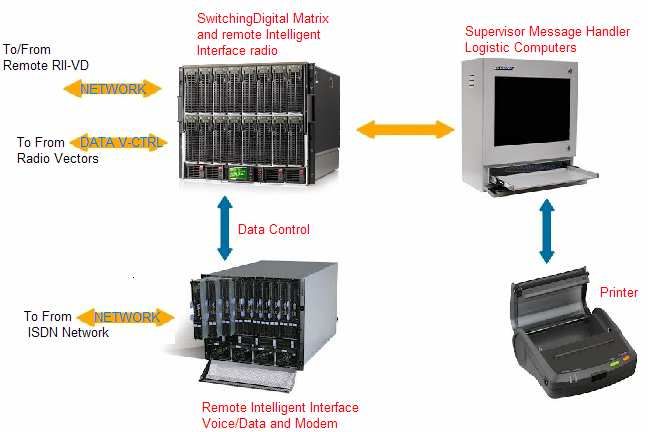

MFC General Diagram
NATO AQAP2120 n°
Pag. 4 di pag. 11
035/2005
ISO 9001:2008
n°1522/1998/S
CLEAR S.r.l.
Via Fontevivo, 21/N - 19125 – La Spezia
Tel. +39.0187. 561931 Fax +39.0187.930353
Email : clear@clear-elettronica.it
P.IVA 00760830117
C.C.I.A.A. La Spezia n° 71708
Twin FSK Modem
Twin FSK Modem: Technical Characteristics
TX FUNCTIONS
INPUT
Bandwidth......................................... 300 - 3400Hz
Input Impedance ............................... 600ohm balanced
Audio Level ...................................... adjustable from +5dbm to - 20dbm
Automatic source matching
OUTPUT
Bandwidth......................................... 300 - 3400Hz
Output Impedance............................. 600ohm balanced
Audio Level ...................................... adjustable from +5dbm to - 20dbm
Tone.................................................. Narrow Shift FSK 2000 ± 42.5hz. (quartz oscillator)
Wide Shift FSK 2000 ± 4.25hz. (quartz oscillator)
Modality ........................................... direct/inverse remote controlled
Harmonic .......................................... distortion < 5%
RX FUNCTIONS
INPUT
Bandwidth......................................... 300 - 3400Hz
Input Impedance ............................... 600ohm balanced
Audio Level ...................................... adjustable from +5dbm to - 20dbm
Automatic source matching
OUTPUT
Bandwidth......................................... 300 - 3400Hz
Output Impedance............................. 600ohm balanced
Audio Level ...................................... adjustable from +5dbm to - 20dbm
Tone.................................................. FSK 2000 ± 42.5hz. quartz oscillator
Modality ........................................... direct/inverse remote controlled
NATO AQAP2120 n°
Pag. 5 di pag. 11
035/2005
ISO 9001:2008
n°1522/1998/S
CLEAR S.r.l.
Via Fontevivo, 21/N - 19125 – La Spezia
Tel. +39.0187. 561931 Fax +39.0187.930353
Email : clear@clear-elettronica.it
P.IVA 00760830117
C.C.I.A.A. La Spezia n° 71708
RII-VD/R
RII-VD/R: Technical Characteristics
Supply voltage / frequency: .........................220V / 50-60Hz
Power requirement: ......................................40VA
I.S.D.N. Line:...............................................160kbit/sec 2B+D(two wires "U" ref.point)
Audio channels count:..................................Two, full duplex
Audio aux in/out level:.................................0dBm +/- 2dB
Audio aux in/out impedance: .......................600 Ohm balanced
Loudspeaker output power:..........................1W on 8Ohm load
Audio band-width (- 3dB):...........................300-3400Hz
Tape out level: .............................................775mV on 600Ohm unbalanced
Microphone input sensitivity: ......................10mV
Microph. Input compander range:................30dB
Microphone input impedance: .....................47kOhm
Earphone output impedance:........................300Ohm
MCW tone frequency:..................................1000Hz +/- 10Hz
Band-pass MCW filter: ................................Two pole 1000Hz +/- 100Hz - 3dB
Performances: ..............................................Point to point connection with RII-VD or RADIO.
Conference connection with two or more RII-VD.
Two sources (RII-VD or RADIO) monitor (Ear split).
Remote control of connected RADIO
System controller: ........................................Philips 87C51FC micro-controller @ 12MHz
Data retention:..............................................Lithium battery Backed-up RAM
Display:........................................................Back-lighted alpha-num. 4 rows X 40 col.s LCD
Keypad:........................................................Matrix of 32 membrane switches
Mechanical dimensions:...............................19" - 3U Standard rack - Depth 360mm
Operating temperature range:....................... -10 to 55 °C
Max. oper. relative humidity:.......................90% non condensing
Storage temperature range: ..........................-25 to 70 °C
NATO AQAP2120 n°
Pag. 6 di pag. 11
035/2005
ISO 9001:2008
n°1522/1998/SCLEAR S.r.l.
Via Fontevivo, 21/N - 19125 – La Spezia
Tel. +39.0187. 561931 Fax +39.0187.930353
Email : clear@clear-elettronica.it
P.IVA 00760830117
C.C.I.A.A. La Spezia n° 71708
RII-RD Unit
RII-RD Unit: Technical Characteristics
Supply voltage / frequency: ..................... 220V / 50-60Hz
Power requirement: .................................. 55VA
I.S.D.N. Line:........................................... 160kbit/sec 2B+D (two wires "U" reference point)
Audio channels count:..............................Two, full duplex
Controlled radio equip. Count: ................Up to eight TX, RX or RTX radio equip.
Remote radio progr. Interface: .................EIA RS232C up to 19.2kbit/sec
P.T.T. generator: ......................................Remote or VOX generated link selectable
PTT VOX threshold:................................ -30 to –10dBm trimmer programmable
Direct radio commands: ...........................No. 6 relay n.o. contacts for each radio
Audio aux in/out level:............................. 0dBm +/- 2dB
Audio aux in/out impedance: ................... 600 Ohm balanced
Side-tone input level: ............................... 0dBm +/- 2dB
Side-tone input impedance:...................... 600 Ohm balanced
System controller: ....................................Philips 87C51FC micro-controller @12MHz
Data retention:..........................................Lithium battery Backed-up RAM
Mechanical dimensions:........................... 19" - 6U Standard rack - Depth 360mm
Operating temperature range:................... -10 to 55 °C
Max. oper. Relative humidity: ................. 90% non condensing
Storage temperature range: ...................... -25 to 70 °C
NATO AQAP2120 n°
Pag. 7 di pag. 11
035/2005
ISO 9001:2008
n°1522/1998/SN° 6 Transceivers
CLEAR S.r.l.
Via Fontevivo, 21/N - 19125 – La Spezia
Tel. +39.0187. 561931 Fax +39.0187.930353
Email : clear@clear-elettronica.it
P.IVA 00760830117
C.C.I.A.A. La Spezia n° 71708

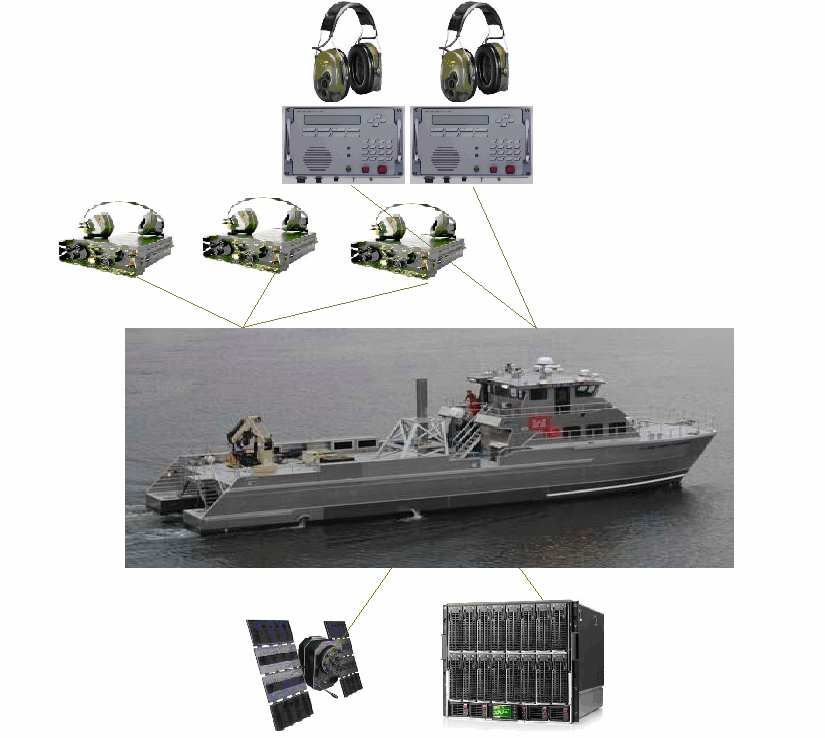

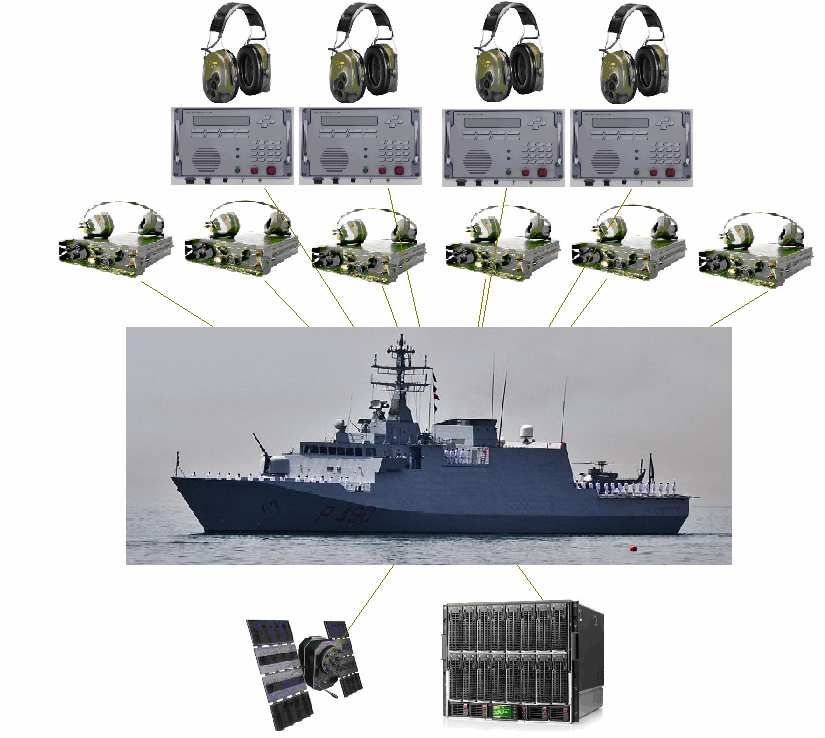

PATROL BOAT APPLICATIONS
Max 16 Channel
TYPICAL CONFIGURATION
N° 6 RADIO
N° 4 OPERATORS
N° 1 MODEM
N° 1 SATELLITE SYSTEM
N°4 AVAILABLE
NATO AQAP2120 n°
Pag. 8 di pag. 11
035/2005
ISO 9001:2008
n°1522/1998/SCLEAR S.r.l.
Via Fontevivo, 21/N - 19125 – La Spezia
Tel. +39.0187. 561931 Fax +39.0187.930353
Email : clear@clear-elettronica.it
P.IVA 00760830117
C.C.I.A.A. La Spezia n° 71708

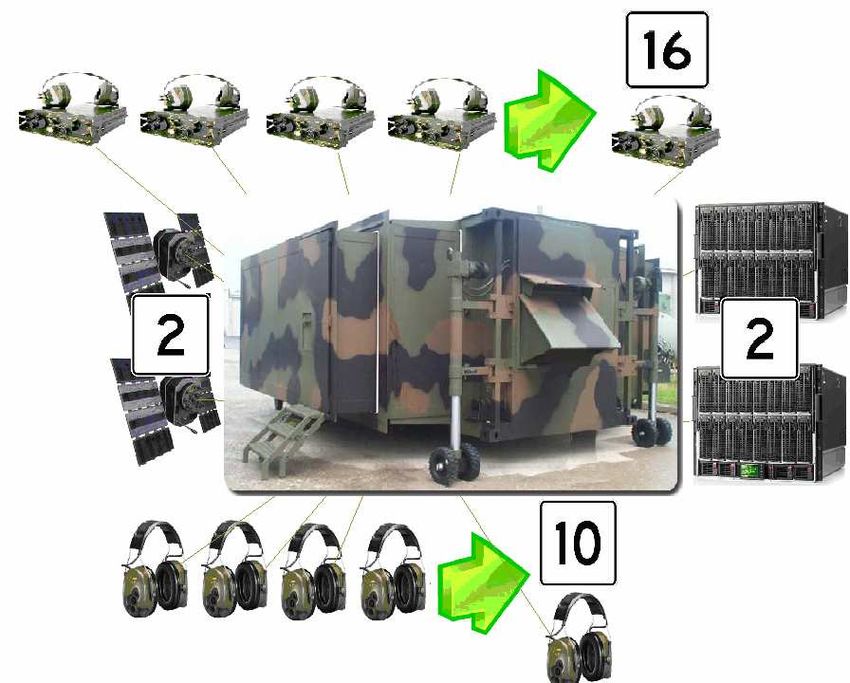

Military Mobile Radio Station
Max 32 Channel
TYPICAL CONFIGURATION
N° 16 RADIO
N° 10 OPERATORS
N° 2 MODEM
N° 2 SATELLITE SYSTEM
N° 2 AVAILABLE
NATO AQAP2120 n°
Pag. 9 di pag. 11
035/2005
ISO 9001:2008
n°1522/1998/SCLEAR S.r.l.
Via Fontevivo, 21/N - 19125 – La Spezia
Tel. +39.0187. 561931 Fax +39.0187.930353
Email : clear@clear-elettronica.it
P.IVA 00760830117
C.C.I.A.A. La Spezia n° 71708

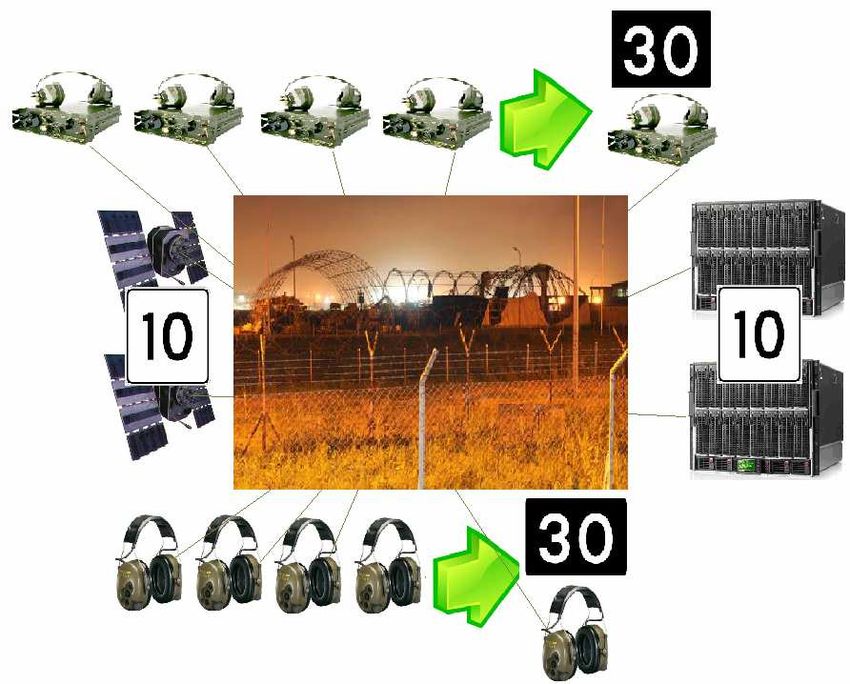

Radio Operations Station
Max 128 Channel
TYPICAL CONFIGURATION
N° 30 RADIO
N° 30 OPERATORS
N° 10 MODEM
N° 10 SATELLITE SYSTEM
N° 48 AVAILABLE
NATO AQAP2120 n°
Pag. 10 di pag. 11
035/2005
ISO 9001:2008
n°1522/1998/SCLEAR S.r.l.
Via Fontevivo, 21/N - 19125 – La Spezia
Tel. +39.0187. 561931 Fax +39.0187.930353
Email : clear@clear-elettronica.it
P.IVA 00760830117
C.C.I.A.A. La Spezia n° 71708
River Patrol Applications
Max 10 Channel
TYPICAL CONFIGURATION
N° 3 RADIO
N° 2 OPERATORS
N° 1 MODEM
N° 1 SATELLITE SYSTEM
N° 3 AVAILABLE
NATO AQAP2120 n°
Pag. 11 di pag. 11
035/2005
ISO 9001:2008
n°1522/1998/SYou can also read
