Sapporo Snow Festival 2019 -
8K Live Video Streaming
Feb. 19, 2019 APAN@Daejeon
Naomi Terada
National Institute of Information and Communications Technology(NICT)
Snow19 Members & JGN Operating Team
Summary
• About NICT’s Network Testbed JGN
• 8K(UHD) Video Transmission Experiment in Sapporo Snow
Festival
• Brief explanation about 8K(UHD)
• Security Penetration Test to Video Transmission System
• Replacing 8K Uncompressed with DPDK (Man in the Middle)
• Software Router “Kamuee”
• 400G Interoperability Trial
2
Network Testbed JGN
• JGN: High-Speed Wide Area Testbed Network
• NICT has been enhancing R&D testbed
• “JGN” is an network infrastructure of ICT technology development.
100Gbps
10Gbps
• http://www.jgn.nict.go.jp/english
1Gbps
To Seattle
AP
(via TransPAC/
PacificWave/
WIDE)
To Hong Kong,
Singapore,(100G)
3
Bangkok(1G)
8K-UHD Video Transmission Experiment
in Snow Festival 2019
• Video Transmission Experiment in Sapporo Snow Festival
• Since Feb. 2003
• Trying Different Technical Challenges every year
• Ex.) International Multicast-Multipath Transmission,
25Gbps real-time video encryption
• 49 organizations (companies / universities / institutions) including
broadcasting companies, and over 150 people joined the project this
year
Slack invitation reached limit :-)
4
What is 8K-UHD ?
• 8K UHDTV (Ultra High Definition TeleVision): 33million pixels 7680 pixels
3840
• 4K: 3840 x 2160 pixels (4 times as many pixels as HDTV) 1920
• 8K: 7680 x 4320 pixels (16 times as many pixels as HDTV) 1080 HDTV
• Proposed by NHK Science and Technology Research Laboratories 4320 2160 4K
• Defined and approved by ITU-R and SMPTE pixels
• There are several formats in uncompressed 8K. 8K
• In this experiment: 8K-DG(Dual Green) format.
8K Format Consumer Sampling Frame Rate Gradation Bit Rate
Dual Green
〇 60Hz 10bit 24Gbps
(8K-DG)
Full-Specification 8K 4:4:4 120Hz 12bit 144Gbps
5
8K-UHD Dual Green format
• 8K-UHD Dual Green is two Green
• Green elements are the high ratio for brightness, so big influence for human eyes
• Realizing video with resolution feeling like 8K while
suppressing information ■8K-DG signal HD-SDI mapping
7680 3840 3840
Ｇ１ Ｒ
2160 2160
■Dual Green(DG) Imaging method
4320
Ｂ Ｇ2
Lens B
Spectral prism Pixels of DG
1920 1920
1080
1080
3840 G1(a) B(a)
HD-SDI× 4
HD-SDI× 4
G1
2160 2160 2160 2160
G1
G1(b) B(b)
G1(c) B(c)
G2 G2
B(d)
G1(d)
R 1920 1920 HD-SDI*16
1080
1080
B G2(a) R(a)
HD-SDI× 4
G1 R
HD-SDI× 4
4K Half Pixel G2(b) R(b)
8K 1 Pixel R
G2 B G2(c) R(c)
G2(d) R(d)
4K Half Pixel divided into 4, FULL HD 16 6
8K 1 Pixel NHK STRL R&D No. 148/2014.11
Basic Installation of
8K Uncompressed Video Transmission over IP
Sender PFU QoolTornado
QG70 Bandwidth is 25Gbps/stream
3G-SDI/
12G-SDI 3G-SDI (4K * 4 = 8K) 10G *4 (Uncompressed, Dual Green)
IP IP
Media
Transmitter Transmitter Switch
Converter
*4
IP IP /Router 100G
Transmitter Transmitter
8K Video Camera Sapporo
Network
Receiver PFU QoolTornado
QG70
HDMI 3G-SDI (4K * 4 = 8K) 10G * 4
IP IP
Media
Transmitter Transmitter Switch
Converter
*4 IP IP /Router 100G
Transmitter Transmitter
8K Monitor
Osaka/Tokyo 7
8K Camera
• Astro Design/SHARP and Ikegami’s 8K
UHD Camera (3 Models)
• 3G-SDI * 8 / 12G-SDI*4
Camera Head
(AstroDesign)
Camera Controller Unit
(AstroDesign)
8
8K Uncompressed Video IP Converter
• Video transmission device
(RTP over UDP/IP)
• IP network (10Gbps) transmits
uncompressed video up to 4K 30P
• Multiple video streams can be transferred
simultaneously
• Tandem operation provides up to 8K
uncompressed video transmission
• The QG70 allows the synchronization of
multi channel signals and multi devices for
transmitting 4K/8K images
• Using four QG70, these operation can
provide
upcompressed 8K DG 60P system.
PFU QG70
(8K=4K * 4) * 2set
* http://www.pfu.fujitsu.com/en/ipvideo/casestudies/8k.html 9
Other Video Transmission Equipment
4K Compress
Video(BlackMagicDesign)
4K CompressVideo(For-A)
HD Video Enc./Decoder 4K + PTP(Precision Time Protocol) 8K Compress
Experient Video(Miharu)
108K Video Transmission Topology QG70 QG70
× ４ × ４
Hokuriku (PFU) (PFU)
JGN Core Network Hokkaido TV. Build. AstroDesign
& Ikegami
Snow
8K-DG (Demo. Venue) Statue
100
JGN
SINET Virtual Srv
Dojima Sapporo(Event Venue)
IPA K-Otemachi(Tokyo)
(Osaka)
100 100 8K Server
QG70 8K-DG
N-Otemachi *４
(Tokyo) (KAIT)
100
11
SHARP 8K SHARP 8K
100
Monitors Monitors Kanagawa Institute of Technology
QG70 QG70
*４
× ４ 100
（PFU) (PFU) Kanagawa
Tokyo
QG70 DC
QG70 DC
S × ４
*４
W （PFU)
(PFU)
8K Compress NFV
8K virtual
Osaka(Demo. Venue) Akihabara(IPA, Tokyo) ServersSnow19 Traffic Weather Map Camera Shooting Venue
(Sapporo)
4K+8K 8K
Demonstration (31Gbps) (25Gbps)
Venue(Osaka)
4K+8K HTB
4K+8K
(31Gbps) Demo.Venue
(31Gbps)
(Sapporo)
4K+8K
(31Gbps)
12Traffic Graph(OBSERVIUM)
at Osaka Venue(Uplink port)
Over 50G Total Traffic
Uncompressed 8K*2,
Compressed 8K,
4K, HD
138KIP Converter
Trials of 2019
Security Penetration Test
(Event Venue) Sapporo 8K Camera
8K Camera
• Security Penetration to Video
Transmission Network 8K Multicast
• Conducted by IPA*’s 8KIP Converter
ICSCoE(Industrial Cyber Security 8K Monitor 8K Monitor
Center of Excellence)
• ICSCoE’s Core Human Resources Tokyo
Development Program trainee Osaka
joined this experiment (Demonstration
Security Penetration
• training facility in Akihabara, Venue)
Tokyo
• Penetration testing to various
types of professional video
transmission(HD/4K/8K) 4KIP Converter
/network equipment
Okinawa
4K・HD Camera
14
* IPA: Information Technology Promotion Agency, JapanTrials of 2019(cont’)
MITM: 8K Live Video
• Replacing 8K(UHD) Live Video Streaming with Man-in-the-
Middle(MITM)
• Conducted by Kanagawa Institute of Technology(KAIT)
• OpenvSwitch with DPDK*
• (KAIT team already succeeded 100G Network Monitoring
with DPDK)
Video A
(Original/Valid)
Replace Video A’s
25.6Gbps Packet Payload to Video B
DPDK Switch
Input: 51.2Gbps
Video B Output: 25.6Gbps
(Invalid)
OpenvSwitch
25.6Gbps Server
15
Icons made by https://www.flaticon.com/ *DPDK: The Data Plane Development KitReplacing 8K with MITM
Replacing 8K (Flicker)
Normal(Live Video)
16Trials of 2019(cont’)
High Speed Software Router: Kamuee
• PC-based high speed hokuriku-mx480-t kote-mx2010-t sapporo-mx480-t
software router
• With DPDK and
Poptrie*
• Participated in the sapporo-kamuee
Interop Tokyo Shownet .9
Lo0:192.168.225.201
as a Core-Router .10
192.168.225.8/29
• Conducted by Kamuee ndojima-mx10k-t kote-mx10k-t vlan:3491
kote-kamuee
Lo0:192.168.225.200
Developer Team(NTT
Communications co.
ltd)
• Trial to construct
mixed environment
with JGN hardware-
Routers and Kamuee note-mx10k-t KAIT
*H.Asai, Y.Ohara, “Poptrie: A Compressed Trie with Population Count for
17Fast and
Scalable Software IP Routing Table Lookup”, ACM SIGCOMM ‘15, pp.57-70Trials of 2019(cont’)
400Gbps Interoperability Test
• 400Gbps Interoperability Test between Cisco Nexus and Juniper QFX
Switches
• 400G-FR4
• Interfaces: QSFP-DD(with DAC cable)
• Contents: 8K Video(Replacing with DPDK, about 50Gbps(25Gbps*2))
JGN
100Gbps
100Gbps Cisco Nexus 400Gbps Juniper QFX
IPA 400G SW 400G SW
QG70
100Gbps
Juniper QG70
QFX5110
10Gbps*4
IXIA QG70
DPDK SW
Vision One
QG70 18400Gbps Interoperability Test Longer
Juniper 400G QFX SW 400G-DD
(QFX5220) Interface
Cisco 400G Nexus SW
Pre-Release Model)
(Pre-Release Model)
DAC Cable

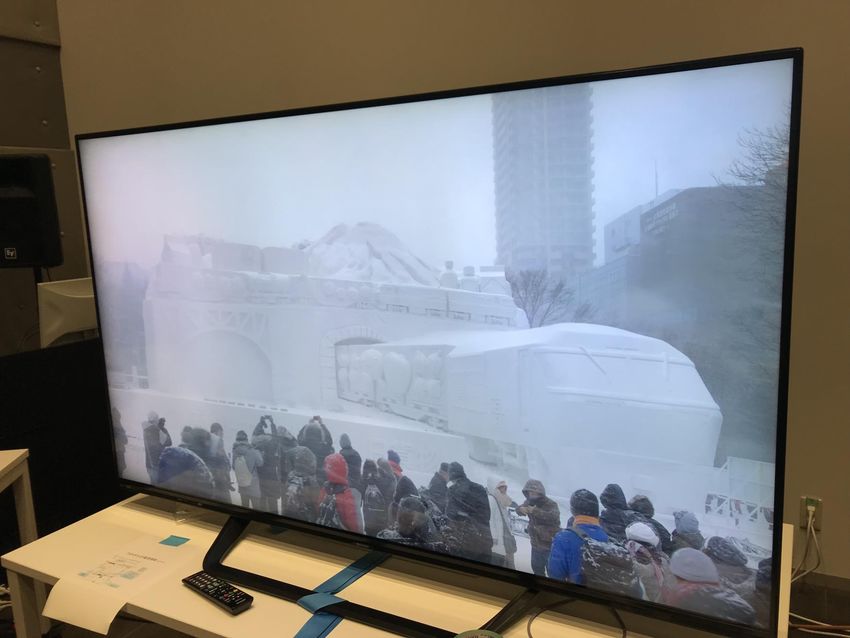

19Daytime

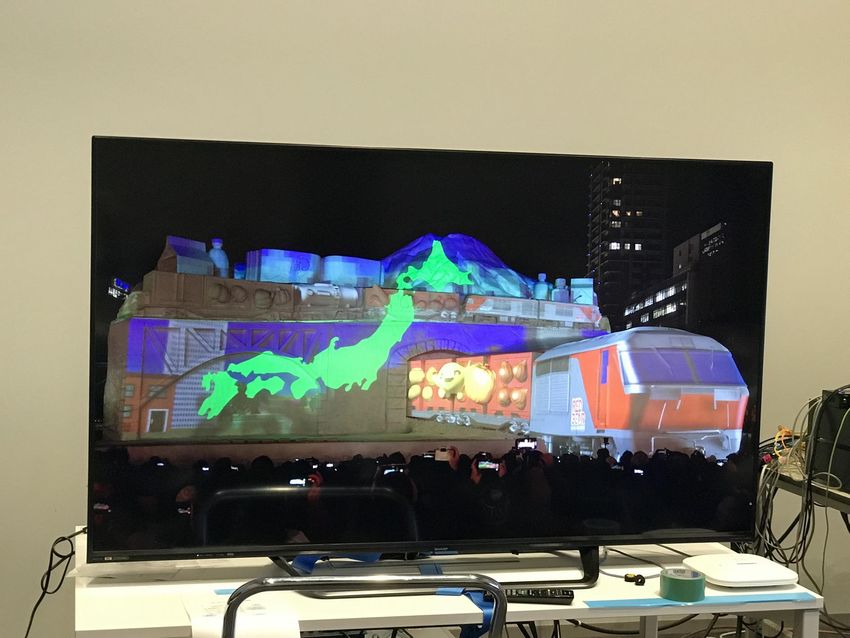

20Night
(Projection Mapping)
21Wrap-up
• About NICT’s Network Testbed JGN
• 8K(UHD) Video Transmission Experiment in Sapporo Snow Festival
• about 8K(UHD) / 8K camera/8K IP converter
• Network topology
• Trial: Security Penetration Test to Video Transmission System
• Trial: Replacing 8K Uncompressed live movie with DPDK (Man in the Middle)
• Trial: Software PC-based Router “Kamuee”
• Trial: 400Gbps Interoperability Trial
22
Hokkaido Television Broadcasting Co., Ltd. Grand Front OsakaThank You! Sapporo, Shooting Venue IPA, Tokyo(Penetration Team) Osaka, Demonstration Venue 23
