The Leading Solutions Provider
Castor Wheel

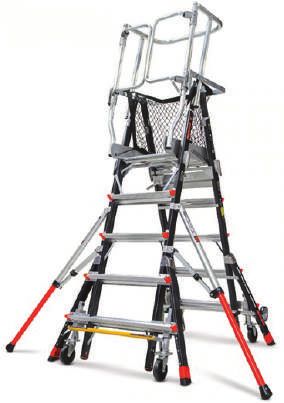

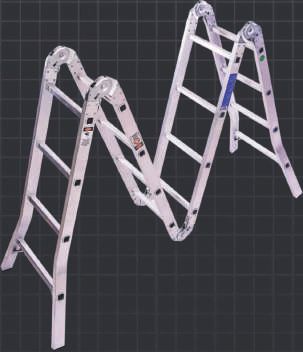

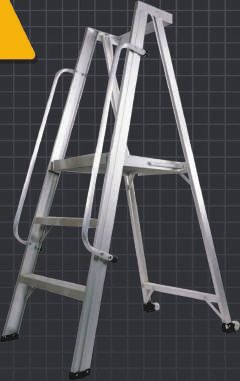

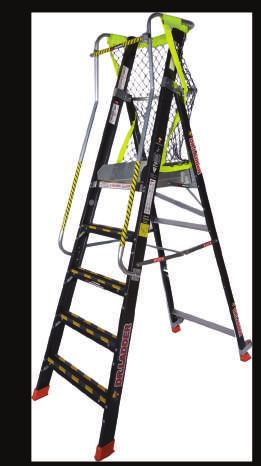

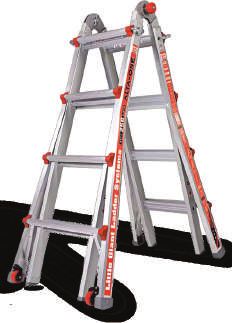

Ladder

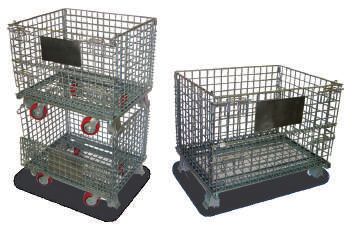

Hand Truck Material Handling
Nansin Kyung Chang
JAPAN JAPAN JAPAN JAPAN KOREA KOREA CHINA USA GERMANY GERMANY GERMANY
JAPAN CHINA USA MALAYSIA
www.ukai.com.my
Low Height Castor
SUIT-50
JAPAN
Wheel Material :
Urethane Rubber
Plate Type 80kgs 50mm
Medium Heavy Duty Available Wheel Size :
75mm - 300mm
Available Allowance Load :
80kgs - 600kgs
Plate Type
JTYPE KTYPE JB TYPE
Rubber Polyurethane Nylon 6
Extra Heavy Duty Available Wheel Size :
65mm - 200mm
Available Allowance Load :
170kgs - 660kgs
Plate Type
JM TYPE KH TYPE JMB TYPE
Polybutadiene Rubber Urethane Rubber MC Nylon
Low Profile Heavy Castor
HG TYPE HR TYPE HG-S TYPE JAPAN
Available Wheel Size :
50 / 65 / 75mm
Available Allowance Load :
160 / 300 / 320kgs
Plate Type
Swivel 160kgs 50mm Fixed 160kgs 50mm Brake 160kgs 50mm
Stainless Steel - Polyurethane Stainless Steel - Nylon
Available Wheel Size : Available Allowance Load : Plate Type Available Wheel Size : Available Allowance Load : Plate Type
50 / 65 / 75mm 60 - 70kgs 50 / 65 / 75 / 100mm 60 - 80kgs
SUS-SG TYPE SUS-SR TYPE SUS-SG-S TYPE SUS-SG TYPE SUS-SR TYPE SUS-SG-S TYPE
Swivel 70kgs 75mm Fixed 70kgs 75mm Brake 70kgs 75mm Swivel 70kgs 75mm Fixed 70kgs 75mm Brake 70kgs 75mm
Pressed Urethane Pressed Rubber
Available Wheel Size : Available Allowance Load : Plate Type Available Wheel Size : Available Allowance Load : Plate Type
75 / 100 / 130 / 150 / 200mm 120kgs - 400kgs 75 / 100 / 130 / 150 / 200mm 80kgs - 250kgs
J TYPE K TYPE JB TYPE J TYPE K TYPE JB TYPE
1
Swivel 300kgs 150mm Fixed 300kgs 150mm Brake 300kgs 150mm Swivel 200kgs 150mm Fixed 200kgs 150mm Brake 200kgs 150mm
GERMANY
The core of this drive system is a DC gear motor
that transmits its power to the drive wheel.
The TENTE e-drive 1 system assists the user
to move beds with heavy loads in an easier
way. The starting and moving in forward and
backward direction as well as the stopping
clearly facillitated. In addition to the easier
handling, time can be saved and days of user
sickness caused by the high stress can
be minimised
Wheel : UAP Wheel : USX Notice
Wheel centre : Polyamide, electric conductive, Accessories, dimensions
Tread : Polyurethane, non-marking and technical specification.
precision ball bearing Wheel centre : Polyamide, Different cam profiles
Tread : Polyurethane, available on request.
precision ball bearing,
sealed, washable
2940UA P150R05-32 2940USX125R05-32 2944USX125R26 2944UAP100R26
Wheel : PIP Wheel : XSX
Wheel centre : Polpropylene, electric conductive,
Tread : solid rubber, grey, non- non-marking
marking, with threadguards, Wheel centre : Polyamide,
precision ball bearing Thread : Polyurethane,
with thereadguards,
precision ball bearing, sealed
Pressed steel wheels Wheel : PJP
Series 2470 is also with Wheel centre : Polypropylene,
pressed steel wheels DIK Thread : TENTEprene
2470PJO075P40 2470PJ P100P30-13 2476PJO150R36-32S30 2470PIP125R05-22 TFR 2474PIP100R26-28S45 and DYK available. (thermoplastic rubber),
4xM6 4xM8 with threadguards,
precision ball bearing
Wheel : UAP Wheel : UAX Wheel : XSX
Wheel centre : Polyamide, Wheel centre : Polyamide, electric conductive, non-marking
INTEGRAL 2040UA 7040XSX150R05-28 7046UAX150R26-28S45 INTEGRAL 2044UAP INTEGRAL 2046XSX- Tread : Polyurethane, Tread : Polyurethane, Wheel centre : Polyamide,
X200R05-28 4xM8 125R26-28S45 4xM8 200R26-28S45 4xM8 precision ball bearing precision ball bearing, Tread : Polyurethane,
sealed, washable precision ball bearing,
sealeded, washable
Washable Electric
versions conductive
Plate Solid stem Bolt hole feature a versions
5320 PJO 075 5325 PJO 075 5325 PJO 075 with 5320 PJP 075 5325 PJP 075 5325 PJP 075 with blue clip. feature a
grey pedal - optional grey pedal - optional yellow clip.
(RAL 7001) (RAL 7001)
Wheel : PJP Colour options Grey brake pedal LEVINA XL
Wheel centre : Polypropylene, All versions in grey-white These castors are also with In wheel diameter 125mm
Tread : TENTEprene RAL 9002 and graphite- grey locking lever available these castors are also
(thermoplastic rubber), black RAL 9011 available. available with extended fork
with integrated threadguards, for a better access to the
precision ball bearing brake pedal.
2
Anti-Static Castor Wheel
GERMANY
TENTE Castors protect against this
with a leakage resistance of < 10,000 ohm.
• Each wheel tested under 500 volts direct voltage before deliver to marketplace
Extra Heavy Duty
FTP MOP
ANTI
STATIC
450kgs - 100mm - 1100kgs - 100mm -
2600kgs 300mm 1200kgs 250mm
Non-staining, Electric conductive
Stainless Steel Heavy Duty Heavy Duty
UOD UFX UAD IEP ITP TOP
Swivel 200kgs - 80mm- Swivel 150kgs - 100mm- Swivel 100kgs - 80mm- Swivel 200kgs - 100mm- Swivel 250kgs - 100mm- Swivel 500kgs - 100mm-
Fixed Fixed Fixed Fixed Fixed Fixed
Brake 300kgs 200mm Brake 300kgs 200mm Brake 400kgs 200mm Brake 450kgs 250mm Brake 1000kgs 250mm Brake 1100kgs 250mm
Twin Wheel Castor
30kgs 50mm
CHINA
UNF 1/2”
3/8 38mm x 38mm Friction Ring (11mm)
M8
121/TBA/050T 125/TBA/050T 121/TBA/050P 125/TBA/050P 122/DOM/050F 121/TBA/050F
Light Duty Top Thread Center Expansion
Plate Stem Hole Stem
140 Series 601 Series 611 Series 140 Series
Material : Material : Material : Material :
Cast Iron Hard Rubber Hard Nylon Nylon
Top Top Top Top Thread
Plate Plate Plate Plate Stem
10kgs - 25mm - 80kgs 50mm 100kgs 50mm 10kgs - 25mm -
70kgs 75mm (Twin) 70kgs 75mm
140 Series 160 Series 160 Series 260 Series
Material : Material : Material : Material :
Grey Rubber Grey Rubber White Blue
Polypropylene Polyurethane
Top Thread Top Thread Top Thread Top Thread
Plate Stem Plate Stem Plate Stem Plate Stem
10kgs - 25mm - 20kgs - 40mm - 10kgs - 25mm - 35kgs - 40mm -
70kgs 75mm 80kgs 75mm 60kgs 75mm 80kgs 63mm
210 Series 220 Series 240 Series
Material : Material : Material :
Grey Rubber Blue Grey Grey Rubber
Rubber
Center Center Expansion
Stem
Hole Hole
Top Thread Top Thread Top Thread
Plate Stem Plate Stem Plate Stem
40kgs - 50mm - 35kgs - 50mm - 60kgs - 75mm -
3 90kgs 100mm 90kgs 125mm 100kgs 125mm
Economical Castor
CHINA
40kgs - 195kgs 75mm - 200mm 45kgs - 195kgs 80mm - 200mm
321/ RBQ 322/ RBQ 323/ RBQ 321/ PYA 322/ PYA 323/ PYA
Swivel Fixed Brake Swivel Fixed Brake
Black Rubber Wheel Polypropylene Wheel
Medium Duty Non-Marking Wheel
Material : Material : Material : Material :
Hi-tech Grey Hi-tech Perfoma Red
Nylon Polyurethane Rubber Polyurethane
110kgs - 75mm - 100kgs - 75mm - 80kgs - 75mm - 90kgs - 75mm -
150kgs 125mm 150kgs 125mm 115kgs 125mm 120kgs 125mm
Twin Wheel Castors
Material : Material : Material :
Thermoplastic Polyamide Yellow
Grey Rubber Nylon-6 Polyurethane
75kgs - 75mm - 260kgs - 100mm - 170kgs - 100mm -
120kgs 150mm 380kgs 150mm 235kgs 150mm
Heavy Duty
INDUSTRIAL MEDIUM-HEAVY DUTY
490 SERIES
In Compliance To American Standard Specification
180kgs - 320kgs
Castor 490 100mm - 250mm
Bracket made of hardened steel.
Welded double ballrace swivel head
Metal Parts : Zinc plated
Rubber Polyurethane Semi-Steel Phenolic Nylon Mild-Steel V Groove Cast Iron V Groove
(-20 C - 148 C)
160kgs - 100mm - 220kgs - 100mm - 220kgs - 100mm - 220kgs - 100mm - 220kgs - 100mm - 370kgs - 100mm - 350kgs - 100mm -
300kgs 250mm 300kgs 250mm 300kgs 250mm 300kgs 250mm 280kgs 200mm 470kgs 200mm 450kgs 200mm
Scaffolding
Rubber Nylon (Ball Bearing) Polyurethane Eco-Range Rubber
180kgs - 150mm - 260kgs - 150mm - 260kgs - 150mm - 120kgs - 160mm -
220kgs 200mm 280kgs 200mm 280kgs 200mm 190kgs 200mm
4
KOREA
GAAD Series GSAD Series
250~630kgs 400~600kgs
GAAD applied two rotation axes with different
rotation radius and has the function to automatically
optimize the radius of rotation by aligning the rotation Brackets : Steel plate, double precision
axis on its own according to the moving direction in ball bearing in the swivel head strong
forward/backward motion. The movement of AGVs is welded frame self-aligned to optimize
affected by the caster offset. If the offset is too long, heavy load, grease nipple, function with
an AGV can swing, causing it to deviate from the
two swiveling axes with different swiveling
designated path. And if the offset is too short, the drive
radii, bolted wheel axle structure.
motor is overloaded. In particular, many AGV engineers
are struggling to solve this swinging problem for AGVs
which inevitably require reciprocation.The patented Surface Treatment : Powder coating,
automatic aligning function of GAAD is the best AGV zinc plated
caster to solve both problems simultaneously, such as * Recommended Load = Load Cap. X 3
the swinging of AGVs and the overloading of drive motors.
* Recommended Load = Load Cap. X 3
GATD Series GASD Series
250~630kgs 250~630kgs
The shaft of GATD has a tiling structure AGVs equipped with 4 casters, one of
that tilts freely in the range of 5 which is often not in contact with the
from its central axis according to the floor. During a change in direction, AGVs
flatness of the floor. lose their balance if one caster which has
This freedom ensures that GATD always not been in contact with the floor suddenly
keeps contact with the floor, causing touches the floor. Therefore, AGVs deviate
smooth AGV movement and protection from their regular position, which generates
of the loaded cargo when changing a abrupt stop. FOOT MASTER AGV caster
directions. - GASD provides the best solution to remove
* Recommended Load = Load Cap. X 3 the deviation situation due to swinging.
* Recommended Load = Load Cap. X 3
PH Series 200~600kgs 100mm - 150mm
Medium Duty Casters
MC Nylon
Brackets : Pressed steel plate,
PU for Heavy Duty double ball bearing with four hardened
Aluminum Core bearing seats in the swivel head which
Ball Bearings is advantages to rapid swiveling and
excellent durability, strong integrated
pressed steel frame, smooth-operating
HUD
top brake system, bolted wheel axle
structure.
Polyurethane
Surface Treatment : Powder coating,
zinc plated
Machined MC Nylon
Ball Bearings
* Recommended Load = Load Cap. X 3
MCD
UGXT Series 6,000~8,000kgs 200mm - 300mm
Extra Heavy Duty Casters
Brackets : Forged steel plate, thrust bearing and taper roller bearing
in the swivel head to optimize heavy load, grease nipple, strong
welded steel frame, hand-operated wheel brake system, special
wheel axle for reinforce of smooth rolling
Surface Treatment : Powder coating, zinc plated
* Recommended Load = Load Cap. X 3
MC Nylon
5
KOREA
GXT Series 500~2,700kgs 80mm - 200mm
Heavy Duty Casters
Brackets : Forged steel plate, double thrust bearing in the swivel head Wheel Options
to optimize heavy load (125 ~ 250 series : thrust bearing and taper roller)
bearing), strong welded steel frame, hand-operated wheel brake system,
PU for Heavy Duty Machined MC Nylon
special wheel axle for reinforce of smooth rolling.
Aluminum/Steel Core Ball Bearings
Ball Bearings
Surface Treatment : Powder coating, zinc plated
* Recommended Load = Load Cap. X 3
HUD MCD
GD Series 50~1,500kgs 40mm - 150mm
Leveling Casters
Brackets : Pressed steel plate (150 series : forged steel), double ball bearing
with hardened bearing seats in the swivel head, ivory-colored aluminum frame,
height adjustment with integrated orange handle or spanner (120/150 series :
only available for spanner), anti-vibration NBR pad (120/150 series : AL)
Guide for selection of wheels :
Nylon 66 MC Nylon Cast PU
Brackets : Pressed steel plate, double ball bearing
with hardened bearing seats in the swivel head,
GDR series ivory-colored aluminum frame, height adjustment
with integrated ratchet handle, anti-vibration
NBR pad.
Surface Treatment : Powder coating, zinc plated
* Recommended Load = Load Cap. X 2
GSST Series 400~1,350kgs 150mm - 250mm
Shock Absorbing Casters
Towing by power vehicle (20km/h)
Brackets : Forged steel plate, ball bearing with hardened bearing
seats and thrust bearing in the swivel head (250 series : thrust bearing
and taper roller bearing), rugged pressed steel frame with ivory color
after welding, fine shock absorption function with special rubber (select
between A65 and A75), towing by power vehicle (20km/h), strong top
brake system, bolted wheel axle structure
Surface Treatment : Powder coating, zinc plated
* Recommended Load = Load Cap. X 3
6
Heavy Duty 40 Series
KOREA
Swivel Kyung Chang
4040
320kgs - 380kgs 100mm - 200mm Fixed TOP PLATE - MEDIUM HEAVY DUTY
Brake
SERIES In Compliance To Korean Standard Specification
Castor
Made of hardened steel. Welded double ballrace swivel head
Metal Parts : Galvanized (grease nipple)
Plate with 6 holes
Wheel PC
PC mold on polyurethane cast-iron centre (durometer : 90 5 Shore A)
Round profile PU. Precision ball bearing with steel threadguards
Temperature Range : -40 C to +80 C
Manufactured by Kyung Chang Korea
Swivel
180kgs - 280kgs 100mm - 200mm
4040
Fixed
Brake
TOP PLATE - MEDIUM HEAVY DUTY
SERIES In Compliance To Korean Standard Specification
Castor
Heavy steel welded construction Zinc plated double ballrace swivel head
Dustproof seal heat treated ballrace
Wheel NL
NL - Made of Nylon-6 material (White)
Non-marking. Double ball bearing. Temperature Range : -30 C +120 C
Manufactured by Kyung Chang Korea
Registered Products with Hyundai & KIA Motor
Heavy Duty Stainless Steel
4040
280kgs - 350kgs 100mm - 200mm
Swivel STAINLESS STEEL MEDIUM HEAVY DUTY
Fixed
Brake
SERIES In Compliance To Korean Standard Specification
Castor
All stainless steel SUS-304 with heavy duty welded construction
Stainless steel double ballrace swivel head
F&B, Bakery, Cold Storage, Hospital and Hygienic Environment
Wheel NLX
Made of Nylon material (non-marking Grey)
Round profile, stainless steel, double ball bearing 6202STS
Temperature Range : -30 C to +80 C
Manufactured by Kyung Chang Korea
INOX SUS-304
4040
280kgs - 350kgs 100mm - 200mm
Swivel STAINLESS STEEL MEDIUM HEAVY DUTY
Fixed
Brake
SERIES In Compliance To Korean Standard Specification
Castor
All stainless steel SUS-304 with heavy duty welded construction
Stainless steel double ballrace swivel head
F&B, Bakery, Cold Storage, Hospital and Hygienic Environment
Wheel PCX
Polyurethane tread bornded to polyolefin core
Non-marking, double ball bearing 6202 STS
Temperature Range : -40 C to +80 C
Manufactured by Kyung Chang Korea Durometer : 90 5 Shore A
INOX SUS-304
Extra Heavy Duty Heavy Duty Spring Loaded
42
450kgs - 650kgs
Series
150mm - 300mm
94
350kgs - 450kgs
Series
150mm - 200mm
Swivel Fixed Brake Swivel Fixed Brake
7
Kingpinless Heavy Duty
USA
270kgs - 450kgs 100mm - 200mm
Impak Kingpinless Style Castor Wheel Options
Phenolic Polyurethane Semi-Steel
-45 C - 180 C
Industrial Castor
Industrial Wheel
GERMANY
Swivel Fixed Brake
Red/Grey Polyurethane White Polypropylene Grey Rubber Yellow Ring Black Rubber Yellow Ring Black Rubber
100kgs - 80mm - 100kgs - 80mm - 50kgs - 80mm - 50kgs - 80mm - 50kgs - 80mm - Thread
150kgs 125mm 300kgs 200mm 205kgs 200mm 300kgs 250mm 205kgs 200mm Stem
Heavy Duty Castor Wastebin Spare Wheel
Red Polyurethane Spring Loaded Polyurethane PP Center Black Rubber Shaft fitting
Wheel (With Brake) Dustbin wheel
Rubber Powder Tire
Plastic
Rim
Thick
4mm
Diameter Bearing
200mm Hole
22.5mm
Hub
Length
10mm
350kgs - 100mm - 300kgs - 150mm - 200kgs 200mm 100kgs 200mm
500kgs 200mm 350kgs 200mm
Medium Duty
JAPAN
Nansin
STC Series STM Series
100kgs - 160kgs 100mm - 150mm 80kgs - 330kgs 75mm - 250mm
Pressed Rubber Wheel Pressed Rubber Wheel
Swivel Fixed Brake Swivel Fixed Brake
STC/CBC SKC/CBC STC/CBC(S2) STM/VS SKM/VS STM/VS(W3)
8
JAPAN
PB SERIES kg
150kgs 740×
480mm 134mm Ø 100mm
PB-100
No-handle type
PB-101
Folding handle type
クールブルー クールグレー
(Cool Blue) (Cool Grey)
Specially designed protectors
provide enhanced safety.The protector
prevents accidents caused by problems
such as jamming when raising the handle.
The folding mechanism also helps protect
against impacts.
PB-102 PB-103 PB-104 PB-114
Fixed handle type Front-rear dual-handle type Double Deck dual-handle type Double Deck single-handle type
Plastic hand trucks combine lightness
and strength. Available in four
different colors.
Our plastic hand trucks are manufactured
using injection molding machines at our
own plant. Light and easy to handle, they
are specially designed to withstand impacts.
Choose from four colors to match your
preference or the task at hand. The quality
of the material is polypropylene (PP).
PB-107 PB-105 PB-115 PB-127
Side-net type Triple Deck dual-handle type Triple Deck single-handle type Double Deck side-netting type
NB-100
No-handle type
NB SERIES kg
150kgs 710×
455mm 146mm Ø100mm
Specially designed protectors
provide enhanced safety.The protector
prevents accidents caused by problems
such as jamming when raising the handle.
The folding mechanism also helps protect
against impacts.
Silent casters for reduced noise
Models equipped with low noise casters are
available for work situations where avoiding
noise is important, such as transporting
cargo in offices or at night. It is made
of reinforced plastic to prevent corrosion
and allow use in food processing plants,
or other similar environment.
NB-101 NB-104
Folding handle type Double Deck dual-handle type
NB-114 NB-107 NB-105 NB-115 NB-127
Double Deck single-handle type Side-net type Triple Deck dual-handle type Triple Deck single-handle type Double Deck side-net type
9JAPAN
PF SERIES kg
300kgs 900×
600mm 215mm Ø 130mm
PF-300
No-handle type
クールブルー クールグレー
(Cool Blue) (Cool Grey)
Pursued platform for safety
and easiness.
Hand Truck has standard equipment
for easy to carry with 2 hand places
and 10 big non-slipping plugs on the
platform.Safety was also improved by
corner with round shaping.
PF-301 PF-302 PF-303
Folding handle type Fixed handle type Fixed Front-rear dual-handle type
Non-slipping plugs & Silent cushion.
We make a noise reduction possible
with non-slipping plugs on the platform
when you got the handle folded down. PF-304 PF-314 PF-305 PF-315
Double Deck dual-handle type Double Deck single-handle type Triple Dec dual-handle type Triple Deck single-handle type
Intensity enhancement with
reinforced pipes.
Intensity enhancement and
weight saving has come true by
inserting 2 reinforced pipes into
the platform.
PF-307 PF-327
Side-netting type Double Deck side-netting type
NF SERIES kg
300kgs 910×
610mm 210mm Ø130mm
NF-300
No-handle type
Prestar hand trucks are proudly made in Japan and offer reliability you can
depend on.
We continue to manufacture our hand truck products right here in Japan to
assure our customers convenient operation, long service life, and peace of mind.
Each model in our extensive lineup is carefully built to the highest standards.
Every day, in workplaces all over the world, our customers depend on Prestar
hand trucks as indispensable partners.
NF-301 NF-302 NF-303 NF-304 NF-305
Folding handle type Fixed handle type Fixed Front-rear dual-handle type Double Deck dual-handle type Triple Deck dual-handle type
NF-314 NF-315 NF-307 NF-327 NF-333
Double Deck single-handle type Triple Deck single-handle type Side-netting type Double Deck side-netting type Left-right dual-handle type
10JAPAN
PM SERIES kg
200kgs 780×
490mm
160/
180mm Ø 130mm
Possible to stable stacking
PM-S201
PM-201 (Black)
(Black)
Platform elevated at an angle of 2 degrees
Protection from damage
Possible to roll and carry 4 Sides grips for easy carry For easy carry For easy carry by one hand
Simply press the foot pedal to apply or release the parking
PARKING brake. It is also possible to mount stoppers afterward on
hand truck that are already in service.
FOOT PARKING
Step onto the NB-S101 NF-S301 PM-S101 PF-S301
On-Brake pedal Folding handle type Folding handle type Folding handle type Folding handle type
to engage stopper
on the left and right
wheels to parking
The stoppers position. To release
on the left and
right wheels brake, simple step
onto the Off-Brake
pedal.
NG-S401-8 TF-S402 PG-S502 NF-HP301
Folding handle type Fixed handle type Fixed handle type Folding handle type
HAND PARKING
Grip the handle to release the brake.
The brake engages automatically
when the handle is released. This
safe parking function ensures that
the hand truck will not move
unexpectedly while it is stopped.
PF-HP301 NF-HP301
Side-net type
PF-HP301 NB-HP301 PB-HP301
Folding handle type Side-net type Folding handle type Folding handle type
TF SERIES kg
400kgs 900×
600mm 220mm Ø130mm PG SERIES kg
600kgs 1225×
775mm 310mm Ø200mm
TF-402
Fixed handle type
TF-403 PG-500 PG-502 PG-503
Fixed Front-rear dual-handle type No-handle type Fixed-handle type Fixed Front-rear dual-handle type
NG SERIES kg 6 inches Castor
400kgs
1240×
790mm
233
mm Ø 150mm
kg 8 inches Castor
500kgs
1240×
790mm
288
mm Ø 200mm
NG-400-6
NG-400-8
No-handle type
NG-401-6 NG-402-6 NG-403-6 NG-407-6 NG-433-6
11 NG-401-8 NG-402-8 NG-403-8 NG-407-8 NG-433-8
Folding handle type Fixed handle type Fixed Front-rear dual-handle type Side-netting type Left-right dual-handle typeDouble-Coating Cation
JAPAN
WORKTAINERS Electro-Deposition Coating +
Powder Coating
Multi-functional Elegant Design
High Quality & Environmentally Friendly
Space-Saving Nesting Ability
Ease Of Movement/Easy to Push
High Volumn Capacity & High Impact Quiet, Lightweight & Durable
Plastic/Metal Base
Assembled Folded
Without Door Metal Base Without Door Plastic Base
Optional Metal Shelf
Optional Plastic Shelf
Security Worktainers
Worktainers
External Dimensions (mm) Internal Dimensions (mm) Load
(length x width x height) (length x width x height) Capacity (kgs)
WTP-85-60 (SMALL) 850x600x1700 790x545x1450 400
WTP-110-80 (BIG) 1100x800x1700 1230x442x1500 500
Easy & 360° degrees Rotatable
Low Noise Level & Optional Shelves
Easy Storage in Tight Places
Sturdy Configuration
SLIM CART
High Quality & Environmentally Friendly
Slim Cart. You can handle easily in any narrow spaces. With its six wheels, Slim Cart can turn in a small radius. And the double coating paint makes the carts
strong and look beautiful. When you stack the carts by lifting the bottom plates, you can store them in very limited spaces. For our easy carrying nesting type products,
you can also choose products with the brakes option. [The Middle shelves are optional products.]
4 Wheel Slim Cart 6 Wheel Slim Cart
Size (mm) Loading Size (mm) Caster Ø Load
Slim Cart (length x width x height) (length x width x height) (mm) Capacity (kgs)
6-wheels Slim Cart Stacking 130 x 2nos
6SC-503 Without Brake / with Shelf
1277x445x1500 1277x445x1500
100 x 4nos
500
4-wheels Slim Cart Nesting
4SN-S303 With Total Lock & Directional Lock
1020x480x1650 1230x442x1500 130 x 4nos 300
CASTERS A variety of casters are available for different application and purposes.
4 Inches 5 Inches 6 Inches 8 Inches
178mm 55mm 11mm 82x40mm 123mm 33mm 9mm 82x40mm 190mm 55xmm 11mm 90x90mm 245mm 60mm 11mm 112x112mm
Ø 100mm Ø 130mm Ø 150mm Ø 200mm
178mm 55mm 11mm 82x40mm 178mm 55mm 11mm 100x56mm 190mm 55xmm 11mm 100x56mm 245mm 60mm 11mm 112x63mm
Ø 100mm Ø 130mm Ø 150mm Ø 200mm
12CHINA S
EN-131 FIBREGLASS ANSI FIBREGLASS ANSI FIBREGLASS
FIBREGLASS PLATFORM LADDER TRESTLE FIBREGLASS LADDER FIBREGLASS EXTENSION LADDER
PL- SYF (2 Steps - 8 Steps) TR - DFB (4 Steps - 16 Steps) EX- NFY ( 8 x 2 Steps - 16 x 2 Steps)
EN-131 ALUMINIUM EN-131-7 FIBERGLASS
Safety Brace
Heavy Duty
Castor Wheel
(Adjustable Height)
Trapdoor Platform
HOUSEHOLD STEP LADDER FIBREGLASS WORKING STAGE DR SCAFFOLD (FOLDABLE)
HHL - SAS (2 Steps - 8 Steps) SPL - NFB (3 Steps - 5 Steps)
JAPAN
150 S
Aluminium EN-131 EN-131
Switch Open Anti-Slip Patterned Roof
48mm
Ultra Slim
SLIM STEP LADDER ALUMINIUM ZERO STEP LADDER ALUMINIUM TWIN LADDER FIBERGLASS TWIN LADDER
SJ3.0 ( 2 Steps - 4 Steps) WDC (2 Steps - 4 Steps) ZJB (5 Steps - 12 Steps) RGF (3 Steps - 12 Steps)
100 S
Easy to
carry handles
H
Easy to
carry handles
D When stowed, the feet are
folded and can be put into
W
the trunk of the car
WORKING STAGE
DRZ2.0 Ultra
W
Desig ide
n
Maximum
H
23 Adjust
Height
D
ALUMINIUM TRESTLE LADDER ALUMINIUM TRESTLE LADDER WORKING STAGE (ADJUSTABLE) TRESTLE ALUMINIUM LADDER (ADJUSTABLE)
13 RZ1.0 / RZB1.0 ( 2 Steps - 7 Steps) (ADJUSTABLE) DRSW2.0 RYZ1.0 (3 Steps - 7 Steps)
RZS1.0 (4 Steps - 7 Steps)USA
170 S 150 S 150 S
ANSI FIBREGLASS ANSI ANSI
Work safely and easily on
WORK SAFELY IN stairs and uneven surfaces.
INDUSTRIAL
AEROSP ACE-GRADE
APPLICATIONS ALUMINUM
Fade-resistant, non- Built for lightweight
conductive black-resin performance with
fiberglass rated for maximum stability
and strength
industrial use.
PATENTED
TRAPEZOID RUNG
Level standing
surface in all
configurations
DARK HORSE FIBERGLASS MULTI-USE LADDER ALTA-ONE ALUMINIUM MULTI-USE LADDER SELECT STEP ALUMINIUM MULTI-USE LADDER
SAFETY STEP
170 S 150 S 150 S
ANSI ANSI ANSI
.
FIBREGLASS
AERIAL SAFETY CAGE LADDER SAFETY STEP ALUMINIUM LADDER JUMBO STEP ALUMINIUM LADDER
MALAYSIA S
EN-131 ALUMINIUM
Wider checker platform
provides secure and
comfortable work area.
10 inches of Flat bar to have more
step interval. stability ladder when
climb on.
Handrail to support
when climbing.
Foldable platform
for easy storage.
Durable body to support Slip-resistant step with
heavy duty job. step width of 3 inches.
Non-marking castor wheel
ease for movement.
Use hinge lock for Foldable and easy Wider spread leg
different usage to storage. to enchance the
stability of the ladder Solid rivet spreader
to strengthen locking
system.
Safety guard rail.
ALUMINIUM PLATFORM TROLLEY LADDER ALUMINIUM MULTIPURPOSE STEP LADDER ALUMINIUM DOUBLE SIDED A SHAPE LADDER
TF- PTL (3 Steps - 12 Steps) TF- MPL (12 Ft & 14 Ft) DSL ( 3 Steps - 24 Steps) 14www.ukai.com.my
MATERIAL HANDLING ukaimalaysia
Shopping Trolley Walkway Castor 2 Wheels Trolley
STAIR
RC-125 J6 YRD-L4 TLB-2 2 DISC 3 DISC 4 DISC RUBBER P SHAPE 2 HANDLE
CLIMBING
Wheel Barrow F&B Trolley 3-In-1 Trolley
Pallet Truck Pallet Mesh Ladder Trolley
LT-5 LT-3
Auto Gate Wheel Floor Lock Leveling Mount
Stacker Lift Table PU Rebonding
KL(HQ) Klang Melaka JB Penang Sabah
Location Location Location Location Location LocationYou can also read
