12 FEATURES
Are You Ready for Carrier ID?
Steven Soenens, Vice President, Product Management, Newtec
With a growing number of satellites, satellite service providers and broadcasters taking up precious
space segments, satellite Radio Frequency Interferences (RFI) is an ever-growing threat to our satel-
lite industry. Carrier Identification (CID) has been proposed as the solution to reduce Mean Time To
Repair (MTTR) of service outages due to interferences – but how exactly does it work and how do
operators go about getting it? This article explores the set up of the unique ‘fingerprint’ and how it
can improve services and cut costs.
The unique carrier identifier ‘fingerprint’ is an essential tool for reducing the impact of satellite
interferences, as it helps to pinpoint the source of interference quickly, enabling faster resolution as a
result. The big question for operators used to be ‘should we implement CID technology as well?’. This
question became irrelevant this July, though, when the WBU-ISOG resolution set the requirement to
have CID implemented into all SCPC/MCPC satellite infrastructures.
Although the WBU-ISOG resolution was passed in July, the transition to mandatory CID is set to really
start from January 1, 2015 (see Figure 1). New satellite ground segment equipment, should be ready for
CID right now. By January 2018 all uplinkers will ensure CID is included for all their respective SCPC
and MCPC video and data transmissions and CID NIT, the previous and less robust version of carrier ID,
shall be phased-out in favour of the more robust ETSI TS 103 129 standard, often referred to as DVB-
CID. Most operators are likely to welcome the WBU-ISOG resolution and consequent transition.
WBU-ISOG Resolutions July 2013
Now t "MMVQMJOLFSTPG4$1$BOE.$1$7JEFPBOE%BUB åYFEBOENPCJMFTZTUFNT TIBMMJODMVEF
Carrier ID functionality in the requotes.
January 1, 2015 t " MM OFX NPEFM NPEVMBUPST BOE DPEFDT XJUI JOUFHSBUFE NPEVMBUPST QVSDIBTFE CZ
end users for video uplinking contain a Carrier ID that meets the ETSI TS 103 129
standard(issued May 29, 2013).
t "MMTBUFMMJUFPQFSBUPSTTUBSUUIFUSBOTJUJPOUPVTF$BSSJFS*%UIBUNFFUT8#6*40(/*5PS
the ETSI standard for all SNG, DSNG and any other new uplink transmission sevices.
January 1, 2018 t "MMVQMJOLFSTTIBMMFOTVSFUIBU$BSSJFS*%JTJODMVEFEGPSBMMUIFJSSFTQFDUJWF4$1$BOE
MCPC Video and Data transmissions.
t $M%/*5TIBMMCFQIBTFEPVUJOQSFGFSFODFUPUIF&54*TUBOEBSE
Figure 1. WBU-ISOG Resolution Dates
14 Quarterly Newsletter
An industry-wide survey carried out by the Satellite Interference Reduction Group (IRG) and satcom
specialist Newtec this August asked nearly 500 respondents to share their opinion on CID. A huge
93% of respondents suffer from satellite interferences, with nearly a fifth of participants (17%)
suffering continuously and another 27% claiming to experience interference as much as once a week
(see Figure 2). Furthermore, 86% of respondents stated standards such as DVB Carrier ID were
‘important’ in overcoming satellite interferences (see Figure 3) and 33% said the most compelling
reason to implement CID was to ‘Improve my quality of service and user experience (and as such my
business)’ (see Figure 4)

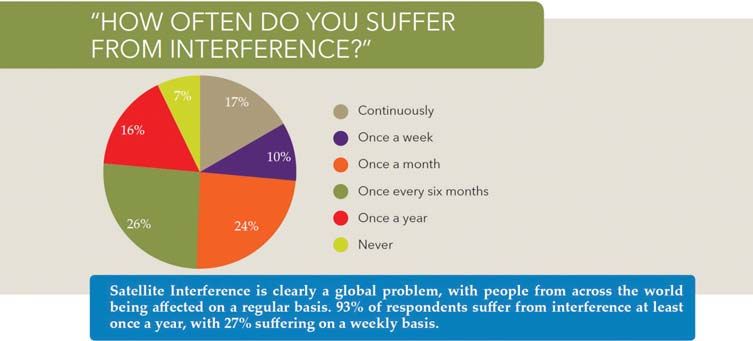

Figure 2. Suffering from Interference, source CID industry survey by IRG and Newtec
Figure 3. Importance of Standards, source CID industry survey by IRG and Newtec

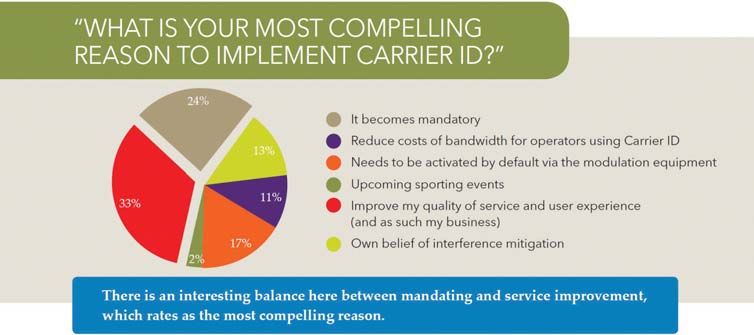

Figure 4. CID Implementation Reason, source CID industry survey by IRG and Newtec
16 Quarterly Newsletter Q4 | 2013 17
How Does CID Work? functionality in all tenders and quotes. Whenever new SCPC and MCPC video and data equipment (for
It speaks for itself that CID will have a positive impact on the satellite industry as a whole, providing fixed and mobile systems) is needed, operators need to include CID functionality in Requests for
clear benefits to satellite operators, service providers, teleport operators, and broadcasters. Proposal or Requests for Quotations towards equipment manufacturers for the parts of the transmis-
sion chain where CID makes sense, i.e. the modulators and the codecs with integrated modulator
The working principle is straightforward. CID is an identifier that is transmitted along with any prima- functionality.
ry satellite RF carrier. The CID contains a mandatory Global Unique Identifier of the satellite modulator
or modem (IEEE EUI-64 MAC Address). This identifier is unique to a given modulator or modem and Operators should also inform everyone within their purchase department(s), logistical department,
can be used, for example, to identify the owner of the equipment. This identifier will be used as a ref- pre-sales and commercial departments, and adapt their standard requirements description for buying
erence tag in a database that is shared by satellite operators and managed by the Space Data modulators or encoders, to include CID. They will also find it useful to make a list of vendors which
Association (SDA). By doing this, any satellite operator can trace back the ownership of any SCPC/ have implemented CID in their products. Newtec is among vendors offering products since 2012 with
MCPC modulator and modem, and easily stop interference. Much faster than any geo-location tech- CID built in at factory.
nology. Resolution takes place in minutes rather than days.
The second date operators should have in their mind is the all important January 1, 2015. From then
In addition to this identifier, a set of optional uplink operator data fields, such as GPS coordinates of on, all new model modulators and codecs with integrated modulators purchased by end users for
uplinks, telephone numbers of operators, etc. are also included in the CID. This further simplifies the video uplinking should contain a Carrier ID that meets the ETSI TS 103 129 standard (issued May 29,
way satellite operators can get in touch with operators that are unintentionally jamming the spectrum. 2013). All satellite operators should also start the transition to use Carrier ID that meets WBU-ISOG
NIT or the ETSI standard for all SNG, DSNG and any other news uplink transmission services.
The CID information is transported over the satellite below the noise floor of the primary carrier. The Manufacturers and vendors of modulators and codecs in particular should be aware of this date as
impact on the performance of the primary carrier can be neglected (see Figure 6). By using robust after January 1, 2015 all their new model modulators and codecs with integrated modulators should
modulation the CID can be easily be determined and read out, even if carriers are jamming each other. contain the ETSI TS 103 129 implementation of CID.
Special measurement receivers are installed at the satellite operator facilities and, on occurrence of
any interference, these receivers can read out the CID information, quickly pointing out the source of Another important element of the January 1, 2015 date is this is when all satellite operators start the
interference. Resolving the interference issue is in most cases only a phone call away. transition to using CID for all SNG, DSNG and any other new uplink transmission services. This means
WBU-ISOG is recommending all satellite operators around the world stat to use the "NIT" version or
the "ETSI" version of CID, still giving them the option to choose one of both flavours. This will ensure
a quick yet cost-effective transition for the industry.
The third and final key date for operators’ diaries is January 1, 2018. This is when it all becomes very
clear – all uplinkers must ensure that Carrier ID is included in all their respective SCPC and MCPC
video and data transmissions. By this time operators need to have put together a plan to complete
their transition to full ETSI TS 103 129 CID on all equipment.
Is CID worth it?
Figure 5. How Does Carrier Identifier Reduce RFI?, source Newtec Figure 6. Carrier ID Is Transported over Satellite Below the Noise Floor,
This timetable makes it clear that the transition to using CID does not come without changes and
source Newtec challenges. So, taking away the compulsory element of CID, is the end result worth the investment?
According to the IRG and Newtec survey there is no question CID is worth the investment. When
How Do Operators Get CID? asked the participants of the survey what the most important method is in overcoming satellite inter-
So what do satellite operators have to do to be able to solve interference so easily? For most, encour- ferences 25% answered the implementation of CID will bring our industry to the next level of service
aging their customers to include CID in their transmissions. According to the WBU-ISOG recommenda- availability (see Figure 7). Of course, next to CID, investment in operational training is the next big
tion, there are three key dates operators need to be aware of when completing the transition. thing to do. The survey also made it clear that, in addition to using CID to reduce the impact of inter-
ferences of SCPC/MCPC carriers, managing VSAT terminals is the third big thing to tackle.
As mentioned, the first is today (see Figure 1). From now on, operators need to include Carrier ID
18 Quarterly Newsletter

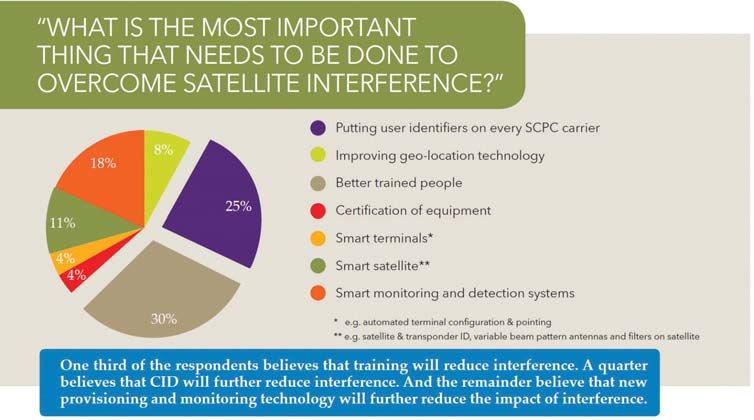

Figure 7. How to Overcome Satellite Interference, source CID industry survey by IRG and Newtec
Newtec was pleased with the response they had to the survey because it showed our industry is
engaged with the CID subject. The topic has clearly moved from talking about satellite interference to
what action should be taken to prevent satellite interferences. There are clear signs that operators,
services providers and broadcasters will be taking the necessary steps soon.
As to why the respondents to the Newtec and IRG survey are so keen on CID, operators need only
look as far as sports tournaments and the increasing demand for high quality broadcast to find the
answer. During the 2012 Olympics, 50% of satellite operators’ transmissions were implemented with
Carrier ID. The result was an improved transmission Quality of Service experience and reduced oper-
ating expenses with a noticeable reduction in interference, especially when compared with previous
tournaments. With other sporting events, such as the Winter Olympics, the FIFA World Cup and the
Commonwealth Games coming up, CID will be even more desirable to ensure the viewing experience
is as high a quality consumers expect it to be!
Steven Soenens is an experienced professional in product marketing, product man-
agement and engineering solutions for satcom, VSAT, multimedia contribution and distribu-
tion networks, streaming and OTT video. At present, Steven is responsible for the product
strategy and product management as VP Product Management within Newtec. Newtec
offers professional multiservice satellite solutions for video distribution and contribution, IP
trunking and acceleration, and broadband satellite access. In his career, Steven has taken
responsibility for worldwide product strategy and product management of video solutions
within Cisco Systems, Scientific-Atlanta and BarcoNet. Steven’s key areas of expertise are satellite communications, IP
networking, video compression, MPEG processing, ad-insertion, and N-Screen video solutions.
