Energy & Information Connected
Cable Management
RUNNUR by Clenergy is a robust and high corrosion resistance cable management system designed to handle bulk wires,
improve aesthetics and safety in establishments.
The RUNNUR Cable Trays, have been developed to manage information and energy cables in establishments where one can
easily achieve tees, bends, risers, and crosses by using only small accessories. Pre-Galvanised can be used only in indoor
applications, whereas the MAC steel (Zinc-Magnesium-Aluminium Coating), can be used in outdoor environments.
150mm
300mm

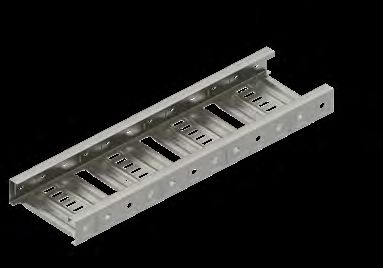

Cable Tray
Cover with “Warning Solar DC” Plain Cover
Finish Options
Pre-Galvanised
During fabrication, the material is rolled through molten zinc, and it receives coating coils of sheet steel. The final product is
suitable for extended exposure in dry, normal or mildly corrosive environments,
MAC Steel
This finish provides highly corrosive resistance to an outdoor environment. Compared to hot dipped galvanized material,
this finish receives mixing and bonding several times higher with Magnesium Zinc and Aluminium. If your application is for
a long-term outdoor exposure, MAC Steel is the desired choice.
LOAD RATING AND DEFLECTION
Cable Laying
Ordering Cable Laying Overall Width Side Rail
Width 3.0m 28kg Deflection 32mm
Code Depth (mm) (mm) Height (mm)
W (mm)
2.5m 40kg Deflection 22mm
SPAN
CR1-CT150G 150 43 172 50 2.0m 63kg Deflection 15mm
CR1-CT150M 150 43 172 50
1.5m 113kg Deflection 9mm
CR1-CT300G 300 43 322 50
LOAD PER METER
CR1-CT300M 300 43 322 50
Notes: 1. CR1 has been tested in accordance with NEMA VE1 standard by a NATA certified testing facility. The deflection for continuous span is
based on physical test results for easy reference. However, it cannot be applied to end spans. Please refer to NEMA VE2 installation guidelines for
cable tray installations.
2. Supplied in 3m length.
Ordering Code Nominal Width (mm) Overall Width (mm) Length (mm)
CR-CTFC150G 150 175 3000
CR-CTFCS150G 150 175 3000
CR-CTFC150M 150 175 3000
CR-CTFCS150M 150 175 3000
CR-CTFC300G 300 325 3000
CR-CTFCS300G 300 325 3000
CR-CTFC300M 300 325 3000
CR-CTFCS300M 300 325 3000
Supplied in 3m lengths
Cable Management
HOW TO ORDER CABLE TRAY
Example CR1-CT 150 G
Select Cable Tray Select Component Select Width (mm) Select Finish
CR: Clenergy RUNNUR CT: Cable Tray 150 G : Pre-Galvanised
CR1: Clenergy RUNNUR Series 1 CTFC: Cable Tray Flat Cover 300 M : Zinc/Magnesium/
CTFCS: Cable Tray Flat Cover with Aluminium Alloy
"Warning Solar DC" Coating
Cable Tray Accessories
Clenergy RUNNUR Cable Tray accessories is available to complement the Cable Tray and make it easy to achieve tees,
bends, risers, and crosses.
CR1-SPG, CR1-SPM CR1-RG, CR1-RM
Splice Plate Riser Link
2 Splices required per length of 6 Riser Links required to perform a
tray. Order fasteners separately for 90° set. Order fasteners separately
installation: for installation (per Riser Link):
2 x Splice Bolt 2 x Splice Bolt
2 x Counterbore Nut 2 x Counterbore Nut
CR1-TG, CR1-TM CR1-HG, CR1-HM
Tee/Cross Bracket Hold Down Unit
2 TX Brackets required to make a tee; Order fasteners separately for
4 required to make a cross. Order installation:
fasteners separately for installation 1 x Splice Bolt
(per Tee/Cross Bracket): 1 x Counterbore Nut
4 x Splice Bolt
4 x Counterbore Nut
CR1-RPG, CR1-RPM
CR-I-01 Radius Plate
Tin Interface for Cable Tray Standard 2.0m length. Order
fasteners separately for installation.
Approximate length required to make
a 150mm radius bend:
CR-SBS
Splice Bolt M10*20
Length Fasteners
Tray Width
Required Required
150mm 0.7m 6
CR-CS
300mm 0.9m 6
Counterbore Nut
HOW TO ORDER ACCESSORIES
Example CR1-SP G
Select Cable Tray Select Accessory Select Finish
CR1: Clenergy RUNNUR Series 1 SP: Splice Plate G: Pre-Galvanised
R: Riser Link M: Zinc/Magnesium/
T: Tee/Cross Braket Aluminium Alloy
RP: Radius Plate Coating
H: Hold Down Unit S: Stainless Steel
SB: Splice Bolt
CS: Counterbore NutCable Management
The MT-Rail Cable Tray have been developed to manage information and energy cables in PV system, which is made of
Aluminium and keep module interconnect cables neatly connected to the mounting rails so they do not drop below the array.
Work with the Cover for MT-Rail as a new solution for cable management.
LOAD PER METER
2.5m 38kg
2.0m 59kg
SPAN
1.5m 106kg
1.05m 239kg
EZ-CT-40/40/2560 CO-MT/855
MT-Rail Cable Tray Cover for MT-Rail
Finish Option
Mill Finish Aluminium
Aluminum alloy has low density but high strength. Good plasticity makes it can be easily manufacturing into various
profiles. It has excellent electrical conductivity, thermal conductivity and corrosion resistance. Which is widely used in
industry.
MT-Rail Cable Tray Accessories
CR-I-01 EZ-SP-MT/CT
Tin Interface for Cable Tray Splice Plate for MT-Rail
