Joint
Linear modular system
Joint is a slim linear system utilizing specifiable
modular connection types. It features custom
lengths and endless configurations.
Modification date: January,2025
Page 1 of 7
T 973 345 7660 Coronet reserves the right to make design changes.
a CarbonNeutral company

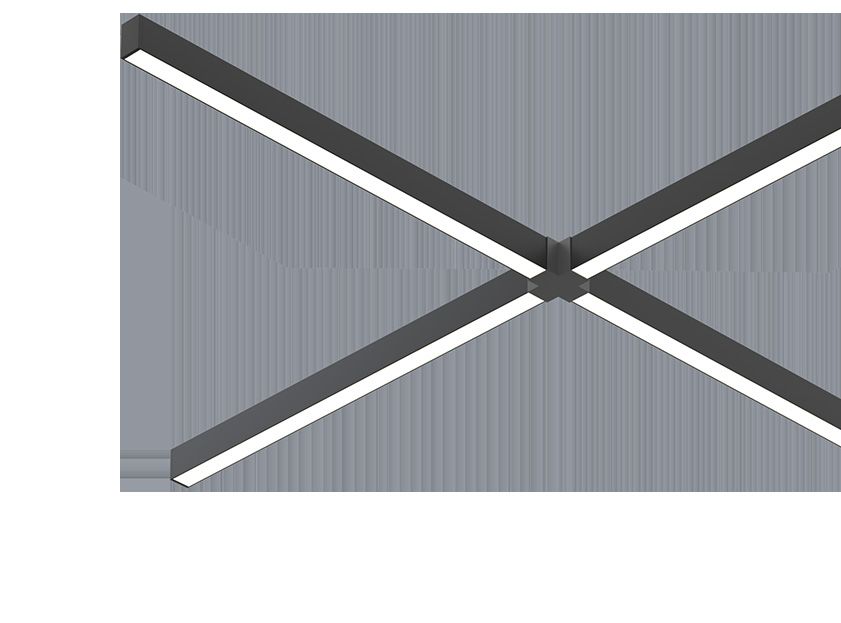

Joint Connector
Modular connection points for
linear patterns.
Features
• Several connection types for various configurations
• 30 degree elevations
• Extruded, recycled, premium aluminum
• 5 Year, 50,000 hour warranty, damp location rated
Ordering Information
1 Fixture ID 2 Connection Type 3 Finish
JOINT.CNCT 90° 90° Corner W White
120° 120° Corner BLK Black
Y 120° ‘Y’ Pattern
SLV Silver
X ‘X’ Pattern
T ‘T’ Pattern
CC Custom Color
See finish options here.
Drawing required upon ordering.
Dimensions
2.0”
2.0”
2.0” 1.4”
120°
30°
2.0” 120°
1.7” 1.5” 1.8” 2.0”
30°
90° ‘X’ Joint 120° ‘Y’ Joint 120° Joint 30° Down-Extender* 30° Up-Extender*
*to be used with joint *to be used with joint
1.5” 2.0”
1.1” 1.5”
1.5” 1.5”
1.0” 1.0”
90°
End Joint Straight Joint 90° Joint ‘T’ Joint
Modification date: January,2025
Page 2 of 7
T 973 345 7660 Coronet reserves the right to make design changes.
a CarbonNeutral company

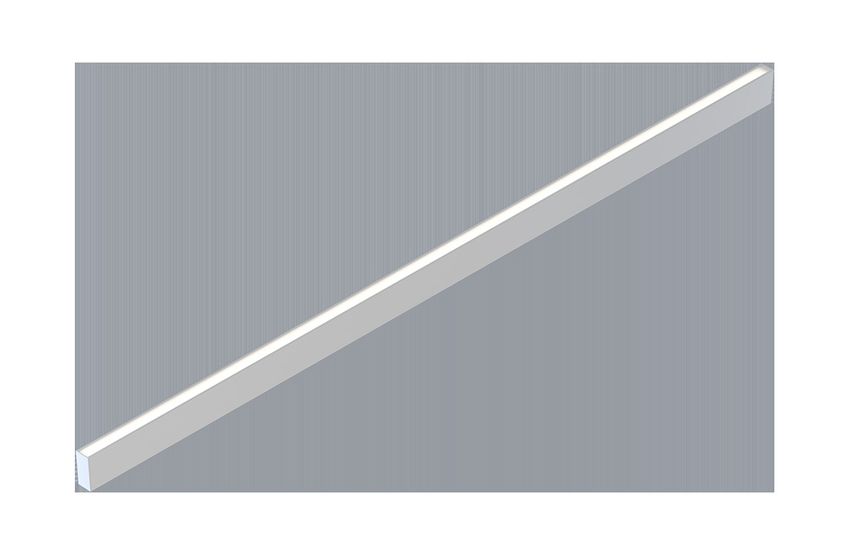

Joint - Linear direct
Linear component is available
in custom lengths and patterns.
Features Dimensions
• Extruded, recycled, premium aluminum housing
• Aluminum core LED boards, specifiable optics
• Specifiable color temperature. CRI > 90, R9 > 50 1.8"
• 5 Year, 50,000 hour warranty, damp location rated
.9"
Optics
314 cd 382 cd 508 cd
low medium high
Representative distribution and peak candela. For other options see order information or IES files here.
Modification date: January,2025
Page 3 of 7
T 973 345 7660 Coronet reserves the right to make design changes.a CarbonNeutral company
Joint - Linear direct
Ordering Information
For each option group below specify one option. If you don’t see your preferred option listed, contact us for help.
1 Fixture ID 2 Length 3 Color Temperature 4 Output
JOINT LIN 4 4 ft 27 2700K/90 CRI LOW Low output
8 8 ft 30 3000K/90 CRI MED Medium output
X’X’’ Specify Length 35 3500K/90 CRI HIGH High output
Precision lengths may be specified to
the nearest 1/8”. 40 4000K/90 CRI CUST Custom output
Specify watts or lumens
5 Voltage 6 Driver 7 Finish 8 Mounting
UNV Universal (120/277V) DB Standard 0-10V 1% W White AC Aircraft Cable
50” steel cable provided.
DB.1% 0-10V 0.1% BLK Black White canopies and power cord unless
option specified in section 12.
ELV Reverse Phase 1% (120V only) SLV Silver
For compatible dimmers, click here.
CC Custom Color AC3.5 3.5” canopy + Jbox adaptor
adaptor must be mudded in.
TRI Forward phase (120V only) See finish options here. White canopies and power cord unless
For compatible dimmers, click here. option specified in section 12.
LDE Lutron Digital EcoSystem
DALI DALI-2 Driver
PoE Power over Ethernet.
DMX DMX512
All DMX drivers set to default address
001 and provided in remote enclosers.
Contact us for other addressing needs.
All drivers provided in remote enclosures
9 Optics 10 Sensors/Controls 11 Circuit 12 Options
SD Standard Diffuser NA None NA None STD White canopy + white cord
ACM Acuity nLight Module Only EMPCK Emergency battery pack CAN.X Canopy + color
See finish options here.
CCS Casambi Module EMCKT Emergency circuit
May require additional power feeds. SJ.BLK Black cord
AWNR Lutron Athena Wireless Node
Module DAYCKT Daylight circuit SJ.WHT White cord
May require additional power feeds.
OTHER Consult Factory
Performance Technical Information
Output¹ Watts/ft Lumens/ft
Low 4 210 click here or
Medium 5 315 scan QR code
High 7 400
Based on a typically configured 90 CRI, 3500K luminaire using one driver.
1
Wiring diagrams, PoE and sensor details
Custom outputs available. Please consult factory.
For 4000K multiply by 1.05; for 3000K, 0.96; for 2700K, 0.92.
Modification date: January,2025
Page 4 of 7
T 973 345 7660 Coronet reserves the right to make design changes.a CarbonNeutral company

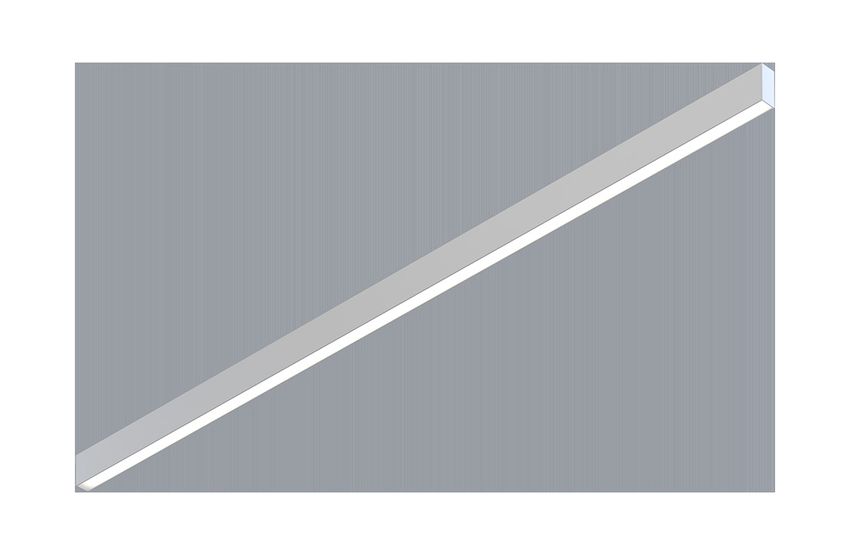

Joint - Linear indirect/direct
Linear component is available
in custom lengths and patterns.
Features Dimensions
• Extruded, recycled, premium aluminum housing
• Aluminum core LED boards, specifiable optics
• Specifiable color temperature. CRI > 90, R9 > 50 1.8"
• 5 Year, 50,000 hour warranty, damp location rated
.9"
Optics
550 cd 825 cd 1084 cd
382 cd 382 cd 508 cd
low medium high
Representative distribution and peak candela. For other options see order information or IES files here.
Modification date: January,2025
Page 5 of 7
T 973 345 7660 Coronet reserves the right to make design changes.a CarbonNeutral company
Joint - Linear indirect/direct
Ordering Information
For each option group below specify one option. If you don’t see your preferred option listed, contact us for help.
1 Fixture ID 2 Length 3 Color Temperature 4 Output
JOINT LIN UPDN 4 4 ft 27 2700K/90 CRI Indirect
8 8 ft 30 3000K/90 CRI LOW Low output
X’X’’ Specify Length 35 3500K/90 CRI MED Medium output
Precision lengths may be specified to
the nearest 1/8”. 40 4000K/90 CRI HIGH High output
CUST Custom output
Specify Watts or lumens
Direct
LOW Low output
MED Medium output
HIGH High output
CUST Custom output
Specify Watts or lumens.
5 Voltage 6 Driver 7 Finish 8 Mounting
UNV Universal (120/277V) DB Standard 0-10V 1% W White AC Aircraft Cable
50” steel cable provided.
DB.1% 0-10V 0.1% BLK Black White canopies and power cord unless
option specified in section 12.
ELV Reverse Phase 1% (120V only) SLV Silver
For compatible dimmers, click here.
CC Custom Color AC3.5 3.5” canopy + Jbox adaptor
adaptor must be mudded in.
TRI Forward phase (120V only) See finish options here. White canopies and power cord unless
For compatible dimmers, click here. option specified in section 12.
LDE Lutron Digital EcoSystem
DALI DALI-2 Driver
PoE Power over Ethernet.
DMX DMX512
All DMX drivers set to default address
001 and provided in remote enclosers.
Contact us for other addressing needs.
All drivers provided in remote enclosures
9 Optics 10 Sensors/Controls 11 Circuit 12 Options
Indirect NA None NA None STD White canopy + white cord
SD Standard Diffuser ACM Acuity nLight Module Only DC Dual circuit (separate CAN.X Canopy + color
See finish options here.
CCS Casambi Module indirect/direct control)
May require additional power feeds. SJ.BLK Black cord
AWNR Lutron Athena Wireless Node
Module EMPCK Emergency battery pack SJ.WHT White cord
OTHER Consult Factory EMCKT Emergency circuit
May require additional power feeds
Direct DAYCKT Daylight circuit
SD Standard Diffuser May require additional power feeds.
Performance Technical Information
Indirect Direct
Output¹
Watts/ft Lumens/ft Watts/ft Lumens/ft
Low 4 299 4 210 click here or
Medium 5 445 5 315 scan QR code
High 7 583 7 400
Based on a typically configured 90 CRI, 3500K luminaire using one driver.
1
Wiring diagrams, PoE and sensor details
Custom outputs available. Please consult factory.
For 4000K multiply by 1.05; for 3000K, 0.96; for 2700K, 0.92.
Modification date: January,2025
Page 6 of 7
T 973 345 7660 Coronet reserves the right to make design changes.a CarbonNeutral company
Joint
Drivers & Electrical Optics
Remote, dimmable drivers are supplied in enclosures. Extruded satin acrylic lenses provide excellent diffusion,
For remote driver box sizes, click here. high transmission, and no LED imaging.
Sensors & Controls Construction
Sensors are installed on an aluminum plate adjacent to the Housings are extruded premium, recycled aluminum.
luminaire lens1. Coronet remains agnostic in our approach to Individual fixtures are available up to 12’ long and may be
sensors and control systems; our fixtures are compatible with specified as nominal or precision lengths. Precision lengths
most systems offered. are supplied within 1/8” tolerance.
1Not applicable to indirect only models. Consult factory.
Emergency Back-Up Finishes
For fixtures three-feet or longer, a 6W emergency driver may All luminaires are finished in high quality polyester powder
be wired to 4ft sections. A 10W driver is also available (consult coating. Our standard color is white. Any RAL color may be
factory). Emergency circuits for use with building generators specified.
are also available.
PoE (Power over Ethernet)
Compatible with virtually all PoE systems including Molex
Coresync, Igor, Smartengine, Platformatics, and NuLED
SPICEbox.
Consult factory for systems not listed. See here for more info.
Weight
2 lbs per foot
Modification date: January,2025
Page 7 of 7
