CATALOG ULTIMATE M A R V I N S I G N AT U R E™ CO L L E C T I O N
MARVIN ®
THE MARVIN PORTFOLIO
Inspired by how people live, the Marvin portfolio is organized into three product collections–defined
by the degree of design detail and customization opportunities. Our thoughtful solutions provide
exceptional performance, energy efficiency, low maintenance, and quality you can see, feel, and touch,
making it easy to bring your vision to life.
MARVIN SIGNATURE TM
COLLEC TION MARVIN ELE VATE TM
MARVIN ESSENTIAL TM
Previously known as Marvin Windows and Doors COLLEC TION COLLEC TION
Includes Ultimate and Modern product lines Previously known as Integrity Wood-Ultrex Previously known as Integrity All Ultrex
Featuring the Ultimate and Modern product lines, the Marvin Signature collection The Elevate collection is thoughtfully designed to offer The Essential collection makes it easy to achieve design
offers the broadest range of product types, sizes, configurations, and design specifically-chosen features and options to help make your and quality with clean lines, streamlined options, and
options. Every detail is considered, delivering the highest level of architectural vision a reality. Warm wood interiors with strong, durable, powerful performance. Strong, durable, Ultrex fiberglass
correctness and unrivaled appeal. Ultrex fiberglass exteriors, provide the ideal combination
®
interiors and exteriors mean windows and doors that are
of beauty and strength. virtually maintenance free.
LEVEL OF DESIGN DETAIL AND CUSTOMIZATION LEVEL OF DESIGN DETAIL AND CUSTOMIZATION
More Flexible More Streamlined
2 3 4
MARVIN ®
Marvin SignatureTM collection
REDEFINING THE STANDARD
Part of the Signature collection, our Ultimate product line
unites beautiful design with exceptional craftsmanship.
Add character to almost any space with our most extensive
selection of shapes, styles, sizes, and options—including
wood interiors protected by tough aluminum exteriors.
With nearly limitless opportunities for customization,
Ultimate can match your vision—and give it room to grow.
About Us
At Marvin, we’re driven to imagine and create better ways of living,
helping people feel happier and healthier inside their homes.
We believe that our work isn’t just about designing better windows
and doors — it’s about opening new possibilities for the people
who use them.

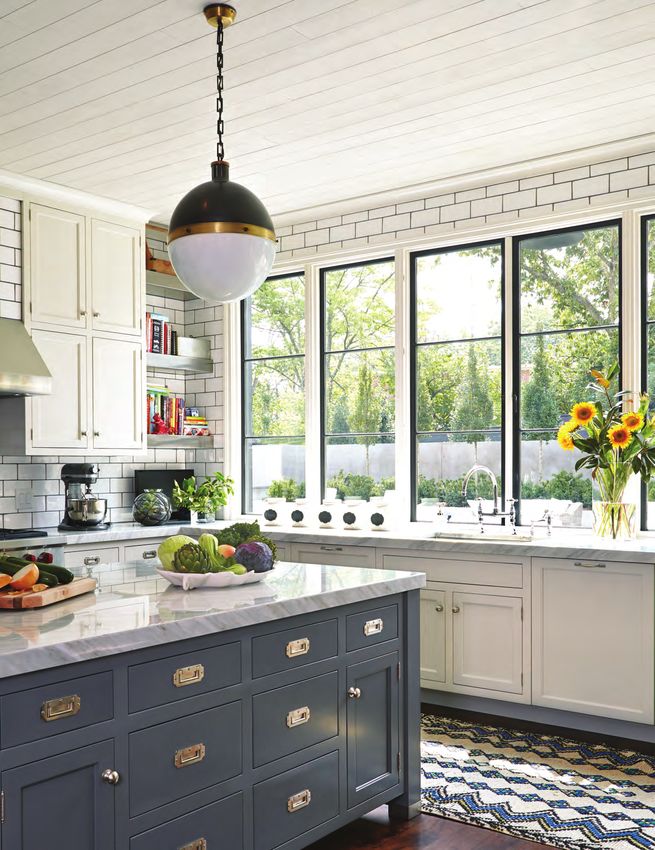

Casement windows in Bronze with Oil Rubbed Bronze hardware
5 6
MARVIN ®
TABLE OF CONTENTS
8 WINDOWS 58 ULTIMATE CORNER
10 WINDOW TERMS + DEFINITIONS 60 ULTIMATE CORNER NARROW FRAME
11 WINDOW OPERATING STYLES 62 ULTIMATE SPECIALTY SHAPES
12 DOUBLE HUNG WINDOWS 64 ULTIMATE TILT TURN + HOPPER
14 ULTIMATE DOUBLE HUNG G2 66 ULTIMATE BAY + BOW
18 ULTIMATE DOUBLE HUNG ROUND TOP G2 68 DOORS
20 ULTIMATE DOUBLE HUNG INSERT G2 70 DOOR TERMS + DEFINITIONS
22 ULTIMATE SINGLE HUNG G2 71 DOOR OPERATING STYLES
24 ULTIMATE DOUBLE HUNG TILT PAC SYSTEM 72 DOOR FEATURES + OPTIONS
26 WOOD EXTERIOR DOUBLE HUNG WINDOWS 74 ULTIMATE SWINGING FRENCH DOOR
28 CASEMENT + AWNING WINDOWS 76 ULTIMATE SLIDING FRENCH DOOR
30 ULTIMATE CASEMENT STYLES 78 ULTIMATE SLIDING PATIO DOOR
32 ULTIMATE CASEMENT EASY WASH MODE 80 ULTIMATE MULTI-SLIDE DOOR
33 ULTIMATE CASEMENT FEATURES + OPTIONS 82 ULTIMATE BI-FOLD DOOR
34 ULTIMATE CASEMENT 84 ULTIMATE LIFT AND SLIDE DOOR
ULTIMATE CASEMENT PUSH OUT
86 OPTIONS
36 ULTIMATE CASEMENT NARROW FRAME
88 INTERIOR FINISH OPTIONS
ULTIMATE CASEMENT PUSH OUT NARROW FRAME
90 EXTERIOR FINISH OPTIONS
38 ULTIMATE FRENCH CASEMENT
ULTIMATE FRENCH CASEMENT PUSH OUT 92 INTERIOR SHADES
40 ULTIMATE CASEMENT INSWING 94 EXTERIOR CASINGS + SUBSILLS
41 ULTIMATE CASEMENT ROUND TOP 96 DIVIDED LITES
42 ULTIMATE AWNING 98 GLASS + GLAZING
ULTIMATE AWNING PUSH OUT
100 WINDOW SAFETY
44 ULTIMATE AWNING NARROW FRAME
ULTIMATE AWNING PUSH OUT NARROW FRAME 102 HOME AUTOMATION
46 MORE WINDOWS 104 SCREENS
48 ULTIMATE GLIDER 108 WINDOW HARDWARE
50 ULTIMATE GLIDER BI-PARTING 110 DOOR HARDWARE
52 ULTIMATE VENTING PICTURE 112 GALLERY HARDWARE
54 ULTIMATE PICTURE 116 COASTAL PRODUCTS
56 ULTIMATE PICTURE NARROW FRAME

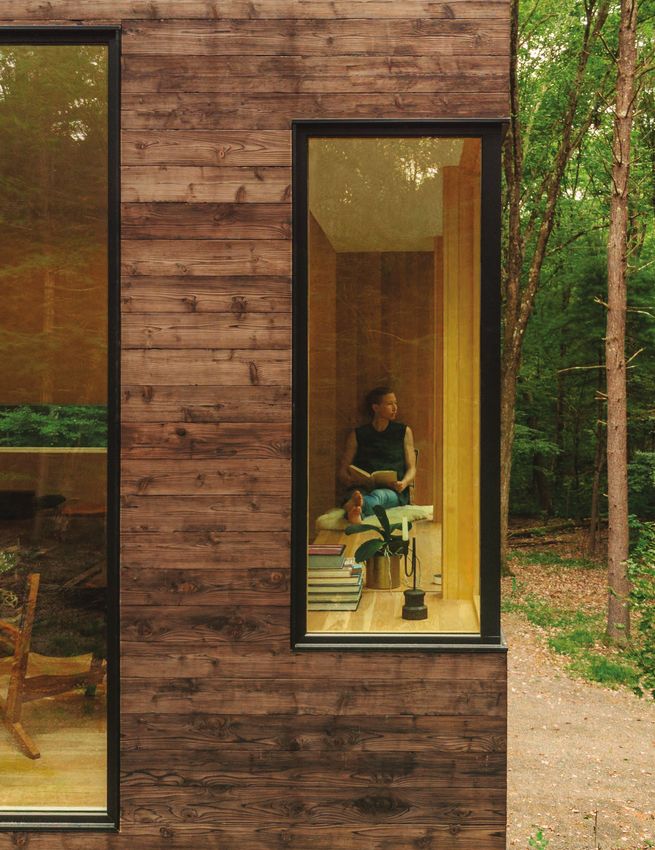

Corner Narrow Frame window in Ebony
7 8
MARVIN ®
WINDOWS

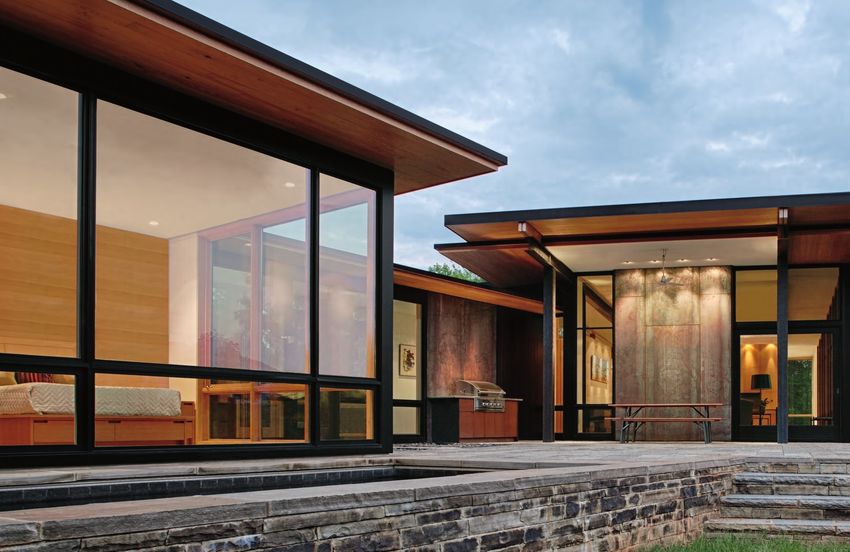

Awning and Picture windows in Ebony
9 10
MARVIN SIGNATURE TM COLLEC TION MARVIN ®
WINDOW TERMS AND DEFINITIONS WINDOW OPERATING STYLES
1 1. FR AME
There are three components to the frame:
the header across the top, the jambs down
each side, and the sill across the bottom.
Marvin frames are built strong with a variety
of high-quality wood species.
3
2. GL A ZING
The glass in a window is called glazing.
Marvin’s broad range of glazing options
can meet both high-performance and
refined aesthetic requirements.
DOUBLE HUNG C A SEMENT GLIDER
3. LITE Double hung windows have two A window that is hinged to its frame at A window with sash that slides
Each area of glass is called a lite. Marvin movable sash which operate vertically. the side and opens like a door. horizontally to open and close.
4 offers divided lite patterns for whatever
look you wish to create.
4. HARDWARE
Marvin uses only the highest quality locks,
handles, hinges, lifts, and pulls–in a wide
variety of durable finishes.
5. SA SH
The sash–operating or stationary–is
comprised of horizontal rails, vertical stiles,
and glazing. Marvin’s large solid sashes
offer precise fit and ease of operation.
AWNING FIXED
TILT TURN
An awning is hinged to the frame at An inoperable window with direct glaze A European-style, dual function window
2 the top and opens outward. If hinged or in-sash configurations. Available in a that can swing in like a casement or
on the bottom, it’s called a hopper. wide range of polygon and radius shapes. open at the top like a hopper.
5
MORE FLEXIBILITY TO MEET ANY
DESIGN CHALLENGE.
Marvin has an extensive selection of styles, sizes, shapes, and options.
11 12
MARVIN ®
DOUBLE HUNG WINDOWS
Marvin double hung windows combine state-of-the-art design with classic style.
Advanced engineering and high-quality construction make our double hung
windows incredibly durable, versatile, and easy to use.
Double Hung G2 windows in Ebony Photographer: Laurey W. Glenn
13 14
MARVIN SIGNATURE TM COLLEC TION MARVIN ®
ULTIMATE DOUBLE HUNG G2
Double Hung G2 windows in Ebony
ULTIMATE DOUBLE HUNG G2
The Ultimate Double Hung G2 window is an embodiment of our dedication to the craft of creating
windows and doors. Influenced by the rich, historical significance of this window style and inspired by
innovative design, each feature is thoughtfully added and every detail is carefully considered. This is all
in service of shaping a window that deserves to be in the unique homes our customers desire.

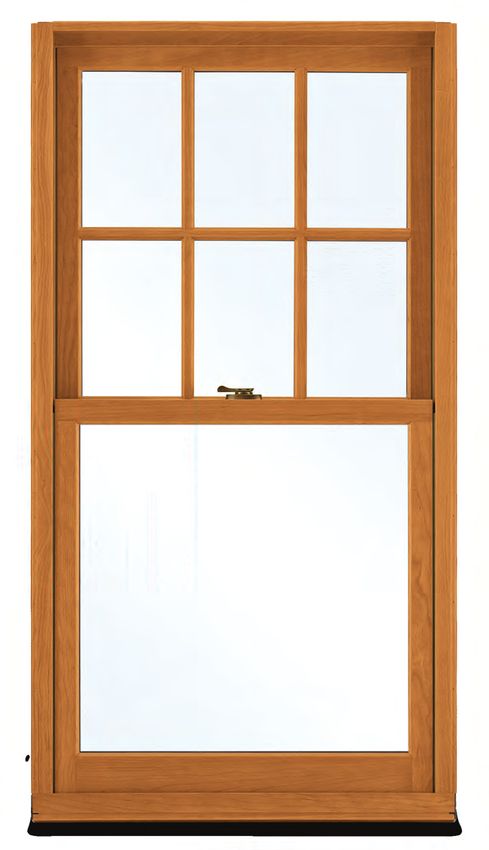

INTERIOR EXTERIOR WASH MODE WITH SASH LOCK IN ANTIQUE BRASS
Double Hung G2 window with Oil Rubbed Bronze hardware
15 THIS PRODUC T IS CE CERTIFIED 16
MARVIN SIGNATURE TM COLLEC TION MARVIN ®
ULTIMATE DOUBLE HUNG G2
Engineered for performance and designed to inspire, each aspect of the Ultimate Double Hung G2
window was made with purpose. Our engineers consider every detail from the most innovative
features to the most minute subtleties, all because the windows in your home help illuminate the
most important parts of your life.
INTERIOR FEATURES AND PERFORMANCE EXTERIOR FEATURES AND PERFORMANCE
INTERIOR SHADES
Integrate seamlessly into the DUR ABLE CL ADDING SUPERIOR WE ATHER
RICH WOOD INTERIOR
window without visible cords or Exterior cladding made with PERFORMANCE
Offers beauty and warmth
pulleys. The fit is precise with the industry’s highest level LC-PG50 on most sizes.
with six wood species and ten
virtually no light bleed. of certification, AAMA 2605, Optional commercial
interior finish options.
extruded aluminum and backed (CW) performance and
by a 20-year warranty against IZ3 certified coastal
NARROW CHECKR AIL chalking and fading. performance on most sizes.
E XCLUSIVE AUTOLOCK
Provides a sleek aesthetic at Activates when the sashes are
1 15/16 inches to maximize closed, locking the window.
daylight opening while DESIGN VERSATILIT Y
maintaining historical accuracy. An array of simulated divided
E XPANSIVE SIZES lite patterns, interior and exterior
FIRST-RATE ENERGY EFFICIENCY Larger than 5 feet wide by color options, ten hardware
TILT WA SH Meets ENERGY STAR ® 10 feet high. finishes, and archtop models.
Allows easy access to standards in energy efficiency
exterior glass for cleaning with multiple glass options for
and maintenance. various regions, climates, and
ALUMINUM INTER- LOCK
weather needs.
TR ADITIONAL SILL BE VEL
Eliminates drafts and
The 14-degree bevel provides improves the window’s
RETR AC TABLE SCREEN
optimal water management overall structural integrity.
A screen option that easily
retracts out of sight when SA SH BAL ANCE SYSTEMS while maintaining a classic look.
not in use and provides Enables smooth operation at
smooth, quiet operation. the largest sizes.
17 18
MARVIN SIGNATURE TM COLLEC TION MARVIN ®
ULTIMATE DOUBLE HUNG ROUND TOP G2
EYEBROW HALF CIRCLE EYEBROW HALF CIRCLE HALF
RADIUS TRANSOM TRANSOM RADIUS EYEBROW
ULTIMATE DOUBLE HUNG ROUND TOP G2
The Ultimate Double Hung Round Top G2 window will add traditional arching and elegant lines to your
home or historic preservation project. With the same features and grace of the Ultimate Double Hung G2
window, this window offers design flexibility with numerous variations of radius shapes. Choose from
multiple divided lite patterns to further enhance the arch of the window. These versatile windows–available in
a wide range of sizes–can provide a subtle accent or a dramatic focal point to enhance your home design.
ROUND TOP VARIATIONS
EYEBROW AND HALF EYEBROW
HALF CIRCLE RADIUS OPERATING DOUBLE HUNG
RADIUS OPERATING DOUBLE HUNG
A dramatic window with a true half circle arch. The look gives
A classic look with a gentle eyebrow radius. Beautiful as a
a beautifully smooth transition from jamb to header. Both
stand alone window or as part of an assembly.
sash are operable.
HALF CIRCLE TRANSOM
ASYMMETRIC CURVE OPERATING SINGLE HUNG
This simulated half circle transom window can be sized to
This striking window style adds elegant curve to a two-wide
stand alone or easily fit above a double hung window.
window assembly (not shown).
EYEBROW TRANSOM AND PICTURE
This stationary window is available as a transom or picture
window. These windows are designed to complement the
Ultimate Double Hung G2 window with correlating sizes
and matching springline.
Double Hung Round Top G2 windows with Satin Nickel hardware
19 THIS PRODUC T IS CE CERTIFIED 20MARVIN SIGNATURE TM COLLEC TION MARVIN ®
ULTIMATE DOUBLE HUNG INSERT G2
Double Hung Insert G2 windows with Matte Black hardware
ULTIMATE DOUBLE HUNG INSERT G2
The Ultimate Double Hung Insert G2 window adds quality craftsmanship, beauty, and energy efficiency
to your home without compromising architectural integrity. Its frame-in-frame design is built precisely
to seamlessly fit into your unique window opening, so there’s no need to remove the existing frame or
disturb the exterior or interior trim of your house. Ultimate Double Hung Insert G2 windows always fit
into your existing space and appear completely integrated into your home.
INTERIOR EXTERIOR SASH LOCK IN SATIN NICKEL
Double Hung Insert windows with Satin Nickel hardware
21 THIS PRODUC T IS CE CERTIFIED 22MARVIN SIGNATURE TM COLLEC TION MARVIN ®
ULTIMATE SINGLE HUNG G2
Single Hung G2 windows with Contemporary Lift Lock in Brass
ULTIMATE SINGLE HUNG G2
A contemporary classic, the Ultimate Single Hung G2 window blends traditional beauty and state-of-the-
art performance. With the top sash stationary and the bottom sash operable, a single hung style is often
preferred in a cottage-style window with a small top sash that doesn’t need to open. Reliable and energy
efficient, the Ultimate Single Hung G2 window offers an auto-lock feature for convenient security, durable
hardware for smooth operation, and Marvin’s unique Wash Mode for easy cleaning. Customize your
design with round top styles or optional Lift Lock, Marvin’s exclusive bottom rail locking mechanism for
easier operation in hard-to-reach areas.
INTERIOR WITH INTERIOR WITH CONTEMPORARY LIFT LOCK OPERATION SHOWN IN SATIN NICKEL
CONTEMPORARY LIFT LOCK TRADITIONAL LIFT LOCK
Single Hung G2 window with Traditional Lift Lock in Satin Chrome
23 THIS PRODUC T IS CE CERTIFIED 24MARVIN SIGNATURE TM COLLEC TION MARVIN ®
ULTIMATE DOUBLE HUNG TILT PAC SYSTEM
Double Hung Tilt Pac windows with White hardware
ULTIMATE DOUBLE HUNG TILT PAC
SASH REPLACEMENT SYSTEM
For home renovation projects where the frame is in good shape, the Ultimate Double Hung Tilt Pac®,
available in wood or aluminum clad exterior, allows you to simply and easily replace only the sash and
hardware with a fit so precise no one but you will know. In just four easy installation steps, you will enjoy
the benefits of increased energy efficiency with the convenience of two-handed tilt-to-clean operation.
It gives new life to old windows.
SASH LOCK SHOWN IN SATIN TAUPE
Double Hung Tilt Pac windows in Stone White
25 26MARVIN SIGNATURE TM COLLEC TION MARVIN ®
WOOD EXTERIOR DOUBLE HUNG WINDOWS
Wood Double Hung windows with custom stain
WOOD EXTERIOR DOUBLE HUNG WINDOWS
The Ultimate Wood Double/Single Hung, Ultimate Wood Double Hung Magnum, and Ultimate Wood
Double Hung Insert are quintessentially American windows designed to fit seamlessly into the historic
fabric of your home, neighborhood, or community. With residential and commercial applications, these
windows are perfect for any historic building.
ULTIMATE WOOD ULTIMATE WOOD ULTIMATE WOOD
DOUBLE/SINGLE HUNG DOUBLE HUNG MAGNUM DOUBLE HUNG INSERT
Casement windows in Bronze with Oil Rubbed Bronze hardware
27 28MARVIN ®
CASEMENT + AWNING WINDOWS
Marvin casements and awnings are innovative, high-performing windows.
Delivering exceptional versatility, streamlined sightlines, and clean profiles,
these state-of-the-art windows are designed to suit virtually any application.
Casement and Awning windows with Satin Nickel hardware
29 30MARVIN SIGNATURE TM COLLEC TION MARVIN ®
ULTIMATE CASEMENT STYLES
FULL FRAME OR NARROW FRAME
The Ultimate Casement and Ultimate Casement Narrow Frame windows are the most versatile and
innovative casement windows ever produced. Featuring concealed multi-point locks, a patented
Wash Mode, and durable hardware that operates smoothly even at the largest sizes.
ULTIMATE C A SEMENT
A recessed sash for
a traditional look,
plus a full jamb offers
design flexibility for
new construction or full
frame replacement.
ULTIMATE C A SEMENT
NARROW FR AME
A flush sash to the
exterior and narrow jamb
depth make this window
an easy choice for frame-
in-frame replacement or
more contemporary new
construction applications.
JAMBS + PROFILES
The Ultimate Casement
has a recessed sash for
a traditional or historic
look. The Ultimate
Casement Narrow Frame
has a flush-to-frame sash
for a contemporary look.
ULTIMATE CASEMENT ULTIMATE CASEMENT NARROW FRAME
4 9/16" FULL JAMB 2 3/16" NARROW JAMB
Casement and Picture windows with Satin Nickel hardware
31 32MARVIN SIGNATURE TM COLLEC TION MARVIN ®
ULTIMATE CASEMENT EASY WASH MODE ULTIMATE CASEMENT FEATURES + OPTIONS
With engineering that is only matched by its timeless
design, the Ultimate Casement window brings light and
air to your home in the easiest, most beautiful ways. The
Ultimate Casement operates in a way so revolutionary that
we’ve patented it, making Marvin the only place you’ll find
it. The hardware allows access to both sides of the glass
from the inside of your home, making window washing
stress and ladder free.
RE VOLUTIONARY WA SH MODE RETR AC TABLE SCREEN MULTI- POINT LOCKING SYSTEM ENDLESS DESIGN OPTIONS
1. Crank the handle twice. When a screen is needed, simply glide Multi-point locking mechanisms make A variety of divided lite patterns,
2. Push down on the hardware arm, and push the window the retractable screen across the window large casements easy to operate, and including a double hung look make
away. Then crank the arm back. to put the screen in place. Opened or enhance performance. energy-efficient casements the perfect
closed, the screen effortlessly integrates replacement window in older homes.
3. Swing the window all the way open, pulling it across into the jamb of the window.
toward the lock for accessibility to exterior glass.
40"
MAXIMUM SIZE
Largest size with MAX WIDTH
40" x 96 1/8"
96 1/8"
Largest size with MAX HEIGHT
36" x 102"
L ARGE SIZES OPEN WITH E A SE WINDOW OPENING CONTROL DEVICE FRIC TION LIMITER
1 We have developed the most durable Limits the casement sash opening to Flip a lever to lock the sash securely in
hardware in the industry, which provides 4 inches or less when engaged. The place at multiple set angles, allowing
easy opening and smooth operation release mechanism allows for operation you to open your window on windy
on even the largest casements. beyond 4 inches. This option meets the days. Available for push out only.
ASTM F2090-10 standard.
ENDLESS OPTIONS TO DESIGN
2 3
MORE OF WHAT YOU IMAGINE.
Marvin exclusive Wash Mode not available on Ultimate Casement windows in sizes less than
33 34
20 inches wide or Ultimate French Casement, Ultimate Awning, or Round Top windows.MARVIN SIGNATURE TM COLLEC TION MARVIN ®
ULTIMATE CASEMENT
Casement windows with Matte Black hardware
ULTIMATE CASEMENT
The Ultimate Casement window is offered in some of the largest sizes in the industry, with a secure multi-
point lock, durable hardware that ensures smooth operation, and Marvin’s exclusive Wash Mode for easy
cleaning–even on upper floors. With many design options, including round top shapes, the Ultimate
Casement window flexes to fit your vision and can be sized to complement the most expansive views.
ULTIMATE CASEMENT INTERIOR ULTIMATE CASEMENT EXTERIOR ULTIMATE CASEMENT PUSH OUT INTERIOR WITH PUSH OUT HANDLE
WITH FOLDING HANDLE WITH FOLDING HANDLE
Casement and Picture windows with Satin Nickel hardware
35 THIS PRODUC T IS CE CERTIFIED 36
(ULTIMATE CASEMENT NARROW FRAME - CLAD ONLY)MARVIN SIGNATURE TM COLLEC TION MARVIN ®
ULTIMATE CASEMENT NARROW FRAME
Casement Narrow Frame windows in Ebony
ULTIMATE CASEMENT NARROW FRAME
The Ultimate Casement Narrow Frame window is a contemporary option with a flush exterior and narrow
jamb ideal for frame-in-frame replacement–allowing quick and easy installation without disturbing the
existing frame or interior wall. With its sleek design and square profiles, this window is a great fit for new
construction or remodeling projects that call for slim lines and maximum views.
ULTIMATE CASEMENT ULTIMATE CASEMENT ULTIMATE CASEMENT PUSH OUT NARROW FRAME WITH PUSH OUT HANDLE
NARROW FRAME INTERIOR NARROW FRAME EXTERIOR
WITH FOLDING HANDLE WITH FOLDING HANDLE
Casement Narrow Frame windows with Oil Rubbed Bronze hardware
37 THIS PRODUC T IS CE CERTIFIED 38
(ULTIMATE CASEMENT PUSH OUT NARROW FRAME - CLAD ONLY)MARVIN SIGNATURE TM COLLEC TION MARVIN ®
ULTIMATE FRENCH CASEMENT
French Casement with Oil Rubbed Bronze folding hardware
ULTIMATE FRENCH CASEMENT
The Ultimate French Casement pairs expert engineering with thoughtful design to offer a beautiful
architectural window that won’t compromise on performance or energy efficiency. The Ultimate
French Casement has no center vertical post and opens like a French door. Simply crank open each
independent sash or push out each sash and enjoy an unobstructed view.
ULTIMATE FRENCH CASEMENT ULTIMATE FRENCH CASEMENT PUSH OUT ULTIMATE FRENCH CASEMENT PUSH OUT
INTERIOR WITH FOLDING HANDLES INTERIOR WITH PUSH OUT HANDLES EXTERIOR WITH PUSH OUT HANDLES
French Casement Push Out and Direct Glaze Specialty Shape windows
39 40MARVIN SIGNATURE TM COLLEC TION MARVIN ®
ULTIMATE CASEMENT INSWING ULTIMATE CASEMENT ROUND TOP
HALF CIRCLE RADIUS HALF CIRCLE RADIUS ULTIMATE EYEBROW RADIUS HALF CIRCLE RADIUS
ULTIMATE CASEMENT FRENCH CASEMENT PUSH OUT ULTIMATE CASEMENT ULTIMATE CASEMENT
Casement Inswing windows with Antique Brass hardware
ULTIMATE CASEMENT INSWING ULTIMATE CASEMENT ROUND TOP
The Ultimate Casement Inswing window complements classic architectural styles. Inswing casements are The Ultimate Casement Round Top window is a great choice for designs that require
particularly desirable where an outswing window would interfere with a patio, deck, or outdoor walkway. The large unobstructed views and the elegance of an arched shape. You can select from
Ultimate Casement Inswing can open from 90 to 180-degrees, so it is completely out of the way when open. numerous round top shapes for design flexibility. The window can be used alone as a
Also available in a French Casement Inswing for a wide view with no center post to spoil the scenery. focal point or in combination with other windows.
ROUND TOP VARIATIONS
HALF CIRCLE RADIUS OPERATING CASEMENT EYEBROW RADIUS OPERATING CASEMENT
A dramatic window with a true half circle arch. The look A classic look with a gentle eyebrow radius. Beautiful
gives a beautifully smooth transition from jamb to header. as a stand alone window or as part of an assembly.
HALF CIRCLE RADIUS OPERATING FRENCH CASEMENT TRANSOM
This striking window style adds an elegant curve to a double Stationary windows with either eyebrow or half circle arches
sash window with no center post for a wide-open view. can be sized to stand alone or easily fit above a casement.
INTERIOR CLOSED INTERIOR OPEN EXTERIOR INSWING HARDWARE IN OIL RUBBED BRONZE
41 THIS PRODUC T IS CE CERTIFIED THIS PRODUC T IS CE CERTIFIED 42
(CLAD ONLY) (EXCLUDING ULTIMATE CASEMENT NARROW FRAME ROUND TOP + ULTIMATE FRENCH CASEMENT ROUND TOP)MARVIN SIGNATURE TM COLLEC TION MARVIN ®
ULTIMATE AWNING
Awning and Picture windows in Ebony
ULTIMATE AWNING
A top-hinged alternative or complement to a casement window, the Ultimate Awning window is designed
for performance and quality. With industry-leading sizes, the Ultimate Awning can be used on its own as
a convenient option for hard to reach areas like over a sink or counter, or as a complement to adjacent
windows, allowing fresh air access.
ULTIMATE AWNING ULTIMATE AWNING PUSH OUT
WITH FOLDING HANDLE IN SATIN NICKEL WITH PUSH OUT HANDLE IN OIL RUBBED BRONZE
Awning and Picture windows and Sliding Patio doors
43 THIS PRODUC T IS CE CERTIFIED 44MARVIN SIGNATURE TM COLLEC TION MARVIN ®
ULTIMATE AWNING NARROW FRAME
Awning Narrow Frame windows with White hardware
ULTIMATE AWNING NARROW FRAME
The Ultimate Awning Narrow Frame window is a sleek and versatile top-hinged window with a flush exterior
profile and narrow frame–meaning it can be installed without removing the existing window frame or
disrupting interior or exterior trim. The Ultimate Awning Narrow Frame window’s contemporary aesthetic looks
beautiful on its own or as a complement to narrow frame casement or picture windows. Hardware located at
the bottom of the window means easy operation–even in hard to reach areas like over a kitchen sink.
ULTIMATE AWNING NARROW FRAME ULTIMATE AWNING PUSH OUT NARROW FRAME
WITH FOLDING HANDLE IN SATIN NICKEL WITH PUSH OUT HANDLE IN OIL RUBBED BRONZE
Awning Narrow Frame windows with White hardware
45 THIS PRODUC T IS CE CERTIFIED 46MARVIN ®
MORE WINDOW STYLES
Distinctive spaces demand distinctive windows. Marvin offers a wide
variety of shapes, sizes, and operating styles to exactly match the design
requirements of any building project.
Picture and Specialty Shape windows
46 47MARVIN SIGNATURE TM COLLEC TION MARVIN ®
ULTIMATE GLIDER
Glider window with Satin Taupe hardware
ULTIMATE GLIDER
The clean look and contemporary styling of Ultimate Glider windows is complemented by innovative
performance features and beautiful design options. Comfortable ergonomics make the windows
effortless to operate. The clean lines complement any room and any décor. But the real beauty is the
easy, one-handed locking system, which enables smooth operation.
INTERIOR EXTERIOR FOLDING HANDLE IN SATIN TAUPE
Glider window with Matte Black hardware
48 THIS PRODUC T IS CE CERTIFIED 49
(CLAD ONLY)MARVIN SIGNATURE TM COLLEC TION MARVIN ®
ULTIMATE GLIDER BI-PARTING
Glider Bi-parting window in Ebony
ULTIMATE GLIDER BI-PARTING
The Ultimate Glider Bi-parting is a stunning variation on the clean, contemporary look of a glider window.
Two center panels slide to each side of the window, providing an unobstructed opening. A fixed glazed
sash on either side of the window frames the two center panels. Perfect for the indoor/outdoor lifestyle,
the Ultimate Glider Bi-parting window makes a large and easy pass-through from kitchen to outdoor
dining or living space.
INTERIOR EXTERIOR
Glider Bi-parting window in White painted interior finish
50 51MARVIN SIGNATURE TM COLLEC TION MARVIN ®
ULTIMATE VENTING PICTURE
Venting Picture window in Stone White
ULTIMATE VENTING PICTURE
The Ultimate Venting Picture window–exclusive to Marvin–is a beautiful way to bring natural light into
a room or to highlight an expansive outdoor view. It can also be a source of fresh air. Designed with a
patented hidden screen system, it opens evenly on all sides for passive air exchange, adding comfort
and air flow to your home.
INTERIOR EXTERIOR VENTILATION SCREEN
Venting Picture windows in White painted interior finish
52 THIS PRODUC T IS CE CERTIFIED 53
(CLAD ONLY)MARVIN SIGNATURE TM COLLEC TION MARVIN ®
ULTIMATE PICTURE
Picture and Awning windows in White painted interior finish
ULTIMATE PICTURE
The Ultimate Picture window offers a classic style in a non-operable window, bringing natural light into a
room or highlighting an unobstructed outdoor view. Durable and energy efficient, it can be sized to match
accompanying double hung, single hung, or casement windows. An aluminum-clad exterior provides
durability and flexible finish options, or an all-wood option is ideal for historic renovation projects where a
wood exterior is needed to match original architectural details.
DIREC T GL A ZE
Direct glaze refers to a window
with no sash. The glass is
glazed directly into the frame
and is stationary.
IN-SA SH
In-sash windows are non-
operable, and they can match
the profiles of windows with
operable sashes.
DIRECT GLAZE PICTURE WINDOW IN-SASH PICTURE WINDOW
Casement and Direct Glaze Picture windows
54 THIS PRODUC T IS CE CERTIFIED 55MARVIN SIGNATURE TM COLLEC TION MARVIN ®
ULTIMATE PICTURE NARROW FRAME
Picture Narrow Frame windows in Bronze
ULTIMATE PICTURE NARROW FRAME
Homes designed to express a unique vision need windows to match. The contemporary look of the Ultimate
Picture Narrow Frame window blurs the line between inside and outside with clean lines, narrow frames,
and an almost unlimited selection of shapes and sizes. Ideal for transforming multiple units into stunning
window wall configurations, the Ultimate Picture Narrow Frame window is available in sizes up to 86 inches
wide and 146 inches high.
DIREC T GL A ZE
Direct glaze refers to a window
with no sash. The glass is
glazed directly into the frame
and is stationary.
IN-SA SH
In-sash windows are non-
operable, and they can match
the profiles of windows with
operable sashes.
DIRECT GLAZE PICTURE NARROW FRAME IN-SASH PICTURE NARROW FRAME
Picture Narrow Frame windows in Designer Black painted interior finish
56 THIS PRODUC T IS CE CERTIFIED 57MARVIN SIGNATURE TM COLLEC TION MARVIN ®
ULTIMATE CORNER
Corner and Picture windows in Bronze
ULTIMATE CORNER
Make the most of your panoramic views by incorporating corner windows as a design focal point. Corner
windows flood a room with natural light, and a stacked assembly can be a bold architectural statement
for both the interior and exterior. Clear sightlines from multiple angles enhance the breathtaking view.
CORNER DETAILS
The clad cap on the exterior and wood cap on the interior
create a clean aesthetic and minimal visual disruption to
the open view
INTERIOR EXTERIOR INTERIOR CLOSE UP EXTERIOR CLOSE UP
SHOWN IN DESIGNER BLACK SHOWN IN LIBERTY BRONZE
Corner and Picture windows
58 59MARVIN SIGNATURE TM COLLEC TION MARVIN ®
ULTIMATE CORNER NARROW FRAME
Corner Narrow Frame and Picture Narrow Frame windows in Bronze
ULTIMATE CORNER NARROW FRAME
The Ultimate Corner Narrow Frame window makes a streamlined architectural statement in expansive
sizes, combining narrow profiles and clean lines with industry-leading performance. Pair this corner
window with other Marvin narrow frame windows for consistent sightlines that maximize glass and views.
CORNER DETAILS
The clad cap sits flush on the exterior creating a clean-lined
contemporary aesthetic. On the interior, the corner cap is
stepped with a square profile.
INTERIOR EXTERIOR INTERIOR CLOSE UP EXTERIOR CLOSE UP
Corner Narrow Frame window in Designer Black painted interior finish
60 61MARVIN SIGNATURE TM COLLEC TION MARVIN ®
ULTIMATE SPECIALTY SHAPES
Awning and Specialty Shape windows and Sliding French doors
ULTIMATE SPECIALTY SHAPES
The Ultimate Specialty Shape windows are available in hundreds of geometric shapes–customized to
add special flair to a window design. Many are available as operating windows, providing access to fresh
air in addition to unique aesthetics.
TRAPEZOID (R & L) ISOSCELES TRIANGLE RECTANGLE
PENTAGON OCTAGON 90˚ TRIANGLE (R & L)
INTERIOR EXTERIOR
ULTIMATE CASEMENT ULTIMATE CASEMENT
Specialty Shape Direct Glaze windows
62 63MARVIN SIGNATURE TM COLLEC TION MARVIN ®
ULTIMATE TILT TURN + HOPPER
Hopper with Satin Chrome hardware
ULTIMATE TILT TURN ULTIMATE HOPPER
The Ultimate Tilt Turn window is a European-style window The Ultimate Hopper window with a bottom-hinged
with two distinct functions: swing it in like a door or tilt tilt-in operation is the perfect companion to the Ultimate
the top of the sash into your room for ventilation. One Tilt Turn. It can be a smart solution for adding fresh air
handle controls both operations. The Ultimate Tilt Turn or light in a lower level, or in combination with a non-
is a great window for unique situations where you want operating window.
additional ventilation or access.
INTERIOR INTERIOR ULTIMATE HOPPER INTERIOR INTERIOR OPEN
SIDE SWING OPEN BOTTOM TILT OPEN
Tilt Turn window with Satin Taupe hardware
64 THIS PRODUC T IS CE CERTIFIED 65MARVIN SIGNATURE TM COLLEC TION MARVIN ®
ULTIMATE BAY + BOW
Bow window
ULTIMATE BAY ULTIMATE BOW
Ultimate Bay windows are a group of connected windows Ultimate Bow windows are a series of windows connected
extending outward from a room at desired angles– to form a gentle outward curve. Typically made up of
allowing light and views from multiple directions. Some four or more windows, Ultimate Bow windows can create
feature a larger operating or stationary window flanked by a small nook, open up a view, bring in more light, and
smaller windows. Ultimate Bay windows can create space boost visual appeal from inside and out. Bow windows are
indoors for a cozy nook or window seat, or maximize a available with casement, double hung, or picture windows.
scenic view to serve as a room’s focal point.
INTERIOR BAY WITH ULTIMATE INTERIOR BOW WITH ULTIMATE
CASEMENT AND PICTURE WINDOWS CASEMENT AND PICTURE WINDOWS
Bay window
66 THIS PRODUC T IS CE CERTIFIED 67
(CLAD ONLY)MARVIN ®
DOORS
Multi-Slide doors in Bronze
68 69MARVIN SIGNATURE TM COLLEC TION MARVIN ®
DOOR TERMS + DEFINITIONS DOOR OPERATING STYLES
1 1. FR AME
The door frame includes the head jamb
across the top, side jambs and the sill at the
2 bottom. Marvin frames are built strong to
stand up to heavy door usage year after year.
2. R AIL
The horizontal wood members of a door
are called rails, the vertical components
are called stiles. The bottom rail on a
French door design is about 8 inches
OUTSWING DOOR INSWING DOOR SLIDING DOOR
high, harmonizing with traditional design
Single or double swinging doors open Single or double swinging doors open Save space with a door panel that
preferences. On other doors, narrow
to the exterior. to the interior. operates by sliding along a track.
bottom rails match 4 3/4 inch stiles for a
clean, uncluttered appearance.
3. SILL
Our door sills are made of Ultrex®, pultruded
4 fiberglass based materials that are
virtually impervious to time, weather, and
pressure. Ultrex door sills provide excellent
performance in hot or cold climates, plus
durability over the long haul by being
resistant to warping, denting, and fading.
4. PANEL S
In a door, the panel is the main section, BI- FOLD DOOR LIF T AND SLIDE DOOR
MULTI-SLIDE DOOR
operating or stationary, that is installed This door folds to the side and can For openings as large as 48 feet Another option to blend interior
into the frame. Marvin doors come in include up to sixteen panels. wide and 12 feet high, substantial and outdoor living with a modular
many sizes, some of the industry’s largest, door panels fully open into pocket frame system.
but all share the tight tolerances for fit and or stacked configurations.
quality finishes.
3
MAKE EVERY ENTRANCE GRAND
Marvin doors are designed to maximize the potential of
any opening, view, and living space.
70 71MARVIN ®
DOOR FEATURES + OPTIONS
BE AUT Y WITH PERFORMANCE SOLID WOOD PANEL S + FR AMES MULTI- POINT LOCKING SYSTEM
Designed for durability and to The sound of a Marvin door closing is a Concealed stainless steel head and
minimize air and water infiltration. quiet statement of quality. Wood in the foot bolts within the door secure it
Many of our door products are panels and frames make for an elegant, solidly at three points. Choose either
certified to a light commercial rating crafted look and feel, and provide a a keyed or non-keyed lever handle.
of PG40, which means longevity and weather-tight closure for outstanding Multi-point lock comes standard.
performance over time. energy efficiency.*
ADJUSTABLE HINGE LOW PROFILE SILL R AISED AND FL AT PANEL S
Standard on swinging doors, an This innovative sill option provides for Raised and flat panels add depth
adjustable hinge makes it easy to fine- a smooth transition between exterior and style to sliding and swinging
tune the fit of a swinging door over the and interior living spaces, and meets French doors, including arch top
door’s lifetime. Available in a variety of ADA compliance. Compatible with both swinging doors. Available in wood or
finishes, plus coastal options. wood and clad Ultimate Sliding French clad, this option changes the overall
and Ultimate Sliding Patio doors. aesthetic of your door when less than
a full lite of glass is desired.
Multi-Slide door
* Standard in 1 3/4" and available in 2 1/4" panel thickness.
72 73MARVIN SIGNATURE TM COLLEC TION MARVIN ®
ULTIMATE SWINGING FRENCH DOOR
Swinging French door and Picture windows
ULTIMATE SWINGING FRENCH DOOR
The Ultimate Swinging French door combines a classic single- and double-panel French style with expert
craftsmanship. Engineered for both quality and performance, this door features a beautiful, substantial
wood surround and a durable sill for weather protection even in harsh climates. To maximize views and
access to the outdoors, select from inswing or outswing operation in sizes up to 14 feet wide and 9 feet
high, and if a more streamlined look is desired, choose our short bottom rail option with sleek 4 ¾ inch
wood surround on all sides.
OUTSWING INTERIOR ARCH TOP INSWING INTERIOR INSWING INTERIOR WITH INSWING EXTERIOR WITH
WITH TALL BOTTOM RAIL WITH TALL BOTTOM RAIL SHORT BOTTOM RAIL SHORT BOTTOM RAIL
Inswing French door with Matte Black hardware
74 THIS PRODUC T IS CE CERTIFIED 75MARVIN SIGNATURE TM COLLEC TION MARVIN ®
ULTIMATE SLIDING FRENCH DOOR
Sliding French door with Simulated Divided Lites
ULTIMATE SLIDING FRENCH DOOR
For the classic elegance of the French door with smooth, space-saving operation, our Ultimate
Sliding French door is built to your specifications. With a rich, luxurious fit, feel, and finish, available in
configurations up to 16 feet wide and standard heights up to 9 feet, this door offers a view with a grand
entrance while conserving space for traffic flow or furniture layout. Available transom and stationary
panels further enhance the view, flooding the room with daylight.
INTERIOR EXTERIOR LOCKED AND UNLOCKED CONTEMPORARY SLIDING
HANDLE INTERIOR SHOWN IN MATTE BLACK
Sliding French door in Bronze
76 THIS PRODUC T IS CE CERTIFIED 77MARVIN SIGNATURE TM COLLEC TION MARVIN ®
ULTIMATE SLIDING PATIO DOOR
Sliding Patio doors and Awning windows
ULTIMATE SLIDING PATIO DOOR
Dependable Ultimate Sliding Patio doors are created for smooth operation, performance, and amazing
durability. Our tough Ultrex® sill withstands traffic and seasonal changes, contributing to both the door’s
energy efficiency and incredibly smooth operation. The contemporary 3 inch stiles and rails maximize your
view, while the two-point lock system enhances performance.
INTERIOR EXTERIOR LOCKED AND UNLOCKED CONTEMPORARY SLIDING
HANDLE INTERIOR SHOWN IN SATIN NICKEL
Sliding Patio door and Casement windows
78 THIS PRODUC T IS CE CERTIFIED 79MARVIN SIGNATURE TM COLLEC TION MARVIN ®
ULTIMATE MULTI-SLIDE DOOR
Multi-Slide door with Matte Black hardware
ULTIMATE MULTI-SLIDE DOOR
Marvin Scenic doors bring the outdoors in by elegantly
and effortlessly connecting your inside space with the
environment found right outside your doors. The Ultimate
Multi-Slide door is another option to blend indoor and
outdoor living, and the performance ratings of these doors
match the exceptional views they frame. They’re available
in styles up to six panels uni-directional or ten panels
bi-parting. Both pocket and stacked designs are available
with an optional Scenic door Ultimate Sliding Screen.
INTERIOR
HARDWARE AND SILL FEATURES DESIGN FLEXIBILITY
Pull and latch hardware provides easy operation and Available for pocket or stacked operation in openings up
squared-off corners for a clean, contemporary look. to 56 feet wide and 12 feet high. Pocket operation shown
Multi-Slide door with Matte Black hardware
above. Marvin now offers an option for automated operation.
80 THIS PRODUC T IS CE CERTIFIED 81MARVIN SIGNATURE TM COLLEC TION MARVIN ®
ULTIMATE BI-FOLD DOOR
Wood Bi-Fold door in Mahogany with Rocky Mountain Hardware
ULTIMATE BI-FOLD DOOR
The Ultimate Bi-Fold door, provides big glass and clean
design aesthetics to give homeowners more flexibility
and a deep indoor-outdoor connection. Spanning 55 feet
in width, the Ultimate Bi-Fold door is one of the widest
panel doors in the industry. Without question, the Marvin
Ultimate Bi-Fold door is a simple, elegant solution for
adjoining interior spaces or connecting to the outdoors.
Available with a wood or clad exterior.
INTERIOR
PERFORMANCE SILL PERFORMANCE SILL
(INTERIOR WOOD LINER) (EXTERIOR)
FLOOR CHANNEL LOW PROFILE SILL
SILL OPTIONS INTERIOR PANEL HANDLE
Choose from performance, low profile, and floor The interior panel handle features a minimalist design that
channel sill options. smoothly operates folding panels with a 90-degree twist and
Bi-Fold door in Ebony
latches at the head and sill.
82 83MARVIN SIGNATURE TM COLLEC TION MARVIN ®
ULTIMATE LIFT AND SLIDE DOOR
Lift and Slide door with custom stain
ULTIMATE LIFT AND SLIDE DOOR
With openings up to 48 feet wide and 12 feet high, now
you can add acres to your floor plan. Available with pocket
panels that slide into the wall, completely disappearing
from view, or stacked panels that slide and stack perfectly
within the door frame for a seamless transition from
outside to inside. Both are available with exclusive flush
mount handles and exterior finger pulls that virtually
disappear when not in use.
INTERIOR
HARDWARE OPTIONS POCKET AND STACKED OPERATION
Available with exclusive flush mount hardware, When open, panels either stack neatly or slide into the
interior finger pull, and optional exterior finger pull. wall cavity. They glide on the inconspicuous 3/16 inch
Lift and Slide door with custom stain
high exposed track.
84 85MARVIN ®
OPTIONS
Casement windows and Inswing French doors in Wineberry with Simulated Divided Lites
86 87MARVIN SIGNATURE TM COLLEC TION MARVIN ®
INTERIOR FINISH OPTIONS
PINE WOOD SPECIES STAIN + PAINT
Offering a rich, warm look, many custom options, When compared to painting or staining on the job site,
and design versatility, wood is a premium choice. factory-stained finishes offer consistent quality and
Wood can be used on both the interior and exterior performance resulting from our expertise with wood as
of a window or door. As a lower maintenance option, a material and years of perfecting our staining process.
wood can also be used on only the interior with an Painting on the job site or scheduling off-site finishing is
extruded aluminum cladding exterior. Marvin offers
VER TIC AL GR AIN an extra step that takes time and coordination. Choose our
DOUGL A S FIR both options, leading the industry in sourcing, painted interior finish option on any Marvin windows and
processing, and utilizing high quality wood. doors with a wood or clad exterior for a factory-painted
option that arrives ready to install.
DOUGL A S FIR
CLE AR
WHE AT
CHERRY
HONE Y
HA ZELNUT
WHITE OAK
LE ATHER
C ABERNET
MAHOGANY
ESPRESSO
DESIGNER BL ACK
MAPLE
Custom option
WHITE
PRIMED WHITE
BL ACK WALNUT
Custom option Wood Bi-Fold door in Mahogany
* Stain colors shown on Pine. To see more about finishes visit Marvin.com.
88 89MARVIN SIGNATURE TM COLLEC TION MARVIN ®
EXTERIOR FINISH OPTIONS
STONE WHITE
COCONUT CRE AM
SIERR A WHITE
C A SHMERE
EXTRUDED ALUMINUM
PEBBLE GR AY Extruded aluminum is an extremely tough
cladding that protects wood windows, mimics
the profiles of wood, and provides superior
HAMPTON SAGE
durability. It is the most commonly ordered
Marvin material.
C ADET GR AY Select a color from our palette of 19 durable
extruded aluminum colors, including a spectrum
of rich hues and three pearlescent finishes. If
CL AY
you have more specialized needs, we can also
work with you to create a custom color.
C A SC ADE BLUE
Ultimate Double Hung G2 window in Ebony
SUEDE WOOD SPECIES Ultimate Double Hung G2 window in Suede
Wood is a premium material for windows and
GUNMETAL doors, offering classic aesthetic appeal, many
options for customization, and design versatility.
WINEBERRY We treat exposed millwork with a water repellent
wood preservative to help it last longer. Choose
from one of the four options below. Each is
BRONZE ready to be finished to match your project’s
exacting requirements.
BAHAMA BROWN
PINE
E VERGREEN
EBONY VER TIC AL GR AIN
DOUGL A S FIR
BRIGHT SILVER (PE ARLESCENT)
MAHOGANY
COPPER (PE ARLESCENT)
WESTERN RED CEDAR
LIBER T Y BRONZE (PE ARLESCENT) Exterior trim package only
CUSTOM COLOR: ANY COLOR YOU WANT
90 91MARVIN SIGNATURE TM COLLEC TION MARVIN ®
INTERIOR SHADES
COLOR OPTIONS
WHITE*
EGGSHELL*
IVORY*
TAN*
INTERIOR SHADES STONE*
Designed for Marvin Signature Ultimate products only, our
shades are fully integrated, matching any current Marvin interior
finish and appearing as a seamless part of the window or door. BISCUIT
Functionally graceful, there are no visible cords or pulleys. There’s
no need for after-market retailers when you choose shades from
ALMOND
Marvin. It’s a one-stop shop—you don’t even need to measure for
installation. Adding beauty and functionality to a home through
integrated shades is now possible.
MARIGOLD
CHAMPAGNE
CINNAMON
DRIF T WOOD
ROSE
SILVER
DENIM
MOSS
INTERIOR SHADES SHOWN IN LIGHT-FILTERING ALMOND
Sliding French door in Pine with Honey Stain and Driftwood Shades
* Denotes colors are also available in blackout fabric.
92 93
Note: Interior Shades are available in the United States and Canada.MARVIN SIGNATURE TM COLLEC TION MARVIN ®
EXTERIOR CASINGS + SUBSILLS
EXTERIOR CASINGS + SUBSILLS
Adding Marvin clad or wood casings and subsills to your
windows and doors provides great architectural detail to any
home. Our clad casings are made of ultra-durable extruded
aluminum, which features a beautiful factory applied finish
that resists chalking, fading, pitting, corrosion, and marring.
Casing profiles are consistent around a window or door,
except for the Potter casing profile, which has a taller head.
Custom casings and subsills are also available.
BRICK MOULD CASING FLAT CASING
WITH A246 SUBSILL WITH A246 SUBSILL
Grayson Casing in Bronze
COLUMBUS CASING RIDGELAND CASING
WITH A1450 SUBSILL WITH A1453 SUBSILL
GRAYSON CASING THORTON CASING
WITH A1451 SUBSILL WITH A1450 SUBSILL
Potter Casing with A1451 Subsill in Cascade Blue
STRATTON CASING POTTER CASING
Brick Mould Casing and special subsill with custom mull cover in Hampton Sage WITH A1453 SUBSILL WITH A217 SUBSILL
94 95MARVIN SIGNATURE TM COLLEC TION MARVIN ®
DIVIDED LITES
DIVIDED LITES
The look of multiple, individual panes of glass in a window sash is popular in a wide range of
architectural styles–from historic replications to modern farmhouses. For those who seek historical
accuracy, authentic divided lites utilize many individual glass panes in a single window. Simulated
divided lites, available in a number of different styles, mimic the look of individual panes of glass in a
window sash without sacrificing the energy efficiency of a single pane of glass. Our custom capabilities
allow us to create almost any divided lite pattern to match your design style.
SIMULATED DIVIDED LITE (SDL) AUTHENTIC DIVIDED LITE (ADL) GRILLES-BETWEEN-THE-GLASS (GBG)
SDL bars are permanently adhered Separate panes of glass are glazed Grilles are permanently installed
to both sides of the glass. Simulated between bars — the way windows have between the glass panes. This low-
Divided Lites with Spacer Bars (SDLs) been made since the beginning. maintenance grille offers the look of
are an energy-efficient way to create Available exclusively with wood a divided lite pattern with the ease of
the look of authentic divided lites. exterior units. cleaning just one pane of glass. Available
with different interior and exterior colors.
FIVE STANDARD BAR WIDTHS
5/8" 7/8" (DEFAULT WIDTH) 1 1/8" 1 15⁄ 16" 2 13⁄ 32"
Casement windows with custom Simulated Divided Lites
STICKING AND PROFILES
Sticking refers to the interior profiles
of your wood window. Choose from
the standard Ogee profile (used on
OGEE
traditional projects) or the optional
clean, contemporary Square sticking.
SQUARE
SQUARE STICKING
96 97MARVIN SIGNATURE TM COLLEC TION MARVIN ®
GLASS + GLAZING
GLASS + GLAZING SPECIALTY GLASS
The thermal and structural properties of wood combined with Our specialty options include glass
the right glazing make Marvin wood and clad-wood products an for unique project needs like sound
optimal choice for energy efficiency. We offer thousands of window abatement (STC/OITC), high altitudes,
and door options with two or three panes of glass and a range of Sea Turtle Conservation Codes, and
glazing options to meet the performance challenges of any climate. California fire zones. We also offer
laminated glass on certain products
that’s designed specifically for
hurricane zones.
GLASS COATINGS A variety of decorative glass options
Low E coatings are microscopically thin, essentially invisible are available to meet the unique needs
coatings on the glass surface that help manage the amount of light of each project. Laminated glass is
and heat conducted through a window pane or reflected away from also available in clear, bronze, gray, or
it, reducing a home’s dependence on heat and air conditioning. green with tinted interlayers.
The national ENERGY STAR® program recognizes products that
meet strict energy-efficiency guidelines to suit climates in different
areas of the country, and Marvin offers products to meet climate
and code requirements in every region. OBSCURE
GLUE CHIP
LOW E1 LOW E2 LOW E3
R AIN
LOW E2 LOW E3
REED
LOW E2 LOW E3
LOW E3
NARROW REED
LOW E1 AQUALITE
Low E1 coating is a good choice when you want maximum solar
heat gain and radiant heating properties. This type of coating is
Awning and Picture windows and Outswing French door
generally used in Northern climates where heating is prioritized FLEMISH
over cooling. You’ll reap maximum benefits when windows with
this type of coating are positioned to receive direct sun exposure.
FROST
DUAL PANE GLAZING TRIPLE PANE GLAZING LOW E2
Our standard glazing is dual pane: Triple pane glazing consists of three The most common Low E coating since it works well across
two panes of glass with Low E panes of glass with Low E coatings most geographic regions and climates. Low E2 with two metallic BRONZE TINT
coatings and insulated with argon applied to the surface. Two glass coatings balances less solar heat gain and improved radiant
gas. Compared to a single glass pane, spaces are insulated with argon gas heating properties.
dual pane glass cuts energy costs between the panes. Available in GR AY TINT
significantly because of low emissivity products where glazing thickness LOW E3
coating and the gas filled insulating can be wider than 3/4 inch. Used in applications where solar heat gain may be a concern,
space between the glass layers. low E3 coating uses multiple metallic layers for radiant properties GREEN TINT
similar to Low E2. This type of coating is most commonly used in
Southern, sunny climates where cooling is prioritized over heating.
98 99MARVIN SIGNATURE TM COLLEC TION MARVIN ®
WINDOW SAFETY
Picture and Casement windows with Window Opening Control Devices
WINDOW OPENING CONTROL DEVICES
Marvin Window Opening Control Devices (WOCD) meet the ASTM F2090-10 standard, created to assist
in the prevention of window falls in children under five years old. To meet the standard, our devices limit
the window’s net clear opening to 4 inches or less when the sash is opened and have a release function
allowing the window to operate. In order to meet the safety standard, WOCD disengagement takes two
independent actions, which helps prevent accidental release. Devices will then automatically reengage
once the window is closed and again limit the window opening to 4 inches upon re-opening.
ULTIMATE CASEMENT ULTIMATE DOUBLE HUNG G2 ULTIMATE GLIDER
Casement windows with Window Opening Control Devices
100 101MARVIN SIGNATURE TM COLLEC TION MARVIN ®
HOME AUTOMATION
SLIDING DOOR AUTOMATIC CONTROL
Even though a large Ultimate Multi-Slide door slides open or closed with surprising ease, Marvin
now offers an option for automated operation. A motorized system can be activated with easy-to-use
touchpad controls. Prompt the quiet, motorized system with wall mounted touch pads or hand-held
remote. The Sliding Door Automatic Control can easily be adapted to interface with home automation
systems and smart phone technologies.
LOCK STATUS SENSOR
Lock Status Sensor brings smart home capabilities to Marvin
windows and doors. This affordable solution is installed
in the factory and fully concealed–meaning no unsightly
sensors attached on the exterior or interior, and no additional
modification of your product once installed. The sensor can
be wired or wirelessly connected, working in tandem with your
smart home security system to indicate if windows and doors
are closed and locked or unlocked, providing peace of mind
when security is a concern.
Casement windows and Sliding French door with concealed Lock Status Sensors
102 103MARVIN SIGNATURE TM COLLEC TION MARVIN ®
SCREENS
SCREENS
Choose from an aluminum surround in three finishes or a wood interior surround that complements warm
wood interiors and comes factory-prepped for staining and painting. A variety of screen mesh options in
aluminum or fiberglass allow for further customization for aesthetics or to ensure you’re choosing a mesh
that’s fine enough to keep even the littlest bugs away.
CASEMENT SCREEN OPTIONS
RETRACTABLE SCREEN INSWING CASEMENT SCREEN WOOD SCREEN SURROUND
The innovative Retractable Screen from The beautifully crafted inswing screen The patented wood screen surround
Marvin lets the breeze in and easily can bring in fresh air along with its with Hi-Transparency screen mesh and
retracts out of sight when not in use. A classic appearance to standard or aluminum exterior creates a seamless
tight seal and a strong adjustable pull round top casement windows. wood interior.
bar ensure extraordinary performance.
Marvin’s unique concealed design
makes the screen nearly undetectable
when it is in the retracted position.
SCREEN MESH OPTIONS
CHARCOAL CHARCOAL BLACK BRIGHT BRIGHT HI-TRANSPARENCY
Double Hung Insert G2 windows with Full Screens FIBERGLASS ALUMINUM WIRE ALUMINUM WIRE ALUMINUM WIRE BRONZE WIRE MESH
104 105MARVIN SIGNATURE TM COLLEC TION MARVIN ®
DOUBLE HUNG SCREEN OPTIONS DOOR SCREEN OPTIONS
RETRACTABLE SCREEN FULL OR HALF SCREEN ULTIMATE SWINGING SCREEN DOOR STANDARD SWINGING SCREEN DOOR ULTIMATE SLIDING SCREEN DOOR
The innovative Retractable Screen, available on the Ultimate Double Exterior screen with an aluminum Featuring panels of extruded aluminum This tough, extruded aluminum Aluminum top hung sliding screen
Hung G2 window, is a factory-installed screen that easily retracts out of surround. The full screen covers both for a beautiful millwork appearance with swinging screen door matches the with roller bar, adjustable rollers and
sight when not in use. The screen can be drawn to rest at one of two the top and bottom sash. The half traditional shadow-lines, this easy-to- door, made of the same thick metal unmatched sliding operation. The
stop points, resulting in a seal at either the sill or at the checkrail. screen only covers the bottom sash. install, easy-to-remove panel system as the cladding. Solid protection and exterior profile replicates the look of a
requires no tools and has a clean outstanding performance, with die traditional wood screen. Also available
exterior that blends into the door frame. cast handles, automatic closer, and in a standard top hung version for
Classic oval exterior handle and storm aluminum hinges. Ultimate Sliding French doors, Sliding
insert options are also available. Patio doors, and Ultimate Inswing doors.
DOUBLE HUNG STORM OPTIONS
STANDARD SLIDING SCREEN (NOT SHOWN)
Aluminum top hung sliding screen with adjustable rollers and replaceable bottom
guide. Available on wood and clad-wood sliding and inswing doors.
TOP-HUNG SCREEN (NOT SHOWN)
Aluminum top hung sliding screens come with adjustable rollers and replaceable
bottom guide for flawlessly smooth operation.
SCENIC DOOR SLIDING SCREEN (SHOWN ON LEFT)
The Marvin Ultimate Sliding Screen operates with ease and conceals when not in
use. The screen is unobtrusive even in large sizes measuring up to 12 feet wide and
up to 10 feet high uni-directional or up to 24 feet wide bi-parting.
TWO-LITE WOOD STORM STORM AND SCREEN COMBINATIONS ENERGY PANEL
SASH OR SCREEN A combination unit is composed of Often confused with storm windows,
A wood frame containing non- two glass panels and one screen panel an energy panel is technically a glazing
removable glass. The storm sash can that can be easily removed from the option. It is a removable, exterior
be removed during the summer and interior for cleaning. Available with a glass panel finished on the edges by
replaced with a wood framed screen. wood (bare or primed) or aluminum a surround. Energy panels cover the
Available only for wood windows. surround, panels can be configured exposed glass surface of each sash
multiple ways, glass above screen, and offer added energy efficiency for
screen above glass, or glass above glass. wood windows with single glazing.
106 107MARVIN SIGNATURE TM COLLEC TION MARVIN ®
WINDOW HARDWARE
WINDOW HARDWARE FINISHES
Marvin’s durable and elegant hardware is engineered to work seamlessly and to
MAT TE BL ACK
harmonize with any décor. Choose a finish to complement your architectural style.
Matte Black, Satin Taupe, Bronze, and White are painted finishes. These durable
finishes mimic the look of metal and present a practical alternative. Satin Nickel,
Brass, Antique Brass, Polished Chrome, Oil Rubbed Bronze, and Satin Chrome
BRONZE
offer the rich appearance and durability of authentic metal finishes.
OIL RUBBED
BRONZE
ANTIQUE BR A SS
AUTO-LOCKING TRADITIONAL CONTEMPORARY
HARDWARE SYSTEM LIFT LOCK LIFT LOCK
PRODUCTS: PRODUCTS: PRODUCTS:
Ultimate Double Hung G2 Ultimate Single Hung G2 Ultimate Single Hung G2
AVAILABLE FINISHES: AVAILABLE FINISHES: AVAILABLE FINISHES:
SATIN TAUPE
Matte Black • Brass • Satin Taupe Matte Black • Brass • Satin Taupe Matte Black • Satin Taupe • White
Satin Nickel • Bronze • White Satin Nickel • Bronze • White Satin Nickel • Brass • Satin Chrome
Antique Brass • Oil Rubbed Bronze Antique Brass • Oil Rubbed Bronze
Polished Chrome • Satin Chrome Polished Chrome • Satin Chrome
SATIN NICKEL
BR A SS
SASH LOCK* FOLDING HANDLE CRANK HANDLE
PRODUCTS: PRODUCTS: PRODUCTS:
Ultimate Tilt Pac Ultimate Casement • Ultimate Awning Ultimate Casement • Ultimate Awning
Ultimate Casement Narrow Frame Ultimate Casement Narrow Frame POLISHED
AVAILABLE FINISHES: Ultimate Awning Narrow Frame Ultimate Awning Narrow Frame
Satin Taupe • Bronze • Brass • White CHROME
AVAILABLE FINISHES: AVAILABLE FINISHES:
Matte Black • Brass • Satin Taupe Satin Taupe • Bronze • Brass • White
Satin Nickel • Bronze • White
Antique Brass • Oil Rubbed Bronze
Polished Chrome • Satin Chrome
SATIN CHROME
WHITE
PUSH OUT HANDLE** HANDLE FOLDING HANDLE
PRODUCTS: PRODUCTS: PRODUCTS:
Ultimate Casement • Ultimate Awning Ultimate Tilt Turn (Key option available†) Ultimate Glider
Ultimate Casement Narrow Frame
Ultimate Awning Narrow Frame AVAILABLE FINISHES: AVAILABLE FINISHES:
Satin Taupe • Bronze • Brass • White Matte Black • Brass • Satin Chrome
AVAILABLE FINISHES: Satin Nickel • Bronze • White • Satin Taupe
Matte Black • Brass • Satin Taupe Antique Brass • Oil Rubbed Bronze
Satin Nickel • Bronze • White
Antique Brass • Oil Rubbed Bronze
Polished Chrome • Satin Chrome
Double Hung G2 with Auto-locking Sash Lock in Satin Nickel
* Also available as keyed sash lock in Satin Taupe, Bronze or White.
** Satin Taupe not available, Oil Rubbed Bronze is standard.
108 † Key option available in Bronze and White. 109You can also read
