DATASHEET
INN ACOUSTIC | Rev. September 2020
INN ACOUSTIC invisible
monolithic system
The system that cannot be seen but heard.
MATERIALS REACTION CLEANING
Rock wool TO FIRE Vacuum cleaner
Euroclass
A2-s1, d0
APPLICATIONS
INN ACOUSTIC IS
SHOCKPROOF
CEILING WALL
(in adherence or (in adherence or
with metal framework) with metal framework)
ISOLDESIGN srl www.isoldesign.it
Operational Headquarter: Via Ugo Foscolo, 10 – 20060 Basiano (MI) info@isoldesign.com
Warehouses: Via B.Buozzi, 25/A – 23900 Lecco (LC) | Via Donatori di Sangue, 1 – 20010 Vanzago (MI) +39 348 420 8991
DATASHEET
INN ACOUSTIC | Rev. September 2020
DIMENSIONS
THICKNESS PANEL 37 mm
FINISHED SYSTEM ca. 40 mm
BEVELLED EDGES
EDGE (TO FACILITATE THE PLASTER)
INN ACOUSTIC is a monolithic system
installed laying standard modules
and finished in a single block
STANDARD DIMENSIONS Module
1000 x 600 mm
This composition allows to create

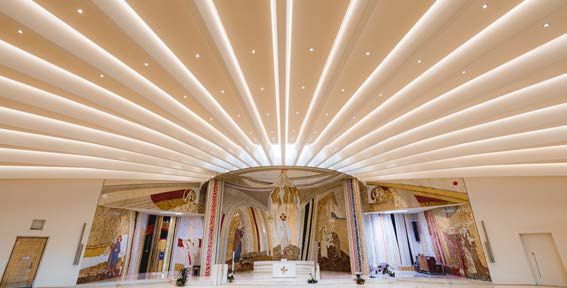

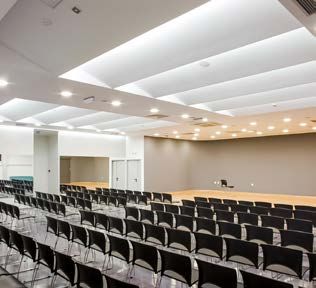

CURVATURES concave and convex curves
Thermal resistance 0,038 W/mK
Resistance to mildewYES
Permeability to vaporYES
Sound insulationYES
Washable productYES
TECHNICAL DATA Specific weight in place11 Kg/mq ca.
Products size have a tolerance of ± 0.5% of the indicated value.

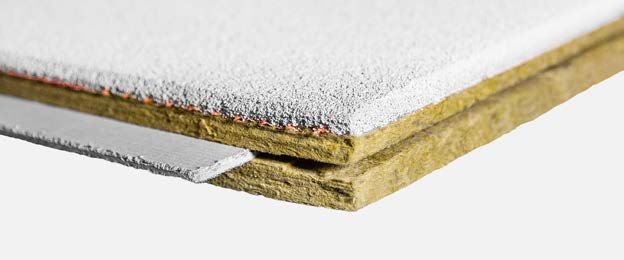

THE PANEL
INN ACOUSTIC modules
are prefabricated and
ready for installation.
The interlocking system of
the panels (male / female)
guarantees an incredible
simplicity of installation, perfect
planarity and mechanical solidity.
PANEL JOINT GLASS FOAM
for interlocking with air permeable
the other panels upholstery
FOAM ROCK WOOL
HOLDER NET sound absorbing,
base for fixing sound insulating
the foam and thermal
ISOLDESIGN srl www.isoldesign.it
Operational Headquarter: Via Ugo Foscolo, 10 – 20060 Basiano (MI) info@isoldesign.com
Warehouses: Via B.Buozzi, 25/A – 23900 Lecco (LC) | Via Donatori di Sangue, 1 – 20010 Vanzago (MI) +39 348 420 8991
DATASHEET
INN ACOUSTIC | Rev. September 2020

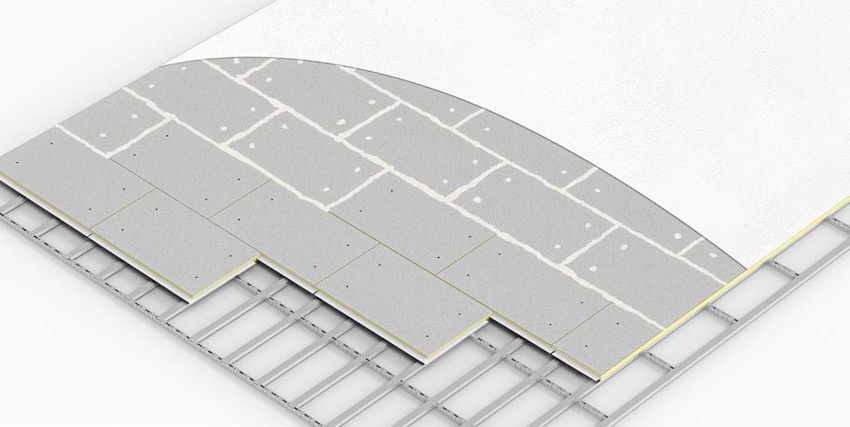

THE SYSTEM The complete INN ACOUSTIC system
is installed as shown in the diagram.
MECHANICAL FINAL COATING
METAL FRAMEWORK FIXING based on micro granulate
400mm structural screws and washers marble, it covers the system
spacing (if provided) (where provided) making it monolithic
SCREWED OR GROUTING
GLUED PANELS installation sealing
(in the absence of the panel grooves and
metal framework, threaded holes
with cement glue)
FINISHES
The FINAL COVERING can be customized
in the surface, in the color. Spot lightings
are available to be inserted
The surface texture is customizable with
a craft work, which can be considered artistic,
giving an exceptional decorative aspect
to the surface of the entire system
EXTRA-FINE FINE COARSE-GRAINED
SURFACE GRANULARITY TEXTURE
Color
Guide Heat-treated coloring of the mass with
bright and clean covering shades of colors,
that do not fade over time
Solid color*
COLOR (color chart) *95% tint to keep the surface matte

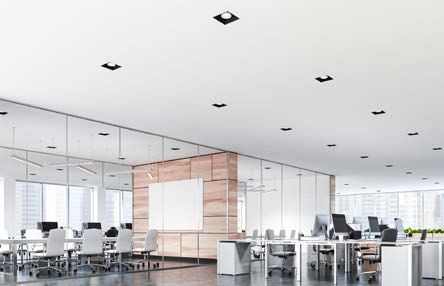

LIGHT GUIDES INSPECTION HATCHES
RECESSED SPOTLIGHTS AIR CONDITIONING VENTS
STRIPLED SUSPENSION POINTS
INSERTIONS SPOT LIGHTINGS MECHANICAL TERMINAL
ISOLDESIGN srl www.isoldesign.it
Operational Headquarter: Via Ugo Foscolo, 10 – 20060 Basiano (MI) info@isoldesign.com
Warehouses: Via B.Buozzi, 25/A – 23900 Lecco (LC) | Via Donatori di Sangue, 1 – 20010 Vanzago (MI) +39 348 420 8991
DATASHEET
INN ACOUSTIC | Rev. September 2020
IONIZATION
Ülkerfarbe Biotech is a completely natural bio-paint which, thanks to its patented
active principle, neutralizes suspended pollutants (such as odors or fine dust), balan-
ces the heat exchange and, ionizes the air acting in a similar way to the chlorophyll
photosynthesis. It is completely anti-mildew and most importantly, it lasts over time.
The moisture on the wall activates the silver nanoparticles.
Ionized water molecules are produced with silver ions with antibacterial properties,
capable of purifying the surface (anti-mold).
The thermos-ceramic component creates a microporous surface that allows the heat to
spread homogeneously, preventing the formation of thermal bridges (thermal regulation).
The anions released into the environment attract micro-particles, positive ions and
electrostatic charges of all kinds (pollution, smoke, odors, positive ions deriving from
computers or electronics in general) which, by precipitating, are neutralized.
The surface and air of the room are purified and ionized, bringing numerous benefits to
humans (for example, they improve breathing and the nervous system, increase the ability
FUNCTIONING to concentrate, attention and work productivity).
Big cities 40 – 50 /cm3
Small cities
100 – 200 /cm3
Countryside
700 – 1000 /cm3
High mountains 1500 /cm3
Along the beach2000 /cm3
After a storm 2000 /cm3
COMPARISONS INN ACOUSTIC con BIOTECH2000 /cm3
The ionization of the air made by Ülkerfarbe BIOTECH paint, with the consequent positive
effects, is calculable (through the use of portable electronic meters) and can be calibrated (by
increasing or decreasing the ionic charge) depending on the size and type of environment (a
large office needs a different negative ionic charge compared to a private home).
CERTIFIED This product is certified and among the only ones in the world that are truly effective,
PRODUCT measurable and long-lasting. Guaranteed quality.
INN ACOUSTIC with Ülkerfarbe BIOTECH bio-paint won the first
prize in the Retail Interior Surface category at the SURFACE DESIGN
SHOW in 2018, for a greater environmental comfort.
PRIZES LOCATION: Cannavacciuolo Bistrot (Turin)
ISOLDESIGN srl www.isoldesign.it
Operational Headquarter: Via Ugo Foscolo, 10 – 20060 Basiano (MI) info@isoldesign.com
Warehouses: Via B.Buozzi, 25/A – 23900 Lecco (LC) | Via Donatori di Sangue, 1 – 20010 Vanzago (MI) +39 348 420 8991
DATASHEET
INN ACOUSTIC | Rev. September 2020
SOUND ABSORPTON
Type A installation SOUND ABSORPTION COEFFICIENT FOR
Freq. αw according to EN ISO 354 MONOLITHIC GLUED APPLICATIONS
[Hz] [-]
100 0.07
α [-]
125 0.13
160 0.17
1.2
200 0.36
250 0.5 1.1
315 0.69 1
400 0.78 0.9
500 0.94
0.8
630 0.98
800 0.99 0.7
1000 1.03 0.6
EN ISO 354:2003 / EN ISO 11654:1997
1250 1.01 0.5
1600 0.99
0.4
REFERENCE STANDARDS
2000 1.04
0.3
2500 0.98
3150 1 0.2
4000 0.92 0.1
5000 0.92
0
Freq. [Hz]
100
125
160
200
250
315
400
500
630
800
1000
1250
1600
2000
2500
3150
4000
5000
E250 installation SOUND ABSORPTION COEFFICIENT FOR SCREWED
Freq. αw
according to EN ISO 354 APPLICATIONS ON LOWERED METAL FRAMEFORK
[Hz] [-]
100 0.57
α [-]
125 0.55
160 0.59
1.2
200 0.65
250 0.64 1.1
315 0.76 1
400 0.72
0.9
500 0.77
0.8
630 0.89
800 0.94 0.7
1000 0.98 0.6
EN ISO 354:2003 / EN ISO 11654:1997
1250 0.97
0.5
1600 0.97
REFERENCE STANDARDS
0.4
2000 1
2500 0.97 0.3
3150 0.98 0.2
4000 0.94
0.1
5000 0.88
0
Freq. [Hz]
100
125
160
200
250
315
2500
400
500
630
800
1000
1250
1600
2000
3150
4000
5000
ISOLDESIGN srl www.isoldesign.it
Operational Headquarter: Via Ugo Foscolo, 10 – 20060 Basiano (MI) info@isoldesign.com
Warehouses: Via B.Buozzi, 25/A – 23900 Lecco (LC) | Via Donatori di Sangue, 1 – 20010 Vanzago (MI) +39 348 420 8991
DATASHEET
INN ACOUSTIC | Rev. September 2020
SPECIFICATIONS
Supply and installation of the INN ACOUSTIC invisible monolithic false ceiling by IsolDesign with a continuous surface
made of mineral fiber panels in rock wool, belonging to the Euroclass A2-s1, d0 reaction to fire. The standard unit has a thi-
ckness of 40mm (finished on site) and a size of 1000x600 mm with the possibility to be attached in adherence or on a metal
structure. The only one system applicable to walls, at low heights, thanks to its excellent impact resistance. It can also be
installed on a vertical wall without breaking problems. The continuous surface allows planar, concave and convex creations.
Available with spot lightings and inspection hatches. The panels can be skimmed with a fine, medium or coarse-grained fi-
nish in white or chosen by the Works Management. The surface texture is customizable with a craft work. The surface can
integrate the BIOTECH ionizing and sanitizing nanotechnology.
AREAS OF APPLICATION
Ideal for new buildings or renovations of large areas such as conference rooms, theaters and auditoriums, museums, libra-
ries, teaching spaces, hotels and spas, commercial spaces, cinemas, restaurants, swimming pools, places of worship and
many more. Through direct or suspended installation, it is a refined and elegant solution thanks to the continuous surface
that guarantees high reflection and diffusion of light, keeping the natural light present in the environment and reducing the
need for artificial lighting.
WARNINGS
Available in 300 RAL based colors for the customization of ceilings and walls. 95% colored to make the surface matte, wi-
thout compromising the acoustic insulating properties. Product permeable to vapor, washable, mildew resistant, which
does not fade over time. The product must be stored in weather protected rooms.
