1 ROADS – DSC 2020
ROADS
« To w a r d s i m m e r s i v e a n d h i g h d y n a m i c
driving simulation »
10 Sept 2020
Confidential C
2 ROADS – DSC 2020
Ty p i c a l D S u s a g e
Different DS
_ Domains
HMI Definition, design and validation
Performance definition _ Different type of DS with different levels of immersion
Performance pre-tuning Motion : Static / Vibration / Dynamic / High dynamic
Functional validation Visual : FOV / Pixel resolution / 2D vs 3D
Functional safety Tools : Head tracking / Eyes tracking / physiological sensors
Life cycle Records : Data / video
Drivers studies
(Communication)
_ Type of Immersive Simulation :
« Vue Expert » : Professional Drivers (1 to 5)
« Vue Clients lambda » : Common Drivers (15 to … 250)
Confidential C
3 ROADS - Presentation DEA-S
June 2020

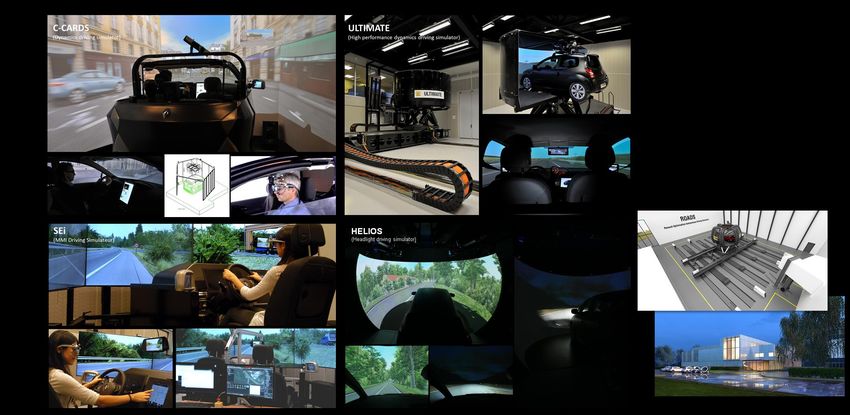

Driving Simulator benchmark Complementary
& interoperable
DS is car manufacturer « standard tool » Nissan
NIDS2
Renault
ROADS
2017 2021
Scene
reproductibility
SPEC Daimler
2010
high response Renault
double rails Ultimate
（linear motors）
high response
single rail
（linear motors）
Renault Nissan
CARDS MMI-DS BMW
low response rail MMI-DS DS center: 14 DS
（R&P） Renault 2021
HELIOS
PSA 2017
Dynamic without rail Ford Toyota
（6 DOF or 4 DOF）
GM
Hyundai BMW
w/o rail (Static)
(only graphic）
VW
Audi
Renault YEAR
2000 2005 2010 2015 2020
Headlight-DS
Confidential C
4 ROADS – dsc 2020
Lateral Rendering
Why ROADS is needed? Vs Duration
Manoeuvres & DS performances
Lateral
acceleration
[m/s²] Max combined acceleration = 12 m/s²
10
• ESP High adherence
• Double lane change
8
6
• ESP Low adherence ROADS Workspace
• Slow lane change Scale 1:1 rendering
4 • Lateral wind
2 ROADS Workspace
Intensive Scale 0.7:1 rendering
0 AEBS ACC
acceleration Longitudinal Rendering
Longitudinal
Vs Duration ROADS Workspace
-2 Acceleration
[m/s²] Scale 0.5:1 rendering
-4
ROADS Workspace
-6 Tilt rendering
-8
-10
-10 -8 -6 -4 -2 0 2 4 6 8 10
ROADS Accelerations
workspace
Confidential C
5 ROADS – DSC 2020

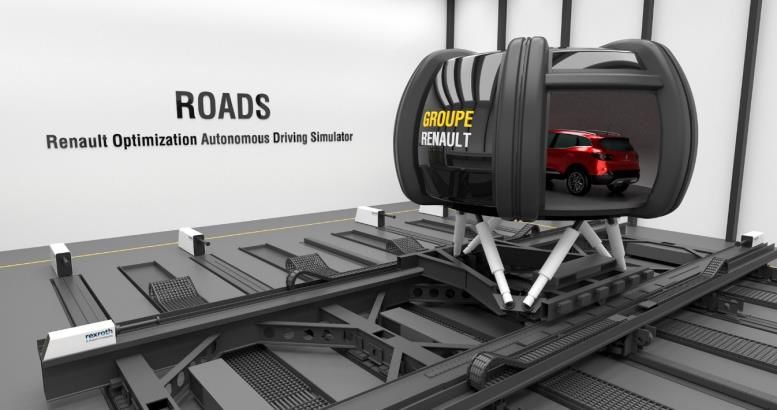

ROADS Motion System Rails (4 + 1)
+ permanent magnets
Crushbuffers

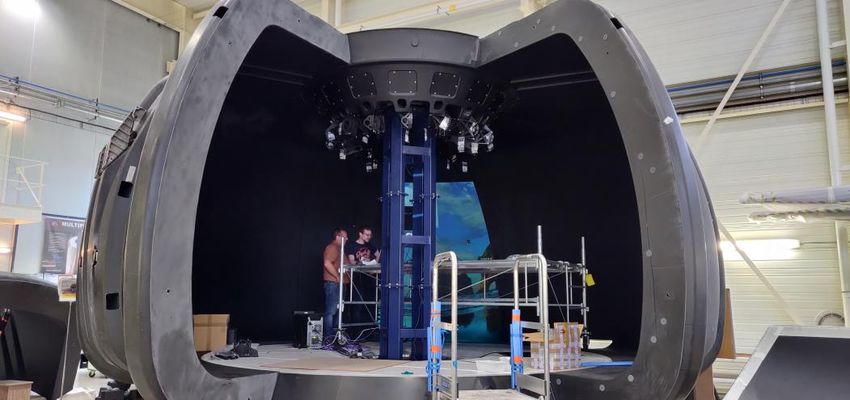

Dome
Yaw-Table
X-Table
(Gantry)
Walkway
(emergency exit)
X Cable-chains Hexapod
Y Cable-chains
High performance dynamic DS :
Y-Table
• Motion system : 1G in X&Y / 15x15m / t < 30ms / Yaw table
• Projection system : 360° / 3D (15 projectors)
• Immersive quality : Vehicles & eco system
Confidential C
6 ROADS – DSC 2020

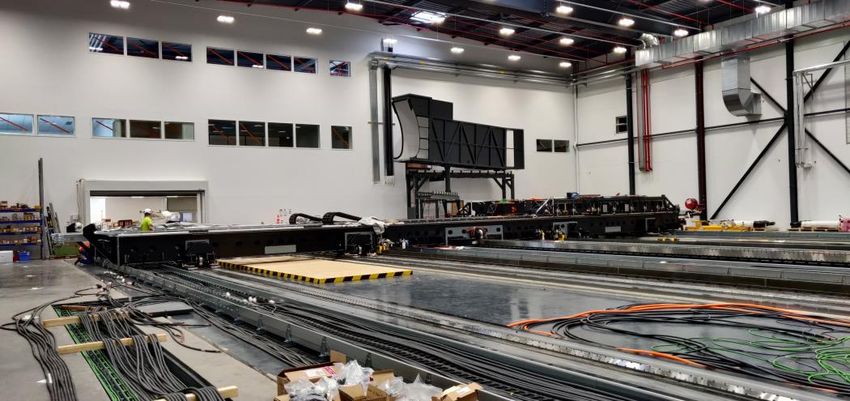

ROADS installation Delivery : Summer 2021 / Operational january 2022
Confidential C
7 ROADS - Présentation Comité Contrôle Châssis
04/09/2020

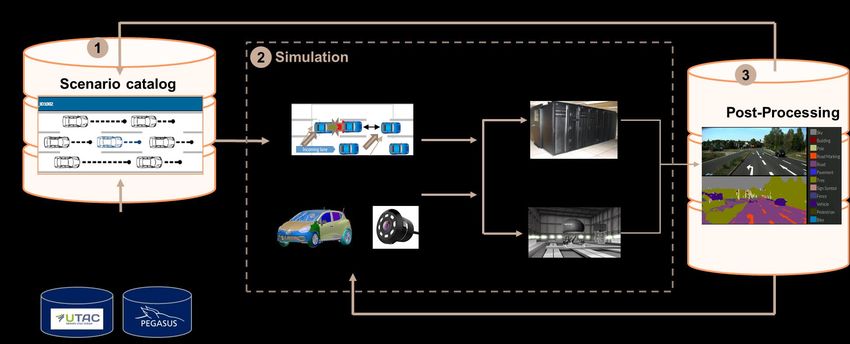

A D / A D A S S I M U L AT I O N C H A I N
AD/ADAS model
Driving Simulator (DIL)
Open Driving
Database
• Driver acceptance & MMI validation
• Performance definition & pre-tuning
• Functional safety, limit conditions & dangerous situations
Confidential C
8 ROADS - Presentation DEA-S
June 2020
D I l A C T I V I T I E S I N Ve r i f i c a t i o n & Va l i d a t i o n P R O C E S S
Fuctionnal Models & SW ECU
System Under Test= models incl. archi EE on test beds
Specifications
Level 4 CdCPF Driving Driving Driving
[Funct.] simul simul simul
CdCPQ VIL PVS
Level 5 CdC Tuning Model VIL HW
CdC Control Logic
SW CP PT
[Quantified] CP
Level 6.1 STR Model multi-
D-EIPF EIPF VC
[Cross-system] DAS System
Level 6.2 STR Model
PVS RESIM
HIL
DAS System System MC / PFC
[System]
Level 7.1 STRComp Model
Model Technical Req. Function A LOT
[Algorithm]
EE archi
Level 7.2 Software
SW req.
[Component] ECU
MIL ADAS ECU SIL HIL
Validation by CAE can start before reaching the bottom of V-cycle Time
High level test plans can be run at any step 8
Confidential C
9 ROADS - Presentation DEA-S
Opportunities
Renault is open to discuss possibilities to open business for external
u s a g e i n i t s s i m u l a t i o n c e n t e r.
Contact : didier.wautier@renault.com Confidential C
