Accessory brochure Version 2020 - creating better environment
Accessory brochure
     Version 2020

creating better environment
Accessory brochure Version 2020 - creating better environment
SOMMAIRE
    TOOLS                                    SUBFLOOR                            ADHESIVES
    PAGES 04 - 11                            PREPARATION                         page 26

    page 4
                                                                                 509 eurostar tex
                                             PAGES 12-20
    Forbo overall                                                                page 27
    Knee pads                                page 12
    CM bottle box                            Primer 021 europrimer reno          Tackifier 541 eurofix anti slip
    VID4 dampness meter                      Primer 026 euroblock multi          Additive 841 europrimer ec
    Dampness meter indicator                 Primer 042 euroblock turbo
    Spatula (A1 - A2 - B1 - S1)                                                  page 28
    Unrolling Rolly A4                       page 13                             Tackifier 542 eurofix tack plus
    Stainless steel convex ruler set Knife   Primer 041 europrimer ec
    with 5 blades                            Primer 044 europrimer multi         page 29
    Forbo Trimmer                                                                523 eurostar tack ec
                                             page 14
    page 5                                                                       page 30
                                             Primer 049 europrimer abs
    Skirting trimmer                         Primer 070 europrimer fill          650 eurostar fastcol
    LVT guillotine                                                               140 euromix PU
    Long scriber                             page 15
    Short scriber                            Mortar 900 europlan DSP             page 31
    Scriber spare tips (100 tips)            Mortar 905 europlan fill            Modul’up junction tape
    Scriber blades (6 blades)                Mortat 940 europlan quick           Forbo Dry Tape 50 & 85
    Knife for siphon                                                             232 eurosol montage
    Bonding hammer                           page 16
    Cork bonding block                       910 europlan PU duo                 page 32
    LVT pressure roller                                                          ADHESIVES RECOMMENDATIONS
    Forbo roller                             913 europlan silicate w. hardener
    Anti-bounce hammer for LVT               page 17
    page 6
                                             920 europlan alphy DR               UNDERLAYER
    Groover                                  913 europlan extreme                PAGES 33 -34
    Blades for groover (x10)
    Little groover for Floor&Wall            page 18                             page 33
    PVC fast welding nozzle                  960 europlan super                  Sarlibase TE
    LINO fast welding nozzle                 975 europlan TE/S                   Sarlibase Lisse
    Nozzle brush                                                                 Sarlibase Acoustique
    Triangular fast welding nozzle (wall)    page 19
    Quarter moon knife                       990 europlan direct                 page 34
    Trimming guide                                                               Allura click 15 dB underlayer Allura
    Sherpening stone                         991 europlan direct rapid           click 19 dB underlayer Forbo Foam
    Forked trimmer                                                               Quick Fit
    MOZART trimmer                           Page 20
    MOZART blades                            SUBFLOOR RECOMMENDATIONS

    page 7
                                             ADHESIVES                           WELDING ROD
    Trimmer for difficult trimming
    Blades for trimmer (x2)                                                      PAGES 35 - 42
    Welding car                              PAGES 21 - 27                       page 35

    page 8                                   page 21                             Linoleum welding rod
                                                                                 PVC welding rod
    Hot air Electron                         418 euroflex lino polaris
    Resistance for Electron                  611 eurostar lino plus              pages 36 - 42

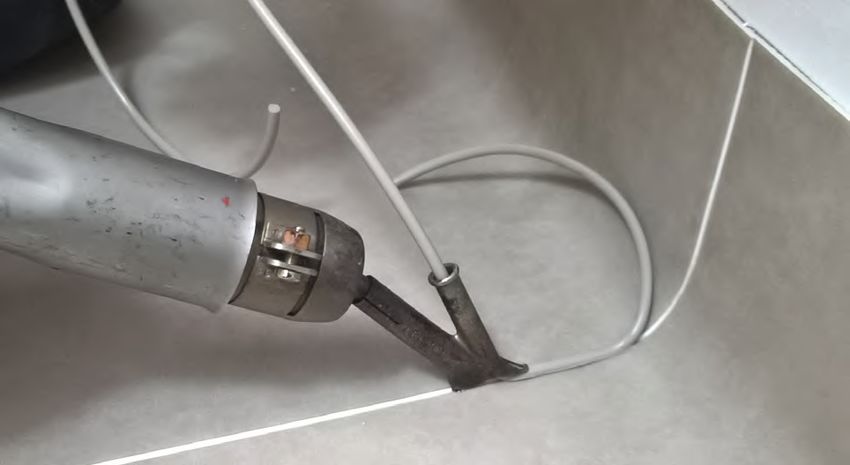

    Hot welding gun TRIAC ST                                                     PVC WELDING ROD TABLE
                                             page 22
    Resistance TRIAC ST                      520 Kit lino doctor
    Hot welding gun HOT JET S
    Resistance HOT JET S                     page 23
    KFU1000E Groover                         540 eurosafe special
    Mini Floor                               640 eurostar special
    page 9                                   page 24
    Complete PVC bag                         528 eurostar all round
    Complete LINO bag
                                             page 25
    pages 10-11
                                             522 eurosafe tack
    Mitre box                                622 eurostar tack

2
Accessory brochure Version 2020 - creating better environment
SKIRTINGS                             PROFILES                                  ACCESSIBILITY
PAGES 43 -60                          PAGES 61 - 68                             PAGES 75 - 76
page 43                               page 61                                   page 75
Marmoleum® preformed skirting &       Cove former                               Tactile tiles
angles                                                                          Tactile planks
                                      page 62
page 44                               PVC / ceramic profile                     page 76
Marmoleum® click skirting & profile                                             Riser adhesive strips
                                      page 63
page 45                               MDF moulding
Flotex® Borders
                                      page 64                                   COLOREX / SPHERA
page 46                               MDF quarter round
Showtime skirting                     PVC sit-on profile                        PAGES 77 - 78

page 47                               page 65                                   Page 77
Decorative skirting                   PVC stairnosing page under construction   Self-adhesived copper tape
page 48                                                                         Colorex SD/EC/plus skirting
                                      page 66
Complete skirting new support                                                   Cove former for Colorex plus
                                      Carpet finishing profile
Complete skirting old support                                                   Preformed Colorex SD/EC/plus
                                      Coral® transition profile                 angles
page 49                               Coral® junction strip                     Colorex plus aluminum access
Ventilated skirting                                                             ramp
                                      page 67
                                                                                Colorex plus access ramp
page 50
                                      Aluminum 3 in 1 threshold
PVC recover skirting                  page 68
                                                                                page 78
                                                                                Sphera preformed angles
page 51
PVC sit-on skirting                   CORRESPONDENCES ALUMINUM
                                      THRESHOLD/LVT
page 52
Bendable skirting
                                                                                FLOOR
                                      MODUL’UP                                  PROTECTION
page 53
PVC design skirting                   PAGES 69 -70                              PAGES 79 -80

page 54                               page 69                                   page 79
CORRESPONDENCES SKIRTING/LVT          Cold welding: Type A                      ProtecT & ProtecV
                                      Modul’up Junction tape                    Protection paper
page 55
MDF design skirting                   page 70                                   page 80
                                      Forbo Dry Tape 50 & 85                    888 Euroclean Uni
page 56                               Modul’up complete skirting                891 Euroclean Basic
MDF white skirting 58 mm & 80 mm
MDF paintable skirting 58 mm & 90
mm
                                      WETROOM
page 57
CH 23 Clipholder                      PAGES 71 - 74

                                      page 71
page 58
Connector                             Cove former
                                      Diminishing strip profile
page 59
                                      Cold welding : Type C

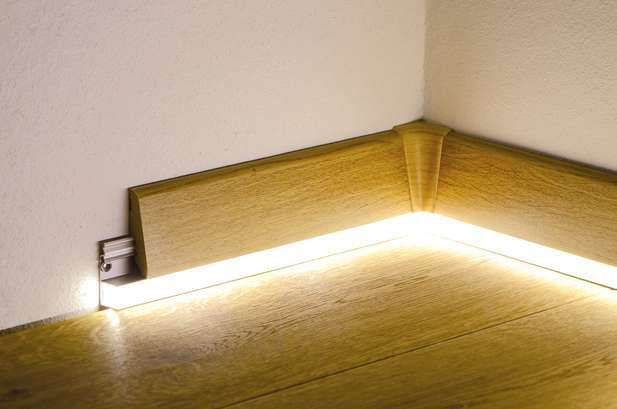

LED Kit                               page 72
page 60
                                      PVC wetroom threshold
Aquastop                              page 73
                                      Siphon ø 50 horizontally
                                      Siphon ø 50 vertically
                                      Siphon ø 50 renovation
                                      Siphon stainless steel
                                      page 74
                                      Stainless steel grating for plastic siphons

                                                                                                               3
Accessory brochure Version 2020 - creating better environment
TOOLS
    Forbo Overall                                                       CM bottle box
    Ref. : 230 + size                                                   Ref. : 228
    With extendable back.                                               To determine the precise humidity
    Particularly suitable for laying                                    percent in a concrete slab or floor.
    flexible flooring: knee pad                                         (in accordance with the DTU53.2
    holder, pencil holder, various                                      requirements).
    pockets.
    Differents sizes are available
    (some sizes on demand).

    Knee pads
    Réf. : 145
    Foam knee pads for overalls..

    VID4 dampness meter                                                 Dampness meter with pins
    Ref. : 289                                                          Ref. : 229
    «VI-D4» determines the moisture rate of a                           To assess whether or not there is
    material by measuring its electrical                                any moisture in the support and
    impedance. For this, the device creates a                           determine its percentage.
    low intensity alternating electric field,
    which being measued by the device,
    gives the moisture rate.

    Spatula spreader (A1 - A2 - B1 - S1)
    Ref. : 182 (A1) / 183 (A2) / 184 (B1) / 186 (S1)
    A1 / A2 / B1 : spatula 25 cm wooden handle
    S1 : reversible spreader blades 25cm
    Allow to apply right adhesive quantity for each floorcovering. cf
    adhesives recommendation (page 32).
    Box 10 spatula (A1 - A2 - B1) or 10 spreader blades (S1)

                                                                        Stainless steel convex ruler set
                                                                        Ref. : 201
                                                                        Set of 1x0.60m, 1x2.10m in one box
                                                                        h.8cm/diam.20cm.

                                                                        Knife with 5 blades
                                                                        Ref. : 202 straight blades
                                                                        Ref. : 203 hood blades
                                                                        In aluminum with plastic sheath (with 5
                                                                        straight blades or 5 hook blades).

                                                                        Forbo Trimmer
                                                                        Ref. : 103
        Unrolling Rolly A4                                              Makes a clean edge to strips so that clean
                                                                        joints can be made. it also cuts 5, 10, 15,
        Ref. : 166                                                      20, 25 and 30 mm wide decorative strips
        Mini unrolling fixed trolley. For floo covering unrolling.      (using the different block provided).
        Rustproof steel structure. A4 dimension. 2 rolly are
        recommended for a perfect unrolling.

4
Accessory brochure Version 2020 - creating better environment
Skirting trimmer                                                                   LVT guillotine
Ref. : 206                                                                         Ref. : 178
Easy and fast trimming of the                                                      For cutting LVT floorings up to 6mm.
skirting without marking.                                                          Max cutting widht 210mm. Cutting
                                                                                   angle 0-45°.

Long scriber                                                                       Short scriber
Ref. : 101                                                                         Ref. : 102
For tracing around the periphery                                                   For tracing joints, step noisers
of a wall profile by simple transfer.                                              and for connecting strips with
Essential for laying linoleum                                                      preformed linoleum skirting.
flooring.                                                                          Essential for laying linoleum
                                                                                   flooring.

Scriber spare tups (100 tips)                                                      Scriber blades (6 blades)
Ref. : 149                                                                         Ref. : 156
For short and long scriber                                                         For short and long scriber

Knife for siphon
Ref. : 200
To cut flooring so that it will fit into the collar of the PVC floor trap (page 73).

Bonding hammer                                                                     Cork bonding block
Ref. : 204                                                                         Ref. : 205
Bonding of PVC and linoleum tile                                                   For bonding hammering without
products and also embedded and flat                                                leaving any marks. Dimensions :
tuftef pieces. Essential for laying                                                300 x 120 x 25mm. Made of cork.
flexible flooring.                                                                 Essential for laying flexible flooring.

LVT pressure roller                                                                Forbo roller
Ref. : 188                                                                         Ref. : 212
With 26 ball bearing for comfortable                                               The only tool to efficiently transfer
and firm pressing the seam when                                                    adhesive to the back of the
laying LVT flooring. Through the                                                   flooring. Width 50cm. Weight 50kg.
patented design an optimized force                                                 Essential for laying flexible flooring.
distribution is reached, the seam
can be pressed bubble-freed up
into the edge area.
Working width 130mm.

Anti-bounce hammer
for LVT
Ref. : 165
For assembling LVT click
planks together. Shocks
absorbed. Does not leave
marks.

                                                                                                                             5
Accessory brochure Version 2020 - creating better environment
TOOLS
    Groover                                                                     Blades for groover (x10)
    Ref. : 115                                                                  Ref. : 116
    Groove the joints for hot                                                   Spare blades with round Uend
    welding operation.                                                          for groover. Hardened
                                                                                steel blade.

    Little groover for Floor & Wall
    Ref. : 167
    Ergonomic groover with 2 adjustable blades (3.5mm blades).
    Easy to use. Grooved up to skirting. Perfect to groove PVC wall covering.

    PVC fast welding nozzle                                                     LINO fast welding nozzle
    Ref. : 119                                                                  Ref. : 121
    For hot welding with                                                        For hot welding with diameter of
    diameter of 4mm.                                                            4mm.

    Nozzle brush                                                                Triangulat fast welding nozzle (wall)
    Ref. : 197                                                                  Ref. : 207
    To remove melted rod                                                        Particularly suitable for wall coverings and also
    residues from nozzle.                                                       lacquered PVC flooring

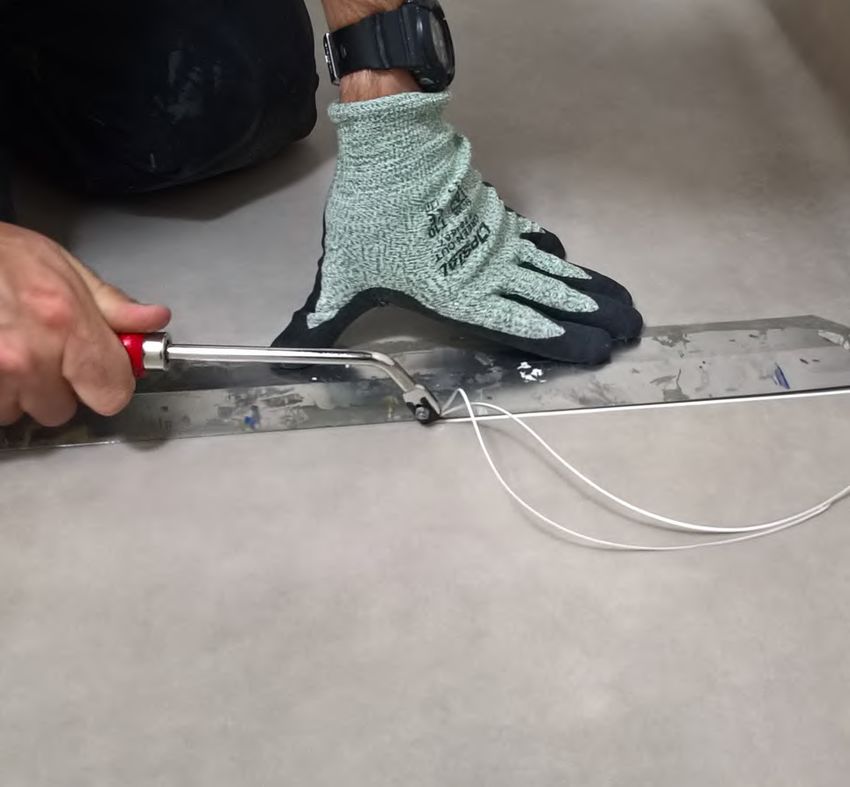

    Quarter moon knife                                                          Trimming guide
    Ref. : 117                                                                  Ref. : 118
    For trimming hot weld in two                                                For trimming hot weld in two steps
    steps (with trimming guide)                                                 (with quarter moon).

    Sherpening stone                                                            Forked trimmer
    Ref. : 174                                                                  Ref. : 214
    To sharpen quarter moon                                                     For trimming the weld bead
    knife.                                                                      while avoiding surface relief.
                                                                                Trimmer particularly suitable
                                                                                for shower system floors.

    MOZART trimmer                                                              MOZART blades
    Ref. : 190                                                                  Ref. : 191
    For trimming hot weld in two steps                                          Blades for Mozart trimmer (x5).
    with a single tool. (perfect for compact
    and wall PVC).

6
Accessory brochure Version 2020 - creating better environment
Trimmer for difficult                                                         Blades for trimmer (x2)
trimming                                                                      Ref. : 208 (6mm) / 209 (12mm) /
Ref. : 120                                                                    211 (pointed) / 210 (flat)
For trimming hot weld in                                                      Blades for difficult trimming.
corners, skirting upstand and
back of step.

Welding car
Ref. : 192
Professional tool to make an easier job with hand hot air tools.
For short lanes as well as large areas. Due to front and back rollers the system
can lead stabilised in the grooved seam.
Working angle adjustable.

                                                                                                                7
Accessory brochure Version 2020 - creating better environment
TOOLS
    Hot air Electron
    Ref. : 216                                   Resistance for Electron
                                                 Ref. : 216R
    To heat profile in PVC and floor in
    PVC and Linoleum for an easier
    installation.

    Hot welding gun TRIAC ST
    Ref. : 217                                   Resistance for TRIAC ST
    For making welds in flexible flooring.       Ref. : 217R
    Power 1600W.
    Weight 1.4kg.

    Hot welding gun HOT JET S
    Ref. : 218                                   Resistance for HOT JET S
    Particularly suitable for welding wall       Ref. : 218R
    covering.
    Power 460W. Weight 0.6kg.

    KFU1000E groover                             Mini Floor
    Ref. : 125                                   Ref. : 193
    For clean grooving with                      Automatic welder for Triac
    adjustment of the cutting                    welding gun. Easy to use and
    height (0 to 4.5mm)                          to transport (5.3kg).
    Power 900W                                   Delivered without welding
    Weight 4.9kg.                                gun.
    Safety system.
    Guid disc and recovery bag.

8
Accessory brochure Version 2020 - creating better environment
PVC complete bag
Ref. : 219
Case containing the essential tools to install PVC
floorcovering.

Bag contain :
- 1 cork block & 1 hammer for bonding
- 2 knives (5 straight & 5 hooked blades)
- 1 ruler + box
- 1 skirting trimmer
- 2 fast nozzle (PVC & triangular)
- 1 groover +10 blades
- 1 quarter moon + trimming guide
- 1 trimmer for difficult trimming
- blades for difficult trimming
              - diam 6 (x2)
              - diam 12 (x2)
              - flat (x2)
              - pointed (x2):

LINO complete bag
Ref. : 220
Case containing the essential tools to install linoleum
floorcovering.

Bag contain:
- 1 long and 1 short scriber (with blades and spare tips)
- 1 cork bonding block
- 2 knives (5 straight & 5 hooked blades)
- 1 ruler + box
- 1 thermogroover
- 1 linoleum fast nozzle
- 1 quarter moon + trimming guide
- 1 trimmer for difficult trimming
- blades for difficult trimming diam 6 (x2)

                                                            9
Accessory brochure Version 2020 - creating better environment
TOOLS
     Mitre box
     Ref. : 712083

     Découpe facile des plinthes jusqu’à une hauteur de 85 mm.
     Fixation des plinthes au support prévu au moyen du clips CH23 (page 52)
     Les trous intégrés permettent une fixation de la boite à coupe sur le plan de travail.
     Permet la découpe de tout type de plinthe : coupe droite, angle entrant & sortant.

         For better stability when cutting, you can screw                                 PVC Design and MDF skirting can be positioned
         the cutting box onto the work surface.                                           on the clip-on part to prevent the skirting board
                                                                                          from moving during cutting.

                                                                         LEGENDE

                                                    The mitre box is adapted for all types of skirtings

10
Inner corner

Outer corner

               Straight cut

                              To obtain a perfect finish at the end of the plinth, it is
                              simple to make a finishing tip using skirting scrap.

                              First cut the end of your plinth at an outer angle (see
                              positioning of the skirting above according to the
                              desired side).

                              For the realization of the end piece, reserve a straight
                              part which will be on the wall side and cut in an outer
                              angle to the dimension of the thickness of your
                              skirting.

                              Use mounting adhesive or strong adhesive type
                              Loctite.

                                                                                           11
PRIMER
     021 europrimer reno
     Ref. : 021

     Ready-to-use, conductive, dispersion primer to achieve
     conductive properties for the electrically conductive
     installation of floor coverings on absorbent, standard subfloors.
     Replaces the installation of a copper tape installation. To be
     used together with Eurocol electrically conductive adhesive.

     Technical characteristics:
     Drying time: between 2 and 4 hours
     Consumption : 100 to 150 g/m² (foam roller recommended)

     Bucket of 10 kg (A+B)

     026 euroblock multi
     Ref. : 026

     One-component damp proof coating | Eco damp proofing up
     to 4 CM % | dispersion based, one-component

     Dispersion based, one component, damp proof coating to
     block residual moisture of cement-based subfloors (screed) up
     to 4 CM %.
     Moisture blocking can be completed in one day.
     Subsequent levelling or adhesive works can be done within 7
     days after final coat application.
     Very low VOC emission.
     Solvent-free.
     EMICODE EC 1 Plus, GISCODE D 1

     Bucket of 10 kg

     044 europrimer multi
     Ref. : 044

     One-component damp proof and surface reinforcement
     coating | fast damp proofing up to 5 CM % | one component |
     PU-based

     Ready to use, one-component, fast drying, damp proof
     coating to block residual moisture of absorbent, cement based
     subfloors (screed) up to 5 CM %.
     Very good subfloor surface penetrating properties.
     Ideal to reinforce surfaces of absorbent cement- and calcium
     sulphate- (gypsum) based subfloors, before levelling or
     adhesion works.
     For subsequent levelling works sanding with
     846 Europlan Sand is needed of still wet 042 Euroblock Turbo
     coat.
     Very low VOC emission.
     Solvent-free.

     Bucket of 11 kg

12
041 europrimer ec
Ref. : 041

Ready-to-use, conductive, dispersion primer to achieve
conductive properties for the electrically conductive
installation of floor coverings on absorbent, standard subfloors.
Replaces the installation of a copper tape installation. To be
used together with Eurocol electrically conductive adhesive.

Technical characteristics:
Drying time: between 2 and 4 hours
Consumption : 100 to 150 g/m² (foam roller recommended)

Bucket of 10 kg

044 europrimer multi
Ref. : 044

Primer to be diluted with water for priming of absorbent and
non-absorbent, mineral-based subfloors, wooden composites,
mastic asphalt before levelling or adhesion works.

Dilution depending on subfloor: cement screed (mixing ratio 1 :
2 with water), calcium sulphate (gypsum) screed, gypsum based
floor boards such as Fermacel, Knauf (mixing ratio 1 : 1 with
water). Bonding promoter before levelling works on terrazzo,
ceramic, mastic asphalt, wooden composites (undiluted).

Water resistant, especially for application of levelling compound
in thick layers. Ensures overall equal absorbency. Fast film
building and drying.
For indoor use only.

Technical characteristics :
Drying time: 30 minutes to 1h on non-absorbant subfloor
1 - 2 hours on mineral absorbant subfloor
Approx. 6 hours on anhydrite subfloor.
Consumption: 50 to 150 g/m² depending of subfloor (foam roller
recommended)

Bucket of 10 kg

                                                                    13
049 europrimer abs
     Ref. : 049

     Primer for:
     improving the adhesion of levelling compounds on absorbent
     and stony subfloors
     improving the top-layer of absorbent and stony subfloors
     self-levelling anhydrite floors, that must be levelled and/or on
     which a floor covering must be applied.

     Technical characteristics:
     Drying time: between 2 and 4 hours
     Consumption : 100 to 150 g/m² (foam roller recommended)

     EMICODE EC 1 Plus, GISCODE D 1g

     Bucket of 10 kg

     070 europrimer fill
     Ref. : 070

     Fast and filling primer | priming and filling in one step | fast
     drying | no quartz sand blinding before leveling on damp proof
     coats

     Ready to use, one-component, fast drying primer to prime and
     fill (in one step) absorbent and non-absorbent cement- and
     calcium sulphate- (gypsum) based subfloors (screed),
     stonewood screed, ceramic tiles, wooden floorboards, parquet,
     mastic asphalt, gypsum- based floor boards such as Fermacel,
     Knauf.
     For priming and levelling of slight irregularities and joints on
     ceramic tiles, planks, parquet, wooden composites, gypsum-
     based floor boards before levelling works.
     Bonding promoter before levelling works on approved epoxy
     damp proof coats.
     Very low VOC emission.
     Solvent-free.
     EMICODE EC 1 Plus, GISCODE D 1g

     Bucket of 15kg

14
SUBFLOOR PREPARATION
Mortier 900 europlan DSP
Ref. : 900

Dispersion-based surface smoothing for deformable subfloors |
ready to use | plasticizer barrier

Ready-to-use, solvent-free, spatula applicable, plasticizer resistant
smoothing compound. Remains elastic and flexible after drying.
Can be applied in thin layers. Ideal for surface levelling on
deformable subfloors, such as granulate underlay (insulation) mats,
point elastic sports floors, suspended floors, chip boards, composite
boards.
Suitable as plasticizer migration barrier (e.g. vinyl on vinyl
installation), to close joints and screw holes before installation works
on wooden chip boards.
Also applicable on thoroughly cleaned, used resilient floor coverings
(e.g. vinyl, CV, rubber) before further subsequent installation works.
GISCODE D 1

Technical characteristics :
Drying time : walkable after 8h
Consumption : Approx. 300g/m² depending of the subfloor
2mm of thickness max per layer

Bucket of 14 kg

905 europlan fill
Ref. : 905

Mortar for:
smooting away irregularities and differences of height in levelling and
stony floors
filling of joints of water-resistant sheet material, bitumen and tile floors
repairing damaged concrete

Caractéristiques techniques :
Drying time: 15 to 30 minutes
Consumption : Approx. 500g/m² depending of subfloor

Box of 4 kg

940 europlan quick
Ref. : 940

Spatula applicable, rapidly setting and high load bearing, cement-
based repairing compound for filling and levelling of subfloor
irregularities and holes, reparation of stairs, subfloor height
compensation, ramping, mold edges, slopes, etc.
Filling compound consistency and texture can be adjusted.
For subsequent leveling works it needs to be primed with 044 or 050.
Can be mixed and extended with quartz sand 846 Europlan Sand up
to 30 %. Suitable on underfloor heating systems. Applicable up to 50
mm layer thickness.
For indoor use only.
Very low VOC emission.
EMICODE EC1Plus R , GISCODE ZP 1

Technical characteristics :
Drying time : walkable after approx. 45 minutes
Consommation : approx 1.5kg/m²/mm

Bag of 23kg

                                                                               15
SUBFLOOR PREPARATION
       910 europlan PU duo
       Ref. : 910

       Two-component PU-based levelling compound
       - self levelling top and underlay coat
       - highly durable

       High End multi-purpose, self levelling top coat which can also
       be used under BetonDesign for smoothing subfloors, over-
       bridging existing subfloor cracks and/or preventing crack-
       formation and crack transfer into BetonDesign top coat
       (ConcreteDesign). Provides excellent bonding to 305
       BetonDesign after fine sanding of the surface.
       EMICODE EC 1R Plus, GISCODE RU 1

       Technical characteristics:
       Drying time : approx. 6 to 8hours
       Consumption : 1,3 kg/mm/m²

       Bucket of 9,72kg (A+B component)

       913 europlan silicate w. hardener
       Ref. : 913

       Two-component filling compound and adhesive | crack repair |
       hardens quickly | low emissions

       Two component, silicat-based adhesive Ideal for filling cracks
       and holes in mineral screed.
       Shipping unit contains 2 bags with 20 Wave connectors each.
       Suitable on underfloor heating systems.
       Very low VOC Emission.
       EMICODE EC1Plus R

       Technical characteristics:
       Processing time: approx. 8 minutes
       Resilience: approx. 20-30 minutes
       Consumption: depending on size of crack/hole

       Box of 5 sets (1 set : 2 bottles 0.3L of resin and hardener)

  16
SUBFLOOR PREPARATION
920 europlan alphy DR
Ref. : 920

For levelling stony subfloors in layer thickness between 2 and
30 mm, especially anhydrite floors, which are to be covered
with a floor covering.

Technical characteristics:
Drying time : approx. 24h
Consumption : 1,5 kg/mm/m²

Bag of 23 kg

923 europlan extreme
Ref. : 923

923 Europlan Extreme is a moisture- and frost resistant, dust
reduced, fast setting, cement-based levelling compound for
stony subfloors.
Suitable for use in so called wet areas, swimming pools and
outdoor use such as balconies and terraces.
The mortar can be applied as a levelling compound in a layer
thickness of 2 till 20 mm.
Also suitable for casting (in a layer thickness till aprox. 50 mm)
of drains, pipeline trenches and in combination with (electrical)
floor heating

Technical characteristics :
Walkable after approx. 3h
Drying time: approx. 24h
Consumption: 1,5 kg/mm/m²

Bag of 23 kg

                                                                     17
SUBFLOOR PREPARATION
       960 europlan super
       Ref. : 960

       High-end self levelling compound and Top floor in concrete
       look | ideal under parquet | up to 20 mm
       High quality, multi-purpose, cement based, self levelling
       compound, curing with low tension and excellent final
       strenght for highest traffic use.
       For levelling of cement-based subfloors such as screed.
       Applicable up to 20 mm, mastic asphalt up to 5 mm layer
       thickness.
       To prepare subfloor for subsequent installation works.

       Technical characteristics:
       Drying time : approx. 24h
       Consumption : 1,5 kg/mm/m²

       Bag of 23 kg

       975 europlan TE/S
       Ref. : 975

       Cement-based, self levelling compound, curing with low
       tension and good final strength for medium-high traffic. For
       levelling cement-based subfloors (screed). Applicable up to 10
       mm. To prepare the subfloor for subsequent installation works.
       Pumpable or applicable with spike roller and notched trowel.
       For indoor use only.
       Very low VOC emission.
       EMICODE EC 1 R Plus, GISCODE ZP 1

       Technical characteristics :
       Walkable after approx. 3h
       Drying time: approx. 24h
       Consumption: 1,5 kg/mm/m²

       Bag of 25 kg

  18
SUBFLOOR PREPARATION
990 europlan direct
Ref. : 990

Layer thickness up to 20 mm | usually direct levelling
without primer | dust-reduced product
For levelling cement-based subfloors (screed).
Also usable for levelling of stone floors and ceramic tiles, for
application on waterproof adhesive residues according to
the data sheet.

Applicable up to 20 mm, mastic asphalt up to 5 mm layer
thickness.

On non- absorbent subfloors (e.g. stone floors, ceramic tiles)
it can be used without primer. Installation of floor covering
can be done approx. 24hrs. after finishing levelling works
depending on layer thickness. EMICODE EC 1 R Plus,
GISCODE ZP 1, .

Technical characteristics:
Walkable after 2-3 hours
Drying time : approx. 24h
Consumption : 1,5 kg/mm/m²

Bag of 23 kg

991 europlan direct rapid
Ref. : 991

Fast drying self levelling compound | laying after 1,5 - 3 hrs (for
PVC/CV and textile flooring) | layer thickness up to 20 mm |
usually direct levelling without primer | dust-reduced product

For levelling cement-based subfloors (screed).
Also usable for levelling of stone floors and ceramic tiles, for
application on waterproof adhesive residues according to the
data sheet.
Applicable up to 20 mm, mastic asphalt up to 5 mm layer
thickness.
On non- absorbent subfloors (e.g. stone floors, ceramic tiles) it
can be used without primer. Installation of floor covering can
be done approx. 1,5 - 3 hrs. after finishing levelling works
depending on layer thickness. EMICODE EC 1 R Plus, GISCODE
ZP 1,

Technical characteristics :
Walkable after approx. 1-1,5hours
Drying time: approx. 24h
Consumption: 1,5 kg/mm/m²

Bag of 23 kg

                                                                      19
DOWNLOAD
                                                      Technical data sheet
                                                   & Material safety data sheet

     SUBFLOOR PREPARATIONS RECOMMENDATIONS
                                                  Consumption   Mortars / Levelling    Consumption     Floorcovering
         Subfloor            Eurocol primer
                                                     per m2     compound Eurocol          per m2          suitable

                           044 europrimer multi      150 g        905 europlan fill       500 g
                                                                                                     All floorcovering found
                                                                                                          in the adhesive
         Ceramics                                                                                    recommendation table
                                                                                                              page 32

                                    -                  -         900 europlan DSP         300 g

                                                                                                     All floorcovering found
                                                                                                          in the adhesive
          Wood                      -                  -         900 europlan DSP         300 g      recommendation table
                                                                                                              page 32

                                                                                                         Modul’up TE &
       Wet concrete
                                                                                                          Sarlibase TE
     screed which not
                           044 europrimer multi      150 g      923 europlan extreme    1,5 kg/mm       with floorcovering
       exceed 7% of
                                                                                                        validated on the
         humidity
                                                                                                            underlay

                                                                                                      Has to be used before
                                                                                                      the application of the
     Dry concrete screed                                                                                    adhesive
                            041 europrimer ec        150 g                -                 -
      ESD installation                                                                                 523 eurostar tack ec
                                                                                                     and the Colorex EC tiles

20
ADHESIVES
418 euroflex lino polaris
Ref. : 418

Dispersion-based adhesive with high initial bonding strength and
enhanced open time for wet-set installation of linoleum in sheets,
cork, sisal, needle felt and textile floor coverings with different
backings, woven carpets on standard absorbent subfloors.

Technical characteristics :
Gumming time : 0 - 5 minutes
Opening time : 10 - 15 minutes
Consumption : 400 to 450 g/m² (Spatula B1 recommended)

Bucket of 14 kg

Recommanded to install :

                     ®

611 eurostar lino plus
Ref. : 611

Dispersion-based adhesive with low VOC emission (Emicode EC1
Plus) with high initial bonding strength and enhanced open time
for wet-set installation of linoleum in sheets, cork, sisal, needle felt
and textile floor coverings with different backings, woven carpets
on standard absorbent subfloors. .

Technical characteristics :
Gumming time : 0 - 5 minutes
Opening time : 15 - 20 minutes
Consumption : 250 to 300 g/m² (Spatula B1 recommended)

Bucket of 11 kg

Recommanded to install:

                     ®

                                                                           21
520 linoleum doctor
     Ref. : 520

     Pressure sensitive renovation adhesive to repair hollow areas under linoleum. Hardens fast after rubbing down the injected adhesive
     under the floor covering.

     Repair kit: 1 bottle Linoleum Doctor 0.5 l / 2 syringes with injection needles / 1 operating instruction

 1 Drill a hole in the middle
 2 Inject Linoleum Doctor
 3 Spread Linoleum Doctor with a hammer
 4 Remove adhesive excess
 5 Heat up colour matching welding rod, fill it in and cut off

22
ADHESIVES
540 eurosafe special
Ref. : 540

Multi-purpose application / Easy to apply Favourable spreading capacity / Short waiting time /
Very long open time Very high stickiness / Long final adhesion strength.
Recommended to install : Allura dry back, heterogeneous or homogeneous PVC in tiles or in
sheet (compact & acoustic)
or Marmoleum with polyester backing (Marmoleum modular) or polyolefine (Marmoleum
decibel).

Technical characteristics :
Gumming time: 10 - 20 minutes
Opening time: 60 minutes
Consumption: 250 to 300 g/m² (Spatula A2 recommended)

Bucket of 13 kg

Recommanded to install :

Adapted to install:

640 eurostar special
Ref. : 640

Emicode EC 1 plus /Multi-purpose application / Easy to apply Favourable
spreading capacity / Short waiting time / Very long open time Very high
stickiness / Long final adhesion strength.

Recommended to install : Allura dry back, heterogeneous or
homogeneous PVC in tiles or in sheet (compact & acoustic)
or Marmoleum with polyester backing (Marmoleum modular) or
polyolefine (Marmoleum decibel).

Technical characteristics:
Gumming time : 10 to 20 minutes
Opening time : 50 to 60 minutes
Consumption : 250 to 300 g/m² (Spatula A2 recommended)

Bucket of 12 kg

Recommanded to install :

Adapted to install :

                                                                                                 23
528 eurostar all round
      Ref. : 528

      Emicode EC 1 plus /Multi-purpose application / Easy to apply Favourable spreading capacity /
      Very high stickiness / Long final adhesion strength.
      Recommended to install : Allura dry back, heterogeneous or homogeneous PVC in tiles or in
      sheet (compact & acoustic)
      or Marmoleum with polyester backing (Marmoleum modular) or polyolefine (Marmoleum
      decibel).

      Technical characteristics :
      Gumming time : 10 to 20 minutes
      Opening time : 20 to 30 minutes
      Consumption : 250 to 300 g/m² (Spatula A2 recommended)

      Bucket of 13 kg

     Recommanded to install:

     Adapted to install:

24
ADHESIVES
522 eurosafe tack
Ref. : 522

High quality, strong, dispersion-based adhesive for wet-set, one-side pressure
sensitive and contact installation of vinyl-, CV- floor coverings in sheets, insulation
mats on standard absorbent subfloors (wet-set bonding) and on non-absorbent
subfloors (one-side-pressure sensitive bonding).
Can also be used for textile floor coverings (only with Action Back or secondary
backing) and wall covering installation.
Can be used as contact adhesive (e.g. for heavy wall coverings, impact wall
coverings in sports facilities, installation of floor coverings on stair steps).
Can be thermally reactivated after drying.

Technical characteristics :
Gumming time : 15 to 20 minutes
Opening time: 20 to 30 minutes
Consumption : 250 to 300 g/m² (Spatula A2 recommended)

Bucket of 13 kg

Recommanded to install :

622 eurostar tack
Ref. : 622

Emicode EC 1 plus. High quality, strong, dispersion-based adhesive for wet-set,
one-side pressure sensitive and contact installation of vinyl-, CV- floor coverings
in sheets, insulation mats on standard absorbent subfloors (wet-set bonding)
and on non-absorbent subfloors (one-side-pressure sensitive bonding).
Can also be used for textile floor coverings (only with Action Back or secondary
backing) and wall covering installation.
Can be used as contact adhesive (e.g. for heavy wall coverings, impact wall
coverings in sports facilities, installation of floor coverings on stair steps).
Can be thermally reactivated after drying.

Technical characteristics:
Gumming time : 20 to 30 minutes
Opening time: 20 to 30 minutes
Consumption : 250 to 300 g/m² (Spatula A2 recommended)

Bucket of 13 kg

Recommanded to install:

                                                                                          25
509 eurostar tex
     Ref. : 509

     Emicode EC 1 plus. High quality, strong, dispersion-based adhesive with high initial bonding strength and
     enhanced open time for wet-set installation of textile floor coverings with different backings, needle felt
     floor coverings, on standard absorbent subfloors.

     Technical characteristics:
     Gumming time : 5 to 20 minutes
     Opening time : 15 to 25 minutes
     Consumption : 450 to 500 g/m² (Spatula B1 recommended)

     Bucket of 13 kg

 Recommanded to install :

26
ADHESIVES
541 eurofix anti slip
Ref. : 541

Rollable bonding dispersion which provides full area anti-slip coat after drying. For
fixation and for multiple, removable installation of heavy, self-laying, form stable
carpet tiles with bitumen-/vinyl- or PU-heavy coating on standard absorbent or
non-absorbent subfloors.

For electrically conductive (EC) installation mix 10 parts of 541 Eurofix Anti-Slip with
3,5 parts of 841 Europrimer EC.

Technical characteristics :
Gumming time : 60 minutes depending of the ambiant temperature and subfloor
porosity.
Consumption: 100 to 150 g/m² (foam roller)

Bucket of 10 kg

Recommandée pour la mise en œuvre de :

Additive841 europrimer ec
Ref. : 841

841 europrimer ec is a conductive agent which has to be mix with
the tackifier 541 eurofix anti slip to improve ESD properties.
In association with a copper tape linked to the ground.
This installation will improve the ESD properties to a dissipative
installation.

Technical characteristics :
Consumption : 1 bucket of 3.5 liters of 841 in one bucket of 10 kg of
541 eurofix anti slip

Bucket of 3.5 liter

                                                                                           27
542 eurofix tack plus
     Ref. : 542

     High quality, rollable, after drying permanently self-adhesive coating.
     For full-area fixation and for multiple, removable installation of form-stable textile- and vinyl-tiles with different backings. Also for
     removable installation of textile- and vinyl- floor coverings in sheets. Recomended for loose lay LVTs, for textile Light Weight Tiles on
     standard absorbent and non-absorbent subfloors.

     Technical characteristics :
     Gumming time : 20 to 40 depending of the ambiant temperature and subfloor porosity.
     Consumption : 100 to 150 g/m² (foam roller)

     Bucket of 10kg

 Recommanded to install:

28
ADHESIVES
523 eurostar tack ec
Ref. : 523
Dispersion-based, carbon-fiber containing conductive adhesive with high initial bonding strength in combination with 041 Europrimer
EC and/ or Copper Tape 801 Eurostrip EC net for electrically conductive installation of floor coverings according to floor covering
manufacturer‘s instructions. Such as electrically conductive rubber, vinyl (e.g. Colorex), textile floor coverings, linoleum, needle felt on
prepared absorbent standard subfloors. For indoor use only. Very low VOC emission.

Technical characteristics :
Gumming time : 10 to 15 minutes
Opening time : 10 to 15 minutes
Consumption : 300 to 350 g/m² (Spatula S1 recommended)

Bucket of 12 kg

Recommanded to install:

                                                                                                                                               29
650 Eurostar Fastcol
     Ref. : 650

     Dispersion-based, thermally reactivable contact adhesive with high initial contact
     bonding power and long contact adhesion time for contact mounting of vinyl, rubber,
     linoleum, textile floor coverings onto stairs, stair nosings, covering up profiles and floor
     covering panels.
     Also used for installation of homogenous vinyl, rubber, leather and cork floor
     coverings, linoleum according to floor covering manufacturer‘s instructions.
     For indoor use only.
     Very low VOC emission.

     Technical characteristics:
     Gumming time : 30 minutes to 2 hours depending of the ambiant temperature and
     subfloor porosity.
     Opening time: approx. 4 hours
     Consumption: 200 to 300 g/m² (foam roller include)
     Bucket of 7.5 kg

     Recommanded to install :

     140 euromix PU
     Ref. : 140

     Highly durable, two-component, PU-based adhesive for installation of floor
     coverings in high traffic areas. Suitable for vinyl tiles, vinyl tiles made of
     recycled materials, rubber tiles with sanded backing. Applicable on all types
     of subfloors such as cement-based (screed), cleaned metal sheets, mastic
     asphalt and wooden composite boards. Suitable for highly durable flooring
     installations (e.g. if resistant bonding is required such as forklift or hospital
     bed wheels).

     Technical characteristics :
     Opening time: 8 to 10 hours
     Consumption: 450 to 650 g/m² (Spatula A2 recommended)

     Bucket of 13.4 kg

30
ADHESIVES
Modul’up junction tape
Ref. : 792

Must be used to install Modul'up flooring on an old support (e.g. asbestos). Refer to the
installation instruction for the application of the adhesive.

Box of one roll 50 m x 100 mm

Forbo Dry Tape 50 & 85
Ref. : 793 50 mm (roll of 50 m)
Ref. : 794 85 mm (roll of 50 m)

Forbo Dry Tape has been developed for Modul’up floorcovering and specifically in association with modul’up complete skirting (page 70)
-Suitable for: Forbo Modul’up Complete skirting, Flexible PVC skirting & PVC floorcovering coving
-Suitable for use on: Plaster, Brickwork, Metal (untreated), Painted surfaces, Plastics, Wood, Concrete, Ceramics, Gypsum (primed),
Wallpaper, Smoothing compound (primed).

Box of one roll 50 m

Forbo Dry Tape 85 on the              Modul'up complète skirting on        Forbo Dry Tape 50 on the flat      Installation of Modul'up
wall.                                 the Forbo Dry Tape 85                part of the skirting (floor) +     floorcovering which will be
                                                                           Forbo Dry Tape 85 on the           adhered thanks to the Forbo
                                                                           vertical part (coving) inside of   Dry Tape.
                                                                           the modul'up complete
                                                                           skirting

Mounting adhesive
Ref. : 232 eurosol montage

Allow to install PVC et Marmoleum click. skirting.
1 cartridge = approx 10 to 12 m of skirting

Box of 12 cartridges of 310 ml

                                                                                                                                            31
CALCULATE                                                  DOWNLOAD
                                  your need in adhesives                                    Technical data sheet
                                                                                         & Material safety data sheet

     ADHESIVES RECOMMENDATIONS
                                         Eurocol              Consumption                type of       Gumming            Opening
      Floorcovering                     adhesives                           Spatula     adhesion                                                  Remarks
                                                                  au m2                                 time(2)            time(2)

 Flotex tiles                                                                                                              Keep its       Standard installation with
                                                                                                        60 min
 Flotex plankss                                                                A1                  (absorbant subfloor)   properties     a tackifier but it is possible
 Allura flex / Allura flex 0.55    542 eurofix tack plus          100 g                  Simple                                              to glue down these
                                                                            (ref 182)                   240 min             in the
 Allura decibel                                                                                     (closed subfloor)        time        product with 528 eurostar
 Coral tiles                                                                                                                                       all round

                                                                                                        60 min             Keep its
                                                                               A1                  (absorbant subfloor)   properties
 Tessera                            541 eurofix anti slip         150 g                  Simple                                                        -
                                                                            (ref 182)                   240 min             in the
                                                                                                    (closed subfloor)        time

                                  418 eurostar lino polaris       400 g        B1
 Marmoleum                                                                               Simple        0 to 5 min           15 min
                                   611 eurostar lino plus         350 g     (ref 184)

                                    540 eurosafe special                                                 20 min             60 min          Put adhesive on the
                                                                               A2                                                         double side for the stove
 Marmoleum modular                  640 eurosafe special          350 g                  Simple          20 min             60 min
                                                                            (ref 183)                                                    bar. Apply the Forbo roller
                                   528 eurostar all round                                                15 min             30 min
                                                                                                                                             to ensure a perfect
                                    540 eurosafe special          350 g                                  20 min             60 min       adhesion and use a heavy
                                                                               A2
 Marmoleum decibel                  640 eurosafe special          250 g                  Simple          20 min             60 min       weight on it during 24h on
                                                                            (ref 183)
                                   528 eurostar all round         300 g                                  15 min             30 min                    it

 Flotex sheet
 Sarlon habitat +
 Sarlon trafic                       522 eurostar tack                                                   20 min             40 min        522 & 622 are Pressure
                                                                               A2
 Sarlon primeo                       622 eurostar tack            250 g                  Simple          20 min             40 min       Sensitive Adhesive which
                                                                            (ref 183)
 Sarlon tech 15 dB                 528 eurostar all round                                                15 min             30 min         are heat reactivable
 Novibat
 Novibat préférence
                                                                               A1
 Sarlon complete step              650 eurostar fastcol         150 g x 2                Double        5 to 10 min        25 to 35 min       Double side adhesive
                                                                            (ref 182)

 Allura dry back
 Allura colour
 Habitat modal
 Primeo modal
 Eternal                            540 eurosafe special                                                 20 min             60 min
                                                                               A2
 Sarlon primeo compact              640 eurosafe special          300 g                  Simple          20 min             60 min                     -
                                                                            (ref 183)
 Sarlon trafic compact             528 eurostar all round                                                15 min             30 min
 Sphera
 Safestep R11
 Safestep R12
 Coral® (glue down)
                                                                                                                                            Has to be use under
 Modul’up habitat                                                                                                                            the seams of two
 Modul’up trafic                        Modul'up
                                                                  0.5 m         -           -               -                  -              sheet and not in
 Modul’up compact                     Junction Tape
                                                                                                                                              periphery of the
 Modul’up TE
                                                                                                                                                   room
 Showtime                                                                      B1
 Forte                                509 eurostar tex            400 g                  Simple       10 to 20 min          30 min                     -
                                                                            (ref 184)
 Markant

 Colorex SD                                                                    S1
 Colorex EC
                                    523 eurostar tack ec          300 g
                                                                            (ref 186)
                                                                                         Simple       10 to 15 min          20 min                     -
                                     522 eurostar tack
 Surestep                                                                      A2
                                     622 eurostar tack            250 g                  Simple          20 min             40 min                     -
 Onyx +                                                                     (ref 183)

Neoprene adhesive are not allowed for vinyl floorcoverings installation because of high risk of yellowing migration
of polychloroprene component through PVC layers.
This non-compliance would engage the responsability of the installer

32
UNDERLAYER
Sarlibase

Sarlibase TE
Ref. : TE13

Supply of a rotproof and waterproof flexible underlayer,
Made of synthetic resin impregnated glass mat, grey colour, validated by Agreement
Certificate no. 12/09-1567, such as SARLIBASE T.E.
The surface on the substrate side is made of a pattern of foamed bars in opposite
direction, allowing the free circulation of an air gap between the substrate and the
associated coverings, Vinyl Asbestos Tiles covering solution.
SARLIBASE T.E. system is suitable for all compact reinforced PVC, needlefelt textile floor
coverings, certified NF-UPEC or NF UPEC.A+, described in the Agreement Certificate.
Complies with the requirements of NF DTU 53-2.

Length 35 m - Width 2 m - Thickness 1,50 mm

Sarlibase Lisse
Ref. : TELIS

Rotproof and waterproof flexible under-layer.
Supply of a rotproof and waterproof flexible under-layer, in rolls 2 metres
wide, made of synthetic resin impregnated glass mat, Vinyl Asbestos Tiles
covering solution, such as SARLIBASE Smooth.
SARLIBASE Smooth system is suitable for all compact reinforced PVC,
Flotex and needlefelt textile floor coverings.

Length 35 m - Width 2 m - Thickness 1,10 mm

Sarlibase Acoustic
Ref. : TEAC

Supply of a soundproof under-layer, specially designed for SARLIBAIN
shower system Comfort version, in order to improve sound reduction:
impact sound reduction ΔLw ≥ 18 dB, such as SARLIBASE Acoustic.
SARLIBAIN system Comfort version combining slip-resistant floor
covering (Forbo SURESTEP) with SARLIBASE Acoustic has Agreement
Certificate no. 12/12-1612.
SARLIBASE Acoustic system can be associated with other compact
floor coverings, for instance: ALLURA, ETERNAL, MARMOLEUM(1).
(1) Contact Forbo Flooring Technical Service department in all cases.

Length 35 m - Width 2 m - Thickness 2,00 mm

                                                                                             33
Other underlayers

     Allura click 15 dB underlayer
     Ref. : U54002

     The Underlay Allura click 15 dB was designed specifically to be laid floating
     under Allura Click Compact flooring. As a high-quality system for reducing
     impact sound and walking noise, this underlay was developed to protect
     interlocking devices of different flooring systems and is supplied in rolls
     for convenience. It can be installed on the old subfloor.
     This underlay will be installed, preferably, perpendiculary of the allura click row
     installation with the bright part visible.
     N.B : The underlay 15dB is ready to use without protective film to remove.

     Length 10 m - Width 1 m - Thickness 1,50 mm

 Allura click 19 dB underlayer
 Ref. : SC19

 Extruded closed cell polyolefin foam underlay with anti-slip surface The
 underlay have been developped especially to be installed with allura click
 compact product without adhesive. It will be installed on new subfloor or
 renovated subfloor with leveling compound in accordance with the Code of
 Practive of your country (For installation please follow our installation
 recommendation). The system will provide a very good impact sound
 reduction (19 dB). In association with l’allura click compact, the system will
 provide a good residual indentation resistance at 0,05mm.

 Length 15 m - Width 1 m - Thickness 1 mm

     Forbo Foam
     Ref. : 6666

     Polypropylene foam for use with Quickfit panels laminated with
     metallised foil. The foil top layer incorporates a self-adhesive overlap of
     20 cm for secure seams.
     Permeability of water vapor less than to 0.46 g/m²/24h.
     Can be associated with Quickfit and Marmoleum click.

     Length 25 m - Width 1 m - Thickness 4,50 mm

     Quick Fit
     Ref. : 4444

     The Forbo Quickfit system comprises self-adhesive MDF panels and
     moisture resistant, sound insulating Forbo foam.
     Forbo Quickfit offers : A rapid, smooth finish. Quick and easy installation. No
     visible subfloor seams. Excellent moisture barrier. Easily removable.
     Improved impact sound insulation in combination with Forbo Foam ( Lw =
     23 dB according to EN-ISO 140-8 and 717-2).

     10 panels of 120 x 60 cm (namely 3,6 m²/box)

34
WELDING ROD
LINO WELDING ROD
Ref. Uni : LD +floorcovering ref
Ref. Multicolor : MC + floorcovering ref

Welding allow the junction between strip edges.
A groove is formed and the weld is then applied using a hot air gun (page 8) fitted with a
fast welding nozzle (page 6).

Coil of 50 m (circle rod for uni reference and square rod for multicolor reference)

PVC WELDING ROD
Ref. : floorcovering ref

Welding allow the junction between strip edges.
A groove is formed and the weld is then applied using a hot air gun (page 8) fitted with
a fast welding nozzle (page 6).

Coil of 50 m (sarlon - surestep – eternal - novilux - onyx - sphera)
Coil of 100 m (colorex)

                                                       Welding rod box
                                                          number

                                                                                 VINYLWELD
          Labelling found on each
             PVC welding rod                                 228
                                                                           50 m                4 mm     # 7712105
                                                                                       433121 40392

                                                                                Commercial reference
                                                                                 of PVC floorcovering
                                                                                 corresponding with
                                                                                   this welding rod

                                                                                                                    35
CORRESPONDENCE TABLE BETWEEN WELDING ROD AND PVC FLOORCOVERING COLLECTION

     Box number      Floorcovering reference                         Eternal material - 12012
         1              Eternal wood - 12802         29              Eternal material - 11342
                        Novilux traffic - 3276                       Surestep wood - 18542
         2              Eternal wood - 10482                         Sphera element - 50027
                        Eternal wood - 11882         31             Sphera evolution - 50470
                      Novilux structura - 2219       34             Vinyle pro original - 66142
                      Vinyle pro original - 1045     35             Vinyle pro original - 61602
         3              Eternal wood - 10522         39            Sarlon trafic 19 dB - 433421
                        Eternal wood - 10362                         Eternal material - 13002
                        Eternal wood - 36022                        Vinyle pro original - 61042
                      Vinyle pro original - 1161     43             Sphera evolution - 50473
                         Vinyl + 17dB - 3141                        Vinyle pro original - 61032
                        Novilux traffic - 3165       44              Novilux structura - 2454
         4              Novilux natura - 2706                        Eternal matiere - 13952
                      Vinyl pro original - 1119      48             Vinyle pro original - 13472
         5              Eternal wood - 11442         51              Novilux structura - 2501
                        Novilux natura - 2839        60              Novilux structura - 2453
                      Vinyl pro original - 1256                       Vinyle + 17dB - 31122
         7              Eternal wood - 11542                        Vinyle + compact - 27822
         8              Eternal wood - 10232         61              Eternal material - 13712
         9        Sarlon trafic modul'up - 4380473                    Novilux traffic - 3114
                     Sarlon trafic 19 dB - 438413    62              Eternal matiere - 41002
                        Eternal wood - 11912                          Eternal colour - 40002
                        Novilux traffic - 3016                      Surestep original - 171082
        10             Surestep wood - 18382                          Surestep star - 176082
        12        Sarlon Trafic modul'up - 4330573   63              Novilux structura - 2471
                     Sarlon trafic19 dB - 433573     64              Sphera element - 50009
        14             Eternal matiere - 11932       66              Sphera element - 50055
        15              Eternal wood - 11632         71           Sarlon 15dB magma - 434518
                        Vinyl + 15dB - 24482         74             Vinyle pro original - 61292
                       Novilux traffic - 30272       76               Eternal colour - 40232
        16         Eternal de Luxe comfort - 30472                  Surestep original - 171782
                       Surestep stone - 17162        77             Surestep original - 171562
                   Novilux traffic compact - 28672   78            Sarlon trafic 19 dB - 433319
        17           Sarlon trafic 19 dB - 433742    80             Vinyle pro original - 66142
        18            Eternal material - 13022       83           Eternal palette Colour - 40322
        19            Eternal material - 13082                    Sarlon 15dB magma - 434551
                       Surestep wood - 18572                        Surestep original - 171032
        20            Eternal material - 13032                        Surestep star - 176032
                       Novilux traffic - 31432                        Safestep R11 - 174032
                   Novilux traffic compact - 27432                    Safestep R12 - 175032
        22           Surestep original - 171262      84              Eternal material - 42292
                       Surestep star - 176262                         Eternal colour - 40292
                     Vinyle pro original - 13462                    Surestep original - 171992
        23           Sarlon trafic 19 dB - 433980                     Safestep R11 - 174992
        26            Sphera element - 50008                          Safestep R12 - 175032
        27             Surestep stone - 17132                        Sphera element - 50001
        28           Sarlon trafic 19 dB- 433761                      Novilux traffic - 3299
                     Vinyle pro original - 61962                  Novilux traffic compact - 2799
                      Eternal material - 10012                       Eternal matiere - 41292

36
WELDING ROD
Box number             Floorcovering reference                138       Sarlon trafic 15 et 19 dB résine - 433713
   88                   Tech compact - 43C4711                              Sarlon priméo chêne - 4378431
                          Novilux traffic - 3024                            Sarlon trafic chene XL - 438420
                        Novilux structura - 2472                                 Eternal wood - 11652
                          Novilux traffic - 3024                    Sarlon priméo compact chêne L & XL - 43C78431
                     Novilux traffic compact - 2894           139       Sarlon trafic 19 dB frequency - 433402
   89                    Eternal matiere - 12032                          Sarlon priméo chêne XL - 4378422
   90                   Sphera element - 50030                                   Novilux traffic - 3167
   92                  Sarlon trafic 19 dB - 433496                              Eternal wood - 13412
   95                 Sarlon 15dB magma - 434579                                Eternal matiere - 10042
                         Eternal colour - 40252                      Sarlon priméo compact chêne XL - 43C78422
                         Eternal matiere - 41252              140         Sarlon trafic 19 dB ciment - 433584
  105                Sarlon priméo nuance - 437629                               Novilux traffic - 3046
  106            Sarlon trafic modul'up terra - 4330012                     Sarlon priméo Chêne - 4378423
                   Sarlon trafic 19 dB cristal - 433812             Sarlon priméo compact chêne L & XL- 43C78423
                     Sarlon trafic 19 dB uni - 430812         141             Vinyle pro original - 13472
                  Sarlon trafic 19 dB code zéro - 433212      142         Sarlon priméo chêne XL - 4378431
                     Sarlon priméo nuance - 437612                            Vinyle pro original - 10562
                          Novilux traffic - 3153              143             Vinyle pro original - 13292
                  Sarlon trafic 19 dB dégradé - 433912                          Eternal matiere - 12092
  110            Sarlon trafic 19 dB frequency - 433438       144                 Vinyle+ 15dB - 2443
                     Sarlon trafic 19 dB uni - 430808                           Novilux structura - 2422
                  Sarlon trafic 19 dB code zéro - 433208      146       Sarlon Trafic modul'up terra - 4330001
                  Sarlon trafic 19 dB dégradé - 433908                    Sarlon trafic 19 dB cristal - 433801
  112                Sarlon trafic 19 dB uni - 430817                       Sarlon trafic 19 dB uni - 430801
                  Sarlon trafic 19 dB code zéro - 433217                 Sarlon trafic 19 dB code zéro - 433201
  127                Sarlon priméo béton - 437720                           Sarlon priméo nuance - 437601
                       Vinyle pro original - 13452                         Sarlon trafic compact - 43C0801
                         Eternal matiere - 13922              147         Sarlon trafic 15 dB cristal - 423811
                Sarlon priméo compact béton - 43C7720                     Sarlon trafic 19 dB cristal - 433811
  129              Sarlon trafic 19 dB résine - 433734                  Sarlon trafic 19 dB frequency - 433431
                 Sarlon trafic modul'up chene - 4380232                     Sarlon trafic 19 dB uni - 430811
                     Sarlon priméo béton - 437722                        Sarlon trafic 19 dB code zéro - 433211
                Sarlon priméo compact béton - 43C7722                    Sarlon trafic 19 dB dégradé - 433941
  130              Sarlon trafic 19 dB ciment - 433574        148         Sarlon trafic 19 dB cristal - 433814
  131                Sarlon priméo béton - 437731                           Sarlon trafic 19 dB uni - 430814
                Sarlon priméo compact béton - 43C7731                        Sarlon 15 dB canyon - 432214
                          Novilux traffic - 3037                            Sarlon trafic 19 dB uni - 430816
                        Sphera element - 50018                           Sarlon trafic 19 dB code zéro - 433214
                        Vinyle pro canyon - 4223                            Sarlon priméo nuance - 437614
  134              Sarlon trafic 19 dB chêne - 438421                      Sarlon priméo code one - 437114
                     Sarlon priméo chêne - 4378381                         Sarlon trafic compact - 43C0814
             Sarlon priméo compact chêne L & XL - 43C78381                     Vinyle pro canyon - 4214
  135                Sarlon priméo chêne - 4378383            149         Sarlon trafic 19 dB cristal - 433819
                          Novilux traffic - 3035                            Sarlon trafic 19 dB uni - 430819
                        Vinyle pro wood - 48373                          Sarlon trafic 19 dB code zéro - 433219
             Sarlon priméo compact chêne L & XL - 43C78383                Sarlon tech 15dB magma - 434532
                         Surestep wood - 18802                                 Vinyle pro wood - 48372
  136                   Vinyle pro wood - 48374                            Sarlon priméo code one - 437119
                         Eternal matiere - 10832              151       Sarlon trafic 19 dB topography - 433929

                                                                                                                    37
Box number         Floorcovering reference               245         Vinyle pro original - 61952
                      Sarlon trafic compact - 43C0899         248          Eternal matiere - 13312
       154                  Novilux traffic - 3019            249           Surestep stone - 17122
                          Eternal matiere - 13322             253     Sarlon trafic 19 dB chêne - 438479
       155                Eternal matiere - 13762                     Sarlon trafic 19 dB chêne - 438489
       159        Sarlon trafic modul'up chêne - 4380472      254     Sarlon trafic 19 dB chêne - 438432
                     Sarlon trafic 19 dB chêne - 438412       262         Vinyle pro original - 61262
                           Eternal wood - 11952               263     Sarlon tech 15dB magma - 434513
       160           Sarlon tech 15dB magma - 434524          267           Eternal colour - 40332
       169             Sarlon priméo Linen - 437541           269         Vinyle pro original - 61622
       170               Surestep original - 171642           270     Sarlon trafic 19 dB chêne - 438483
                           Safestep R11 - 174642                             Novilux traffic - 3392
                           Safestep R12 - 175642              274         Vinyle pro original - 11602
       174               Vinyle pro original - 61052          275           Surestep stone - 17172
                          Sphera element - 50017              276     Sarlon tech 15dB magma - 434589
       175          Sarlon trafic 19 dB zebrano - 433313      293          Sphera element - 50024
       189          Sarlon trafic 19 dB ciment - 433579       295           Novilux traffic - 30182
       191        Sarlon trafic modul'up Ciment - 4330570              Novilux traffic compact - 28582
                    Sarlon trafic 19 dB ciment - 433570       296      Sarlon trafic 19 dB linéa - 433113
                          Eternal matiere - 10032                   Sarlon trafic modul'up linéa - 4330113
       194                  Novilux traffic - 3017                    Sarlon tech 15dB magma - 434513
       201                  Novilux traffic - 3026                          Eternal wood - 12832
                           Eternal colour - 40062                         Vinyle pro original - 61622
                         Surestep material - 18562            297   Sarlon trafic 19 dB frequency - 433424
       211             Sarlon 15 dB canyon - 432209           298     Sarlon trafic 19 dB chêne - 438484
                          Vinyle pro canyon - 4209                        Vinyle pro original - 10242
                         Surestep original - 171952           304     Sarlon tech 15dB magma - 434524
                           Safestep R11 - 174952              309          Safestep aqua - 180262
                           Safestep R12 - 175952              310           Vinyle + 15dB - 24462
                         Surestep laguna - 181092                          Eternal matiere - 10852
                          Safestep aqua - 180092              311         Sphera evolution - 50400
       212         Sarlon trafic 19 dB frequency - 433422             Sarlon tech 15dB magma - 434571
                       Sarlon 15dB canyon - 432211            326   Sarlon trafic 19 dB frequency - 433437
                          Vinyl pro canyon - 4211             351   Sarlon trafic modul'up chêne - 4380233
       217           Sarlon priméo code one - 437196          357     Sarlon trafic 19 dB résine - 433771
                          Sphera element - 50058                            Eternal colour - 45112
       218                 Eternal wood - 11162                           Vinyle pro original - 13482
                          Eternal matiere - 10112             359           Eternal colour - 40292
       222                Vinyle pro canyon - 4205            363          Eternal matiere - 13772
       224                Surestep wood - 18792                            Sphera element - 50002
       228         Sarlon trafic 15 et 19 dB linéa - 433121   367          Surestep design - 18952
                           Eternal colour - 40392             375          Sphera element - 50028
       232               Vinyle pro original - 10432          376          Eternal matiere - 11942
       233               Sphera evolution - 50471             387         Surestep original - 171332
       238             Sarlon primeo linen - 437531           391         Sphera evolution - 50437
       240           Sarlon trafic 19 dB linéa - 433132       396          Eternal matiere - 12422
                  Sarlon trafic 19 dB comic wood - 433989             Sarlon tech 15dB magma - 434552
                  Sarlon trafic modul'up chene - 4380212                    Safestep R11 - 174922
       244        Sarlon trafic modul'up ciment - 4330572                   Safestep R12 - 175922
                    Sarlon trafic 19 dB ciment - 433572                     Surestep star - 176922

38
WELDING ROD
Box number         Floorcovering reference              465     Sarlon trafic 19 dB cristal - 433866
  397                Surestep star - 176952             466     Sarlon trafic 19 dB résine - 433786
  400          Sarlon tech 15dB magma - 434534          467     Sarlon trafic 19 dB résine - 433727
  402        Sarlon trafic 19 dB topography - 433910    468     Sarlon trafic 19 dB résine - 433707
  403               Vinyle pro canyon - 4206            469     Sarlon trafic 19 dB résine - 433758
  407                Eternal colour - 405892            470   Sarlon Trafic modul'up résine - 4330778
  420               Sphera evolution - 50404                    Sarlon trafic 19 dB résine - 433778
  423               Vinyle pro canyon - 4208            471   Sarlon Trafic modul'up résine - 4330756
  436                Safestep R11 - 174862                      Sarlon trafic 19 dB résine - 433756
                     Safestep R12 - 175862              472     Sarlon trafic 19 dB résine - 433746
  437           Sarlon priméo code one - 437187         473   Sarlon trafic modul'up résine - 4330767
  438           Sarlon priméo code one - 437116         473     Sarlon trafic 19 dB résine - 433767
  439            Sarlon priméo nuance - 437655          474     Sarlon trafic 19 dB cristal - 433835
  440            Sarlon priméo nuance - 437618                  Sarlon tech 15dB magma - 434505
  441           Sarlon priméo code one - 437138         475   Sarlon trafic 19 dB frequency - 433415
  442           Sarlon priméo code one - 437167         477   Sarlon trafic 19 dB frequency - 433457
  443           Sarlon priméo code one - 437188         478   Sarlon trafic 19 dB frequency - 433476
  444            Sarlon priméo nuance - 437667          480     Sarlon trafic 19 dB cristal - 433876
  445            Sarlon priméo nuance - 437676          481     Sarlon trafic 19 dB cristal - 433837
  446            Sarlon priméo nuance - 437606          482     Sarlon trafic 19 dB chêne - 438494
  447            Sarlon priméo nuance - 437627                Sarlon trafic modul'up chêne - 4380213
  448             Sarlon priméo linen - 437564          483     Sarlon trafic 19 dB cristal - 433857
  449             Sarlon priméo linen - 437531          484     Sarlon trafic 19 dB cristal - 433847
  450             Sarlon priméo linen - 437562          485   Sarlon trafic 19 dB topography - 433919
  451           Sarlon priméo code one - 437146                        Eternal wood - 36062
  452             Sarlon priméo linen - 437577                       Sphera energetic - 50215
  453             Sarlon priméo linen - 437530                       Sphera energetic - 51215
  454             Sarlon priméo linen - 437554          486     Sarlon trafic 19 dB chêne - 438410
  455        Sarlon trafic 19 dB frequency - 433436             Sarlon tech 15dB magma - 434503
                 Sarlon priméo nuance - 437626          487    Sarlon trafic 19 dB dégradé - 433925
  456             Sarlon priméo linen - 437574          488    Sarlon trafic 19 dB dégradé - 433912
  457            Sarlon trafic 19 dB uni - 430818       489    Sarlon trafic 19 dB dégradé - 433906
              Sarlon trafic 19 dB code zéro - 433218    490    Sarlon trafic 19 dB dégradé - 433908
  458            Sarlon trafic 19 dB uni - 430827       491    Sarlon trafic 19 dB dégradé - 433927
              Sarlon trafic 19 dB code zéro - 433227    492    Sarlon trafic 19 dB dégradé - 433941
              Sarlon trafic 19 dB dégradé - 433927      493    Sarlon trafic 19 dB dégradé - 433946
  459            Sarlon trafic 19 dB uni - 430807       494     Sarlon trafic 19 dB cristal - 433828
              Sarlon trafic 19 dB code zéro - 433207    495     Sarlon trafic 19 dB cristal - 433848
  460            Sarlon trafic 19 dB uni - 430846       496     Sarlon trafic 19 dB cristal - 433836
              Sarlon trafic 19 dB code zéro - 433246    497   Sarlon trafic 19 dB frequency - 433428
              Sarlon trafic 19 dB dégradé - 433946      501           Eternal matiere - 10182
  461            Sarlon trafic 19 dB uni - 430825       502          Sphera element - 50023
              Sarlon trafic 19 dB dégradé - 433925      503          Sphera element - 50025
  462            Sarlon trafic 19 dB uni - 430806       505          Sphera element - 50038
              Sarlon trafic 19 dB code zéro - 433206    506          Sphera element - 50039
              Sarlon trafic 19 dB dégradé - 433906      509          Sphera element - 50015
  463         Sarlon trafic 19 dB code zéro - 433216    510          Sphera element - 50016
                     Eternal colour - 40782             511          Sphera element - 50032
                 Sarlon trafic 19 dB uni - 430816                     Eternal colour - 40942
  464          Sarlon trafic 19 dB résine - 433716      512          Sphera element - 50048

                                                                                                        39
Box number      Floorcovering reference        566       Sphera energetic - 50206
       513            Sphera element - 50033        567       Sphera energetic - 50207
       514            Sphera element - 50044        568       Sphera energetic - 50208
       515            Sphera element - 50021        569       Sphera energetic - 50209
       516            Sphera element - 50026        570       Sphera energetic - 50212
       517            Sphera element - 50034                  Sphera energetic - 51212
       518            Sphera element - 50035        571       Sphera energetic - 50213
       519            Sphera element - 50053        572       Sphera energetic - 50221
       520            Sphera element - 50029                  Sphera energetic - 51221
       521            Sphera element - 50042        573       Sphera energetic - 50224
       522            Sphera element - 50056        574       Sphera energetic - 50225
       523            Sphera element - 50019                  Sphera evolution - 50441
                  Sarlon tech 15dB magma - 434514   575       Sphera energetic - 50226
       524            Sphera element - 50041                  Sphera energetic - 51226
       525            Sphera element - 50013        576       Sphera energetic - 50229
       526            Sphera element - 50010                  Sphera energetic - 51229
                  Sarlon tech 15dB magma - 434579   577       Sphera energetic - 50230
       527            Sphera element - 50011        578       Sphera energetic - 50231
       528            Sphera element - 50043        579       Sphera energetic - 50233
       529            Sphera element - 50031        580       Sphera energetic - 50237
       530            Sphera element - 50022        581       Sphera energetic - 50205
       532            Sphera element - 50051        582       Sphera energetic - 50211
       533            Sphera element - 50047                  Sphera energetic - 51211
       534            Sphera element - 50012        583       Sphera energetic - 50214
       535            Sphera element - 50057        584       Sphera energetic - 50216
       536            Sphera element - 50014                  Sphera energetic - 51216
       537            Sphera element - 50061        585       Sphera energetic - 50217
       538            Sphera element - 50020        586       Spheraenergetic - 50219
       539            Sphera element - 50045        587       Sphera energetic - 50220
       540            Sphera element - 50052        588       Sphera energetic - 50223
       541            Sphera element - 50005        589       Sphera energetic - 50227
       542            Sphera element - 50003        590       Sphera energetic - 50232
       543            Sphera element - 50004        591       Sphera energetic - 50234
       544            Sphera element - 50006        592       Sphera energetic - 50235
       550            Sphera element - 50037        593       Sphera energetic - 50238
       552            Sphera element - 50046        594       Sphera energetic - 50239
       554            Sphera element - 50000        595       Sphera energetic - 50240
       555            Sphera element - 50007        596       Sphera energetic - 50202
       556            Sphera element - 50036                  Sphera energetic - 51202
       557            Sphera element - 50049        597       Sphera energetic - 50210
       558            Sphera element - 50050                  Sphera evolution - 50438
       559            Sphera element - 50054        598       Sphera energetic - 50218
       560            Sphera element - 50059        599       Sphera energetic - 50222
       561            Sphera element - 50060                  Sphera energetic - 51222
       562            Sphera energetic - 50200      600       Sphera energetic - 50236
                      Sphera energetic - 51200                Sphera energetic - 51236
       563            Sphera energetic - 50201      601       Sphera energetic - 50228
       564            Sphera energetic - 50203      602   Sarlon tech 15dB magma - 434547
                       Eternal colour - 45132       603   Sarlon tech 15dB magma - 434597
       565            Sphera energetic - 50204      604   Sarlon tech 15dB magma - 434517

40
You can also read
