Vacmaster
Product Range

2018
Vacmaster Product Range - White International
Vacmaster Range
          The Masters in Industrial Vacuums
                 for Over 15 Years

                                 DIY
                                                                                                               NEW

      VMVQ1218S                   VMVQ1220SS               VMVQ1530SWDC                         VMVF1515HJ                        VMVK1520SIW
        511488                      509684                    509686                              509658                             509675
Tank Capacity:   20L         Tank Capacity: 20L         Tank Capacity: 30L                Tank Capacity: 15L                 Tank Capacity: 20L
Input Rating:    1250W       Input Rating: 1250W        Input Rating: 1500W               Input Rating: 1500W                Input Rating: 1500W
Motor Type:      Single      Motor Type: Single         Motor Type: Single                Motor Type: 2 Stage                Motor Type: 2 Stage
Tank Drain:      Pour        Tank Drain: Plug           Tank Drain: Plug                  Tank Drain: Pour                   Tank Drain: Pour
Sync Max:        N/A         Sync Max:      N/A         Sync Max:      800W               Sync Max:      N/A                 Sync Max:      800W
Features & Benefits:         Features & Benefits:       Features & Benefits:              Features & Benefits:               Features & Benefits:
Ultra-lightweight,           Ultra-lightweight,         Powerful, sleek and               It’s easy to use,                  Lightweight, powerful
powerful and portable.       powerful and portable.     versatile. Featuring the          lightweight and portable           and portable. The stainless
Use at home, in the garage   Use at home, in the        muscle of a 1500W motor,          with great features like           steel tank offers a more
or at the office.            garage or at the office.   it cleans up after big jobs.      automatic cord rewind,             professional look to the
                                                                                          triple filtration, onboard         machine and will stand up
                                                                                          accessory storage and a            to the rugged demands of
                                                                                          large dust-sealed on/off           your job.
                                                                                          switch.

2 | Vacmaster Product Brochure 2018                                   Disclaimer: Every effort has been made to publish the correct details in this brochure.
                                                                   No responsibility will be taken for errors, omissions or changes in product specifications.
Vacmaster Product Range - White International
Best-In-Class Suction Power Master Any Mess
 Vacmaster offers a dependable portfolio of innovative models to suit most domestic, commercial and industrial
 applications.

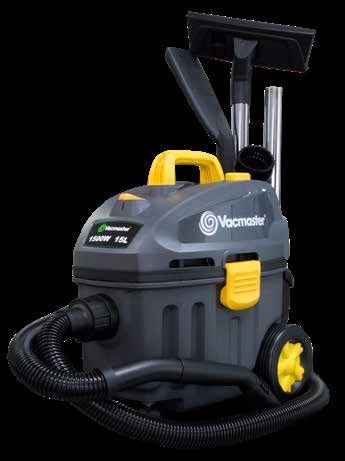

 The Vacmaster range includes a convenient 15lt portable wet/dry vac with retractable lead that is great for trade and
 servicemen for after job clean-up, a rugged yet easily maneuverable 60lt stainless steel wet/dry vac with an industrial
 two-stage motor for heavy-duty use on the factory floor, a 38lt HEPA wet/dry vac with Hepa Certified filters that meets
 EPA’s standard suitable for clean-up use including fine particles and a wet/dry vacuum for every application in between.
 Vacmaster take pride in producing a high quality product and will continue to introduce new products and features
 to impress consumers.

INDUSTRIAL                                                                                                                          PRO
                                                                                                               NEW
                                                                                                                                                        NEW
                       NEW

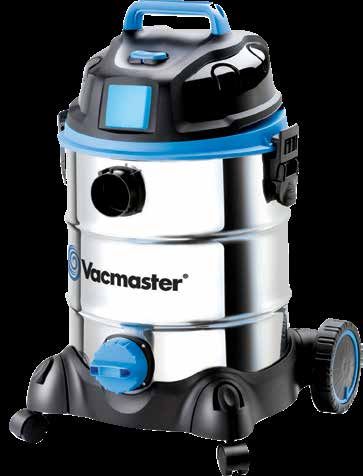

         VMVK1530SIWDC                                VMVK1650SWDC                                 VMVK1660SW                           VMVK1638SWC
             509676                                      509678                                      509680                                805109
  Tank Capacity:          30L                 Tank Capacity:           50L                 Tank Capacity:       60L             Tank Capacity:        38L
  Input Rating:           1500W               Input Rating:            1600W               Input Rating:        1600W           Input Rating:         1300W
  Motor Type:             2 Stage             Motor Type:              2 Stage             Motor Type:          2 Stage         Motor Type:           2 Stage
  Tank Drain:             Plug                Tank Drain:              Plug                Tank Drain:          Plug            Tank Drain:           Plug
  Sync Max:		             800W                Sync Max:		              700W                Sync Max:		          700W            Sync Max:		           1000W
  Features & Benefits:                        Features & Benefits:                         Features & Benefits:                 Features & Benefits:
  Lightweight, powerful and                   Sludge, debris, standing water,              This big, tough feature packed       Certified HEPA filtration. This
  portable. Heavy duty castors and            wood scraps, nothing’s too tough             Vacmaster is a must have for any     commercial vac also features
  wheels. Powerful 1500W two                  for this powerful vac. Has a ball            tough project. Sludge, debris,       stainless steel tank, reinforced
  stage motor delivers the suction            bearing construction for longer              standing water, wood scraps,         crush resistant industrial hose,
  necessary for all your projects.            life. Its extra large drain, push/           nothing’s too tough for this         and foam filter sleeve for
                                              pull handle, accessory storage and           powerful vac. Extra large drain      picking‑up liquid materials.
                                              wide stance design make it easy to           port with directional hose.
                                              use and manoeuver anywhere.

 Disclaimer: Every effort has been made to publish the correct details in this brochure.                                      Vacmaster Product Brochure 2018 | 3
 No responsibility will be taken for errors, omissions or changes in product specifications.
Vacmaster Product Range - White International
Brand Story
                                      For Every Mess,
                                      There’s A Master
                                      With more than 15 years experience in engineering and
                                      motor technology, Vacmaster incorporates the latest
                                      processes and highest standards of engineering, design
                                      and production.
                                      The results are high-quality products with exceptional performance
                                      and durability.
                                      All products are made with the consumer in mind. Innovation and efficient
                                      design make your Vacmaster easy to handle, use and store. It‘s heavy-duty
                                      motors deliver peak horsepower for maximum suction and all vacs come
                                      fitted with a float valve mechanism that shuts suction off to protect the
                                      motor from liquid overfill. Most Vacmaster wet/dry vacs also convert quickly
                                      and easily to a powerful blower, perfect for clearing debris on patios,
                                      paths and driveways.

4 | Vacmaster Product Brochure 2018                     Disclaimer: Every effort has been made to publish the correct details in this brochure.
                                                     No responsibility will be taken for errors, omissions or changes in product specifications.
Vacmaster Product Range - White International
Technology:

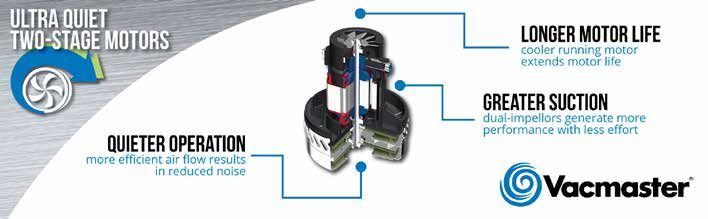

  Two Stage Motors (twin fan)
  What is a two stage motor?                                                              Why is less motor speed good?
  A two stage motor features two fans on the same                                         Reducing the motor speed is the best way to reduce
  motor shaft. Air moved by these fans travels through                                    noise and extend the life of the motor.
  each fan in turn.

  What does a twin fan system do?                                                         How will this benefit me?
  The twin fan system increases the vacuum pressure as                                    You will get better suction, a longer motor life
  it moves through the stage/fans allowing it to reduce                                   and lower noise compared to our single fan system
  the motor speed and still maintain airflow and suction.                                 running at the same speed.

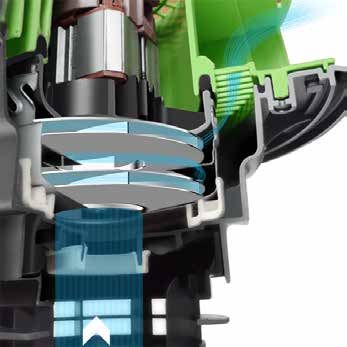

                                                                                                                                        Twin Fan
                                                                                                                                        In Action

Disclaimer: Every effort has been made to publish the correct details in this brochure.                             Vacmaster Product Brochure 2018 | 5
No responsibility will be taken for errors, omissions or changes in product specifications.
Vacmaster Product Range - White International
HEPA Class 13 filtration
  With a HEPA 13 catridge filter and a HEPA 13
  post-motor filter. Capturing at least 99.97% of
  dust and allergen particles, down to 0.3 microns.
  HEPA filtration gives asthma and allergy sufferers
  even greater protection.

6 | Vacmaster Product Brochure 2018                       Disclaimer: Every effort has been made to publish the correct details in this brochure.
                                                       No responsibility will be taken for errors, omissions or changes in product specifications.
Vacmaster Product Range - White International
What does HEPA mean?                                                                  What are the benefits of HEPA?
           High        Efficiency          Particulate           Air                            There are a number of key benefits of HEPA filtration:

              HEPA is a type of air filter.                                                    - It filters out particles undetectable to the human eye
     To qualify for HEPA certification, the filter must                                         and stops them from being released back into the air.
        be proven to remove 99.97% of materials                                                This means a safe and clean working environment.
                  as small as 0.3 microns.                                                      - HEPA certification is a badge of quality and proven
                                                                                                        results. It provides peace of mind.
                        Microns and HEPA                                                      - HEPA certified filters protect the end-user from inhaling
                                                                                                harmful debris. This means a reduced risk of injury,
                 A micron is a measurement of size.                                                long term damage or compromised health.
        A single grain of sand is approximately 100 microns
    and the human eye can see particles as small as 40 microns.
           Vacmaster HEPA certified filters collect debris
                   as small as 0.3 of a micron.

                                                                                                                  How Big is a Micron?

                                                                                                                                  Average Human Hair
                                                                                                                                      150 Microns

                                                                                                                                   150 Microns
                                                                                                                                    25 Microns
                                                                                                                         ..
                                                                                                                                    10 Microns
                                                                                                                                 Average Dust Particle
                                                                                                                                     5-10 Microns

                                                                                                                                    5 Microns
                                                                                                                                    1 Micron
                                                                                                                                   0.3 Microns

Disclaimer: Every effort has been made to publish the correct details in this brochure.                                   Vacmaster Product Brochure 2018 | 7
No responsibility will be taken for errors, omissions or changes in product specifications.
Vacmaster Product Range - White International
Technology:
  Wet or Dry Extraction
  Vacuums large volumes of wet or dry debris.
  Fit the prefilter, cartridge filter and recommended optional dust bag to capture dry debris.
  Switch these for the foam filter to extract liquids

                  Dry Extraction                                                   Wet Extraction
                                                         Wet or Dry
            • Cartridge Filter                       Extraction in action
                                                                                 • Foam Filter only
            • Dust Bag
            • Pre-Filter Bag

8 | Vacmaster Product Brochure 2018                            Disclaimer: Every effort has been made to publish the correct details in this brochure.
                                                            No responsibility will be taken for errors, omissions or changes in product specifications.
Vacmaster Product Range - White International
Technology:
  Sync Function (Power take Off)

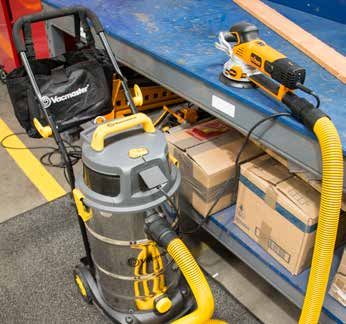

  By simply plugging in your power tool into the sync power outlet on
  the vacuum, the power tool will automatically control when
  the vacuum starts and stops. Select “II” on the vacuum switch.
  Connect the vacuum to a power outlet and it is ready to go.
  As the power tool is switched on, both the power tool and the vacuum will start
  simultaneously. When the power tool is switched off, the vacuum continues for up to 8
  seconds which clears any debris in the hose and the vacuum stops. Next time the power tool
  is started, the vacuum also starts. The operation of the sync is limited. For a 1500 watt vac,
  the max for power tool is 800 watt.

  What is a vacuum cleaner with Power Take Off (PTO)?
  A vacuum cleaner with Power Take Off is essentially a portable dust extraction unit, often used by carpenters, builders
  and renovators to capture wood and masonry dust before it spreads. Helping to reduce exposure to potentially
  hazardous dust, whilst also keeping homes and working environments clean.

  Power Take Off (PTO) is a term used to describe an additional power socket that is fitted onto a vacuum cleaner unit.
  Most commonly used for plugging in electric power tools, the vacmaster PTO sockets also feature an integrated switch
  that synchronises the power switch on the vacuum cleaner to the power switch on the tool. This enables an operator
  to turn the vacuum cleaner on and off from the switch on their tool.

  Why is it important to extract building dust from your home or workspace?
  It is important to consider proper dust collection when undertaking any building work, whether in a work
  environment or in your home. Repeated exposure to wood or masonry dust can be hazardous, causing anything from
  a flu-like illness, to chronic bronchitis, to cancer. Wood dust often contains bacteria and fungi, which, when airborne,
  can enter the lungs and cause illness and long term damage.

  How to connect a power tool to a PTO vacuum cleaner
  Using a power tool or machine to sand, saw, router or drill
  can generate large volumes of potentially hazardous dust.
  Because of this, most dust generating tools have a port for
  collecting the dust. Simply connecting a hose from a dust
  extracting vacuum cleaner to this port, captures the dust
  generated directly at the point of origin.

  However, not all tools and machines have the same sized
  port. A small belt sander will have a smaller port than
  circular table saw, for instance. Using an adaptor ensures
  you will always have a secure connection between your
  sized tool and the hose on the vacuum cleaner.
Disclaimer: Every effort has been made to publish the correct details in this brochure.       Vacmaster Product Brochure 2018 | 9
No responsibility will be taken for errors, omissions or changes in product specifications.
Vacmaster Product Range - White International
DIY VACUUM
WET/DRY VACUUM 20L DIY WORKSHOP
VMVQ1218S (511488)
Ultra-lightweight, powerful and portable. Use at home, in the garage or at the office.
The stainless steel tank offers a more professional look to the machine. Powerful
1250W motor delivers the suction necessary for all your household projects.

Product Specifications:
•    Tank Capacity:               20L
•    Input Rating:		              1250W
•    Sync Function (PTO):         No
•    Motor Type:		                Single Stage
•    Max Airflow:		               58L/s
•    Max Vacuum:		                14kpa
•    Hose Length:		               1.5m
•    Hose Connection:             Quick Lock
•    Accessory Diameter:          35mm
•    Accessory Storage:           On Board
•    Cord Length:		               4m
•    Tank Type:		                 Stainless Steel
•    Tank Drain:		                Pour
•    Conversion to Blower:        Yes
•    Barrel Fasteners:            Plastic
•    Wheels/Castors:              Standard Duty Castors
•    Weight:		                    GW: 5.4kg
•
•
     Warranty:
     Barcode:
                                  2 Year Limited
                                  9314539025566
                                                                          CONSUMABLES
                                                                          Image                       Item       Description
                                                                                                     509624      Standard Dust Bags - 5 pack
In the Box:
                                                                                                     509575      High Efficiency Dust Bags - 3 pack
Hose, plastic poles, floor tool,
crevice tool, round brush,
filter bag, cloth filter, foam filter                                                                509583      Cloth Filter - 3 pack

                                                                                                     509587      Standard Foam Filter - 10 pack

                                                                                                     509585      Standard Cartridge Filter - Yellow

                                                                                                     509648      Micro Detail Cleaning Kit

10 | Vacmaster Product Brochure 2018                                   Disclaimer: Every effort has been made to publish the correct details in this brochure.
                                                                    No responsibility will be taken for errors, omissions or changes in product specifications.
DIY VACUUM
WET/DRY VACUUM 20L WORKSHOP
VMVQ1220SS (509684)
Ultra-lightweight, powerful and portable. Use at home, in the garage or at the office.
The stainless steel tank offers a more professional look to the machine and with the
additon of the moulded base and drain this wet/dry vac will stand up to the rugged
demands of your job. Powerful 1250W motor delivers the suction necessary for all
your household projects.

Product Specifications:
•     Tank Capacity:                 20L
•     Input Rating:		                1250W
•     Sync Function (PTO):           No
•     Motor Type:		                  Single Stage
•     Max Airflow:		                 58L/s
•     Max Vacuum:		                  15kpa
•     Hose Length:		                 1.8m crush resistant
•     Hose Connection:               Quick Lock
•     Accessory Diameter:            35mm
•     Accessory Storage:             On board
•     Cord Length:		                 4m
•     Tank Type:		                   Stainless Steel
•     Tank Drain:		                  Plug
•     Convert to Blower:             Yes
•     Barrel Fasteners:              Plastic
•     Wheels/Castors:                Standard Duty Castors
•     Weight:		                      GW: 6.6kg
•
•
      Warranty:
      Barcode:
                                     2 Year Limited
                                     9314539901235
                                                                                              CONSUMABLES
                                                                                              Image   Item     Description
In the Box:
                                                                                                      509624   Standard Dust Bags - 5 pack
Hose, plastic poles, floor tool,
crevice tool, round brush,                                                                            509575   High Efficiency Dust Bags - 3 pack
filter bag, cloth filter, foam filter
                                                                                                      509583   Cloth Filter - 3 pack

                                                                                                      509587   Standard Foam Filter - 10 pack

                                                                                                      509585   Standard Cartridge Filter - Yellow

                                                                                                      509648   Micro Detail Cleaning Kit

Disclaimer: Every effort has been made to publish the correct details in this brochure.                        Vacmaster Product Brochure 2018 | 11
No responsibility will be taken for errors, omissions or changes in product specifications.
DIY VACUUM
WET/DRY VACUUM 30L WORKSHOP
VMVQ1530SWDC (509686)
Powerful, sleek and versatile. Featuring the muscle of a 1500W motor, it cleans
up after big jobs, leaks and even floods. The large rear wheels and swivel casters
improve manoeuverability and the on-board storage puts the accessories within
reach. Ready to convert into a blower in seconds, this vacuum changes functions
with the simple swap of a hose. Whether you’re cleaning up after a messy
renovation or blowing leaves off the driveway, this machine moves when
you need it.

Product Specifications:
•    Tank Capacity: 	 30L
•    Input Rating: 	 1500W
•    Sync Function (PTO): Yes (800W Max)
•    Motor Type: 	        Single Stage
•    Max Airflow: 	 60L/s
•    Max Vacuum: 	 17kpa
•    Hose Length: 	       2.5m crush resistant
•    Hose Connection: 	 Quick Lock
•    Accessory Diameter: 35mm
•    Accessory Storage: On board
•    Cord Length: 	 5m
•    Tank Type: 		        Stainless Steel
•    Tank Drain: 	        Plug
•    Convert to blower: Yes
•    Barrel Fasteners: 	Plastic
•    Wheels/Castors: 	 Standard Duty Castors and Wheels
•    Weight:              GW: 9.3kg
•    Warranty: 		         2 Year Limited
•    Barcode: 		          9314539901242
                                                                           CONSUMABLES
In the Box:                                                               Image                        Item       Description
Hose, Telescopic wand, Air control handle, Floor tool,
                                                                                                      509625      Standard Dust Bags - 5 pack
Crevice tool, Round brush, Filter bag, Cartridge filter,
Foam filter, Power tool adaptor, Power tool hose.                                                     509576      High Efficiency Dust Bags - 3 pack

                                                                                                      509587      Standard Foam Filter - 10 pack
                                                                                                      509574      Heavy Duty Foam Filter - 3 pack
                                                                                                      509585      Standard Cartridge Filter - Yellow
                                                                                                      509577      Fine Dust Cartridge Filter - Pink
                                                                                                      509622      Washable PET Cartridge Filter - White

                                                                                                      509648      Micro Detail Cleaning Kit

12 | Vacmaster Product Brochure 2018                                    Disclaimer: Every effort has been made to publish the correct details in this brochure.
                                                                     No responsibility will be taken for errors, omissions or changes in product specifications.
INDUSTRIAL VACUUM
WET/DRY VACUUM 15L COMPACT CONTRACTOR
VMVF1515HJ (509658)
This powerful floor vacuum has a strong 2-stage industrial motor making it quieter,
longer lasting and provide greater suction. It’s easy to use, lightweight and portable
with great features like automatic cord rewind, three stage filtration, onboard
accessory storage and a large dust-sealed on/off switch.

Product Specifications:
•     Tank Capacity:                 15L
•     Input Rating:		                1500W
•     Sync Function (PTO):           No
•     Motor Type:		                  Industrial 2 Stage Motor
•     Max Airflow:		                 60L/s
•     Max Vacuum:		                  18kpa
•     Hose Length:		                 1.8m crush resistant
•     Hose Connection:               Screw
•     Accessory Diameter:            35mm
•     Accessory Storage:             On board
•     Cord Length:		                 5.4m retractable
•     Tank Type:		                   Polypropylene / Impact Resistant Polymer
•     Tank Drain:		                  Pour
•     Convert to Blower:             No
•     Barrel Fasteners:              Plastic
•     Wheels/Castors:                Heavy Duty Castors and Wheels
•     Weight:		                      GW: 9.2kg
•
•
      Warranty:
      Barcode:
                                     2 Year Limited
                                     6939349500985
                                                                                              CONSUMABLES
                                                                                              Image   Item     Description
In the Box:                                                                                           509578   Standard Dust Bags - 3 pack
Hose, plastic poles, air control
handle, dual mode floor tool,                                                                         509579   High Efficiency Dust Bags - 3 pack
car upholstery tool, round                                            TWO-STAGE
brush, filter bag, PET cartridge                                      MOTOR                           509573   Heavy Duty Foam Filter - 3 pack
filter foam filter, HEPA filter

                                                                                                      509571   Washable PET Cartridge Filter - White

                                                                                                      509581   Hepa Filter

                                                                                                      509648   Micro Detail Cleaning Kit

Disclaimer: Every effort has been made to publish the correct details in this brochure.                        Vacmaster Product Brochure 2018 | 13
No responsibility will be taken for errors, omissions or changes in product specifications.
INDUSTRIAL VACUUM
WET/DRY VACUUM 20L INDUSTRIAL
VMVK1520SIW (509675)
Ultra-lightweight, powerful and portable. The stainless steel tank offers a more
professional look to the machine and will stand up to the rugged demands of your job.
Powerful 1500W two stage motor delivers the suction necessary for all your projects.

Product Specifications:
•   Tank Capacity:           20L
•   Input Rating:		          1500W
•   Sync Function (PTO):     Yes (800W Max)
•   Motor Type:		            Industrial 2 Stage Motor
•   Max Airflow:		           60L/s
•   Max Vacuum:		            18kpa
•   Hose Length:		           3.5m crush resistant
•   Hose Connection:         Screw
•   Accessory Diameter:      35mm
•   Accessory Storage:       On board
•   Cord Length:		           5m
•   Tank Type:		             Stainless Steel
•   Tank Drain:		            Pour
•   Convert to Blower:       No
•   Barrel Fasteners:        Steel
•   Wheels/Castors:          Heavy Duty Castors and Wheels
•   Weight:		                GW: 12.4kg
•   Warranty:		              2 Year Limited
•   Barcode:		               6939349501142
                                                                        CONSUMABLES
                                                                        Image                       Item       Description
In the Box:
Hose, steel poles, air control                                                                     509624      Standard Dust Bags - 5 pack
handle, floor brush/squeegee,                                                                      509575      High Efficiency Dust Bags - 3 pack
car upholstery tool, round brush,
filter bag, PET cartridge filter                                                                   509587      Foam Filter - 10 pack
foam filter, HEPA filter, power                        TWO-STAGE                                   509574      Heavy Duty Foam Filter - 3 pack
tool adaptor                                           MOTOR
                                                                                                   509585      Standard Cartridge Filter - Yellow
                                                                                                   509577      Fine Dust Cartridge Filter - Pink
                                                                                                   509622      Washable PET Cartridge Filter - White

                                                                                                   509572      Hepa Filter

                                                                                                   509648      Micro Detail Cleaning Kit

14 | Vacmaster Product Brochure 2018                                 Disclaimer: Every effort has been made to publish the correct details in this brochure.
                                                                  No responsibility will be taken for errors, omissions or changes in product specifications.
INDUSTRIAL VACUUM
WET/DRY VACUUM 30L INDUSTRIAL
VMVK1530SIWDC (509676)
Ultra-lightweight, powerful and portable. The stainless steel tank offers a more
professional look and will stand up to the rugged demands of your job. Powerful
1500W two stage motor delivers the suction necessary for all your projects.

Product Specifications:
•     Tank Capacity:                 30L
•     Input Rating:		                1500W
•     Sync Function (PTO):           Yes (800W Max)
•     Motor Type:		                  Industrial 2 Stage Motor
•     Max Airflow:		                 60L/s
•     Max Vacuum:		                  18kpa
•     Hose Length:		                 3.5m crush resistant
•     Hose Connection:               Screw
•     Accessory Diameter:            35mm
•     Accessory Storage:             On board
•     Cord Length:		                 7.5m
•     Tank Type:		                   Stainless Steel
•     Tank Drain:		                  Plug
•     Convert to Blower:             No
•     Barrel Fasteners:              Steel
•     Wheels/Castors:                Heavy Duty Castors and Wheels
•     Weight:		                      GW: 14kg
•     Warranty:		                    2 Year Limited
•     Barcode:		                     6939349510786
                                                                                              CONSUMABLES
                                                                                              Image   Item     Description
In the Box:
Hose, steel poles, air control                                                                        509625   Standard Dust Bags - 5 pack
handle, floor brush/squeegee,
                                                                                                      509576   High Efficiency Dust Bags - 3 pack
crevice tool round brush, filter bag,
PET cartridge filter foam filter,                                                                     509587   Foam Filter - 10 pack
HEPA filter, power tool adaptor                                        TWO-STAGE                      509574   Heavy Duty Foam Filter - 3 pack
                                                                       MOTOR
                                                                                                      509585   Standard Cartridge Filter - Yellow
                                                                                                      509577   Fine Dust Cartridge Filter - Pink
                                                                                                      509622   Washable PET Cartridge Filter - White

                                                                                                      509572   Hepa Filter

                                                                                                      509648   Micro Detail Cleaning Kit

Disclaimer: Every effort has been made to publish the correct details in this brochure.                        Vacmaster Product Brochure 2018 | 15
No responsibility will be taken for errors, omissions or changes in product specifications.
INDUSTRIAL VACUUM
WET/DRY VACUUM 50L INDUSTRIAL
VMVK1650SWDC (509678)
The Vacmaster 50 litre wet/dry vac will make short work of any job. Sludge, debris,
standing water, wood scraps, nothing’s too tough for this powerful vac. The 1600W
industrial 2 stage motor has a ball bearing construction for longer life. Its extra large
drain, push/pull handle, accessory storage and wide stance design make it easy to
use and manoeuver anywhere. This big, tough feature-packed Vacmaster is a must
have for any tough project.

Product Specifications:
•    Tank Capacity:             50L
•    Input Rating:		            1600W
•    Sync Function (PTO):       Yes (600W Max)
•    Motor Type:		              Industrial 2 Stage Motor
•    Max Airflow:		             65L/s
•    Max Vacuum:		              22kpa
•    Hose Length:		             3.5m crush resistant
•    Hose Connection:           Screw
•    Accessory Diameter:        38mm
•    Accessory Storage:         On board
•    Cord Length:		             7.5m
•    Tank Type:		               Stainless Steel
•    Tank Drain:		              Plug
•    Convert to Blower:         No
•    Barrel Fasteners:          Steel
•    Wheels/Castors:            Heavy Duty Castors and Wheels
•    Weight:		                  GW: 19.5kg
•    Warranty:
•    Barcode:
                                2 Year Limited
                                6939349510359
                                                                                CONSUMABLES
                                                                                Image                       Item       Description
In the Box:                                                                                                509626      Standard Dust Bags - 1 pack
Hose, push/pull handle, steel poles floor brush/squeegee, crevice
tool, round brush, filter bag, cloth filter, PET cartridge filter, foam                                    509659      High Efficiency Dust Bags - 3 pack
filter, power tool adaptor
                                                                                                           509627      Pre filter

                                                                                                           509587      Foam Filter - 10 pack
                                                                                                           509574      Heavy Duty Foam Filter - 3 pack
                                                                                                           509585      Standard Cartridge Filter - Yellow
                                                             TWO-STAGE                                     509577      Fine Dust Cartridge Filter - Pink
                                                             MOTOR
                                                                                                           509622      Washable PET Cartridge Filter - White

16 | Vacmaster Product Brochure 2018                                         Disclaimer: Every effort has been made to publish the correct details in this brochure.
                                                                          No responsibility will be taken for errors, omissions or changes in product specifications.
INDUSTRIAL VACUUM
WET/DRY VACUUM 60L INDUSTRIAL
VMVK1660SWDC (509680)
The Vacmaster 60 litre wet/dry vac will make short work of any job. Sludge, debris,
standing water, wood scraps, nothing’s too tough for this powerful vac. The 1600W
industrial 2 stage motor has a ball bearing construction for longer life. Its extra large
drain port with directional hose, push/pull handle, accessory storage and wide stance
design make it easy to use and manoeuver anywhere. This big, tough feature-packed
Vacmaster is a must have for any tough project.

Product Specifications:
•     Tank Capacity:                 60L                                          TWO-STAGE
•     Input Rating:		                1600W                                        MOTOR
•     Sync Function (PTO):           Yes (700W Max)
•     Motor Type:		                  Industrial 2 Stage Motor
•     Max Airflow:		                 65L/s
•     Max Vacuum:		                  22kpa
•     Hose Length:		                 3.5m crush resistant
•     Hose Connection:               Screw
•     Accessory Diameter:            38mm
•     Accessory Storage:             On board and accessory pouch
•     Cord Length:		                 7.5m
•     Tank Type:		                   Stainless Steel
•     Tank Drain:		                  Plug with directional drain hose
•     Convert to Blower:             No
•     Barrel Fasteners:              Steel
•     Wheels/Castors:                Heavy Duty Castors and Wheels
•     Weight:		                      GW: 22kg
•     Warranty:		                    2 Year Limited
•     Barcode:		                     6939349510366
                                                                                              CONSUMABLES
                                                                                              Image   Item     Description
In the Box:                                                                                           509626   Standard Dust Bags - 1 pack
Hose, push/pull handle, steel poles, dual mode floor tool, floor
brush/squeegee, crevice tool, round brush, drain hose, accessory                                      509659   High Efficiency Dust Bags - 3 pack
pouch, filter bag, cloth filter, PET cartridge filter, foam filter,
power tool adaptor
                                                                                                      509627   Pre filter

                                                                                                      509587   Foam Filter - 10 pack
                                                                                                      509574   Heavy Duty Foam Filter - 3 pack
                                                                                                      509585   Standard Cartridge Filter - Yellow
                                                                                                      509577   Fine Dust Cartridge Filter - Pink
                                                                                                      509622   Washable PET Cartridge Filter - White

Disclaimer: Every effort has been made to publish the correct details in this brochure.                        Vacmaster Product Brochure 2018 | 17
No responsibility will be taken for errors, omissions or changes in product specifications.
PRO - INDUSTRIAL VACUUM
WET/DRY VACUUM WITH 38 LT HEPA FILTER
VMVK1638SWC (805109)
The new Vacmaster Industrial 38 litre Wet/Dry Vac with a certified HEPA system and an ultra quiet 2-stage industrial
motor. It features 4 levels of filtration including a HEPA cartridge filter, microfibre pre-filter, high-efficiency fine dust
filter bag with closure flap, and an exhaust filter--all for HEPA compliance. To qualify as a HEPA system, a unit must
capture and retain 99.97% of all contaminants down to 0.3 micron in particle size. Independent testing on this vac
showed an efficiency of 99.996% in the 0.3 micron particle size range, meeting and exceeding the HEPA efficiency
requirements. This commercial vac also features stainless steel tank, reinforced crush resistant industrial hose,
and foam filter sleeve for picking-up liquid materials.

Product Specifications:                                                      HEPA 13 cartridge filter - with protective grill, HEPA 13
• Tank Capacity:        38L                                                  post-motor filter, washable pre-filter and Hygiene Seal
• Input Rating:         1300W                                              Dust Bag. Capturing at least 99.97% of microscopic dust and
                                                                                     allergen particles, down to 0.3 microns.
• Sync Function (PTO): Yes (1000W Max)
• Motor Type:           Industrial 2 Stage Motor
• Max Airflow:          65L/s
• Max Vacuum:           24kpa                                              CONSUMABLES
• Hose Length:          3m reinforced crush resistant                     Image                        Item       Description
• Hose Connection: Screw
                                                                                                                  High Efficiency Dust Bag with Hygiene
• Accessory Diameter: 38mm                                                                            805376
                                                                                                                  Seal Closure
• Accessory Storage: On board and accessory pouch
• Cord Length:          9m                                                                            805377      Heavy Duty Foam Filter
• Tank Type:		          Stainless Steel
• Tank Drain:		         Plug                                                                          805374      Hepa Filter Cartrigde
• Convert to Blower: No
• Barrel Fasteners: Steel                                                                             805375      Microfibre Filter
• Wheels/Castors:       Heavy Duty Castors and Wheels
• Weight:		             GW: 11.8kg                                                                    509572      Hepa 13 Filter
• Warranty:		           2 Year Limited
• Barcode:		            6939349510366

In the Box:
Hose, push/pull handle, steel poles, floor squeegee/crevice tool, round brush, accessory
pouch, high-efficiency fine dust filter bag, microfibre pre filter, HEPA cartridge filter,
HEPA exhaust filter, foam filter, power tool adaptor

18 | Vacmaster Product Brochure 2018                                    Disclaimer: Every effort has been made to publish the correct details in this brochure.
                                                                     No responsibility will be taken for errors, omissions or changes in product specifications.
38
                                                                                                                  Litre

                                                                                                                             TWO-STAGE
                                                                                                                             MOTOR

        POWER TAKE OFF - SYNC FUNCTION                                                        4 LEVEL FILTRATION

Disclaimer: Every effort has been made to publish the correct details in this brochure.               Vacmaster Product Brochure 2018 | 19
No responsibility will be taken for errors, omissions or changes in product specifications.
Available from your Vacmaster distributor:

                                                                                                                        P_AUS/NZ_T_VACMASTER_BR_2018

WHITE INTERNATIONAL PTY LTD
60 Ashford Ave Milperra NSW 2214
PO Box 304 Milperra NSW 2214
Phone 02 9783 6000 Fax 02 9783 6001
Customer Service 1300 780 876
Email Sales: sales@whiteint.com.au
www.whiteint.com.au

Please always refer to our website for further
technical information & new product innovations
                                                                                              Scan QR Code on your
Disclaimer: Every effort has been made to publish the correct details in this brochure.
No responsibility will be taken for errors, omissions or changes in product specifications.
                                                                                              smart phone or iPad to
Product images are representations only.                                                      save a digital version.
You can also read
Next slide ... Cancel
